USER MANUAL Armada-Over-Twin Bunk Bed with X Rocker

ARMADA DUAL BUNK BED WITH BUILT-IN DESK

Isometric line drawing of a two-tiered modular bunk bed structure with ladder and seat (no text or symbols)

NEED SUPPORT?

QR code image containing encoded data, no visible human-readable text

xrockergaming.com/pages/support

Diagram of a handheld electric drill with two positive and negative terminals, crossed by diagonal lines (no text or symbols)

SIZE: 95.6 × 41.5 × 64.2

PLEASE READ this sheet prior to assembly to familiarize yourself with the various stages of construction.

Carefully open the pack supplied and check the contents against the parts and ttings check list. Do not destroy any of the packaging until you are certain that you have all the necessary parts for the assembly.

CAUTION: There are small components used in the construction of this unit. These items should be kept away from young children whilst assembling your unit to avoid danger of choking.

TOOLS REQUIRED

2 PEOPLE

1.5 HOUR SET UP

Read Before Beginning Assembly

• Call 866-969-2603 if you need assistance.
• Work in a spacious area and near where the unit will be used, preferably on a carpet, or use a piece of the cardboard packaging to protect your floor and product.
• Recommended # of people needed for assembly: 2 (however it is always better to have an extra hand).

hours.1.5• Estimated assembly time is

• Make sure all parts are included. Most parts are labeled or stamped on the raw edge.
• Read each step carefully. It is very important that each step of the instructions is performed in the correct order. If these steps are not followed in sequence, assembly difficulties will occur.

Caution

• This product is designed for home use and not intended for commercial use.
• This product contains small components. Please ensure that they are kept away from small children.
• Clean the product with a soft damp cloth. DO NOT use harsh chemicals or abrasive cleaners.
• Periodically check and ensure that the guardrail, ladder, and other components are in their proper position, free from damage, and that all connectors are tight.

Handy Hints

• Move your new furniture carefully, with two people lifting and carrying the unit to its new location.
• Your furniture can be disassembled and reassembled to move.
• Assemble all parts and bolts loosely during assembly, only once the product is complete should you fully tighten the bolts
• Regularly check and ensure that all bolts and fittings are tightened properly.

WARNINGS

• Follow the information on the warnings appearing on the upper bunk end structure and on the carton. Do not remove warning label from bed.
• Always use the recommended size mattresses or mattress supports, or both, to help prevent the likelihood of entrapment or falls.
• Use only a mattress which is 74" - 75" long and 37 12 " - 38 12 " wide on upper bunk.
• Ensure thickness of mattress on upper bunk is greater than 4" and that it does not exceed 6".
• Surface of mattress must be at least 5" (127 mm) below the upper edge of guardrails.
• Do not allow children under 6 years of age to use the upper bunk.
• Do not allow horseplay on or under the bed and prohibit jumping on the bed.
• Prohibit more than one person on upper bunk.
• Always use the ladder for entering and leaving the upper bunk.
• Do not use substitute parts. Contact the manufacturer or dealer for replacement parts.
• Use of a night light may provide added safety precaution for a child using the upper bunk.
• Always use guardrails on both long sides of the upper bunk. If the bunk bed will be placed next to the wall, the guardrail that runs the full length of the bed should be placed, against the wall to prevent entrapment between the bed and wall.
• The use of water or sleep flotation mattresses is prohibited.
• STRANGULATION HAZARD-Never attach or hang items to any part of the bunk bed that are not designed for use with the bed; for example, but not limited to, hooks, belts and jump ropes.
• Keep these instructions for future reference.

Technical diagram of a modular solar panel assembly with numbered components and structural details

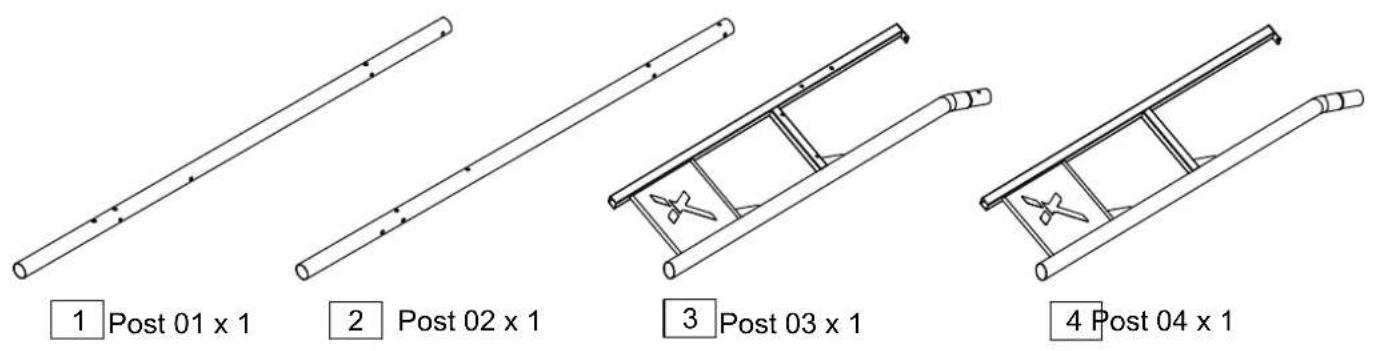

Panels

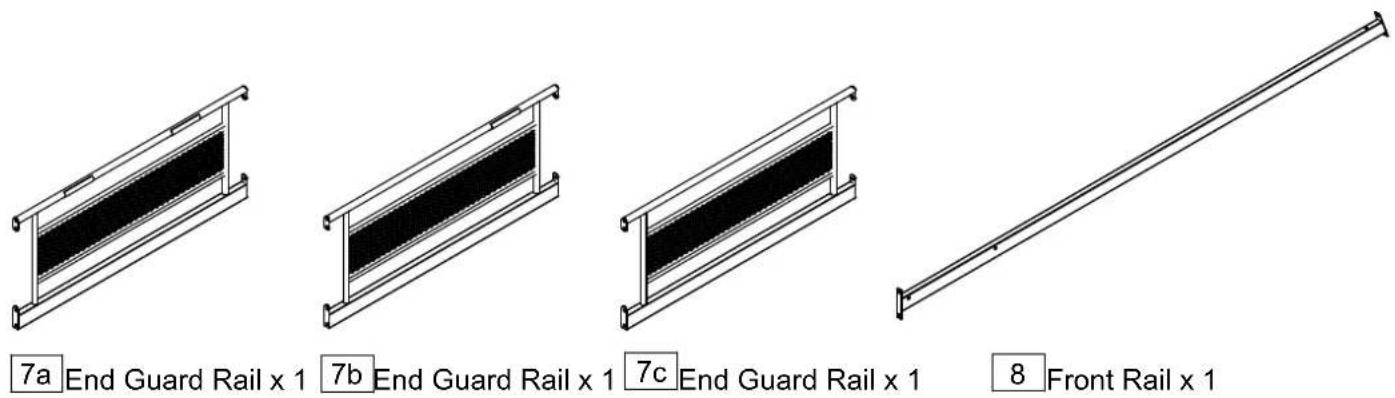

7a End Guard Rail x 1 7b End Guard Rail x 1 7c End Guard Rail x 1 8 Front Rail x 1

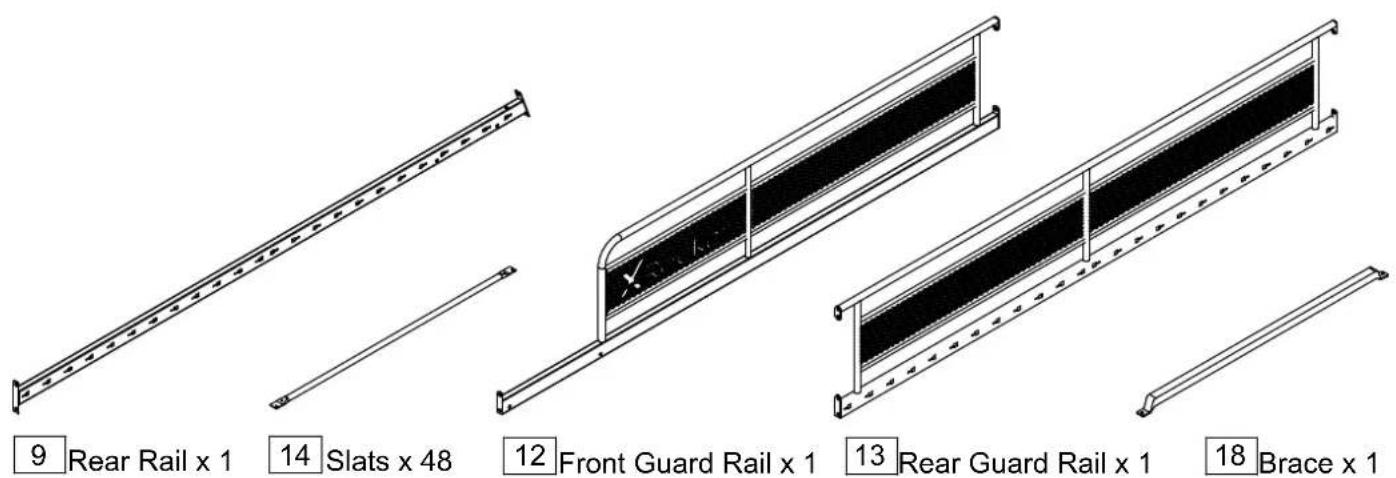

9 Rear Rail x 1 14 Slats x 48 12 Front Guard Rail x 1 13 Rear Guard Rail x 1 18 Brace x 1

Panels

22 Ladder x 1 45 Post 05 x 2

Diagram of a black-and-white structural panel with labeled section '47 Dam-board x 1' (no other text or symbols)

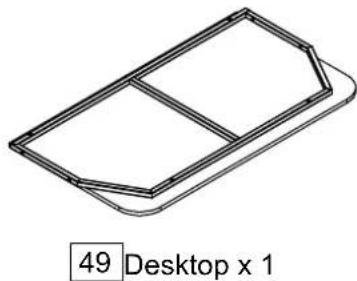

Isometric line drawing of a rectangular frame with two internal divisions, labeled '49 Desktop x 1' below (no other text or symbols)

30 Wall Bracket x 2

Simple 3D illustration of a rectangular grid pattern with no text or symbols

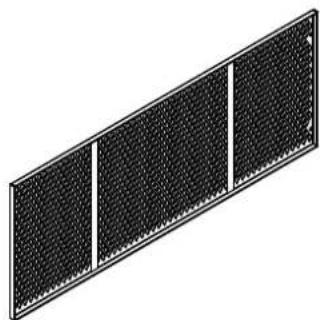

Diagram of a rectangular panel with three vertical panels, each containing a mesh pattern (no text or symbols)

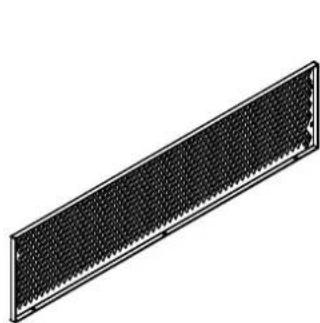

59a Left Mesh Panel x 1 P50b Mesh Panel x 1

59c Rear Mesh Panel x 1 59d Bottom Mesh Panel x 1

15 Plastic Plug x 96 16 Slat Spacer x 46 Retainer x 2

64 Cable Fixing Ribbon x 5 43 Bracket x 2

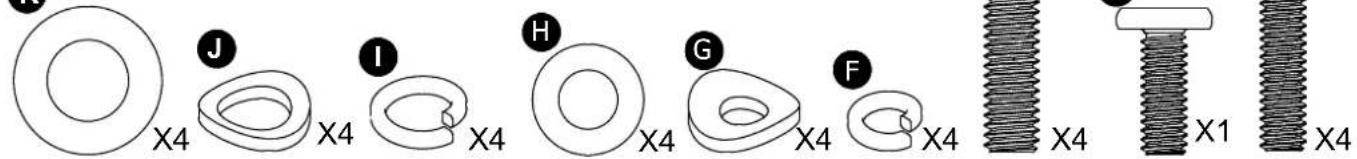

Fittings (T00012300B00)

A33mm M6 Bolt x 4	GM6 Metal Washer x 6
B24mm M6 Bolt x 10	HM6 Plastic Washer x 6
C17mm M6 Bolt x 39	IM8 Spring Washer x 9
D22mm M8 Bolt x 9	JM8 Metal Washer x 9
E15mm M5 Bolt X 4	KM8 Plastic Washer x 9
FM6 Spring Washer x 6	Lx 1

1

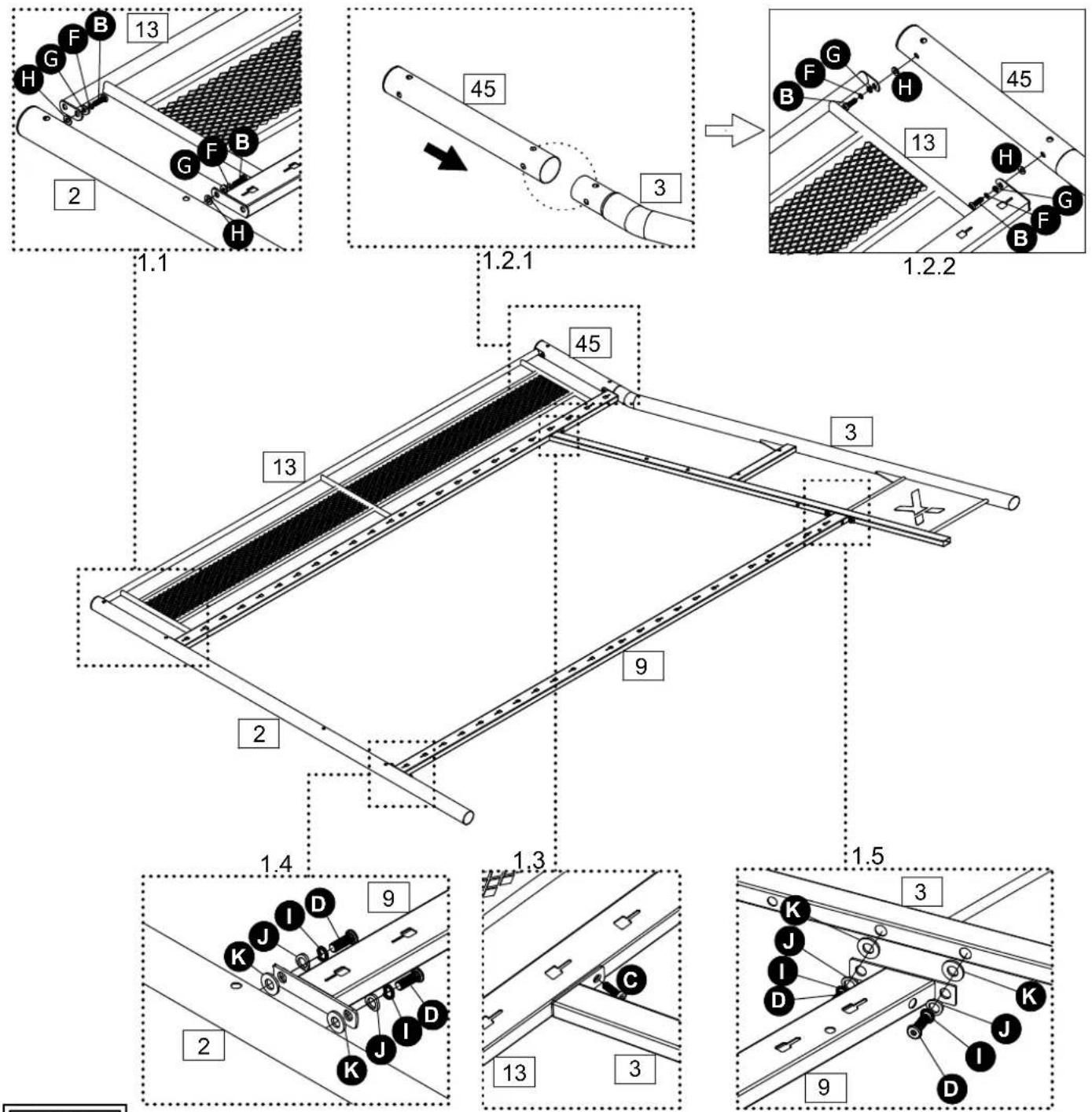

13 G F B H 2 45 3 1.1 1.2.1 45 B F G H 13 H G F B 1.2.2 13 9 3 2 1.4 9 1.3 1.5 2 K I D J I D C 13 3 K J K I D J I D 9

75% 4mm

K

X4 J I H G F X4 X4 X4 X1 X4

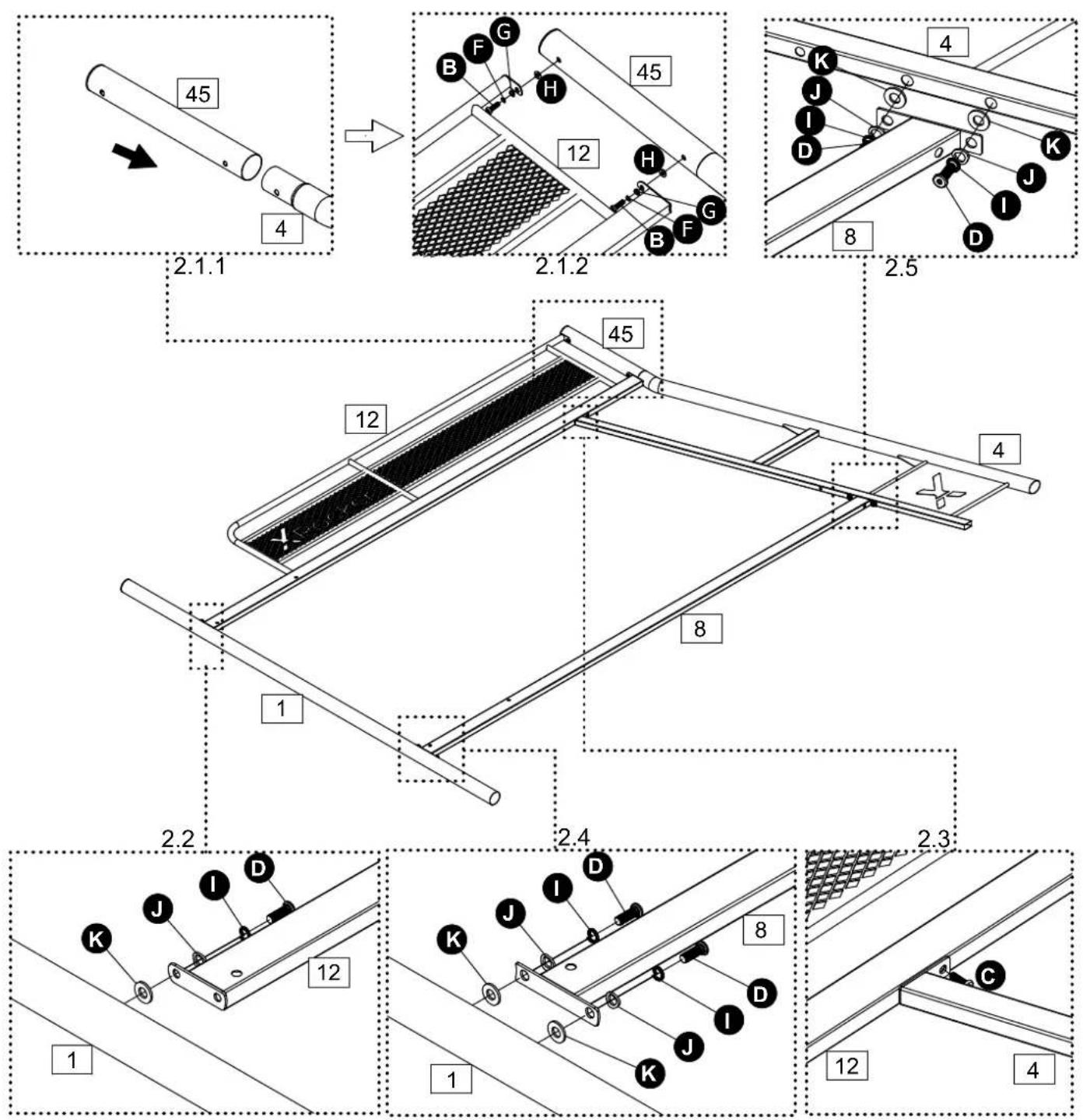

2

45 2.1.1 4 B F G H 45 12 H B F G B 4 J I D K J I D I 8 2.5 45 12 8 4 1 2.2 2.4 2.3 K J I D 12 K J I D 8 12 4

75% 4mm

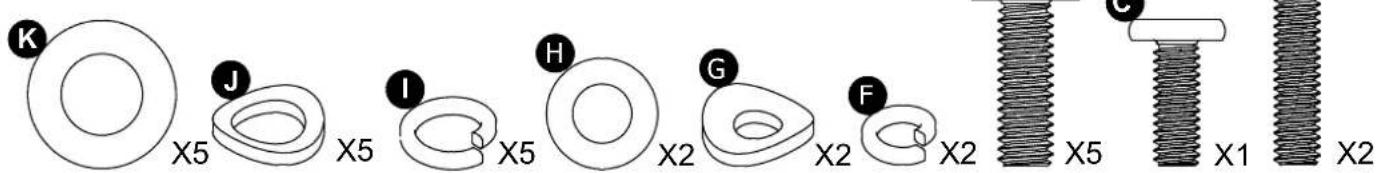

K J I H G F X5 X5 X5 X2 X2 X2 X5 X1 X2

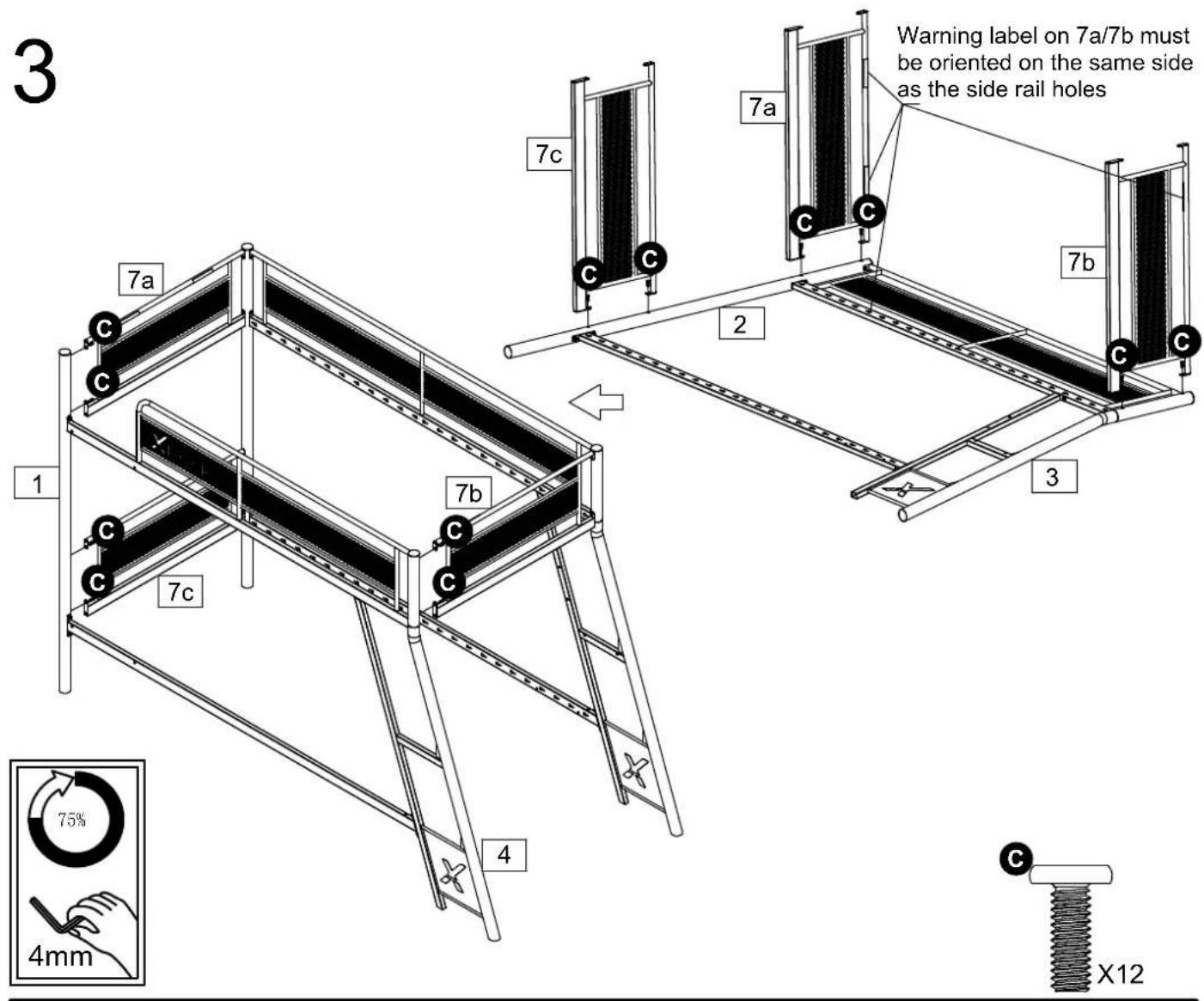

3 7a 7b 7c 7a/7b must be oriented on the same side as the side rail holes 1 2 3 4 7c 7b 7c Warning label on 7a/7b must be oriented on the same side as the side rail holes 75% 4mm X12

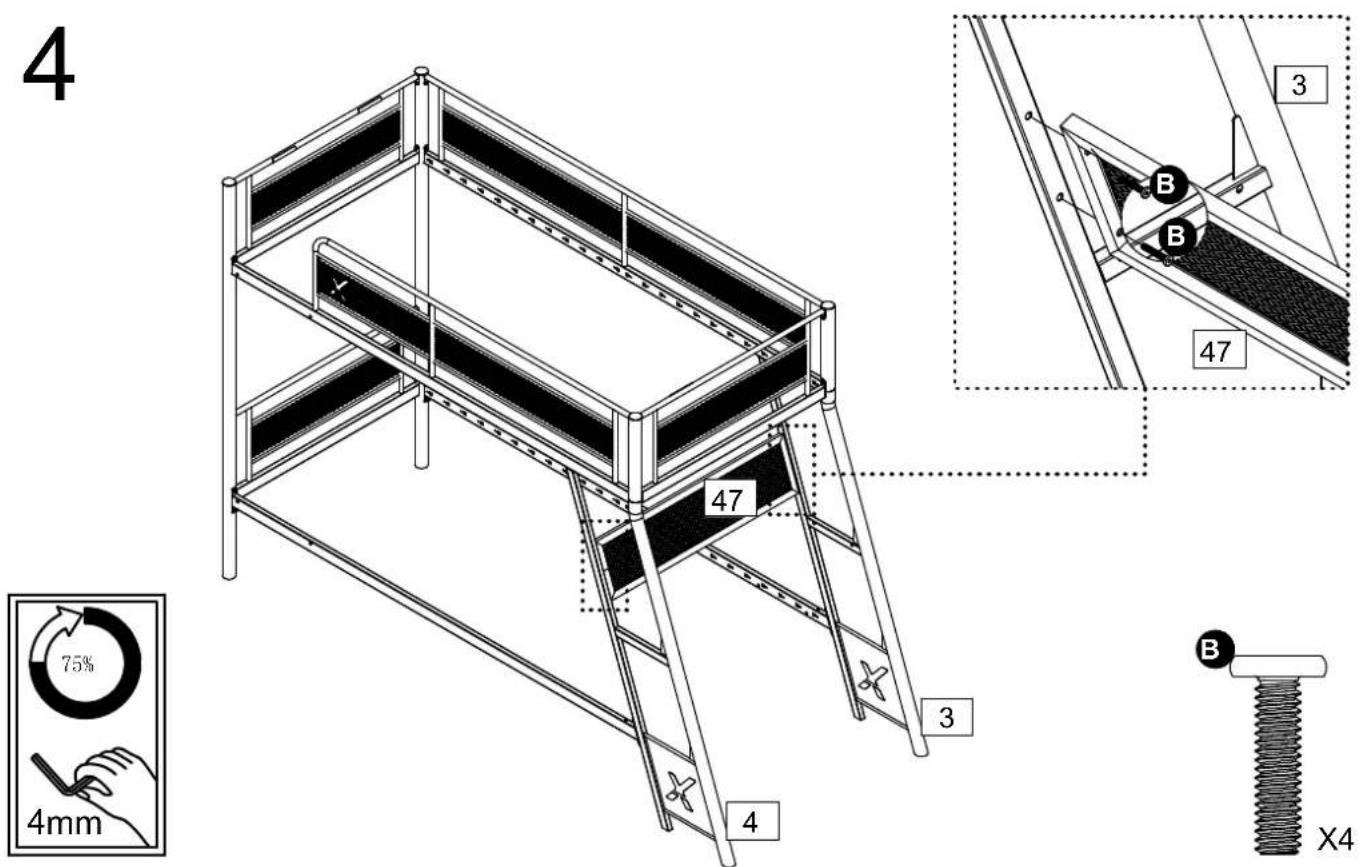

4 75% 4mm 47 3 B B 47 X4

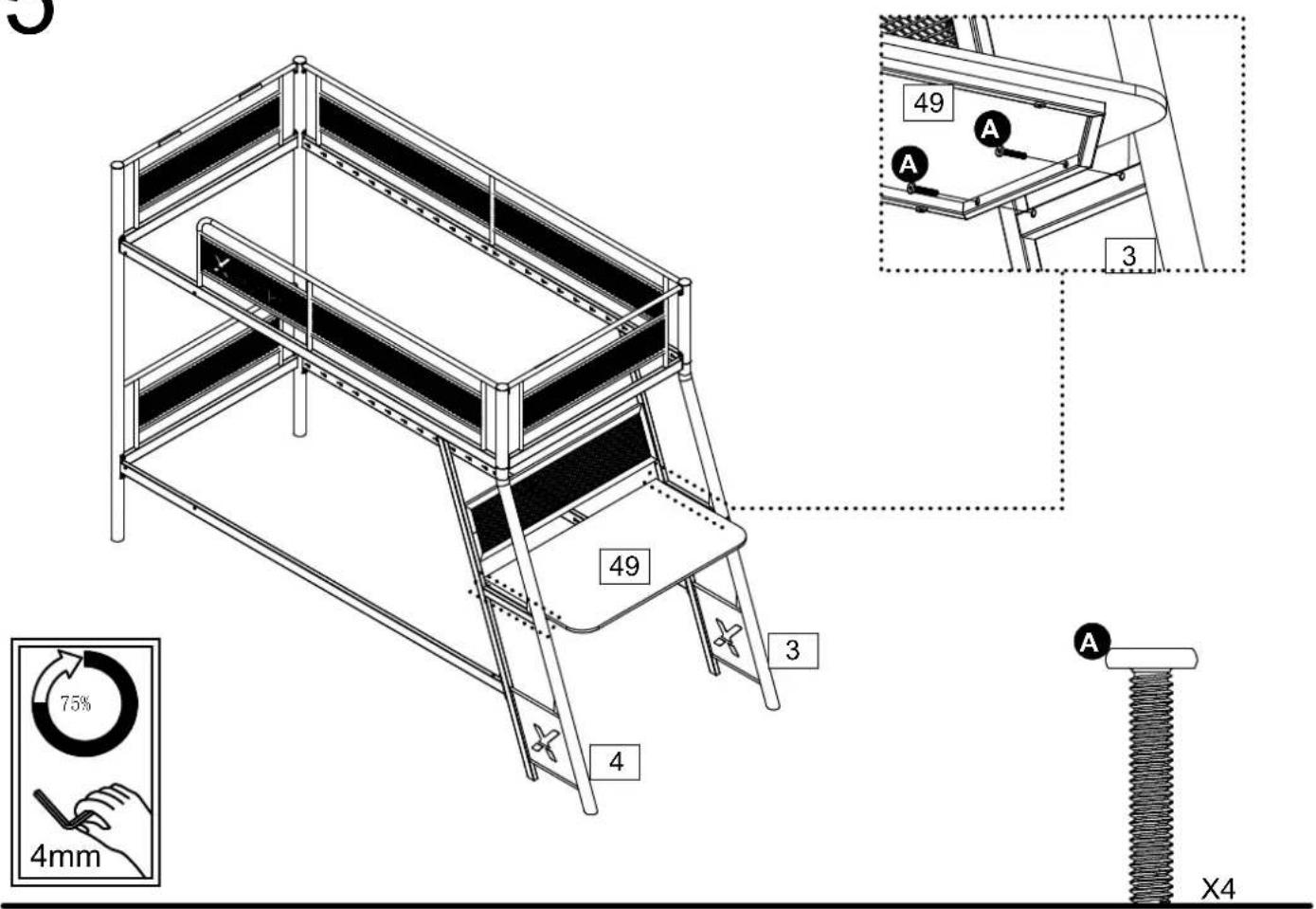

5

3 49 A A 3 49 4mm 75% X4

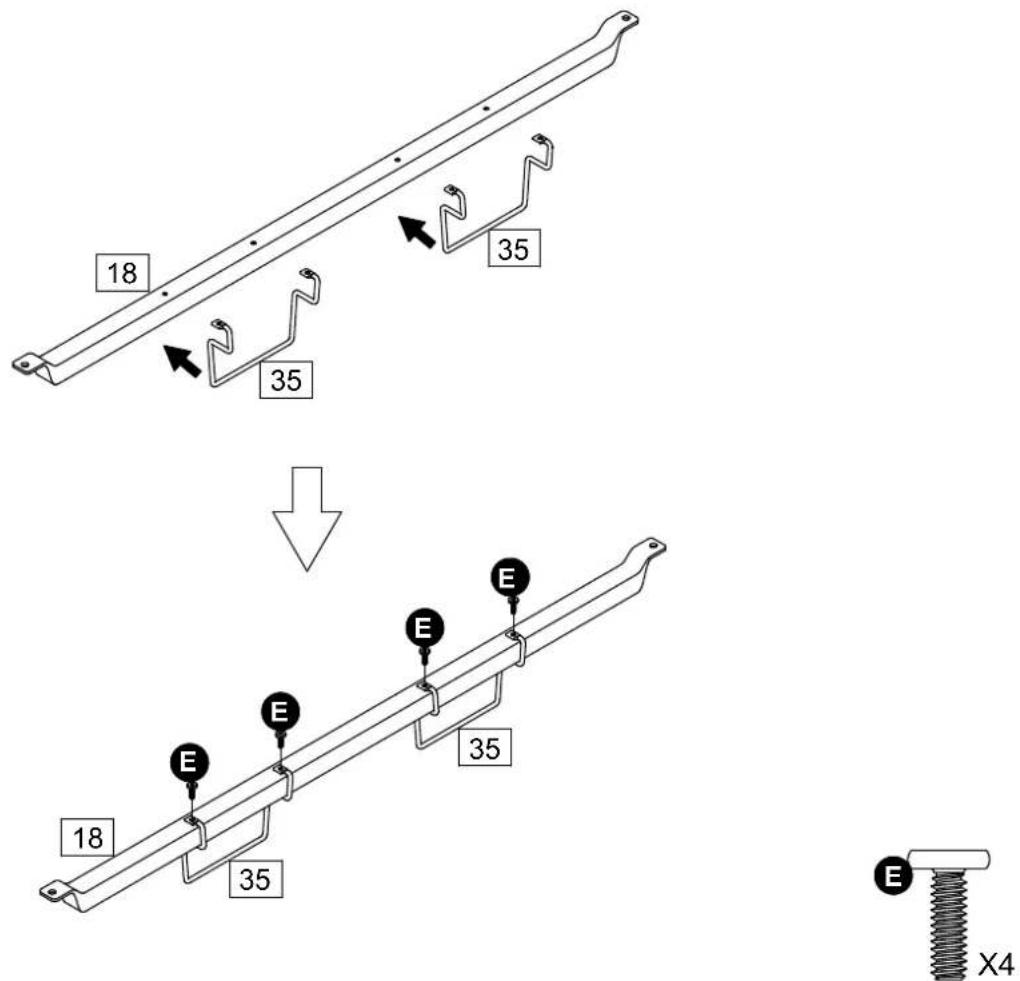

6

18 35 35 ↓ E E E E E 18 35 35 X4

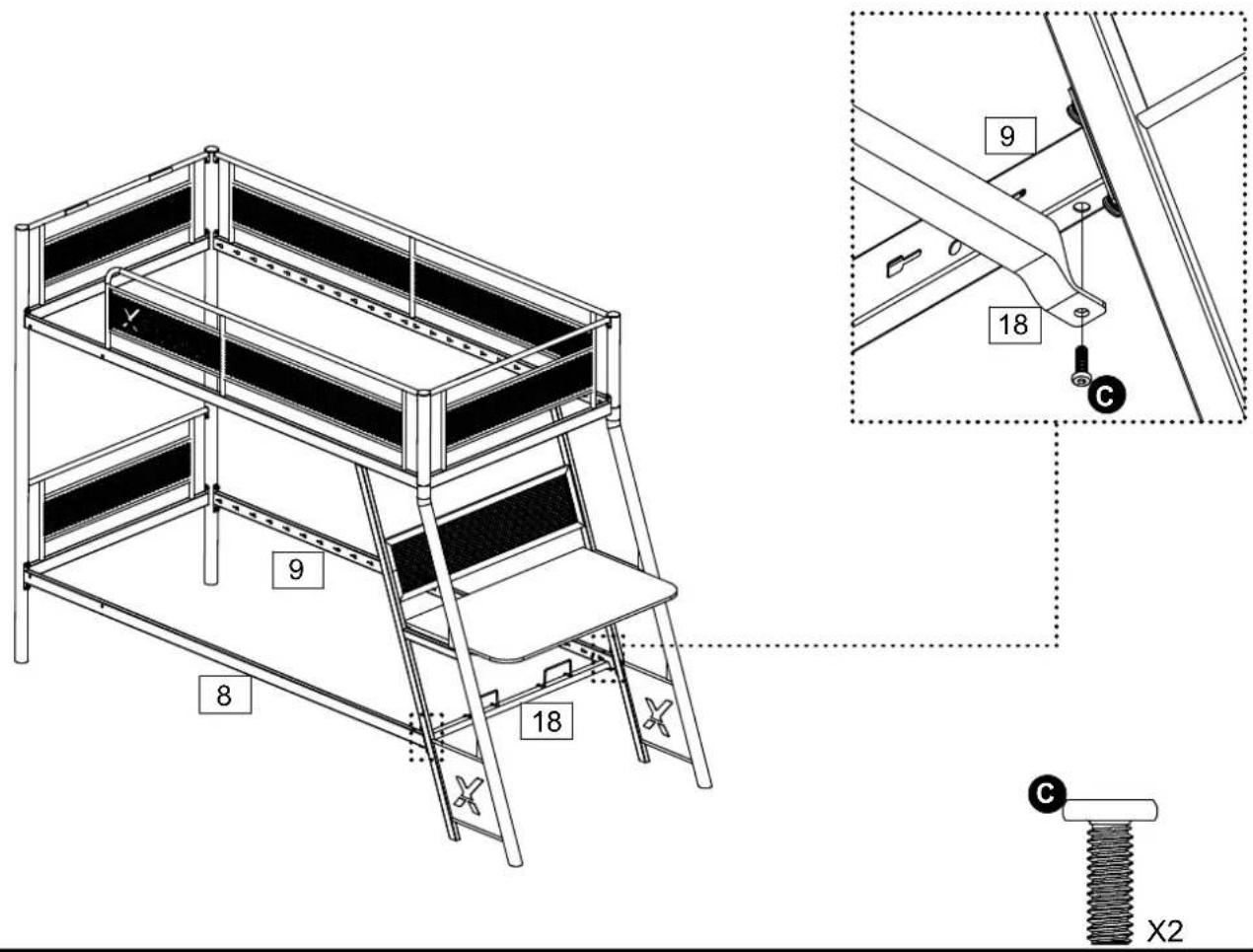

7

9 18 C X2 8 9 18

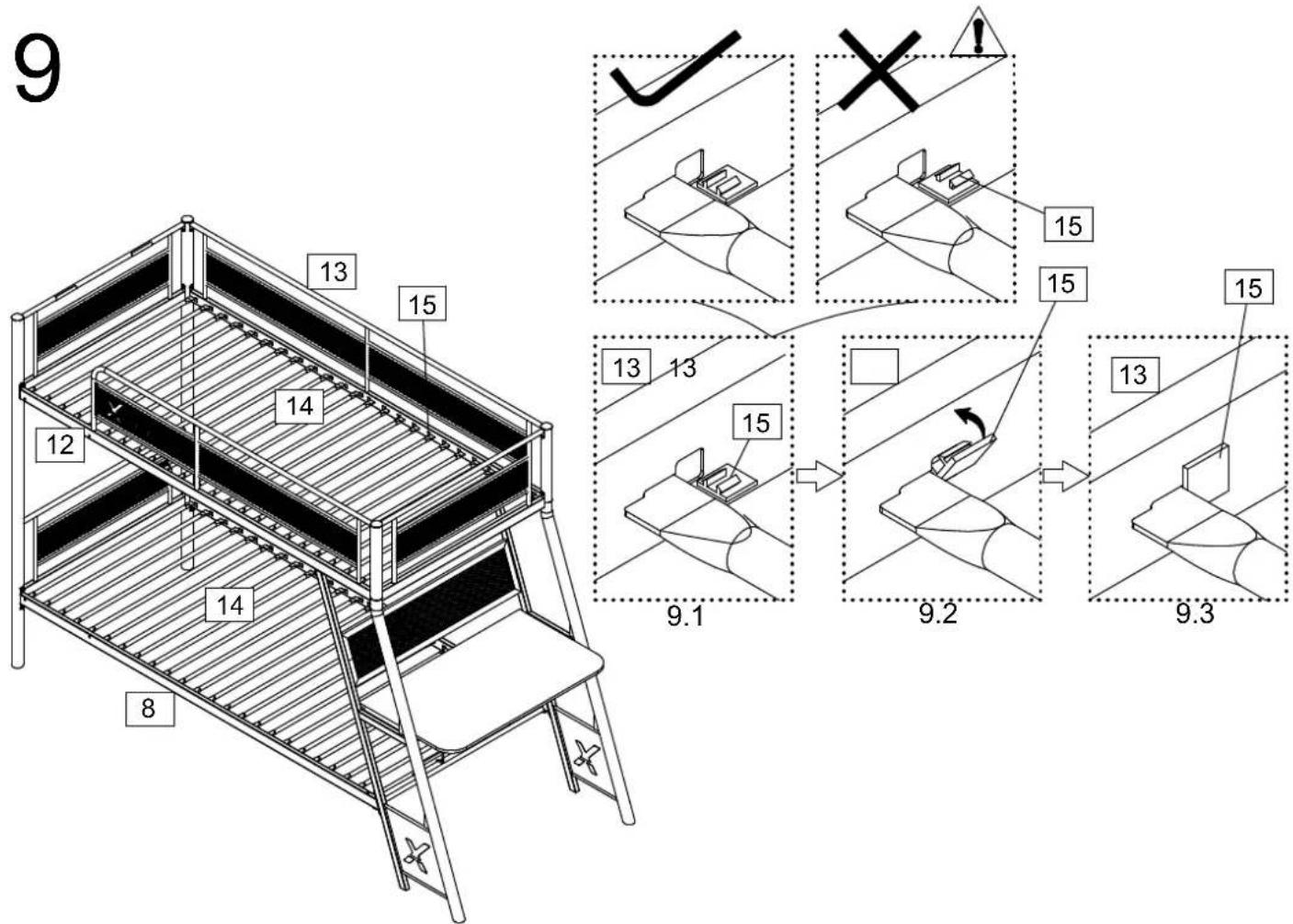

8

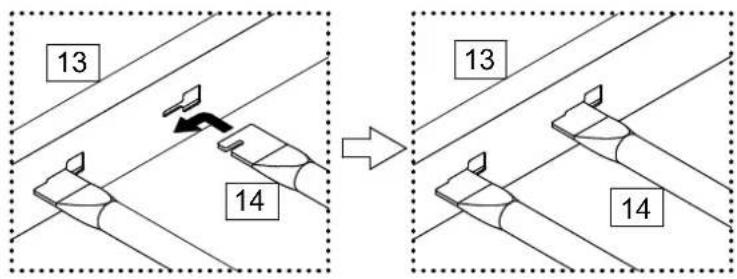

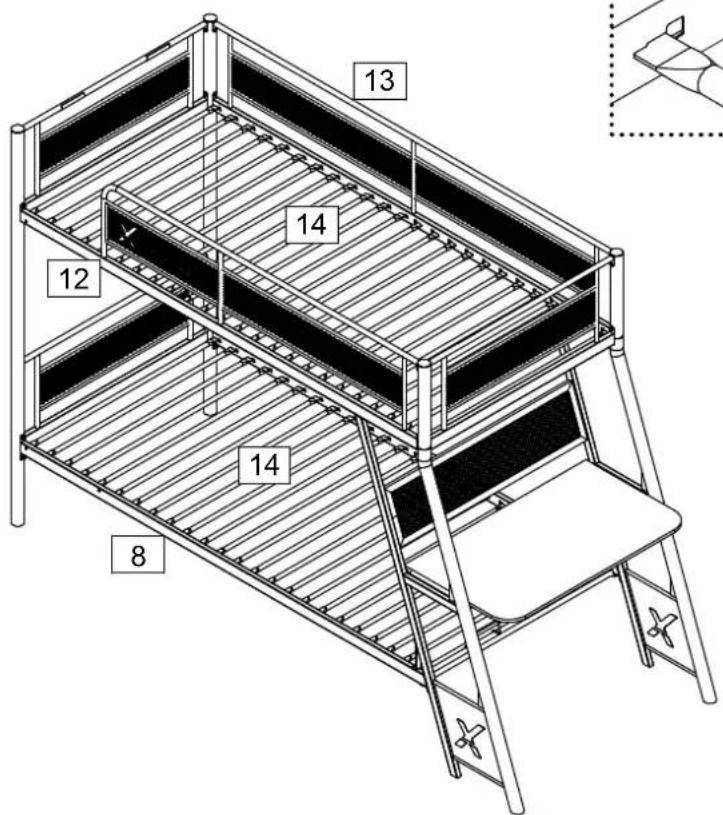

13 14 12 14 8

9 13 15 12 14 13 13 15 13 15 9.1 9.2 13 9.3 8

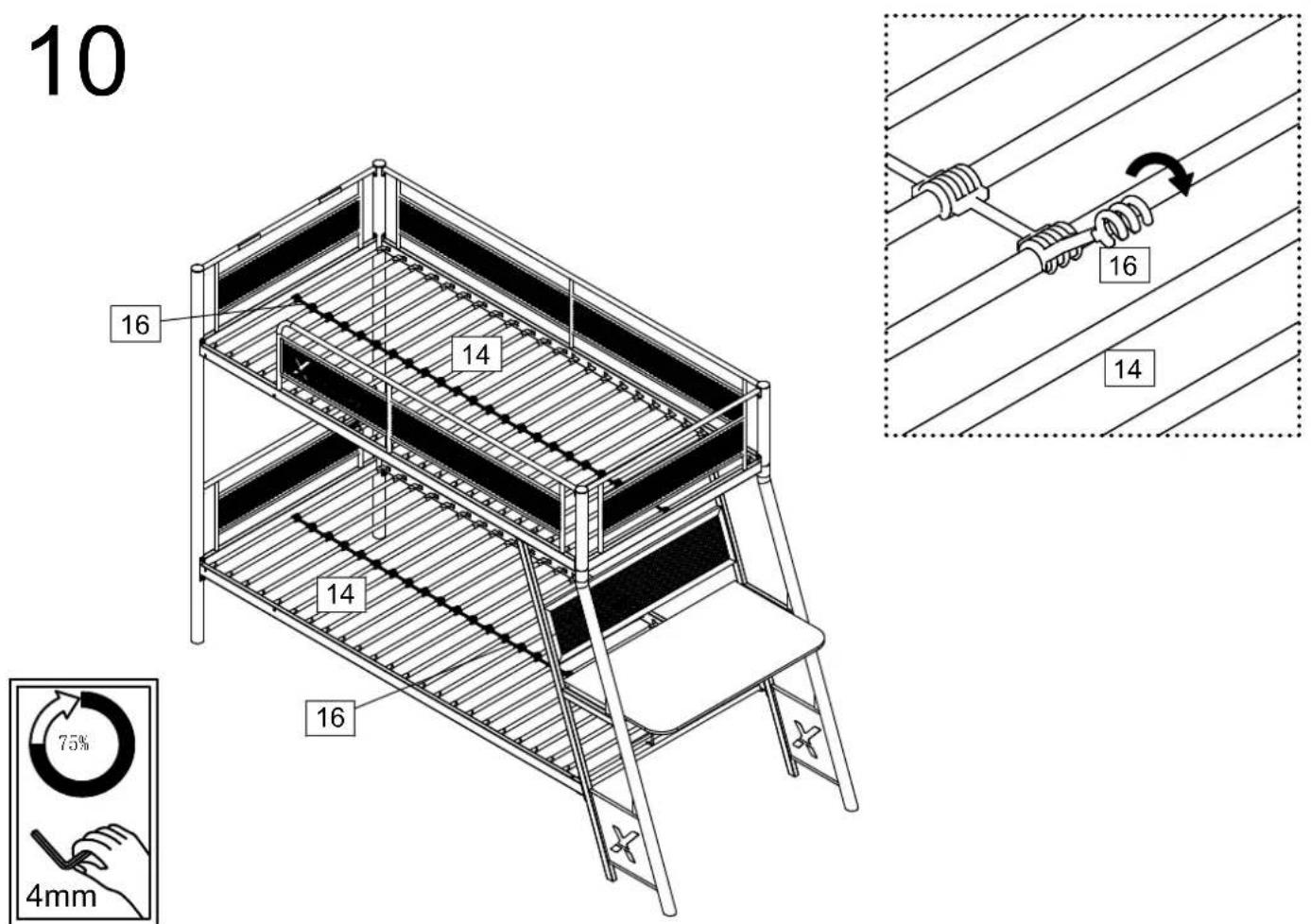

10 16 14 14 16 14 16 75% 4mm

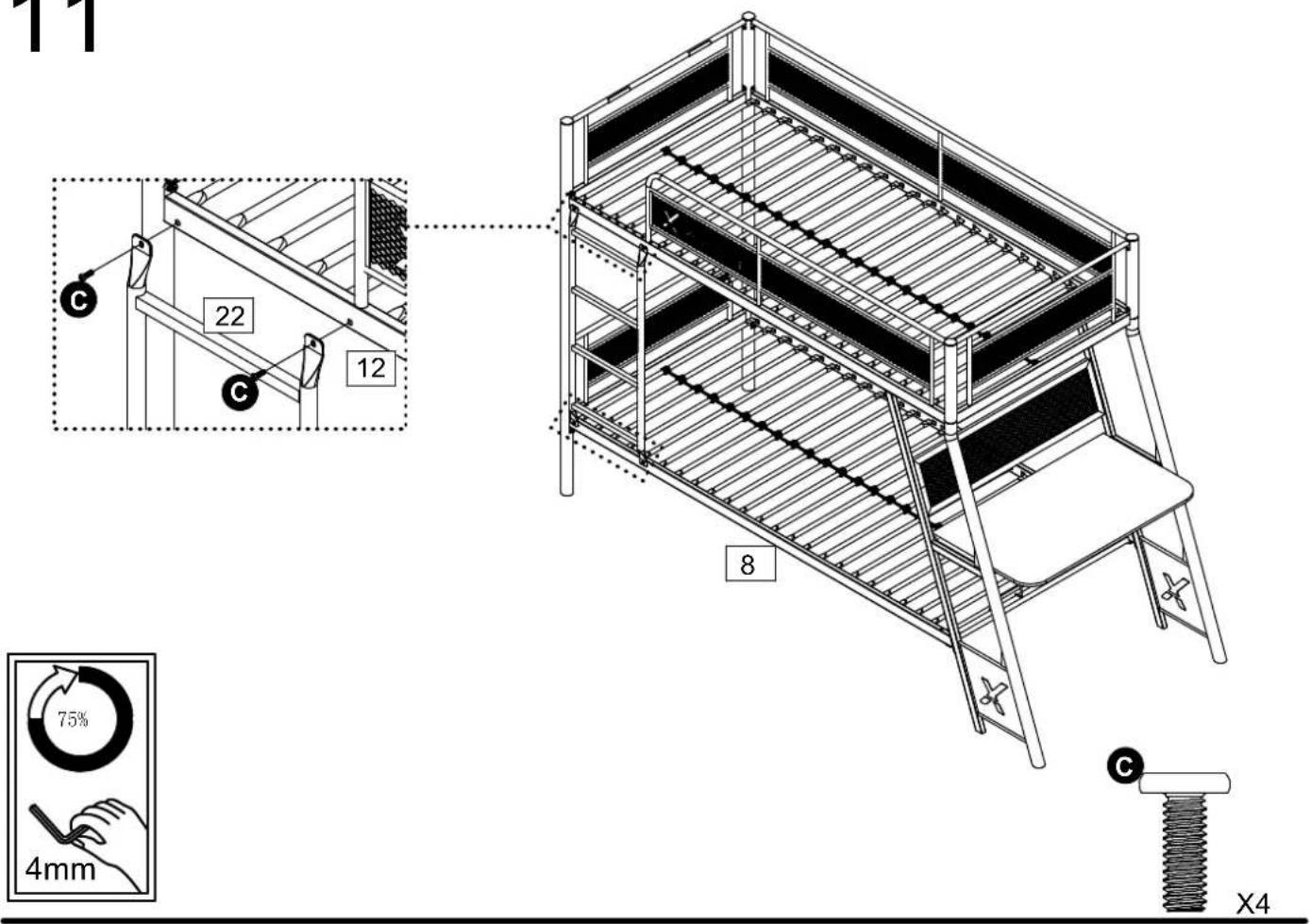

11

11 22 12 8 75% 4mm X4

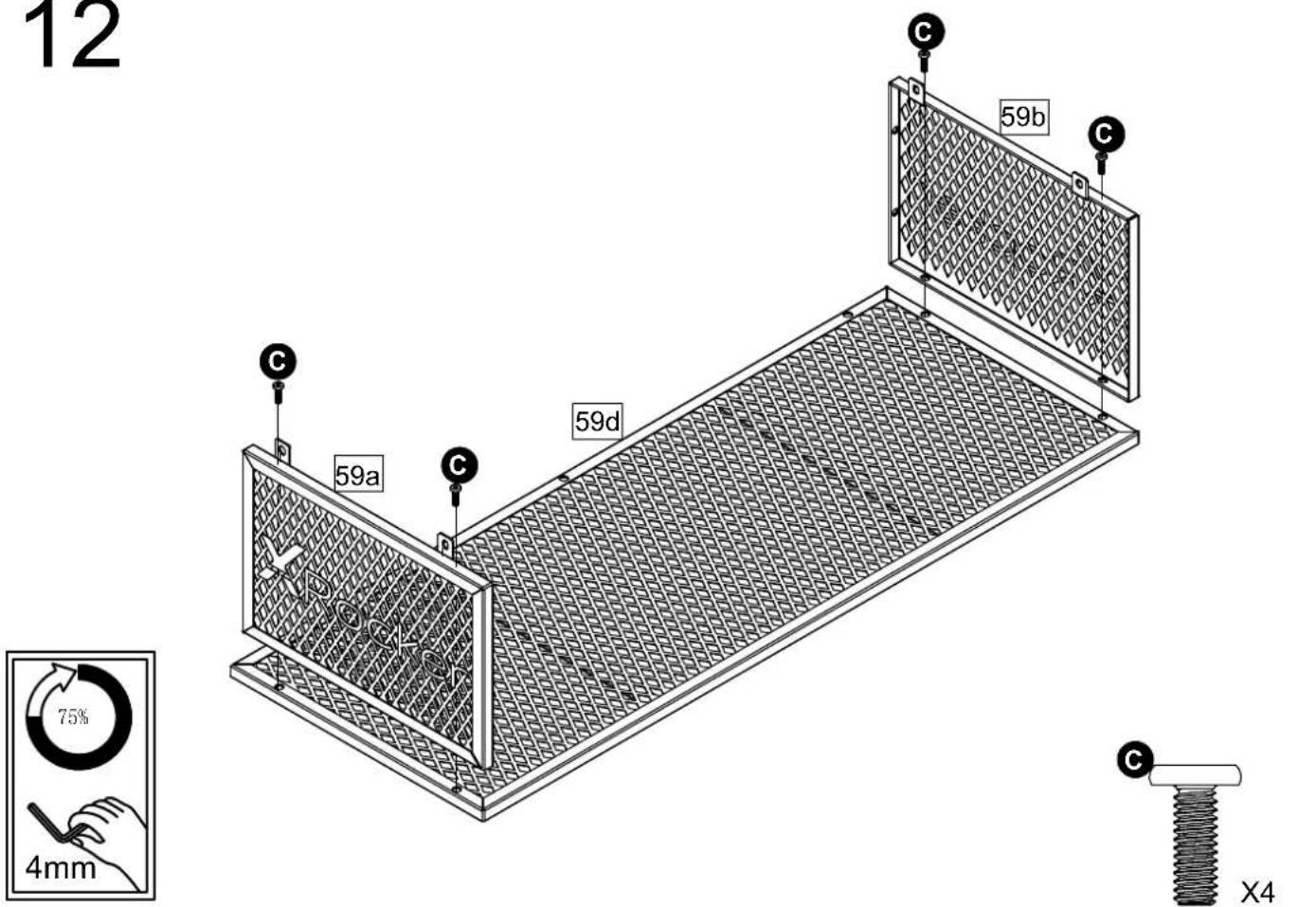

12

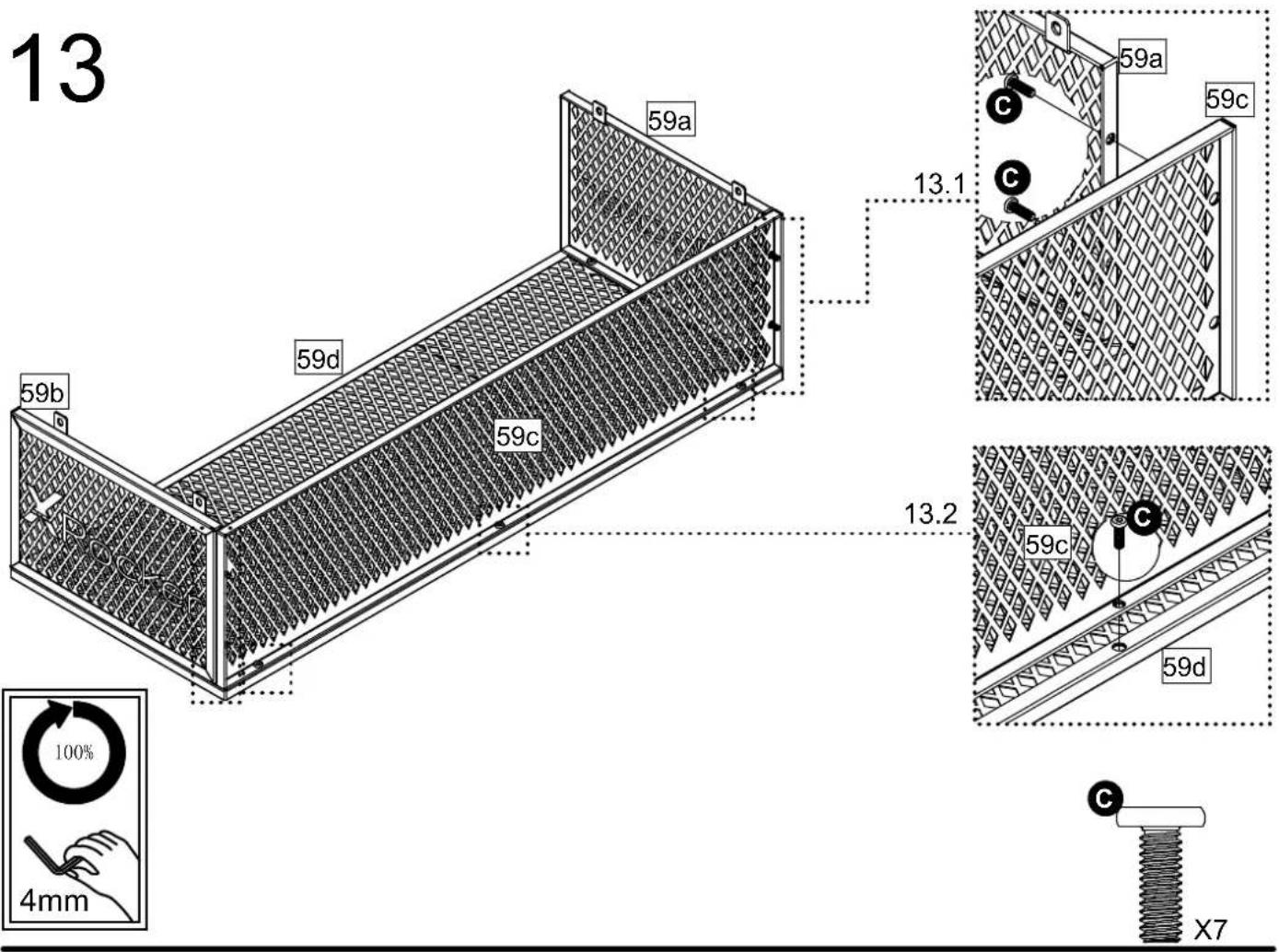

12 C 59a C 59d C 59b 4mm 75% X4

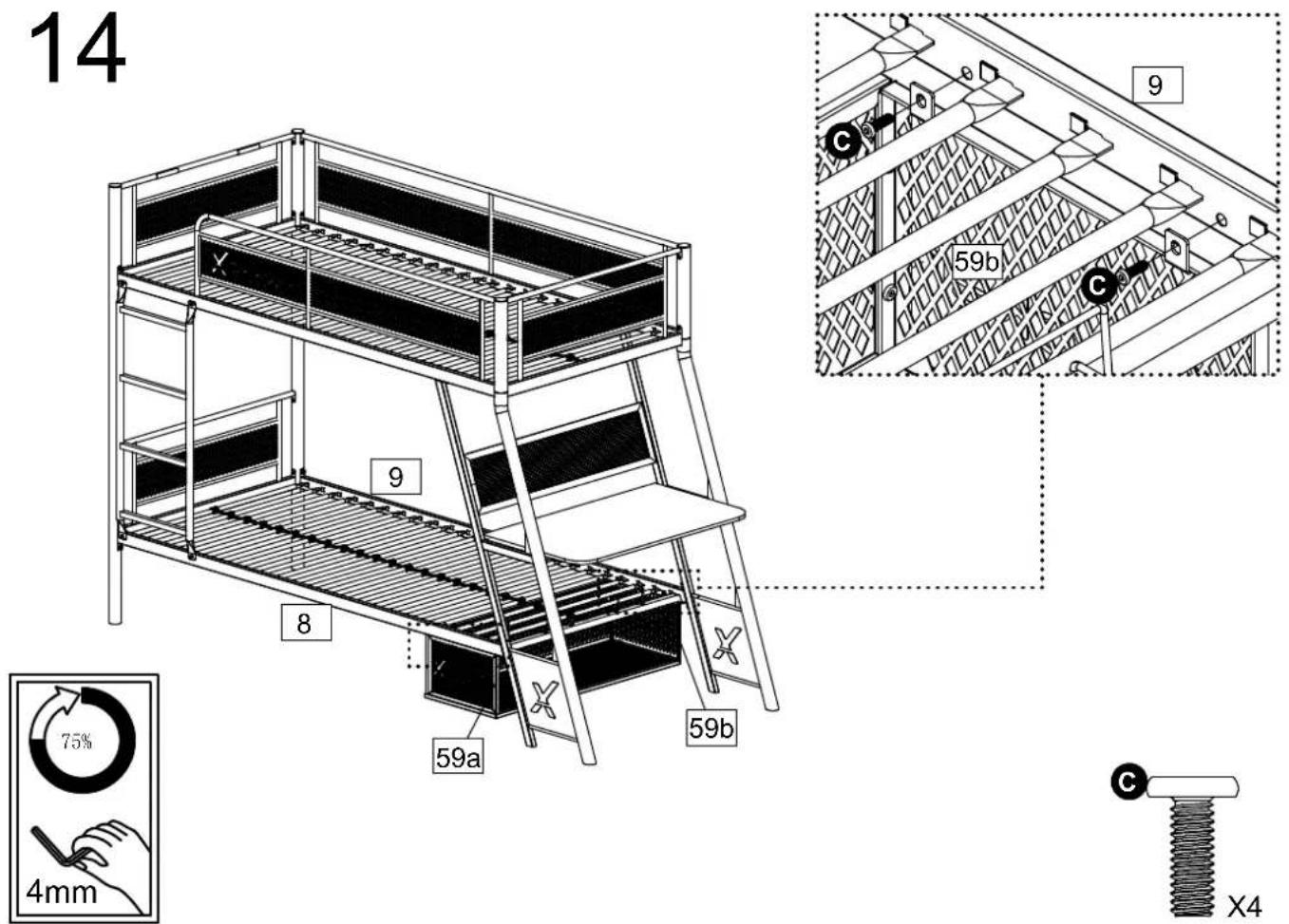

14 9 8 59a 59b 9 59b 75% 4mm C X4

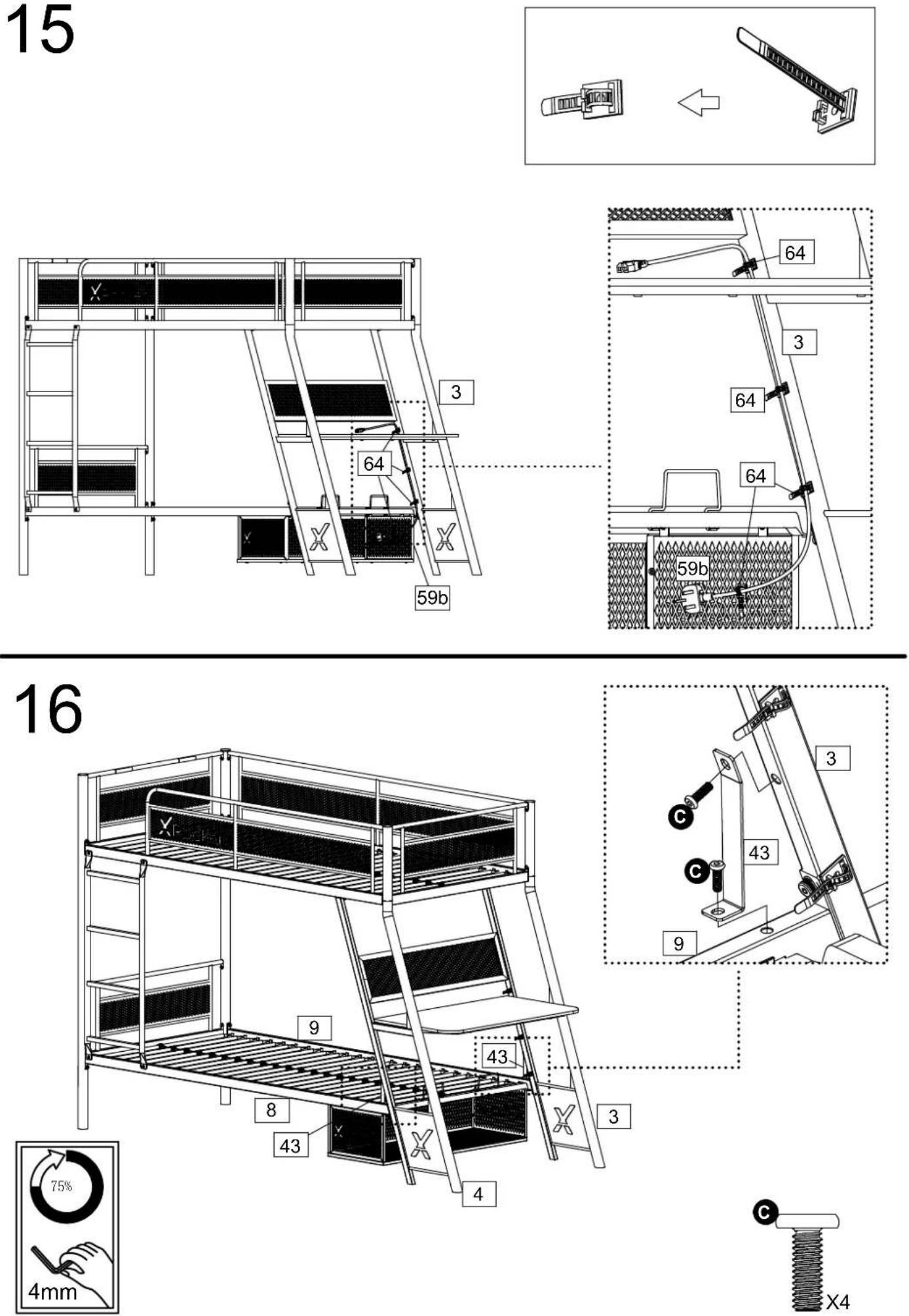

17

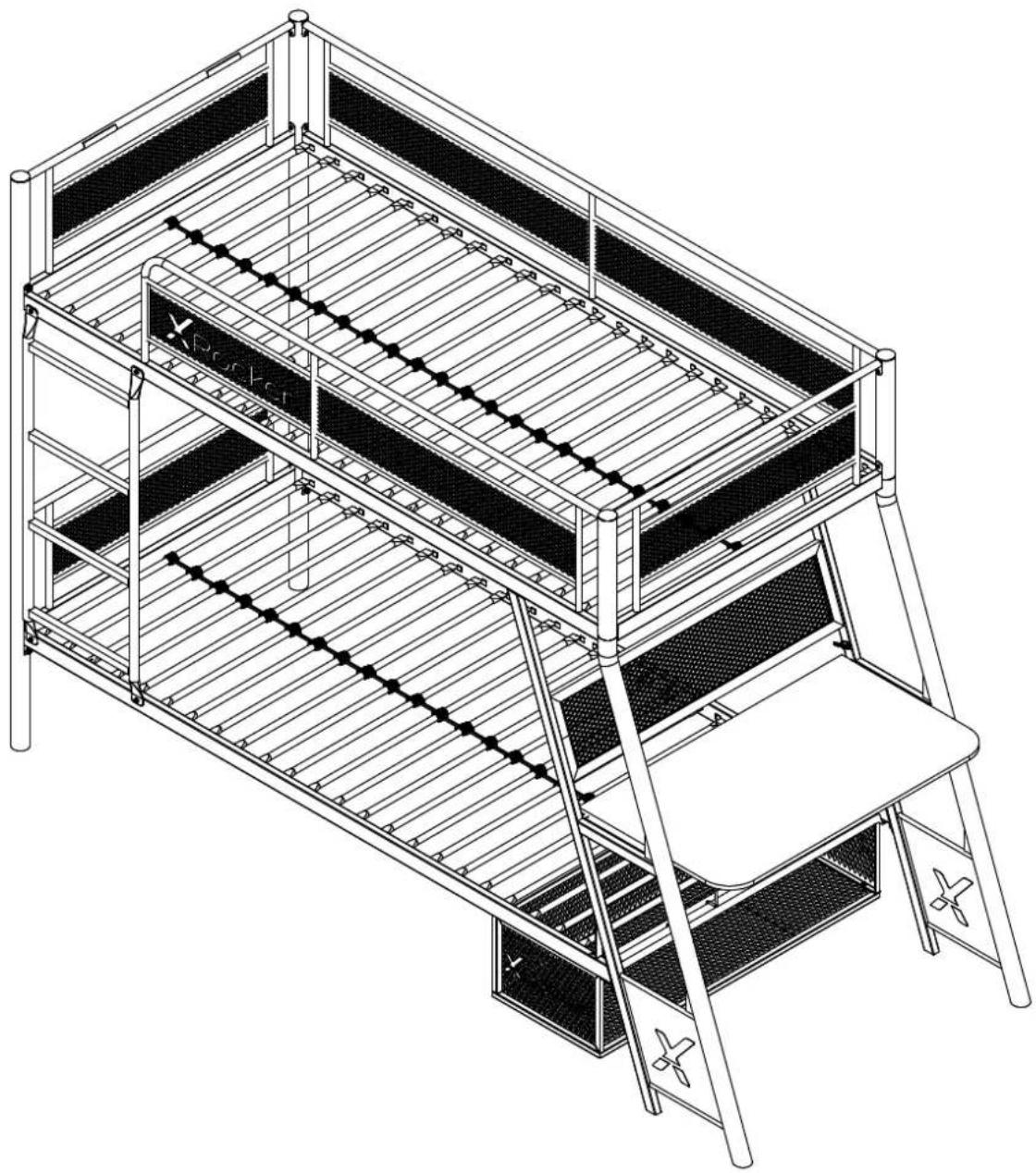

Isometric line drawing of a multi-level modular bunk bed structure with ladder and mesh panels (no text or symbols)

Assembly is complete

100% 4mm

18

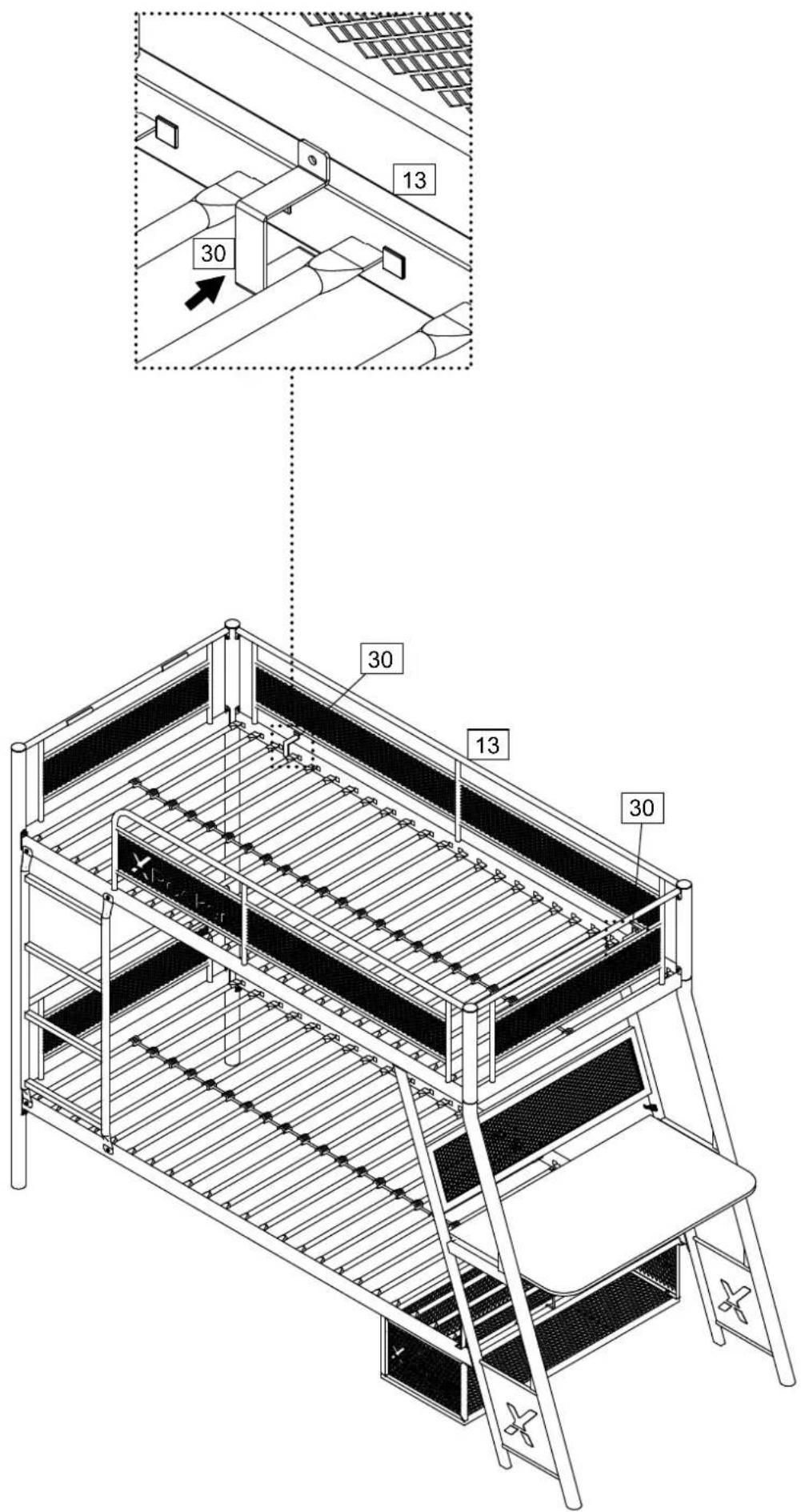

Technical diagram of a multi-level metal ladder structure with labeled components and an inset showing detailed details.

A Guide to Wall Mounting & Fixings

Important note:

If plastic wall plugs are supplied with your product:

- these are only suitable for use in masonry walls.

If you are in any doubt about the correct wall plugs for your wall, seek professional advice.

Failure of the product due to using incorrect fixings is the responsibility of the installer.

Important: When drilling into walls always check that there are no hidden wires or pipes etc.

Make sure that the screws and wall plugs being used are suitable for supporting your unit. Consult a qualified tradesperson if you are unsure.

Hints:

1: General rule: ⚠️ Always use a larger screw and wall plug if you are not sure.
2: Ensure you use the recommended drill bit to match the wall plug and hole size.
3: Ensure you drill the hole horizontally, do not force the drill or enlarge the hole.
4: Take extra care when drilling high walls, ceilings and ceramic tiles. Ensure wall plugs are inserted beyond the thickness of the ceramic tiles to avoid the tiles splitting or cracking.
5: Ensure wall plugs are well fitted and are a tight fit in the drill hole

Types of walls

You can use one of the following types of wall plug if your walls are made of brick, breeze block, concrete, stone or wood.

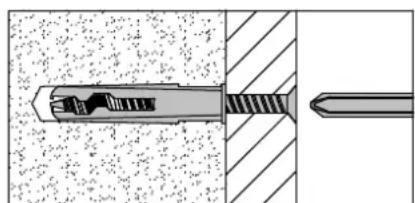

No.1"General Purpose" wall plug

Technical illustration of a mechanical component with threaded end and side profile (no text or symbols)

Generally aerated blocks should not be used to support heavy loads, use a specialist fitting in this case. For light loads, general purpose wall plugs can be used.

No.2 "Plasterboard" wall plug

Technical diagram of a screw fastener inserted into a housing, showing internal components and assembly (no text or labels)

For use when attaching light loads on to plasterboard partitions.

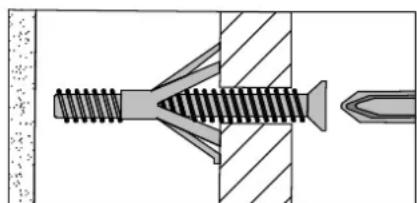

No.3"Cavity Fixing" wall plug

Technical diagram of a screw fastener assembly with pin and housing (no text or labels)

For use with plasterboard partitions or hollow wooden doors.

No.4 "Cavity Fixing-Heavy Duty" wall plug

Technical diagram of a mechanical assembly with threaded fastener and clamped component (no text or labels)

For use when fitting or supporting heavy loads such as shelving, wall cabinets and coat racks.

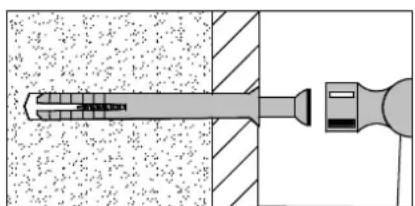

No.5"Hammer Fixing" wall plug

Technical diagram showing a mechanical assembly with a tool inserted into a housing (no text or symbols present)

For use with walls stuck with plasterboard. The hammer fixing allows it to be fixed to the wall rather than the plasterboard. Always check the fixing is secure to the retaining wall.

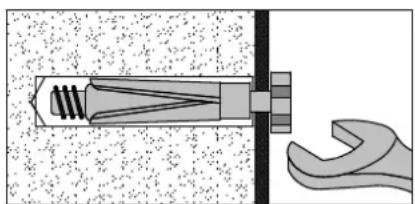

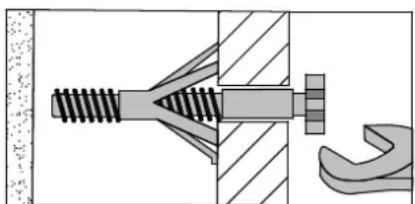

No.6 "Shield Anchor" wall plug Heavy load

Diagram showing a mechanical component being inserted into a wrench, with no visible text or symbols.

For use with heavier loads such as TV & HiFi speakers and satellite dishes etc.

Care & Maintenance

Safety: Always check the fitting and location to ensure your safety in and around the home.

Fitting: From time to time check the fitting to ensure the wall plugs or screws do not become loose.
