Tempest - Office chair X Rocker - Free user manual and instructions

Product Type	Gaming/Office Chair with Audio
Model	Tempest
Brand	X Rocker
Item Number	0777201
Weight Capacity	120 kg (265 lbs)
Power Supply	Input: 100-240V~, 50/60 Hz, 0.5A; Output: 5 VDC, 1 A (Adapter model: BI12T-050100-I)
Audio Connections	Wired 3.5mm input, Bluetooth, RCA
Bluetooth	Yes, device name: XROCKER, passcode: 0000
Control Panel	Power ON/OFF, volume control, input selection
Speaker System	Built-in speakers with subwoofer
Cable Included	USB Power Cable, 3.5mm audio cable (2m), RCA to 3.5mm adapter, RCA female-female adapters
Assembly Required	Yes, included separate leaflet
Safe Use	Do not exceed 120 kg; avoid liquids; do not stand on chair; do not lean back excessively
Cleaning	Wipe with a dry cloth; avoid immersion or contact with liquids
Contact	Email: [e-mail]; Phone: [phone]
Warranty	Proof of purchase required; contact support for issues

Frequently Asked Questions - Tempest X Rocker

How do I connect the chair to my TV?

Use the included 3.5mm audio cable (B2). Connect one end to the chair's INPUT socket and the other end to your TV's headphone jack. Ensure TV volume is around 50% for best sound. If your TV lacks a headphone jack, you may need an additional TOSlink adapter.

How do I connect the chair to a PS4?

Connect the 3.5mm cable from the PS4 controller's headset socket to the green port on the chair. On the PS4, press and hold the PS button, go to 'Adjust Sound and Devices' > 'Output to Headphones' and select 'All Audio'. Ensure volume is set to maximum.

How do I pair the chair via Bluetooth with my phone or tablet?

On your device, go to Bluetooth settings, search for 'XROCKER', and select it. If a passcode is required, enter '0000'. The chair will then be connected wirelessly for audio.

What should I do if there's no power to the control panel?

Check that the power cable is properly connected to both the chair and the power adapter. Ensure the power outlet is working. Turn the chair to the ON position and gently wiggle the power cable at the port; if lights flicker or not, contact support.

Why is there no sound coming from the chair?

Review the connection method you are using and try an alternative if possible. Confirm that your device's audio output settings are correctly configured (e.g., set to 'All Audio' for PS4). Ensure volume levels are adequate.

Why does Bluetooth cut out during gameplay or why is there no vibration/subwoofer?

Increase the volume on your source device to strengthen the audio signal. The subwoofer and vibration require a strong signal to function properly.

Can I repair broken cables myself?

Do not attempt to repair cables yourself. Contact X Rocker support at [e-mail] for replacements. Dispose of damaged cables safely.

What is the weight limit for the chair?

The maximum weight capacity is 120 kg (265 lbs). Exceeding this limit may damage the chair or cause injury.

How should I clean the chair?

Use a dry cloth to wipe the surfaces. Do not immerse the chair in water or allow liquids to contact the electrical components.

What should I do if the Bluetooth connection has interference?

Try selecting a different wireless band on the chair's control panel (there are three bands) to isolate the signal from interference.

USER MANUAL Tempest X Rocker

Line drawing of an office chair with visible seat, armrests, and legs (no text or symbols)

User Manual Item no: 0777201

Need Help? Email: [e-mail]

Phone: [phone] www.XRockerNation.co.uk

IMPORTANT: You must keep your original retail receipt as proof of purchase.

Thank you for purchasing this X Rocker gaming chair. You are now close to enhancing your favourite games with glorious audio!

To get started, please assemble the chair using the assembly instructions on the separate leaflet and then follow the instructions in this manual to get rocking!

Table of contents

3 Box contents and control panel overview
4 Wired Connection guide: TV (Xbox One and PS4 audio)
5 Connect by controller (PS4 systems only)
6 Bluetooth connection guide (Mobile phones/tablet devices)
7 Troubleshooting tips
8 Health and safety information
9 Power supply safety information

B1 - USB Power supply adapter
B2 - 2m 3.5mm to 3.5mm audio cable
B3 - 15cm RCA to 3.5mm(F) audio cable
B4 - RCA female to female adapters
B5 - USB Power cable

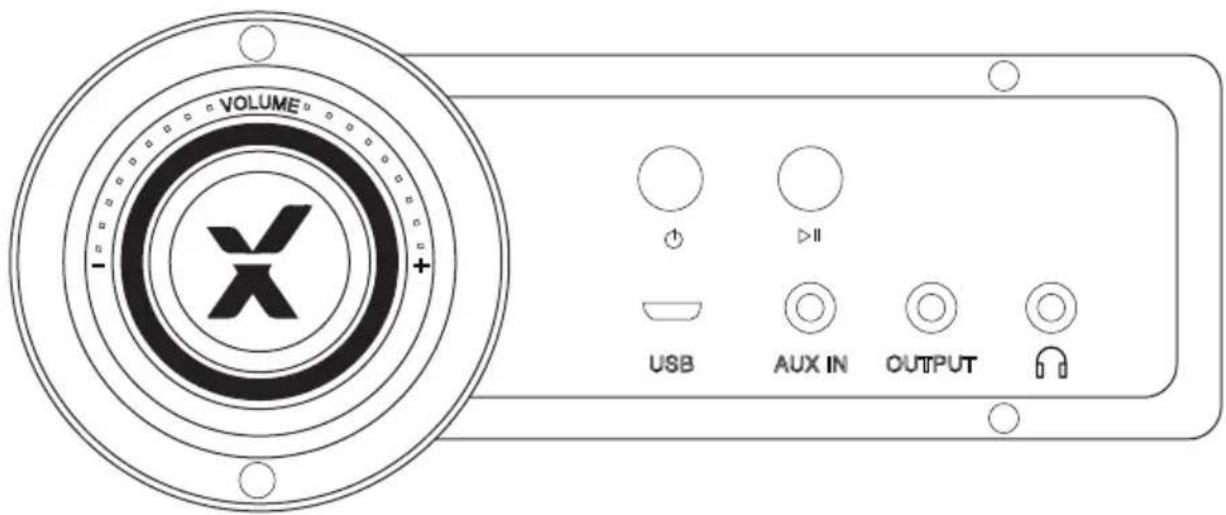

Control panel overview

Wired connection guide: TV (Xbox One and PS4 audio)

1. Connect B2 cable to X Rocker control panel 3.5mm INPUT socket.
2. Connect other end of B2 cable to the TV headphone socket.
3. Once connected to your TV, increase volume to 50% of the maximum for the best sound level.**

*N.B: If your TV does not feature a headphone socket then you may need to purchase an additional TOSlink adapter to get connected directly to a console for audio.

**Depending on your TV you may need to Increase the headphone volume separately in the TV sound settings.

Connect by controller: (PS4 systems only)

1. Connect the B2 cable to the bottom of the PS4 controller via the headset socket.
2. Connect the other end of the B2 cable to the chair via the green port.
3. With the PS4 turned on and in the main menu, press and hold the black PS button until the quick menu appears.
4. In this menu select [Adjust sound and devices]
5. Then select [output to headphones]
6. Change the setting from [Chat Only] to [All audio]
7. Make sure the volume in the previous menu is set to the maximum.

Bluetooth connection guide: (Mobile phones/tablet devices)

Setup:

On the Audio output device go into its Bluetooth settings, turn Bluetooth on if it is not on already and search for XROCKER. Upon finding this, select the XROCKER option. If a passcode is required the four digit code will be '0000'.

Simple line drawing of a circle emitting sound waves (no text or symbols)

Troubleshooting tips

Issue Troubleshooting steps

No power going to control panel	Make sure that the power cable is connected correctly.Make sure that the power supply at the power source is working correctly.With the chair turned to the ON position, give the power cable a slight wiggle in the port. If any lights flicker (or not) then please contact support (details below).
No sound	Review the connection methods on the previous page and try alternative connection methods if possible.Confirm that the device/system is correctly configured as per previous connection guide.
Bluetooth mode cuts out during gameplay/No vibration or subwoofer sound via analogue connection	Please make sure that the volume of the source device is at a higher level to strengthen the audio signal.
The cables connected to my X Rocker have been broken accidentally	Please contact X Rocker support ([e-mail]) regarding this issue.
Interference over wireless connection	In this case, try another of the three wireless bands to isolate the signal.

Health and safety information

- Avoid immersing or allowing the X Rocker to come into contact with liquids.

- Please consult X Rocker Support before unscrewing any of the electrical components on the chair.

- Please be mindful of any cabling laid out between the X Rocker and power source/audio device.

- Please be mindful of cabling attached when moving/swivelling the X Rocker.

- If the cables or electrical equipment are broken then this may present a choking risk, please contact Support for replacements and dispose of these parts safely.

- Do not stand on the X Rocker or exceed the 120kg weight limit via other means.

- Do not lean back on the chair to the point in which the pedestal would lift off the ground.

- X Rocker armrests are designed for support and comfort during gameplay, please do not use these as support for getting in/out of the chair.

- Playing audio for long periods at loud volumes may contribute to difficulties in hearing.

- Please be considerate to others when playing audio through the X Rocker speakers at higher volumes.

Power supply safety information

ATTENTION:

A. For Power Adapter, the apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus;
B. For Power Adapter, the MAINS plug is used as the disconnect device, the disconnect device shall remain readily operable;
C. Only use the attachments/accessories specified by manufacturer.

Power Supply unit trademark: BI;

Model name: BI12T-050100-I;

Input: 100-240V\~, 50/60 Hz, 0,5A;

Output: 5 VDC, 1 A;

Need Help? Email: [e-mail]

Phone: [phone]

www.XRockerNation.co.uk

IMPORTANT: You must keep your original retail receipt as proof of purchase.
