USER MANUAL 7280 DA SKIL

Illustration of a SKIL power tool with a cylindrical base and handle (no text or symbols)

GB ORIGINAL INSTRUCTIONS 10
(F) NOTICE ORIGINALE 13
D ORIGINALBETRIEBSANLEITUNG 16
(NL) ORIGINELE GEBRUIKSAANWIJZING 20
(S) BRUKSANVISNING I ORIGINAL 23
(DK) ORIGINAL BRUGSANVISNING 26
(N) ORIGINAL BRUKSANVISNING 29
FIN ALKUPERÄISET OHJEET 32
(E) MANUAL ORIGINAL 35
(P) MANUAL ORIGINAL 38
( I ) ISTRUZIONI ORIGINALI 42
(H) EREDETI HASZNÁLATI UTASÍTÁS 45
CZ PÜVODNÍM NÁVODEM K POUŽÍVÁNÍ 48
(TR) ORİJINAL İŞLETME TALİMATI 51
(PL) INSTRUKCJA ORYGINALNA 55
RU ПОДЛИННИК РУКОВОДСТВА ПО 58
ЭКСПЛУАТАЦИИ

UA ОРИГИНАЛЬНА ІНСТРУКЦІЯ 63
З ЕКСПЛУАТАЦІЇ
GR ΠΡΩΤΟΥΠΟ ΟΔΗΓΙΩΝ ΧΡΗΣΗΣ 66
RO INSTRUCTIUNI DE FOLOSIRE 70
ORIGINALE
BG ОРИГИНАЛНО РЪКОВОДСТВО 73
ЗА ЕКСПЛОАТАЦИЯ
SK PÔVODNÝ NÁVOD NA POUŽITIE 77
(HR) ORIGINALNE UPUTE ZA RAD 81
SRB ORIGINALNO UPUTSTVO ZA RAD 84
SLO IZVIRNA NAVODILA 87
EST ALGUPÄRANE KASUTUSJUHEND 90
LV ORIGINĀLĀ LIETOŠANAS PAMĀCĪBA 93
(LT) ORIGINALI INSTRUKCIJA 96
МК ИЗВОРНО УПАТСТВО ЗА РАБОТА 100
AL UDHËZIMET ORIGJINALE 103
AR دليل الاستعمال 113
FA راهنمای اصلی 111

EAC

www.skil.com

CE 7280

GB	EU Declaration of conformityMulti sander Article number	We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards.Technical file at:*
F	Déclaration de conformité UEPonceuse polyvalente Numéro d'article	Nous déclarons sous notre propre responsabilité que les produits décrits sont en conformité avec les directives, règlements normatifs et normes énumérés ci-dessous.Dossier technique auprès de:*
D	EU-KonformitätserklärungMultischleifer Sachnummer	Wir erklären in alleiniger Verantwortung, dass die genannten Produkte allen einschlägigen Bestimmungen der nachfolgend aufgeführten Richtlinien und Verordnungen entsprechen und mit folgenden Normen übereinstimmen.Technische Unterlagen bei:*
NL	EU-conformiteitsverklaringMulti schuurmachine Productnummer	Wij verklaren op eigen verantwoordelijkheid dat de genoemde producten voldoen aan alle desbetreffende bepalingen van de hierna genoemde richtlijnen en verordningen en overeenstemmen met de volgende normen.Technisch dossier bij:*
S	EU-konformitetsförklaringMultislipmaskin Produktnummer	Vi förklarer under eget ansvar att de nämnda produkterna uppfyller kraven i alla gällande bestämmelser i de nedan angivna direktiven och förordningarnas och att de stämmer överens med följande normer.Teknisk dokumentation:*
DK	EU-overensstemmelseserklæringMultisliber Typenummer	Vi erklærer som eneansvarlige, at det beskrevne produkt er i overensstemmelse med alle gældende bestemmelser i følgende direktiver og forordninger og opfylder følgende standarder.Tekniske bilag ved:*
N	EU-samsvarserklæringMultisliper Produktnummer	Vi erklærer under eneansvar at de nevnte produktene er i overensstemmelse med alle relevante bestemmelser i direktivene og forordningene nedenfor og med følgende standarder.Teknisk dokumentasjon hos:*
FIN	EU-vaatimustenmukaisuusvakuutusYhdistelmähiomakone Tuotenumero	Vakuutamme täten, että mainitut tuotteet vastaavat kaikkia seuraavien direktiivien ja asetusten asiaankuuluvia vaatimuksia ja ovat seuraavien standardien vaatimusten mukaisia.Tekniset asiakirjat saatavana:*
E	Declaración de conformidad UEMultilijadora Número de artículo	Declaramos bajo nuestra exclusiva responsabilidad, que los productos nombrados cumplen con todas las disposiciones correspondientes de las directivas y los reglamentos mencionados a continuación y están en conformidad con las siguientes normas.Documentos técnicos de:*
P	Declaração de conformidade CELixadeira multifunções Número do produto	Declaramos sob nossa exclusiva responsabilidade que os produtos mencionados cumprem todas as disposições e os regulamentos indicados e estão em conformidade com as seguintes normas.Documentação técnica pertencente à:*
I	Dichiarazione di conformità UELevigatrice multifunzione Codice prodotto	Dichiariamo sotto la nostra piena responsabilità che i prodotti indicati sono conformi a tutte le disposizioni pertinenti delle direttive e dei regolamenti elencati di seguito, nonché alle seguenti normative.Documentazione tecnica presso:*
H	EU konformitási nyilatkozatMulticsiszoló Cikkszám	Egyedüli felelöséggel kijelentjük, hogy a megnevezett termékek megfelelnek az alábbiakban felsorolásra kerülő irányelvek és rendeletek valamennyi idevágó előírásainak és megfelelnek a következő szabványoknak.Múszaki dokumentumok megőrzési pontja:*
CZ	EU prohlášení o shoděMultifunkční bruska Objednaci číslo	Prohlášujeme na výhradní zodpovědnost, že uvedený výrobek splňuje všechna příslušná ustanovení niže uvedených směrnic a nařizení a je v souladu s následujícími normami.Technické podklady u:*
TR	AB Uygunluk beyaníMulti zimpara Ürün kodu	Tek sorumlu olarak, tanımlanan ürünün aşağıdaki yönetmelik ve direktiflerin geçerli bütün hükümlerine ve aşağıdaki standartlara uygun olduğunu beyan ederiz.Teknik belgelerin bulunduğu yer:*
PL	Deklaracja zgodności UESzlifierka wielofunkcyjna Numer katalogowy	Oświadczamy z pełną odpowiedzialnością, że niniejsze produkty odpowiadają wszystkim wymaganiom poniżej wyszczególnionych dyrektyw i rozporządzeń, oraz ze są zgodne z następującymi normami.Dokumentacja techniczna:*
RU	Заявление о соответствии ЕСМногофункциональная шлифовальная машина Товарный номер	Мы заявляем под нашу единоличную ответственность, что названные продукты соответствуют всем действующим предписаниям нижеуказанных директив и распоряжений, а также нижеуказанных норм.Техническая документация хранится у:*
UA	Заява про відповідність ЄСУніверсальна шліфувальнамашинка Товарний номер	Мизаявляемо під нашу одноособову відповідальність, що названі вироби відповідають усім чинним положенням нищеозначених директив і розпоряджень, а також нижнеозначеним нормам.Технична документация зберігається у:*

GR	Δήλωση πιστότητας EEПолутрією	Арідмос еуретпріου	Δηλώνουμε με αποκλειστική μας ευθύνη, ότι τα αναφερόμενα προϊόντα αντιστοιχούν σε όλες τις σχετικές διατάξεις των πιο κάτω αναφερόμενων οδηγιών και κανονισμών και ταυτίζονται με τα ακόλουθα πρότυπα.Техника éggraфа στη:*
RO	Declaratie de conformitate UEŞlefuitor multifunctional	Numár de identificare	Declarăm pe proprie răspundere că produsele menționate corespund tuturor dispozițiilor relevante ale directivelor și reglementărilor enumerate în cele ce urmează și sunt în conformitate cu următoarele standarde.Documentație tehnică la:*
BG	EC декларация за съответствиеМулти-шлайф	Каталожен номер	С пълна отговорност ние декларираме, че посочените продукти отговарят на всички валидни изисквания на директивите и разпоредбите по-долу и съответства на следните стандарти.Техническа документация при:*
SK	Pôvodnej EU vyhlásenie o zhodeMultifunkční brúska Vecné číslo		Vyhlasujeme na výhradnú zodpovednosť, že uvedený výrobok spína všetky príslušné ustanovenia nižšie uvedených smerníc a nariadení a je v súlade s nasledujúcimi normami.Technické podklady má spoločnosť:*
HR	EU izjava o sukladnostiVisefunkcionalni uredaj za brušenje Kataloški broj		Pod punom odgovornošću izjavljujemo da navedeni proizvodi odgovaraju svim relevantnim odredbama direktiva i propisima navedenima u nastavku i da su sukladni sa sljedećim normama.Tehnička dokumentacija se može dobiti kod:*
SRB	EU-izjava o usaglašenostiVišenamenska brusilica Broj predmeta		Na sopstvenu odgovornost izjavljujemo, da navedeni proizvodi odgovaraju svim dotičnim odredbama naknadno navedenih smernica u uredaba i da su u skladu sa sledećim standardima.Tehnička dokumentacija kod:*
SLO	Izjava o skladnosti ESUniverzalni brusilnik Številka artikla		Izjavljamo pod izključno odgovornostjo, da je omenjen izdelek v skladu z vsemi relevantnimi določili direktiv in uredb ter ustreza naslednjim standardom.Tehnična dokumentacija pri:*
EST	EL-vastavusdeklaratsioonMitmeotstarbeline lihvmasin Tootenumber		Kinnitame ainuvastutajatena, et nimetatud tooted vastavad järgnevalt loetletud direktiivide ja määruste köikidele asjaomastele nõuetele ja on kooskõlas järgmiste normidega.Tehnilised dokumentid saadaval:*
LV	Deklaracija par atbilstību EK standartiemDaudzfunkcionāla slipmašina Izstrādājuma numurs		Mēs ar pilnu atbildību paziņojam, ka šeit aplūkotie izstrādājumi atbilst visiem tālāk minētajās direktivās un rīkojumos ietvertajām saistošajām nostādnēm, kā arī sekojošiem standartiem.Tehniskā dokumentacija no:*
LT	ES atitikties deklaracijaDaugiafunkcė šlifavimo mašina Gaminio numeris		Atsakingai pareiškiamе, kad išvardyti gaminiai atitinka visus privalomus žemiau nurodytu direktyvu ir reglamentų reikalavimus ir šiuos standartus.Techninė dokumentacija saugoma:*
MK	EU-Изјава за сообразностБрусилица Број на артикл		Со целосна одговорност изјавуваме, дека опишаните производи се во согласност со сите релевантни одредби на следните регулативи и прописи и се во согласност со следните норми.Техничка документација кaj:*
AL	EU Deklarata e konformitetitSmeriluese me shumëfunksione Numri i nenit		Ne deklarojmė me përgjegjësinė tonė të vetme se produktet e paraqitura janė në përputhje me të gjitha dispozitat e zbatueshme të direktivave dhe rregulloreve të listuara mė poshtė dhe janė në përputhje me standardet si mė poshtė.Dosja teknike ně:*
	7280 SR1*7280**		2006/42/EC EN 62841-1:20152014/30/EU EN 62841-2-4:20142011/65/EU EN 55014-1: 2021EN 55014-2: 2021EN 61000-3-2:2019 + A1:2021EN 61000-3-3:2013 + A1:2019EN 63000: 2018
			* Skil BVRithmeesterpark 22 A14838 GZ BredaThe Netherlands
			Olaf DijkgraafApproval ManagerSkil BV, Rithmeesterpark 22 A1, 4838 GZ Breda, NL02.04.2022

1
7280

②

SKIL J A G D H F K L* E B C

* NOT STANDARD INCLUDED

③

④

⑤

Technical diagram showing exploded and assembled views of a mechanical device with labeled parts A, B, C, D, E, and a fan-like component.

⑦

⑧a SKL 1 2 SKL K

⑧b SNL 2 1 K

Diagram illustrating a hand pouring liquid into a device, with steps labeled 3, 4, and 5 showing the process.

⑨a SKL 2 1 L

⑨ b SKL

10
	40 - 60			5
	120 - 240			6
	40 - 60			5
	120 - 240			5
ALU	80			4
	120 - 240			5

11

Technical line drawing of a precision machine with mounting base and control panel (no text or symbols)

Line drawing of a SKL power tool with a checkmark above it (no text or symbols on the tool itself)

Line drawing of a SKIL electric shaver with a cross mark (no text or symbols on the diagram itself)

⑫ H ALMRT

Line drawing of a table with a hammer and lever, no text or symbols present

Line drawing of a mechanical device with a brush and lever, mounted on a stand (no text or symbols)

Technical line drawing of a mechanical component on a curved surface, with no visible text or symbols.

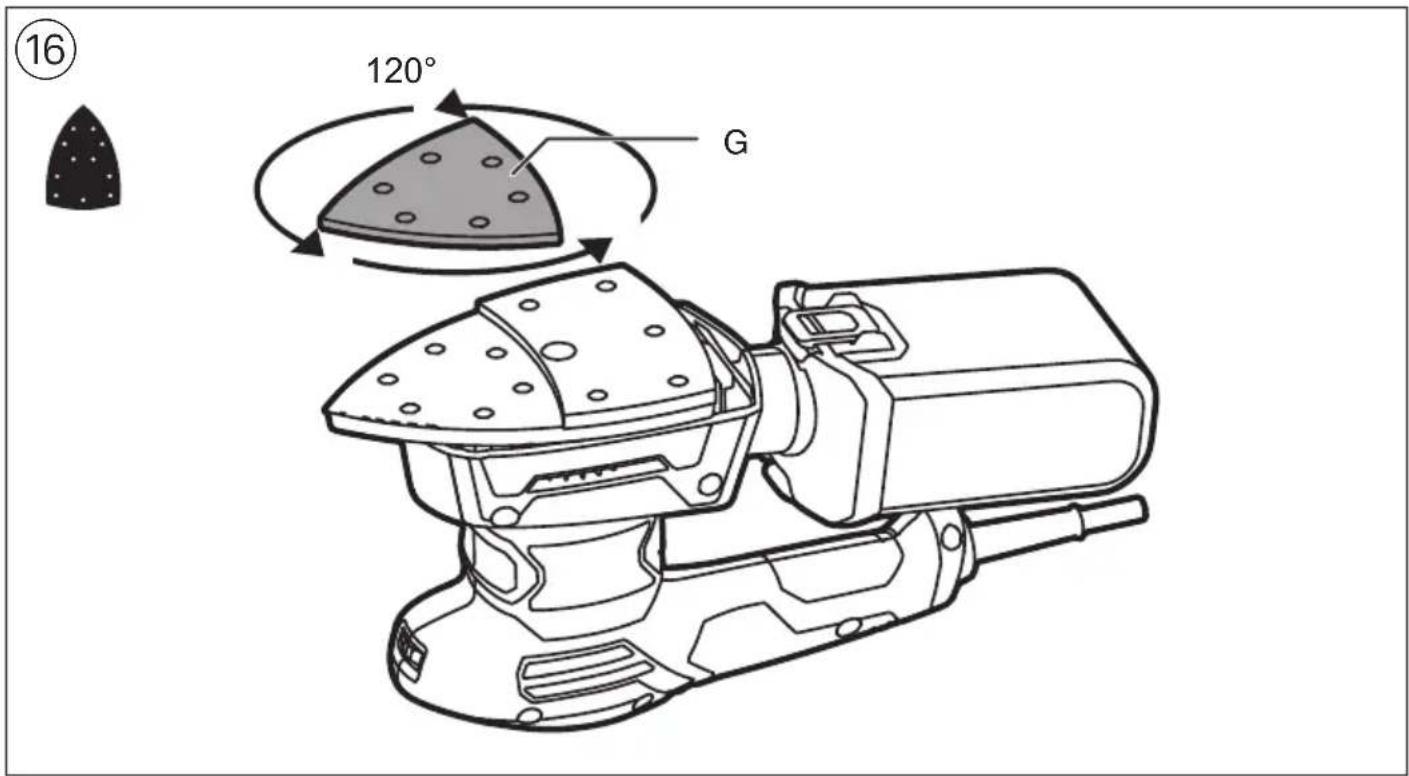

16 120° G

ACCESSORIES

WWW.SKIL.COM

GB

Multi sander 7280

INTRODUCTION

• This tool is intended for dry sanding and finishing of wood, painted surfaces, plastic and filler
  • This tool is not intended for sanding gypsum
  • This tool is not intended for professional use
• Read and save this instruction manual ③

TECHNICAL DATA①

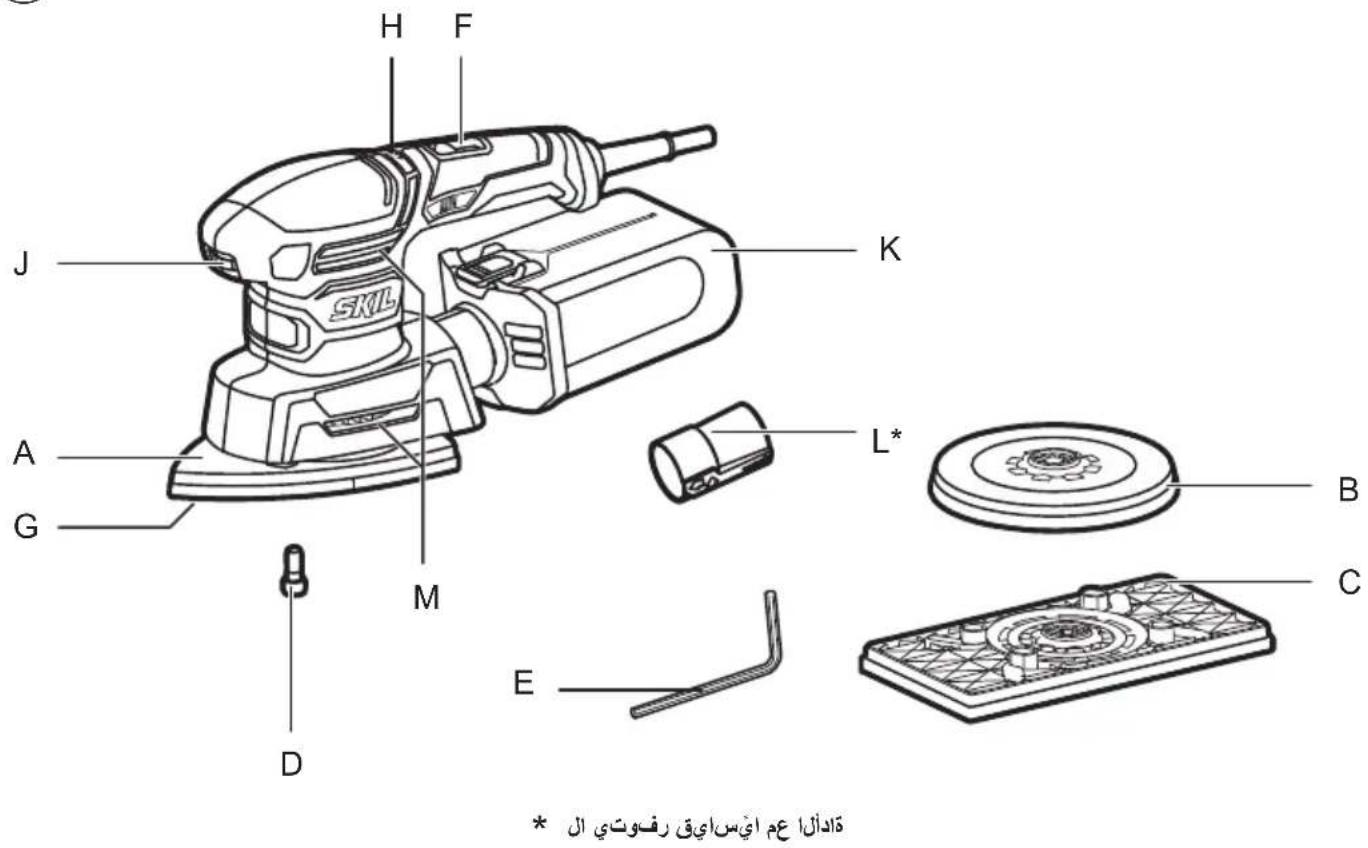

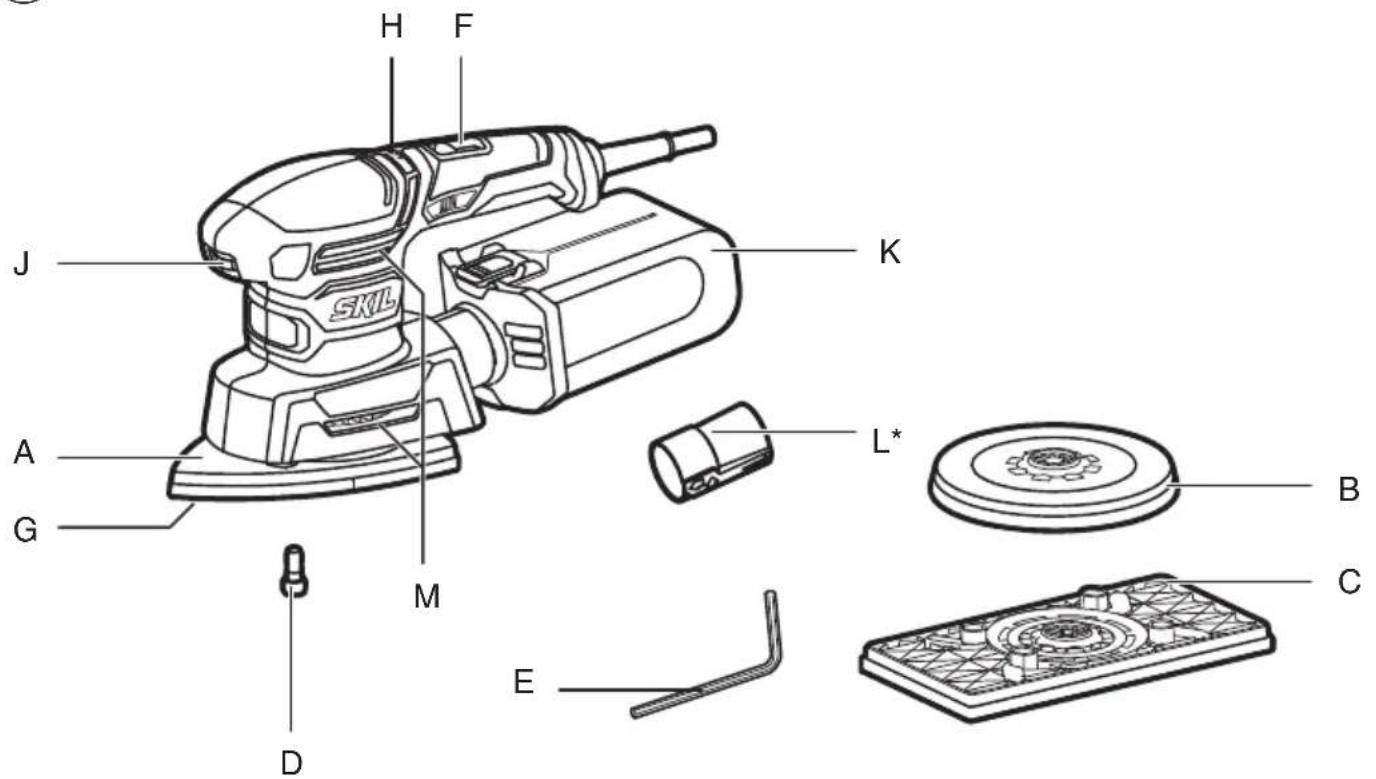

TOOL ELEMENTS ②

A Backing pad for multi sanding
B Backing pad for random orbit sanding
C Backing pad
D Pad screw
E Hex key
F On/off switch
G Delta tip
H Overload Alert
J Sanding speed selection wheel
K Dust box
L Vacuum cleaner adapter*
M Ventilation slots
* NOT STANDARD INCLUDED

SAFETY

GENERAL POWER TOOL SAFETY WARNINGS

WARNING Read all safety warnings, instructions, illustrations and specifications provided with this

power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from

3) PERSONAL SAFETY

4) POWER TOOL USE AND CARE

the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

SAFETY INSTRUCTIONS FOR SANDERS

GENERAL

• This tool should not be used by people under the age of 16 years
  • This tool is not suitable for wet sanding
• Never use the tool when the cord is damaged; it must be replaced by a specially prepared cord available through the service organization.
• Do not work materials containing asbestos (asbestos is considered carcinogenic)
  • Always disconnect plug from power source before making any adjustment or changing any accessory

ACCESSORIES

• SKIL can assure flawless functioning of the tool only when original accessories are used
• Do not continue to use worn, torn or heavily clogged sanding sheets

BEFORE USE

• Always check that the supply voltage is the same as the voltage indicated on the nameplate of the tool
• Avoid damage that can be caused by screws, nails and other elements in your workpiece; remove them before you start working
• Use completely unrolled and safe extension cords with a capacity of 16 Amps (U.K. 13 Amps)
• The noise level when working can exceed 85 dB(A); wear ear protection
• Dust from material such as paint containing lead, some wood species, minerals and metal may be harmful (contact with or inhalation of the dust may cause allergic reactions and/or respiratory diseases to the operator or

bystanders); wear a dust mask and work with a dust extraction device when connectable

• Certain kinds of dust are classified as carcinogenic (such as oak and beech dust) especially in conjunction with additives for wood conditioning; wear a dust mask and work with a dust extraction device when connectable
• Follow the dust-related national requirements for the materials you want to work with
• Wear protective gloves, safety glasses, close-fitting clothes and hair protection (for long hair)
• Secure the workpiece (a workpiece clamped with clamping devices or in a vice is held more securely than by hand)
• When sanding metal, sparks are generated; do not use dust box and keep other persons and combustible material from work area

DURING USE

• Always keep the cord away from moving parts of the tool; direct the cord to the rear, away from the tool
• Do not touch the moving sanding sheet
• In case of electrical or mechanical malfunction, immediately switch off the tool and disconnect the plug
• If the cord is damaged or cut through while working, do not touch the cord, but immediately disconnect the plug

AFTER USE

- When you put away the tool, switch off the motor and ensure that all moving parts have come to a complete standstill

EXPLANATION OF SYMBOLS ON TOOL

③ Read the instruction manual before use
④ Double insulation (no earth wire required)
⑤ Do not dispose of the tool together with household waste material

WHEN CONNECTING NEW 3-PIN PLUG (U.K. ONLY):

• Do not connect the blue (= neutral) or brown (= live) wire in the cord of this tool to the earth terminal of the plug
• If for any reason the old plug is cut off the cord of this tool, it must be disposed of safely and not left unattended

USE

- Backing pads

-never run the tool without backing pad -use the correct backing pad for the corresponding application ⑬⑭⑮
! replace damaged backing pads immediately

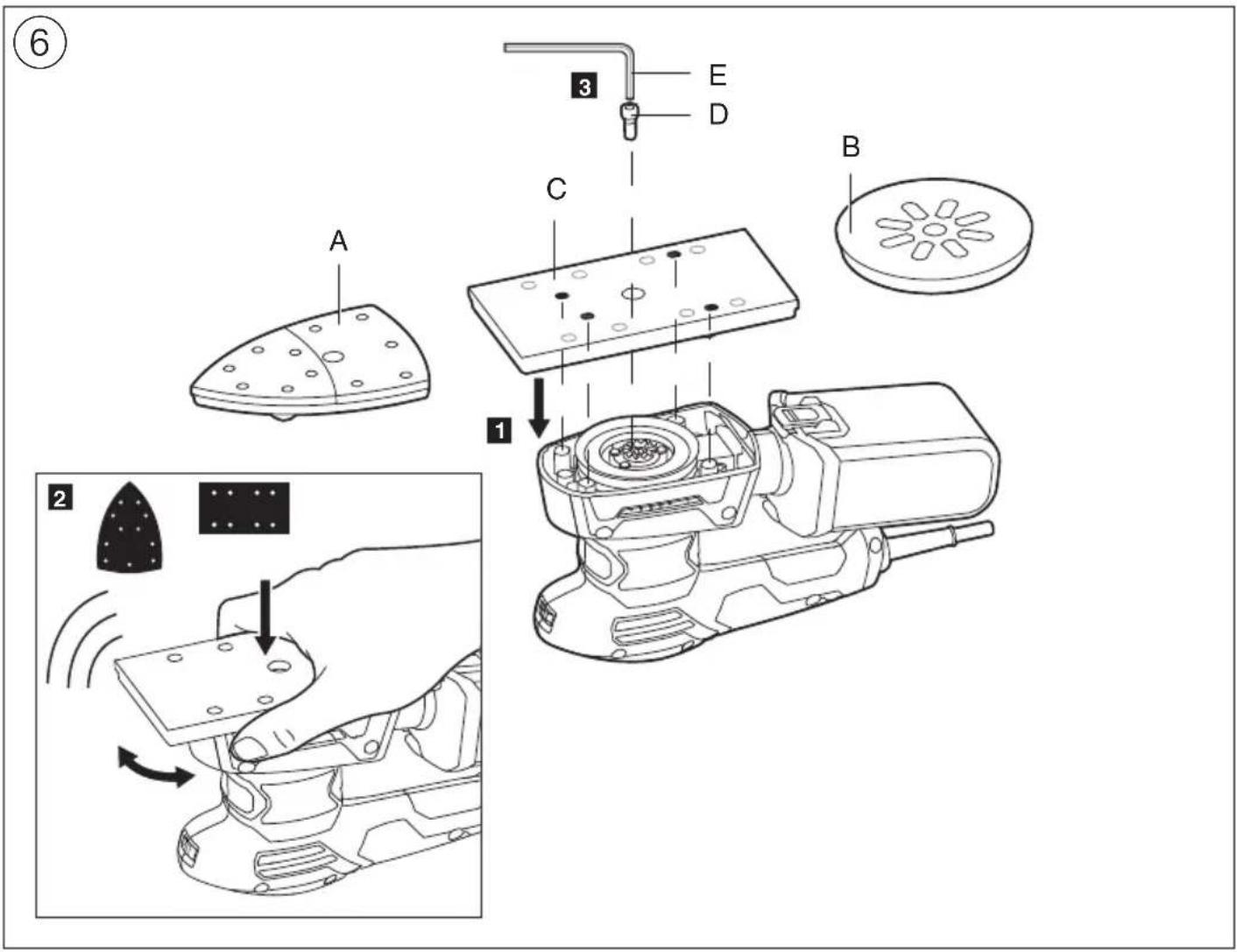

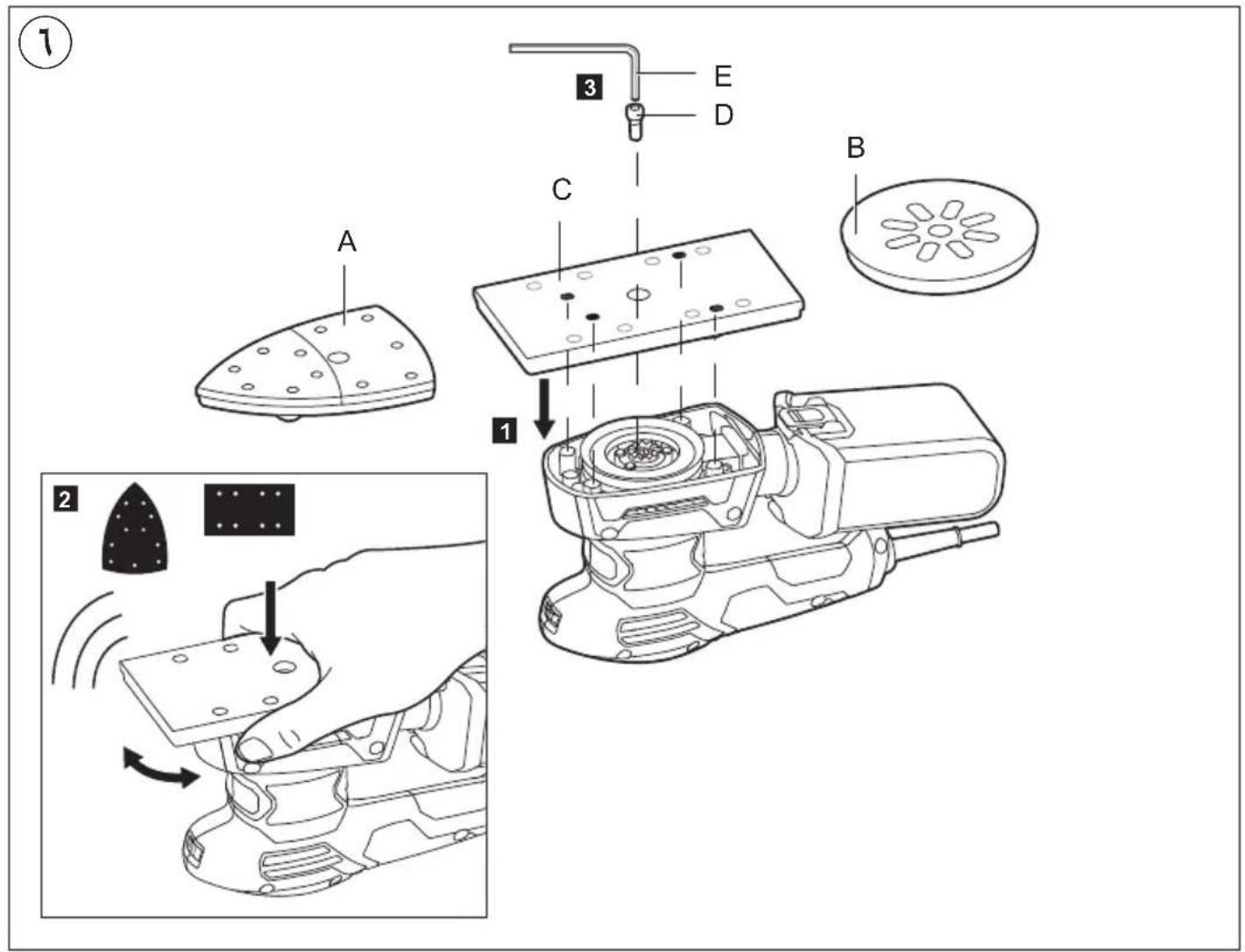

- Changing backing pads ⑥

-remove VELCRO sanding sheet
-remove pad screw D with hex key E
-mount backing pad A, B or C as illustrated
-if necessary, clean backing pad first
-fasten pad screw D with hex key E

! hold backing pad firmly while loosening/fastening pad screw D

! unplug tool before removing/mounting backing pads
! pad screw D becomes hot during use; do not touch it before it has cooled down

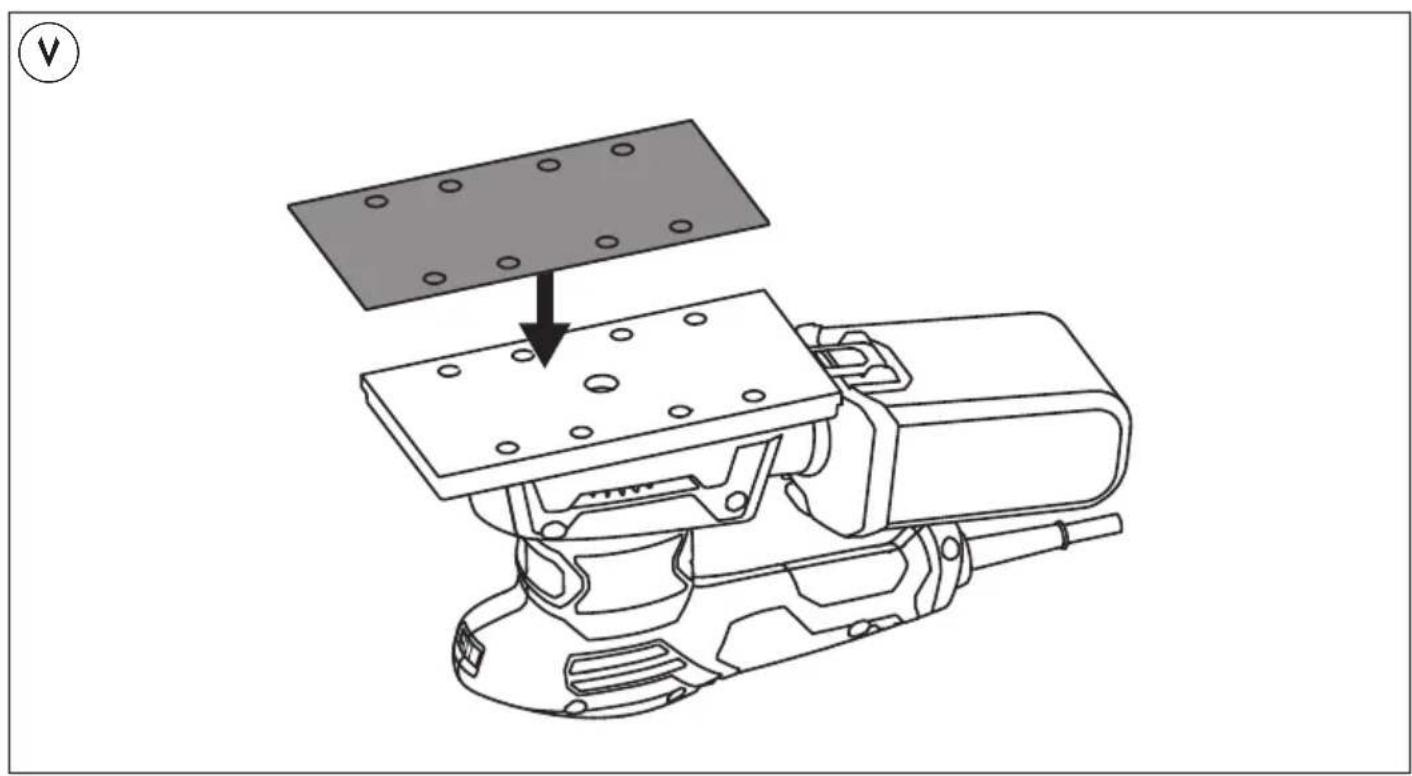

- Mounting of sanding sheet ⑦

! disconnect the plug
! the dust suction requires the use of perforated sanding sheets
! perforation in sanding sheet should correspond with perforation in sanding foot

! replace worn sanding sheets in time

! always use the tool with the total sanding surface covered with sanding paper

-mount VELCRO sanding sheet as illustrated

- Dust suction

! do not use dust box/vacuum cleaner when sanding metal

Dust box ⑧

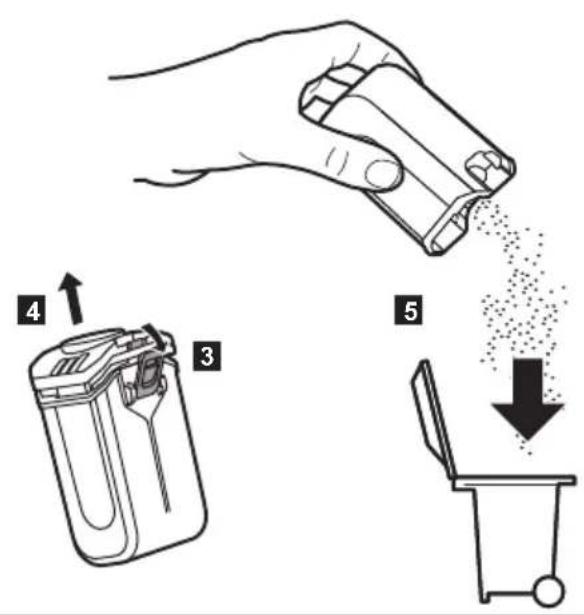

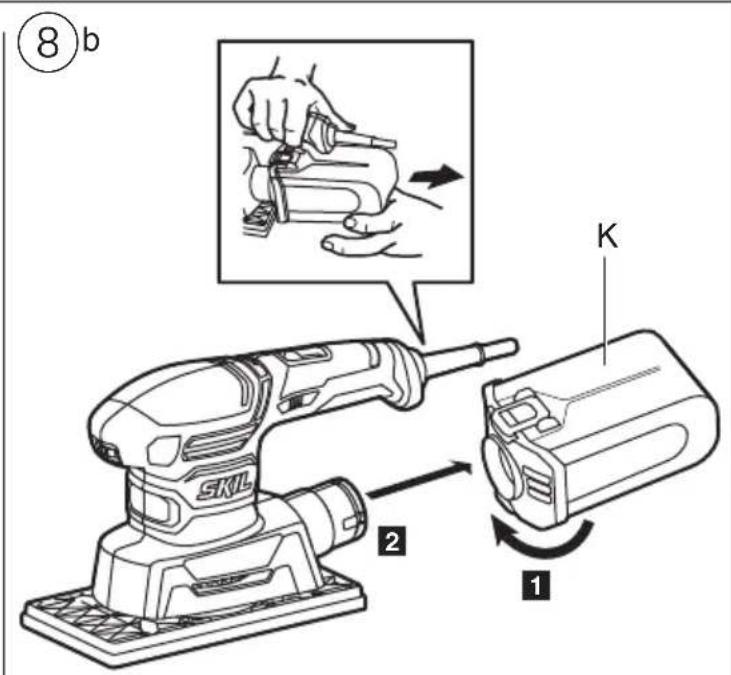

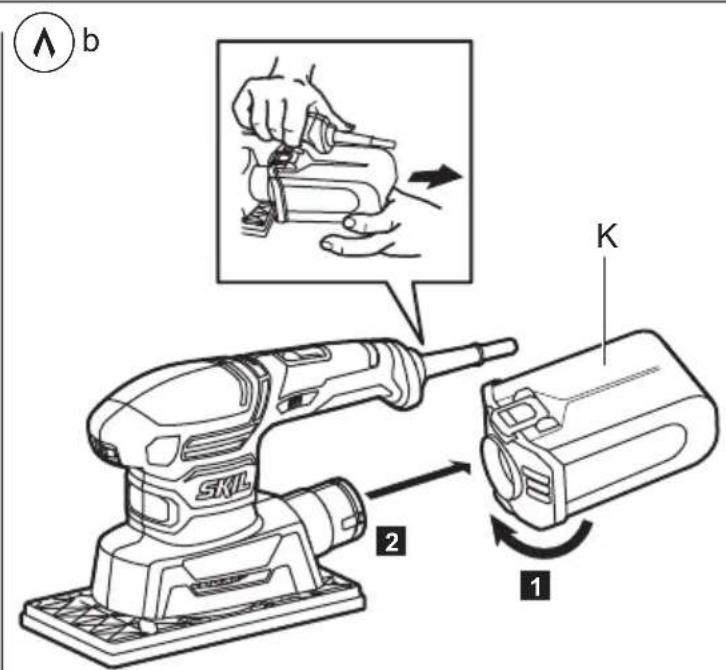

-empty dust box K regularly for optimal dust pick-up performance ⑧b

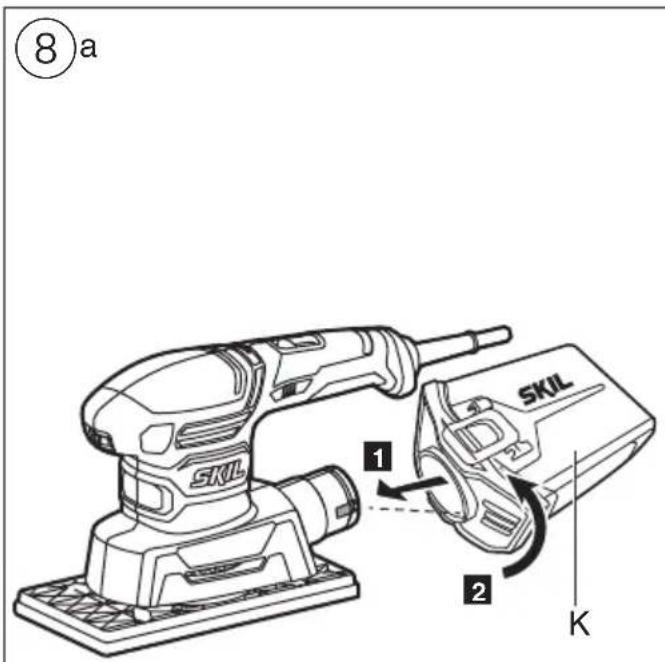

-Mount the dust box K as illustrated⑧a.

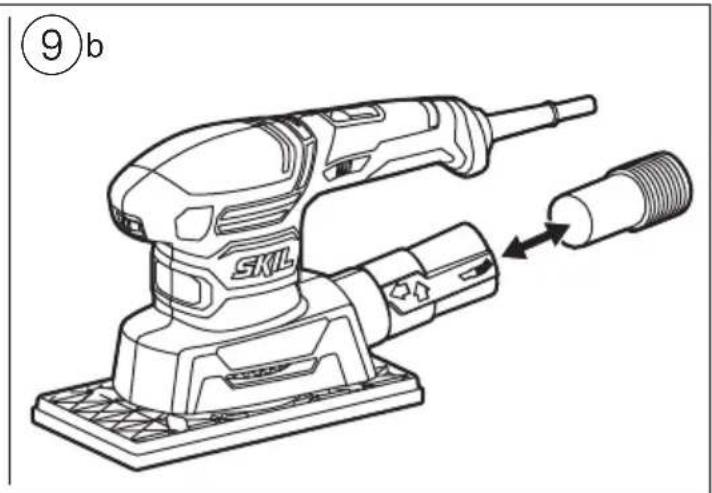

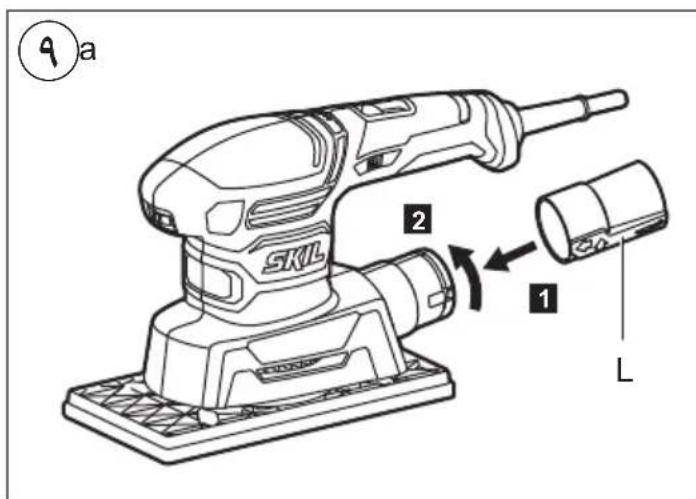

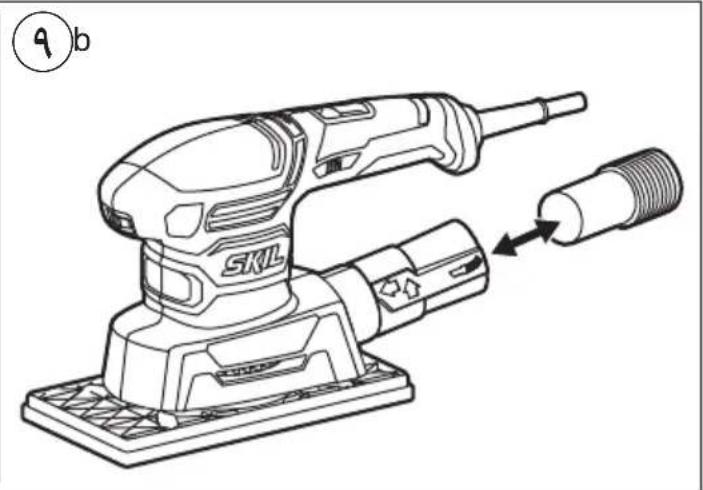

For using vacuum cleaner ⑨

-mount vacuum cleaner adapter L as illustrated -connect vacuum cleaner hose to vacuum cleaner adapter L

- On/off switch

-switch on/off the tool by pushing switch F② forward/backwards

! before the sanding surface reaches the workpiece, you should switch on the tool

! before switching off the tool, you should lift it from the workpiece

- Speed control ⑩

For optimal sanding results on different materials -with wheel J② you can set the desired sanding speed -adjust speed to grit size used -before starting a job, find the optimal speed and grit by testing out on spare material

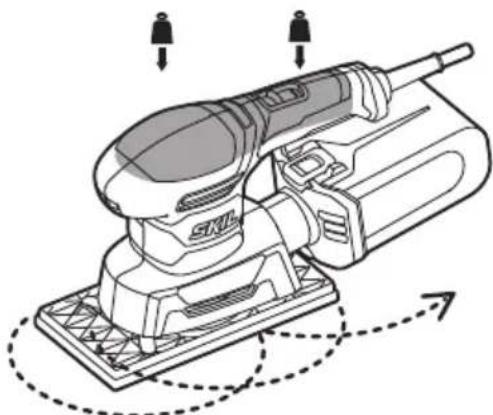

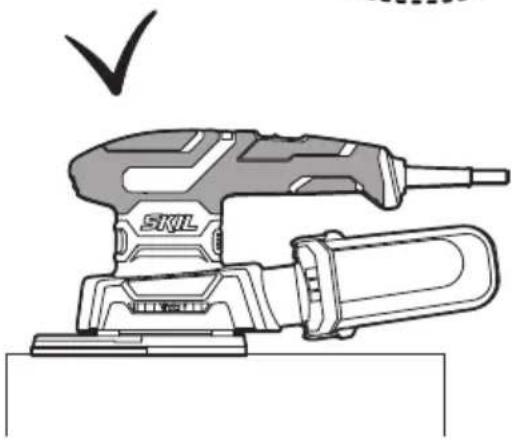

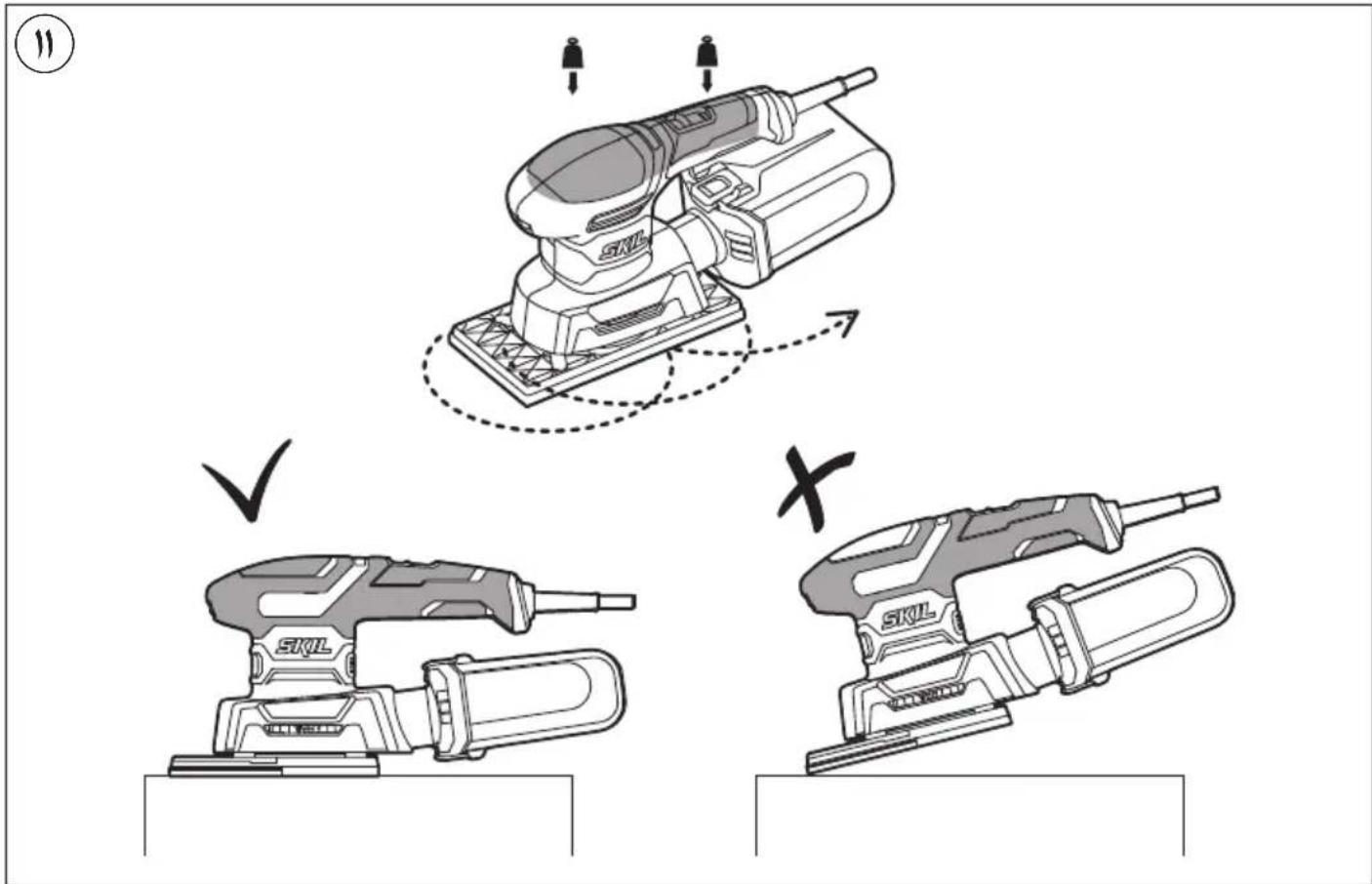

- Holding and guiding the tool ⑪

! while working, always hold the tool at the grey-coloured grip area(s)

-guide the tool parallel to the working surface

! do not apply too much pressure on the tool; let the sanding surface do the work for you

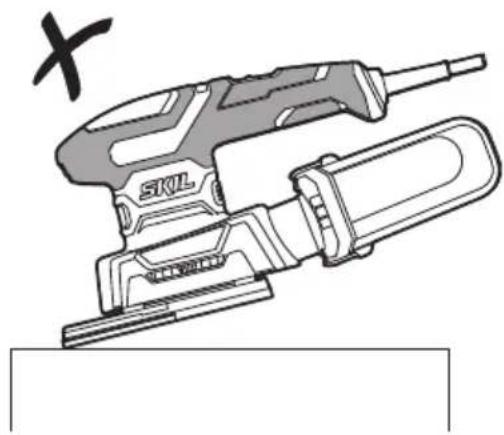

-do not tilt the tool in order to avoid unwanted sanding marks

-keep ventilation slots M② uncovered

- Overload Alert ⑫

Warns the user when applying too much pressure on the tool while working (too much pressure reduces the sanding performance)

-red light turns on when pressure is too high

APPLICATION ADVICE

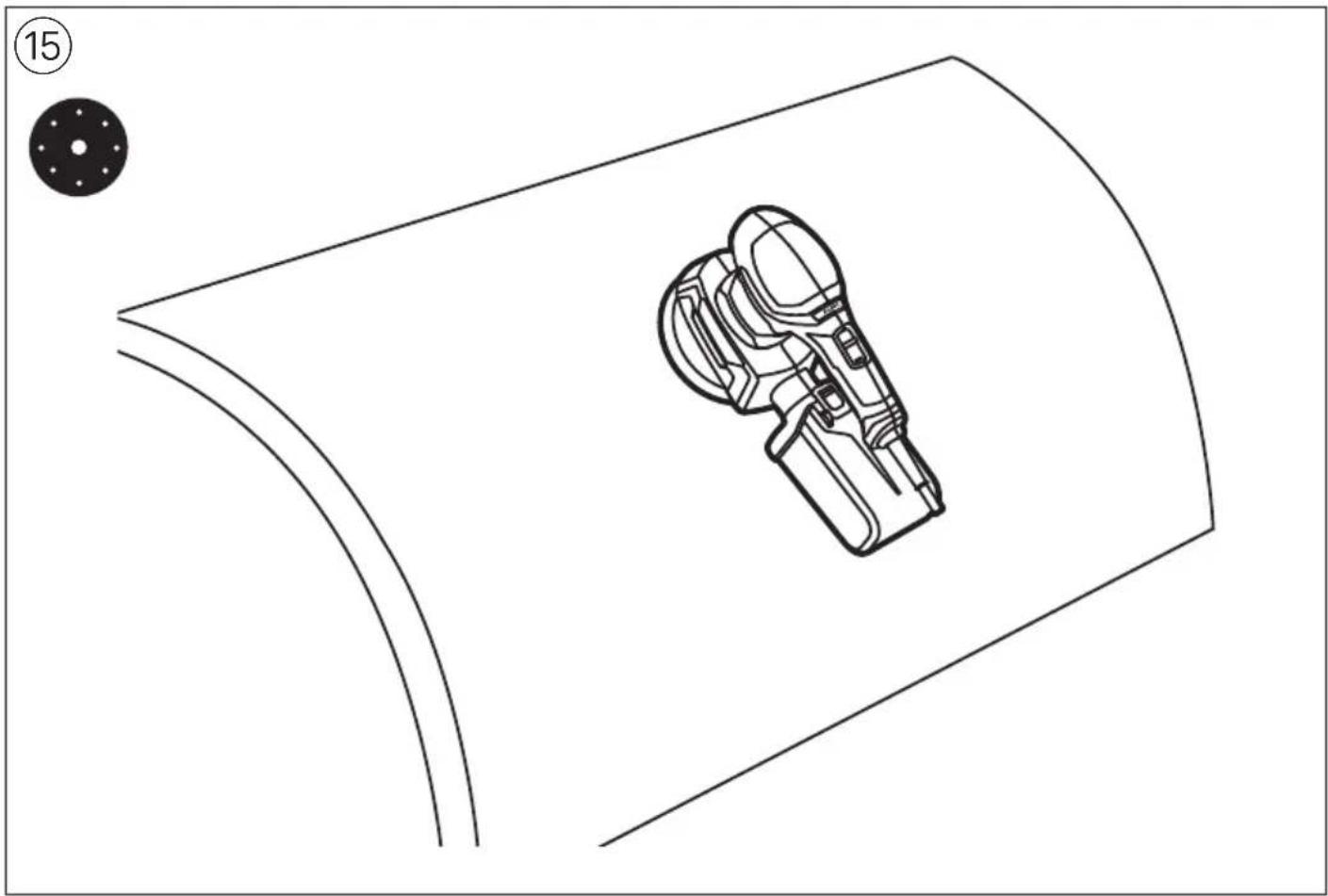

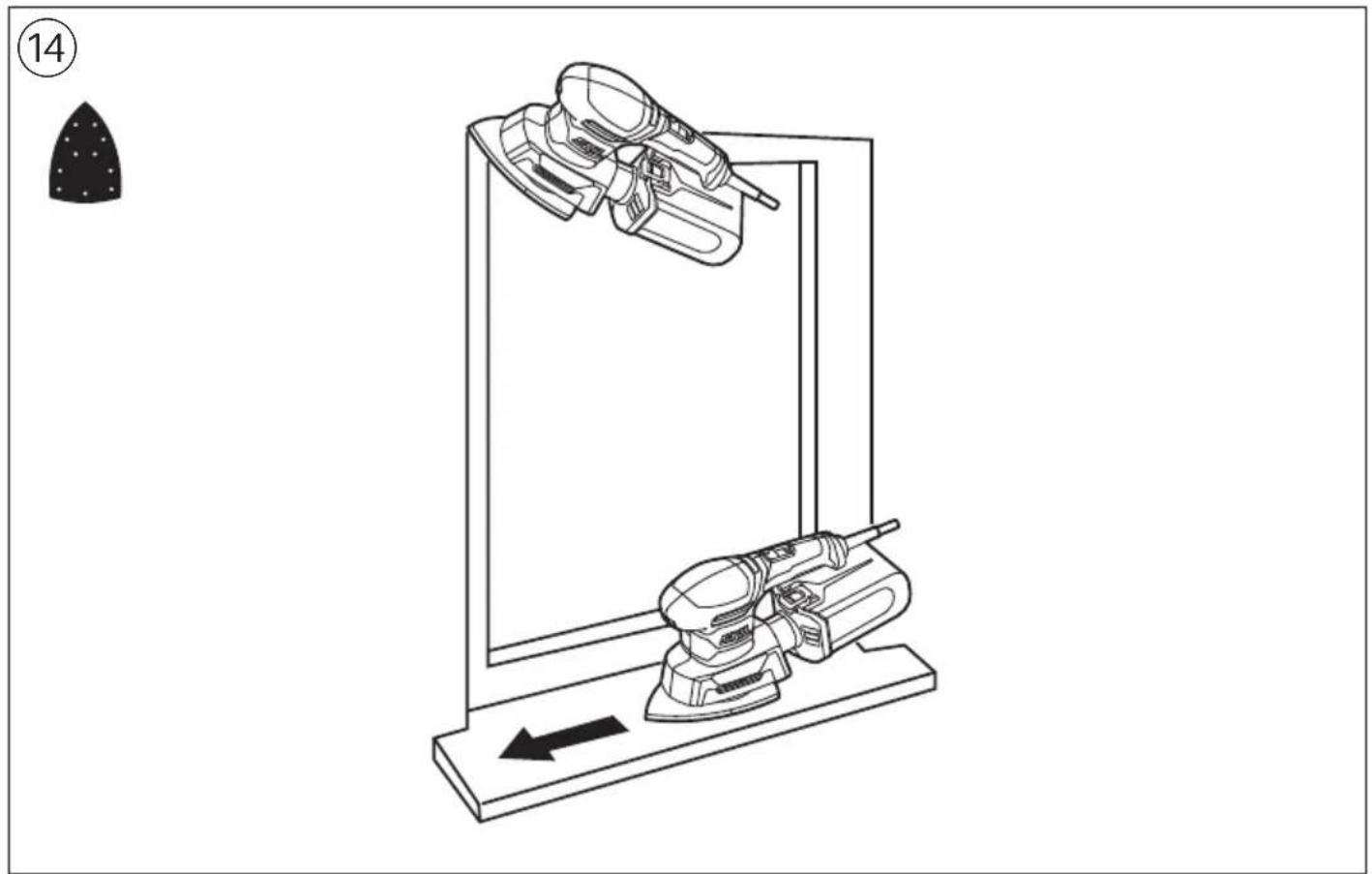

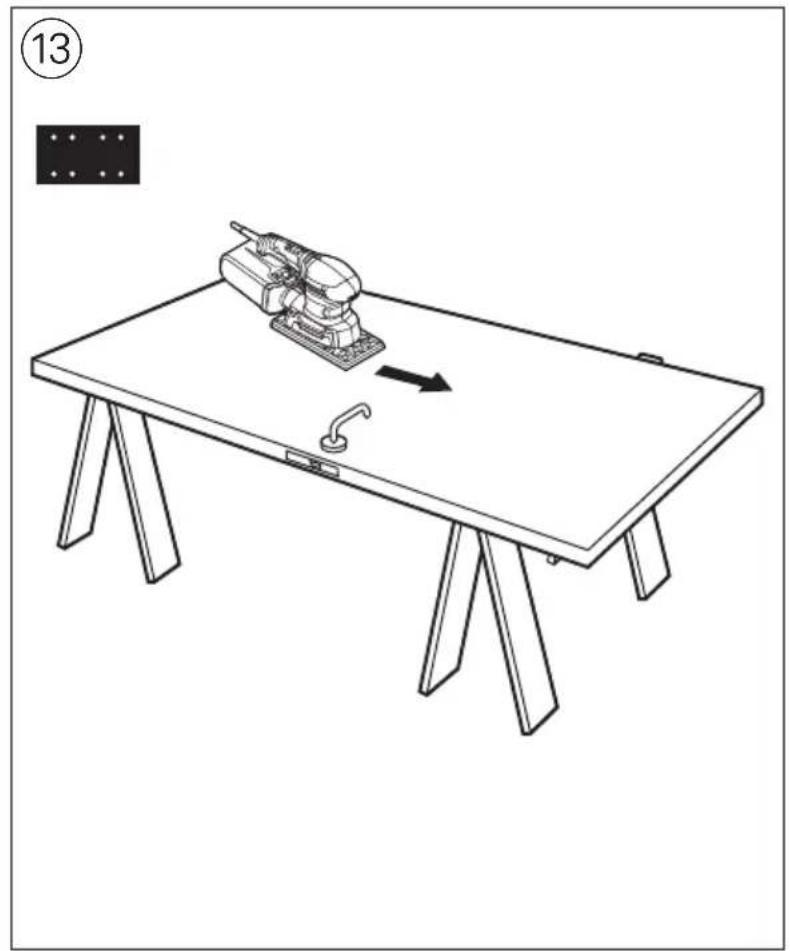

• For sanding curved workpieces as well as for sanding with high removal performance use the tool in combination with backing pad B ⑮
• Use the tool with the delta-tip pointing forward for edged, narrow and other hard-to-reach places ⑬
• When the delta-tip is worn or damaged at the top, you may extend its service life twice by removing it, turning it 120^ and putting it back (also applicable to delta sanding sheet) ⑯
• Never use the same sanding sheet for wood and metal
• Recommended sanding sheet grits:

-for removing paint and for sanding of extremely rough wood use coarse grit sizes (40, 60)

-for sanding of rough or plain wood use medium grit sizes (80, 100, 120)

-for smoothing of wood and surfaces with old paint as well as for finishing of bare wood use fine grit sizes (180, 240, 320)

- Use different grit sizes when the working surface is rough:

-start sanding with coarse or medium grit -finish with fine grit

- For more information see www.skil.com

MAINTENANCE / SERVICE

• This tool is not intended for professional use
- Always keep tool and cord clean (especially ventilation slots M ②)

-remove adhering sanding dust with a brush ! disconnect the plug before cleaning

- If the tool should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for SKIL power tools

- send the tool undismantled together with proof of purchase to your dealer or the nearest SKIL service station (addresses as well as the service diagram of the tool are listed on www.skil.com)

- Be aware that damage due to overload or improper handling of the tool will be excluded from the warranty (for the SKIL warranty conditions see www.skil.com or ask your dealer)

ENVIRONMENT

- Do not dispose of electric tools, accessories and packaging together with household waste material (only for EU countries)

-in observance of European Directive 2012/19/EC on waste of electric and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility
-symbol ⑤ will remind you of this when the need for disposing occurs

NOISE / VIBRATION

• Measured in accordance with EN 62841 the sound pressure level of this tool is 80.5 dB(A) and the sound power level 91.5 dB(A) (uncertainty K = 3 dB), and the vibration 7.8 m/s ^2 (triax vector sum; uncertainty K = 1.5 m/s ^2 )
• The vibration emission level has been measured in accordance with a standardised test given in EN 62841; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned

-using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level
-the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level

! protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

F

Ponceuse polyvalente 7280

INTRODUCTION

Abstract icon of a person walking inside a circular arrow system (no text or symbols)

BRUIT / VIBRATION

WAARSCHUWING Lees alle

1) SIKKERHET PÅ ARBEIDSPLASSEN

-fjern VELCRO (borrelås) slipepapir

-fjern puteskruen D med sekskantnøkkelen E

VEDLIKEHOLD / SERVICE

APKALPOŠANA / APKOPE

TECHNINIAI DUOMENYS ①

PRIETAISO ELEMENTAI②

- Thithja e pluhurave

Simple line drawing of a pencil (no text or symbols)

Simple line drawing of a pencil (no text or symbols)

Line drawing of a mechanical device on a curved surface, with a circular inset showing a dot (no text or symbols)

120° G

Line drawing of a table with a hammer and lever, no text or symbols present

Line drawing of a pair-of-glass machine on a stand, with a hanging part and directional arrow (no text or symbols)

	40 - 60	5
	120 - 240	6
	40 - 60	5
	120 - 240	5
ALU
	80	4
	120 - 240	5

Technical illustration showing three different SNIOL power tools with directional arrows indicating process steps.

a 1 2 SKL SKL K

b SKL 2 1 K

Diagram illustrating a hand pouring granular material into a trash bin, with labeled steps 3 and 4.

SKL 2 1 L 9 a

Line drawing of a SKL power tool with a threaded base, showing mechanical components and a close-up of the tool (no text or symbols)

Technical diagram showing exploded and assembled views of a mechanical device with labeled parts A, B, C, D, E

Technical line drawing of a mechanical assembly with a plate and housing (no text or symbols)

1

7280

①

Illustration of a SKIL power tool with a cylindrical body and handle (no text or symbols)

دليل الاستعمال

AR

راهنماي اصلی

FA
