USER MANUAL 3720 CA SKIL

Line drawing of a SKIL brand electronic device with front panel and base (no text or symbols on body)

QR code image containing encoded data, no visible human-readable text

GB ORIGINAL INSTRUCTIONS 8
(F) NOTICE ORIGINALE 11
D ORIGINALBETRIEBSANLEITUNG 15
(NL) ORIGINELE GEBRUIKSAANWIJZING 19
(S) BRUKSANVISNING I ORIGINAL 23
(DK) ORIGINAL BRUGSANVISNING 26
(N) ORIGINAL BRUKSANVISNING 30
FIN ALKUPERÄISET OHJEET 33
(E) MANUAL ORIGINAL 36
(P) MANUAL ORIGINAL 40
( I ) ISTRUZIONI ORIGINALI 44
H EREDETI HASZNÁLATI UTASÍTÁS 48
CZ PÜVODNÍM NÁVODEM K POUŽÍVÁNÍ 52
TR ORIJINAL İŞLETME TALİMATI 55
(PL) INSTRUKCJA ORYGINALNA 59
RU ПОДЛИННИК РУКОВОДСТВА ПО 63
ЭКСПЛУАТАЦИИ

UA ОРИГИНАЛЬНА ІНСТРУКЦІЯ 68
З ЕКСПЛУАТАЦІЇ
GR ΠΡΩΤΟΥΠΟ ΟΔΗΓΙΩΝ ΧΡΗΣΗΣ 72
RO INSTRUCTIUNI DE FOLOSIRE 76
ORIGINALE
BG ОРИГИНАЛНО РЪКОВОДСТВО 80
ЗА ЕКСПЛОАТАЦИЯ
SK PÔVODNÝ NÁVOD NA POUŽITIE 84
HR ORIGINALNE UPUTE ZA RAD 88
SRB ORIGINALNO UPUTSTVO ZA RAD 92
SLO IZVIRNA NAVODILA 95
EST ALGUPÄRANE KASUTUSJUHEND 99
LV ORIGINĀLĀ LIETOŠANAS PAMĀCĪBA 102
(LT) ORIGINALI INSTRUKCIJA 106
МК ИЗВОРНО УПАТСТВО ЗА РАБОТА 110
AL UDHËZIMET ORIGJINALE 114
AR دليل الاستعمال 123
FA راهنمای اصلی 121

EAC

www.skil.com

GB	EU Declaration of conformityCordless multi sander Article number		We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards.Technical file at:★
F	Déclaration de conformité UEPonceuse orbitale spécialesans fil Numéro d'article		Nous déclarons sous notre propre responsabilité que les produits décrits sont en conformité avec les directives, règlements normatifs et normes énumérés ci-dessous.Dossier technique auprès de:★
D	EU-KonformitätserklärungAkku-Exzenterschleifer Sachnummer		Wir erklären in alleiniger Verantwortung, dass die genannten Produkte allen einschlägigen Bestimmungen der nachfolgend aufgeführten Richtlinien und Verordnungen entsprechen und mit folgenden Normen übereinstimmen.Technische Unterlagen bei:★
NL	EU-conformiteitsverklaringOplaadbareexcenterschuurmachine Productnummer		Wij verklaren op eigen verantwoordelijkheid dat de genoemde producten voldoen aan alle desbetreffende bepalingen van de hierna genoemde richtlijnen en verordningen en overeenstemmen met de volgende normen.Technisch dossier bij:★
S	EU-konformitetsförklaringSladdlös slipmaskin medslumpvisa cirkelrörelser Produktnummer		Vi förklarar under eget ansvar att de nämnda produkterna uppfyller kraven i alla gällande bestämmelser i de nedan angivna direktiven och förordningarnas och att de stämmer överens med följande normer.Teknisk dokumentation:★
DK	EU-overensstemmelseserklæringBatteridrevet vilkårligorbitalsliber Typenummer		Vi erklærer som eneansvarlige, at det beskrevne produkt er i overensstemmelse med alle gældende bestemmelser i følgende direktiver og forordninger og opfylder følgende standarder.Tekniske bilag ved:★
N	EU-samsvarserklæringTrådlos, tilfeldig baneslipemaskin uten Produktnummer		Vi erklærer under eneansvar at de nevnte produktene er i overensstemmelse med alle relevante bestemmelser i direktivene og forordningene nedenfor og med følgende standarder.Teknisk dokumentasjon hos:★
FIN	EU-vaatimustenmukaisuusvakuutusAkkukäyttöinen hiomakonesatunnaisella heiluriliikkeellä Tuotenumero		Vakuutamme täten, että mainitut tuotteet vastaavat kaikkia seuraavien direktiivien ja asetusten asiaankuuluvia vaatimuksia ja ovat seuraavien standardien vaatimusten mukaisia.Tekniset asiakirjat saatavana:★
E	Declaración de conformidad UELijadora orbital aleatoriasin cable Número de artículo		Declaramos bajo nuestra exclusiva responsabilidad, que los productos nombrados cumplen con todas las disposiciones correspondientes de las directivas y los reglamentos mencionados a continuación y están en conformidad con las siguientes normas.Documentos técnicos de:★
P	Declaração de conformidade CELixadora orbital aleatóriasem fios Número do produto		Declaramos sob nossa exclusiva responsabilidade que os produtos mencionados cumprem todas as disposições e os regulamentos indicados e estão em conformidade com as seguintes normas.Documentação técnica pertencente à:★
I	Dichiarazione di conformità UELevigatrice rotorbitalesenza filo Codice prodotto		Dichiariamo sotto la nostra piena responsabilità che i prodotti indicati sono conformi a tutte le disposizioni pertinenti delle direttive e dei regolamenti elencati di seguito, nonché alle seguenti normative.Documentazione tecnica presso:★
H	EU konformitási nyilatkozatVezeték nélküliexcentercsiszoló Cikkszám		Egyedüli felelőséggel kijelentjük, hogy a megnevezett termékek megfelelnek az alábbiakban felsorolásra kerülő irányelvek és rendeletek valamennyi idevágó előírásainak és megfelelnek a következő szabványoknak.Műszaki dokumentumok megőrzési pontja:★
CZ	EU prohlášení o shoděAkumulátorová kruhovábruska Objednací číslo		Prohlašujeme na výhradní zodpovědnost, že uvedený výrobek splňuje všechna příslušná ustanovení niže uvedených směrnic a nařizení a je v souladu s následujícími normami.Technické podklady u:★
TR	AB Uygunluk beyaniEksantrik zımpara Ürün kodu		Tek sorumlu olarak, tanimlanan ürünün ašağıdaki yönetmelik ve direktiflerin geçerli bütün hükümlerine ve ašağıdaki standartlara uygun olduğunu beyan ederiz.Teknik belgelerin bulunduğu yer:★
PL	Deklaracja zgodności UEAkumulatorowa szlifierka oscylacyjna Numer katalogowy		Oświadczamy z pełną odpowiedzialnością, że niniejsze produkty odpowiadają wszystkim wymaganiom poniżej wyszczególnionych dyrektyw i rozporządzeń, oraz ze są zgodne z następującymi normami.Dokumentacja techniczna:★
RU	Заявление о соответствии ЕСАккумуляторная эксцентриковая шлифовальная машина Товарный номер		Мы заявляем под нашу единоличную ответственность, что названные продукты соответствуют всем действующим предписаниям нижеуказанных директив и распоряжений, а также нижеуказанных норм.Техническая документация хранится у:★
UA	Заява про відповідність ЄСБездротова ексцентриковашліфувальна машина Товарный номер		Мизаявляемо під нашу одноособову відповідальність, що названі вироби відповідають усім чинним положенням нищеозначених директив і розпоряджень, а також нижчеозначеним нормам.Технічна документация зберігається у:★
GR	Δήλωση πιστότητας EEΕπαναφορτιζόμενοέκκεντρο τριβείοΑριθμός ευρετηρίου		Δηλώνουμε με αποκλειστική μας ευθύνη, ότι τα αναφερόμενα προϊόντα αντιστοιχούν σε όλες τις σχετικές διατάξεις των πιο κάτω αναφερόμενων οδηγιών και κανονισμών και ταυτίζονται με τα ακόλουθα πρότυπα.Τεχνικά έγγραφα στη:★
RO	Declaratie de conformitate UEŞlefuitor cu excentriccu acumulatorNumăr de identificare		Declarăm pe proprie răspundere că produsele menționate corespund tuturor dispozitiilor relevante ale directivelor și reglementărilor enumerate în cele ce urmează și sunt în conformitate cu următoarele standarde.Documentație tehnică la:★
BG	EC декларация за съответствиеАкумулаторенексцентършлайфКаталожен номер		С пълна отговорност ние декларираме, че посочените продукти отговарят на всички валидни изисквания на директивите и разпоредбите по-долу и съответства на следните стандарти.Техническа документация при:★
SK	EU vyhlásenie o zhodeBezdrötová excentrická brüskaVecné číslo		Vyhlasujeme na výhradnú zodpovednosť, že uvedený výrobok splína všetky príslušné ustanovenia nižšie uvedených smerníc a nariadení a je v súlade s nasledujúcimi normami.Technické podklady má spoločnosť:★
HR	EU izjava o sukladnostiBežična ekscentrična brusilicaKataloški broj		Pod punom odgovornošću izjavljujemo da navedeni proizvodi odgovaraju svim relevantnim odredbama direktiva i propisima navedenima u nastavku i da su sukladni sa sljedećim normama.Tehnička dokumentacija se može dobiti kod:★
SRB	EU-izjava o usaglašenostiBežična šlajferica sarandomiziranom orbitomBroj predmeta		Na sopstvenu odgovornost izjavljujemo, da navedeni proizvodi odgovaraju svim dotičnim odredbama naknadno navedenih smernica u uredaba i da su u skladu sa sledećim standardima.Tehnička dokumentacija kod:★
SLO	Izjava o skladnosti ESBrezžični izsredni brusilnikŠtevilka artikla		Izjavljamo pod izključno odgovornostjo, da je omenjen izdelek v skladu z vsemi relevantnimi določili direktiv in uredb ter ustreza naslednjim standardom.Tehnična dokumentacija pri:★
EST	EL-vastavusdeklaratsioonJuhtmetaekstsentriklihvmasinadTootenumber		Kinnitame ainuvastutajatena, et nimetatud tooted vastavad järgnevalt loetletud direktiivide ja määruste köikidele asjaomastele nõuetele ja on kooskõlas järgmiste normidega.Tehnilised dokumentend saadaval:★
LV	Deklaracija par atbilstību EK standartiemBezvadu ekscentraslīpmašinaIzstrādājuma numurs		Mēs ar pilnu atbildību pazinojam, ka šeit aplūkotie izstrādājumi atbilst visiem tālāk minētajās direktivās un rīkojumos ietvertajām saistošajām nostādnēm, kā arī sekojošiem standartiem.Tehniskā dokumentacija no:★
LT	ES atitikties deklaracijaAkumuliatorinės atsitiktiniu būdu besisukančios juostinėsšlifavimo staklėsGaminio numeris		Atsakingai pareiškiame, kad išvardyti gaminiai atitinka visus privalomus žemiau nurodytu direktyvų ir reglamentų reikalavimus ir šiuos standartus.Techninė dokumentacija saugoma:★
MK	EU-Изјава за сообразностБезжична шмиргла сопроизволна орбитаБрој на артикл		Со целосна одговорност изјавуваме, дека опишаните производи се во согласност со сите релевантни одредби на следните регулативи и прописи и се во согласност со следните норми.Техничка документација кај:★
AL	EU Deklarata e konformitetitZmerilues me bateriNumri i nenit		Ne deklarojmė me përgjegjėsinė tonė të vetme se produktet e paraqitura janė në përputhje me të gjitha dispozitat e zbatueshme të direktivave dhe rregulloreve të listuara mė poshte dhe janė në përputhje me standardet si mė poshte.Dosja teknike nė:★
	3720 SR1*3720**		2006/42/ECEN 62841-1:20152014/30/EUEN 62841-2-4:20142011/65/EUEN 55014-1:2021EN 55014-2:2021EN 63000:2018
			Skil BVRithmeesterpark 22 A14838 GZ BredaThe Netherlands
			Olaf DijkstraafApproval ManagerSkil BV, Rithmeesterpark 22 A1, 4838 GZ Breda, NL06.05.2022

1
3720

20V Max 18 Volt 2,0 Ah 2,5 Ah 1,1 kg 4,0 Ah 5,0 Ah 1,4 kg 102x151 mm 93 mm 54x54 mm 87x32 mm

②

G BL SKIL W/064L288 B A F J

C E*D*C* * NOT STANDARD INCLUDED

③

4

5

⑥

⑦ J ⑦a ⑦b ⑦c

8

Diagram illustrating the step-by-step installation of a device with lock icons and internal components, labeled in Chinese.

⑩ SKIL BL 10000.5mm

11 SKIL

Line drawings showing two different tasks: one using a power iron on a table, and another with a tool on a mirror (no text or symbols present)

Diagram showing three steps of hairpin tool application: cleaning, holding a clip, and using a tool to trim a vertical bar.

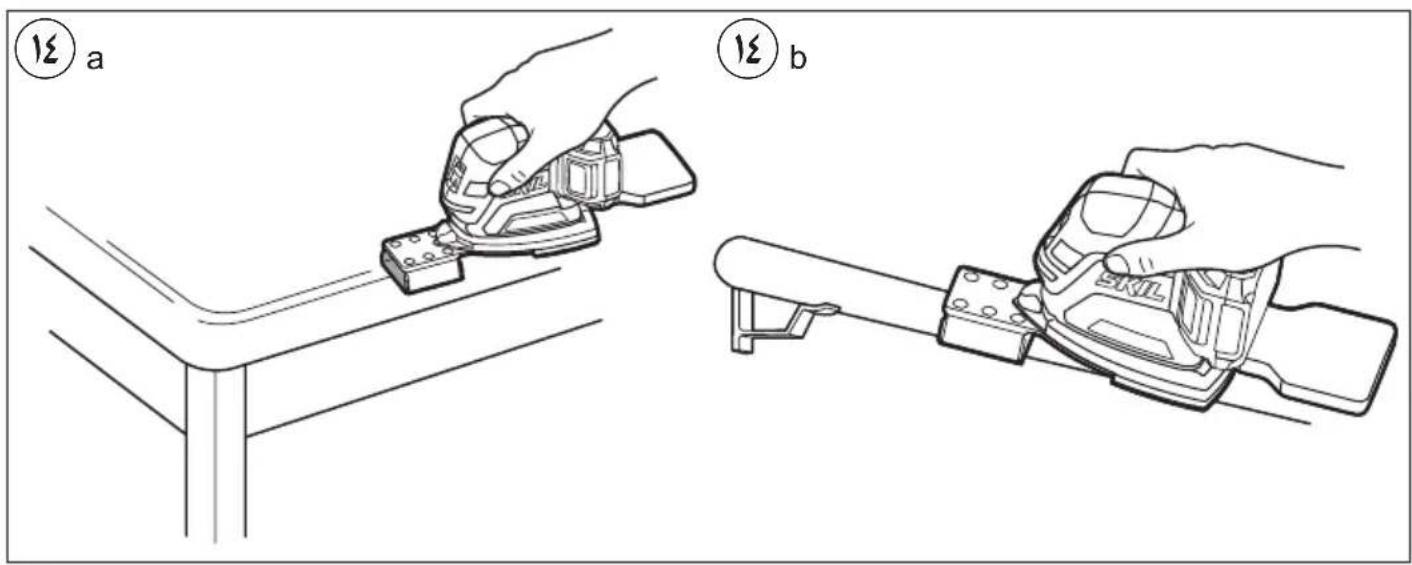

(14)a (14)b

SKIL 15

ACCESSORIES

WWW.SKIL.COM

GB

Brushless cordless multi sander 3720 INTRODUCTION

• This tool is intended for dry sanding of wood, plastic, metal, filler and painted surfaces
  • This tool is not intended for sanding gypsum
  • This tool is not intended for professional use
• Read and save this instruction manual ③

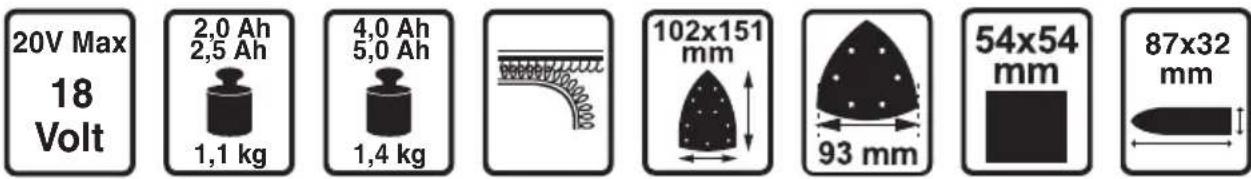

TECHNICAL DATA①

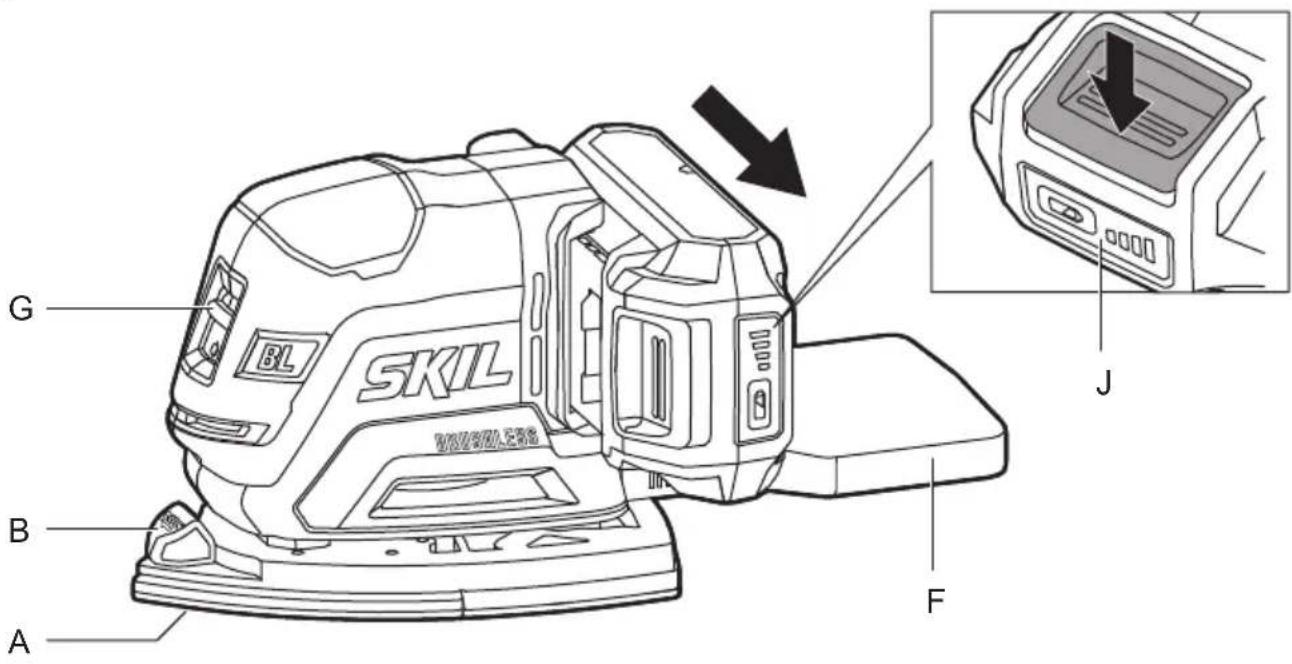

TOOL ELEMENTS ②

A Delta tip
B Button for changing foot plates

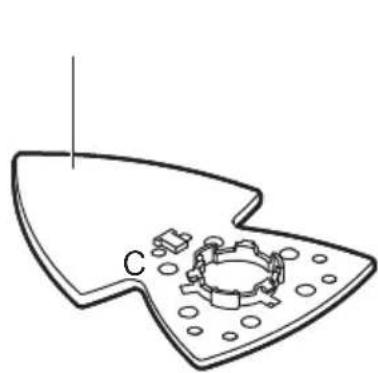

C Louvre attachment*
D Finger attachment*
E Flexible sanding attachment*
F Dust bag
G On/off switch
H Ventilation slots
J Battery level indicator
* NOT STANDARD INCLUDED

SAFETY

GENERAL POWER TOOL SAFETY WARNINGS

WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

2) ELECTRICAL SAFETY

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained users.

e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) BATTERY TOOL USE AND CARE

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

c) When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another.

Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.

f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130^ C may cause explosion.

g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

6) SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

SAFETY INSTRUCTIONS FOR SANDERS

GENERAL

• This tool should not be used by people under the age of 16 years
  • This tool is not suitable for wet sanding
• Do not work materials containing asbestos (asbestos is considered carcinogenic)
• Remove battery from tool before making any adjustments or changing accessories

ACCESSORIES

• SKIL can assure flawless functioning of the tool only when original accessories are used
• Do not continue to use worn, torn or heavily clogged sanding sheets

BEFORE USE

• Avoid damage that can be caused by screws, nails and other elements in your workpiece; remove them before you start working
• The noise level when working can exceed 85 dB(A); wear ear protection
• Dust from material such as paint containing lead, some wood species, minerals and metal may be harmful (contact with or inhalation of the dust may cause allergic reactions and/or respiratory diseases to the operator or bystanders); wear a dust mask and work with a dust extraction device when connectable

- Certain kinds of dust are classified as carcinogenic (such as oak and beech dust) especially in conjunction with additives for wood conditioning; wear a dust mask and work with a dust extraction device when connectable

• Follow the dust-related national requirements for the materials you want to work with
• Wear protective gloves, safety glasses, close-fitting clothes and hair protection (for long hair)
• Secure the workpiece (a workpiece clamped with clamping devices or in a vice is held more securely than by hand)
• When sanding metal, sparks are generated; do not use dust box and keep other persons and combustible material from work area

DURING USE

• Do not touch the moving sanding sheet
• In case of electrical or mechanical malfunction, immediately switch off the tool and remove battery

AFTER USE

- When you put away the tool, switch off the motor and ensure that all moving parts have come to a complete standstill

BATTERIES

• The battery supplied is partially charged (to ensure full capacity of the battery, completely charge the battery in the battery charger before using your power tool for the first time)
• Only use the following batteries and chargers with this tool

-SKIL battery: BR1*31****

-SKIL charger: CR1*31****

• Do not use the battery when damaged; it should be replaced
• Do not disassemble the battery
• Do not expose tool/battery to rain
• Permitted ambient temperature (tool/charger/battery): -when charging 4...40°C

-during operation -20...+50°C

-during storage -20...+50°C

EXPLANATION OF SYMBOLS ON TOOL/BATTERY

③ Read the instruction manual before use
④ Batteries may explode when disposed of in fire, so do not burn battery for any reason
⑤ Store tool/charger/battery in locations where temperature will not exceed 50°C
⑥ Do not dispose of electric tools and batteries together with household waste material

USE

• Charging battery
  ! read the safety warnings and instructions provided with the charger
• Removing/installing the battery ②

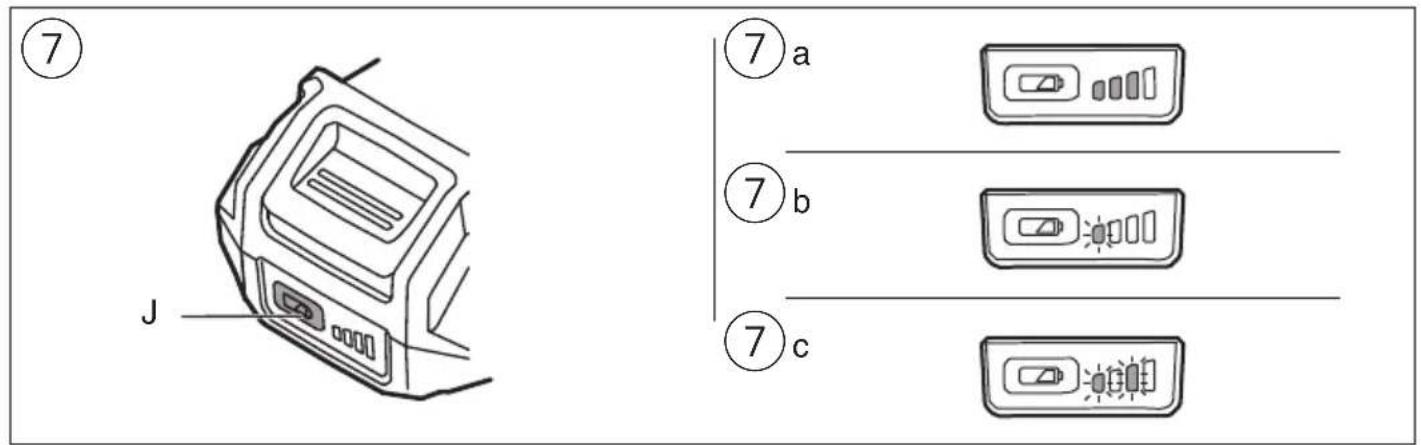

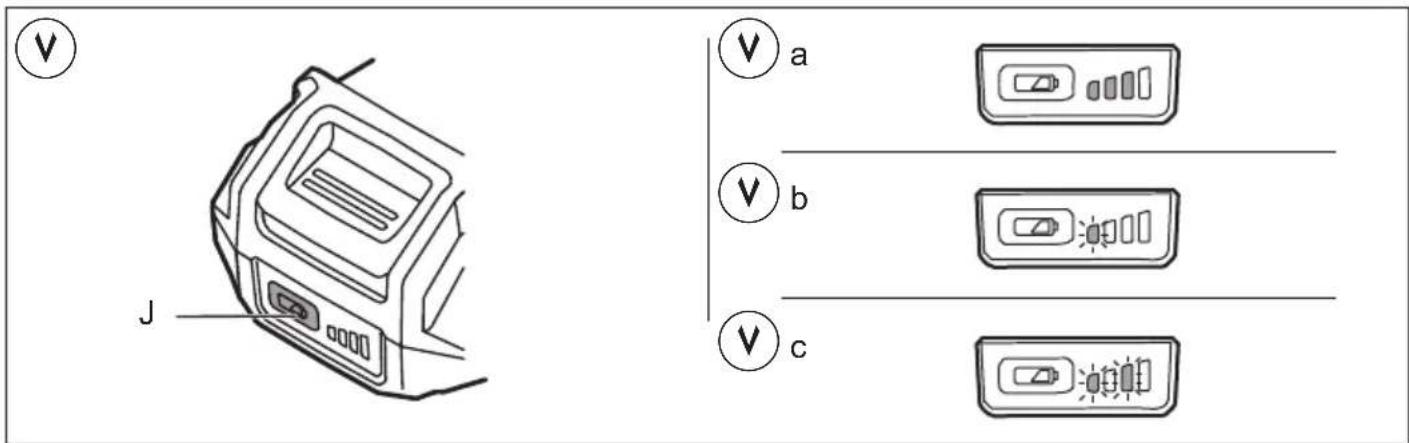

• Battery level indicator ⑦

-press the battery level indicator button J to show the current battery level ⑦a

! when the lowest level of the battery indicator starts flashing after pressing button J ⑦b, the battery is empty

! when 2 levels of the battery indicator start flashing after pressing button J ⑦c, the battery is not within the allowable operating temperature range

- Battery protection

The tool is suddenly being switched off or prevented from being switched on, when

- the load is too high --> remove load and restart -the battery temperature is not within the allowable operating temperature range of -20 to +50°C --> 2 levels of the battery level indicator start flashing when pressing button J ⑦c; wait until battery has returned within the allowable operating temperature range -the battery is nearly empty (to protect against deep discharge) --> a low battery level or flashing low battery level ⑦b is shown by the battery level indicator when pressing button J; charge battery

! do not continue to press the on/off switch after the tool is switched off automatically; battery may be damaged

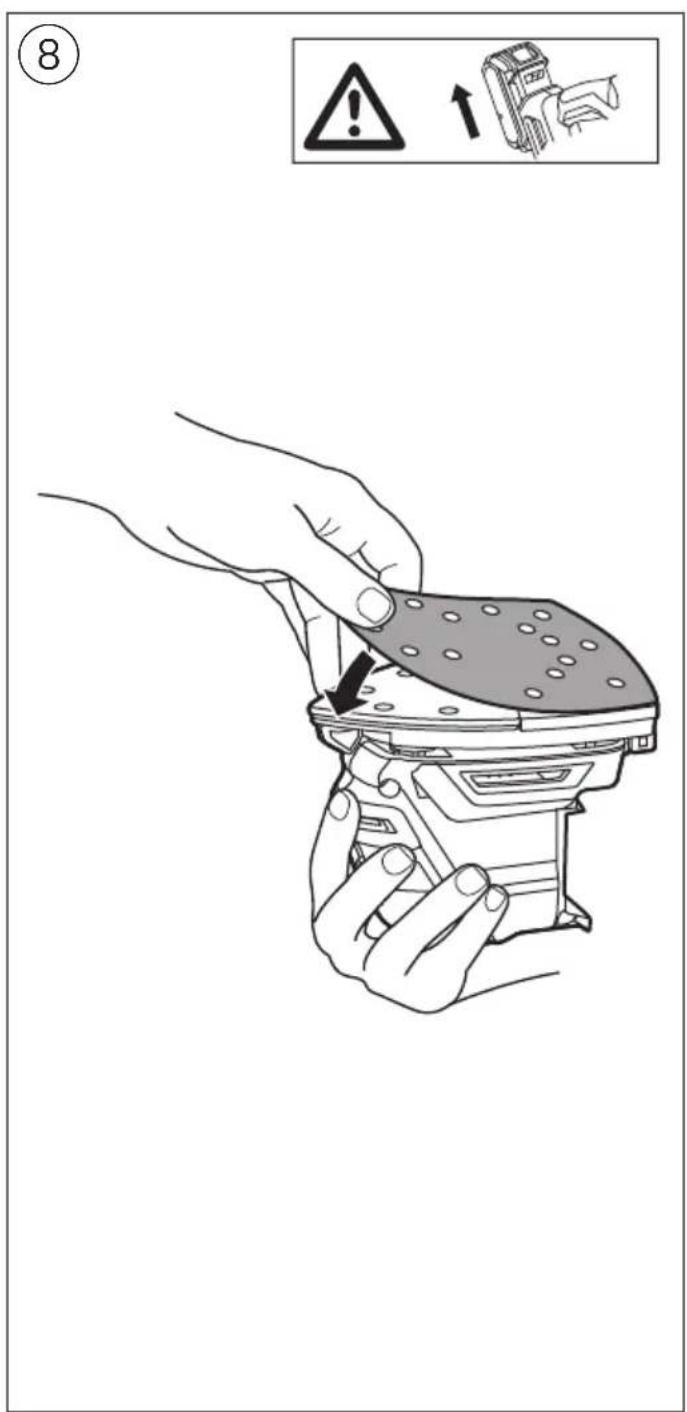

- Mounting of sanding sheet ⑧

! remove battery from tool before making any adjustments or changing accessories ! the dust suction requires the use of perforated sanding sheets

! perforation in sanding sheet should correspond with perforation in sanding foot

! replace worn sanding sheets in time

! always use the tool with the total sanding surface covered with sanding paper

-mount VELCRO sanding sheet as illustrated

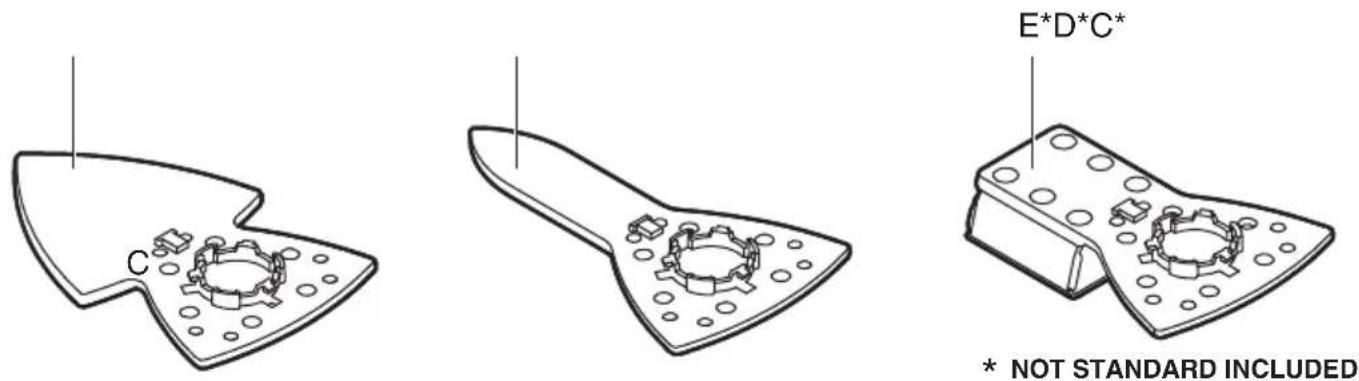

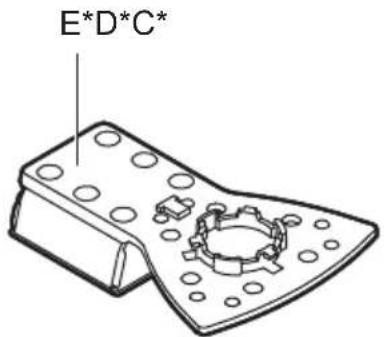

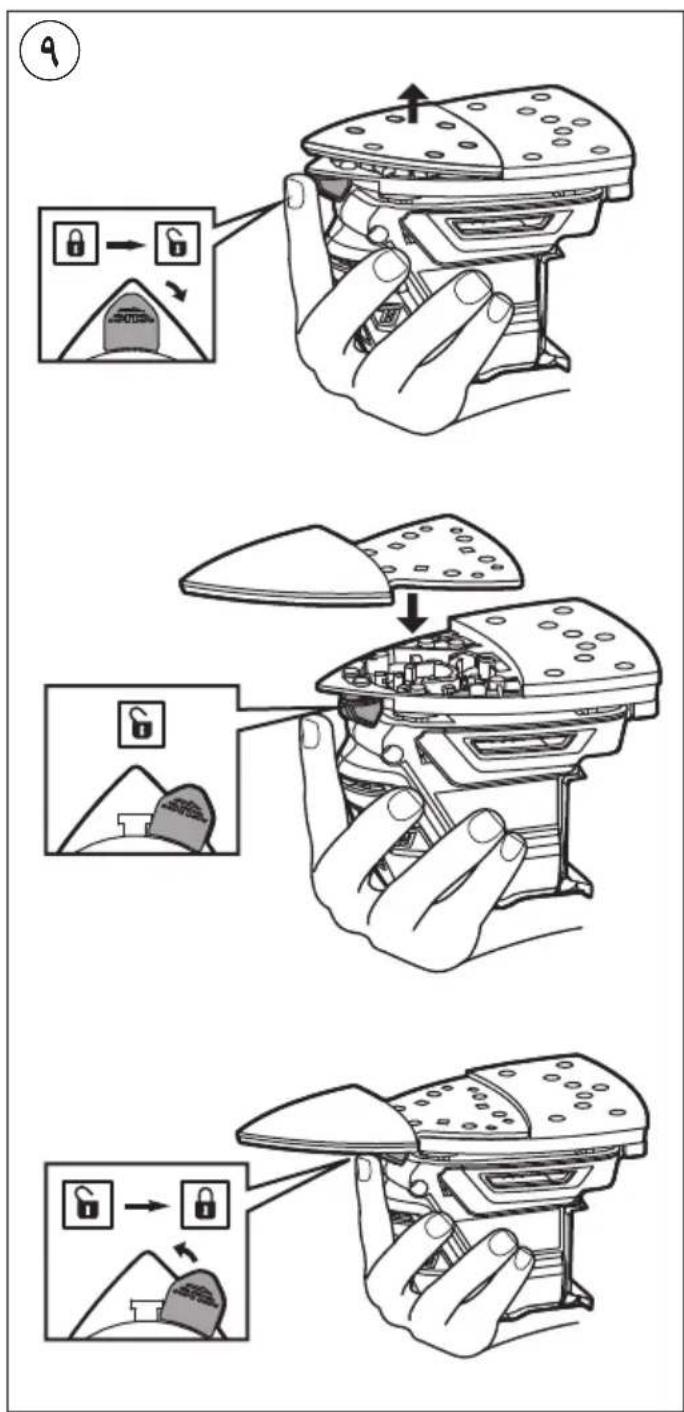

- Mounting special sanding attachments (not standard included) ⑨

-remove VELCRO sanding sheet

-remove delta tip A while pushing button B

-mount desired sanding attachment as illustrated

-mount corresponding VELCRO sanding sheet to sanding attachment

- Dust suction

! do not use dust bag when sanding metal

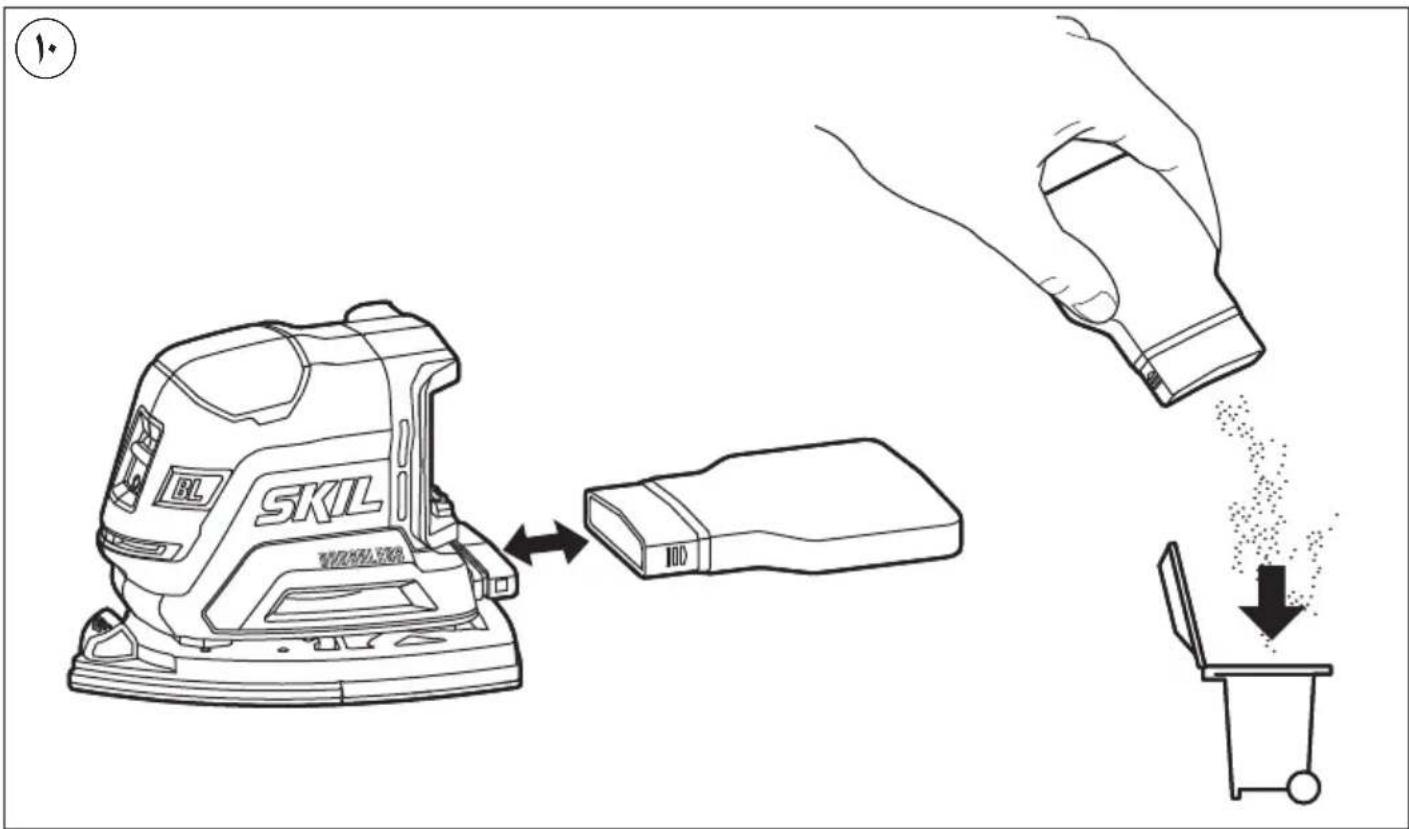

Dust bag ⑩

-mount dust bag D

-empty dust bag regularly for optimal dust pick-up performance

- On/off switch

-switch on/off the tool by pushing switch F ② forward/backwards
! before the sanding surface reaches the workpiece, you should switch on the tool
! before switching off the tool, you should lift it from the workpiece

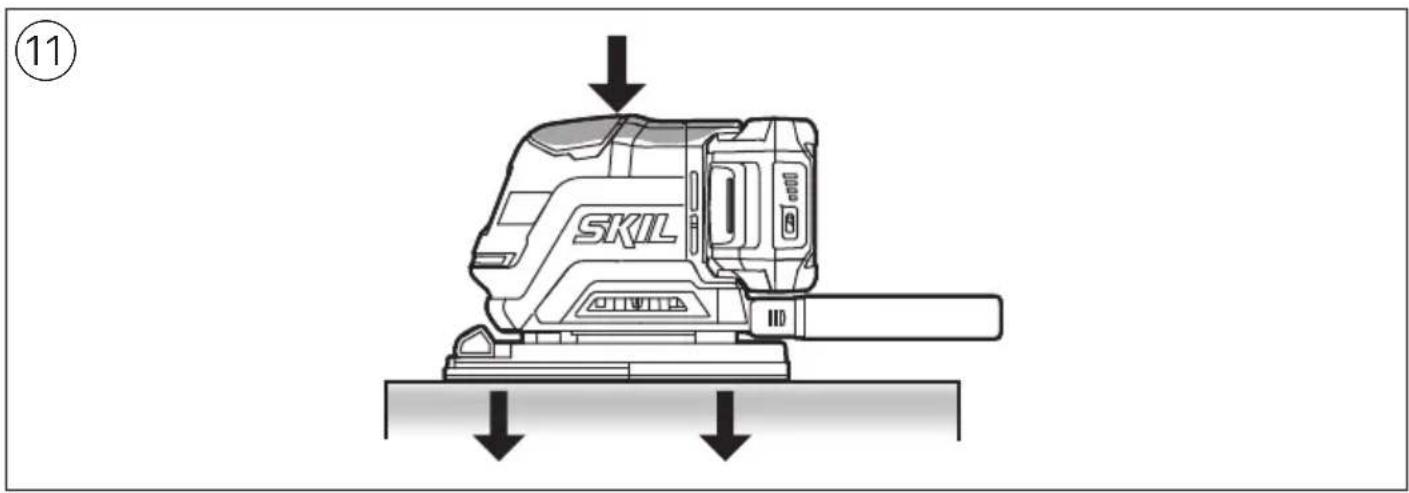

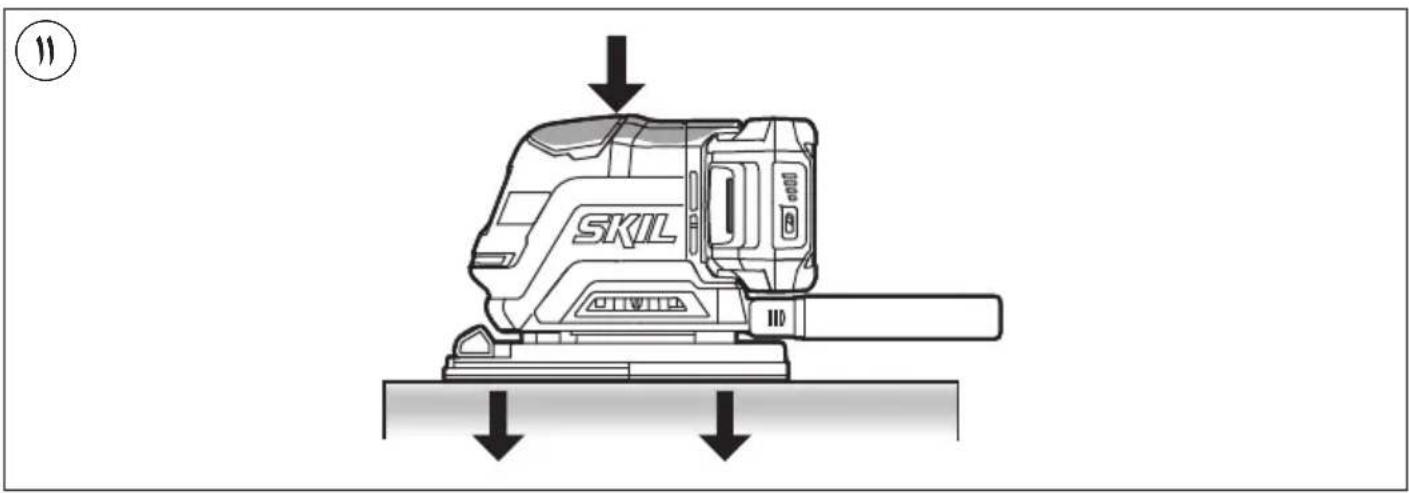

- Holding and guiding the tool ⑪

! while working, always hold the tool at the grey-coloured grip area(s)

-guide the tool parallel to the working surface
-do not apply too much pressure on the tool; let the sanding surface do the work for you
-do not tilt the tool in order to avoid unwanted sanding marks
-keep ventilation slots H② uncovered

APPLICATION ADVICE

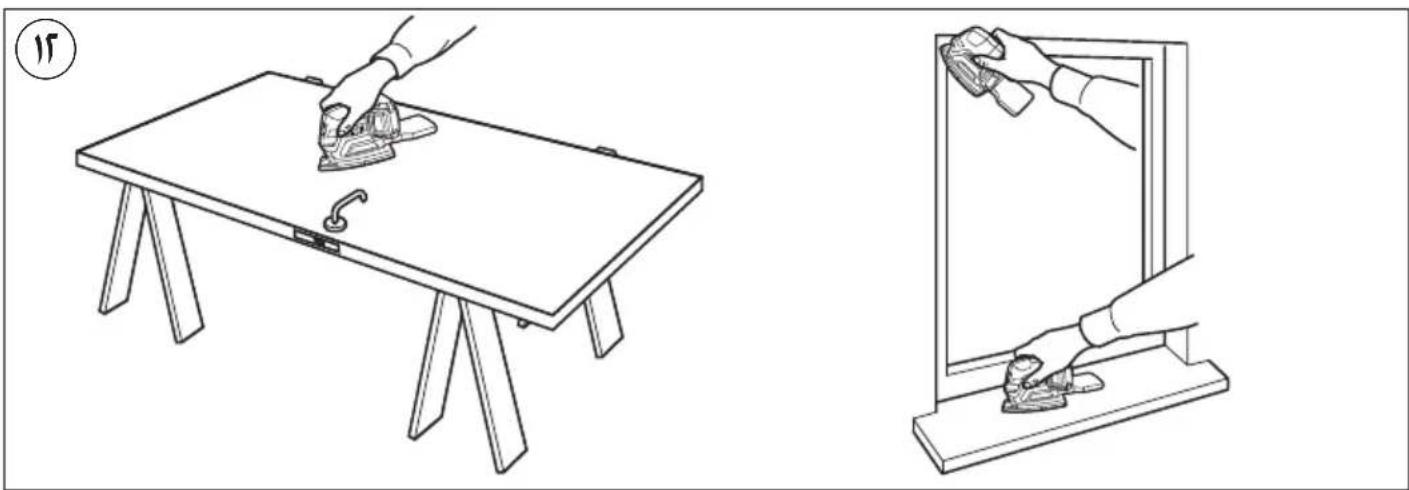

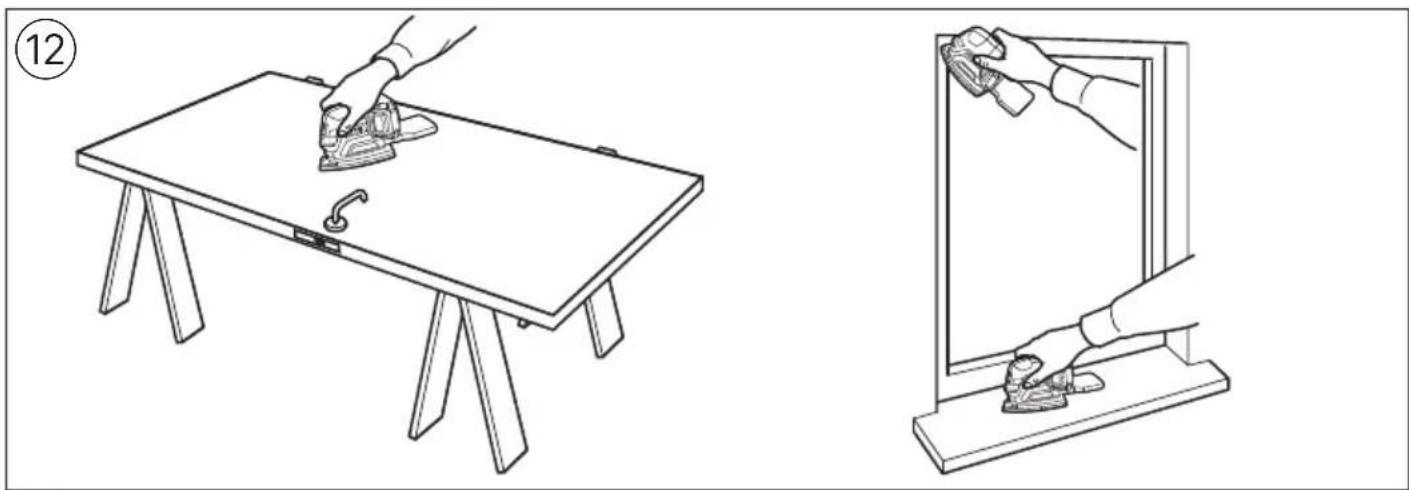

• Use the tool with its standard foot plate for sanding large surfaces, corners and edges ⑫

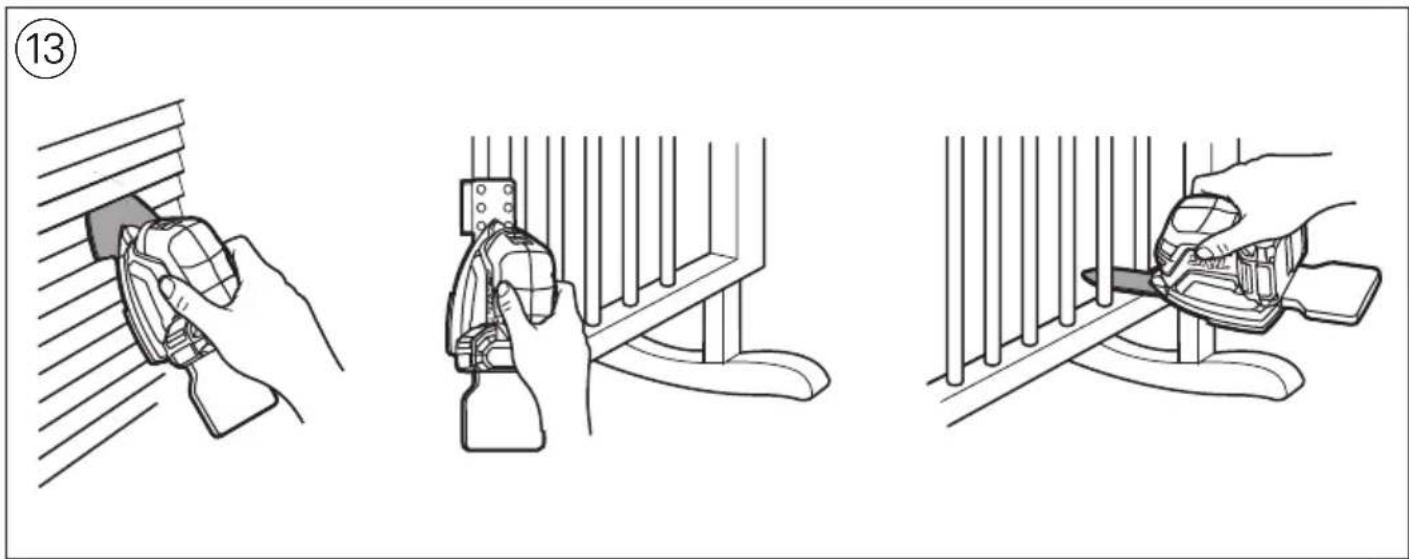

• Use the tool with the special sanding attachments for hard-to-reach places ⑬
• The flexible sanding attachment is intended for -rounding edged surfaces ⑭a

-all rounded surfaces with a maximum diameter of 10 cm ⑭b

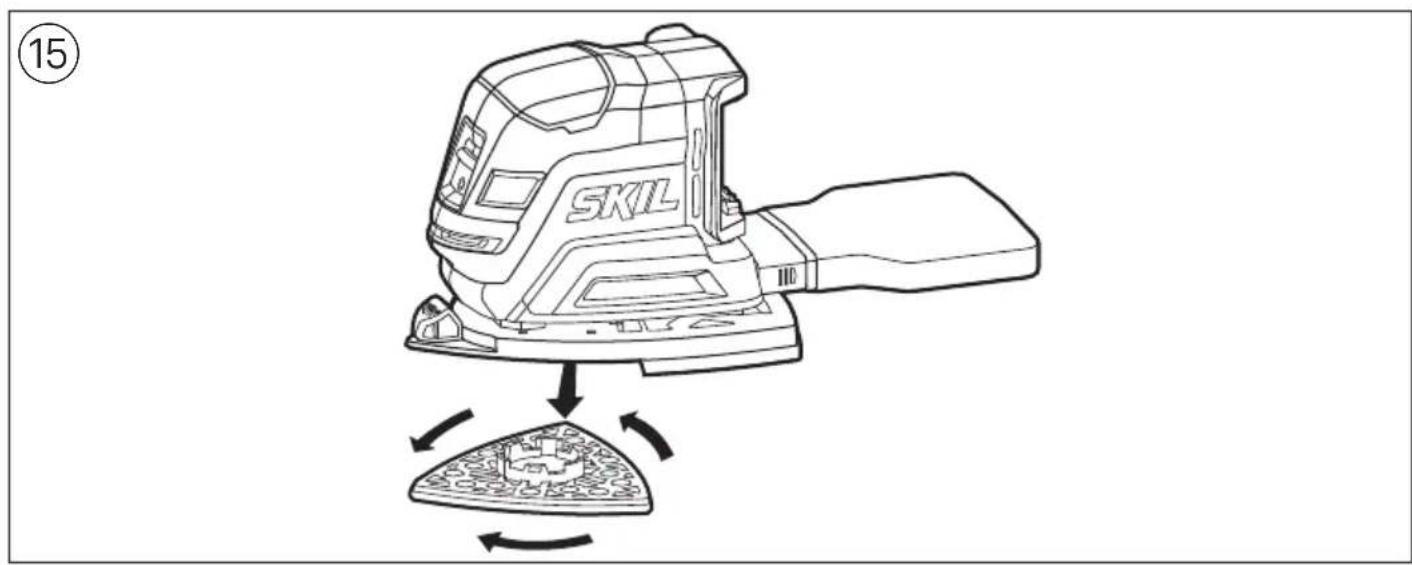

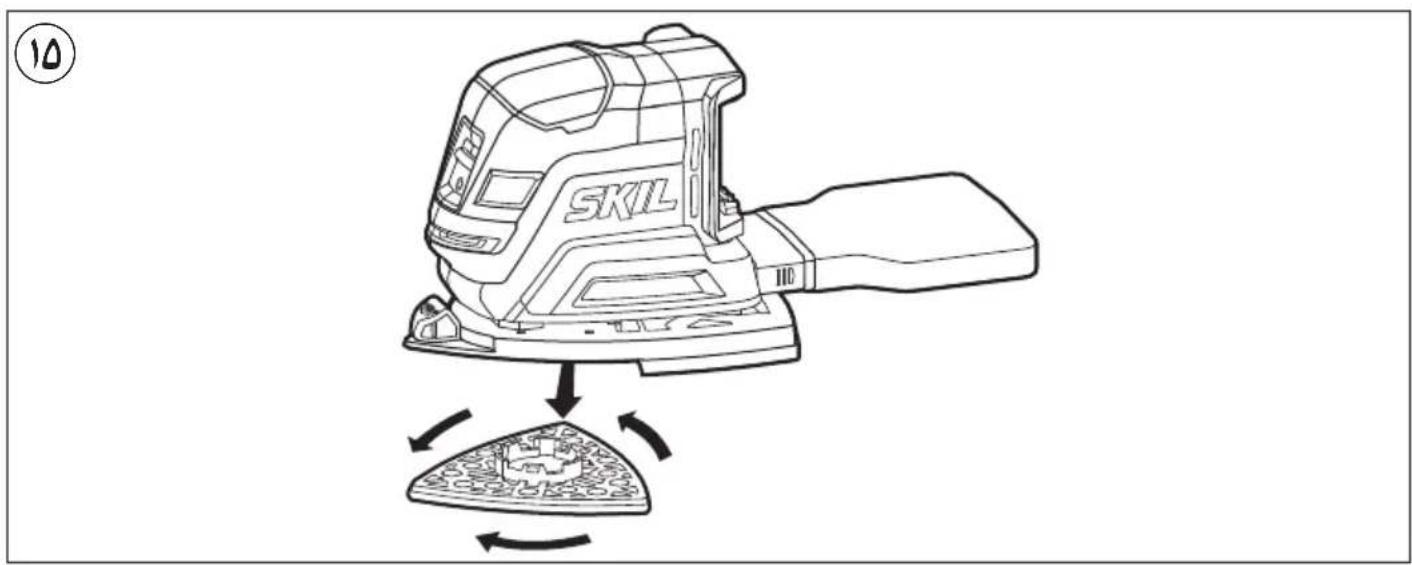

- When the delta-tip is worn or damaged at the top, you may extend its service life twice by removing it, turning it 120° and putting it back (also applicable to delta sanding sheet) ⑮

Never use the same sanding sheet for wood and metal

- Recommended sanding sheet grits:

-for removing paint and for sanding of extremely rough wood use coarse grit sizes (40, 60)
-for sanding of rough or plain wood use medium grit sizes (80, 100, 120)
-for smoothing of wood and surfaces with old paint as well as for finishing of bare wood use fine grit sizes (180, 240, 320)

- Use different grit sizes when the working surface is rough:

-start sanding with coarse or medium grit
-finish with fine grit

• For more information see www.skil.com

MAINTENANCE / SERVICE

• This tool is not intended for professional use
- Always keep tool and cord clean (especially ventilation slots H ②)

-remove adhering sanding dust with a brush
-remove battery from tool before cleaning

• If the tool should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for SKIL power tools
• send the tool undismantled together with proof of purchase to your dealer or the nearest SKIL service station (addresses as well as the service diagram of the tool are listed on www.skil.com)
• Be aware that damage due to overload or improper handling of the tool will be excluded from the warranty

(for the SKIL warranty conditions see www.skil.com or ask your dealer)

ENVIRONMENT

- Do not dispose of electric tools, batteries, accessories and packaging together with household waste material (only for EU countries)

-in observance of European Directive 2012/19/EC on waste of electric and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility -symbol⑥ will remind you of this when the need for disposing occurs

! prior to disposal protect battery terminals with heavy tape to prevent short-circuit

NOISE / VIBRATION

- Measured in accordance with EN 62841 the sound pressure level of this tool is 76 dB(A) and the sound power level 87 dB(A) (uncertainty K = 3 dB), and the vibration 4.78 m/s ^2 (triax vector sum; uncertainty K = 1.5 m/s ^2 )

- The vibration emission level has been measured in accordance with a standardised test given in EN 62841; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned - using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level - the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level ! protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

F

1) SIKKERHET PÅ ARBEIDSPLASSEN

VEDLIKEHOLD / SERVICE

APKALPOŠANA / APKOPE

TECHNINIAI DUOMENYS ①

PRIETAISO ELEMENTAI②

- Thithja e pluhurave

Three-step diagram showing hand tool application on a wall, holding a tool, and using a tool to trim or trim (no text or symbols present)

⑫ a ⑬ b

SKIL 10

WWW.SKIL.COM

الملحقات

SKIL BL 100 ↓

SKIL CIVIL

Line drawings showing two different tasks: one using a power iron on a wooden table, and another with hands cleaning a mirror (no text or symbols present)

V J V a V b V c

Instructional diagram showing hand pressing a sanding machine with warning symbols and an icon of a device.

Diagram illustrating three-step steps in a device's lock mechanism, showing hand positioning and lock operation with labeled icons.

1

3720

1

G BL SKIL WOLKILLER B A F J

Diagram of a mechanical component with labeled section C, showing internal gear and holes (no text or symbols beyond label)

Technical line drawing of a mechanical tool or component with a central gear and mounting holes (no text or symbols)

E*D*C*

Line drawing of a SKIL brand electronic device with front panel and control panel (no text or symbols on body)

QR code image containing encoded data, no visible human-readable text

دليل الاستعمال AR راهنماي اصلي FA
