USER MANUAL BP740 LG

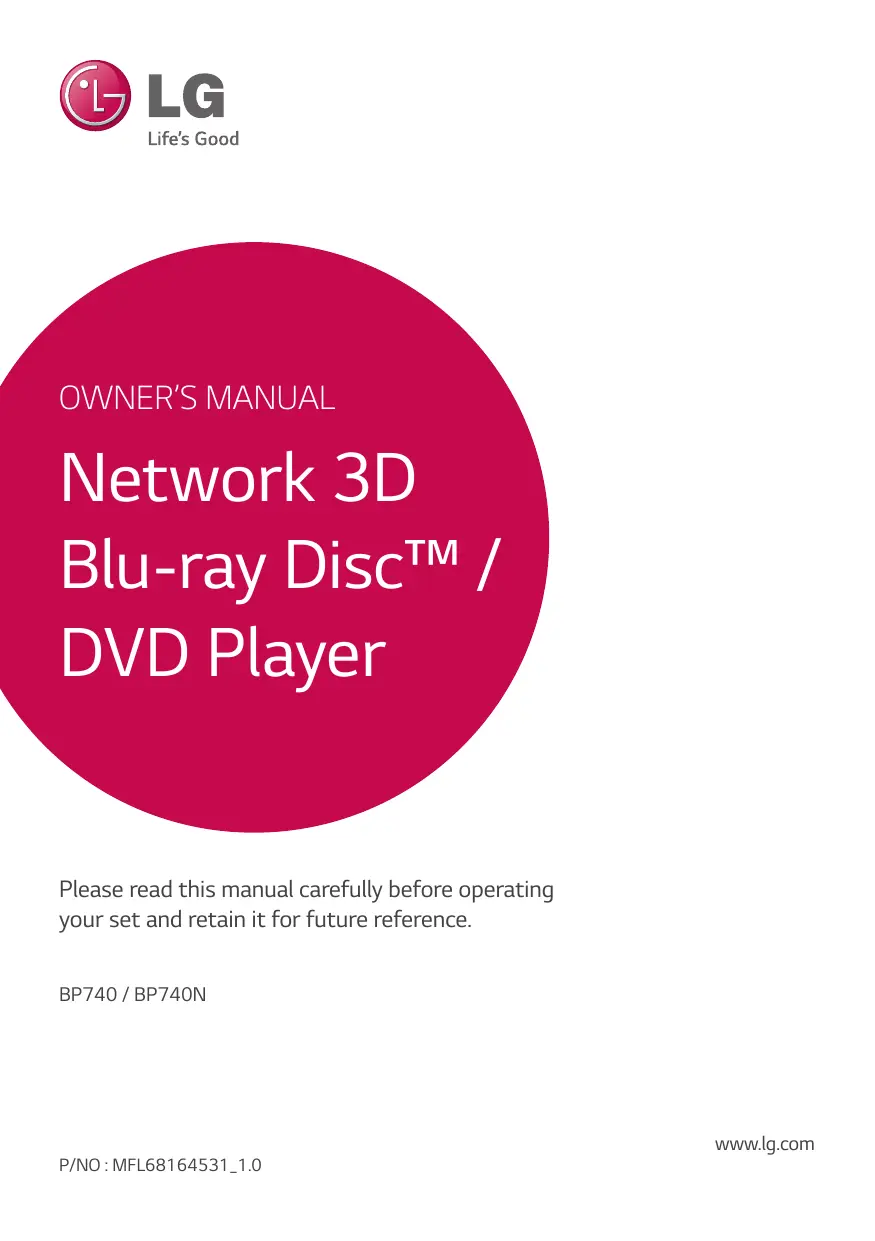

@La Life's Good OWNER'S MANUAL Network 3D Blu-ray Disc'M / DVD Player Please read this manual carefully before operating your set and retain it for future reference. BP740 / BP740N

TO QUALIFIED SERVICE PERSONNEL. This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK

HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE

WARNING: Do not install this equipment in à

confined space such as à book case or similar unit. CAUTION: Do not block any ventilation openings. Install in accordance with the manufactures instructions. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation ofthe product and to protect it from over heating. The openings shall be never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product shall not be placed in a built- in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturers instruction has been adhered to Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure CAUTION concerning the Power Cord Most appliances recommend they be placed upon à dedicated circuit; That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner manual to be certain. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and ifits appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized service center. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. To disconnect power from the mains, pull out the mains cord plug. When installing the product, ensure thatthe plug is easily accessible

Getting Started 3 This device is equipped with a portable battery or accumulator. Safety way to remove the battery or the battery from the equipment: Remove the old battery or battery pack follow the steps in reverse order than the assembly. To prevent contamination ofthe environment and bring on possible threat to human and animal health, the old battery or the battery put it in the appropriate container at designated collection points. Do not dispose of batteries or battery together with other waste. lt is recommended that you use local free reimbursement systems batteries and accumulators. The battery shall not be exposed to excessive heat such as sunshine, fre or the like. CAUTION: The apparatus shall not be exposed to water (dripping or splashing) and no objects filed with liquids, such as vases, shall be placed on the apparatus. Disposal of your old appliance

1. When this crossed-out wheeled bin

symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.

All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health

For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product. Disposal of waste batteries/accumulators

When this crossed-out wheeled bin symbol is attached to batteries/ accumulators of Your product it means they are covered by European Directive 2006/66/EC. This symbol may be combined with chemical symbols for mercury(Hg), cadmium(Cd) or lead(Pb) if the battery Contains more that 0.0005% of mercury, 0.002% of cadmium or 0,004% of lead. All batteries/accumulators should be disposed separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities. poueys Buyoo [ER The correct disposal of Your old batteries/ accumulators will help to prevent potential negative consequences for the environment, animal and human health For more detailed information about disposal of Your old batteries/ accumulators, please contact Your city office, waste disposal service or the shop where You purchased the product.

pepes Suyeo JA 4 Getting Started For Wireless product European Union Notice LG Electronics hereby CE 01970: these product(s)is/ are in compliance with the essential requirements and other relevant provisions of Directive 1999/5/ EC, 2004/108/EC, 2006/95/EC, 2009/125/EC and 2011/65/EU. Please contact to the following address for obtaining a copy of the Doc (Declaration of Conformity) Contact office for compliance of this product: LG Electronics Inc. EU Representative, Krijgsman 1, 1186 DM Amstelveen, The Netherlands Please note that this is NOT a Customer Service contact point. For Customer Service Information, see Warranty Card or contact the dealer that you purchased this product. Indoor use only. RF Radiation Exposure Statement This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. Notes on Copyrights Because AACS (Advanced Access Content System) is approved as content protection system for Blu-ray Disc format, similar to use of CSS (Content Scramble System) for DVD format, certain restrictions are imposed on playback, analog signal output, etc, of AACS protected contents. The operation of this product and restrictions on this product may vary depending on your time of purchase as those restrictions may be adopted and/or changed by AACS after the production of this product. Furthermore, BD-ROM Mark and BD+ are additionally used as content protection systems for Blu-ray Disc format, which imposes certain restrictions including playback restrictions for BD-ROM Mark and/or BD+ protected contents. To obtain additional information on AACS, BD- ROM Mark, BD+, or this product, please contact an authorized Customer Service Center. Many BD-ROM/DVD discs are encoded with copy protection. Because of this, you should only connect your player directly to your TV, not to a VCR, Connecting to a VCR results in a distorted picture from copy-protected discs. This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi Corporation, and is intended for home and other limited viewing uses only. unless otherwise authorized by Rovi Corporation! Reverse engineering or disassembly is prohibited Under the US. Copyright laws and Copyright laws of other countries, unauthorized recording, use, display, distribution, or revision of television programs, videotapes, BD-ROM discs, DVDs, CDs and other materials may subject you to civil and/ or criminal liability.

Getting Started 5 Important Notice for TV color system The color system of this player differs according to currently playing discs. For example, when the player plays the disc recorded in the NTSC color system, the image is output as an NTSC signal Only the multi system color TV can receive all signals output from the player. +_IFyou have a PAL color system TV, you will see just distorted images when using discs or video contents recorded in NTSC. The multi system color TV changes the color system automatically according to input signals In case that the color system is not changed automatically, turn it off and then on to see normal images on screen. Even ifthe disc recorded in NTSC color system are well displayed on your TV, these may not be recorded correctiy on your recorder. (À Caution + Watching a 3D content for a long period time may cause dizziness or tiredness. It is not recommended to watch a movie in 3D mode for infirm, child and pregnant woman. If you are experiencing headache, tiredness or dizziness while viewing contents in 3D, itis strongly recommended to stop the playback and rest until you feel normal popes Sue WA

6 Table of Contents Table of Contents 1 Getting Started 2 Safety Information 8 Introduction

8 - Playable Discs and symbols used in

9 - About the "@" Symbol Display

11 - Magic remote control functions

12 Front Panel 12 Rear Panel 2 Connecting 13 Connecting to Your TV

14. - What is SIMPLINK?

14. - Resolution Setting

15 Connecting to an Amplifier

15 - Connecting to an Amplifier via HDMI

16 - Connecting to an Amplifier via Digital

Audio Output 17 Connecting to your Home Network

17 - Wired network connection

18 - Wired Network Setup

19 - Wireless network connection

19 - Wireless network setup

3 System Setting 22 Initial Setup 23 Settings

32 - Using the SmartShare

33 Playing the Linked Devices

34 - Playing a file on disc/USB device

35 - Playing a file on Android device

37 - Downloading SmartShare PC

38 - Sharing files and folders

38 - System requirements

39 - Basic operations for video and audio

39 - Basic operations for photo content

42 - To control photo view

43 Repeating a specific portion

43 - Playing from selected time

44 Selecting a subtitle language 44 Hearing à different audio

44 - Waïching from a different angle

44 - Changing the TV Aspect Ratio

47 - Selecting a subtitle file

47 - Listening to music during slide show

48 - Playing content to 3D

58 - Customer support

62 Additional Information

62 - File requirement

63 - AVCHD (Advanced Video Codec High

64 - Certain system requirements

64 - Compatibility notes

Important Information Relating to Network Services Some of the content in this manual may differ from your player depending on the software of the player or your service provider.

pouers Suyeo A 8 Getting Started Introduction Playable Discs and symbols used in this manual Media/Term Logo Symbol Description + Dises such as movies that can be purchased or rented >) EI + “Blu-ray 3D'discs and'Blu-ray 30 ONLY" discs. Bneraÿ Disc gl or + BD-R/RE discs that are recorded in BDAV format. u-ray 4

2. EI |: 508€ dises that contain Movie, Music or

Er music] Photo files. ou (PHoro: +150 9660+JOLIET, UDF and UDF Bridge format + Dises such as movies that can be purchased or EDVD rented Vers + Movie mode and finalized only DVD-ROM 22 V D + Supports the dual layer disc also DUDR pp Finalized AVCHD format

Getting Started 9 -@ Note + Depending on the conditions ofthe recording equipment or the CD-R/RW (or DVD+R/RW) disc itself, some CD-R/RW (or DVD+R/RW) discs cannot be played on the unit. Depending on the recording software &the finalization, some recorded discs (CD-R/RW DVD+R/RW, BD-R/RE) may not be playable. BD-R/RE, DVD+R/RW and CD-R/RW discs recorded using a personal computer or à DVD or CD Recorder may not play ifthe disc is damaged or dirty, or ifthere is dirt or condensation on the player lens. If you record a disc using a personal computer, even if it is recorded in a compatible format, there are cases in which it may not play because of the settings of the application software used to create the disc. (Check with the software publisher for more detailed information.) This player requires discs and recordings to meet certain technical standards in order to achieve optimal playback quality Pre-recorded DVDs are automatically set to these standards, There are many different types of recordable disc formats (including CD-R containing MP3 or WMA files) and these require certain pre-existing conditions to ensure compatible playback Customers should note that permission is required in order to download MP3 / WMA files and music from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner. You have to set the disc format option to [Masteredl] in order to make the discs compatible with the LG players when formatting rewritable discs. When setting the option to Live System, you cannot use it on LG player. (Mastered/Live File System Disc format system for windows Vista) About the “@" Symbol Display *@° may appear on your TV display during operation and indicates that the function explained in this owners manual is not available on that specific media Regional Code This unit has a regional code printed on the rear of the unit, This unit can play only BD-ROM or DVD discs labelled same as the rear ofthe unit or'ALL' System Select Open the disc tray using the ZA (OPEN/CLOSE) button and then, press and hold red (R) colored button for more than five seconds to change the color system (PAL /NTSC /AUTO). poueys Buyoo [ER

pouers Suyeo A 10 Getting Started Remote Control Remote Control Indicator: {RF & Bluetooth transmitter) Blinks when operating. D (POWER): Switches the unit ON or OFF. BACK (9): Exits the menu or returns to the previous screen. HOME (@): Displays the Home screen. Direction buttons (A /V/ </»} Selects an option in the menu. If you press the navigation button while moving the pointer on the screen, the pointer disappears, and the Magic remote control works as à regular remote control. To display the pointer again, shake the Magic remote control from side to side. FE Wheel (D): Selects menus or options and confirms your input, Scrolls the screen to search a menu on the web browser. 11 (Play/Pause): Starts pleyback/Pauses playback M (Stop): Stops playback /»: Searches backward or forward. (Press and hold 4/21) Hd /BB1: Moves previous/ next track or file. [] (INFO/MENU): Displays or exits On-Screen Display. MS: necessary, you can use a virtual numbered keypad. (Press and hold [J {INFO/MENU)) EI Colored (R, G, Y, B) buttons: Use to navigate BD-ROM menus. They are also used as shorteut buttons for specific menus.

Getting Started 11 Magic remote control How to use Magic remote control functions The Magic remote control operates by pairing with your unit, Once you purchased the unit, please register the Magic remote control as follows; To register the Magic remote control + Shake the remote control slighäly to make the pointer appear on the screen. To use the Magic remote control, register it with: + Shake the Magic remote control slightly to the your unit first right and left to make the pointer appear on the

1. Turn on the unit and waït for about 10 seconds center of screen

and then press and hold Wheel (4) button +_‘The magic pointer disappears when the remote while pointing the remote control at the unit. control is not moved for five seconds.

2. The remote control is automatically registered

and a registration completion message appears on the screen. + When you press the wheel it also functions as © Not. Selection button. ote +_ You can scroll through menus using the wheel. How to use Magic remote tip If you failed to register the Magic remote control turn dfftie uni and ty again + Use your wrist to move the pointer more easil. © Note *_lfthe Magic remote controls connection is unstable or has any problems, cancel the registration and try it again. (page 59) Battery Installation Depending on the content, the pointing of the magic remote control does not work For controlling, please use the direction keys on the remote. Open the battery cover at the bottom of the Remote Control, and insert two (1.5 V AA ) alkaline batteries with @ and @ matched correctly. (N Caution Do not mix old and new batteries, as this may damage the remote control. poueys Buyoo [ER

Connecting 13 Connecting to Your TV If you have a HDMI TV or monitor, you can connect itto this player using a HDMI cable (Type A, High Speed HDMI" Cable). Connect the HDMI jack on the player to the HDMI jack on a HDMI compatible TV or monitor. Set the TV source to HDMI (Refer to TV's Owner's manual) © \cte Please refer to the manuals of your TV, Stereo System or other devices as necessary to make the best connections. Additional Information for HDMI +_ When you connect a HDMI or DVI compatible device make sure ofthe following: = Tryswitching off the HDMI/DVI device and this player. Next, switch on the HDMI/DVI device and leave it for around 30 seconds, then switch on this player. The connected device video input is set correct for this unit The connected device is compatible with 720x576p, 1280x720p, 1920x1080i or 1920x1080p video input. +_ Not all HDCP-compatible HDMI or DVI devices will work with this player. = The picture will not be displayed properly with non-HDCP device. @® Note +_ Ia connected HDMI device does not accept the audio output of the player the HDMI devices audio sound may be distorted or may not output. When you use HDMI connection, you can change the resolution for the HDMI output {Refer to ‘Resolution Setting' on page 14) Select the type of video output from the HDMI OUT jack using [HDMI Color Setting] option on the [Settings] menu (see page 26). Changing the resolution when the connection has already been established may result in malfunctions. To solve the problem, turn off the player and then turn it on again: When the HDMI connection with HDCP is not verified, TV screen is changed to black screen. In this case, check the HDMI connection, or disconnect the HDMI cable Ithere are noises or lines on the screen, please check the HDMI cable (length is generally limited to 4.5 m) Suyouuos [AR

What is SIMPLINK? (SIMPUINK Some functions of this unit are controlled by the TV remote control when this unit and LG TV's with SIMPLINK are connected through HDMI connection. Controllable functions by LG TV remote control: Play, Pause, Scan, Skip, Stop, Power Off etc Refer to the TV owners manual for the details of SIMPLINK function. LG TV with SIMPLINK function has the logo as shown above. © Note Depending on the disc type or playing status, some SIMPLINK operation may differ from your purpose or not work. Resolution Setting The player provides several output resolutions for HDMI OUT jack. You can change the resolution using [Settings] menu.

Wheel (D). The [Settings] menu appears.

3. Use A/ Y to select [DISPLAY] option then press

D to move to the second level

4. Use A7 Y to select the [Resolution] option then

press Wheel (0) to move to the third level

5. Use A7 Y to select the desired resolution then

press Wheel (@b) to confirm your selection: -@ Note +_Ifyour TV does not accept the resolution you have set on the player, you can set resolution to 576p as follows:

1. Press À to open the disc tray.

2. Press [] (STOP) for more than 5 seconds.

If you select a resolution manually and then connect the HDMI jack to TV and your TV does not accept it, the resolution setting is set to [Auto] If you select a resolution that your TV does not accept, the warning message will appear. After resolution change, if you cannot see the screen, please wait 20 seconds and the resolution will automatically revert back to the previous resolution. The 1080p video output frame rate may be automatically set to either 24 Hz or 50 Hz depending both on the capability and preference ofthe connected TV and based on the native video frame rate ofthe content on the BD-ROM disc.

Connecting 15 Connecting to an Amplifier Make one of the following connections, depending on the capabilities of your existing equipment. +_ HDMI Audio connection (page 15) + Digital Audio connection (page 16) Since many factors affect the type of audio output, see ‘Audio Output Specifications" for details (page 65). About Digital Multi-channel sound A digital multi-channel connection provides the best sound quality. For this, you need a multi- channel AudioWideo Receiver that supports one or more ofthe audio formats supported by your player. Check the logos on the front of the Audio/ Video receiver and the manual. (PCM Stereo, PCM Mukti-Ch, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS and/or DTS-HD) Connecting to an Amplifier via HDMI Output Connect the players HDMI OUT jack to the corresponding in jack on your amplifier using a HDMI cable: HDMI cable Connect the amplifier's HDMI output jack to HDMI input jack on your TV using a HDMI cable if your amplifier has HDMI output jack. (Refer to amplifier owners manual) You will need to activate the player digital output. (See“[AUDIO] Menu” on page 27) Suyouuos [AR

Connecting to an Amplifier via Digital Audio Output Connect the players OPTICAL AUDIO OUT jack to the corresponding in jack on your amplifier using an optional digital audio cable. Receiver/Amplifier You will need to activate the player‘ digital output. (See"[AUDIO] Menu” on page 27)

Connecting 17 Connecting to your Home Network Broadband service This player can be connected to a local area network (LAN) via the LAN port on the rear panel or the internal wireless module. By connecting the unit to a broadband home network, you have access to services such as software updates, BD-Live interactivity and on-line content services. Wired network connection Suyouuos [AR Using a wired network provides the best performance, because the attached devices connect directly to the network and are not subject to radio frequency interference. Please refer to the documentation for your network device for further instructions. Connect the players LAN port to the corresponding port on your Modem or Router using a commercially available LAN or Ethernet cable: —@ Note +_ When plugging or unplugging the LAN cable, hold the plug portion of the cable. When unplugging, do not pull on the LAN cable but unplug while pressing down on the lock Rear of the unit Do not connect à modular phone cable to the LAN port. Since there are various connection configurations, please follow the specifications of your telecommunication carrier or internet service provider. If you want to access content from DLNA servers, this player must be connected to the same local area network with them via a router. To set your PC as a DLNA server, install the SmartShare PC Software on your PC. (page 37)

Suyoeuuos M 18 Connecting Wired Network Setup Ifthere is a DHCP server on the local area network {LAN) via wired connection, this player will automatically be allocated an IP address. After making the physical connection, a small number of home networks may require the players network setting to be adjusted. Adjust the [NETWORK] setting as follow Preparation Before setting the wired network, you need to connect the broadband internet to your home network.

1. Select [Connection Setting] option in the

[Settings] menu then press Wheel ((b). Advanced Seting If you want to set the network settings manually, use A /Y to select [Advanced Setting] on the [Network Setting] menu and press Wheel (4).

1. Use A/Y to select [Wired] and press Wheel

between [Dynamic] and [Static] Normal), select [Dynamic] to allocate an IP address automatically.

2. Read the preparations for the network settings

and then press Wheel (@b) while [Start is highlighted. O® ct Ithere is no DHCP server on the network and you want to set the IP address manual, select [Static] then set [IP Address], [Subnet Mask], [Gateway] and [DNS Server]

3. Select [Next] and press Wheel (0) to apply

network settings. Network will automatically be connected to the unit. Network connection status is displayed on the screen.

4. Press Wheel (@) while [OK] is highlighted to

finish the wired network settings.

Connecting 19 Wireless network connection Another connection option is to use an Access Point or a wireless router. The network configuration and connection method may vary depending on the equipment in use and the network environment. Wireless Communication Access Point or Wireless Router

Broadband fl Refer to the setup instructions supplied with your access point or wireless router for detailed connection steps and network settings. For best performance, a direct wired connection from this player to your home network router or cable/DSL modem is always the best option. If you do chose to use the wireless option, note that performance can sometimes be affected by other electronic devices in the home. Wireless network setup For the wireless network connection, the player needs to be set up for network communication. This adjustment can be done from the [Settings] menu. Adjust the [NETWORK] setting as follow. Setting up the access point or the wireless router is required before connecting the player to the network. Preparation Before setting the wireless network, you need to: - connect the broadband internet to the wireless home network. -_setthe access point or wireless router. - note the SSID and security code of the network

Select [Connection Setting] option in the [Settings] menu then press Wheel (4). Read the preparations for the network settings and then press Wheel (@p) while [Start is highlighted Iwired network is not connected to the unit all available networks are displayed on the screen. Use AJ to select a desired SSID of wireless network and press Wheel (@b) If you have security on your access point, you need to input the security code as necessary. © Note If you use other characters than the english alphabet or digits for the SSID name of your access point or wireless router, it may be displayed differentiy. Suyouuos [AR

Suyoeuuos M 20 Connecting -@ Note + WEP security mode generally have 4 keys available on an access point setting If your access point or wireless router use WEP security, enter the security code of the key “No.1"to connect on your home network. + An Access Point is à device that allows you to connect to your home network wirelesshy.

4. Use A/V/4/% to select the IP mode

between [Dynamic] and [Static] Normally, select [Dynamic] to allocate an IP address automatically. -@ Note Ithere is no DHCP server on the network and you want to set the IP address manual, select [Static] then set [IP Address], [Subnet Mask], [Gateway] and [DNS Server]

5. Select [Next] and press Wheel (@b) to apply

network settings. Network connection status is displayed on the screen.

6. Select [OK] and press Wheel (@) to complete

the network connection. Advanced Seting If you want to set the network settings manually, use A/ Y to select [Advanced Setting] on the [Network Setting] menu and press Wheel (D)

1. Use A/Y to select [Wireless] and press Wheel

AP List] - Scans all available access points or wireless routers within range and display them as a list. [Network name (SSID)] - Your access point may not be broadcasting its network name (SSID). Check your access point settings through your computer and either set your access point to broadcast SSID, or manually enter the network name in [Network name(SSID)] {PBC] - If your access point or wireless router that supports the PBC (Push Button Configuration) method, select this option and press the Push Button on your access point within 120 counts. You do not need to know the network name (SSID) and security code of your access point. LPIN] - If your access point supports the PIN Code configuration method based on WPS(Wi- Fi Protected Setup), select this option and note the code number on the screen. And then, enter the PIN number on a setting menu of your access point to connect. Refer to the documentation for your network device.

2. Follow the instructions of each connection

method on the screen. © Note To use PBC and PIN network connection, security mode of your access point must be set to OPEN or AES.

Connecting 21 Notes on Network Connec:

Many network connection problems during set up can often be fixed by re-setting the router or modem. After connecting the player to the home network, quickly power off and/ or disconnect the power cable of the home network router or cable modem. Then power on and/or connect the power cable again Depending on the internet service provider (ISP), the number of devices that can receive internet service may be limited by the applicable terms of service. For details, contact your ISP. Our company is not responsible for any malfunction of the player and/or the internet connection feature due to communication errors/malfunctions associated with your broadband internet connection, or other connected equipment. The features of BD-ROM discs made available through the Internet Connection feature are not created or provided by our company, and our company is not responsible for their functionality or continued availability. Some disc related material available by the Internet Connection may not be compatible with this player you have questions about such content, please contact the producer of the disc. Some internet contents may require a higher bandwidth connection Even ifthe player is properly connected and configured, some interet contents may not operate properly because of internet congestion, the quality or bandwidth of your internet service, or problems at the provider ofthe content Some internet connection operations may not be possible due to certain restrictions set by the Internet service provider (ISP) supplying your broadband Internet connection: Any fees charged by an ISP including, without limitation, connection charges are your responsibility. A 10 Base-T or 100 Base-TX LAN port is required for wired connection to this player. If your internet service does not allow for such a connection, you will not be able to connect the player. You must use a Router to use xDSL service. ADSL modem is required to use DSL service and à cable modem is required to use cable modem service. Depending on the access method of and subscriber agreement with your ISP. you may not be able to use the internet connection feature contained in this player or you may be limited to the number of devices you can connect at the same time. (If your ISP limits subscription to one device, this player may not be allowed to connect when a PC is already connected.) The use of a"Router" may not be allowed or its usage may be limited depending on the policies and restrictions of your ISP For details, contact your ISP directly. The wireless network operate at 2.4 GHz radio frequencies that are also used by other household devices such as cordless telephone, Bluetooth® devices, microwave oven, and can be affected by interference from them. Turn off all unused network equipment in your local home network. Some devices may generate network traffic. For the purpose of the better transmission, placing the player from the access point as close as possible In some instances, placing the access point or wireless router at least 0.45 m above the floor may improve the reception. Move closer to the access point if possible or re- orient the player so there is nothing between it and the access point. The reception quality over wireless depends on many factors such as type ofthe access point, distance between the player and access point, andthe location ofthe player. Set your access point or wireless router to Infrastructure mode. Ad-hoc mode is not supported Suyouuos [AR

Guyes weysts A 22 System Setting Initial Setup When you turn on the unit for the first time, the initial setup wizard appears on the screen. Set the display language and network settings on the initial setup wizard.

The initial setup wizard appears on the screen

3. Trythe some features of your Magic remote

control by following the guide on the screen. A 00 © © A 00 © ©

4. Read and prepare the preparations for the

network settings and then press Wheel (@) while [Start] is highlighted Ifwired network is connected, the network connection setting will automatically be finished.

5. All available networks are displayed on the

screen. Use A/ Y to select [Wired Network] or desired SSID of wireless network and press Wheel (4h) Use A/W/ 4/7» to selectthe IP mode between [Dynamic] and [Static] Normally, select [Dynamic] to allocate an IP address automatically. Select [Next] and press Wheel (0) to apply network settings. Network connection status is displayed on the screen. For details on network settings, refer to “Connecting to your Home Network on page

Check all the settings that you have set in the previous steps. CC © © © Press Wheel (@b) while [Finish] is highlighted to finish the initial setup settings. IFthere is any settings to be changed, use A/ Y/ 4/10 select and press Wheel (4). eee “== Displays private sound mode guide. Press rer Wheel (@b) es dt ere cl > msn A À mme mms à If you have security on your access point, you need to input the security code as necessary.

System Setting_ 23 Settings Adjust the Setup Settings You can change the settings of the player in the [Settings] menu.

Wheel (db). The [Settings] menu appears Use /A to select the first setup option, and press Wheel (@b) to the second level Use Y/A to select a second setup option, and press Wheel (@) to move to the third level.

5. Use V/A to select a desired setting, and press

Wheel (0) to confirm your selection: [NETWORK] Menu The [NETWORKI settings are needed to use the software update, BD-Live and on-line content services. Connection Setting If your home network environment is ready to connect the player the player needs to be set the wired or wireless network connection for network communication, (See “Connecting to your Home Network"on page 17.) Connection Status If you want to check the network status on this player, select the [Connection Status] options and press Wheel (4) to check whether à connection to the network and the internet have been established. BD-LIVE connection You can restrict Internet access when BD-Live functions are used. [Permitted] Internet access is permitted for all BD-Live contents. [Partially permitted] Internet access is permitted only for BD- Live contents which have content owner certificates. Internet access and AACS Online functions are prohibited for all BD-Live contents without a certificate. [Prohibited] Internet access is prohibited for all BD-Live contents. Suyes mests [M

Suyes wests M 24 System Setting Smart Service Setting [Country Setting] Select your area for displaying proper online content service. Iinitialize] Depending on the region, [Initialize] function may not be available. Device Name You can make a network name using virtual keyboard. This player will be recognised by the name you are entering on your home network. Wi-Fi Direct This player is a Wi-Fi Direct" certified device. Wi- Fi Direct is the technology that devices to connect each other without connecting to an Access point or à router. Press Wheel (4) to display the Wi- Fi Direct menu. Refer to page 49 for the device connection. Network Play This function allows you to control the playback of media streamed from DLNA media server by à DLNA certified smartphone. Most DLNA certified smartphone has a function to control the playback media on your home network. Set this option to {On for allowing your smartphone to control this unit, Refer to instructions of your DLNA certified smartphone or the application for more detailed information. —@ Note +_ This unit and the DLNA certified smartphone must be connected to the same network. To use the [Network Plaÿ] function using à DLNA certified smartphone, press HOME (@) to display the home menu before connecting to this unit. While controlling the unit using the {Network Play] function, the remote control may not work Available fille formats described on page 62 are not always supported on [Network Play] function.

System Setting 25 [DISPLAY] Menu TV Aspect Ratio Select a TV aspect ratio option according to your TV pe. [4:3 Letter Box] Select when a standard 43 TV is connected. Displays theatrical images with masking bars above and below the picture. [4:3 Pan Scan] Select when a standard 43 TV is connected. Displays pictures cropped to fill your TV screen Both sides of the picture are cut off. [16:9 Original] Select when a 169 wide TV is connected. The 43 picture is displayed with an original 43 aspect ratio, with black bars appearing at the left and right sides. [16:9 Full] Select when a 169 wide TV is connected. The 43 picture is adjusted horizontally (in a linear proportion) to fil the entire screen © \cte You cannot select [43 Letter Box] and #3 Pan Scan] option when the resolution is set to higher than 720p. Resolution Sets the output resolution of the HDMI video signal. Refer to page 14 for details about the resolution setting. [Auto] IFthe HDMI OUT jack is connected to TVS providing display information (EDID), automatically selects the resolution best suited to the connected TV. 1576p] Outputs 576 lines of progressive video. (720p] Outputs 720 lines of progressive video. [1080i] Outputs 1080 lines of interlaced video. H1080p] Outputs 1080 lines of progressive video. Ultra HD Upscaling This feature allows the unit to up-scale the original video resolution to Ultra HD resolution and output via HDMI connection. [Auto] If you connect a display capable of displaying Ultra HD resolution, this unit will output video signals in Ultra HD resolution automatically. [off] The unit will turn offthe Up-scaling feature © Note +_ This unit will output video signals in Ultra HD resolution when it plays BD-ROM disc formatted in 24 Hz. +_ The playback pictures may be momentarily interrupted when the resolutions switch. Suyes mests [M

Suyes wests M 26 System Setting 1080p Display Mode When the resolution is set to 1080p, select [24 Hz] for smooth presentation of film material (1080p/24 Hz) with a HDMI-equipped display compatible with 1080p/24 Hz input © Note +_ When you select [24 Hz], you may experience some picture disturbance when the video switches video and film material. In this case, select [50 Hz] + Even when [1080p Display Model is set to L24 Hz], if your TV is not compatible with 1080p/24 Hz, the actual frame frequency of the video output will be 50 Hz to match the video source format. HDMI Color Setting Select the type of output from the HDMI OUT jack For this setting, please refer to the manuals of your display device. [YCbCr] Select when connecting to a HDMI display device. [RGB] Select when connecting to a DVI display device. 3D Mode Select the type of output mode for Blu-ray 3D disc playback. (This function is activated only when 3D TVis connected) [On] Blu-ray 30 disc playback will output as 30 mode. [Off] Blu-ray 30 disc playback will output as 20 mode like a normal BD-ROM disc playback. Home Menu Guide This function allows you to display or delete the guide bubble on the Home Menu. Set this option to [On] for displaying guide.

System Setting 27 [LANGUAGE] Menu Display Menu Select à language for the [Settings] menu and on- screen display. Disc Menu/Disc Audio/ Disc Subtitle Select the language you prefer for the audio track (disc audio) subtitles, and the disc menu [Original] Refers to the original language in which the disc was recorded. [Other] Press Wheel (@) to select another language. Enter the corresponding 4-digit number according to the language code list on page

10ff] (Disc Subtitle only) Turn off subtitle. [AUDIO] Menu Each disc has a variety of audio output options. Set the players Audio options according to the type of audio system you use. © Note Since many factors affect the type of audio output, see ‘Audio Output Specifications” on page 65 for details Digital Output [Auto] Select if you connect this units DIGITAL AUDIO OUT and HDMI OUT jack to a device with LPCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS and DTS-HD decoder. [PCM] Select if you connect this units HDMI OUT jack to a device with digital decoder or DIGITAL AUDIO OUT jack to a device with two channel digital stereo decoder. © \cte Depending on the disc, your language setting may not work. IDTS Re-Encode] Select if you connect this units HDMI OUT or DIGITAL AUDIO OUT jack to a device with DTS decoder. © Note When [Digital Output] option is set to [Auto], the audio may output as bitstream. IFthe bitstream information is not detected from HDMI device with EDID, the audio may output as PCM Ifthe [Digital Output] option is set to [DTS Re-Encodel, the DTS Re-Encode audio is outputted for BD-ROM discs with secondary audio and the original audio is outputted for the other discs (like [Autol). Suyes mests [M

Suyes wests M 28 System Setting Sampling Freq. {Digital Audio Output) [48 kHz] Select this if your AM Receiver or Amplifier is not capable of handling 192 kHz and 96 kHz signal. When this choice is made, this unit automatically converts any 192 kHz and 96 kHz signals to 48 kHz so your system can decode them. DRC (Dynamic Range Control) This function allows you to listen to a movie at a lower volume without losing clarity of sound. [Auto] The dynamic range of the Dolby TrueHD audio output is specified by itself. And the dynamic range of the Dolby Digital and Dolby Digital Plus are operated as same as the [On] mode. [96 kHz] Select this if your AM Receiver or Amplifier is not capable of handling 192 kHz signals. When this choice is made, this unit automatically converts any 192 kHz signals to 96 kHz so your system can decode them. [On] Compress the dynamic range of the Dolby Digital, Dolby Digital Plus or Dolby TrueHD audio output [192 kHz] Select this if your AM Receiver or Amplifier is capable of handling 192 KHz signals. [Off] Turns off this function. Check the documentation for your AV Receiver or Amplifier to verify its capabilities. © Note The DRC setting can be changed only when à disc is not inserted or the unit is in complete stop mode.

System Setting 29 [LOCK] Menu The [LOCK] settings affect only BD-ROM and DVD playback To access the any features in [LOCK] settings, you must enter the 4-digit security code you have created I you have not entered a password yet, you are prompted to do so. Enter a 4-digit password twice, and press Wheel () to create a new password Password You can create or change the password [None] Enter a 4-digit password twice, and press Wheel (D) to create a new password [Change] Enterthe current password and press Wheel (®). Enter a 4-digit password twice, and press Wheel (@) to create à new password If you forget your password If you forget your password, you can clear it using the following steps:

1. Remove any disc that might be in the player.

2. Highlight [Password] option in the [Settings]

menu. Use colored buttons to enter'Red -> Green -> Yellow -> Green -> Yellow -> Blue’ The password is cleared DVD Rating Blocks playback of rated DVD based on their content. (Not all discs are rated.) [Rating 1-8] Rating one (1) has the most restrictions and rating eight (8) is the least restrictive. [Unlock] If you select [Unlock], parental control is not active and the disc plays in full Blu-ray Disc Rating Set an age limit of BD-ROM play. Use number buttons to input an age limit for BD-ROM viewing, 1255] All BD-ROM can be played. [0-254] Prohibits play of BD-ROM with corresponding ratings recorded on them. © Note The [Blu-ray Disc Rating] will be applied only for the Blu-ray disc that containing the Advanced Rating Control Area Code Enter the code ofthe area whose standards were used to rate the DVD video disc, based on the list on page 67 Suyes mests [M

Suyes wests M 30 System Setting [OTHERS] Menu Pointer Sets the speed and size of the Magic remote controls magic pointer. Speed] Sets the moving speed ofthe magic pointer. [Size] Chooses the size ofthe magic pointer. DivX° VOD ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified” device that has passed rigorous testing to verif/ that it plays DivX video. Visit divxcom for more information and software tools to convert your files into DivX videos. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified” device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod divxcom for more information on how to complete your registration. [Register] Displays the registration code of your player. [Deregister] Deactivate your player and display the deactivation code. © Note Allthe downloaded videos from DivX(R) VOD with this players registration code can only be played on this unit Quick Start This player can stay in standby mode with low power consumption, so that the player can instantly boot without delay when you turn on this unit. Set this option to [On] for activating [Quick Start] function. © Note +_l(Quick Start] option is set to [On] and an AC power is accidentiy re-connected to the player by power failure etc, the player automatically boots itself to be the standby status. Before operating the player, wait for a while untilthe player is in standby status. When [Quick Star] is set to [On], power consumption will be higher than when [Quick Start] is set to [Off]. Auto Power Off The screen saver appears when you leave the player in Stop mode for about 5 minutes. I you set this option to [On], the unit automatically turns off within 15 minutes since the Screen Saver is displayed. Set this option to [Off] to leave the screen saver until the unit is operated by the user.

System Setting Initi ize [Factory Set] You can reset the player to its original factory settings. [Blu-ray Storage Clear] Initializes the BD-Live contents from the connected USB storage. © \cte Ifyou reset the player to its original factory settings using [Factory Set] option, you have to set all the activation for the on-line services and network settings again: Software [information] Displays the current software version [Update] You can update the software by connecting the unit directly to the software update server (see page 60) Daylight Saving Time When you use the BBC App, this function sets the time ahead one hour for daylight saving time (GMT+1). [On] Sets the time ahead one hour. [off] Turns off this function.

Suyesodo EN 32 Operating Home Menu Display Using [HOME] menu The home menu appears when you press HOME (@). Use A/ V/ 47H to select a category and press Wheel (0) © Note Depending on the region, the [LG Smart World] [My Apps], [@] and [&] may not be available. ET ISmartShare]- Displays SmartShare menu IPremium] - Displays the Premium home screen. (page 53) ILG Smart World] - Displays LG Apps titles provided to the unit. (page 53) IMy Apps] - Displays the [My Apps] screen. (page 55) [Settings] - Adjusts the system settings. gs Po Gesred LG Apps and other content. LA] - Displays login menu Using the SmartShare You can play video, photo and audio content on the unit by inserting a disc, connecting an USB device and Android device (MTP) or using home network (DLNA)

1. Press HOME (@) to display the home menu

2. Select [SmartShare] and press Wheel (@D).

Ci] Displays all linked devices. Displays video, photo or audio content. ETES Displays the file or folder on linked device.

Operating 33 Playing the Linked Devices

aying a Disc E DD ET

8 w Press À (OPEN/CLOSE), and place a disc on the disc tray. Press Z (OPEN/CLOSE) to close the disc tray. For the most Audio CD, BD-ROM and DVD-ROM dises, playback starts automatically. Press HOME ({ÿ) and then select [SmartSharel Select disc icon. © \cte Playback functions described in this manual are not always available in every files and media. Some functions can be restricted depending on many factors Depending on the BD-ROM titles, a USB device connection may be needed for the proper playback. Unfinalized DVD-VR format discs may not be played in this player. Some DVD-VR discs are made with CPRM data by DVD RECORDER. This unit cannot support these kinds of discs Playing Blu-ray 3D disc This player can play the Blu-ray 3D discs which contains separate views for the left and right eyes Preparation In order to playback Blu-ray 3D title in stereoscopic 3D mode, you need to: + Check your TVis 3D capable and has HDMI input(s). Wear 3D glasses to enjoy the 3D experience ifit is necessary. Check whether the BD-ROM title is the Blu- ray 3D disc or not Connect an HDMI cable (Type À, High Speed HDMI" Cable) between the players HDMI output and TV HDMI input.

1. Press HOME (@), and set the [3D Mode] option

on the [Settings] menu to [On] (page 26).

2. Press Z (OPEN/CLOSE), and place a disc on the

3. Press Z (OPEN/CLOSE) to close the disc tray.

The playback starts automatically.

4. Refer to the owners manual of your 3D-ready

TV for the further instruction You may need to adjust the display settings and focus on your TV setting for the improved 3D effect. (À Caution + Wätching a 3D content for a long period time may cause dizziness or tiredness. It is not recommended to watch a movie in 3D mode for infirm, child and pregnant woman. If you are experiencing headache, tiredness or dizziness while viewing contents in 3D, itis strongly recommended to stop the playback and rest until you feel normal Suyesedo [EN

Suyesedo EN 34 Operating Playing a file on disc/USB device

[MOVIE [MUSIC [PHOTO

This player can play video, audio and photo files contained in the disc or USB device.

1. Insert a data disc on the tray or connect an USB

device When you connect the USB device on the HOME menu, the player plays an audio file contained in the USB storage device automatically. Ifthe USB storage device is containing various types of files, a menu for the file type selection will appear. File loading may take few minutes depending on the number of content stored in the USB storage device. Press Wheel (4) while [Cancel] is selected to stop loading.

3. Select [SmartShare] and press Wheel (4)

Ge srsue”" e = sde Select the desired linked device in the category. Select [Movie], [Photo] or [Music] Select a file using A/ 7/4 /B, and press BI (Play/Pause) or Wheel (@b) to play the fl. ous Notes on USB device This player supports USB flash drive/external HDD formatted in FAT32 and NTFS when accessing files (music, photo, movie). However, for BD-Live, use the USB flash drive / external HDD formatted in FAT32 This unit can support up to 4 partitions ofthe USB device. +_ Do not extract the USB device during operation (play, etc). An USB device which requires additional program installation when you have connected itto a computer, is not supported USB device: USB device that supports USB1.1 and USB2.0. Video, audio and photo files can be played. For details of playing each file type refer to the relevant pages. Regular back up is recommended to prevent data loss. If you use an USB extension cable, USB HUB or USB Mult-reader, the USB device may not be recognized Some USB device may not work with this unit. Some digital cameras and mobile phones are not supported. USB Port of the unit cannot be connected to PC. The unit cannot be used as a storage device.

Operating 35 Playing a file on Android device

This player can play video, audio and photo files contained in the Android device.

1. Connect the Android device to the unit with

USB cable. Make sure that MTP is activated on Android device. Press HOME (@). Select [MTP] and press Wheel (®). E0CE File loading may take few minutes depending on the number of content stored in the Android device

4. Select [Movie], [Photol or [Music]

(Play/Pause) or Wheel (@) to play the file sas e Notes on Connecting Android device This unit can support only the MTP (Media Transfer Protocol) Android device. Do not extract the Android device during operation (play, etc. Video, audio and photo files can be played. For details of operations on each file, refer to relevant pages. Regular back up is recommended to prevent data loss. Ifyou use an USB extension cable, USB HUB or USB Mult-reader, the Android device may not be recognized Some Android devices may not work with this unit When you use MTP playing some music, photo, movie, or subtitle files may not work depending on the Android device. Suyeedo N

Suyesodo EN 36 Operating Playing a file on a network server

[MOVIE [MUSIC [PHOTO

This player can play video, audio and photo files located in a DLNA server through your home network. Check the network connection and settings (page 17) Press HOME (@). Select [SmartShare] and press Wheel (4). w N Gsm" e

-@ Note +_ The file requirements are described on page

The thumbnail ofthe unplayable files can be displayed, but those cannot be played on this player. The subtitle file name and video file name have to be the same and located at the same folder. The playback and operating quality may be affected by your home network condition. You may experience connection problems depending on your server environment. To set your PC as a DLNA server, install the SmartShare PC Software on your PC. (page 37)

Select a DLNA media server in the category. Select [Movie], [Photo] or [Music]

(Play/Pause) or Wheel (@b) to play the fl. Select a file using A/ 7/4 /B, and press BI

Operating 37 Using Home Network Server for PC DLNA standés for Digital Living Network Alliance, which allows users to access video, photo and audio files stored in server and enjoy them on TV via home networking, Before connecting to PC to play a file, SmartShare PC Software (DLNA) should be installed on your PC About SmartShare PC Software (DLNA) SmartShare PC Software (DLNA) is for sharing video, audio and photo files stored on your computer to this unit as a DLNA-compatible digital media server. Downloading SmartShare PC Software (DLNA)

1. Start up your computer, visit http/Awwla.com

Ifnecessary, select your region:

2. Click support tab.

Fill your model name on the cover of owners manual in search bar.

4. Find and download the"SmartShare PC

Software (DLNAJ file: Installing SmartShare PC Software (DLNA)

1. Before installation, close all running programs

including firewall and Anti-Virus programs.

2. Unzip and double-click"Setup.exe"to install

SmartShare PC Software (DLNA). The installation is prepared and the installation wizard appears. Follow the directions of the installation wizard displayed on the screen

4. Click the [Exit] button to complete the

installation. © Note + SmartShare PC Software is not supported with Mac OS, The SmartShare PC Software (DLNA) is a customized software edition only for sharing files and folders to this player. This manual explains operations with the English version of SmartShare PC Software (DNA) as examples. Follow the explanation referring to the actual operations of your language version: Suyeiedo [IN

Suyesedo EN 38 Operating Sharing files and folders On your computer, you must share the folder containing video, audio and/or photo content to play them on this player. This part explains the procedure for selecting the shared folders on your computer.

1. Double-click the*SmartShare”icon.

2. Click [Movie], [Photo] or [Music] icon on the

center, and then click [Settings] on the top right corner of the SmartShare PC Software. The [Settings] menu appears on the screen.

3. Click [My Shared Contents] tab, and then click

Cè icon. The [Add/Remove Shared Folders] menu appears on the screen.

4. Click the folder containing the files you want

to share and then click the [OK]. The checked folder is added to the [My Shared Contents] and then click the [OK] at the bottom ofthe [Settings] menu.

5. Make sure that the SmartShare (DLNA) service

Operating 39 General Playback Basic operations for video and audio content To stop playback Press I (STOP) during playback To pause playback Press Il (Play/Pause) during playback Press Bel (Play/Pause) to resume playback To scan forward or backward Press and holcl 4 or BB to play fast forward or fast reverse during playback. On scanning you can change the various playback speeds by pressing Hé or BB repeatedy. To slow down the playing speed (Video) While the playbackis paused, press and hold Bel and press Bb repeatedly to play various speeds of slow motion. To skip to the next/previous chapter/track/file During playback, press 4 or BB to go to the next chapter/track/file or to return to the beginning ofthe current chapter/trackfle. Press Hé twice briefly to step back to the previous chapter/track/file. In the file list menu of a server, there may have many types of content in a folder together. In this case, press Hd or Be to go to the previous or next content with same type. Basic operations for photo content To play a slide show Press Bel (Play/Pause) to start slide show. To stop a slide show Press M (STOP) while slide show. To pause a slide show Press BI Press BI {Play/Pause) while slide show. {Play/Pause) to re-start the slide show. To skip to the next/previous photo While viewing a photo in ful screen, press 4 or b- to go to the previous or next photo. Suyeedo N

Suyesodo EN 40 Operating Resume playback [BD Eovo [avcHD [MOVIE LAC | [MUSIC] The unit records the point where you pressed the M (STOP) depending on the disc. IH (Resume Stop)" appears on the screen briefy, press Bel (Play/Pause) to resume playback (from the scene point) Ifyou press I (STOP) twice or unload the disc, “ÆComplete Stopl' appears on the screen. The unit will clear the stopped point. © Note +_ The resume point may be cleared when a button is pressed (for example; (1) (POWER), Z (OPEN/CLOSE), etc) +_ On BD-ROM discs with BD-J, the resume playback function does not work. +_Ifyou press M (STOP) once during BD-ROM interactive title playback, the unit will be in Complete Stop mode. Last Scene Memory This unit memorizes the last scene from the last disc that is viewed. The last scene remains in memory even if you remove the disc from the unit or switch off the unit. IF you load a disc that has the scene memorized, the scene is automatically recalled. © Note +_ Last Scene Memory function for a previous disc is erased once a different disc is played: +_ This function may not work depending on the disc. + On BD-ROM discs with BD-J, the last scene memory function does not work +_ This unit does not memorize settings of à disc if you switch off the unit before commencing to play it.

Operating 41 On-Screen Display You can display and adjust various information and settings about the content. To control video playback en LDvo JAVCHD [MOVIE] You can control playback and set options while watching videos During playback, press INFO/MENU (C9). Progress bar - Displays the current position and total playing time. [Disc Menu] - Accesses menu on à disc. Displaying content information on- screen BD LDvD J'AVCHD [MOVIE]

1. During playback, press INFO/MENU (Cd).

2. Select an [Option] using 4/D, and press

Chapter - Current chapter number/total number of chapters

Time — Elapsed playing time/total playback time Audio - Selected audio language or channel Subtitle - Selected subtitle. Angle - Selected angle/total number of angles TV Aspect Ratio - Selected TV aspect ratio EN) GGS Picture Mode - Selected picture mode Suyeedo N

Suyesodo EN 42 Operating © Note +_ Ifno button is pressed for a few seconds, the on-screen display disappears. + Atitle number cannot be selected on some discs. +_ Available items may differ depending on discs or titles. +_ fan interactive Blu-ray Disc is playing back some setting information is displayed on the screen but prohibited to be changed! To control photo view Controis playback and sets options while viewing pictures in full screen You can control playback and set options while viewing pictures in full screen: While viewing pictures, press INFO/MENU ([J) [Slideshow] - Starts or pause slide show. Ci] [Music] - Select the background music for the: slide show. IOption]- Displays slide show options [Rotate] - Rotates the photo clockwise. IZoom] - Displeys the [Zoom] menu Setting the slide show option You can use various options during viewing à photo in full screen:

1. While viewing pictures, press INFO/MENU (C9).

2. Select an [Option] using 4/B, and press

Wheel (0) Option Speed Normal D | Es: B EX ISpeed]- Use 4/> to select a delaying speed between photos in a slide show. [Effect] - Use / to select a transition effect between photos in a slide show. [Music Select] - Select the background music for the slide show (page 47)

2. Select an [Repeat] using 4/3, and press

Wheel (@b) A-B - Selected portion will be repeated continually. Chapter — The current chapter will be played back repeatedly. Title — The current title will be played back repeatedly. Al Allthe titles or files will be played back repeatedly. Off - Returns to normal playback Audio CDs/Audio files During playback, select [Repeat] and press Wheel (&) repeatedly to select a desired repeat mode. @ - Selected portion will be repeated continually. (Audio CD only) @Track- The current track or file will be played back repeatedly. @AII - All the tracks or files will be played back repeatedly. @XAII - Al the tracks or files will be played back repeatedly in random order. X -The tracks or files will be played back in random order. © \cte This function may not work on some disc or title. Repeating a specific portion en Lovo [AvCHD AcD [MOVIE | This player can repeat a portion you have selected

1. During playback, press INFO/MENU (2).

2. Select an [Repeatl using 4/, and press

3. Select [A-B] and press Wheel (4)

4. Press Wheel (@) at the beginning of the

portion you wish to repeat.

5. Press Wheel (@b) at the end ofthe portion. Your

selected portion will be repeated continually. © Note +_ You cannot select a portion less than 3 seconds +_ This function may not work on some disc or title. Playing from selected time

2. Select an [Option] using 4/B, and press

3. Select the [Time] option and then input the

required start time in hours, minutes, and seconds from left to right. For example, to find a scene at 2 hours, 10 minutes, and 20 seconds, enter*21020" Press 4 / to skip the playback 60 seconds forward or backward

4. Press Wheel (@) to start playback from selected

time. © Note +_ This function may not work on some disc or titles. +_ This function may not work depending on the file type and ability ofthe DLNA server. Suyeedo N

Suyesodo EN 44 Operating Selecting a subtitle language

[BD LDVD LAVCHD [MOVIE |

During playback, press INFO/MENU (C3). Select an [Option] using 4/B, and press Wheel (0) Use A / Y to select the [Subtitle] option Press 4/3 to select desired subtitle language. D = 8 w By pressing Wheel (@b), you can set various subrtitle options. Press BACK (9) to exit the On-Screen display. © Note Some discs allow you to change subtitle selections only via the disc menu. IF this is the case, choose the appropriate subtitle from the selections on the disc menu. Hearing a different audio

[BD LDVD LAVCHD [MOVIE |

1. During playback, press INFO/MENU (C1).

2. Select an [Option] using 4 /, and press

4. Use 4/B to select desired audio language,

audio track or audio channel

5. Press BACK (9) to exit the On-Screen display.

© Note + Some discs allow you to change audio selections only via the disc menu. In this case, choose the appropriate audio from the selections on the disc menu. + immediately after you have switched sound, there may be a temporary discrepancy between the display and actual sound + On BD-ROM disc, the multi audio format (5.1CH or 7.1CH) is displayed with [MultiCH] in the on-screen display. Watching from a different angle Ifthe disc contains scenes recorded at different camera angles, you can change to a different camera angle during playback

1. During playback, press INFO/MENU (Cd).

2. Select an [Option] using 4/, and press

4. Use 4 /D to select desired angle.

5. Press BACK (9) to exit the On-Screen display.

Changing the TV Aspect Ratio

You can change the TV aspect ratio setting during playback During playback, press INFO/MENU (Cd). Select an [Option] using 4 /B, and press Wheel (0) Use A / Y to select the [TV Aspect Ratio] option. D =

Use 4/ to select desired option. Press BACK (9) to exit the On-Screen display. © Note Even if you change the value ofthe [TV Aspect Ratio] option in On-Screen display, the [TV Aspect Ratio] option in the [Settings] menu is not changed

Operating 45 Changing subtitle Code Page Changing the Picture Mode [MOVIE BD LDvD J'AVCHD [MOVIE] Ifthe subtitie is displayed in broken letter, you can You can change the [Picture mode] option during change the subtitle code page to view the subtitle playback file properly. 1. During playback, press INFO/MENU (Cd).

1. During playback, press INFO/MENU (C3). 2. Select an [Option] using 4 /B, and press

2. Select an [Option] using 4 /B and press Wheel (@)

Wheel (@p) 3. Use A/Y to select the [Picture Mode] option: Use A / Y to select the [Code Page] option 4. Use 4/B to select desired option

menu The file information appears on the screen © Note ‘The information displayed on the screen may not correct comparing actual content information Changing content list view

On the [SmartShare] menu, you can change the content list view. Press red (R) colored button repeatedly. LE e

Operating 47 Selecting a subtitle file Listening to music during slide MOVIE | show Ifthe subtitle file name is different from the video file name, you need to select the subtile fle on the Movie] menu before playing the movie.

1. Use A/ W/ 47 to select the subtitle file you

wish to play in the [Movie] menu

You can display photo files while listening to audio files.

1. While viewing a photo in full screen, press INFO/

4. Use A7 to select a device, and press Wheel

Available device may differ depending on the location of the current photo file.

Press Wheel (@) again to deselect the subtitle subtitle selection is cancelled 5. Use A/ Y to select a file or a folder you wish to +_ This function is not available for playing file play. on a server via home network. file. Selected subtitle file will be displayed when Photo location Available Device you play the video file. Disc, USB Disc, USB 4 © \cte MP MTP 9 +_Ifyou press M (STOP) during playback, the DLNA server DLNA server 5

Select ] and press Wheel () to display the upper directory. - ® Note When selecting audio file from a server, folder selection is not available. Only file selection is available.

6. Use & to select [OK], and press Wheel (@b) to

complete music selection.

Suyesodo EN 48 Operating Playing content to 3D

[BD LDVD LAVCHD [MOVIE |

This function allows you to convert 2D content to 3D and to play 3D content in case of file encoded in 3D also. You can adjust 3D depth and distance on the [30] option while playing back Converting 2D content to 3D

1. During playback, press INFO/MENU (2).

2D contents to 3D. Playing file encoded in 3D

1. During playback, press INFO/MENU (2).

2. Select [(3D) and press Wheel (D).

3. Select suitable mode (side by side, top and

bottom) which is same way as file encoded in 30 by using A/V/ 4/7 3D Setting

1. During playback, press INFO/MENU (2).

3. Select an [3D Setting], and press Wheel (@).

You can adjust 3D5 depth and distance. Select [Iniialize] option then press Wheel (0) to reset the all adjustments. Reverting

1. During playback, press INFO/MENU (Cd).

2. Select an [D], and press Wheel (b).

3. Select by using A/v/ 47» to revert.

© Note +_ When you have set to Ultra HD resolution, if you select the [On] in [3D], the Ultra HD resolution is automatically changed to the original resolution. + Movie files which is upper 30 fps (frame rate) may not be converted to 3D. +_Ifthe subtitle is displayed abnormally, set the TV 3D option to off and the units 3D option to on

Operating 49 Advanced Features Wi-Fi Direct" Connecting to a Wi-Fi Direct" certified device

This player can ply movie, music and photo iles located in a Wi-Fi Direct” certified device. The Wi-Fi Direct” technology make the player to be directly connected to a Wi-Fi Direct” certified device without connecting to à network device such as an access point. On Wi-Fi Direct” certified device

1. Turn on the Wi-Fi Direct" certified device and

run its Wi-Fi Direct function.

2. Run DLNA application on the device.

3. Select [NETWORK] option in the [Settings]

5. Select a Wi-Fi Direct" device on the list using

A/Y,and press Wheel (4). Wi-Fi Direct" connection will be proceeded. follow the procedure on the screen: If you want to rescan available Wi-Fi Direct" device, select the [Refresh List] and press Wheel

To select a server from the device list, files or folders must be shared by DLNA server from the connected Wi-Fi Direct" device.

Wheel (0) to play the file. -@ Note + Forthe purpose ofthe better transmission, placing the player from the Wi-Fi Direct” certified server as close as possible This unit can connect only 1 device at à time. Multiple connection is not available. If you try to connect wireless network while a device is connected by Wi-Fi Direct” function , Wi-Fi Direct" connection will be force disconnected. this player and a Wi-Fi Direct” device are connected to the different local area network, Wi-Fi Direct” connection may not available. 1fa Wi-Fi Direct" certified device is not in Wi-Fi direct standby mode, this player can not find the device. +_ When you connect a Wi-Fi Direct” certiied device to your player, PIN network connection is not supported. ‘This player cannot connect to a Wi-Fi direct” device which is in Group Owner mode. Suyeedo N

Suyesedo EN 50 Operating Enjoying Miracast'" You can mirror Miracast certified devices screen and sound onto TV screen through your player wirelessly. On Miracast” certified device

1. Tu on the Miracast certified device and run its

[Miracast] function. On your player

and press Wheel (@b) Miracast function will be proceeded automatically. If you want to rescan available Miracast device, select [Refresh List] and press Wheel (0) - @ Note For the purpose of the better mirroring, place Miracast certified device from the player as close as possible This unit can connect only 1 device at a time. Multiple connection is not available. While mirroring, Wireless network or Wi-Fi Direct cannot be used simultaneously. Ia Miracast certified device is not in [Miracast] standby mode, this player cannot find the device. Depending on your wireless network condition, mirroring may be unstable. While mirroring, the screen may be cut off depending on your TV setting. In this case, please adjust the display settings on your TV. Enjoying BD-Live'"“ BD-ROM supporting BD-Live that has a network extension function allows you to enjoy more functions such as downloading new movie trailers by connecting this unit to the internet.

1. Check the network connection and settings

2. Insert an USB storage device to the USB port on

the front panel. An USB storage device is needed to download bonus content.

3. Press HOME (@), and set the [BD-LIVE

connection] option on the [Settings] menu (page 23). Depending on a disc, the BD-Live function may not be operated if [BD-LIVE connection] option is set to [Partially Permittedl]

4. Insert a BD-ROM with BD-Live.

The operations may differ depending on the disc. Refer to the manual supplied with the disc. - (D Caution Do not extract the connected USB device while content is being downloaded or a Blu- ray disc is still in the disc tray. Doing so may damage the connected USB device and BD- Live features may not operate properly with the damaged USB device anymore. the connected USB device seems damaged from such an action, you can format the connected USB device from the PC and reuse it with this player -@ Note + Some BD-Live content may be restrictively accessed in some territories by content provider own decision: +_ lt may take up to several minutes to load and start enjoying BD-Live content. + For BD-Live, use the USB flash drive / external HDD formatted in FAT32 only.

Operating 51 Enjoying web browsing Types URL manually on the screen or visits web sites added to Favorite.

2. Select the [Internet] in the [My Apps] and press

3. Enter search terms in the blank.

Types in the web address or URL. Selects when opening several web browsers Add the current page to favorites. Moves to a previously visited website. — @ Note + For best service quality, subscribe to an Internet service of 4.0 Mbps (1.5 Mbps or faster). Contact the ISP (Internet service provider) for any problems related to Internet speed interet only works with pre-installed plugins. Internet only plays the following media flle formats: jpeg! “png! "gif! "wmv" “asft ‘wma’ mp3" "mp4" Internet is forcibly closed when memory is insufficient. For the internet, fonts installed on the unit are used and may not be displayed normally depending on the content played! interet does not support file and font download Internet is made only for this unit. So it may have different operation from PC browsers. Suyeedo DR

Suyesedo EN 52 Operating LG AV Remote You can control this player with your iPhone or Androïd phone via your home network. This player and your phone must be connected to your wireless network device such as access point. Visit “Apple iTunes'or"Google Android Market (Google Play Store)" for detailed information of"LG AV Remote”. Private Sound Mode By downloading"LG AV Remote” application on your smart phone or tablet, you can connect your headsets, and enjoy the sound from your player on your smart devices. This feature transmits video signal to TV through HDMI and Audio signal to smart phone or tablet through Wi-Fi. For more detailed information, please refer to“LG AV Remote" application Using an USB keyboard or mouse You can connect an USB keyboard and/or mouse to type text and navigate menus. Connect an USB keyboard or mouse to the USB port on the front panel.

Use the keyboard to type text, or the mouse to navigate menus. © Note The following keyboards and mice are recommended. = Logitech Wireless Combo MK520 Logitech Wireless Combo MK320 Logitech Wireless Combo MK260 = Microsoft Wireless Desktop 5000 = Microsoft Wireless Desktop 3000 = Microsoft Wireless Desktop 2000 = Microsoft Wireless Desktop 800

Operating 53 Using the Premium Using the LG Smart World You can use the LG application services on this player via Internet. You can easily find and You can use various content services via Internet with the Premium feature.

1. Checkthe network connection and settings

17) (page 17) download various applications from LG Smart

2. Press HOME (@) World

3. Select the [Premium] using 4 /B, and press 1. Check the network connection and settings

and press Wheel (4) _@ Note ne + +_ For detailed information of each service, 4. Select a category using 47, and press Wheel I contact to the content provider or visit (w) support link of the service. 5. Use A/Y/ 4/3 to select an application, and © +_ The content of Premium services and press Wheel (4) to display the information. 5 service related information, including user 6. Press Wheel (@) while [Install] icon is 5 interface, is subject to changes. Please refer highlighted. The application will be installed to s to the web site of each service for most up- the player. to-date information. To install an application to the player, user Using Premium features with wireless needs to sign in. Refer to page 54 for more network connection may result in improper information of signning in. streaming speed by interference from household devices that are using radio frequencies. Press red (R) colored button to display the [My Apps] screen

8. Select the installed application and press Wheel

(@) to excute it. For the first time to access [Premium] or [LG Smart world] feature, current country setting appears. C1] Note +_Ifyou want to change the country setting, +_ Depending on the region, the [LG Smart go to [Settings] > [INETWORK] > [Smart World], [My Apps], [@] and [&] may not be Service Setting] > [Country Setting], Select available. [Manual] and press Wheel (4) on [Country + Toinstall a paid application, you need to be Setting] menu. à paid member Visit wuwigappstucom for more information.

Suyesedo EN 54 Operating Signing in To use the [LG Smart World] feature, you need to sign in with your account.

2. Fillthe [ID] and [Password] field using the virtual

keyboard If you do not have an account, press red (R) colored button to register.

3. Use A/W/ 47 to select [OK] and press

Wheel (b) to sign in with your account If you select the [Auto Sign In] check box, your ID and password are remembered and automatically signed in without entering them. © Note To view the information of your account and applications, select [&] icon and press Wheel {@) on the home menu, and select [My Page] option. Searching online content If you are having difficulties finding specific content from online services, you can use the allin-one search function by entering keywordé in the search menu.

2. Select the [QI] icon on the home menu using

A/Y/ 47%, and press Wheel (D). The search menu appears on the screen.

3. Press Wheel (@p). The virtual keyboard appears

Wheel (b) to confirm your selection on the virtual keyboard

and press Wheel (4) to move to the selected content directly. © Note +_Depending on the region, the [LG Smart World], [My Apps], [@] and [&] may not be available. +_ The search function does not search content in every online services. lt works only in certain online services

Operating 55 Using the My Apps Menu You can move or delete an installed application in the [My Apps] menu.

2. Select the [My Apps], and press Wheel (@)

1. Select an application, and press Wheel (QD) to

display the options.

2. Use A/ Y to select [Move], and press Wheel

Use A/V/ 4/7 to select a position you want to move to, and press Wheel (1) Delete an application

1. Select an application, and press Wheel (4) to

display the options.

2. Use A/Y to select [Delete], and press Wheel

to confirm. © \cte Depending on the region, the [LG Smart World], [My Apps], [&] and [&] may not be available. Suyesedo [EN

Suyooussianou, MA 56 Troubleshooting Troubleshooting General Symptom Cause & Solution The Power does not turned on. +_ Plug the power cord into the wall outlet securely. The unit does not start playback Insert a playable disc. (Check the disc type, color system, and regional code) Place the disc with the playback side down Place the disc on the disc tray correctiy inside the guide. Clean the disc. Cancel the Rating function or change the rating level The connected USB storage device is not recognized. Try using different USB cable, some USB cables may not support enough current for normal USB operation If you use an USB extension cable or USB HUB, the USB devices may not be recognized. An USB device which requires additional program installation when you have connected it to a computer is not supported. This unit supports only USB Flash Drive and USB External HDD with FAT32 or NTFS format. The angle cannot be changed Multi-angles are not recorded on the DVD Video being played! Cannot play movie, photo or music files. The files are not recorded in a format that the unit can play. The unit does not support the codec ofthe movie file The remote control does not work propery. The remote control is not pointed at the remote sensor of the unit The remote control is too far from the unit. There is an obstacle in the path of the remote control and the unit. The batteries in the remote control are exhausted. The unit is plugged in, but the power will not turn on or off. The unit is not operating normally. You can reset the unit as follows. + Unplug the powrer cord, wait at least five seconds, and then plug it in again

Troubleshooting 57 Network Symptom Cause & Solution BD-Live feature does not work. +_ The connected USB storage may not have enough space. Connect the USB storage with at least 1GB free space Ensure that the unit is correctly connected to the local area network and can access the internet (see page 17) Your broadband speed may not fast enough to use the BD-Live features, Contact your Internet Service Provider (ISP) and increase the broadband speed is recommended. The [BD-LIVE connection] option in the [Settings] menu is set to [Prohibited]. Set the option to [Permitted]. Streaming video services (such as YouTube" etc) are often stopped or‘buffer" during playback + Your broadband service speed may not be fast enough to stream video services. Contact your Internet Service Provider (ISP) and increase the broadband speed is recommended. Media servers are not displayed on the device list. +_The firewall or antivirus software on your media server is running, Turn off the firewall or antivirus software running on your media server. The player is not connected to the local area network that your media server is connected Cannot connect the player to the access point or wireless LAN router. +_ The wireless communication may be interrupted from household devices that are using radio frequencies. Move the player away from them Access point is not displayed on the "Access point name‘ ist. + The access point or wireless LAN router may not broadcast its SSID. Set your access point to broadcast its SSID through your computer. Your network device such as access point may not set with available frequency range and channel that this player can support. Try setting the frequency range and channel on the network device setting, Suyoousajanou], WAR

Suyooussianou, MA 58 Troubleshooting Picture Symptom Cause & Solution There is no picture. + Select the appropriate video input mode on the TV so the picture from the unit appears on the TV screen. Connect the video connection securelÿ. Check the [HDMI Color Setting] in the [Settings] menu is set to the appropriate item that conforms to your video connection. Your TV may not support the resolution you have set on the player. Change the resolution that your TV accepts. The players HDMI OUT jack is connected to a DVI device that does not support copyright protection. Picture noise appears. You are playing a disc recorded in a color system that is different from your TV. Setthe resolution which your TV accepts. Blu-ray 3D disc playback does not output 3D views. + Connect the player to your TV with HDMI cable (Type À, High Speed HDMI“ Cable) Your TV may not support "HDMI 3D mandatory format! The [3D Mode] option in the [Settings] menu is set to [Off]. Set the option to [On] Customer support You can update the player using the latest software to enhance the products operation and/or add new features. To obtain the latest sofoware for this player (if updates have been made), please visit http//wwwlg.com or contact LG Electronics customer care center. Open source software notice To obtain the corresponding source code under GPL, LGPL and other open source licenses, please visit http//opensource lge.com. Al referred license terms, warranty disclaimers and copyright notices are available to download with the source code

About Magic Remote Control To re-register the Magic remote control Press the HOME (@) and BACK (2) buttons at the same time for about 5 seconds. The Magic remote control will be unpaired with your unit -@ Note +_ Press the BACK (9) button while pointing the remote control at the unit for 5 seconds to reset and re-register it. Set the speed and size ofthe Magic pointer that appears on the screen. Refer to the setting the Magic pointer (page 30). Ithe Magic pointer has not been used for à certain period of time, it will disappear. When the Magic pointer disappears from the screen, shake the Magic remote control to the right and left. Then, it appears again If you press the navigation button while moving the Magic pointer on the screen, the Magic pointer disappears, and the Magic remote control works as a regular remote control. Caution + Use within an effective distance of 33 ft. (10 meters). Using the Remote Control from greater distances or when obstructions block the sight line may cause malfunctions. Electronic devices nearby may cause communication interference. Devices such as microwave oven and wireless LAN use the same frequency range (2.4 GHz) as the Magic remote control, which may interfere with the remote control. +_ The Magic remote control may be broken if dropped or damaged in any other way. Do not drop or subject the Magic remote control to heavy impacts

xpueddy 60 Appendix Network Software Update Network update notification From time to time, performance improvements and/or additional features or services may be made available to units that are connected to à broadband home network. IFthere is new software available and the unit is connected to a broadband home network the player will inform you about the update as follows. Option 1:

1. The update menu will appear on the screen

when you turn on the player.

2. Use 4/2 to select a desired option and then

press Wheel (D) IOK] Starts the software update. Cancel] Exits the update menu and the home menu appears. Option 2: Ifthe software update is available from the update server, the“ Update” icon appears in the Home menu. Press blue (8) colored button to start the update procedure. Software update You can update the player using the latest software to enhance the products operation and/or add new features. You can update the software by. connecting the unit directly to the software update server © Note + Before updating the software in your player, remove any disc and USB Device from the player. Before updating the software in your player, tu the player off and then turn it back on. During the software update procedure, do not turn off the player or disconnect AC power, or do not press any button. If you cancel the update, tum off the power and turn it on for stable performance This unit cannot be updated to previous software version.

1. Checkthe network connection and settings

The player will check for the newest update. © Note +_ Pressing Wheel (@) while checking for the update will end the process. +_iFthere is no update available, the Message, “No update is found” appears. Press Wheel () to return to the [Home] menu

update was found The update takes a few minutes. Do you want to update?" appears.

5. Select [OK] to start update. (Selecting [Cancel]

will end the update.)

6. The player starts downloading the newest

update from the server. (Downloading will takes several minutes depending on your home network condition)

7. To update software the next time, the software

update procedure has to be started from the beginning again. — (D Caution Do not turn off the power during the software update. —@ Note Ifthe software includes the driver update, disc tray may open during the process.

8. When update is completed, the power will be

turned off automatically in a few seconds.

9. Turn the power back on. The system now

operates with the new version. —@ Note The Software Update function may not work properly depending on your internet environment. In this case, you can obtain the latest software from the authorized LG Electronics Service Center then update your player. Refer to "Customer support’ on page

(WMV3) Dolby SubRip (srt / :txt), SAMI Digital, {smi), SubStation Alpha DTS, MP3, {ssa/txt), MicroDVD (sub. WMA, AAC, | txt), SubViewer 1.0 (sub), AC3 SubViewer 2.0 (sub/.txt), TMPlayer (txt), DVD Subtitle System (txt) Audio files File File : ï Location Extension | S2mPling Frequency Bitrate Note within 32-48 kHz within 32-192 kbps | Some wav iles are Ge “wav'“méa | (WMA) within 16-48 | (WMA), within 32-320 | not supported on à (DRM free), | kHz (MP3) kbps (MP3) this player. usB eco flac!"0gg “ait “mp3lwme’ | within 32 - 48 kHz within 32-192 kbps | Some wavfiles are pra wav'm4a" | (WMA) within 16-48 | (WMA), within 32-320 | not supported on (DRM free), | kHz (MP3) kbps (MP3) this player. “flac!"0gg" Photo files File File Recommended _ Location Extension Size Disc, Less than 4,000 x 3,000 x 24 bit/pixel | Progressive and lossless USB, Less than 3,000 x 3,000 x 32 bit/pixel | compression photo image files DLNA are not supported

-@ Note + The file name is limited to 180 characters. + Maximum files/Folder: Less than 2000 (total number offiles and folders) Depending on the size and number ofthe files, it may take several minutes to read the content on the media. File compatibility may differ depending on the server. Because the compatibility on DLNA server are tested on the DLNA server (SmartShare PC Software) environment, file requirements and playback functions may differ depending on media servers. The file requirements on page 62 are not always compatible. There may have some restrictions by ile features and media servers ability. Playing video subtitle files are only. available on DLNA media server created by SmartShare PC Software downloaded from website. The files from removable media such as USB drive, DVD-drive etc. on your media server may not be shared properly. The total playback time of audio file indicated on the screen may not correct for VBR files. HD video files contained on the CD/DVD or USB 1.0/1.1 may not played properly. Blu-ray Disc or USB 2.0 are recommended to play back HD video files. ‘This player supports H.264/MPEG-4 AVC profile Main, High at Level 4.1. A file with higher level may not be supported This player does not support files that are recorded with GMC*! or Qpel”? “1. GMC - Global Motion Compensation *2 Qpel - Quarter pixel -@ Note +_A‘avi"file which is encoded"WMV 9 codec" is not supported. This player supports UTF-8 files even it contains Unicode subtitle content. This player can not support the pure Unicode subtitle files. Depending on the types offile or ways of recording, it may not play back A disc which was recorded by multi-session on normal PC is not supported on this player To be playback a video file, video file name and Subtitle fille name must be the same. When you play a video file with a extension such as ts tm2ts!“mts! pt “Trp'or “mat your player may not support subtitle iles. The total playback time of audio file indicated on the screen may not correct for VBR files Video / Audio codec compatibility may differ depending on video file. AVCHD (Advanced Video Codec High Definition) This player can playback AVCHD format discs These discs are normally recorded and used in camcorders. The AVCHD format is a high definition digital video camera format. The MPEG-4 AVC/H.264 format is capable of compressing images at higher efficiency than that of the conventional image compressing format. This player can playback AVCHD discs using “xwColor' format Some AVCHD format discs may not play. depending on the recording condition AVCHD format discs need to be finalized. “xv.Color" offers a wider color range than normal DVD camcorder discs,

xpueddy 64 Appendix About DLNA This Player is a DLNA Certified digital media player that can display and play video, photo and audio content from your DLNA-compatible digital media server (PC and Consumer Electronics). The Digital Living Network Alliance (DLNA) is à cross-industry organization of consumer electronics, computing industry and mobile device companies. Digital Living provides consumers with easy sharing of digital media through your home network. The DLNA certification logo makes it easy to find products that comply with the DLNA Interoperability Guidelines. This unit complies with DLNA Interoperability Guidelines v1.5. When a PC running DLNA server software or other DLNA compatible device is connected to this player, some setting changes of software or other devices may be required. Please refer to the operating instructions for the software or device for more information. Certain system requirements For high definition video playback High definition display that has HDMI input jack. BD-ROM disc with high definition content. HDMI or HDCP capable DVI input on your display device is required for some content (as specified by disc authors) For Dolby* Digital Plus, Dolby TrueHD and DTS-HD multi-channel audio playback: An amplifier/receiver with a built-in (Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS or DTS-HD) decoder. Main, center, surround speakers and subwoofer as necessary for chosen format. Compatibility notes Because BD-ROM is a new format, certain disc, digital connection and other compatibility issues are possible. I you experience compatibility problems, please contact an authorized Customer Service Center. This unit allows you to enjoy functions such as picture-in-picture, secondary audio and Virtual packages, etc, with BD-ROM supporting BONUSVIEW (BD-ROM version 2 Profile 1 version 1.1). Secondary video and audio can be played from à disc compatible with the picture-in- picture function. For the playback method, refer to the instructions in the disc. Viewing high-definition content and up- converting standard DVD content may require à HDMI-capable input or HDCP-capable DVI input on your display device. Some BD-ROM and DVD discs may restrict the use of some operation commands or features. Dolby TrueHD, Dolby Digital Plus and DTS-HD are supported with maximum 7.1 channels if you use HDMI connection for the audio output of the unit. You can use an USB device to store some disc related information, including downloaded online content. The disc you are using will control how long this information is retained.

Audio Output Specifications Jack/Setting OPTICAL (DIGITAL AUDIO OUT) EE PCM DTS Re-encode * Auto Dolby Digital PCM 2ch DTS Dolby Digital Dolby Digital Plus PCM 2ch DTS Dolby Digital Dolby TrueHD PCM 2ch DTS 2ch Dolby Digital DTS PCM 2ch DTS DTS DTS-HD PCM 2ch DIS DTS Linear PCM 2ch PCM 2ch DTS 2ch PCM 2ch Linear PCM 5.1ch PCM 2ch DIS PCM 2ch Linear PCM 7.1ch PCM 2ch DTS PCM 2ch Jack/Setting HDMI OUT Source PCM DTS Re-encode * Auto *1*2 Dolby Digital PCM 2ch Drs Dolby Digital Dolby Digital Plus PCM 2ch Drs Dolby Digital Plus Dolby TrueHD PCM 2ch DTS 2ch Dolby TueHD DTs PCM 2ch Drs Drs DTS-HD PCM 2ch Drs DIS-HD Linear PCM 2ch PCM 2ch DTS 2ch Linear PCM 2 d Linear PCM 5.1ch PCM 5.1ch DITS Linear PCM 5.1ch Linear PCM 7.1ch PCM 7.1ch DIS Linear PCM 7.1ch “1. The secondary and interactive audio may not +_Ifthe HDMI OUT jack is connected to your TV > be included in the output bitstream if [Digita with High Speed HDMI" Cable and Dolby Digital à Output] option is set to [Auto]. (Except LPCM Plus/Dolby TrueHD is outputted from HDMIOUT 3 Codec : the output always include interactive jack, DIGITAL AUDIO OUT jack is limited to*PCM * and secondary audio) 2ch' (When the HDMI and DIGITAL AUDIO OUT “2 This player automatically selects the HDMI audio are connected simultaneously). according to the decoding capabilty ofthe connected HDMI device even though [Digital Output] option is set to [Auto]. #3 fthe [Digital Output] option is set to [DTS re- encode], the audio output is limited to 48 kHz and 5.1Ch Ifthe [Digital Output] option is set to [DTS re-encodel, the DTS Re-encode audio s outputted for BD-ROM discs, and the original audio is outputted for the other discs (Ike [Auto]).

xpueddy 66 Appendix The audio is outputted up to PCM 48 kHz/16 bit for MP3/WMA flle and PCM 44.1kHz/16 bit for Audio CD during playback You must select a digital audio output and a maximum sampling frequency that your Amplifier (or AV receiver) accepts using [Digital Output] and [Sampling Freq/] options on the [Settings] menu (page 27) With digital audio connection (DIGITAL AUDIO OUT or HDMI OUT), Disc Menu button sounds of BD-ROM may not be heard if the [Digital Output] option is set to [Auto] Ithe audio format of the digital output does not match the capabilties of your receiver, the receiver will produce a strong, distorted sound or no sound at all Muiti-channel Digital Surround Sound via digital connection can only be obtained if your receiver is equipped with a Digital Multi-channel decoder.

Area Code List Choose an area code from this list. Area Code | Area Code | Area Code | Area Code Afghanistan AF | Fijl F | Monaco MC | Singapore sG Argentina AR | Finland FI | Mongolia MN | Slovak Republic SK Australia AU |France FR | Morocco MA | Slovenia SI Austria AT | Germany DE | Nepal NP | South Africa ZA Belgium BE | Great Britain GB | Netherlands NL | South Korea KR Bhutan BT | Greece GR | Antilles AN | Spain ES Bolivia BO | Greenland GL | New Zealand NZ | Sri Lanka LK Brazil BR | Hong Kong HK | Nigeria NG | Sweden SE Cambodia KH | Hungary HU | Norway NO | Switzerland cH Canada CA [India IN | Oman OM | Taiwan TW Chile CL |Indonesia ID | Pakistan PK | Thailand TH China CN | Israel IL | Panama PA | Turkey TR Colombia CO |italy IT | Paraguay PY | Uganda UG Congo CG | Jamaica JM | Philippines PH | Ukraine UA Costa Rica CR | Japan JP | Poland PL | United States Us Croatia HR | Kenya KE | Portugal PT | Uruguay uy Czech Republic CZ | Kuwait KW | Romania RO | Uzbekistan UZ Denmark DK | Libya LY | Russian Vietnam VN Ecuador EC | Luxembourg Lu | Federation RU | Zimbabwe ZW Egypt EG | Malaysia my | Saudi Arabia SA El Salvador SV | Maldives mv | Senegal SN Ethiopia ET | Mexico MX

Trademarks and Licenses = Elu-rey A)

Blu-ray Disc”, Blu-ray", Blu-ray 3D%, BD-Live”, BONUSVIEW"* and the logos are trademarks of the Blu-ray Disc Association: Sdts 2.0+Digital Out For DTS patents, see http///patents.dts.com Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS 2.0+Digital Out is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved VIDEO “DVD Logo'is a trademark of DVD Format/Logo Licensing Corporation. £ Java = ronereo Java is a trademark of Oracle and/or its affiliates. &dina DLNA*, the DLNA Logo and DLNA CERTIFIED® are trademarks, service marks, or certification marks ofthe Digital Living Network Alliance The Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi Alliance. HOMI The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. The Wi-Fi Protected Setup Mark is a trademark of the Wi-Fi Alliance. “xxColor'is à trademark of Sony Corporation: NCHD “AVCHD' and the‘AVCHD" logo are trademarks of Panasonic Corporation and Sony Corporation. HIDOLBY TRUETE DIGITAL PLUS Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. DIVX.

DivX Certified® to play DivX® video up to HD 1080p, including premium content. DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license. Covered by one or more ofthe following US. patents: 7,295,673; 7,460,668, 7,515,710; 7,519,274

xpueddy 70 Appendix Cinavia Notice This product uses Cinavia technology to limit the use of unauthorized copies of some commercially- produced film and videos and their soundtrack. When a prohibited use of an unauthorized copy is detected, a message will be displayed and playback or copying will be interrupted. More information about Cinavia technology is provided at the Cinavia Online Consumer Information Center at http//www.cinaviacom. To request additional information about Cinavia by mail, send a postcard with your mailing address to: Cinavia Consumer Information Center, PO. Box 86851, San Diego, CA, 92138, USA. This product incorporates proprietary technology under license from Verance Corporation and is protected by US. Patent 7,369,677 and other US. and worldwide patents issued and pending as well as copyright and trade secret protection for certain aspects of such technology. Cinavia is a trademark ofVerance Corporation. Copyright 2004-2013 Verance Corporation. AIl rights reserved by Verance. Reverse engineering or disassembly is prohibited

Appendix Specifications ral General Power requirements Refer to main label on the rear panel Power consumption 16Ww Dimensions (W x H x D) Approx. 430 mm x 43.5 mm x 205 mm Net Weight (Approx) 1.58 kg Operating temperature 5°C-35 € Operating humidity Outputs HDMI OUT (video/audio) 19 pin (Type À, HDMI" Connector) DIGITAL AUDIO OUT (OPTICAL) | 3V(p-p}, Optical jackx 1 System Laser Semiconductor laser Wavelength 405 nm / 650 nm Signal system Standard PAL/NTSC color TV system LAN port Ethernet jack x 1, 10BASE-T / 100BASE-TX Wireless LAN (internal antenna) ntegrated IEEE 802.11n (5 GHz and 2.4 GHz bands) wireless networking access, compatible with 802.1 1a/b/g Wi-Fi networks Bus Power Supply (USB) 5V2== 500 mA Motion Remote Control Model M4-Media Range of frequency 2400 GHz- 24835 GHz Channel 79 channels Transmission Under 10 d8m Reception sensitivity -86 d&m Dimensions 424 mm x47 mm x 186 mm Weight 80 9 #5 g (excluding battery) Power source AA 15 V, 2 alkaline batteries Operational temperature range 0°C-60"C +_ Design and specifications are subject to change without notice.

xpueddy 72 Appendix Maintenance Handling the unit When shipping the unit Please save the original shipping carton and packing materials. you need to ship the unit for maximum protection, re-pack the unit as it was originally packed at the factory. Cleaning the uni To clean the player, use a soft, dry cloth. IFthe surfaces are extremely dirty, use a soft cloth lightiy moistened with a mild detergent solution. Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit. Keeping the exterior surfaces clean Do not use volatile liquids such as insecticide spray near the unit. Wiping with strong pressure may damage the surface. Do not leave rubber or plastic products in contact with the unit for a long period of time. Maintaining the u The unitis a high-tech, precision device. IFthe optical pick-up lens and disc drive parts are dirty. or wom, the picture quality could be diminished For details, please contact your nearest authorized service center. Notes on discs Handling discs Do not touch the playback side ofthe disc. Hold the disc by the edges so that fingerprints do not get on the surface. Never stick paper or tape on the disc. Storing discs After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat and never leave it in à parked car exposed to direct sunlight Cleaning dises Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the center to out. Do not use strong solvents such as alcohol, benzine, thinner, commerciallÿ available cleaners, or anti-static spray intended for older vinyl records.

Important Information Relating to Network Services Al information, data, documents, communications, downloads, files, text, images, photographs, graphics, videos, webcasts, publications, tools, resources, software, code, programs, applets, widgets, applications, products and other content Content’) and all services and offerings (‘Services’) provided or made available by or through any third party (each a“Service Provider‘) is the sole responsibility ofthe Service Provider from whom it originated. The avallability of and access to Content and Services furished by the Service Provider through the LGE Device are subject to change at any time, without prior notice, including, but not limited to the suspension, removal or cessation of all or any part ofthe Content or Services. Should you have any inquiry or problem related to the Content or Services, you may refer to the Service Provider website for the most up-to- date information. LGE is neither responsible nor liable for customer service related to the Content and Services. Any question or request for service relating to the Content or Services should be made directly to the respective Content and Service Providers. Please note that LGE is not responsible for any Content or Services provided by the Service Provider or any changes to, removal of, or cessation of such Content or Services and does not warrant or guaranty the avallability of or access to such Content or Services.
