USER MANUAL 32WA3E63DG TOSHIBA

32/40/43 LA2E Series

32/40/43 LA23 Series

32WA3E Series

32WA2E Series

32WA23 Series

① Inserting the batteries into the remote

The remote may have a screw that secures the battery compartment cover onto the remote control (or this may be in a separate bag). Remove the screw, if the cover is screwed on previously. Then remove the battery compartment cover to reveal the battery compartment. Insert two 1.5V - size AAA batteries. Make sure the (+) and (-) signs match (observing correct polarity). Do not mix old and new batteries. Replace only with same or equivalent type. Place the cover back on. Secure the cover again with the screw, if any.

2 Connections

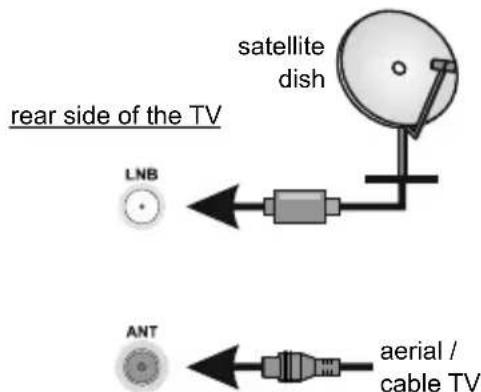

Antenna

Connect the antenna cable/s to your TV.

rear side of the TV satellite dish LNB ANT aerial / cable TV

External Devices

PLEASE ENSURE BOTH UNITS ARE SWITCHED OFF BEFORE CONNECTING

Use the proper cable to connect two units together. To select the desired input source, press the Source button on the remote control.

HDMI connection

rear side of the TV

Power

After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains. Plug one end (the two-hole plug) of the supplied detachable power cord into the power cord inlet on the rear side of the TV. Then plug the other end of the power cord into the mains socket outlet.

IMPORTANT: The TV set is designed to operate on a 220-240V AC, 50 Hz supply.

Simple line drawing of a plug inserted into a socket (no text or symbols)

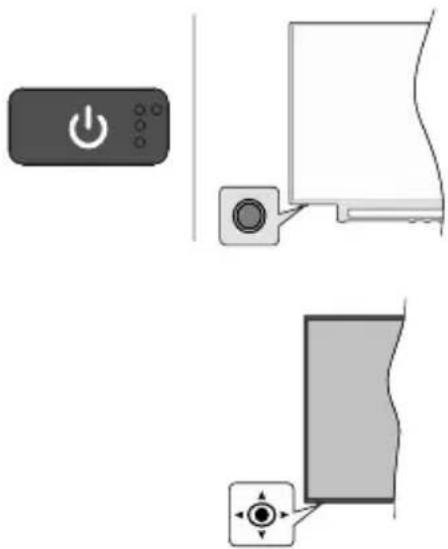

③ Switching on the TV

In order to turn the TV on from standby mode:

• Press the Standby button on the remote control
• Press the control button on the TV

-or-

- Press the centre of the joystick on the TV in or push it up/down.

Pure electrical circuit lines without any symbols

④ Internet connection

You can set up your TV so that it can access the Internet through your local area network (LAN) using a wired or wireless connection. Refer to full user manual for detailed instructions.

Wired


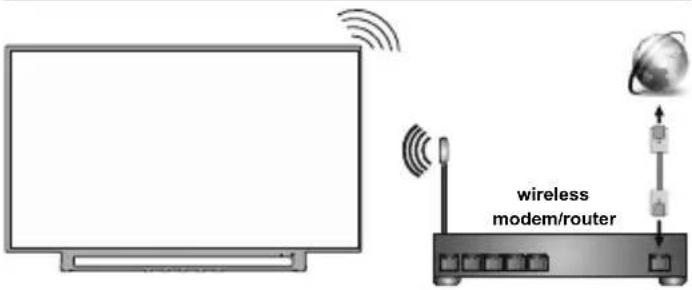

Wireless

wireless modem/router

Note: The figures are for representation only

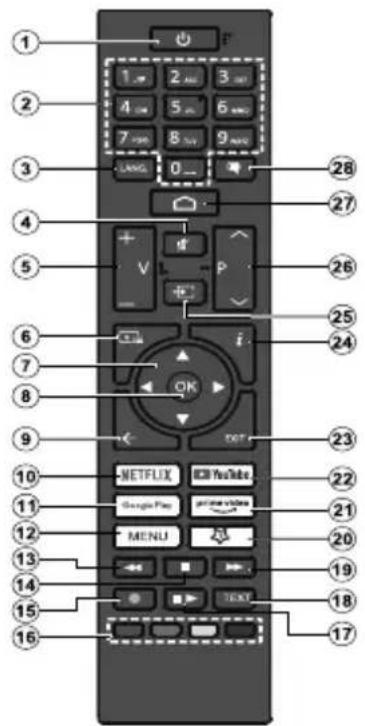

⑤ Remote control

1 2 3 4 5 6 7 8 9 LNG 0... 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 F 1 2 3 4 5 6 7 8 9 OK NETFLIX YouTube Google Play and other video MENU

1. Standby

2. Numeric buttons

3. Language

4. Mute

5. Volume +/-

6. Guide

7. Directional buttons

8. OK

9. Back/Return

10. Netflix

11. Google Play

12. Menu

13. Rewind

14. Stop

15. Record

16. Coloured Buttons

17. Pause Play

18. Text

19. Fast forward

20. MyButton1

21. Prime Video

22. YouTube

23. Exit

24. Info

25. Source

26. Programme +/-

27. Home

28. Subtitles

⑥ Initial setup wizard

When turned on for the first time, a welcome screen will be displayed. Select your language and press OK. Follow the on screen instructions to setup your TV and install channels. The installation wizard will guide you through the setup process. You can perform initial setup anytime using the Factory reset option in the Settings>Device Preferences>About menu. You can access the Settings menu from the Home Screen or from the TV options menu in Live TV mode.

⑦ Accessing the full user manual

You can review your TV's full user manual online or download as you like. Scan this QR code or visit https://toshiba-tv.com

If you like to register your Toshiba TV, please, visit the Toshiba TV support website as per link above and select "Register".

Accessories Included

• Remote Control
• Batteries: 2 x AAA
• Quick Start Guide
• Product Fiche(**)
  • P-clip x2(**)
  (**) Limited Models Only

Feature Overview

Multi Media Player

Browse the media content stored on USB devices that are connected to your TV or on mobile devices that are connected to the same network as your TV using the MMP app

Common Interface

Decode encrypted digital TV channels with a Conditional Access Module (CAM) and a card provided by a digital TV service operator

USB Recording

Record your favourite TV and radio programmes

Electronic Programme Guide

Display the scheduled digital TV and radio programmes CEC

Control basic functions of the connected HDMI-CEC compatible audio/video devices with the remote control of the TV

HbbTV

Access to HbbTV services (services are dependant on broadcast)

Apps

Access the applications installed on your TV, add more from the market

Google Cast

With the built-in Google Cast technology you can cast the content from your mobile device straight to your TV.

Voice Search

You can start a voice search using your remote's built-in microphone

Bluetooth ^® (\*\*)

Connect audio devices, keyboards, game controllers or remote controller wirelessly to your TV.

(**) Limited Models Only

Some features may not be available, dependant on your TV model. Please check the product fiche for the product specifications relating to your model

For more detailed information and videos on installation, function and features of your TV, refer to the full manual on our website:

http://toshiba-tv.com

High Dynamic Range (HDR) / Hybrid Log-Gamma (HLG)

Using this feature the TV can reproduce greater dynamic range of luminosity by capturing and then combining several different exposures. HDR/HLG promises better picture quality thanks to brighter, more realistic highlights, more realistic colour and other improvements. It delivers the look that filmmakers intended to achieve, showing the hidden areas of dark shadows and sunlight with full clarity, colour and detail. HDR/HLG content is supported via native and market applications, HDMI, USB inputs and over DVB-S broadcasts. When the input source is set to the related HDMI input press the Menu button and set the HDMI EDID Version option in the TV Options>Settings>Device Preferences>Inputs menu as EDID or Auto EDID in order to watch HDR/HLG content, if the HDR/HLG content is received through an HDMI input. The source device should also be at least HDMI 2.0a compatible in this case.

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

In extreme weather (storms, lightning) and long inactivity periods (going on holiday) disconnect the TV set from the mains.

The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable. If the TV set is not disconnected electrically from the mains, the device will still draw power for all situations even if the TV is in standby mode or switched off.

Note: Follow the on screen instructions for operating the related features.

IMPORTANT - Please read these instructions fully before installing or operating

WARNING: This device is intended to be used by persons (including children) who are capable / experienced of operating such a device unsupervised, unless they have been given supervision or instruction concerning the use of the device by a person responsible for their safety.

- Use this TV set at an altitude of less than 5000 metres above the sea level, in dry locations and in regions with moderate or tropical climates.

- The TV set is intended for household and similar indoor use but may also be used in public places.

• For ventilation purposes, leave at least 5cm of free space around the TV.
• The ventilation should not be impeded by covering or blocking the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.
• The power cord/plug should be easily accessible. Do not place the TV, furniture, etc. on the power cord. A damaged power cord/plug can cause fire or give you an electric shock. Handle the power cord by the plug, do not unplug the TV by pulling the power cord. Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock. Never make a knot in the power cord or tie it with other cords. When damaged it must be replaced, this should only be done by qualified personnel.
• Do not expose the TV to dripping or splashing of liquids and do not place objects filled with liquids, such as vases, cups, etc. on or over the TV (e.g. on shelves above the TV).
• Do not expose the TV to direct sunlight or do not place open flames such as lit candles on the top of or near the TV.
• Do not place any heat sources such as electric heaters, radiators, etc. near the TV set.
• Do not place the TV on the floor or inclined surfaces.
• To avoid danger of suffocation, keep plastic bags out of the reach of babies, children and domestic animals.
• Carefully attach the stand to the TV. If the stand is provided with screws, tighten the screws firmly to prevent the TV from tilting. Do not over-tighten the screws and mount the stand rubbers properly.
• Do not dispose of the batteries in fire or with hazardous or flammable materials.

WARNING

• Batteries must not be exposed to excessive heat such as sunshine, fire or the like.
• Excessive sound pressure from earphones or headphones can cause hearing loss.

ABOVE ALL - NEVER let anyone, especially children, push or hit the screen, push anything into holes, slots or any other openings in the TV.

Caution	Serious injury or death risk
Risk of electric shock	Dangerous voltage risk
Maintenance	Important maintenance component

Markings on the Product

The following symbols are used on the product as a marker for restrictions and precautions and safety instructions. Each explanation shall be considered where the product bears related marking only. Note such information for security reasons.

Class II Equipment: This appliance is designed in such a way that it does not require a safety connection to electrical earth.

Hazardous Live Terminal: The marked terminal(s) is/are hazardous live under normal operating conditions.

Caution, See Operating Instructions: The marked area(s) contain(s) user replaceable coin or button cell batteries.

Class 1 Laser Product: This product contains Class 1 laser source that is safe under reasonably foreseeable conditions of operation.

WARNING

Do not ingest the battery, Chemical Burn Hazard This product or the accessories supplied with the product may contain a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.

Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children.

If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

A television may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as;

• ALWAYS use cabinets or stands or mounting methods recommended by the manufacturer of the television set.
• ALWAYS use furniture that can safely support the television set.
• ALWAYS ensure the television set is not overhanging the edge of the supporting furniture.
• ALWAYS educate children about the dangers of climbing on furniture to reach the television set or its controls.
• ALWAYS route cords and cables connected to your television so they cannot be tripped over, pulled or grabbed.
• NEVER place a television set in an unstable location.
• NEVER place the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
• NEVER place the television set on cloth or other materials that may be located between the television set and supporting furniture.
• NEVER place items that might tempt children to climb, such as toys and remote controls, on the top of the television or furniture on which the television is placed.
• The equipment is only suitable for mounting at heights ≤ 2 m.

If the existing television set is going to be retained and relocated, the same considerations as above should be applied.

Apparatus connected to the protective earthing of the building installation through the MAINS connection or through other apparatus with a connection to protective earthing – and to a television distribution system using coaxial cable, may in some circumstances create a fire hazard. Connection to a television distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator).

Using the special functions to change the size of the displayed image (i.e. changing the height/width ratio) for the purposes of public display or commercial gain may infringe on copyright laws.

The LCD display panels are manufactured using an extremely high level of precision technology; however, sometimes some parts of the screen may be missing picture elements or have luminous spots. This is not a sign of a malfunction.

The set should be operated only from a 220-240 V AC 50 Hz outlet. Ensure that the television is not standing on the mains lead. Do not cut off the mains plug from this equipment, this incorporates a special Radio Interference Filter, the removal of which will impair its performance. It should only be replaced by a correctly rated and approved type. IF IN DOUBT PLEASE CONSULT A COMPETENT ELECTRICIAN.

WALL MOUNTING WARNINGS

• Read the instructions before mounting your TV on the wall.
• The wall mount kit is optional. You can obtain from your local dealer, if not supplied with your TV.
• Do not install the TV on a ceiling or on an inclined wall.
• Use the specified wall mounting screws and other accessories.
• Tighten the wall mounting screws firmly to prevent the TV from falling. Do not over-tighten the screws.

Figures and illustrations in these operating instructions are provided for reference only and may differ from the actual product appearance. Product design and specifications may be changed without notice.

Licences

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Manufactured under licence from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

Google, Android, Android TV, Chromecast, Google Play and YouTube are trademarks of Google LLC.

(**) For DTS patents, see http://patents.dts.com. Manufactured under licence from DTS Licensing Limited. DTS, DTS-HD, Virtual:X, and the DTS-HD logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2022 DTS, Inc. ALL RIGHTS RESERVED.

dts HD.

(**) The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Vestel Elektronik Sanayi ve Ticaret A.S. is under licence. Other trademarks and trade names are those of their respective owners.

DVB is a registered trademark of the DVB Project.

[1] EIA/CEA-861-D compliance covers the transmission of uncompressed digital video with high-bandwidth digital content protection, which is being standardised for reception of high-definition video signals. Because this is an evolving technology, it is possible that some devices may not operate properly with the television.

This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this technology outside of this product is prohibited without the appropriate licence(s) from Microsoft.

Content owners use Microsoft PlayReady™ content access technology to protect their intellectual property, including copyrighted content. This device uses PlayReady technology to access PlayReady-protected content and/or WMDRM-protected content. If the device fails to properly enforce restrictions on content usage, content owners may require Microsoft to revoke the device's ability to consume PlayReady-protected content. Revocation should not affect unprotected content or content protected by other content access technologies. Content owners may require you to upgrade PlayReady to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade.

The "CI Plus" Logo is a trademark of CI Plus LLP.

This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a licence from Microsoft or an authorised Microsoft subsidiary.

(**) Limited Models Only

Wireless LAN Transmitter Specifications

Frequency Ranges	Max Output Power
2400 - 2483.5 MHz (CH1 - CH13) < 100	mW
5150 - 5250 MHz (CH36 - CH48) < 200	mW
5250 - 5350 MHz (CH52 - CH64) < 200	mW
5470 - 5725 MHz (CH100 - CH140) < 200	mW

Country Restrictions

The Wireless LAN equipment is intended for home and office use in all EU countries, the UK and Northern Ireland (and other countries following the relevant EU and/or UK directive). The 5.15 - 5.35 GHz band is restricted to indoor operations only in the EU countries, in the UK and Northern Ireland (and other countries following the relevant EU and/or UK directive). Public use is subject to general authorisation by the respective service provider.

Country Restriction
Russian Federation Indoor use only

The requirements for any country may change at any time. It's recommended that user checks with local authorities for the current status of their national regulations for both 2.4 GHz and 5 GHz wireless LAN's.

Disposal...

The following information is only for EU-member states:

Disposal of products

The crossed out wheeled dust bin symbol indicates that products must be collected and disposed of separately from household waste. Integrated batteries and accumulators can be disposed of with the product. They will be separated at the recycling centres.

The black bar indicates that the product was placed on the market after August 13, 2005.

By participating in separate collection of products and batteries, you will help to assure the proper disposal of products and batteries and thus help to prevent potential negative consequences for the environment and human health.

For more detailed information about the collection and recycling programmes available in your country, please contact your local city office or the shop where you purchased the product.

Disposal of batteries and/or accumulators

The crossed out wheeled dust bin symbol indicates that batteries and/or accumulators must be collected and disposed of separately from household waste.

If the battery or accumulator contains more than the specified values of lead (Pb), mercury (Hg),

and/or cadmium (Cd) defined in the European Battery Directive then the chemical symbols for lead (Pb), mercury (Hg) and/or cadmium (Cd) will appear below the crossed out wheeled dust bin symbol.

By participating in separate collection of batteries, you will help to assure the proper disposal of products and batteries and thus help to prevent potential negative consequences for the environment and human health. For more detailed information about the collection and recycling programmes available in your country, please contact your local city office or the shop where you purchased the product.

REACH information

The European Union (EU) chemical regulation, REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals), entered into force on 1 June 2007.

Toshiba TV will meet all REACH requirements and is committed to provide our customers with information about the presence in our articles of substances included on the candidate list according to REACH regulation.

Please consult the following website www.toshiba-tv.com for information about the presence in our articles of substances included on the candidate list according to REACH in a concentration above 0.1 % weight by weight.

EU Conformity Statement

This product is carrying the CE-Mark in accordance with the related European Directives.

Responsible for CE-Marking is Vestel Holland B.V. Stationsplein 45 A2.191 3013 AK Rotterdam; Vestel Poland sp. zo.o. ul. Salsy 2, 02-823 Warszawa, Polska.

This product is labelled with the CE Mark in accordance with the related European Directives, notably RoHS Directive 2011/65/EU. Furthermore the product complies with the Ecodesign Directive 2005/32/EC (EuP) and 2009/125/EC (ErP) and its related implementing measures.

This equipment corresponds to requirements of the Technical Regulation on limitation of usage of certain dangerous substances in electrical and electronic equipment.

Find out all you need to know about the latest, trend-setting TV technology on our website.

www.toshiba-tv.com

You can review your TV's full user manual online or download as you like

QR code image containing encoded data, no visible human-readable text

Simple line drawing of a plug inserted into a wall socket with a circular component (no text or symbols)

Diagram of a remote control with labeled buttons, keyboard, and address indicators for TV and audio.

QR code image containing encoded data, no visible human-readable text

Simple line drawing of a plug inserted into a square socket (no text or symbols)

Diagram of a remote control with labeled buttons and function keys in English and Spanish

QR code image containing encoded data, no visible human-readable text

Simple line drawing of a plug inserted into a socket (no text or symbols)

3 Accendere la TV

wireless modem/router

Diagram of a remote control with labeled buttons and keyboard keys, numbered from 1 to 28.

Simple line drawing of a plug inserted into a socket (no text or symbols)

③ De TV inschakelen

Om de tv in te schakelen vanuit stand-bymodus:

Pure electrical circuit lines without any symbols

- of -

Diagram of a remote control with labeled buttons, keyboard, and numeric keypad

KLASSE 1 LASER PRODUCT:

QR code image containing encoded data, no visible human-readable text

Simple line drawing of a mechanical component or bracket (no text or symbols)

2

Połączenia

Antena

Simple line drawing of a plug inserted into an electrical socket (no text or symbols)

3

Włączanie TV

Diagram showing three UI elements: a power button, a screen with a circular button, and a separate panel with a cursor icon (no text or symbols)

4

QR code image containing encoded data, no visible human-readable text

Simple line drawing of a plug inserted into a socket (no text or symbols)

Diagram showing three UI control icons: a power button, a screen with a circular button, and a close-up of a device with a circular button (no text or symbols)

4 Ligação Internet

Diagram of a remote control with labeled buttons and function keys in English and Spanish

QR code image containing encoded data, no visible human-readable text

Simple line drawing of a plug inserted into a socket (no text or symbols)

Pure electrical control icons without any text or symbols

4

Conexión a Internet

QR code image containing encoded data, no visible human-readable text

Simple line drawing of a plug inserted into a socket socket (no text or symbols)

Pure electrical circuit lines without any symbols

- ИЛИ -

QR code image containing encoded data, no visible human-readable text

Simple line drawing of a plug inserted into a socket (no text or symbols)

③ Uključivanje televizora

Pure electrical circuit lines without any symbols

4

Diagram of a remote control with labeled keys and buttons, numbered from 1 to 28.

1. Standby (Pripravnost):
2. Numeric buttons (Numerički taster)
3. Language (Jezik)
4. Utišavanje zvuka
5. Glasnoća +/-
6. Guide (Vodič)
7. Usmjeravajući tasteri
8. U REDU
9. Back/Return(Povratak/Nazad)
10. Netflix
11. Google Play
12. Meni
13. Premotavanje

14. Stop (Zaustavi)

15. Snimak

16. Tipke u boji
17. Pauza Reprodukuj
18. Text (Tekst)
19. Ubrzaj naprijed
20. MyButton1
21. Prime Video
22. YouTube
23. Exit (Izlaz)
24. Informacije
25. Izvor
26. Program +/-
27. Početak
28. Titl

6

QR code image containing encoded data, no visible human-readable text

Simple line drawing of a rectangular object with internal components (no text or symbols)

2 Připojení

Anténa

Simple line drawing of a plug inserted into a socket (no text or symbols)

Diagram of a remote control with labeled keys and buttons, numbered from 1 to 28.

QR code image containing encoded data, no visible human-readable text

Simple line drawing of a plug inserted into a square socket (no text or symbols)

3 Kytke TV päälle

Simple line drawing of a power button and a document icon (no text or symbols)

- tai -

Simple diagram showing a cursor icon pointing to a rectangular shape (no text or symbols)

④ Internet-yhteys

Diagram of a remote control with labeled buttons and keyboard keys, numbered from 1 to 28.

QR code image containing encoded data, no visible human-readable text

Simple line drawing of a plug inserted into a socket (no text or symbols)

3 Slå på TV-en

Simple line drawing of a power button and a device with a circular button (no text or symbols)

Simple diagram showing a cursor icon pointing to a rectangular shape with a curved line above (no text or symbols)

4 Internett-forbindelse

Diagram of a remote control with labeled keys and buttons, showing navigation and function keys.

1. Ventemodus

2. Nummertaster

3. Språk

4. Mute

5. Volum +/-

6. Guide

7. Retningsknapper

8. OK

9. Tilbake/Returner

10. Netflix

11. Google Play

12. Meny

13. Spol tilbake

14. Stopp

15. Opptak

16. Fargede Knapper

17. Pause Spill

18. Tekst

19. Spol forover

20. Minknapp1

21. Prime Video

22. YouTube

23. Avslutt

24. Info

25. Kilde

26. Program +/-

27. Home

28. Teksting

QR code image containing encoded data, no visible human-readable text

Simple line drawing of a plug inserted into a socket socket (no text or symbols)

3 Tænd for TV'et.

Diagram showing three UI elements: a power button, a screen with a circular button, and a control panel with a pointer (no text or symbols)

Diagram of a remote control with labeled buttons, keyboard, and numeric keypad

1. Standby

2. Numerisk knapper

3. Sprog

4. Lydløs

5. Volumen +/-

6. Guide

7. Retningsbestemte knapper

8. OK

9. Tilbage/Retur

10. Netflix

11. Google Play

12. Menu

13. Spol tilbage

14. Stop

15. Optag

16. Farvede knapper

17. Pause

Afspil

1. Tekst

2. Hurtigt fremad

3. MyButton1

4. Prime Video

5. YouTube

6. Afslut

7. Info

8. Kilde

9. Program +/-

10. Hjem

11. Undertekster

QR code image containing encoded data, no visible human-readable text
