USER MANUAL 3715 CA SKIL

Illustration of a SKIL industrial machine with a TNS device attached (no text or symbols on the device itself)

QR code image containing encoded data, no visible human-readable text

GB ORIGINAL INSTRUCTIONS 8
(F) NOTICE ORIGINALE 11
D ORIGINALBETRIEBSANLEITUNG 15
NL ORIGINELE GEBRUIKSAANWIJZING 18
S BRUKSANVISNING I ORIGINAL 22
DK ORIGINAL BRUGSANVISNING 25
N ORIGINAL BRUKSANVISNING 28
FIN ALKUPERÄISET OHJEET 32
E MANUAL ORIGINAL 35
(P) MANUAL ORIGINAL 39
I ISTRUZIONI ORIGINALI 42
H EREDETI HASZNÁLATI UTASÍTÁS 46
CZ PÚVODNÍM NÁVODEM K POUŽÍVÁNÍ 50
TR ORIJINAL İŞLETME TALİMATI 53
(PL) INSTRUKCJA ORYGINALNA 56
RU ПОДЛИННИК РУКОВОДСТВА ПО 60
ЭКСПЛУАТАЦИИ

UA ОРИГІНАЛЬНА ІНСТРУКЦІЯ 65
З ЕКСПЛУАТАЦІЇ
GR ΠΡΩΤΟΥΠΟ ΟΔΗΓΙΩΝ ΧΡΗΣΗΣ 69
RO INSTRUCTIUNI DE FOLOSIRE 73
ORIGINALE
BG ОРИГИНАЛНО РЪКОВОДСТВО 76
ЗА ЕКСПЛОАТАЦИЯ
SK PÔVODNÝ NÁVOD NA POUŽITIE 80
HR ORIGINALNE UPUTE ZA RAD 84
SRB ORIGINALNO UPUTSTVO ZA RAD 87
(SLO) IZVIRNA NAVODILA 90
EST ALGUPÄRANE KASUTUSJUHEND 94
LV ORIGINĀLĀ LIETOŠANAS PAMĀCĪBA 97
(LT) ORIGINALI INSTRUKCIJA 101
МК ИЗВОРНО УПАТСТВО ЗА РАБОТА 104
(AL) UDHËZIMET ORIGJINALE 108
AR دليل الاستعمال 120
FA راهنمای اصلی 118

www.skil.com

CE

3715

GB	EU Declaration of conformityCordless multi sander Article number	We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards.Technical file at:★
F	Déclaration de conformité UEPonceuse orbitale spécialesans fil Numéro d'article	Nous déclarons sous notre propre responsabilité que les produits décrits sont en conformité avec les directives, règlements normatifs et normes énumérés ci-dessous.Dossier technique auprès de:★
D	EU-KonformitätserklärungAkku-Exzenterschleifer Sachnummer	Wir erklären in alleiniger Verantwortung, dass die genannten Produkte allen einschlägigen Bestimmungen der nachfolgend aufgeführten Richtlinien und Verordnungen entsprechen und mit folgenden Normen übereinstimmen.Technische Unterlagen bei:★
NL	EU-conformiteitsverklaringOplaadbareexcenterschuurmachine Productnummer	Wij verklaren op eigen verantwoordelijkheid dat de genoemde producten voldoen aan alle desbetreffende bepalingen van de hierna genoemde richtlijnen en verordningen en overeenstemmen met de volgende normen.Technisch dossier bij:★
S	EU-konformitetsförklaringSladdlös slipmaskin medslumpvisa cirkelrörelser Produktnummer	Vi förklarar under eget ansvar att de nämnda produkterna uppfyller kraven i alla gällande bestämmelser i de nedan angivna direktiven och förordningarnas och att de stämmer överens med följande normer.Teknisk dokumentation:★
DK	EU-overensstemmelseserklæringBatteridrevet vilkárligorbitalsliber Typenummer	Vi erklærer som eneansvarlige, at det beskrevne produkt er i overensstemmelse med alle gældende bestemmelser i følgende direktiver og forordninger og opfylder følgende standarder.Tekniske bilag ved:★
N	EU-samsvarserklæringTrádlós, tilfeldig baneslipemaskin uten Produktnummer	Vi erklærer under eneansvar at de nevnte produktene er i overensstemmelse med alle relevante bestemmelser i direktivene og forordningene nedenfor og med følgende standarder.Teknisk dokumentasjon hos:★
FIN	EU-vaatimustenmukaisuusvakuutusAkkukäyttöinen hiomakonesatunnaisella heilurillikkeellä Tuotenumero	Vakuutamme täten, että mainitut tuotteet vastaavat kaikkia seuraavien direktiivien ja astestuten asiaankuuluvia vaatimuksia ja ovat seuraavien standardien vaatimusten mukaisia.Tekniset asiakirjat saatavana:★
E	Declaración de conformidad UELijadora orbital aleatoriasín cable Número de artículo	Declaramos bajo nuestra exclusiva responsabilidad, que los productos nombrados cumplen con todas las disposiciones correspondientes de las directivas y los reglamentos mencionados a continuación y están en conformidad con las siguientes normas.Documentos técnicos de:★
P	Declaração de conformidade CELixadora orbital aleatóriasem fios Número do produto	Declaramos sob nossa exclusiva responsabilidade que os produtos mencionados cumprem todas as disposições e os regulamentos indicados e estão em conformidade com as seguintes normas.Documentação técnica pertencente à:★
I	Dichiarazione di conformità UELevigatrice rotorbitalesenza filo Codice prodotto	Dichiariamo sotto la nostra piena responsabilità che i prodotti indicati sono conformi a tutte le disposizioni pertinenti delle direttive e dei regolamenti elencati di seguito, nonché alle seguenti normative.Documentazione tecnica presso:★
H	EU konformitási nyllatkozatVezeték nélküliexcentercsiszoló Cikkszám	Egyedüli felelőséggel kijelentjük, hogy a megnevezett termékek megfelelnek az alábbiakban felsorolásra kerülő irányelvek és rendeletek valamennyi idevágó előírásainak és megfelelnek a következő szabványoknak.Műszaki dokumentumok megőrzési pontja:★
CZ	EU prohlásení o shoděAkumulátorová kruhovábruska Objednaci číslo	Prohlašujeme na výhradní zodpovědnost, že uvedený výrobek splňuje všechna příslušná ustanovení niže uvedených směrnic a nařízení a je v souladu s následujicimi normami.Technické podklady u:★
TR	AB Uygunluk beyaniEksantrik zımpara Ürün kodu	Tek sorumlu olarak, tanimlanan ürünün aşağıdaki yönetmelik ve direktiflerin geçerli bütün hükümlerine ve aşağıdaki standartlara uygun olduğunu beyan edériz.Teknik belgelerin bulunduğu yer:★
PL	Deklaracja zgodności UEAkumulatorowa szlifierka oscylacyjna Numer katalogowy	Oświadczamy z pełną odpowiedzialnością, że niniejsze produkty odpowiadają wszystkim wymaganiom poniżej wyszczególnionych dyrektyw i rozporządzeń, oraz že są zgodne z następującymi normami.Dokumentacja techniczna:★
RU	Заявление о соответствии ECАккумуляторная эксцентриковая шлифовальная машина Товарный номер	Мы заявляем под нашу единоличную ответственность, что названные продукты соответствуют всем действующим предписаниям нижеуказанных директив и распоряжений, а также нижеуказанных норм.Техническая документация хранится y:★
UA	Заява про відповідність ЄСБездротова ексцентриковашліфувальна машина Товарный номер	Мизаявляемо під нашу одноособову відповідальність, що названі вироби відповідають усім чинним положенням нищеозначених директив і розпоряджень, а також нижчеозначеним нормам.Технічна документация зберігається y:★

CE

3715

GR	Δήλωση πιστότητας EEΕπαναφορτιζόμενοέκκεντρο τριβείοΑριθμός ευρετηρίου	Δηλώνουμε με αποκλειστική μας ευθύνη, ότι τα αναφερόμενα προϊόντα αντιστοιχούν σε όλες τις σχετικές διατάξεις των πιο κάτω αναφερόμενων οδηγιών και κανονισμών και τautιζονται με τα ακόλουθα πρότυπα.Τεχνικά έγγραφα στη:★
RO	Declaratie de conformitate UEŞlefuitor cu excentriccu acumulatorNumăr de identificare	Declarăm pe proprie răspundere că produsele mentionate corespund tuturor dispozițiilor relevante ale directivelor și reglementărilor enumerate în cele ce urmează și sunt în conformitate cu următoarele standarde.Documentație tehnică la:★
BG	EC декларация за съответствиеАкумулаторенексцентършлайфКаталожен номер	С пълна отговорност ние декларираме, че посочените продукти отговарят на всични валидни изисквания на директивите и разпоредбите по-долу и съответства на следните стандарти.Техническа документация при:★
SK	EU vyhlásenie o zhodeBezdrótová excentrická brúškaVecné číslo	Vyhlasujeme na výhradnú zodpovednosť, že uvedený výrobok splňa všetky prislušné ustanovenia nižšie uvedených smerníc a nariadení a je v súlade s nasledujúcimi normami.Technické podklady má spoločnosť:★
HR	EU izjava o sukladnostiBežična ekscentrična brusilicaKataloški broj	Pod punom odgovornošću izjavljujemo da navedeni proizvodi odgovaraju svim relevantnim odredbama direktiva i propisima navedenima u nastavku i da su sukladni sa sljedećim normama.Tehnička dokumentacija se može dobiti kod:★
SRB	EU-izjava o usaglašenostiBežična šlajferica sarandomiziranom orbitomBroj predmeta	Na sopstvenu odgovornost izjavljujemo, da navedeni proizvodi odgovaraju svim dotičnim odredbama naknadno navedenih smernica u uredaba i da su u skladu sa sledećim standardima.Tehnička dokumentacija kod:★
SLO	Izjava o skladnosti ESBrezžični izsredni brusilnikŠtevilka artikla	Izjavljamo pod izključno odgovornostjo, da je omenjen izdelek v skladu z vsemi relevantnimi določili direktiv in uredb ter ustreza naslednjim standardom.Tehnična dokumentacija pri:★
EST	EL-vastavusdeklaratsioonJuhtmetaekstsentriklihvmasinadTootenumber	Kinnitame ainuvastutajatena, et nimetatud tooted vastavad järgnevalt loetletud direktiivide ja määruste köikidele asjaomastele nõuetele ja on kooskõlas järgmiste normidega.Tehnilised dokumentid saadaval:★
LV	Deklaracija par atbilstību EK standartiemBezvadu ekscentraslīpmašinaIzstrādājuma numurs	Mēs ar pilnu atbildību paziņojam, ka šeit aplūkotie izstrādājumi atbilst visiem tālāk minētajās direktīvās un řirojumos ietvertajām saistošajām nostādnēm, kā arī sekojošiem standartiem.Tehniskā dokumentacija no:★
LT	ES atitikties deklaracijaAkumuliatorinės atsitiktiniu būdubesisukančios juostinėsšlifavimo staklėsGaminio numeris	Atsakingai pareiškiame, kad išvardyti gaminiai atitinka visus privalomus žemiau nurodytu direktyvų ir reglamentų reikalavimus ir šiuos standartus.Technine dokumentacija saugoma:★
MK	EU-Изјава за сообразностБезнична шмиргла сопроизволна орбитаБрој на артинл	Со целосна одговорност изјавуваме, дека опишаните производи се во согласност со сите релевантни одредби на следните регулативи и прописи и се во согласност со следните норми.Техничка документација кaj:★
AL	EU Deklarata e konformitetitzmerilues me bateriNumri i nenit	Ne deklarojmė me përgjegjėsinė tonė të vetme se produktet e paraqitura janė në përputhje me të gjitha dispozitat e zbatueshme të direktivave dhe rregulloreve të listuara mė poshtė dhe janė në përputhje me standardet si mė poshte.Dosja teknike nė:★
	3715 SR1*3715**	2006/42/ECEN 62841-1:2015 + A11:20222014/30/EUEN 62841-2-4:20142011/65/EUEN 55014-1:2021EN 55014-2:2021EN 63000:2018
		SKIL®Skil BVRithmeesterpark 22 A14838 GZ BredaThe Netherlands
		Olaf DijkgraafApproval ManagerSkil BV, Rithmeesterpark 22 A1, 4838 GZ Breda, NL30.01.2024

Declaration of ConformityCordless multi sander Article number	We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standardsTechnical file at:Chervon Europe Ltd., 34 Bridge Street, Reading, RG1 2LU, United Kingdom
3715 SR1*3715**	Supply of Machinery (Safety) Regulations 2008 (SI 2008/1597)Electromagnetic Compatibility Regulations 2016 (SI 2016/1091)The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 (SI 2012/3032)EN 62841-1:2015 + A11:2022EN 62841-2-4:2014EN 55014-1:2021EN 55014-2:2021EN 63000:2018
	Chervon Europe Ltd., 34 Bridge Street, Reading, RG1 2LU, United Kingdom, as authorized representative (in terms of above regulations) acting on behalf of Skil BV, Rithmeesterpark 22 A1, 4838GZ Breda, The Netherlands
	James McCroryTechnical Service ManagerPlace of issue: ReadingDate of issue: 30/01/2024

①

3715

②

SKIL BRUSHLESS A D B C E

③

4

5

⑥

⑦ E ⑦a ⑦b ⑦c

Instructional diagram showing hand using a power shaver to adjust components, with warning symbols and magnified view

⑨ SKIL TINS

⑩ SKIL

Line drawings showing two different tasks: one using a power iron on a wooden table, and another with hands cleaning a mirror frame (no text or symbols)

ACCESSORIES

WWW.SKIL.COM

GB

Brushless cordless multi sander 3715 INTRODUCTION

• This tool is intended for dry sanding of wood, plastic, metal, filler and painted surfaces
  • This tool is not intended for sanding gypsum
• Read and save this instruction manual ③

TECHNICAL DATA①

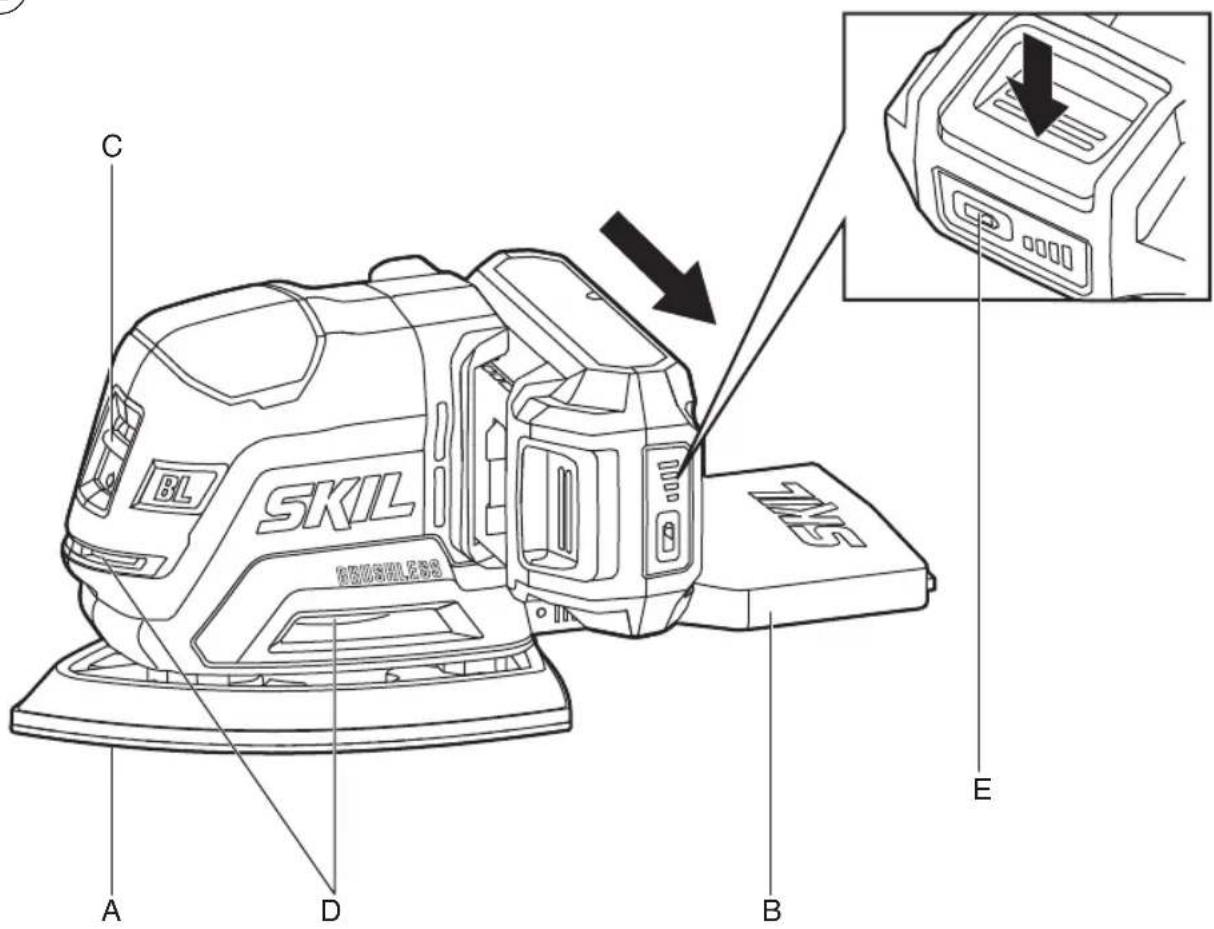

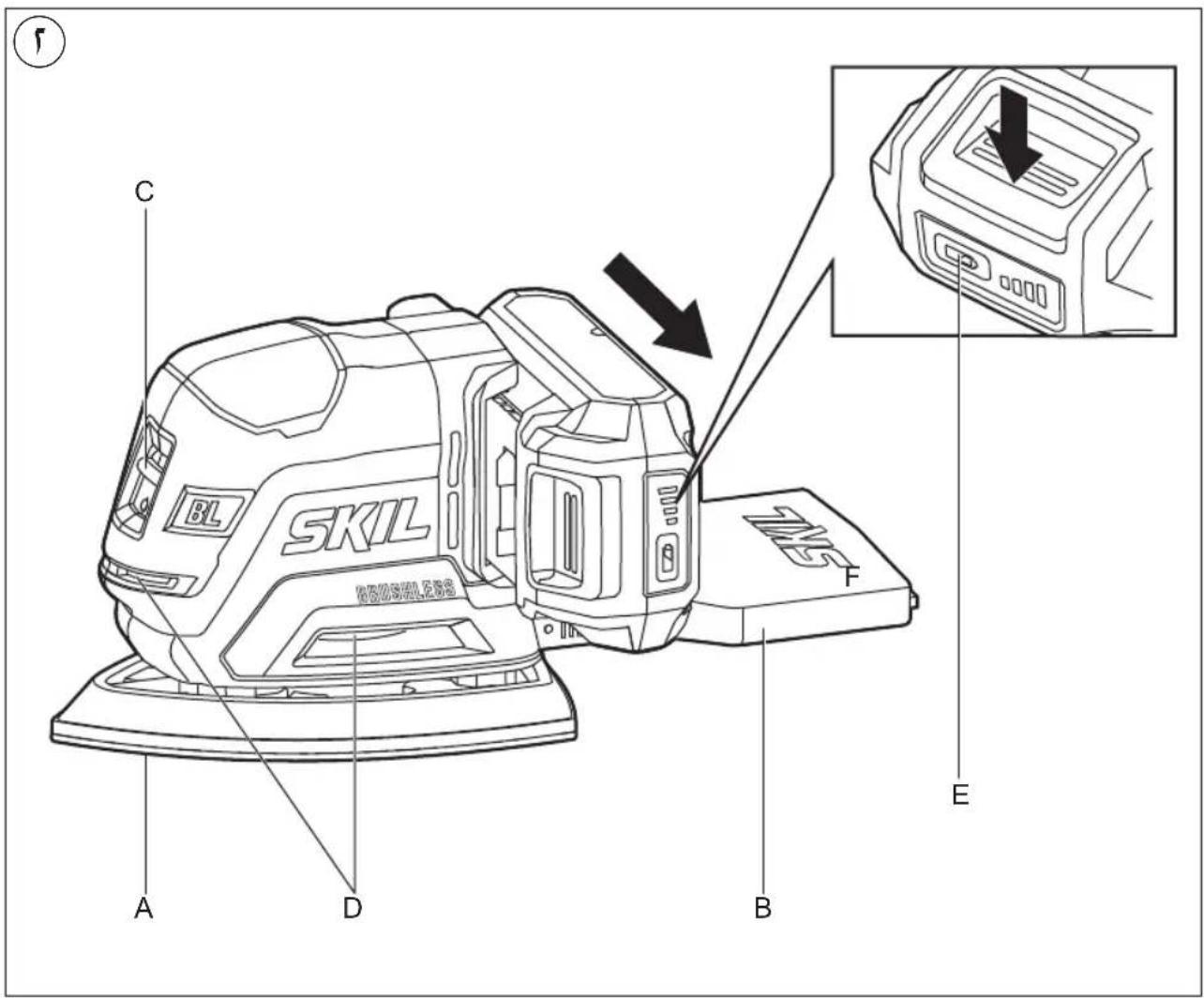

TOOL ELEMENTS ②

A Backing pad
B Dust bag
C On/off switch
D Ventilation slots
E Battery level indicator

SAFETY

GENERAL POWER TOOL SAFETY WARNINGS

WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) WORK AREA SAFETY
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an

extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) PERSONAL SAFETY
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4) POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for

misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) BATTERY TOOL USE AND CARE

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

c) When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.

f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130^ C may cause explosion.

g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

6) SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

SAFETY INSTRUCTIONS FOR SANDERS

GENERAL

• This tool should not be used by people under the age of 16 years
  • This tool is not suitable for wet sanding
• Do not work materials containing asbestos (asbestos

is considered carcinogenic)

- Remove battery from tool before making any adjustments or changing accessories

ACCESSORIES

• SKIL can assure flawless functioning of the tool only when original accessories are used
• Do not continue to use worn, torn or heavily clogged sanding sheets

BEFORE USE

• Avoid damage that can be caused by screws, nails and other elements in your workpiece; remove them before you start working
• The noise level when working can exceed 85 dB(A); wear ear protection
• Dust from material such as paint containing lead, some wood species, minerals and metal may be harmful (contact with or inhalation of the dust may cause allergic reactions and/or respiratory diseases to the operator or bystanders); wear a dust mask and work with a dust extraction device when connectable
• Certain kinds of dust are classified as carcinogenic (such as oak and beech dust) especially in conjunction with additives for wood conditioning; wear a dust mask and work with a dust extraction device when connectable
• Follow the dust-related national requirements for the materials you want to work with
• Wear protective gloves, safety glasses, close-fitting clothes and hair protection (for long hair)
• Secure the workpiece (a workpiece clamped with clamping devices or in a vice is held more securely than by hand)
• When sanding metal, sparks are generated; do not use dust box and keep other persons and combustible material from work area

DURING USE

• Do not touch the moving sanding sheet
• In case of electrical or mechanical malfunction, immediately switch off the tool and remove battery

AFTER USE

- When you put away the tool, switch off the motor and ensure that all moving parts have come to a complete standstill

BATTERIES

• The battery supplied, if any, is partially charged. (to ensure full capacity of the battery, completely charge the battery in the battery charger before using your power tool for the first time)
• Only use the following batteries and chargers with this tool

-SKIL battery: BR1*31****

-SKIL charger: CR1*31****

• Do not use the battery when damaged; it should be replaced
• Do not disassemble the battery
• Do not expose tool/battery to rain
• Permitted ambient temperature (tool/charger/battery):
• when charging 4...40°C
• during operation -20...+50°C
• during storage -20...+50°C

EXPLANATION OF SYMBOLS ON TOOL/BATTERY

③ Read the instruction manual before use
④ Batteries may explode when disposed of in fire, so do not burn battery for any reason
⑤ Store tool/charger/battery in locations where temperature

will not exceed 50°C

⑥ Do not dispose of electric tools and batteries together with household waste material

USE

- Charging battery

! read the safety warnings and instructions provided with the charger

- Removing/installing the battery ②

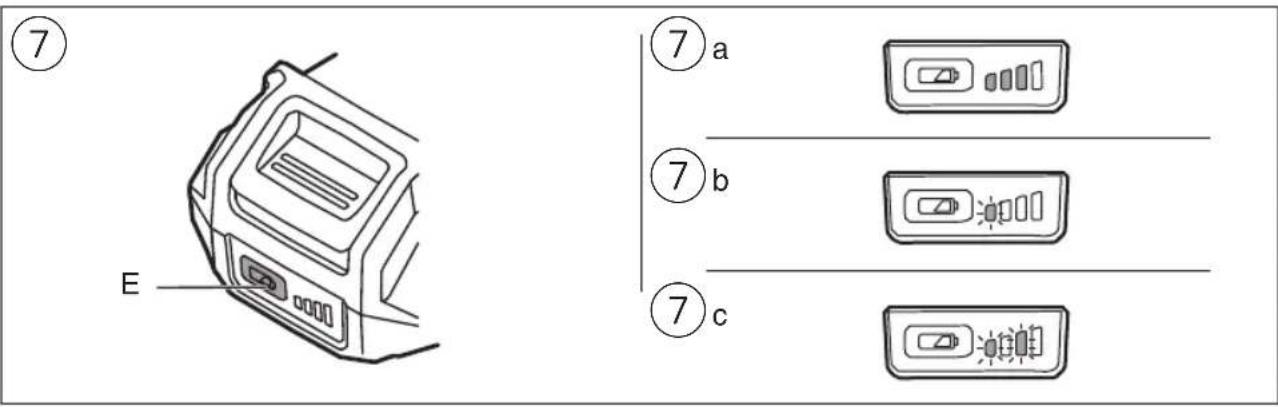

- Battery level indicator ⑦

-press the battery level indicator button E to show the current battery level ⑦a

! when the lowest level of the battery indicator starts flashing after pressing button E ⑦b, the battery is empty

! when 2 levels of the battery indicator start flashing after pressing button E ⑦c, the battery is not within the allowable operating temperature range

- Battery protection

The tool is suddenly being switched off or prevented from being switched on, when

- the load is too high --> remove load and restart -the battery temperature is not within the allowable operating temperature range of -20 to +50°C --> 2 levels of the battery level indicator start flashing when pressing button E⑦c; wait until battery has returned within the allowable operating temperature range -the battery is nearly empty (to protect against deep discharge) --> a low battery level or flashing low battery level ⑦b is shown by the battery level indicator when pressing button E; charge battery ! do not continue to press the on/off switch after the tool is switched off automatically; battery may be damaged

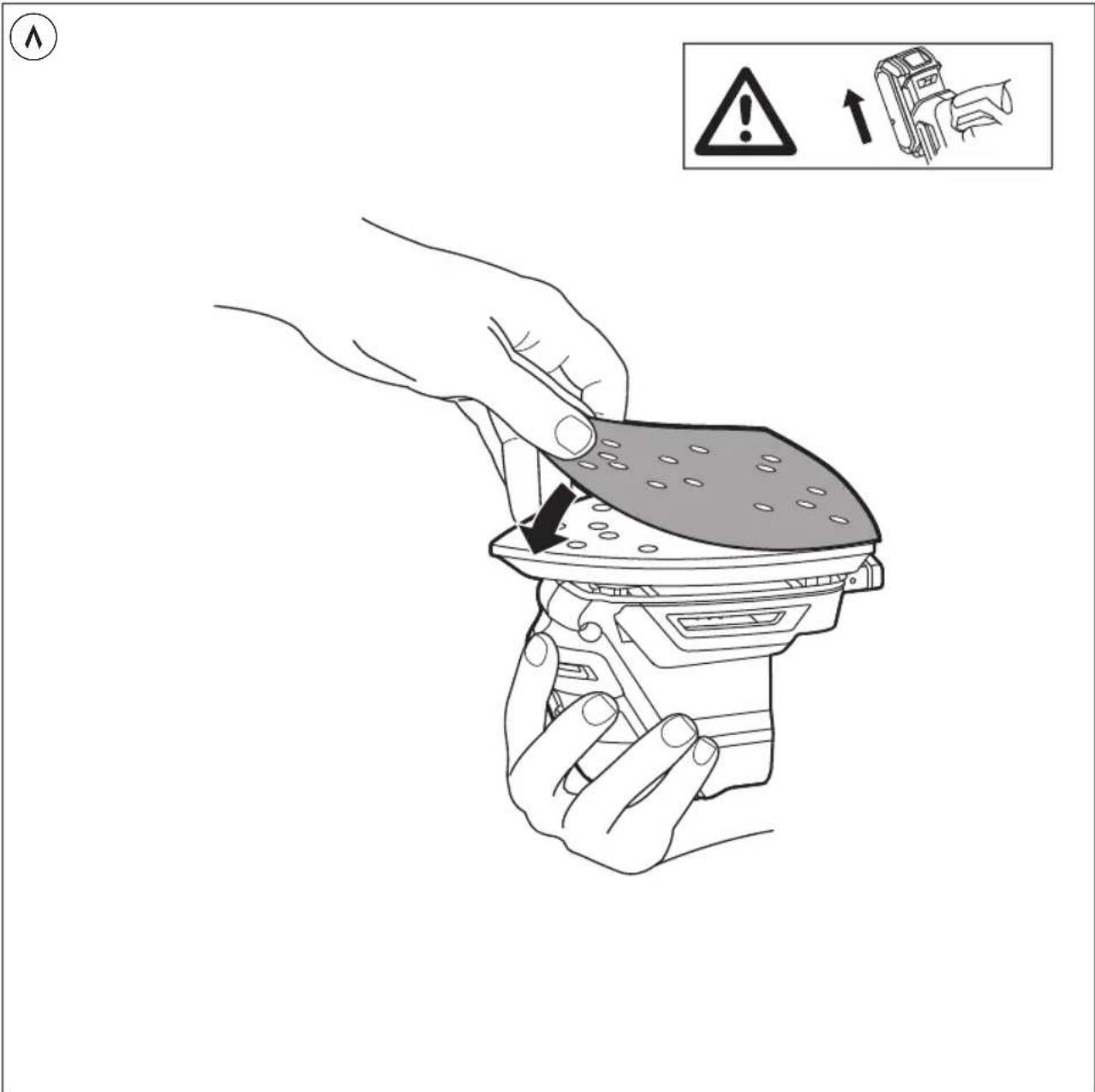

- Mounting of sanding sheet ⑧

! remove battery from tool before making any adjustments or changing accessories

! the dust suction requires the use of perforated sanding sheets

! perforation in sanding sheet should correspond with perforation in sanding foot

! replace worn sanding sheets in time

! always use the tool with the total sanding surface covered with sanding paper

-mount VELCRO sanding sheet as illustrated

- Dust suction

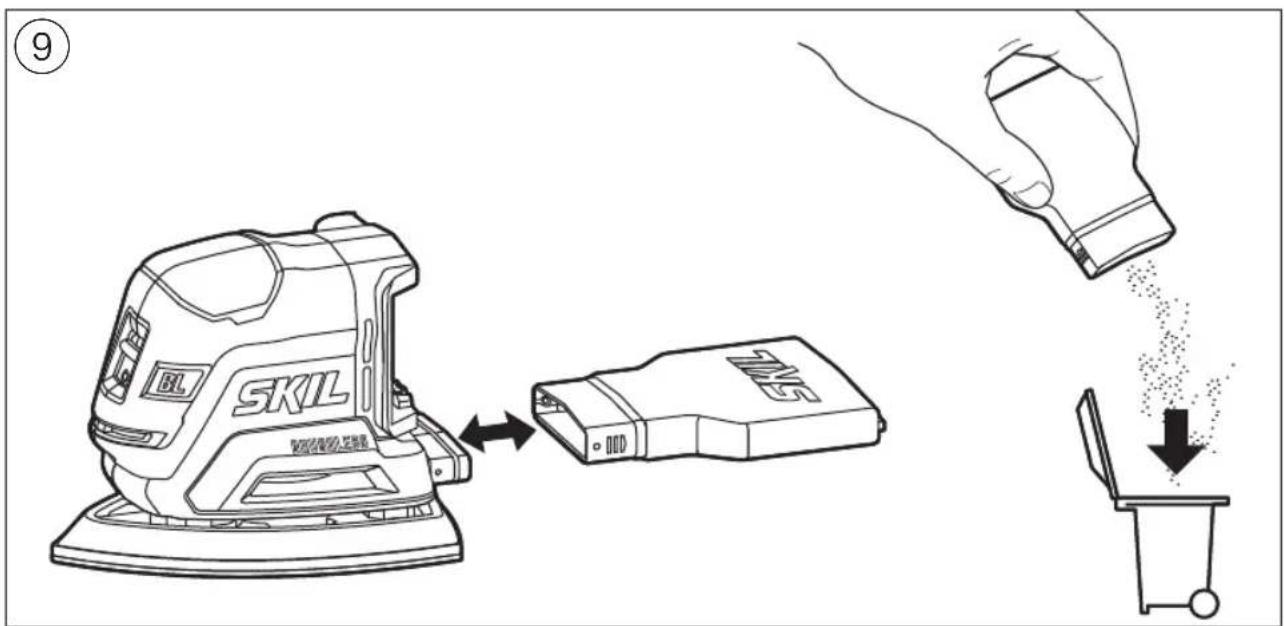

! do not use dust bag when sanding metal Dust bag ⑨

-mount dust bag B

-empty dust bag regularly for optimal dust pick-up performance

- On/off switch

-switch on/off the tool by pushing switch C② forward/backwards

! before the sanding surface reaches the workpiece, you should switch on the tool

! before switching off the tool, you should lift it from the workpiece

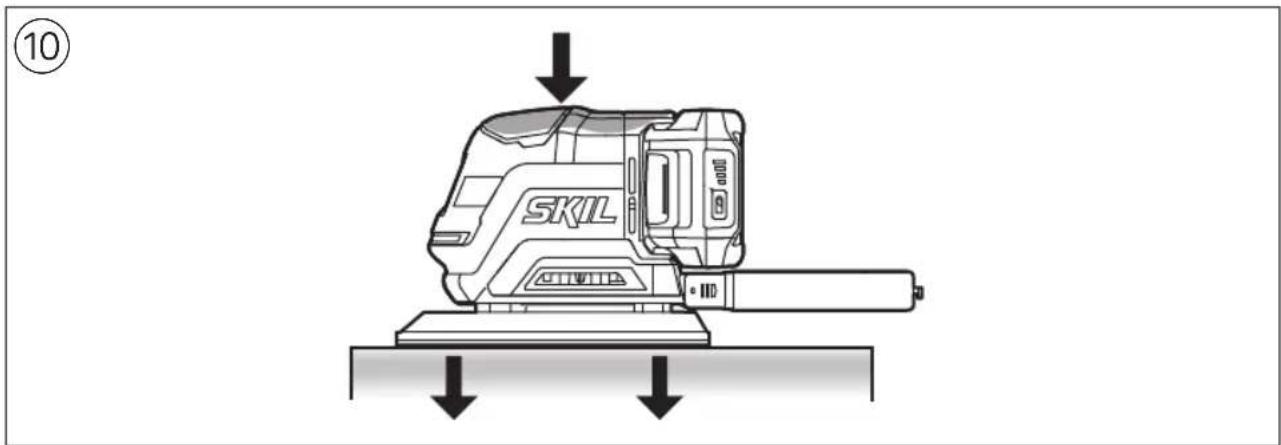

- Holding and guiding the tool ⑩

! while working, always hold the tool at the grey-coloured grip area(s)

-guide the tool parallel to the working surface

-do not apply too much pressure on the tool; let the

sanding surface do the work for you

-do not tilt the tool in order to avoid unwanted sanding marks

-keep ventilation slots D② uncovered

APPLICATION ADVICE

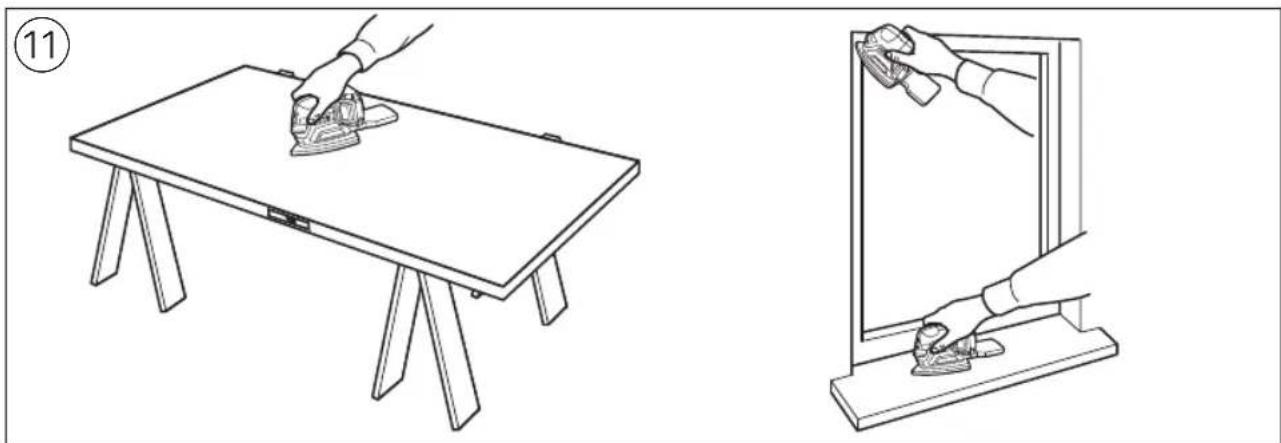

- Use the tool for sanding large surfaces, corners and edges ⑪

- Never use the same sanding sheet for wood and metal

- Recommended sanding sheet grits: - for removing paint and for sanding of extremely rough wood use coarse grit sizes (40, 60) - for sanding of rough or plain wood use medium grit sizes (80, 100, 120) - for smoothing of wood and surfaces with old paint as well as for finishing of bare wood use fine grit sizes (180, 240, 320)

- Use different grit sizes when the working surface is rough:

-start sanding with coarse or medium grit -finish with fine grit

- For more information see www.skil.com

MAINTENANCE / SERVICE

- Always keep tool and cord clean (especially ventilation slots D ②)

-remove adhering sanding dust with a brush -remove battery from tool before cleaning

- If the tool should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for SKIL power tools

- send the tool undismantled together with proof of purchase to your dealer or the nearest SKIL service station (addresses as well as the service diagram of the tool are listed on www.skil.com)

- Be aware that damage due to overload or improper handling of the tool will be excluded from the warranty (for the SKIL warranty conditions see www.skil.com or ask your dealer)

ENVIRONMENT

Only for EU countries

- Do not dispose of electric tools, accessories and packaging together with household waste material

-in observance of European Directive 2012/19/EC on waste of electric and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility

-symbol ⑥ will remind you of this when the need for disposing occurs

! prior to disposal protect battery terminals with heavy tape to prevent short-circuit

Only for UK countries

- Do not dispose of electric tools, accessories and packaging together with household waste material -in observance of on Waste Electric and Electronic Equipment Regulations 2013 (SI 2013/3113), electric tools that have reached the end of their life must be collected separately and returned to an environmentally

compatible recycling facility

-symbol⑥ will remind you of this when the need for disposing occurs

! prior to disposal protect battery terminals with heavy tape to prevent short-circuit

NOISE / VIBRATION

• Measured in accordance with EN 62841 the sound pressure level of this tool is 82 dB(A) and the sound power level 90 dB(A) (uncertainty K = 3 dB), and the vibration 3.46 m/s ^2 (triax vector sum; uncertainty K = 1.5 m/s ^2 )
• The vibration emission level has been measured in accordance with a standardised test given in EN 62841; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned
• using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level
• the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level
  ! protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

F

1) SIKKERHET PÅ ARBEIDSPLASSEN

VEDLIKEHOLD / SERVICE

-ladattaessa 4...40°C

APKALPOŠANA / APKOPE

TECHNINIAI DUOMENYS ①

PRIETAISO ELEMENTAI②

- Thithja e pluhurave

Line drawings showing two different tasks: one using a power iron on a wooden table, and another handling a tool near a mirror (no text or symbols present)

V E V a V b V c

Instructional diagram showing hand press on a device with warning symbols and a magnified view of the device's right-hand rule.

3715

SKIL 600S4L588 C BL A D B F E

Icon showing a person reading a document inside a circle, with a small symbol in the top-left corner (no text or symbols present)

Warning sign with battery symbol and crossed-out electrical hazard symbol, indicating no significant safety or hazard.

max.50 °C

①

Illustration of a SKIL industrial machine with a nearby 195-branded electronic device (no text or symbols on the device itself)

QR code image containing encoded data, no visible human-readable text

دليل الاستعمال AR راهنماي اصلی FA
