USER MANUAL BL9000-GT Maruyama

Line drawing of a mechanical device with no visible text or symbols

Premium Outdoor Power Equipment

MARUYAMA

Extraordinary.

MARUYAMA WARNING

The blower is used for blowing away leaves and other debris on the ground.

Under no circumstances may the design of the machine be modified without the permission of the manufacturer. Always use genuine accessories and parts. Non-authorized modifications and/or accessories or parts can result in serious personal injury or death of the operator or others.

Limited Warranty Statement

All Maruyama commercial/ industrial products are warranted to the original purchaser to be free from defects in material and workmanship from the date of purchase for the time periods listed as follows:

Lifetime solid steel driveshaft and ignition coils.

5 years for qualified IRON 5-YR ^™ commercial, institutional, or industrial use.

1 year for residential or 2 years for commercial use with competitor's oil. 90 days for rental use.

Engine - Refer to engine manufacturer's warranty statement. Maruyama engines are covered by this limited warranty statement.

This warranty will be in full effect provided the engine is operated for the initial 80 hour optimization period using Maruyama Premium 2-Stroke oil. After the optimization period the engine should always be run with either Maruyama Premium 2-Stroke oil or equivalent ISO-LEGD & JASO FC 2-Stroke oil.

Any part of a Maruyama product found to be defective within the applicable warranty period shall, at Maruyama's option, be repaired or replaced without charge. Warranty consideration is obtained by delivering any Maruyama product believed to be defective to an Authorized Maruyama Servicing Dealer within the applicable warranty period.

The purchaser shall not be charged for diagnostic labor that leads to the determination that a warranted part is defective, if the diagnostic work is performed at a Maruyama Dealer.

Any warranted part which is not scheduled for replacement as required maintenance, or which is scheduled only for regular inspection to the effect of "repair or replace as necessary" shall be warranted for the warranty period. Any warranted part, which is scheduled for replacement as, required maintenance shall be warranted for the period of time up to the first scheduled replacement point for that part.

Maruyama Mfg. Co., Inc. is liable for damages to other engine components caused by the failure of a warranted part still under warranty.

The purchaser is responsible for the performance of the required maintenance, as defined by Maruyama Mfg. Co., Inc. in the Owner's/Operator's Manual.

EMISSION-RELATED PARTS WARRANTY: In addition to the above warranty coverage, Maruyama Mfg. Co., Inc. will repair or replace, free of charge, for the original purchaser and each subsequent purchaser any emission-related part or parts found to be defective in material and workmanship for two (2) years from original retail delivery date except catalytic converter. Catalytic converter is warranted one year from original retail delivery date. Emission-related parts are the carburetor assembly, the ignition coil assembly, the ignition rotor, the spark plug, the catalytic converter and the fuel tank. Any replacement part that is equivalent in performance and durability may be used in non-warranty maintenance or repairs, and shall not reduce the warranty obligations of Maruyama Mfg. Co., Inc.

DISCLAIMER OF IMPLIED WARRANTIES

This limited warranty is in lieu of all other expressed or implied warranties, including any warranty of FITNESS FOR A PARTICULAR PURPOSE OR USE and any implied warranty of MERCHANTABILITY otherwise applicable to this product. Maruyama U.S. Inc. and its affiliate companies shall not be liable for any special incidental or consequential damage, including lost profits. There are no warranties extended other than as provided herein. Only Maruyama U.S. Inc may modify this limited warranty.

This warranty does not cover the following:

1. Maintenance items (excluding defects in materials and workmanship) including hoses, spark plugs, starter rope, air and fuel filters, clutch shoes, vibration isolators, throttle cables and all cutting attachments, etc.
2. Extra expenses including shipping and handling, travel, payment for lost time or pay and for any inconvenience and storage.
3. Alterations or modifications including aftermarket parts not authorized by Maruvama U.S., Inc.
4. Wear, accident, abuse, neglect, misuse, negligence, improper fuels, lubricants, fuel mixtures (when applicable), or failure to operate or maintain the product in accordance with instructions approved by Maruyama, repair or replacement as provided under this warranty is the exclusive remedy of the consumer.

Maruyama shall not be liable for any incidental or consequential damages for breach of any express or implied warranty on these products except to the extent prohibited by applicable law. Any implied warranty of merchantability or fitness for a particular purpose on these products is limited in duration to the warranty period as defined in the limited warranty statement. Maruyama reserves the rights to change or improve the design of the product without notice and does not assume obligation to update previously manufactured products.

This warranty provides you with specific legal rights, which may vary from state to state.

It is the Owner's and Dealer's responsibility to make sure the Warranty Registration Card is properly filled out and mailed to Maruyama U.S., Inc. Proof of purchase and registration will be required in order to obtain warranty service.

Maruyama U.S., Inc.

4770 Mercantile Drive, Suite100,

Fort Worth, TX 76137 U.S.A.

[phone]

Operating, servicing and maintaining this product can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, service equipment in a well-ventilated area and wear gloves or wash your hands frequently when servicing this equipment. For more information, visit on the web at www.P65warnings.ca.gov.

THE AIR INDEX OF THIS ENGINE IS 3 0 2 4 6 8 10 MOST CLEAN LEAST CLEAN NOTE: THE LOWER THE AIR INDEX, THE LESS POLLUTION THIS ENGINE IS CERTIFIED TO BE EMISSIONS COMPLIANT FOR THE USE EXTENDED: 300HOURS CHECK THE OWNER'S MANUAL FOR FURTHER DETAILS.

BL9000

FEDERAL EMISSION CONTROL WARRANTY STATEMENT YOUR WARRANTY RIGHTS AND OBLIGATIONS

The U.S. Environmental Protection Agency (EPA) and Maruyama Manufacturing Company, Inc. are pleased to explain the emission control system warranty on your small off-road engine. New 1997 and later model year small off-road engines must be designed, built and equipped, at the time of sale, to meet the U.S. EPA regulations for small off-road engines. The equipment engine must be free from defects in materials and workmanship which cause it to fail to conform with U.S. EPA standards for the first two years of engine use from the date of sale to the ultimate purchaser. Maruyama Manufacturing Company, Inc. must warrant the emission control system on your small off-road engine for the period of time listed above provided there has been no abuse, neglect or improper maintenance of your small off-road engine.

Emission durability of 300 hours.

Your emission control system may include parts such as the carburetor or fuel injection system, the ignition system, and catalytic converter. Also included may be hoses, belts, and connectors and other emission related assemblies.

Where a warrantable condition exists, Maruyama Manufacturing Company, Inc. will repair your small off-road engine at no cost to you, including diagnosis (if the diagnostic work is performed at an authorized dealer), parts, and labor.

MANUFACTURER'S WARRANTY COVERAGE:

The 1997 and later model year small off-road engines are warranted for two years. If any emission-related part on your engine is defective, the part will be repaired or replaced by Maruyama Manufacturing Company, Inc. free of charge.

OWNER'S WARRANTY RESPONSIBILITIES:

(a) As the small off-road engine owner, you are responsible for the performance of the required maintenance listed in your owner's manual. Maruyama Manufacturing Company, Inc. recommends that you retain all receipts covering maintenance on your small off-road engine, but Maruyama Manufacturing Company, Inc. cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance. Any replacement part or service that is equivalent in performance and durability may be used in non-warranty maintenance or repairs, and shall not reduce the warranty obligations of the engine manufacturer.
(b) As the small off-road engine owner, you should be aware, however, that Maruyama Manufacturing Company may deny you warranty coverage if your small off-road engine or a part has failed due to abuse, neglect, improper maintenance or unapproved modifications.
(c) You are responsible for presenting your small off-road engine to a Maruyama Manufacturing Company, Inc. service center as soon as a problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.

If you have any questions regarding your warranty rights and responsibilities, you should contact Maruyama U.S., Inc. at 1-866-783-7400, or [e-mail].

COVERAGE

Maruyama Manufacturing Company, Inc. warrants to the ultimate purchaser and each subsequent purchaser that your small off-road engine will be designed, built and equipped, at the time of sale, to meet all applicable regulations. Maruyama Manufacturing Company, Inc. also warrants to the initial purchaser and each subsequent purchaser that your small off-road engine is free from defects in materials and workmanship which cause the engine to fail to conform with applicable regulations for a period of two years.

The 1997 and later model years, EPA requires manufacturers to small off-road engines for two years.

These warranty periods will begin on the date the small off-road engine is purchased by the initial purchaser. If any emission-related part on your engine is defective, the part will be replaced by Maruyama Manufacturing Company, Inc. at no cost to the owner.

Maruyama Manufacturing Company, Inc. shall remedy warranty defects at any authorized Maruyama Manufacturing Company, Inc. engine dealer or warranty station. Any authorized work done at an authorized dealer or warranty station shall be free of charge to the owner if such work determines that a warranted part is defective. Any manufacturer-approved or equivalent replacement part may be used for any warranty maintenance or repairs on emission-related parts, and must be provided free of charge to the owner if the part is still under warranty, Maruyama Manufacturing Company, Inc. is liable for damages to other engine components caused by the failure of a warranted part still under warranty.

EPA considers emission-related warranted parts to include all the parts listed below. These warranted parts are: the carburetor assembly, the ignition coil assembly, the ignition rotor, the spark plug, the catalytic converter, and the fuel tank.

MAINTENANCE REQUIREMENTS

The owner is responsible for the performance of the required maintenance as defined by the Maruyama Manufacturing Company, Inc. in the owner's manual.

LIMITATIONS

This Emission Control System Warranty shall not cover any of the following:

(a) repair or replacement required because of misuse or neglect, lack of required maintenance, repairs improperly performed or replacements not conforming to Maruyama Manufacturing Company, Inc. specifications that adversely affect performance and/or durability, and alterations or modifications not recommended or approved in writing by Maruyama Manufacturing Company, Inc., and

(b) replacement of parts and other services and adjustments necessary for required maintenance at and after the first scheduled replacement point.

CALIFORNIA EMISSION CONTROL WARRANTY STATEMENT YOUR WARRANTY RIGHTS AND OBLIGATIONS

The California Air Resources Board (CARB), and Maruyama Manufacturing Company, Inc. are pleased to explain the emission control system warranty on your 2019 small off-road engine. In California, new small off-road engines must be designed, built and equipped to meet the State's stringent anti-smog standards.

Maruyama Manufacturing Company, Inc. must warrant the emission control system on your small off-road engine for the period of time listed above provided there has been no abuse, neglect or improper maintenance of your small off-road engine.

Your emission control system may include parts such as the carburetor or fuel injection system, the ignition system, fuel tank and catalytic converter. Also included may be hoses, belts, and connectors and other emission related assemblies.

Where a warrantable condition exists, Maruyama Manufacturing Company, Inc. will repair your small offroad engine at no cost to you, including diagnosis, parts, and labor.

MANUFACTURER'S WARRANTY COVERAGE:

The 1995 and later small off-road engines are warranted for two years. If any emission-related part on your engine is defective, the part will be repaired or replaced by Maruyama Manufacturing Company, Inc.

OWNER'S WARRANTY RESPONSIBILITIES:

(a) As the small off-road engine owner, you are responsible for the performance of the required maintenance listed in your owner's manual. Maruyama Manufacturing Company, Inc. recommends that you retain all receipts covering maintenance on your small off-road engine, but Maruyama Manufacturing Company, Inc. cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance.
(b) As the small off-road engine owner, you should be aware, however, that Maruyama Manufacturing Company may deny you warranty coverage if your small off-road engine or a part has failed due to abuse, neglect, improper maintenance or unapproved modifications.
(c) You are responsible for presenting your small off-road engine to a Maruyama Manufacturing Company, Inc. distribution center as soon as a problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.

If you have any questions regarding your warranty rights and responsibilities, you should contact

Maruyama U.S., Inc. at 1-866-783-7400, or [e-mail].

Emission System Parts

Exhaust Emission

Carburetor

Muffler

Catalytic Converter

Ignition Coil / Magneto

Spark Plug

Air Filter

EGR Valve (piston)

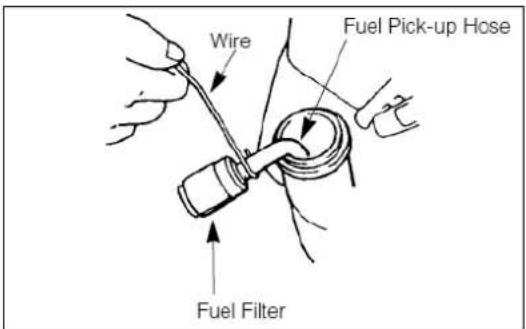

Fuel Filter

Evaporative Emission

Fuel Tank

TABLE OF CONTENTS

FOREWORD	4	REGULAR MAINTENANCE	10
Warning label	4	STORAGE	13
ASSEMBLY INSTRUCTIONS	6	EMISSION CONTROL INFORMATION	13
BEFORE OPERATION	7	MAINTENANCE	14
OPERATING INSTRUCTIONS	9	SPECIFICATIONS	14

FOREWORD

This Owner's/Operator's Manual is designed to familiarize the operator with the various features and component parts of the equipment and to assist you with the assembly, operation and maintenance of your new Backpack Blower.

It is essential that any operator of this Backpack Blower product reads and understands the contents of this manual

before using the Backpack Blower.

Important safety instructions will be identified by the following safety symbol:

Failure to comply with the instructions in this manual may result in serious injury or death.

For additional assistance, contact any local authorized Maruyama dealer or Maruyama U.S., Inc.,

4770 Mercantile Drive, Suite100, Fort Worth, TX 76137 U.S.A.

MANUAL SAFETY SYMBOLS

Throughout this manual and on the product itself, you will find safety alerts and helpful, information message preceded by symbols or key words. The following is an explanation of those symbols and key words and what they mean to you.

This symbol accompanied by the words WARNING and DANGER calls attention to an act or condition that can lead to serious personal injury to operator and bystanders.

Warning label

• Always remove dirt or mud to make the indications legible.
- The following alarm labels are attached.

Read Owner's/Operator's Manual thoroughly.

Make sure you read the Owner's/Operator's Manual thoroughly prior to use.

Prohibition of fire

Don't put a naked flame close to a place where supplying fuel or doing maintenance.

Wear protective gear.

Wear protectors such as hat, safety glasses, ear plugs during work.

Cautions for exhaust gas.

Take care not to breathe in exhaust gas from the engine.

Cautions for high temperatures

Muffler of engine, fin of cylinder, etc. are at high temperatures. Don't touch them.

WARNING

1. Read and understand this Owner's/Operator's Manual before using the Backpack Blower. Be thoroughly familiar with the proper use of the Backpack Blower.

2. Never allow children to operate the Backpack Blower. It is not a toy. Never allow adults to operate the unit without first reading the Owner's / Operator's Manual.

3. Become familiar with the controls and know how to stop the engine quickly.

4. Always use eye protection and hearing protection.

5. Keep the area of operation clear of all persons, particularly small children and pets.

6. Do not point the Blower pipe in the direction of people or pets.

7. Never operate a Backpack Blower when you are fatigued.

8. Never operate a Backpack Blower without proper guards or other protective safety devices in place.

9. Dress properly; do not wear loose clothing or jewelry that can be caught in moving parts. Always wear substantial footwear, long pant, and long sleeved shirt.

10. Gasoline is highly flammable; handle it carefully.

A. Do not smoke while handling gasoline.

B. Use an approved fuel container for storing the gasoline/oil mixture.

C. Do not fill the fuel tank when the engine is hot or running

D. Fill the fuel tank outdoors and only up to one-half inch from the top of the tank. Do not fill the filler neck.

E. Wipe away any spilled gasoline before starting the engine.

1. Always be sure of your footing; keep a firm hold of the blower pipes, and walk, never run while operating a Backpack Blower.

2. Use the correct accessories. Do not use the Backpack Blower for any job except that for which it is intended.

3. Keep all fasteners tight and be sure the Backpack Blower is in safe working condition. Follow the maintenance instructions provided on page 10 - 12 of this manual.

4. Do not put hands or feet near or under the rotating parts. Keep clear at all times.

5. If the Backpack Blower should start to vibrate abnormally, stop the engine immediately and check for the cause. Vibration is generally a warning of trouble.

6. Avoid using the Backpack Blower near rocks, gravel, stones and similar matter in order to avoid dangerous flying debris.

7. Use the Backpack Blower only in daylight or good artificial light.

8. Do not allow bystanders in work area.

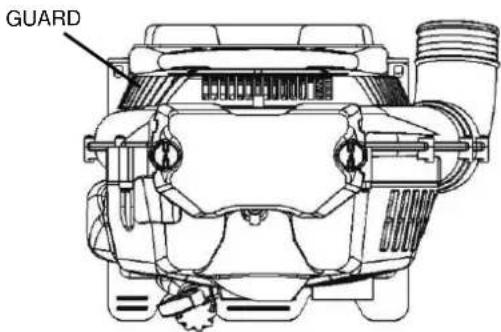

9. Do not operate without guard(s) in place.

10. Do not operate in unventilated area.

11. To reduce the risk of injury associated with the inhalation of dust, use a face filter mask in dusty conditions.

12. To reduce the risk of injury associated with contacting rotating part, stop the engine before installing or removing attachments.

13. To reduce the risk of fire and burn injury:

-Move at least 10ft (3m) away from the fueling point before starting engine.

-Always store gasoline in approved container.

Operating techniques

A. Operate power equipment only at reasonable hours - not early in the morning or late at night when people might be disturbed. Comply with times listed in local ordinances. Usual recommendations are 9:00 am. to 5:00 p.m., Monday through Saturday.

B. To reduce noise levels, limit the number of pieces of equipment used at any one time.

C. To reduce noise levels, operate Backpack Blower at the lowest possible throttle speed to do the job.

D. Check your equipment before operation, especially the muffler, air intakes, and air filters.

E. Use rakes and brooms to loosen debris before blowing.

F. In dusty conditions, slightly dampen surfaces when water is available.

G. Conserve water by using Backpack Blower instead of hoses for many lawn and garden applications, including areas such as gutters, screens, patios, grills, porches, and gardens.

H. Watch out for children, pets, open windows, or freshly washed cars, and blow debris safely away.

I. Use the full blower nozzle extension so the air stream can work close to the ground.

J. After using blowers and other equipment, CLEAN UP! Dispose of debris in trash receptacles.

ASSEMBLY INSTRUCTIONS

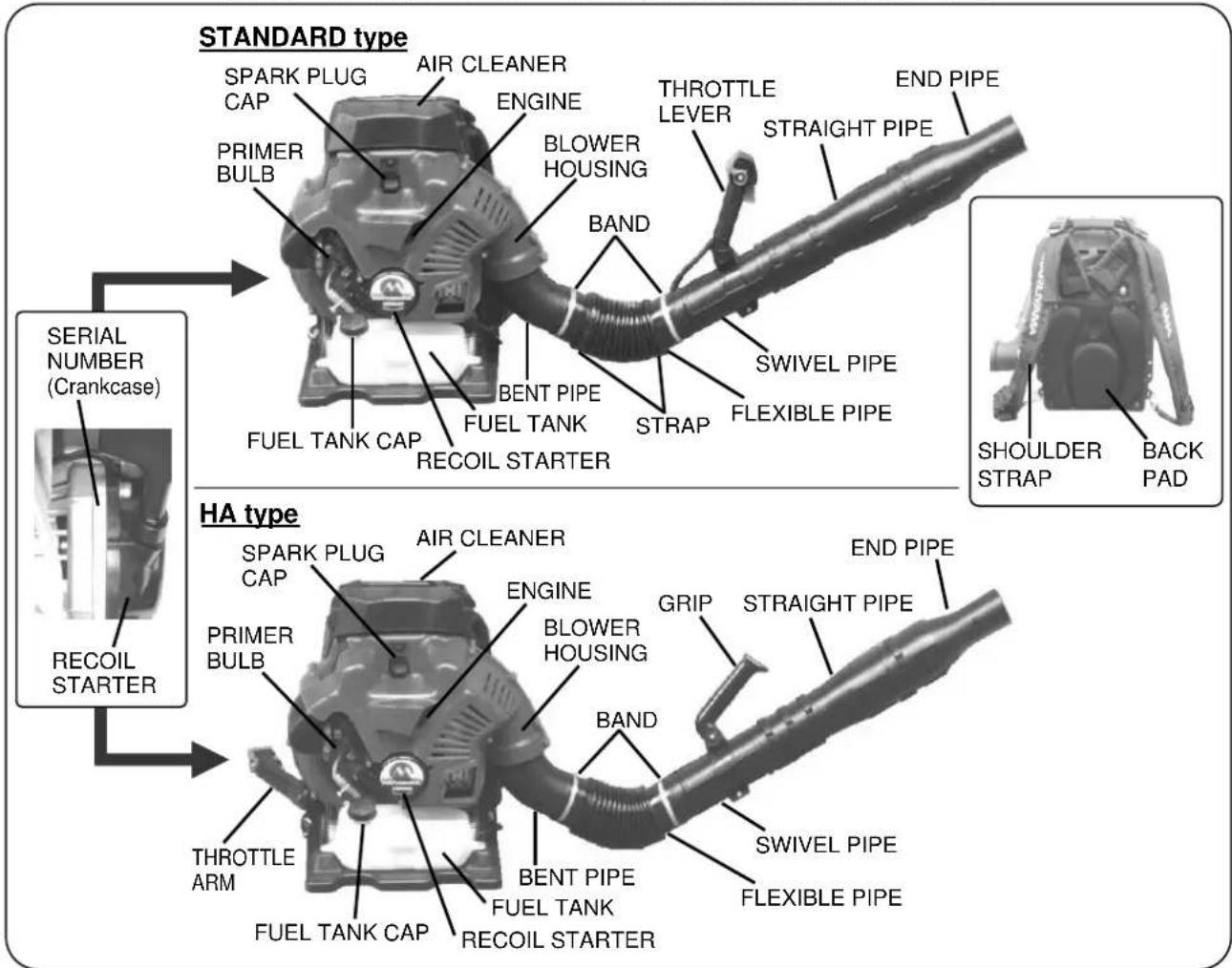

STANDARD TYPE SPARK PLUG CAP AIR CLEANER ENGINE BLOWER HOUSING THROTTLE LEVER END PIPE PRIMER BULB BAND STRAIGHT PIPE FUEL TANK CAP BENT PIPE FUEL TANK STRAP SWIVEL PIPE FLEXIBLE PIPE RECOIL STARTER SERIAL NUMBER (Crankcase) SHAULDER STRAP BACK PAD HA TYPE SPARK PLUG CAP AIR CLEANER ENGINE BLOWER HOUSING END PIPE PRIMER BULB GRIP STRAIGHT PIPE FUEL TANK CAP BENT PIPE FUEL TANK BAND SWIVEL PIPE FLEXIBLE PIPE THROTTLE ARM FUEL TANK CAP

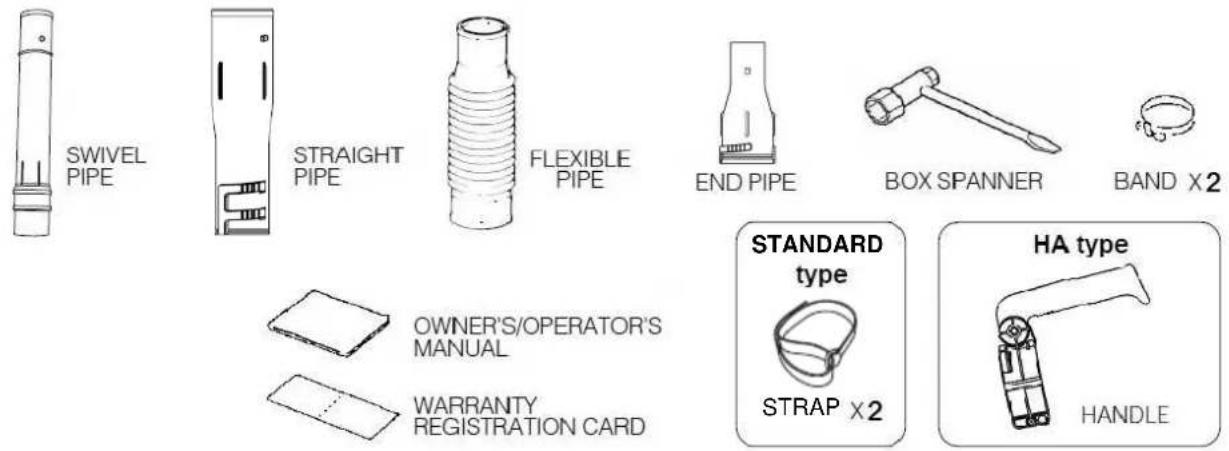

STEP #1) Locate and identify all the components (see sketch).

SWIVEL PIPE STRAIGHT PIPE FLEXIBLE PIPE END PIPE BOX SPANNER BAND X2 OWNER'S/OPERATOR'S MANUAL WARRANTY REGISTRATION CARD STANDARD type STRAP X2 HA type HANDLE

STEP #2) With a flat head screwdriver, use a BAND to connect the FLEXIBLE PIPE to the BENT PIPE. Next, using a BAND, connect the SWIVEL PIPE to the FLEXIBLE PIPE. Tighten with screwdriver.

STEP #3) Slides THROTTLE LEVER around SWIVEL PIPE, tighten retainer knob to secure. (see page 7).

STEP #4) Assemble the STRAIGHT PIPE and END PIPE. BENT PIPE, Attach assembled pipes to the SWIVEL PIPE. (see sketch).

Diagram showing two mechanical components with arrows indicating motion or movement (no text or symbols)

English-6

BEFORE OPERATION

Be sure the Backpack blower is correctly assembled and all fasteners and fittings are properly secured.

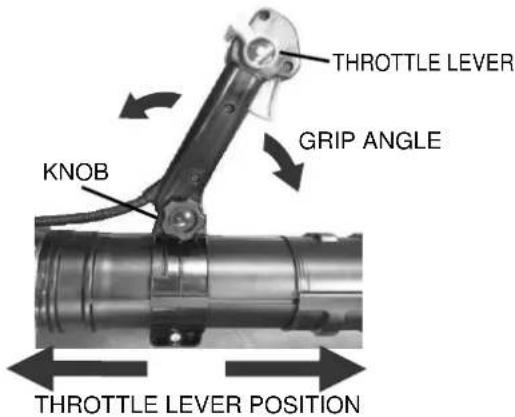

THROTTLE LEVER

STANDARD type

Before operating the Backpack blower, release the knob, adjust the throttle grip to a position and grip to suit personal preference, tighten knob to secure in place.

THROTTLE LEVER GRIP ANGLE KNOB THROTTLE LEVER POSITION

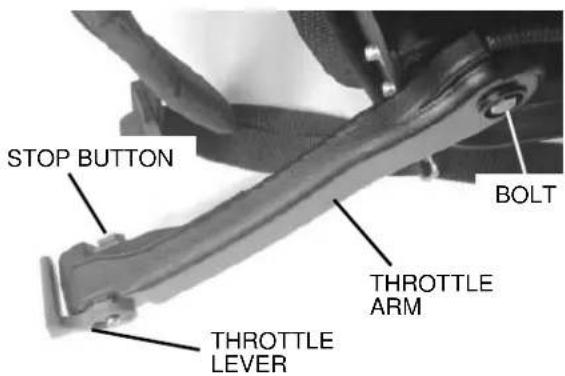

HA type

Before operating the power blower, release the BOLT, rotate the throttle arm to the position in the illustration, and tighten BOLT to secure in place.

STOP BUTTON BOLT THROTTLE ARM THROTTLE LEVER

When the Backpack blower is strapped to the back of the operator, the throttle lever of is located on the tube.

CAUTION!

1.Shutting Engine Off

Before shutting the engine off, allow it to idle for a short while.

• Never stop the engine by closing the choke.
• Never stop the engine during operation while running above idle speed.

2. Transporting and Storage

• Shut off the engine and allow it to cool before transporting or storing the unit.
• Do not put the unit on dry grass or near any flammable object unless the engine is cold or cooled down.

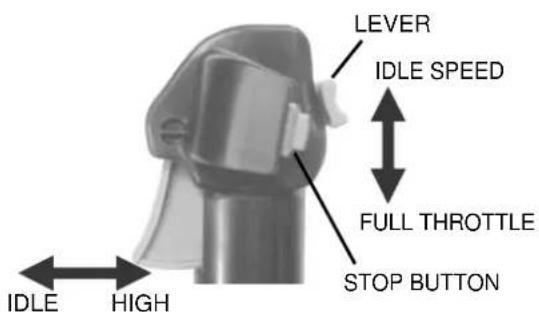

STANDARD type

LEVER IDLE SPEED FULL THROTTLE STOP BUTTON IDLE HIGH

The highest position of lever is "IDLE" setting, and the lowest position is the "FULL THROTTLE" setting.

HA type

FULL THROTTLE IDLE SPEED

The lowest position of lever is "IDLE" setting, and the highest position is the "FULL THROTTLE" setting.

RECOMMENDED FUEL TYPE

Use clean, fresh lead-free gasoline, including oxygenated or reformulated gasoline, with an octane rating of 85 or higher. To ensure freshness, purchase only the quantity of gasoline that can be used in 30 days. Use of lead-free gasoline results in fewer combustion chamber deposits and longer spark plug life. Use of premium grade fuel is not necessary or recommended.

CAUTION!

IMPORTANT: Never use methanol, gasoline containing methanol, gasohol containing more than 10% ethanol, premium gasoline, or white gas because engine fuel system damage could result.

Do not use fuel additives other than those manufactured for fuel stabilization during storage such as MARUYAMA's stabilizer/conditioner or a similar product.

MARUYAMA's stabilizer/conditioner is a petroleum distillate based conditioner/stabilizer.

MARUYAMA does not recommend stabilizers with an alcohol base such as ethanol, methanol or isopropyl. Additives should not be used to try to enhance the power or performance of machine.

FUEL: MIXING GASOLINE AND OIL

CAUTION! The engine used on this Backpack blower is of a 2-stroke design. The internal moving parts of the engine, i.e., crankshaft bearings, piston pin bearings and piston to cylinder wall contact surfaces, require oil mixed with the gasoline for lubrication. Failure to add oil to the gasoline or failure to mix oil with the gasoline at the appropriate ratio will cause major engine damage which will void your warranty. For your fuel premix, only use Maruyama 50:1 2-Stroke Oil or quality oil designed for 2-stroke air-cooled engine.

WARNING

Gasoline is extremely flammable and can be explosive under certain conditions.

Turn the engine switch OFF. Do not smoke. Make sure the area is well ventilated and free from any source of flame of sparks: this includes any appliance with a pilot light.

FUEL MIXTURE: When using genuine Maruyama 50:1 2-Stroke Oil, or a quality oil designed for 2- stroke air-cooled engines, oil ratio is 50 parts gasoline to 1 part oil or 50:1.

CAUTION! If Maruyama brand oil is not used, never use a mixing ratio less than 50:1 regardless of the oil package mixing instructions.

Ratios less the 50:1, (for example, 60:1, 80:1, 100:1), reduce the amount of lubrication to the internal moving parts of the engine and can cause damage.

Gasoline	50:1 two-stroke oil
1 gallon	2.6 oz.
2 gallons	5.1 oz.
5 gallons	12.8 oz.

1 liter	20mL
5 liters	100mL

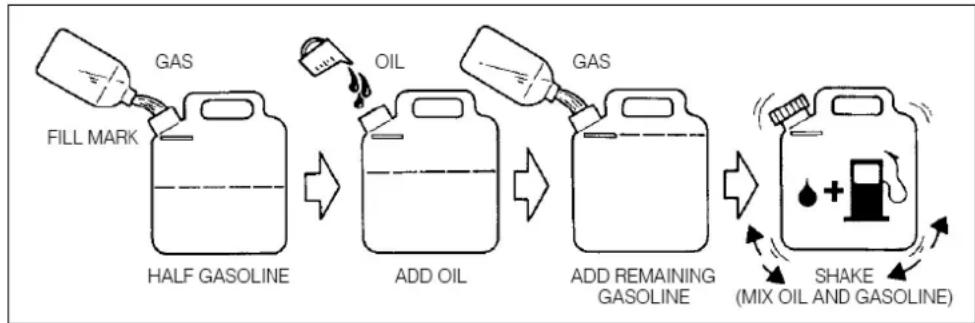

MIXING INSTRUCTIONS: Always mix fuel and oil in a clean container approved for gasoline. Mark the container to identify it as fuel mix for the Backpack Blower. Use regular unleaded gasoline and fill the container with half the required amount of gasoline. Pour the correct amount of oil into the container then add the remaining amount of gasoline. Close the container tightly and shake it momentarily to evenly mix the oil and the gasoline before filling the fuel tank on the Backpack Blower.

When refilling the Backpack Blower fuel tank, clean around the fuel tank cap to prevent dirt and debris for entering the tank during cap removal. Always shake the premix fuel container momentarily before filling the fuel tank.

Always use a spout or funnel when fueling to reduce fuel spillage. Only fill the tank to within 1/2 inch from the top of the tank. Avoid filing to the top of the tank filler neck.

NOTE:

1. Never mix gasoline and oil directly in the Backpack Blower fuel tank.

CAUTION!

1. Do not use National Marine Manufacturer's Association (NMMA) or BIA certified oils. This type or 2-stroke engine oil does not have the proper additives for air-cooled, 2-stroke engines and can cause engine damage.
2. Do not use automotive motor oil. This type of oil does not have the proper additives for air-cooled, 2-stroke engines and can cause engine damage.

OPERATING INSTRUCTIONS

STARTING PROCEDURE

STEP #1)

Pump the "PRIMER BULB" under of the carburetor until fuel can be seen flowing through the "FUEL-RETURN LINE".

STEP #2)

Move the "CHOKE LEVER" fully upward to the closed position. If the engine is already warm, only a partial or open (no choke) choke setting may be required.

CLOSE

PRIMER

BULB

CHOKE

LEVER

FUEL

RETURN LINE

OPEN

STEP #3)

Set the THROTTLE LEVER at 1/2 speed.

STANDARD type

LEVER

HA type

FULL THROTTLE

IDLE SPEED

FULL THROTTLE

IDLE SPEED

STEP #4)

Press down the "AIR FILTER COVER" and hold the "FRAME" with your right foot gently.

Pull the "STARTER GRIP" briskly to start the engine.

NOTE: Only short pulls are necessary. Never pull the starter cord to its fullest extension. Never let go of the starter grip until it is at the fully returned position.

STEP #5) Warming up the engine.

When the engine has started, slowly move the "CHOKE LEVER" fully downward to the open position. Allow the engine to "WARM-UP" at less than 1/2 speed.

CHOKE

LEVER

STARTER

GRIP

OPEN

FRAME

If a MARUYAMA engine fails to start after following the above procedures, contact an authorized MARUYAMA dealer.

BLOWER OPERATION

When the engine has warmed-up, the Backpack Blower can be positioned on the back of the operator.

When the Backpack Blower is positioned and ready for operation, adjust the throttle to a speed required to accomplish the task.

WARNING

• Never operate Backpack Blower when you are fatigued.
• Never operate Backpack Blower without proper guards or other protective safety devices in place.

WARNING

To prevent overheating and engine seizure, combustion heat is reduced by air entering the intake grille of the fan housing and is pushed by the blower fan through an opening in the fan housing over the cylinder fin area. The grille and cylinder fins must be kept clean of grass, dust, and any debris. Engine failure due to lack normal maintenance is not covered by warranty.

STOPPING THE ENGINE

Always run the engine at idle speed for a few minutes to allow cooling before stopping. To stop the engine, press and hold the STOP BUTTON until engine completely stops.

STANDARD type

STOP BUTTON

HA type

STOP BUTTON

REGULAR MAINTENANCE

Before each use, the Backpack blower should be inspected for proper assembly and fitness of all components. All fasteners should be checked for correct tightness. Always inspect for fuel leaks.

WARNING

Do not attempt to start or operate a Backpack Blower with a fuel leak.

AIR FILTER

Maintenance Interval

• The air filter should be cleaned and inspected each time the Backpack Blower is used, or more often when working in extremely dusty conditions.
• Replace after every 100 hours of operation.

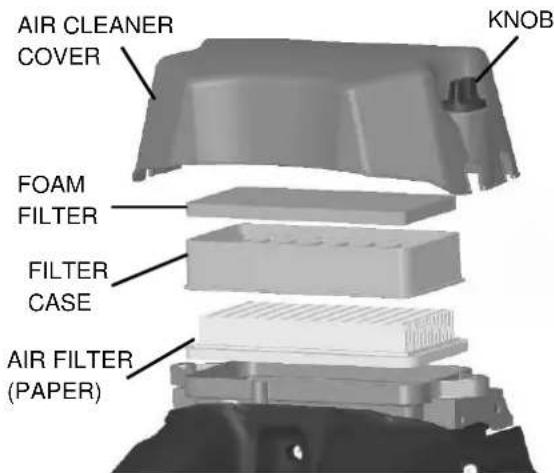

Air Filter Cleaning

Move the choke lever to the closed (⊥) position.

1. Loosen the knob and remove the air cleaner cover.
2. Remove the FOAM FILTER and AIR FILTER (PAPER) from the air cleaner body.
3. Clean the filter.

·FOAM FILTER

Clean FOAM FILTER by gently tapping or cleaning with a suitable solvent the filter. Then completely dry before using again.

Clean AIR FILTER (PAPER) by gently tapping. Replace filter if it is damaged or very dirty.

1. Reassemble components in reverse order.
2. Reinstall the air cleaner cover and tighten the knob.

AIR CLEANER COVER KNOB FOAM FILTER FILTER CASE AIR FILTER (PAPER)

FUEL FILTER

Maintenance Interval

• The fuel filter should be cleaned and inspected for damage after each 20 hours of operation.
• The fuel filter should be replaced after every 100 hours of operation.

Fuel Filter Replacement

The fuel filter is attached to the end of the fuel pick-up hose inside the fuel tank.

Wire Fuel Pick-up Hose Fuel Filter

To replace the fuel filter:

1. Make sure the fuel tank is empty.
2. Remove the fuel cap.
3. Using a wire hook, gently pull the fuel filter out through the fuel filler opening.

4. Grasp the fuel hose next to the fuel filter fitting and remove the filter, but do not release the hose.

5. While still holding on to the fuel hose, attach the new fuel filter.

6. Drop the new fuel filter back into the fuel tank.

7. Make sure that the fuel filter is not stuck in a corner of the tank, and that the fuel hose is not doubled over (kinked) before refueling.

SPARK PLUG

Maintenance Interval

• The spark plug should be removed from the engine and checked after each 25 hours of operation.
• Replace the spark plug after every 100 hours of operation.

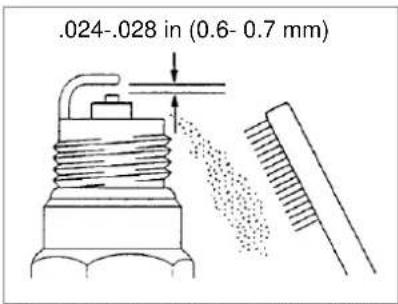

Spark Plug Maintenance

1. With the engine at ambient (room) temperature, twist the high tension lead boot on the spark plug back and forth a couple of times to loosen the boot, then pull the boot off of the spark plug.
2. Remove the spark plug.
3. Clean the electrodes with a stiff brush.

.024-.028 in (0.6- 0.7 mm)

1. Adjust the electrode air gap to .024-.028 in (0.6- 0.7 mm).
2. Replace the spark plug if it is oil-fouled, damaged, or if the electrodes are worn down.
3. Do not over tighten the spark plug when installing. The tightening torque is 95-148 in. lbs. (10.7-16.6 N·m).

COOLING FINS

Maintenance Interval

The cylinder cooling fins should be cleaned after every 25 hours of operation, or once a week, whichever comes first. Air must flow freely around and through the cylinder cooling fins to prevent engine overheating. Leaves, grass, dirt and debris buildup on the fins will increase the operating temperature of the engine, which can reduce engine performance and shorten engine life.

Cooling Fin Cleaning

1. With the engine at ambient (room) temperature, loosen the knob at air cleaner cover.
2. Remove the five screws retaining the top cover, then remove the top cover.
3. Clean all dirt and debris from the cooling fins and from around the cylinder base.
4. Reinstall the top cover and tighten the knob.

AIR CLEANER COVER KNOB SCREW SCREW

SPARK ARRESTER

WARNING

POTENTIAL HAZARD

- Muffler surface becomes hot when Backpack Blower is in operation and remains hot for some time after the engine is shut off.

WHAT CAN HAPPEN

- Contact with hot muffler surfaces could cause a burn.

HOW TO AVOID THE HAZARD

- Make sure the muffler is cool before inspecting and cleaning the spark arrester.

Maintenance Interval

• The spark arrester should be inspected and cleaned after every 25 hours of use.
• Replace the screen if it cannot be thoroughly cleaned, or if it is damaged.

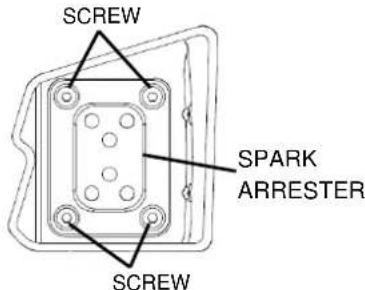

Spark Arrester Maintenance

1. With the engine at ambient (room) temperature, loosen the knob and remove the air cleaner cover (see Cooling Fin Cleaning).
2. Remove the screw from the muffler.

SCREW SPARK ARRESTER SCREW

1. Take the spark arrester out of the muffler, and then clean by brushing it.
2. Return the spark arrester to the muffler.
3. Tighten the screw securely.

GUARD

When air flow has dropped down during operation, stop the engine and inspect the intake guard for blocking by debris. Cleaning debris from intake guard.

WARNING

Never use the blower without the GUARD of the blower. Before each use, check that the GUARD is attached in place and is free from any damage.

EXHAUST MUFFLER

Maintenance Interval

The muffler should be inspected and cleaned after each 100 hours of use.

Muffler Maintenance

1. With the engine at ambient (room) temperature, loosen the knob at air cleaner cover.
2. Remove the five screws retaining the top cover, then remove the top cover. (See cooling fin cleaning.)
3. Remove the spark arrester (see spark arrester maintenance). Clean the muffler with a stiff brush.

IMPORTANT: Be careful not to allow any dirt or debris to fall into the exhaust port, as this can cause engine damage.

1. Reinstall the spark arrester and tail onto the muffler, then reinstall and tighten the four screws. (See spark arrester maintenance)
2. Reinstall the top cover and the cleaner cover.

GENERAL CLEANING AND TIGHTENING

WARNING

POTENTIAL HAZARD

- When engine is running, fan is rotating and other parts are moving.

WHAT CAN HAPPEN

- Contact with rotating fan or other moving parts could cause serious personal injury or death.

HOW TO AVOID THE HAZARD

• Always turn off your Backpack Blower before you clean or perform any maintenance on it.

The MARUYAMA Backpack Blower will provide maximum performance for many hours, if it is maintained properly. Good maintenance includes regular checking of all fasteners for correct tightness, and cleaning the entire machine. Contact an authorized MARUYAMA dealer for additional maintenance suggestions.

GUARD

STORAGE

For long-term storage of the Backpack Blower, first perform all regular maintenance procedures and needed repairs. Empty the fuel tank. Disconnect the fuel supply line from the carburetor and depress the primer bulb until fuel stops discharging from the fuel-return line.

Start the engine and allow it to run until it stops. Pull the starter cord a few times to remove any excess fuel from the engine.

Remove the spark plug and insert a small amount of oil into the cylinder. Slowly pull the starter cord and bring the piston to a position closest to the spark plug hole. Re-install the spark plug. Apply a thin coating of oil to all the metal surfaces and store the Backpack Blower in a dry place.

EMISSION CONTROL INFORMATION

EMISSION CONTROL INFORMATION

To protect the environment in which we all live, Maruyama has incorporated an exhaust emission control system.

EXHAUST AND EVAPORATIVE EMISSION CONTROL SYSTEM

The system reduces the amount of pollutants discharged into the atmosphere by the exhaust of this engine. The fuel tank, ignition and exhaust systems of this engine have been carefully designed and constructed to ensure an efficient engine with low exhaust pollutant and low evaporate emission levels. If you purchased your (Blower, Trimmer, Hedge Trimmer) in the state of California, the fuel tank includes low evaporative emission system.

MAINTENANCE AND WARRANTY

Proper maintenance is necessary to ensure that your engine will continue to have low emission levels. This Owner's/Operator's Manual contains those maintenance recommendations for your engine. Those items identified by the Periodic Maintenance Chart are necessary to ensure compliance with the applicable standards.

As the owner of the (Blower, Trimmer, Hedge Trimmer), you have the responsibility to make sure that the recommended maintenance is carried out according to the instructions in this Owner's/Operator's Manual at your own expense.

The Maruyama Limited Emission Control System Warranty requires that you return your (Blower, Trimmer, Hedge Trimmer) to an authorized Maruyama (Blower, Trimmer, Hedge Trimmer) dealer for remedy under warranty. Please read the warranty carefully, and keep it valid by complying with the owner's obligations it contains.

TAMPERING WITH EMISSION CONTROL SYSTEM PROHIBITED

Federal law and California State law prohibit the following acts or the causing there of:

(1) the removal or rendering inoperative by any person other than for purposes of maintenance, repair, or replacement, of any device or element of design incorporated into any new engine for the purposes of emission control prior to its sale or delivery to the ultimate purchaser or while it is in use, or (2) the use of the engine after such device or element of design has been removed or rendered inoperative by any person.

Among those acts presumed to constitute tampering are acts listed below: Do not tamper with the original emission related parts.

• Carburetor and internal parts
- Spark plug
• Magneto or electronic ignition system
- Fuel filter
- Muffler or any internal portion of the muffler
• Air cleaner element
- Fuel Tank

ADJUSTMENT

IDLING SPEED ADJUSTMENT

1. Idle speed is the only available adjustment.
2. Do not tamper with the carburetor setting to increase the maximum engine speed.
3. If adjustment is needed, have it performed by your authorized MARUYAMA service dealer.
   Carburetor adjustments are made at the factory and are not adjustable without disassembling the carburetor.

MAINTENANCE

Maintenance Period

WARNING

Always remove the spark plug cap from spark plug when servicing the engine to prevent accidental starting.

	Maintenance Daily		Every 20 hours	Every 50 hours	Every 100 hours
	Check and replenish fuel	●
	Check for fuel leakage	●
	Check bolts, nuts and screws for tightness or missing	●
	Check engine idle speed adjustment	●
■	Clean air filter element	●
■	Remove dust and dirt from engine screen	●
■	Remove dust and dirt from air intake screen	●
	Tighten bolts and nuts	●
	Clean spark plug and adjust electrode gap	●
■	Remove dust and dirt from cylinder fins	●
●	Remove carbon deposits in exhaust port	●
●	Clean spark arrester	●
	Replace fuel filter	●
●	Remove carbon deposits on piston head and combustion chamber	●
●	Remove carbon deposits in transfer ports	●
	Replace fuel tube, fuel tank cap gasket It is recommended to replace every 3 years

●: Service to be performed by an authorized Maruyama engine dealer.
■: Service more frequently under dusty conditions.

Note:

The service intervals indicated are to be used as a guide.

Service to be performed more frequently as necessary depending on operating condition.

Use Maruyama standard 50:1 2-stroke engine oil.

SPECIFICATIONS

Models BL9000-GT
Dimensions L x W x H 14.4 x 19.7 x 21.7 in. (365 x 500 x 550 mm)
Dry Weight 24.0lbs (10.9 kg)
Engine Type Maruyama/2-Stroke Air cooled CE800 for EPA
Displacement 79.2 mL
Ignition System Electric solid state
Carburetor All position diaphragm
Fuel Tank Capacity 0.55gal (2.1 L)
Fuel Mixture	50:1Using MARUYAMA 50:1 2-stroke Engine Oil or any quality 2-stroke engine oil designed for use in air-cooled, high performance 2-stroke engines.

The MARUYAMA BACKPACK BLOWER comes with an Owner's / Operator's Manual and a Warranty Registration Card.
Assembly and attachment of the throttle lever bracket and blower pipes are required.

TABLE DES MATIÈRES

AVANT PROPOS ......	1 MAINTENANCE RÉGULIÈRE......	7
Étiquettes d'avertissement......	1 ENTREPOSAGE......	10
INSTRUCTIONS DE MONTAGE ......	3 INFORMATIONS ANTIPOLLUTION......	10
AVANT L'UTILISATION......	4 MAINTENANCE......	11
INSTRUCTIONS DE FONCTIONNEMENT......	6 CARACTÉRISTIQUES TECHNIQUES......	11

AVANT PROPOS

Diagram showing two mechanical components with directional arrows indicating motion or flow (no text or symbols)

français-3

AVANT L'UTILISATION

Close-up of a mechanical component with a circular dial and arrow indicator (no text or symbols)

RALENTI VITESSE

ÉTAPEN°4)

BOUTON ARRÊT

HA type

BOUTON ARRÊT

MAINTENANCE RÉGULIÈRE

.024" - .028" (0.6 - 0.7 mm)

Diagram showing two mechanical components with arrows indicating motion or force direction (no text or symbols)

español-3

.024-.028 in (0.6- 0.7 mm)

Technical line drawing of a vehicle engine compartment showing front, side, and side views (no text or labels)

ALMACENAMIENTO
