USER MANUAL F609HEREKTND BERTAZZONI

INSTALLATION AND USER MANUAL

BUILT-IN ELECTRONIC OVENS

INSTRUCTIONS D'INSTALLATION ET D'UTILISATION

FOURS ENCASTRABLES ÉLECTRONIQUES

3100423

INDICE

AVVERTENZE 4

RESPONSABILITA DEL PRODUTTORE 4

TUTELA DELL'AMBIENTE 4

IMBALLIN PLASTICA 4

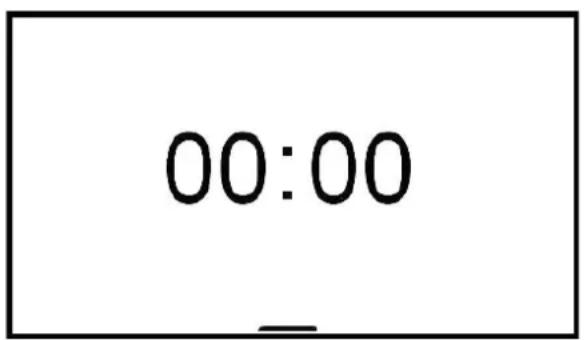

00:00
	Timer
	Cooking at
	Start at
	Ends at

INSTALLATION AND USER MANUAL BUILT-IN ELECTRONIC OVENS

3100423

CONTENTS

INTRODUCTION ANDWARNINGS 4

MANUFACTURER LIABILITY 4

ENVIRONMENTAL PROTECTION 4

PLASTIC PACKAGING 4

APPLIANCE DATA PLATE 4

GENERAL SAFETY INSTRUCTIONS 5

6

APPLIANCEWARNINGS 6

TECHNICAL INSTALLATION INSTRUCTIONS 7

INSTALLING THE OVEN IN THE UNIT 7

IMPORTANT INFORMATION 7

INSTALLING THE OVEN BELOW A HOB 8

INSTALLING THE OVEN IN A TALL APPLIANCE HOUSING 8

OVEN FASTENING 9

ELECTRICAL CONNECTION 9

MAINTENANCE 10

REPLACING COMPONENTS 10

USING THE APPLIACE 11

CONTROL PANEL 11

TWO-KNOB OVEN CONTROLS 11

FULL-TOUCH OVEN CONTROLS 11

OVEN FUNCTIONS 11

1. FIRST USE 12

BEFORE FIRST USE 12

12

COOLING 12

PRE-HEATING 12

OVEN LIGHT 12

USING TWO-KNOB OVENS 13

CLEANING THE APPLIANCE 21

BASIC MAINTENANCE 22

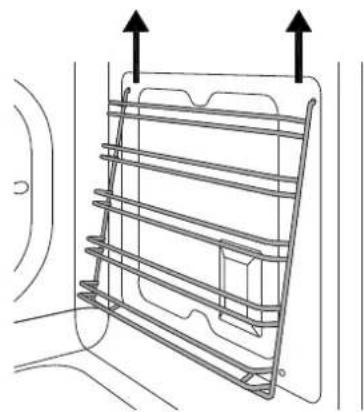

REMOVING THE SIDE GUIDES 22

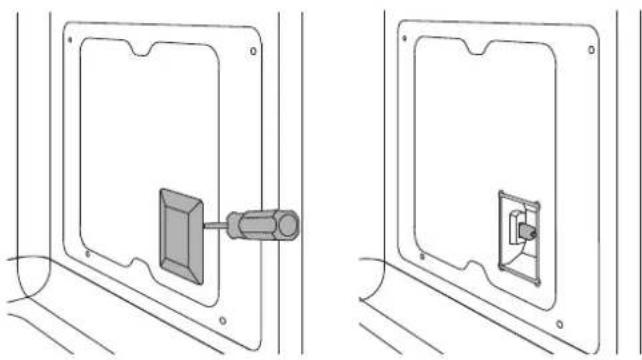

REPLACING THE OVEN LIGHT BULB 22

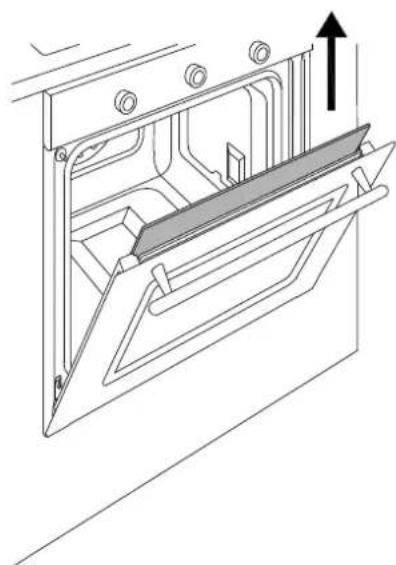

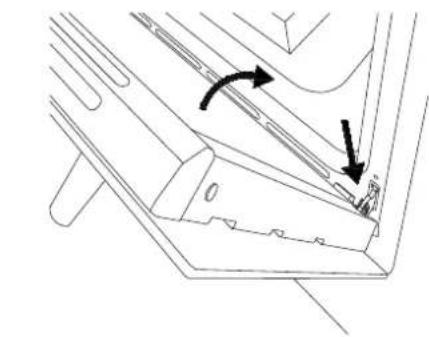

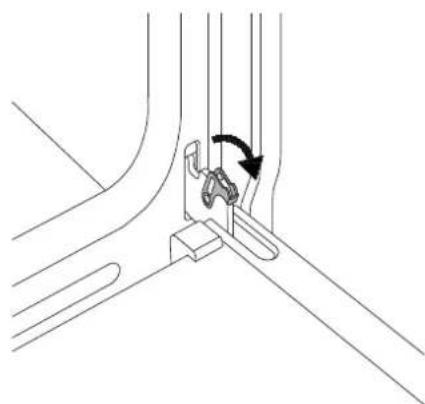

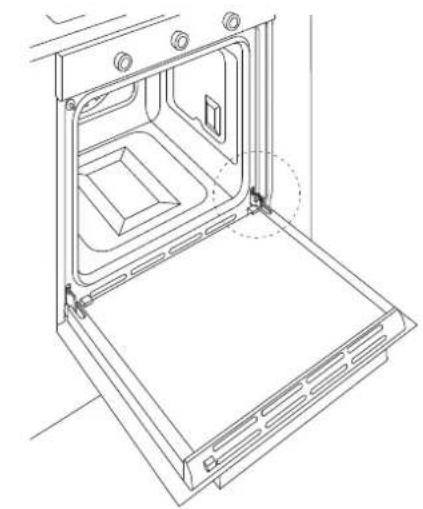

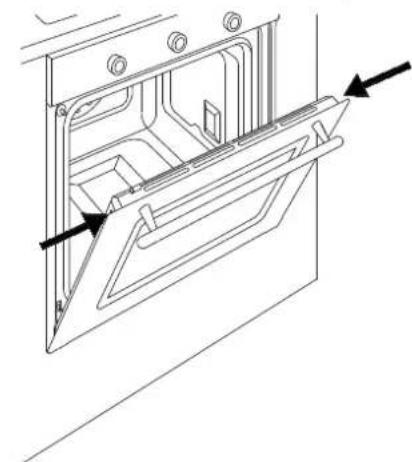

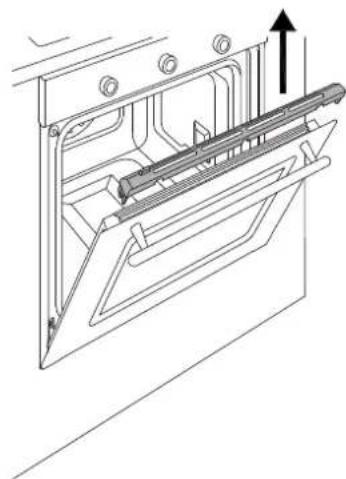

CLEANING THE INTERNAL DOOR GLASS 23

TROUBLESHOOTING 24

WARRANTY 24

FROM THE DESK OF OUR PRESIDENT

EN

Dear Customer,

Thank you for choosing a quality Bertazzoni appliance for your home.

It was way back in 1882 that my family began manufacturing cookers, and our company has since built up a solid reputation for the excellence of its engineering, born of a passion for good food.

Today, our products feature exclusive Italian design combined with the latest technology. Our mission is to build domestic appliances which work perfectly and fully meet the requirements of their users.

To create products of the highest quality also in aesthetic terms, which meet all of our customers' requirements. Our appliances are also versatile and easy to use, turning the potential chore of cooking into a genuine pleasure.

This manual will help you to use and take care of your Bertazzoni product in the safest and most efficien t manner, so that it can provide you with the utmost satisfaction for many years to come.

I really hope you like it!

Paolo Bertazzoni

President

INTRODUCTION

READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLING AND USING THE APPLIANCE.

These instructions are valid only for the countries whose identifying symbols are included on the cover of this manual and on the appliance label. The manufacturer shall not be held liable for property damage or personal injury resulting from incorrect installation or improper use of the appliance.

The manufacturer shall also not be held liable for any imprecisions due to printing or transcription errors in this booklet.

The appearance of the figures included herein is only for guidance.

The manufacturer reserves the right to make modifications to its products when it considers this necessary or beneficial, however the essential safety and performance characters shall not be affected.

THIS APPLIANCE IS DESIGNED FOR NONPROFESSIONAL,DOMESTIC USE.

This user manual is an integral part of the appliance and must therefore be kept in its entirety in a place accessible to the user for the entire lifetime of the appliance.

Read this manual before using the appliance.

MANUFACTURER LIABILITY

The manufacturer shall bear no liability for property damage or personal injury due to:

Use of the appliance other than that specified.
- Failure to comply with the instructions in the user manual.
- Tampering with/unnAuthorised modifi cations to any part of the appliance.
The use of non-original spare parts.
- This appliance is intended for cooking food in the home environment. Any other use shall be considered improper.
- The appliance is not designed to operate with external timers or with remote-control systems.

WARNING: The marking on this product is a declaration, under the manufacturer's full responsibility, that the product complies with all European health, safety and environmental requirements laid out in the legislation covering this product type.

ENVIRONMENTAL PROTECTION

Please think of the environment when disposing of the packaging.

This appliance is marked in accordance with European Community Directive 2012/19/EU on waste electrical and electronic equipment (WEEE).

This directive defines the standards for the collection and recycling of waste electrical and electronic equipment applicable throughout the European Union.

The packaging of this appliance is composed of the elements strictly necessary to ensure sufficient protection during transport. The packaging materials are completely recyclable, thus reducing their environmental impact. Please help to protect the environment by taking the following tips into consideration:

• Sort the packaging materials for recycling.
• Render the old appliance unusable before taking it to the collection facility. Ask the competent local authorities for details of the nearest recycling centre you can take the old appliance to.
• Do not dispose of used oil down the drain. Keep it in a closed container and take it to a recycling centre; if this is not possible, dispose of it in mixed waste (in this manner it will be disposed of at a monitored facility – although this is not the best solution, it at least prevents contamination of the sewage/water systems).

PLASTIC PACKAGING

Danger of suffocation

• Do not leave the packaging or any part thereof unattended.
• Do not let children play with the plastic bags.

APPLIANCE DATA PLATE

The data plate bears the technical data, serial number and brand name of the appliance. The appliance data plate is located on the side of the front of the oven, and must not be removed at any time. A copy is provided in this manual for reference.

INTRODUCTION

GENERAL SAFETY INSTRUCTIONS

WARNING: Accessible parts may become very hot during use. Young children should be kept away
- Never touch the heating elements during use.
- Keep children at a safe distance unless they are constantly supervised.
Children must not play with the appliance.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
- Keep children and animals away from the appliance while it is running or cooling down. Accessible parts become red hot during use.
- Switch off the appliance after use.
- Cleaning and maintenance must not be carried out by children.
- Ensure that hot surfaces are allowed to cool before proceeding to clean the appliance.
- Have installation and servicing carried out by qualified personnel in compliance with applicable standards and legislation. Do not try to repair the appliance yourself or without the assistance of a qualified technician.
- Do not modify this appliance.
- Do not insert anything in the slots.
- Do not obstruct ventilation openings and heat dispersal slots.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- If the power supply cable is damaged, contact technical support immediately and they will arrange for it to be replaced.
- Do not use abrasive or corrosive detergents (e.g. scouring powders, stain removers and metallic sponges) on glass parts.
- Do not sit or put any weight on the oven door.
- Do not use steam jets to clean the appliance.
- Do not use the appliance as a space heater for any reason.
- In the event of breakage or cracking in the glass, shut off the oven immediately and disconnect it from the power supply. Contact technical support.
- Sudden and extreme changes in temperature can cause the glass to break - never pour cold liquids onto the oven door.

• Using the oven generates heat and moisture - keep the area well ventilated during operation.
• Never place flammable objects in the oven
• Do not open the door if smoke is coming out of the oven. Shut the appliance off and disconnect its power supply.
• The oven contains electronic components which could interact with electronic medical equipment such as pacemakers or insulin pumps. Equipment of this type must be kept at least 10cm from the oven.
• Ensure that there are no trapped objects which could prevent the oven door from shutting.
• The oven is not designed to operate with timers or remote control systems.
• Plastic containers not designed for high temperatures could melt, damaging the oven or even catching fire.
• Closed tins and jars could burst or even explode if heated: never use the oven for preparing or heating tins or jars.
  Always use specific oven gloves for removing or inserting heat-resistant cookware or accessories.
• Isolate the appliance's power supply before performing any maintenance.
• Use only the recommended temperature probe for this appliance.

INTRODUCTION

INSTRUCTIONS FOR USE

Take great care when cooking food with a high alcohol content, as this could cause a fire.
- Remove any food residue from inside the oven before using the appliance in order to prevent fire and smoking.
- Do not place any objects or baking paper on the bottom of the oven.
After cooking, keep the door closed while the oven is cooling down to prevent damaging adjacent kitchen units.
- Fruit juice can cause indelible staining; use deep dishes to prevent leakage.
Damaged containers, or those which are unsuitably small, can lead to serious injuries.
- When opening the oven door, be very careful of escaping steam: burn hazard!
- Do not pour water into a hot oven: this would create steam, and thus a burn hazard!
- Keep the door seal clean to prevent heat escaping and damaging adjacent units.
- Insert oven racks and trays all the way into their guides to prevent damage to the door when closing.
- Do not operate the appliance with wet hands or when it is in contact with water.
- Do not apply pressure to the open door.
- Do not use the appliance as a work surface or shelf.
- Open the door with care. The use of ingredients containing alcohol can create a mixture of air and alcohol.
- Avoid creating sparks or naked flames near the oven when opening the door.
- Do not place or store flammable objects or those which could ignite easily on the appliance, inside it or in its immediate vicinity.

APPLIANCEWARNINGS

• Do not place heat-resistant cookware or other objects directly onto the oven's interior surface.
• Do not place sheets of aluminium foil directly onto the oven's interior surface.
• Do not place water directly inside the hot oven.
• Do not store moist dishes and food inside the oven after completing cooking.
  Take care when removing or inserting accessories.
• Any discolouration of the enamel will not affect the oven's performance.
• For very wet cake batters, use a dripping pan. Fruit juice can cause permanent stains.
• The oven is designed only for cooking. It must not be used for other purposes, such as space heating.

TECHNICAL INSTALLATION INSTRUCTIONS

The installation, adjustments, transformations and maintenance listed in this section must only be performed by qualified technicians (in accordance with applicable legislation). Incorrect installation can cause property damage and injury to people or pets; the manufacturer shall not be held liable in this event. The appliance's automatic regulation or safety devices may only be modified by the manufacturer or a duly authorised supplier during the appliance's lifetime.

Ensure all necessary PPE is used when carrying out the installation

INSTALLING THE OVEN IN THE UNIT

Ensure that the oven is fully present and undamaged after removing all loose parts from their inner and outer packaging. In the event of any uncertainty, do not use the appliance and contact technical support.

Check that the kitchen unit is suitable for installation of the oven, referring to the dimensions given in this guide.

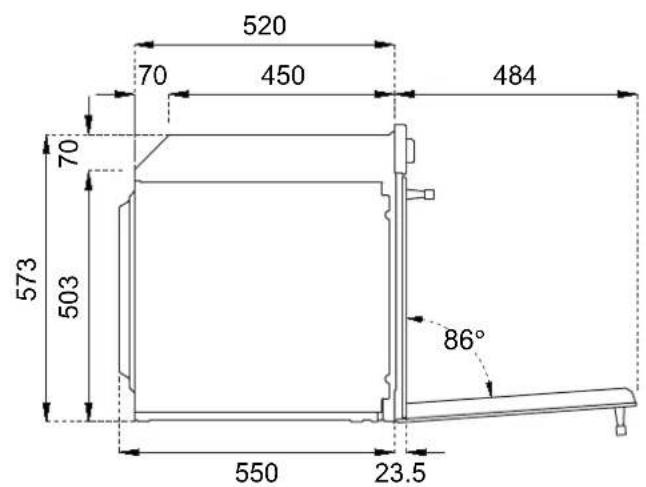

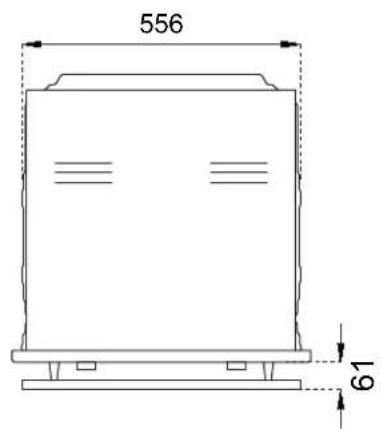

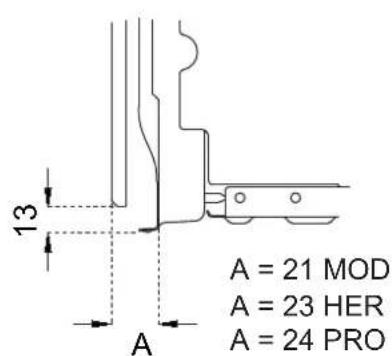

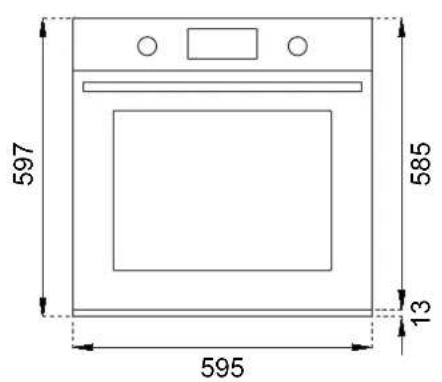

IMPORTANT INFORMATION

The oven is only suitable for installation inside a fitted kitchen unit or carcase. The sides and surrounding surfaces must be able to withstand temperatures of up to 90^ .

Installation of the appliance must be performed in accordance with the provisions of applicable legislation.

Provide for an opening in the rear of the carcase to allow for oven ventilation, as shown in the fi gure. Lack of sufficient ventilation could compromise oven performance.

The oven must not be installed behind a decorative door in order to avoid overheating.

TECHNICAL INSTALLATION INSTRUCTIONS

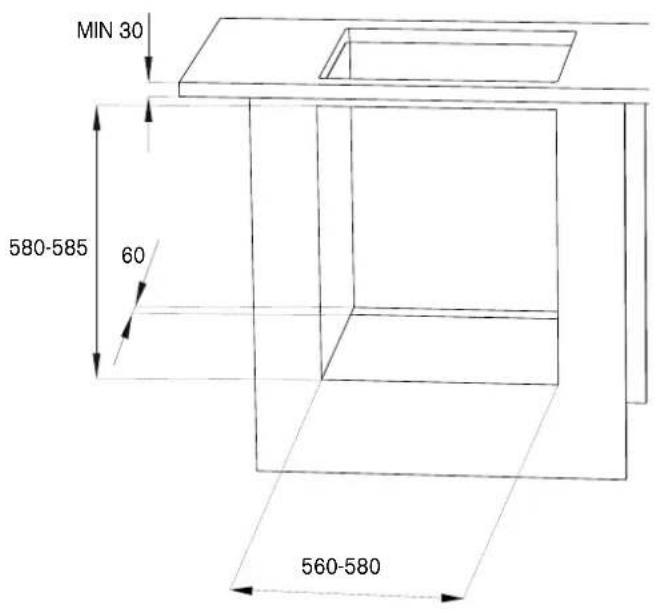

INSTALLATION UNDERNEATH A BUILT-IN HOB

The clearance between the oven and the kitchen units or other installed appliances must be enough to ensure sufficient ventilation and air discharge.

EN

If installed under a hob, space must be left between the bottom of the hob and the top of the oven to allow for ventilation of the entire compartment (see figure).

Any ventilation openings required for the hob are to be added to those required by the oven.

The manufacturer shall bear no liability in the event of the oven being installed in combination with a hob from another manufacturer.

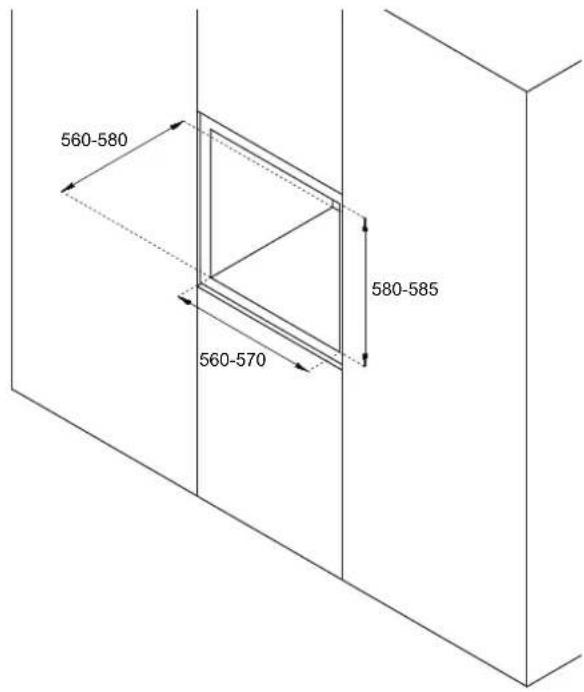

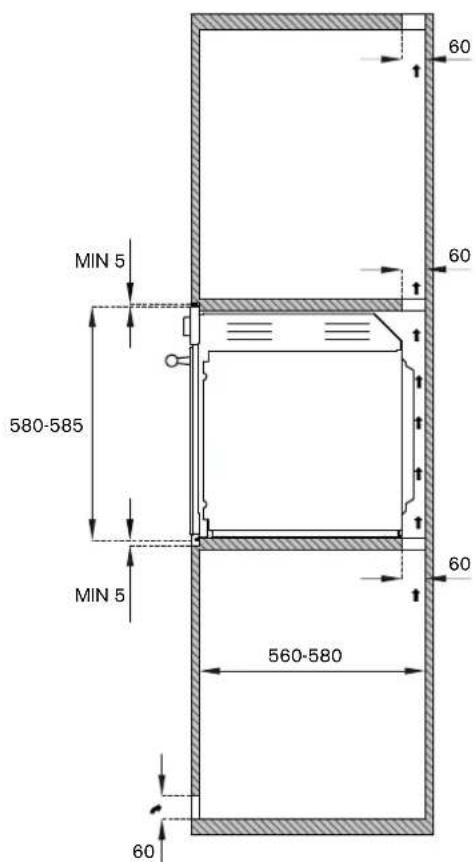

INSTALLING THE OVEN IN A TALL APPLIANCE HOUSING

The clearance between the oven and the kitchen units must be enough to ensure sufficient ventilation and air discharge. Ensure there is an opening in the top or rear of the carcase as shown in the figure.

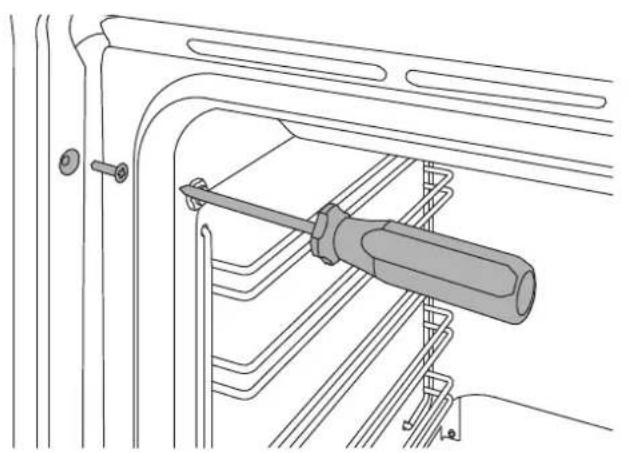

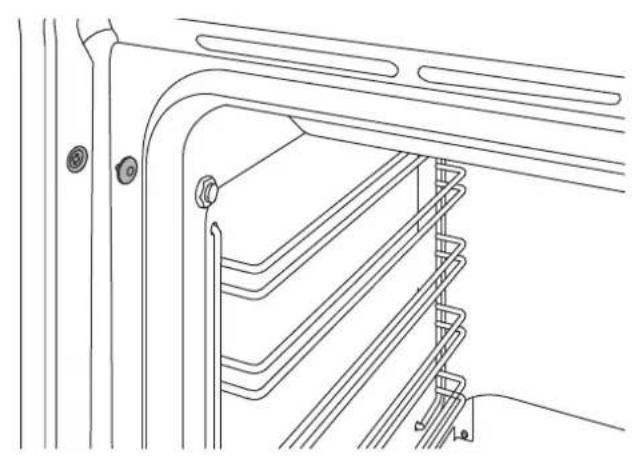

OVEN FASTENING

• Position the appliance into the carcase with the help of a second person.
• Do not use the door or handle to position the oven.
• Check that the oven is correctly aligned with the units.
• Check that the door opens correctly.
• Fasten the oven to the carcase with the supplied screws, ensuring that the oven remains centred.
• Cover the screws with the caps.

ELECTRICAL CONNECTION

The electrical connection must be made in accordance with applicable standards and legislation.

Before connecting up the appliance, check that:

• The mains electricity supply matches the characteristics indicated on the appliance data plate (positioned on the front of the oven).
• The circuit wiring and outlet are equipped with a compliant earth connection.

Connection to the mains power supply via a socket:

• Wire a plug onto the power cable which must comply with applicable standards in the country of use; the plug (and its fuse, where applicable) must be suitable for the rated load specified on the appliance data plate. Connect the cores of the cable in accordance with the figure, ensuring you follow the harmonised wiring colour scheme:

L (live/hot/phase) = brown wire

N (neutral) = blue wire

earth " 12 ” symbol = yellow/green wire

Voltage 220-240 V
Frequency 50/60 Hz
Max. power	2800 W
Max current draw	13 A
Cable type 3x1.5mm²

ELECTRICAL CONNECTION

• Position the power supply cable in such a way that it is not resting against the rear of the oven, that it is not in contact with sharp edges and will not reach a temperature of 90^ at any point.
• Do not use adapters, extension leads, gang sockets etc. as these could cause loose contacts and overheat.

Hard-wired to the mains circuit:

• The circuit must be fitted with a omnipolar circuit breaker of suitable capacity for the appliance's rated load.
• The earth conductor must not be switched by the breaker and must be connected to the earthing system.
• As an alternative, an RCBO may also be used, or RCD protection in addition to or instead of a fuse or MCB, depending on the applicable electrical code.

MAINTENANCE

REPLACING COMPONENTS

Isolate the appliance's power supply before performing any maintenance.

Contact an authorised service centre if functional components require replacement.

WARNING: If the power cable requires replacement, the installer/maintenance technician must use H05VV-F cable and leave the earth conductor around 2 cm longer than the live and neutral wires. They must also comply with the instructions given for the initial electrical connection.

CONTROL PANEL

TWO-KNOB OVEN CONTROLS

1 Function selector
2 Touchscreen displays
3 Temperature selector

ON/OFF turns the oven on or off
CANCEL/PREVIOUS MENU cancels or returns to the previous menu
CONFIRM confi rm or continue
SETTINGS settings menu

EN

FULL-TOUCH OVEN CONTROLS

1 Touchscreen displays

N.B.: for temperature settings and functions, touch the icon on the display.

1

ON/OFF turns the oven on or off
CANCEL/PREVIOUS MENU cancels or returns to the previous menu
CONFIRM confi rm or continue
SETTINGS settings menu

OVEN FUNCTIONS

SYMBOL		DESCRIPTION 11 FUN	CTIONS 11 PYROLYTIC FUNCTION
		Convection · ·
		Fan · ·
		Static · ·
		Fast Preheat	···
		Turbo	···
		Bottom Bake	···
		Grill	···
		Fan with grill	···
		Assistant	···
		Specials	···
		Hydroclean ·
		Clean		·

USE

Run your fi nger up and down the display to scroll through the menu.

To activate a menu function, press and hold on the required function for at least two seconds. The chosen function will be selected as soon as you remove your fi nger from the display.

EN

Touch a parameter on the display to modify it. For time, brightness and audio settings, confirm with the play button.

FIRSTUSE

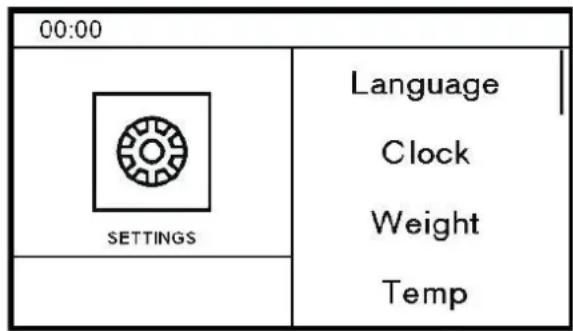

Once the oven has been connected to the power supply, enter the settings menu ( ) and set the following:

Language
Clock
Clock Format
Measurement Units

BEFORE FIRST USE

• Remove any fi lm and other packaging residue from the inside and outside of the oven.
• Remove and wash all accessories.
• Run the oven for 30 min. at 250^ without placing any food inside (during this operation it is normal for manufacturing residue to produce some smoke and odours).
• Let the oven cool down.
• Open the door and air the oven out for 15 minutes.
• Clean the inside of the oven with a moist cloth and neutral detergent (do not use scouring powders).

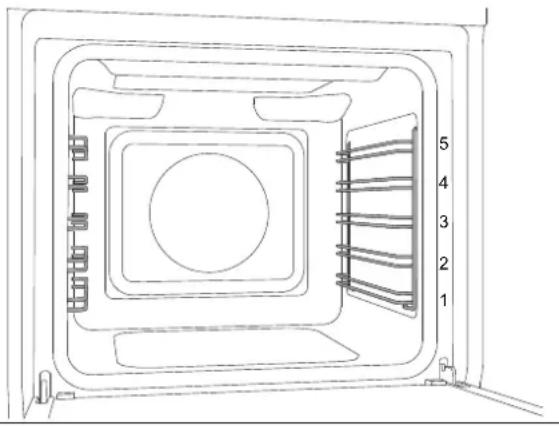

RACK POSITIONING

Insert racks and trays into the side guides until they come to a complete stop in order to prevent contact with the oven door.

When removing accessories beyond halfway they are blocked to facilitate removing dishes.

The oven has five cooking levels indicated on the right-hand side of the front of the oven.

COOLING

The oven is equipped with a cooling system which operates during cooking.

Air flow between the control panel and door allows the controls to be kept at a usable temperature.

The cooling system turns on and off automatically (it is normal for this to continue running after the oven is switched off).

PRE-HEATING

Most recipes will require the dish to be placed in the oven when it has already reached the specified cooking temperature.

The pre-heating time will depend on the temperature set and the number of accessories present in the oven.

OVEN LIGHT

The oven light comes on automatically when the door is opened and remains on during standard cooking functions.

USE

USING TWO-KNOB OVENS

1. Insert the rack at the required level
2. Select the oven function by rotating the knob
3. Set the temperature by turning the knob clockwise
4. If necessary, set timed cooking via the TOUCHSCREEN DISPLAY.

An audible warning and visual message indicate when the set temperature is reached.

Return at least one knob to the zero position at any time to stop cooking

Run your fi nger up and down the display to scroll through the menu.

To activate a menu function, press and hold on the required function for at least two seconds. The chosen function will be selected as soon as you remove your finger from the display.

Touch a parameter on the display to modify it.

1. Insert the rack at the required level
2. Touch the power button twice to turn the oven on (once if the appliance is already on)
3. Scroll through the functions menu and choose the required cooking method
4. Scroll to select the required temperature
5. If necessary, set timed cooking via the TOUCHSCREEN DISPLAY.
6. Touch the Play button to start cooking, or wait (15 seconds) for it to start automatically.

An audible warning and visual message indicate when the set temperature is reached.

Touch the power button at any time to stop cooking.

COOKING MODES

The oven is equipped with various heating elements which create the various cooking modes when activated individually or in combination.

Warning: all cooking operations must take place with the door closed.

EN

Convection

Heat from the rear element with fan assist.

Cooking on multiple levels, ideal for any type of food which requires even heat.

• Level 2 or 3 for cooking single items.
• Levels 2 and 4 for cooking multiple items.

Fan

Heat from above and below with fan assist.

Cooking on multiple levels: ideal for biscuits and cakes.

• Level 2 or 3 for cooking single items.
• Levels 2 and 4 for cooking multiple items.

Static

Heat from above and below.

Cooking on a single level: ideal for roasts, bread and cakes.

Roasts: level 2 or 3.
- Cakes: level 2 or 3 to ensure correct cooking of the bottom without burning the top.

Fast Preheat

Use this function to bring the oven to the required temperature in a short period of time.

This function is designed only for heating the oven, and not for cooking food.

Turbo

Combination function: convection and bottom element.

Cooking on a single level, ideal for pizza, flatbreads and other foods requiring high temperatures and heat from below.

• Level 1 or 2.

Bottom Bake

Heat from below.

Cooking on a single level, ideal for slow cooking and for heating plates.

At high temperatures, use this function for baked goods which you do not wish to brown.

Level 2 or 3.

USE

Grill

Heat from the grill (broiler) element.Max recommended temperature: 200^

Cooking on a single level, ideal for grilling sausages, chops, bacon, fi sh or toast.

Browning or gratinating food at the end of cooking.

Level 4 or 5.

EN

Fan with grill

Heat from the grill (broiler) element with fan assist.

Max recommended temperature 175^

Cooking on a single level, ideal for grilling thick foods.

The circulation of the heat aids optimum cooking of the food while grilling from above.

• Level 4 or 5.

Assistant

see specifi c chapter

Specials

Dehydrate

Function with forced air circulation and a temperature of 37^ for drying foods, flowers and vegetables.

Defrost

Function with forced air circulation to speed up defrosting of foodstuff s.

Warming

Function for warming up food; three temperature levels: 60^ - 76^ - 93^

Proofing

Function for leavening dough. It is recommended to insert the foodstuff s with the oven still cold.

Do not open the oven unless strictly necessary.

Sabbath

Heating method for use during periods of religious observance.

Eco

Fan-assisted cooking function with low power consumption (light deactivated during cooking).

Cleaning (only eleven-function pyrolytic oven) Pyro

In the self-cleaning cycle, the oven's interior is heated to very high temperatures – over 400^ – to burn off any food residue.

Before starting a pyrolysis cycle, remove all accessories and side racks from the oven, then manually remove any pieces of food and larger residues with a damp sponge.

During pyrolysis, the door locks automatically and will only reopen when the oven cools back down at the end of the cycle.

It is normal to see some flaming and smoke develop inside the oven.

After the cleaning cycle, the burned off residue is reduced to ash and can be easily brushed off with a damp sponge.

The complete cycle duration is 120 minutes.

Eco Pyro

Ninety-minute self-cleaning cycle which can be used when there are lower levels of encrusted dirt.

Hydroclean

Twenty-minute low-temperature oven cleaning cycle.

1. Manually remove any pieces of food and larger residues with a damp sponge.
2. Pour 400ml of water onto the base inside the cavity.
3. Spray a solution of water and washing-up liquid (using a spray bottle) onto the side walls.
4. Activate the function (duration approx. 20min).
5. Once it has cooled back down, dry with a soft cloth.

Hydroclean (eleven-function oven only)

Twenty-minute low-temperature oven cleaning cycle.

1. Manually remove any pieces of food and larger residues with a damp sponge.
2. Pour 400ml of water onto the base inside the cavity.
3. Spray a solution of water and washing-up liquid (using a spray bottle) onto the side walls.
4. Activate the function (duration approx. 20min).
5. Once it has cooled back down, dry with a soft cloth.

USE

CONDENSATION

When cooking foods with a high water content, it is normal for condensation to form on the inside of the oven door and on the control panel. This condensation will evaporate by itself during cooking.

COOKING TIPS

• The set temperature and cooking time may vary slightly from one oven to another. Slight adjustments to recipes may be necessary.
• Increasing the temperature does not decrease cooking times.
• Cooking times depend on the weight, thickness and quality of the food.
• We recommend placing the food at the centre of the rack.
• Choose the level of cooking in accordance with the recipe and personal experience.
• Leave at least 3cm between oven dishes and the sides of the oven to allow heat to circulate.
• Use light-coloured aluminium trays when cooking pastries.
• Use dark metal tins for cooking sweets and biscuits, as they help absorb heat.
• Turn and mix dishes so that hey heat through evenly.
• For new recipes, choose the lowest temperature from those given along with the shortest time; then assess how well cooked the dish is, prolonging the cooking if necessary.

SAVING ENERGY

• Open the oven door only when necessary to avoid wasting heat.
• Keep the inside of the oven clean.
• Remove any accessories not currently being used.
• Shut off the oven a few minutes before the time normally used, allowing the residual heat of the oven to finish cooking.

SCOOKING GUIDELINE

The times given in the table do not include preheating times and are provided only as a guide.

Food Weight (kg) Function Temperature (℃) Time (minutes)
Lasagne 3-4 Static 220-230 45-50
Baked pasta 3-4 Static 220-230 45-50
Roast veal 2 Fan 180-190	90-100
Pork loin	2 Fan 1	80-190 70-80
Sausages	1.5	Fan with grill 175	15
Roast beef	1 Fan	200	40-45
Roast rabbit	1.5	Convection	180-190	70-80
Turkey breast	3 Fan 1	80-190 110-120
Roast pork neck	2-3	Fan 180-190	170-180
Roast chicken	1.2	Fan 180-190	65-70
				1st side 2nd side
Pork chops	1.5	Fan with grill	175	15 5
Spare ribs	1.5	Fan with grill	175	10 10
Bacon	0.7	grill	200	7 8
Pork fillet	1.5	Fan with grill	175	10 5
Beef fillet	1	grill	200	10 7
Rainbow trout	1.2	Fan 150-160	35-40
Monkfish	1.5	Fan	160	60-65
Turbot	1.5	Fan	160	45-50
Pizza	1	Turbo	MAX	8-9
Bread	1	Convection	190-200 25-30
Focaccia	1 Fan 1	80-190 20-25
Bundt cake	1	Convection	160	55-60
Jam tart	1	Convection	160	35-40
Ricotta cake	1	Convection	160-170 55-60
Stuffed tortellini	1	Fan	160	20-25
Sponge cake	1.2	Convection 160	55-60
Profiteroles	1.2	Fan	180	80-90
Victoria sponge	1	Convection	150-160	55-60
Rice cake	1 Fan	160	55-60
Pastries	0.6	Convection	160	30-35

USING THE TOUCHSCREEN DISPLAY

HOME SCREEN

Drop-Down Menu

The drop-down menu contains some functions which can be activated with the oven off.

Scroll the FLAP _ symbol upwards to open; scroll the FLAP _ symbol downwards to close.

Timer

Countdown timer: when it finishes, an audible warning will sound and a message will be displayed. The timer does not stop the cooking operation.

Scroll to set; the timer starts automatically.

Light

To turn the oven light on and off with the door closed.

Oven Preheating

Function to bring the oven to the required temperature in a short period of time.

This function is designed only for pre-heating the oven, and not for cooking food.

Screen Brightness

To set or change the display brightness.

Settings Menu

Touch the settings button to enter the menu.

Brightness

To set or change the display brightness.

Audio

To set or change the volume of the sounds.

Language

To select the preferred appliance language (the default is English).

EN

Clock

To set or change the time.

Showroom Mode

Deactivates the heating elements for showrooms use.

Weight Unit

To set or change the unit of measurement used for weight.

Temp Unit

To set or change the unit of measurement used for temperature.

ECO Mode

To reduce energy consumption.

USING THE TOUCHSCREEN DISPLAY

MANAGING THE TIME FUNCTIONS

00:00
	Timer
	Cooking at
	Start at
	Ends at

The time function allows you to manage cooking times.

After setting the function and temperature, press the clock icon (L) and choose a time function.

Timer

To set a countdown timer, at the end of which an audible warning will sound and a message will be displayed. The timer does not stop the cooking operation.

Scroll to set; the timer starts automatically.

Cooking Time

To set a countdown timer, at the end of which cooking will be stopped, an audible warning will sound and a message will be displayed.

Scroll to set; the cooking time timer starts automatically.

Start at

To set the start time and duration of cooking.

When the set time arrives, an audible warning will sound indicating the start of cooking. When the set duration has elapsed, cooking will stop, an audible warning will sound and a message will be displayed.

Scroll to set first the start time and then the cooking time.

Ends at

To set the cooking end time and duration (the start time will be calculated by the appliance).

An audible warning will sound when cooking begins. At the set cooking end time, cooking will stop, an audible warning will sound and a message will be displayed.

Scroll to set first the end time and then the cooking time.

Touch the Power button to stop cooking at any point.

Touch the clock icon to modify the duration of the current cooking program.

Important: if the time functions are not managed, the duration of the cooking must be managed manually.

TEMPERATURE PROBE (where available)

The temperature probe allows you to choose the level of cooking by measuring the internal temperature of the food.

Programming the temperature probe

1. Insert the sharp end of the probe into the food. For the best results, the tip must be as close as possible to the centre point of the food, and not in contact with fat, bone or hollow areas.
2. Choosing the cooking function and temperature
3. Plug in the probe inside the oven (on the top left-hand side).
4. Set the temperature you wish to obtain at the centre of the food.

When the set temperature is measured by the probe, cooking will stop, an audible warning will sound and a message will be displayed.

Important: when using the temperature probe, only the Timer function is available.

USING THE TOUCHSCREEN DISPLAY

ASSISTANT

The assistant function helps you manage a range of cooking, temperature and time functions for each type of food.

The system does not provide recipes, but helps the oven get the best out of yours.

It is possible to create new sequences and store them for future use.

Recipe Management

Preset cooking sequences.

1. Choose the required food category.

2. Meat
   Poultry
   Fish
   Desser
   Bread

3. Pizza

4. Pasta
   Vegetables

5. Choose the required dish.

6. Select the weight and level of cooking, where required.
7. Use the temperature probe where required.
8. Press play.

At the end of cooking, an audible warning will sound and a message will be displayed.

To stop cooking, press the power button.

My cookbook

Saved personal cooking sequences

1. Select the required recipe from the saved ones.
2. Press play.

At the end of cooking, an audible warning will sound and a message will be displayed.

To stop cooking, press the power button.

To delete a saved recipe, select the name and drag it from the right to the left-hand side and confirm.

Set

To set complex cooking profi les and store them. Up to three functions in sequence can be selected.

1. Select function 1
2. Set cooking function, temperature and duration.
3. Repeat for functions 2 and 3, where necessary.
4. Press play to run the recipe.
5. Before activating cooking, you can decide whether or not to save the recipe; if saving, an on-screen keyboard will be displayed to name and save it.
6. Once saved, touch the play button to start cooking.

Use the My cookbook function to bring up the saved recipe.

ACCESSORIES / OPTIONAL EXTRASACCESSIONS / OPTIONAL EXTRA

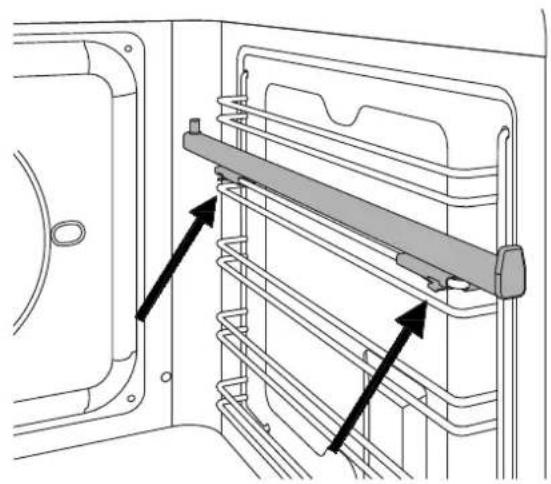

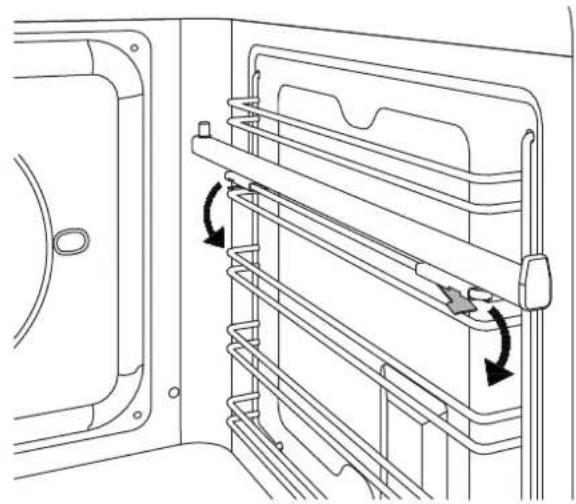

TELESCOPIC RAILS

The telescopic rails can be installed on any level of the oven guides

• Locate the two spring clips (front and rear) on the telescopic rail.
• Locate the pin indicating the rear part of the rail.
• Position the telescopic rail fl ush with the upper edge of the selected level.
• Insert the front clip, pushing it towards the side guide.
• Insert the rear clip, pushing it towards the side guide.
• Repeat the insertion operation for the other side.
• Pull both rails out and position the oven rack or tray between the rear pin and the front stop.

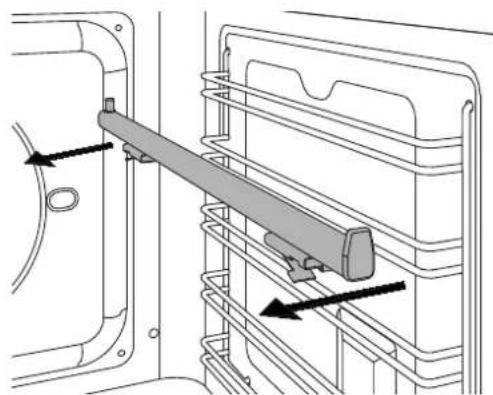

Removing the Telescopic Rails

• Locate the two spring clips (front and rear) on the telescopic rail.
• Keeping the front clip pushed down, pull the rail towards the interior of the oven.
• Repeat for the rear clip.

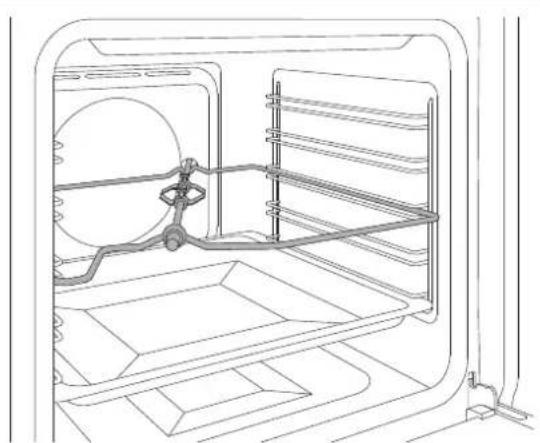

ROTISSERIE FUNCTION (where available)

Used to cook joints of meat, chickens and fish evenly on all sides using the grill element.

When the grill function is selected, the rotisserie motor will start up.

• Position the skewer support in level 3 of the side guides.
• Place a tray on one of the lower levels of the side guides to collect cooking grease.
• Insert the meat or fish on the rotisserie skewer using the fork.
• Insert the skewer in the rotisserie motor housing, located in the rear of the oven, and rest it on the skewer support.
• Remove the plastic handle from the skewer.
• Select the grill function at maximum temperature.
• When cooking is complete, refit the plastic handle and remove the food from the oven.

Important: rotisserie cooking must always be performed with the oven door closed.

CLEANING THE APPLIANCE

Before performing any manual cleaning operation, wait for all parts to cool down and isolate the oven from the electrical supply.

Scrupulous care of your oven will help keep it in excellent condition for many years to come.

Cleaning enamelled or painted parts:

To maintain the characteristics of the enamelled components, they should be cleaned frequently with soapy water. Never use scouring powders. Do not leave acidic or basic substances (vinegar, lemon juice, salt, tomato juice etc.) sitting on enamelled parts, and do not wash enamelled parts when they are still hot.

Cleaning Stainless-Steel Parts:

Clean the components with soapy water and then dry them with a soft cloth, following the direction of the brushed finish. The shine can be maintained by periodic use of commonly available products. Do not use harsh/aggressive detergents such as:

• Scouring pads or powders

• Limescale removers

• Bleach
• Hydrochloric acid
  Ammonia

Immediately remove limescale, grease, starch or egg-white stains.

Cleaning the Door Glazing:

To degrease, use washing-up liquid and vinegar, then rinse; otherwise, clean with washing-up liquid, rinse, then pass over with a moist cloth before drying.

To remove encrusted food, soak with soapy water or washing-up liquid for a few minutes. After a few minutes, rinse off then dry with a soft cloth.

Avoid anti-limescale, abrasive and multi-purpose products, as they will affect the look of the glass after a while.

Cleaning the Oven Racks:

Do not wash the racks in the dishwasher.

Immerse them in hot soapy water, then wipe with a non-abrasive sponge before rinsing and drying with a tea towel.

Cleaning Handles:

Clean the components with soapy water and then dry them with a soft cloth, following the direction of the brushed finish. Never use scouring powders or pads.

Seal:

Wipe with a damp cloth.

BASIC MAINTENANCE

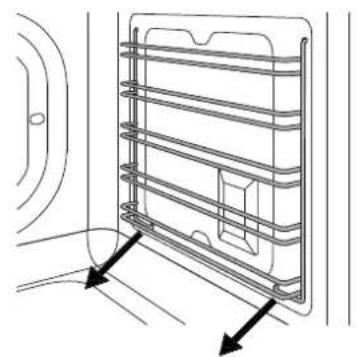

REMOVING THE SIDE GUIDES

• Identify the two hooks at the bottom of the guide assembly and pull them gently downwards.
• Pull the guide assembly away from the side of the oven and remove by pulling the upper hooks of the assembly upwards from the side of the oven.
• Remove the side guide assembly from the oven.

REPLACING THE OVEN LIGHT

Warning!

Isolate the oven's power supply before changing the light bulb. DO NOT touch the bulb with your bare hands.

Oven side light (where fitted)

Bulb type: G9 halogen, 220 V, 40 W

• Ensure that the oven is off and cool.
  If necessary, remove the side guides from the oven.
• Slide the tip of a fl at-head screwdriver between the glass cover and the bulb housing.
  Gently turn the tip of the screwdriver to loosen the glass while keeping it in position with your fingers to prevent it falling and breaking.

• Remove the glass and take out the old halogen bulb.

• Insert a new halogen bulb in the holder. DO NOT touch the bulb with your bare hands.

• Press the glass cover back on and reposition the side guide assembly.
• Refi t the side guide.
• Reinstate the power supply.

CLEANING THE INTERNAL DOOR GLASS

The internal door glass can be easily removed for cleaning. It is not necessary to remove the door in order to clean the glass.

The glass can be cleaned in place, or removed for cleaning.

• Fully open the oven door.
• Fully open the blocking levers for both hinges.
• Slowly close the door until it blocks, checking that the levers have blocked the door.
• Remove the top cover of the door by pressing the round buttons on the left and right.
• Lift the top cover and remove.

Paying close attention to the sides of the glass:

• Slide the panes of glass out.
  Clean the glass.
• Repeat the operations above in reverse to reassemble the door.

N.B.: the markings on the glass must face outwards.

If the hinges are not correctly blocked and the internal glass is removed, the door can close by itself.

TROUBLESHOOTING

The oven is not working

Is the oven power supply active? Check the circuit breaker, switch or fuse. Disconnect the oven from the power supply for around one minute by unplugging it or turning it off at the circuit breaker.

EN

The oven does not heat up

Check that showroom mode is not enabled.

Check that a time function is not active. Disconnect the oven from the power supply for around one minute by unplugging it or turning it off at the circuit breaker.

The knob will not stay in place.

The knob clip is broken: call customer service for a replacement.

The controls are very hot.

This is normal if the door is left open for a prolonged period of time with the oven running.

Check that the door closes correctly and that the cooking system is operational.

Food is overcooked

When using a fan-assisted function, remember to lower the cooking temperature by 20^

Food is undercooked

When cooking large quantities of food, the cooking time must be increased proportionally.

Check that there is suffi cientspace around the oven dish to allow heat to circulate correctly.

Check that the door closes correctly.

Have a technician check the actual mains voltage.

Condensation forms on the oven door glass.

When cooking foods with a high water content, it is normal for condensation to form on the inside of the oven door and on the control panel. This condensation will evaporate by itself during cooking. Pre-heat the oven to reduce condensation build-up.

Smoke forms during cooking.

It is normal for smoke to form inside the oven when cooking particularly fatty foods. When cooking with the grill, a certain quantity of smoke is normal.

The cleaning procedure is interrupted before it finishes.

A power failure has occurred.

Check that the ventilation openings in the carcase are correctly sized and located and are not blocked.

WARRANTY

Cleaning results are not satisfactory.

Check that all accessories and side racks have been removed.

Larger accumulations and residue should be removed manually before running the pyrolysis cycle.

WARRANTY AND CUSTOMER SERVICE: www.BERTAZZONI.COM

BERTAZZONINSTRUCTIONS D'INSTALLATION ET D'UTILISATIONFOURS ENCASTRABLES ÉLECTRONIQUES

3100423

TABLE DES MATIÈRES

AVERTISSEMENTS 4

RESPONSABILITÉ DU FABRICANT 4

PROTECTION DE L'ENVIRONNEMENT 4

EMBALLAGES EN PLASTIQUE 4

PLAQUE D'IDENTIFICATION 4

CONSIGNES GENÉRALES DE SECURITÉ 5

AVERTISSEMENTS D'UTILISATION 6

AVERTISSEMENTS POUR L'APPAREIL 6

MANUEL TECHNIQUE POUR L'INSTALLATEUR 7

INTRODUCTION DU FOUR 7

7

INSTALLATION SOUS PLAN DE CUISSON 8

INSTALLATION SUR COLONNE 8

FIXATION DU FOUR 9

BRANCHEMENT ELECTRIQUE 9

ENTRETIEN 10

REEMPLACEMENT DES COMPOSANTS 10

11

PANNEAU DE COMMANDE 11

COMMANDES DU FOUR A 2 BOUTONS 11

COMMANDES DU FOUR FULL TOUCH 11

FONCTIONS DU FOUR 11

PREMIER ALLUMAGE 12

AVANT LA PREMIÈRE UTILISATION 12

POSITIONNEMENT DES GRILLES 12

REFROIDISSEMENT 12

PRECHAUFFAGE 12

LUMIÈRE FOUR 12

1. UTILISATION FOUR A 2 BOUTONS 13

13

MODES DE CUISSON 13

CONDENSATION 15

CONSEILS POUR LA CUISSON 15

ECONOMIES D'ENERGIE 15

TABLEEAU INDICATIF POUR LA CUISSON 10

17

PAGE PRINCIPALE 17

Gestion DES FONCTIONS TEMPS 18

18

ASSISTANT 19

ACCESSORIES / OPTIONS 20

GUIDES TÉLESCOPIQUES 20

FONCTION TOURNEBROCHE 20

NETTOYAGE DE L'APPAREIL 24

OPERATIONS D'ENTRETIEN COURANT 22

RETRAIT DES GUIDES LATERAUX 22

REEMPLACEMENT DE L'AMPOULE DU FOUR 22

NETTOYAGE DES VERRES INTÉRIEURS DE LA PORTE DU FOUR 23

DYSFONCTIONNEMENTS 24

GARANTIE 24

MESSAGE DU PRÉSIDENT

Cher client,

INTRODUCTION DU FOUR

00:00
	Timer
	Cooking at
	Start at
	Ends at

ACCESSIONS / OPTIONS

GUIDES TÉLESCOPIQUES

REEMPLACEMENT DE L'AMPOULE DU FOUR

Attention!
