Product Type	LED TV
Brand	LG
Model	40UF695V
Screen Size	40 inches (101 cm)
Resolution	Ultra HD (3840 x 2160 pixels)
Display Technology	LED (LED backlight)
3D Compatibility	Yes (3D glasses optional)
Operating System	Smart TV (webOS)
HDMI Connectivity	Yes, with ARC and SIMPLINK
USB Connectivity	Yes (USB 2.0)
Analog Video Inputs	Component and Composite
Optical Audio Output	Yes (digital)
Network Connectivity	Wi-Fi and Ethernet (LAN)
Special Features	Magic Remote (optional), Time Machine Ready, Electronic Guide
VESA Standard (wall mount)	200 x 200 mm
Power Supply	AC 100-240 V, 50/60 Hz
Energy Consumption	Approximately 70 W (estimated)
Weight (without stand)	Approximately 8.5 kg (estimated)
Maintenance	Soft, dry cloth; avoid chemicals
Included Accessories	Remote control, batteries (AAA), power cord, manual

Frequently Asked Questions - 40UF695V LG

How to connect an external device (DVD player, console) to the TV?

Use an HDMI cable for a high-quality digital connection. Connect one end to the device and the other to an HDMI port on the TV. Turn on the device and select the corresponding input source (INPUT button on the remote).

What to do if the remote control stops working?

First check that the batteries are correctly installed and not dead. Make sure no obstacles block the TV sensor. If the problem persists, re-register the Magic Remote (if applicable) by holding down the Back and Home buttons for 5 seconds.

How to install the TV on a wall mount?

Use a wall mount compatible with VESA 200x200 mm standard. Attach the mount to the wall, then screw the TV's back plate with the provided M6 screws. Follow the mounting kit instructions to ensure a secure installation.

Why does the image remain frozen (screen burn-in) after displaying a static image?

Prolonged display of static images (logos, menus) can cause image retention. Avoid leaving a static image for more than 2 hours. Use screen savers or vary content. Screen burn-in is not covered by warranty.

How to clean the TV screen without damaging it?

Turn off and unplug the TV. Use a soft, clean, dry cloth. For stubborn stains, lightly dampen the cloth with clean water or a mild diluted detergent, then wipe immediately with a dry cloth. Never spray liquid directly onto the screen.

The TV automatically turns off after 15 minutes, is this normal?

Yes, if no signal is detected, the TV automatically turns off to save energy. Also check the sleep timer settings in the TIME menu. You can disable this feature if desired.

How to activate 3D mode on this TV?

Put on compatible 3D glasses. Press the 3D button on the remote (if available) or go to the PICTURE menu to select 3D mode. 3D content requires a compatible source (3D Blu-ray player, 3D TV channel).

Can I connect headphones to the TV?

Yes, via the digital optical audio output (SPDIF) or via a USB port if the headphones are compatible. For a wired connection, use an adapter if necessary. The headphones can also be connected via Bluetooth if the TV supports it.

How to update the TV software?

Make sure the TV is connected to the Internet. Go to SETTINGS > SUPPORT > Software Update. Select 'Check for updates' and follow the instructions. Do not turn off the power during the update.

What does the flashing red light on the TV mean?

A flashing red light may indicate an error (overheating, power supply issue). Turn off the TV, unplug it for 30 seconds, then plug it back in. If the flashing persists, contact LG after-sales service.

USER MANUAL 40UF695V LG

* LG LED TV applies LCD screen with LED backlights.

UB80** UB83**

UB82** UF695*

www.lg.com

P/NO : MFL68484514(1504-REV06)

Printed in Korea

TABLE OF CONTENTS

A-3 SETTING UP THE TV

A-3 Attaching the stand

A-5 Tidying cables

A-5 MAKING CONNECTIONS

A-5 Antenna connection

A-8 Satellite dish connection

A-9 HDMI connection

A-14 - ARC (Audio Return Channel)

A-15 Headphone connection

A-17 DVI to HDMI connection

A-20 Component connection

A-22 Composite connection

A-23 MHL connection

A-25 Audio connection

A-25 - Digital optical audio connection

A-28 USB connection

A-30 CI module connection

A-32 Euro Scart connection

COMMON

LANGUAGE LIST

English

Deutsch

Français

Italiano

Español

Português

Nederlands

Ελληνικά

Slovenščina

LANGUAGE

B-1 SPECIFICATIONS

COMMON

SETTING UP THE TV

Image shown may differ from your TV.

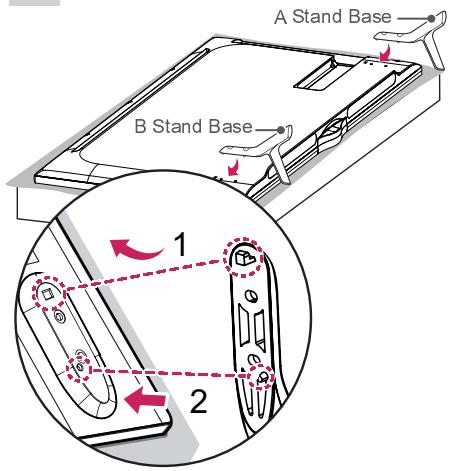

Attaching the stand

UB80**, UB82**, UF695*-ZB

A Stand Base B Stand Base

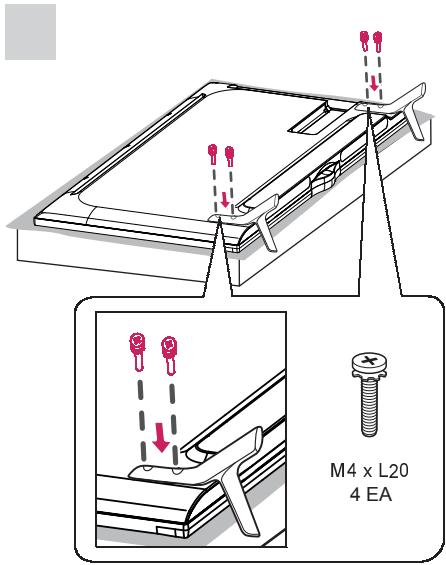

1 Attach the stand to the TV using the upper mounting hole on the back of the TV.

2 Attach the stand to the TV using the lower connection on the back of the TV.

M4 x L20 4 EA

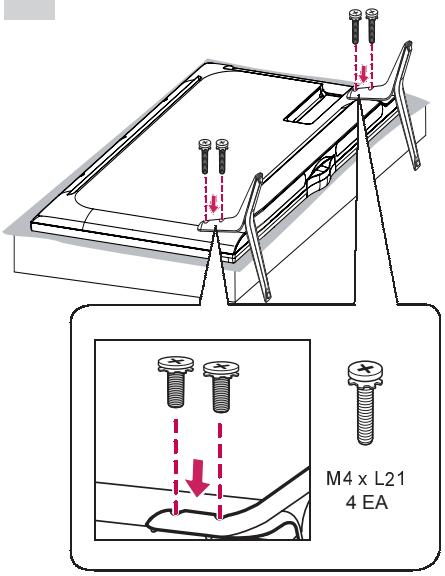

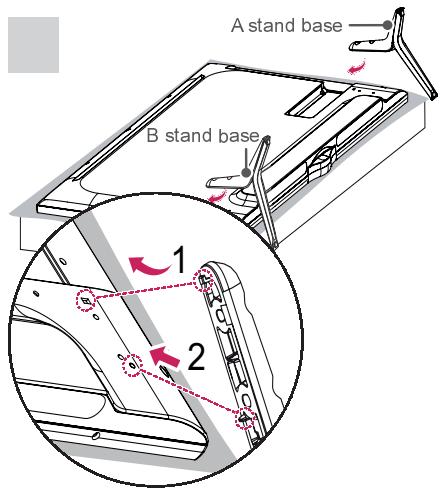

UB83**-ZG, UF695*-ZA

A stand base B stand base 1 2

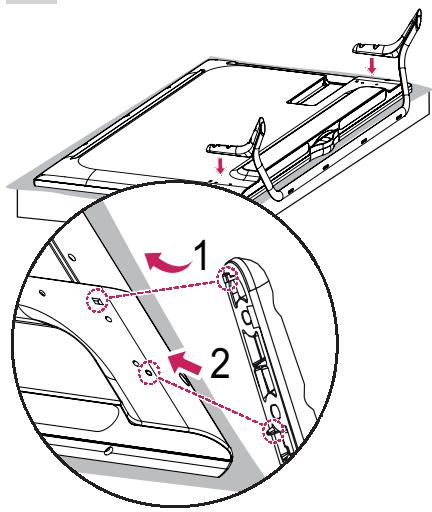

1 Attach the stand to the TV using the upper mounting hole on the back of the TV.
2 Attach the stand to the TV using the lower connection on the back of the TV.

M4 x L21 4 EA

M4 x L21 4 EA

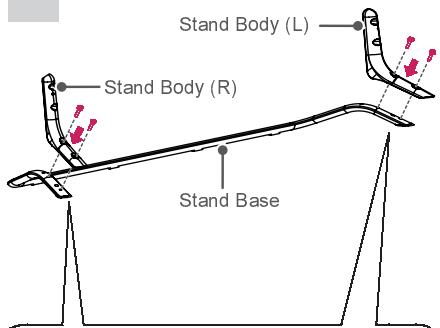

UB83**-ZB

Stand Body (L) Stand Body (R) Stand Base

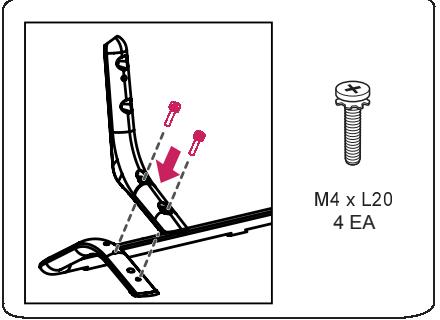

M4 x L20 4 EA

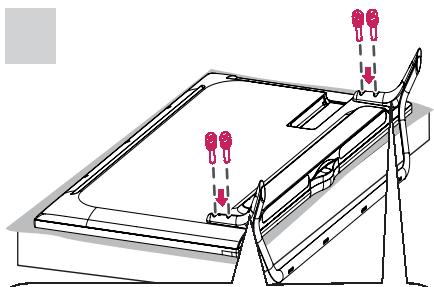

1 Attach the stand to the TV using the upper mounting hole on the back of the TV.
2 Attach the stand to the TV using the lower connection on the back of the TV.

Technical line drawing of a mechanical assembly with two red-labeled components and arrows indicating motion (no text or symbols)

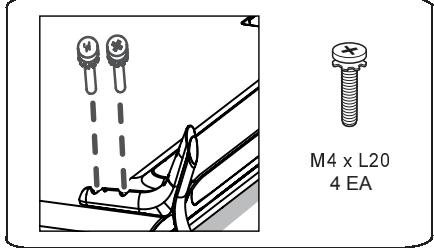

M4 x L20 4 EA

Diagram of a car suspension system with two car sensors and a valve (no text or labels)

CAUTION

• When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.
• Make sure that the screws are inserted correctly and fastened securely. (If they are not fastened securely enough, the TV may tilt forward after being installed.) Do not use too much force and over tighten the screws; otherwise screw may be damaged and not tighten correctly.

Technical diagram of a treadmill with labeled parts and directional arrows indicating motion or movement.

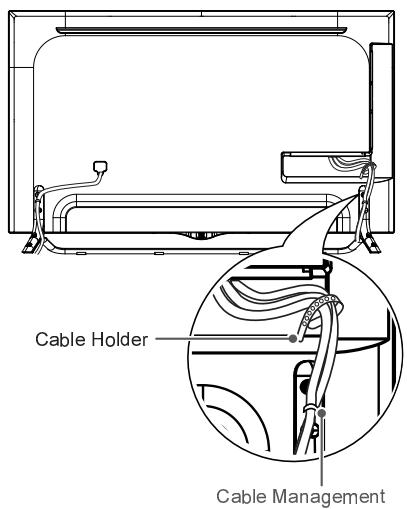

Tidying cables

Image shown may differ from your TV.

1 Gather and bind the cables with the Cable Holder and the Cable Management.
2 Fix the Cable Management firmly to the TV. (Only UB80**, UB82**, UB83**)

Cable Holder Cable Management

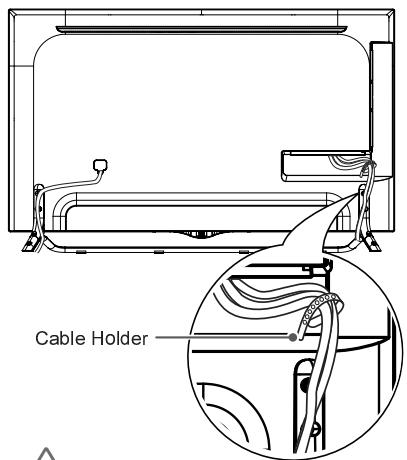

1 Gather and bind the cables with the Cable Holder.

(Only UF695*)

Cable Holder

CAUTION

- Do not move the TV by holding the cable holder, as the cable holder may break, and injuries and damage to the TV may occur.

MAKING CONNECTIONS

This section on MAKING CONNECTIONS mainly uses diagrams for the UB83**-ZB models.

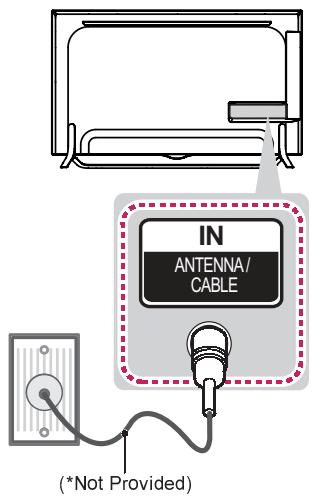

Antenna connection

IN ANTENNA/ CABLE (*Not Provided)

English

Connect the TV to a wall antenna socket with an RF cable (75 ).

• Supported DTV Audio: MPEG, Dolby Digital, Dolby Digital Plus, HE-AAC
- This TV cannot receive ULTRA HD (3840 x 2160 pixels) broadcasts directly because the related standards have not been confirmed.

Deutsch

Italiano

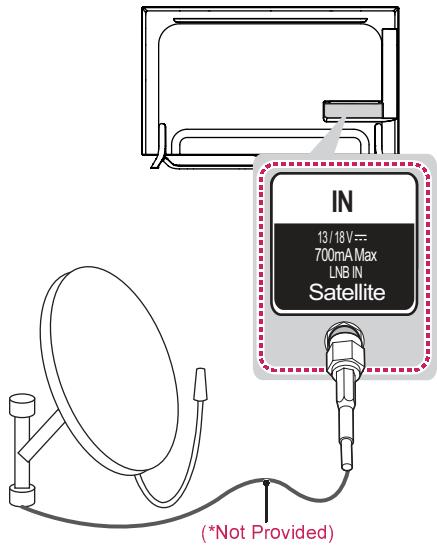

Satellite dish connection

(Only satellite models)

IN 13/18V--- 700mA Max LNB IN Satellite (*Not Provided)

Português

Connect the TV to a satellite dish to a satellite socket with a satellite RF cable (75 Ω).

Deutsch

English

Transmits the digital video and audio signals from an external device to the TV. Connect the external device and the TV with the HDMI cable as shown.

Choose any HDMI input port to connect. It does not matter which port you use.

A-10

MAKING CONNECTIONS

Deutsch

Français

ARC (Audio Return Channel)

English

• An external audio device that supports SIMPLINK and ARC must be connected using HDMI (4K @ 60 Hz) / DVI IN 2 (ARC) port.
• When connected with a high-speed HDMI cable, the external audio device that supports ARC outputs optical SPDIF without additional optical audio cable and supports the SIMPLINK function.

Deutsch

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

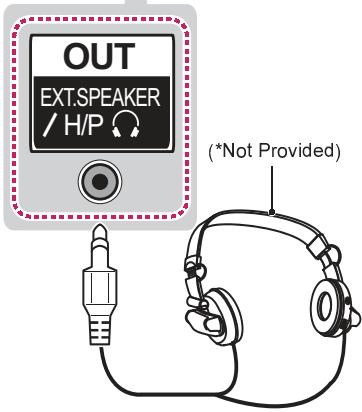

OUT EXT.SPEAKER / H/P (*Not Provided)

Deutsch

Transmits the headphone signal from the TV to an external device. Connect the external device and the TV with the headphone as shown.

A-16

MAKING CONNECTIONS

Italiano

Português

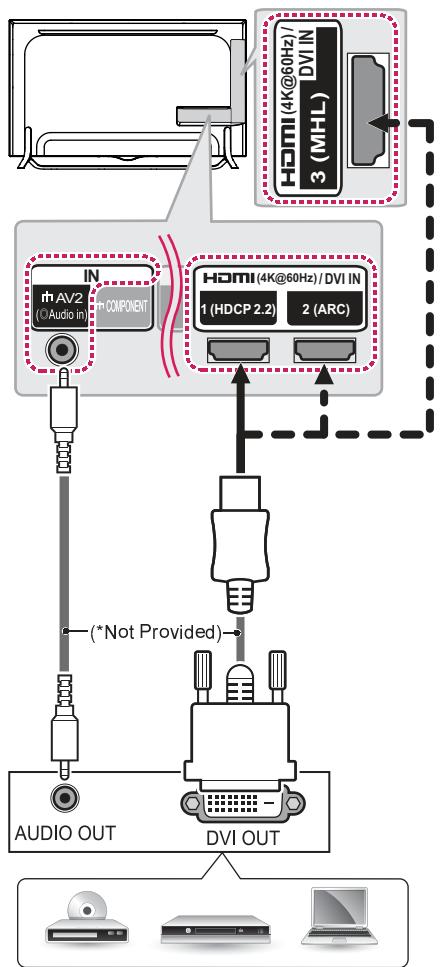

DVI to HDMI connection

DVD / Blu-Ray / HD Cable Box / HD STB / PC

English

Transmits the digital video signal from an external device to the TV. Connect the external device and the TV with the DVI-HDMI cable as shown. To transmit an audio signal, connect an audio cable. Choose any HDMI input port to connect. It does not matter which port you use.

- When using the HDMI/DVI cable, only Single link is supported.

A-18

MAKING CONNECTIONS

Deutsch

Italiano

Transmits analogue video and audio signals from an external device to the TV. Connect the external device and the TV with a component cable(or component gender cable) as shown.

- If cables are not installed correctly, it could cause this image to display in black and white or with distorted colours.

Deutsch

English

Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with the composite cable as shown.

Deutsch

Mobile High-definition Link (MHL) is an interface for transmitting digital audiovisual signals from mobile phones to television sets.

Magic Remote.

• Remove the MHL passive cable from the TV when:
• the MHL function is disabled
• your mobile device is fully charged in standby mode

Italiano

Português

OUT OPTICAL DIGITAL AUDIO (*Not Provided) OPTICAL AUDIO IN

Digital Audio System

English

You may use an optional external audio system instead of the built-in speaker.

Digital optical audio connection

Transmits a digital audio signal from the TV to an external device. Connect the external device and the TV with the optical audio cable as shown.

Deutsch

Italiano

Connect a USB storage device such as a USB flash memory, external hard drive, or a USB memory card reader to the TV and access the SmartShare menu to use various multimedia files.

Español

View the encrypted (pay) services in digital TV mode. This feature is not available in all countries.

- If the TV does not display any video and audio when CI+ CAM is connected, please contact to the Terrestrial/Cable/Satellite Service Operator.

Deutsch

Transmits the video and audio signals from an external device to the TV set. Connect the external device and the TV set with the euro scart cable (or Scart gender cable) as shown.

Current input mode\Output Type	AV1 (TV Out ^1 )
Digital TV	Digital TV
Analogue TV, AV	Analogue TV
Component
HDMI

1 TV Out : Outputs Analogue TV or Digital TV signals.

Deutsch

Connect various external devices to the TV and switch input modes to select an external device. For more information of external device's connection, refer to the manual provided with each device.

Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.

• In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear.
• In PC mode, some resolution settings may not work properly depending on the graphics card.
• If ULTRA HD content is played on your PC, video or audio may become disrupted intermittently depending on your PC's performance.

Deutsch

* LG LED TV applies LCD screen with LED backlights.

TABLE OF CONTENTS

3 LICENSES

3 OPEN SOURCE SOFTWARE NOTICE INFORMATION

3 EXTERNAL CONTROL DEVICE SETUP

4 SAFETY INSTRUCTIONS

10 - Viewing 3D Imaging (Only 3D models)

12 INSTALLATION PROCEDURE

12 ASSEMBLING AND PREPARING

12 Unpacking

15 Separate purchase

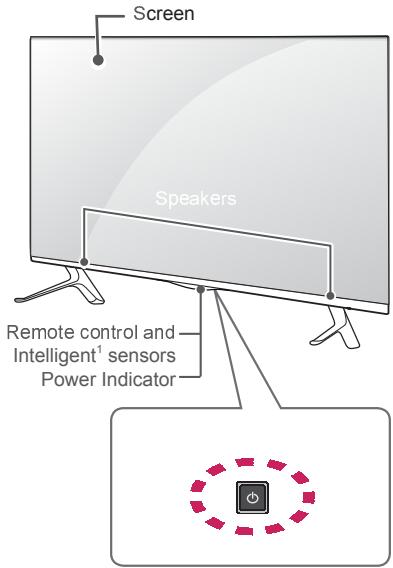

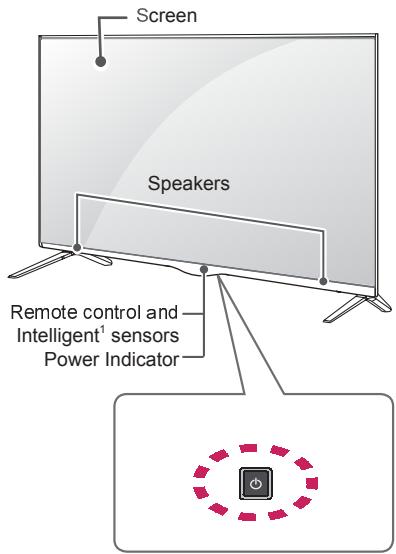

16 Parts and buttons

17 - Using the Joystick button

18 Lifting and moving the TV

19 Mounting on a table

20 Mounting on a wall

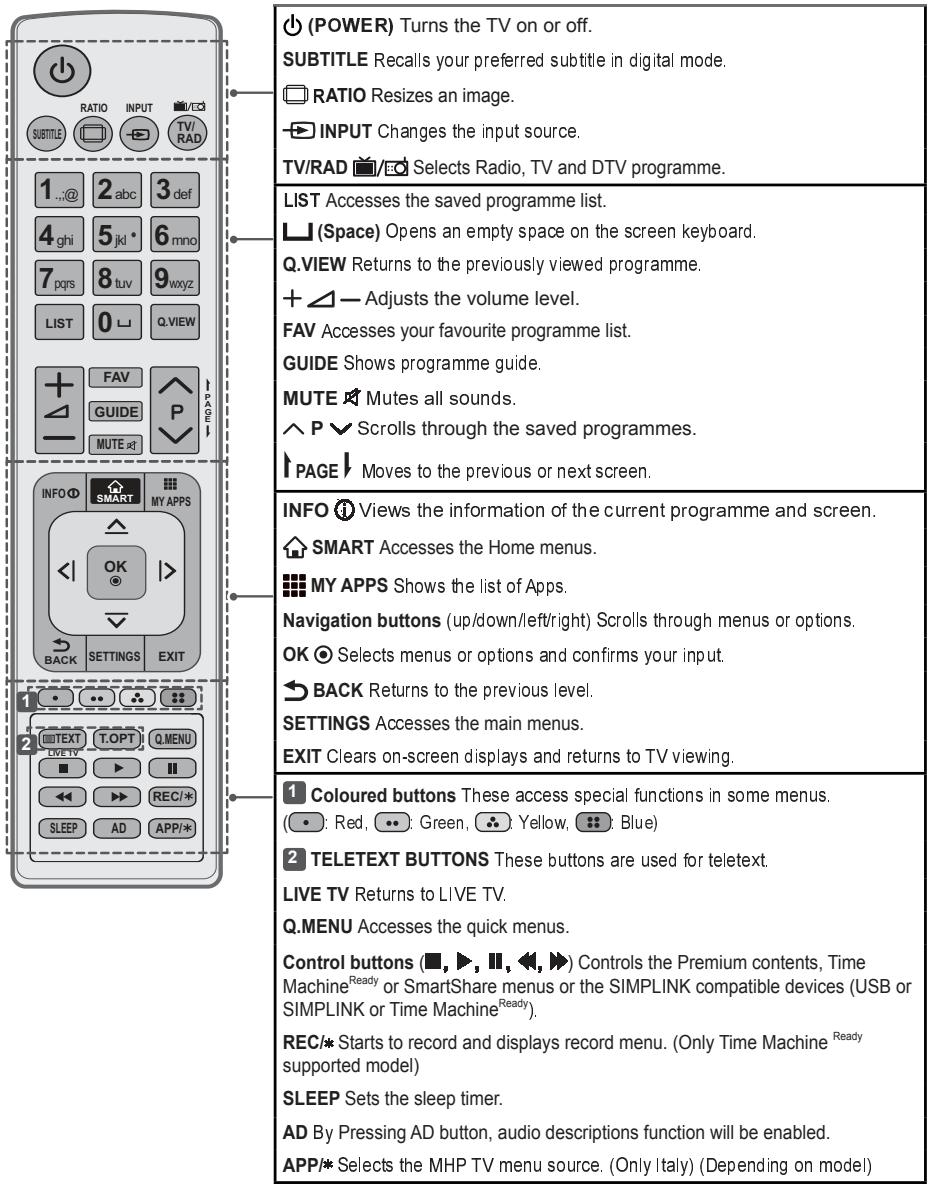

21 REMOTE CONTROL

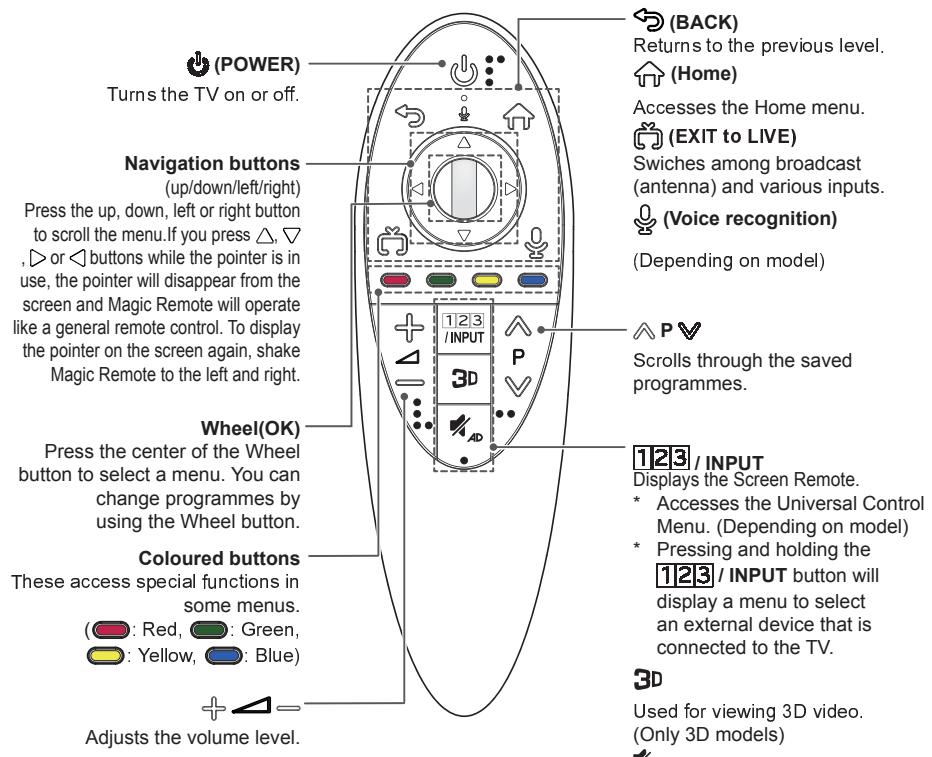

23 MAGIC REMOTE FUNCTIONS

24 Registering Magic Remote

24 How to use Magic Remote

25 Precautions to Take when Using the Magic Remote

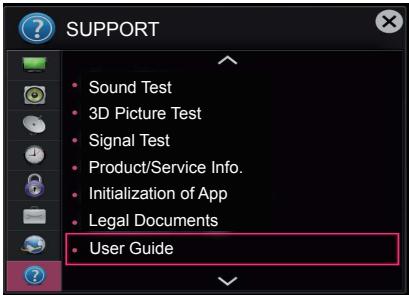

25 USING THE USER GUIDE

26 MAINTENANCE

26 Cleaning your TV

26 - Screen, frame, cabinet and stand

26 - Power cord

26 TROUBLESHOOTING

27 SPECIFICATIONS

WARNING

- If you ignore the warning message, you may be seriously injured or there is a possibility of accident or death.

CAUTION

- If you ignore the caution message, you may be slightly injured or the product may be damaged.

NOTE

- The note helps you understand and use the product safely. Please read the note carefully before using the product.

LICENSES

Supported licenses may differ by model. For more information about licenses, visit www.lg.com.

DOLBY DIGITAL PLUS

dts® 2.0+Digital Out

OPEN SOURCE SOFTWARE NOTICE INFORMATION

To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit http://opensource.lge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [e-mail]. This offer is valid for three (3) years from the date on which you purchased the product.

EXTERNAL CONTROL DEVICE SETUP

To obtain the external control device setup information, please visit www.lg.com.

SAFETY INSTRUCTIONS

Please read these safety precautions carefully before using the product.

- Do not place the TV and/or remote control in the following environments: - A location exposed to direct sunlight

• An area with high humidity such as a bathroom
• Near any heat source such as stoves and other devices that produce heat
• Near kitchen counters or humidifiers where they can easily be exposed to steam or oil
• An area exposed to rain or wind

Near containers of water such as vases

Otherwise, this may result in fire, electric shock, malfunction or product deformation.

- Do not place the product where it might be exposed to dust. This may cause a fire hazard.

- Mains Plug is the TV connecting/disconnecting device to AC mains electric supply. This plug must remain readily attached and operable when TV is in use.

- Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power plug completely or wipe dust off. You may be electrocuted due to excess moisture.

- Make sure to connect Mains cable to compliant AC mains socket with Grounded earth pin. (Except for devices which are not grounded on earth.) Otherwise possibility you may be electrocuted or injured.

- Ensure the power cord does not come into contact with hot objects such as a heater. This may cause a fire or an electric shock hazard.

- Do not place a heavy object, or the product itself, on power cables. Otherwise, this may result in fire or electric shock.

- Bend antenna cable between inside and outside building to prevent rain from flowing in. This may cause water damaged inside the Product and could give an electric shock.

	Do not plug too many electrical devices into a single multiple electrical outlet.Otherwise, this may result in fire due to over-heating.
	Do not drop the product or let it fall over when connecting external devices. Otherwise, this may result in injury or damage to the product.
	Keep the anti-moisture packing material or vinyl packing out of the reach of children.Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.
	Do not let your children climb or cling onto the TV.Otherwise, the TV may fall over, which may cause serious injury.
	Dispose of used batteries carefully to ensure that a small child does not consume them.Please seek Doctor- Medical Attention immediately if child consumes batteries.
	Do not insert any metal objects/conductors (like a metal chopstick/cutlery/ screwdriver) between power cable plug and input Wall Socket while it is connected to the input terminal on the wall. Additionally, do not touch the power cable right after plugging into the wall input terminal. You may be electrocuted. (Depending on model)
	Do not put or store inflammable substances near the product.There is a danger of combustion/explosion or fire due to careless handling of the inflammable substances.
	Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the product, or inflammable objects such as paper and matches.Children must pay particular attention.Electrical shock, fire or injury can occur. If a foreign object is dropped into the product, unplug the power cord and contact the service centre.
	Do not spray water on the product or scrub with an inflammable substance (thinner or benzene). Fire or electric shock accident can occur.
	Do not allow any impact, shock or any objects to fall into the unit, and do not drop anything onto the screen.You may be injured or the product can be damaged.
	Never touch this product or antenna during a thunder or lighting storm.You may be electrocuted.

- Never touch the wall outlet when there is leakage of gas, open the windows and ventilate. It may cause a fire or a burn by a spark.

- Unplug the TV from AC mains wall socket if you do not intend to use the TV for a long period of time. Accumulated dust can cause fire hazard and insulation deterioration can cause electric leakage/shock/fire.

- Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

- Do not install this product on a wall if it could be exposed to oil or oil mist. This may damage the product and cause it to fall.

- If water enters or comes into contact with TV, AC adapter or power cord please disconnect the power cord and contact service centre immediately. Otherwise, this may result in electric shock or fire.

- Only use an authorized AC adapter and power cord approved by LG Electronics. Otherwise, this may result in fire, electric shock, malfunction or product deformation.

- Never Disassemble the AC adapter or power cord. This may result in fire or electric shock.

CAUTION

Illustration of a wind farm with a smiling computer monitor and a cartoon house under wind, no text or symbols present.

• Install the product where no radio wave occurs.

- There should be enough distance between an outside antenna and power lines to keep the former from touching the latter even when the antenna falls. This may cause an electric shock.

- Do not install the product on places such as unstable shelves or inclined surfaces. Also avoid places where there is vibration or where the product cannot be fully supported. Otherwise, the product may fall or flip over, which may cause injury or damage to the product.

- If you install the TV on a stand, you need to take actions to prevent the product from overturning. Otherwise, the product may fall over, which may cause injury.

- If you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts) to the back of the product. When you install the set to use the wall mounting bracket (optional parts), fix it carefully so as not to drop.

- Only use the attachments / accessories specified by the manufacturer.

- When installing the antenna, consult with a qualified service technician. If not installed by a qualified technician, this may create a fire hazard or an electric shock hazard.

- We recommend that you maintain a distance of at least 2 to 7 times the diagonal screen size when watching TV. If you watch TV for a long period of time, this may cause blurred vision.

- Only use the specified type of battery. This could cause damage to the remote control.

- Do not mix new batteries with old batteries. This may cause the batteries to overheat and leak.

- Batteries should not be exposed to excessive heat. For example, keep away from direct Sunlight, open fireplace and electric heaters.

- Do not place non-rechargeable batteries in charging device.

- Make sure there are no objects between the remote control and its sensor.

- Signal from Remote Control can be interrupted due to external/internal lighting eg Sunlight, fluorescent lighting. If this occurs turn off lighting or darken viewing area.

- When connecting external devices such as video game consoles, make sure the connecting cables are long enough. Otherwise, the product may fall over, which may cause injury or damage the product.

- Do not turn the product On/Off by plugging-in or unplugging the power plug to the wall outlet. (Do not use the power plug for switch.) It may cause mechanical failure or could give an electric shock.

- Please follow the installation instructions below to prevent the product from overheating.

• The distance between the product and the wall should be more than 10 cm.
• Do not install the product in a place with no ventilation (e.g., on a bookshelf or in a cupboard).
• Do not install the product on a carpet or cushion.
• Make sure the air vent is not blocked by a tablecloth or curtain.

Otherwise, this may result in fire.

- Take care not to touch the ventilation openings when watching the TV for long periods as the ventilation openings may become hot. This does not affect the operation or performance of the product.

- Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.

- Prevent dust collecting on the power plug pins or outlet. This may cause a fire hazard.

- Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

- Do not press strongly upon the panel with a hand or sharp object such as nail, pencil or pen, or make a scratch on it, as it may cause damage to screen.

- When cleaning the product and its components, unplug the power first and wipe it with a soft cloth. Applying excessive force may cause scratches or discolouration. Do not spray with water or wipe with a wet cloth. Never use glass cleaner, car or industrial shiner, abrasives or wax, benzene, alcohol etc., which can damage the product and its panel. Otherwise, this may result in fire, electric shock or product damage (deformation, corrosion or breakage).

- As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn off this unit by SWITCH.

- When unplugging the cable, grab the plug and unplug it, by pulling at the plug. Don't pull at the cord to unplug the power cord from the power board, as this could be hazardous.

- When moving the product, make sure you turn the power off first. Then, unplug the power cables, antenna cables and all connecting cables. The TV set or power cord may be damaged, which may create a fire hazard or cause electric shock.

• When moving or unpacking the product, work in pairs because the product is heavy. Otherwise, this may result in injury.
• Contact the service centre once a year to clean the internal parts of the product. Accumulated dust can cause mechanical failure.
• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
• If the product feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is nothing wrong with product.

- The panel is a high technology display product with resolution of two million to six million pixels. You may see tiny black dots and/or brightly coloured dots (red, blue or green) at a size of 1 ppm on the panel. This does not indicate a malfunction and does not affect the performance and reliability of the product. This phenomenon also occurs in third-party products and is not subject to exchange or refund.

- You may find different brightness and color of the panel depending on your viewing position(left/right/top/down). This phenomenon occurs due to the characteristic of the panel. It is not related with the product performance, and it is not malfunction.

• Displaying a still image (e.g., broadcasting channel logo, on-screen menu, scene from a video game) for a prolonged time may cause damage to the screen, resulting in retention of the image, which is known as image sticking. The warranty does not cover the product for image sticking. Avoid displaying a fixed image on your television's screen for a prolonged period (2 or more hours for LCD, 1 or more hours for Plasma). Also, if you watch the TV at a ratio of 4:3 for a long time, image sticking may occur on the borders of the panel. This phenomenon also occurs in third-party products and is not subject to exchange or refund.
• Generated Sound
  “Cracking” noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to tempera-ture and humidity. This noise is common for products where thermal deformation is required. Electrical circuit humming/panel buzzing: A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depending on the product. This generated sound does not affect the performance and reliability of the product.
• Do not use high voltage electrical goods near the TV (e.g. electric mosquito-swatter). This may result in product malfunction.

Viewing 3D Imaging (Only 3D models)

Viewing Environment

Those that have a photosensitive seizure or chronic illness

Symptoms which require discontinuation or refraining from watching 3D contents

• Do not watch 3D contents when you feel fatigue from lack of sleep, overwork or drinking.
• When these symptoms are experienced, stop using/watching 3D contents and get enough rest until the symptom subsides.
• Consult your doctor when the symptoms persist. Symptoms may include headache, eyeball pain, dizziness, nausea, palpitation, blurriness, discomfort, double image, visual inconvenience or fatigue.

CAUTION

Viewing Environment

- Viewing Distance

- Maintain a distance of at least twice the screen diagonal length when watching 3D contents. If you feel discomfort in viewing 3D contents, move further away from the TV.

Viewing Age

- Infants/Children

• Usage/ Viewing 3D contents for children under the age of 6 are prohibited.
• Children under the age of 10 may overreact and become overly excited because their vision is in development (for example: trying to touch the screen or trying to jump into it. Special monitoring and extra attention is required for children watching 3D contents.
• Children have greater binocular disparity of 3D presentations than adults because the distance between the eyes is shorter than that of adults. Therefore they will perceive more stereoscopic depth compared to adults for the same 3D image.

- Teenagers

• Teenagers under the age of 19 may react with sensitivity due to stimulation from light in 3D contents. Advise them to refrain from watching 3D contents for a long time when they are tired.

- Elderly

- The elderly may perceive less 3D effect compared to the young. Do not sit closer to the TV than the recommended distance.

Cautions when using the 3D glasses

• Make sure to use LG 3D glasses. Otherwise, you may not be able to view 3D videos properly.
• Do not use 3D glasses instead of your normal glasses, sunglasses or protective goggles.
  • Using modified 3D glasses may cause eye strain or image distortion.
• Do not keep your 3D glasses in extremely high or low temperatures. It will cause deformation.
• The 3D glasses are fragile and are easily scratched. Always use a soft, clean piece of cloth when wiping the lenses. Do not scratch the lenses of the 3D glasses with sharp objects or clean/wipe them with chemicals.

CAUTION

• Do not use any unapproved items to ensure the safety and product life span.
• Any damage or injuries caused by using unapproved items are not covered by the warranty.
• Some models have a thin film attached on to the screen and this must not be removed.

^* A ≤ 10 mm

*B ≤ 18 mm

• Use a certified cable with the HDMI logo attached.
• If you do not use a certified HDMI cable, the screen may not display or a connection error may occur. (Recommended HDMI Cable Types)
• High-Speed HDMI ^® / ^TM cable (3 m or less)
• High-Speed HDMI ^® / ^TM cable with Ethernet (3 m or less)

Remote Control, Batteries (AAA)

(Depending on model) The remote control will not be included for all sales market. (See p. 21, 22)

Magic Remote, Batteries (AA) (Only UB80**, UB82**, UB83**, UF695*) (See p. 23)

Owner's Manual

Power Cord

Cinema 3D Glasses The number of 3D glasses may differ depending on the model or country. (Only UB83**)

Cable Holder (See p. A-5)

Stand Body / Stand Base (Only UB83**-ZB) (See p. A-4)

Stand Base (Only UB83**-ZG, UF695*-ZA) (See p. A-3)

Cable Managements 2 EA (Depending on model) (See p. A-5)

Stand Base

(Only UB80**, UB82**,

UF695*-ZB)

(See p. A-3)

How to use the ferrite core (Depending on model)

- Use the ferrite core to reduce the electromagnetic interference in the LAN cable. Wind the LAN cable once on the ferrite core. Place the ferrite core close to the TV.

[Cross Section of Ferrite Core]

[to the TV]

Ferrite core

[to an External device]

Separate purchase

Separate purchase items can be changed or modified for quality improvement without any notification.

Contact your dealer to buy these items.

These devices only work with certain models.

AG-F***DP

Dual Play Glasses

AG-F***

Cinema 3D Glasses

AN-MR500

Magic Remote

AN-VC5**

Video Call Camera

LG Audio Device

Compatibility	UB80**UB82**UF695*	UB83**
AG-F***DPDual Play Glasses		•
AG-F***Cinema 3D Glasses		•
AN-MR500Magic Remote	•	•
AN-VC5**Video Call Camera	•	•
LG Audio Device	•	•

The model name or design may be changed depending on the upgrade of product functions, manufacturer's circumstances or policies.

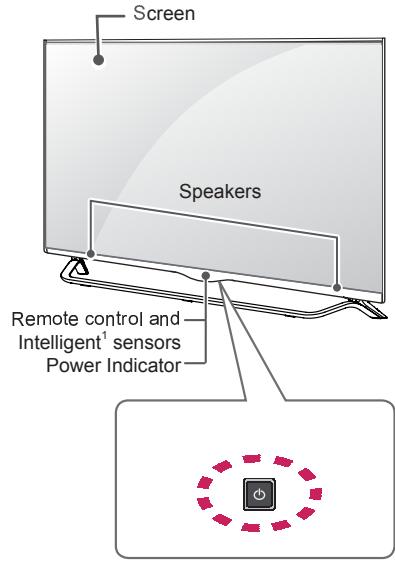

Parts and buttons

A type : UB83**-ZB

Screen Speakers Remote control and Intelligent¹ sensors Power Indicator

C type : UB83**-ZG, UF695*-ZA

Screen Speakers Remote control and Intelligent¹ sensors Power Indicator

B type : UB80**, UB82**, UF695*-ZB

Screen Speakers Remote control and Intelligent¹ sensors Power Indicator

Basic Functions

	Power On	When the TV is turned off, place your finger on the joystick button and press it once and release it.
	Power Off	When the TV is turned on, place your finger on the joystick button and press it once for a few seconds and release it.(However, if the Menu button is on the screen, pressing and holding the joystick button will let you exit the Menu.)
	Volume Control	If you place your finger over the joystick button and move it left or right, you can adjust the volume level you want.
	Programmes Control	If you place your finger over the joystick button and move it up or down, you can scrolls through the saved programmes you want.

Adjusting the Menu
/ (●) moving the joystick button up, down, left or right.

		TV off	Turns the power off.
		Input List	Changes the input source.

Lifting and moving the TV

Please note the following advice to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

CAUTION

• Avoid touching the screen at all times, as this may result in damage to the screen.
• It is recommended to move the TV in the box or packing material that the TV originally came in.
• Before moving or lifting the TV, disconnect the power cord and all cables.
• When holding the TV, the screen should face away from you to avoid damage.

Prohibition sign showing a person holding a TV with a diagonal line (no text or symbols)

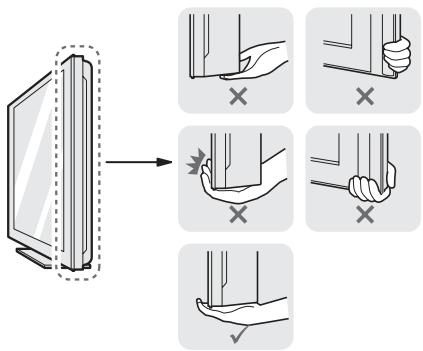

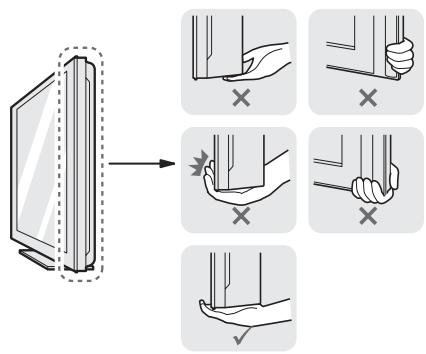

- Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grill area.

Diagram illustrating how to adjust or remove a screen, showing step-by-step states of hand positioning and confirmation.

• When transporting a large TV, there should be at least 2 people.
• When transporting the TV by hand, hold the TV as shown in the following illustration.

Silhouette of two people holding a large screen with a computer monitor (no text or symbols visible)

• When transporting the TV, do not expose the TV to jolts or excessive vibration.
• When transporting the TV, keep the TV upright, never turn the TV on its side or tilt towards the left or right.
• Do not apply excessive pressure to cause flexing / bending of frame chassis as it may damage screen.
• When handling the TV, be careful not to damage the protruding joystick button.

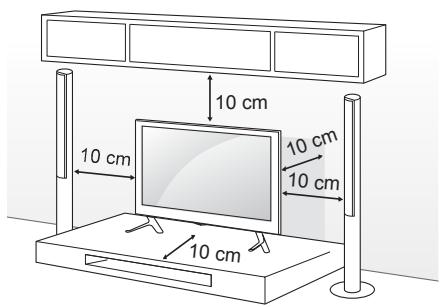

10 cm 10 cm 10 cm 10 cm 10 cm

2 Connect the power cord to a wall outlet.

CAUTION

- Do not place the TV near or on sources of heat, as this may result in fire or other damage.

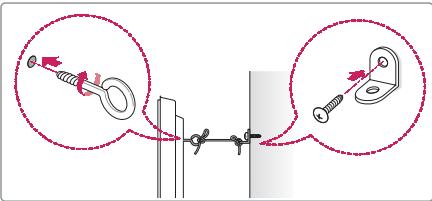

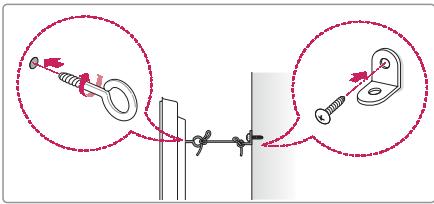

Securing the TV to a wall

(This feature is not available for all models.)

Diagram illustrating cable clamp installation with magnified views showing pin and hook components

1 Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV.
- If there are bolts inserted at the eye-bolts position, remove the bolts first.
2 Mount the wall brackets with the bolts to the wall.
Match the location of the wall bracket and the eye-bolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets tightly with a sturdy rope.

Make sure to keep the rope horizontal with the flat surface.

CAUTION

- Make sure that children do not climb on or hang on the TV.

Mounting on a wall

Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the floor. When you attach the TV to other building materials, please contact qualified personnel. LG recommends that wall mounting be performed by a qualified professional installer. We recommend the use of LG's wall mount bracket.

When you do not use LG's wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices.

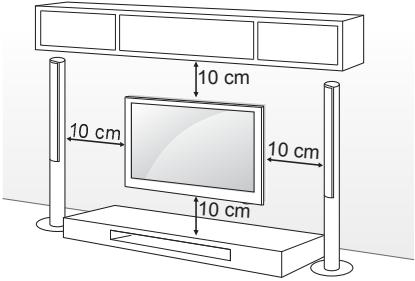

10 cm 10 cm 10 cm 10 cm

Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table.

Separate purchase(Wall Mounting Bracket)

Model	49/55UB83**	42UB82**
	49/55UB82**	40UB80**
	49/55UF695*	40UF695*
VESA (A x B)	400 x 400	200 x 200
Standard screw	M6	M6
Number of screws	4	4
Wall mount bracket	LSW440B	LSW240B
	MSW240	MSW240
Model	60UF695*
VESA (A x B)	400 x 400
Standard screw	M6
Number of screws	4
Wall mount bracket	LSW440B

Wall mount bracket
MSW240	LSW240B	LSW440B

A B

CAUTION

• Disconnect the power first, and then move or install the TV. Otherwise electric shock may occur.
• If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury. Use an authorised LG wall mount and contact the local dealer or qualified personnel.
• Do not over tighten the screws as this may cause damage to the TV and void your warranty.
• Use the screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty.

REMOTE CONTROL

The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly.

To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the and ends to the label inside the compartment, and close the battery cover. To remove the batteries, perform the installation actions in reverse.

CAUTION

• Do not mix old and new batteries, as this may damage the remote control.
• The remote control will not be included for all sales market.

Make sure to point the remote control toward the remote control sensor on the TV. (Depending on model)

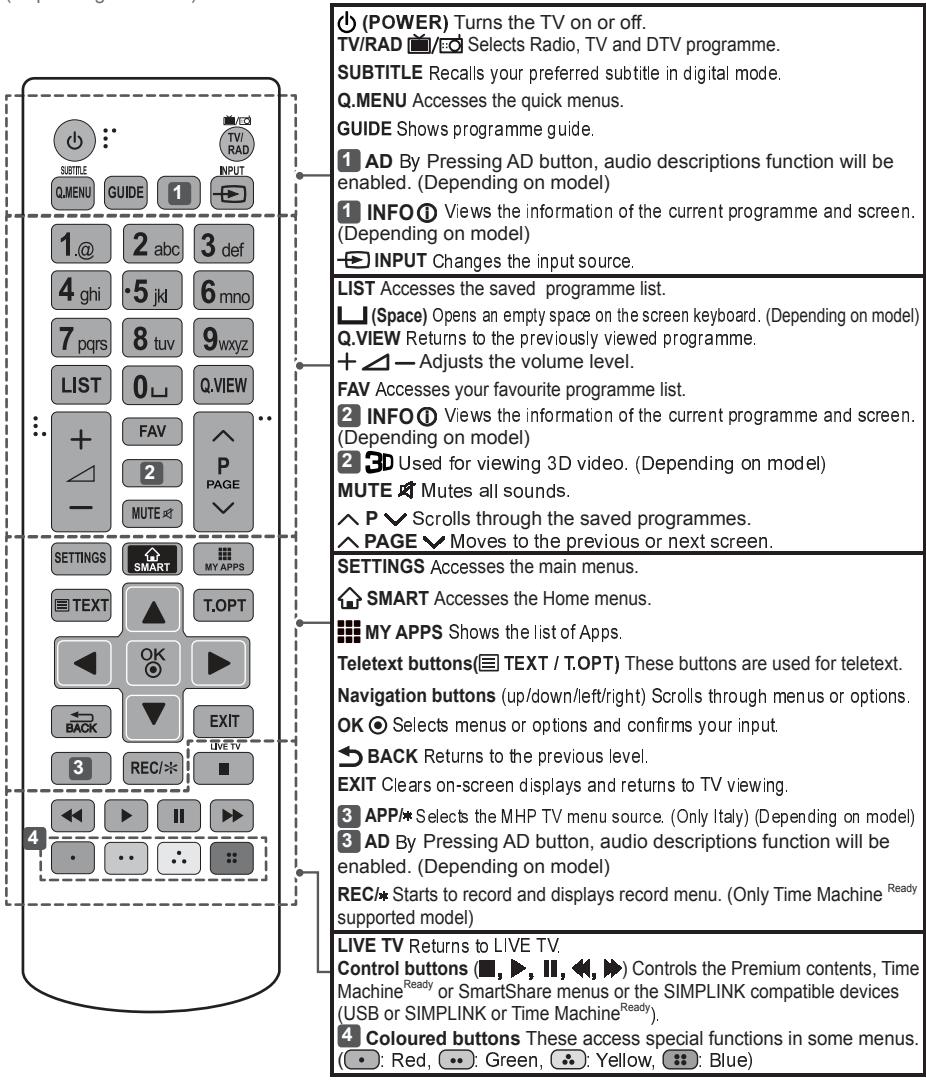

(POWER) Turns the TV on or off. TV/RAD 📁/EO Selects Radio, TV and DTV programme. SUBTITLE Recalls your preferred subtitle in digital mode. Q.MENU Accesses the quick menus. GUIDE Shows programme guide. 1 AD By Pressing AD button, audio descriptions function will be enabled. (Depending on model) 1 INFO 🎉 Views the information of the current programme and screen. (Depending on model) → INPUT Changes the input source. LIST Accesses the saved programme list. □ (Space) Opens an empty space on the screen keyboard. (Depending on model) Q.VIEW Returns to the previously viewed programme. + △ — Adjusts the volume level. FAV Accesses your favourite programme list. 2 INFO 🎉 Views the information of the current programme and screen. (Depending on model) 2 3D Used for viewing 3D video. (Depending on model) MUTE ⚫ Mutes all sounds. ^ P ∨ Scrolls through the saved programmes. ^ PAGE ∨ Moves to the previous or next screen. SETTINGS Accesses the main menus. ↑ SMART Accesses the Home menus. ■ MY APPS Shows the list of Apps. Teletext buttons(¶ TEXT / T.OPT) These buttons are used for teletext. Navigation buttons (up/down/left/right) Scrolls through menus or options. OK ⚙ Selects menus or options and confirms your input. → BACK Returns to the previous level. EXIT Clears on-screen displays and returns to TV viewing. 3 APP/★ Selects the MHP TV menu source. (Only Italy) (Depending on model) 3 AD By Pressing AD button, audio descriptions function will be enabled. (Depending on model) REC/★ Starts to record and displays record menu. (Only Time Machine Ready supported model) LIVE TV Returns to LIVE TV. Control buttons (■, ▶, □, ◀, ▶) Controls the Premium contents, Time Machine Ready or SmartShare menus or the SIMPLINK compatible devices (USB or SIMPLINK or Time Machine Ready). 4 Coloured buttons These access special functions in some menus. (●: Red, ●: Green, ●: Yellow, ●: Blue)

(POWER) Turns the TV on or off. TV/RAD Selects Radio, TV and DTV programme. SUBTITLE Recalls your preferred subtitle in digital mode. Q.MENU Accesses the quick menus. GUIDE Shows programme guide. 1 AD By Pressing AD button, audio descriptions function will be enabled. (Depending on model) 1 INFO Views the information of the current programme and screen. (Depending on model) → INPUT Changes the input source.

LIST Accesses the saved programme list. □(Space) Opens an empty space on the screen keyboard. (Depending on model) Q.VIEW Returns to the previously viewed programme. + △—Adjusts the volume level. FAV Accesses your favourite programme list. 2 INFO Views the information of the current programme and screen. (Depending on model) 2 3D Used for viewing 3D video. (Depending on model) MUTE Mutes all sounds. ^ P √ Scrolls through the saved programmes. ^ PAGE √ Moves to the previous or next screen.

SETTINGS Accesses the main menus. ↑ SMART Accesses the Home menus. ■MY APPS Shows the list of Apps. Teletext buttons(≡ TEXT / T.OPT) These buttons are used for teletext. Navigation buttons (up/down/left/right) Scrolls through menus or options. OK Selects menus or options and confirms your input. → BACK Returns to the previous level. EXIT Clears on-screen displays and returns to TV viewing. 3 APP/Selects the MHP TV menu source. (Only Italy) (Depending on model) 3 AD By Pressing AD button, audio descriptions function will be enabled. (Depending on model) REC/Starts to record and displays record menu. (Only Time Machine Ready supported model)

LIVE TV Returns to LIVE TV. Control buttons □, ▶, □, ◀, ◀, ▶ Controls the Premium contents, Time Machine Ready or SmartShare menus or the SIMPLINK compatible devices (USB or SIMPLINK or Time Machine Ready). 4 Coloured buttons These access special functions in some menus. (●: Red, ●: Green, ●: Yellow, ●: Blue)

(Depending on model)

(POWER) Turns the TV on or off. SUBTITLE Recalls your preferred subtitle in digital mode. RATIO Resizes an image. INPUT Changes the input source. TV/RAD Selects Radio, TV and DTV programme. LIST Accesses the saved programme list. (Space) Opens an empty space on the screen keyboard. Q.VIEW Returns to the previously viewed programme. + △ — Adjusts the volume level. FAV Accesses your favourite programme list. GUIDE Shows programme guide. MUTE Mutes all sounds. ^ P Scrolls through the saved programmes. PAGE Moves to the previous or next screen. INFO Views the information of the current programme and screen. SMART Accesses the Home menus. MY APPS Shows the list of Apps. Navigation buttons (up/down/left/right) Scrolls through menus or options. OK Selects menus or options and confirms your input. BACK Returns to the previous level. SETTINGS Accesses the main menus. EXIT Clears on-screen displays and returns to TV viewing. 1 Coloured buttons These access special functions in some menus. (●: Red, ⬆: Green, ⬆: Yellow, ⬆: Blue) 2 TELETEXT BUTTONS These buttons are used for teletext. LIVE TV Returns to LIVE TV. Q.MENU Accesses the quick menus. Control buttons (■, ▶, ■, ◀, ▶) Controls the Premium contents, Time MachineReady or SmartShare menus or the SIMPLINK compatible devices (USB or SIMPLINK or Time MachineReady). REC/* Starts to record and displays record menu. (Only Time Machine Ready supported model) SLEEP Sets the sleep timer. AD By Pressing AD button, audio descriptions function will be enabled. APP/* Selects the MHP TV menu source. (Only Italy) (Depending on model)

MAGIC REMOTE FUNCTIONS

This item is not included for all models.

When the message "Magic Remote battery is low. Change the battery." is displayed, replace the battery.

To replace batteries, open the battery cover, replace batteries (1.5 V AA) matching + and - ends to the label inside the compartment, and close the battery cover. Be sure to point the remote control toward the remote control sensor on the TV.

To remove the batteries, perform the installation actions in reverse.

CAUTION

- Do not mix old and new batteries, as this may damage the remote control.

(Only UB80**, UB82**, UB83**, UF695*)

(POWER) Turns the TV on or off. Navigation buttons (up/down/left/right) Press the up, down, left or right button to scroll the menu. If you press △, ▽ , ▷ or ◀ buttons while the pointer is in use, the pointer will disappear from the screen and Magic Remote will operate like a general remote control. To display the pointer on the screen again, shake Magic Remote to the left and right. Wheel(OK) Press the center of the Wheel button to select a menu. You can change programmes by using the Wheel button. Coloured buttons These access special functions in some menus. (●: Red, ●: Green, ○: Yellow, ○: Blue) Adjusts the volume level. (BACK) Returns to the previous level. (Home) Accesses the Home menu. (EXIT to LIVE) Switches among broadcast (antenna) and various inputs. (Voice recognition) (Depending on model) P √ Scrolls through the saved programmes. 123 / INPUT Displays the Screen Remote. * Accesses the Universal Control Menu. (Depending on model) * Pressing and holding the 123 / INPUT button will display a menu to select an external device that is connected to the TV. 3D Used for viewing 3D video. (Only 3D models)

Voice recognition(Depending on model)

Network connection is required to use the voice recognition function.

1. Press the Voice recognition button.
2. Speak when the voice display window appears on the left of the TV screen.
3. The voice recognition may fail when you speak too fast or too slow.
4. Use the Magic Remote no further than 10 cm from your face.
5. The recognition rate may vary depending on the user's characteristics (voice, pronunciation, intonation and speed) and the environment (noise and TV volume).

Registering Magic Remote

How to register the Magic Remote

(Wheel)

To use the Magic Remote, first pair it with your TV.

1 Put batteries into the Magic Remote and turn the TV on.
2 Point the Magic Remote at your TV and press the Ⓐ Wheel (OK) on the remote control.

» If the TV fails to register the Magic Remote, try again after turning the TV off and back on.

How to deregister the Magic Remote

Press the ➕ (BACK) and ➗ (Home) buttons at the same time, for five seconds, to unpair the Magic Remote with your TV.

» Pressing and holding the (EXIT to LIVE) button will let you cancel and re-register Magic Remote at once.

How to use Magic Remote

• Shake the Magic Remote slightly to the right and left or press ⬇ (Home), 123 / INPUT, 3D buttons to make the pointer appear on the screen.
  » The pointer will appear when you turn the Wheel button. (Depending on model)
• If the pointer has not been used for a certain period of time or Magic Remote is placed on a flat surface, then the pointer will disappear.
• If the pointer is not responding smoothly, you can reset the pointer by moving it to the edge of the screen.
• The Magic Remote depletes batteries faster than a normal remote due to the additional features.

USING THE USER GUIDE

User Guide allows you to more easily access the detailed TV information.

1 Press the ⏻ (Home) button to access the Home menu.
2 Select SETTINGS → SUPPORT.
3 Select User Guide and press Wheel(OK).

SUPPORT • Sound Test • 3D Picture Test • Signal Test • Product/Service Info. • Initialization of App • Legal Documents • User Guide

MAINTENANCE

Cleaning your TV

Clean your TV regularly to keep the best performance and to extend the product lifespan.

CAUTION

• Make sure to turn the power off and disconnect the power cord and all other cables first.
• When the TV is left unattended and unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges.

Screen, frame, cabinet and stand

• To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.
• To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then wipe immediately with a dry cloth.

CAUTION

• Avoid touching the screen at all times, as this may result in damage to the screen.
• Do not push, rub, or hit the screen surface with your fingernail or a sharp object, as this may result in scratches and image distortions.
• Do not use any chemicals as this may damage the product.
• Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction.

Power cord

Remove the accumulated dust or dirt on the power cord regularly.

TROUBLESHOOTING

Cannot control the TV with the remote control.	Check the remote control sensor on the product and try again.Check if there is any obstacle between the product and the remote control.Check if the batteries are still working and properly installed (⊕ to ⏻ to ⏻).
No image display and no sound is produced.	Check if the product is turned on.Check if the power cord is connected to a wall outlet.Check if there is a problem in the wall outlet by connecting other products.
The TV turns off suddenly.	Check the power control settings. The power supply may be interrupted.Check if the Automatic Standby (Depending on model) / Sleep Timer / Off Time is activated in the TIME settings.If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes of inactivity.
When connecting to the PC (HDMI/ DVI), ‘No signal’ or ‘Invalid Format’ is displayed.	Turn the TV off/on using the remote control.Reconnect the HDMI cable.Restart the PC with the TV on.

SPECIFICATIONS

Wireless module (LGSBW41) specification
Wireless LAN		Bluetooth
Standard		Standard
Frequency Range		Frequency Range
Output Power(Max.)		Output Power(Max.)
Because band channel used by the country could be different, the user can not change or adjust the operating frequency and this product is set for the regional frequency table.This device should be installed and operated with minimum distance 20 cm between the device and your body. And this phrase is for the general statement for consideration of user environment.C€0197!

LG

Life's Good

BENUTZERHANDBUCH

LED TV\*

3 INFORMATION: HINWEIS BEZÜGLICH OPEN-SOURCE-SOFTWARE

INFORMATION: HINWEIS BEZÜGLICH OPEN- SOURCE-SOFTWARE

Illustration showing four different behaviors of a device: alarm, shock, crying, and reacting with a computer screen.

Illustration of two scenes: a smiling house with wind turbines and a smiling house with a wind turbine, both without any text or symbols.

Illustration showing electrical connections with a plug and a magnified view of the socket, likely illustrating electrical wiring or circuitry.

Prohibition sign showing a person holding a computer monitor, crossed out by a diagonal line (no text or symbols)

Diagram illustrating a hand holding a device with a magnified view showing the impact of a tool on the screen.

Silhouette of two people holding a large screen with a computer monitor (no text or symbols visible)

Diagram showing two mechanical clamping setups with magnified views of the hook and spring components

Four-panel cartoon showing a device, a car crash, a child reacting to a phone, and a computer with a sad face.

Illustration of a smart home with a smiling computer monitor and a wind turbine, connected to an air fan (no text or symbols)

Illustration showing two hands performing electrical circuitry: one with a plug and spark, the other with a plug and plug connected to a wire.

Prohibition sign showing a person holding a computer monitor, crossed out by a diagonal line (no text or symbols)

Diagram illustrating hand positioning and stress application on a screen, with labeled correct and incorrect states.

Silhouette of two people holding a large screen with a computer monitor (no text or symbols visible)

Diagram showing two mechanical clamping setups with rope and hook components, one with magnified detail view

Support mural
MSW240	LSW240B	LSW440B

A B

ATTENTION

Illustration showing wind farm and household with solar panels, wind turbines, and a smiling computer screen.

Illustration showing two different electrical installation methods: one using a remote control device and the other with hands using a tool (no text or symbols present)

Prohibition sign showing a person holding a TV with a diagonal line (no text or symbols)

Diagram illustrating how to change a screen with hand gestures, showing step-by-step states of action.

Silhouette of two people holding a large rectangular device with monitor and tower (no text or symbols)

Diagram showing two mechanical components with arrows indicating motion, one mounted on a vertical pole and the other attached to a bracket.

RATIO INPUT T/RAD 1 ..@ 2 abc 3 def 4 ghi 5 jkl 6 mno 7 pqrs 8 tuv 9 wxyz LIST 0 □ Q.VIEW + FAV GUIDE P MUTE INFO SMART MY APPS OK BACK SETTINGS EXIT 1 TEXT T.OPT Q.MENU Live TV ▶ ▶ ▶ ▶ ← ▶ ▶ REC/* SLEEP AD APP/

Illustration of a wind farm with a smiling computer monitor and a house, showing wind turbines and a wind turbine (no text or symbols)

(Solo UB80**, UB82**,

UF695*-ZB)

Prohibition sign showing a person holding a computer monitor, crossed out by a diagonal line (no text or symbols)

Diagram illustrating hand positioning and stress application on a screen, with numbered steps to check or press.

Silhouette of two people holding a large screen with a computer monitor (no text or symbols visible)

Diagram showing two mechanical clamping setups with magnified views of the hook and spring components

Illustration of a wind farm with a smiling computer monitor and a smiling house under wind, no text or symbols present.

Prohibition sign showing a person holding a computer monitor, crossed out by a diagonal line (no text or symbols)

Silhouette of two people holding a large screen with a computer monitor (no text or symbols visible)

Diagram illustrating hand positioning and tool application steps, showing selection of a screen with cross icons.

Montar numa mesa

Simple line drawing of a rectangular frame with three small circles and two side clips, no text or symbols present.

Diagram showing two mechanical clamping setups with magnified views of the hook and spring components

Blank white image with no visible content, text, or symbols

Registar o controlo remoto Magic

Three cartoon illustrations showing different behaviors: a hand holding a phone, a sad face on a computer monitor, and a surprised computer with a phone (no text or symbols present)

Illustration of a wind farm with a smiling computer monitor and a house, connected to a power line (no text or symbols)

Illustration showing three different electrical circuit scenarios: a mouse, an electrical plug, and a computer monitor with a sad face.

Ferrietkern

Prohibition sign showing a person holding a computer monitor, crossed out by a diagonal line (no text or symbols)

Silhouette illustration of two people holding a large screen with a computer monitor (no text or symbols)

Diagram illustrating hand positioning and tool application steps, showing selection of a device from left to right with checkmark indicators.

Diagram illustrating cable clamp installation with magnified views showing pin and mounting bracket details

Illustration of a smart home with a smiling computer, wind turbines, and a house emitting smoke (no text or symbols)

Illustration of two electrical circuitry steps: one showing a plug and cable, the other showing a hand holding wires (no text or symbols)

Pure electrical circuit lines without any symbols

Prohibition sign showing a person holding a TV with a diagonal line (no text or symbols)

Silhouette of two people holding a large screen with a computer monitor (no text or symbols visible)

Diagram illustrating hand positioning and selection of a device, showing step-by-step instructions for selecting or adjusting the device.

10 εK. 10 εK. 10 εK. 10 εK.

Simple line drawing of a rectangular frame with three small circles and two side connectors (no text or symbols)

Diagram illustrating cable mounting technique with magnified insets showing pin installation and mounting details

10 εK. 10 εK. 10 εK. 10 εK.

Blank white image with no visible content, text, or symbols

Illustration of a smart home with a smiling TV and a smiling house, connected to a power line (no text or symbols)

Illustration showing two steps of electrical installation: one with a plug and sparkles, the other with hands holding wires and a socket.

Prohibition sign showing a person holding a TV with a diagonal line crossing through it (no text or symbols)

- Trdno ga držite za spodnji in zgornji del okvira. Pazite, da ga ne boste držali za prozorne dele, zvočnike ali njihove rešetke.

SLOVENŠČINA

Diagram illustrating hand positioning and tool application steps, showing selection of a component with X marks and checkmark.

Silhouette illustration of two people holding a large screen with a computer monitor (no text or symbols)

Diagram illustrating cable clamp installation with magnified views showing pin and hook components

Product specifications may be changed without prior notice due to upgrade of product functions.

MODELS		42UB82**	49UB82**
		42UB820V-ZG42UB820V-ZH	49UB820V-ZG49UB820V-ZH
Dimensions(W x H x D)	With stand (mm)	951 x 604 x 218	1093 x 684 x 248
	Without stand (mm)	951 x 569 x 37.3	1093 x 646 x 38.2
Weight	With stand (kg)	11.8	18
	Without stand (kg)	11.5	17.5
Power requirement		AC 100-240 V ~ 50/60 Hz	AC 100-240 V ~ 50/60 Hz
Power consumption		120 W	180 W
MODELS		55UB82**	40UB80**
		55UB820V-ZG55UB820V-ZH	40UB800V-ZA
Dimensions(W x H x D)	With stand (mm)	1233 x 766 x 248	900 x 568 x 217
	Without stand (mm)	1233 x 727 x 37.8	900 x 529 x 48.0
Weight	With stand (kg)	21	10.9
	Without stand (kg)	20.5	10.6
Power requirement		AC 100-240 V ~ 50/60 Hz	AC 100-240 V ~ 50/60 Hz
Power consumption		190 W	100 W
MODELS		49UB83**
		49UB830V-ZB	49UB830V-ZG49UB836V-ZG
Dimensions(W x H x D)	With stand (mm)	1093 x 689 x 242	1093 x 684 x 248
	Without stand (mm)	1093 x 646 x 38.2	1093 x 646 x 38.2
Weight	With stand (kg)	18.2	18
	Without stand (kg)	17.5	17.5
Power requirement		AC 100-240 V ~ 50/60 Hz	AC 100-240 V ~ 50/60 Hz
Power consumption		180 W	180 W

MODELS		55UB83**
		55UB830V-ZB	55UB830V-ZG55UB836V-ZG
Dimensions(W x H x D)	With stand (mm)	1233 x 766 x 260	1233 x 766 x 248
	Without stand (mm)	1233 x 727 x 37.8	1233 x 727 x 37.8
Weight	With stand (kg)	21.2	21
	Without stand (kg)	20.5	20.5
Power requirement		AC 100-240 V ~ 50/60 Hz	AC 100-240 V ~ 50/60 Hz
Power consumption		190 W	190 W
MODELS		49UF695*	55UF695*
		49UF695V-ZA49UF6959-ZA	55UF695V-ZA55UF6959-ZA
Dimensions(W x H x D)	With stand (mm)	1093 x 684 x 248	1233 x 766 x 248
	Without stand (mm)	1093 x 646 x 38.2	1233 x 727 x 37.8
Weight	With stand (kg)	18	21
	Without stand (kg)	17.5	20.5
Power requirement		AC 100-240 V ~ 50/60 Hz	AC 100-240 V ~ 50/60 Hz
Power consumption		180 W	190 W
MODELS		60UF695*	40UF695*
		60UF695V-ZA60UF6959-ZA	40UF695V-ZB40UF6959-ZB
Dimensions(W x H x D)	With stand (mm)	1341 x 836 x 271	900 x 568 x 217
	Without stand (mm)	1341 x 788 x 39.1	900 x 529 x 48
Weight	With stand (kg)	26.5	10.9
	Without stand (kg)	25.8	10.6
Power requirement		AC 100-240 V ~ 50/60 Hz	AC 100-240 V ~ 50/60 Hz
Power consumption		200 W	100 W

		100.0 mm x 55.0 mm x 5.0 mm
		0 °C to 40 °C
		Less than 80 %
		-20 °C to 60 °C
		Less than 85 %

	Digital TV	Analogue TV
	DVB-T/T2DVB-CDVB-S/S2	PAL/SECAM B/G/I/D/KSECAM L/L’
Programme coverage	VHF, UHFC-Band, Ku-Band	VHF: E2 to E12, UHF : E21to E69, CATV: S1 to S20,HYPER: S21 to S47
Maximum number ofstorable programmes	DVB-S/S2 : 6,000DVB-T/T2/C & Analogue TV : 1,500
External antenna impedance	75 Ω

LG

Life's Good

Please contact LG First.

If you have any inquiries or comments,

please contact LG customer information centre.

LG Customer Information Centre

Country	LG Service	Country	LG Service
Österreich	0 810 144 131	Nederland	0900 543 5454
België	015 200 255	Norge	800 187 40
Luxembourg	0032 15 200255	Polska	801 54 54 54
България	07001 54 54	Portugal	808 78 54 54
Česká Rep.	810 555 810	România	031 228 3542
Danmark	8088 5758	Slovensko	0850 111 154
Suomi	0800 0 54 54	España	963 05 05 00
France	3220 dites LG ou tapez 54	Sverige	0770 54 54 54
Deutschland	01806 11 54 11(0,20€ pro Anrufaus dem Festnetz der DTAG; Mobilfunk: max.0,60€ pro Anruf.)	Schweiz	0848 543 543
Еллáðа	801 11 200 900,210 4800 564	United Kingdom	0344 847 5454
		Россия	8 800 200 7676
Magyarország	06 40 54 54 54	Eesti	800 9990
Éire	01 686 9454	Украина	0 800 303 000
Italia	199600099	Казахстан	8 8000 805 805,2255(GSM)
Беларусь	8 820 0071 1111
Latvija	80200201	Узбекистан	8 800 120 2222
Lietuva	880008081	Кыргызстан	0-800-805-8050
Türkiye	444 6 543	Slovenija	080 543 543

www.lg.com

Record the model number and serial number of the TV.

Refer to the label on the back cover and quote this information to your dealer when requiring any service.

MODEL

SERIAL

Digital Video

Broadcasting
