USER MANUAL Libra 26800 Mellerware

mellerware® makes life easier

LIBRA

microwave

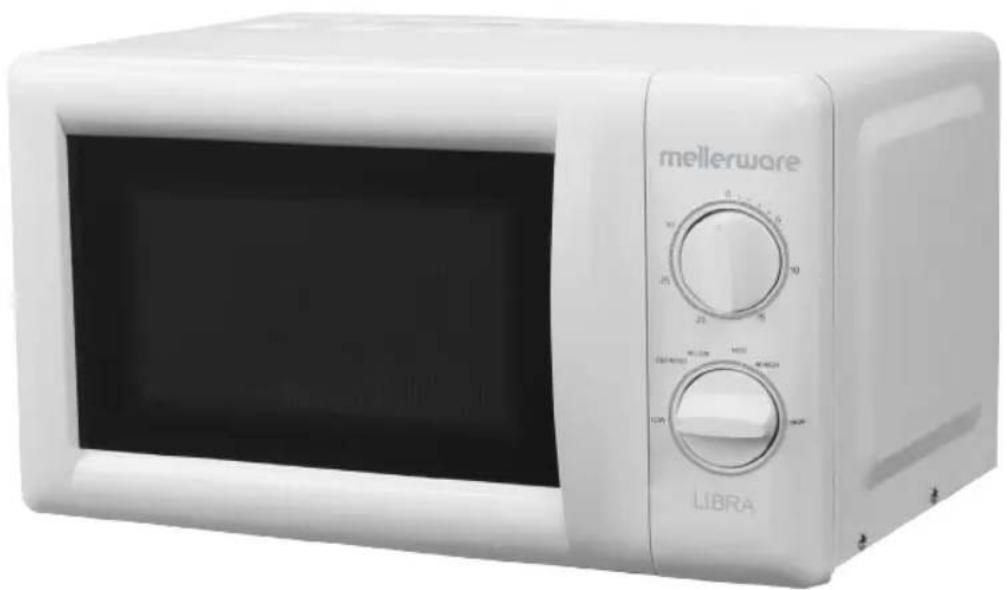

White mellerware microwave oven with control knobs and display screen (no visible text or symbols on main body)

6 Power settings

30 Minute timer

20L Capacity

2YEAR WARRANTY 1 YEAR RETAIL+1 YEAR EXTENDED Register Online: www.mellerware.co.za

complies with INTERNATIONS

INTERNATIONAL

TEC60335

SAFETY SPECIFICATIONS

700W

2 YEAR

WARRANTY

Model:

26800

Dear customer,

Thank you for choosing to purchase a Mellerware brand product. Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

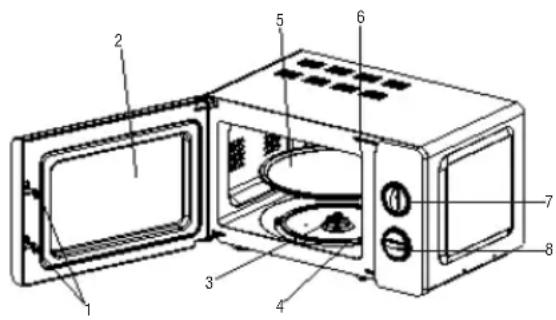

Labeled diagram of a microwave oven showing interior components and casing parts

1. Parts description:

1. Door lock
2. Viewing window
3. Rotating axis
4. Rotating ring
5. Glass turntable
6. Waveguide cover
7. Timer dial
8. Power dial

2. Safety advice and warnings!

Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident. Clean all the parts of the product that will be in contact with food, as indicated in the cleaning section, before use.

2.1. Use or working environment:

2.1.1. Keep the working area clean and well lit. Cluttered and dark areas invite accidents.
2.1.2. Use the appliance in a well ventilated area.
2.1.3. Do not place the appliance on hot surfaces, such as cooking plates, gas burners, ovens or similar items.
2.1.4. Keep children and bystanders away when using this appliance.
2.1.5. Place the appliance on a horizontal, flat, stable surface suitable for withstanding high temperatures and away from other heat sources and contact with

water.

2.1.6. Keep the appliance away from flammable material such as textiles, curtains, cardboard or paper, etc.
2.1.7. Do not place flammable material near the appliance.
2.1.8. Do not use the appliance in association with a programmer, timer or other device that automatically switches it on.
2.1.9. Do not use the appliance if the cable or plug is damaged.
2.1.10. Ensure that the voltage indicated on the rating label matches the mains power supply voltage before plugging in the appliance.
2.2.11. Connect the appliance to the mains power supply with an earth socket withstanding a minimum of 10 amperes.
2.1.12. The appliance's plug must fit into the mains power supply socket properly. Do not alter the plug.
2.1.13. If using a multi plug check ratings carefully as the current used by several appliances could easily exceed the rating of the multi plug.
2.1.14. If any of the appliance casings breaks, immediately disconnect the appliance from the mains power supply to prevent the possibility of an electric shock.
2.1.15. Do not use the appliance if it has fallen on the floor or if there are visible signs of damage.
2.1.16. Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.
2.1.17. Do not wrap the power cord around the appliance.
2.1.18. Do not clip or crease the power cord.
2.1.19. Do not allow the power cord to hang or to come into contact with the hot surfaces of the appliance.
2.1.20. Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.
2.1.21. The appliance is not suitable for outdoor use.
2.1.22. Power cord should be regularly examined for signs of damage, and if the cord is damaged, the appliance must not be used.
2.1.23. Do not touch the plug with wet hands.

2.2. Personal safety:

2.2.1. CAUTION: Do not leave the appliance unattended during use as there is a risk of an accident.
2.2.2. Do not touch the heated parts of the appliance, as it may cause serious burns.
2.2.3. This appliance is only for domestic use, not for industrial or professional use. It is not intended to be used by guests in hospitality environments such as bed and breakfast, hotels, motels, and other types of

residential environments, even in farm houses, areas of the kitchen staff in shops, offices and other work environments.

2.2.4. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
2.2.5. This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.

2.3. Use and care:

2.3.1. Fully unroll the appliance's power cable before each use.
2.3.2. Do not use the appliance if the parts or accessories are not properly fitted.
2.3.3. Do not use the appliance when empty.
2.3.4. Do not turn the appliance over while it is in use or connected to the mains power supply.
2.3.5. Do not cover the cooking surface or food with aluminium foil and other similar materials.
2.3.6. Unplug the appliance from the mains power supply when not in use and before undertaking any cleaning task.
2.3.7. This appliance should be stored out of reach of children.
2.3.8. Do not store the appliance if it is still hot.
2.3.9. Never leave the appliance unattended when in use and keep out of the reach of children.
2.3.10. If, for some reason, the appliance were to catch fire, disconnect the appliance from the mains power supply and DO NOT USE WATER TO PUT THE FIRE OUT.

2.4. Service:

2.4.1. Make sure that the appliance is serviced only by suitably qualified technician, and that only original spare parts or accessories are used to replace existing parts/accessories.
2.4.2. If the power cord is damaged, the manufacturer or its service agent or a similarly qualified person must replace it in order to avoid a hazard.
2.4.3. Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

3. Instructions for use

3.1. Before use:

3.1.1. Before connecting the appliance to the power outlet, make sure the timer is set to "0" position.
3.1.2. Before using the product for the first time, clean the parts that will come into contact with food in the manner described in the cleaning section.
3.1.3. Unroll the power cord completely before plugging it in.
3.1.4. Assemble the glass turn table by first placing the rotation ring inside the microwave. Thereafter place the glass turn table on the rotation ring ensuring that it lines up with the rotation axis.
3.1.5. Insert the plug into the power socket.

3.2. Use and care:

3.2.1. Place your appliance on a flat, dry, stable and heat resistant surface.
3.2.2. Open the microwave oven door.
3.2.3. Place the container of food on the glass turntable and close the door.
3.2.4. Select your desired power level by turning the power level dial.
3.2.5. Set the timer by turning the timer dial (once the timer is set the cooking begins).
3.2.6. If pausing in between is required, just open the door at any time, and close it to resume the cooking operation.
3.2.7. When cooking ends, the microwave oven produces a bell ring, the inside lamp will also turn off automatically.
3.2.8. If the food is removed before the set time has elapsed, make sure to set the timer back to the "0" position, this avoids the microwave oven from operating with an empty load.

3.3 Use: General notes

3.3.1. Place your microwave on a heat resistant surface.
3.3.2. To ensure sufficient ventilation, the distance of the back of microwave to the wall should be at least 10 cm, the side to the wall should be at least 5 cm, the free distance above the top surface at least 20 cm. the distance of the microwave to the ground should be at least 85 cm.
3.3.3. The position of the oven shall be such that it is far from the TV, Radio or antenna as picture disturbance. The distance should be more than 5m.
3.3.4. The appliance must be positioned so that the plug is accessible.
3.3.5. The microwave oven must be operated with the door closed.
3.3.6. The microwave oven must not be placed in a cabinet. The microwave oven is intended to be used freestanding.
3.3.7. As there is manufacturing residue or oil remained on the oven cavity or heat element, it usually would smell the odour, even a slight smoke, It is normal case and would not occur after several times use, keep the door or window open to ensure good ventilation. So it is strongly recommended to place a cup of water in the turntable, setting at high power and operate for several times. 3.3.8. Do not operate the microwave without the turntable assembly.
3.3.9. Blocking the intake and/or outlet openings can damage the oven.
3.3.10. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

3.4. Power level guide

High 100% power output	(Quick cooking)
Medium High 85% power output	(Normal cooking)
Medium 66% power output	(Slow cooking)
Medium Low 40% power output	(Drinks or soup)
Defrost 37% power output	(Defrost)
Low 17% power output	(Keep warm)

It is strongly recommended to use containers that are suitable and safe for microwave cooking. Generally speaking, containers made from heat-resistant ceramic, glass or plastic are suitable for microwave cooking. Never use metal containers for microwave cooking as spark is likely to occur.

Material of container	Microwave Notes
Heat-resistant ceramic	Yes Never use the	ceramics which are decorated with metal rim or glazed
Heat-resistant plastic	Yes Cannot be used for long time microwave cooking
Heat-resistant glass	Yes
Plastic film Yes It should not		be used when cooking meat or chops as the over-temperature may do damage to the film
Grill rack No
Metal container No It should not		be used in microwave oven. Microwave can not penetrate through metal.
lacquer No Poor heat-resis-		tant. Cannot be used for high-temperature cooking
Bamboo wood and paper	No Poor heat-resis-	s-tant. Cannot be used for high-temperature cooking

3.7. COOKING TIPS

The following factors may affect the cooking result:

Food arrangement

Place thicker areas towards outside of dish, the thinner part towards the centre and spread it evenly. Do not overlap if possible.

Cooking time length

Start cooking with a short time setting, evaluate it after it times out and extend it according to the actual need. Over cooking may result in smoke and burns.

Cooking food evenly

Food such as chicken, hamburger or steak should be turned once during cooking.

Depending on the type of food, if applicable, stir it from outside to centre of dish once or twice during cooking

Allow standing time

After cooking times out, leave the food in the oven for an adequate length of time, this allows it to complete its cooking cycle and cooling it down in a gradual manner

Whether the food is done

Colour and hardness of food help to determine if it is done, these include:

• Steam coming out from all parts of food, not just the edge
• Joints of poultry can be moved easily
• Pork or poultry shows no signs of blood
• Fish is opaque and can be sliced easily with a fork

Browning dish

When using a browning dish or self-heating container, always place a heat-resistant insulator such as a porcelain plate under it to prevent damage to the turntable and rotating ring.

Microwave safe plastic wrap

When cooking food with high fat content, do not allow the plastic wrap come into contact with food as it may melt

Microwave safe plastic cookware

Some microwave safe plastic cookware might not be suitable for cooking foods with high fat and sugar content. Also, the preheating time specified in the dish instruction manual must not be exceeded.

4. Cleaning

4.1. Disconnect the appliance from the mains power supply and allow it to cool completely before undertaking any cleaning task.
4.2. The microwave should be cleaned regularly and any food deposits removed.
4.3. Don't immerse the appliance in water or other fluids when cleaning.
4.4. Failure to maintain the microwave in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation
4.5. Never use abrasive detergents, powders or a metal brush to clean any part of the appliance
4.6. Do not remove the waveguide cover.
4.7. When the microwave oven has been used for a long time, there may be some strange odours in the microwave, Follow the below 3 methods to get rid of them;

a. Place several lemon slices in a cup, then heat with high Micro Power for 2-3 min.
b. Place a cup of tea in the microwave, heat on high micro power for 2-3 min.
c. Put some orange peel into the microwave, heat on with high Micro Power for 1 minute.
4.8. Wipe the exterior with a damp cloth.
4.9. Using a damp soft cloth, wipe clean the door and window.
4.10. Wipe the door seals and adjacent parts to remove any spill or spatters.
4.11. Wipe the control panel with a slightly damp soft cloth.
4.12. Wipe the interiors walls with a damp soft cloth.
4.13. Wipe clean the waveguide cover to remove any food splashes
4.14. Clean the turn table with soapy water and then rinse with clean water and allow to dry thoroughly.

5. Anomalies and repair

5.1. Take the appliance to an authorised support centre if product is damaged or other problems arise.
5.2. If the connection to the mains has been damaged, it must be replaced and you should proceed as you would in the case of damage.

PLEASE NOTE ALL COOKIG TIMES ARE A GUIDELINE ONLY.

COOKING TIMES MAY VARY DEPENDING ON THE SIZE OF THE FOOD.

6 Defrosting guideline:

	Weight range Defrost length
Meat 0.1 - 1Kg 1:30 - 26:00
Poultry 0.2 - 1Kg 2:30 - 22:00
Seafood 0.1 - 0.9 Kg 1:30 - 14:00

Geagte kliënt,

Technical diagram of a microwave oven with numbered parts for identification

1. Parte beskrywing

1. Deur slot
2. Kyk venster
3. Roterende as
4. Roterende ring
5. Glas draaitafel
6. Kontrole paneel
7. Wavegids deksel
8. 1. Kragwiel

Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident. Clean all the parts of the product that will be in contact with food, as indicated in the cleaning section, before use.

2.1. Gebruik en werksomgewing:

2.1.1. Hou die werk oppervlak skoon en helder verlig. Ongelukke gebeur in donker areas
2.1.2. Gebruik die produk in n goed geventileerde area
2.1.3. Moenie die toestel naby `n warm gas of elektriese brander of n warm oond plaas nie.
2.1.4. Streng toesig is nodig as die toestel naby of deur kinders gebruik word.
2.1.5. Plaas toestel op `n stabiele area en weg van water
2.1.6. n Brand mag ontstaan as die rooster bedek is of aan vlambare material raak, insluitende gordyne as dit

in werking is

Technical diagram of a microwave oven with numbered parts for identification

Labeled diagram of a microwave oven showing interior components and exterior view

Technical diagram of a microwave oven with numbered components for identification

Thank you for purchasing a Mellerware product. Mellerware guarantees that your product has been thoroughly inspected and tested before being dispatched and is free from mechanical and electrical defects and complies with the applicable safety standards. With every Mellerware product purchased you get a 2 year warranty as detailed in the terms and conditions below.

First Year – 1 Year Retail Warranty:

Should defects due to faulty parts or workmanship develop, under normal use, within 12 months from the original purchase date, please return the product to the store from where it was purchased for repair free of charge. However, for the customer's convenience we will replace products where the purchase price is equal to or less than R750 incl. VAT

Second Year – 1 Year Extended Warranty

Mellerware takes pride in their product quality and therefore offer an extended 12 month warranty over and above the 1 Year Retail Warranty. Should defects due to faulty material or workmanship develop, under normal domestic use, after the 12 month period and within 24 months from the original date of purchase, please return the product postage pre-paid to Mellerware for repair. Mellerware will repair the product free of charge and return it to you directly. Mellerware will replace a product with a similar product in the same or better condition, if the repair cannot be conducted for whatever reason.

NB: The 1 Year Extended Warranty is only valid for customers who have registered their warranty online at www.mellerware.co.za within the first year after making their purchase. See overleaf for details and instructions.

Before returning your product, check the following:

• Your household mains supply socket is in good condition, working and switched on.
• The mains supply circuit is not overloaded (White trip switch on your DB board is off).
• You have read the trouble shooting guide in your Instructions for Use.
• All accessories and parts are present.

The following conditions apply:

1. Please ensure you retain your receipt as this must be presented when making a claim under the terms of the guarantee. It is impossible to determine the guarantee period without proof of purchase, so please keep this in a safe place. (NB. Your guarantee can be scanned onto the Mellerware web site for safe storage – see reverse side for details.)
2. If a refund or exchange is required the product must be complete with all accessories, parts and packaging. Missing parts will render the guarantee void.

3. Upon receipt of your appliance, check it for any transport damage to ensure it is safe for use. Return it to the store as soon as possible for exchange if damaged. The guarantee is void if products are damaged after use, so please do not use the damaged product.

4. Your product is designed for normal domestic household use. Failure to read and comply with the instructions for use, cleaning and maintenance will render your guarantee void, so please read these instructions carefully to ensure your safety, and to get the most effective use from the product. (e.g. not removing lime scale; water deposits; insect infestation, and/or burnt products)

5. Any abuse, negligent, improper or accidental use or care will render the guarantee void and Creative Housewares (Pty) Ltd will not be liable for any loss or damage.
6. Any attempted repair, or replacement of unauthorised parts will render the guarantee void, so please contact an authorised service centre or service agent for any service or repair requirements.
7. NB: The guarantee on replaced products will be from the original date of purchase and not from when the date replacement was made.
8. All repairs carry a 3 month guarantee even if this falls outside of the 2 year guarantee period.
9. Mellerware will attempt to conduct repairs within reasonable time in line with industry standards but cannot be held responsible or liable for any circumstances not under our control.
10. Terms and Conditions are subject to change without prior notice.

Repairs Out of the Warranty Period

If service or repair becomes necessary outside the warranty period, this service is still available however all transport/postage, spares and labour costs will be for the customers' account. All chargeable repairs will require the customers' written acceptance of the quote. Once the go-ahead has been received Mellerware will undertake to conduct the repair within a reasonable time and maintain the condition of the product as received. All repairs are guaranteed for 3 months from the date of the repair.

For any service, enquiries and complaints please contact our Customer Care on 086 111 5006 or e-mail [e-mail] from 08h00 to 15h00 Monday to Friday excluding public holidays. Please also note that the company is normally closed for 2 weeks around Christmas and New Year.

Please send all products for repair postage pre-paid to one of the service centres listed on the back of this page.

ONLINE WARRANTY REGISTRATION

Why register your warranty?

We at Mellerware pride ourselves on bringing premium quality appliances to market, and as a commitment to this level of quality we offer a 2 year warranty (1 Year Retail + 1 Year Extended) on all of our products. We often hear that our customers lose their receipts and can therefore no longer claim if they have a problem. To take advantage of the 1 Year Extended Warranty you will need to register your warranty online within the first year of purchase in order to make a valid claim. Now you can register your product, upload your warranty online, never have to worry about losing your receipt again and enjoy the benefit of your 2 year warranty.

Added Benefits

In addition to providing you with an online profile of your registered products we will also provide a host of value added benefits:

• Incentives and Competitions for registered users
• New recipes or ideas for your products
• New product developments – be the first to get the latest appliances
  • Special offers on promotional items

How to Register your Online Warranty?

STEP1 Create your user profile:

If you haven't done so already, simply visit www.mellerware.co.za, click on the "Product Registration" link and follow the easy instructions. You will receive a username and password once registered. This will give you access to your user profile.

QR code image containing encoded data, no visible human-readable text

STEP2 Pick a registration method:

DESKTOP/LAPTOP

• Open your internet browser and visit www.mellerware.co.za
• Click on the "Registration" link and login using your user name and password.
• Click on "Register your products and upload receipts" and follow the easy instructions.
• Scan and upload your receipt

SMART PHONE/ TABLET

• Scan the QR code above or visit www.mellerware.co.za
• Click on the "Registration" link and login using your user name and password.
• Click on "Register your products and upload receipts" and follow the easy instructions.
• Scan or take a photo and upload your receipt.

FAX

• Fax the following to 021 931 4058
- First Name and Surname
- Contact telephone and fax number.
• Product Model number and Type.
- Traceability Code (found on a label on the product)
• A clear and legible copy of your receipt.

Notes:

1. The online warranty system is a safe storage facility for your receipt.
2. You will be required to register on the Mellerware website. You will receive a username and password once registered. This will give you access to your profile.
3. From your profile you will be able to load products that you have purchased. In order to successfully register your warranty you will need to either scan and upload, or fax through your receipt to us.
4. All instructions on how to load your products are available

inside your profile.

1. Please note that you must check that your receipt has been uploaded correctly. Creative Housewares cannot be held responsible for faxes or files not received.
2. For assistance with registration please email: [e-mail].

NB: Your 1 year extended warranty is only valid if your product is registered online within the first year after purchasing your Mellerware product. Failure to register your product on-line within the first year will render the extended warranty as void.

creative housewares

National Service Centre: 086 111 5006

e-mail: [e-mail]

www.creativehousewares.co.za

Cape Town

20 Tekstiel Street, Parow, Cape Town, 7493, South Africa • P.O. Box 6156 Parow East, 7501, South Africa Tel: [phone] Fax: [phone]

Durban

35 Adrain Road, Windermere,

Durban, South Africa, 4001

Tel: [phone]

Fax: [phone]

Johannesburg

Unit 25 & 26 San Croy Office Park

Die Agora Road, Croydon, 1619

Tel:[phone]

Fax:[phone]

mellerware®

makes life easier

QR code image containing encoded data, no visible human-readable text

STAP 2 Kies 'n registrasie metode:

REKENAAR/ SKOOTREK- ENAAR

• Maak u internet snuffelgids oop en besoek www.mellerware.co.za
• Klik op die "Registrasie" skakel en teken in met u gebruikersnaam en wagwoord.
• Klik op "Register your products" en laai kwitansies en volg die maklike instruksies.
• Skandeer en laai u strokie

SMART-FOON / TABLET

35 Adrian Road, Windermere, Durban, South Africa, 4001

Tel: [phone]

Fax: [phone]

Johannesburg

Unit 25 & 26 San Croy Office park Die Agora Road, Croydon, 1619

Tel: [phone]

Fax: [phone]

Durban

35 Adrain Road, Windermere,

Durban, South Africa, 4001

Tell: [phone]

Fax: [phone]

creative housewares

20 Tekstiel Street, Parow, Cape Town, 7493, South Africa

P.O. Box 6156 Parow East, 7501, South Africa

[phone] [phone]

Service Centre Helpline: 086 111 5006

www.creativehousewares.co.za

Johannesburg

Unit 25 & 26 San Croy Office Park

Die Agora Road, Croydon, 1619

Tell: [phone]

Fax: [phone]
