32LB5610, 39LB5610 - Television LG - Free user manual and instructions

Product Type	LED TV (LED backlight)
Brand	LG
Models	32LB5610 (32 inches), 39LB5610 (39 inches)
Screen Resolution	HD (1366 x 768 pixels)
Supported Audio	MPEG, Dolby Digital, Dolby Digital Plus, HE-AAC
Connectors	HDMI, SCART, USB 2.0, RF Antenna (75 Ω), Optical Digital Audio Output, Headphone Jack
Picture Functions	Picture Presets (Vivid, Standard, Eco, Cinema, Game, Sports), Advanced Control (Dynamic Contrast, Dynamic Color, Gamma, etc.), TruMotion (anti-aliasing and blur reduction)
Energy Saving	Energy Saving Mode (Auto, Minimum, Medium, Maximum, Screen Off)
Audio Functions	TV speakers or external (optical) sound output, LG Sound Sync, AV Sync Adjustment
Smart Functions	SIMPLINK (HDMI-CEC control), Time Machine Ready (USB recording), Program Guide, Subtitles, Audio Description
USB Media Playback	Video formats: DivX, MPEG, H.264, AVI, MKV, etc.; Audio: MP3, AAC, WMA, OGG; Photo: JPEG, BMP, PNG
Power Supply	100-240 V AC, 50/60 Hz
Power Consumption	Varies by model and settings (standby < 1 W)
Dimensions (approx.)	32LB5610: W x H x D (with stand); 39LB5610: W x H x D (with stand) – refer to manual for exact values
Weight (approx.)	32LB5610: approx. 5-7 kg; 39LB5610: approx. 8-10 kg
Wall Mount Compatibility	VESA standard: 200 x 200 mm for 32/39 inches, M6 screws
Supplied Accessories	Remote control, AAA batteries, power cord, user manual, wall mount spacers (depending on model)
Cleaning	Soft, dry cloth; do not use chemicals or spray liquids
Safety	Do not expose to humidity, heat, dust; do not place heavy objects on the cord; keep out of reach of children; unplug during storms
Warranty	The warranty does not cover screen burn-in, damage caused by incorrect installation or use of unauthorized accessories

Frequently Asked Questions - 32LB5610, 39LB5610 LG

How to connect an external device (DVD player, game console) to the TV?

Use an HDMI cable for optimal quality or a SCART cable if your device does not have HDMI. Plug the cable into the corresponding port on the TV and the external device, then select the appropriate input source using the INPUT button on the remote control.

How to use a USB device on the TV?

Plug the USB flash drive or external hard drive into the USB port of the TV. Press the INPUT button and select USB. Use the My Media menu to play videos, music, or view photos. To safely remove the device, go to Q.MENU > USB Device and select the device to remove.

How to auto-tune channels?

Press the SETTINGS button on the remote, go to CONFIG > Auto Search. The TV will search for all available channels. Make sure the antenna is properly connected.

What to do if the remote control does not work?

First check that the batteries are installed correctly (respect + and - polarity) and are still charged. Make sure there are no obstacles between the remote and the TV sensor. If the problem persists, move away any bright light sources that could interfere with the signal.

How to clean the TV screen?

Turn off the TV and unplug the power cord. Use a soft, clean, dry cloth to wipe the screen and frame. For stubborn stains, slightly dampen the cloth with clean water or a mild detergent, then wipe immediately with a dry cloth. Never use chemicals, benzene, alcohol, or sprays.

How to activate subtitles?

Press the SUBTITLE button on the remote. You can choose the subtitle language if available in the broadcast. In digital mode, this function is usually active.

Why does the image stay fixed (screen burn-in)?

Prolonged display of a fixed image (logo, menu, game) can cause image retention or screen burn-in. Avoid leaving a fixed image on an LCD screen for more than 2 hours. The warranty does not cover this type of damage.

How to reset the TV to factory settings?

Go to SETTINGS > OPTION > Factory Reset. You will be asked for a password (default: 0000, except for France where it is 1234). Confirm to reset all settings. The TV will restart automatically.

Can I mount the TV on the wall?

Yes, the TV is compatible with a VESA wall mount. For models 32/39LB5610, the VESA dimensions are 200 x 200 mm with M6 screws. Use an LG approved wall mount and have it installed by a professional.

How to synchronize audio with image if there is a delay?

Press SETTINGS, go to AUDIO > AV Sync Adjustment. Enable the option and adjust the audio delay to match sound to picture. This function is especially useful with external devices.

USER MANUAL 32LB5610, 39LB5610 LG

Printing specification

	Drawn	Checked	Approved
Signature	Yuri.hong	Mira.woo	Jongok.kim
MMM/DD/YYYY	Jan/13/2014	Jan/13/2014	Jan/13/2014

1. Model Description

Model name	: 39LB561V-ZC	Brand name	: LG	Part number	: MFL68003802
2nd, 3rd Suffix	: EU/VS	Product name	: LB561V	(Revision number)	(1401-REV00)

1. Printing Specification

1. Trim size (Format) : 148 mm x 210 mm (A5)2. Printing colors• Cover : 1 Color (Black)• Inside : 1 Color (Black)3. Stock (Paper)• Cover : Coated, Snow white paper 150 g/m2• Inside : Uncoated, wood-free paper 60 g/m24. Bindery : Perfect binding5. Language : ENG/GER/FRA/ITA/SPA/POR/NED/GRK/SLN (9)6. Number of pages : 288

NOTE

“This part contains Eco-hazardous substances (Pb, Cd, Hg, Cr6+, PBB, PBDE, etc.) within LG standard level,Details should be followed Eco-SCM management standard[LG(56)-A-2524].Especially, Part should be followed and controlled the following specification.(1) Eco-hazardous substances test report should be submitted when Part certification test and First Mass Production.(2) Especially, Don’t use or contain lead(Pb) and cadmium(Cd) in ink.

1. Origin Notification

LGEAK : Printed in Kazakhstan	LGEKR : Printed in Korea	LGERS : Printed in Mexico
LGEAZ : Printed in Brazil	LGEMA : Printed in Poland	LGESY : Printed in China
LGEEG : Printed in Egypt	LGEMX : Printed in Mexico	LGETH : Printed in Thailand
LGEIL : Printed in India	LGEND : Printed in China	LGEVN : Printed in Vietnam
LGEIN : Printed in Indonesia	LGERA : Printed in Russia	LGEWR : Printed in Poland
LGEAS : Printed in Algeria

1. Changes

10
9
8
7
6
5
4
3
2
1
Rev. Number	MMM/DD/YYYY	Signature	ECO Number	Change Contents

Front Cover (Eng) P/No.	A-2	...	...	...	...	A-16
ENG Cover	2	...	...	...	27	Blank
GER Cover	2	...	...	...	27	Blank
FRE Cover	2	...	...	...	27	Blank
ITA Cover	2	...	...	...	37	Blank
SPA Cover	2	...	...	...	27	Blank
POR Cover	2	...	...	...	27	Blank
DUT Cover	2	...	...	...	27	Blank
GRE Cover	2	...	...	...	27	Blank
SLV Cover	2	...	...	...	27	Blank

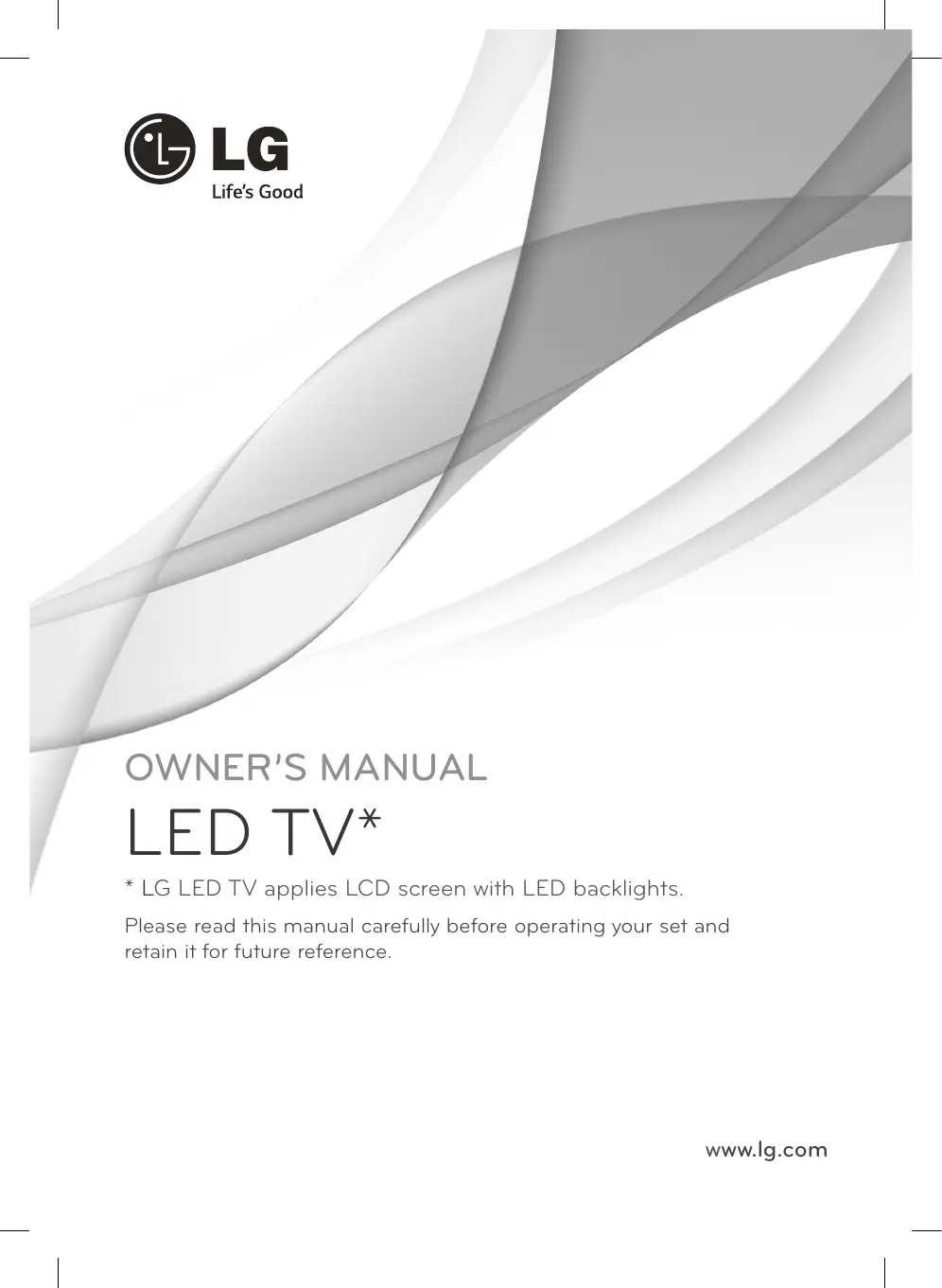

OWNER'S MANUAL

LED TV*

* LG LED TV applies LCD screen with LED backlights.

Please read this manual carefully before operating your set and retain it for future reference.

LB55**

LB56**

LB62**

TABLE OF CONTENTS

A-3 SETTING UP THE TV

A-3 Attaching the stand

A-4 MAKING CONNECTIONS

A-4 Antenna connection

A-6 Satellite dish connection

A-7 Euro Scart connection

A-10 Other connections

COMMON

LANGUAGE LIST

English

Deutsch

Français

Italiano

Español

Português

Nederlands

Ελληνικά

Slovenian

LANGUAGE

B-1 SPECIFICATIONS

B-6 REGULATORY

COMMON

SETTING UP THE TV

Image shown may differ from your TV.

Attaching the stand

(Only LB55**, LB56**-ZE / ZC, LB62**-ZA / ZB)

1

2

(Only LB56**-ZT / ZQ, LB62**-ZE)

1

2

CAUTION

- When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.

MAKING CONNECTIONS

This section on MAKING CONNECTIONS mainly uses diagrams for the 47LB561V models.

Antenna connection

English

Connect the TV to a wall antenna socket with an RF cable (75 Ω).

NOTE

• Use a signal splitter to use more than 2 TVs.
• If the image quality is poor, install a signal amplifier properly to improve the image quality.
• If the image quality is poor with an antenna connected, try to realign the antenna in the correct direction.
• An antenna cable and converter are not supplied.
• Supported DTV Audio: MPEG, Dolby Digital, Dolby Digital Plus, HE-AAC

Deutsch

Satellite dish connection

(Only satellite models)

English

Connect the TV to a satellite dish or a satellite socket with a satellite RF cable (75 Ω).

Deutsch

Euro Scart connection

English

Transmits the video and audio signals from an external device to the TV set. Connect the external device and the TV set with the euro scart cable as shown.

Current input mode\Output Type	AV1(TV Out 1 )
Digital TV	Digital TV
Analogue TV, AV	Analogue TV
Component
HDMI

1 TV Out: Outputs Analogue TV or Digital TV signals.

NOTE

• Any Euro scart cable used must be signal shielded.
• When watching digital TV in 3D imaging mode, only 2D out signals can be output through the SCART cable. (Only 3D models)

Deutsch

Connect your TV to external devices. For the best picture and audio quality, connect the external device and the TV with the HDMI cable as shown. Some separate cable is not provided.

Deutsch

Connect various external devices to the TV and switch input modes to select an external device. For more information of external device's connection, refer to the manual provided with each device. Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.

NOTE

• The external device connection may differ from the model.
• Connect external devices to the TV regardless of the order of the TV port.
• If you record a TV programme on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information of recording, refer to the manual provided with the connected device.
• Refer to the external equipment's manual for operating instructions.
• If you connect a gaming device to the TV, use the cable supplied with the gaming device.
• In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear.
• In PC mode, some resolution settings may not work properly depending on the graphics card.

German

* LG LED TV applies LCD screen with LED backlights.

Please read this manual carefully before operating your set and retain it for future reference.

LICENSES

Supported licenses may differ by model. For more information about licenses, visit www.lg.com.

DOLBY DIGITAL PLUS

Manufactured under license from Dolby Laboratories.

"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that has passed rigorous testing to verify that it plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies.

To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

"DivX Certified® to play DivX® video up to HD 1080p, including premium content."

"DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license."

"Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274"

OPEN SOURCE SOFTWARE NOTICE

To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource.lge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to [e-mail].

This offer is valid for three (3) years from the date on which you purchased the product.

SAFETY INSTRUCTIONS

Please read these safety precautions carefully before using the product.

WARNING

- Do not place the TV and/or remote control in the following environments:

• A location exposed to direct sunlight
• An area with high humidity such as a bathroom
• Near any heat source such as stoves and other devices that produce heat
• Near kitchen counters or humidifiers where they can easily be exposed to steam or oil
• An area exposed to rain or wind
• Near containers of water such as vases

Otherwise, this may result in fire, electric shock, malfunction or product deformation.

- Do not place the product where it might be exposed to dust. This may cause a fire hazard.

- Mains Plug is the TV connecting/disconnecting device to AC mains electric supply. This plug must remain readily attached and operable when TV is in use.

- Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power plug completely or wipe dust off. You may be electrocuted due to excess moisture.

- Make sure to connect Mains cable to compliant AC mains socket with Grounded earth pin. (Except for devices which are not grounded on earth.) Otherwise possibility you may be electrocuted or injured.

- Insert power cable plug completely into wall socket otherwise if not secured completely into socket, fire ignition may break out.

- Ensure the power cord does not come into contact with hot objects such as a heater. This may cause a fire or an electric shock hazard.

- Do not place a heavy object, or the product itself, on power cables. Otherwise, this may result in fire or electric shock.

- Bend the antenna cable between the inside and outside of the building to prevent rain from flowing in. This may cause water damage inside the product and could give an electric shock.

	·When mounting TV onto wall make sure to neatly install and isolate cabling from rear of TV as to not create possibility of electric shock /fire hazard.
	·Do not plug too many electrical devices into a single multiple electrical outlet. Otherwise, this may result in fire due to over-heating.
	·Do not drop the product or let it fall over when connecting external devices. Otherwise, this may result in injury or damage to the product.
	·Keep the anti-moisture packing material or vinyl packing out of the reach of children. Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.
	·Do not let your children climb or cling onto the TV. Otherwise, the TV may fall over, which may cause serious injury.
	·Dispose of used batteries carefully to ensure that a small child does not consume them. Please seek Doctor- Medical Attention immediately if child consumes batteries.
	·Do not insert any metal objects/conductors (like a metal chopstick/cutlery/screwdriver) between power cable plug and input Wall Socket while it is connected to the input terminal on the wall. Additionally, do not touch the power cable right after plugging into the wall input terminal. You may be electrocuted. (Depending on model)
	·Do not put or store inflammable substances near the product. There is a danger of combustion/explosion or fire due to careless handling of the inflammable substances.
	·Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the product, or inflammable objects such as paper and matches. Children must pay particular attention. Electrical shock, fire or injury can occur. If a foreign object is dropped into the product, unplug the power cord and contact the service centre.
	·Do not spray water on the product or scrub with an inflammable substance (thinner or benzene). Fire or electric shock accident can occur.
	·Do not allow any impact, shock or any objects to fall into the unit, and do not drop anything onto the screen. You may be injured or the product can be damaged.

- Never touch this product or antenna during a thunder or lightning storm. You may be electrocuted.

- Never touch the wall outlet when there is a gas leak; open the windows and ventilate. It may cause a fire or a burn by a spark.

- Do not disassemble, repair, or modify the product at your own discretion. Fire or electric shock accident can occur. Contact the service centre for check, calibration, or repair.

- If any of the following occur, unplug the product immediately and contact your local service centre.

• The product has been impacted by shock
• The product has been damaged
• Foreign objects have entered the product
• The product produced smoke or a strange smell

This may result in fire or electric shock.

- Unplug the TV from the AC mains wall socket if you do not intend to use the TV for a long period of time. Accumulated dust can cause fire hazard, and insulation deterioration can cause electric leakage/shock/fire.

- The apparatus shall not be exposed to dripping or splashing, and no objects filled with liquids, such as vases, shall be placed on the apparatus.

- Do not install this product on a wall if it could be exposed to oil or oil mist. This may damage the product and cause it to fall.

CAUTION

• Install the product where no radio waves occur.

- There should be enough distance between an outside antenna and power lines to keep the former from touching the latter even when the antenna falls. This may cause an electric shock.

- Do not install the product on places such as unstable shelves or inclined surfaces. Also avoid places where there is vibration or where the product cannot be fully supported. Otherwise, the product may fall or flip over, which may cause injury or damage to the product.

• If you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts) to the back of the product. When you install the set to use the wall mounting bracket (optional parts), fix it carefully so as not to drop.
• Only use the attachments / accessories specified by the manufacturer.

- When installing the antenna, consult with a qualified service technician. If not installed by a qualified technician, this may create a fire hazard or an electric shock hazard.

- We recommend that you maintain a distance of at least 2 to 7 times the diagonal screen size when watching TV. If you watch TV for a long period of time, this may cause blurred vision.

- Only use the specified type of battery. This could cause damage to the remote control.

- Do not mix new batteries with old batteries. This may cause the batteries to overheat and leak.

• Batteries should not be exposed to excessive heat. For example, keep away from direct Sunlight, open fireplace and electric heaters.
• Do not place non-rechargeable batteries in charging device.

- Make sure there are no objects between the remote control and its sensor.

- Signal from Remote Control can be interrupted due to external/internal lighting eg Sunlight, fluorescent lighting. If this occurs turn off lighting or darken viewing area.

- When connecting external devices such as video game consoles, make sure the connecting cables are long enough. Otherwise, the product may fall over, which may cause injury or damage the product.

- Do not turn the product On/Off by plugging-in or unplugging the power plug to the wall outlet. (Do not use the power plug for switch.) It may cause mechanical failure or could give an electric shock.

- Please follow the installation instructions below to prevent the product from overheating.

• The distance between the product and the wall should be more than 10 cm.
• Do not install the product in a place with no ventilation (e.g., on a bookshelf or in a cupboard).
• Do not install the product on a carpet or cushion.
• Make sure the air vent is not blocked by a tablecloth or curtain.

Otherwise, this may result in fire.

- Take care not to touch the ventilation openings when watching the TV for long periods as the ventilation openings may become hot. This does not affect the operation or performance of the product.

- Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.

- Prevent dust collecting on the power plug pins or outlet. This may cause a fire hazard.

- Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

- Do not press strongly upon the panel with a hand or sharp object such as nail, pencil or pen, or make a scratch on it, as it may cause damage to screen.

- Avoid touching the screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary or permanent distortion/damage to screen.

- When cleaning the product and its components, unplug the power first and wipe it with a soft cloth. Applying excessive force may cause scratches or discolouration. Do not spray with water or wipe with a wet cloth. Never use glass cleaner, car or industrial shiner, abrasives or wax, benzene, alcohol etc., which can damage the product and its panel. Otherwise, this may result in fire, electric shock or product damage (deformation, corrosion or breakage).

- As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn off this unit by SWITCH.

- When unplugging the cable, grab the plug and unplug it, by pulling at the plug. Don't pull at the cord to unplug the power cord from the power board, as this could be hazardous.

- When moving the product, make sure you turn the power off first. Then, unplug the power cables, antenna cables and all connecting cables. The TV set or power cord may be damaged, which may create a fire hazard or cause electric shock.

- When moving or unpacking the product, work in pairs because the product is heavy. Otherwise, this may result in injury.

- Contact the service centre once a year to clean the internal parts of the product. Accumulated dust can cause mechanical failure.

- Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

- If the product feels cold to the touch, there may be a small "flicker" when it is turned on. This is normal, there is nothing wrong with product.

- The panel is a high technology display product with resolution of two million to six million pixels. You may see tiny black dots and/or brightly coloured dots (red, blue or green) at a size of 1 ppm on the panel. This does not indicate a malfunction and does not affect the performance and reliability of the product. This phenomenon also occurs in third-party products and is not subject to exchange or refund.

- You may find different brightness and color of the panel depending on your viewing position(left/right/top/down). This phenomenon occurs due to the characteristic of the panel. It is not related with the product performance, and it is not malfunction.

- Displaying a still image (e.g., broadcasting channel logo, on-screen menu, scene from a video game) for a prolonged time may cause damage to the screen, resulting in retention of the image, which is known as image sticking. The warranty does not cover the product for image sticking.

Avoid displaying a fixed image on your television's screen for a prolonged period (2 or more hours for LCD, 1 or more hours for Plasma).

Also, if you watch the TV at a ratio of 4:3 for a long time, image sticking may occur on the borders of the panel. This phenomenon also occurs in third-party products and is not subject to exchange or refund.

- Generated Sound

"Cracking" noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to temperature and humidity. This noise is common for products where thermal deformation is required. Electrical circuit humming/panel buzzing: A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depending on the product.

This generated sound does not affect the performance and reliability of the product.

Viewing 3D Imaging

(Only 3D models)

WARNING

Viewing Environment

• Viewing Time
• When watching 3D contents, take 5-15 minute breaks every hour. Viewing 3D contents for a long period of time may cause headache, dizziness, fatigue or eye strain.

Those that have a photosensitive seizure or chronic illness

• Some users may experience a seizure or other abnormal symptoms when they are exposed to a flashing light or particular pattern from 3D contents.
• Do not watch 3D videos if you feel nausea, are pregnant and/or have a chronic illness such as epilepsy, cardiac disorder, or blood pressure disease, etc.
• 3D Contents are not recommended to those who suffer from stereo blindness or stereo anomaly. Double images or discomfort in viewing may be experienced.
• If you have strabismus (cross-eyed), amblyopia (weak eyesight) or astigmatism, you may have trouble sensing depth and easily feel fatigue due to double images. It is advised to take frequent breaks than the average adult.
• If your eyesight varies between your right and left eye, revise your eyesight prior to watching 3D contents.

Symptoms which require discontinuation or refraining from watching 3D contents

• Do not watch 3D contents when you feel fatigue from lack of sleep, overwork or drinking.
• When these symptoms are experienced, stop using/watching 3D contents and get enough rest until the symptom subsides.
• Consult your doctor when the symptoms persist. Symptoms may include headache, eyeball pain, dizziness, nausea, palpitation, blurriness, discomfort, double image, visual inconvenience or fatigue.

CAUTION

Viewing Environment

Viewing Distance

Maintain a distance of at least twice the screen diagonal length when watching 3D content. If you feel discomfort while viewing 3D content, move further away from the TV.

Viewing Age

Infants/Children

• Viewing 3D content for children under the age of 6 is prohibited.
• Children under the age of 10 may overreact and become overly excited because their vision is still developing (for example, trying to touch the screen or jump into it). Special monitoring and extra attention are required for children watching 3D content.
• Children have greater binocular disparity of 3D presentations than adults because the distance between their eyes is shorter than that of adults. Therefore, they will perceive more stereoscopic depth compared to adults for the same 3D image.

Teenagers

Teenagers under the age of 19 may react sensitively due to stimulation from light in 3D content. Advise them to refrain from watching 3D content for a long time when they are tired.

Elderly

The elderly may perceive less 3D effect compared to the youth. Do not sit closer to the TV than the recommended distance.

Cautions when using the 3D glasses

• Make sure to use LG 3D glasses. Otherwise, you may not be able to view 3D videos properly.
• Do not use 3D glasses instead of your normal glasses, sunglasses, or protective goggles.
• Using modified 3D glasses may cause eye strain or image distortion.
• Do not keep your 3D glasses in extremely high or low temperatures. This can cause deformation.
• The 3D glasses are fragile and easily scratched. Always use a soft, clean cloth when wiping the lenses. Do not scratch the lenses with sharp objects or clean/wipe them with chemicals.

NOTE

• Image shown may differ from your TV. - Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual. - The available menus and options may differ from the input source or product model that you are using. - New features may be added to this TV in the future. - The TV can be placed in standby mode to reduce power consumption. The TV should be turned off if it will not be watched for some time, as this will reduce energy consumption. - The energy consumed during use can be significantly reduced if the brightness of the picture is reduced, and this will reduce the overall running cost.

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and item.

CAUTION

• Do not use any unapproved items to ensure safety and product life span.
• Any damages or injuries caused by using unapproved items are not covered by the warranty.
• Some models have a thin film attached to the screen, and this must not be removed.

NOTE

• The items supplied with your product may vary depending on the model.
• Product specifications or contents of this manual may be changed without prior notice due to upgrades of product functions.
• For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm wide. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV's USB port.

* A ≤ 10 mm

* B ≤ 18 mm

Remote control, batteries (AAA)

Owner's manual

Power Cord

Stand Base

Stand Base

Stand Screws (Only LB55**, LB56**-ZE / ZC, LB62**-ZA / ZB) (Only LB56**-ZT / ZQ, LB62**-ZE) 4EA, M4 x L14 (Only 42/49LB55**, 39/42/47/50/55/60LB56**, 42/49/55LB62**)

Stand Screws 4EA, M4 x L20 (Only 32LB55**, 32LB56**, 32LB62**)

Wall Mount Spacers 2EA (Only 42LB55**, 42LB56**, 42LB62**)

Cable Managements 2EA

Cable holder (Depending on model)

Cinema 3D Glasses The number of 3D glasses may differ depending on the model or country. (Only LB62**)

Separate purchase

Optional extras can be changed or modified for quality improvement without any notification.

Contact your dealer for buying these items.

These devices only work with certain models.

LG Audio Device

AG-F***

Cinema 3D Glasses

AG-F***DP

Dual play glasses

Compatibility	LB56** / LB55**	LB62**
LG Audio device	•	•
AG-F***Cinema 3D Glasses		•
AG-F***DPDual play glasses		•

The model name or design may be changed due to the manufacturer's circumstances or policies.

Parts and buttons

(Only LB55**, LB56**-ZE / ZC, LB62**-ZA / ZB)

(Only LB56**-ZT / ZQ, LB62**-ZE)

NOTE

- You can set the power indicator light to on or off by selecting OPTION in the main menus.

Using the Joystick button

You can simply operate the TV functions, pressing or moving the joystick button up, down, left or right.

Basic Functions

	Power On	When the TV is turned off, place your finger on the joystick button and press it once and release it.
	Power Off	When the TV is turned on, place your finger on the joystick button and press it once for a few seconds and release it.(However, if the Menu button is on the screen, pressing and holding the joystick button will let you exit the Menu.)
	Volume Control	If you place your finger over the joystick button and move it left or right, you can adjust the volume level you want.
	Programmes Control	If you place your finger over the joystick button and move it up or down, you can scrolls through the saved programmes you want.

NOTE

- When your finger is over the joystick button and you push it up, down, left, or right, be careful not to press the joystick button. If you press the joystick button first, you cannot adjust the volume level or saved programmes.

Adjusting the Menu

When the TV is turned on, press the joystick button once.

You can adjust the Menu items (⏻, ⏱, ✕, 📋) by moving the joystick button up, down, left, or right.

		TV off	Turns the power off.
		Settings	Accesses the main menu.
	×	Close	Clears on-screen displays and returns to TV viewing.
		Input List	Changes the input source.

Lifting and moving the TV

Please note the following advice to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

CAUTION

- Avoid touching the screen at all times, as this may result in damage to the screen.

• It is recommended to move the TV in the box or packing material that the TV originally came in.
• Before moving or lifting the TV, disconnect the power cord and all cables.
• When holding the TV, the screen should face away from you to avoid damage.

- Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grill area.

• When transporting a large TV, there should be at least 2 people.
• When transporting the TV by hand, hold the TV as shown in the following illustration.

• When transporting the TV, do not expose the TV to jolts or excessive vibration.
• When transporting the TV, keep the TV upright, never turn the TV on its side or tilt towards the left or right.
• Do not apply excessive pressure to cause flexing / bending of frame chassis as it may damage screen.

Mounting on a table

1 Lift and tilt the TV into its upright position on a table.

- Leave a 10 cm (minimum) space from the wall for proper ventilation.

2 Connect the power cord to a wall outlet.

CAUTION

- Do not place the TV near or on sources of heat, as this may result in fire or other damage.

Securing the TV to a wall

(This feature is not available for all models.)

1 Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV. - If there are bolts inserted at the eye-bolts position, remove the bolts first. 2 Mount the wall brackets with the bolts to the wall. Match the location of the wall bracket and the eye-bolts on the rear of the TV. 3 Connect the eye-bolts and wall brackets tightly with a sturdy rope.

Make sure to keep the rope horizontal with the flat surface.

CAUTION

- Make sure that children do not climb on or hang on the TV.

NOTE

• Use a platform or cabinet that is strong and large enough to support the TV securely.
• Brackets, bolts and ropes are not provided. You can obtain additional accessories from your local dealer.

Mounting on a wall

Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the floor. When you attach the TV to other building materials, please contact qualified personnel.

LG recommends that wall mounting be performed by a qualified professional installer.

Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table.

Separate purchase (Wall Mounting Bracket)

Model	32/39LB56**32LB55**32LB62**	42/47/50/55LB56**42/49LB55**42/49/55LB62**
VESA (A x B)	200 x 200	400 x 400
Standard screw	M6	M6
Number of screws	4	4
Wall mount bracket	LSW240BMSW240	LSW440BMSW240
Model	60LB56**
VESA (A x B)	400 x 400
Standard screw	M6
Number of screws	4
Wall mount bracket	LSW440B

CAUTION

• Disconnect the power first, and then move or install the TV. Otherwise electric shock may occur.
• If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury. Use an authorized LG wall mount and contact the local dealer or qualified personnel.
• Do not over tighten the screws as this may cause damage to the TV and void your warranty.
• Use the screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty.

NOTE

• Use the screws that are listed on the VESA standard screw specifications.
• The wall mount kit includes an installation manual and necessary parts.
• The wall mount bracket is not provided. You can obtain additional accessories from your local dealer.
• The length of screws may differ depending on the wall mount. Make sure to use the proper length.
• For more information, refer to the manual supplied with the wall mount.

NOTE

- Only 42LB55**, 42LB56**, 42LB62**

REMOTE CONTROL

The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly. To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the ⊕ and ⊖ ends to the label inside the compartment, and close the battery cover.

To remove the batteries, perform the installation actions in reverse.

CAUTION

- Do not mix old and new batteries, as this may damage the remote control.

Make sure to point the remote control toward the remote control sensor on the TV. (Only LB55**, LB56**)

(Only LB62**)

SETTINGS

Automatically Setting Up Programme

SETTINGS → SETUP → Auto Tuning

Automatically tunes the programmes.

• If Input Source is not connected properly, programme registration may not work.
• Auto Tuning only finds programmes that are currently broadcasting.
• If Lock System is turned on, a pop-up window will appear asking for password.

To adjust picture with Picture Wizard

SETTINGS → PICTURE → Picture Wizard III

[Depending on model]

Calibrates and adjusts for optimum picture quality using the remote control and the Picture Wizard without expensive pattern devices or help from a specialist.

To select Picture Mode

SETTINGS → PICTURE → Picture Mode

Select the picture mode optimized for the viewing environment or the programme.

• Vivid : Heightens contrast, brightness and sharpness to display vivid images.
• Standard : Displays images in standard levels of contrast, brightness and sharpness.
• Eco/APS: [Depending on model] The Energy Saver feature changes settings on the TV to reduce power consumption.
• Cinema/Game: Displays the optimum picture for movie, game.
• Sports: Optimizes the video image for high and dynamic actions by emphasizing primary colours such as white, grass, or sky blue.
• **Expert 1, 2: Menu for adjusting picture quality that allows experts and amateurs to enjoy the best TV viewing. This is the adjustment menu provided for ISF-certified picture tuning professionals. (ISF logo can only be used on ISF-certified TVs.) ISFccc: Imaging Science Foundation Certified Calibration Control
• Depending on input signal, available range of picture modes may differ.
• isf_cc Expert mode is for picture tuning professionals to control and fine-tune using a specific image. For normal images, the effects may not be dramatic.
• The ISF function is only available on some models.

To set advanced control

SETTINGS ⇔ PICTURE ⇔ Picture Mode → Advanced Control / Expert Control

Calibrates the screen for each picture mode; or adjusts picture settings for a special screen. First select a Picture Mode of your choice.

• Dynamic Contrast: Adjusts the contrast to the optimal level according to the brightness of the image.
• Dynamic Colour: Adjusts colours to make the image appear in more natural colours.
• Skin Colour: Sets Skin colour spectrum separately to implement the skin colour as defined by the user. • Sky Colour: Sky colour is set separately.
• Grass Colour: The natural colour spectrum (meadows, hills, etc.) can be set separately.
• Gamma: Sets the gradation curve according to the output of the picture signal in relation to the input signal.
• Colour Gamut: Selects the range of colours that can be expressed.
• Edge Enhancer: Shows clearer and more distinctive yet natural edges of the video.
• Expert Pattern: [Depending on model] Patterns used for expert adjustment.
• Colour Filter: Filters a specific colour spectrum in RGB colours to fine-tune colour saturation and hue accurately.
• Colour Temperature: Adjusts the overall tone of the screen as desired. In Expert mode, detailed fine-tuning can be set via Gamma method, etc.
• Colour Management System: This is a system that experts use when they adjust colour with a test pattern. They can select from six colour areas (Red / Green / Blue / Cyan / Magenta / Yellow) without affecting other colours. For normal images, adjustments may not result in noticeable colour changes.
• Depending on the input signal or other picture settings, the range of detailed items for adjustment may differ.

To set additional picture options

SETTINGS ⇔ PICTURE ⇔ Picture Mode ⇒ Picture Option

[Depending on model]

Adjusts detailed settings for images.

• Noise Reduction: Eliminates noise in the picture.
• MPEG Noise Reduction: Eliminates noise generated while creating digital picture signals.
• Black Level: Adjusts the brightness and contrast of the screen to suit the black level of the input picture by using the blackness (black level) of the screen. • Real Cinema: Optimizes the screen for movie viewing.
• Motion Eye Care/SUPER Energy Saving: [Depending on model] Saves power consumption by adjusting the brightness corresponding to the movement of the image on the screen.
• Depending on input signal or other picture settings, the range of detailed items for adjustment may differ.

To use TruMotion

[Depending on model]

Corrects images to display smoother motion sequences.

• Smooth: De-judder/De-blur working on higher range in auto mode.
• Clear: De-judder/De-blur working on middle range in auto mode.
• User: De-judder / De-blur can be set manually. De-judder: This function adjusts juddering of the screen. De-blur: This function adjusts and eliminates blurring of the screen.

Auto means Juddering and blurring range that depend on input video status is controlled by TruMotion mode.

To use Energy Saving feature

SETTINGS ⇔ PICTURE ⇔ Energy Saving

Reduces power consumption by adjusting screen brightness.

• Auto: [Depending on model] The TV sensor detects the ambient lighting and automatically adjusts the screen brightness. - Off: Turns off the Energy Saving mode. - Minimum / Medium / Maximum: Applies the pre-set Energy Saving mode. - Screen Off: Screen is turned off and only sound is played. Press any button except Power button on the remote control to turn the screen back on.

To use TV speaker

SETTINGS ⇔ AUDIO ⇔ Sound Out ⇔ TV Speaker

[Depending on model]

Sound is output through the TV speaker.

To use External Speaker

SETTINGS ⇔ AUDIO ⇔ Sound Out ⇒ External Speaker (Optical)

[Depending on model]

Sound is output through the speaker connected to the optical port.

- SimpLink is supported.

To use Digital Sound Out

SETTINGS ⇔ AUDIO ⇔ Sound Out

→ External Speaker (Optical) → Digital Sound Out

[Depending on model]

Sets up Digital Sound Out.

Item	Audio Input	Digital Audio Ouput
Auto	MPEGDolby DigitalDolby Digital PlusHE-AAC	PCMDolby DigitalDolby DigitalDolby Digital
PCM	All	PCM

To connect and use LG audio device

SETTINGS → AUDIO → Sound Out → LG Sound Sync (Optical)

[Depending on model]

Connect an LG audio device with the ^Sound _Sync logo to the optical digital audio output port. The LG audio device allows you to enjoy rich, powerful sound easily.

To use Headphone

SETTINGS ⇔ AUDIO ⇔ Sound Out ⇔ Headphone

[Depending on model]

Sound is output through the headphone connected to the earphone/headphone port.

To synchronize audio and video

SETTINGS ⇔ AUDIO ⇔ AV Sync. Adjust

[Depending on model]

Synchronizes video and audio directly when they do not match.

- If you set AV Sync. Adjust to ON, you can adjust the sound output (TV speakers or SPDIF) to the screen image.

To use SIMPLINK

[Depending on model]

SIMPLINK is a feature that enables you to control and manage various multimedia devices conveniently via the SIMPLINK menu.

1 Connect the TV's HDMI IN terminal and the SIMPLINK device's HDMI output terminal using an HDMI cable. - [Depending on model] For home theatre units with a SIMPLINK function, connect HDMI terminals as above, and use an optical cable to connect Optical Digital Audio Out from the TV to Optical Digital Audio In of the SIMPLINK device. 2 Select INPUT(OPTION) → SIMPLINK. SIMPLINK menu window appears. 3 In SIMPLINK Setting window, set SIMPLINK function to ON. 4 In SIMPLINK menu window, selects the device you want to control. - This function is only compatible with devices with the SIMPLINK logo. - To use the SIMPLINK function, you need to use a high-speed HDMI® cable (with CEC (Consumer Electronics Control) feature added). High-speed HDMI® cables have the No. 13 pin connected for information exchange between devices.

• If you switch to another input, the SIMPLINK device will stop.
• If a third-party device with the HDMI-CEC function is also used, the SIMPLINK device may not work normally.
• [Depending on model] If you select or play media from a device with a home theatre function, the HT Speaker (Speaker) is automatically connected. Be sure to connect with an optical cable (sold separately) to use the HT Speaker (Speaker) function.

SIMPLINK function description

• Direct Play: Plays the multimedia device on the TV instantly.
• Select multimedia device: Selects the desired device via the SIMPLINK menu to control it from the TV screen instantly.
• Disc playback: Manages the multimedia device with the TV remote control.
• Power off all devices: When you power off the TV, all connected devices are turned off.
• Sync Power on: When the equipment with SIMPLINK function connected to the HDMI terminal starts to play, the TV will automatically turn on.
• Speaker: [Depending on model] Select speaker either on the home theatre unit or the TV.

To set password

SETTINGS ⇔ LOCK ⇔ Set Password

Sets or changes the TV password.

The initial password is set to '0000'.

When France is selected for Country, password is not '0000' but '1234'.

When France is selected for Country, password cannot be set to '0000'.

To return Factory Reset

SETTINGS ⇔ OPTION ⇔ Factory Reset

All stored information is deleted and TV settings are reset.

The TV turns itself off and back on, and all settings are reset.

• When Lock System is in place, a pop-up window appears and asks for password
• Do not turn off the power during initialization.

To remove the USB device

Q.MENU → USB Device

Select a USB storage device that you want to remove. When you see a message that the USB device has been removed, separate the device from the TV.

- Once a USB device has been selected for removal, it can no longer be read. Remove the USB storage device and then re-connect it.

Using a USB storage device - warning

• If the USB storage device has a built-in auto recognition program or uses its own driver, it may not work.
• Some USB storage devices may not work or may work incorrectly.
• Use only USB storage devices formatted with the Windows FAT32 or NTFS File System.
• For external USB HDDs, it is recommended that you use devices with a rated voltage of less than 5 V and a rated current of less than 500 mA.
• It is recommended that you use USB memory sticks of 32 GB or less and USB HDDs of 1 TB or less.
• If a USB HDD with power-saving function does not work properly, turn the power off and on. For more information, refer to the user manual of the USB HDD.
• Data in the USB storage device can be damaged, so be sure to back up important files to other devices. Data maintenance is the user's responsibility and the manufacturer is not responsible for data loss.

My Media supporting file

• Maximum data transfer rate : 20 Mbps (Mega bit per second) - External supported subtitle formats : *.srt (SubRip), *.smi (SAMI), *.sub (SubViewer, MicroDVD, DVDsubtitleSystem, SubIdx(Vobsub)), *.ass/*.ssa (SubStation Alpha), *.txt (TMplayer), *.psb (PowerDivX) - Internal supported subtitle formats: XSUB (Supports internal subtitles generated from DivX6)

Supported Video Formats

• Maximum: 1920 x 1080 @ 30p (only Motion JPEG 640 x 480 @ 30p) - .asf, .wmv [Video] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4, DivX5, DivX6, XViD, H.264/AVC, VC1(WMV3, WVC1), MP43 [Audio] WMA Standard, WMA9(Pro), MP3, AAC, AC3, MP3, 3D WMV Single Stream. - divx, .avi [Video] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4, DivX5, DivX6, XViD, H.264/AVC [Audio] HE-AAC, LPCM, ADPCM, MPEG-1 Layer I, MPEG-1 Layer II, Dolby Digital, MPEG-1 Layer III (MP3), *DTS - .ts, .trp, .tp, .mts, .m2ts [Video] H.264/AVC, MPEG-2, AVS, VC1 [Audio] MPEG-1 Layer I, MPEG-1 Layer II, MPEG-1 Layer III (MP3), Dolby Digital, Dolby Digital Plus, AAC, HE-AAC, *DTS - .vob [Video] MPEG-1, MPEG-2 [Audio] Dolby Digital, MPEG-1 Layer I, MPEG-1 Layer II, DVD-LPCM - .mp4, .m4v, .mov [Video] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4, DivX5, DivX6, XVID, H.264/AVC [Audio] AAC, MPEG-1 Layer III (MP3), *DTS - .mkv [Video] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4, DivX5, DivX6, XVID, H.264/AVC [Audio] HE-AAC, Dolby Digital, MPEG-1 Layer III (MP3), *DTS, LPCM • motion JPEG [Video] MJPEG [Audio] LPCM, ADPCM - .mpg, .mpeg, .mpe [Video] MPEG-1, MPEG-2 [Audio] MPEG-1 Layer I, MPEG-1 Layer II, Dolby Digital, LPCM - dat [Video] MPEG-1, MPEG-2 [Audio] MP2 • flv [Video] Sorenson H.263, H.264/AVC [Audio] MP3, AAC, HE-AAC - *rm, *rmvb [Video] RV30, RV40 [Audio] Dolby Digital, AAC, HE-AAC, RA6(Cook) • 3gp, 3gp2 [Video] H.264/AVC, MPEG-4 Part2 [Audio] AAC, AMR(NB/WB) • *DTS / *rm / *rmvb : Depending on model

Supported Audio Formats

• File type : mp3 [Bit rate] 32 Kbps - 320 Kbps [Sample freq.] 16 kHz - 48 kHz [Support] MPEG1, MPEG2, Layer2, Layer3
• File Type : AAC [Bit rate] Free Format [Sample freq.] 8 kHz \~ 48 kHz [Support] ADIF, ADTS
• File Type : M4A [Bit rate] Free Format [Sample freq.] 8 kHz \~ 48 kHz [Support] MPEG-4
• File Type : WMA [Bit rate] 128 Kbps \~ 320 Kbps [Sample freq.] 8 kHz \~ 48 kHz [Support] WMA7, WMA8, WMA9 Standard
• File Type: WMA [Bit rate] ~768 Kbps [Channel / Sample freq.] M0: up to 2 Channel @ 48 kHz (Except LBR mode), M1: up to 5.1 Channel @ 48 kHz, M2: up to 5.1 Channel @ 96 kHz [Support] WMA 10 Pro
• File Type: OGG [Bit rate] Free Format [Sample freq.] 8kHz ~ 48 kHz [Support] OGG Vorbis

Supported Photo Formats

• Category: 2D (jpeg, jpg, jpe) [Available file type] SOF0: Baseline, SOF1: Extend Sequential, SOF2: Progressive [Photo size] Minimum: 64 x 64, Maximum: Normal Type: 15360 (W) x 8640 (H), Progressive Type: 1920 (W) x 1440 (H)
• Category: BMP [Photo size] Minimum: 64 x 64, Maximum: 9600 x 6400
• Category: PNG [Available file type] Interlace, Non-Interlace [Photo size] Minimum: 64 x 64, Maximum: Interlace: 1200 x 800, Non-Interlace: 9600 x 6400
• BMP and PNG format files may be slower to display than JPEG.

TO SEE WEB MANUAL

To obtain detailed User Guide information, please visit www.lg.com.

EXTERNAL CONTROL DEVICE SETUP

To obtain the external control device setup information, please visit www.lg.com.

MAINTENANCE

Cleaning your TV

Clean your TV regularly to keep the best performance and to extend the product lifespan.

CAUTION

• Make sure to turn the power off and disconnect the power cord and all other cables first.
• When the TV is left unattended and unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges.

Screen, frame, cabinet and stand

• To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.
• To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then wipe immediately with a dry cloth.

CAUTION

• Avoid touching the screen at all times, as this may result in damage to the screen.
• Do not push, rub, or hit the screen surface with your fingernail or a sharp object, as this may result in scratches and image distortions.
• Do not use any chemicals as this may damage the product.
• Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction.

Power cord

Remove the accumulated dust or dirt on the power cord regularly.

TROUBLESHOOTING

Problem	Solution
Cannot control the TV with the remote control.	Check the remote control sensor on the product and try again.Check if there is any obstacle between the product and the remote control.Check if the batteries are still working and properly installed(⊕ to ⊕, ⊖ to ⊖).
No image display and no sound is produced.	Check if the product is turned on.Check if the power cord is connected to a wall outlet.Check if there is a problem in the wall outlet by connecting other products.
The TV turns off suddenly.	Check the power control settings. The power supply may be interrupted.Check if the Automatic Standby (Depending on model) / Sleep Timer / Off Time feature is activated in the TIME settings.If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes of inactivity.
When connecting to the PC (HDMI), ‘No signal’ or ‘Invalid Format’ is displayed.	Turn the TV off/on using the remote control.Reconnect the HDMI cable.Restart the PC with the TV on.

LED TV*

Stand feet (Only LB55**, LB56**-ZE / ZC, LB62**-ZA / ZB)

CAUTION

Support base

Support base

Support screws (Only LB55**, LB56**-ZE / ZC, LB62**-ZA / ZB) (Only LB56**-ZT / ZQ, LB62**-ZE) 4EA, M4 x L14 (Only 42/49LB55**, 39/42/47/50/55/60LB56**, 42/49/55LB62**)

Support screws 4EA, M4 x L20 (Only 32LB55**, 32LB56**, 32LB62**)

CAUTION

SETTINGS → IMAGE → Image Assistant III

[Depending on model]

CAUTION

CAUTION

SETTINGS → IMAGE → TruMotion

INSTRUCTION MANUAL

LED TV*

Support base

Support base

Support screws (Only LB55**, LB56**-ZE / ZC, LB62**-ZA / ZB) (Only LB56**-ZT / ZQ, LB62**-ZE) 4 each, M4 x L14 (Only 42/49LB55**, 39/42/47/50/55/60LB56**, 42/49/55LB62**)

Support screws 4 each, M4 x L20 (Only 32LB55**, 32LB56**, 32LB62**)

CAUTION

SETTINGS → PICTURE → TruMotion

SETTINGS ⇒ LOCK ⇒ Set Password

ATTENTION

7,295,673; 7,460,668; 7,515,710; 7,519,274"

Support base

Support base

CAUTION

Stand

Stand

Stand screws

(Only models LB55**, LB56**-ZE / ZC, LB62**-ZA / ZB)

(only models LB56**-ZT / ZQ, LB62**-ZE)

4EA, M4 x L14 (only models 42/49LB55**, 39/42/47/50/55/60LB56**, 42/49/55LB62**)

Stand screws

4EA, M4 x L20 (only models 32LB55**, 32LB56**, 32LB62**)

WARNING

[Support] ADIF, ADTS

Product specifications may be changed without prior notice due to upgrade of product functions.

MODELS		32LB56**		39LB56**
		32LB5610-ZC32LB561B-ZC32LB561U-ZC32LB561U-ZE32LB561V-ZC32LB561V-ZE	32LB563U-ZT32LB563V-ZT32LB565U-ZQ32LB565V-ZQ	39LB5610-ZC39LB561B-ZC39LB561U-ZC39LB561U-ZE39LB561V-ZC39LB561V-ZE
Dimensions(W x H x D)	With stand (mm)	732 x 481 x 207	732 x 475 x 185	885 x 567 x 218
	Without stand (mm)	732 x 431 x 55.5	732 x 431 x 55.5	885 x 524 x 55.5
Weight	With stand (kg)	6.2	6.2	8.3
	Without stand (kg)	6.0	6.0	8
Power consumption		65 W	65 W	90 W
Power requirement		AC 100-240 V~ 50 / 60 Hz
MODELS		42LB56**		47LB56**
		42LB5610-ZC42LB561B-ZC42LB561U-ZC42LB561U-ZE42LB561V-ZC42LB561V-ZE	42LB563U-ZT42LB563V-ZT42LB565U-ZQ42LB565V-ZQ	47LB5610-ZC47LB561B-ZC47LB561U-ZC47LB561U-ZE47LB561V-ZC47LB561V-ZE
Dimensions(W x H x D)	With stand (mm)	961 x 610 x 218	961 x 613 x 193	1073 x 676 x 255
	Without stand (mm)	961 x 567 x 55.5	961 x 567 x 55.5	1073 x 629 x 55.8
Weight	With stand (kg)	9.5	9.5	12.7
	Without stand (kg)	9.2	9.2	12.3
Power consumption		100 W	100 W	110 W
Power requirement		AC 100-240 V~ 50 / 60 Hz
MODELS		50LB56**	55LB56**	60LB56**
		50LB5610-ZC50LB561B-ZC50LB561U-ZC50LB561U-ZE50LB561V-ZC50LB561V-ZE	55LB5610-ZC55LB561B-ZC55LB561U-ZC55LB561U-ZE55LB561V-ZC55LB561V-ZE	60LB5610-ZC60LB561B-ZC60LB561U-ZC60LB561U-ZE60LB561V-ZC60LB561V-ZE
Dimensions(W x H x D)	With stand (mm)	1128 x 708 x 255	1243 x 772 x 255	1373 x 848 x 280
	Without stand (mm)	1128 x 660 x 55.8	1243 x 725 x 56.8	1373 x 801 x 58.8
Weight	With stand (kg)	14.2	18.4	23.5
	Without stand (kg)	13.8	18	23.0
Power consumption		120 W	130 W	130 W
Power requirement		AC 100-240 V~ 50 / 60 Hz
MODELS		32LB55**	42LB55**	49LB55**
		32LB5500-ZA	42LB5500-ZA	49LB5500-ZA
		32LB550B-ZA	42LB550B-ZA	49LB550B-ZA
		32LB550U-ZA	42LB550U-ZA	49LB550U-ZA
		32LB550V-ZA	42LB550V-ZA	49LB550V-ZA
		32LB550V-ZA	42LB550V-ZA	49LB550V-ZA
		32LB551U-ZC	42LB551U-ZC	49LB551U-ZC
		32LB551V-ZC	42LB551V-ZC	49LB551V-ZC
Dimensions(W x H x D)	With stand (mm)	731 x 480 x 208	959 x 611 x 218	1105 x 694 x 247
	Without stand (mm)	731 x 437 x 56.5	959 x 570 x 56.2	1105 x 652 x 56.5
Weight	With stand (kg)	5.9	9.5	13.6
	Without stand (kg)	5.7	9.2	13.2
Power consumption		65 W	100 W	110 W
Power requirement		AC 100-240 V~ 50 / 60 Hz
MODELS		32LB62**
		32LB620V-ZA	32LB6200-ZE
		32LB628U-ZB	32LB620V-ZE
		32LB628V-ZB
Dimensions(W x H x D)	With stand (mm)	731 x 480 x 208	731 x 477.6 x 184.6
	Without stand (mm)	731 x 437 x 56.5	731 x 437 x 56.5
Weight	With stand (kg)	5.9	5.9
	Without stand (kg)	5.7	5.7
Power consumption		65 W	65 W
Power requirement		AC 100-240 V~ 50 / 60 Hz
MODELS		42LB62**
		42LB620V-ZA	42LB6200-ZE
		42LB628U-ZB	42LB620V-ZE
		42LB628V-ZB
Dimensions(W x H x D)	With stand (mm)	959 x 611 x 218	959 x 609.7 x 193
	Without stand (mm)	959 x 570 x 56.2	959 x 570 x 56.2
Weight	With stand (kg)	9.5	9.5
	Without stand (kg)	9.2	9.2
Power consumption		100 W	100 W
Power requirement		AC 100-240 V~ 50 / 60 Hz
MODELS		49LB62**		55LB62**
		49LB620V-ZA49LB628U-ZB49LB628V-ZB	49LB6200-ZE49LB620V-ZE	55LB6200-ZE55LB620V-ZE
Dimensions(W x H x D)	With stand (mm)	1105 x 694 x 247	1105 x 694.3 x 230	1241 x 769 x 230
	Without stand (mm)	1105 x 652 x 56.5	1105 x 652 x 56.5	1241 x 724 x 57.5
Weight	With stand (kg)	13.6	13.6	18.2
	Without stand (kg)	13.2	13.2	17.8
Power consumption		110 W	110 W	130 W
Power requirement		AC 100-240 V~ 50 / 60 Hz
CI Module Size (W x H x D)		100.0 mm x 55.0 mm x 5.0 mm
Environment condition	Operating Temperature	0 °C to 40 °C
	Operating Humidity	Less than 80 %
	Storage Temperature	-20 °C to 60 °C
	Storage Humidity	Less than 85 %

	Satellite Digital TV	Digital TV	Analogue TV
Television system	DVB-T/T2DVB-CDVB-S/S2	DVB-TDVB-C	PAL/SECAM B/G/D/K/I,SECAM L/L'
Programme coverage	VHF, UHFC-Band, Ku-Band	VHF, UHF	VHF: E2 to E12,UHF : E21to E69,CATV: S1 to S20,HYPER: S21 to S47
Maximum number of storable programmes	6,000	1,500
External antenna impedance	75 Ω

3D supported mode

(Only 3D models)

• Video, which is input as below media contents is switched into the 3D screen automatically. - The method for 3D digital broadcast may differ depending on the signal environment. If video is not switched automatically into 3D, manually convert the settings to view 3D images.

Input	Signal	Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Playable 3D video format
HDMI	720p	1280 x 720	37.5	50	Side by Side(half), Top and Bottom
			45	60
			75	50	Frame packing
			89.9 / 90	59.94 / 60
	1080i	1920 x 1080	28.125	50	Side by Side(half), Top and Bottom
			33.7	60
	1080p	1920 x 1080	27	24	Side by Side(half), Top and Bottom
			33.7	30
			53.95 / 54	23.98 / 24	Frame packing
			56.3	50	Side by Side(half), Top and Bottom, Single frame sequential
			67.5	60
DTV	720p	1280 x 720	37.5	50	Side by Side, Top and Bottom
	1080i	1920 x 1080	28.125	50
USB	1080p	1920 x 1080	33.75	30	Side by Side, Top and Bottom, JPS, MPO(Photo)

HDMI-DTV supported mode

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)
720 x 480	31.469	59.94
	31.5	60
720 x 576	31.25	50
1280 x 720	37.5	50
	45	60
	44.96	59.94
1920 x 1080	28.125	50
	33.75	60
	33.72	59.94
	56.25	50
	67.5	60
	67.432	59.94
	27	24
	26.973	23.976
	33.75	30
	33.716	29.97

Component port connecting information

Component ports on the TV

Y

PB

PR

Video output ports on DVD player	Y	PB	PR
	Y	B-Y	R-Y
	Y	Cb	Cr
	Y	Pb	Pr

Signal	Component
480i / 576i	O
480p / 576p	O
720p / 1080i	O
1080p	O(50 Hz / 60 Hz only)

HDMI-PC supported mode

(Use HDMI IN 1 for PC mode)

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)
640 x 350	31.468	70.09
720 x 400	31.469	70.08
640 x 480	31.469	59.94
800 x 600	37.879	60.31
1024 x 768	48.363	60.00
1152 x 864	54.348	60.053
1360 x 768	47.712	60.015
1280 x 1024	63.981	60.020
1920 x 1080	67.50	60.00

(Except for 32LB55*B, 32LB55*U, 32LB56*B, 32LB56*U, 32LB62*U)

REGULATORY

LG Recycling Policy (Only EU)

LG Electronics offers a customized e-waste take-back & recycling service that meets local needs and requirements in the countries where e-waste regulations are in place, and also provides product and packaging take-back & recycling service voluntarily in some countries. LG Electronics evaluates products' recyclability at the design step using LG's recyclability evaluation tool, with the goal of improving recyclability where practicable. Through these activities, LG seeks to contribute to conserving natural resources and protecting the environment.

For more information about the LG Recycling Policy, please visit our global site at http://www.lg.com/global/sustainability/environment/take-back-recycling

Energy Saving

Energy efficiency cuts energy consumption and thus saves money by reducing electricity bills. The following indications allow to reduce power consumption when the television is not being watched:

• Turning the television off at its mains supply, or un-plugging it, will cut energy use to zero for all televisions, and is recommended when the television is not being used for a long time, e.g. when on holiday,
• Putting the television into standby mode, will reduce energy consumption, but will still draw some power,
• Reducing the brightness of the screen will reduce energy use.

Disposal of waste batteries (Applicable in the European Union and other European countries with separate collection systems)

Pb

This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste.

By ensuring these batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources.

In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only.

To ensure that the battery will be treated properly, hand over the product at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment.

For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the applicable collection point for the recycling of waste batteries.

For more detailed information about recycling of this product or battery, please contact your local authority, your household waste disposal service or the shop where you purchased the product.

EU ecolabel (Only EU ecolabel applied model)

Better for the environment...

• High Energy Efficiency - Reduced CO2 emissions - Designed to facilitate repair and recycling

... better for you.

EU Ecolabel : PL/22/004

LGE announced the ‘LG Declaration for a Cleaner Environment ‘in 1994, and this ideal has served as a Guiding managerial principle ever since. The Declaration is a foundation that has allowed us to undertake Environmentally friendly activities in careful consideration of economic, environmental, and social aspects. We promote activities for environmental preservation, and we specifically develop our products to embrace the Concept of environment-friendly through whole process from getting raw materials, production, transportation, usage and end-of-life. These environmental characteristics are endorsed by the award of the European Commission as approval of the product environmental status for energy saving. Facilities for recycling and a host of other features.

The full list of criteria and more information on the eco label can be found at the web-site address :

http://www.ecolabel.eu

Isolator (Only Sweden, Norway)

• “Equipment connected to the protective earthing of the building installation through the mains connection or through other equipment with a connection to protective earthing - and to a cable distribution system using coaxial cable, may in some circumstances create a fire hazard. Connection to a cable distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11)”
• Equipment connected to protective earth via an earthed wall outlet and/or via other equipment, and at the same time connected to a cable TV network, may in some cases entail a risk of fire. To avoid this, when connecting the equipment to a cable TV network, a galvanic isolator must be present between the equipment and the cable TV network.
• Equipment connected to protective earth via a mains plug and/or via other earth-connected equipment - and connected to a cable TV network, can cause a fire hazard. To avoid this, when connecting the equipment to the cable TV network, a galvanic isolator must be installed between the equipment and the cable TV network.

LG

Life's Good

Record the model number and serial number of the TV.

Refer to the label on the back cover and quote this information to your dealer when requiring any service.

MODEL

SERIAL

DVB®

Digital Video

Broadcasting

Please contact LG First.

If you have any inquiries or comments,

please contact LG customer information centre.

LG Customer Information Centre

Country	LG Service	Country	LG Service
Österreich	0 810 144 131	Nederland	0900 543 5454
België	015 200 255	Norge	800 187 40
Luxembourg	0032 15 200255	Polska	801 54 54 54
България	07001 54 54	Portugal	808 78 54 54
Česká Rep.	810 555 810	România	031 228 3542
Danmark	8088 5758	Slovensko	0850 111 154
Suomi	0800 0 54 54	España	902 500 234
France	3220 dites LG ou tapez 54	Sverige	0770 54 54 54
Deutschland	01806 11 54 11(0,20€ pro Anruf aus dem Festnetz der DTAG; Mobilfunk: max. 0,60€ pro Anruf)	Schweiz	0848 543 543
Еллάδα	801 11 200 900,210 4800 564	United Kingdom	0844 847 5454
		Россия	8 800 200 7676
Magyarország	06 40 54 54 54	Eesti	800 9990
Éire	0818 27 6955	Украина	0 800 303 000
Italia	199600099	Казахстан	8 8000 805 805,2255(GSM)
Беларусь	8 820 0071 1111
Latvija	80200201	Узбекистан	8 800 120 2222
Lietuva	880008081	Кыргызстан	8 0000 710 005

www.lg.com
