USER MANUAL HDR7619DNGB HAIER

HDR7619DNGB HDR7619DNGW

4 Safety information

Before first use 5

Installation 5

Daily use 6

9 Intended use

10 Product description

11 Control panel

12 Use

19 Equipment

21 Energy saving tips

22 Care and cleaning

25 Troubleshooting

29 Installation

33 Technical data

35 Customer service

Adjust the temperature for fridge 13

Adjust the temperature for freezer 13

Adjust the temperature for My-zone 13

Super-Cool function 14

Super-Frz function 15

Please click the contents to look at the detail information.

Thank you for purchasing a Haier Product.

Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.

Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance.

If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings.

Accessories

Check the accessories and literature in accordance with this list:

Door retaining-left

Fridge lower hinge-left

Upper decorative trim shaft sleeve-left

User manual

Lower decorative trim shaft sleeve-left

Left shaft sleeve cover

Cover of fridge lower trim-right

Cover of upper trim-left

assembly-left

Upper hinge assembly

Set blockFreeZstrainlesshinged gasket

WARNING – Important Safety information

NOTICE-General information and tips

Environmental information

Disposal

Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with this symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

RNING!

Risk of injury or suffocation!

Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the trays and drawers as well as the door catch and seals, to prevent children and pets to get closed in the appliance.

Warning sign depicting a flame symbol with hazard symbol, commonly used in safety or hazard prevention.

WARNING: Risk of fire/flammable material

The symbol indicates there is a risk of fire since flammable materials are used. Take care to avoid causing a fire by ingiting flammable material.

Before switching on the appliance for the first time read the following safety hints!:

WARNING!

Before first use

▶Make sure there is no transport damage.

Remove all packaging and keep out of children's reach.

▶ Wait at least two hours before installing the appliance in order to ensure the refrigerant circuit is fully efficient.
- When positioning the appliance, ensure the supply cord is not trapped or damaged.
▶ Handle the appliance always with at least two persons because it is heavy.

Installation

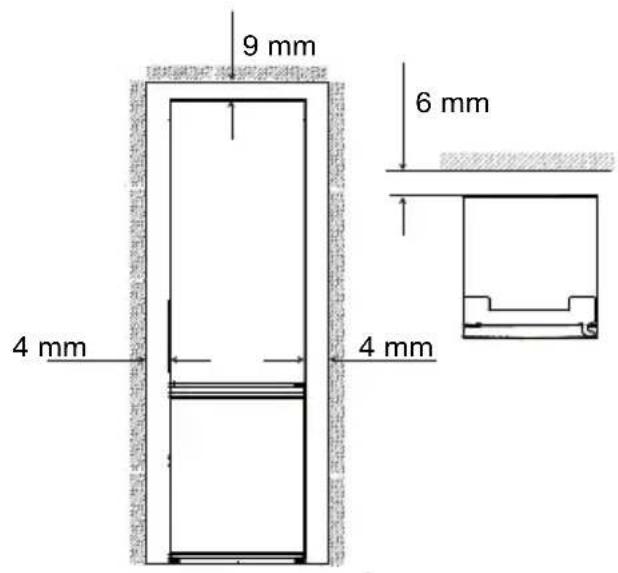

The appliance should be placed in a well-ventilated place. Ensure a space of at least 10 cm above and around the appliance.
▶ Never place the appliance in a damp area or location where it might be splashed with water. Clean and dry water splashes and stains with a soft clean cloth.
▶ Do not install the appliance in direct sunlight or in the near of heat sources(e.g. stoves, heaters).
▶ Install and level the appliance in an area suitable for its size and use.
- Keep ventilation openings in the appliance or in the in-built structure clear of obstruction.
▶ Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician.
The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted.
▶ Do not use multi-plug adapters and extension cables.
- Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
▶ Ensure that the power cable is not trapped by the refrigerator. Do not step on the power cable.

WARNING!

▶ Use a separate earthed socket for the power supply which is easy accessible. The appliance must be earthed.

Only for UK: The appliance's power cable is fitted with 3-cord (grounding) plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible.

▶Do not damage the refrigerant circuit.

Daily use

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

▶ Children aged from 3 to 8 years are allowed to load and unload, but not allowed to clean or install the refrigerating appliances.

- Keep away children under 3 years of age from the appliance unless they are constantly supervised.

▶Children shall not play with the appliance.

If cool gas or other inflammable gas is leaking in the vicinity of the appliance, turn off the valve of the leaking gas, open the doors and windows and do not unplug a plug in the power cable of the refrigerator or any other appliance.

▶ Notice that the appliance is set for operation at a specific ambient range between 10 and 43°C. The appliance may not work properly if it is left for a long period at a temperature above or below the indicated range.

▶ Do not place unstable articles (heavy objects, containers filled with water) on top of the refrigerator, to ovoid personal injury caused by falling or electric shock caused by contact with water.

▶ Do not pull on the door shelves. The door may be pulled slant, the bottle rack, may be pulled away, or the appliance may topple.

▶ Open and close the doors only with the handles. The gap between the doors and between the doors and the cabinet is very narrow. Do not extend your hands in these areas to avoid pinching your fingers. Open or close the refrigerator doors only when there are no children standing within the range of door movement.

WARNING!

▶ Do not store or use inflammable, explosive or corrosive materials in the appliance or in the vicinity.
▶ Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance. It is not recommended to store materials that require strict temperatures.
▶ Never store liquids in bottles or cans (besides high percentage spirits) especially carbonated beverages in the freezer, as these will burst during freezing.
▶ Check the condition of food if a warming in the freezer has taken place.
▶ Do not set unnecessarily low temperature in the refrigerator compartment. Minus temperatures may occur at high settings. Attention: Bottles can burst
▶ Do not touch frozen goods with wet hands (wear gloves). Especially do not eat ice lollies immediately after removal from the freezer compartment. There is the risk to freeze or the formation of frost blisters. FIRST aid: keep immediately under running cold water. Do not pull away!
▶ Do not touch the inside surface of the freezer storage compartment when in operation, especially with wet hands, as your hands may freeze onto the surface.
▶ Unplug the appliance in the event of a power interruption or before cleaning. Allow at least 7 minutes before restarting the appliance, as frequent starting may damage the compressor.
▶ Do not use electrical devices inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. Maintenance / cleaning
▶ Make sure children are supervised if they carry out cleaning and maintenance.
▶ Disconnect the appliance from the electrical supply before undertaking any routine maintenance. Allow at least 5 minutes before restarting the appliance, as frequent starting may damage the compressor.

WARNING!

▶Hold the plug, not the cable, when unplugging the appliance.
▶ Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage.
Do not scrape off frost and ice with sharp objects. Do not use sprays, electric heaters like heater, hair dryer, steam cleaners or other sources of heat in order to avoid damage to the plastic parts.
▶ Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
▶ Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact our customer service.
▶ Eliminate the dust on the back of the unit at least once in the year to avoid hazard by fire, as well as increased energy consumption.
▶Do not spray or flush the appliance during cleaning.
▶Do not use water spray or steam to clean the appliance.
▶ Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.

Refrigerant gas information

WARNING!

The appliance contains the flammable refrigerant ISOBUTANE (R600a). Make sure the refrigerant circuit is not damaged during transportation or installation. Leaking refrigerant may cause eye injuries or ignite. If a damage has occurred, keep away open fire sources, thoroughly ventilate the room, do not plug or unplug the power cords of the appliance or any other appliance. Inform the customer service.

In case of eyes get into contact with the refrigerant, rinse immediately it under running water and call immediately the eye specialist.

Intended use

This appliance is intended for cooling and freezing food. It has been designed exclusively for use in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments as well as in bed-and-breakfast and catering business. It is not intended for commercial or industrial use.

Changes or modifications to the device are not allowed. Unintended use may cause hazards and loss of warranty claims.

Standards and directives

This product meets the requirements of all applicable EC directives with the corresponding harmonised standards, which provide for CE marking.

NOTICE

Due to technical changes and different models, some of the illustrations in this manual may differ from your model.

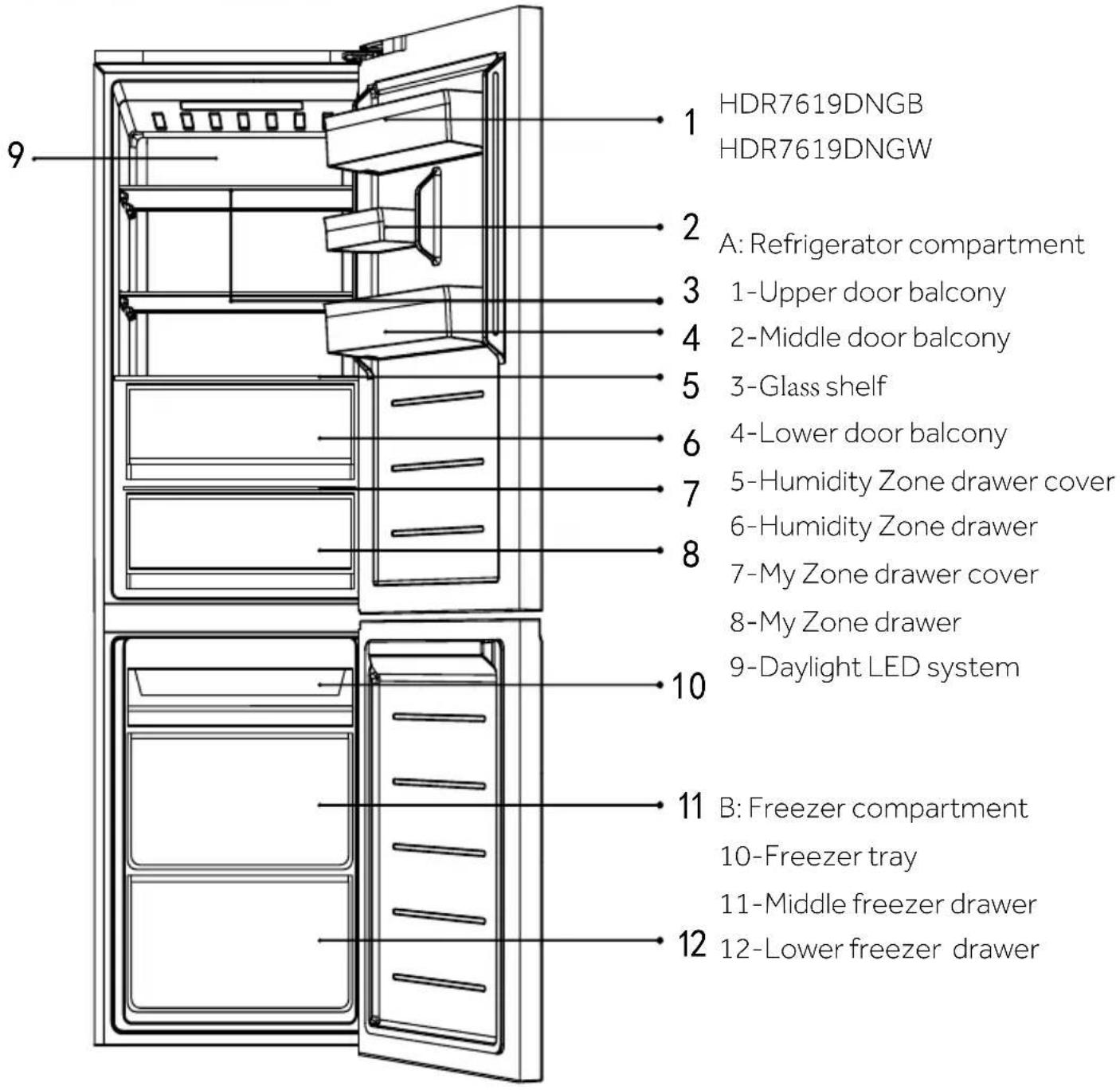

HDR7619DNGB HDR7619DNGW A: Refrigerator compartment 1-Upper door balcony 2-Middle door balcony 3-Glass shelf 4-Lower door balcony 5-Humidity Zone drawer cover 6-Humidity Zone drawer 7-My Zone drawer cover 8-My Zone drawer 9-Daylight LED system B: Freezer compartment 10-Freezer tray 11-Middle freezer drawer 12-Lower freezer drawer

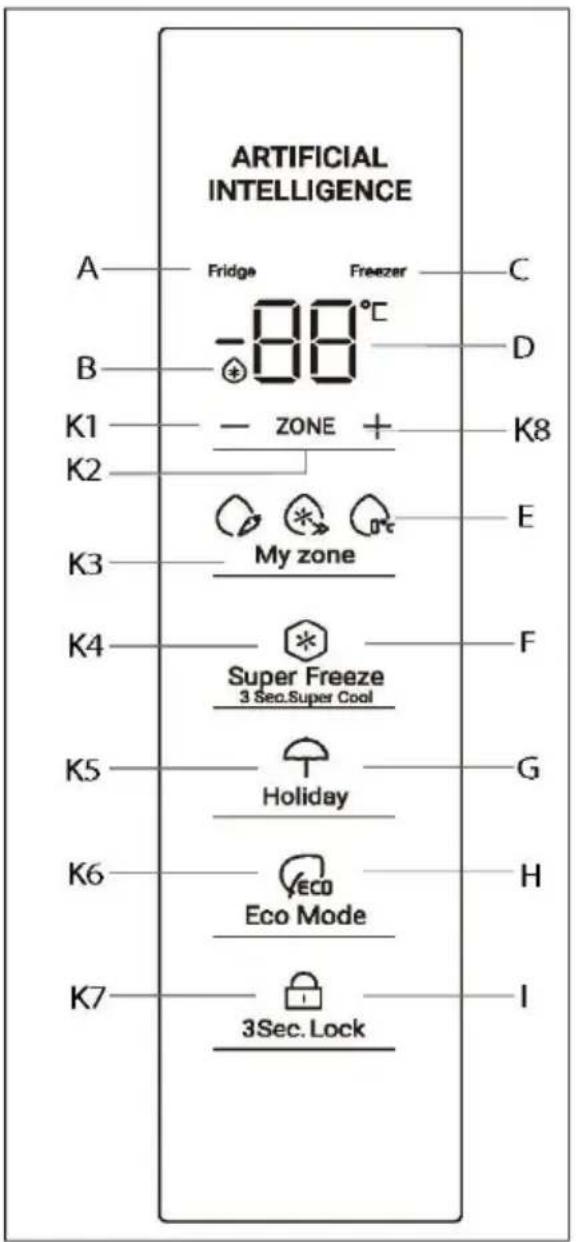

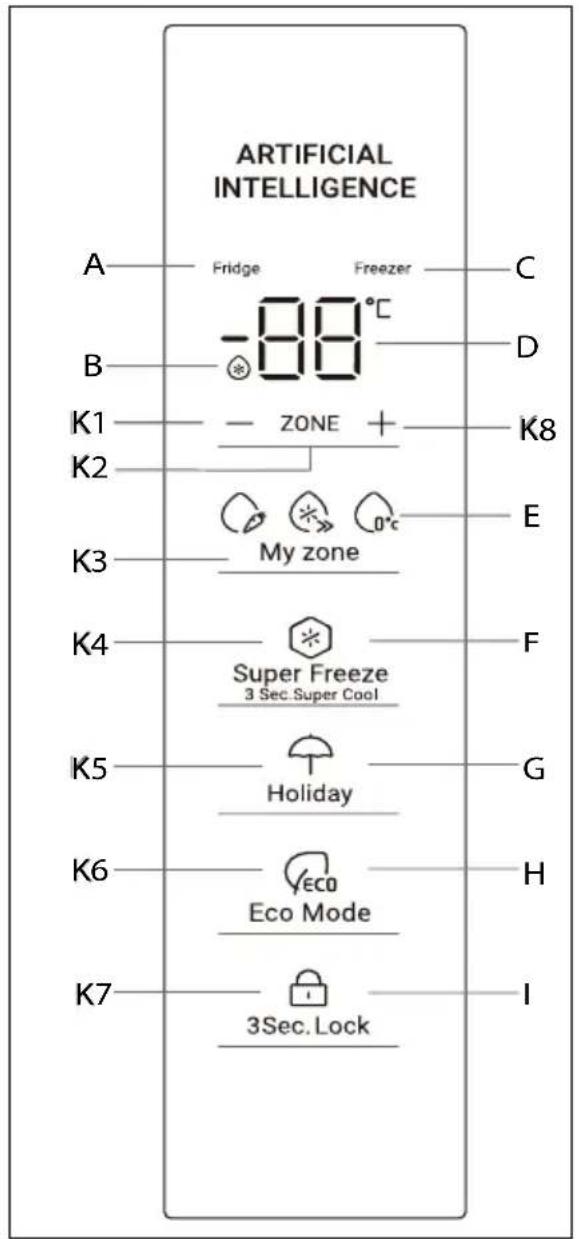

Control panel

K1 Decrease temperature
K2 Fridge and Freezer selection
K3 My zone selection
K4 Super Freeze/Cool function on/off
K5 Holiday function on/off
K6 Eco Mode function on/off
K7 3 Sec.Lock function on/off
K8 Increase temperature

Before first use

Remove all packaging materials, keep them out of childrens reach and dispose them in an environmentally friendly way.
▶ Clean the inside and outside of the appliance with water and a mild detergent before putting any food in it.

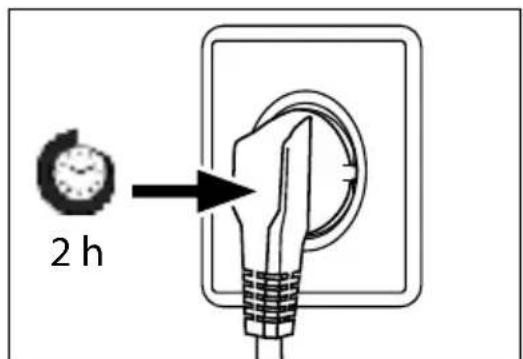

▶ After the appliance has been levelled and cleaned, wait for at least 2-5 hours before connecting it to the power supply. See Section INSTALLATION.
▶ Precool the compartments at high settings before loading with food. The function Power- Freeze helps to cool down the compartments quickly.
The fridge temperature and freezer temperature are automatically set to 5°C and -18°C respectively. These are the recommended settings. If desired, you can change these temperatures manually. Please see ADJUST THE TEMPERATURE.

Switch on /off the appliance

The appliance is in operation as soon as it is connected to the power supply.

When the appliance is powered on for the first time, temperature indicators "D" shows the presetting values (refer to the below Notice).

NOTICE

The appliance is preset to the recommended temperature of 5 ^ C (refrigerator) and -18 ^ C (freezer). My Zone is set to Quick Chill by default. These are the recommended settings. If desired, you can change these temperatures manually.

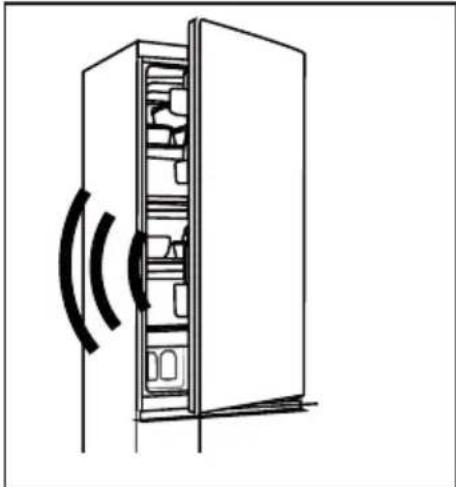

Door opening alarm

When the refrigerator door is open for more than 3 minutes, the door opening alarm will sound every 10 seconds.

The alarm can be silenced by closing the door. If the door is open for more than 7 minutes, the light inside the refrigerator and control panel illumination will automatically turn off, and the door opening alarm will sound every 10 seconds.

Line drawing of an open refrigerator with a sound wave indicator (no text or symbols)

Adjust the temperature

The indoor temperatures are influenced by the following factors:

Ambient temperature

Frequency of door opening

Amount of stored foods

Installation of the appliance

Adjust the temperature for fridge

1. With the display unlocked, press the button "K2" (Fridge/ Freezer selection) to select the Fridge compartment. Icon "A" (Fridge compartment) and "D" (Temperature display) are bright.
2. Press the button "K1/K8" to set the fridge temperature.

The temperature increases in sequences of 1^ C, from a minimum of 1^ C to a maximum of 9^ C. The optimal temperature in the refrigerator is 5^ C. Colder temperatures mean unnecessary energy consumption.

1. After about 5s, temperature icon "D" (Temperature display) will be bright permanently and the setting is confirmed.

Adjust the temperature for freezer

1. With the display unlocked, press the button "K2" (Fridge/ Freezer selection) to select the freezer compartment icon "C" (Freezer compartment) and "D" (Temperature display) are bright.
2. Press the button "K1/K8" to set the freezer temperature.

The temperature increases in sequences of 1^ C, from a minimum of -24^ C to a maximum of -14^ C. The optimal temperature in the refrigerator is -18^ C. Colder temperatures mean unnecessary energy consumption.

1. After about 5s, temperature indicator "D" (Temperature display) will be bright permanently and the setting is confirmed

Adjust the temperature for My Zone

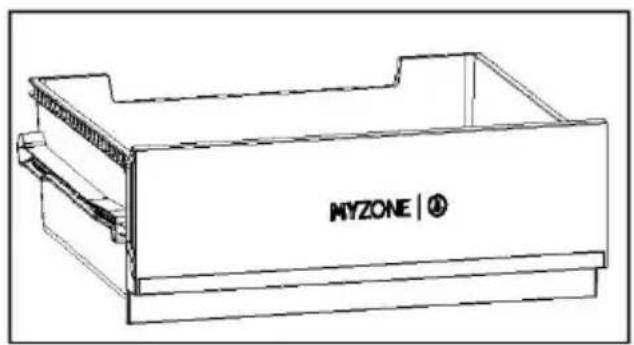

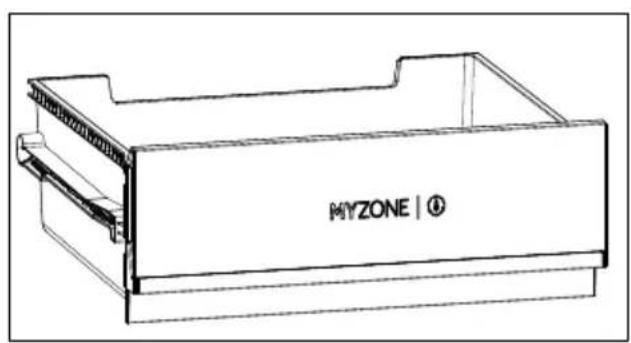

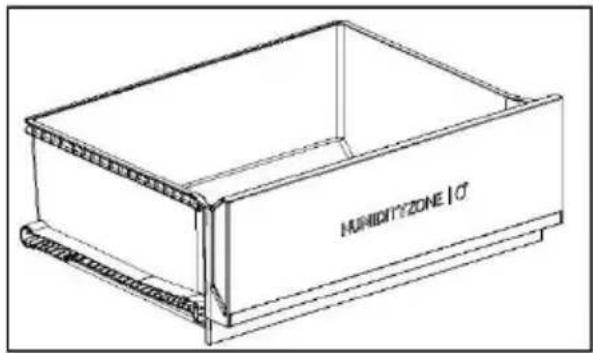

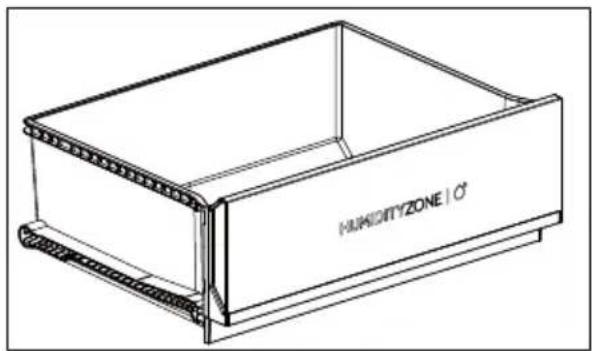

The fridge compartment is equipped with a My Zone drawer. In accordance with the food storage demands, the most suitable temperature can be selected to get the optimal nutritional value of the foods.

1. With the display unlocked, press the button "K3" (My Zone selection) to select the My Zone function included Fruit&Veg, Quick Chill and 0°C. Icon "E" (Fruit&Veg, Quick Chill and 0°C) is bright.
2. Press the button, the function changes according to Fruit&Veg, Quick Chill and 0°C.

NOTICE

1. You can set the temperature of the My Zone compartment in the middle level (2°C), in order to preserve your food in the optimal storage environment.
2. Due to different water contents of meat, some meat with higher moisture will be frozen at temperatures lower than 0°C, so "immediately cut" meat should be stored in My Zone drawer, with minimum temperature 0°C.
3. Cold-sensitive fruit like pineapples, avocados, bananas, grapefruits and vegetables such as potatoes, aubergines, beans, cucumbers, zucchini and tomatoes and cheese should not be stored in the My Zone drawer.
4. If the fridge temperature lower than My Zone temperature, it is normal the My Zone temperature lower than the My Zone setting temperature.

NOTICE

After setting the temperature, if other buttons are pressed within 5 seconds, the current temperature setting will be confirmed immediately. If no button operation is performed within 5 seconds, the current set temperature is displayed until the screen extinguishes.

Super Cool function

1. It is suggested to switch on the Super Cool function if larger quantity of food should be stored (for example after the purchase). The Super Cool function accelerates the cooling of fresh food and protects the food already stored from undesirable warming.
2. When the display lights up, press button "K4" (Super Freeze/Cool function setting) for 3 seconds, icon "B" (Super Cool function) is bright and the function is activated.

NOTICE

1. The appliance quits "Super Cool function" after entering "Super Cool function" for 6 hours or pressing button "K4" when the icon "B" (Super Cool function) is bright.

2. In the state of Super Cool, if the temperature of the fridge compartment is adjusted, icon "B" (Super Cool function) flashes to indicate that this operation cannot be done.

Super Freeze function

1. Fresh food should be frozen as quickly as possible to the core. This can preserve the best nutritional value, appearance and taste. The Super Freeze function accelerates the freezing of fresh food and protects the food already stored from undesirable warming. If you need to freeze a large amount of food at once, it is recommended to set the Super Freeze function on ahead for 24h before the usage of frozen room.

2. With the display unlocked, press button "K4" (Super Freeze/Cool function setting), the icon "F" (Super Freeze function) is bright and the function is activated.

NOTICE

1. The appliance quits "Super Freeze function" after entering "Super Freeze function" for 50 hours or pressing button "K4" when the icon "F" (Super Freeze function) is bright.

2. In the state of Super Freeze, if the temperature of the freezer compartment is adjusted, icon "F" (Super Freeze function) flashes to indicate that this operation cannot be done.

Holiday function

The Holiday function can be used to reduce the energy consumption of the appliance, when it is not used regularly. When the function is on, the fridge is turned off, whereas the freezer will keep working normally. The function sets the fridge temperature permanently to 17^ C.

This allows to keep the door of the empty refrigerator closed without causing an odour or mold-during a long absence (e.g. during holiday). The freezer compartment is free for your setting.

1. When the display lights up, press button "K5" (Holiday function on/off), the icon "G" (Holiday function) is bright and the function is activated.

2. The function can be deactivated by pressing button "K5" (Holiday function on/off) again or by setting the fridge temperature or by performing any other setting.

NOTICE

1. During the Holiday function, no food should be stored in the fridge compartment. The temperature of 17^ C is too high for storing food.

2. When Holiady function is on, My Zone icon keeps off and fridge function is locked. If the temperature of the fridge compartment is adjusted, icon "G" (Holiday function) flashes to indicate that this operation cannot be done.

Eco Mode function

The Eco Mode can be activated to optimize the performance of the appliance, whereas obtaining the best food storage. If you do not have any special requirements, we recommend that you use Eco Mode function.

This mode the fridge temperature is 5^ , the freezer temperature is -18^ .

1. When the display lights up, press button "K6" (Eco Mode function on/off).
2. Icon "H" (Eco Mode function) is bright and the function is activated.

By repeating the above steps or selecting another function, this function can be switched off again. The previously set cooling levels are restored.

NOTICE

During the Eco Mode function, if the temperature of the fridge/freezer compartment are adjusted, icon "H" (Eco Mode function) flashes to indicate that this operation cannot be done.

3 Sec.Lock function

1. When the display lights up, press button "K7" for 3 seconds, icon "I" (3 Sec.Lock function) is bright and the display is locked.

Storing into the refrigerator compartment

• Keep your fridge temperature below 5°C.
  • Hot food must be cooled to room temperature before storing in the appliance.
• Foods stored in the refrigerator should be washed and dried before storing.
• Food to be stored should be properly sealed to avoid odor or taste alterations.
• Do not store excessive quantities of food. Leave spaces between foods to allow cold air flowing around them, for a better and more homogeneous cooling.
• Foods eaten daily should be stored at the front of the shelf.
• Leave a gap between foods and the inner walls, allowing air flowing. In any way, don't store foods against the rear wall: foods could freeze against the rear wall. Avoid direct contact of food (especially oily or acidic food) with the inner liner, as oil/acid can erode the inner liner. Clean away oily/acid dirt whenever it is found.
• Frozen food can be gently defrizzed in the refrigerator compartment. This saves energy.
• The ageing process of fruit and vegetables such as courgettis, melons, papaya, bananas, pineapples, etc. can be accelerated in the refrigerator. Therefore, it is not recommended to store them in the refrigerator. However, the ripening of strongly green fruits can be promoted for a certain period. Onions, garlic, ginger and other root vegetables should also be stored at room temperature.
• Unpleasant odours inside the fridge are a sign that something has spilled and cleaning is required. See Care And Cleaning.
  • Different foods should be placed in different areas according to their properties.

Storage into the freezer compartment

• Keep the freezer temperature at- 18°C.
• 24 hours before freezing, switch on the Super-Freeze function. For little quantities of food, 4-6 hours are sufficient.
• Hot food must be cooled to room temperature before storing in the freezer compartment.
• Food cut into small portions will freeze faster and be easier to defrost and cook. The recommended weight for each portion is less than 2.5 kg
• It is better to pack food before putting it into the freezer. The outside of the packaging must be dry to avoid bags sticking together. Packaging materials should be odour-free, airtight, non-poisonous and nontoxic.
• In order to avoid expiration of storage periods, please note the freezing date, time limit and name of the food on the packaging according to the storage periods of different foods.

WARNING!

▶ Acid, alkali and salt etc. could erode the internal surface of the freezer.
Do not place the food with these substances (e.g. sea fish) directly on the internal surface. Salt water in the freezer should be cleaned up immediately.
Do not exceed the food storage time recommended by the manufacturers. Only take the required amount of food out of the freezer.
▶ Consume defrosted food quickly. Defrosted food cannot be re-frozen unless it is first cooked, otherwise it may be less edible.
Do not load excessive quantities of fresh food in the freezer compartment. Refer to the freezing capacity of the freezer - See TECHNICAL DATA or data at the type plate.
▶ Food can be stored in the freezer at a temperature of at least -18^ C for 2 to 12 months, depending on its properties (e.g. meat: 3-12 months, vegetables: 6-12 months)
▶ While freezing fresh food, avoid bringing them in contact with already frozen food. Risk of thawing!

When storing commercially frozen foods, please follow these guidelines:

• Always follow manufacturers' guidelines for the length of time you should store food for. Do not exceed these guidelines!
- Try to keep the length of time between purchase and storage as short as possible to preserve food quality.
- Buy frozen food, which have been stored at a temperature of -18°C or below.
- Avoid buying food which has ice or frost on the packaging - This indicates that the products might have been partially defrosted and refrozen at some point-temperature rising affects the quality of food.

NOTICE

Due to different models, your product may not have all of the following features. Please refer to chapter Product Description.l.

Architectural floor plan showing room layouts and structural elements (no text or labels)

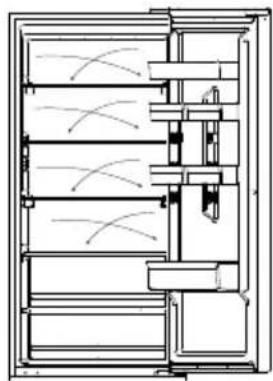

Multi-air-flow

The refrigerator is equipped with a multi-air-flow system, with which cool air flows are located on every shelf level. This helps to maintain a uniform temperature to ensure that your food is kept fresher for longer.

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating movement or force direction.

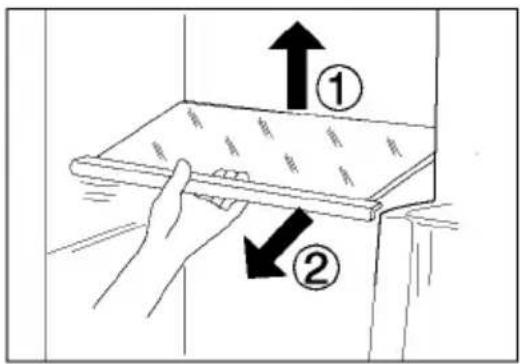

Adjustable shelves

1. The height of the shelves can be adjusted to fit your storage needs.

2. To relocate a shelf, remove it first by uplifting its hind edge ① and pulling it out ②.

3. To reinstall it, put it on the lugs on both sides and push it to the most rearward position until the rear of the shelf is fixed inside the slots in the sides

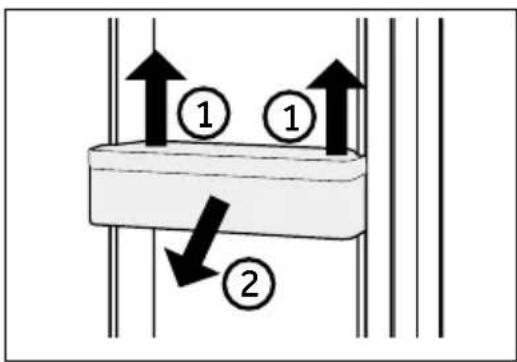

Removable door racks/bottle holder

1. The door racks can be removed for cleaning:
2. Place hands on each side of the rack, lift it upwards ① and pull it out ②.
3. In order to insert the door rack, the above steps are carried out in reverse order.

Diagram showing two labeled arrows (1 and 2) pointing upward and downward to a rectangular object, with numbered circles indicating positions.

My Zone drawer

For using and setting the My Zone compartment, please check section USE (My Zone)..

MYZONE | ①

HUMIDITYZONE | 0°

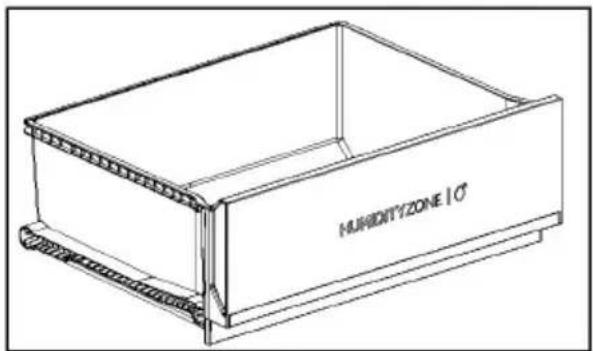

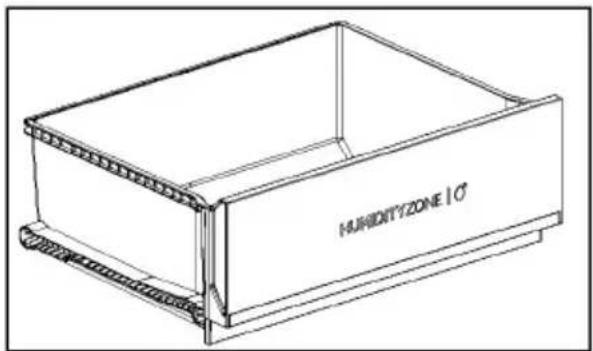

Humidity Zone drawer

In this compartment the humidity level is controlled automatically by the system and it is suitable to store fruits, vegetables, salads etc.

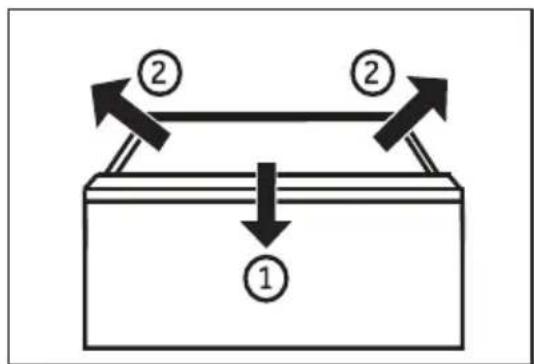

Removable drawer

To remove the drawer out of the fridge or freezer compartment, pull out to the maximum extent (1), lift and remove (2).

In order to insert the drawer, the above steps are carried out in a reverse order.

Freezer drawer

The freezer drawer can be extended straightly and completely. They are mounted on easy roll telescopic rail. So that you can store and remove the freezing good comfortably. Because of the automatic door closing mechanism, the handing is easy and you can save energy.

WARNING!

Do not overload the drawers: Maximum load of each drawer: 35kg!

The Light

The LED interior light comes on when the door is open. The performance of the lights is not affected by any other appliances settings.

Energy saving tips

▶Make sure the appliance is properly ventilated (see INSTALLATION).

Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves, heaters).

- Avoid unnecessarily low temperature in the appliance. The energy consumption increases the lower the temperature in the appliance is set.

▶Functions like Super Freeze/Cool function consume more energy.

▶Allow warm food to cool down before placing it in the appliance.

▶Open the appliance door as little and as briefly as possible.

▶Do not overfill the appliance to avoid obstructing the air flow.

▶Avoid air within the food packaging.

▶Keep door seals clean so that the door always closes correctly.

▶Defreeze frozen food in the fridge storage compartment.

The most energy-saving configuration requires the appliance keep drawers, food box and shelves on factory-fresh condition, and food should be places as far as possible without blocking the air outlet of the duct.

WARNING!

Disconnect the appliance from the power supply before cleaning.

Cleaning

Clean the appliance when only little or no food is stored.

The appliance should be cleaned every four weeks for good maintenance and to prevent bad stored food odors.

WARNING!

Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage.
▶Do not spray or flush the appliance during cleaning.
▶Do not use water spray or steam to clean the appliance.
Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.
Do not touch the inside surface of the freezer storage compartment, especially with wet hands, as your hands may freeze onto the surface.
▶In case of heating check the condition of frozen goods.

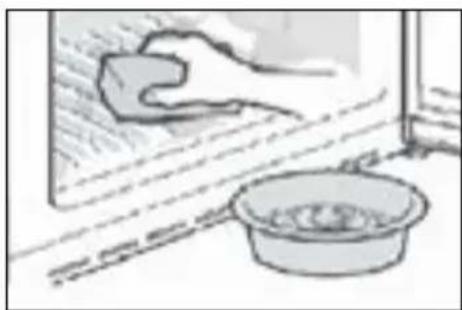

Illustration of a hand cleaning a window with a cloth and a basin (no text or symbols)

▶Always keep the door gasket clean.
▶ Clean the inside and housing of the appliance with a sponge dampened in warm water and neutral detergent.
▶1. Please scrub the interior and exterior of the refrigerator, including door sealing, door rack, glass shelves, boxes and so on, with a soft towel or sponge dipped in warm water (you may add neutral detergent into the warm water).

▶ 2. If there is liquid spilled, remove all the contaminated parts, directly rinse with the flow water, dry and place it back into the fridge.

1. If there is spilled cream (such as the cream, melting ice cream), please remove all the contaminated parts, put into the warm water with about 40 °C for some time, then rinse with the flow water, dry and place it back into the fridge.

2. In case some small part or component gets stuck inside of the fridge (between shelves or drawers), use small soft brush to release it. If you could not reach the part, please contact Haier service

▶Rinse and dry with soft cloth.

▶ Do not clean any of the parts of the appliance in a dishwasher.

▶ Allow at least 5 minutes before restarting the appliance as frequent starting may damage the compressor.

Defrosting

The defrosting of the refrigerator and the freezer compartment are done automatically; no manual operation is needed.

Replacing the LED-lamps

WARNING!

Do not replace the LED lamp yourself, it must only be replaced by either the manufacturer or the authorised service agent.

The lamps adopts LED as its light source, featuring low energy consumption and long service life. If there is any abnormality, please contact the customer service. See CUSTOMER SERVICE.

Parameters of the lamps:

HDR7619DNGB,HDR7619DNGW

Part	LED lamp
Voltage	12V
Max Power	8W
LED Spec	White-4014
LED efficiency class	F
Usage temperature	-30~60°C

Non-use for a longer period

If the appliance is not used for an extended period of time, and you will not use the Holiday-function for the refrigerator:

Take out the food.

Unplug the power cord.

Clean the appliance as described above.

Keep the doors open to prevent the creation of bad odours inside.

NOTICE

Turn the appliance off only if strictly necessary.

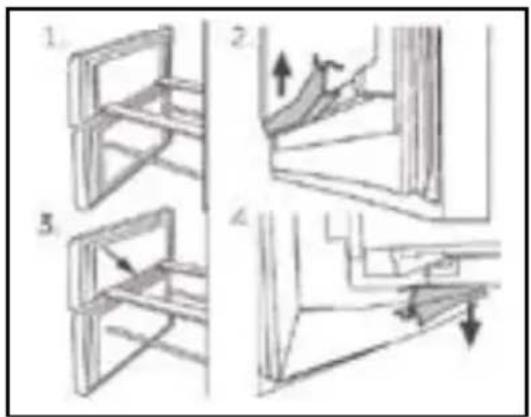

Removable auxiliary door gaskets

There are six auxiliary door gaskets on the upper and lower freezer drawers.

1. Locate the five indicated door gaskets on the upper and lower freezer drawers.
2. Make sure the bent slices of the gaskets point inwards while attaching.

3. Loacte the lower gasket of the upper drawer as indicated.

4. Make sure the bent slice of this gasket points downwards while attaching.

You get these gaskets as well as the revolving door/drawer gaskets via the customer service(see warranty card).

Technical diagram showing four steps of a mechanical assembly or folding process with labeled components and directional arrows.

Moving the appliance

1. Remove all food and unplug the appliance.
2. Secure shelves and other moveable parts in the fridge and the freezer with adhesive tape.
3. Do not tilt the refrigerator more than 45^ to avoid damaging the refrigeration system.

WARNING!

▶Do not lift the appliance by its handles.
▶Never place the appliance horizontally on the ground.

Many occurring problems could be solved by yourself without specific expertise. In case of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE.

WARNING!

▶ Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.

Electrical equipment should be serviced only by qualified electrical experts, because improper repairs can cause considerable consequential damages.

▶ A damaged supply should only be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Problem Possible Cause Possible Solution
The compressor does not work.	Mains plug is not connected in the mains socket.The appliance is in the defrosting cycleConnect the mains plug.This is normal for an automatic defrosting
The appliance runs frequently or runs for a too long period of time.	The indoor or outdoor temperature is too high.The appliance has been off power for a period of time.A door of the appliance is not tightly closed.The door has been opened too frequently or for too long.The temperature setting for the freezer compartment is too low.The door gasket is dirty, worn, cracked or mismatched.The required air circulation is not guaranteed.In this case, it is normal for the appliance to run longer.Normally, it takes 8 to 12 hours for the appliance to cool down completely.Close the door/drawer and ensure the appliance is located on a level ground and there is no food or container jarring the door.Do not open the door/drawer too frequently.Set the temperature higher until a satisfactory refrigerator temperature is obtained. It takes 24 hours for the refrigerator temperature to become stable.Clean the door/drawer gasket or replace them by the customer service.Ensure adequate ventilation.
The inside of the refrigerator is dirty and/or smells.	The inside of the refrigerator needs cleaning.Food of strong odour is stored in the refrigerator.Clean the inside of the refrigerator.Wrap the food thoroughly..

Problem Possible Cause Possible Solution
It is not cold enough inside the appliance.	The temperature is set too high.Too warm goods has been stored.Too much food has been stored at one time.The goods are too close to each other.A door/drawer of the appli-ance is not tightly closed.The door/drawer has been opened too frequently or for too long.	Reset the temperature.Always cool down goods be-fore storing them.Always store small quantities of food.Leave a gap between several foods allowing air flowing.Close the door/drawer.Do not open the door/drawer too frequently.
It is too cold inside the appli-ance.	The temperature is set too low.The Super-Frz/Su-per-Coolfunction is activated or is running too long.	Reset the temperature.Switch off the Super-Frz/Su-per-Cool function
Moisture forma-tion on the inside of the refrigerator compartment.	The climate is too warm and toodamp.A door/drawer of the appli-ance is not tightly closed.The door/drawer has been opened too frequently or for too long.Food containers or liquids are left open.	Increase the temperature.Close the door/drawer.Do not open the door/drawer too frequently.Let hot foods cool to room temperature and cover foods and liquids.
Moisture accumulates on the refrigerators outside surface or between the doors/door and drawer.	The climate is too warm and too damp.The door is not closed tightly. The cold air in the appliance and the warm air outside it condensates.	This is normal in damp climate and will change when the hu-midity decreases.Ensure that he door/drawer is tightly shut.
Strong ice and frost in the freezer compartment.	· The goods were not adequately packaged.· A door/drawer of the appliance is not tightly closed.· The door/drawer has been opened too frequently or for too long.· The door/drawer gasket is dirty, worn, cracked or mismatched.· Something on the inside prevents the door/drawer to close properly.	· Always pack the goods well.· Close the door/drawer.· Do not open the door/drawer too frequently.· Clean the door/drawer gasket or replace them by new ones.· Reposition the shelves, door racks, or internal containers to allow the door/drawer to close.
The sides of the cabinet and door strip get warm.	· - · This is normal.
The appliance makes abnormal sounds.	· The appliance is not located on level ground.· The appliance touches some object around it.	· Adjust the feet to level the appliance.· Remove objects around the appliance.
A slight sound is to be heard similar to that of flowing water.	· - · This is normal.
You will hear an alarm beep.	· The fridge storage compartment door is open.	· Close the door.
You will hear a faint hum.	· The anti-condensation system is working	· This prevents condensation and is normal

Problem Possible Cause Possible Solution
The interior lighting or cooling system does not work.	Mains plug is not connected in the mains socket.The power supply is not intact.The LED-lamp is out of order.
Water leaking or dripping from the water dispenser spout.	The water tank is not installed correctlyThe water dispenser spout is not screwed tight to the tank.The white silicon O ring is missing from the water spout.
The icons on display flash in turn and cooling system does not work.	It is in demo mode.Refrigerator is plug in power.Press and hold the "ZONE" button, and click the "Eco Mode" button five times, then the icon will stop lighting circularly.

To contact the technical assistance, visit our website: https://corporate.haier-europe.com/en/

Under the section "website", choose the brand of your product and your country. You will be redirected to the specific website where you can find the telephone number and form to contact the technical assistance.

Power interruption

In the event of a power cut, food should remain safely cold for about 5 hours. Follow these tips during a prolonged power interruption, especially in summer:

▶Open the door/drawer as few times as possible.

▶ Do not put additional food into the appliance during a power interruption.
If prior notice of a power interruption is given and the interruption duration is longer than 5 hours, make some ice and put it in a container in the top of the refrigerator compartment.
An inspection of the goods is required immediately after the interruption.
As temperature in the refrigerator will rise during a power interruption or other failure, the storage period and edible quality of food will be reduced. Any food that defrosts should be either consumed, or cooked and refrozen (where suitable) soon afterwards in order to prevent health risks.

Memory function during power interruption

After restoration of power the appliance continues with the settings that were set before the power failure.

Unpacking

RNING!

The appliance is heavy. Always handle with at least two persons.
- Keep all packaging materials out of children's reach and dispose them in an environmentally friendly manner.
▶Take the appliance out of the packaging.
▶Remove all packaging materials.

TICE

After the refrigerator is embedded in the cabinet, it may lead to an increase in the refrigerator's startup rate, running time, and power consumption.

Environmental conditions

The room temperature should always be between 10^ C and 43^ C, since it can influence the temperature inside the appliance and its energy consumption. Do not install the appliance near other heat-emitting appliances (ovens, refrigerators) without isolation.

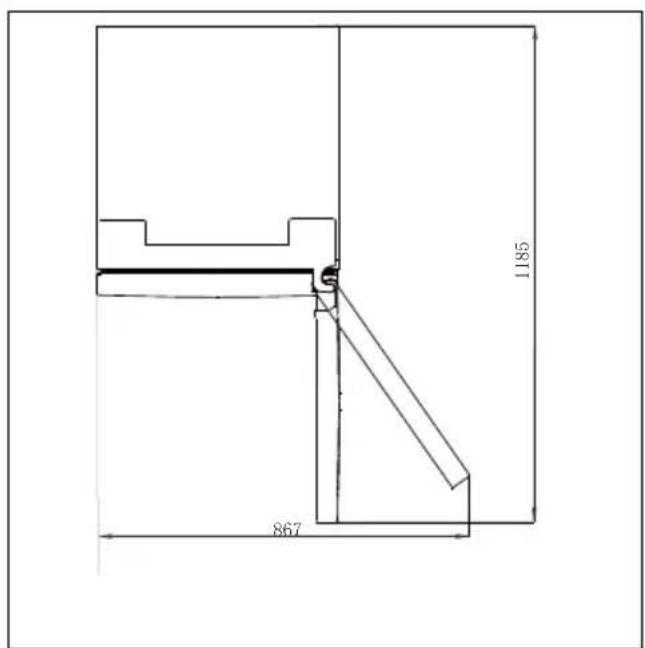

Space recommendation

Recommended space when door is opened.

Ventilaton cross-section

To achieve sufficient ventilation of the appliance for safety reasons, the information of the required ventilation cross sections must be observed.

1185 867

9 mm 6 mm 4 mm 4 mm

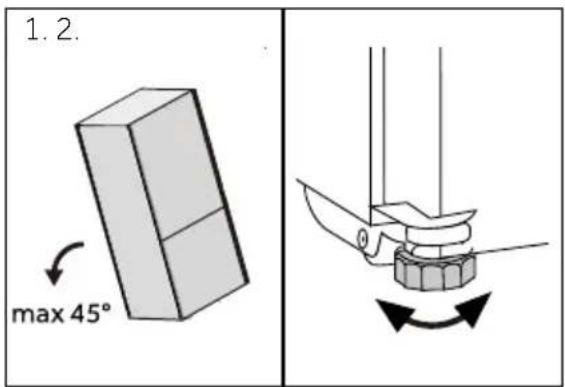

Aigning the appliance

The appliance should be placed on a flat and solid surface.

1. Tilt the refrigerator slightly backwards.
2. Set the feet to the desired level.

Make sure the distance to the wall on the hinge side is at least 4 mm for the door to open properly.

1.2. max 45°

3.

1. The stability can be checked by alternately bumping on the diagonals. The slightly swaying should be the same in both directions. Otherwise the frame can warp; possible leaking door seals are the result. A low tendency to the rear facilitates the closing of the doors.

TICE

For a free standing appliance: this refrigerating appliance is not intended to be used as a built-in appliance

2 h

Waiting time

To the maintenance-free lubrication oil is located in the capsule of the compressor. This oil can get through the closed pipe system during slanting transport. Before connecting the appliance to the power supply you have to wait at least 2 hours so that the oil runs back into the capsule.

Electrical connection

Before each connection check if:

▶ power supply, socket and fusing are appropriate to the rating plate.

▶the power socket is earthed and no multi-plug or extension.
▶the power plug and socket are strictly according.

Connect the plug to a properly installed household socket.

WARNING!

To avoid risks a damaged power cord must be replaced by the customer service (see warranty card).

Door Reversibility

Before connecting the appliance to the power supply, you should check whether the door swing must be changed from right (as delivered) to left, if this is required by the installation location and the usability.

RNING!

The appliance is heavy. You need two persons to carry out the door reversibility.
▶Before any operation, first unplug the appliance from the mains
- Do not tilt the appliance more than 45°C to prevent damage of the refrigeration system.

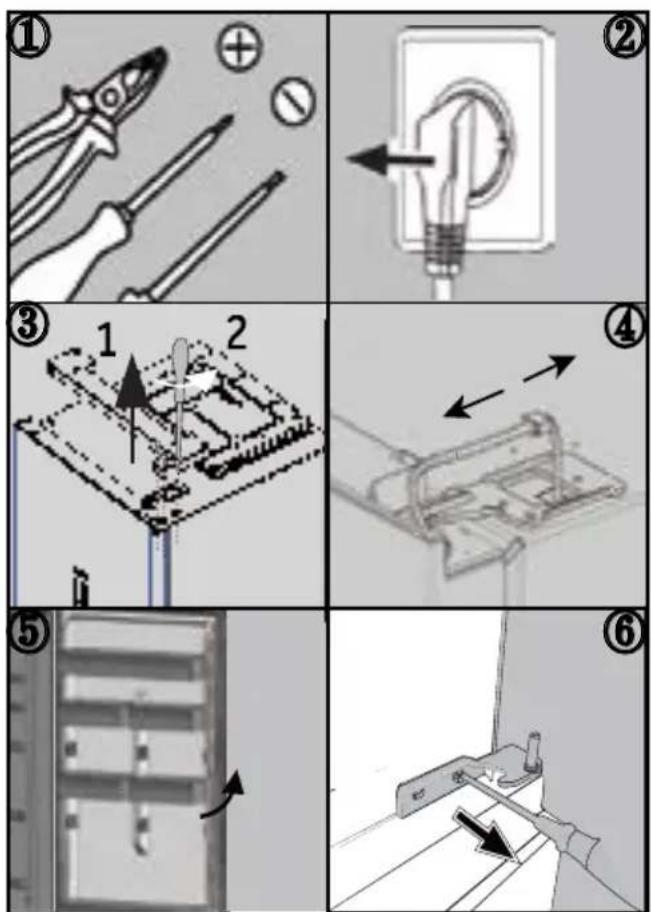

Assembly steps

1. Provide necessary tool.
2. Unplug the appliance.
3. Unplug the connection cable
4. Lift the loose refrigerator door carefully off the middle hinge.
5. Remove the middle hinge.
6. Remove the small cover of the front panel from left to right side.

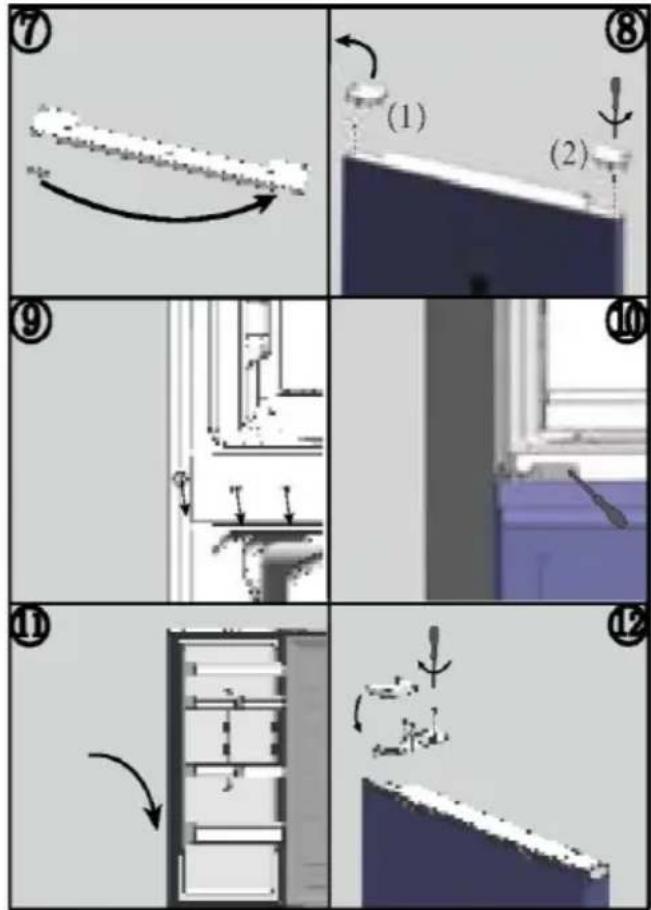

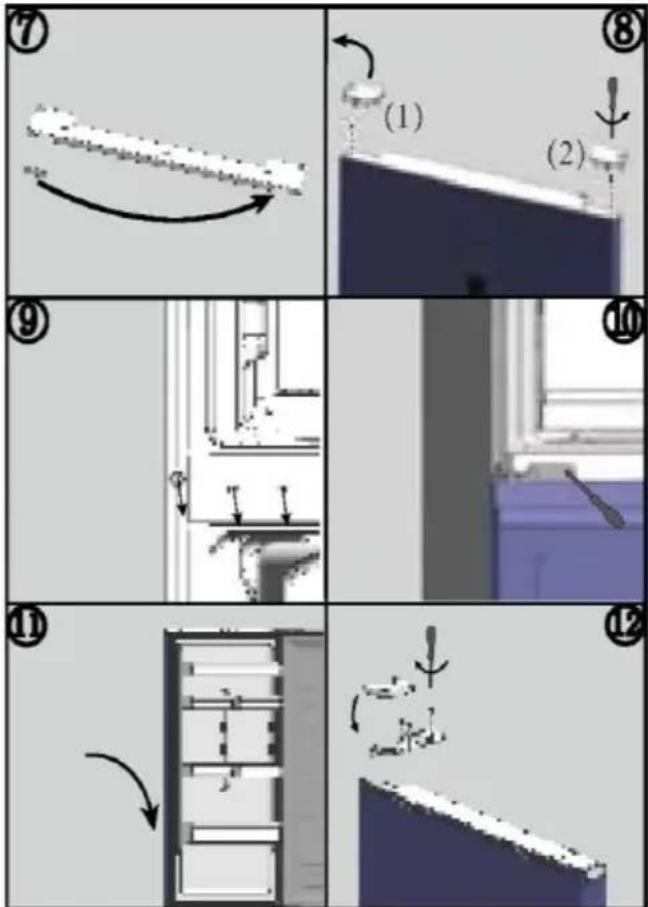

7. Change the positions of the blanking plugs and the screw on the side.

8. Remove the upper hinge cover 1 and unscrew the upper hinge (three screws) on right side 2.

9. Turn the door upside down and unscrew the cover (1). Take out the new cover (2) from the necessary bag and screw them to opposite side.

10. Screw the middle hinge to the left side of the appliance. Pay attention to inverting the pivot of the middle hinge, ensuring that the side with the gasket is facing upwards

11. Lift the upper door carefully on the middle hinge. And be sure the pivot fits into the hinge barrel of the lower door.

12. Take out the new upper hinge and hinge cover from the accessory bag. Put the connection cable through the upper hinge and fix the upper hinge with three screws on left side of appliance. And the put the hinge cover over the hinge.

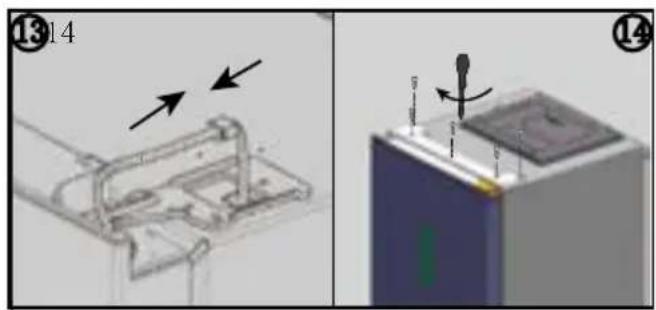

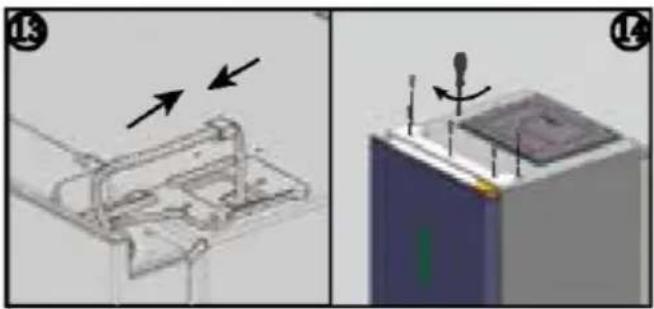

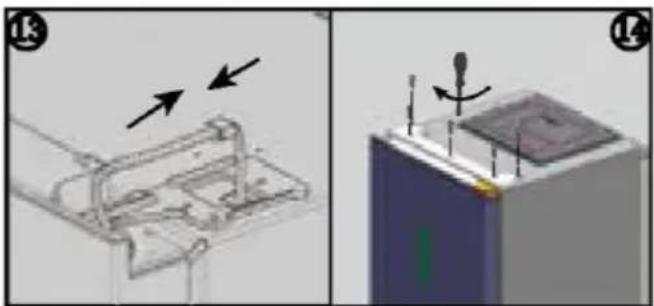

13. Plug in the connection cable.

14. Replace front panel and fix it with five screws.

After the change of the door, check if the door seals are located properly on the housing and all screws are tightened well.

⑦ m1a

(1) (2)

Architectural detail showing window frame and structural elements (no text or symbols)

Interior corner of a room with a window and purple furniture (no visible text or symbols)

Architectural floor plan diagram showing room layout and structural elements (no text or labels)

3D diagram showing a mechanical component with a downward arrow and a small inset view (no text or symbols)

Ambient temperatures

Extended temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 10°C to 32°C

Temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ C to 32^ C;

Subtropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 38°C;

Tropical: "this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 43°C.

Product parameters according to regulation (EU)2019/2016

Based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located

Model	HDR7619DNGB HDR7619DNGW
Type of refrigerating appliance	Refrigerator-freezer Refrigerator-freezer
Energy efficiency class	D	D
Annual energy consumption (kWh/annum)	231 231
Volume Refrigerator compartment(L)	205 205
Volume Freezer compartment(L)	147 147
Volume Chill compartment(L)	51 51
Freezing Class	4-star 4-star
Defrosting type	Auto-defrost Auto-defrost
Temperature rise time(h)	14 14
Freezing capacity(kg/24h)	12 12
Climate class	SN.N.ST.T SN.N.ST.T
Noise emission class and airborne acoustical noise emissions (dB(A) re 1 pW)	C(37) C(37)

Explanations:

(1) Based on the results of the standards conformance test over 24 hours. The actual consumption depends on the use and the location of the appliance.
(2) Climate rating SN: This appliance is intended for use in an ambient temperature of between + 10°C and +32°C
Climate rating N: This appliance is intended for use in an ambient temperature of between +16°C and +32°C
Climate rating ST: This appliance is intended for use in an ambient temperature of between +16°C and +38°C
Climate rating T: This appliance is intended for use in an ambient temperature of between +16°C and +43°C

Additional technical data

Model	HDR7619DNGB HDR7619DNGB
Total volume(L)	403 403
Voltage/Frequency	220~240V/50Hz 220~240V/50Hz
Rated current(A)	1.7 1.7
Main fuse(A)	12 12
Refrigerant	R600a(54g) R600a(54g)
Dimensions(W/D/H in mm)	595*682*1925 595*682*1925

We recommend our Haier Customer Service and the use of original spare parts. If you have a problem with your appliance, please first check section TROUBLE-SHOOTING.

If you cannot find a solution there, please contact

▶your local dealer or

▶ our European Call Service-Center (see listed phone numbers below) or
the Service & Support area at www.haier.com where you can activate the service
▶claim and also find FAQs.

To contact our Service, ensure that you have the following data available. The information can be found on the rating plate.

Model ____

Serial No. ____

Also check the Warranty Card supplied with the product in case of warranty.

European Call Service-Center
Country*	Phone number Costs
Haier Italy (IT)	199 100 912
Haier Spain (ES) 902 509 123
Haier Germany (DE) 0180 5 39 39 99 • 14 Ct/Min Landline• max 42 Ct/Min Mobile
Haier Austria (AT) 0820 001 205 • 14,53 Ct/Min Landline• max 20 Ct/Min all others
Haier United Kingdom (UK)	0333 003 8122
Haier France (FR)	0980 406 409

* For other countries please refer to www.haier.com

Haier Europe Trading S.r.l

Branch UK

Westgate House, Westgate, Ealing

London, W5 1YY

*Duration of the guarantee of the refrigerating appliance:

Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required.

*The period of spare parts for the repair of the appliance:

Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market.

Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market.

*For further information about the product, please consult https://eprel.ec.europe.eu/ or scan the QR on the energy label supplied with the appliance.

Haier

HDR7619DNGB HDR7619DNGW

4 Информация за безопасност

9 Предназначение

Warning sign depicting a flame symbol in yellow and black, indicating hazard or hazard status.

Line drawing of a refrigerator with doors open and hanging, showing sound waves (no text or symbols)

Technical line drawing of a cabinet or enclosure with internal compartments and directional arrows (no text or symbols)

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating direction or movement.

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a liquid container, likely illustrating fluid flow or pressure concepts.

Чекмедже „My Zone“

METHIYZONE | σ

Illustration of a hand cleaning a window with a cloth and a basin (no text or symbols)

HDR7619DNGB, HDR7619DNGW

Technical diagram showing four steps of folding a cabinet or shelf structure with directional arrows indicating movement.

Simple line drawing of a 3D geometric shape with arrows indicating direction (no text or symbols)

Architectural detail drawing showing window and floor components (no text or symbols)

Exterior view of a window with a blue and purple interior (no signage or text)

Architectural floor plan diagram showing room layout and structural elements (no text or labels)

Simple 3D diagram showing a mechanical component with a downward arrow and label (no readable text or symbols)

Westgate House, Westgate, Ealing

London, W5 1YY

Chladnička-mraznička

HDR7619DNGB

HDR7619DNGW

Warning sign depicting a flame symbol in yellow and black, indicating hazard or hazard status.

Line drawing of a refrigerator with sound waves indicating sound or vibration (no text or symbols)

Nastavení teploty

Technical line drawing of an internal cabinet or enclosure with multiple compartments and directional arrows indicating flow or movement (no text or symbols present)

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating directional movement or force directions.

Nastavitelné police

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a liquid container, with directional arrows indicating flow or movement.

Zásuvka My Zone

Illustration of a hand cleaning a window with a cloth and a basin nearby (no text or symbols)

HDR7619DNGB, HDR7619DNGW

Technical diagram showing four steps of a mechanical assembly or folding process with labeled components and directional arrows.

Architectural detail drawing showing window frame and structural elements (no text or symbols)

Exterior view of a window with a blue and purple interior (no signage or text)

Architectural floor plan diagram showing room layout and structural elements (no text or labels)

Simple 3D diagram showing a mechanical component with a downward arrow and a label '12' (no text or symbols on the object itself)

Okolní teploty

Westgate House, Westgate, Ealing

London, W5 1YY

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Entsorgung

Warning sign depicting a flame symbol with hazard symbol inside a yellow triangle

Line drawing of a refrigerator with sound waves indicating sound or vibration (no text or symbols)

Technical line drawing of a mechanical or electrical cabinet interior with internal channels and mounting brackets (no text or symbols)

Mehrfach-Luftstrom

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating direction or movement.

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a liquid container, with directional arrows indicating flow or movement.

My Zone-Schublade

Illustration of a hand cleaning a window with a cloth and a basin nearby (no text or symbols)

HDR7619DNGB, HDR7619DNGW

Technical diagram showing three-step assembly steps with labeled components and directional arrows indicating movement or force.

Simple line drawing of a 3D geometric shape with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical component with two arrows indicating direction (no text or symbols)

3D diagram of a mechanical assembly with a curved arrow indicating motion or force, no visible text or symbols

Warning sign depicting a flame symbol in yellow and black, indicating hazard or caution

Line drawing of an open refrigerator with sound waves indicating sound or vibration (no text or symbols)

Technical line drawing of an internal cabinet or enclosure with multiple compartments and directional arrows indicating flow or movement (no text or symbols present)

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating movement or force direction.

Πολλαπλή ροή αέρα

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a layered structure, likely illustrating fluid or material movement.

Συρτάρι My Zone

METHIOTYZONE | C

Illustration of a hand cleaning a window with a bowl nearby (no text or symbols)

HDR7619DNGB, HDR7619DNGW

Technical diagram showing four steps of folding a cabinet or shelf structure with directional arrows indicating movement.

Simple line drawing of a 3D geometric shape with arrows indicating direction (no text or symbols)

Architectural detail drawing showing window frame and structural elements (no text or symbols)

Exterior view of a window with a blue and purple interior (no signage or text)

Architectural floor plan diagram showing room layout and structural elements (no text or labels)

Simple 3D diagram showing a mechanical component with a downward arrow and a label '12' (no text or symbols on the object itself)

Westgate House, Westgate, Ealing

Λονδίνο, W5 1YY

Warning sign depicting a flame symbol in a yellow triangle with black border

Line drawing of an open refrigerator with sound waves indicating sound or vibration (no text or symbols)

Technical line drawing of a cabinet or enclosure with internal compartments and directional arrows (no text or symbols)

Diagram showing two labeled arrows (① and ②) pointing to a tray with patterned surfaces, likely illustrating a physical or engineering concept.

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a layered structure, with arrows indicating direction of movement.

Cajón My Zone

Illustration of a hand cleaning a window with a cloth and a basin (no text or symbols)

HDR7619DNGB, HDR7619DNGW

Technical diagram showing four steps of a mechanical assembly or folding process with labeled components and directional arrows.

Simple line drawing of a 3D geometric structure with arrows indicating direction (no text or symbols)

Technical diagram showing two views of a mechanical component with arrows indicating motion (no text or symbols present)

Temperaturas ambiente

Warning sign depicting a flame symbol in yellow and black, indicating hazard or hazard status.

Line drawing of an open refrigerator with a sound wave indicator (no text or symbols)

Technical line drawing of a cabinet or enclosure with internal compartments and directional arrows (no text or symbols)

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating directional movement or force directions.

Flux multi-air

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a layered structure, with arrows indicating direction of movement.

Tiroir My Zone

Illustration of a hand cleaning a window with a cloth and a bowl nearby (no text or symbols)

HDR7619DNGB, HDR7619DNGW

Technical diagram showing four steps of a mechanical assembly or folding process with labeled components and directional arrows.

Simple line drawing of a 3D geometric shape with arrows indicating direction (no text or symbols)

Architectural detail drawing showing window frame and structural elements (no text or symbols)

Exterior view of a window with a blue and purple interior (no signage or text)

Architectural floor plan diagram showing room layout and structural elements (no text or labels)

Simple 3D diagram showing a mechanical component with a downward arrow and label (no readable text or symbols)

Technical diagram showing two views of a mechanical component with arrows indicating motion (no text or symbols present)

Warning sign depicting a flame symbol with black outline and black border, commonly used in safety or hazard prevention.

HDR7619DNGB HDR7619DNGW

Line drawing of a refrigerator with sound waves indicating sound or vibration (no text or symbols)

Technical line drawing of a cabinet or enclosure with internal compartments and directional arrows (no text or symbols)

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating direction or movement.

Állítható polcok

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a layered structure, with arrows indicating direction of movement.

My Zone fiók

Illustration of a hand cleaning a window with a cloth and a basin nearby (no text or symbols)

HDR7619DNGB, HDR7619DNGW

Technical diagram showing four steps of a mechanical assembly or folding process with labeled components and directional arrows.

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Simple line drawing of a 3D rectangular prism with dashed diagonals and arrows indicating direction (no text or symbols)

Six-step diagram illustrating a mechanical assembly process with labeled steps and directional arrows indicating movement.

Technical diagram showing mechanical assembly with arrows indicating motion, no visible text or symbols

Westgate House, Westgate, Ealing

London, W5 1YY

Warning sign depicting a flame symbol in a yellow triangle with black border

Line drawing of an open refrigerator with sound waves indicating sound or vibration (no text or symbols)

Technical line drawing of a mechanical or electrical cabinet interior with internal channels and mounting brackets (no text or symbols)

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating direction or movement.

Ripiani regolabili

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a layered structure, with arrows indicating direction of movement.

Cassetto My Zone

Illustration of a hand cleaning a window with a cloth and a basin (no text or symbols)

HDR7619DNGB, HDR7619DNGW

Technical diagram showing four steps of a mechanical assembly or folding process with labeled components and directional arrows.

Simple line drawing of a 3D geometric shape with arrows indicating direction (no text or symbols)

Architectural detail drawing showing window frame and structural elements (no text or symbols)

Exterior view of a window with a blue and purple interior (no signage or text)

Architectural floor plan diagram showing room layout and structural elements (no text or labels)

Simple 3D diagram showing a mechanical component with a downward arrow and label (no readable text or symbols)

Temperature ambiente

Deurbevestiging links

Onderste scharnier koelkast links

Bovenste sierstrip asbus links

Warning sign depicting a flame symbol in yellow and black on a white background

Line drawing of an open refrigerator with sound waves indicating sound or vibration (no text or symbols)

Technical line drawing of an internal cabinet or enclosure with multiple compartments and directional arrows indicating flow or movement (no text or symbols present)

Diagram showing two labeled arrows (① and ②) pointing to a tray with internal patterns, likely illustrating a physical or mathematical concept.

Verstelbare planken

Diagram showing fluid flow with two directional arrows labeled ① and ②, indicating movement or force directions in a container-like structure.

My Zone-lade

Illustration of a hand cleaning a window with a cloth and a basin (no text or symbols)

HDR7619DNGB, HDR7619DNGW

Technical diagram showing four steps of a mechanical assembly or folding process with labeled components and directional arrows.

Simple line drawing of a 3D rectangular prism with dashed diagonals and arrows indicating direction (no text or symbols)

Westgate House, Westgate, Ealing

Warning sign depicting a flame symbol in yellow and black, indicating hazard or hazard status.

Line drawing of an open refrigerator with sound waves indicating sound or vibration (no text or symbols)

Technical line drawing of an internal cabinet or enclosure with horizontal and vertical panels, no text or symbols present.

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating direction or movement.

Regulowane półki

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a layered structure, with arrows indicating direction of movement.

Szuflada My Zone

Illustration of a hand cleaning a window with a cloth and a basin (no text or symbols)

HDR7619DNGB, HDR7619DNGW

Technical diagram showing three-step assembly process with labeled steps and directional arrows indicating movement

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Simple line drawing of a 3D geometric shape with arrows indicating direction (no text or symbols)

Technical diagram showing two views of a mechanical component with arrows indicating motion (no text or symbols present)

Simple line drawing of a hand with finger pressing a circular button (no text or symbols)

Warning sign depicting a flame symbol in yellow and black, indicating hazard or caution

Line drawing of an open refrigerator with a sound wave indicator (no text or symbols)

Ajustar a temperatura

Technical line drawing of an internal cabinet or enclosure with horizontal and vertical panels, no text or symbols present.

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating direction or movement.

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a layered structure, with arrows indicating direction of movement.

Gaveta My Zone

Illustration of a hand cleaning a window with a bowl nearby (no text or symbols)

Substituir as lâmpadas LED

AVISO!

HDR7619DNGB, HDR7619DNGW

Technical diagram showing four steps of folding a cabinet or shelf, with arrows indicating movement and directional changes.

Mover o aparelho

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Simple line drawing of a 3D geometric structure with arrows indicating direction (no text or symbols)

Technical diagram showing two views of a mechanical component with arrows indicating motion (no text or symbols present)

Temperaturas ambiente

Westgate House, Westgate, Ealing

London, W5 1YY

Warning sign depicting a flame symbol in yellow and black, indicating hazard or hazard status.

AVERTISMENT: Risc de incendiu/material inflamabil

B: Compartment congelator

10- Tavă congelator

11- Sertar mijloc congelator

12- Sertar inferior congelator

Panou de comenzi

ARTIFICIAL INTELLIGENCE A — Fridge — Freezer — C B — -88°C — D K1 — ZONE + — K8 K2 — K3 — My zone — E K4 — Super Freeze — F — 3 Sec. Super Cool K5 — Holiday — G K6 — Eco Mode — H K7 — 3Sec. Lock — I

Indicatori:

A Compartiment frigider
B Functia Super Cool
C Compartiment congelator
D Afişaj temperatură
E Functie My Zone
F Functia Super Freeze
G Functia Holiday
H Functia Eco Mode

Line drawing of a refrigerator with sound waves indicating sound or vibration (no text or symbols)

Reglarea temperaturii

Technical line drawing of an internal cabinet or enclosure with multiple compartments and directional arrows indicating flow or movement (no text or symbols present)

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating direction or movement.

Flux de aer multiplu

Diagram showing fluid flow with two directional arrows labeled ① and ②, indicating movement or force directions in a container-like structure.

Sertarul My Zone

Illustration of a hand cleaning a window with a cloth and a basin (no text or symbols)

HDR7619DNGB, HDR7619DNGW

Technical diagram showing four steps of a mechanical assembly or folding process with labeled components and directional arrows.

Mutarea aparatului

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Simple line drawing of a 3D geometric shape with arrows indicating direction (no text or symbols)

Six-step diagram illustrating a mechanical assembly process with labeled steps and directional arrows indicating movement.

Technical diagram showing mechanical assembly with arrows indicating motion, no visible text or symbols

Temperaturi ambientale

Westgate House, Westgate, Ealing

Londra, W5 1YY

Chladnička s mrazničkou

HDR7619DNGB

HDR7619DNGW

Warning sign depicting a flame symbol in yellow and black, indicating hazard or hazard status.

Line drawing of a refrigerator with sound waves indicating sound or vibration (no text or symbols)

Nastavenie teploty

Technical line drawing of a cabinet or enclosure with internal compartments and directional arrows (no text or symbols)

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating direction or movement.

Diagram showing fluid flow with two directional arrows labeled ① and ②, indicating movement or force directions in a container-like structure.

Zásuvka My Zone

Illustration of a hand cleaning a window with a bowl nearby (no text or symbols)

HDR7619DNGB, HDR7619DNGW

Technical diagram showing four steps of a mechanical assembly or folding process with labeled components and directional arrows.

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Simple line drawing of a 3D rectangular prism with dashed diagonals and arrows indicating direction (no text or symbols)

Six-step diagram illustrating a mechanical assembly process with labeled steps and directional arrows indicating movement.

Technical diagram showing mechanical assembly with arrows indicating motion, no visible text or symbols

Westgate House, Westgate, Ealing

London, W5 1YY

Simple line drawing of a hand with finger pressing a circular button (no text or symbols)

Warning sign depicting a flame symbol with hazard symbol, commonly used in safety or hazard prevention.

OPOZORILO: Nevarnost požara/vnetljiv material

Standardi in directive CE

Line drawing of a refrigerator with sound waves indicating sound or vibration (no text or symbols)

Nastavitev temperature

Technical line drawing of a cabinet or enclosure with internal compartments and directional arrows (no text or symbols)

Več pretokov zraka

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating direction or movement.

Nastavljive police

Diagram showing fluid flow with two directional arrows labeled ① and ②, indicating movement or force directions in a container-like structure.

Predal My Zone

Za uporabo in nastavitev predela My Zone preverite poglavje UPORABA (My Zone).

MYZONE | ④

HUMIDITYZONE | D

Predal Humidity Zone

V tem predelu sistem samodejno nadzoruje stopnjo vlažnosti in je primeren za shranjevanje sadja, zelenjave, solate itd.

Odstranljiv predal

Illustration of a hand cleaning a window with a cloth and a basin nearby (no text or symbols)

HDR7619DNGB, HDR7619DNGW

Del	Lučka LED
Napetost	12 V
Največja moč	8 W
Specifikacije LED	White-4014
Razred učinkovitosti LED	F
Temperatura uporabe	-30~60 °C

Dolgotrajna neuporaba

Technical diagram showing four steps of a mechanical assembly or folding process with labeled components and directional arrows.

Premikanje aparata

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Simple line drawing of a 3D geometric shape with arrows indicating direction (no text or symbols)

Six-step diagram illustrating a mechanical assembly process with labeled steps and directional arrows indicating movement.

Technical diagram showing mechanical assembly with arrows indicating motion, no visible text or symbols

Sobne temperature

Westgate House, Westgate, Ealing

London, W5 1YY

*Trajanje garancije hladilnega aparata:

Line drawing of an open refrigerator with sound waves indicating sound or vibration (no text or symbols)

Technical line drawing of a door or cabinet interior with horizontal and vertical panels, no visible text or symbols

Diagram showing two labeled arrows (① and ②) pointing to a tray with patterned material, likely illustrating a process or movement.

Diagram showing two labeled arrows (1 and 2) pointing upward and downward to a layered structure, with numbered circles indicating positions.

Line drawing of a MyZONE storage box with no text or symbols on the body (pure technical lines)

HURIDITYZONE | O

Illustration of a hand cleaning a window with a cloth and a basin (no text or symbols)

HDR7619DNGB, HDR7619DNGW

Technical diagram showing four steps of a folding or folding process with labeled components and directional arrows indicating movement.

Seadme teisaldamine

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Simple line drawing of a 3D geometric shape with arrows indicating direction (no text or symbols)

Technical diagram showing a mechanical assembly with directional arrows and a 3D model of a device (no text or symbols present)

Ümbritseva õhu temperatuur

Westgate House, Westgate, Ealing

London, W5 1YY

* Külmutusseadme garantii kestus:

Warning sign depicting a flame symbol in yellow and black, indicating hazard or hazard status.

Line drawing of an open refrigerator with sound waves indicating sound or vibration (no text or symbols)

Technical line drawing of a door or cabinet interior with horizontal and vertical panels, no visible text or symbols

Diagram showing two labeled arrows (① and ②) pointing to a tray with patterned material, likely illustrating a process or movement.

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a liquid container, with arrows indicating flow or movement.

„My Zone“ stalčius

Line drawing of a MyZONE plastic box with no text or symbols on the body

MUSHORITYZONE | C

„Humidity Zone“ stalčius

Illustration of a hand cleaning a window with a bowl nearby (no text or symbols)

HDR7619DNGB, HDR7619DNGW

Technical diagram showing four steps of a folding or folding process with labeled components and directional arrows indicating movement.

Prietaiso gabenimas

Simple line drawing of a 3D geometric shape with arrows indicating direction (no text or symbols)

1. max 45°

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Technical diagram showing a mechanical assembly with directional arrows and a 3D model of a device (no text or symbols present)

Warning sign depicting a flame symbol in yellow and black, indicating hazard or hazard status.

Line drawing of a refrigerator with sound waves indicating sound or vibration (no text or symbols)

Technical line drawing of a door or cabinet interior with internal compartments and directional arrows indicating movement (no text or symbols)

Diagram showing two labeled arrows (① and ②) pointing to a tray with patterned material, likely illustrating a process or movement.

Regulējami plaukti

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a liquid container, with arrows indicating flow or movement.

My Zone atvilkte

Illustration of a hand cleaning a window with a cloth and a bowl nearby (no text or symbols)

HDR7619DNGB, HDR7619DNGW

Technical diagram showing four steps of a mechanical assembly or folding process with labeled components and directional arrows.

Simple line drawing of a 3D geometric shape with arrows indicating direction (no text or symbols)

1. max 45°

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Technical diagram showing a mechanical assembly with directional arrows and a 3D model of a device (no text or symbols present)

Abstract geometric composition with four gray triangular shapes radiating from a central point (no text or symbols)

Haier

Black and white barcode image with vertical bars of varying widths

0060537988 2024 Version A
