USER MANUAL H55K705UG HAIER

Please READ this manual carefully before operating your TV, and retain it for future reference

Contents

Safety and warnings....2-3

Introduction......4

Wall Mount Installation....5

Installation....6-8

Remote Control....9

Operation.... 10-19

Trouble Shooting.... 20

IMPORTANT SAFETY INSTRUCTION

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings, install in accordance with the instructions.
8) Do not install near any heat sources such as radiations, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized plug. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protected the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Unplug this apparatus during lighting storms or when unused for long periods of time.
13) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
14) Mains plug is used as the disconnect device, the disconnect device shall remain readily operable.
15) The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloth, curtains, etc.
16) No naked flame sources, such as lighted candles, should be placed on the apparatus.
17) Attention should be drawn to the environmental aspects of battery disposal.
18) The use of apparatus in moderate climate.
19) The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
20) Warning: To avoid any injury caused by lean of the product, please always ensure the whole product was placed within the table surface in horizontal.

CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The symbol indicates that dangerous voltages constituting a risk of electric shock are present within this unit.

The symbol indicates that there are important operating and maintenance instructions in the literaturaccompanying this unit.

WARNING:

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

WARNING:

The batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts. When servicing use only identical replacement parts.

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Illustration of a computer monitor with a crossed-out electrical circuit and lightning bolts (no text or symbols)

High voltages are used in the operation of this television receiver. Do not remove the cabinet back from your set. Refer servicing to qualified service personnel.

Simple line drawing of a monitor with a cross mark and a hanging cloth, no text or symbols present.

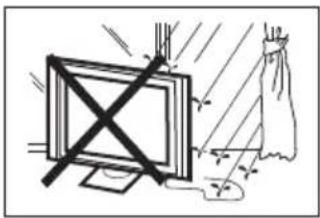

To prevent fire or electrical shock hazard, do not expose the television receiver to rain or moisture.

Diagram showing a computer monitor with a crossed X symbol and stars, possibly indicating a prohibition or anti-corruption theme.

Do not drop or push objects into the television cabinet slots or openings. Never spill any kind of liquid on the television receiver.

Simple line drawing of a computer monitor with a curved frame and a screen, emitting steam (no text or symbols)

Do not block the ventilation holes in the back cover. Adequate ventilation is essential to prevent failure of electrical components.

Simple line drawing of a flat-screen monitor with a stand and diagonal lines (no text or symbols)

Do not trap the power supply cord under the television receiver.

Cartoon illustration of a person lying on a computer monitor with a crossed-out window symbol (no text or symbols present)

Never stand on, lean on, or suddenly push the television or its stand. You should pay special attention to children. Serious injury may result if it falls.

Simple line drawing of a geometric structure with intersecting lines and a rectangular frame (no text or symbols)

Do not place your television on an unstable cart, stand, shelf or table. Serious injury to an individual, and damage to the television, may result if it falls.

Illustration of a person reacting to a computer monitor with a circular device nearby (no text or symbols)

When the television receiver is not used for an extended period of time, it is advisable to disconnect the AC power cord from the AC outlet.

Simple line drawing of a monitor with a cross symbol crossed out, next to a speaker emitting sound waves (no text or symbols)

Avoid exposing the television receiver to direct sunlight and other sources of heat. Do not stand the television receiver directly on other products which give off heat, e.g. video cassette players and audio amplifiers. Do not place naked flame sources, such as lighted candles on the television.

Minimum distances 10cm 10cm 5cm 20cm

If the television is to be built into a compartment or similar enclosure, the minimum distances must be maintained. Heat build-up can reduce the service life of your television, and can also be dangerous.

Main features

① Used as Television, display terminal;
② High luminance, wide viewing angle;
③ Can store Air and Cable TV programs;
④ HDMI interface;
⑤ Multi-Media player (USB);

Accessories

Remote Controller.... 1

User's Manual....1

Main parameter

Viewing Picture Size (Diagonal)	50 inch	55 inch 65 inch
Resolution 3840x2160		3840x2160 3840x2160
Aspect Ratio	16:9
TV System	PAL-B/G, SECAM-B/G, DVB-T, DVB-C, DVB-T2,DVB-S2
Video Signal System	PAL/NTSC/SECAM
Receiving Channel	DVB-T2:1000, DVB-C:1000, ATV:99
Input Power Voltage	100-240V~50/60Hz
Power consumption	148W	160W 220W
Audio Output Power (THD≤10%)	2 x10W
Signal input/output	High-Definition Multimedia Interface(HDMI) x 4Composite Video Input x 1Audio Input x 1LAN Input x 1USB x 2OPTICAL OUTPUT x 1HEADPHONE OUTPUT x 1RF x 1LNB IN x 1CI x 1
Horizontal definitio n (TV line)	Composite Video input >=350

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

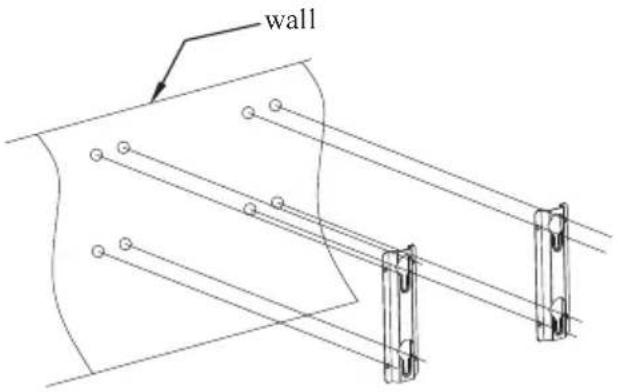

Step One: Use the expansion bolts(4*36PWA) to fix the wall mount brackets into the wall.

wall

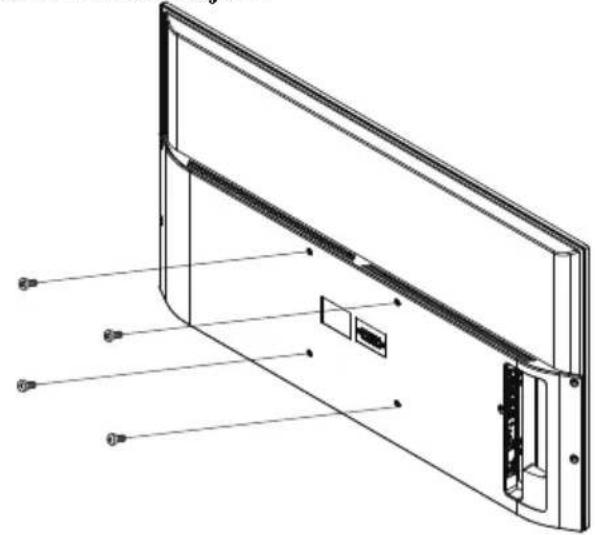

Step Two: Fix the wall mount screws (50":M6x12mm,55"/65":M6x16mm/4pcs) into the rear side of the LCD TV, using the tongue of 8kgf.cm.

* The TV appearance subject to material object.

Technical diagram of a display panel with labeled components in Chinese, showing internal structure and mounting points.

Step Three: Put the LCD TV with wall mount screws onto the wall mount brackets.

Warning: the angle between the TV and wall must not be bigger than 3^ .

wall 3°

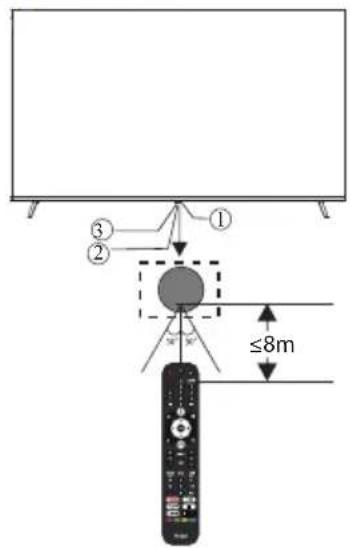

Front panel

① ② ③ ≤8m

1: Remote control sensor.
2: Indicator LED: RED ● STANDBY.
3: Key board

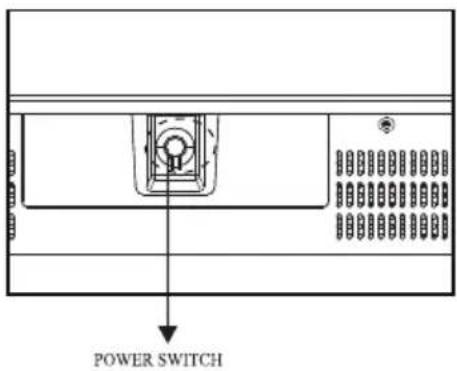

POWER SWITCH

(1) In the standby mode - Press the button to start the TV.
(2) In the boot state - Press the button to shut down.

REAR AV Connections (SIDE)

HDMI1 (ARC) LNB IN (SATELLITE) ANT IN (ANTENNA/CABLE) USB USB COMMON INTERFACE(CI) EARPHONE

All the terminals are (from left to right):

HDMI1(ARC), LNB IN, ANT IN, USB, CI, EARPHONE output.

REAR AV Connections

RJ45 OPTICAL VIDEO L R HDMI4 HDMI3 HDMI2

All the terminals are (from left to right):

RJ45, OPTICAL output, VIDEO, AUDIO input(L/R), HDMI4, HDMI3, HDMI2.

Note:

When HDMI port get DVI signal, the audio signal receives from the AV Audio channel.

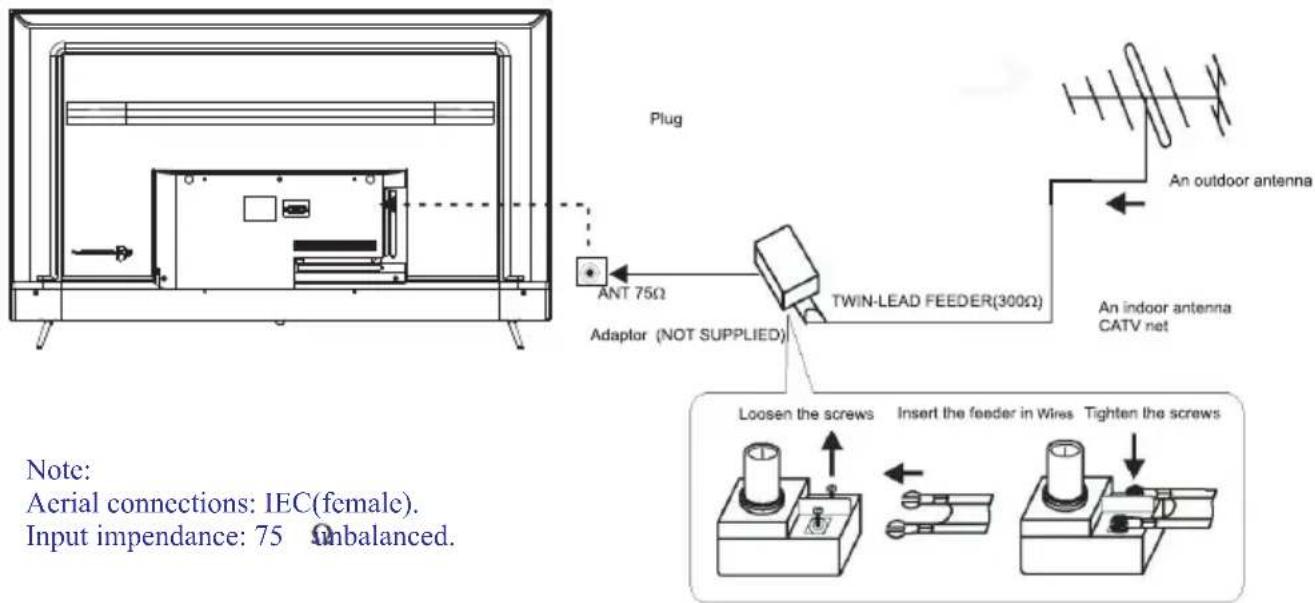

ANTENNA

Plug ANT 75Ω Adaptor (NOT SUPPLIED) TWIN-LEAD FEEDER(300Ω) An outdoor antenna An indoor antenna CATV net Loosen the screws Insert the feeder in wires Tighten the screws Note: Aerial connections: IEC(female). Input impendance: 75 Unbalanced.

Line drawing of a flat-screen TV unit with cable and power outlet, no text or symbols present

PRESET MODE (HDMI)

	RESOLUTION	V.Freq.(Hz) H.Freq.(KHz)
1	800*600	60	37.88
2	1024*768	60	48.36
3	1360*768	60	47.7
4	1280*768	60	47.3
5	1920*1080	60	67.5
6	3840*2160	30	67.5
7	3840*2160	50	112.5
8	3840*2160	60	135

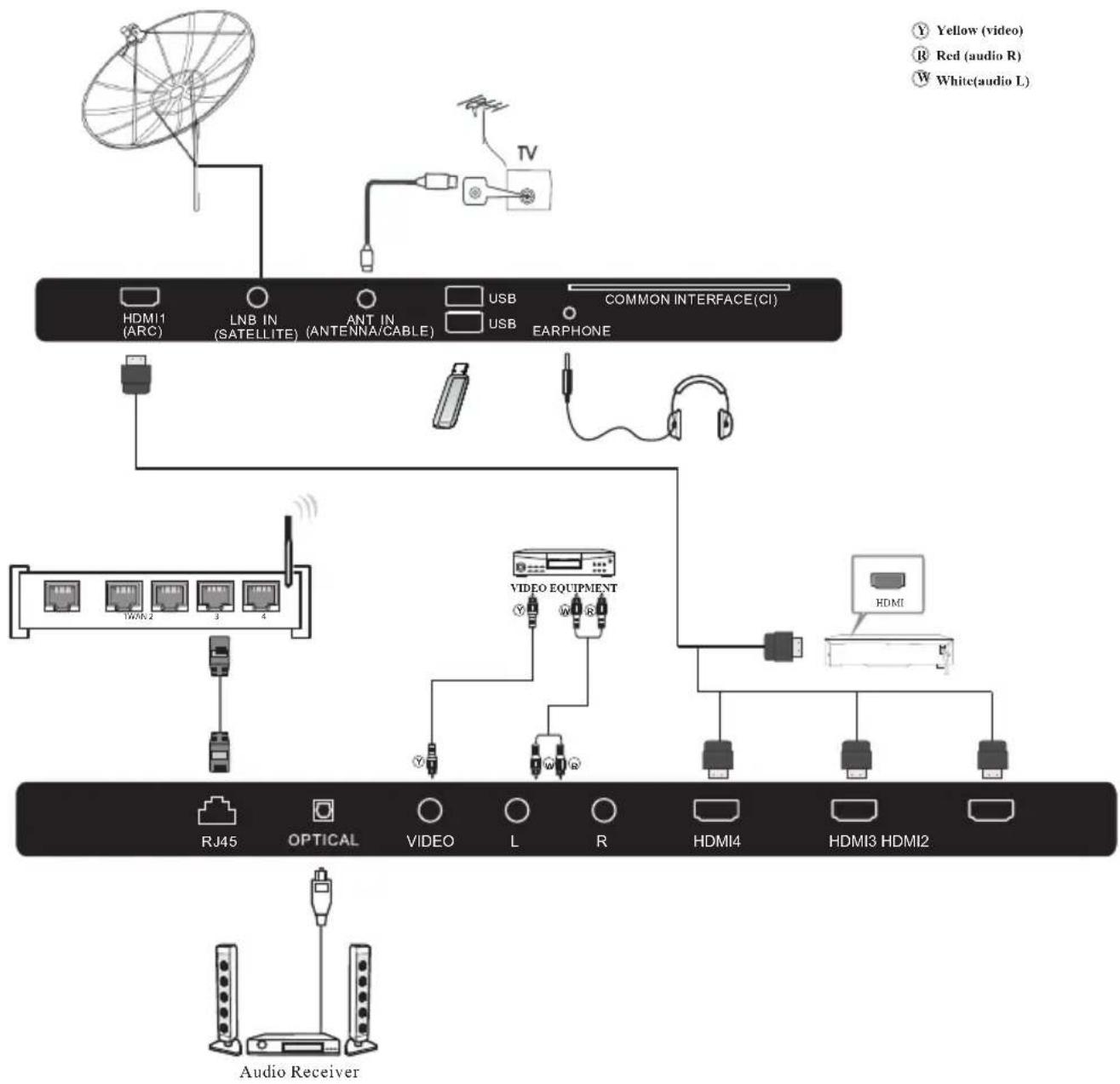

AV EQUIPMENT

This TV provides one group of AV for convenient connection to VCR, DVD or other video equipment.

Please refer to the owner's manual of the equipment to be connected as well.

You can use the input terminals on TV set rear as follows.

It can be connected to the following appliances: VCR, multi disc player, DVD, camcorder, video game or stereo system, etc.....

Note:

1. When HDMI port get DVI signal, the "AV Audio" channel is changed to receive the audio for HDMI port.
2. Sometimes it will not support in different device because the device supplies nonstandard signal.

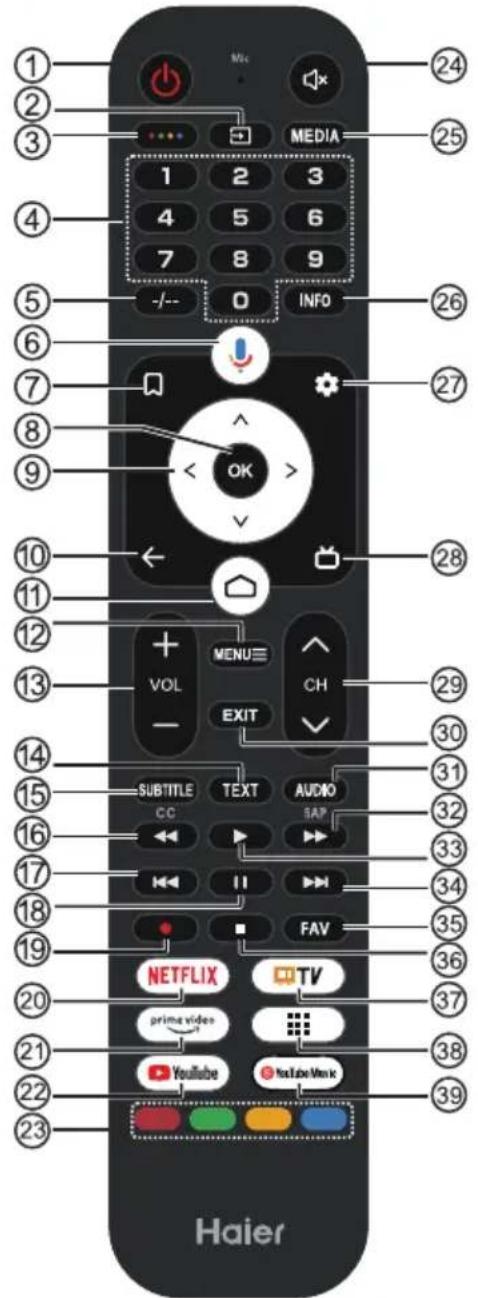

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ VOL MENU EXIT CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL Explanation: 1 2 3 4 5 6 7 8 9 INFO OK > CH > EXIT > TITLE TEXT AUDIO SAP FAV NETFLIX TV prime video YouTube YouTube Music Haier

#	Item	Descriptions
1	Power	Press to turn the TV on or off. When your TV is off, power still flows through it. To completely disconnect power, unplug the power cord.
2		Press to open the input source list.
3	●●●●	Press to open Soft Keyboard.
4	0~9 number	Press to enter a TV channel number.
5	-/--	It depends on the actual function.
6		Press to open the Google Assistant.
7		Press to open channel list/watchlist.
8	OK	Enter the selected option or perform the selected operation.

#	Item	Descriptions
9	▲▼◀▶	Press to navigate the on-screen menu.
10	←	Return to the previous menu.
11		Press to open the Home Page.
12	MENU≡	Press to open or close the on-screen menu.
13	VOL+/VOL-	Press VOL+ or VOL- to adjust volume level.
14	TEXT	Press to select the teletext mode.
15	SUBTITLE	Open or close subtitle.
16		Press to reverse playback in multimedia & Timeshift mode.
17		Previous track.
18	II	Press to pause in multimedia mode & Timeshift Mode.
19		Press to record the TV program you are watching in DTV mode.
20	NETFLIX	Press to open the NETFLIX.
21	prime video	Press to prime vido for viewing online TV shows and flms (internet connection required).
22	YouTube	Press to open the YouTube.
23	Coloured buttons	Implement the relevant operations according to the prompt at the botton of the menu in the text.
24		Press to open the mute.
25	MEDIA	Press to open the multimedia player.
26	INFO	Press to display the channel information.
27		Press to open the settings menu.
28		Press to display electronic programme guide in TV mode.
29	CH^ /CH~	Press CH^ or CH~ to change TV channels.
30	EXIT	It depends on the actual function.
31	AUDIO	Switch the soundtrack.
32		Press to fast forward in multimedia &Timeshift mode.
33		Press to play in multimedia mode &Timeshift Mode.
34		Next track
35	FAV	Press to select or remove your favorite channel.
36		Press to stop multimedia playback, REC &Timeshift Mode.
37		Press to open the Live TV.
38		Press to open the all apps pages.
39	YouTube Music	Press to open the YouTube Music.

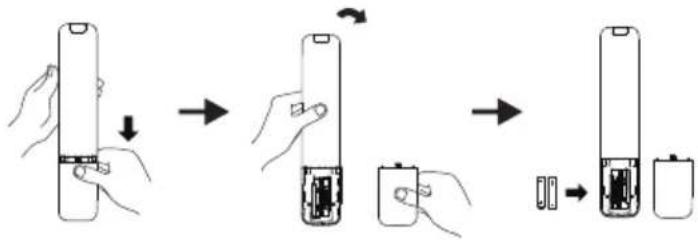

Remove the cover of the battery compartment. Insert the 2 supplied batteries (Type AAA 1.5V).

INITIAL SETUP

The first time you turn on your TV, the setup wizard will guide you through setting up basic settings.

Please according to the Text Tip to First Time Setup.

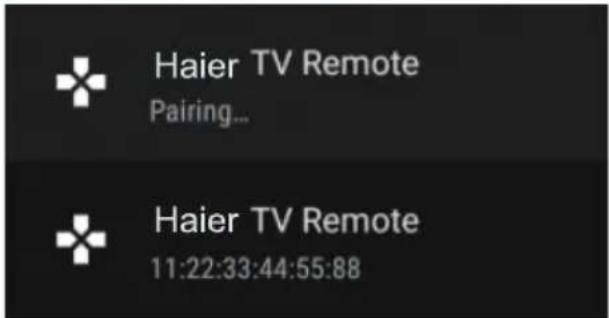

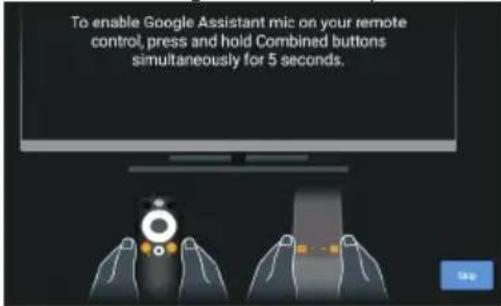

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

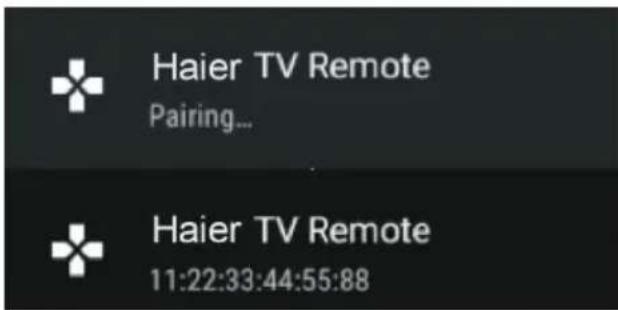

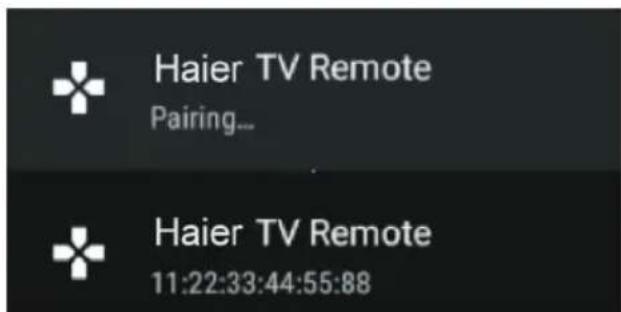

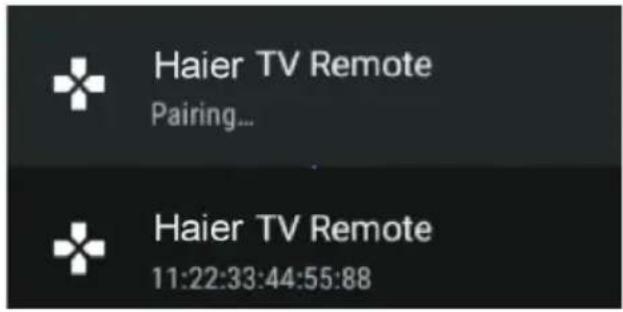

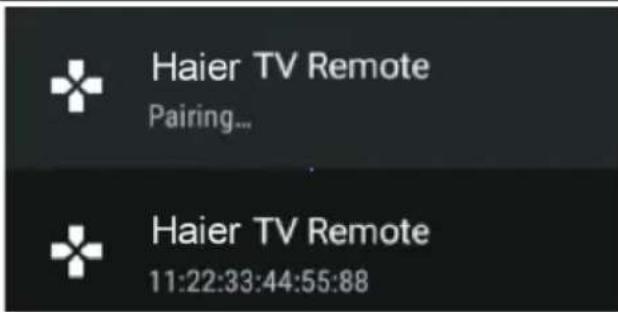

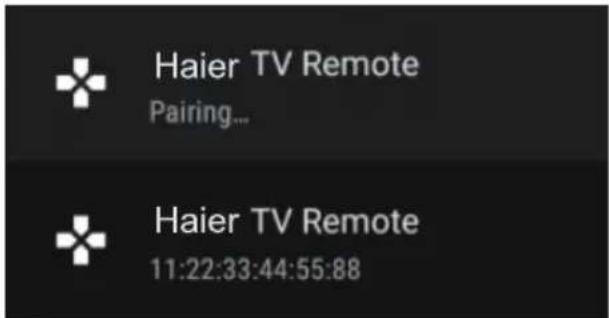

This function is used for the remote control pair code. After the code is successful, you can use the Bluetooth remote control to operate the TV.

Language English Pyclical Korean, Hindi Aquilineura 940 Frenchos Inkai Erwin Heritage

Press to select the system language and press OK to confirm the language.

Quickly set up your TV with your Android phone? Confidise You can easily transfer your Android phone's WiFi network and Google Account to your TV

Connect your Android phone to your TV, select "Continue" to continue the connection, and choose "Skip" to skip this step.

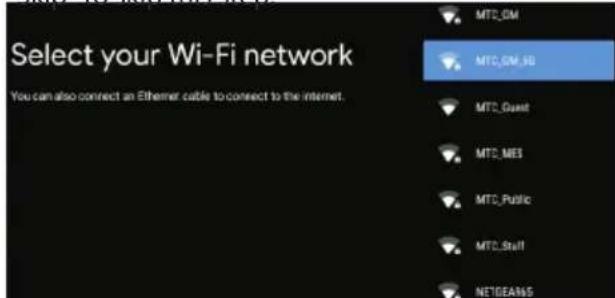

Select your Wi-Fi network You can also connect an Ethernet cable to connect to the internet. MTC_GM MTC_GM_HG MTC_Guest MTC_MES MTC_Public MTC_Staff NETGEANS

Press ▲/▼ to select the wifi to connect, press OK and enter the password to confirm the connection is successful.

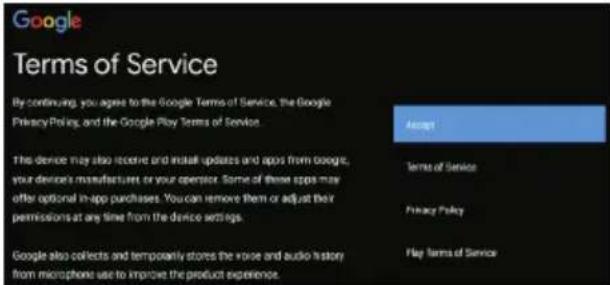

Google Terms of Service By continuing, you agree to the Google Terms of Service, the Google Privacy Policy, and the Google Play Terms of Service Accept The device may also receive and install updates and apps from google, your devices manufacturer or your operator. Some of these apps may offer optional in-app purchases. You can remove them or adjust their permissions at any time from the device settings. Terms of Service Privacy Policy Play Terms of Service Google also collects and temporarily stores the voice and audio history from microphone use to improve the product experience.

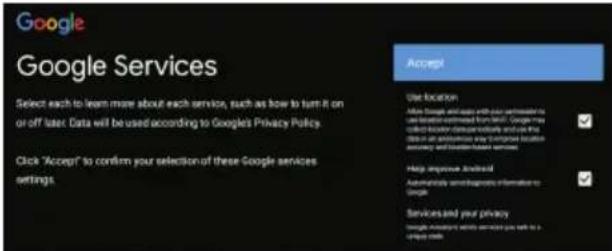

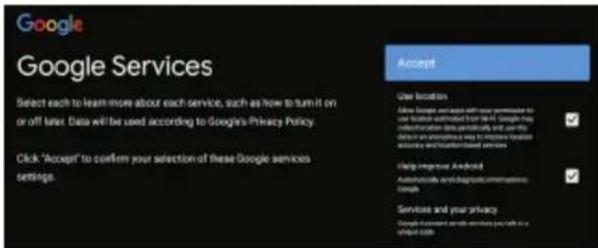

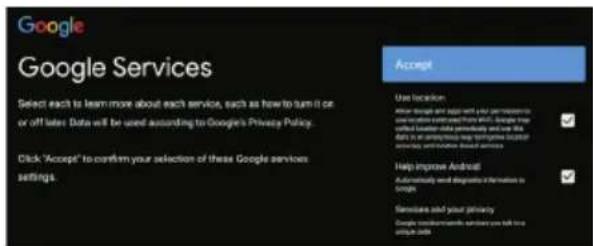

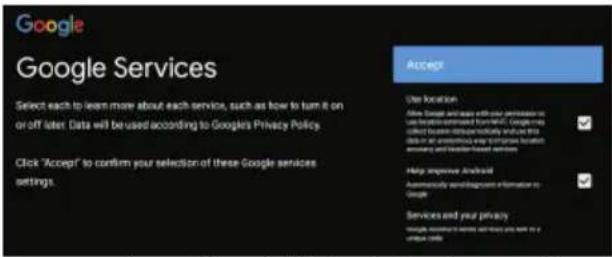

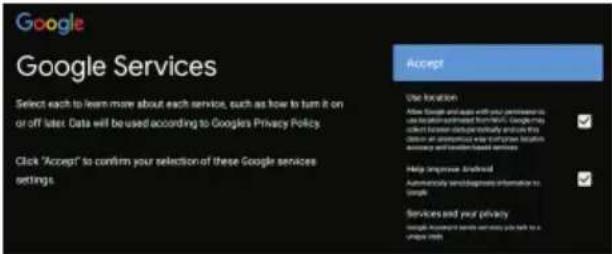

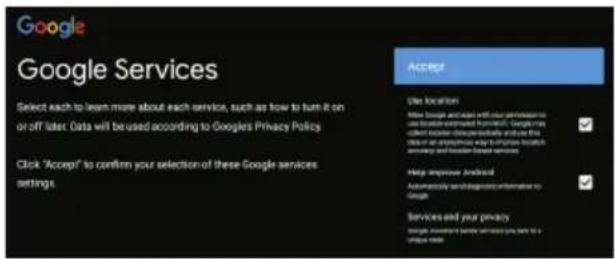

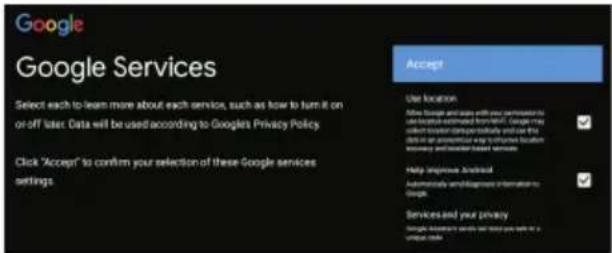

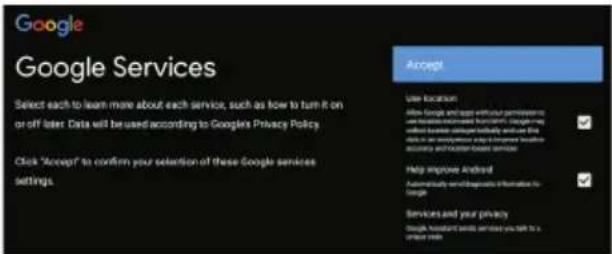

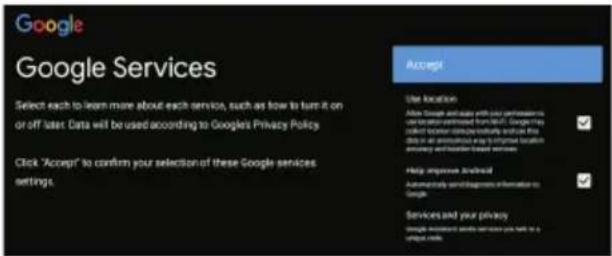

Google Google Services Select each to learn more about each service, such as how to turn it on or off later. Data will be used according to Google's Privacy Policy. Click "Accept" to confirm your selection of these Google services settings. Accept Use location Make Google and access with your permission: use location grounded from Google. Google may collect be seen because directly or directly in this clone or associated help with other locations accuracy and location-based services. Help improve analysis Automatically service diagnosis information to Google Services and your privacy help, access and service will play back to a unique site.

By accepting the Google Terms of Service to improve the product experience, select "Accept" to accept this condition.

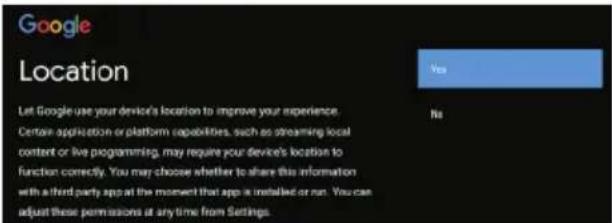

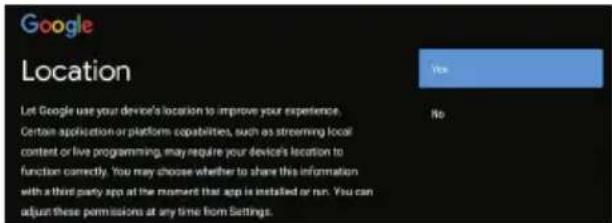

Google Location Yes No Let Google use your device's location to improve your experience. Certain application or platform capabilities, such as streaming local content or live programming, may require your device's location to function correctly. You may choose whether to share this information with a third party app at the moment that app is installed or run. You can adjust these permissions at any time from Settings.

Agree to Google to get the location information of your device to get more features, choose "YES" to accept.

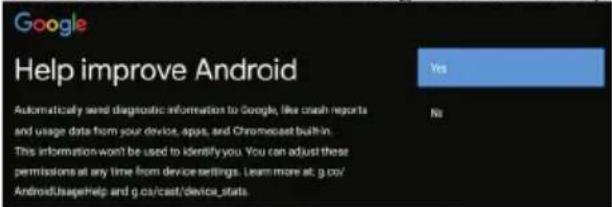

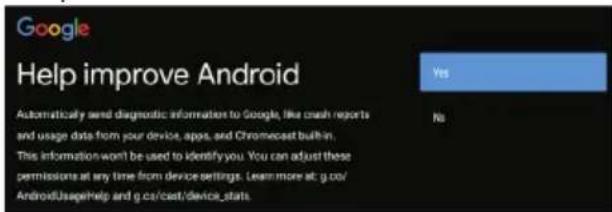

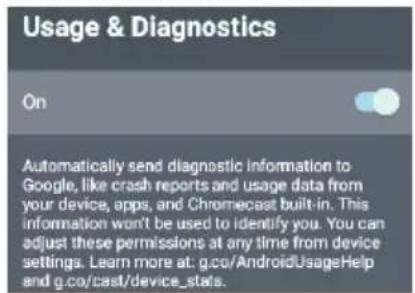

Google Help improve Android Yes Automatically used diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.cs/ Android/Usage/help and g.cs/cast/device_stats.

By agreeing to automatically send diagnostic information to Google to improve discriminative power, choose "YES" to accept.

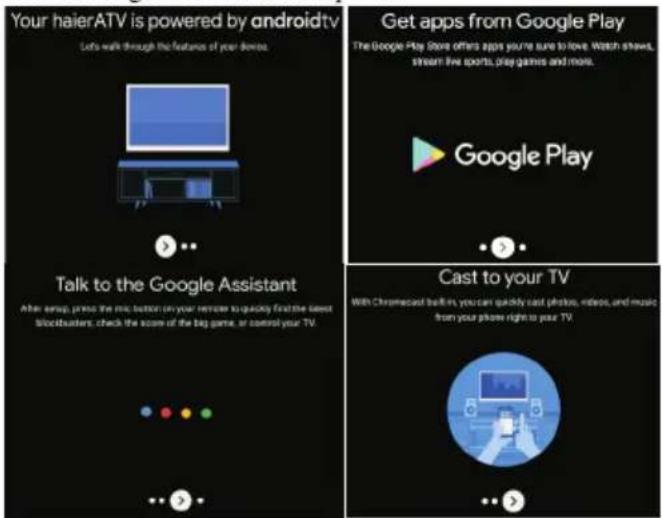

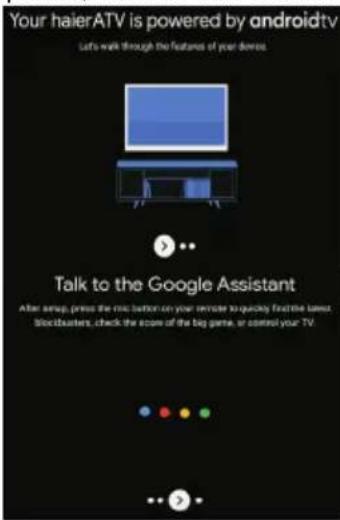

Your haierATV is powered by androidtv Let's walk through the features of your devices. Talk to the Google Assistant After setup, press the mini button on your remote to quickly catch the latest Stockmasters, check the score of the big game, or control your TV.

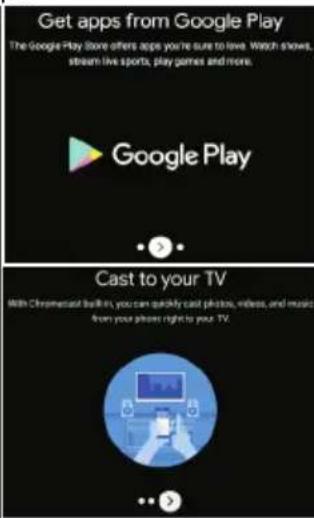

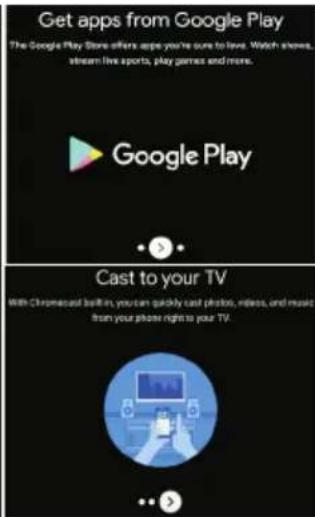

Get apps from Google Play The Google Play Store offers apps you're sure to love. Watch shows, stream live sports, play games and more. Google Play Cast to your TV With Christmas buttons, you can quickly cast photos, videos, and music from your phones right to your TV.

1. Your device is powered by Android TV and press the ▶ button to select the browsing feature.
2. You can get more apps from Google Play and press the ▶ button to go to the next screen.
3. Transfer photos and other content to the TV via the built-in chromecast, press OK to complete the browsing.

Country/Region Please select your country/region: India Pakistan Russia Kazakhstan Uzbekistan Ukraine

Press ▲to select the country of your device and press OK to confirm.

Password Please set password, 0007 is invalid. Input Password

Used to set your device's password to ensure security and privacy.

Press OK to pop up the soft keyboard, and use the remote control to enter the 4-digit password automatically jump to the next interface.

Confirm the password again and keep it consistent. Use the remote control to enter the password and complete the password confirmation.

Select TV mode 'Home' mode is optimized for efficient energy usage for home use. 'Reall' mode is optimized for store demo with fixed settings.

For selecting the mode, press ▲/▼ key to select Home mode and press OK to confirm.

Select Home mode? If you plan to use this TV at home, please select "Yes" to proceed.

Confirm the selected mode again, select "Yes" to confirm the selected mode, and select "No" to return to the previous step.

Chromecast built-in always available Let this device be detected as a Google Cast device and allow Google Assistant and other services to make this device up to respond to Cast commands, even when on standby and the screen is off

Press ▲/▼ to turn on or off the alway available features of Chromecast.

Tuner Mode Please select your tuner mode: Analog: 0 Antenna: 0 Cable: 0 Satellite: 0 Antenna Cable Satellite Skip

To select the Tuner mode for searching, press ▲/▼ to select and press OK to confirm.

Channel Scan First, please connect antenna. Start channel scan now? If you drop this step, the channel scan could be performed in Menu.

Press ▲/▼ to select whether to search, select "Scan" to search, select "Skip scan" to skip the search.

Setup is completed. Enjoy! Congratulations! Completed Initial Setup. Please press OK to exit this wizard.

Press OK to complete the setup.

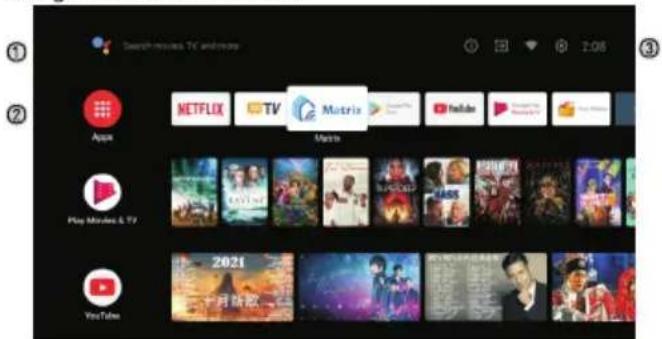

HOME SCREEN

After completing the wizard Settings, you can watch TV and go to the home screen.

Search minutes: TC and more Netflix TV Matrix YouTube Play Movies & TV 2021 月新欧

① Open the google assistant or start a voice search.

② Among the applications installed on the TV, the icons for the favourite applications are shown inside here. (Favourite applications can be added/deleted/ changed its order by users.)

Apps: Click to jump to Apps screen where all the installed applications are listed.

③

④ Notification: Display the notifications.

Inputs: Icon to select an input source.

Network&Interent: Icon to Set up Network, Such as wifi.

Settings: Various settings can be configured here.

For details on the settings, see the next explanation. INPUT SOURCE

1. In the HOME interface, press ▲/▼/◄/► to select the "Inputs" icon, press OK to open the input source list, then press up to highlight an input and press OK to switch.

2 Inputs Details Disrrn

Inputs Antenna Cable Satellite ATV Composite HDMI 1 HDMI 2

1. Under live TV, press the SOURCE button to display the list of input sources. You can select the desired source.

HBBTV MENU

Turn on live TV- press the menu button on the remote control- advanced options- HBBTV Settings.

HBBTV Settings HBBTV Support Do Not Track In-Load Cookie Settings In-Load Persistent Storage Black Tracking Sites Device ID Reset Device ID

You can open the HBBTV menu and follow the prompts to use the remote control to call out the virtual keyboard to operate HBBTV functions.

NAVIGATING THE ON-SCREEN MENU

1. There are two ways to enter. First, in live TV, press the menu button to display TV options, press ▲/▼

◀/▶ to select the settings menu and press OK to confirm. Second, in the HOME interface, press the ▶ key to select the icon of the circular settings menu, press OK to confirm.

Channels TV options Settings Power CI Cars Manual DVD Drive Advanced Options Settings Record

11:42 Settings Details Dismiss

1. Press ▲/▼ button to select what you want set.
2. Press OK to enter setting.

Settings Quick Settings Take bug report General Settings Network & Internet No network connected Channel Accounts & sign-in No accounts Apps Device Preferences Remotes & accessories

Press BACK to return to the previous menu. If the main menu is displayed, pressing BACK will close the onscreen menu.

Network

1. Press ▲ /▼ button to select what you want set.
2. Press OK button to adjust.
3. After finishing your adjustment, Press OK button to save and return to the previous menu.

Network & internet Wi-Fi Available networks HUAWEI-CN28G HUAWEI-KGBF7Q_SG RTL8196-default See all Other options Add new network Scanning always available List Tongling London service and other gopt page for networks seen when Wi-Fi is off

Network & Internet FOR NEW INTERNET Scanning always available Let Gaugars, location service and other apps enter for networks, even when Wi-Fi is off Wow width or wireless network Wol width or LAN Ethernet Not connected Proxy settings IP settings

CHANNEL

Channel Channels Auto Channel Update Channel Update Message Parental Controls Open Source Licenses

Channels – Display the scan sub-menu based on different Channel installation modes.

Auto Channel Update – Press OK button to choose ON/OFF. When selecting ON, the system will automatically scan and update channels after 5 minutes of standby.

Channel Update Message-Press OK button to choose ON/OFF.When selecting ON,the system will show you the update message.

Parental controls – Press ▲/▼ button to select the option then press OK button to enter the sub-menu.

Open source licenses – Press ▲/▼ button to select the option then press OK button to enter the sub-menu.

Antenna

1. Menu->Settings->Channel->Channels

Channels Channel Scan Update Scan Analog Manual Scan Single RF Scan Manual Service Update LCN 0s Channel Scan Type All Channel Store Type All

1. Enter Menu->Settings->Channel->Channels.

Status. Scanning . Antenna Digital Channels: 0 5% Exit

1. Channel Scan directly enters the DTV

automatic search platform interface of Antenna.

Update Scan: Re-automatically search for frequency points outside the station.

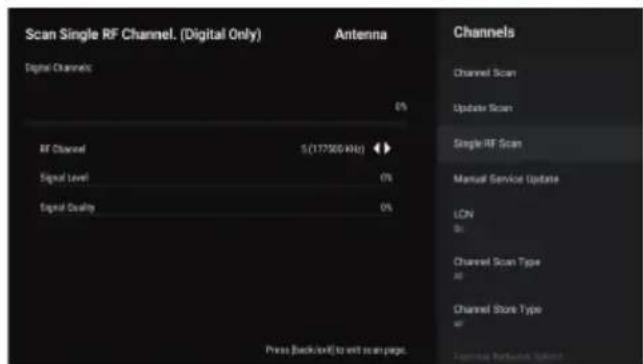

Single RF Scan: DTV manual search, left and right after selecting RF Channel, directly OK search.

Cable

1. Menu->Settings->Channel->Channels.

Channel Scan Single RF Scan LCN 0 h Channel Scan Type All Channel Store Type All

1. Enter Menu->Settings->Channel->Channels->Channle scan

Scan all channels. Cable Digital Channels 0% Scan Mode Advance <> Channel Scan Type Only Digital Channels <> Frequency (KHz) Auto Network ID Auto Scan

1. Enter Channel Scan, where Akado, Divan TV, Online and Rostelecom (SPB) are the local operators, and the default Scan Mode is Advance; Others have Advance, Quick and Full Scan modes.

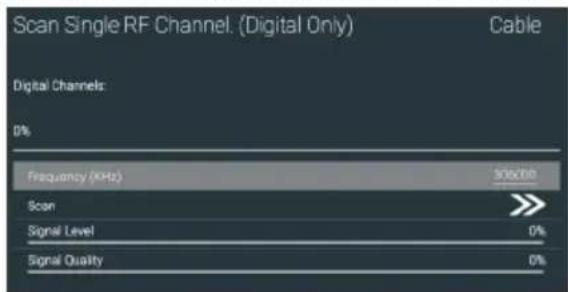

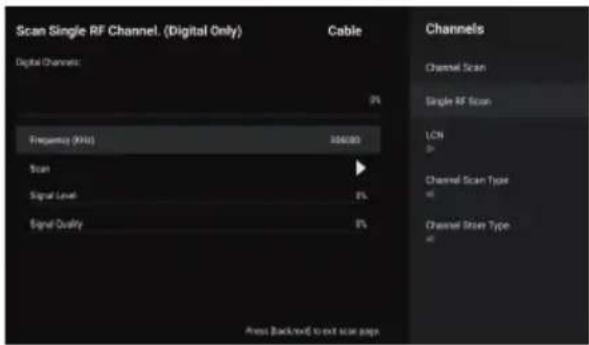

Scan Single RF Channel. (Digital Only) Cable Digital Channels: 0% Frequency (KHz) 356200 Scan Signal Level 0% Signal Quality 0%

Single RF Scan: manual search station. Satellite

1. Menu->Settings->Channel->Channels.

Channels Satellite Re-scan Satellite Add Satellite Update Satellite Manual Tuning

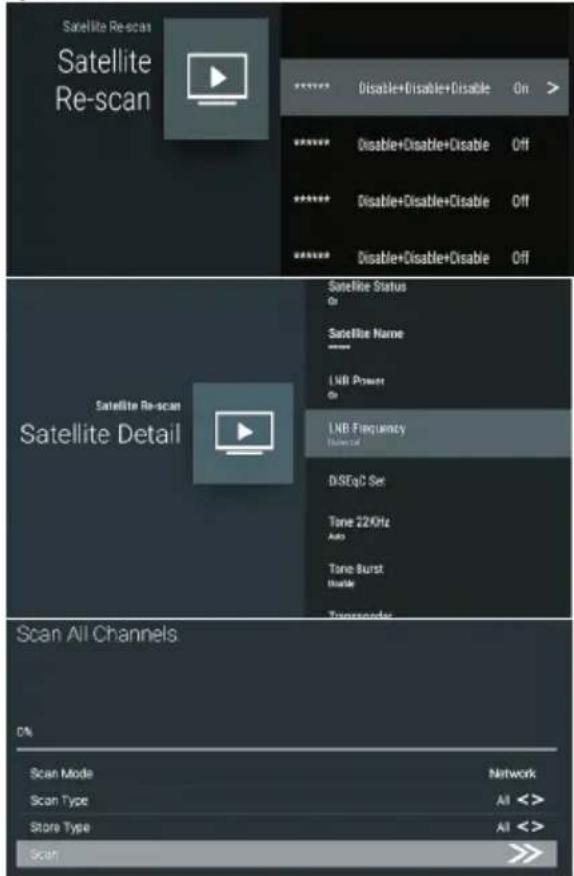

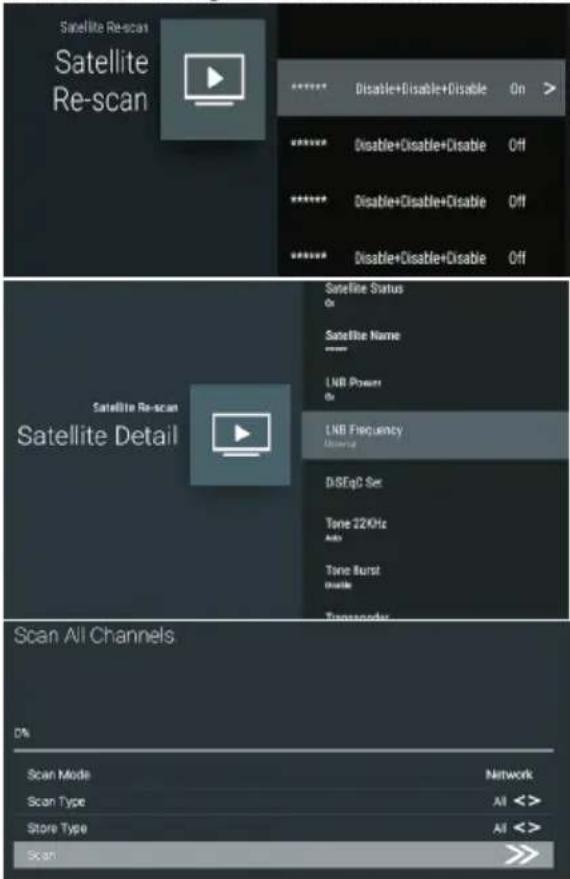

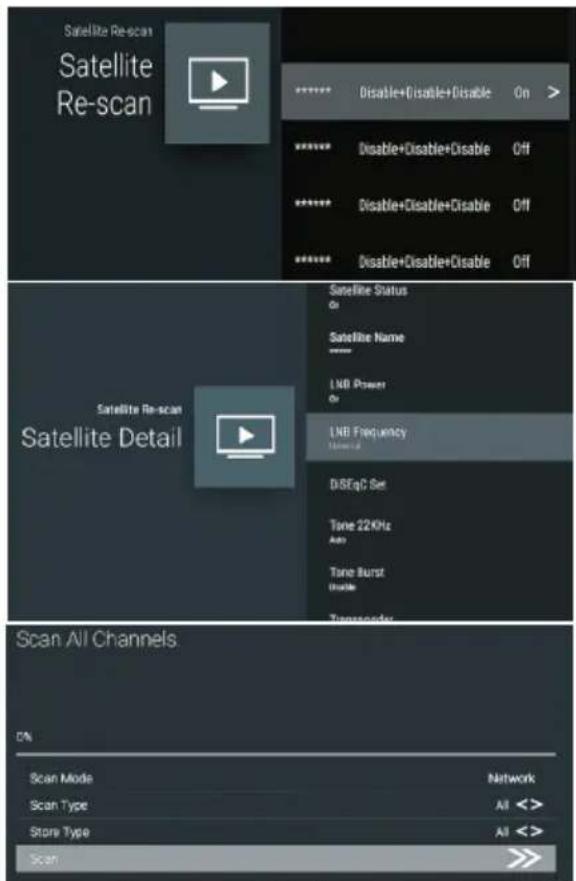

1. Enter Menu->Settings->channel->Channels->Satellite Re-scan.

Satellite Re-scan Satellite Re-scan Satellite Re-scan Satellite Re-scan Satellite Detail Scan All Channels D% Scan Mode Network Scan Type All < > Store Type All < > Scan

1. Press OK to enter Satellite parameter Settings, which include LNB POWER, LNB Frequency, DiSEqC Set, 22K and other parameters. Then return to Satellite re-scan and right click to enter the search menu. Then return to Satellite re-scan and right click to enter the search menu.

Satellite Add Satellite Add ***** Disable+Disable+Disable Off

Satellite Add: Add a star broadcast signal.

Satellite Manual Tuning Satellite Manual Tuning Disable+Disable+Disable On >

Satellite Manual Tuning: manually search for a certain TP, which can be added by Satellite Add if needed.

ATV

Channels Channel Scan Update Scan Analog Manual Scan

Enter Menu->Settings->channel->Channels

Status: Scanning . Aiding Channels: 3 5% Press (backwind) to exit scan page

Channel Scan directly enters the automatic search platform interface.

Update Scan: Re-automatically search for frequency points outside the station.

Search for Analog Channels Frequency: 44.00 MHz Start Frequency (MHz) 44.00 Scan Up Scan Down Press [backwind] to not scan pages.

Analog Manual Scan: Manual ATV search station.
After input the frequency point, you can select up or down search station.

ACCOUNTS & SIGN IN

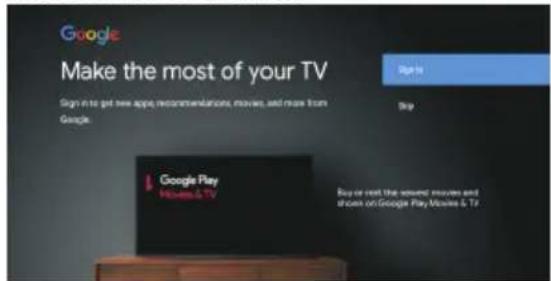

Google Make the most of your TV Sign in to get new apps, recommendations, movies, and more from Google. Google Play Movies & TV Buy or rest the most movies and store on Google Play Movies & TV

APPS

Apps Recently opened apps Live TV 1 minute app Digital/MediaPlayer 1 minute app See all apps Permissions App permissions Special app access Security & Restrictions

In this menu, you can set the APP permissions, and read the app lists

1. Press ▲/▼ button to select what you want set.
2. Press OK button to adjust.
3. After finishing your adjustment, Press BACK button to return to the previous menu.

DEVICE PREFERENCES ABOUT

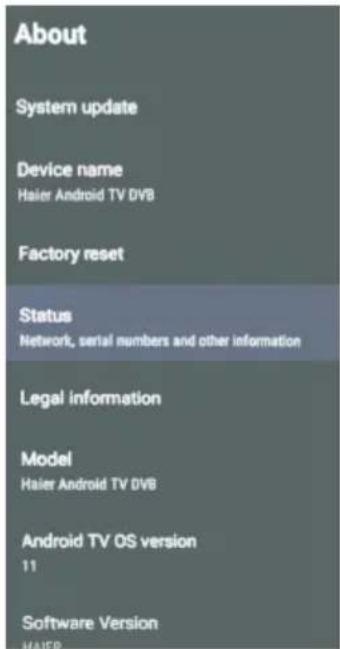

About System update Device name Haier Android TV DVB Factory reset Status Network, serial members and other information Legal information Model Haier Android TV DVB Android TV OS version 11 Software Version HAIER

In this menu, you can read the information and settings of TV.

1. Press ▲/▼ button to select what you want set.
2. Press OK button to adjust.
3. After finishing your adjustment, Press BACK button to return to the previous menu.

DATE&TIME

Date & time Automatic date & time that network provided time Set date August 10, 2021 Set time 5:16 PM Set time zone GMT+88.00 China Standard Time Use 24-hour format 1:05 PM

Automatic date & time – Press ▲/▼ button to select the option then press OK button to enter the sub-menu. (Optional: Use network-provided time, Off)

NOTE

- Manually adjusting date & time settings will automatically change the Automatic date & time to OFF.

Set date – Press ▲/▼button to select the option then press OK button to enter the sub-menu.

Set time – Press ▲/▼button to select the option then press OK button to enter the sub-menu.

Set time zone – Press ▲/▼ button to select the option then press OK button to enter the sub-menu.

Use 24-hour format – Press ▲/▼ button to select the option then press OK button to choose ON/OFF.

TIME

Timer Power On Time Type Off Auto Power On Time 00:30 Power Off Time Type Off Auto Power Off Time 00:30

Power On Time Type – Press ▲/▼ button to select the option then press OK button to choose ON/OFF/ONCE.

Auto Power On Time – Press ▲/▼ button to select the option then press OK button to enter the sub-menu. (This option is valid when the Power On Time Type is selected as On /ONCE.)

Power Off Time Type - Press ▲/▼ button to select the option then press OK button to choose ON/OFF/ONCE.

Auto Power Off Time – Press ▲/▼ button to select the option then press OK button to enter the sub-menu. (This option is valid when the Power Off Time Type is selected as On /ONCE.)

LANGUAGE

Language Čeština Dansk Deutsch Eesti English Español Euskara Filipino Français

Language - Press ▲/▼ button to select the option then press OK button to enter the select language.

KEYBOARD

Keyboard Current keyboard Closed Cboard Settings Manage keyboards

Current keyboard – Press ▲/▼ button to select the option then press OK button to enter the sub-menu.

Gboard Settings – Press ▲/▼ button to select the option then press OK button to enter the sub-menu. Manage keyboards – Press ▲/▼ button to select the option then press OK button to enter the sub-menu.

INPUTS

Inputs HDMI 4 HDMI 4 HDMI 3 HDMI 3 HDMI 2 HDMI 2 HDMI 1 HDMI 1 Not Connected Input Composite Composite Consumer Electronic Control (CES) HDMI control

Inputs Component Component Consumer Electronic Control (E3C) HDMI control Allow the TV to control HDMI devices Device auto power off Power off HDMI devices with the TV TV auto power on Power on the TV with HDMI device HDMI E30 Verroni E69 2.0 ECC Device List

Inputs - Press ▲/▼ button to select the option then press OK button to enter the sub-menu.

HDMI control – Press ▲/▼ button to select the option then press OK button to choose ON/OFF.

Device auto power off – Press ▲/▼ button to select the option then press OK button to choose ON/OFF.

TV auto power on - Press ▲/▼ button to select the option then press OK button to choose ON/OFF.

HDMI EDID Version – show EDID version.

CEC Device List – Press ▲/▼ button to select the option then press OK button to enter the sub-menu.

POWER

Power Sleep Timer Off Picture off Switch Off Timer Off No Signal Auto Power Off 15 Minutes Auto Sleep 4 hours

Sleep Timer – Press ▲/▼button to select the option then press OK button to enter the sub-menu. (Optional: off, 10 minutes, 20 minutes, 30 minutes, 40 minutes, 50 minutes, 60 minutes, 90 minutes, 120 minutes).

Picture off - Press ▲/▼ button to select the option then press OK button to choose ON/OFF.

Switch off timer – Press ▲/▼ button to select the option then press OK button to enter the sub-menu. (Optional: off, 30 minutes, 60 minutes, 90 minutes, 120 minutes, 150 minutes, 180 minutes, 210 minutes, 240 minutes)

No Signal Auto Power Off – Press ▲/▼ button to select the option then press OK button to enter the sub-menu. (Optional: off, 5 minutes, 10 minutes, 15 minutes, 30 minutes, 60 minutes).

Auto Sleep - Press ▲/▼ button to select the option then press OK button to enter the sub-menu.

(Optional: Never, 4 hours, 6 hours, 8 hours).

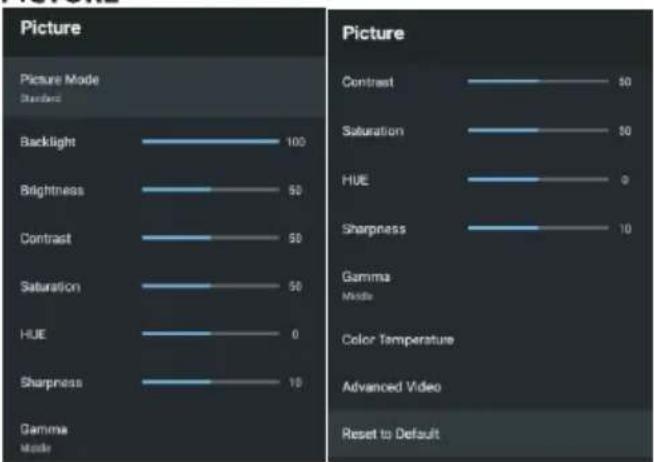

Picture Picture Mode Standard Backlight 100 Brightness 50 Contrast 50 Saturation 50 HUE 0 Sharpness 10 Gamma Middle Gamma Middle Color Temperature Advanced Video Reset to Default

Picture Mode – Press ▲/▼ button to select the option button to enter the sub-menu. (Optional: user, Standard, Vivid, Sport, Movie, Game, Energy saving).

Backlight/Brightness/Contrast/Saturation/HUE/

Sharpness – Press ▲/▼ button to select the option. Press ◀ to decrease the parameter. Press ▶t o increase the parameter.

Gamma – Press ▲/▼ button to select the option then press OK button to enter the sub-menu.(Optional: Dark, middle,Bright).

Color Temperature - Press ▲/▼ button to select the option then press OK button to enter the sub-menu.

Advanced Video - Press ▲/▼ button to select the option then press OK button to enter the sub-menu.

Reset to Default – Reset all settings to the factory defaults.

SOUND

Sound System sounds Sound Style User Balance 0 Bass 50 Treble 50 dbx-tv Sound Surround Equalizer Detail Speaker Delay

Sound Speaker Delay ———— 0 Digital Output Auto Digital Output Delay ———— 0 Auto Volume Control ● Downmix Mode Stores Dialogue Enhancer OT Reset to Default

System sounds- Press▲/▼button to select the option then press OK button to choose On/Off.

Sound style - Press ▲/▼ button to select the option then press OK button to enter the sub-menu. (Optional: user, Standard, Vivid, Sports, Movie, Music, News).

Balance/Bass/Treble - Press ▲/▼ button to select the option. Press ◀ to decrease the parameter. Press ▶ to increase the parameter.

dbx - tv - Press▲/▼button to select the option then press OK button to enter the sub-menu

Sound Surround – Press ▲/▼ button to select the option then press OK button to choose ON/OFF.

Equalizer Detail – Press ▲/▼ button to select the option then press OK button to enter the sub-menu.

Speaker Delay – Press ▲/▼button to select the option. Press ◀ to decrease the parameter. Press ▶ to increase the parameter.

Digital Output - Press ▲/▼ button to select the option then press OK button to enter the sub-menu. (Optional: Auto, Bypass, PCM, Dolby Digital Plus, Dolby Digital).

Digital Output Delay -Press ▲/▼ button to select the option. Press ◀ to decrease the parameter. Press ▶ to increase the parameter.

Auto Volume Control – Press ▲/▼ button to select the option then press OK button to choose ON/OFF.

Downmix Mode- Press ▲/▼ button to select the option then press OK button to enter the sub-menu. (Optional: Stereo, Surround).

Reset to Default - Reset all settings to the factory defaults.

STORAGE

Storage Device storage Internal shared storage Total space: 4.6 GB Removable storage KINGSTON Total space: 15 GB

Internal shared storage – Press ▲/▼ button to select the option then press OK button to enter the sub-menu.

Removable Storage -Press ▲/▼ button to select the option then press OK button to enter the sub-menu.( Note:Show external devices if available)

HOME SCREEN

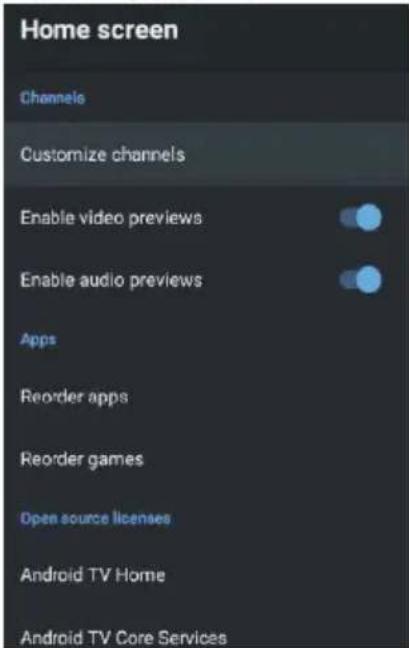

Home screen Channels Customize channels Enable video previews Enable audio previews Apps Reorder apps Reorder games Open source licenses Android TV Home Android TV Core Services

In this menu, you can set channels, apps, open source licenses.

1. Press ▲/▼ button to select what you want set.
2. Press OK button to adjust.
3. After finishing your adjustment, Press BACK button return to the previous menu.

RETAIL MODE

Retail Mode Retail Mode Off Retail Messaging Demo video

Retail mode – Press ▲/▼ button to select the option then press OK button to choose ON/OFF.

Retail messaging – Press ▲/▼ button to select the option then press OK button to enter the sub-menu. (Note: Demo video, e-POP left, e-POP bottom)

GOOGLE

Google Assistant Accounts View permissions Searchable apps Select which apps to include in search results SafeSearch filter Open source licenses

In this menu, you can set searchable apps, safe search filter, open source licenses.

1. Press ▲/▼ button to select what you want set.
2. Press OK button to adjust.
3. After finishing your adjustment, Press BACK button return to the previous menu.

CHROMECASTBUILT-IN

Chromecast built-in About Open source licenses Version number 1.36.145507

In this menu, you can read the information and settings of Chromecast

1. Press ▲/▼ button to select what you want set.
2. Press OK button to adjust.
3. After finishing your adjustment, Press BACK button return to the previous menu.

SCREEN SAVER

Screen saver Screen saver Backdrop When to start After 5 minutes of inactivity Start now

Screen saver – Press ▲/▼ button to select the option then press OK button to enter the sub-menu. (Optional: Turn screen off, Backdrop, Colors)

When to Start - Press ▲/▼ button to select the option then press OK button to enter the sub-menu. (Optional: 5 minutes, 15 minutes, 30 minutes, 1 hour, 2 hours).

Start now - Press ▲/▼ button to select the option then press OK button to enter screen saver.

ENERGY SAVER

Energy saver Turn off display After 24 hours

Start now- Press ▲/▼ button to select the option then press OK button to enter the sub-menu. (Optional:15 minutes, 30 minutes, 1 hour, 4 hours/8 hour,/12 hour,/24 hour,/Never).

LOCATION

Location Location status Use Wi-Fi to estimate location Recent location requests Google

Location status – Press ▲/▼button to select the option then press OK button to enter the sub-menu. (Optional: Use Wi-Fi to estimate location, Off)

USAGE & DIAGNOSTICS

Usage & Diagnostics On Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/AndroidUsageHelp and g.co/cast/device_stats.

Usage & diagnostics – Press ▲/▼button to select the option then press OK button to choose ON/OFF.

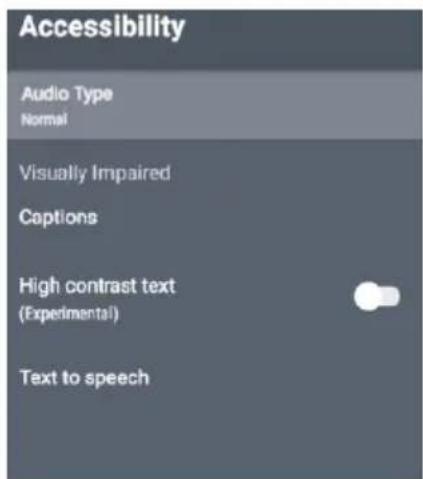

ACCESSIBILITY

Accessibility Audio Type Normal Visually Impaired Captions High contrast text (Experimental) Text to speech

Audio Type-Press ▲ /▼ button to select the option then press OK button to choose.

Visually Impaired - Press ▲/▼ button to select the option then press OK button to enter the sub-menu. (Need:Audio Description)ON

Captions - Press ▲/▼ button to select the option then press OK button to enter the sub-menu High contrast text - Press ▲/▼ button to select the option then press OK button to choose ON/OFF.

Text to speech

Press OK button to enter the sub-menu. then press OK button to choose.

REMOTE&ACCESSORIES

Searching for accessories... Before paying your Bluetooth devices, make user they are playing mode.

Haier TV Remote Pairing... Haier TV Remote 11:22:33:44:55:88

In this menu, you can pair Bluetooth devices.

1. Press the "←" and "☐" buttons at the bottom of the remote control for 5 seconds.
2. When the LED starts to flash, release it. The remote controller will send the pairing signal to the TV and display the information of the remote control on the right side of the screen.
3. Press the OK button to display the pairing. If the paired is displayed, the connection is successful.
4. If the couldn't pair appears, the connection fails. Wait 30 seconds and then press the "←" and "☐" buttons at the bottom of the remote control for 5 seconds to repeat the previous steps.
5. Press ← button return to the previous menu.

ADD AND USE OF MULTI MEDIA PLAYER

Search movies. TV, and more 8:22 Apps Masters Google Play YouTube Google Play Multi Media DigitalMediaPlayer Customize channels

Select app Multi Media Player Play Games Prime Video

1. In the HOME interface, select the + icon in the APP column to add the application, and click OK. Press up and down to select the MultiMediaPlayer application, and click OK to add it to the HOME interface.

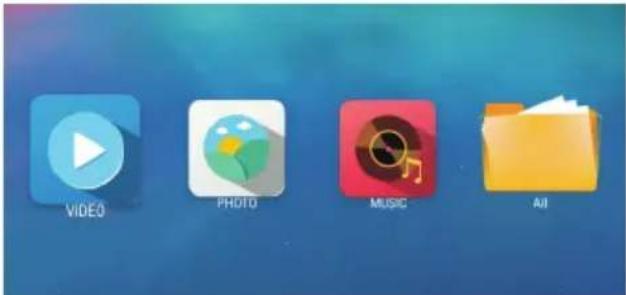

VIDEO PHOTO MUSIC All

1. Select OK key to enter Multi Media Player and display Video, Photo, Audio. After inserting the usb flash drive, you can view the corresponding files in the usb flash drive.

NOTE

The menu/function may be different depending on when you purchased the TV.

Dolby

AUDIO

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

Trouble phenomenon			Inspection
Picture Audio
	Snow Noise		antenna position, direction or connection
	Ghost	Normal audio	antenna position, direction or connection
	Interfere	Noise	electronic equipment, car/ motorcycle, fluorescent light
	Normal Picture	Mutc	Volume (inspect wether the mute function on the remote control are started , or audio system are correct or not)
	No picture Mute		Power cord is not inserted Power switch is not opened Contrast and brightness/volume setup Press standby key on the remote control for inspecting
	No color Normal au
	Scramble	normal audio weak	retune channel
	No color	Noise	Audio system

Special Explanation: The accessories such as remote control is not belongs to the guarantee.

Haier

Haier

MANUAL DEL

USUARIO DEL TELEVISOR LED LCD

MODELO: H50K705UG

H55K705UG

H65K705UG

Haier

Diagram showing a computer monitor with lightning bolts and a crossed-out electrical circuit, indicating no protection or resistance.

Simple line drawing of a monitor with a cross symbol and a cloth, no text or symbols present

Simple line drawing of a computer monitor with a crossed-out X symbol, no text or labels present.

Simple line drawing of a computer monitor with a steaming roof (no text or symbols)

Simple line drawing of a flat-screen TV with a cross mark on the stand (no text or symbols)

Cartoon illustration of a person climbing a computer screen with a crossed-out X symbol (no text or symbols present)

Simple line drawing of a mechanical or electrical component with no text or symbols

Illustration of a person reacting to a computer screen with a device emitting a flame (no text or symbols present)

Simple line drawing of a monitor with a crossed X mark and a warning light emitting smoke (no text or symbols)

Technical line drawing of a flat-screen monitor with internal components and labeled parts (no text or symbols present)

① ② ③ ≤8m

1: Sensor de control remote.
2: Indicator LED:ROJO ESPERA
3: Teclado

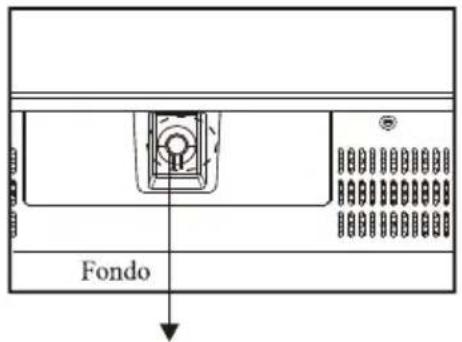

Fondo

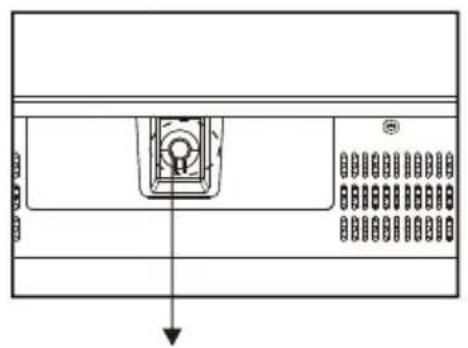

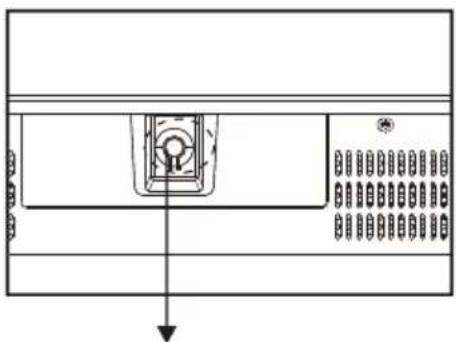

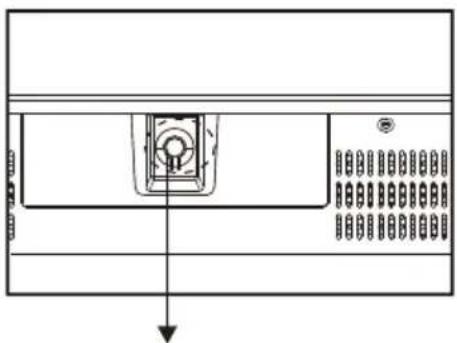

INTERRUPT OR DE ENCENDIDO

Line drawing of a TV setup with an open panel, cable, and power outlet (no text or symbols)

PREAJUSTADO (HDMI)
	RESOLUCIÓN	V.Frec.(Hz)	H.Frec.(KHz)
1	800*600	60	37,88
2	1024*768	60	48,36
3	1360*768	60	47,7
4	1280*768	60	47,3
5	1920*1080	60	67,5
6	3840*2160	30	67,5
7	3840*2160	50	112,5
8	3840*2160	60	135

EQUIPOS AV

Diagram showing battery charging process with hand positions and component states

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Language Original Pncoseli Kuase, Holi Replicciere (90) Frances sn/cur dine antricope

Quickly set up your TV with your Android phone? Continue You can easily transfer your Android phone's WiFi network and Google Account to your TV Skip

Select your Wi-Fi network You can also connect an Ethernet cable to connect to the internet. MTC_GM MTC_GM_MIL MTC_Guest MTC_MES MTC_Public MTC_Staff NETGEANS

Google Terms of Service By continuing you agree to the Google Terms of Service, the Google Privacy Policy, and the Google Play Terms of Service. This device may also receive and install updates and apps from Google, your devices manufacturer or your operator. Some of these apps may offer optional in-app purchases. You can remove them or adjust their permissions at any time from the device settings. Google also collects and temporarily stores the voice and audio history from microphone use to improve the product experience. Accept! Terms of Service Privacy Policy Play Terms of Service

Google Google Services Select each to learn more about each service, such as how to turn it on or off last. Data will be used according to Google's Privacy Policy. Click "Accept" to confirm your selection of these Google services settings. Accept Use location Use Google services with your adminisants Use location estimated from Google. Google may select a customer's purchase strategy to use this data on the application and purchase location accession and location based services. Help to access Android Automatically send Diagnostics information to Google Services and your privacy Google, which is used to help you walk to a online.com

Google Location Let Google use your device's location to improve your experience. Certain application or platform capabilities, such as streaming local content or live programming, may require your device's location to function correctly. You may choose whether to share this information with a third party app at the moment that app is installed or run. You can adjust these permissions at any time from Settings.

Google Help improve Android Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/ Android/USEHelp and g.co/cast/device_stats.

Your haierATV is powered by androidtv Let's walk through the features of your devices. Talk to the Google Assistant After setup, press the track button on your remote to quickly find the latest Stockbusters, check the screen of the big game, or control your TV. Get apps from Google Play The Google Play Store offers apps you're sure to live. Watch shows, stream live sports, play games and more. Google Play Cast to your TV With Chromecast buttons, you can quickly cast photos, noises, and music from your phone right to your TV.

Country/Region Please select your country/Region: India Pakistan Russia Kazakhstan Uzbekistan Ukraine

Password Please set password. 10007 is invalid. Input Password

Select TV mode "Home" mode is optimized for efficient energy usage for home use. "Serial" mode is optimized for store demo with fixed settings.

Select Home mode? If you plan to use this TV at home, please select "Yes" to proceed.

Chromecast built-in always available Let this device be defected as a Google Cast device and allow Google Assistant and other services to make this device up to respond to Cast commands, even when on standby and the screen is off

Tuner Mode Please select your tuner mode Analog: 0 Antenna: 0 Cable: Antenna: 0 Cable: Satellite: 0 Antenna Cable Satellite Skip

Channel Scan First, please connect antennas. Start channel scan now? If you skip this step, the channel scan could be performed in Menu.

Pulse▲/▼ para seleccionar si desea escanear, seleccione "Escanear" para escanear, seleccione "Detener escaneo" para detener el escaneo.

Setup is completed. Enjoy! Complications! Completed initial Setup. Please press OK to exit this wizard.

Search reviews. TV and more Netflix TV Matria Play Movies & TV 2021

HBBTV Settings HBBTV Support Do Not Track In-Track Cookies Settings In-Track Persistent Storage Black Tracking Sites Device ID Reset Device ID

Settings Gateway Dismiss

Settings Quick Settings Take bug report General Settings Network & internet No network connected Channel Accounts & sign-in No access Apps Device Preferences Remotes & accessories

Network & Internet Wi-Fi Available networks HUAWEI-CNL280 HUAWEI-KORF70_5G RTL8186-default See all Other options Add new network Scanning always available Le Smogles location services and other apps can for networks, see when Wi-Fi is all

Network & internet Scanning always available Left Google's location service and other apps scan for networks, even when Wi-Fi is off Wow wake on wireless network Wol wake on LAN Ethernet Not connected Proxy settings IP settings

CANAL

Channel Channels Auto Channel Update Channel Update Message Parental Controls Open Source Licensee

Channels Channel Scan Update Scan Analog Manual Scan Single RF Scan Manual Service Update LCN On Channel Scan Type All Channel Store Type All

Status: Scanning . Antenna Digital Channels: 0 5% Exit

Channel Scan Single RF Scan LCN Q1 Channel Scan Type All Channel Store Type All

Scan all channels Cable Digital Channels: 0% Scan Mode Advance <> Channel Scan Type Only Digital Channels <> Frequency (kHz) Auto Network ID Auto Scan

Scan Single RF Channel. (Digital Only) Cable Digital Channels: 0% Frequency (KHz) 366800 Scan Signal Level 0% Signal Quality 0%

Channels Satellite Re-scan Satellite Add Satellite Update Satellite Manual Tuning

Scan All Channels 0% Scan Mode Network Scan Type All < > Store Type All < > Scan

Channels Channel Scan Update Scan Analog Manual Scan

Status: Scanning . Analog Channels: 5 37% Press [check/exit] to exit scan page

Search for Analog Channels Frequency 44.30 MHz Start Frequency (MHz) 44.00 Scan Up Scan Down Press [Stack.html] to switch scan page

Google Make the most of your TV Sign in to get new apps, recommendations, movies, add more from Google. Google Play Movies, CTV Buy or read the most movies and shows on Google Play Movies & TV

APPS

Apps Recently opened apps Live TV Transfer age DigitalMediaPlayer Transfer age See all apps Permissions App permissions Special app access Security & Restrictions

Date & time Automatic date & time Use network powered time Set date August 10, 2021 Set time 6:16 PM Set time zone GMT+08:00 China Standard Time Use 24-hour format 1:00 PM

Keyboard Current keyboard Board Board Settings Manage keyboards

Sound System sounds Sound Style bar Balance 0 Bass 50 Table 50 dbx-tv Sound Surround Equalizer Detail Speaker Delay

Sound Speaker Delay ———— 0 Digital Output Auto Digital Output Delay ———— 0 Auto Volume Control Downmix Mode Storage Dialogue Enhancer OT Reset to Default

Storage Device storage Internal shared storage Total space: 4.6 GB Removable storage KINGSTON Total space: 15 GB

Home screen Channels Customize channels Enable video previews Enable audio previews Apps Reorder apps Reorder games Open source licenses Android TV Home Android TV Core Services

Retail Mode Retail Mode Off Retail Messaging Demo video

Google Assistant Accounts View permissions Searchable apps Select which apps to include in search results. SafeSearch filter Open source licenses

Chromecast built-in About Open source licenses Version number 1.36.145507

Screen saver Screen saver Backdrop When to start After 5 minutes of inactivity Start now

Energy saver Turn off display After 24 hours

Location Location status Use Wi-Fi to estimate location Recent location requests Google

Usage & Diagnostics On Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/AndroidUsageHelp and g.co/cast/device_stats.

Accessibility Audio Type Normal Visually Impaired Captions High contrast text (Experiments) Text to speech

Searching for accessories... Before using your Bluetooth devices, make new degrees in playing mode.

Haier TV Remote Pairing... Haier TV Remote 11:22:33:44:55:88

Search includes, TV, and more 8:22 Appos Mistrax YouTube PUB Media + DigitalMediaPlayer Customize Channels

Select app MultimediaPlayer Play Games Prime Video

Illustration of a computer monitor with a crossed-out 'X' symbol, no text or labels present

Simple line drawing of a window with a cross symbol and a curtain on the right (no text or symbols)

Simple line drawing of a monitor with a cross symbol crossed out, no text or symbols present.

Simple line drawing of a computer monitor with a base, no text or symbols present

Simple line drawing of a flat-screen monitor with a stand and diagonal lines (no text or symbols)

Cartoon illustration of a child lying on a computer monitor with a crossed-out X symbol (no text or symbols present)

Simple line drawing of a geometric structure with intersecting lines and a rectangular frame (no text or symbols)

Illustration of a person reacting to a screen with a megaphone and a small icon, no text or symbols present.

Simple line drawing of a monitor with a cross mark and a warning light (no text or symbols)

Minimum distances 10cm 10cm 9cm 25cm

Technical line drawing of a flat-screen monitor with internal components and mounting holes (no text or symbols)

① ② ③ ≤8m

Diagram of a computer monitor with an internal component and control panel (no text or symbols)

All the terminals are (from left to right):

RJ45, SORTIE OPTIQUE, VIDEO, entrée audio(L/R), HDMI4, HDMI3, HDMI2.

Line drawing of a TV setup with an attached cable and power outlet (no text or symbols)

MODE SUPPORTÉ (HDMI)

	RESOLUTION	V.Freq.(Hz) H.Freq.(KHz)
1	800*600	60	37.88
2	1024*768	60	48.36
3	1360*768	60	47.7
4	1280*768	60	47.3
5	1920*1080	60	67.5
6	3840*2160	30	67.5
7	3840*2160	50	112.5
8	3840*2160	60	135

ÉQUIPEMENT AV

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Quickly set up your TV with your Android phone? Continue You can easily transfer your Android phone's WiFi network and Google Account to your TV

Select your Wi-Fi network You can also connect an Ethernet cable to connect to the internet. MTC_CM MTC_CM_NG MTC_Guelf MTC_MES MTC_Public MTC_PUFY NETGEARS

Google Terms of Service By continuing you agree to the Google Terms of Service, the Google Privacy Policy and the Google Play Terms of Service. June This device may also receive and install updates and apps from Google, your devices, manufactures, or your operator. Some of these apps may offer optional in-app purchases. You can remove them or adjust their permissions at any time from the device settings. Terms of Service Privacy Policy Play Terms of Service Google also collects and temporarily stores the voice and audio history from microphone use to improve the product experience.

Google Google Services Select each to learn more about each service, such as how to turn it on or off later. Data will be used according to Google's Privacy Policy. Click "Accept" to confirm your selection of these Google services settings. Accept Use location Allow Google and access with your permission to use the location estimated from the Google's access based database regularly via this data or other functions that include location necessary and user-based services. Help improve Android Automatically send信息披露 information to Google Services and your privacy Google and other services will not use any unique tools

Google Location Yes No Let Google use your device's location to improve your experience. Certain application or platform capabilities, such as streaming local content or live programming, may require your device's location to function correctly. You may choose whether to share this information with a third party app at the moment that app is installed or run. You can adjust these permissions at any time from Settings.

Google Help improve Android Yes No Automatically seed diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/ Android/UsageHelp and g.co/cast/device_stats

Your haierATV is powered by androidtv Lets walk through the features of your devices. ? •• Talk to the Google Assistant After setup, press the real button on your remote to quickly find the latest blockbusters, check the score of the big game, or control your TV. Get apps from Google Play The Google Play Store offers apps you're sure to live. Watch shows, stream live sports, play games and more. Google Play • •• Cast to your TV With Chromecast buttons, you can quickly cast photos, emails, and music from your phone right to your TV.

Country/Region Please select your country/region: India Pakistan Russia Kazakhstan Uzbekistan Ukraine

Password Please set password, 100% is invalid. Import Password

Select TV mode "Home" mode is optimized for efficient energy usage for home use. "Retail" mode is optimized for store demo with fixed settings.

Select Home mode? If you plan to use this TV at home, please select "Yes" to proceed. Yes No

Chromecast built-in always available Let this device be detected as a Google Cast device and allow Google Assistant and other services to wake this device up to respond to Cast commands, even when on standby and the screen is off.

Tuner Mode Please select your tuner mode: Analog: 0 Amena: 0 Cable: 0 Satellite: 0 Antenna Cable Satellite Skip

Channel Scan First, please connect antennas. Start channel scan now? If you stop this step, the channel scan could be performed in Menu.

Setup is completed. Enjoy! Congratulations! Completed Initial Setup. Please press [OK] to exit this wizard.

Search movies, TV and more Apps Netflix TV Matrix Play Movies & TV 2021 YouTube

HBBTV Settings HBBTV Support Do Not Track Default Cookie Settings Select Pursistent Storage Block Tracking Site Device ID Reset Device ID

Channels TV options Streamers Power 3 Card Main of GAF Core Advanced Options Settings Record

11:42 Settings Details Orders

Settings Quick Settings Take bug report General Settings Network & internet No network connected Channel Accounts & sign-in No accounts Apps Device Preferences Remodels & accessories

Network & Internet Wi-Fi Available networks HUAWEI-CNL2BG HUAWEI-KGSF7Q_SG RTL8186-default See all Other options Add new network Scanning always available Let Google location server and other apps scan for networks, even when WiFi is off

Network & internet Open to use network Scanning always available Left Google's location server and other apps size for networks, even when Wi-Fi is all Wow wake on wireless network Wol wake on LAN Ethernet Not connected Proxy settings IP settings

CHAÎNE

Channel Channels Auto ChannelUpdate ChannelUpdate Message Parental Controls Open Source Licenses

Channels Channel Scan Update Scan Analog Manual Scan Single RF Scan Manual Service Update LCN Or Channel Scan Type All Channel Store Type All

Status: Scanning . Antenna Digital Channels: 0 5% Date

Channel Scan Single RF Scan LCN 01 Channel Scan Type All Channel Store Type All

Scan all channels. Digital Channels ON Scan Mode Advance Channel Scan Type Only Digital Channels Frequency (KHz) Auto Network ID Auto Scan

Scan Single RF Channel. (Digital Only) Cable Digital Channels: 0% Frequency (kHz) 306400 Scan Signal Level 0% Signal Quality 0%

Scannage RF simple: station de recherche manuelle.

Satellite

Channels Satellite Re-scan Satellite Add Satellite Update Satellite Manual Tuning

Channels Channel Scan Update Scan Analog Manual Scan

Status: Scanning . Arling Channels: 3 30% Press (backwind) to exit scan pages.

Search for Analog Channels Frequency - 44.00 MHz Start Frequency (MPG) 44.00 Scan Up Scan Down Press [back now] to exit scan page

Scannage manuel analogique: Station de recherche manuelle ATV.

Google Make the most of your TV Sign it to get new apps, recommendations, movies, and more from Google Google Play Movies & TV Buy or rest the most movies and shows on Google Play Movies & T3

APPS

Apps Recently-speed apps Live TV 1 minute ago Digital/MediaPlayer 1 minute ago See all apps Permissions App permissions Special app access Security & Restrictions

Date & time Automatic date & time Use network provided time Set date August 10, 2021 Set time 9:16 PM Set time zone GMT+03.00 China Standard Time Use 24-hour format 1:00 PM

Keyboard Current keyboard Board Gboard Settings Manage keyboards

Inputs Component Component Consumer Electrotic Control (CEC) HDMI control Allow the TV to control HDMI devices Devices auto power off Power off HDMI devices with the TV TV auto power on Power on the TV with HDMI device HDMI EDID Version EDD 2.0 CEC Device List

Sound System sounds Sound Style User Balance 0 Bass 50 Treble 50 dbx-tv Sound Surround Equalizer Detail Speaker Delay 0

Sound Speaker Delay ———— 0 Digital Output Auto Digital Output Delay ———— 0 Auto Volume Control Downmix Mode Stereo Dialogue Enhancer Off Reset to Default

Storage Device storage Internal shared storage Total space: 4.6 GB Removable storage KINGSTON Total space: 15 GB

Home screen Channels Customize channels Enable video previews Enable audio previews Apps Reorder apps Reorder games Open source licenses Android TV Home Android TV Core Services

Retail Mode Retail Mode Off Retail Messaging Demo video

Google Assistant Accounts View permissions Searchable apps Select which apps to include in search results. SafeSearch filter Open source licenses

Chromecast built-in About Open source licenses Version number 1.36.145927

UTILISATION

Accessibility Audio Type Normal Visually Impaired Captions High contrast text (references) Text to speech

Haier TV Remote Pairing... Haier TV Remote 11:22:33:44:55:88

Select app MultiMediaPlayer Play Games prime video Prime Video

Illustration of a computer monitor with an electrical circuit diagram and a crossed-out resistor (no text or symbols)

Diagram showing a cross symbol on a screen and a rope tied to a curtain, with no readable text or symbols.

Simple line drawing of a monitor with a cross symbol and stars, no text or symbols present.

Simple line drawing of a computer monitor with a curved top and base, emitting steam (no text or symbols)

Simple line drawing of a flat-screen monitor with a cross mark on the stand (no text or symbols)

Cartoon illustration of a person lying on a computer monitor with a crossed-out black-and-white symbol (no text or symbols present)

Simple line drawing of a geometric structure with intersecting lines and a vertical line, no text or symbols present.

Illustration of a person reacting to a computer screen with a magnifying glass (no text or symbols)

Simple line drawing of a monitor with a cross symbol crossed out, next to a warning light icon (no text or symbols)

Technical line drawing of a rear panel with labeled components (no text or symbols present)

① ② ③ ≤8m

Line drawing of a flat-screen TV unit with cable and power outlet, no text or symbols present

Diagram illustrating the step-by-step battery charging process with labeled components and directional arrows

ERSTEINRICHTUNG

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Language English Pyclical Korean, Nish Aquaticus BID Foreign Hindi Shiwi Shikoku

Quickly set up your TV with your Android phone? Continue You can easily transfer your Android phone's WiFi network and Google Account to your TV Skip

Select your Wi-Fi network You can also connect an Ethernet cable to connect to the internet. MTC_GM MTC_6M_5G MTC_Guest MTC_MES MTC_Public MTC_Shall NETGEANS

Google Terms of Service By continuing you agree to the Google Terms of Service, the Google Privacy Policy, and the Google Play Terms of Service. This device may also receive and install updates and apps from Google, your device's manufacture, or your operator. Some of these apps may offer optional in-app purchases. You can remove them or adjust their permissions at any time from the device settings. Google also collects and temporarily stores the voice and audio history from microphone use to improve the product experience. Accept! Terms of Service Privacy Policy Play Terms of Service

Google Google Services Select each to learn more about each service, such as how to turn it on or off last. Data will be used according to Google's Privacy Policy. Click "Accept" to confirm your selection of these Google services settings. Accept Use location Make Google and use with your permission to use location estimated from Google. Google may select a server for better access and use the client or another via a mentioned location necessary and/or other services. Help Improve Android Automatically installing information to Google Services and your privacy Google services will also use your own in a program.

Google Location Yes No Let Google use your device's location to improve your experience. Certain application or platform capabilities, such as streaming local content or live programming, may require your device's location to function correctly. You may choose whether to share this information with a third party app at the moment that app is installed or run. You can adjust these permissions at any time from Settings.

Google Help improve Android Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.cs/ Android/saperhelp and g.cs/cast/device_stats

Your haierATV is powered by androidtv Life's walk through the features of your devices 2 2 1 Talk to the Google Assistant After setup, press the risk button on your remote to quickly find the latest blockbusters, check the score of the big game, or control your TV. Get apps from Google Play The Google Play Store offers apps you're sure to save. Watch shows, stream live sports, play games and more. Google Play Cast to your TV With Chromatost shells, you can quickly cast photos, emails, and music from your phone right to your TV.

Country/Region Please select your country/Region: India Pakistan Russia Kanahuturi UdPakistan Ukraine

Password Please set password, 1000% is invalid. level Password

Select TV mode "Home" mode is optimized for efficient energy usage for home use "Real" mode is optimized for store demo with fixed settings.

Select Home mode? If you plan to use this TV at home, please select "Yes" to proceed.

Chromecast built-in always available Let this device be detected as a Google Cast device and allow Google Assistant and other services to write this device up to respond to Cast commands, even when on standby and the screen is off.

Tuner Mode Please select your tuner mode: Analog: 0 Antenna: 0 Cable: 0 Satellite: 0 Antenna Cable Satellite Skip

Channel Scan First, please connect antennas. Start channel scan now? If you stop this step, the channel scan could be performed in Menu.

Setup is completed. Enjoy! Completed initial Setup. Please press OK to exit this wizard.

HBBTV Settings HBBTV Support Do Not Track Initial Cookie Settings Initial Persistent Storage Black Tracking Sites Device ID Reset Device ID

11:42 Settings Details Details

Settings Quick Settings Take bug report General Settings Network & Internet No network connected Channel Accounts & sign-in No accounts Apps Device Preferences Remoties & accessories

Network & internet Wi-Fi Available networks HUAWEI-CHAL290 HUAWEI-KGBF7Q_5G RTL8186 default See all Other options Add new network Scanning always available Let Finland provide services and other apps pass for networks even when RTL8186 off

Network & Internet Open to 12.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.2 Soamming always available Let graphene location service and other sites scan the networks, after when Wi-Fi is off Now wait on wireless network Not wait on LAN Ethernet Not connected Proxy settings IP settings

KANAL

Channel Channels Auto Channel Update Channel Update Message Parental Controls Open Source Licenses

Channels Channel Scan Update Scan Analog Manual Scan Single RF Scan Manual Service Update LDN 0s Channel Scan Type AI Channel Store Type AI

1. Enter Menu->Settings->Channel->Channels.

Status: Scanning . Antenna Digital Channels: 0 5% Exit

Channel Scan Single RF Scan LCN On Channel Scan Type All Channel Store Type All

1. Enter Menu->Settings->Channel->Channels->Channle scan

Scan all channels. Cable Digital Channels 0% Scan Mode Advance Channel Scan Type Only Digital Channels Frequency (kHz) Auto Network ID Auto Scan

Scan Single RF Channel. (Digital Only) Cable Digital Channels: 0% Frequency (KHz) 306200 Scan Signal Level 0% Signal Quality 0%

Single RF Scan: manuelle Suchstation.

Satellit

1. Menu->Settings->Channel->Channels.

Channels Satellite Re-scan Satellite Add Satellite Update Satellite Manual Tuning

1. Enter Menu->Settings->channel->Channels->Satellite Re-scan.

Satellite Re-scan Satellite Re-scan ***** Disable+Disable+Disable On > ***** Disable+Disable+Disable Off ***** Disable+Disable+Disable Off ***** Disable+Disable+Disable Off Satellite Re-scan Satellite Detail Satellite Status On Satellite Name **** LNB Power On LNB Frequency Minimum D&EqC Set Tone 22KHz Auto Tone Burst Disable Transgender Scan All Channels 0% Scan Mode Network Scan Type All < > Store Type All < > Scan

Channels Channel Scan Update Scan Analog Manual Scan

Enter Menu->Settings->channel-) Channels

Status: Scanning . Analog Channels: $ 30% Press (backwind) to exit scan page

Search for Analog Channels Frequency 44.02 MHz Start Frequency (MPa) 44.00 Scan Up Down Down Press Backward to exit scan scope

Analog Manual Scan: Manuelle ATV-Suchstation.

Google Make the most of your TV Sign in get new apps, recommendation, movies, and more from Google. Skip Google Play Movies & TV Buy or not the most movies and shown on Google Play Movies & TV

APPS

Apps Recently opened apps Live TV 1 minute apps Digital/MediaPlayer 1 minute apps See all apps Permissions App permissions Special app access Security & Restrictions

Date & time Automatic date & time Use network provided time Set date August 18, 2021 Set time 5:16 PM Set time zone GMT+08:00 Chess Standard Time Use 24-hour format 1:00 PM

Keyboard Current keyboard Board G board Settings Manage keyboards

Inputs Component Component Consumer Electronic Control (EIC) HDMI control Allow the TV to control HDMI devices Device auto power off Power of HDMI devices with the TV TV auto power on Power on the TV with HDMI devices HDMI ECD Version ECD 2.0 GEC Device List

Picture Contrast 50 Saturation 20 HUE 0 Sharpness 10 Gamma medium Color Temperature Advanced Video Reset to Default

Backlight/Brightness/Contrast/Saturation/HUE/

Sound System sounds Sound Style base Balance 0 Bass 50 Treble 50 dBx-IV Sound Surround Equalizer Detail Speaker Delay 0

Sound Speaker Delay ———— 0 Digital Output Auto Digital Output Delay ———— 0 Auto Volume Control Downmix Mode Stress Dialogue Enhancer Off Reset to Default

Storage Device storage Internal shared storage Total space: 4.6 GB Removable storage KINGSTON Total space: 15 GB

Home screen Channels Customize channels Enable video previews Enable audio previews Apps Reorder apps Reorder games Open source licenses Android TV Home Android TV Core Services

Retail Mode Retail Mode Off Retail Messaging Demo video

Google Assistant Accounts View permissions Searchable apps Select which apps to include in search results. SafeSearch filter Open source licenses

Chromecast built-in About Open source licenses Version number 1.36 145507

When to start After 5 minutes of inactivity

Start now

Turn off display After 24 hours

Location status Use Wi-Fi to estimate location

Recent location requests

Google

Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/AndroidUsageHelp and g.co/cast/device_stats.

Searching for accessories... Before paying your Bluetooth devices, make sure they in your ring inside

Haier TV Remote Pairing...

Haier TV Remote 11:22:33:44:55:88

Search results, T/C and more App4 Microsoft YouTube Google DigitalMedia Player Customize channels

Select app MultiMediaPlayer Play Games Prime Video

Illustration of a computer monitor with an explosion symbol and a crossed-out hand (no text or labels)

Simple line drawing of a monitor with a cross mark and a hanging cloth, no text or symbols present

Simple line drawing of a computer monitor with a crossed X mark and stars (no text or symbols)

Simple line drawing of a computer monitor with a stand and roof, no text or symbols present.

Simple line drawing of a flat-screen monitor mounted on a stand with a diagonal line crossing (no text or symbols)

Cartoon illustration of a person on a computer monitor with a crossed-out 'X' symbol (no text or symbols present)

Simple line drawing of a geometric shape with intersecting lines and a vertical line, no text or symbols present.

Illustration of a person running away from a computer monitor next to a broken circular object (no text or symbols)

Simple line drawing of a monitor with a cross symbol crossed out, next to a lamp emitting heat (no text or symbols)

Technical line drawing of a computer monitor with labeled components (no text or symbols present)

① ② ③ ≤8m

ВЫКЛЮЧАТЕЛЬ

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Quickly set up your TV with your Android phone? You can easily transfer your Android phones Wi-Fi network and Google Account to your TV Continue Skip

Select your Wi-Fi network You can also connect an Ethernet cable to connect to the Internet CMCC_TESTX CVTE Guest_FSF TP-LINK_6510_5G YTTV_AOSRU 5G 360MFI-SCADSB

Google Terms of Service By continuing, you agree to the Google Terms of Service, the Google Privacy Policy, and the Google Play Terms of Service: Accept This device may also receive and install updates and apps from: Google; your devion's manufacturer, or your operator. Some of these apps may offer optional in-app purchases. You can remove them or adjust their permissions at any time from the device settings. Terms of Service Privacy Policy Google also collects and temporarily stores the voice and audio history from microphone use to improve the product experience.

Google Google Services Select each to learn more about each service, such as how to turn it on or off last. Data will be used according to Google's Privacy Policy. Click 'Accept' to confirm your selection of these Google services settings. Accept Look location Allow Google and apps with your privacy no use location simplified from Google's Privacy Policy. You can access your privacy and use this data in all services and how your location security and privacy-based services. Help access Android Access to this service is designed information to Google. Services and your privacy Google Advanced Service and you can use a specific service.

Your Haser Android TV/FF Pro is powered by... I can't go through the network of your own ...

Get apps from Google Play The Google Play is also able to use your own website (https://www.google.com) the apps for your own account.

Talk to the Google Assistant After setup, press the info database at your remote to qualify find the latest bio-albumery, check my power of the big game or control via TX.

Cast to your TV With Desensated Health, you can use quickly use photos, videos, and music from your phones right to your TV.

Region/Country Please select your region or country. India Pakistan Russia Rajasthan Ethiopia Ukraine Israel

Password Please not password. '0000' is invalid. Input Password

Input Password New Password +1 1 2 3 ✕ 4 5 6 0 7 8 9 ✓

Confirm Password 1 2 3 4 5 6 0 7 8 9 ✓

Time Zone Kaldringsgal Time Moscow Time Warsaw Time Vaskartemberg Time Greek Time

Select TV mode 'Home' mode is optimized for efficient energy usage for home use. 'Retail' mode is optimized to store demo with fixed settings.

Chromecast built-in always available Let this device be detected as a Google Cast device and allow Google Assistant and other services to wake this device up to respond to Cast commands, even when on standby and the screen is off

Tuner Mode Please select your tuner mode: Antenna Cable Skip

Channel Scan First, please connect antennas. Start channel scan now? If you skip this step, the channel scan could be performed in Menu. Analogue and digital channels Only analogue channels Only digital channels Skip Scan

Setup is completed. Enjoy!

HBBTV Settings HBBTV Support Do Not Touch Untitled Cookie Settings Untitled Persistent Storage Block Tracking Sites Device ID Reset Device ID

10:24 Settings Details Dismiss

Settings Suppliers Finish setting up your TV Add a Google Account to make the most of your TV General Settings Network & Internet RCD-10% Channel Accounts & Sight-In Not applicable Apps Device Preferences

Network & Internet Network Privacy Policy Wi-Fi Wireless networks HKC/VPN Connected DIRECT-CyOSK-TDP-NVQO HKC/VPN-SD Size all Other options Add new network

Network & Internet scanning always available Let straight's network service and white space with the software, very often (WPS) to all Flow Wide on wireless network Wid Wide on Wi-Fi Ethernet Not connected Group settings If settings

КАНАЛ (Антенна)

Channel Channels Auto Channel Update Channel Update Message Parental Controls Open Source Licenses

Status: Scanning Antenna Digital Channels: 1 5% Channels Channel Scan Update Scan Single HF Scan Manual Service Update LCN On Channel Scan Type 65 Channel Store Type 65 Press book next to last scan page

Scan Single RF Channel. (Digital Only) Antenna Signal Channels: 5% RF Channel $17780.450 Digital Level: 5% Signal Quality: 5% Press (back level) in exit score page. Channels Channel Scan Update Box Single RF Scan Manual Service Update LOR 0% Channel Scan Type A2 Channel Blue Type v1 Functional Services - S-

Channel Channels Auto Channel Update Channel Update Message Parental Controls Open Source Licenses

Scan all channels. Scan fields Frequency (MHz) Scan Channel Scan AHA20 Tropic Shop TV Online RouteTime(PSI) Drive Fines [pack time] to exit user pages

Scan Single RF Channel. (Digital Only) Cable Digital Channels 5% Frequency (MHz) 306080 Scan Signal Level 5% Signal Quality 5% Channels Channel Scan Single RF Scan LCH In Channel Scan Type A1 Channel Scan Type B1 Press [back/let] to end scan page

Channel Channels Channel Installation Mode General Supporter Auto Channel Update Channel Update Message Parental Controls Open Source Licenses

Channels Satellite Re-scan Satellite Add Satellite Update Satellite Manual Tuning

Satellite Re-scan Next More

Satellite Re-scan Satellite Re-scan Next Astra4A/SE5 5E On

Status: Scanning ... Digital Channels: 0 Satellite Name: Aster4A/SESS SE Satellites: 1/1 1% Next Astra4A/SESS SE On Press Back next to scan page

Satellite Manual Tuning Satellite Manual Tuning Astra4A/SESS SE On

Satellite Manual Tuning Satellite Detail Next Satellite Status Go Satellite Selection Scan Mode Full

КАНАЛ (ATV)

Status: Scan Canceled Analog Channels: 0 0% Channels Channel Scan Update Scan Analog Manual Scan Press Backload To sell cover page

Search for Analog Channels Frequency: 44.50 MHz Start Frequency (MHz): 44.50 Scan Up Scan Down Channels Channel Scan Update Scan Analog Manual Scan Press Backward to exit scan page

Warning Are you sure? Cancel OK

Google Make the most of your TV Sign in to get new apps, recommendations, movies, and more from Google. Sign In Skip Google Play Discover new apps for adioms, music and games on Google Play

ПРИЛОЖЕНИЯ

Apps Recently opened apps Live TV 4 minutes apps See all apps Permissions App permissions Special app access Security & Restrictions

Device Preferences About Date & Time Timer Language Keyboard Guard Inputs Power Picture Sound Storage Home screen Retail Mode Google Assistant Chromecast built-in Screen saver Energy saver Location Usage & diagnostics Accessibility Restart

Keyboard Current keyboard Gboard Gboard Settings Manage keyboards

Inputs Component Component Consumer Electronics Control (CES) HDMI control Allow the TV to control HDMI devices Device auto power off Power off HDMI devices with the TV TV auto power on Power on the TV with HDMI device HDMI ESO Version CES TA CES Device List

Picture Picture Mode Energy Saving Dolby Vision Notification Backlight 50 Brightness 50 Contrast 50 Saturation 50 HUE 0 Sharpness 10

Picture Contrast 50 Saturation 50 HUE 0 Sharpness 10 Gamma Mide Color Temperature Advanced Video Reset to Default

Storage Device storage Internal shared storage Total space: 12.00 Removable storage SanDisk USB drive Total space: 1s.00

Home screen Customs Customize channels Enable video previews Enable audio previews Apps Reorder apps Reorder games Open panel libraries Android TV Home

Google Assistant On Add/Remove View permissions Saveable apps Send which use in account for new features Sub-Search Filter Open source licenses

Chromecast built-in Remote Control Modifications Let others control your cast media Device use options to show a wireless can off Android devices connected to your Wi-Fi and let them control media creating to file device Afford Open source licenses Version number 1.06.278991 Serial number BRICTEDL 11A400314M

Screen saver Screen saver Avoiding When to start After 5 minutes of inactivity Start now

Energy saver Turn off display After 24 hours

Location Location status Use Wi-Fi to estimate location Recent location requests Google

Usage & Diagnostics On Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. You can adjust these permissions at any time from device settings. Learn more at g.co/AndroidUsageHelp.

Accessibility Audio Type Normal Flouring Impaired Captions High contrast text (Experimental) Text to speech

Restart now? Restart Cancel

ПУЛЬТЫ И АКСЕССУАРЫ

Searching for accessories... Before clicking your Bluetooth devices, make sure they're in using mode.

Haier TV Remote Pairing... Haier TV Remote 11:22:33:44:55:88

Flash-starting-up your TV New GTV BVD iPods +/-

Select app DigitalMediaLayer Play Series Play Series Video Play Series Tracking Play Series Music

Illustration of a computer monitor with an arrow and a crossed-out hand gesture (no text or symbols)

Simple line drawing of a monitor with a cross mark and a curtain, no text or symbols present

Simple line drawing of a computer monitor with a cross symbol and stars (no text or labels)

Simple line drawing of a computer monitor with a stand and curved top (no text or symbols)

Simple line drawing of a flat-screen monitor with a stand (no text or symbols)

Cartoon illustration of a person holding a computer monitor with a crossed-out X symbol (no text or symbols present)

Simple line drawing of a geometric shape with intersecting lines and a horizontal line, no text or symbols present.

Illustration of a woman running away from a computer screen next to a broken phone with a circular icon (no text or symbols)

Simple line drawing of a monitor with a cross symbol crossed out, next to a lamp and a small object (no text or symbols)

Technical line drawing of a flat-screen monitor with labeled ports and connectors (no text or symbols present)

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Language English Pinyin Chinese, 100 English/Chinese IWF French PTC#P RWT English

Quickly set up your TV with your Android phone? Continue You can easily transfer your Android phone's WiFi network and Google Account to your TV Stop

Select your Wi-Fi network You can also connect an Ethernet cable to connect to the internet. MTC_GM MTC_GM_50 MTC_Guest MTC_MES MTC_Public MTC_Sfull NETDEANS

Google Terms of Service By continuing, you agree to the Google Terms of Service, the Google Privacy Policy, and the Google Play Terms of Service. This device may also receive and install updates and apps from Google, your devices, manufactures, or your operators. Some of these apps may offer optional in-app purchases. You can remove them or adjust their permissions at any time from the device settings. Google also collects and temporarily stores the voice and audio history from microphone use to improve the product experience. Accept Terms of Service Privacy Policy Play Terms of Service

Google Google Services Select each to learn more about each service, such as how to turn it on or off later. Data will be used according to Google's Privacy Policy. Click "Accept" to confirm your selection of these Google services settings. Accept Site location These Google and other with your permission to use location estimated from Google. Google's call user access directly and use the check and analysis how to create location security and location-based services. Help improve analytical Automatics and diagnosis information to Google Services and your privacy change, update, and support your privacy you want to a unique site.

Google Location Yes No Let Google use your device's location to improve your experience. Certain appellation or platform capabilities, such as streaming local content or live programming, may require your device's location to function correctly. You may choose whether to share this information with a third party app at the moment that app is installed or run. You can adjust these permissions at any time from Settings.

Google Help improve Android Automatically seed diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.gov/ Android/sapHelp and g.cs/cast/device_stats.

Your haierATV is powered by androidtv Let's walk through the features of your devices. 2 2 Talk to the Google Assistant After adding, please the mini button or your remote to qualify for the latest blockups, check the score of the big game, or control your TV. Get apps from Google Play The Google Play Store offers apps where you have to love. Watch shows, explain live sports, play games and more. Google Play • 7 Cast to your TV With Connected built-in, you can qualify next photos, clicks, and music from your phone right to your TV. • 2

Country/Region Please select your country/region: India Pakistan Russia Kanahstos USSdkyutus Ukraine

Password Please set password. 10000 is invalid. Add Password

Select TV mode "Home" mode is optimized for efficient energy usage for home use. "Recall" mode is optimized for store demo with fixed settings.

Select Home mode? If you plan to use this TV at home, please select "Yes" to proceed.

Chromecast built-in always available Let this device be detected as a Google Cast device and allow Google Assistant and other services to write this device up to respond to Cast commands, even when on standby and the screen is off.

Tuner Mode Please select your tuner mode: Analog: 0 Antenna: 0 Cable: 0 Satellite: 0 Antenna Cable Satellite Skip

Channel Scan First, please connect antenna. Start channel scan now? If you skip this step, the channel scan could be performed in Menu.

Setup is completed. Enjoy! Congratulations! Completed Initial Setup. Please press [OK] to exit this wizard.

HBBTV Settings HBBTV Support Do Not Track Edit Cookie Settings Edit Persistent Storage Black Tracking Site Device ID Reset Device ID

11:42 Settings Details Exercise

Settings Quick Settings Take bug report General Settings Network & Internet to network corrected Channel Accounts & sign-in to accounts Apps Device Preferences Remotes & accessories

Network & internet WIFI Available networks HUAINED-CHL290 HUAINED-KGSB7C_5G RTU136-default See all Other options Add new network Scanning always available Let network location server will also open set for networks over other RUTU136.pdf

Network & Internet Scan to access Internet Scanning always available Get Beagle's local server and other apps use the network, use other Wi-Fi is off Write write on network network Net write on LAN Ethernet Not connected Proxy settings IP settings

CANALE

Channel Channels Auto ChannelUpdate ChannelUpdate Message Parental Controls Open Source Licensees

Channels Channel Scan Update Scan Analog Manual Scan Single RF Scan Manual Service Update LCN On Channel Scan Type All Channel Store Type All

Status: Scanning . Antenna Digital Channels: 0 5% Exit

Channel Scan Single RF Scan LCN 0.1 Channel Scan Type All Channel Store Type All

Scan all channels Cable Digital Channels: 0% Scan Mode Advance Channel Scan Type Only Digital Channels Frequency (X:12) Auto Network ID Auto Scan

Scan Single RF Channel (Digital Only) Cable Digital Channels: 0% Frequency (kHz) 106000 Scan Signal Level 0% Signal Quality 0%

Channels Satellite Re-scan Satellite Add Satellite Update Satellite Manual Tuning

Scan All Channels 0% Scan Mode Network Scan Type All < > Store Type All < > Scan

Channels Channel Scan Update Scan Analog Manual Scan

Status: Scanning . Average Channels: 5 30% Press (back/End) to exit scan page.

Search for Analog Channels Frequency: 44.00 MHz Start Frequency (Mhz) 44.00 Scan Up Scan Down Press [check] to exit scan log.

Google Make the most of your TV Sign to get new apps recommendations, movies, and more from Google Google Play Hawaii CCTV Buy or next the latest movies and shows on Google Play, Movies & TV

APP

Apps Recently opened apps Live TV 1 minute age DigitalMediaPlayer 1 minute age See all apps Permissions App permissions Special app access Security & Restrictions

Date & time Automatic date & time Use network provided time Set date August 10, 2021 Set time 5:16 PM Set time zone GMT+08:00 Chinese Standard Time Use 24-hour format 1:00 PM

Keyboard Current keyboard Board Board Settings Manage keyboards

Sound System sounds Sound Style Bit Balance 0 Bass 54 Treble 54 dB-IV Sound Surround Equalizer Detail Sound Delay 0

Sound Speaker Delay ———— 0 Digital Output Auto Digital Output Delay ———— 0 Auto Volume Control Downmix Mode Stems Dialogue Enhancer Off Reset to Default

Storage Device storage Internal shared storage Total space: 4.6 GB Removable storage KINGSTON Total space: 15 GB

Home screen Channels Customize channels Enable video previews Enable audio previews Apps Reorder apps Reorder games Open source licenses Android TV Home Android TV Core Services

OK per accedere

OK per accedere

Retail Mode Retail Mode Off Retail Messaging Demo video

Google Assistant Accounts View permissions Searchable apps Select which apps to include in search results SafeSearch filter Open source licenses

Chromecast built-in About Open source licenses Version number 1.36.145597

Screen saver Screen saver Backdrop When to start After 5 minutes of inactivity Start now

Energy saver Turn off display After 24 hours

Location Location status Use Wi-Fi to estimate location Recent location requests Google

Usage & Diagnostics On Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/AndroidUsageHelp and g.co/cast/device_stats.

Accessibility Audio Type Normal Visually Impaired Captions High contrast text (Experimental) Text to speech

Searching for accessories... Before carrying your Bluetooth devices, make sure they in passing mode

Haier TV Remote Pairing... Haier TV Remote 11:22:33:44:55:88

Select app MultiMediaPlayer Play Games Prime Video

Illustration of a computer monitor with an explosion symbol and a hand holding a device (no text or labels)

Simple line drawing of a monitor with a cross mark and a hanging curtain beside it (no text or symbols)

Simple line drawing of a computer monitor with a crossed X symbol and stars (no text or labels)

Simple line drawing of a computer monitor with a curved top frame (no text or symbols)

Simple line drawing of a flat-screen monitor with a stand (no text or symbols)

Cartoon illustration of a person holding a crossed-out monitor with a crossed-out 'X' symbol, no text or symbols present

Simple line drawing of a geometric object with intersecting lines and a rectangular block, no text or symbols present.

Illustration of a person running away from a computer screen next to a broken phone with a starburst symbol (no text or symbols present)

Simple line drawing of a monitor with a cross symbol crossed out, and a lamp emitting smoke (no text or symbols)

Technical line drawing of a flat-screen monitor with labeled ports and connectors (no text or symbols present)

Line drawing of a TV set with cable and power outlet, no text or symbols present

Diagram illustrating the step-by-step battery charging process, showing hand positioning and battery release steps.

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Quickly set up your TV with your Android phone? Continue You can easily transfer your Android phones Wi-Fi network and Google Account to your TV Skip

Select your Wi-Fi network You can also connect an Ethernet cable to connect to the internet CMCC_FSTX CYTE Guest_FSTF TP-LINK_0510_5G YTTV_AC689_5D 340WiFi-SCAB8B

Google Terms of Service By continuing, you agree to the Google Terms of Service, the Google Privacy Policy, and the Google Play Terms of Service Accept This device may also receive and install updates and apps from Google, your devices manufacturer, or your operator. Some of these apps may offer optional in-app purchases. You can remove them or adjust their permissions at any time from the device settings. Terms of Service Privacy Policy Play Terms of Service Google also collects and temporarily stores the voice and audio history from microphone use to improve the product experience.

Google Google Services Select each to learn more about each service, such as how to turn it on or off last. Data will be used according to Google's Privacy Policy. Click 'Accept' to confirm your selection of these Google services settings. Accept Use location Show Google and other with your permission to use website or email from the Google's email: www.google.com/ help improve Android Automatically send diagnostic information to Google Services and your privacy Google Association services will ensure your profile is closed.

Your Haser: Android TV FF Pro is powered by. I will look through the business of your Haser.

Get apps from Google Play The Google Play is a free access to the main website, but it is not allowed to access any other apps. For this application you can access your website.

Talk to the Google Assistant After setup, press the info about your remote to quality find the School Blue Cloudline, create the website of the big game as a world good TV.

Cast to your TV With Desarated Books to you care quickly to cast photos, sounds, and music from your phone right to your TV.

Region/Country Please select your region or country India Pakistan Korea Kazakhstan Delaware Ukraine Israel France

Password Please set password, '0000' is invalid Input Password

Input Password New Password •1 1 2 3 4 5 6 0 7 8 9 ✓

Confirm Password 1 2 3 4 5 6 0 7 8 9 ✓

Select TV mode 'Home' mode is optimized for efficient energy usage for home use. 'Retail' mode is optimized to store demo with fixed settings.

Chromecast built-in always available Let this device be detected as a Google Cast device and allow Google Assistant and other services to wake this device up to respond to Cast commands, even when on standby and the screen is off.

Tuner Mode Please select your tuner mode: Antenna Cable Skip

Channel Scan First, please connect antennas Start channel scan now? If you skip this step, the channel scan could be performed in Monu Analogue and digital channels Only analogue channels Only digital channels Skip Scan

Setup is completed. Enjoy! Finish

Inputs Details Dias Inputs Airbags Cable Satellite AEV Compass Airbox

10:24 Settings Details Dismiss

Settings Suggestions Finish setting up your TV Add a Google Account to make the video of your TV General Settings Network & Internet HIC/IPS Channel Accounts & signs No accounts Apps Device Preferences

Network & Internet Network Privacy Policy ViPi Available services HiCD/VPN Compared DIRECT/QPSKSTOP-NVDD. HiCD/VPN SG Size all Other options Add new networks

Network & Internet Starting always available Can be done to access network and other users port to networks, or other Wi-Fi is off Water Water or wireless network Wind Water or LAN Other Not connected Proxy settings 97 settings

КАНАЛ (Антена)

Channel Channels Auto Channel Update Channel Update Message Parental Controls Open Source Licenses

Status: Scanning . Antenna Digital Channels: 0 5% Press (backward) to exit scan page Channels Channel Scan Update Scan Single RF Scan Manual Service Update LCN On Channel Scan Type All Channel Store Type All Fluence Network Select

Scan Single RF Channel. (Digital Only) Antenna Digital Channels: 0% RF Channel 5(17260/4Hz) Signal Level 0% Signal Quality 0% Press [back/low] to visit scan page. Channels Channel Scan Update Scan Single RF Scan Manual Service Update LON 0x Channel Scan Type AT Channel Store Type AT Copyright Feedback Selected

КАНАЛ (Кабельне ТБ)

Channel Channels Auto Channel Update Channel Update Message Parental Controls Open Source Licenses

Scan all channels. Scan Size: 5000 Properties (MHz) Scan Channel Scan ARADP Textiles Stream TV Delete Restalscn(SPE) Others Photo [Back/End] to exit scan page

Scan Single RF Channel. (Digital Only) Cable Digital Channels: Frequency (MHz) 104000 Scan Signal Level 2% Signal Quality 5% Channels Channel Scan Single RF Scan LCN Channel Scan Type Channel Scan Type Area Backed to test scan pages

Channel Channels Channel Installation Mode General Satellite Auto Channel Update Channel Update Message Parental Controls Open Source Licenses

Channels Satellite Re-scan Satellite Add Satellite Update Satellite Manual Tuning

Satellite Re-scan Next More

Satellite Re-scan Satellite Re-scan Next Astra4A/SESS SE On

Status: Scanning ... Digital Channels: 0 Satellite Names: Auto4A/SESS SE Satellite: 1/1 1% Next Astra4A/SESS SE On Press Back/Init to exit zone page

Satellite Manual Tuning Satellite Manual Tuning Astra4A/SESS SE On

Satellite Manual Tuning Satellite Detail Next Satellite Status Go Satellite Selection A##E##E##-04 Scan Mode Sub

КАНАЛ (ATV)

Status: Scan Canceled Analog Channels: 5 Channels Channel Scan Update Scan Analog Manual Scan 1% Press Back/Off to exit scan page

Search for Analog Channels Frequency: 44.03 MHz Start Frequency (MHz) 44.03 Scan Up Scan Down Channels Channel Scan Update Scan Analog Manual Scan Press Back/View to exit scan page

Warning Are you sure? Cancel OK

Google Make the most of your TV Tag It Skip Discover new apps for videos, music and games on Google Play

ПРОГРАМИ

Apps Recently opened apps Live TV 4 minutes app See all apps Partecipms App permissions Special app access Security & Restrictions

Device Preferences About Date & Time Timer Language Keyboard Users Inputs Power Picture Sound Storage Home screen Retail Mode Google Assistant Chromecast built-in Screen saver Energy saver Location Usage & diagnostics Accessibility Restart

About System update Device name Host Android TV/TV Pro Factory reset Status Network, serial hardsets and other enterprise Legal information Model Host installed TV/TV Pro Android TV OS version Software Version About Software Version NASH Netflix ESN NASHESOSO.OV/OS/OS/OS/OS/OS/OS/OS/OS/OS/OS/OS/OS/OS/OS/OS/OS/OS/OS/OS/OS/OS/OS/OS/OS/OS/OS/OS/OS/OS/OS/OS/OS/OS/OS/OS/OS/OS/OS/OS/OS/OS/OS/OS/OS/OS/OS/OS/OS/OS/OS/CS1040108 Android TV OS security patch level December 1, 2021 Kernel versions 6.1K 7.1ks 83 Bits Dents 5.14.1249 EST 2021 Android TV OS build HosuA7F32/FIRs-endsetug 11.87NO 211089-001 768404 ms144gs

Date & Time Automatic date & time off Set time zone GAT/105.00 Set time zone GAT/105.00 Use 24-hour format 1:00 PM

Keyboard Current keyboard Gboard Gboard Settings Manage keyboards

Inputs Component Component Consumer Electronics Control (CES) HDMI control Allow the TV to (HDMI) devices Device auto power off Power off HDMI devices with the TV TV auto power on Power on the TV with HDMI device HDMI EEO Version LDC 1.4 CEO Device List

Picture Picture Mode Energy Saving Dolby Vision Notification Backlight 60 Brightness 50 Contrast 50 Saturation 50 HUE 0 Sharpness 10

Picture Contrast 50 Saturation 50 HUE 0 Sharpness 10 Gamma Mode Color Temperature Advanced Video Reset to Default

Sound Standard Input eAPC Auto Digital Output Auto Digital Output Delay Auto Volume Control Downmax Mode Show Delay Audio Processing Reset to Default

Storage Device storage Internal shared storage Total spsec: 12 GB Removable storage SanDisk USB drive Total spsec: 16 GB

Home screen Channels Customize channels Enable video previews Enable audio preview Apps Recorder apps Recorder games Open video browsers Android TV Home

Retail Mode Retail Mode Oil Retail Monitoring Dental video

Google Assistant On Accountants View permissions Searchable apps Show privacy type or password to switch links CodeSearch Active Open source licenses

Chromecast built-in Remote Control Modification Let others control your cost media. Clearing an option to store a combination or all Android sales recommended to buy which and let these people/ media adding to this device About Open course licenses Version number 1.04.2701081 Serial number RHYCETICAL 136000014M

Screen saver Screen saver Building When to start After 5 minutes of elasticity Start now

Energy saver Turn off display After 24 hours

Location Location status Use Wi-Fi to estimate location Recent location requests Google

Usage & Diagnostics On Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. You can adjust these permissions at any time from device settings. Learn more at g.co/AndroidUsageHelp.

Accessibility Audio Type Normal Visibility Improvement Captions High contrast text (Experimental) Text to speech

Restart now? Reset Cancel

ПУЛЬТИ ТА АКСЕСУАРИ

Searching for accessories... Before paying your Bluetooth devices, how can they is incoming mode.

Haier TV Remote Pairing... Haier TV Remote 11:22:33:44:55:88

Flash sending up your TV Play button

Select app Digital/RealPlayer Play Guests Prime Video System Trading You-Table Music

Illustration of a computer monitor with a crossed-out cable and lightning bolts, no text or symbols present

Diagram showing a crossed-out monitor with a cross symbol and a hanging cloth, no text or symbols present

Simple line drawing of a computer monitor with a cross symbol and star decorations (no text or symbols)

Simple line drawing of a computer monitor with a roof, emitting steam (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand (no text or symbols)

Cartoon illustration of a person lying on a computer monitor with a crossed-out X symbol (no text or symbols present)

Simple line drawing of a geometric structure with intersecting lines and a rectangular block (no text or symbols)

Illustration of a person reacting to a computer screen with a magnifying glass (no text or symbols)

Simple line drawing of a monitor with a cross symbol crossed out, next to a speaker emitting sound waves (no text or symbols)

Technical line drawing of a flat-screen TV rear panel with internal components and connectors (no text or symbols)

① ② ③ ≤8m

Line drawing of a flat-screen TV unit with cable and power outlet, no text or symbols present

Diagram showing battery charging process with hand positions and component states

НАЧАЛНИ НАСТРОЙКИ

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Quickly set up your TV with your Android phone? You can easily transfer your Android phone's WiFi network and Google Account to your TV

Select your Wi-Fi network You can also connect an Ethernet cable to connect to the internet. MTC_DM MTC_DM_36 MTC_Gwirt MTC_MES MTC_Public MTC_Salt NETDEANS

Google Terms of Service By continuing you agree to the Google Terms of Service, the Google Privacy Policy, and the Google Play Terms of Service. This device may also receive and install updates and apps from Google, your device's manufacturer, or your operator. Some of these apps may offer optional in app purchases. You can remove them or adjust their permissions at any time from the device settings. Google also collects and temporarily stores the voice and audio history from microphone use to improve the product experience. Accept Terms of Service Privacy Policy Play Terms of Service

Google Google Services Select each to learn more about each service, such as how to turn it on or off later. Data will be used according to Google's Privacy Policy. Click "Accept" to confirm your selection of these Google services settings. Accept Use Location Allow Google and apps with your permission to use location automated from the Google's service configuration and use the service and applications web to ensure that the access or unaddressed services. Help Improve Android Automatically and diagnostic information. Help Services and your privacy Google Service services you call to a Google CRM.

Google Location Let Google use your device's location to improve your experience. Certain application or platform capabilities, such as streaming local content or live programming, may require your device's location to function correctly. You may choose whether to share this information with a third party app at the moment that app is installed or run. You can adjust these permissions at any time from Settings.

Google Help improve Android Yes No Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast buftin. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/ Android/dispage-help and g.co/cast/device..state.

Your haierATV is powered by androidtv Let's walk through the features of your device Talk to the Google Assistant After setup, press the mini button or your remote to quickly find the latest blockbusters, check the score of the big game, or control your TV Get apps from Google Play The Google Play Store offers apps you're sure to love. Watch shows, screen live sports, play games and more. Google Play Cast to your TV With Chromecast faith-in, you can quickly cast photos, videos, and music from your phone right to your TV

Country/Region Please select your country/Region: India Pakistan Russia Karakhutan Uzbekistan Ukraine

Password Please set password, 1000% is masked. I am masked.

Select TV mode 'Home' mode is optimized for efficient energy usage for home use. 'Retail' mode is optimized for store demo with fixed settings.

Select Home mode? If you plan to use this TV at home, please select "Yes" to proceed.

Chromecast built-in always available Let this device be detected as a Google Cast device and allow Google Assistant and other services to wait this device up to respond to Cast commands, even when on standby and the screen is off.

Tuner Mode Please select your tuner mode: Analog: 0 Antenna: 0 Cable: 0 Satellite: 0 Cable Satellite Skip

Scan Skip Scan Channel Scan First, please connect antennas. Start channel scan now? If you skip this stop, the channel scan could be performed in Menu.

Setup is completed. Enjoy! Congratulations! Completed Initial Setup. Please press OK to exit this award.

① ② Search Now, TV and room Netflix TV Matrix YouTube 2.08 ③ Agri Movie Pre Movies & TV YouTube 2021

HBBTV Settings HBBTV Support Do Not Track Initial Cookie Settings Initial Persistent Storage Flash Tracking Site Device ID Reset Device ID

Channels TV options Fanatic Power 3-Can Read Audio Line Advanced Groups Settings Read

11:42 Settings Details Options

Settings Cube Settings Take Bug report General Settings Network & Internet No network connected Channel Accounts & sign-in No accounts Apps Device Preferences Remote & accessories

Network & internet Wi-Fi Available networks HLMWEI-CKL2BG HLMWEI-KGBF7Q_SG RTL8186-default See all Other options Add new network Scanning always available Let Google's location server and other apps cover for networks, even when Wi-Fi is all

Network & internet Other networks Scanning always available Use Google's location service and other apps sort for networks, even when Wi-Fi is off Wow wake on wireless network Wol wake on LAN Ethernet Not connected Proxy settings IP settings

КАНАЛ

Channel Channels Auto Channel Update Channel Update Message Parental Controls Open Source License

Channels Channel Scan Update Scan Analog Manual Scan Single RF Scan Manual Service Update LCN On Channel Scan Type All Channel Store Type All

Status: Scanning . Antenna Digital Channels: 0 5% Exit

Channel Scan Single RF Scan LCN 01 Channel Scan Type All Channel Store Type All

Scan all channels. Cable Digital Channels O% Scan Mode Advance Channel Scan Type Only Digital Channels Frequency (KHz) Auto Network ID Auto Scan

Scan Single RF Channel. (Digital Only) Cable Digital Channels: 0% Frequency (GHz) 306400 Scan Signal Level 0% Signal Quality 0%

Channels Satellite Re-scan Satellite Add Satellite Update Satellite Manual Tuning

Satellite Re-scan Satellite Re-scan Satellite Re-scan Satellite Re-scan Satellite Re-scan Satellite Detail Scan All Channels DN Scan Mode Network Scan Type All < > Store Type All < > Scan

Channels Channel Scan Update Scan Analog Manual Scan

Search for Analog Channels Frequency 44.00 MHz Start Frequency (MHz) 44.00 Scan Up Scan Down Press [backpage] to cut scan page

Google Make the most of your TV Signs to get new apps, recommendations, movies, and more from Google Google Play Movies & TV Buy or read the newell movies and stove on Google Play Movies & TV

ПРИЛОЖЕНИЯ

Apps Recently opened apps Live TV 1 minute app Digital/Media Player 1 minute app See all apps Permissions App permissions Special app access Security & Restrictions

Date & time Automatic date & time Use network provided time Set date August 10, 2021 Set time 5:16 PM Set time zone GM+08:00 China Standard Time Use 24-hour format 1:00 PM

Timer Power On Time Type on Auto Power On Time 00:30 Power Off Time Type on Auto Power Off Time 00:30

Keyboard Current keyboard Board Board Settings Manage keyboards

Sound System sounds Sound Style User Balance 0 Bass 50 Tieble 50 dbx-tv Sound Surround Equalizer Detail Speaker Delay 0

Sound Speaker Delay ———— 0 Digital Output Auto Digital Output Delay ———— 0 Auto Volume Control Downmix Mode Stereo Dialogue Enhancer OFF Reset to Default

Storage Device storage Internal shared storage Total space: 4.6 GB Removable storage KINGSTON Total space: 15 GB

Home screen Channels Customize channels Enable video previews Enable audio previews Apps Reorder apps Reorder games Open source licenses Android TV Home Android TV Core Services

Retail Mode Retail Mode Off Retail Messaging Demo video

Google Assistant Accounts View permissions Searchable apps Select which apps to include in search results. SafeSearch filter Open source licenses

Chromecast built-in About Open source licenses Version number 1.36.14507

Screen saver Screen saver backdrop When to start After 5 minutes of inactivity Start now

Energy saver Turn off display After 24 hours

Location Location status Use Wi-Fi to estimate location Recent location requests Google

Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/AndroidUsageHelp and g.co/cast/device_stats.

Accessibility Audio Type Normal Visually Impaired Captions High contrast text (Experimental) Text to speech

Searching for accessories... Before naming your Bluetooth devices, make sure doses in playing mode

Haier TV Remote Pairing... Haier TV Remote 11:22:33:44:55:88

Search movies, TV, and more 8:22 Apps Matrix YouTube Google Play Multi Media DigitalMediaPlayer Customize channels

Select app MultiMediaPlayer Play Games Prime Video

Illustration of a computer monitor with a warning symbol and a crossed-out hand gesture (no text or labels)

Simple line drawing of a monitor with a cross mark and a cloth, no text or symbols present

Simple line drawing of a computer monitor with a cross symbol crossed out, surrounded by stars (no text or symbols)

Simple line drawing of a computer monitor with a curved frame and screen (no text or symbols)

Simple line drawing of a flat-screen monitor with a stand and diagonal lines (no text or symbols)

Cartoon illustration of a child lying on a computer screen with a crossed-out X symbol (no text or symbols present)

Simple line drawing of a geometric structure with an angle and motion lines (no text or symbols)

Illustration of a person reacting to a computer screen with a device, no text or symbols present

Simple line drawing of a monitor with a cross symbol crossed out, next to a warning light (no text or symbols)

Technical line drawing of a flat-screen monitor with labeled components (no text or symbols present)

① ② ③ ≤8m STROMKONTAKT

1: Fjernbetjeningssensor.
2: Indikator-LED: R∅D ● STANDBY.
3: Tastatur

Line drawing of a TV set with cable and power outlet, no text or symbols present

FORUDINDSTILLET TILSTAND (HDMI)

	OPL∅SNING	V. Frekv. (Hz)	H. Frekv. (KHz)
1	800 * 600	60	37,88
2	1024 * 768	60	48,36
3	1360 * 768	60	47,7
4	1280 * 768	60	47,3
5	1920 * 1080	60	67,5
6	3840 * 2160	30	67,5
7	3840 * 2160	50	112,5
8	3840 * 2160	60	135

AV-UDSTYR

Diagram showing battery charging process with hand positions and component states

INDLEDENDE KONFIGURERING

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Quickly set up your TV with your Android phone? Continue You can easily transfer your Android phone's WiFi network and Google Account to your TV

Select your Wi-Fi network You can also connect an Ethernet cable to connect to the internet. MTC_GM MTC_GM_5G MTC_Guest MTC_MES MTC_Pusic MTC_Sull NETDEANS

Google Terms of Service By continuing you agree to the Google Terms of Service, the Google Privacy Policy, and the Google Play Terms of Service. This device may also receive and install updates and app from Google, your device's manufacturer, or your operator. Some of these apps may offer optional in-app purchases. You can remove them or adjust their permissions at any time from the device settings. Google also collects and temporarily stores the voice and audio history from microphone use to improve the product experience. Accept Terms of Service Privacy Policy Play Terms of Service

Google Google Services Select each to learn more about each service, such as how to turn it on or off latest. Data will be used according to Google's Privacy Policy. Click "Accept" to confirm your selection of these Google services settings. Accept Use location Adam Google will also with your permission to our location permitted from Google. Google may click a version of the service or this data or an application for a specific location privacy and location-based services. Help: Improve Android Automatically send Diagnostics information to Google Services and your privacy Google, Microsoft and Google will have your bank to a unique credit.

Ved at acceptere Googles servicevilkår for at forbedre produktoplevelsen skal du vælge "Accepter" for at acceptere denne betingelse.

Google Location Yes No Let Google use your device's location to improve your experience. Certain application or platform capabilities, such as streaming local content or live programming, may require your device's location to function correctly. You may choose whether to share this information with a third party app at the most recent that app is installed or run. You can adjust these permissions at any time from Settings.

Accepter Google for at få placeringsoplysningerne for din enhed for at få flere funktioner. Vælg "JA" for at acceptere.

Google Help improve Android Yes No Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g co/ Android/DisaperHelp and g co/cast/device_stats.

For at forbedre diskriminationsevnen ved at acceptere automatisk at sende diagnostiske oplysninger til Google, skal du vælge "JA" for at acceptere.

Your haierATV is powered by androidtv Lets walk through the features of your devices. Talk to the Google Assistant After setup, press the mix button on your remote to quickly find the latest Stockbusters; check the score of the big game, or control your TV. Get apps from Google Play The Google Play Store offers apps you're sure to love. Watch shows, stream live sports, play games and more. Google Play Cast to your TV With Chromecast buttons, you can quickly cast photos, videos, and music from your phone right to your TV.

Country/Region Please select your country/region: India Pakistan Russia Karakothas Uzbekistan Ukraine

Password Please set password. 1000% to invalid. Irron Password

Bruges til at indstille din enheds adgangskode for at sikre sikkerhed og privatliv

Select TV mode "Home" mode is optimized for efficient energy usage for home use. "Retail" mode is optimized for store demo with fixed settings.

Select Home mode? If you plan to use this TV at home, please select "Yes" to proceed. Yes No

Chromecast built-in always available Let this device be detected as a Google Cast device and allow Google Assistant and other services to write this device up to respond to Cast commands, even when on standby and the screen is off.

Tuner Mode Please select your tuner mode: Analog: 0 Antenna: 0 Cable: 0 Satellite: 0 Amenza Cable Satellite Skip

Scan Stop Scan Channel Scan First, please connect antenna. Start channel scan now? If you skip this strip, the channel scan could be performed in Menu.

Setup is completed. Enjoy! Congratulations! Completed Initial Setup. Please press [OK] to exit this wizard.

HBBTV Settings HBBTV Support Do Not Trash Sister Cookie Settings Sister Persistent Storage Black Tracking Site Device ID Reset Device ID

11:42 Settings Details Downside

Settings Quick Settings Telus log report General Settings Network & internet No network accessed Channel Accounts & sign-in No accounts Apps Device Preferences Remotes & accessories

Network & internet WiFi Available networks HUAWEI-CNL2BG HUAWEI-KGBF7Q_5G RTU8186-default See all Other options Add new network Scanning always available Let Google location service and other apps cover for networks, not when WiFi is all

Network & internet Scan to LGA (Internet) Scanning always available Lat Google's location service and other types sort for networks, even when NoF is all Wow wake on wireless network Wol wake on LAN Ethernet Not connected Proxy settings IP settings

KANAL

Channel Channels Auto Channel Update Channel Update Messages Parental Controls Open Source License

Kanaler - Vis scanningsundermenuen baseret på forskellige kanalinstallationstilstande.

Channels Channel Scan Update Scan Analog Manual Scan Single RF Scan Manual Service Update LCN De Channel Scan Type All Channel Store Type All

1. Gå ind i Menu -> Indstillinger -> Kanal -> Kanaler

Status: Scanning Antenna Digital Channels: 0 5% Exit

Channel Scan Single RF Scan LCN 0s Channel Scan Type All Channel Store Type All

1. Gå ind i Menu -> Indstillinger -> Kanal -> Kanaler -> Kanalscanning

Scan all channels Cable Digital Channels On: Scan Mode Advance <> Channel Scan Type Only Digital Channels <> Frequency (XHz) Auto Network ID Auto Scan

Scan Single RF Channel. (Digital Only) Cable Digital Channels: 0% Frequency (kHz) 206000 Scan Signal Level 0% Signal Quality 0%

Channels Satellite Re-scan Satellite Add Satellite Update Satellite Manual Tuning

1. Gå ind i Menu -> Indstillinger -> Kanal -> Kanaler -> satellit-genscanning.

Satellite Re-scan Satellite Re-scan ***** Desktop+Disable+Disable On > ***** Disable+Disable+Disable Off ***** Disable+Disable+Disable Off ***** Disable+Disable+Disable Off Satellite Status On Satellite Name On LNB Power On LNB Frequency On DSTgC Gen Tone 220Hz Auto Tone Burst Mobile Scan All Channels 0% Scan Mode Network Scan Type All < > Store Type All < > Scan

Channels Channel Scan Update Scan Analog Manual Scan

Gå ind i Menu -> Indstillinger -> Kanal -> Kanaler

Search for Analog Channels Frequency: 44.32 MHz Start Frequency (MHz) 44.00 Scan Up Scan Down Press BackView to exit scan page

Google Make the most of your TV Sign to get new apps, recommendations, movies, and more from Google. Google Play Movies & TV Buy or rest the most movies and shows on Google Play Movies & TV

APPS

Apps Security opened apps Live TV 1 minute apps DigitalMediaPlayer 1 minute apps See all apps Permissions App permissions Special app access Security & Restrictions

Date & time Automatic date & time Use network product time Set date August 10, 2021 Set time 3:10 PM Set time zone GMT-68:00 China Standard Tree Time 24-hour format 1:00 PM

Keyboard Current keyboard Gboard Gboard Settings Manage keyboards

Inputs Component Component Consumer Electronic Control (CSC) HDMI control After the TV to central HDMI devices Device auto power off Power of HDMI devices with the TV TV auto power on Power on the TV with HDMI device HDMI ECDI Version ED9 2.0 CEC Device List

Sound System sounds Sound Style User Balance Bass Table duty Sound Surround Equalizer Detail Speaker Delay

Sound Speaker Delay ———— 0 Digital Output Auto Digital Output Delay ———— 0 Auto Volume Control Downmix Mode Stress Dialogue Enhancer Off Reset to Default

Storage Device storage Internal shared storage Total space: 4.6 GB Removable storage KINGSTON Total space: 15 GB

Intern delt lagring - tryk på knappen ▲/▼ for at vælge indstillingen og tryk derefter på knappen OK for at gå ind i undermenuen.

Home screen Channels Customize channels Enable video previews Enable audio previews Apps Reorder apps Reorder games Open source licenses Android TV Home Android TV Core Services

I denne menu kan du indstille kanaler, apps, open source-licenser.

Retail Mode Retail Mode Off Retail Messaging Demo video

Google Assistant Accounts View permissions Searchable apps Select which apps to include in search results. SafeSearch filter Open source licenses

Chromecast built-in About Open source licenses Version number 1.36.145507

Screen saver Screen saver Backdrop When to start After 5 minutes of inactivity Start now

Energy saver Turn off display After 24 hours

Start nu - tryk på knappen ▲/▼ for at vælge indstillingen, og tryk derefter på knappen OK for at åbne undermenuen. (Valgfrit: 15 minutter, 30 minutter, 1 time, 4 timer/8 timer, /12 timer, /24 timer, /aldrig).

STED

Location Location status Use Wi-Fi to estimate location Recent location requests Google

Usage & Diagnostics On Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/AndroidUsageHelp and g.co/cast/device_stats.

Accessibility Audio Type Normal Visually Impaired Captions High contrast text (Experimental) Text to speech

Searching for accessories... Before carrying your Bluetooth devices, make sure they in pairing mode

Haier TV Remote Pairing... Haier TV Remote 11:22:33:44:55:88

I denne menu kan du parre Bluetooth-enheder.

Search movies, TX and more 8:22 Apps Matrix YouTube Google Play Multi Media DigitalMediaPlayer Customize channels

Select app MultiMediaPlayer Play Games Prime Video

Illustration of a computer monitor with a crossed-out black X symbol indicating no text or symbols on the monitor or background (no readable text or symbols)

Simple line drawing of a monitor with a cross symbol and a cloth, no text or symbols present

Simple line drawing of a computer monitor with a cross symbol on the screen, no text or labels present.

Simple line drawing of a computer monitor with a roof and ventilation grille (no text or symbols)

Simple line drawing of a flat-screen monitor with a stand and diagonal lines (no text or symbols)

Cartoon illustration of a person lying on a computer monitor with a crossed-out X symbol (no text or symbols present)

Simple line drawing of a geometric structure with intersecting lines and a vertical line, no text or symbols present.

Illustration of a person reacting to a computer screen with a magnifying glass (no text or symbols)

Simple line drawing of a monitor with a cross symbol crossed out, next to a speaker emitting sound waves (no text or symbols)

Technical line drawing of a front panel with internal components and mounting holes (no text or symbols)

① ② ③ ≤8m

Line drawing of a flat-screen TV unit with cable and power outlet, no text or symbols present

ESIASETUSTILASSA (HDMI)

	päätöslauselma	V.Freq.(Hz)	H.Freq.(KHz)
1	800*600	60	37,88
2	1024*768	60	48,36
3	1360*768	60	47,7
4	1280*768	60	47,3
5	1920*1080	60	67,5
6	3840*2160	30	67,5
7	3840*2160	50	112,5
8	3840*2160	60	135

LAITTEISTO AV

Diagram showing battery charging process with hand positions and internal components

ENSIMMÄINEN ASENNUS

To enable Google Assistant micro on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Language English Japanese Korean, Han Chinese English 韩国 French English Other Average

Quickly set up your TV with your Android phone? Continue You can easily transfer your Android phone's WiFi network and Google Account to your TV Stop

Select your Wi-Fi network You can also connect an Ethernet cable to connect to the internet. MTC_GAV MTC_GAV_50 MTC_Gest MTC_MBS MTC_Pakc MTC_Sali NETGRANS

Google Terms of Service by continuing, you agree to the Google Terms of Service, the Google Privacy Policy, and the Google Play Terms of Service. Append! This device may also receive and install updates and apps from Google, your devices, manufactures, or your operators. Some of these apps in any offer the optional apps purchases. You can remove them or adjust their permissions or any time from the device settings. Terms of Service Privacy Policy Google also collects and temporarily stores the voice and audio history from microphone use to improve the product operation.

Google Google Services Select each to learn more about each service, such as how to turn it on or off last. Data will be used according to Google's Privacy Policy. Click "Accept" to confirm your selection of these Google services settings. Accept Use location Make Google and make with your website to use location estimated from last. Google may took a customer's website and use this service for the following: any customer's website or the company's website. Help improve Android Automatically desktopize information to Google Services and your privacy integrate our website services you want to a program.

Google Location Let Google use your device's location to improve your experience. Certain application or platform capabilities, such as streaming local content or live programming, may require your device's location to function correctly. You may choose whether to share this information with a third party app at the moment that app is installed or run. You can adjust these permissions at any time from Settings.

Google Help improve Android Automatically used diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/ Android/Userhelp and g.co/cast/device_stats.

Your haierATV is powered by androidtv Left's walk through the features of your devices Talk to the Google Assistant After setup, press the rot button on your remote to quickly find the latest Stockmasters, check the score of the big game, or control your TV

Get apps from Google Play The Google Play Store offers apps you're sure to love. Watch shows, stream live sports, play games and more. Google Play • > Cast to your TV With Chromecast button, you can quickly cast photos, videos, and music from your photo right to your TV.

Country/Region Please select your country/region: Form Finish Unknown Unknown UAE

Select TV mode 'Home' mode is optimized for efficient energy usage for home use. 'Retail' mode is optimized for store demo with fixed settings.

Jos haluat valita tilan, Painele valitse avain ▲/▼ valitaksesi kotitilan ja Painele OK Vahvistus.

Select Home mode? If you plan to use this TV at home, please select "Yes" to proceed.

Chromecast built-in always available Let this device be detected as a Google Cast device and allows Google Assistant and other services to make this device up to respond to Cast commands, even when an standby and the server is off.

Tuner Mode Please select your tuner mode: Antenna: 0 Antenna: 0 Cable: 0 Satellite: 0 Antenna Cable Satellite Skip

Channel Scan First, please connect adams. Start channel scan now? If you stop this step, the channel scan could be performed in Menu

Setup is completed. Enjoy! Congratulations! Completed Initial Setup. Please press [OK] to exit the word.

Screenshot of a media player interface showing platform icons and video thumbnails

HBBTV Settings HBBTV Support Do Not Track Include Cookie Settings Include Persistent Storage Black Tracking Sites Device ID Reset Device ID

11:42 Settings Details Comments

Settings Quick Settings Take bug report General Settings Network & internet No network connected Channel Accounts & sign-in No accounts Apps Device Preferences Removes & accessories

Network & Internet Wi-Fi Available networks HUAWEI-CNLOBG HUAWEI-KGBF7Q_5G RTUB186-default See all Other options Add new network Scanning always available Let Google location service and other apps use to send info, or when Wi-Fi is off

Network & internet Scan to new networks Scanning always available Let Google's location service and other apps scale for networks, even when WiFi is off Wise walks on wireless network Wise walks on LAN Ethernet Not connected Proxy settings IP settings

KANAVAN

Channel Channels Auto Channel Update Channel Update Message Parental Controls Open Source Licenses

Channels Channel Scan Update Scan Analog Manual Scan Single RF Scan Manual Service Update LCN Qx Channel Scan Type AI Channel Store Type AI

Status: Scanning Antenna Digital Channels: 0 5% Exit

Channel Scan Single RF Scan LCN 01 Channel Scan Type All Channel Store Type All

Scan all channels. Cable Digital Channels: On Scan Mode Advance Channel Scan Type Only Digital Channels Frequency (KHz) Auto Network ID Auto Scan

Scan Single RF Channel (Digital Only) Cable Digital Channels: 0% Frequency (kHz) 206000 Scan Signal Level 0% Signal Quality 0%

Channels Satellite Re-scan Satellite Add Satellite Update Satellite Manual Tuning

Scan All Channels 0% Scan Mode Network Scan Type All < > Store Type All < > Scan

Channels Channel Scan Update Scan Analog Manual Scan

Search for Analog Channels Frequency 44.01 MHz Start Frequency (MHz) 44.06 Scan Up Scan Down Press [backward] to not scan any.

Google Make the most of your TV Sign in to get new apps, recommendations, movies, and more from Google. Google Play Movies CTV Buy or read the latest movies and shows on Google Play Movies & TV

APPS

Apps Recently opened apps Live TV Live TV App Digital/MediaPlayer Live TV App See all apps Permissions App permissions Special app access Security & Restrictions

Date & time Automatic date & time Use network provided time Set date August 18, 2021 Set time 9:16 PM Set time zone GMT+08.06 Chua Standard Time Use 24-hour format 1:00 PM

Keyboard Current keyboard Board Board Settings Manage keyboards

Sound System sounds Sound Style line Balance 0 Bass 50 Treble 50 dbenth Sound Surround 0.0 Equalizer Detail Positive Delay

Sound Speaker Delay ———— 0 Digital Output Auto Digital Output Delay ———— 0 Auto Volume Control Downmix Mode Stereo Dialogue Enhancer Off Reset to Default

Järjestelm ääänet - Painele ▲/▼ - painiketta ja valitse sitten Painele OK-painiketta valitaksesi ON/OFF.

Storage Device storage Internal shared storage Total space: 4.6 GB Removable storage KINGSTON Total space: 15 GB

Home screen Channels Customize channels Enable video previews Enable audio previews Apps Reorder apps Reorder games Open source licenses Android TV Home Android TV Core Services

Retail Mode Retail Mode Off Retail Messaging Demo video

Kauppatila - Painele ▲/▼ - painiketta ja valitse sitten Painele OK-painiketta valitaksesi ON/OFF.

Google Assistant Accounts View permissions Searchable apps Select which apps to include in search results. SafeSearch filter Open source licenses

Chromecast built-in About Open source licenses Version number 1.36.145507

Screen saver Screen saver Backdrop When to start After 5 minutes of inactivity Start now

Energy saver Turn off display After 24 hours

Location Location status Use Wi-Fi to estimate location Recent location requests Google

Usage & Diagnostics On Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/AndroidUsageHelp and g.co/cast/device_stats.

Accessibility Audio Type Normal Visually Impaired Captions High contrast text (Experimental) Text to speech

Searching for accessories... Beginn matching your Bluetooth devices, make sure they in pairing mode.

Haier TV Remote Pairing... Haier TV Remote 11:22:33:44:55:88

Search movies. TV and more App Minters YouTube Hindi DigitalMedia Player Customize channels 8:22

Select app MultiMediaPlayer Play Games Prime Video

Illustration of a computer monitor with an electrical circuit diagram and a crossed-out black symbol (no text or labels)

Simple line drawing of a monitor with a cross mark and a hanging curtain, no text or symbols present

Simple line drawing of a computer monitor with a cross symbol crossed out, surrounded by stars (no text or labels)

Simple line drawing of a computer monitor with a roof and ventilation grille (no text or symbols)

Simple line drawing of a flat-screen monitor with a stand and diagonal lines (no text or symbols)

Cartoon illustration of a person climbing a computer monitor with a crossed-out X symbol (no text or symbols present)

Simple line drawing of a geometric structure with an arrow and motion lines (no text or symbols)

Illustration of a person reacting to a computer monitor with a clock nearby (no text or symbols)

Simple line drawing of a monitor with a cross symbol crossed out, next to a warning light (no text or symbols)

Technical line drawing of a flat-screen monitor with internal components and connectors (no text or symbols)

① ② ③ ≤8m

HDMI1(ARC), LNB IN, ANT IN, USB, CI, ieşire CĂŞTI.

Line drawing of a TV setup with an attached cable and a power outlet (no text or symbols)

MOD PRESETAT (HDMI)

	REZOLUTIE	V.Freq.(Hz)	H.Freq.(KHz)
1	800*600	60	37,88
2	1024*768	60	48,36
3	1360*768	60	47,7
4	1280*768	60	47,3
5	1920*1080	60	67,5
6	3840*2160	30	67,5
7	3840*2160	50	112,5
8	3840*2160	60	135

ECHIPARE AV

Diagram illustrating the step-by-step battery charging process, showing hand positioning and disassembly steps.

SETARE INITIALĂ

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Language English Python Code 101 Performance (4) Phases Physical General Marketing

Quickly set up your TV with your Android phone? You can easily transfer your Android phones Wi-Fi network and Google Account to your TV

Select your Wi-Fi network You can also connect an Ethernet cable to connect to the internet. MTC OM MTC OM NS MTC Guide1 MTC MES MTC Public MTC Staff NETGEAROS

Google Terms of Service By continuing, you approve to the Google Terms of Service, the Google Privacy Policy, and the Google Play Terms of Service. This device may also receive oral install updates and apps from Google, your device's manufacture, or your operator. Some of these apps may offer optional in-app purchases. You can remove them or adjust their permissions at any time from the device settings. Google also collects and temporarily stores the voice and audio history from microphones are to improve the product experience. Accept Terms of Service Privacy Policy Play Terms of Service

Google Google Services Select each to learn more about each service, such as how to turn it on or off later. Data will be used according to Google's Privacy Policy. Click "Accept" to confirm your selection of these Google services settings. Accept Use location Close through email with your privacy requirement to ensure that you have been able to use the Google Privacy Policy. You can use your website for Google Privacy Service (www.google.com) or any other sites. Help access Android Automatics and analytics information to Google Services and your privacy Google services and services will not use other links.

Google Location Let Google use your device's location to improve your experience. Certain application or platform capabilities, such as streaming local content or live programming, may require your device's location to function correctly. You may choose whether to share this information with a third party app at the moment that app is installed or run. You can adjust these permissions at any time from Settings.

Google Help improve Android Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at g.c.a/Android LeagueHelp and p.c.caest/device.stats.

Your halierATV is powered by androidtv Let's walk through the features of your devices. 2.2 Talk to the Google Assistant After setup, press the one button on your website to quickly find the latest backgrounds, check the score of the big game, or control your TV. Get apps from Google Play The Google Play Store offers apps you're sure to live, watch shows, exist live sports, play games and more. Google Play 3.1 Cast to your TV With Chromecast built-in, you can quickly cast phones, videos, and music from your phone light to your TV.

India Pakistan Russia Kazakhstan Uzbekistan Ukraine Country/Region Please select your country/region:

Password Please set password '0000' is invalid Import Password

Select TV mode "Home" mode is optimized for efficient energy usage for home use. "Retail" mode is optimized for store demo with fixed settings.

Select Home mode? If you plan to use this TV at home, please select "Yes" to proceed. Yes No

Chromecast built-in always available Let this device be detected as a Google Cast device and allow Google Assistant and other services to write this device up to respond to Cast commands, even when on standby and the screen is off.

Tuner Mode Please select your tuner mode: Analog: 0 Antenna: 0 Cable Satellite Satellite: 0 Skip

Channel Scan First, please connect antennas. Start channel scan now? If you skip this step, the channel scan could be performed in Menu.

Setup is completed. Enjoy! Congratulations! Completed Initial Setup Please press [OK] to exit this reward.

HBBTV Settings HBBTV Support Do Not Track In-Net Cookie Settings In-Net Persistent Storage Block Tracking Site Device ID Reset Device ID

Channels TV options Settings Power UI Card Manual Audio Advanced Options Settings Record

Settings Details Channels

Settings Quick Settings Take drug report General Settings Network & Internet No network connected Channel Accounts & sign-in No accounts Apps Device Preferences Remote & accessories

Network & internet HUAIRIS CNEE2BG HUARIS KOBPTLING RTL818e default Size off Other options Add new networks Screening strength available Let complex transfer or write and other case pass by website, even when NLL is off

Network & internet Scan to access network Scanning always available Let user's location service and other app scan for networks, where when the i is all Wow see in relation network Wol see in LAN Internet Not connected Proxy settings IP settings

CANAL

Channel Channels Auto Channel Update Channel Update Message Parental Controls Open Source Licenses

Channels Channel Scan Update Scan Analog Manual Scan Single RF Scan Manual Service Update LCN On Channel Scan Type All Channel Store Type All

Status: Scanning . Antenna Digital Channels: 0 5% Exit

Channel Scan Single RF Scan LCN 0.1 Channel Scan Type All Channel Store Type All

1. Accesați Meniu->Setări->Canal->Canale-> Scanare canale

Scan all channels. Cable Digital Channels 0% Scan Mode Advance <> Channel Scan Type Only Digital Channels <> Frequency (KHZ) Auto Network ID Auto Scan

Scan Single RF Channel. (Digital Only) Cable Digital Channels: 0% Frequency (kHz) 306008 Scan Signal Level 0% Signal Quality 0%

Channels Satellite Re-scan Satellite Add Satellite Update Satellite Manual Tuning

Channels Channel Scan Update Scan Analog Manual Scan

Accesati Meniu->Setări->canal->Canale

Status: Scanning . Analog Channels: 3 3% Press (backwind) to exit scan page

Search for Analog Channels Frequency: 44.00 MHz Start Frequency (MPG) 44.00 Scan Up Scan Down Press [backpage] to exit scan page

Google Make the most of your TV Sign in to get new apps, recommendations, movies, and more from Google. Google Play Movies CTV Buy or roll the latest movies and shown on Google Play Movies & TV

APPS

Apps Recently opened apps Live TV 1 minute ago Digital/MediaPlayer 1 minute ago See all apps Permissions App permissions Special app access Security & Restrictions

Date & time Automatic data & time Set timestamp portable time Set date August 16, 2021 Set time 8:30 PM Set time zone set-time zone should be installed time Use 24-hour format 1:30 PM

Timer Power On Time Type off Auto Power On Time 60.00 Power Off Time Type off Auto Power Off Time 60.00

Keyboard Current keyboard Board Board Settings Manage keyboards

Sound System sounds Sound Style User Balance 0 Bass 50 Twable 50 dose- Sound Skampound Equalizer Detail Smaller Delay

Sound Speaker Delay ———— 0 Digital Output Auto Digital Output Delay ———— 0 Auto Volume Control Downmix Mode Status Dialogue Enhancer DIF Reset to Default

Storage Device storage Internal shared storage Total space: 4.6 GB Removable storage KINGSTON Total space: 15 GB

Home screen Channels Customize channels Enable video previews Enable audio previews Apps Reorder apps Reorder games Open source licenses Android TV Home Android TV Core Services

Retail Mode Retail Mode Off Retail Messaging Demo video

Google Assistant Accounts View permissions Searchable apps Select which apps to include in search results. SafeSearch filter Open source licenses

CHROMECAST ÎNCORPORAT

Chromecast built-in About Open source licenses Version number 1.36.145507

Screen saver Screen saver Backdrop When to start After 5 minutes of inactivity Start now

Energy saver Turn off display After 24 hours

Location Location status Use Wi-Fi to estimate location Recent location requests Google

Usage & Diagnostics On Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/AndroidUsageHelp and g.co/cast/device_stats.

Accessibility Audio Type Normal Visually Impaired Captions High contrast text (Experimental) Text to speech

Searching for accessories... Before pairing your Bluetooth devices, make sure Disagree in pairing mode.

Haier TV Remote Pairing... Haier TV Remote 11:22:33:44:55:88

Search Inquires, TV and more App Mastercard YouTube DigitalMediaPlayer Customize channels 8:22

Select app MultiMediaPlayer Play Games Prime Video

Illustration of a computer monitor with an electrical circuit and a crossed-out resistor (no text or symbols)

Simple line drawing of a monitor with a cross mark and a hanging cloth, no text or symbols present

Simple line drawing of a computer monitor with a cross symbol crossed out, surrounded by stars (no text or labels)

Simple line drawing of a computer monitor with steam rising from its top (no text or symbols)

Simple line drawing of a flat-screen monitor with a stand and diagonal lines (no text or symbols)

Ikke klem strømledningen under TV-mottakeren.

Cartoon illustration of a person on a computer monitor with a crossed-out X symbol (no text or symbols present)

Stå aldri, len deg på eller skyv TVen eller stativet plutselig. Du bør være spesielt oppmerksom på barn. Alvorlig skade kan oppstå hvis du mister den.

Simple line drawing of a geometric structure with an angle and vertical motion lines (no text or symbols)

Ikke plasser TV-en på en ustabil vogn, stativ, hylle eller bord. Alvorlig personskade og skade på TV-en hvis den mistes.

Illustration of a person reacting to a computer screen with a phone emitting a ringing icon (no text or symbols)

Illustration of a monitor with a cross symbol crossed out, next to a warning light (no text or symbols present)

Technical line drawing of a front panel with internal components and connectors (no text or symbols)

① ② ③ ≤8m

1: Sensor for fjernkontroll.
2: LED-indikator: R∅D ● STANDBY.
3: Tastatur

Diagram of a device rear panel with a central component and an arrow pointing to it (no text or symbols present)

STR∅MBRYTER

Line drawing of a TV setup with an open box, cable, and power outlet (no text or symbols)

FORHÅNDSINNSTILT MODUS (HDMI)

	RESOLUSJON	V.Frek.(Hz)	H.Frek.(KHz)
1	800*600	60	37.88
2	1024*768	60	48.36
3	1360*768	60	47.7
4	1280*768	60	47.3
5	1920*1080	60	67.5
6	3840*2160	30	67.5
7	3840*2160	50	112.5
8	3840*2160	60	135

AV-UTSTYR

OPPRINNELIG INNSTILLING

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Language English Python Korean, Hindi Chinese English Portuguese PTT29 English English

Quickly set up your TV with your Android phone? You can easily transfer your Android phone's WiFi network and Google Account to your TV

Select your Wi-Fi network You can also connect an Ethernet cable to connect to the internet. MTC OM MTC OM SG MTC Guest MTC MES MTC Public MTC Shift NETGEANS

Google Terms of Service By continuing, you agree to the Google Terms of Service, the Google Privacy Policy, and the Google Play Terms of Service Accept This device may also receive and install updates and apps from Google, your devices manufacturer, or your operator. Some of these apps may offer optional in-app purchases. You can remove them or adjust their permissions at any time from the device settings. Terms of Service Privacy Policy Play Terms of Service Google also collects and temporarily stores the voice and audio history from microphone use to improve the product experience.

Google Google Services Select each to learn more about each service, such as how to turn it on or off later. Data will be used according to Google Privacy Policy. Click "Accept" to confirm your selection of these Google services settings. Accept Late location After Google and other without your permission to use the following functions: Change my service business provider industry and/or the data in an application tool or business provider accuracy and location-based services Help improve Android Automatically serving diagnostics information for change Services and your privacy Google Standard Service is easy to help a user based

Google Location Yes No Let Google use your device's location to improve your experience. Certain application or platform capabilities, such as streaming local content or live programming, may require your device's location to function correctly. You may choose whether to share this information with a third party app at the moment that app is installed or nn. You can adjust these permissions at any time from Settings.

Google Help improve Android Yes Automatically save diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.gov/ Android&superhelp and g.cs/cast/device_stats.

Your haierATV is powered by androidtv Let's walk through the features of your device. Talk to the Google Assistant After setup, press the mini button on your remote to quickly find the latest blockbusters, check the scores of the top game, or control your TV. Get apps from Google Play The Google Play Store offers apps you're sure to live. Watch shows, stream live sports, play games and more. Google Play Cast to your TV With Chromecast buttons, you can quickly cast photos, videos, and music from your phone right to your TV.

India Pakistan Russia Kazakhstan Uzbekistan Ukraine

Password Please set password: $000' is invalid. Input Password

Select TV mode 'Home' mode is optimized for efficient energy usage for home use. 'Recall' mode is optimized for store demo with fixed settings.

Select Home mode? If you plan to use this TV at home, please select "Yes" to proceed.

Chromecast built-in always available Let this device be defected as a Google Cast device and allow Google Assistant and other services to write this device up to respond to Cast commands, even when on standby and the screen is off.

Tuner Mode Please select your tuner mode Analog: 0 Antenna: 0 Cable: 0 Satellite: 0 Antenna Cable Satellite Skip

Channel Scan First, please connect antenna. Start channel scan now? If you stop this stop, the channel scan could be performed in Menu.

Setup is completed. Enjoy! Congratulations! Completed initial Setup. Please press OK to exit this wizard.

Search movies: TC and more AppS Netflix TV Matrix Play Movies & TV YouTube 2021

HBBTV Settings HBDTV Support Do Not Touch Initial Cookie Settings Initial Persistent Storage Black Tracking Site Device ID Reset Device ID

Channels TV options Epinko Power UI Card Main of Child Con... Advance Options Settings Record

11:42 Settings Details Options

Settings Quick Settings Take bug report General Settings Network & Internet No network connected Channel Accounts & sign-in No accounts Apps Device Preferences Remotes & accessories

Network & Internet Wi-Fi Available networks HUAWEI-ONL2BG HUAWEI-KSBF7Q,5G RTL81 86-default See all Other options Add new network Scanning always available Let Google location service and other apps scan for networks, except Wi-Fi is off

Network & internet Scanning always available Let Google's location send or other apps sort for networks, even when Wi-Fi is all Wow wake so wireless network Wol wake at LAN Ethernet Not connected Proxy settings IP settings

KANAL

Channel Channels Auto Channel Update Channel Update Message Parental Controls Open Source Licenses

Channels Channel Scan Update Scan Analog Manual Scan Single RF Scan Manual Service Update LCN Or Channel Scan Type All Channel Store Type All

Status: Scanning . Antenna Digital Channels: 0 8% Exit

Channel Scan Single RF Scan LCN 01 Channel Scan Type All Channel Store Type All

1. Gå til Meny->Innstillinger->Kanal->Kanaler-> Skanning av kanal

Scan all channels: Cable Digital Channels 0% Scan Mode Advance <> Channel Scan Type Only Digital Channels <> Frequency (KHz) Auto Network ID Auto Scan

Scan Single RF Channel. (Digital Only) Cable Digital Channels: 0% Frequency (kHz) 306/00 Scan Signal Level 0% Signal Quality 0%

Channels Satellite Re-scan Satellite Add Satellite Update Satellite Manual Tuning

1. Gå til Meny->Innstillinger->Kanal->Kanaler->Satellitt ny skann.

Satellite Re-scan Satellite Re-scan ***** Disable+Disable+Disable On > ***** Disable+Disable+Disable Off ***** Disable+Disable+Disable Off ***** Disable+Disable+Disable Off Satellite Re-scan Satellite Detail Satellite Status On Satellite Name LNB Power On LNB Frequency Number of D/SEqC Set Tone 22KHz Auto Tone Burst Disable Transgender Scan All Channels 0% Scan Mode Network Scan Type All < > Store Type All < > Scan

Channels Channel Scan Update Scan Analog Manual Scan

Status: Scanning . Aiding Channels: 5 31% Press (backward) to exit scan page

Skann for kanaler går direkte inn i grensesnittet for den automatiske søkeplattformen.

Search for Analog Channels Frequency: 44.00 MHz Start Frequency (MHz) 44.00 Scan Up Down Down Press [backpage] to exit scan page

Google Make the most of your TV Sign it to get new apps, recommendations, movies, and more from Google. Google Play Houses & TV Buy or next the latest movies and shows on Google Play, Movies & TV

APPER

Apps Recently opened apps Live TV Treatu app DigitalMediaPlayer Treatu app See all apps Permissions App permissions Special app access Security & Restrictions

Date & time Automatic date & time Use network powered time Set date August 10, 2021 Set time 6:16 PM Set time zone GMT+8800 China Standard Time Use 24-hour format 1:00 PM

Keyboard Current keyboard Board Board Settings Manage keyboards

Inputs Component Component Consumer Electronic Control (CSC) HDMI control Allow the TV to cover HDMI devices Device auto power off Power off HDMI devices with the TV TV auto power on Power on the TV with HDMI device HDMI CDD Version ECD 2.0 CEC Device List

Sound System sounds Sound Style User Balance 0 Bass 50 Treble 50 dbx-iv Sound Surround Equalizer Detail Speaker Delay 0

Sound Speaker Delay ———— 0 Digital Output Auto Digital Output Delay ———— 0 Auto Volume Control Downmix Mode Stores Dialogue Enhancer OT Reset to Default

Storage Device storage Internal shared storage Total space: 4.6 GB Removable storage KINGSTON Total space: 15 GB

Home screen Channels Customize channels Enable video previews Enable audio previews Apps Reorder apps Reorder games Open source licenses Android TV Home Android TV Core Services

Retail Mode Retail Mode Off Retail Messaging Demo video

Google Assistant Accounts View permissions Searchable apps Select which apps to include in search results. SafeSearch filter Open source licenses

Chromecast built-in About Open source licenses Version number 1.36.745567

Screen saver Screen saver Backdrop When to start After 5 minutes of inactivity Start now

Energy saver Turn off display After 24 hours

Location Location status Use Wi-Fi to estimate location Recent location requests Google

Usage & Diagnostics On Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/AndroidUsageHelp and g.co/cast/device_stats.

Accessibility Audio Type Normal Visually Impaired Captions High contrast text (Experimental) Text to speech

Searching for accessories... Before coming your Bluetooth devices, make sure Display in calling mode.

Haier TV Remote Pairing... Haier TV Remote 11:22:33:44:55:88

I denne menyen kan du pare bluetooth-enheter.

Select app MultiMediaPlayer Play Games Prime Video

Illustration of a computer monitor with a warning symbol and a crossed-out hand gesture (no text or labels)

Simple line drawing of a window with a diagonal X mark and a curtain on the side (no text or symbols)

Simple line drawing of a computer monitor with a cross symbol on the screen, no text or symbols present.

Simple line drawing of a computer monitor with a stand and roof, emitting steam (no text or symbols)

Simple line drawing of a flat-screen monitor with a stand and diagonal lines (no text or symbols)

Cartoon illustration of a person lying on a computer monitor with a crossed-out X symbol (no text or symbols present)

Simple line drawing of a geometric structure with an arrow indicating direction (no text or symbols)

Illustration of a person reacting to a computer monitor with a circular device nearby (no text or symbols)

Illustration of a monitor with a cross symbol crossed out, next to a warning light emitting sound waves (no text or symbols present)

Technical line drawing of a front panel with labeled components (no text or symbols present)

① ② ③ ≤8m

1: Sensor de controle remoto.

2: Indicator LED: VERMELHO ● ESPERA

3:Teclado

Diagram of a device rear panel with a central button and indicator lights (no text or symbols)

Line drawing of a TV setup with an attached cable and power outlet (no text or symbols)

PREDEFINIÇÃO (HDMI)

	RESOLUÇÃO	V.Frec.(Hz)	H.Frec.(KHz)
1	800*600	60	37,88
2	1024*768	60	48,36
3	1360*768	60	47,7
4	1280*768	60	47,3
5	1920*1080	60	67,5
6	3840*2160	30	67,5
7	3840*2160	50	112,5
8	3840*2160	60	135

EQUIPAMENTOS AV

Diagram illustrating the step-by-step battery charging process with labeled components and directional arrows

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Language English Pyclical Kasa, N11 Replicaura BID Frenchas FRCa e-mail emailings

Quickly set up your TV with your Android phone? Continue You can easily transfer your Android phone's WiFi network and Google Account to your TV Skip

Select your Wi-Fi network You can also connect an Ethernet cable to connect to the internet. MTC_GM MTC_GM_3G MTC_Guest MTC_MES MTC_Public MTC_Staff NETGEANS

Google Terms of Service By continuing you agree to the Google Terms of Service, the Google Privacy Policy and the Google Play Terms of Service. This device may also receive and install updates and apps from google, your devices manufacturer, or your operator. Some of these apps may offer optional in-app purchases. You can remove them or adjust their permissions at any time from the device settings. Google also collects and temporarily stores the voice and audio history from microphone use to improve the product experience.

Google Google Services Select each to learn more about each service, such as how to turn it on or off later. Data will be used according to Google's Privacy Policy. Click "Accept" to confirm your selection of these Google services settings. Accept User location Allow Google and log or without permission to use location that is required for Google. Google may shift the service provider's privacy needs the data on the following steps in the location accessing and replacing a service. Help improve Android Automatically send responses to Android to Google Services and your privacy Google's service needs can link to a lower code.

Google Location Let Google use your device's location to improve your experience. Certain application or platform capabilities, such as streaming local content or live programming, may require your device's location to function correctly. You may choose whether to share this information with a third party app at the moment that app is installed or run. You can adjust these permissions at any time from Settings.

Google Help improve Android Yes Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/ Android/JaagerHelp and g.co/cast/device_stats.

Your haierATV is powered by androidtv Let's walk through the features of your devices Get apps from Google Play The Google Play Store offers apps you're sure to love. Watch shows, stream live sports, play games and more. Google Play Talk to the Google Assistant Cast to your TV With Chromecast buttons, you can quickly cast photos, videos, and music from your phone right to your TV.

Country/Region Please select your country/region: India Pakistan Russia Kazakhstan Uzbekistan Ukraine

Password Please set password: 10007 is invalid. I am masked

Select TV mode "Home" mode is optimized for efficient energy usage for home use. "Retail" mode is optimized for store demo with fixed settings.

Para seleccionar o modo, pressione a tecla ▼/▼ para seleccionar o modo Home e pressione OK para confirmar.

Select Home mode? If you plan to use this TV at home, please select "Yes" to proceed.

Chromecast built-in always available Let this device be detected as a Google Cast device and allow Google Assistant and other services to make this device up to respond to Cast commands, even when on standby and the screen is off.

Tuner Mode Please select your tuner mode: Analog: 0 Amenna: 0 Cable: 0 Satellite: 0 Amenna Cable Satellite Skip

Channel Scan First, please connect antenna. Start channel scan now? If you stop this stop, the channel scan could be performed in Menu.

Setup is completed. Enjoy! Completed Initial Setup. Please press [OK] to exit this wizard.

Search movies, TV and more App Netflix TV Matrix Play Movies & TV 2021 十月新歌

HBBTV Settings HBBTV Support Do Not Task Subset Cookie Settings Subset Persistent Storage Black Tracking Sites Device ID Reset Device ID

Channels TV options Wireless Power CD Card Manual DVD Drive Advanced Options Settings Record

11:42 Settings Defaults Double

Settings Quick Settings Take bug report General Settings Network & internet No network connected Channel Accounts & sign-in No accounts Apps Device Preferences Remotes & accessories

Network & internet Wi-Fi Available networks HUAWEI-ONL2BG HUAWEI-KGBF7Q,5G RTLE186-default See all Other options Add new network Scanning always available Let Google location service and other apps scan for networks seen when WiFi is off

Network & internet New Internet network Scanning always available Let Google's locations service and other apps start for networks, even when Wi-Fi is off Wow write on wireless network Well write on LAM Ethernet Not connected Proxy settings IP settings

CANAL

Channel Channels Auto Channel Update Channel Update Message Parental Controls Open Source Licenses

Channels Channel Scan Update Scan Analog Manual Scan Single RF Scan Manual Service Update LCN On Channel Scan Type All Channel Store Type All

Status: Scanning . Antenna Digital Channels: 0 5% Exit

3. A varredura de canais entra diretamente na interface da plataforma de busca automática da antena DTV.

Channel Scan Single RF Scan LCN 01 Channel Scan Type All Channel Store Type All

Scan all channels. Cable Digital Channels 0% Scan Mode Advance <> Channel Scan Type Only Digital Channels <> Frequency (KHz) Auto Network ID Auto Scan

Scan Single RF Channel. (Digital Only) Cable Digital Channels: 0% Frequency (Hz) 30V/100 Scan Signal Level 0% Signal Quality 0%

Channels Satellite Re-scan Satellite Add Satellite Update Satellite Manual Tuning

Scan All Channels 0% Scan Mode Network Scan Type All < > Store Type All < > Scan

Channels Channel Scan Update Scan Analog Manual Scan

Status: Scanning . Average Channels: 3 50% Press (back/soft) to exit scan page

A varredura de canais entra diretamente na interface da plataforma de varredura automática.

Search for Analog Channels Frequency: 44.93 MHz Start Frequency (MHz) 44.00 Start Up Start Down Press [backward] to not scan page

Google Make the most of your TV Sign in to get new apps, recommendations, movies, and more from Google Google Play Movies & TV Buy or rent the several movies and shows on Google Play Movies & TV

APPS

Apps Recently opened apps Live TV 1 minute ago DigitalMediaPlayer 1 minute ago See all apps Permissions App permissions Special app access Security & Restrictions

Date & time Automatic date & time Use network provided time Set date August 16, 2021 Set time 9:16 PM Set time zone GM+93.00 China Standard Time Use 24-hour format 1:00 PM

Keyboard Current keyboard Board Board Settings Manage keyboards

Inputs HDMI 4 HDMI 4 HDMI 3 HDMI 3 HDMI 2 HDMI 2 HDMI 1 HDMI 1 Non Connected Input Composite Composite Consumer Electronic Control (CIC) HDMI control Home, the TV to control HDMI devices Inputs Component Component Consumer Electronic Control (CIC) HDMI control After the TV to control HDMI devices Device auto power off Power off HDMI devices with the TV TV auto power on Power on the TV with HDMI device HDMI CICD Version EVB 2.0 CICD Device List

Picture Contrast 50 Saturation 50 HUE 0 Sharpness 14 Gamma Mode Color Temperature Advanced Video Reset to Default

Sound System sounds Sound Style Use Balance 0 Bass 50 Treble 50 dbx-tx Sound Surround Equalizer Detail Speaker Delay

Sound Speaker Delay ———— 0 Digital Output Auto Digital Output Delay ———— 0 Auto Volume Control Downtmix Mode Stereo Dialogue Enhancer OFF Reset to Default

Storage Device storage Internal shared storage Total space: 4.6 GB Removable storage KINGSTON Total space: 15 GB

Home screen Channels Customize channels Enable video previews Enable audio previews Apps Reorder apps Reorder games Open source licenses Android TV Home Android TV Core Services

Retail Mode Retail Mode Off Retail Messaging Demo video

Google Assistant Accounts View permissions Searchable apps Select which apps to include in search results SafeSearch filter Open source licenses

CROMECAST INCORPORADO

Chromecast built-in About Open source licenses Version number 1.36.145507

Screen saver Screen saver Backdrop When to start After 5 minutes of inactivity Start now

Energy saver Turn off display After 24 hours

Location Location status Use Wi-Fi to estimate location Recent location requests Google

Usage & Diagnostics On Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/AndroidUsageHelp and g.co/cast/device_stats.

Accessibility Audio Type Normal Visually Impaired Captions High contrast text (Experimental) Text to speech

Searching for accessories... Before turning your Bluetooth devices, make sure Degree in joining music.

REMOTO E ACESSÓRIOS

Haier TV Remote Pairing... Haier TV Remote 11:22:33:44:55:88

Search results. TV and more Apps Mauria YouTube Disney+, Mobile Player DigitalMeGamePlayer Customize channels

Select app MultiMediaPlayer Play Games Prime Video

Illustration of a computer monitor with a warning symbol and a crossed-out line, no text or labels present.

Simple line drawing of a monitor with a cross mark and a curtain, no text or symbols present

Simple line drawing of a computer monitor with a cross symbol crossed out, surrounded by stars (no text or symbols)

Simple line drawing of a computer monitor with a fan base and smokestacks above (no text or symbols)

Simple line drawing of a flat-screen monitor with a stand and diagonal lines (no text or symbols)

Cartoon illustration of a child lying on a computer monitor with a crossed-out window symbol (no text or symbols present)

Simple line drawing of a geometric structure with intersecting lines and a rectangular frame (no text or symbols)

Illustration of a person running away from a computer screen next to a circular object with a small mark (no text or symbols)

Simple line drawing of a monitor with a cross symbol and a warning light icon (no text or symbols)

Technical line drawing of a flat-screen monitor with internal components and connectors (no text or symbols)

① ② ③ 30° 10° ≤8m

1: Fjärrkontrollsensor.
2: Indikator-LED: RÖD
3: Tangentbord

STANDBY.

Diagram of a device panel with an internal component and a downward arrow indicating direction (no text or symbols)

STRÖMBRYTARE

HDMI1(ARC), LNB IN, ANT IN, USB, CI, HÖRLURSUTGÅNG.

AV-anslutningar BAKSIDAN

RJ45 OPTICAL VIDEO L R HDM14 HDM13 HDM12

FÖRSTA INSTALLATIONEN

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Quickly set up your TV with your Android phone? Continue You can easily transfer your Android phone's WiFi network and Google Account to your TV Skip

Select your Wi-Fi network You can also connect an Ethernet cable to connect to the internet. MTC_CM MTC_DM_SD MTC_Best MTC_MES MTC_PuSic MTC_Rust NETDEANS

Google Terms of Service By continuing you agree to the Google Terms of Service, the Google Privacy Policy and the Google Play Terms of Service. This device may also receive and install updates and apps from google, your devices, manufactures, or your operator. Some of these apps may offer optional in-app purchases. You can remove them or adjust their permissions at any time from the device settings. Google also collects and temporarily stores the voice and audio history from microphone use to improve the product experience. Accept Terms of Service Privacy Policy Play Terms of Service

Google Google Services Select each to learn more about each service, such as how to turn it on or off late. Data will be used according to Google's Privacy Policy. Click "Accept" to confirm your selection of these Google services settings. Accept Use location After Google and iOS with your permission we create a version from Google. Google has sified local data primarily and use the data in an application help to access the app? private authentication based on this Help improve Android Automatically send diagnostic information to Google Services and your privacy Google services are available you call to our create sites

Google Location Let Google use your device's location to improve your experience. Certain application or platform capabilities, such as streaming local content or live programming, may require your device's location to function correctly. You may choose whether to share this information with a third party app at the moment that app is installed or run. You can adjust these permissions at any time from Settings.

Google Help improve Android Yes Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co! Android/dispage-help and go/no/casv/device.stats

Your halerATV is powered by androidtv Can't walk through the features of your device. Talk to the Google Assistant After setup, press the mini button on your remote to qualify find the latest blockusers, check the score of the big game, or control your TV. Get apps from Google Play The Google Play Store offers apps you're sure to love. Watch shoes, stream live sports, play games and more. Google Play Cast to your TV With Chromecast button, you can quickly cast photos, videos, and music from your phone right to your TV.

Country/Region Please select your country/region: India Pakistan Russia Kazakhstan Uzbekistan Ukraine

Password Please set password. 1000* is invalid Irru#i Password

Select TV mode 'Home' mode is optimized for efficient energy usage for home use. 'Realt' mode is optimized for store demo with fixed settings.

Select Home mode? If you plan to use this TV at home, please select "Yes" to proceed.

Chromecast built-in always available Let this device be detected as a Google Cast device and allow Google Assistant and other services to water this device up to respond to Cast commands, even when on standby and the screen is off.

Tuner Mode Please select your tuner mode: Analog: 0 Antenna: 0 Cable: 0 Satellite: 0 Antenna Cable Satellite Skip

Scan Scan Scan First, please connect antennas. Start channel scan now? If you stop this step, the channel scan could be performed in Menu.

Setup is completed. Enjoy! Congratulations! Completed Initial Setup. Please press [OK] to exit this wizard.

Search movies. TV and more Netflix TV Matrix Play Movies & TV 2021 YouTube

HBBTV Settings HBBTV Support Do Not Track Auto-Soft Cookie Settings Auto-Soft Persistent Storage Back Tracking Site Device ID Reset Device ID

11:42 Settings Details Downside

Settings Quick Settings Take bug report General Settings Network & Internet No network connected Channel Accounts & sign-in No accounts Apps Device Preferences Remotes & accessories

Network & Internet WiFi Available networks HUAWEI-CNL2BG HUAWEI-KGBF7Q_5G RTLE186-default See all Other options Add new network Scanning always available Let Google location service and other upas scan for networks, only when WiFi is off

Network & internet Scan to access network Scanning always available Lar Google's location service and other scope assur far networks, more when WiFi is all? Wow wake as wireless network Wol wake as LAR Ethernet Not connected Proxy settings IP settings

KANAL

Channel Channels Auto Channel Update Channel Update Message Parental Controls Open Source Licensees

Channels Channel Scan Update Scan Analog Manual Scan Single RF Scan Manual Service Update LCN Qx Channel Scan Type All Channel Store Type All

Status: Scanning . Antenna Digital Channels: 0 5% Exit

Channel Scan Single RF Scan LCN 0 s Channel Scan Type All Channel Store Type All

Scan all channels. Cable Digital Channels 0% Scan Mode Advance Channel Scan Type Only Digital Channels Frequency (kHz) Auto Network ID Auto Scan

Scan Single RF Channel. (Digital Only) Cable Digital Channels: 0% Frequency (kHz) 306688 Scan Signal Level 0% Signal Quality 0%

Channels Satellite Re-scan Satellite Add Satellite Update Satellite Manual Tuning

Satellite Re-scan Satellite Re-scan Satellite Re-scan Satellite Re-scan Satellite Detail Scan All Channels Scan Mode Network Scan Type All < > Store Type All < > Scan

Channels Channel Scan Update Scan Analog Manual Scan

Status: Scanning . Average Channels: 5 3% Press (backward) to exit scan page.

Search for Analog Channels Frequency 44.00 MHz Start Frequency (MHz) 44.00 Scan Up Scan Down Press (backward) to exit scan page.

Google Make the most of your TV Sign in to get new apps, recommendations, movies, and more from Google Google Play Movies CTV Buy or read the latest movies and shown on Google Play Movies & TV

APPAR

Apps Recently opened apps Live TV 1 minute ago Digital/MediaPlayer 1 minute ago See all apps Permissions App permissions Special app access Security & Restrictions

Date & time Automatic date & time User network provided 18% Set date August 10, 2021 Set time 9:16 PM Set time zone GMT+08:00 Chase Standard Time Use 24-hour format 1:00 PM

Keyboard Current keyboard Board Board Settings Manage keyboards

Sound System sounds Sound Style User Balance 0 Bass 50 Treble 50 echo-hr Sound Surround 30 Equalizer Detail Sampling Details

Sound Speaker Delay ———— 0 Digital Output Auto Digital Output Delay ———— 0 Auto Volume Control Downmix Mode Stereo Dialogue Enhancer OFF Reset to Default

Storage Device storage Internal shared storage Total space: 4.6 GB Removable storage KINGSTON Total space: 15 GB

Home screen Channels Customize channels Enable video previews Enable audio previews Apps Reorder apps Reorder games Open source licenses Android TV Home Android TV Core Services

Retail Mode Retail Mode Off Retail Messaging Demo video

Google Assistant Accounts View permissions Searchable apps Select which apps to include in search results. SafeSearch filter Open source licenses

INBYGGD CHROMECAST

Chromecast built-in About Open source licenses Version number 1.36.145507

Screen saver Screen saver Backdrop When to start After 5 minutes of inactivity Start now

Energy saver Turn off display After 24 hours

Location Location status Use Wi-Fi to estimate location Recent location requests Google

Usage & Diagnostics On Automatically send diagnostic information to Google, like crash reports and usage data from your device, apps, and Chromecast built-in. This information won't be used to identify you. You can adjust these permissions at any time from device settings. Learn more at: g.co/AndroidUsageHelp and g.co/cast/device_stats.

Accessibility Audio Type Normal Visually Impaired Captions High contrast text (Experimental) Text to speech

Searching for accessories... Before joining your Bluetooth devices, make sure Diage in matching mode.

Haier TV Remote Pairing... Haier TV Remote 11:22:33:44:55:88

Select app MultiMediaPlayer Play Games Prime Video
