Product type	LED projector
Brand	BeamZ
Model	BTK200W
Usage	Indoor
Control type	DMX512
DMX connectors	XLR 3-pin (input and output)
DMX termination resistor	120 ohms
Power supply	Mains power (check voltage on label)
Maximum power consumption	600 W
Operating temperature	-5 °C to +45 °C
Minimum safety distance	50 cm around the device
Recommended mounting height	>100 cm, with safety cable
Fuse type	Fuse of same type and rating as original
Cleaning	Soft lint-free cloth and low-pressure compressed air
Maintenance	Inspect regularly, clean according to dirt accumulation
Safety	Do not look at the beam, use a safety cable, do not expose to moisture
Warranty	Void if used improperly
Disposal	Do not dispose of with household waste, take to collection point

Frequently Asked Questions - BTK200W BeamZ

How to install the BTK200W projector?

Install the device on a stable surface or fasten it to a truss using certified clamps. For a mounting height greater than 100 cm, always use a safety cable attached to the provided attachment points. Ensure that the area under the device is inaccessible to the public.

How to connect multiple devices via DMX?

Connect the DMX output of the controller to the DMX input of the first device. Then connect the DMX output of each device to the input of the next. On the last device, place a 120 ohm termination resistor between pins 2 and 3 of the output XLR connector.

What to do if the device does not respond?

First check the power: make sure the device is powered on and the fuse has not blown. Check the DMX cables and connections. If the device resets but does not respond to the controller, check the DMX address and line termination. As a last resort, isolate the devices one by one to identify a fault.

How to replace the fuse?

Disconnect the device from the mains. Open the fuse holder on the rear panel with a small screwdriver. Remove the old fuse and replace it with a fuse of the same type and rating. Reinsert the fuse holder into the housing.

How to clean the projector?

Disconnect the device and let it cool down completely. Use a vacuum cleaner or low-pressure compressed air to remove dust from surfaces and ventilation slots. For glass components, gently wipe with a soft lint-free cloth dampened with a mild detergent solution. Dry before powering on.

What ambient temperature is recommended for use?

The ambient temperature must be between -5 °C and +45 °C. Avoid sudden temperature changes: if the device has been exposed to a significant difference, let it reach ambient temperature before turning it on.

Can the device be used outdoors?

No, this device is designed exclusively for indoor use. Do not expose it to moisture, rain, or liquids. Use it only in a dry environment.

How to attach the safety cable?

Attach the safety cable only to the provided attachment points on the device. Never attach it to the transport handles. The cable must be certified and capable of supporting the weight of the device.

Why does the light flash or turn off intermittently?

This may be due to overheating: let the device cool down, reduce the ambient temperature, or clean the ventilation slots. If the problem persists, the LEDs may be damaged or the power supply may not match. Contact BeamZ after-sales service.

What to do if the device overheats?

Immediately turn off the device and disconnect it. Let it cool for at least 5 minutes. Check that the ventilation slots are not blocked and that the device is installed in a well-ventilated area with at least 50 cm of free space around it. Clean the device if necessary.

USER MANUAL BTK200W BeamZ

SAFETY INSTRUCTIONS....3

UNPACKING INSTRUCTION 4

POWERSUPPLY 4

RIGGING 4

DMX512 CONTROL 5

CLEANING 5

REPLACING THE FUSE 5

TROUBLE SHOOTING 6

NEDERLANDS

VEILIGHEIDSINSTRUCTIES 7

UITPAKKEN 8

AANSLUITSPANNING 8

RIGGING 8

DMX BEDIENING 9

REINIGEN 9

VERVANGEN ZEKERING....9

PROBLEMEN OPLOSSEN 10

DEUTSCH

WARNING! Before carrying out any operations with the unit, carefully read this instruction manual and keep it with care for future reference. It contains important information about the installation, usage and maintenance of the unit.

• Unpack and check carefully that there is no transportation damage before using the unit
- Please read these instructions carefully and follow the instructions.
- Observe all safety warnings. Never remove safety warnings or other information from the equipment.
- Be sure that no ventilation slots are blocked; otherwise the unit will overheated.

CAUTION: Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match the values specified on the equipment. If the equipment has a voltage selection switch, connect the equipment to the power outlet only if the equipment values and the mains power values match. If the included power cord or power adapter does not fit in your wall outlet, contact your electrician.

• After connecting the unit, check all cables in order to prevent damage or accidents, e.g., due to tripping hazards.
• Make sure that the power cord is never crimped or damaged. Check the device and the power cord from time to time.
- Always disconnect power from the mains, when device is not used or before cleaning! Only handle the power cord by the plug. Never pull out the plug by tugging the power cord.
• Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before extended periods of disuse.

- Do not switch the unit on and off in short intervals.

- Do not connect the unit to a dimmerpack.

• Install the unit in a well ventilated place.

- Never place any material over the lens.

• Always allow free air space of at least 50 cm around the unit for ventilation.

• Make sure that the area below the installation place is blocked when rigging, derigging or servicing the fixture.

- For mounting height >100 cm, always fix the fixture with an appropriate safety-rope. Fix the safety-rope at the correct fixation points only. The safety-rope must never be fixed at the transport handles!

- Never look directly at the light beam. Please note that fast changes in lighting, e.g. flashing light, may trigger epileptic seizures in photosensitive persons or persons with epilepsy.

- This unit is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects.

CAUTION: If the power cord of the device is equipped with an earthing contact, then it must be connected to an outlet with a protective ground. Never deactivate the protective ground of a power cord.

• Make sure that the unit is not exposed to extreme heat, moisture or dust.
- Clean the unit using a dry cloth.
- Do not touch the fixture bare-handed during its operation (housing becomes very hot). Allow the fixture to cool for at least 5 minutes before handling.
- This unit is designed exclusively for indoor use, do not use this equipment in the immediate vicinity of fluid (does not apply to special outdoor equipment - in this case, observe the special instructions noted below). Do not expose this unit to flammable materials, fluids or gases.
- If the unit has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your unit. Leave the unit switched off until it has reached room temperature.

- Never attempt to bypass the thermostatic switch or fuses.

- Do not dismantle or modify the unit.

- For replacement use fuses/bulb of same type and rating only.

• Repairs, servicing and electric connection must be carried out by a qualified technician.

- The ambient temperature must always be between -5^ and +45^ .

- If this unit is operated in any other way, than the one described in this manual, the product may suffer damages and the warranty becomes void.

- Plastic bags must be kept out of reach of children.

- Unit must be installed out of the reach of children. Never leave the unit running unattended.

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

UNPACKING INSTRUCTION

CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

POWERSUPPLY

On the label on the backside of the product is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the light effect can be irreparably damaged. The product must also be directly connected to the mains and may be used. No dimmer or adjustable power supply.

Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.

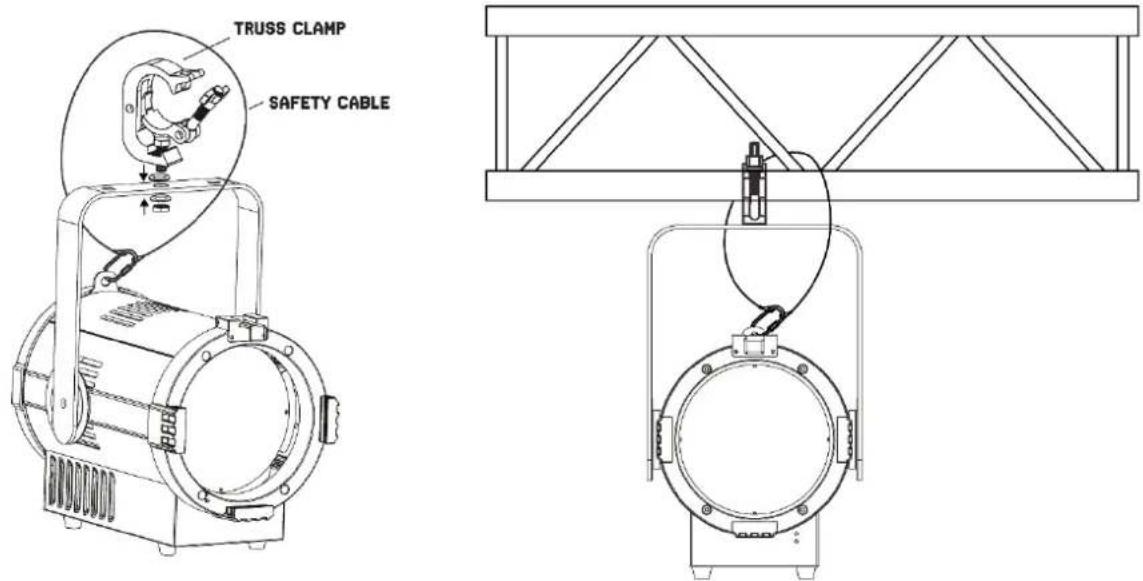

RIGGING

The fixture may be set up on a stable and even surface. By means of the fixing facilities of the baseplate, the unit can also be mounted upside down to a truss, see below picture. For fixing, certified clamps with correct save working load are required. According to the figure, the quick lock bolts of the omega brackets are placed into the openings provided in the base plate and turned clockwise until they lock (to the stop). The mounting place must be of sufficient stability and be able to support a weight of 10 times of the unit's weight. Secure the fixture with a safety cable so that it cannot fall down.

When carrying out any installation, always comply European and national guidelines concerning rigging, truss and all other safety issues. Always let the installation checked out by an authorized dealer!

TRUSS CLAMP SAFETY CABLE

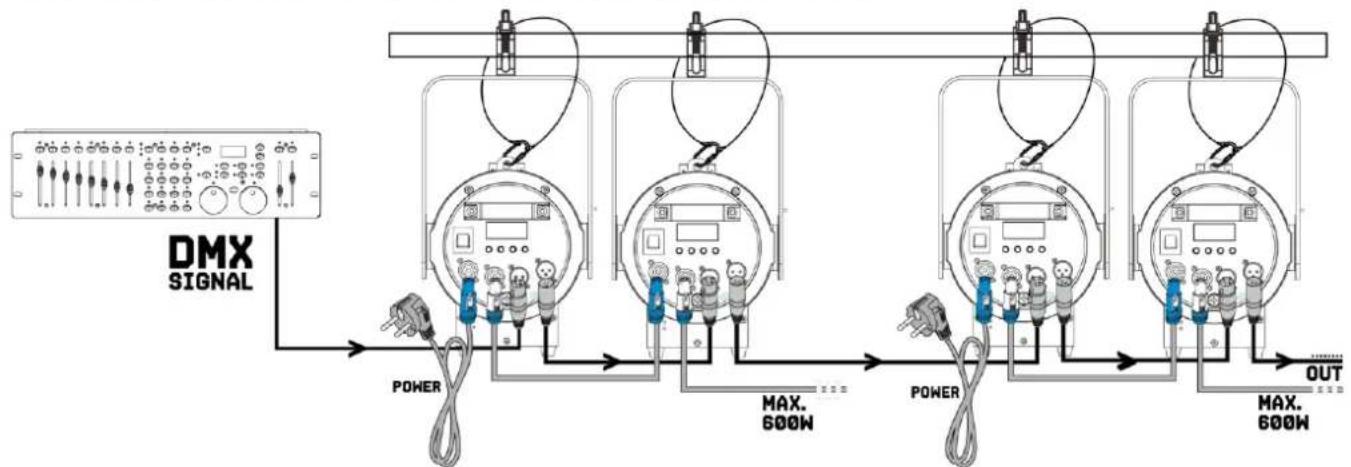

DMX512 CONTROL

If you are using a standard DMX controller, you can connect the DMX output of the controller directly to the DMX input of the first fixture in a DMX chain. Always connect the output of one unit with the input of the next fixture until all fixtures are connected.


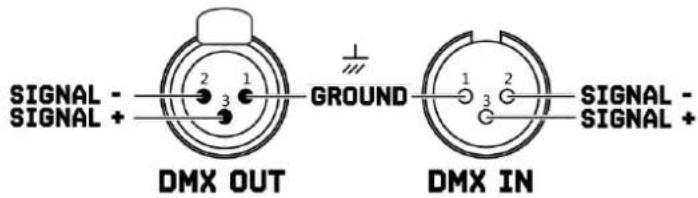

Caution: At the last fixture, you must close the DMX line with a terminating resistor. Take an XLR connector and solder a 120 Ohm resistor between signal (-) and signal (+) and connect it to the DMX output of the last fixture in the line.

SIGNAL - SIGNAL + DMX OUT GROUND DMX IN SIGNAL - SIGNAL + 1 2 3

1 2 3 120 OHM TERMINATOR

CLEANING

The buildup of dust, dirt and other airborne particles will reduce the fixture's light output. It will also prevent the fixture from cooling correctly, and this will reduce the fixture's lifetime. The rate of dirt buildup will vary depending on environmental factors such as airborne dust, use of smoke machines, airflow from ventilation systems, etc. The fixture's cooling fans will accelerate buildup, and any smoke particles that are present in the atmosphere will increase the tendency for dirt to clog.

To get the best performance and lifetime from the fixture, inspect it regularly and clean it as soon as you see signs of dirt buildup.

Assess the operating environment each time you begin to use the fixture. In dusty or smoky conditions, inspect the fixture after a few hours and check it frequently the fixture may attract dirt faster than you expect. Draw up a cleaning schedule that will make sure that dirt is removed before it can build up.

Use the following guidelines:

• Disconnect the fixture from power and allow it to cool completely before cleaning.
• Do not use solvents, abrasives or any other aggressive product to clean the fixture.
• Vacuum or use low-pressure compressed air to remove dust and loose particles from surfaces and air vents. Prevent the blades of cooling fans from turning before you aim a vacuum or air jet at the fan, or you may spin the fan too fast and damage it.
• Clean glass components by wiping gently with a soft, clean, lint-free cloth moistened with a weak detergent solution. Put the solution on the cloth and not on the surface to be cleaned. Avoid rubbing glass surfaces.
• Dry the fixture with a soft, clean, lint-free cloth or low-pressure compressed air before reapplying power.

REPLACING THE FUSE

If the fuse is defective, replace the fuse with a fuse of the same type and value. Before replacing the fuse, unplug mains lead.

Procedure:

Step 1: Open the fuse holder on the rear panel with a fitting screwdriver.

Step 2: Remove the old fuse from the fuse holder.

Step 3: Install the new fuse in the fuse holder.

Step 4: Replace the fuse holder in the housing.

TROUBLE SHOOTING

The checklist below may help you troubleshoot in the unlikely event that a problem occurs while using the product:

Symptom	Possible cause	Suggested action
No response from fixture.	No power to fixture.Fuse blown or internal fault.	Check that power is turned on.Check cables and connections.Replace mean fuse or contact Beamz support or Beamz authorized service partner. Do not remove base or yoke covers. Do not attempt to replace a fuse or carry out any repairs or service that are not described in this User Manual unless you have both authorization from Beamz support or Beamz authorized service partner.
Fixture resets correctly but does not respond (or does not respond correctly) to the controller.	The controller is not connected.Bad DMX-line.DMX-line has no end resistance.Incorrect fixture addressing.A fixture is defective and is disturbing data transmission on the DMX-line.Pin 2 and 3 are reversed in XLR connection.	Connect controller.Inspect connections and cables. Correct poor connections. Repair or replace damaged cables.Insert DMX terminator plug in DMX output socket of last fixture on DMX-line.Check fixture address and DMX mode settings.Unplug DMX IN and OUT connectors and connect them directly together to bypass one fixture at a time until normal operation is regained. Have defective fixture serviced by an authorized technician.Inspect connections and cables. Install a phase-reversing cable between the fixtures or swap pin 2 and 3 in the fixture, that behaves erratically.
Error after fixture reset.	Effect requires mechanical adjustment.	Check fixture's software version and error messages for more information. Contact Beamz support or Beamz authorized service partner.
Light output cuts out intermittently.	Fixture too hot.LEDs damagedThe power supply settings do not match local AC voltage and frequency.	Allow fixture to cool. Reduce ambient temperature. Ensure free airflow around fixture. Clean fixture if necessary.Disconnect fixture and contact Beamz support or Beamz authorized service partner.Disconnect fixture. Check settings and correct if necessary.

VEILIGHEIDSINSTRUCTIES

Technical line drawing of a mechanical device with a triangular frame and circular housing (no text or symbols)

CONTROL DMX512

REPLACEMENT DU FUSIBLE

MENU		DESCRIPTION
DMX-ADDR001	001-512	Press up or down to set DMX address, press Enter to save
L-DIMMER000	000-255	Dimming from darkness to brightness, press Enter to save
P-STROBE000	000-255	Strobe from slow to fast, press Enter to save
DMX-KEEPOFF	OFF	In case of lost DMX signal, turn to black out mode, press Enter to save
	ON	In case of lost DMX signal, keep last DMX setting, press Enter to save
BK-LIGHTON	OFF	Display on , press Enter to save
	ON	Display off if no operating, press Enter to save
NOW TEMPXX°C		Show current temperature

DMX CHANNELS

CHANNEL	FUNCTION	VALUE	DESCRIPTION
1	DIMMER	000-255	Dimming setting
2	STROBE SPEED	000-128	Strobe from slow to fast
		129-255	Strobe from fast to slow

TECHNICAL SPECIFICATIONS

Product colour Black

Light source Single colour LED

Colour temperature 3000K

LED colours Warm White

Quantity of LEDs

Beam angle: Min 15°

Beam angle: Max 46°

Illuminance 93.261 lx @ 1m

Flash rate per second 1 - 19Hz

DMX channels 2

DMX connection 3-pin XLR, 5-pin XLR

Modes DMX

Cooling Temperature controlled fan

Display LCD

Power plug Power-connector

Power consumption 2.50 - 1.406A

Power supply 100-240VAC 50/60Hz

Dimensions (L x W x H) 400 x 255 x 250mm

Weight 6,30

Included accessories Mounting bracket, Power cable

Design and product specifications are subject to change without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:
