PR152RKR - Refrigerator PRIMO - Free user manual and instructions

Product type	Refrigerator with freezer compartment
Brand	Primo
Model	PR152RKR
Climate class	SN, N, ST, T (from 10°C to 43°C)
Power supply	220-240 V ~ 50 Hz
Temperature adjustment	Internal thermostat, adjustment from 1 to max
Temperature control	Rotary knob inside
Shelves	Adjustable shelves
Vegetable bin	1 vegetable bin
Bottle rack	Bottle racks
Additional cooling compartment	Compartment for ice cubes and frozen food
Leveling feet	Adjustable feet
Defrost capacity	Manual defrost when ice layer reaches 6 mm
Cleaning	Mild detergent, soft cloth
Child safety	Use under supervision for children aged 8 and above
Warranty	2 years (appliance), 6 months (accessories)
Installation	Free space of at least 10 cm at rear, flat and firm floor
Ambient temperature	10°C to 43°C depending on climate class
Usage	Indoor only, not usable in public transport

Frequently Asked Questions - PR152RKR PRIMO

How to adjust the refrigerator temperature?

Use the control knob located inside. The higher the setting (COLDER), the colder it gets. For first use, set to maximum for 2 hours, then return to the middle position.

What is the minimum distance between the back of the refrigerator and the wall?

Leave at least 10 cm between the back of the appliance and the wall for optimal air circulation.

How to defrost the refrigerator?

Defrost when the ice layer reaches 6 mm. Turn off the appliance, leave the door slightly open, and place a collection tray. Never use sharp objects to remove ice.

What to do in case of a power failure?

Power cuts of 1 to 2 hours generally do not affect temperature. Limit opening the door. For prolonged power failure, protect food with dry ice.

Can I freeze fresh food in this refrigerator?

No, the freezer compartment is intended for storing already frozen food and making ice cubes. It does not allow freezing fresh food.

How to clean the interior of the refrigerator?

Use a mild detergent with a soft cloth. Dry all parts thoroughly. For the exterior, a damp cloth is sufficient.

The refrigerator cycles on too often, what to do?

Check that the door is properly closed, no hot food is placed inside, the door is not opened too often, the voltage is correct, and the appliance is not near a heat source.

What foods can be stored in the door bin?

The door bin is suitable for foods with natural preservatives: jams, juices, drinks, condiments. Avoid placing perishable foods.

How to proceed during long vacations?

Remove all food, unplug the appliance, clean it thoroughly, and leave the door open to prevent mold and bad odors.

The appliance does not work, what to check?

Check the power supply, that the appliance is plugged in, the fuse has not blown, and the voltage is correct. Consult the problem table in the manual.

USER MANUAL PR152RKR PRIMO

Black PRIMO rectangular device with a small handle, shown in studio setting (no visible text or symbols on body)

INSTALLATIE

COLD = 7-10°C NORMAL =

4-7°C COLDER = 0-4°C

INSTALLATION

COLD = 7-10°C NORMAL = 4-7°C COLDER = 0-4°C

ANSCHLUSS

COLD = 7-10°C NORMAL =

4-7°C COLDER = 0-4°C

All of our products are always submitted to a strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

www.primo-elektro.be

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 – 12.00 and 13.00 – 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it. The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
• In case of incorrect connection, e.g., electrical voltage that is too high.
• In case of incorrect, rough or abnormal use.
  • In case of insufficient or incorrect maintenance.
• In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

To ensure safety, you must read this manual thoroughly. This appliance is made for domestic use and should only be used according to the instructions described below.

• This device may be used by children from the age of 8 years and by persons with a physical sensory or mental limitations or lack of experience and knowledge if these persons are supervised have been given supervision or instruction concerning the use of the appliance in a safe manner and that they also know the hazards involved in using the device.
  • Children must not play with the appliance.
• Maintenance and cleaning of the appliance must not be done by children, unless they are older than 8 years of age and are supervised.
• Keep the appliance and cord out of the reach of children under the age of 8.
• If the electrical cord is damaged, it must replaced by the manufacturer, its after-sales service or a similarly qualified person person in order to avoid any accident.
• Caution: the appliance must not be used with an external timer or remote control.
• This device is suitable for use in the household environment and in similar environments such as :
• Kitchen corner for staff of stores, offices and

other similar professional environments.

- Farm houses.

- Hotel and motel rooms and other environments with a residential character.

- Guest rooms, or similar.

- An empty refrigerator can be very dangerous for children. Remove the refrigerator door when not in use. Or take other measures that will make the appliance harmless. Be careful not to damage the refrigeration system.

• After installation, let the appliance stand for 3 hours before turning it on. This will allow the refrigerant to settle.

- WARNING! Never put this unit on or near a gas fire or electric fire or in a place where it could come in contact with a heat source. There are flammable materials on the back of the appliance.

- Pay attention to the “fire hazard - flammable material” symbol located on the back of the appliance.

Install the device in a dry and well ventilated area. The device is intended for use in an area where the ambient temperature falls within the following class, depending on the climate class found on the rating plate on the back of the appliance.

Climate class Ambient temperature
SN Between 10°C and 32°C
N Between 16°C and 32°C
ST Between 18°C and 38°C
T Between 18°C and 43°C

SAVE THIS MANUAL FOR FUTURE REFERENCE

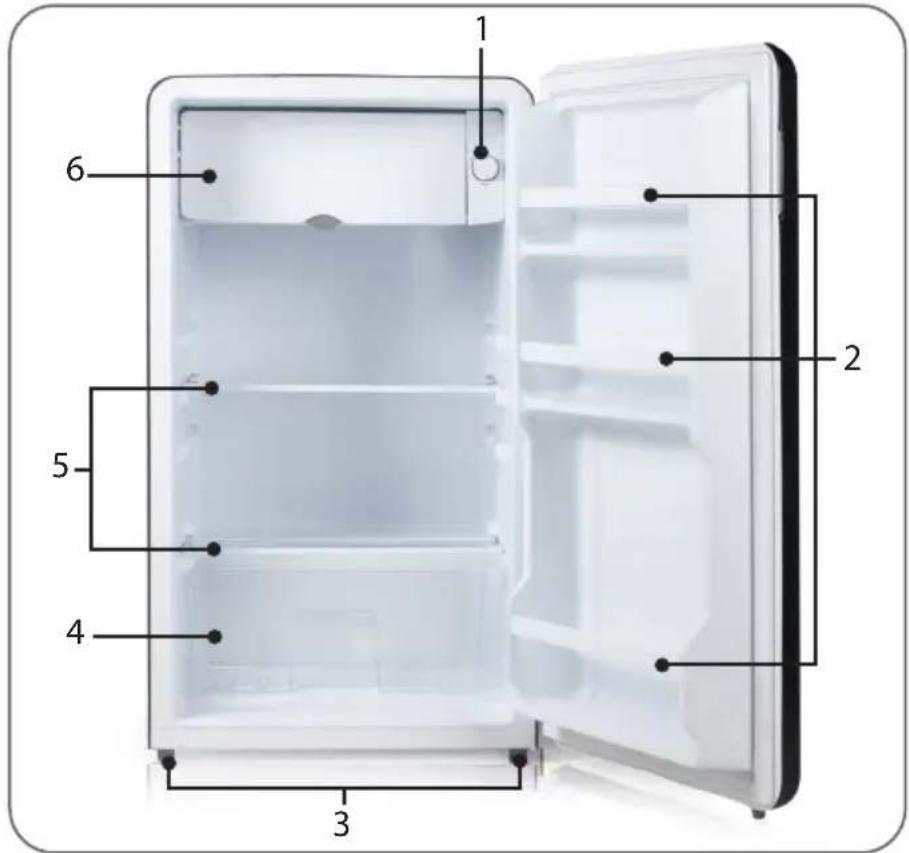

PARTS

1. Temperature control knob
2. Door rack
3. Levelling feet
4. Vegetable container
5. Shelves
6. Extra cooling compartment

INSTALLATION

• Remove all packing material, both inside and outside.
• Clean the outside of the unit with a dry cloth. You can clean the inside with a soft damp cloth.
• Do not place the appliance in a narrow passage, direct sunlight or moisture.
• Make sure that air can circulate freely around the refrigerator. The back of the refrigerator should be at least 10 cm away from the wall.
• Place the refrigerator on a firm, level surface.
• Avoid direct sunlight and heat. Sunlight can damage the outside of the refrigerator. Heat will cause higher consumption.
• Avoid excessive humidity. Too much moisture in the air will cause frost to form too quickly inside your refrigerator.
• You can set the temperature inside the appliance with the thermostat. The higher the setting (COLDER), the harder the refrigerator will cool.

TEMPERATURE CONTROL

The refrigerator is controlled by a temperature controller located inside the appliance. Adjust the controller to the desired position.

COLD = 7-10°C NORMAL = 4-7°C COLDER = 0-4°C

• Operating time and operating temperature are affected by where the fridge is used, the number of times the door is opened and the temperature of the room the fridge is in.
• When you start using the appliance or after defrosting the appliance, set the controller to the coldest setting for at least 2 hours before inserting food and then set to the “NORMAL” setting.

STORAGE GUIDE

For the best storage, set up your refrigerating appliance as follows:

Refrigerator compartment Type of food
Door rack • Food with natural	preservatives such as jams, juices, drinks, spices, etc. • Do not store food with a limited shelf life here
Crisper drawer • Fruits, herbs,	and vegetables • Do not refrigerate bananas, onions, potatoes, or garlic
Lower shelf • Dairy and eggs
Top shelf • Food that does not need to be cooked, such as readymade meals, leftovers, spreads, etc.

A cooler compartment is suitable for storing frozen foods and making ice cubes. It is not suitable for freezing fresh food.

MAINTENANCE AND CLEANING

CLEANING

Wash the shelves with a mild detergent. Then dry all parts thoroughly with a soft dry cloth. Clean the exterior with a soft damp cloth.

DEFROST

You should defrost your appliance when an ice layer of about 6mm begins to form. Defrosting will take several hours. You can speed up the process by removing all frozen parts from your refrigerator and leaving the door ajar for, a short period of time.

Important : close the door before the defrosting process is finished.

Place a water collection tray directly under the cooling zone to catch thaw water.

Note : Never use sharp or pointed objects to remove ice from the refrigerator or freezer compartment. The refrigerator contains refrigerant gas. If the refrigerator is accidentally punctured, the appliance will stop working and the warranty will also be void. Do not operate the appliance when the refrigerator has been perforated.

When the appliance is not used for an extended period, remove the plug from the socket. Leave the door partially open to prevent the formation of mould and foul odours.

Note : If the appliance has been turned off for any reason, wait 2 to 5 min before turning the appliance back on.

HOLIDAY

When going on vacation for a short period of time, you can leave the unit turned on.

If you are going on vacation for a longer period of time, please do the following :

• Remove all food from your refrigerator.
• Unplug the appliance from the electrical outlet.
• Clean the refrigerator thoroughly.
• Leave the refrigerator door open to avoid mold and bad odors.

POWER FAILURE

Most power outages are restored in 1 or 2 hours and will not change the temperature of your refrigerator. You should, however, keep opening the door to a minimum during a power failure.

During a longer power outage, you should take measures to protect the food, e.g. by putting dry ice on your food.

MOVING THE APPLIANCE

Remove the plug from the electrical outlet.

Secure all loose parts inside the refrigerator.

Fully screw in the control feet to avoid damaging the feet.

IMPORTANT RULES

• Never place hot food in the refrigerator.
• Beverages should be kept in a sealed container.
• Food kept in the refrigerator for longer periods of time should be covered or kept in glass containers.
• Never place spoiled food in the refrigerator.

• Always make sure the refrigerator is not overloaded so that food can be adequately cooled.
- Open the refrigerator door only when necessary.
- Appliance must not be used for outdoor camping e.g. tent.
- May only be used indoors.
- Appliance must not be used in public transportation.

FREQUENTLY ASKED QUESTIONS

Problem Solution
The device does not work.	· The appliance is not receiving power, check whether the power supply is OK.· Check that the plug is plugged in.· Check that the correct voltage is used.
The refrigerator cools too frequently.	· Is the door closed properly?· Have you put hot food in the refrigerator, causing the appliance to work harder to cool?· The door has been open too often or too long.· The appliance is receiving the wrong voltage.· The appliance is too close to a heat source or direct sunlight.
The inside temperature of the refrigerator is too hot.	· Check that the refrigerator has power.· Check that the plug is plugged in.· The temperature setting is too low.· The door has been left open too long or too often.· The air supply is blocked.· Check that the appliance is getting the correct voltage.· The unit is too close to a heat source or the sun.

ENVIRONMENTAL GUIDELINES

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

WEBSHOP

Following accessories have 6 months warranty,

and can be easily ordered using the link below.

WWW.PRIMO-ELEKTRO.BE
