USER MANUAL Smooth 1000 WILFA

White and gold kitchen blender with clear glass body and golden handle, no visible text or symbols on the device itself.

SMOOTH 1000

BLENDER BLW-1000

EN · Instruction manual

NO · Bruksanvisning

SE · Bruksanvisning

4 IMPORTANT SAFETY INSTRUCTIONS
5 CAUTION
6 SAFETY PRECAUTIONS FOR YOUR TABLE BLENDER
7 BUILT-IN SAFETY LOCK
7 PRODUCT OVERVIEW
7 BEFORE FIRST USE
7 USING THE APPLIANCE
8 CLEANING
9 GUARANTEE
9 PRODUCT SPECIFICATIONS
9 SUPPORT AND SPARE PARTS
9 RECYCLABILITY

EN

IMPORTANT SAFETY INSTRUCTIONS

• Please read this manual carefully before operation and save it for future reference.
• Never leave the appliance unattended when it is connected to the mains.
• Never immerse the appliance in water.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Is there damage to the device or that it does not work, it must be serviced only by authorized personnel.
• Connect the appliance only to a properly installed wall socket with a voltage matching the technical data of the appliance.
• Do not let the cord hang over edge of the table or counter or touch hot surface.
• The motor must not come into contact with water or any other liquid, as there is the danger of an electric shock. Therefore, do not use the appliance near to a wash Basin, not with wet hands or while standing on a wet ground. If the appliance has turned wet, pull the mains plug immediately out of the socket before touching the appliance.
• Do not use the appliance outdoors.

• This product is intended for household use and not for commercial use.

• Use the appliance only for the purpose it was designed for.

• Do not use appliance, if it or parts of it show visible damage or if the appliance was dropped.
  • Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• Appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
• This appliance shall not be used by children.
• Keep the appliance and its cord out of reach of children.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.

CAUTION

We are very safety conscious when designing and manufacturing consumer products, but it is essential that the product user also exercise care when using an electrical appliance. Listed below are precautions which are essential for the safe use of an electrical

EN

appliance:

• There is a potential injury from misuse. The care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
• To reduce the risk of injury, never place cutter-assembly blades on base without jar properly attached.
• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Be careful is hot liquid is poured into the blender as it can be ejected out of the appliance due to a sudden steaming.

SAFETY PRECAUTIONS FOR YOUR TABLE BLENDER

• Operate the blender with lid closed
• Blades are very sharp. Handle with care.
• Only remove the jar while motor is off.
• Avoid overwork of motor.
• Handle carefully.
• Never place your hands into the jar while the motor is on.
• Avoid contact with moving parts.

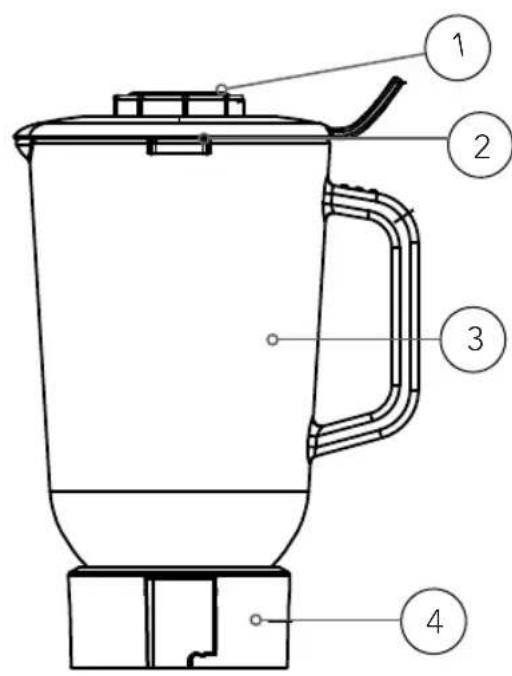

PRODUCT OVERVIEW

Technical diagram of a blender with numbered parts labeled 1 to 4

Line drawing of a washing machine with a circular button and numbered label (no text or symbols beyond the number)

1. Measuring cup
2. Lid
3. Jug
4. Jug base

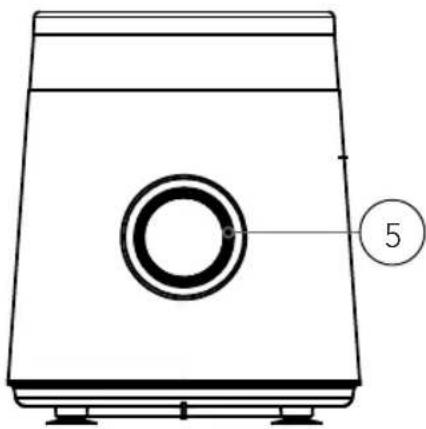

5. Knob

BUILT-IN SAFETY LOCK

This function ensures that user can only switch the appliance on when the accessories have been placed on the unit in correct position. When the accessories have been fixed properly, the unit can be switched on.

Note that the blender has a protection device: The thermostat will be activated when the motor is overheated.

BEFORE FIRST USE

Clean the unit and parts thoroughly before you use the appliance for the first time.

USING THE APPLIANCE

• There is a jar sensor on the blender base. When blender jar is placed on the unit, all the functions can be selected.
  • Make sure the indicator is set to OFF.
• Put the desired ingredients into the jug.
• Mount the lid onto the jug and insert the lid cap.
• Select speed by turning the knob clockwise.
• Pulse: Turn the knob anti clockwise to P and hold for as long as needed.

Note: It is recommended to cut food into smaller pieces before putting them in the jar. Do not operate with large quantities of food at one time.

EN

INSTRUCTION MANUAL · SMOOTH 1000

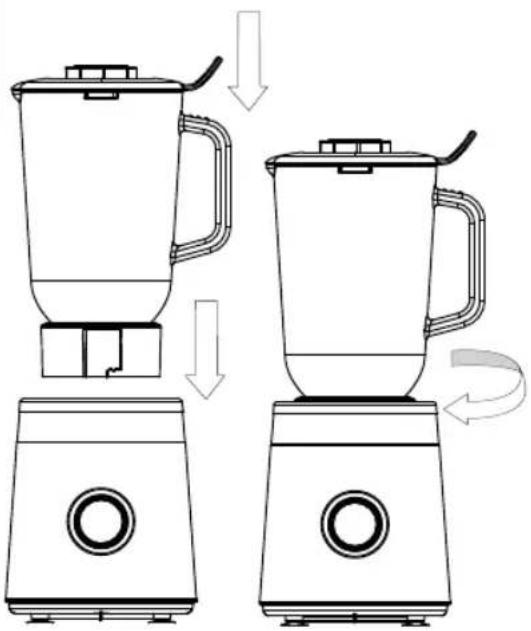

Line drawing of a kitchen blender with two variants of the blade, showing step-by-step assembly (no text or symbols)

CLEANING

Note: Always clean the removable parts immediately after use.

Note: Be careful when cleaning the parts. Avoid touching the sharp blades!

• Disconnect the power from main supply.
• Disassemble all removable parts before cleaning.
• Clean all removable parts in lukewarm water with dishwashing liquid.
• The blender jug can be rinsed with water. It can also be cleaned by pouring warm water into the jug with a few drops of dishwashing liquid, and pulse until it looks clean. Pour out the water, rinse and dry with a soft cloth.
• Use dry cloth to clean the main body.

PRODUCT SPECIFICATIONS

220-240V\~50/60Hz, 1000 W

SUPPORT AND SPARE PARTS

For support please visit us at wilfa.com, and see our customer service/support page. Here you will find frequently asked questions, spare parts, tips and tricks and all our contact information.

BEYOND EXPECTATIONS 5 SINCE 1948 YEAR GUARANTEE

EN

RECYCLABILITY

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling free of charge.

GUARANTEE

Wilfa issues a 5 year guarantee on this product from the day of purchase is done. The guarantee covers production failure or defects that arise during the guarantee period. Your purchase receipt works as proof towards retailer if claiming your guarantee.

The guarantee is valid only for products that are bought and used in private households. The guarantee is not valid if the product is used commercially. The guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modified or if unauthorized reparation is done. The guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

• Overloading of product
- Damage on glass
- Parts which are normally worn down

NO

NO

INNHOLD

11 VIKTIGE SIKKERHETSINSTRUKSJONER
13 FORSIKTIG
14 FORHOLDSREGLER FOR BLENDEREN
15 INNEBYGD SIKKERHETSLÅS
15 PRODUKTOVERSIKT
15 F∅R F∅RSTE GANGS BRUK
15 BRUK
16 RENGJ∅RING
17 GARANTI
17 PRODUKTSPESIFIKASJONER
17 SUPPORT OG RESERVEDELER
17 GJENVINNING

NO

VIKTIGE SIKKERHETSINSTRUKSJONER

Technical diagram of a blender with numbered parts labeled 1 to 4

5

1. Målebeger
2. Lokk
3. Kanne
4. Knivenhetsadapter

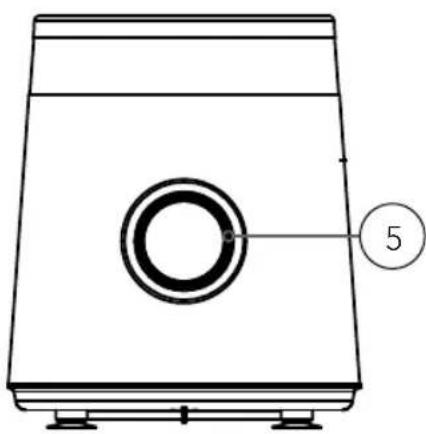

5. Knapp

INNEBYGD SIKKERHETSLÅS

Line drawing of a kitchen blender with two variants and a side panel, showing step-by-step assembly (no text or symbols)

RENGJ∅RING

Technical diagram of a blender with numbered parts labeled 1 to 4

Line drawing of a washing machine casing with a circular vent and labeled part (5), no text or symbols present.

Line drawing of a blender with two variants of a side panel, showing step-by-step assembly (no text or symbols)

RENGÖRNING

Technical diagram of a blender with numbered parts labeled 1 to 4

Technical line drawing of a washing machine casing with a circular component and numbered label (no text or symbols beyond the number)

1. Målekop
2. Låg
   3.Kande
3. Kandebund
4. Kontrolpanel

INDBYGGET SIKKERHEDSLÅS

Line drawing of a kitchen blender with two variants and a side panel, showing step-by-step assembly (no text or symbols)

RENG∅RING

Technical diagram of a blender with numbered parts labeled 1 to 4

Line drawing of a washing machine with a circular button and numbered label (no text or symbols beyond the number)

Technical diagram of a blender with numbered parts labeled 1 to 4

DE

Technical line drawing of a washing machine casing with a circular component and numbered label (no text or symbols beyond the number)

Line drawing of a blender with two variants of a side panel, showing step-by-step assembly (no text or symbols)

Technical diagram of a blender with numbered parts labeled 1 to 4

NL

Line drawing of a washing machine casing with a circular button and numbered label (no text or symbols beyond the number)

Line drawing of a kitchen blender with two variants and a side panel, showing step-by-step assembly (no text or symbols)

Line drawing of a washing machine casing with a circular button and numbered label (no text or symbols beyond the number)

WBUDOWANA BLOKADA BEZPIECZEŃSTWA

Line drawing of a blender with two variants of a side panel, showing step-by-step assembly and rotation (no text or symbols)

CZYSZCZENIE

Technical diagram of a blender with numbered parts labeled 1 to 4

5

Line drawing of a blender with two variants of a side panel, showing step-by-step assembly (no text or symbols)

CARACTÉRISTIQUES DU PRODUIT

220-240V\~50/60Hz, 1000 W

ASSISTANCE ET PIÈCES DÉ- TACHÉES

Technical diagram of a blender with numbered parts labeled 1 to 4

Line drawing of a washing machine with a circular button and numbered label (5), no text or symbols present.

Line drawing of a blender with two variants of a blender, showing step-by-step assembly (no text or symbols)

SPECIFICHE DEL PRODOTTO

220-240V\~50/60Hz, 1000 W

ASSISTENZA E RICAMBI

Technical diagram of a blender with numbered parts labeled 1 to 4

VISTA GENERAL DEL PRODUCTO

Line drawing of a washing machine with a circular button and base mount (no text or symbols)

Line drawing of a kitchen blender with two variants and a side panel, showing step-by-step assembly (no text or symbols)

LIMPIEZA
