USER MANUAL Mk5 Universal Whale

INSTALLATION & USER INSTRUCTIONS

Thank you for purchasing this Whale® product.

For over 40 years Whale® has led the way in the design and manufacturer of freshwater and waste systems including:- plumbing, faucets, showers and pumps for low voltage applications. The company and its products have built a reputation for quality, reliability and innovation backed up by excellent customer service.

For information on our full product range visit: www.whalepumps.com

Please read carefully before installation and use.

To the Fitter:

Check that the product is suitable for the intended application. Follow these installation instructions and ensure all relevant personnel read the points listed below. Also ensure that these operating instructions are passed on to the end user. The manufacturer cannot be held responsible for claims arising from incorrect installation, unauthorised modification or misuse of the product.

To the User:

Read the points listed below before installation.

1. PRINCIPLES OF OPERATION

This pump is designed to manually remove standing water that is in the bilge of a boat.

2. APPLICATION

• This bilge pump is designed to exhaust standing water only.
• Output capacity depends on installation conditions and pumping rate.
• Users should be aware that capacity may not be sufficient to cope with a rapid influx of water.
• If it is intended to use it with any other liquid, it is the user's responsibility to ensure that the materials are fully compatible with the liquids to be used.
• A system of safe working practice should be applied to the installation, use and maintenance.

3. WARNINGS

Please note that the incorrect installation of this product may invalidate the warranty.

4. PARTS LIST

Whale® Mk 5 Universal pump, handle, lanyard and installation instructions.

5. OPTIONAL EXTRAS

Skin Fitting for 38mm (1 ½") Hose SF5425

Top Entry Strainer SB4222

Side Entry Strainer SB5865

2 Way Diverter Valve for 38mm (1 ½") hose DV5606

90° Elbow EB3488

Y Piece YP6114

Non-Return Valve LV1215

Underdeck and Through Bulkhead Mounting Kit (DP9906)

Follow the instructions enclosed with the deck plate kit.

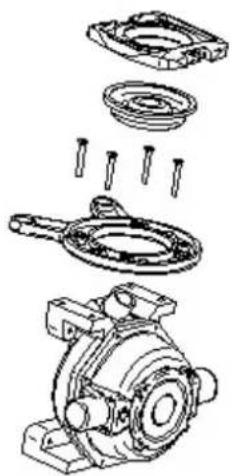

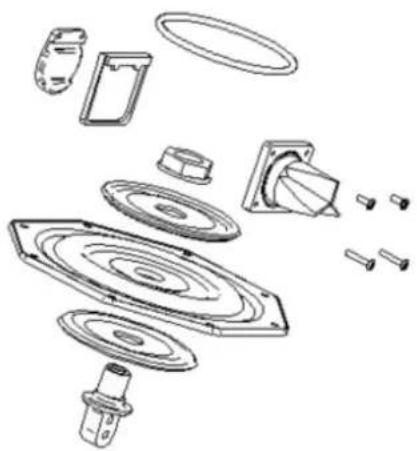

To Change the Diaphragmn and Valves (Service Kit AK8050)

Follow the instructions enclosed with the service kit.

Exploded view diagram of a mechanical assembly showing components like gears, springs, and housing (no text or labels)

Exploded view diagram of a mechanical assembly showing exploded views of components like gears, housing, and parts (no text or labels)

6. INSTALLATION

Before mounting the pump the following points should be considered.

Select a suitable position where the pump can be operated efficiently and comfortably, allowing unrestricted movement of the handle.

1. The top cover should be readily accessible in case of the pump choking.
2. The outlet valve can be replaced without removing the pump body.
3. The pump will work in any part of the boat, and the flow direction can be changed to increase the options available. To change the flow direction, remove the 8 screws holding on the cover, adjust, and re-assemble the pump as required. The valves should not be removed from the body during this operation.
4. The suction inlet should be in the deepest part of the bilge. This pipe should be arranged so that it will not suck against any flat surface, a Whale strainer is available for this purpose, and will help to clear the last drop of water.
5. Check all fittings are of uniform bore, a restricted inlet makes pumping difficult, and a restricted outlet can cause choking.
6. It is recommended that 38mm (1½") reinforced hose should be used for the installation.
7. It is recommended that the pump handle is stowed convenient to the pump.

Installing the Pump

1. Mark off and drill the 4 holes for the mounting bolts, and mount the pump using 6mm (1/4") bolts.

2. Attach 38mm (1½") reinforced hose to the inlet and outlet ports, making sure that an airtight seal is made.

3. The outlet pipe should be terminated at a skin fitting, well above the water line, incorporating an anti-syphon loop.

4. Test the installation for air leaks, correct priming and discharge.

7. MAINTENANCE

A planned maintenance schedule of regular inspection is recommended. Rubber components are perishable and susceptible to damage over time. Spares kits are available from marine retailers.

During periodic shipboard inspections, the bilge pump must be visually inspected to confirm parts are in good condition, especially rubber parts and mounting arrangements. The pump should then be operated to show that it pumps water efficiently.

8. TROUBLE SHOOTING

If the pump fails to prime or chokes

1. Check for air leaks or blockages in the inlet hose, and its connections to the pump.
2. Remove the inspection cover and check for a torn diaphragm or dirt under the valves. Also check for distorted valves.
3. Check that the inlet hose is not collapsing under the suction of the pump or sucking against a flat surface.
4. The correct installation of the components supplied in this kit.

9. WINTERISING

If water is allowed to freeze in the system, serious damage to the pump and pipe work may occur. To avoid this damage, completely drain the water system during low temperatures.

10. SERVICE SUPPORT DETAILS

For installation or service advice please contact Whale® customer support:

Tel: [phone]

Email: [e-mail]

www.whalepumps.com

USA Tel: [phone]

Email USA: [e-mail]

www.whalepumps.com

11. STANDARDS APPLIED

Whale manual bilge pumps are manufactured to International Standard EN ISO 15083.

12. PATENTS AND TRADEMARKS

WHALE®, is a registered trademark of Munster Simms Engineering Limited, Bangor Northern Ireland trading as Whale.

13. WARRANTY

This Whale® product is covered by a 5 year warranty.

Please see the enclosed document for details of our statement of limited warranty.

©Copyright Whale 2016 - All rights reserved.

WHALE®, is a registered trademark of Munster Simms Engineering Limited, Bangor Northern Ireland trading as Whale. Whale's policy is one of continuous improvement and we reserve the right to change specifications without prior notice. Illustrations are for guidance purposes only.

Neither the accuracy nor completeness of the information contained in any product brochure is guaranteed by the Company and may be subject to change at its sole discretion.

Please note that by contacting Whale Support you will be indicating your consent to receiving product updates, recall information, help guides and appropriate marketing messages from us via post, email or telephone unless you indicated an objection to receiving such messages.
