Product Type	Docking Station
Brand	Samsung
Model	DA-F560
Dimensions (W x D x H)	462.7 x 151.8 x 122.3 mm
Weight	1.6 kg
Power Supply	DC 14V 2.5A AC adapter
Output Power	10 W per channel (4 ohms, THD 10%, 1 kHz)
Input Sensitivity	1 V / 20 kOhms
Signal-to-Noise Ratio	65 dB (analog input)
Separation	60 dB (1 kHz)
Supported Audio Formats	MP3, WMA
Connectivity	Bluetooth, NFC, Galaxy Dock (5-pin), USB, AUX Input
Functions	Play/Pause, Volume control, Mute, Bass, Remote control
Operating Temperature	+5°C to +35°C
Operating Humidity	10% to 75%
Included Accessories	Remote control, AC adapter, rubber pads, rubber cap, cloth, user guide

Frequently Asked Questions - DA-F560 SAMSUNG

How to connect my Galaxy device to the dock?

Select the Docking mode by pressing the F button until the corresponding icon appears, then connect your Galaxy device to the Galaxy Dock located on the front. Make sure your device is on and compatible (Android 4.1.2 or later).

How to use the NFC function?

Activate NFC on your device, disable screen lock, then gently touch the top of the front panel of the station with your device. Follow the on-screen instructions to confirm the Bluetooth connection.

How to connect a Bluetooth device?

Press the F button to select Bluetooth mode (✗ icon). Hold down the F button for 3 seconds to enter pairing mode. Search for "[Samsung] W_Audio" in your device's Bluetooth list, then connect. The default PIN is 0000 if required.

What to do if the remote control does not work?

Check that the 3V lithium battery is correctly installed with the + polarity facing up. Replace it if necessary. Make sure the distance between the remote control and the sensor does not exceed 7 meters and the angle is less than 30°.

Can I charge my phone via the USB port?

No, the USB port on the rear is intended only for playing music files from a USB flash drive. It does not support device charging.

How to update the station's software?

Download the latest firmware from www.samsung.com. Copy the extracted files to the root of a USB drive formatted in FAT16 or FAT32. Insert the drive into the USB port in USB mode (☑ icon). The update proceeds automatically; do not turn off the power.

No sound comes out of the station, what should I check?

Check that the power cord is plugged in, the volume is not at minimum, the Mute function is off, and the source device is properly connected (Galaxy Dock, Bluetooth, AUX or USB).

How to clean the docking station?

Use a soft, dry cloth to wipe the device. Do not use chemicals or liquids. Do not allow moisture to enter the device.

What file formats and file systems are supported via USB?

USB drives must be formatted in FAT16 or FAT32. Supported music files are MP3 (80-320 kbit/s, 44.1 kHz) and WMA (56-128 kbit/s, 44.1 kHz).

Can I use a protective case on my Galaxy?

Yes, if the case thickness is less than or equal to 1.5 mm. In this case, remove the rubber cap attached to the dock. If the thickness exceeds 1.5 mm or the case has a special shape, use is not possible.

USER MANUAL DA-F560 SAMSUNG

Wireless Audio with Dock user manual

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more a complete service, please register your product at

www.samsung.com/register

NFC support

Connect your NFC compatible device via Bluetooth to the Wireless Audio with Dock using this simple set-up procedure and play music on the device through the Wireless Audio with Dock.

Galaxy Docking Audio Speaker System

Using the system's docking station, dock, charge and then play some Samsung Galaxy devices released after S3(Android OS 4.1.2 or later) through the system's built-in speakers.

Safety WarninGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION riSK Of eLeCtriC SHOCK DO nOt OPen

This symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury.

This symbol indicates important instructions accompanying the product.

WARNING : To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

• This apparatus shall always be connected to a AC outlet with a protective grounding connection.
• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.

CAUTION

• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the apparatus.
• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times.

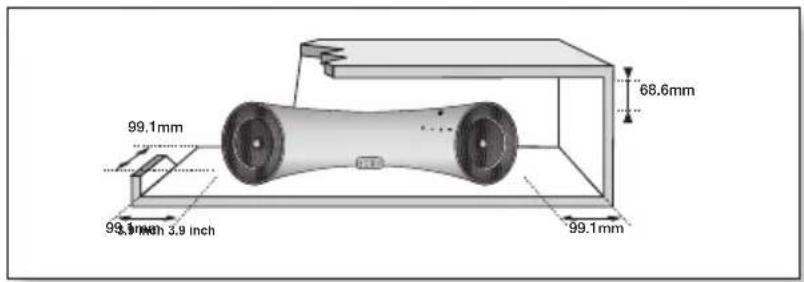

99.1mm 99.1mm 3.9 inch 68.6mm 99.1mm 99.1mm

Ensure that the AC power supply in your house complies with the power requirements listed on the identification sticker located on the back of your product. Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (70\~100 mm). Make sure the ventilation slots are not covered. Do not place the unit on amplifiers or other equipment which may become hot. This unit is designed for continuous use. To fully turn off the unit, disconnect the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long period of time.

Illustration of a cartoon-style electric scooter on a platform with a window and lightning bolt (no text or symbols)

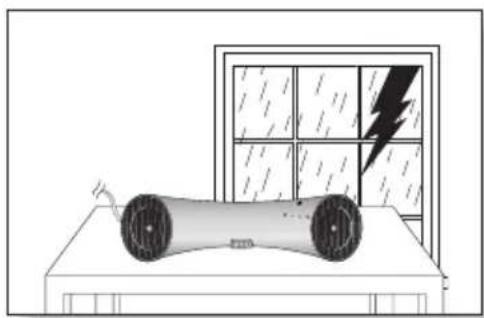

During thunderstorms, disconnect the AC plug from the wall outlet. Voltage peaks due to lightning could damage the unit.

Simple line drawing of a room with two cylindrical objects and a cross symbol, no text or labels present.

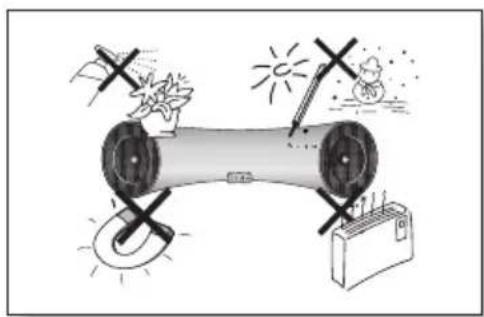

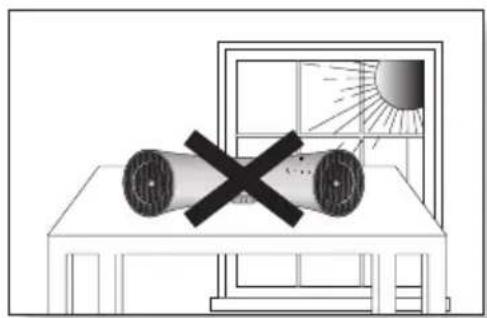

Do not expose the unit to direct sunlight or other heat sources.

This could cause the unit to overheat and malfunction.

Illustration of a mechanical device with warning symbols and electrical components (no text or labels)

Protect the product from moisture (i.e. vases), and excess heat (e.g. fireplaces) or equipment creating strong magnetic or electric fields Disconnect the power cable from the AC supply if the unit malfunctions. Your product is not intended for industrial use. This product is for personal use only.

Condensation may occur if your product has been stored in cold temperatures. If transporting the unit during the winter, wait approximately 2 hours until the unit has reached room temperature before using.

Diagram showing a trash bin with a circular object and a crossed-out X symbol, indicating a process or disposal scenario.

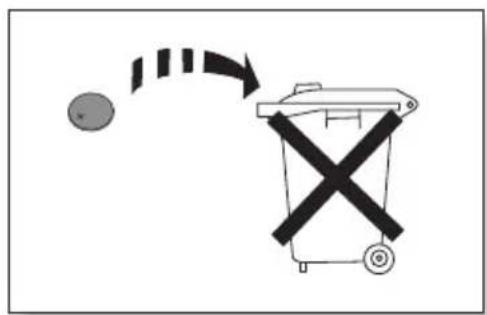

The batteries used with this product contain chemicals that are harmful to the environment.

Do not dispose of batteries in the general household trash.

FEATURES

SAFETY INFORMATION

GETTING STARTED

DESCRIPTIONS

REMOTE CONTROL

POWER ON AND VOLUME CONTROL

CONNECTIONS

FUNCTIONS

TROUBLESHOOTING

APPENDIX

2 Features

3 Safety warnings

4 Precautions

6 Before reading the user's manual

6 What's included

7 Front/Rear Panel

9 Tour of the remote control

10 Turning the Power on/off

10 Adjusting the volume

11 Using Rubber

12 Connecting a device to the Galaxy Dock

13 Connecting an audio device using AUX IN

14 Connecting the NFC function

15 Using Bluetooth

17 Using the docking mode with Samsung Galaxy Devices

18 Using the Bluetooth mode

19 Using the USB mode

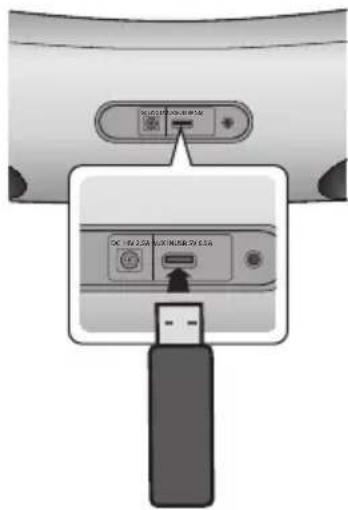

20 Software upgrade (only USB mode)

21 Troubleshooting

22 Specifications

getting started

BEFORE READING THE USER'S MANUAL

Note the following terms before reading the user manual.

Icons used in this manual

Icon Term Definition
	Caution	Indicates a situation where a function does not operate or settings may be canceled.
	Note	Indicates tips or instructions on the page that help a function operate.

Safety Instructions and Troubleshooting

1) Familiarise yourself with the Safety Instructions before using this product. (See page 3)
2) If a problem occurs, check Troubleshooting. (See page 21)

Copyright

©2013 Samsung Electronics Co., Ltd.

All rights reserved; no part or whole of this user's manual may be reproduced or copied without the prior written permission of Samsung Electronics Co., Ltd.

WHAT'S INCLUDED

Check for the supplied accessories shown below.

Illustration of a remote control with buttons and a button (no text or symbols)

Remote Control / Lithium Battery (3V)

Simple line drawing of a rectangular device connected to a coiled cable with a connector (no text or symbols)

Power Adapter Power Cable USB Cable

(Rubber-Support: 2EA)

(Rubber-Skin)

USER'S GUIDE

Rubber-Support / Rubber-Skin Cloth User Manual

The appearance of the accessories may differ slightly from the illustrations above.

descriptions

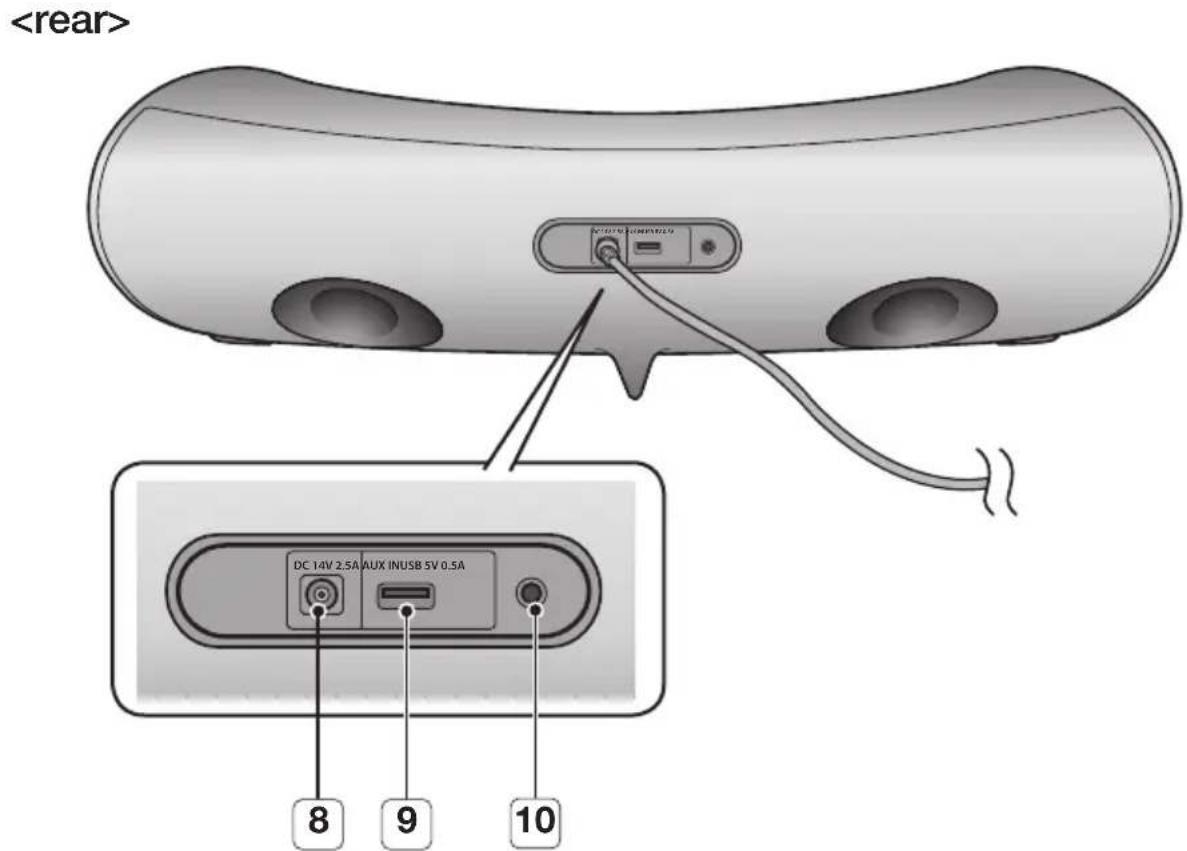

frOnt/rear PaneL

DC 14V 2.5A AUX INUSB 5V 0.5A 8 9 10

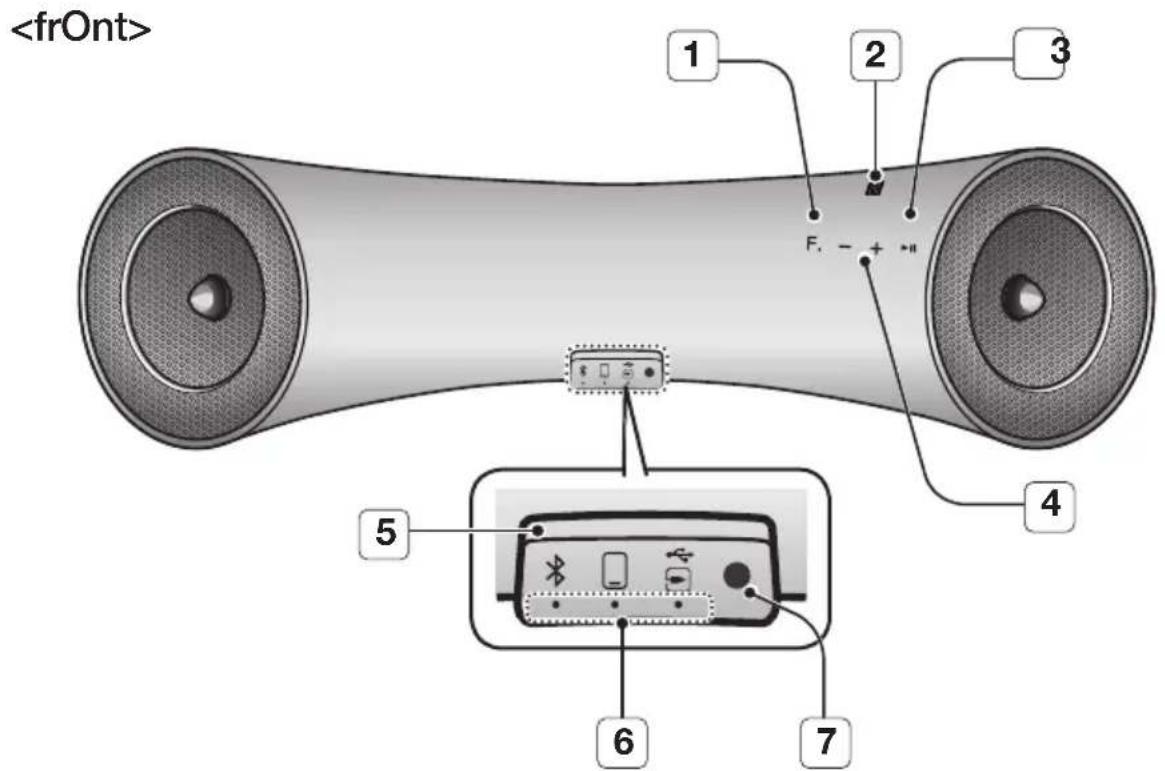

1	FUNCTION	Switches the mode as follows: → ↗→
2	NFC TAG	Connect your NFC compatible device via Bluetooth to the using this simple set-up procedure.
3	PLAY/PAUSE	Play or pause a music file.
4	VOLUME -/+	Controls the volume level.
5	GALAXY DOCK	Provides a 5-pin dock for Samsung Galaxy devices.
6	FUCTION LED	The function LED turns on when the power of the unit turned on.
7	REMOTE CONTROL SENSOR	The remote control sensor which receives signals from the remote control.
8	DC 14V	Connect the unit's DC adapter to this jack.

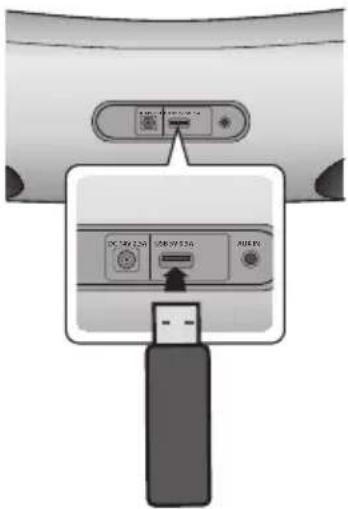

9	USB PORT	Connect a regular stick type USB storage device such as a thumb drive to play files stored in the device.
10	AUX IN	Connect to the Analog output of an external device.

- When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

This unit can connect to mobile devices with high audio output levels. When you connect this unit to external devices with high output levels, it may lower the audio output to protect the amp and speakers.

- When disconnecting the power cable from the wall outlet, hold the plug. Do not pull the cable.

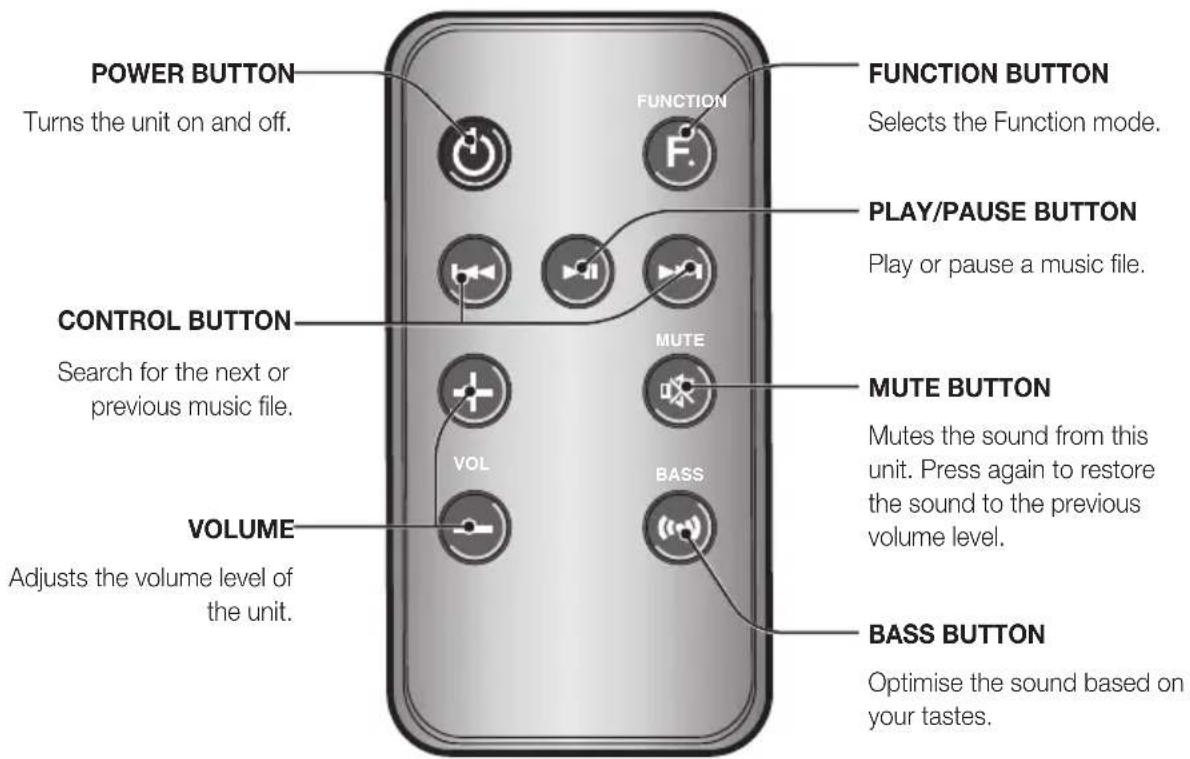

tOUr Of tHe reMOte COntrOL

POWER BUTTON Turns the unit on and off. FUNCTION BUTTON Selects the Function mode. PLAY/PAUSE BUTTON Play or pause a music file. CONTROL BUTTON Search for the next or previous music file. MUTE BUTTON Mutes the sound from this unit. Press again to restore the sound to the previous volume level. VOLUME Adjusts the volume level of the unit. BASS BUTTON Optimise the sound based on your tastes.

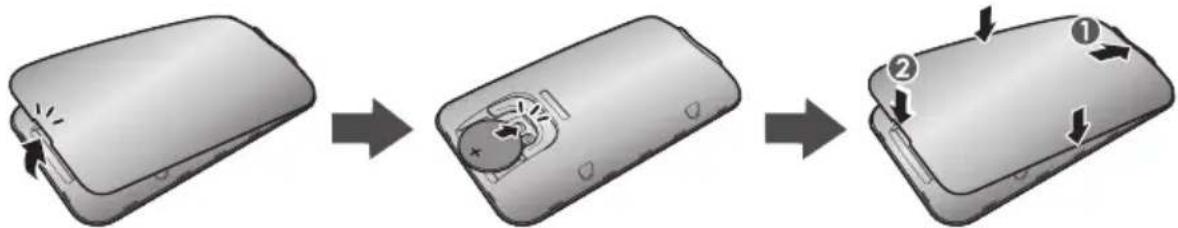

Installing battery in the Remote Control

1. Open the cover of the remote control by putting your fingernail into the gap between the cover and body of the remote control. Then, lift the cover and separate it completely.
2. Install a 3V Lithium battery. Insert the battery into the battery compartment with the + side facing up.
3. Fit the remote control's cover to the remote control. Next, lower the cover so that it is flush with the body of the remote, and then press the cover into the body by pushing the edges down with your hand.

- Be careful not to catch your fingernail in the gap when you lift the cover. You can damage your fingernail.

Operation Range of the Remote Control

You can use the remote control up to 7 meters in a straight line from the unit. You can also operate the remote at a horizontal angle of up to 30° from the remote control sensor.

power on and volume control

1. To turn on this unit, touch any button on the unit's front panel when the unit is in Standby mode.

or,

Press POWER on the remote control.

1. To turn off this unit, touch the ▶II button on the unit's front panel for more than 3 seconds.

or,

Press POWER on the remote control again.

The function LED is off when AC Plug is connected to the wall outlet and the Power of the unit is off. The function LED is on when the power of the unit is on.

The unit turns off automatically in the following situations: - BT/Dock mode : If there is not connected for about 25 minutes. - USB mode : If there is no audio signal for about 25 minutes. - AUX mode : If no KEY input is entered for 8 hours when the cable is connected.

ADJUSTING THE VOLUME

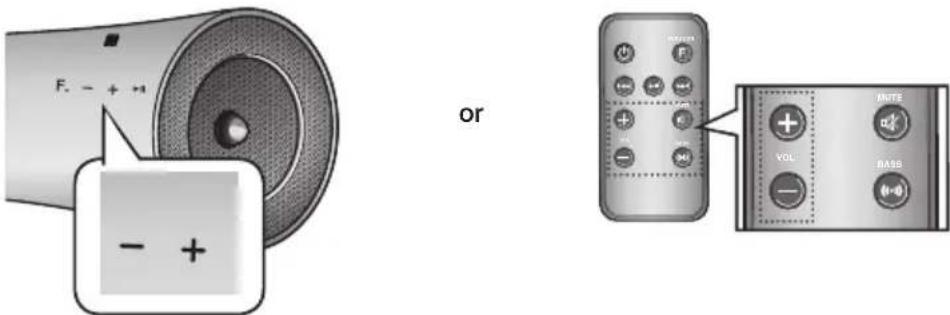

Use +, - buttons to adjust the volume. As you adjust the volume, the Input mode LED blinks.

The LED remains on in case you increase the volume when it has already been set to maximum, or decrease the volume when it has already been set to minimum.

Touch the +/- button on the right side of the front panel.

or,

Press VOL +/- on the remote control.

- The volume level increases or decreases when you press VOL +/-. - You can also use the volume controls of devices connected using the Galaxy Dock or Bluetooth to control the volume. However, your ability to control the volume using the volume controls of devices connected using Bluetooth may be limited.

English10

USinG rUBBer

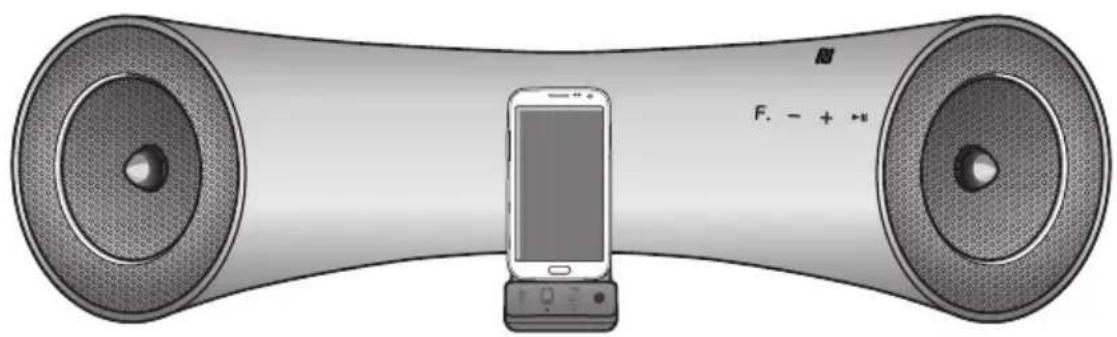

Attach the Rubber to avoid direct contact with this set when you hold Samsung Galaxy Device.

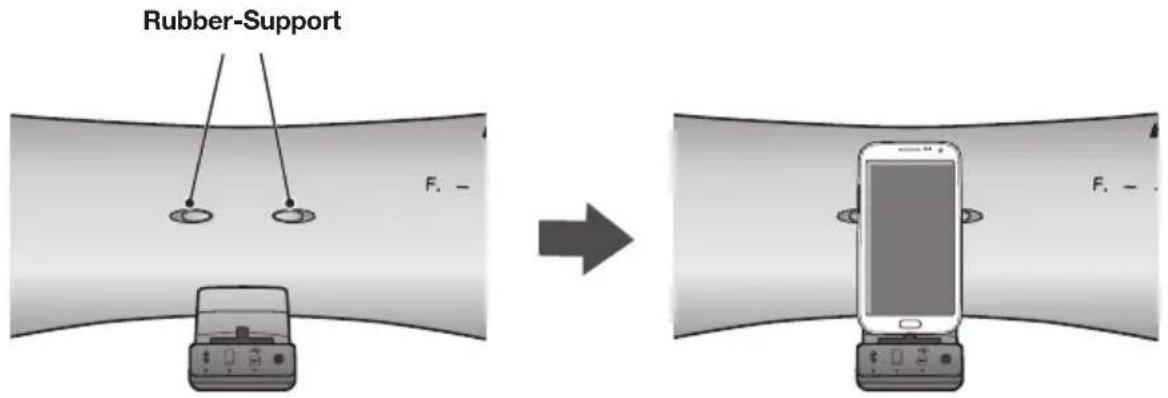

RUBBER-SUPPORT

1. Attach the Rubber to the proper place considering the size of the device which you want to use.
2. After attaching the Rubber-Support, dock your device on the Galaxy dock.

Rubber-Support F. -

RUBBER-SKIN

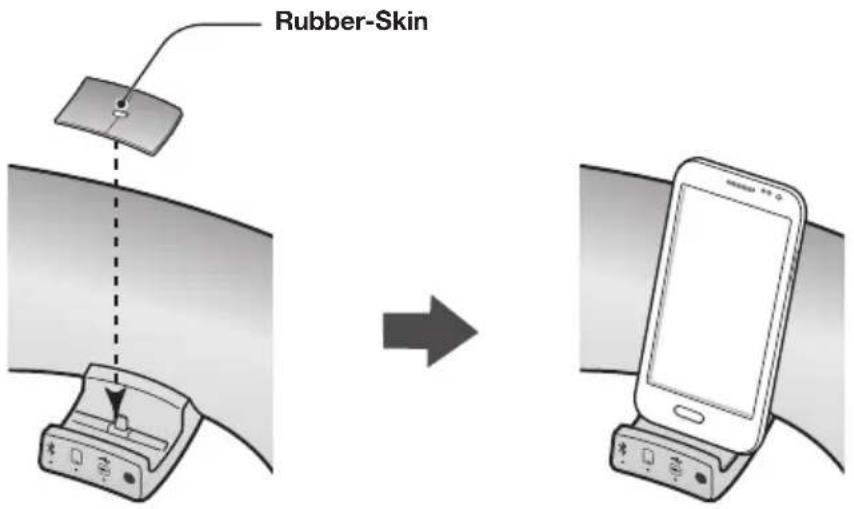

1. Cover the Rubber-Skin on the Galaxy dock.

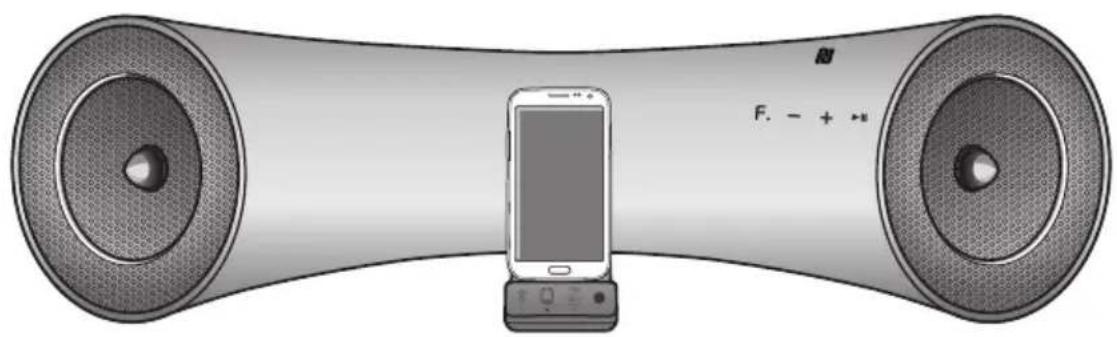

2. After covering the Rubber-Skin on the Galaxy dock, dock your device on the Galaxy dock.

Rubber-Skin

Use the product after removing the Rubber-Skin attached to the product if you have the protection case for your device.
- You can use this product only when the thickness of the protection case is under 1.5mm when you attach the Spacer cover to your device. It is impossible to use this product when the thickness of the protection case is over 1.5mm or has special shape with round.

How to connect a device to the Galaxy Dock.

F. - + F.

F. - + *

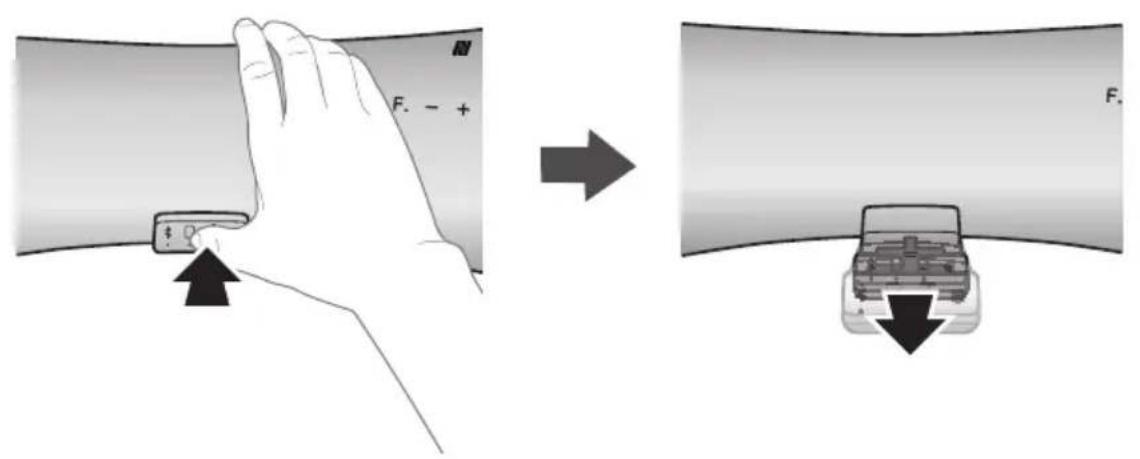

1. The GALAXY DOCK is located on the front of the product. To open, push it in gently.

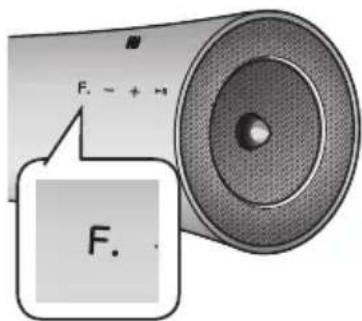

2. Touch the F. button on the front panel of the Wireless Audio with Dock repeatedly until the icon appears in the display.

• Each time you press the button, the selection changes as follows: → * →

1. Connect your Samsung Galaxy device to the Galaxy Dock Connector.

■ Turn on your Samsung Galaxy device before you docking it to the Galaxy Dock.

■ Connect your Samsung Galaxy device to the Galaxy Dock before starting Docking mode. (See page 17)

This section explains how to connect the unit to an audio device.

This unit requires one analog audio jack for connecting to an audio device.

DC 14V 2.5A AUX INUSB SV 8.5A Aux IN AudioCable (not supplied) Earphones jack ExternalDevice

AUxIN

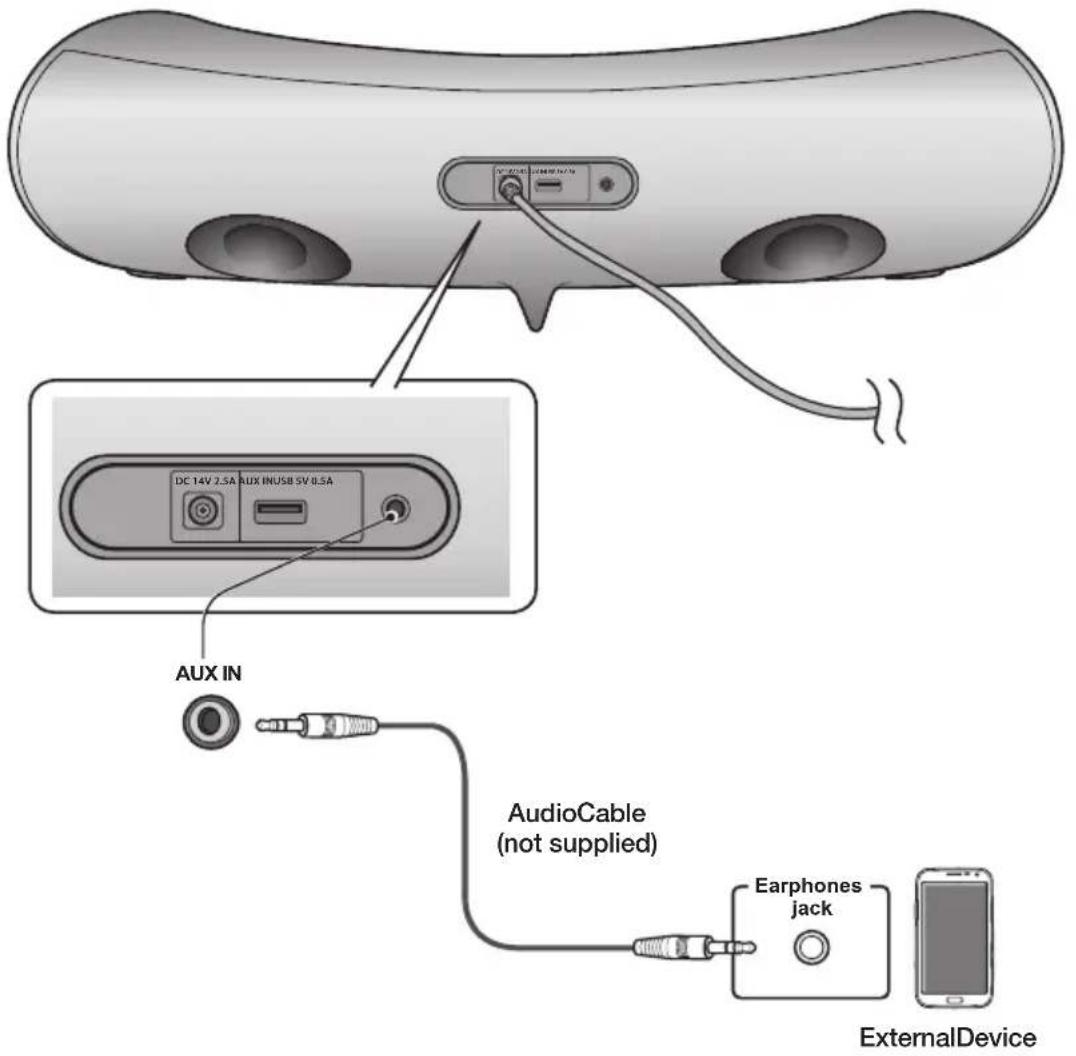

1. Connect AUX IN (Audio) on the back of the unit to the earphone jack of the external device or audio device.
2. Touch the F. button on the Wireless Audio with Dock to select the icon.

Before moving or installing this product, be sure to turn off the power and disconnect the power cord.

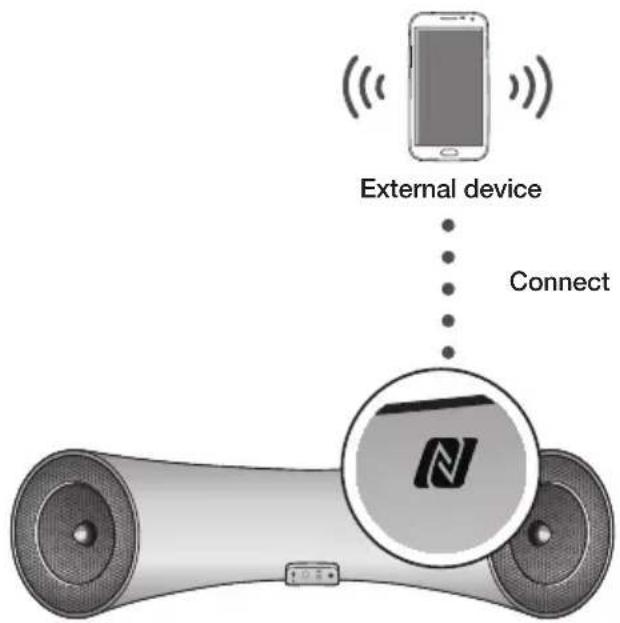

CONNECTING THE NFC FUNCTION

Connect your NFC compatible device via Bluetooth to the Wireless Audio with Dock using this simple set-up procedure and play music on the device through the Wireless Audio with Dock.

External device Connect

1. Turn on the NFC function on the device and make sure the screen lock function on the device is off. The device's NFC function will not work if screen lock is on.

2. Gently touch the top of the Wireless Audio with Dock's front panel with the NFC supported device.

• If the Wireless Audio with Dock is off, it will turn on automatically.

1. A pop-up asking whether to proceed with the Bluetooth connection appears on the device. Select .

- When the connection is complete, the 'connected' message appears.

1. To disconnect the NFC device, touch the device to the Wireless Audio with Dock's front panel again. To connect another NFC device while the first device is still connected, touch that device to the Wireless Audio with Dock's front panel. The Wireless Audio with Dock will disconnect the first device and connect to the second device.

The NFC function is built into Android devices running Android OS 4.1.2 Jellybean or later.

- If your device is running an Android OS earlier than Android OS 4.1.2 Jellybean, you must download the 'Samsung NFC Connection' application from Android market to use the NFC function.

The position of the NFC antenna differs on devices. Check where the NFC antenna is located before connecting.

If your device is covered with a thick case, the connection may not succeed.

For further details on NFC tag location of an external device, refer to the manual of the device.

If you attempt NFC tagging while the main unit is turned off, it automatically turns on but no NFC pairing is established. Try NFC tagging again about 5 seconds after the unit turns on.

The N-Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries.

■ To use NFC function, enable NFC read/write setting of the corresponding device before pairing.

If NFC pairing failed to establish Bluetooth connection, try again.

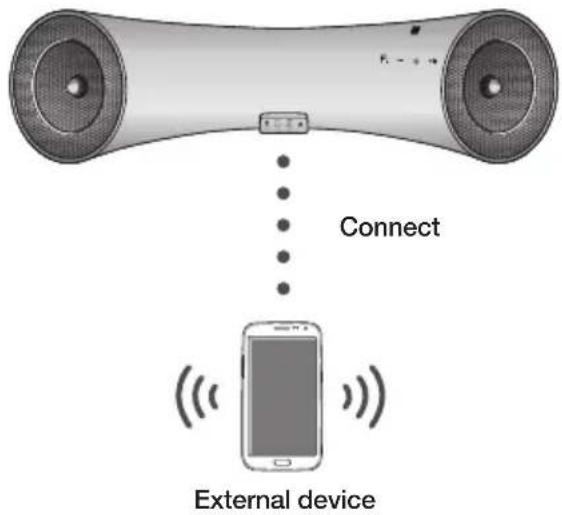

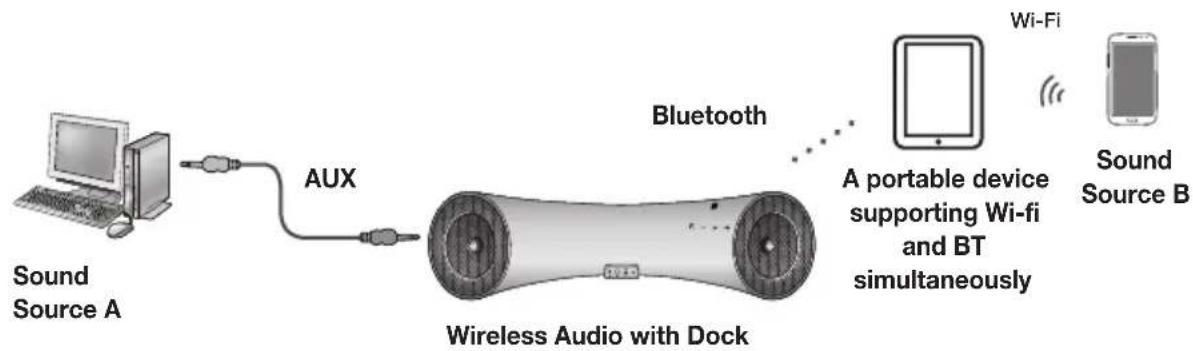

You can connect the Wireless Audio with Dock to Bluetooth devices and enjoy music with high quality stereo sound, all without wires!

What is bluetooth?

Bluetooth technology lets Bluetooth-compliant devices interconnect easily with each other using a short wireless connection.

- A Bluetooth device may cause noise or malfunction, depending on usage, when:

• A part of your body is in contact with the receiving/transmitting system of the Bluetooth device or the Wireless Audio with Dock.
• It is subject to electrical variation from obstructions caused by a wall, corner, or by office partitioning.

• It is exposed to electrical interference from same frequency-band devices including medical equipment, microwave ovens, and wireless LANs.

• Keep the Wireless Audio with Dock and the Bluetooth device close together when pairing.

• The further the distance between the Wireless Audio with Dock and Bluetooth device, the worse the quality. If the distance exceeds the Bluetooth operational range, the connection is lost.
  • In poor reception-sensitivity areas, the Bluetooth connection may not work properly.
• The Bluetooth connection only works when the Bluetooth device is close to the set. The connection is automatically cut off if the Bluetooth device moves out of range. Even within range, the sound quality may be degraded by obstacles such as walls or doors.
  • This wireless device may cause electric interference during its operation.

• You may be required to enter a PIN code (password) when connecting the Bluetooth device to the Wireless Audio with Dock. If the PIN code input window appears, enter <0000>.
  ■ The Wireless Audio with Dock supports SBC data (44.1kHz, 48kHz).

■The AVRCP feature is supported.

■ Connect only to a Bluetooth device that supports the A2DP (AV) function.
- You cannot connect to a Bluetooth device that supports only the HF (Hands Free) function.

■Only one Bluetooth device can be paired at a time.

The Wireless Audio with Dock may not search or connect properly in the following cases:

- If there is a strong electrical field around the Wireless Audio with Dock.

• If several Bluetooth devices are simultaneously paired to the Wireless Audio with Dock.
• If the Bluetooth device is turned off, not in place, or malfunctions
• Note that such devices as microwave ovens, wireless LAN adaptors, fluorescent lights, and gas stoves use the same frequency range as the Bluetooth device, which can cause electric interference.

To connect the Wireless Audio with Dock to a Bluetooth device

Before you begin, confirm that your Bluetooth device supports the Bluetooth compliant stereo headset function.

Connect External device

1. Touch the F. button on the front panel of the Wireless Audio with Dock to select the ✗ icon.
2. Touch the front F. button for 3 seconds on front panel in Bluthooth mode.
3. The Bluetooth indicator blinks quickly and the product changes to the pairing mode.
4. Scan or Search for the Wireless Audio with Dock on your Bluetooth device.
5. Select "[Samsung] W_Audio" on the list of items found by the Bluetooth device.

- If the Bluetooth device fails to pair with the Wireless Audio with Dock, please cancel Bluetooth pairing on the Bluetooth device and repeat Steps 2, 3, and 4.

1. Play music on the connected device.

In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Wireless Audio with Dock and the Bluetooth device exceeds 5m.

■About Automatic Bluetooth Connection

• The last Bluetooth connection will be restored automatically if available when the Bluetooth device has been switched to Bluetooth mode, enabled Bluetooth mode or powered up in Bluetooth mode.
• It automatically attempts to restore the Bluetooth pairing for 1 minute if switched to Bluetooth mode using the function key or powering on the device.

- When the AUX and Bluetooth operate at the same time as shown above, the sound may come from both simultaneously.

English16

F. - + → F.

Diagram showing remote control buttons with icons and function labels, including 'FUNCTION' button

Using the input mode

You can select the following inputs: □ → ✕ → ◯

Press an appropriate button on the remote control to select a desired mode, or press F. to select from: ☐ → ✗ → ↙

Input mode Display
Docking mode
BLUETOOTH mode
AUX/USB mode

• When both USB and AUX input sources are connected, USB input has the playback priority.

USinG tHe DOCKinG MODE With SaMSUnG GaLaxy DeViCeS

Touch the F. button to select the ☐ mode, and then connect the Samsung Galaxy device to the Galaxy Dock. (See page 12)

1. Select the mode as described above, and then connect the Samsung Galaxy device to the Galaxy Dock as described in Connecting a Device to the Galaxy Dock. (Page 12)
2. Select and play the desired music in the Samsung Galaxy device.
   • The music will play through the Wireless Audio with Dock's speakers.

Illustration of a smartphone with open arms and a small device at the base (no text or symbols)

- You can play the music in some Samsung Galaxy devices released after S3 (Android OS 4.1.2 or later).

USinG tHe BLUetOOtH MODe

Touch the F button to select the mode, and then connect the Bluetooth device to the Wireless Audio with Dock. (See page 16)

To connect your Bluetooth device when the Wireless Audio with Dock is in Bluetooth mode, search for the Wireless Audio with Dock on the device's Bluetooth list. Select the Wireless Audio with Dock, and then connect. Once the Wireless Audio with Dock has connected, select and play the desired music.

The music will play through the Wireless Audio with Dock's speakers.

Simple diagram of a curved surface with a control panel at the bottom (no text or symbols)

If you want to change the device which is connected through Bluetooth mode to other device, disconnect the existing device and try to connect to the other device which you want to use.
■ While in Bluetooth communication, Play/Pause/Next/Back operations may not be available depending on used mobile device and application.
- Operating Bluetooth device paired to the Wireless Audio with Dock may cause stuttering if operated while the Wireless Audio with Dock is playing back from AUX input.

To disconnect the bluetooth device from the Wireless Audio with Dock

You can cancel Bluetooth pairing from the Wireless Audio with Dock. For instructions, see the Bluetooth device's user manual.

• The Wireless Audio with Dock will be disconnected.

To disconnect the Wireless Audio with Dock from the bluetooth device

Touch the F. button on the front panel of the Wireless Audio with Dock to switch from ✗ to another mode or press the Power button on the remote to turn the Wireless Audio with Dock off.

• The currently connected device will be disconnected.

The Bluetooth connection only works when the Bluetooth device is close to the set. The connection is automatically cut off if the Bluetooth device moves out of range. Even within range, the sound quality may be degraded by obstacles such as walls or doors.

USinG tHe USB MODE

1. Connect the USB device to the USB port on the back of the unit.
2. Touch the F. button on the Wireless Audio with Dock to select the icon.

Simple diagram of a curved surface with a control panel at the bottom (no text or symbols)

■ Supports regular USB memory sticks only (thumb drives). Other types of storage devices are not guaranteed for proper operation.
If paused in USB playback, it returns to the starting of the track after 3 minutes.

Before you connect a USB device

Read the list below to check compatibility.

• This product may not be compatible with certain types of USB storage media.
• The FAT16 and FAT32 file systems are supported.

- The NTFS file system is not supported.

• Connect a USB device directly to the USB port of the product. Otherwise, you may encounter a USB compatibility problem.
• Do not connect multiple storage devices to the product via a multi-card reader. It may not operate properly.
  • Digital camera PTP protocols are not supported.
• Do not remove the USB device while it is being read.
• DRM-protected music files (MP3, WMA) from a commercial web site can not be played.
• Compatibility list

Format Music
File name	MP3 WMA
File extension	.MP3 .WMA
Bit rate	80~320 kbps 56~128 kbps
Version	- V8
Sampling Frequency	44.1KHz 44.1KHz

Diagram showing device port connections with labeled ports and a USB port, likely from an older computer interface.

• Do not connect your mobile device to the USB port and the Docking station at the same time for recharging.
  ■ Source of not supported sampling frequency may not play back properly.

SOftWare UPGraDe (OnLy USB MODE)

1. Visit www.samsung.com.

2. Click SUppORT on the top right of the page.

3. Enter the product's model number into the search field, and then click Find product.

4. Click Get downloads in the Center of the page below the Downloads header.

5. Click Firmware in the Center of the page.

6. Click ZIp file icon of the upgrade file.

7. Once popup window appears, click OK and continue to download and save upgrade file onto your PC.

8. Uncompress downloaded .zip file into a certain folder of your PC.

9. Copy all files in the folder to the USB flash drive's root directory.

- Upgrading allows only one file set for upgrading at a time.

USB USB

1. Touch the F. button on the Wireless Audio with Dock to select the 🔊 icon. Insert the USB drive into the USB port on the back panel of the unit.

2. The LED will blink during the Software update process. The product will turn off automatically after completing the firmware upgrade.

- It may take longer depending on the functions to upgrade. (Maximum 10 minutes)

• Turn on the product again.

Do not disconnect the power or remove the USB drive while an upgrade is being applied. The main unit will turn off automatically after completing the firmware upgrade.

- When software is upgraded, settings you have made will return to their default (factory) settings. We recommend you write down your settings so that you can easily reset them after the upgrade.

If the firmware fails to upgrade, we recommend formatting the USB drive in the FAT16 format and then trying again.

For upgrading purposes, do not format the USB drive in NTFS format. It is not a supported file system.

■ Depending on the manufacturer, the USB may not be supported.

■ Disconnect the Wireless Audio with Dock from the Internet and any external devices before you upgrade the software.

■ You cannot charge other external devices through this USB port.

■Refer to the Upgrade Guide from the website.

troubleshooting

Before requesting service, please check the following.

Symptom Check Remedy
The unit does not turn on.	Is the power cord plugged into the outlet?	Connect the power plug to the outlet.
A function does not work when the button is pressed.	Has the Wireless Audio with Dock or the remote been exposed to static electricity?	Disconnect the power plug and connect it again.
Sound is not produced.	Is the unit properly connected to device?Is the Mute function on?Is the volume set to minimum?	Connect it correctly.Press the Mute button to cancel the function.Adjust the volume.
The remote control does not work.	Are the batteries drained?Is the distance between remote control and main unit too far?	Replace with new batteries.Operate closer to the main unit.

SPeCifiCatiOnS

Model name	DA-F560
GENERAL	Weight 1.6 kg
	Dimensions (W x D x H) 462.7 x 151.8 x 122.3 mm
	Operating temperature range +5°C~+35°C
	Operating humidity range 10 % to 75 %
AMPLIFIER	Rated output power 10W/CH, 4OHM, THD = 10%, 1kHz
	Input sensitivity/Impedance 1V/20Kohm
	S/N ratio (analog input) 65 dB
	Separation(1kHz) 60 dB

* S/N ratio, distortion, separation, and usable sensitivity are based on measurement using AES (Audio Engineering Society) guidelines.
* Nominal specification

- Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.

- Weight and dimensions are approximate.

- For the power supply and Power Consumption, refer to the label attached to the product.

Open Source Announcement

To send inquiries and requests for questions regarding open sources, contact Samsung via Email ([e-mail]).

- This product uses some software programs which are distributed under the Independent JPEG Group.

FLAC decoder, Copyright (C) 2001,2002,2003,2004,2005,2006,2007 Josh Coalson

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
• Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE."

Ogg/Vorbis decoder, Copyright (c) 2002, Xiph.org Foundation

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Area	Contact Centre	Web Site
Asia Pacific
AUSTRALIA 1300 362 603 www.samsung.com
NEW ZEALAND 0800 SAMSUNG (0800 726 786) www.samsung.com
CHINA 400-810-5858 www.samsung.com
HONG KONG (852) 3698 4698		www.samsung.com/hk (Chinese)www.samsung.com/hk_en (English)
INDIA	1800 3000 82821800 266 8282	www.samsung.com/in
INDONESIA	0800-112-8888021-5699-7777	www.samsung.com/id
JAPAN 0120-327-527 www.samsung.com
MALAYSIA 1800-88-9999 www.samsung.com/my
PHILIPPINES	1-800-10-SAMSUNG(726-7864) for PLDT1-800-3-SAMSUNG(726-7864) for Digitel1-800-8-SAMSUNG(726-7864) for Globe02-5805777	www.samsung.com/ph
SINGAPORE 1800-SAMSUNG(726-7864) www.samsung.com
THAILAND	1800-29-323202-689-3232	www.samsung.com/thwww.samsung.com/th
TAIWAN	0800-329-9990266-026-066	www.samsung.com
VIETNAM 1 800 588 889 www.samsung.com
Middle East
U.A.E 800-SAMSUNG (726-7864) www.samsung.com
OMAN	800-SAMSUNG(726-7864)	www.samsung.com/ae (English)www.samsung.com/ae_ar (Arabic)
KUWAIT	183-2255 (183-CALL)	www.samsung.com/ae (English)www.samsung.com/ae_ar (Arabic)
BAHRAIN	8000-4726	www.samsung.com/ae (English)www.samsung.com/ae_ar (Arabic)
Qatar	800-2255 (800-CALL)	www.samsung.com/ae (English)www.samsung.com/ae_ar (Arabic)
Egypt 08000-726786	www.samsung.com
JORDAN	800-22273065777444	www.samsung.com/Levant(English)
Syria	18252273	www.samsung.com/Levant(English)
IRAN	021-8255	www.samsung.com
Morocco	080 100 2255 www.samsung.com
Saudi Arabia	9200-21230	www.samsung.com/sa (Arabic)
Turkey	444 77 11	www.samsung.com
Africa
NIGERIA	0800-726-7864	www.samsung.com
Ghana	0800-100770302-200077	www.samsung.com
Cote D' Ivoire	8000 0077	www.samsung.com
Senegal	800-00-0077	www.samsung.com
Cameroon	7095- 0077	www.samsung.com
KENYA	0800 545 545 www.samsung.com
UGANDA	0800 300 300 www.samsung.com
TANZANIA	0685 88 99 00 www.samsung.com
SOUTH AFRICA	0860-SAMSUNG(726-7864 )	www.samsung.com
Botswana	0800-726-000 www.samsung.com
Namibia	8197267864	www.samsung.com
Angola 91-726-7864	www.samsung.com
Zambia	211350370	www.samsung.com

Wireless Audio with Dock guide d'utilisation

Illustration of a cartoon-style electric scooter on a platform with a window showing raindrops and a lightning bolt (no text or symbols)

Simple line drawing of a room with two cylindrical objects and a cross symbol, no text or symbols present.

Illustration of a mechanical device with warning symbols and components (no text or labels)

Diagram showing a trash bin with a circular object and a broken cross symbol, indicating a collision or rejection process.

Illustration of a remote control with buttons and a close button (no text or symbols)

Simple line drawing of a rectangular electronic device connected to a coiled cable (no text or symbols)

Diagram showing connection between a device with labeled ports and cable, including DC 14V 2.5A, AUX INUSB 5V 0.5A, and numbered pins 8, 9, 10.

F. - → F. -

CAPUCHON EN CAOUTCHOUC

F. - + F.

F. - + *

Illustration of a smartphone with open doors and a small electronic device at the base (no text or symbols)

Simple illustration of a curved surface with a small rectangular button labeled 'D' and 'B' at the bottom (no text or symbols on the button itself)

Simple diagram of a curved surface with a control panel at the bottom (no text or symbols)

Diagram showing device port connections with labeled ports and a USB port, likely from an older computer interface.

Open Source Announcement

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
• Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE."

Ogg/Vorbis decoder, Copyright (c) 2002, Xiph.org Foundation

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Contacter SAMSUNG À TRAVERS LE MONDE

Wireless Audio with Dock

دليل المستخدم

تخيل الامكانات

Simple line drawing of a room with a window, solar panel, and a cross symbol (no text or labels)

Illustration of a fire-resistant electric vehicle on a platform with a window and lightning bolt (no text or symbols)

Diagram showing a trash bin with a circular object and a downward arrow indicating motion or direction, accompanied by a cross symbol.

Illustration of a mechanical device with wind turbines, suns, and a battery (no text or symbols)

.Electronics Co., Ltd

محتويات العبوة

Diagram showing two remote control switches with labeled buttons: left for function, right for mode.

F₁ - + - +1 - +

أو

Diagram showing two remote control devices with labeled buttons: 'CONTIN', 'F', 'VOL', 'INITE', and 'BASE'.
