Product Type	Treadmill
Brand	Horizon Fitness
Model	CT7.2
Usage	Home
Maximum User Capacity	136 kg (300 lbs)
Frame Warranty	Lifetime
Drive Motor Warranty	Lifetime
Elevation Motor Warranty	Lifetime
Electronic Components and Parts Warranty	1 year
Power Supply	110-120 V, dedicated 20 A circuit
Maximum Speed	Approx. 13.7 km/h (8.5 mph)
Maximum Incline	10%
Display	LCD: time, distance, speed, calories, incline, heart rate
Workout Programs	Manual, Steps, Calories, Distance, Intervals (speed, endurance, max speed), Goal Center
Audio Connectivity	Audio input jack (adapter cable included), speakers
Safety	Safety key with clip
Folding	Yes, with locking pin
Transport Wheels	Yes
Lubricant Provided	Silicone lubricant bottle (2 applications)
Heart Rate Monitor Compatibility	Heart rate grips

Frequently Asked Questions - CT7.2 Horizon Fitness

How to assemble the Horizon Fitness CT7.2 treadmill?

Assembly involves several steps: attach the console masts to the main frame, connect the console cables, attach the console to the masts, then install the support bar. Use the provided wrenches and follow the step order in the manual. Ensure all bolts are partially threaded before tightening fully.

How to use the safety key?

Clip the safety clip to your clothing, then insert the key into the console lock. The treadmill will only operate with the key inserted. In case of a fall, the key will detach and immediately stop the treadmill.

How to lubricate the running deck?

Apply the provided silicone lubricant to the deck according to the instructions in the MAINTENANCE chapter. It is recommended to lubricate before first use and periodically thereafter.

What to do if the belt drifts or makes noise?

Refer to the BELT TENSIONING and BELT CENTERING sections in the TREADMILL GUIDE. Use the provided wrenches to adjust the rear adjustment bolts. If the problem persists, contact technical support.

How to enable energy saving mode?

Access the engineering menu by holding down the ▲ INCLINE and SPEED keys for 3-5 seconds. Navigate to ENG 3, then P5, and set ENRGY SVE to ON. To exit, hold STOP.

How to set a goal in Goal Center?

Hold down the GOAL CENTER button for about 5 seconds. Select a goal (time, distance, or calories), set its value, then the number of days to achieve it. Press ENTER to confirm.

What to do if the treadmill does not start?

Check that the power cord is plugged in and the outlet works (dedicated 20 A circuit). Ensure the safety key is inserted and the console is powered on. If no display, check the on/off switch. Contact technical support if the problem persists.

How to connect an audio player?

Plug the provided audio adapter cable into the audio input jack on the console, then connect the other end to the headphone output of your player. Use the volume keys on the console to adjust the sound.

What type of power outlet is required?

A grounded 3-prong outlet, on a nominal 110-120 V circuit of at least 20 A. Do not use an adapter. Ensure the outlet is properly grounded.

What to do in case of an error code?

Refer to the TROUBLESHOOTING section of the TREADMILL GUIDE. Error codes may indicate a voltage, sensor, or motor issue. If the code persists after unplugging and replugging the unit, contact technical support.

USER MANUAL CT7.2 Horizon Fitness

Silhouette of a treadmill with adjustable arms and legs (no text or symbols)

T202-03

CT72

TREADMILL OWNER'S MANUAL

MANUEL DU PROPRIÉTAIRE DU TAPIS ROULANT

MANUAL DEL PROPIETARIO DE LA CAMINADORA

Read the TREADMILL GUIDE before using this OWNER'S MANUAL.

SAVE THESE INSTRUCTIONS

When using an electrical product, basic precautions should always be followed, including the following: Read all instructions before using this treadmill. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions. If you have any questions after reading this guide, contact Customer Tech Support at the number listed on the back cover of the OWNER'S MANUAL.

This treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental, school or institutional setting. Failure to comply will void the warranty.

DANGER

TO REDUCE THE RISK OF ELECTRICAL SHOCK:

Always unplug the treadmill from the electrical outlet immediately after using, before cleaning, performing maintenance and putting on or taking off parts.

WARNING

TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS:

• Never use the treadmill before securing the safety tether clip to your clothing.
• If you experience any kind of pain, including but not limited to chest pains, nausea, dizziness, or shortness of breath, stop exercising immediately and consult your physician before continuing.
• When exercising, always maintain a comfortable pace.
• Do not wear clothes that might catch on any part of the treadmill.
  • Always wear athletic shoes while using this equipment.
• Do not jump on the treadmill.
• At no time should more than one person be on treadmill while in operation.
• This treadmill should not be used by persons weighing more than specified in the OWNER'S MANUAL WARRANTY SECTION. Failure to comply will void the warranty.
• When lowering the treadmill deck, wait until rear feet are firmly on the floor before stepping on the deck.
• Disconnect all power before servicing or moving the equipment. To clean, wipe surfaces down with soap and slightly damp cloth only; never use solvents. (See MAINTENANCE)
• The treadmill should never be left unattended when plugged in. Unplug from outlet when not in use, and before putting on or taking off parts.
• Do not operate under blanket or pillow. Excessive heating can occur and cause fire, electric shock, or injury to persons.
• Connect this exercise product to a properly grounded outlet only.

WARNING

TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS:

• At NO time should children under the age of 13 or pets be within 10 feet of the machine.
• At NO time should children under the age of 13 use the treadmill.
  • Children over the age of 13 or disabled persons should not use the treadmill without adult supervision.
• Use the treadmill only for its intended use as described in the treadmill guide and owner's manual.
• Do not use other attachments that are not recommended by the manufacturer. Attachments may cause injury.
• Never operate the treadmill if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or immersed in water. Contact Customer Tech Support at the number on the back cover to schedule service.
• Keep power cord away from heated surfaces. Do not carry this unit by its supply cord or use the cord as a handle.
• Never operate the treadmill with the air opening blocked. Keep the air opening clean, free of lint, hair, and the like.
• To prevent electrical shock, never drop or insert any object into any opening.
• Do not operate where aerosol (spray) products are being used or when oxygen is being administered.
• To disconnect, turn all controls to the off position, then remove plug from outlet.
• Do not use treadmill in any location that is not temperature controlled, such as but not limited to garages, porches, pool rooms, bathrooms, car ports or outdoors. Failure to comply may void the warranty.
• This treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental, school or institutional setting. Failure to comply will void the warranty.
• Do not remove the console covers unless instructed by Customer Tech Support. Service should only be done by an authorized service technician

It is essential that your treadmill is used only indoors, in a climate controlled room. If your treadmill has been exposed to colder temperatures or high moisture climates, it is strongly recommended that the treadmill is warmed up to room temperature before first time use. Failure to do so may cause premature electronic failure.

WARNING

This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

GROUNDING INSTRUCTIONS

This product must be grounded. If a treadmill should malfunction or breakdown, grounding provides a path of least resistance for electrical current to reduce the risk of electrical shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with local codes and ordinances.

DANGER

Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.

This product is for use on a nominal 110-120 Volt circuit and has a grounding plug that looks like the plug in the illustration. Make sure that the product is connected to an outlet having the same configuration as the plug. No adapter should be used with this product.

This product must be used on a dedicated circuit. To determine if you are on a dedicated circuit, shut off the power to that circuit and observe if any other devices lose power. If so, move devices to a different circuit. Note: There are usually multiple outlets on one circuit. This treadmill should be used with a minimum 20-amp circuit.

3-POLE GROUNDED OUTLET

GROUNDED POWER CORD

WARNING

Connect this exercise product to a properly grounded outlet only.

Never operate product with a damaged cord or plug even if it is working properly. Never operate any product if it appears damaged, or has been immersed in water. Contact Customer Tech Support for replacement or repair.

ASSEMBLY

WARNING

There are several areas during the assembly process that special attention must be paid. It is very important to follow the assembly instructions correctly and to make sure all parts are firmly tightened. If the assembly instructions are not followed correctly, the treadmill could have parts that are not tightened and will seem loose and may cause irritating noises. To prevent damage to the treadmill, the assembly instructions must be reviewed and corrective actions should be taken.

Before proceeding, find your treadmill's serial number located on a white barcode sticker near the on/off power switch and power cord and enter it in the space provided below.

ENTER YOUR SERIAL NUMBER AND MODEL NAME IN THE BOXES BELOW:

SERIAL NUMBER:

TM

MODEL NAME: HORIZON

TREADMILL

SERIAL NUMBER LOCATION

Line drawing of a treadmill with a curved arrow indicating motion (no text or symbols)

» Refer to the SERIAL NUMBER and MODEL NAME when calling for service.

CONSOLE DISPLAY AND CONTROLS READING RACK SPEAKERS HANDLEBARS WATER BOTTLE HOLDER SAFETY KEY PLACEMENT CAUTION ATTENTION PRECAUCIÓN CO-SPRING RED SHEET FAIR POWER WHEEL HEA PRECAUCIÓN PODER PEACHING PODER PEACHING POTTER PEACHING POTTER PEACHING POTTER PEACHING POTTER PEACHING POTTER PEACHING POTTER PEACHING POTTER PEACHING POTTER PEACHING POTTER PEACHING POTTER PEACHING POTTER PEACHING POTTER PEACHING POTTER PEACHING POTTER PEACHING POTTER PEAH POTTER PEAH POTTER PEAH POTTER PEAH POTTER PEAH POTTER PEAH POTTER PEAH POTTER PEAH POTTER PEAH POTTER PEAH POTTER PEAH POTTER PEAH POTTER PEAH POTTER PEAH POTTER PEAH POTTER PEAH POTTER PEAH POTDER PEACHING POTTER PEACHING POTTER PEACHING POTTER PEACHING POTTER PEACHING POTTER PEACHING POTTER PEACHING POTTER PEACHING POTTER PEACHING POTTER PEACHING POTTER PEACHING POTTER PEACHING POTTER PEACHING POTTER PEACHING POTTER PIUMER POTTER PIUMER POTTER PIUMER POTTER PIUMER POTTER PIUMER POTTER PIUMER POTTER PIUMER POTTER PIUMER POTTER PIUMER POTTER PIUMER POTTER PIUMER POTTER PIUMER POTTER PIUMER POTTER PIUMER POTTER PIUMER SINCE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEAS DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LESE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEISE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEOSE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEASE DE LA LEAL ELEGE 10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

TOOLS REQUIRED:

□ 6 mm T-Wrench (included)
☐ 6 mm L-Wrench (included)
□ 4 mm L-Wrench (included)
☐ Phillips Screwdriver (not included)

PARTS INCLUDED:

□ 2 Console Masts
□ 1 Console Assembly
□ 2 Console Pockets
□ 1 Support Bar
□ 1 Hardware Kit
□ 1 Safety Key
□ 1 Power Cord
□ 1 Audio Adapter Cable
☐ 1 Bottle of Silicone Lubricant (for 2 applications)

NEED HELP?

If you have questions or if there are any missing parts, contact Customer Tech Support. Contact information is located on the back cover of this manual.

PRE ASSEMBLY

UNPACKING

Place the treadmill carton on a level flat surface. It is recommended that you place a protective covering on your floor. Take CAUTION when handling and transporting this unit. Never open box when it is on its side. Once the banding straps have been removed, do not lift or transport this unit unless it is fully assembled and in the upright folded position, with the lock latch secure. Unpack and assemble the unit where it will be used. The enclosed treadmill is equipped with high-pressure shocks and may spring open if mishandled. Never grab hold of any portion of the incline frame and attempt to lift or move the treadmill.

WARNING

• DO NOT ATTEMPT TO LIFT THE TREADMILL! Do not move or lift treadmill from packaging until specified to do so in the assembly instructions. You may remove the plastic wrap from console masts.
• FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN INJURY!

IMPORTANT NOTES

• During each assembly step, ensure that ALL nuts and bolts are in place and partially threaded. It is recommended you complete the full assembly of your unit before completely tightening any ONE bolt.
• Several parts have been pre-lubricated to aid in assembly and usage. Please do not wipe this off. If you have difficulty, a light application of lithium bike grease is recommended.

ASSEMBLY STEP 1

Technical diagram of a treadmill with labeled parts including lever, base, and support components

HARDWARE FOR STEP 1
PART TYPE DESCRIPTION QTY
A HEX SOCKET BOLT M8X1.25PX60L 3

A Cut the yellow banding straps and lift the running deck upward to remove all contents from underneath the running deck.
B Open HARDWARE FOR STEP 1.
C Attach LEFT CONSOLE MAST (1) to MAIN FRAME (2) using 3 BOLTS (A).

ASSEMBLY STEP 2

Technical diagram of a treadmill with labeled parts including legs, arms, and base

HARDWARE FOR STEP 2
PART TYPE DESCRIPTION QTY
A HEK SOCKET BOLT M8X1.25P X60L 3

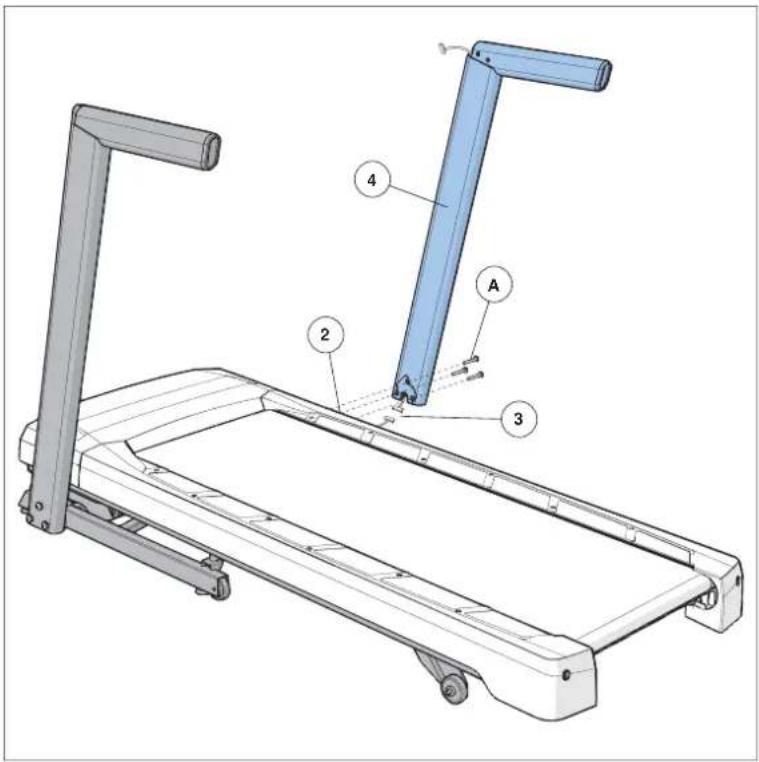

A Pull the CONSOLE CABLE (3) away from the treadmill base frame. Connect the CONSOLE CABLE (3) from the MAIN FRAME (2) to the CONSOLE CABLE (3) in the bottom of the RIGHT CONSOLE MAST (4). The other end of the CONSOLE CABLE should be located at the top of the mast.
B Open HARDWARE FOR STEP 2.
C Attach RIGHT CONSOLE MAST (4) to MAIN FRAME (2) using 3 BOLTS (A).

NOTE: Be careful not to pinch the console cable while attaching the right console mast.

ASSEMBLY STEP 3

Technical diagram of a car interior with labeled components and structural features

HARDWARE FOR STEP 3
PART TYPE DESCRIPTION QTY
B	S C	R	E

A Open HARDWARE FOR STEP 3.

B Turn CONSOLE (5) over and align CONSOLE POCKETS (6) with screw holes.

NOTE: Before securing the pockets, ensure the snap tabs are outside the pocket recess.

C Attach CONSOLE POCKETS (6) to CONSOLE (5) using 10 SCREWS (B).

NOTE: Gently loosen the screws if necessary after assembly to snap them into place and avoid breaking the tabs.

ASSEMBLY STEP 4

Technical diagram of a treadmill with labeled parts including chassis, frame, and wheels

HARDWARE FOR STEP 4
PART TYPE DESCRIPTION QTY
C HEX	SOCKET BOLT M8X1.25PX15L 4

A Open HARDWARE FOR STEP 4.

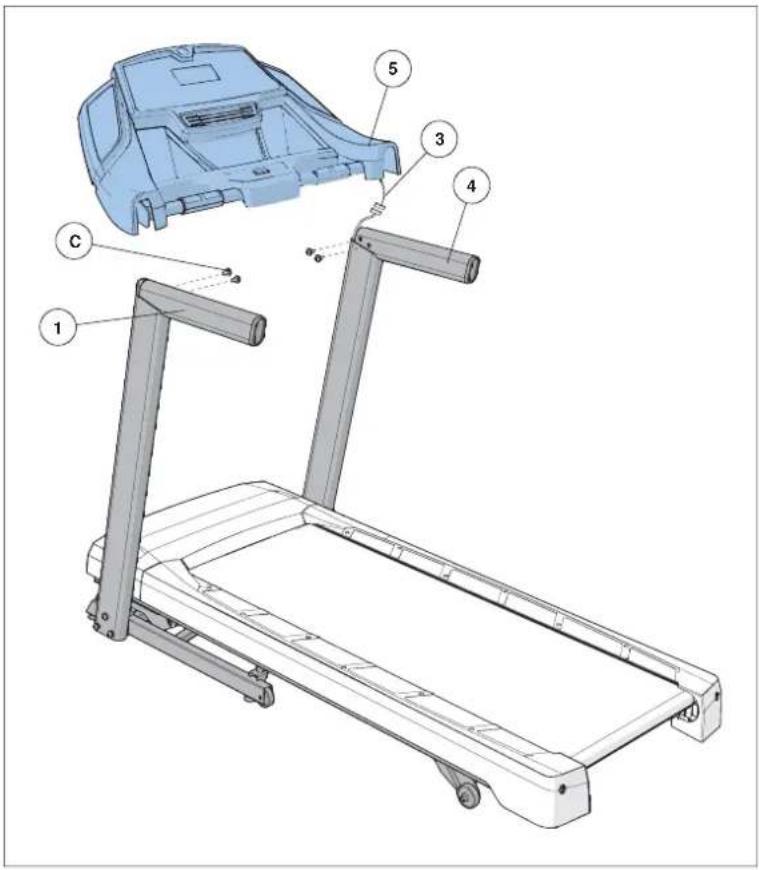

B Gently place CONSOLE (5) on top of CONSOLE MASTS (1 & 4).

NOTE: Be careful not to pinch the console cables while attaching the console.

C Connect the CONSOLE CABLES (3) and ensure cables are tucked inside the CONSOLE (5).
D Connect the CONSOLE (5) to the right CONSOLE MAST (4) using 2 BOLTS (C).
E Repeat STEP D on left side.

ASSEMBLY STEP 5

Technical diagram of a treadmill with labeled parts including tread, seat, and handle

HARDWARE FOR STEP 5
PART TYPE DESCRIPTION QTY
D BUTTON HEAD BOLT M6X1.0PX15L 4

A Open HARDWARE FOR STEP 5.
B Align SUPPORT BAR (7) on top of CONSOLE MASTS (1 & 4).
C Attach the SUPPORT BAR (7) to the CONSOLE MASTS (1 & 4) using 4 BOLTS (D).

ASSEMBLY COMPLETE!

Before the first use, lubricate the treadmill deck by following the instructions in the MAINTENANCE section in the TREADMILL GUIDE.

TREADMILL OPERATION

This section explains how to use your treadmill's console and programming. The BASIC OPERATION section in the TREADMILL GUIDE has instructions for the following:

• LOCATION OF THE TREADMILL
• USING THE SAFETY KEY
• FOLDING THE TREADMILL
• MOVING THE TREADMILL
• LEVELING THE TREADMILL
• TENSIONING THE RUNNING BELT
• CENTERING THE RUNNING BELT
• USING THE HEART RATE FUNCTION

I G Q M R R P DL K B K HF 12 10 8 4 3 2 HORIZON 2/5 1/7 2/6 4/7 4/8 4/9 4/10 4/11 4/12 4/13 4/14 4/15 4/16 4/17 4/18 4/19 4/20 4/21 4/22 4/23 4/24 4/25 4/26 4/27 4/28 4/29 4/30

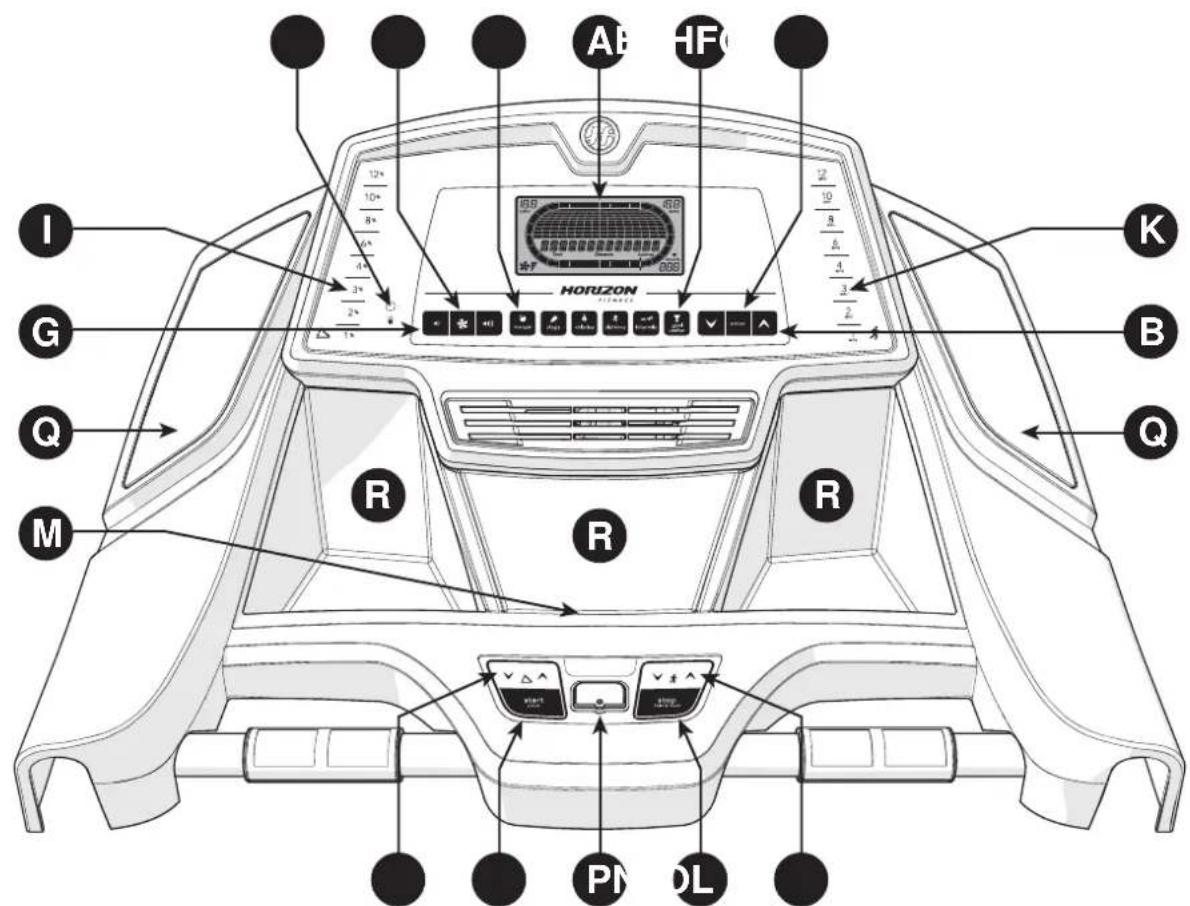

CONSOLE OPERATION

Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use.

A) LCD DISPLAY WINDOW: time, distance, speed, calories, incline and heart rate.
B) PROGRAMMING ▼▲ KEYS: Used to cycle through programs and user setup.
C) ENTER: used to confirm selection.
D) PROGRAM KEYS: press to select workout.
E) GOAL CENTER: press to set or view your goal. See page 22 for more information.
F) AUDIO IN JACK: plug your media player into the console using the included audio adaptor cable.
G) VOLUME: used to adjust volume up or down.
H) FAN KEY: press to turn fan on, off, or adjust the setting.

I) INCLINE QUICK KEYS: used to reach desired incline quickly.

J) INCLINE ▼▲ KEYS: used to adjust incline level.
K) SPEED QUICK KEYS: used to reach desired speed quickly.
L) SPEED ▼▲ KEYS: used to adjust speed level.
M) READING RACK: holds reading material.
N) START / PAUSE: used to start workout, pause workout, and restart after pause.
O) STOP / HOLD TO RESET: used to stop machine and also will reset machine when held down.
P) SAFETY KEY: enables treadmill when safety key is inserted.
Q) SPEAKERS: plays music through speakers when connected to your media player.
R) STORAGE POCKETS: holds personal items, e.g. water bottle, brought with you.

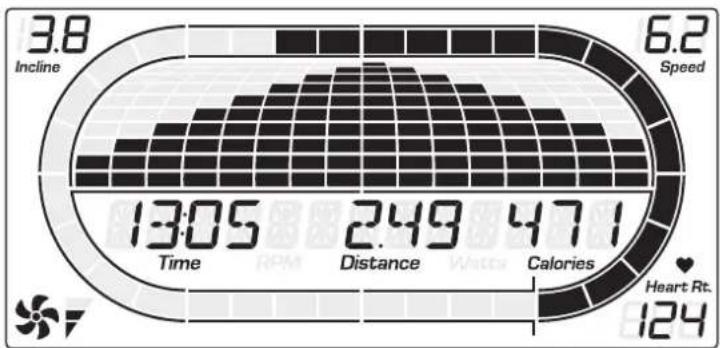

DISPLAY WINDOW

• TIME: Shown as minutes : seconds. View the time remaining or the time elapsed in your workout.
• DISTANCE: Shown as miles. Indicates distance traveled or distance remaining during your workout.
• CALORIES: Total calories burned or remaining for your workout.
• INCLINE: Shown as percent. Indicates the incline level of the running surface.

- SPEED: Shown as MPH. Indicates how fast the belt is moving.

- HEART RATE: Shown as BPM (beats per minute). Used to monitor your heart rate (displayed when contact is made with both pulse grips).

- PROGRAM PROFILES: Represents the profile of the program being used (speed during speed based programs and incline during incline based programs).

• FAN: Indicates fan setting (low, medium, high).

- TRACK: Follows progress around a simulated track. Segments light up with every 12.5 meters completed. One lap around the track is 400 meters (1/4 mile).

GETTING STARTED

1) Check to make sure no objects are placed on the belt that will hinder the movement of the treadmill.
2) Plug in the power cord and turn the treadmill ON.
3) Stand on the side rails of the treadmill.
4) Attach the safety key clip to part of your clothing making sure that it is secure and will not become detached during operation.
5) Insert the safety key into the safety keyhole in the console.
6) Select User 1, User 2, or Guest using ▼ and press ENTER.
7) Set User Weight using ▼ and press ENTER.
8) You have two options to start your workout:

A) QUICK START UP

Simply press the START key to begin working out. Time, distance, and calories will all count up from zero. OR...

B) SELECT A WORKOUT

1) Press desired WORKOUT BUTTON and press ENTER.
2) Select workout goal level or program using ▼ and press ENTER.
3) Set workout program information using ▼ (see program information for necessary settings) and press ENTER after each selection.
4) Press START to begin workout.

NOTE: You can adjust the speed and incline during your workout.

When your workout is complete, the console will display “workout complete” and beep. Your workout information will stay displayed on the console for 30 seconds and then reset.

TO RESET THE CONSOLE

Hold STOP key for 3 seconds.

TO CLEAR CURRENT SELECTION

To clear the current program selection or screen, hold the stop button for 3 seconds.

PROGRAM INFORMATION

MANUAL: Adjust your speed and incline manually during your workout. User sets time, starting speed and incline.

STEPS: Promotes healthy activity with 10 step-based workouts calculated using average stride length. Choose from 1000, 2000, 3000, 4000, 5000, 6000, 7000, 8000, 9000, and 10,000 step workouts. User sets starting speed and incline.

CALORIES: Set goals for burning calories with six workouts. Choose from 100, 200, 300, 400, 500, and 600 calorie burn workouts. User sets starting speed and incline. Calories burned are calculated using weight input by user with the speed and incline of workout.

DISTANCE: Push yourself and go further during your workout with 10 distance workouts. Choose from 1 mile, 2 miles, 5k, 5 miles, 10k, 8 miles, 15k, 10 miles, 20k, and half marathon goals. User sets starting speed and incline.

INTERVALS: An effective fat-burning workout that helps you get improve your fitness level. Choose from Speed Intervals, Peak Intervals, and Endurance Intervals workouts. User sets time and starting level.

SPEED INTERVALS (10 LEVELS)

Speed changes and segments repeat 90 seconds and 30 seconds
Segment Warm Up 1 2 Cool Down
Time 4:00 Mins 90 sec 30 sec 4:00 Mins
Level 1	1.0	1.5	2.0	4.0	1.5	1.0
Level 2	1.0	1.5	2.0	4.5	1.5	1.0
Level 3	1.3	1.9	2.5	5.0	1.9	1.3
Level 4	1.3	1.9	2.5	5.5	1.9	1.3
Level 5	1.5	2.3	3.0	6.0	2.3	1.5
Level 6	1.5	2.3	3.0	6.5	2.3	1.5
Level 7	1.8	2.6	3.5	7.0	2.6	1.8
Level 8	1.8	2.6	3.5	7.5	2.6	1.8
Level 9	2.0	3.0	4.0	8.0	3.0	2.0
Level 10	2.0	3.0	4.0	8.5	3.0	2.0

ENDURANCE INTERVALS (12 LEVELS) - SPEED ONLY

Segment	Warm Up		1	2	3	4	5	6	7	8	Cool Down
Time 4:00 Mins Each segment is 30 Seconds and repeats 4:00 Mins
Level 1	1.0	1.5	2.0	2.5	3.0	3.5	4.0	3.5	3.0	2.5	2.3	1.5
Level 2	1.3	1.9	2.5	3.0	3.5	4.0	4.5	4.0	3.5	3.0	2.6	1.8
Level 3	1.5	2.3	3.0	3.5	4.0	4.5	5.0	4.5	4.0	3.5	3.0	2.0
Level 4	1.8	2.6	3.5	4.0	4.5	5.0	5.5	5.0	4.5	4.0	3.4	2.3
Level 5	2.0	3.0	4.0	4.5	5.0	5.5	6.0	5.5	5.0	4.5	3.8	2.5
Level 6	2.3	3.4	4.5	5.0	5.5	6.0	6.5	6.0	5.5	5.0	4.1	2.8
Level 7	2.5	3.8	5.0	5.5	6.0	6.5	7.0	6.5	6.0	5.5	4.5	3.0
Level 8	2.8	4.1	5.5	6.0	6.5	7.0	7.5	7.0	6.5	6.0	4.9	3.3
Level 9	3.0	4.5	6.0	6.5	7.0	7.5	8.0	7.5	7.0	6.5	5.3	3.5
Level 10	3.3	4.9	6.5	7.0	7.5	8.0	8.5	8.0	7.5	7.0	5.6	3.8
Level 11	3.0	4.5	7.0	7.5	8.0	8.5	9.0	8.5	8.0	7.5	5.3	3.5
Level 12	3.3	4.9	7.5	8.0	8.5	9.0	9.5	9.0	8.5	8.0	5.6	3.8

PEAK INTERVALS (10 LEVELS)

Speed and Incline changes, segments repeat 90 seconds and 30 seconds
Segment	Warm Up	1	2 Cool Down
Time 4:00 Mins 90 sec 30 sec 4:00 Mins
Level 1	Speed 1	0	1.5 2.0	4.0 1.5 1.0
	Incline 1	0	1.5 0.5	1.5 1.5 0.0
Level 2	Speed 1	0	1.5 2.0	4.5 1.5 1.0
	Incline 1	0	2.5 3.0	6.5 2.5 1.5
Level 3	Speed 1	3	1.9 2.5	5.0 1.9 1.3
	Incline 2	0	3.0 4.0	7.5 3.0 2.0
Level 4	Speed 1	3	1.9 2.5	5.5 1.9 1.3
	Incline 2	0	3.0 4.0	8.0 3.0 2.0
Level 5	Speed 1	5	2.3 3.0	6.0 2.3 1.5
	Incline 2	5	3.5 4.5	8.5 3.5 2.5
Level 6	Speed 1	5	2.3 3.0	6.5 2.3 1.5
	Incline 2	5	3.5 4.5	9.0 3.5 2.5
Level 7	Speed 1	8	2.6 3.5	7.0 2.6 1.8
	Incline 2	5	4.0 5.5	9.5 4.0 3.0
Level 8	Speed 1	8	2.6 3.5	7.5 2.6 1.8
	Incline 3	0	4.0 5.5	9.5 4.0 3.0
Level 9	Speed 2	0	3.0 4.0	8.0 3.0 2.0
	Incline 3	0	4.5 6.0	10.0 5.0 3.0
Level 10	Speed 2	0	3.0 4.0	8.5 3.0 2.0
	Incline 3	0	4.5 6.0	10.0 5.0 3.0

GOAL CENTER™

Research shows that those who create and track their fitness goals, on average, achieve greater success than those who do not. Because your new treadmill is equipped with Horizon's exclusive GOAL CENTER Performance Tracker, you've taken an important step towards achieving your fitness goals. GOAL CENTER is innovative new software, integrated into your console, that will allow you to track your fitness goals over time, without the need for paper journals or logs.

GOAL CENTER™ SETUP

1) Press and hold the GOAL CENTER button for approximately five seconds.
2) Select a time, distance or calorie goal using ▼. Press ENTER.
3) Use √ to select a goal value. Press ENTER.
4) Use to select the NUMBER OF DAYS to complete the goal.
5) Press ENTER again to exit GOAL CENTER setup.

NOTE: These steps can also be used to erase an existing goal and set a new one.

HOW TO SAVE WORKOUT STATS TO GOAL CENTER

At the end of your workout, the console will save your workout data towards your goal.

VIEWING GOAL PROGRESS

At any time during or before a workout, you can view your progress towards your goal by pressing the GOAL CENTER button. The console will scroll the remaining time, distance or calories, depending on the goal you set previously and will also scroll the time remaining to achieve your goal.

USING YOUR MEDIA PLAYER

1) Connect the included AUDIO ADAPTOR CABLE to the AUDIO IN JACK on the left of the console and the headphone jack on your media player.
2) Use your media player buttons to adjust song settings.
3) Remove the AUDIO ADAPTOR CABLE when not in use.

ENERGY SAVER (STANDBY MODE)

This machine has a special feature called Energy Saver™ mode. This mode is NOT automatically activated. When Energy Saver mode is activated, the display will automatically enter standby mode (Energy Saver mode) after 15 minutes of inactivity. This feature saves energy by disabling most power to the machine until a key is pressed on the console. This feature can be turned on or off in the engineering menu.

To enter the engineering menu, press and hold the INCLINE key and SPEED key for 3-5 seconds. Use the keys to navigate through the menu to ENG 3. Press ENTER to select. Press ENTER to navigate to P2 in the ENG 3 menu. Use ▼ to select ENRGY SVE ON or OFF. Press and hold STOP for 3-5 seconds to exit ENG 3. Press and hold STOP again for 3-5 seconds to exit the engineering menu.

LIMITED HOME-USE WARRANTY

WEIGHT CAPACITY = 300 lbs (136 kilograms)

FRAME = LIFETIME

Warranty on the frame against defects in workmanship and materials for a lifetime period of the buyer from the date of purchase, so long as the device remains in the possession of the original owner. (The frame is defined as the welded metal base of the unit and does not include any parts that can be removed.)

DRIVE MOTOR/ELEVATION MOTOR = LIFETIME

Warranty on the drive/elevation motors against defects in workmanship and materials for a lifetime period of the buyer from the date of purchase, so long as the device remains in the possession of the original owner. Labor or installation of motor is not covered under the motor warranty.

ELECTRONICS & PARTS = 1 YEAR

Warranty on the electronic components, finish and all original parts for the period specified above from the date of original purchase, so long as the device remains in the possession of the original owner.

LABOR = 1 YEAR

Warranty shall cover the labor cost for the repair of the device for the period specified above from the date of the original purchase, so long as the device remains in the possession of the original owner.

EXCLUSIONS AND LIMITATIONS

Who IS covered:

- The original owner and is not transferable.

What IS covered:

- Repair or replacement of a defective motor, electronic component, or defective part and is the sole remedy of the warranty.

What IS NOT covered:

- Normal wear and tear, improper assembly or maintenance, or installation of parts or accessories not originally intended or compatible with the equipment as sold.

- Damage or failure due to accident, abuse, corrosion, discoloration of paint or plastic, neglect, theft, vandalism, fire, flood, wind, lightning, freezing, or other natural disasters of any kind, power reduction, fluctuation or failure from whatever cause, unusual atmospheric conditions, collision, introduction of foreign objects into the covered unit, or modifications that are unauthorized or not recommended by the manufacturer.

- Incidental or consequential damages. The manufacturer is not responsible or liable for indirect, special or consequential damages, economic loss, loss of property, or profits, loss of enjoyment or use, or other consequential damages of whatsoever nature in connection with the purchase, use, repair

or maintenance of the equipment. The manufacturer does not provide monetary or other compensation for any such repairs or replacement parts costs, including but not limited to gym membership fees, work time lost, diagnostic visits, maintenance visits or transportation.

• Equipment used for commercial purposes or any use other than a single family or Household, unless endorsed by the manufacturer for coverage.
• Equipment owned or operated outside the US and Canada.
• Delivery, assembly, installation, setup for original or replacement units or labor or other costs associated with removal or replacement of the covered unit.
• Any attempt to repair this equipment creates a risk of injury. The manufacturer is not responsible or liable for any damage, loss or liability arising from any personal injury incurred during the course of, or as a result of any repair or attempted repair of your fitness equipment by other than an authorized service technician. All repairs attempted by you on your fitness equipment are undertaken AT YOUR OWN RISK and the manufacturer shall have no liability for any injury to the person or property arising from such repairs.
• If you are out of the manufacturer's warranty but have an extended warranty, refer to your extended warranty contract for contact information regarding requests for extended warranty service or repair.

SERVICE/RETURNS

• In-home service is available within 150 miles of the nearest authorized Service Provider (Mileage beyond 150 miles from an authorized service center is the responsibility of the consumer).
• All returns must be pre-authorized by the manufacturer.
• The manufacturer's obligation under this warranty is limited to replacing or repairing, at the manufacturer's option, the same or comparable model.
• The manufacturer may request defective components be returned to the manufacturer upon completion of warranty service using a prepaid return shipping label. If you have been advised to return parts and did not receive a label, please contact Customer Tech Support.
• Replacement units, parts and electronic components reconditioned to as-new condition by the manufacturer or its vendors may sometimes be supplied as warranty replacement and constitute fulfillment of warranty terms.
• This warranty gives you specific legal rights, and your rights may vary from state to state.

FRANÇAIS

PRÉCAUTIONS IMPORTANTES

CONSERVEZ CES DIRECTIVES

Line drawing of a portable air conditioner unit with cooling fins and a scroll wheel (no text or symbols)

Technical diagram of a treadmill with labeled parts including lever, base, and support components

QUINCAILLERIE POUR ÉTAPE 1
PIÈCE	TYPE		DESCRIPTION
A	B	O	U	L O N H

QTÉ

E

Technical diagram of a treadmill with labeled parts including legs, arms, and base

QUINCAILLERIE POUR ÉTAPE 2
PIÈCE	TYPE	DESCRIPTION
A	B O U	L O N H

Technical diagram of a car interior with labeled components and structural features

QUINCAILLERIE POUR ÉTAPE 3
PIÈCE	TYPE	DESCRIPTION
B	V	I	S

Technical diagram of a treadmill with labeled parts including chassis, frame, and wheels

QUINCAILLERIE POUR ÉTAPE 4
PIÈCE	TYPE	DESCRIPTION
C	B O U	L O N	H

Technical diagram of a treadmill with labeled parts including tread, seat, and handle

QUINCAILLERIE POUR ÉTAPE 5
PIÈCE	TYPE	DESCRIPTION
D BOULON À TÊTE RONDE M6X1.0		PX15L 4

I G Q M R R K B Q PN DL

FONCTIONNEMENT DE LA CONSOLE

MAIN D'OEUVRE = 1 AN

Line drawing of a treadmill with a scroll wheel and base mount (no text or symbols)

Technical diagram of a treadmill with labeled parts including lever, base, and support components

Technical diagram of a treadmill with labeled parts including legs, arms, and base

Technical diagram of a car interior with labeled components and spray points

Technical diagram of a treadmill with labeled parts including chassis, frame, and wheels

Technical diagram of a treadmill with labeled parts including tread, seat, and handle

I G Q M R R K B Q PN DL

DO NOT RETURN TO THE RETAILER if you have any problems during assembly or if parts are missing.

For fast and friendly service, please contact one of our trained customer technicians via phone, email or our website.

We want to know if you have a problem and we want to have an opportunity to correct it for you.

NOTE: Please read the TROUBLESHOOTING section in the TREADMILL GUIDE before contacting Customer Tech Support. Additional product information is available on our website.

ATTENTION

[e-mail]

www.horizonfitness.com

Horizon Fitness

1600 Landmark Drive,

Cottage Grove WI, 53527

See our troubleshooting and maintenance videos online at:

www.youtube.com/HorizonFitness

T202-03 / CT7.2 Rev. 1.3 | © 2013 Johnson Health Tech

Designed & Engineered in the U.S.A. • Made in China
