Product type	Home treadmill
Brand	Horizon Fitness
Model	CT5.3
Maximum user weight	136 kg (300 lb)
Power supply	110-120 V, 15 A, dedicated circuit, grounded outlet
Maximum speed	Approximately 16 km/h (10 mph) - estimate
Maximum incline	10%
Dimensions (folded)	Approximately 180 cm x 85 cm x 150 cm - estimate
Weight	Approximately 100 kg - estimate
Display	LED: time, distance, calories, heart rate, speed, incline, profiles
Exercise programs	Manual, Intervals, Weight loss
Adjustable goals	Time, distance, calories
Heart rate monitor	Handgrip sensors
Speakers	Built-in, audio input (MP3) and headphone output
Fan	Built into console
Water bottle holder	2 pockets included
Reading stand	Built-in
Folding	Yes, with locking pedal
Transport wheels	Yes
Frame warranty	Lifetime (original owner)
Motor warranty	Lifetime (original owner)
Parts and electronics warranty	1 year
Labor warranty	1 year
Maintenance	Clean with mild soap and damp cloth, lubricate deck (silicone included)
Safety	Safety key with clip, circuit breaker, mandatory grounding

Frequently Asked Questions - CT5.3 Horizon Fitness

What exercise programs are available on the CT5.3?

The CT5.3 offers three exercise profiles: Manual (free adjustment), Intervals (alternating effort and recovery), and Weight loss (maintaining fat-burning zone). You can also set time, distance, or calorie goals.

How do I use the safety key?

Attach the safety key clip to your clothing, then insert the key into the console lock. The treadmill will only operate if the key is in place. In case of a fall, the key detaches and the treadmill stops immediately.

What type of electrical outlet is required?

The CT5.3 requires a properly grounded wall outlet with a voltage of 110-120 V and a dedicated circuit of at least 15 A. Do not use an adapter.

How do I assemble the treadmill?

Follow the assembly steps in the manual: attach the console uprights to the frame, connect the cables, then install the console. Use the included tools (Allen keys). Tighten all screws. Lubricate the deck before first use.

What is the maximum supported weight?

The maximum user weight is 136 kg (300 lb). Exceeding this voids the warranty and may damage the machine.

How do I maintain the treadmill?

Clean with a damp cloth and mild soap. Never use solvents. Lubricate the deck with the provided silicone lubricant (2 applications). Regularly check belt tension and alignment.

What if the belt slips or makes noise?

Refer to the TROUBLESHOOTING section of the guide. Belt tension and centering are adjusted using the rear roller bolts. If the problem persists, contact technical support.

Can I use the treadmill outdoors or in a garage?

No. The CT5.3 is designed for indoor use only, in a climate-controlled room. Use in a garage, veranda, or outdoors voids the warranty.

How do I reset the console?

Press and hold the STOP key for 3 seconds. This resets all settings.

What is the warranty for the CT5.3?

Lifetime warranty for the frame and motor (original owner), 1 year for parts, electronics, and labor. The warranty is limited to domestic use and is non-transferable.

USER MANUAL CT5.3 Horizon Fitness

Read the TREADMILL GUIDE before using this OWNER'S MANUAL.

SAVE THESE INSTRUCTIONS

When using an electrical product, basic precautions should always be followed, including the following: Read all instructions before using this treadmill. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions. If you have any questions after reading this guide, contact Customer Tech Support at the number listed on the back panel of the OWNER'S MANUAL.

This treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental, school or institutional setting. Failure to comply will void the warranty.

DANGER

TO REDUCE THE RISK OF ELECTRICAL SHOCK:

Always unplug the treadmill from the electrical outlet immediately after using, before cleaning, performing maintenance and putting on or taking off parts.

WARNING

TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS:

• Never use the treadmill before securing the safety tether clip to your clothing.
• If you experience any kind of pain, including but not limited to chest pains, nausea, dizziness, or shortness of breath, stop exercising immediately and consult your physician before continuing.
• When exercising, always maintain a comfortable pace.
• Do not wear clothes that might catch on any part of the treadmill.
  • Always wear athletic shoes while using this equipment.
• Do not jump on the treadmill.
• At no time should more than one person be on treadmill while in operation.
• This treadmill should not be used by persons weighing more than specified in the OWNER'S MANUAL WARRANTY SECTION. Failure to comply will void the warranty.
• When lowering the treadmill deck, wait until rear feet are firmly on the floor before stepping on the deck.
• Disconnect all power before servicing or moving the equipment. To clean, wipe surfaces down with soap and slightly damp cloth only; never use solvents. (See MAINTENANCE)
• The treadmill should never be left unattended when plugged in. Unplug from outlet when not in use, and before putting on or taking off parts.
• Do not operate under blanket or pillow. Excessive heating can occur and cause fire, electric shock, or injury to persons.
• Connect this exercise product to a properly grounded outlet only.

WARNING

TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS:

• At NO time should pets or children under the age of 13 be closer to the treadmill than 10 feet.
• At NO time should children under the age of 13 use the treadmill.
  • Children over the age of 13 or disabled persons should not use the treadmill without adult supervision.
• Use the treadmill only for its intended use as described in the treadmill guide and owner's manual.
• Do not use other attachments that are not recommended by the manufacturer. Attachments may cause injury.
• Never operate the treadmill if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or immersed in water. Return the treadmill to a service center for examination and repair.
• Keep power cord away from heated surfaces. Do not carry this unit by its supply cord or use the cord as a handle.
• Never operate the treadmill with the air opening blocked. Keep the air opening clean, free of lint, hair, and the like.
• To prevent electrical shock, never drop or insert any object into any opening.
• Do not operate where aerosol (spray) products are being used or when oxygen is being administered.
• To disconnect, turn all controls to the off position, then remove plug from outlet.
• Do not use treadmill in any location that is not temperature controlled, such as but not limited to garages, porches, pool rooms, bathrooms, car ports or outdoors. Failure to comply will void the warranty.
• This treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental, school or institutional setting. Failure to comply will void the warranty.
• Do not remove the console covers unless instructed by Customer Tech Support. Service should only be done by an authorized service technician

It is essential that your treadmill is used only indoors, in a climate controlled room. If your treadmill has been exposed to colder temperatures or high moisture climates, it is strongly recommended that the treadmill is warmed up to room temperature before first time use. Failure to do so may cause premature electronic failure.

GROUNDING INSTRUCTIONS

This product must be grounded. If a treadmill should malfunction or breakdown, grounding provides a path of least resistance for electrical current to reduce the risk of electrical shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with local codes and ordinances.

DANGER

Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service provider if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.

This product is for use on a nominal 110-120 Volt circuit and has a grounding plug that looks like the plug in the illustration. Make sure that the product is connected to an outlet having the same configuration as the plug. No adapter should be used with this product.

This product must be used on a dedicated circuit. To determine if you are on a dedicated circuit, shut off the power to that circuit and observe if any other devices lose power. If so, move devices to a different circuit. Note: There are usually multiple outlets on one circuit. This treadmill should be used with a minimum 15-amp circuit.

3-POLE GROUNDED OUTLET

GROUNDING PIN

WARNING

Connect this exercise product to a properly grounded outlet only.

Never operate product with a damaged cord or plug even if it is working properly. Never operate any product if it appears damaged, or has been immersed in water. Contact Customer Tech Support for replacement or repair.

ASSEMBLY

WARNING

There are several areas during the assembly process that special attention must be paid. It is very important to follow the assembly instructions correctly and to make sure all parts are firmly tightened. If the assembly instructions are not followed correctly, the treadmill could have parts that are not tightened and will seem loose and may cause irritating noises. To prevent damage to the treadmill, the assembly instructions must be reviewed and corrective actions should be taken.

Before proceeding, find your treadmill's serial number located on a white barcode sticker near the on/off power switch and power cord and enter it in the space provided below.

ENTER YOUR SERIAL NUMBER AND MODEL NAME IN THE BOXES BELOW:

SERIAL NUMBER:

TM

MODEL NAME: HORIZON

TREADMILL

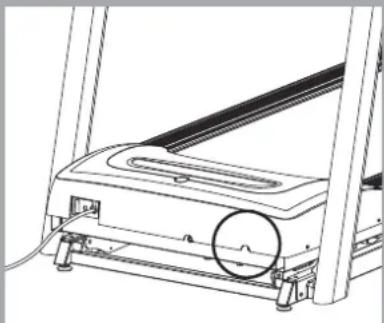

SERIAL NUMBER LOCATION

Technical line drawing of a treadmill with a circular component on the side (no text or symbols)

» Refer to the SERIAL NUMBER and MODEL NAME when calling for service.

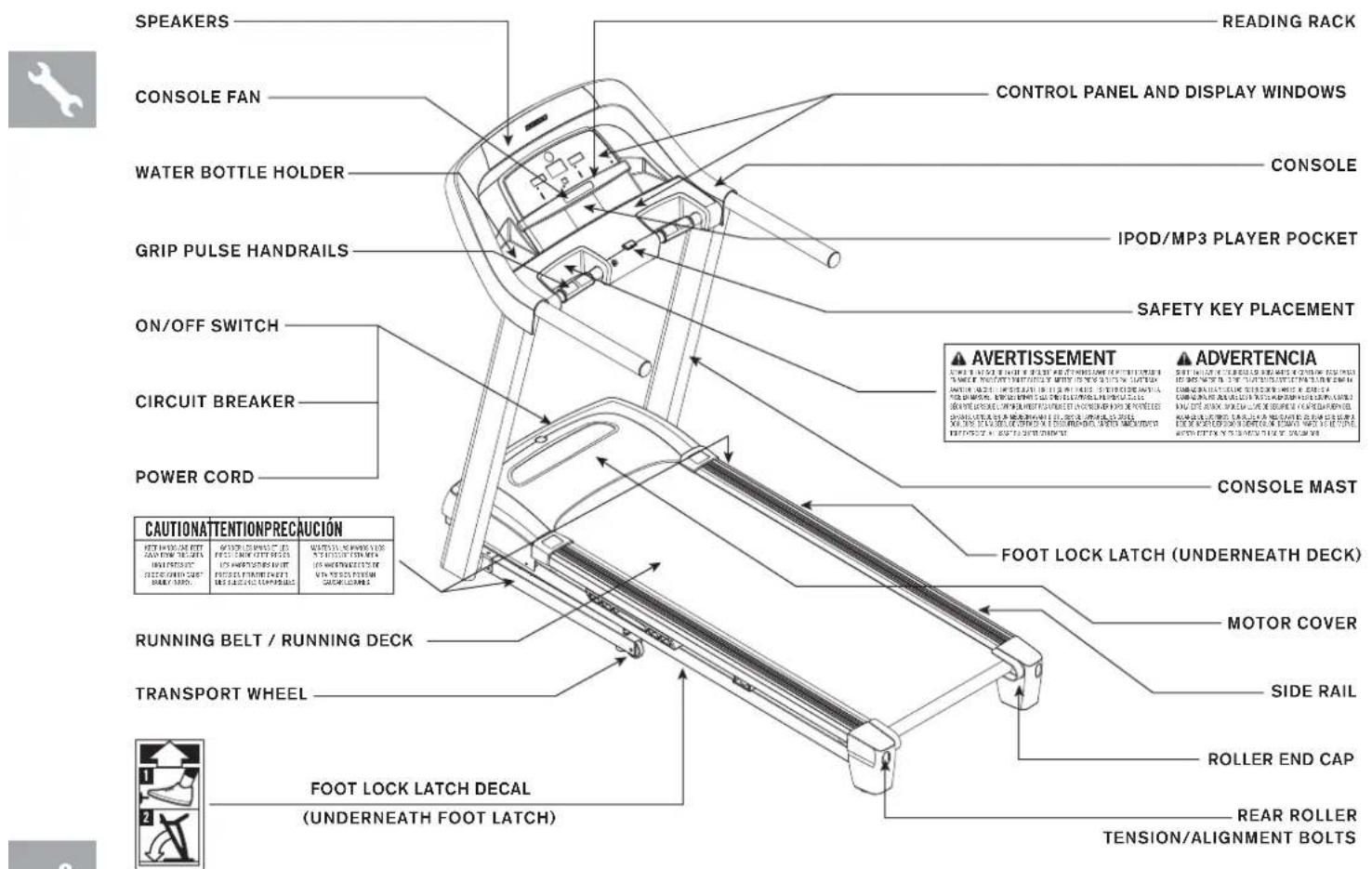

SPEAKERS CONSOLE FAN WATER BOTTLE HOLDER GRIP PULSE HANDRAILS ON/OFF SWITCH CIRCUIT BREAKER POWER CORD CAUTIONATTENTIONPRECAUCIÓN RUNNING BELT / RUNNING DECK TRANSPORT WHEEL FOOT LOCK LATCH DECAL (UNDERNEATH FOOT LATCH) READING RACK CONTROL PANEL AND DISPLAY WINDOWS CONSOLE IPOD/MP3 PLAYER POCKET SAFETY KEY PLACEMENT AVERTISSEMENT ADVERTENCIA FOOT LOCK LATCH (UNDERNEATH DECK) MOTOR COVER SIDE RAIL ROLLER END CAP REAR ROLLER TENSION/ALIGNMENT BOLTS

TOOLS INCLUDED:

6 mm T-Wrench
5 mm L-Wrench
□ 4 mm T-Wrench

PARTS INCLUDED:

□ 1 Console Assembly
□ 2 Console Masts
□ 2 Console Mast Brackets
□ 1 Hardware Kit
□ 1 Safety Key
□ 1 Audio Adapter Cable
☐ 1 Bottle of Silicone Lubricant (for 2 applications)
☐ 2 Water Bottle Holder Pockets

NEED HELP?

If you have questions or if there are any missing parts, contact Customer Tech Support. Contact information is located on the back panel of this manual.

PRE ASSEMBLY

UNPACKING

Place the treadmill carton on a level flat surface. It is recommended that you place a protective covering on your floor. Take CAUTION when handling and transporting this unit. Never open box when it is on its side. Once the banding straps have been removed, do not lift or transport this unit unless it is fully assembled and in the upright folded position, with the lock latch secure. Unpack and assemble the unit where it will be used. The enclosed treadmill is equipped with high-pressure shocks and may spring open if mishandled. Never grab hold of any portion of the incline frame and attempt to lift or move the treadmill.

WARNING

DO NOT ATTEMPT TO LIFT THE TREADMILL! Do not move or lift treadmill from packaging until specified to do so in the assembly instructions. You may remove the plastic wrap from console masts.

WARNING

FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN INJURY!

NOTE: During each assembly step, ensure that ALL nuts and bolts are in place and partially threaded in before completely tightening any ONE bolt.

NOTE: A light application of grease may aid in the installation of hardware. Any grease, such as lithium bike grease is recommended.

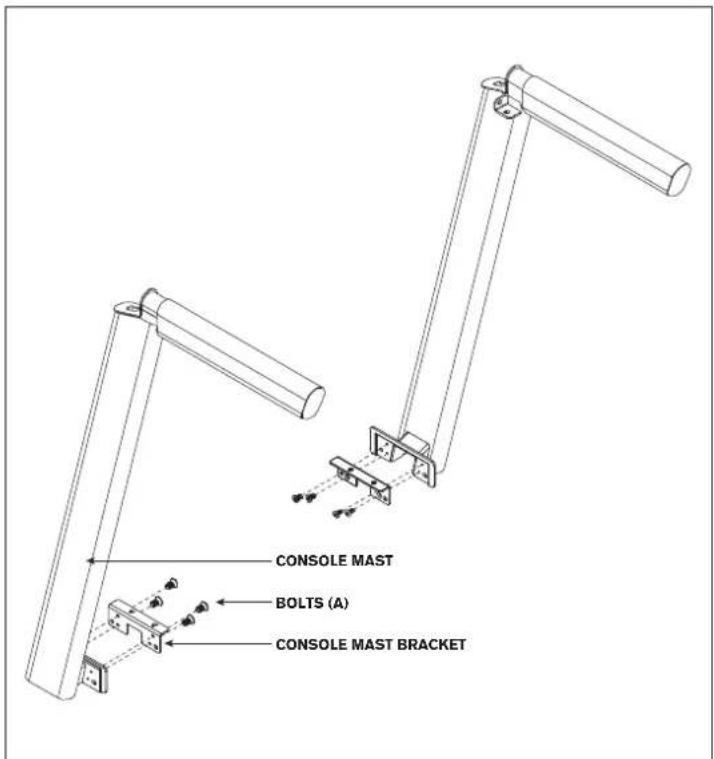

ASSEMBLY STEP 1

CONSOLE MAST BOLTS (A) CONSOLE MAST BRACKET

HARDWARE FOR STEP 1 :

BOLT (A)

10 mm

Qty: 8

A Cut the yellow banding straps and lift the RUNNING DECK upward until the FOOT LATCH locks. Remove all contents from underneath the running deck.
B Open HARDWARE FOR STEP 1.
C Attach CONSOLE MAST BRACKETS to the CONSOLE MASTS using 8 BOLTS (A).

ASSEMBLY STEP 2

HARDWARE FOR STEP 2 :

BOLT (B) 20 mm Qty: 4

SPRING WASHER (C) 15 mm Qty: 4

FLAT WASHER (D) 15 mm Qty: 4

RUNNING DECK LEFT CONSOLE MAST FOOT LATCH BASE FRAME FLAT WASHERS (D) SPRING WASHERS (C) BOLTS (B)

A Open HARDWARE FOR STEP 2.
B With the RUNNING DECK in the raised position, attach the LEFT CONSOLE MAST to the BASE FRAME using 4 BOLTS (B), 4 SPRING WASHERS (C) and 4 FLAT WASHERS (D).

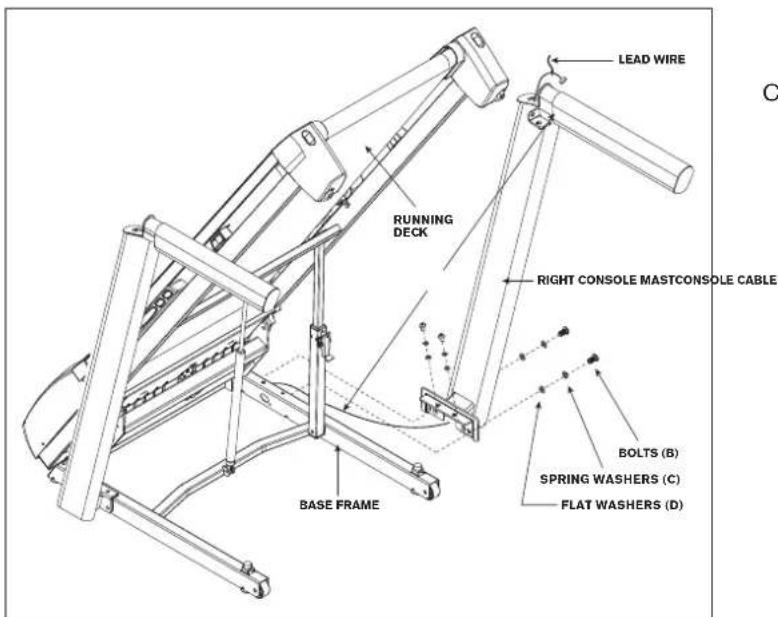

ASSEMBLY STEP 3

HARDWARE FOR STEP 3 :

BOLT (B) 20 mm Qty: 4

SPRING WASHER (C) 15 mm Qty: 4

FLAT WASHER (D) 15 mm Qty: 4

LEAD WIRE RUNNING DECK RIGHT CONSOLE MASTCONSOLE CABLE BASE FRAME BOLTS (B) SPRING WASHERS (C) FLAT WASHERS (D)

A Open HARDWARE FOR STEP 3.
B Attach LEAD WIRE to bottom end of CONSOLE CABLE. Pull LEAD WIRE through RIGHT CONSOLE MAST. After pulling the lead wire through the mast, the top of the CONSOLE CABLE should be located at the top of the mast.
C With the RUNNING DECK in the raised position, attach the RIGHT CONSOLE MAST to the BASE FRAME using 4 BOLTS (B), 4 SPRING WASHERS (C) and 4 FLAT WASHERS (D).

NOTE: Be careful not to pinch any wires while assembling the right console mast.

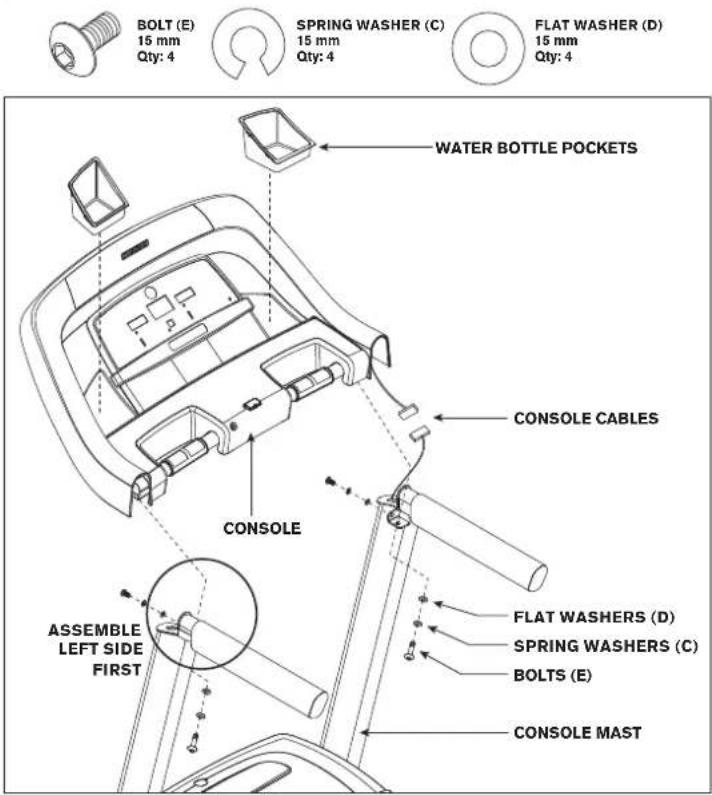

ASSEMBLY STEP 4

HARDWARE FOR STEP 4 :

BOLT (E) 15 mm Qty: 4 SPRING WASHER (C) 15 mm Qty: 4 FLAT WASHER (D) 15 mm Qty: 4 WATER BOTTLE POCKETS CONSOLE CABLES CONSOLE ASSEMBLE LEFT SIDE FIRST FLAT WASHERS (D) SPRING WASHERS (C) BOLTS (E) CONSOLE MAST

A Disengage the DECK LOCK LATCH with your foot to lower the RUNNING DECK.
B Open HARDWARE FOR STEP 4.
C Gently place the CONSOLE on top of the CONSOLE MASTS. Attach the LEFT SIDE first using 2 BOLTS (E), 2 SPRING WASHERS (C) and 2 FLAT WASHERS (D).
D Detach and discard the LEAD WIRE. Connect the CONSOLE CABLES and carefully tuck wires in masts to avoid damage.
E Attach the RIGHT SIDE of the CONSOLE using 2 BOLTS (E), 2 SPRING WASHERS (C) and 2 FLAT WASHERS (D).

NOTE: Be careful not to pinch any wires while assembling the console.

F Insert WATER BOTTLE POCKETS into CONSOLE.
G Before the first use, lubricate the treadmill deck by following the instructions in the MAINTENANCE section in the TREADMILL GUIDE.

YOU ARE FINISHED!

TREADMILL OPERATION

This section explains how to use your treadmill's console and programming.

The BASIC OPERATION section in the TREADMILL GUIDE has instructions for the following:

• LOCATION OF THE TREADMILL
• USING THE SAFETY KEY
• FOLDING THE TREADMILL
• MOVING THE TREADMILL
• LEVELING THE TREADMILL
• TENSIONING THE RUNNING BELT
• CENTERING THE RUNNING BELT
• USING THE HEART RATE FUNCTION

A P HORIZON P TYPE 88.88 + CALDER EIGHT 88.88 + HEART DATA TREAS PERFORMANCE + TIME S 1 2 3 4 5 6 7 8 9 10 % STOP + START INCLINE 1 2 3 4 5 6 7 8 9 10 + SPEED I M D H R G V N F E O J HASTONE

CONSOLE OPERATION

Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use.

A) LED DISPLAY WINDOWS: time, distance, calories, heart rate, speed, incline and workout profiles.

B) TARGET LED INDICATORS: indicate what target (if any) is set for the current program.

C) WORKOUT LED INDICATORS: indicate what workout is set for the current program.

D) SELECT TARGET: press to select your desired target.

E) SELECT WORKOUT: press to select your desired workout.

F) START: press to begin exercising, start your workout, or resume exercising after pause.

G) STOP: press to pause/end your workout. Hold for 3 seconds to reset the console.

H) COOL DOWN: press to enter cool down mode. Cool down lasts for 4 minutes and reduces speed and incline to allow your heart to readjust to decreased demand.

I) INCLINE ▼/▲ KEYS: used to adjust incline in small increments (0.5% increments).

J) SPEED V/A KEYS: used to adjust speed in small increments (0.1 mph increments).

K) INCLINE QUICK KEYS: used to reach desired incline more quickly.

L) SPEED QUICK KEYS: used to reach desired speed more quickly.

M) ENTER AND ▼/▲KEYS : used to adjust target and workout settings. Press ENTER to change display feedback during workout.

N) FAN KEY: press to turn fan on and off.

O) FAN: personal workout fan.

P) SPEAKERS: music plays through speakers when your CD / MP3 player is connected to the console.

Q) AUDIO IN JACK: plug your CD / MP3 player into the console using the included audio adaptor cable.

R) AUDIO OUT / HEADPHONE JACK: plug your headphones into this jack to listen to your music through the headphones. Note: when headphones are plugged into the headphone jack the sound will no longer come out through the speakers.

S) MP3 PLAYER POCKET: used to store your MP3 player.

T) WATER BOTTLE POCKETS: holds personal workout equipment.

U) READING RACK: holds reading material.

V) SAFETY KEY POSITION: enables treadmill when safety key is inserted.

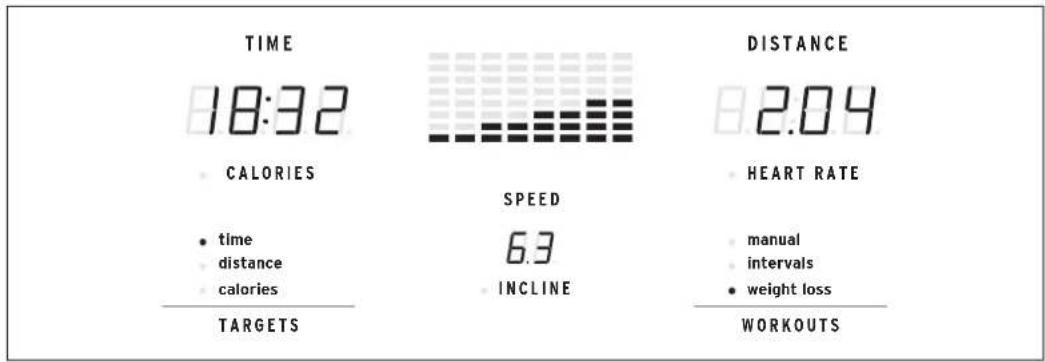

DISPLAY WINDOWS

• TIME: Shown as minutes : seconds. View the time remaining or the time elapsed in your workout.
• DISTANCE: Shown as miles. Indicates distance traveled or distance remaining during your workout.
- SPEED: Shown as MPH. Indicates how fast your walking or running surface is moving.
• INCLINE: Shown as percent. Indicates the incline of your walking or running surface.
• CALORIES: Total calories burned or calories remaining left to burn during your workout.
- HEART RATE: Shown as BPM (beats per minute). Used to monitor your heart rate (displayed when contact is made with both pulse grips).
- PROGRAM PROFILES: Represents the profile of the program being used (speed during speed based programs and incline during incline based programs).
• TARGETS: LED lights up next to currently selected target. If no LED is lit, no target is activated.
- WORKOUTS: LED lights up next to currently selected workout.

GETTING STARTED

1) Check to make sure no objects are placed on the belt that will hinder the movement of the treadmill.
2) Plug in the power cord and turn the treadmill ON. (The ON/OFF switch is next to the power cord.)
3) Stand on the side rails of the treadmill.
4) Attach the safety key clip to part of your clothing making sure that it is secure and will not become detached during operation.
5) Insert the safety key into the safety keyhole in the console.
6) You have two options to start your workout:

A) QUICK START UP

Simply press the START key to begin working out.

Time, distance, and calories will all count up from zero. OR...

B) SELECT A TARGET AND WORKOUT

1) Select a TARGET using the SELECT TARGET key.
2) Adjust the TARGET settings using the ARROW keys.
3) Press ENTER to advance.
4) Select a WORKOUT using the SELECT WORKOUT key.
5) Press START to begin workout.

TARGET PROFILES

TARGET 1 - TIME: Allows user to set a target based on how long they would like to workout. Time targets can range from 15:00 - 99:00. TIME will count down. DISTANCE and CALORIÉS will count up from zero.

TARGET 2 - DISTANCE: Allows user to set a target based on distance they would like to complete. Distance target can range from 0.25 - 26.25 miles. DISTANCE will count down. TIME and CALORIES will count up from zero.

TARGET 3 - CALORIES: Allows user to set a target based on the number of calories they would like to burn. Calories target can range from 20 - 980 calories. CALORIES will count down. TIME and DISTANCE will count up from zero.

NO TARGET: Allows user to select a workout profile that has no specified time, distance, or calorie target. TIME, DISTANCE, and CALORIES will all count up from zero.

WORKOUT PROFILES

1) MANUAL: Adjust your speed and incline manually during your workout.
2) INTERVALS: Improves your strength, speed and endurance by increasing and decreasing the speed and incline throughout your workout to involve your heart and other muscles.

Segment Warm Up 1 2					Segments 1 & 2 repeat until target is complete
Time 4:00	Mins 90 sec 30 sec
Speed	1	1.5	2	4
Incline 1 1	5 0.5 1.5

3) WEIGHT LOSS: Promotes weight loss by increasing and decreasing the speed and incline, while keeping you in your fat burning zone.

Segment Warm Up 12345678										Segments 1-8 repeat until target is complete
Time	4:00	3/1sec 30 sec 30 sec 30 sec 30 sec 30 sec 30 sec
Incline 0 0.5	1.5 1.5 1 0.5 0.5 0.5 1 1.5
Speed 1 1.5	2 2.5 3 3.5 4 3.5 3 2.5

TO RESET THE CONSOLE

Hold STOP key for 3 seconds.

COOL DOWN

Puts treadmill into cool down mode. Cool down lasts for four minutes and reduces speed and incline to allow your heart to readjust to decreased demand.

When your workout is complete, the monitor display will flash “GOAL COMPLETED” and beep. Your workout information will stay displayed on the console for 30-45 seconds and then reset.

CLEAR CURRENT SELECTION

To clear the current program selection or screen, hold the STOP button for 3-5 seconds.

USING YOUR CD / MP3 PLAYER

1) Connect the included AUDIO ADAPTOR CABLE to the AUDIO IN JACK on the top right of the console and the headphone jack on your CD / MP3 player.
2) Use your CD / MP3 player buttons to adjust song settings.
3) Remove the AUDIO ADAPTOR CABLE when not in use.

4) If you don't want to use the SPEAKERS, you can plug your headphones into the AUDIO OUT JACK at the bottom of the console.

LIMITED HOME-USE WARRANTY

WEIGHT CAPACITY = 300 lbs (136 kilograms)

FRAME • LIFETIME

Horizon Fitness warrants the frame against defects in workmanship and materials for the lifetime of the original owner, so long as the device remains in the possession of the original owner. (The frame is defined as the welded metal base of the unit and does not include any parts that can be removed.)

MOTOR • LIFETIME

Horizon Fitness warrants the motor against defects in workmanship and materials for the lifetime of the original owner, so long as the device remains in the possession of the original owner. Labor or installation of motor is not covered under the motor warranty.

ELECTRONICS & PARTS • 1 YEAR

Horizon Fitness warrants the electronic components, finish and all original parts for a period of one year from the date of original purchase, so long as the device remains in the possession of the original owner.

LABOR • 1 YEAR

Horizon Fitness shall cover the labor cost for the repair of the device for a period of one year from the date of the original purchase, so long as the device remains in the possession of the original owner.

EXCLUSIONS AND LIMITATIONS

Who IS covered:

- The original owner and is not transferable.

What IS covered:

- Repair or replacement of a defective motor, electronic component, or defective part and is the sole remedy of the warranty.

What IS NOT covered:

• Normal wear and tear, improper assembly or maintenance, or installation of parts or accessories not originally intended or compatible with the equipment as sold.
• Damage or failure due to accident, abuse, corrosion, discoloration of paint or plastic, neglect, theft, vandalism, fire, flood, wind, lightning, freezing, or other natural disasters of any kind, power reduction, fluctuation or failure from whatever cause, unusual atmospheric conditions, collision, introduction of foreign objects into the covered unit, or modifications that are unauthorized or not recommended by Horizon Fitness.
• Incidental or consequential damages. Horizon Fitness is not responsible or liable for indirect, special or consequential damages, economic loss, loss of property, or profits, loss of enjoyment or use, or other consequential damages of whatsoever nature in connection with the purchase, use, repair or maintenance of the equipment. Horizon Fitness does not provide monetary or other compensation for any such repairs or replacement parts

costs, including but not limited to gym membership fees, work time lost, diagnostic visits, maintenance visits or transportation.

• Equipment used for commercial purposes or any use other than a single family or Household, unless endorsed by Horizon Fitness for coverage.
  • Equipment owned or operated outside the US and Canada.
• Delivery, assembly, installation, setup for original or replacement units or labor or other costs associated with removal or replacement of the covered unit.
• Any attempt to repair this equipment creates a risk of injury. Horizon Fitness is not responsible or liable for any damage, loss or liability arising from any personal injury incurred during the course of, or as a result of any repair or attempted repair of your fitness equipment by other than an authorized service technician. All repairs attempted by you on your fitness equipment are undertaken AT YOUR OWN RISK and Horizon Fitness shall have no liability for any injury to the person or property arising from such repairs.
• If you are out of the manufacturer's warranty but have an extended warranty, refer to your extended warranty contract for contact information regarding requests for extended warranty service or repair.

SERVICE/RETURNS

• In-home service is available within 150 miles of the nearest authorized Service Provider (Mileage beyond 150 miles from an authorized service center is the responsibility of the consumer).
• All returns must be pre-authorized by Horizon Fitness.
• Horizon Fitness' obligation under this warranty is limited to replacing or repairing, at Horizon Fitness' option, the same or comparable model.
• Horizon Fitness may request defective components be returned to Horizon Fitness upon completion of warranty service using a prepaid return shipping label. If you have been advised to return parts and did not receive a label, please contact Customer Tech Support.
• Replacement units, parts and electronic components reconditioned to as-new condition by Horizon Fitness or its vendors may sometimes be supplied as warranty replacement and constitute fulfillment of warranty terms.
• This warranty gives you specific legal rights, and your rights may vary from state to state.

FRANÇAIS

PRÉCAUTIONS IMPORTANTES

CONSERVER CES INSTRUCTIONS

Technical line drawing of a treadmill with a circular component on the side (no text or symbols)

if you have any problems during assembly or if parts are missing.

For fast and friendly service, please contact one of our trained customer technicians via phone, email or our website.

We want to know if you have a problem and we want to have an opportunity to correct it for you.

NOTE: Please read the TROUBLESHOOTING section in the TREADMILL GUIDE before contacting Customer Tech Support. Additional product information is available on our website.

www.horizonfitness.com

Horizon Fitness

1600 Landmark Drive,

Cottage Grove WI, 53527
