USER MANUAL AN-WF100 LG
The AN-WF100 is a Wi-Fi adapter that can be used with certain LG Displays. The following model lines are supported:
■ LED LCD TV : LEX, LX, LE9, LE8, LE7, LE59, LE58, LE55, LE54 series
LCD TV : LD8, LD7, LD6, LD5 series
■ Plasma TV : PK5, PK7, PK9, PX9 series
■ Projector : HX350Y, HW300
(* Every model line listed is not available in every country.
* Available models are subject to change without notice.)
USB Dongle Hardware Installation
■ Find the USB port on the back of your Display.
- Plug in the Wi-Fi dongle to the Display's USB port.
Check to see if the Wi-Fi dongle is inserted correctly. The LED indicator should be facing up.
Warranty
■ This product comes with one year warranty (Europe 2 years).
If it proves to be defective in material or workmanship under normal use, during the warranty period, please contact the retailer where you purchased it. This warranty is good only to the original purchaser of the product and effective only in local area.
Safety Caution
- Keep this product away from water, moisture, and liquids.
- Keep this product away from direct sunlight, extreme heat, and fire.
For detailed network connection, please refer to your LG Display's manual.
Product Specification
| Standard | IEEE 802.11a/b/g/nIEEE 802.11b/g/n in IndonesiaIEEE 802.11a/b/g in Russia and Tunisia |
| Host interface | USB 2.0 |
| Frequency range | 2.400~2.483 GHz5.150~5.250 GHz5.725~5.850 GHz |
| Security | 64/128 bit WEP, WPA,WPA2, TKIP, AES,WPS (PIN, PBC) |
| Output power | 802.11a: 14 dBm (54 Mbps)802.11b: 16.5 dBm (11, 5.5, 2, 1 Mbps)802.11g: 14 dBm (54 Mbps)802.11n: (2.4 GHz) 13.5 dBm (20 MHz)/13.5 dBm (40 MHz)802.11n: (5 GHz) 13.5 dBm (20 MHz)/13.5 dBm (40 MHz) |
| Data rate | 802.11a/g: 54 Mbps802.11b: 11 Mbps802.11n: 300 Mbps (40 MHz) |
| Sensitivity | 802.11a: -72 dBm (54 Mbps)802.11b: -84 dBm (11, 5.5, 2, 1 Mbps)802.11g: -72 dBm (54 Mbps)802.11n: -64 dBm (20 MHz)/-61 dBm (40 MHz) |
| Power consumption | TX : 450 mARX : 200 mA |
| Dimensions(L * W * D) | 67 * 23.5 * 9 mm |
| Operating Temperature | 0 ~ 60 °C ambient |
| Storage Temperature | -20 ~ 60 °C ambient |
| Recommended use | 802.11n (5 GHz) | 802.11n (2.4 GHz) | 802.11a/b/g |
| streaming HD Video | recommended | not recommended | not recommended |
| streaming SD Video | recommended | recommended |
| Music, photo |
Note: data transmission speed varies depending on the network's physical environment setting.

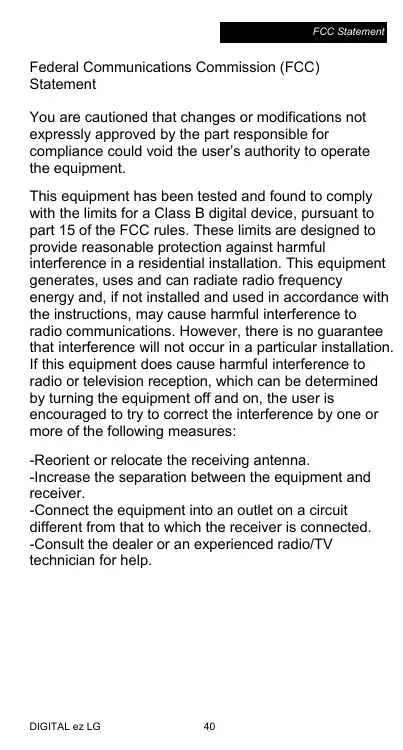

Federal Communications Commission (FCC) Statement
You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation of the device of the device.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
FCC RF Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Industry Canada Statement
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause undesired operation of the device.
This class B digital apparatus complies with Canadian ICES-003.
IC Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.
EU Conformity Notice:
CE0560①
LG hereby declares that this/these product(s) is/are in compliance with the essential requirements and other relevant provisions of Directive 2006/95/EC,1999/5/EC.
This device is a 2.4 and 5 GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in France and Italy where restrictive use applies.
In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up outdoor radio links and/or for supplying public access to telecommunications and/or network services.
This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France.
European representative:
LG Electronics European Shared Service Center B.V.
European Standards Center, Veluwezoom 15, 1327 AE
Almere, The Netherlands
+31 36 547 8888
This Wi-Fi dongle is designed for indoor use only.
CE Notified Body statement:
This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.
Explosive device proximity warning – Do not operate a portable transmitter (such as a wireless network device) near unshielded blasting caps or in an explosive environment unless the device has been modified to be qualified for such use.
This device can be operated in the EU without restrictions indoor.
This CE marking is valid for EU non-harmonized telecommunications products C€0560® R&TTE Directive (1999/5/EC) issued by the Commission of the European Community.
| DEUTSCH | EU-KonformitätserklärungCE0560DLG erklärt hiermit, dass dieses Produkt bzw. diese Produkte den grundlegenden Anforderungen und anderen relevanten Bestimmungen der Richtlinien 2006/95/EC,1999/5/EC entspricht bzw entsprechen.Vertreter für Europa:LG Electronics European Shared Service Center B.V. European Standards Center, Veluwezoom 15, 1327 AE Almere, The Netherlands+31 36 547 8888 |
| FRANÇAIS | Notice de conformité UEC0560DLG atteste que le ou les présents produits sont en conformité avec les exigences essentielles et autres dispositions pertinentes de la Directive 2006/95/EC,1999/5/EC.Représentant en Europe :LG Electronics European Shared Service Center B.V. European Standards Center, Veluwezoom 15, 1327 AE Almere, The Netherlands+31 36 547 8888 |
| ITALIANO | Avviso di conformità EUCE0560DLG dichiara che questi prodotti sono conformi ai requisiti essenziali e con le altre disposizioni relative alle direttive 2006/95/CE,1999/5/CE.Rappresentante europeo:LG Electronics European Shared Service Center B.V. European Standards Center, Veluwezoom 15, 1327 AE Almere, The Netherlands+31 36 547 8888 |
| ESPAÑOL | Aviso de conformidad con la UEC€0560 ^1 Por la presente,LG declara que estos productos cumplen con los requisitos esenciales y las demas provisiones relevantes de la directiva 2006/95/CE,1999/5/CE.Representante europeo:LG Electronics European Shared Service Center B.V. European Standards Center, Veluwezoom 15, 1327 AE Almere, The Netherlands +31 36 547 8888 |
| PORTUGUÊS | Aviso de conformidade da UEC€0560 ^1 A LG declara por este meio que este(s) produto(s) está/estão em conformidade com os requisitos essenciais e outras disposições relevantes da Directiva 2006/95/EC,1999/5/EC.Representante europeu:LG Electronics European Shared Service Center B.V. European Standards Center, Veluwezoom 15, 1327 AE Almere, The Netherlands +31 36 547 8888 |
| NEDERLANDS | Conformiteitsverklaring (EU)€0560 ^1 LG verklaart hierbij dat dit/deze product(en) voldoen aan de essentiële vereisten en andere relevante bepalingen van richtlijn 2006/95/EG,1999/5/EG.Europees hoofdkantoor:LG Electronics European Shared Service Center B.V. European Standards Center, Veluwezoom 15, 1327 AE Almere, The Netherlands +31 36 547 8888 |
| SHQIP | Deklarata e Konformitetit për BE-nëCE0560DNépěrmjet kěsaj LG deklaron se ky/kěto produkt(e)ěshtě/janě ně pěrputhje me kěrkesat themelore tědispozitave pěrkatěse tě Direktivave2006/95/KE,1999/5/KE.Pěrfaqěsuesi evropian:LG Electronics European Shared Service Center B.V.European Standards Center, Veluwezoom 15, 1327 AEAlmere, The Netherlands+31 36 547 8888 |
| BOSANSKI | Napomena o EU usklađenostiCE0560DLG izjavljuje da je ovaj/ovi proizvod(i) u skladu savažećim zahtjevima i ostalim relevantnim odredbamaDirektive 2006/95/EC,1999/5/EC.Predstavnik za Europu:LG Electronics European Shared Service Center B.V.European Standards Center, Veluwezoom 15, 1327 AEAlmere, The Netherlands+31 36 547 8888 |
| Български | Бележка за съвместимост на ECC0560DLG с това декларира, че този продукт е съвместим сосновните изисквания и други съответни условия надиректива 2006/95/EC,1999/5/EC.Европейски представител:LG Electronics European Shared Service Center B.V.European Standards Center, Veluwezoom 15, 1327 AEAlmere, The Netherlands+31 36 547 8888 |
| HRVATSKI | Napomena o sukladnosti s EU standardimaCE0560DLG ovim putem izjavljuje da je ovaj proizvod sukladansvim osnovnim preduvjetima i drugim važnimodredbama direktiva 2006/95/EC,1999/5/EC.Zastupnik za Europu:LG Electronics European Shared Service Center B.V.European Standards Center, Veluwezoom 15, 1327 AEAlmere, The Netherlands+31 36 547 8888 |
| ČESKY | Prohlášení o shodě s legislativou EUCE0560OPsolečnost LG tímto prohlášuje, že tento výrobek (tyto výrobky) je ve shodě se základními požadavky a příslušnými ustanoveními směrnic2006/95/ES,1999/5/ES.Zastoupení v Evropě:LG Electronics European Shared Service Center B.V. European Standards Center, Veluwezoom 15, 1327 AE Almere, The Netherlands+31 36 547 8888 |
| DANSK | EU-overensstemmelseserklæringCE0560OLG erklærer hermed, at dette/disse produkt(er) overholder de vigtige krav og andre relevante bestemmelser i direktiv 2006/95/EC,1999/5/EC.Europæisk repræsentant:LG Electronics European Shared Service Center B.V. European Standards Center, Veluwezoom 15, 1327 AE Almere, The Netherlands+31 36 547 8888 |
| EESTI | EÜ vastavuskinnitusCE0560OLG kinnitab järgnevaga, et see/need toode/tooted on vastavuses direktiivide 2006/95/EC,1999/5/EC ja nende lisade pôhinõuetega.Euroopa esindus:LG Electronics European Shared Service Center B.V. European Standards Center, Veluwezoom 15, 1327 AE Almere, The Netherlands+31 36 547 8888 |
| SUOMI | EU-vaatimustenmukaisuusilmoitusCE0560OLG vakuuttaa tâten, että tämä tuote on / nämä tuotteet ovat seuraavien direktiivien oleellisten vaatimusten ja muiden ehtojen mukainen: 2006/95/EY,1999/5/EY.Edustaja Euroopassa:LG Electronics European Shared Service Center B.V. European Standards Center, Veluwezoom 15, 1327 AE Almere, The Netherlands+31 36 547 8888 |
| ΕΛΛΗΝΙΚΑ | Δήλωση συμμόρφωσης ΕΕ CE0560 Με το παρόν, η LG δηλώνει ότι τα εν λόγω προϊόντα πληρούν τις προϋποθέσεις και άλλες σχετικές διατάξεις της Οδηγίας 2006/95/ΕΚ,1999/5/ΕΚ.Ευρωπαϊκός ανπιπρόσωπος:LG Electronics European Shared Service Center B.V. European Standards Center, Veluwezoom 15, 1327 AE Almere, The Netherlands+31 36 547 8888 |
| MAGYAR | EU Megfelelőségi nyilatkozat CE0560 Az LG ezúton kijelenti, hogy a termék(ek) megfelelnek a 2006/95/EK az 1999/5/EK irányelv alapvető előírásainak és egyéb vonatkozó rendelkezéseinek.Európai képviselet:LG Electronics European Shared Service Center B.V. European Standards Center, Veluwezoom 15, 1327 AE Almere, The Netherlands+31 36 547 8888 |
| LATVIEŠU | Paziņojums par atbilstību ES direktīvām CE0560 Ar šo LG paziņo, ka šis/šie izstrădăjums(-i) atbilst visām direktīvu 2006/95/EK,1999/5/EK būtiskajām prasībām un citiem saistošajiem noteikumiem.Pärstävniecība Eiropā:LG Electronics European Shared Service Center B.V. European Standards Center, Veluwezoom 15, 1327 AE Almere, The Netherlands+31 36 547 8888 |
| LIETUVI U K. | EB atitikties deklaracija CE0560 Bendrovė LG pareiškia, kad šis (šie) gaminys (-iai) atitinka esminius reikalavimus ir kitas atitinkamas nuostatas, pateiktas Direktyvose 2006/95/EB,1999/5/EB.Atstovas Europoje:LG Electronics European Shared Service Center B.V. European Standards Center, Veluwezoom 15, 1327 AE Almere, The Netherlands+31 36 547 8888 |
| MACEDONIAN | Известување за усогласеност со ЕУCE0560OLG изјавува дека овој/овие производ(и) е/се во согласност со неопходните барања и други поважни одредби од Директивата 2006/95/EC,1999/5/EC.Европски претставник :LG Electronics European Shared Service Center B.V.European Standards Center, Veluwezoom 15, 1327 AEAlmere, The Netherlands+31 36 547 8888 |
| NORSK | Samsvarsmerknad for EUCE0560OLG erklærer herved at disse produktene er i samsvar med de vesentlige kravene og andre relevante bestemmelser i Direktiv 2006/95/EC,1999/5/EC.Europeisk representant:LG Electronics European Shared Service Center B.V.European Standards Center, Veluwezoom 15, 1327 AEAlmere, The Netherlands+31 36 547 8888 |
| POLSKI | Deklaracija zgodności z normami UECE0560OFirma LG niniejszym zaświadcza, że niniejszy produkt spełnia zasadnicze wymagania i inne odnośne postanowienia dyrektyw 2006/95/WE,1999/5/WE.Przedstawiciel na Europę:LG Electronics European Shared Service Center B.V.European Standards Center, Veluwezoom 15, 1327 AEAlmere, The Netherlands+31 36 547 8888 |
| ROMANESTE | Declaratie de conformitate UECE0560OPrin prezenta, LG declară că acest(e) produs(e) este/sunt conform(e) cu cerințele esențiale și cu alte prevederi ale Directivei 2006/95/CE,1999/5/CE.Reprezentant european:LG Electronics European Shared Service Center B.V.European Standards Center, Veluwezoom 15, 1327 AEAlmere, The Netherlands+31 36 547 8888 |
| Русский | Уведомление о соответствии нормам ECCE0560ФНастоящим LG заявляет, что данный/данныепродукт(ы) соответствует основным требованиям ииным соответствующим пунктам Директив2006/95/EC, 1999/5/EC.Представительство в Европе:LG Electronics European Shared Service Center B.V.European Standards Center, Veluwezoom 15, 1327 AEAlmere, The Netherlands+31 36 547 8888 |
| SRPSKI | Napomena o usklađenosti sa standardimaCE0560ФLG ovim izjavljuje da je/su ovaj/ovi proizvod(i) u skladusa najbitnijim zahtevima i drugim relevantnim zakonskimodredbama Direktive 2006/95/EC, 1999/5/EC.Evropski predstavnik:LG Electronics European Shared Service Center B.V.European Standards Center, Veluwezoom 15, 1327 AEAlmere, The Netherlands+31 36 547 8888 |
| SLOVENSKY | Vyhlásenie o zhode pre oblast' EÚCE0560ФSpoločnosť LG týmto vyhlasuje, že tento/tieto produkt(y)je/sú v súlade so základnými požiadavkami a inýmirrelevantnými ustanoveniami Smernice2006/95/ES, 1999/5/ES.Európske zastupitel'stvo:LG Electronics European Shared Service Center B.V.European Standards Center, Veluwezoom 15, 1327 AEAlmere, The Netherlands+31 36 547 8888 |
| SLOVENŠČINA | Obvestilo o skladnosti s predpisi EUCE0560ФPodjetje LG izjavlja, da so ti izdelki skladni z bistvenimizahtevami in drugimi ustreznimi določili Direktiv2006/95/ES, 1999/5/ES.Evropski zastopnik:LG Electronics European Shared Service Center B.V.European Standards Center, Veluwezoom 15, 1327 AEAlmere, The Netherlands+31 36 547 8888 |
| SVENSKA | Meddelande om EU-regelefterlevnadCE0560OLG intygar härmed att denna/dessa produkt(er) uppfyller gällande regler och andra relevanta delar av direktiv 2006/95/EG,1999/5/EG.Europeisk representant:LG Electronics European Shared Service Center B.V. European Standards Center, Veluwezoom 15, 1327 AE Almere, The Netherlands+31 36 547 8888 |
| TÜRKÇE | AB Uygunluk BildirimiCE0560OLG işbu belgeyle bu ürünün/ürünlerin 2006/95/EC ve 1999/5/EC Yönetmeliğinin temel gereklikilleri ve diğer ilgili hükümleriyle uyumlu olduğunu beyan eder.Avrupa temsilciliği :LG Electronics European Shared Service Center B.V. European Standards Center, Veluwezoom 15, 1327 AE Almere, The Netherlands+31 36 547 8888 |
| UKRAINIAN | Підтвердження відповідності стандартам ЄССCE0560ОЦим компанія LG підтверджує відповідність продукту(ів) основним вимогам та іншим відповідним застереженням, поданим в директивах 2006/95/EC,1999/5/EC.Уповноважена особа у Європи:LG Electronics European Shared Service Center B.V. European Standards Center, Veluwezoom 15, 1327 AE Almere, The Netherlands+31 36 547 8888 |
WEEE
LG
English
Disposal of your old appliance
- When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
- All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
- The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
- For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.
