USER MANUAL DW852 DEWALT

Technical diagram of a power tool with numbered parts for identification

1 2a

A

Technical diagram of a mechanical assembly with labeled parts 10 and 11, showing internal components and alignment.

B

Technical diagram of a mechanical device with numbered parts for identification

C

21 20 5 4

D

Technical diagram of a mechanical device with numbered parts labeled 1 through 8

E

22 23 7 23 8

F

VINKELSLIBER DW476/DW479/DW490/DW492/DW491/DW848/DW852/DW495/DW496/DW497/DW498/DW499

Tillykke!

DW491/DW492/DW495/DW496/DW497/DW498/DW499

DW476/DW479/DW490/DW852/DW848

	DW476 DW479 DW490
	DW492 DW491 DW852
	DW495 DW496 DW497
	DW498 DW499 DW848

L_pA	(lydniveau) dB(A)* 86,2 86,2 86,2
L_wA	(akustisk styrke) dB(A) 94,2 94,2 94,2

	DW476 DW479 DW490
	DW492 DW491 DW852
	DW495 DW496 DW497
	DW498 DW499 DW848
	2,94 m/s^2 2,94 m/s^2 2,94 m/s^2

WINKELSCHLEIFER DW476/DW479/DW490/DW492/DW848/DW491/DW852/DW495/DW496/DW497/DW498/DW499

DW491/DW492/DW495/DW496/DW497/DW498/DW499

DW476/DW479/DW490/DW852/DW848

	DW476 DW479 DW490
	DW492 DW491 DW852
	DW495 DW496 DW497
	DW498 DW499 DW848

	DW476 DW479 DW490
	DW492 DW491 DW852
	DW495 DW496 DW497
	DW498 DW499 DW848
	2,94 m/s^2 2,94 m/s^2 2,94 m/s^2

ANGLE GRINDER DW476/DW479/DW490/DW492/DW848/DW491/DW852/DW495/DW496/DW497/DW498/DW499

Congratulations!

You have chosen a DEWALT Power Tool. Years of experience, thorough product development and innovation make DEWALT one of the most reliable partners for professional Power Tool users.

Technical data

DW476 DW479 DW490 DW492 DW491 DW852
Voltage V 230 230 230 230 230 230
(U.K. & Ireland only) V 230/115 230/115 230/115 230/115 230/115 230/115
Power input W 2,000 1,800 2,000 2,200 2,000 2,200
No-load speed min	-1 8,000 6,300 6,300 6,300 4,700 6,300
Wheel diameter mm 180 230 230 230 230 230
Spindle M14 M14 M14 M14 M14
Weight kg 4.6 4.6 4.6 4.6 4.7 4.6

DW495 DW496 DW497 DW498 DW499 DW848
Voltage V 230 230 230 230 230 230
(U.K. & Ireland only) V 230/115 230/115 230/115 230/115 230/115 230/115
Power input W 2,000 2,000 2,200 2,400 2,400 2,200
No-load speed min	-1 8,000 6,300 8,000 8,000 6,300 8,000
Wheel diameter mm 180 230 180 180 230 180
Spindle M14 M14 M14 M14 M14
Weight kg 4.6 4.6 4.6 4.7 4.6 4,7

Fuses:

Europe 230 V tools 10 Amperes, mains
U.K. & Ireland	230 V tools	13 Amperes, in plugs

The following symbols are used throughout this manual:

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Denotes risk of electric shock.

Fire hazard.

EC-Declaration of conformity

DW492/DW491/DW495/DW496/DW497/DW498/DW499

DEWALT declares that these Power Tools have been designed in compliance with: 98/37/EEC, 89/336/EEC, 73/23/EEC, EN 50144, EN 55014-2, EN 55014, EN 61000-3-2 & EN 61000-3-3.

DW476/DW479/DW490/DW852/DW848

DEWALT declares that these Power Tools have been designed in compliance with: 98/37/EEC, 89/336/EEC, 73/23/EEC, EN 50144, EN 55014-2, EN 55014, EN 61000-3-2 & EN 61000-3-11.

For more information, please contact DEWALT at the address below, or refer to the back of the manual.

Level of sound pressure according to 86/188/EEC & 98/37/EEC, measured according to EN 50144:

	DW476 DW479 DW490
	DW492 DW491 DW852
	DW495 DW496 DW497
	DW498 DW499 DW848

L_pA (sound pressure)dB(A)* 86.2 86.2 86.2
L_WA (acoustic power) dB(A) 94.2 94.2 94.2
* at the operator's ear

Take appropriate measures for the protection of hearing if the sound pressure of 85 dB(A) is exceeded.

Weighted root mean square acceleration value according to EN 50144:

	DW476 DW479 DW490
	DW492 DW491 DW852
	DW495 DW496 DW497
	DW498 DW499 DW848
	2.94 m/s^2 2.94 m/s^2 2.94 m/s^2

Director Engineering and Product Development Horst Großmann

X. Jopman

When using Power Tools, always observe the safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury. Read the following safety instructions before attempting to operate this product. Keep these instructions in a safe place!

General

1 Keep work area clean

Cluttered areas and benches can cause accidents.

2 Consider work area environment

Do not expose Power Tools to humidity. Keep work area well lit. Do not use Power Tools in the presence of flammable liquids or gases.

3 Guard against electric shock

Prevent body contact with earthed surfaces (e.g. pipes, radiators, cookers and refrigerators). For use under extreme conditions (e.g. high humidity, when metal swarf is being produced, etc.) electric safety can be improved by inserting an isolating transformer or a (FI) earth-leakage circuit-breaker.

4 Keep children away

Do not let children come into contact with the tool or extension cord. Supervision is required for those under 16 years of age.

5 Extension cords for outdoor use

When the tool is used outdoors, always use extension cords intended for outdoor use and marked accordingly.

6 Store idle tools

When not in use, Power Tools must be stored in a dry place and locked up securely, out of reach of children.

7 Dress properly

Do not wear loose clothing or jewellery. They can be caught in moving parts. Preferably wear rubber gloves and non-slip footwear when working outdoors. Wear protective hair covering to keep long hair out of the way.

8 Wear safety goggles

Also use a face or dust mask in case the operations produce dust or flying particles.

9 Beware of maximum sound pressure

Take appropriate measures for the protection of hearing if the sound pressure of 85 dB(A) is exceeded.

10 Secure workpiece

Use clamps or a vice to hold the workpiece. It is safer and it frees both hands to operate the tool.

11 Do not overreach

Keep proper footing and balance at all times.

12 Avoid unintentional starting

Do not carry the plugged-in tool with a finger on the switch. Be sure that the switch is released when plugging in.

13 Stay alert

Watch what you are doing. Use common sense. Do not operate the tool when you are tired.

14 Disconnect tool

Shut off power and wait for the tool to come to a complete standstill before leaving it unattended. Unplug the tool when not in use, before servicing or changing accessories.

15 Remove adjusting keys and wrenches

Always check that adjusting keys and wrenches are removed from the tool before operating the tool.

16 Use appropriate tool

The intended use is described in this instruction manual. Do not force small tools or attachments to do the job of a heavy-duty tool. The tool will do the job better and safer at the rate for which it was intended.

Warning! The use of any accessory or attachment or performance of any operation with this tool, other than those recommended in this instruction manual may present a risk of personal injury.

17 Do not abuse cord

Never carry the tool by its cord or pull it to disconnect from the socket. Keep the cord away from heat, oil and sharp edges.

18 Maintain tools with care

Keep the tools in good condition and clean for better and safer performance. Follow the instructions for maintenance and changing accessories. Inspect the tool cords at regular intervals and, if damaged, have them repaired by an authorized DEWALT repair agent. Inspect the extension cords periodically and replace them if damaged. Keep all controls dry, clean and free from oil and grease.

19 Check for damaged parts

Before using the tool, carefully check it for damage to ensure that it will operate properly and perform its intended function.

Check for misalignment and seizure of moving parts, breakage of parts and any other conditions that may affect its operation. Have damaged guards or other defective parts repaired or replaced as instructed. Do not use the tool if the switch is defective. Have the switch replaced by an authorized DEWALT repair agent.

20 Have your tool repaired by an authorized DEWALT repair agent

This Power Tool is in accordance with the relevant safety regulations. To avoid danger, electric appliances must only be repaired by qualified technicians.

Additional safety rules for grinders

- Your grinder has been designed for grinding and cutting masonry and steel.

Do not cut or grind light metal with a magnesium content exceeding 80% since this type of metal is flammable.

• Do not use any accessories other than fibre reinforced grinding wheels and cutting discs.
• Use the grinding wheels and cutting discs recommended by the manufacturer only.
• The no-load speed of the grinding wheel or cutting disc must not exceed the value printed on the nameplate (instruction sheet).
• Do not cut workpieces requiring a maximum depth of cut exceeding that of the cutting disc.

Package contents

The package contains:

1 Angle grinder
1 Guard
1 Side handle
1 Two-pin spanner
1 Instruction manual
1 Exploded drawing

- Check for damage to the tool, parts or accessories which may have occurred during transport.

• Take the time to thoroughly read and understand this manual prior to operation.

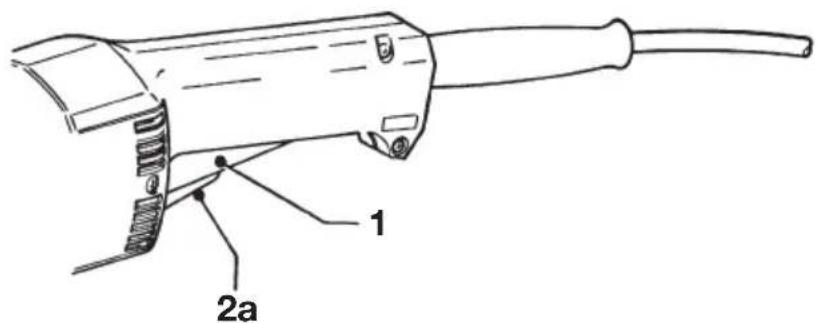

Description (fig. A)

Your DEWALT angle grinder DW476/DW479/DW490/DW492/DW491/DW852/DW495/DW496/DW497/DW498/DW499 has been designed for professional grinding and cutting applications.

1 On/off-switch
2 Unlocking switch (U.K. & France only)

2a Locking switch

3 Guard
4 Spindle lock
5 Spindle
6 Side handle
7 Top hole
8 Side holes
9 Carbon brush covers

DW491/DW492/DW495/DW496/DW497/DW498/

DW499 - Soft start feature

The soft start feature allows a slow speed build-up to avoid an initial jerk when starting. This feature is particularly useful when working in confined spaces.

Electrical safety

The electric motor has been designed for one voltage only. Always check that the power supply corresponds to the voltage on the rating plate.

Your DEWALT tool is double insulated in accordance with EN 50144; therefore no earth wire is required.

Mains plug replacement (U.K. & Ireland only)

• Should your mains plug need replacing and you are competent to do this, proceed as instructed below. If you are in doubt, contact an authorized DEWALT repair agent or a qualified electrician.
• Disconnect the plug from the supply.
• Cut off the plug and dispose of it safely; a plug with bared copper conductors is dangerous if engaged in a live socket outlet.
• Only fit 13 Amperes BS1363A approved plugs fitted with the correctly rated fuse (1).
• The cable wire colours, or a letter, will be marked at the connection points of most good quality plugs. Attach the wires to their respective points in the plug (see below). Brown is for Live (L) (2) and Blue is for Neutral (N) (4).

- Before replacing the top cover of the mains plug ensure that the cable restraint (3) is holding the outer sheath of the cable firmly and that the two leads are correctly fixed at the terminal screws.

Technical diagram of a mechanical switch or socket with numbered parts labeled 1, 2, 3, and 4.

Never use a light socket.

Never connect the live (L) or neutral (N) wires to the earth pin marked E or 12

Fitting a mains plug to 115 V units (U.K. & Ireland only)

- The plug should be fitted by a competent person. If you are in doubt, contact an authorized DEWALT repair agent or a qualified electrician.

The wires are coloured according to the following code:

live = brown

neutral = blue

- Do not connect the blue or brown wire to the earth terminal in the plug.

Connect as follows:

• brown to terminal marked 'L'
• blue to terminal marked 'N'

The plug fitted should be comply with BS EN 60309 (BS4343), 32 Amps.

Always ensure that the cable clamp is correctly and securely fitted to the sheath of the cable.

Using an extension cable

If an extension cable is required, use an approved extension cable suitable for the power input of this tool (see technical data). The minimum conductor size is 1.5 mm2.

When using a cable reel, always unwind the cable completely. Also refer to the table below.

Conductor size (mm2) Cable rating (Amperes)
0.75 6
1.00 10
1.50 15
2.50 20
4.00 25
Cable length (m)
7.5 15 25 30 45 60
Voltage Amperes Cable rating (Amperes)
1	1	5	0	-	2	.	0	6	6
		2.1	-	3.4	6	6	6	6	15
		3.5	-	5.0	6	6	10	15	20
		5.1	-	7.0	10	10	15	20	25
		7.1	-	12.0	15	15	20	25	25
		12.1	-	20.0	20	20	25	-	-
230		0	-	2.0	6	6	6	6	6
		2.1	-	3.4	6	6	6	6	6
		3.5	-	5.0	6	6	6	6	10
		5.1	-	7.0	10	10	10	15	15
		7.1	-	12.0	15	15	15	20	20
		12.1	-	20.0	20	20	20	20	25

Voltage drops

Inrush currents cause short-time voltage drops. Under unfavourable power supply conditions, other equipment may be affected.

If the system impedance of the power supply is lower than 0.25 , disturbances are unlikely to occur.

Assembly and adjustment

Prior to assembly and adjustment always unplug the tool.

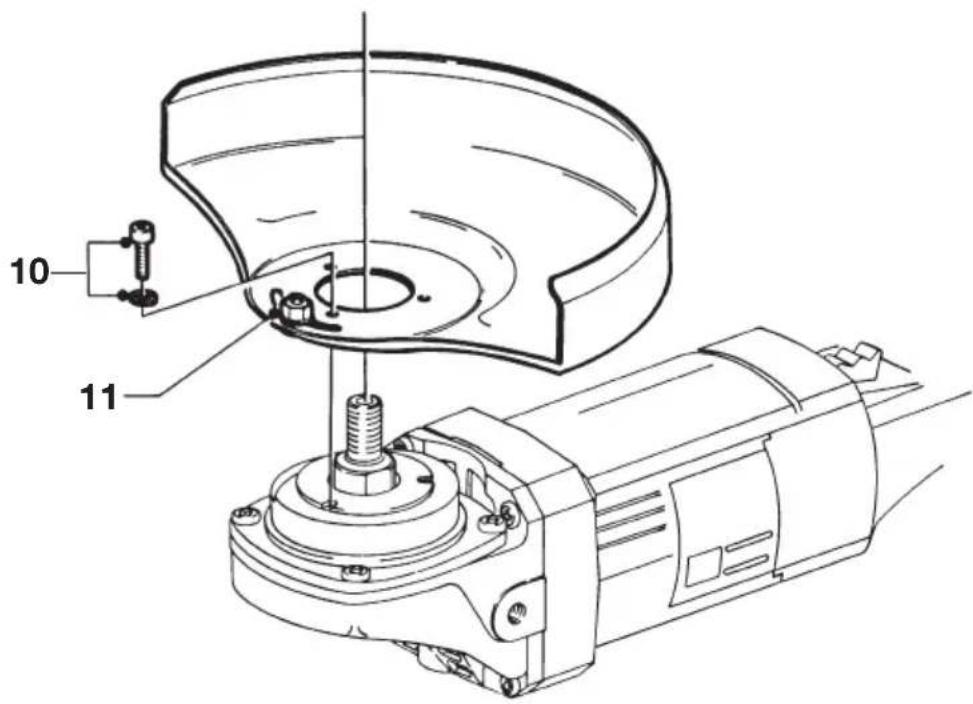

Mounting and removing the guard (fig. B)

• Place the angle grinder on a table, spindle up.
• Mount the guard to the tool using the three screws (10) with star washers.
• Rotate the guard to the required position and tighten the lock nut (11).
• To remove the guard, loosen the three screws (10).

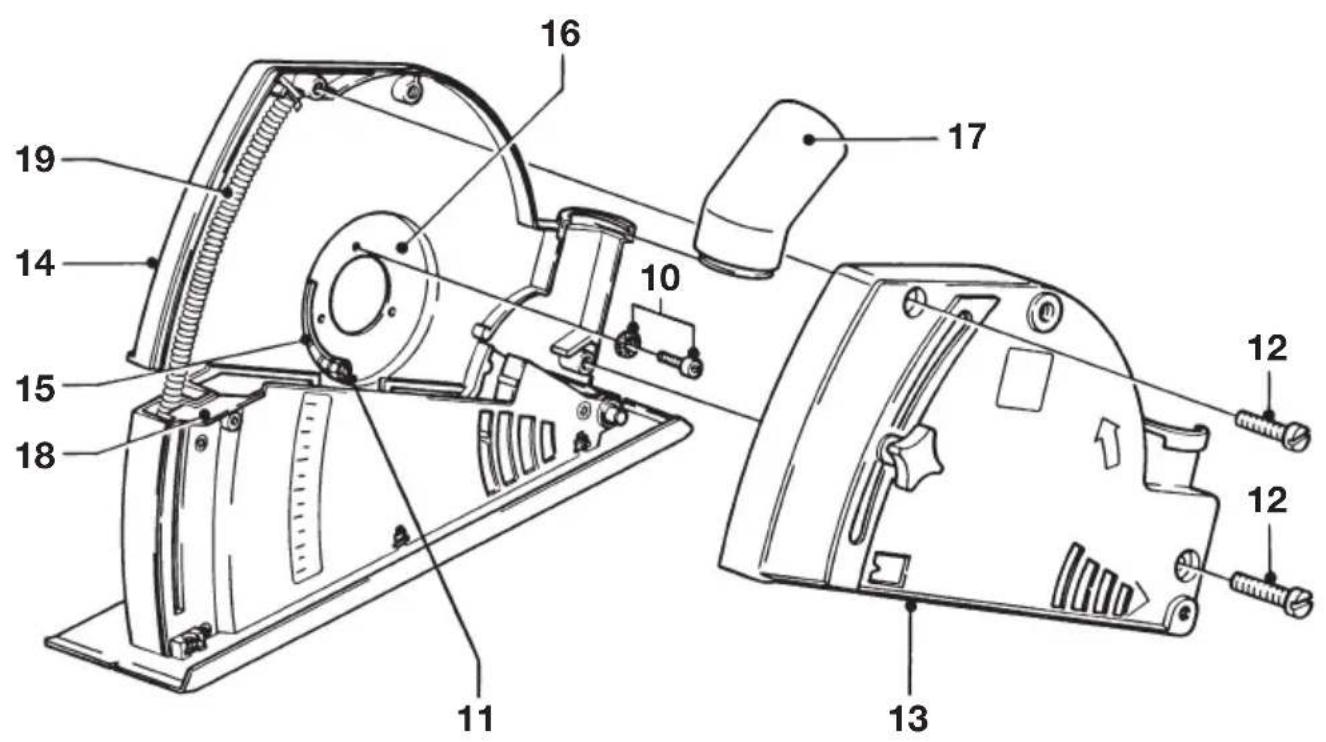

DW491 - Mounting and removing the diamond guard DE8501 (option) (fig. C)

The diamond guard DE8501 has been designed for depth adjustment and efficient dust extraction.

- Remove the guard from the angle grinder and place the tool on a table, spindle up.

• Remove both screws (12) from the diamond guard and disassemble the front plate (13).
• Insert the spindle through the hole in the rear plate (14) and tighten the three screws (10). Make sure the slots (15) in the rear plate and the retention disc (16) coincide.
• Rotate the angle grinder to the required position and tighten the lock nut (11).
• Fit an appropriate diamond cutting disc (see below).
  6 • Mount the front plate (13). Make sure that the dust extraction outlet (17) is properly caught in the opening between front (13) and rear plate (14). Hook the cam behind the ruler stop (18) in the base plate to make sure the spring (19) can move freely.
• Refit the screws (12).
• To remove the diamond guard, proceed in reverse order.

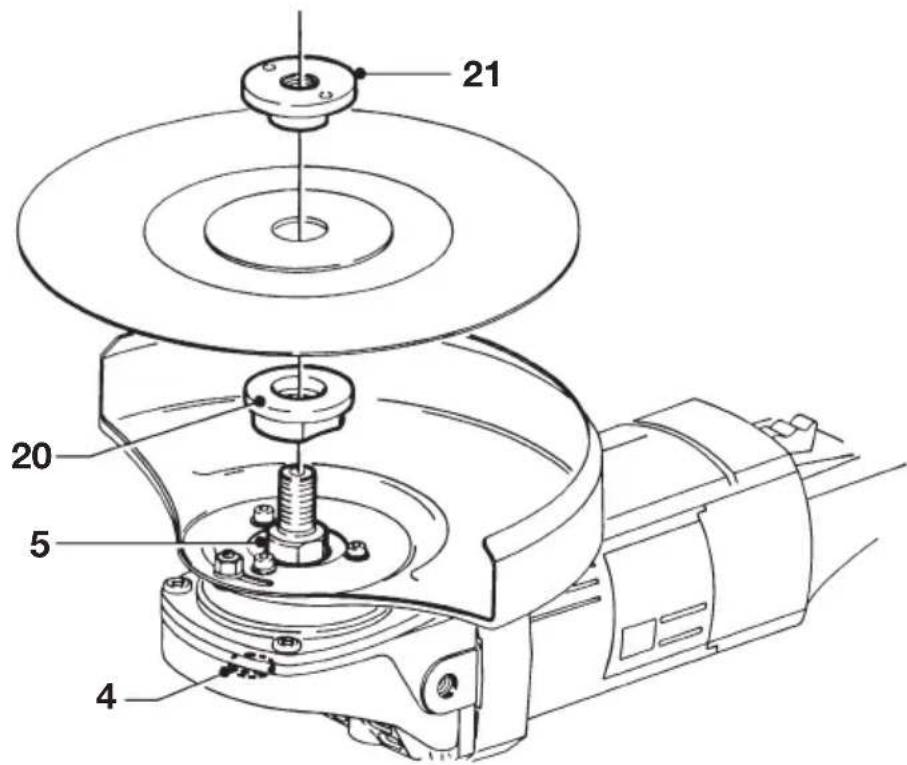

Fitting and removing a grinding wheel or cutting disc (fig. D)

• Place the tool on a table, guard up.
• Fit the spacer (20) correctly onto the spindle (5).
• Place the grinding wheel or cutting disc on the spacer.
• Screw the threaded flange (21) onto the spindle (5).
• Press the spindle lock (4) and rotate the grinding wheel or cutting disc until it locks in position.
• Tighten the threaded flange (21) with the two-pin spanner supplied.
• Release the spindle lock.
• To remove the grinding wheel or cutting disc, loosen the threaded flange (21) with the two-pin spanner.

Fitting a wire cup brush

- Screw the wire cup brush directly onto the spindle without the use of the spacer and threaded flange.

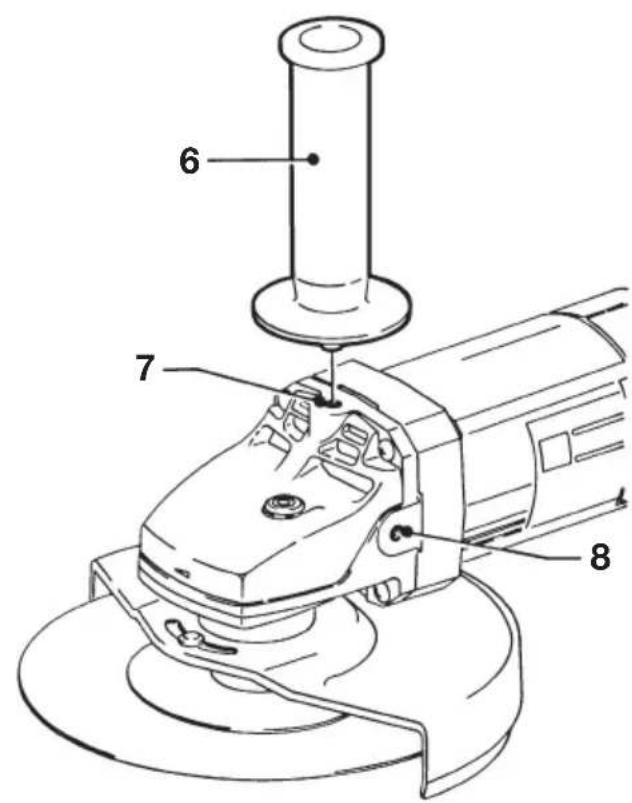

Mounting the side handle (fig. E)

• For grinding, screw the side handle (6) tightly into one of the holes (8) on either side of the gear case.
• For cutting, screw the side handle (6) tightly into the top hole (7).

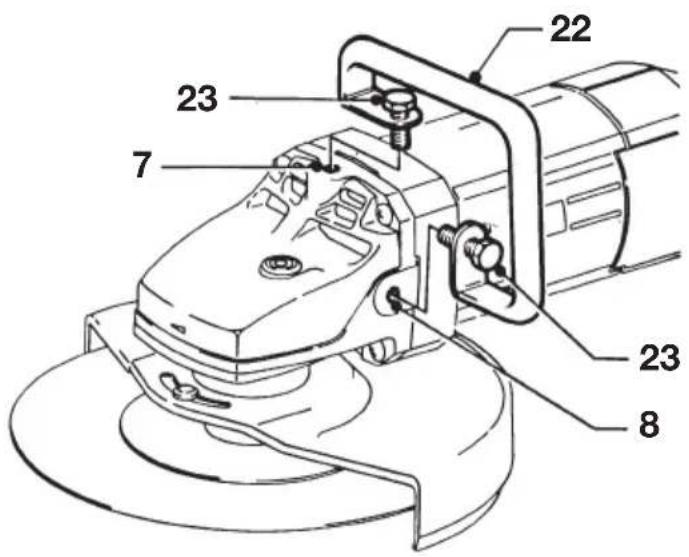

DW491 + DE8501 - Mounting the round handle DE8502 (option) (fig. F)

- Remove the side handle.

- Mount the round handle (22) using the two screws (23).

- Fit one screw in the top hole (7) and the other in one of the side holes (8).

Instructions for use

• Always observe the safety instructions and applicable regulations.

- Ensure all materials to be ground or cut are secured in place.

- Apply only a gentle pressure to the tool. Do not exert side pressure on the grinding wheel or cutting disc.

- Avoid overloading. Should the tool become hot, let it run a few minutes under no load condition.

Prior to operation:

- Install the guard and appropriate disc or wheel. Do not use excessively worn discs or wheels.

- Be sure the spacer and threaded flange are mounted correctly.

- Make sure the disc or wheel rotates in the direction of the arrows on the accessory and the tool.

Switching on and off (fig. A)

The on/off-switch of your angle grinder is equipped with an unlocking switch or a locking switch for continuous operation.

(U.K. & France only) - On/off-switch (1) with unlocking switch (2)

- To unlock the on/off-switch, slide the unlocking switch towards you.

- To run the tool, press the on/off-switch.

- To stop the tool, release the on/off-switch.

On/off-switch (1) with locking switch (2a)

- To run the tool, press the on/off-switch. The tool now runs in continuous operation.

- To stop the tool, press the locking switch briefly, and release the on/off-switch.

Do not switch the tool on or off when under load.

DW491 - Using the diamond guard DE8501 (option) (fig. C)

The diamond guard is used for cutting concrete and masonry, when accurate cutting depth adjustment or dust extraction are required.

- Mount the diamond guard as described above.

- Connect a dust extractor to the outlet (17).

- Set the cutting depth using the ruler knob in the front plate (13).

- Observe the safety instructions applying to diamond cutting discs.

- Use a suitable diamond cutting disc (check the data of the manufacturer).

- The maximum rotation speed on the cutting disc must not be lower than that of the tool.

- Do not use cutting discs with a diameter exceeding 230 mm.

Fire hazard! Do not use the dust extractor when cutting metal! Make sure that the dust extractor used is suitable for the material to be cut and the Diamond guard can be connected.

DW491 - Using the round handle DE8502 (option) (fig. F)

The round handle provides greater convenience and makes your tool very easy to handle.

- Mount the round handle as described above.

Consult your dealer for further information on the appropriate accessories.

Maintenance

Your DEWALT Power Tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

Lubrication

Your power tool requires no additional lubrication.

Cleaning

Keep the ventilation slots clear and regularly clean the housing with a soft cloth.

Unwanted tools and the environment

Take your tool to an authorized DEWALT repair agent where it will be disposed of in an environmentally safe way.

GUARANTEE

- 30 DAY NO RISK SATISFACTION GUARANTEE If you are not completely satisfied with the performance of your DEWALT tool, simply return it within 30 days, complete as purchased, to the point of purchase, for a full refund or exchange. Proof of purchase must be produced.

• ONE YEAR FREE SERVICE CONTRACT •

If you need maintenance or service for your DeWALT tool, in the 12 months following purchase, it will be undertaken free of charge at an authorized DeWALT repair agent. Proof of purchase must be produced. Includes labour and spare parts for Power Tools. Excludes accessories.

• ONE YEAR FULL WARRANTY •

If your DEWALT product becomes defective due to faulty materials or workmanship within 12 months from the date of purchase, we guarantee to replace all defective parts free of charge or, at our discretion, replace the unit free of charge provided that:

• The product has not been misused.
  • Repairs have not been attempted by unauthorized persons.
• Proof of purchase date is produced. This guarantee is offered as an extra benefit and is additional to consumers statutory rights.

For the location of your nearest authorized DEWALT repair agent, please use the appropriate telephone number on the back of this manual. Alternatively, a list of authorized DEWALT repair agents and full details on our after-sales service are available on the Internet at www.2helpU.com.

AMOLADORA ANGULAR DW476/DW479/DW490/DW492/DW848/DW491/DW852/DW495/DW496/DW497/DW498/DW499

¡Enhorabuena!

DW491/DW492/DW495/DW496/DW497/DW498/DW499

DW476/DW479/DW490/DW852/DW848

	DW476 DW479 DW490
	DW492 DW491 DW852
	DW495 DW496 DW497
	DW498 DW499 DW848

	DW476 DW479 DW490
	DW492 DW491 DW852
	DW495 DW496 DW497
	DW498 DW499 DW848
	2,94 m/s^2 2,94 m/s^2 2,94 m/s^2

Director Engineering and Product Development Horst Großmann

X. fopman

DW491/DW492/DW495/DW496/DW497/DW498/DW499 - El arranque suave

MEULEUSE D'ANGLE DW476/DW479/DW490/DW492/DW848/DW491/DW852/DW495/DW496/DW497/DW498/DW499

Félicitations!

DW491/DW492/DW495/DW496/DW497/DW498/DW499

DW476/DW479/DW490/DW852/DW848

DW476 DW479 DW490

DW492 DW491 DW852

DW495 DW496 DW497

DW498 DW499 DW848

	DW476 DW479 DW490
	DW492 DW491 DW852
	DW495 DW496 DW497
	DW498 DW499 DW848
	2,94 m/s^2 2,94 m/s^2 2,94 m/s^2

L'emballage contient:

DW476/DW479/DW490/DW492/DW491/DW852/DW495/

DW848/DW496/DW497/DW498/DW499

Congratulazioni!

DW491/DW492/DW495/DW496/DW497/DW498/DW499

DW476/DW479/DW490/DW852/DW848

	DW476 DW479 DW490
	DW492 DW491 DW852
	DW495 DW496 DW497
	DW498 DW499 DW848

	DW476 DW479 DW490
	DW492 DW491 DW852
	DW495 DW496 DW497
	DW498 DW499 DW848
	2,94 m/s^2 2,94 m/s^2 2,94 m/s^2

HAAKSE SLIJPER DW476/DW479/DW490/DW492/DW848/DW491/DW852/DW495/DW496/DW497/DW498/DW499

Gefeliciteerd!

DW491/DW492/DW495/DW496/DW497/DW498/DW499

DW476/DW479/DW490/DW852/DW848

	DW476 DW479 DW490
	DW492 DW491 DW852
	DW495 DW496 DW497
	DW498 DW499 DW848

	DW476 DW479 DW490
	DW492 DW491 DW852
	DW495 DW496 DW497
	DW498 DW499 DW848
	2,94 m/s^2 2,94 m/s^2 2,94 m/s^2

Director Engineering and Product Development Horst Großmann

X. Jopmann

DEWALT, Richard-Klinger-Straße 40, D-65510, Idstein, Duitsland

VINKELSLIPER DW476/DW479/DW490/DW492/DW848/DW491/DW852/DW495/DW496/DW497/DW498/DW499

Gratulerer!

DW491/DW492/DW495/DW496/DW497/DW498/DW499

DEWALT erklærer at disse elektroverktøyer er konstruert i henhold til: 98/37/EEC, 89/336/EEC, 73/23/EEC, EN 50144, EN 55014-2, EN 55014, EN 61000-3-2 & EN 61000-3-3.

DW476/DW479/DW490/DW852/DW848

DEWALT erklærer at disse elektroverktøyer er konstruert i henhold til: 98/37/EEC, 89/336/EEC, 73/23/EEC, EN 50144, EN 55014-2, EN 55014, EN 61000-3-2 & EN 61000-3-11.

∅nsker du flere opplysninger, vennligst kontakt DEWALT på adressen nedenfor eller se veiledningens bakside.

	DW476 DW479 DW490
	DW492 DW491 DW852
	DW495 DW496 DW497
	DW498 DW499 DW848

L_pA (lydnivå) dB(A)* 86,2 86,2 86,2
L_WA (akustisk effekt) dB(A) 94,2 94,2 94,2
* ved brukerens øre

	DW476 DW479 DW490
	DW492 DW491 DW852
	DW495 DW496 DW497
	DW498 DW499 DW848
	2,94 m/s^2 2,94 m/s^2 2,94 m/s^2

Director Engineering and Product Development Horst Großmann

X. Jopman

DEWALT, Richard-Klinger-Straße 40, D-65510, Idstein, Tyskland

Sikkerhetsforskrifter

DW491/DW492/DW495/DW496/DW497/DW498/DW499 - Myk start

Myk start-mekanismen sørger for en langsom økning av hastigheten. Maskinen starter derfor ikke med et rykk. Denne mekanismen er spesielt nyttig dersom arbeidsplassen er av begrenset omfang.

Elektrisk sikkerhet

Den elektriske motoren er kun konstruert for én spenning. Kontroller alltid at nettspenningen er i overensstemmelse med spenningen på typeskiltet.

REBARBADORA DW476/DW479/DW490/DW492/DW848/DW491/DW852/DW495/DW496/DW497/DW498/DW499

Parabéns!

DW491/DW492/DW495/DW496/DW497/DW498/DW499

A DEWALT declara que estas ferramentas eléctricas foram concebidas em conformidade com 98/37/CEE, 89/336/CEE, 73/23/CEE, EN 50144, EN 55014-2, EN 55014, EN 61000-3-2 & EN 61000-3-3.

DW476/DW479/DW490/DW852/DW848

A DEWALT declara que estas ferramentas eléctricas foram concebidas em conformidade com 98/37/CEE, 89/336/CEE, 73/23/CEE, EN 50144, EN 55014-2, EN 55014, EN 61000-3-2 & EN 61000-3-11.

	DW476 DW479 DW490
	DW492 DW491 DW852
	DW495 DW496 DW497
	DW498 DW499 DW848

	DW476 DW479 DW490
	DW492 DW491 DW852
	DW495 DW496 DW497
	DW498 DW499 DW848
	2,94 m/s^2 2,94 m/s^2 2,94 m/s^2

Director Engineering and Product Development Horst Großmann

X. Jopman

DEWALT, Richard-Klinger-Straße 40, D-65510, Idstein, Alemanha

15 Tire as chaves de aperto

DW491/DW492/DW495/DW496/DW497/DW498/DW499 - Função de arranque suave

KULMAHIOMAKONE DW476/DW479/DW490/DW492/DW848/DW491/DW852/DW495/DW496/DW497/DW498/DW499

Onneksi olkoon!

DW491/DW492/DW495/DW496/DW497/DW498/DW499

DW476/DW479/DW490/DW852/DW848

	DW476 DW479 DW490
	DW492 DW491 DW852
	DW495 DW496 DW497
	DW498 DW499 DW848

	DW476 DW479 DW490
	DW492 DW491 DW852
	DW495 DW496 DW497
	DW498 DW499 DW848
	2,94 m/s^2 2,94 m/s^2 2,94 m/s^2

Director Engineering and Product Development Horst Großmann

X. Jopman

VINKELSLIPAR DW476/DW479/DW490/DW492/DW848/DW491/DW852/DW495/DW496/DW497/DW498/DW499

Vi gratulerar!

DW491/DW492/DW495/DW496/DW497/DW498/DW499

DW476/DW479/DW490/DW852/DW848

	DW476 DW479 DW490
	DW492 DW491 DW852
	DW495 DW496 DW497
	DW498 DW499 DW848

	DW476 DW479 DW490
	DW492 DW491 DW852
	DW495 DW496 DW497
	DW498 DW499 DW848
	2,94 m/s^2 2,94 m/s^2 2,94 m/s^2

Director Engineering and Product Development Horst Großmann

X. fopman

DEWALT, Richard-Klinger-Straße 40, D-65510, Idstein, Tyskland

Säkerhetsinstruktioner

DW476/DW479/DW490/DW492/DW848/DW491/DW852/DW495/DW496/DW497/DW498/DW499

Tebrikler!

DW491/DW492/DW495/DW496/DW497/DW498/DW499

DEWALT, bu elektrikli aletlerin 98/37/EEC, 89/336/EEC, 73/23/EEC, EN 50144, EN 55014-2, EN 55014, EN 61000-3-2, EN 61000-3-3'e uygun olarak tasarlandığını beyan eder.

DW476/DW479/DW490/DW852/DW848

DEWALT, bu elektrikli aletlerin 98/37/EEC, 89/336/EEC, 73/23/EEC, EN 50144, EN 55014-2, EN 55014, EN 61000-3-2, EN 61000-3-11'e uygun olarak tasarlandığını beyan eder.

DW476 DW479 DW490

DW492 DW491 DW852

DW495 DW496 DW497

DW498 DW499 DW848

L_pA
(se s siddeti)	dB(A)* 86,2 86,2 86,2

L_WA

(akustik gücü) dB(A) 94,2 94,2 94,2

	DW476 DW479 DW490
	DW492 DW491 DW852
	DW495 DW496 DW497
	DW498 DW499 DW848
	2,94 m/s^2	2,94 m/s^2	2,94 m/s^2

DW491/DW492/DW495/DW496/DW497/DW498/DW499

DW476/DW479/DW490/DW852/DW848

	DW476 DW479 DW490
	DW492 DW491 DW852
	DW495 DW496 DW497
	DW498 DW499 DW848

	DW476 DW479 DW490
	DW492 DW491 DW852
	DW495 DW496 DW497
	DW498 DW499 DW848
	2,94 m/s^2 2,94 m/s^2 2,94 m/s^2
