USER MANUAL TBE304 TROY-BILT

SAVE THESE INSTRUCTIONS

IMPORTANT: Read this manual thoroughly before using this product. Follow all instructions.

WARNING: This product can expose you to chemicals including engine exhaust, which is known to the State of California to cause cancer, and carbon monoxide, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Starting and Stopping 18

Operation 22

Maintenance 24

Cleaning and Storage 31

Troubleshooting 32

All information, illustrations, and specifications in this manual are based on the latest product information available at the time of printing. We reserve the right to make changes at any time without notice.

The product may vary slightly from the illustrations contained in this manual.

NOTE: This operator's manual covers multiple models. Features may vary by model. Not all features in this manual are applicable to all models. The model depicted may differ from yours.

SAFETY

The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and their explanations, deserve your careful attention and understanding. The safety warnings do not by themselves eliminate any danger. The instructions or warnings they give are not substitutes for proper accident prevention measures.

SYMBOL MEANING

DANGER: Signals an EXTREME hazard.

Failure to obey a safety DANGER symbol WILL result in serious injury or death to yourself or to others.

WARNING: Signals a SERIOUS hazard.

Failure to obey a safety WARNING symbol CAN result in serious injury to yourself or to others.

CAUTION: Signals a MODERATE hazard.

Failure to obey a safety CAUTION symbol MAY result in property damage or injury to yourself or to others.

NOTE: Advises you of information or instructions vital to the operation or maintenance of the equipment.

SPARK ARRESTOR NOTE

NOTE: For users on U.S. Forest Land and in the states of California, Maine, Oregon and Washington. All U.S. Forest Land and the state of California (Public Resources Codes 4442 and 4443), Oregon and Washington require, by law that certain internal combustion engines operated on forest brush and/or grass-covered areas be equipped with a spark arrestor, maintained in effective working order, or the engine be constructed, equipped and maintained for the prevention of fire. Check with your state or local authorities for regulations pertaining to these requirements. Failure to follow these requirements could subject you to liability or a fine. This unit is factory equipped with a spark arrestor. If it requires replacement, contact your local service dealer to install the appropriate muffler assembly.

WARNING: Read the operator's manual and follow all warnings and safety instructions. Failure to do so can result in serious injury to the operator and/or bystanders.

- IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE OPERATING

WARNING: When using the unit, all safety instructions must be followed. Please read these instructions before operating the unit in order to ensure the safety of the operator and any bystanders. Please keep these instructions for later use.

• Read the instructions carefully. Be familiar with the controls and proper use of the unit.
• Know how to stop the unit and disengage the controls quickly.
• Stay alert. Do not operate this unit when tired, ill or under the influence of alcohol, drugs or medication.
• Never allow children to operate the unit. Teens must be trained, accompanied and supervised by an adult. Never allow adults to operate the unit without proper instruction.
• All guards and safety attachments must be installed properly before operating the unit.
• Inspect the unit before use. Check for damaged parts. Check for fuel leaks. Make sure all parts operate properly. Make sure all fasteners are in place and secure. Make sure all moving parts are properly aligned and are not bound. Replace parts that are cracked, chipped, or damaged in any way. Have all damaged or improperly working parts repaired or replaced by an authorized service center. Do not operate the unit with loose or damaged parts.
• Be aware of risk of injury to the head, hands and feet.
• Carefully inspect the area before starting the unit. Remove rocks, broken glass, nails, wire, string and other objects that may be thrown or become entangled with the unit.
• Clear the area of children, bystanders and pets; keep them outside a 50-foot (15 m) radius, at a minimum. Even then, they are still at risk from thrown objects. Encourage bystanders to wear eye protection. If you are approached, stop the unit immediately.
• Squeeze the throttle control and check that it returns automatically to the idle position. Make all adjustments or repairs before using the unit.
• Do not change the engine governor settings or overspeed the engine.
• This unit is intended for occasional, household use only.

SAFETY WARNINGS FOR GAS UNITS

WARNING: Gasoline is highly flammable and its vapors can explode if ignited. Take the following precautions:

• Store fuel only in containers specifically designed and approved for the storage of such materials.
• Always stop the engine and allow it to cool before filling the tank. Never remove the fuel tank cap or add fuel when the engine is hot. Always loosen the fuel tank cap slowly to relieve any pressure in the tank before fueling.
• Always add fuel in a clean, well-ventilated outdoor area where there are no sparks or flames. DO NOT smoke.
• Never operate the unit without the fuel cap securely in place.
• Avoid creating a source of ignition for spilled fuel. Wipe up any spilled fuel from the unit immediately, before starting the unit. Move the unit at least 30 ft. (9.1 m) from the fueling source and site before starting the engine. DO NOT smoke.
• Never start or run the unit inside a closed room or building. Breathing exhaust fumes can kill. Operate this unit only in a well-ventilated outdoor area.

WHILE OPERATING

• Wear safety glasses or goggles that meet current ANSI / ISEA Z87.1 standards and are marked as such. Wear ear/hearing protection when operating this unit. Wear a face mask or dust mask if the operation is dusty.
• Wear heavy long pants, boots, gloves and a long sleeve shirt. Do not wear loose clothing, jewelry, short pants, sandals or go barefoot. Secure hair above shoulder level.

• Use the unit only in daylight or good artificial light.

• Avoid accidental starting. Be in the starting position whenever pulling the starter rope. The operator and unit must be in a stable position while starting. Refer to Starting and Stopping.

• Use the right tool. Only use this tool for its intended purpose. Only use the unit as described in this manual.
• Always hold the unit with both hands when operating. Keep a firm grip on the handle.
• Do not overreach. Always keep proper footing and balance. Take extra care when working on stairs, steep slopes or inclines.
• Keep hands, face, and feet away from all moving parts. Do not touch or try to stop moving parts.
• Do not touch the engine, gear housing or muffler. These parts get extremely hot from operation, even after the unit is turned off.
• Do not operate the unit faster than the speed needed to do the job. Do not run the unit at high speed when not in use.

• Do not force the unit. It will do a better, safer job when used at the intended rate.

• Always turn the unit off when operation is delayed or when moving from one location to another. Make sure all moving parts come to a complete stop.

• If the unit strikes or becomes entangled with a foreign object, stop the unit immediately. Check for damage. If damaged, do not restart or operate the unit until it is repaired. Do not operate the unit with loose or damaged parts.
• Turn the engine off and disconnect the spark plug for maintenance or repair.
• Use only original equipment manufacturer (OEM) replacement parts and accessories for this unit. These are available from your authorized service dealer. Use of any other parts or accessories could lead to serious injury to the user, or damage to the unit, and void the warranty.
• Keep the unit clean. Carefully remove vegetation and other debris that could block moving parts.
• To reduce fire hazard, replace a faulty muffler and spark arrestor. Keep the engine and muffler free from grass, leaves, excessive grease or carbon build up.
• If the unit starts to vibrate abnormally, stop the unit immediately. Inspect the unit for the cause of the vibration. Vibration is generally an indicator of trouble.

EDGER SAFETY

• Always assemble the handles as directed in this manual.

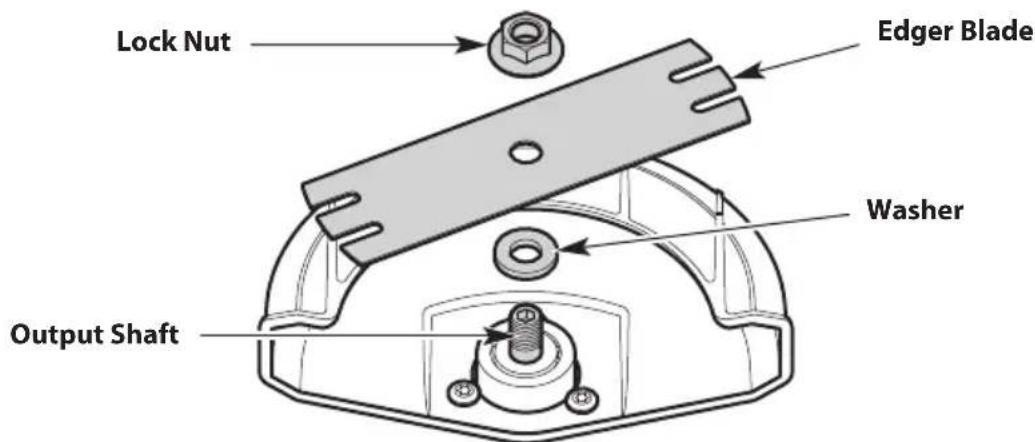

• Make sure the blade is properly installed and securely fastened. Make sure the blade shield is securely attached and in the correct position.
• Do not attach any blade to this unit without properly installing all of the required parts. Failure to use the proper parts can cause the blade to fly off and seriously injure the operator and/or bystanders.
• Always use a sharp blade. A dull blade is more likely to snag and thrust.
• Do not operate the unit with a bent, cracked or dull blade. Replace bent, cracked or dull blades.
• Make sure the blade is not in contact with anything before starting the unit.
• The blade should remain stationary when the engine idles. If it does not, refer to Adjusting the Idle Speed.
• Use extreme caution when reversing or pulling the unit towards you.
• Blade thrust may occur when the spinning blade contacts an object that it does not immediately cut. Blade thrust can be violent enough to propel the unit and/or operator in any direction, possibly causing a loss of control. Blade thrust can occur without warning if the blade snags, stalls or binds. This is more likely to occur in areas where it is difficult to see the material being cut.
• The blade will continue to spin after the unit is turned off. A coasting blade can cause serious injury. Maintain control of the unit until all moving parts have stopped.
• The blade may become very sharp from use. Always wear heavy gloves when handling, replacing or cleaning the blade.

OTHER SAFETY WARNINGS

• Maintain the unit with care. Follow all maintenance instructions in this manual.
• Do not perform maintenance procedures other than those described in this manual. All service, other than the maintenance procedures described in this manual, should be performed by an authorized service dealer.
• Never remove, modify or make inoperative any safety device furnished with the unit.

• Before inspecting, maintaining, cleaning, storing, transporting or replacing any parts on the unit:

• Stop the unit. Refer to Starting and Stopping.

• Make sure all moving parts have stopped.
• Allow the unit to cool.

• Disconnect the spark plug wire.

• Secure the unit while transporting.

• Never store the unit with fuel in the tank, inside a building where fumes may reach an open flame (pilot lights, etc.) or sparks (switches, electrical motors, etc.).

• Store the unit in a dry place, secured or at a height to prevent unauthorized use or damage. Keep the unit out of the reach of children.
• Never douse or squirt the unit with water or any other liquid. Keep handles dry and clean (free from debris, oil and grease). Clean the unit after each use. Refer to Cleaning and Storage. Do not use solvents or strong detergents.
• Keep these instructions. Refer to them often and use them to instruct other users. If you loan this unit to others, also loan them these instructions.

SAVE THESE INSTRUCTIONS

SAFETY & INTERNATIONAL SYMBOLS

This operator's manual describes safety and international symbols and pictographs that may appear on this product. Read the operator's manual for complete safety, assembly, operating and maintenance and repair information.

SYMBOL MEANING

!	SAFETY ALERT SYMBOL Indicates danger, warning or caution. May be used in conjunction with other symbols or pictographs.
	READ OPERATOR'S MANUAL WARNING: Read the operator's manual(s) and follow all warnings and safety instructions. Failure to do so can result in serious injury to the operator and/or bystanders.
	WEAR EYE AND HEARING PROTECTION WARNING: Thrown objects and loud noise can cause severe eye injury and hearing loss. Wear eye protection meeting current ANSI / ISEA Z87.1 standards and ear protection when operating this unit. Use a full face shield when needed.
	WEAR FOOT PROTECTION Always wear heavy-duty, non-slip footwear when operating this unit.
	WEAR HAND PROTECTION Always wear heavy-duty, non-slip gloves when handling this unit.
	UNLEADED FUEL Always use clean, fresh unleaded fuel.
	OIL Refer to operator's manual for the proper type of oil.
	DO NOT USE E85 FUEL IN THIS UNIT CAUTION: It has been proven that fuel containing greater than 10% ethanol will likely damage this engine and void the warranty.

SYMBOL MEANING

I	ON/OFF STOP CONTROL ON/START/RUN
O	ON/OFF STOP CONTROL OFF or STOP
D#	PRIMER BULB Push the primer bulb, fully and slowly, 10 times.
H N H	CHOKE CONTROL 1.FULL choke position 2.PARTIAL choke position 3.RUN choke position
	THROW OBJECTS CAN CAUSE SEVERE INJURY WARNING:Small objects can be propelled at high speed, causing injury.
	KEEP BYSTANDERS AWAY WARNING:Keep all bystanders, especially children and pets, at least 50 feet (15 m) from the operating area.
	HOT SURFACE WARNING:Do not touch a hot muffler or cylinder. You may get burned. These parts get extremely hot from operation. When turned off, they remain hot for a short time.
	ROTATING BLADE CAN CAUSE SEVERE INJURY WARNING:Stop the engine and allow the blade to stop moving before replacing the blade, or before cleaning or performing any maintenance. Keep hands and feet away from moving parts.

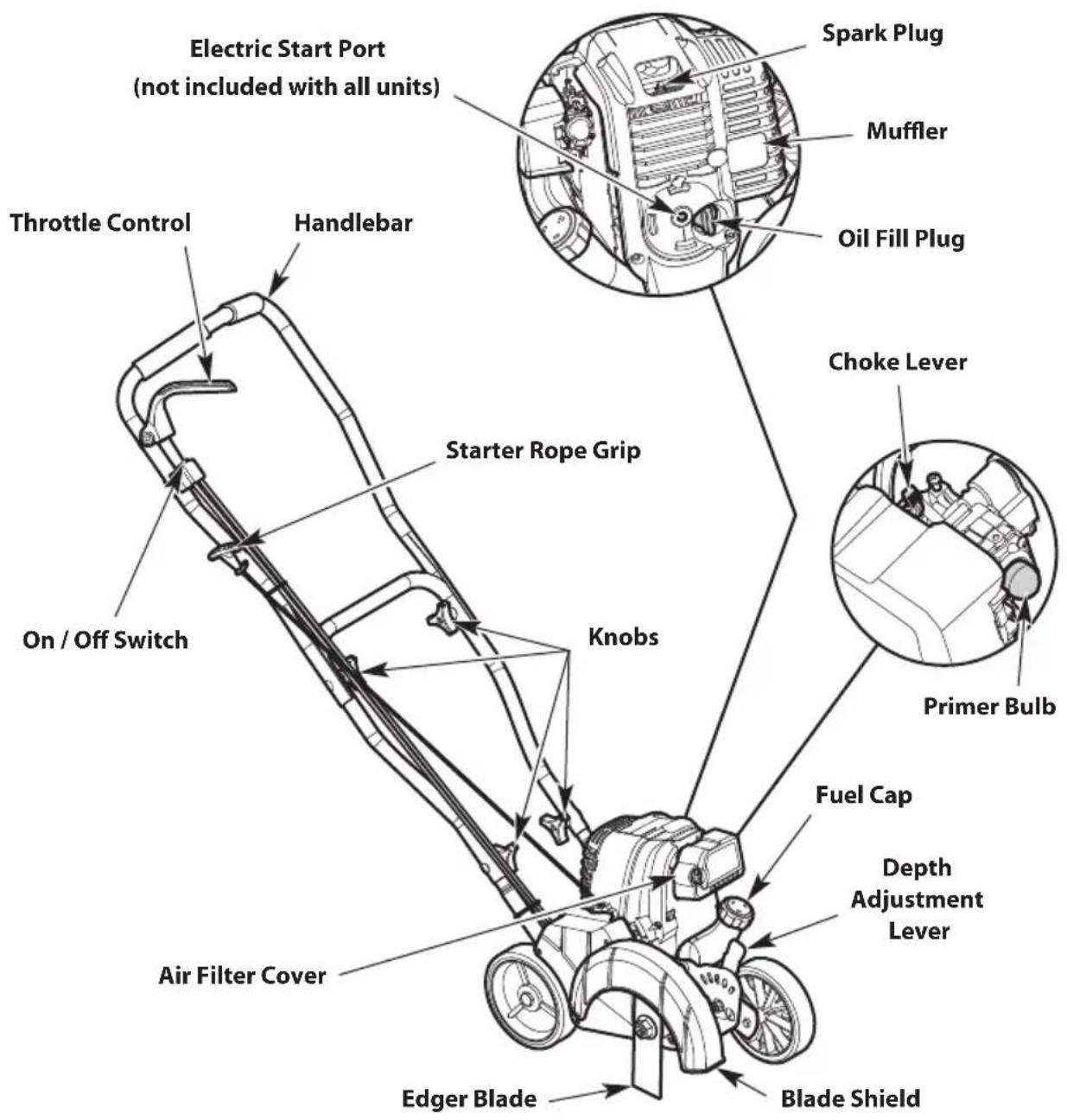

NOTE: The model depicted may differ from yours.

APPLICATIONS

• Edging along paths, driveways, rockeries, etc.

ASSEMBLY TOOLS REQUIRED

Wire cutters

SPECIFICATIONS*

Engine Type Air-Cooled, 4-Cycle

Displacement. 30 cc (1.83 cu. in.)

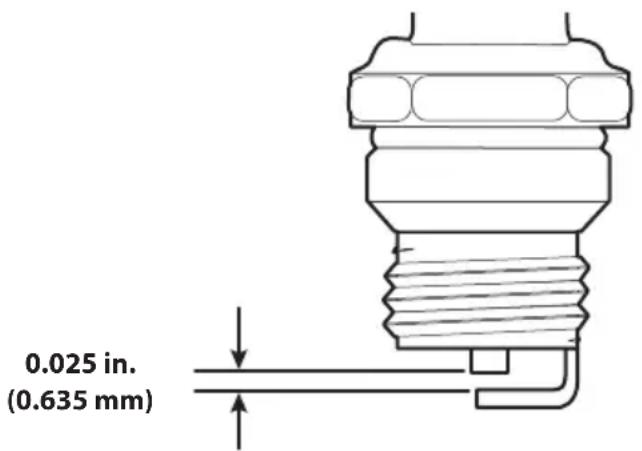

Spark Plug Gap 0.025 in. (0.635 mm)

Spark Plug (USA) Champion® RDZ4H or Equivalent Plug

Spark Plug (Canada). Champion® QDZ4H or Equivalent Plug

Lubrication . SAE 30 Oil

Crankcase Oil Capacity 3.04 fl. oz. (90 ml)

Fuel Tank Capacity 15 fl. oz. (444 ml)

Approximate Unit Weight (No Fuel) (Varies by Model). 24 - 25 lbs. (10.9 - 11.3 kg)

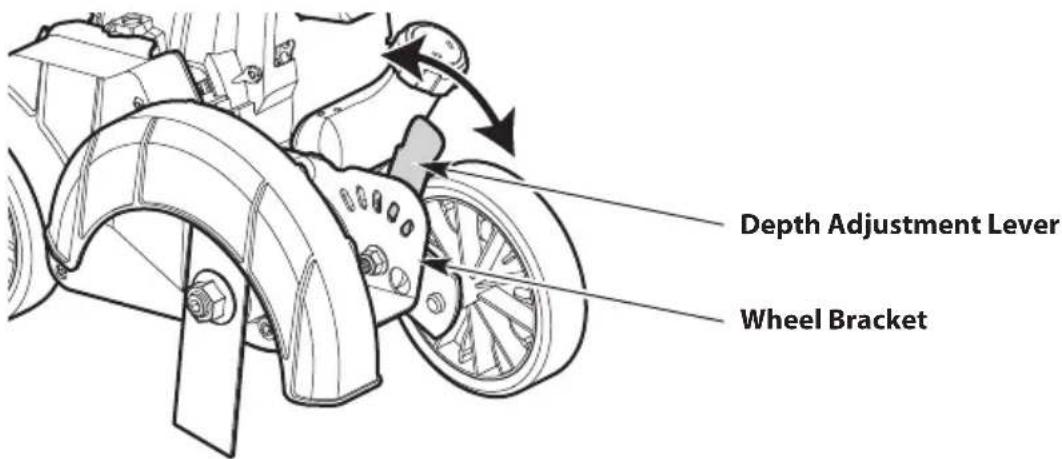

Cutting Depth (Maximum) 1.75 in. (4.5 cm)

Canada: This spark ignition system complies with Canadian ICES-002.

• All specifications are based on the latest product information available at the time of printing. We reserve the right to make changes at any time without notice.

REPLACEMENT PARTS

Please contact the Customer Support Department to order replacement parts.

Part #

Description

781-0080-0637

Edger Blade

ASSEMBLY

ASSEMBLING THE HANDLE

Installing the Middle Shaft

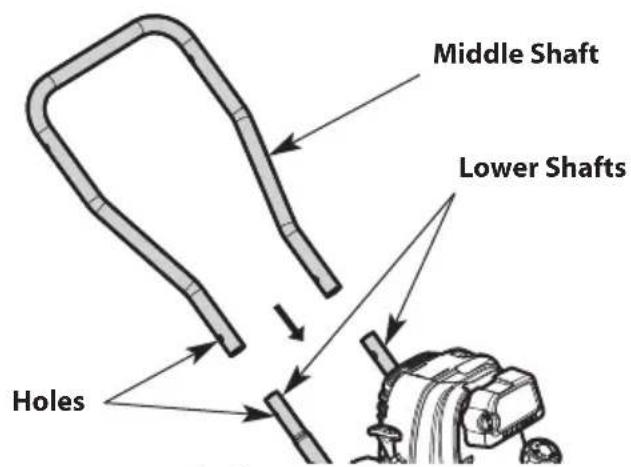

1. Slide the middle shaft onto the lower shafts (Fig. 1). Keep the throttle cable and wire assembly to the front of the unit.
2. Align the holes on the middle shaft with the holes on the lower shafts (Fig. 1).
3. Insert a bolt into each of the aligned holes (Fig. 2).
4. Install a washer onto each bolt (Fig. 2).
5. Install a knob onto each bolt (Fig. 2). Tighten the knobs securely.

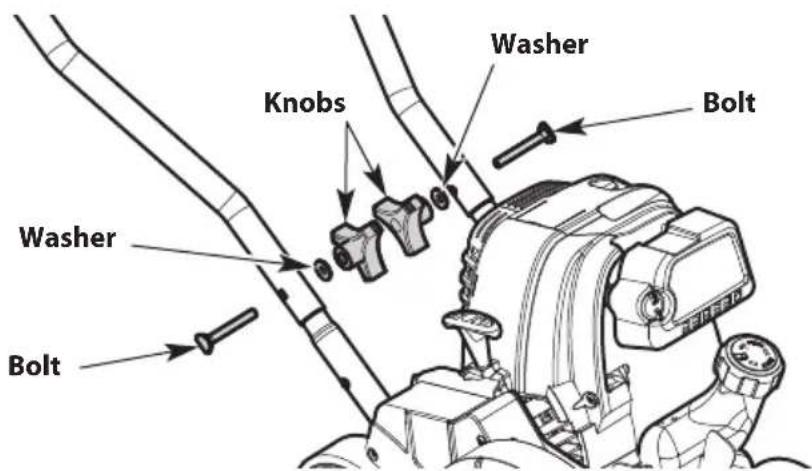

Installing the Upper Shaft

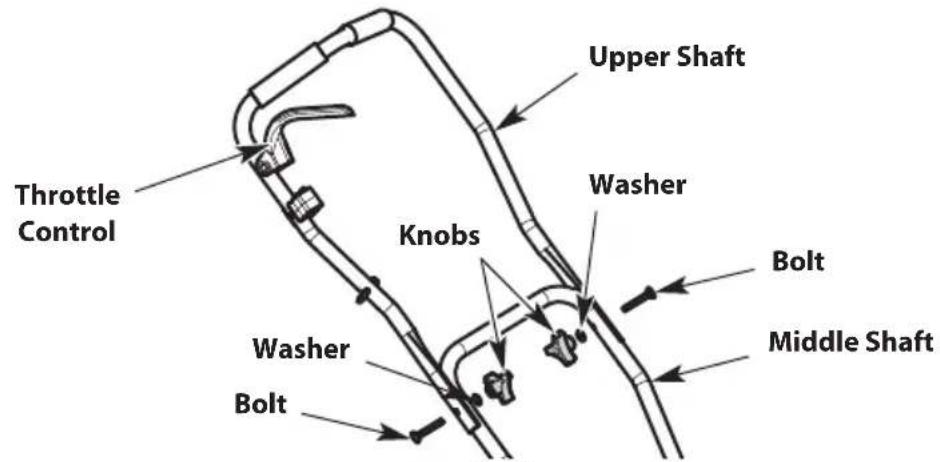

1. Position the upper shaft onto the middle shaft. Make sure the "V" bend in the handle is pointing up (toward the front of the unit) and that the throttle control is on the right side when the operator is standing in the operating position (Fig. 13). Keep the throttle cable and wire assembly to the front of the unit.
2. Align the holes on the upper shaft with the holes on the middle shaft (Fig. 3).
3. Insert a bolt into each of the aligned holes (Fig. 3).
4. Install a washer onto each bolt (Fig. 3).
5. Install a knob onto each bolt (Fig. 3). Tighten the knobs securely.

Fig. 1

Fig.2

Fig.3

Securing the Starter Rope, Throttle Cable and Wire Assembly

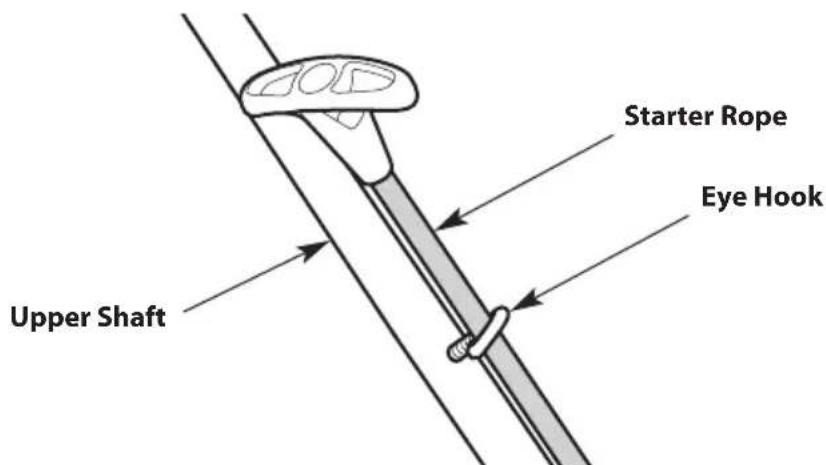

1. Pull the starter rope and run it through the eye hook (Fig. 4).

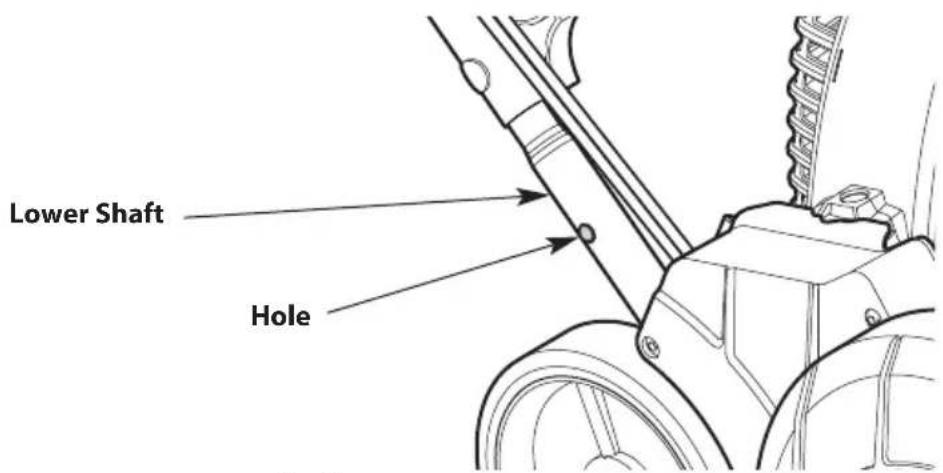

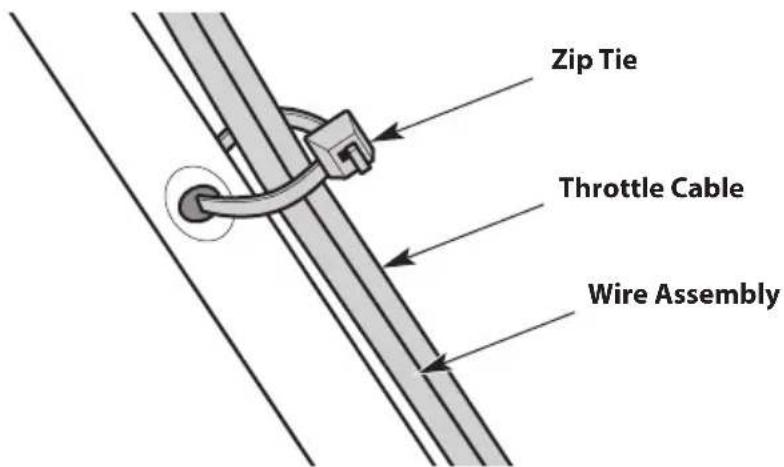

2. Insert a zip tie into the hole on the lower shaft (Fig. 5). Loop the zip tie around the throttle cable and wire assembly (Fig. 7). Secure the zip tie, but do not tighten it completely. Leave a small loop.
3. Use wire cutters to trim excess zip tie material.

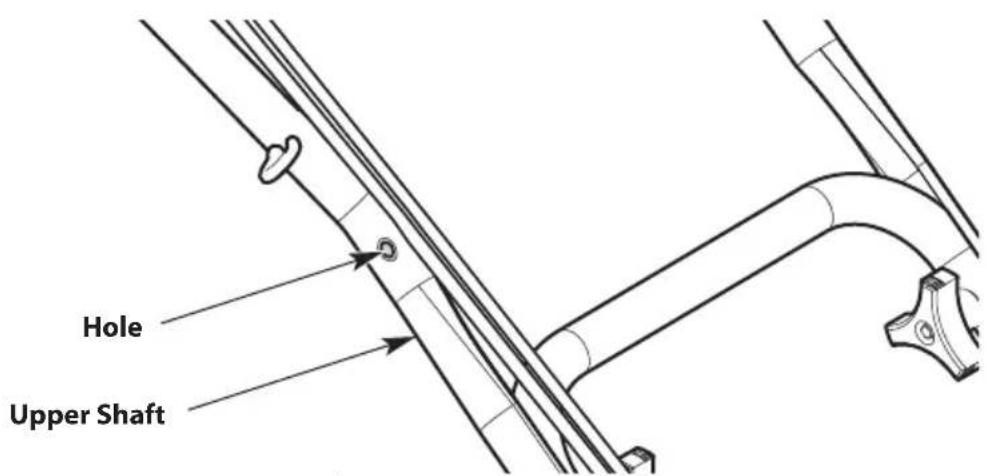

4. Repeat steps 2 - 3 with the hole on the upper shaft (Fig. 6).

NOTE: DO NOT run the throttle cable and wire assembly through the eye hook.

NOTE: DO NOT bend or pinch the throttle cable or wire assembly.

Fig. 4

Fig. 5

Fig. 6

Fig. 7

OIL AND FUEL

USING THE RIGHT OIL

Use a high-quality SAE 30 weight oil. DO NOT use dirty oil. Failure to use clean oil of the correct type can cause premature engine wear and failure.

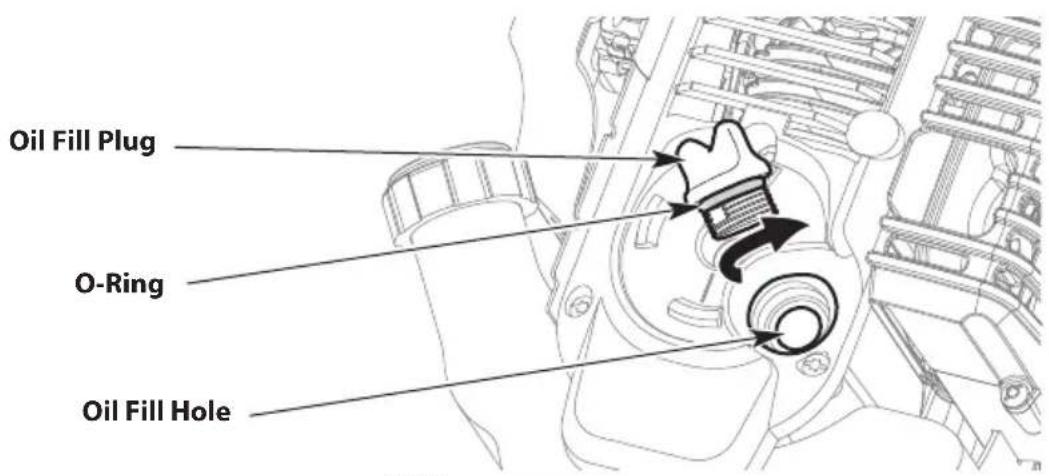

ADDING OIL: INITIAL USE

WARNING:DO NOT overfill the crankcase.

OVERFILLING THE CRANKCASE MAY CAUSE SERIOUS PERSONAL INJURY.

NOTE: This unit was shipped without oil in the crankcase. Oil must be added before starting the unit. NOTE: Never add oil to the fuel tank. This unit has a four-cycle engine. DO NOT mix oil with gasoline.

1. Set the unit on a flat, level surface.

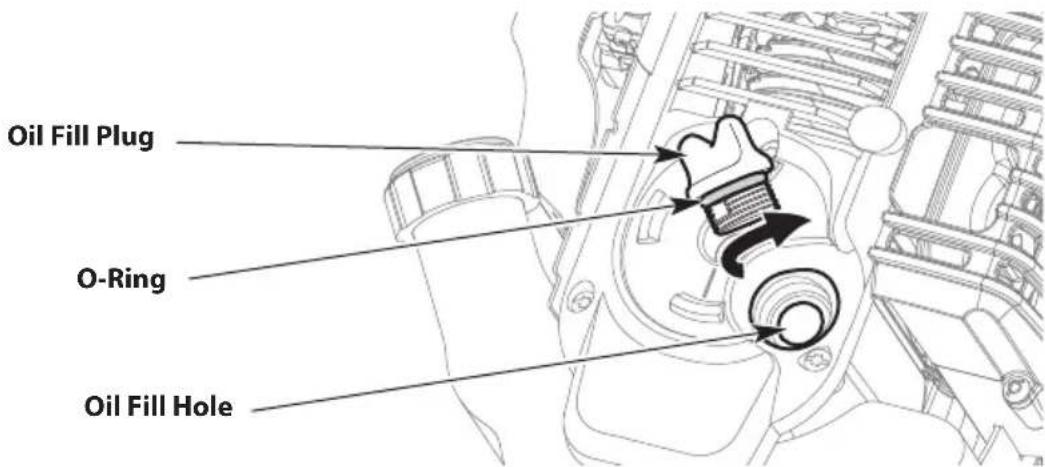

2. Unscrew the oil fill plug (Fig. 8).

3. Pour 3.04 fluid oz. (90 ml) of oil into the oil fill hole (Fig. 8).

NOTE: This unit comes with a 3.04 fluid oz. (90 ml) container of oil.

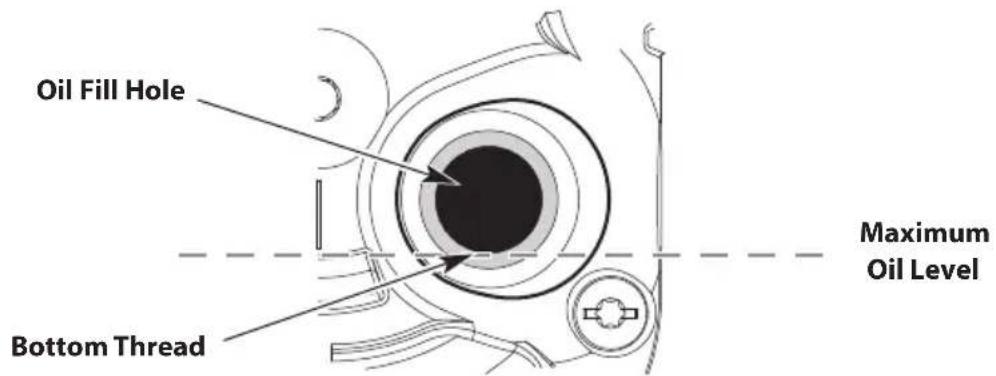

NOTE: DO NOT overfill. Refer to Checking the Oil Level.

1. Wipe up any oil that may have spilled.
2. Make sure the O-ring is in place on the oil fill plug (Fig. 8).
3. Reinstall the oil fill plug.

Fig. 8

The use of old fuel is the most common cause of performance problems. Use only fresh, clean unleaded gasoline.

NOTE: This unit has a four-cycle engine. DO NOT mix oil with gasoline.

Definition of Blended Fuels

Today's fuels are often a blend of gasoline and oxygenates such as ethanol, methanol or MTBE (ether). Alcohol-blended fuel absorbs water. As little as 1% water in the fuel can make fuel and oil separate, forming acids when stored. ALWAYS use fresh fuel (less than 30 days old).

NOTE: Dispose of old fuel according to federal, state and local regulations.

Using Blended Fuels

If using a blended fuel:

Always use fresh unleaded gasoline
- Use a fuel additive

CAUTION:DO NOT USE E85 FUEL IN THIS UNIT.

It has been proven that fuel containing greater than 10% ethanol will likely damage this engine and void the warranty.

Using Fuel Additives

Use a fuel additive to inhibit corrosion and minimize gum deposits. Add 0.8 oz. (23 ml) of fuel additive per gallon of fuel, according to the instructions on the container. NEVER add fuel additives directly to the unit's fuel tank.

FUELING THE UNIT

WARNING: Gasoline is extremely flammable. Ignited vapors may explode. Always stop the engine and allow it to cool before filling the fuel tank. Do not smoke while filling the tank. Keep sparks and open flames at a distance from the area.

WARNING: Remove the fuel cap slowly to avoid injury from fuel spray. Never operate the unit without the fuel cap securely in place.

WARNING: Add fuel in a clean, well-ventilated outdoor area. Wipe up any spilled fuel immediately. Avoid creating a source of ignition for spilled fuel. Do not start the engine until fuel vapors dissipate.

1. Position the unit with the fuel cap facing up.
2. Slowly remove the fuel cap.
3. Place the fuel container spout into the fuel tank fill hole and fill the tank.

NOTE: DO NOT overfill the tank.

1. Wipe up any fuel that may have spilled.
2. Reinstall the fuel cap.
3. Move the unit at least 30 ft. (9.1 m) from the fuel container and the fueling site before starting the engine.

STARTING AND STOPPING

WARNING: Operate this unit only in a well-ventilated outdoor area. Carbon monoxide exhaust fumes can be lethal in a confined area.

WARNING: Avoid accidentally starting the unit. To avoid serious injury, the operator and the unit must be in a stable position when pulling the starter rope (Fig. 11).

WARNING: The blade may rotate during the starting process. Always stand in the starting position. Use one foot to hold the wheels in place. Tilt the unit back slightly to bring the blade off the ground.

STARTING INSTRUCTIONS

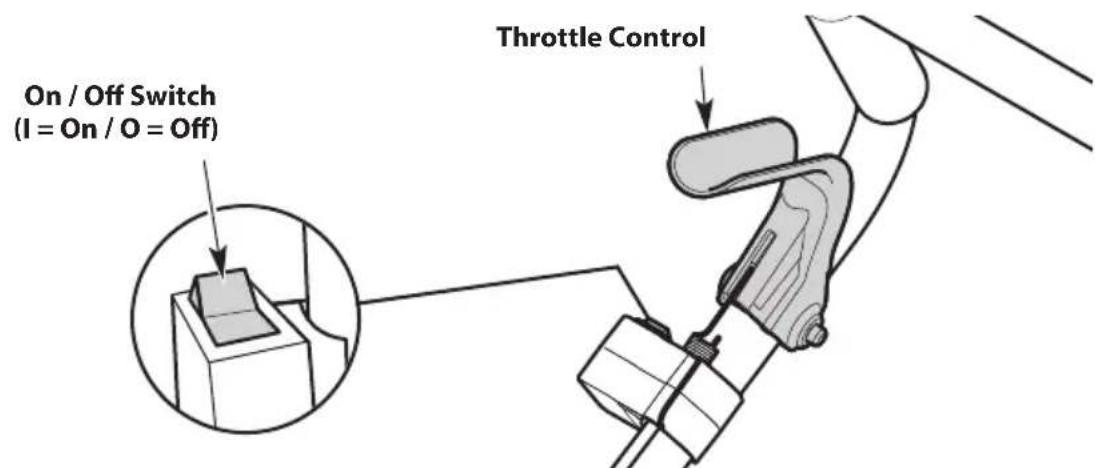

NOTE: There is no need to turn the unit on. The On/Off switch is in the On (1) position at all times (Fig. 9).

Before Starting the Unit

1. Check the oil level. Refer to Checking the Oil Level.
2. Fill the fuel tank. Refer to Fueling the Unit.

Starting the Unit

PRIME:

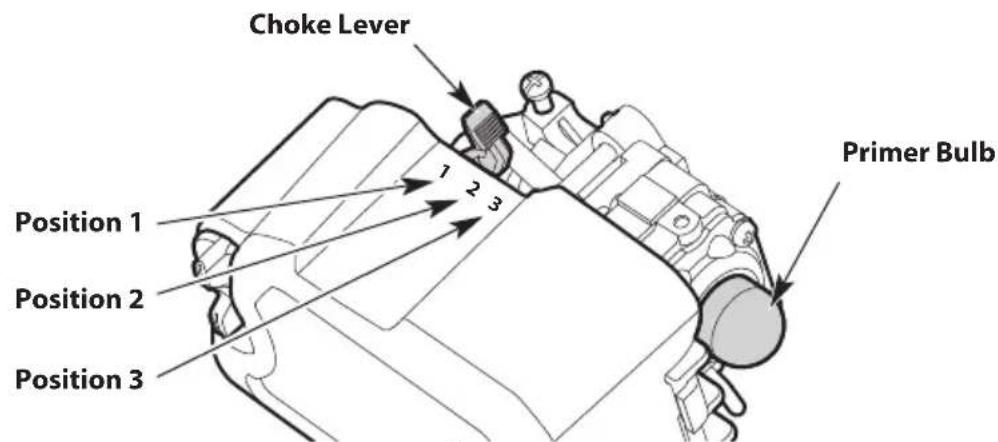

1. Slowly press and release the primer bulb 10 times (Fig. 10). If fuel cannot be seen in the primer bulb, press and release the primer bulb until fuel is visible.
2. Move the choke lever to Position 1 (Fig. 10).

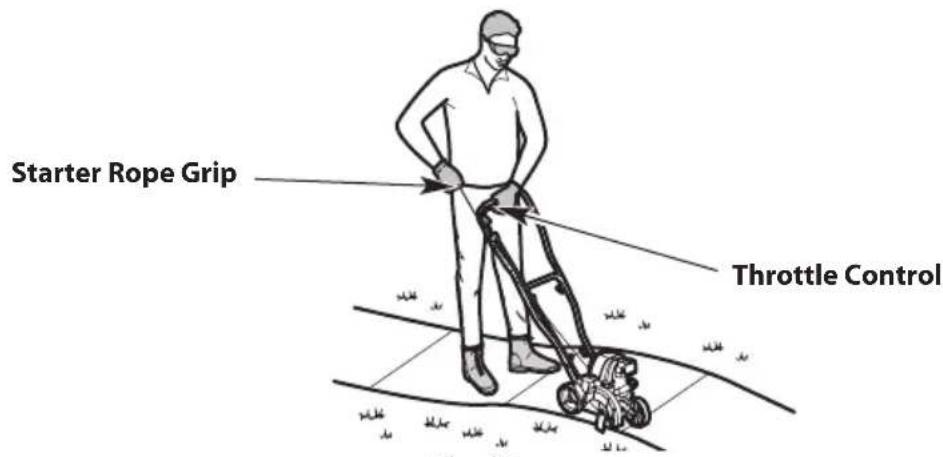

3. Stand in the starting position (Fig. 11). Hold the handlebar firmly with one hand. Hold the starter rope with the other hand.
4. Tilt the unit back slightly to bring the blade off the ground.
5. Squeeze and hold the throttle control (Fig. 9).

NOTE: Continue to SQUEEZE and HOLD the throttle control for ALL further steps.

1. Pull the starter rope with a controlled and steady motion 5 times (Fig. 11). DO NOT pull the starter rope more than 5 times.

START:

1. Move the choke lever to Position 2 (Fig. 10).
2. Pull the starter rope with a controlled and steady motion 5 to 10 times to start the engine.
3. Allow the engine to warm up for 60 seconds.
4. Move the choke lever to Position 3 (Fig. 10). Allow the engine to warm up for an additional 60 seconds. The unit may be used during this time.

NOTE: The engine is properly warmed up when it accelerates without hesitation.

IF... the engine hesitates, return the choke lever to Position 2 and continue the warm-up.

IF... the engine does not start, repeat the starting procedure.

IF... the engine fails to start after a few attempts: Tilt the unit back slightly to bring the blade off the ground. Move the choke lever to Position 3. Squeeze and hold the throttle control. Pull the starter rope with a controlled and steady motion until the unit starts.

IF... the engine is already warm: Tilt the unit back slightly to bring the blade off the ground. Move the choke lever to Position 3. Squeeze and hold the throttle control. Pull the starter rope with a controlled and steady motion until the unit starts.

STOPPING INSTRUCTIONS

1. Release the throttle control and allow the engine to idle.
2. Press and hold the On/Off switch in the Off (O) position until the engine comes to a complete stop (Fig. 9).

Fig. 9

Fig. 10

Fig. 11

Starting

Position

USING THE ELECTRIC START ACCESSORY

Some units can be started with an optional electric start accessory (items sold separately). Electric-start-capable units are labeled as such and include an electric start port (Fig. 12).

Please contact your local retailer, call the Customer Support Department or visit our website for more information.

Read the Operator's Manual that came with the electric start accessory before attempting these instructions.

STARTING INSTRUCTIONS

NOTE: There is no need to turn the unit on. The On/Off switch is in the On (1) position at all times (Fig. 9).

Before Starting the Unit

1. Check the oil level. Refer to Checking the Oil Level.
2. Fill the fuel tank. Refer to Fueling the Unit.

Starting the Unit

PRIME:

1. Slowly press and release the primer bulb 10 times (Fig. 10). If fuel cannot be seen in the primer bulb, press and release the primer bulb until fuel is visible.
2. Move the choke lever to Position 1 (Fig. 10).
3. Stand in the starting position (Fig. 11). Hold the handlebar firmly with one hand.
4. Tilt the unit back slightly to bring the blade off the ground.

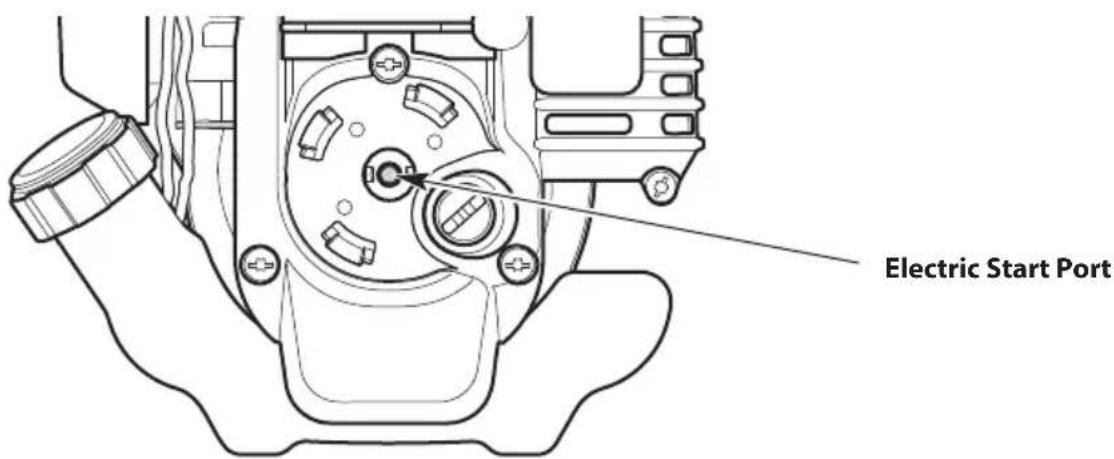

5. Insert the electric start accessory into the electric start port (Fig. 12).
6. Squeeze and hold the throttle control (Fig. 9).

NOTE: Continue to SQUEEZE and HOLD the throttle control for ALL further steps.

1. Run the electric start accessory for 2 seconds. DO NOT run the electric start accessory for more than 2 seconds.

START:

1. Move the choke lever to Position 2 (Fig. 10).
2. Run the electric start accessory in intervals no longer than 2 seconds each until the unit starts.
3. Remove the electric start accessory from the unit, unless specified otherwise in the electric start accessory Operator's Manual.
4. Allow the engine to warm up for 60 seconds.
5. Move the choke lever to Position 3 (Fig. 10). Allow the engine to warm up for an additional 60 seconds. The unit may be used during this time.

NOTE: The engine is properly warmed up when it accelerates without hesitation.

IF... the engine hesitates, return the choke lever to Position 2 and continue the warm-up.

IF... the engine does not start, repeat the starting procedure.

IF... the engine fails to start after a few attempts: Tilt the unit back slightly to bring the blade off the ground. Move the choke lever to Position 3. Insert the electric start accessory into the electric start port. Squeeze and hold the throttle control. Run the electric start accessory in intervals no longer than 2 seconds each until the unit starts. Remove the electric start accessory from the unit, unless specified otherwise in the electric start accessory Operator's Manual.

IF... the engine is already warm: Tilt the unit back slightly to bring the blade off the ground. Move the choke lever to Position 3. Insert the electric start accessory into the electric start port. Squeeze and hold the throttle control. Run the electric start accessory in intervals no longer than 2 seconds each until the unit starts. Remove the electric start accessory from the unit, unless specified otherwise in the electric start accessory Operator's Manual.

STOPPING INSTRUCTIONS

1. Release the throttle control and allow the engine to idle.
2. Press and hold the On/Off switch in the Off (O) position until the engine comes to a complete stop (Fig. 9).

Fig. 12

OPERATION

WARNING: Dress properly to reduce the risk of injury when operating this unit. Do not wear loose clothing or jewelry. Wear eye and ear/hearing protection. Wear heavy long pants, boots and gloves. Do not wear short pants, sandals or operate barefoot.

HOLDING THE UNIT

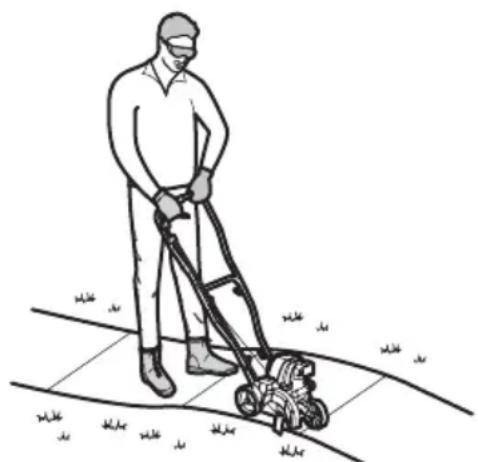

• Stand in the operating position (Fig. 13). Stand up straight. Do not bend over.
• Keep feet apart and firmly planted.
• Hold the handlebar firmly with both hands.

Fig. 13

Operating Position

TIPS FOR BEST RESULTS

1. Move the unit to the work area prior to starting the engine. Refer to Moving the Unit.
2. Start the unit as described in the Starting Instructions.
3. Tilt the unit back slightly to bring the blade off the ground.
4. Squeeze the throttle control to increase the engine speed.

5. Slowly lower the unit until the blade makes contact with the ground.

6. Keep the wheel on the sidewalk or pavement.

7. DO NOT force the unit. Make the first cut no more than 1/2 in. (1.27cm) deep. Increase the depth by 1/2 in. (1.27cm) and cut the area again. Repeat this process until the desired depth is achieved. Refer to Adjusting the Cutting Depth.

8. Cut at a slow, even pace.
9. Frequently check the condition of the blade. As it wears, the blade will become smaller, reducing the cutting depth. Replace the blade as needed. Refer to Replacing the Edge Blade.

WARNING: To avoid serious personal injury, always stop the engine and allow it to cool before adjusting the cutting depth.

ADJUSTING THE CUTTING DEPTH

1. Gently pull the depth adjustment lever away from the wheel bracket (Fig. 14).

2. To increase the cutting depth, lower the edger blade. Move the lever toward the rear of the wheel bracket.

3. To decrease the cutting depth, raise the edger blade. Move the lever toward the front of the wheel bracket.

Fig.14

MOVING THE UNIT

WARNING: To prevent serious personal injury, always stop the engine when operation is delayed or when moving the unit from one location to another.

WARNING: To prevent serious personal injury, never pick up or carry the unit while the engine is running.

1. Stop the engine.
2. Tilt the unit back slightly to bring the blade off the ground.
3. Push or pull the unit to the next location.

MAINTENANCE

WARNING: To avoid serious personal injury, always stop the engine and allow it to cool before cleaning or maintaining the unit. Never perform cleaning or maintenance while the unit is running. Disconnect the spark plug wire to prevent the unit from starting accidentally.

WARNING: Wear protective clothing and observe all safety instructions to prevent serious personal injury.

MAINTENANCE SCHEDULE

Perform these required maintenance procedures at the frequency stated in the table. These procedures should also be a part of any seasonal tune-up.

NOTE: Some maintenance procedures may require special tools or skills. If you are unsure about these procedures, take the unit to an authorized service dealer. Refer to the Service / Warranty Supplement for more information.

NOTE: Maintenance, replacement, or repair of the emission control devices and system may be performed by an authorized service dealer. Refer to the Service / Warranty Supplement for more information.

NOTE: Please read the California/EPA statement that came with the unit for a complete listing of terms and coverage for the emissions control devices, such as the spark arrester, muffler, carburetor, etc.

FREQUENCY MAINTENANCE REQUIRED
Every 10 hours • Clean and re-oil the air filter. Refer to Maintaining the Air Filter.
After the first 10 hours and at 38 hours	• Change the oil. Refer to Changing the Oil. • Have the rocker arm clearance checked by an authorized service dealer. • Check the spark plug condition and gap. Refer to Maintaining the Spark Plug.

REPLACING THE EDGER BLADE

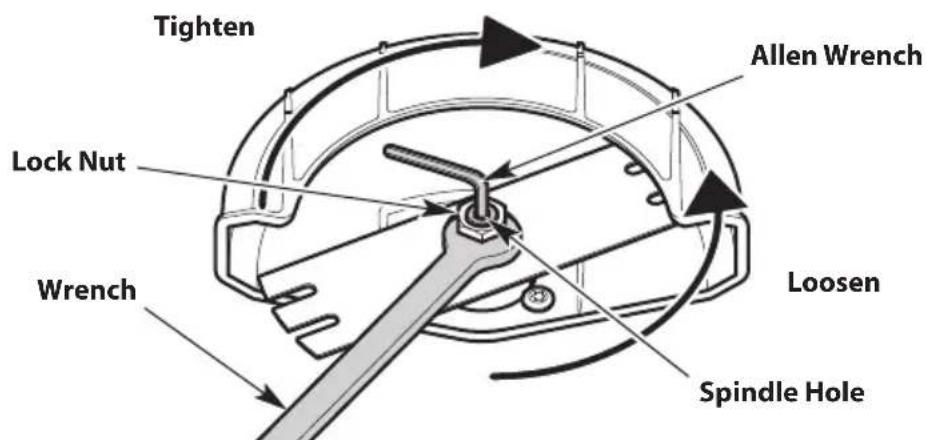

1. Place a 15/16 in. wrench over the lock nut (Fig. 15).
2. Insert a 5/16 in. Allen wrench into the spindle hole (Fig. 15).
3. While holding the Allen wrench in place, loosen the lock nut by turning it counterclockwise with the wrench (Fig. 15).
4. Remove the Allen wrench, wrench, lock nut and edger blade (Fig. 16). Keep the lock nut for installing the new edger blade. Leave the washer in place on the output shaft (Fig. 16).

1. Make sure the washer is in place on the output shaft (Fig. 16).

2. Install the new edger blade and lock nut onto the output shaft (Fig. 16).

3. Place the wrench over the lock nut (Fig. 15).

4. Insert the Allen wrench into the spindle hole (Fig. 15).

5. While holding the Allen wrench in place, tighten the lock nut by turning it clock wise with the wrench (Fig. 15). Make sure that the edger blade stays flat and centered against the output shaft while tightening the lock nut. Tighten the lock nut until the edger blade is firmly secure.

If you have a torque wrench, tighten the lock nut to 325-335 in.-lbs (37-38 N·m).

1. Remove the wrench and Allen wrench.

WARNING: Make sure the blade is flat against the output shaft after the lock nut is tightened. If the blade is off-center, the unit will be damaged by vibration, and the blade may fly off, which can cause serious personal in ju ry.

Fig. 15

Fig. 16

CHECKING THE OIL LEVEL

WARNING: Check the oil level before each use. The importance of maintaining the proper oil level cannot be overemphasized.

1. Stop the engine and allow it to cool.
2. Set the unit on a flat, level surface.

NOTE: Failure to keep the engine level may result in oil overfill.

1. Clean the area around the oil fill plug (Fig. 17) to prevent debris from entering the oil fill hole (Fig. 17).
2. Unscrew the oil fill plug.
3. Look into the oil fill hole; use a flashlight if necessary. The oil level should just touch the bottom thread of the oil fill hole (Fig. 18).

If the oil level is too low, add a small amount of oil to the oil fill hole until the oil is at the correct level.

WARNING:DO NOT overfill the crankcase.

OVERFILLING THE CRANKCASE MAY CAUSE SERIOUS PERSONAL INJURY.

If the oil level is too high, tip the unit and drain the excess oil into an appropriate container (Fig. 19).

1. Wipe up any oil that may have spilled.
2. Make sure the O-ring is in place on the oil fill plug (Fig. 17).
3. Reinstall the oil fill plug.

Fig.17

Fig.18

CHANGING THE OIL

Change the oil while the engine is still warm. The oil will flow freely and carry away more impurities.

1. Clean the area around the oil fill plug (Fig. 17) to prevent debris from entering the oil fill hole.
2. Unscrew the oil fill plug.

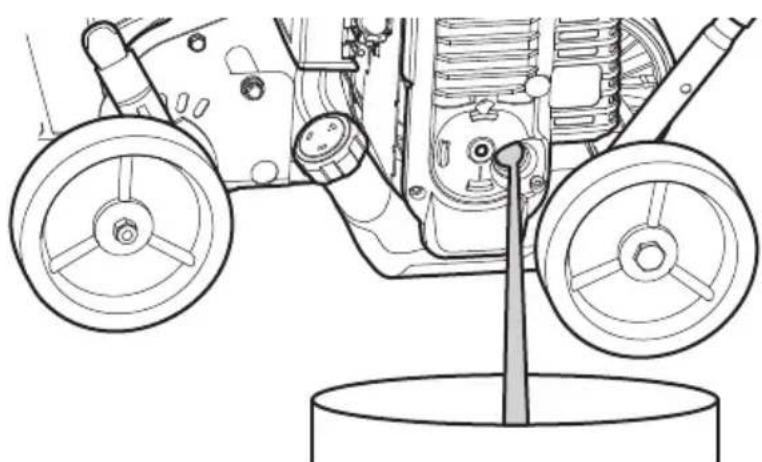

3. Tip the unit vertically to pour the oil out of the oil fill hole and into a container (Fig. 19). Allow ample time for complete drainage.

NOTE: Dispose of the old oil according to federal, state and local regulations.

1. Wipe up any oil that may have spilled.
2. Pour 3.04 fl.oz. (90 ml) of SAE 30 oil into the oil fill hole (Fig. 17).

WARNING: DO NOT overfill the crankcase.

OVERFILLING THE CRANKCASE MAY CAUSE SERIOUS PERSONAL INJURY. Refer to Checking the Oil Level.

1. Wipe up any oil that may have spilled.
2. Make sure the O-ring is in place on the oil fill plug (Fig. 17).
3. Reinstall the oil fill plug.

Fig. 19

MAINTAINING THE AIR FILTER

Failure to maintain the air filter can result in poor performance or can cause permanent damage to the engine. Engine failure due to improper air filter maintenance is not covered by the product warranty.

Cleaning the Air Filter

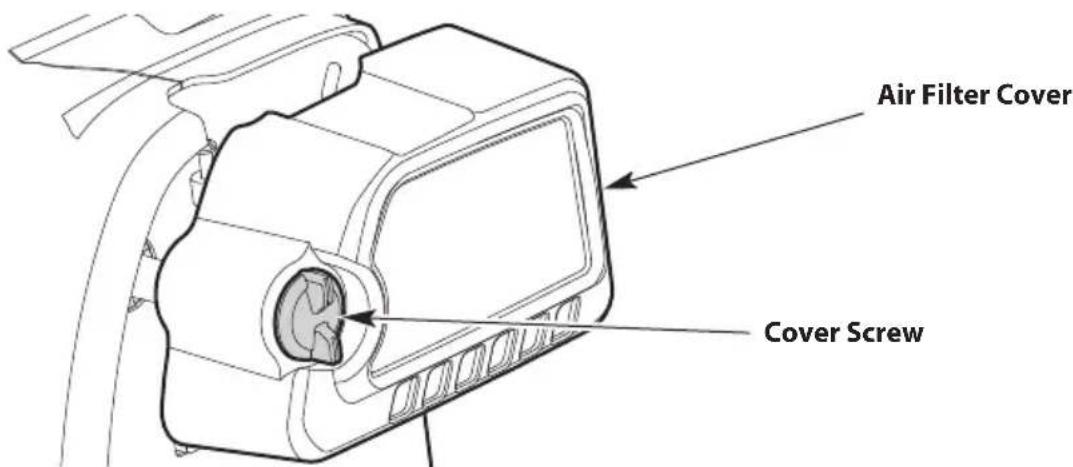

1. Open the air filter cover; unscrew the cover screw and swing the air filter cover to the right (Fig. 20).
2. Remove the air filter (Fig. 21).
3. Wash the air filter in detergent and water. Rinse the air filter thoroughly and allow it to dry.
4. Lightly coat the air filter with clean SAE 30 oil.
5. Squeeze the air filter to spread and remove excess oil.

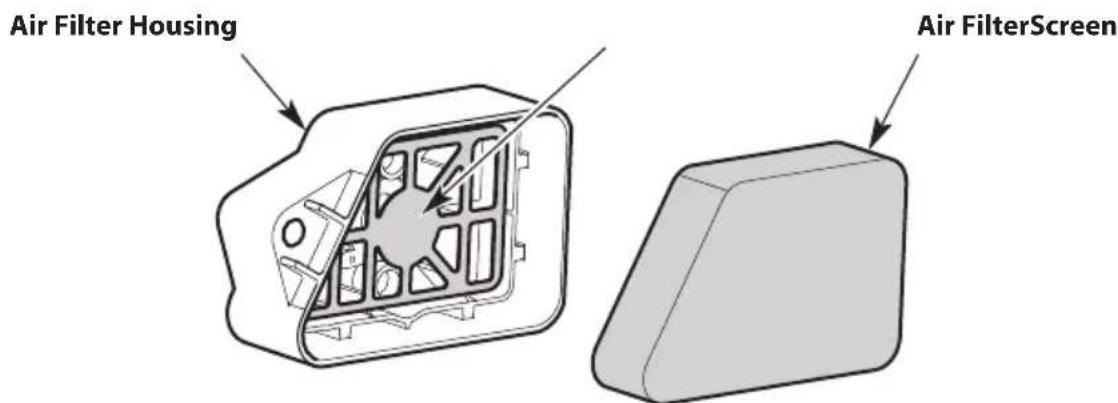

6. Reinstall the air filter (Fig. 21).

NOTE: Make sure the metal screen is seated in the air filter housing before reinstalling the air filter (Fig. 20).

NOTE: Operating the unit without the air filter and air filter cover will Void the warranty.

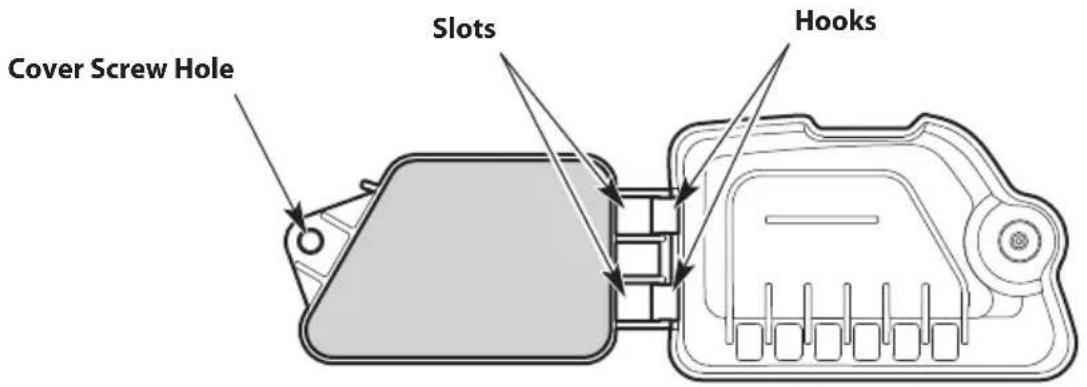

1. Close the air filter cover: insert the hooks on the air filter cover into the slots on the air filter housing. Swing the air filter cover to the left and align the cover screw with the cover screw hole (Fig. 22). Tighten the cover screw to secure the air filter cover.

NOTE: Do not over tighten as this may strip the screw.

Fig. 20

Fig. 21

Fig.22

ADJUSTING THE IDLE SPEED

WARNING: The blade may spin during idle speed adjustments. Wear protective clothing and observe all safety instructions to prevent serious personal injury.

If the engine will not idle properly:

1. Start the engine. Refer to Starting and Stopping.
2. Release the throttle control and let the engine idle.

NOTE: Make sure the blade is not in contact with the ground when adjusting the idle speed.

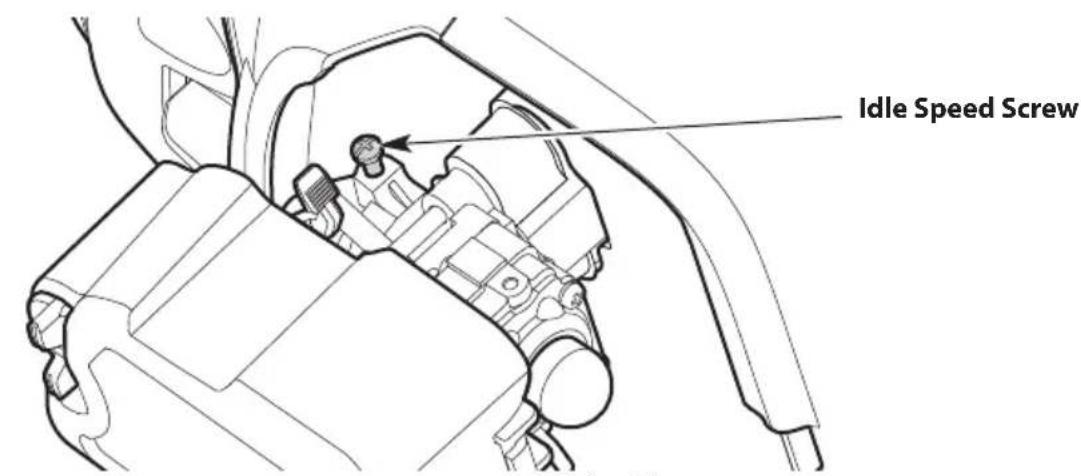

• If the engine stops, increase the idle speed. Use a small Phillips screwdriver to turn the idle speed screw clockwise, 1/8 of a turn at a time, until the engine idles smoothly (Fig. 23).
• If the blade spins when the engine idles, reduce the idle speed. Turn the idle speed screw counterclockwise, 1/8 of a turn at a time, until the blade stops moving (Fig. 23).

Fig. 23

MAINTAINING THE SPARK PLUG

WARNING: Do not sand blast, scrape or clean spark plug electrodes. Grit in the engine could damage the cylinder.

1. Stop the engine and allow it to cool. Grasp the spark plug boot firmly and pull it from the spark plug.
2. Clean around the spark plug. Remove the spark plug from the cylinder head with a 5/8-inch socket, turning counterclockwise.
3. Inspect the spark plug. If the spark plug is cracked, fouled or dirty, replace it with:

USA: replacement part #794-00082, a Champion RDZ4H or an equivalent spark plug.
Canada: replacement part #794-00098, a Champion QDZ4H or an equivalent spark plug.

1. Use a feeler gauge to set the air gap at 0.025 in. (0.635 mm) (Fig. 24).
2. Install the spark plug in the cylinder head. Tighten the spark plug with a 5/8-inch socket, turning it clockwise until snug.

NOTE: If using a torque wrench, torque to:

110-120 in. lb. (12.3-13.5 N·m). Do not over tighten.

1. Reattach the spark plug boot.

Fig. 24

CLEANING AND STORAGE

CLEANING

WARNING: To avoid serious personal injury, always stop the engine and allow it to cool before cleaning or maintaining the unit.

• Use a small brush to clean the outside of the unit.
• Do not use strong detergents. Household cleaners that contain aromatic oils such as pine and lemon, and solvents such as kerosene, can damage plastic.
• Wipe off any moisture with a soft cloth.
• Clean the edger blade with water. Wipe the edger blade with a light machine oil to prevent rust.

STORAGE

WARNING: Store the unit out of the reach of children. Lock up the unit to prevent unauthorized use or damage.

WARNING: Store the unit in a dry, well-ventilated area. Never store a fueled unit where fumes may reach an open flame or spark. Allow the engine to cool before storing.

Long-term Storage

1. Remove the fuel cap, tip the unit and drain the fuel into an approved container. Reinstall the fuel cap.
2. Start the engine and allow it to run until it stalls. This ensures that all fuel has been drained from the carburetor.
3. Allow the engine to cool. Remove the spark plug and put 5 drops of any high-quality motor oil into the cylinder. Pull the starter rope slowly to distribute the oil. Reinstall the spark plug.
4. Thoroughly clean the unit and inspect it for any loose or damaged parts. Repair or replace damaged parts and tighten loose screws, nuts or bolts.

Preparing the Unit for Use after Long-term Storage

1. Remove the spark plug. Tip the unit and drain all of the oil from the cylinder into an approved container. Reinstall the spark plug.
2. Change the oil. Refer to Changing the Oil.

NOTE: Do not use fuel that has been stored for more than 30 days. Dispose of old fuel and oil according to federal, state and local regulations.

TROUBLESHOOTING

PROBLEM SOLUTION

THE ENGINE WILL NOT START

The fuel tank is empty Fill the fuel tank with fresh fuel

The primer bulb was not pressed enough Press the primer bulb 10 times or until fuel is visible

The fuel is old (over 30 days) Drain the fuel tank and add fresh fuel

The spark plug is fouled Replace the spark plug

THE ENGINE WILL NOT IDLE

The air filter is dirty Clean or replace the air filter

The fuel is old (over 30 days) Drain the fuel tank and add fresh fuel

The idle speed is incorrect Adjust the idle speed

THE ENGINE WILL NOT ACCELERATE

The fuel is old (over 30 days) Drain the fuel tank and add fresh fuel

The blade is bound with dirt or grass

The air filter is dirty Clean or replace the air filter

THE ENGINE LACKS POWER OR STALLS

The fuel is old (over 30 days) Drain the fuel tank and add fresh fuel

The air filter is dirty Clean or replace the air filter

The spark plug is fouled Replace the spark plug

If further assistance is required, contact an authorized service center.

TABLE DES MATIÈRES

Sécurité 34

INSTRUCTIONS D'ARRÊT

INSTRUCTIONS D'ARRÊT
