USER MANUAL Power Steel 5616J BESTWAY

Visit www.bestwaycorp.com/support for help WE SUGGEST NOT TO RETURN THE PRODUCT TO THE STORE QUESTIONS? PROBLEMS? MISSING PARTS? For FAQ, Manuals, Videos Or Spare Parts, Please Visit bestwaycorp.com/support

bestwaycorp.com/support ?

bestwaycorp.com/support Visit Bestway YouTube channel YouTube

Components list / Lista de componentes / Contenido / Bauteilübersicht / Osaluettelo / Onderdelenlijst / Elenco componenti / Liste des composants / ΛΙΣΤΑ ΕΞΑΡΤΗΜΑΤΩΝ / Спецификация деталей / Lista elementów / Tartozéklista / Komponentlista

A

Top Rail A Corrimão Superior A Riel superior A

Obere Schiene A

Ylätanko A

Bovenste rail A

Guida superiore A

Rail supérieur A

ΕΠΑΝΩ ΡΑΓΑ Α

Simple line drawing of a rectangular object with two side protrusions and a label 'C' in the top-left corner (no text or symbols on the object itself)

Top Rail C

Corrimão Superior C

Riel superior C

Obere Schiene C

Ylätanko C

Bovenste rail C

Guida superiore C

Rail supérieur C

ΕΠΑΝΩ ΡΑΓΑ Ρ

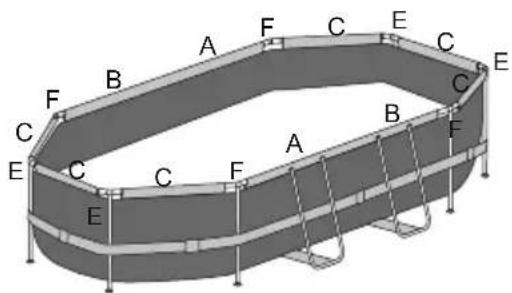

A G A F C E C E C F C E C E C F A G A F C

4.88 m × 3.05 m × 1.07 m (16' × 10' × 42")
4.27 m x 2.50 m x 1.00 m (14' x 8'2" x 39.5")

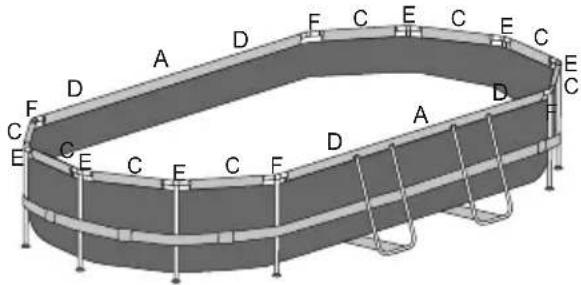

A D F C E C E C D A C E C F C E D

3.05 m x 2.00 m x 84 cm (10' x 6'7" x 33")

3D diagram of a rectangular structure with labeled points A, B, C, E, F and internal segments (no text or symbols beyond labels)

Visit www.bestwaycorp.com/support for help WE SUGGEST NOT TO RETURN THE PRODUCT TO THE STORE QUESTIONS? PROBLEMS? MISSING PARTS? For FAQ, Manuals, Videos Or Spare Parts, Please Visit bestwaycorp.com/support

POWER STEEL™ OVAL POOLS OWNER'S MANU

WARNING

Carefully read, understand, and follow all information in this user manual before installing and using the swimming pool. These warnings, instructions, and safety guidelines address some common risks of water recreation, but they cannot cover all risks and dangers in all cases. Always use caution, common sense, and good judgment when enjoying any water activity. Retain this information for future use.

Non Swimmers safety

• Continuous, active, and vigilant supervision of weak swimmers and non-swimmers by a competent adult is required at all times (remembering that children under five are at the highest risk of drowning).
• Designate a competent adult to supervise the pool each time it is being used.
• Weak swimmers or non-swimmers should wear personal protection equipment when using the pool.
• When the pool is not in use, or unsupervised, remove all toys from the swimming pool and its surrounding to avoid attracting children to the pool.

Safety devices

• In order to prevent children from drowning, it is recommended to secure the access to the pool with a protection device. In order to prevent children climbing from the inlet and outlet valve, it is recommended to install a barrier (and secure all doors and windows, where applicable) to prevent unauthorized access to the swimming pool.
• Barriers, pool covers, pool alarms, or similar safety devices are helpful aids, but they are not substitutes for continuous and competent adult supervision.

Safety equipment

- It is recommended to keep rescue equipment (e.g. a ring buoy) by the pool.

- Keep a working phone and a list of emergency phone numbers near the pool.

Safe use of the pool

• Encourage all users especially children to learn how to swim
• Learn Basic Life Support (Cardiopulmonary Resuscitation - CPR) and refresh this knowledge regularly. This can make a life-saving difference in the event of an emergency.
• Instruct all pool users, including children, what to do in case of an emergency.

- Never dive into any shallow body of water. This can lead to serious injury or death.

- Do not use the swimming pool when using alcohol or medication that may impair your ability to safely use the pool.

- When pool covers are used, remove them completely from the water surface before entering the pool.

- Protect pool occupants from water related illnesses by keeping the pool water treated and practicing good hygiene. Consult the water treatment guidelines in the user's manual.

- Store chemicals (e.g. water treatment, cleaning or disinfection products) out of the reach of children.

- Use the signage as outlined below. Signage is to be displayed in a prominent position within 2m of the pool.

Three black circular icons representing pictograms: swimming, no crossing, and walking person.

Keep children under supervision in the aquatic environment. No diving.

- Removable ladders shall be placed on a horizontal surface.

• Irrespective of materials used for swimming pool construction, accessible surfaces have to be checked regularly to avoid injuries.
• Regularly monitor bolts and screws. Remove splinters or any sharp edges to avoid injuries.

ATTENTION: Do not leave the drained pool outside. The empty pool is liable to become deformed and/or displaced due to wind.

- If you have a filter pump, refer to the pump's manual for instructions.

WARNING! The pump cannot be used while people are inside the pool!

- If you have a ladder, refer to the ladder's manual for instructions.

WARNING! The use of a swimming pool implies compliance with the safety instructions described in the operating and maintenance guide. In order to prevent drowning or other serious injuries, pay particular attention to the possibility of unexpected access to the swimming pool by children under 5 years by securing the access to it, and, during the bathing period, keep them under constant adult supervision.

Please read carefully and keep for future reference

Thank you for buying a Bestway pool. In order to ensure that you gain maximum enjoyment and safe use of your pool please follow the installation instructions along with the important safety guidelines in your owner's manual.

Installation usually takes approximately 30 minutes with 2-3 people excluding earthworks and filling.

CHOOSE THE CORRECT LOCATION

NOTE: The pool must be set up on a completely flat and level surface. Please do not install the pool if the surface is inclined or sloped.

Correct conditions to set up the pool:

• The selected location has to be capable of uniformly supporting the weight for the entire time the pool is installed, moreover the location must be flat and must be cleared of all objects and debris including stones and twigs.

- We recommend positioning the pool away from any objects children could use to climb into the pool.

NOTE: Position the pool near an adequate drainage system to deal with overflow or to discharge the pool.

Incorrect conditions to set up the pool:

• On uneven ground the pool may collapse causing serious personal injury and/or damage to personal property and will void the warranty and prevent any service claims.
• Sand should not be used to create a level base; the ground must be dug out if necessary.
• Directly under overhead power lines or trees. Be sure the location does not contain underground utility pipes, lines or cables of any kind.
• Do not set up the pool on driveways, decks, platforms, gravel or asphalt surfaces. The selected location should be firm enough to withstand the pressure of the water; mud, sand, soft / loose soil or tar are not suitable.

- Grass or other vegetation under the pool will die and may cause odors and slime to develop, therefore we recommend removing all grass from the selected pool location.

- Avoid areas prone to aggressive plant and weed species that may grow through the liner.

NOTE: Check with your local city council for by-laws relating to fencing, barriers, lighting and safety requirements and ensure you comply with all laws.

NOTE: If have a filter pump, refer to the pump's manual for instructions.

NOTE: The ladder must match the pool size and should be used only for entering and exiting the pool. It is forbidden to exceed the permitted payload of the ladder. Check regularly if the ladder is properly assembled.

Pool Maintenance

If you do not adhere to the maintenance guidelines below, your health might be at risk, especially that of your children.

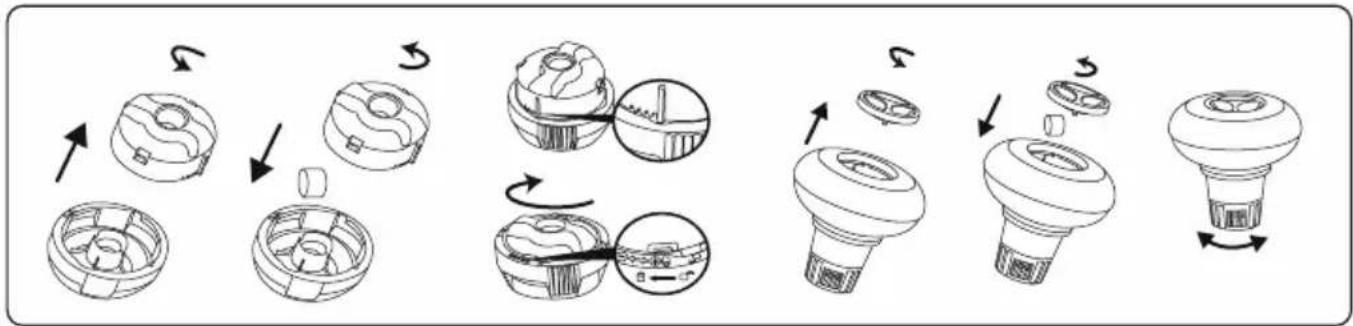

Using chemical tablets (not included):

NOTE: Chemconnect or Chemical Floater must be used when you perform chemical maintenance with tablets. Your purchased item may not include any of those dispensers, in this case you can purchase it by visiting our website www.bestwaycorp.com or at the nearest pool dealer.

    subgraph Component 1
        F["Internal Components"]
        G["Internal Components"]
        H["Internal Components"]
    end

    subgraph Component 2
        I["Internal Components"]
        J["Internal Components"]
        K["Internal Components"]
        L["Internal Components"]
    end

    subgraph Component 3
        M["Internal Components"]
        N["Internal Components"]
        O["Internal Components"]
        P["Internal Components"]
    end

    subgraph Component 4
        Q["Internal Components"]
        R["Internal Components"]
        S["Internal Components"]
        T["Internal Components"]
        U["Internal Components"]
    end

    subgraph Component 5
        V["Internal Components"]
        W["Internal Components"]
        X["Internal Components"]
        Y["Internal Components"]
        Z["Internal Components"]
    end

    subgraph Component 6
        AA["Internal Components"]
        AB["Internal Components"]
        AC["Internal Components"]
        AD["Internal Components"]
        AE["Internal Components"]
    end

    subgraph Component 7
        AF["Internal Components"]
        AG["Internal Components"]
        AH["Internal Components"]
        AI["Internal Components"]
        AJ["Internal Components"]
    end

    subgraph Component 8
        AK["Internal Components"]
        AL["Internal Components"]
        AM["Internal Components"]
        AN["Internal Components"]
        AO["Internal Components"]
        AP["Internal Components"]
    end

    subgraph Component 9
        AQ["Internal Components"]
        AR["Internal Components"]
        AS["Internal Components"]
        AT["Internal Components"]
        AU["Internal Components"]
        AV["Internal Components"]
        AW["Internal Components"]
    end

    subgraph Component 10
        AX["Internal Components"]
        AY["Internal Components"]
        AZ["Internal Components"]
        BA["Internal Components"]
        BB["Internal Components"]
        BC["Internal Components"]
    end

    subgraph Component 11
        DA["Internal Components"]
        AE["Internal Components"]
        AF["Internal Components"]
        AG["Internal Components"]
        AH["Internal Components"]
        AI["Internal Components"]
        AJ["Internal Components"]
        AK["Internal Components"]
    end

    subgraph Component 12
        AL["Internal Components"]
        AM["Internal Components"]
        AN["Internal Components"]
        AO["Internal Components"]
        AP["Internal Components"]
        AQ["Internal Components"]
        AR["Internal Components"]
        AS["Internal Components"]
        AT["Internal Components"]
    end

IMPORTANT: Don't use granulate tablets or throw the tablet directly in the water. The chemicals can deposit on the bottom, damage the material and discolor the PVC.

Using chemical liquid (not included):

IMPORTANT: Add chemical liquid in small doses and in the center of the pool to avoid direct contact between the chemicals and the PVC surface. Direct contact can damage the material and discolor the surface.

NOTE: Remove the chemical dispenser from pool when the pool is in use.

IMPORTANT: After performing chemical maintenance and before using the pool, use a test kit (not included) to test the water chemistry. We recommend maintaining your water according to the following table.

Parameters	Values
Water clarity	clear view of the pool bottom
Colour of the water	no colour should be observed
Turbidity in FNU/NTU	max. 1,5 (preferably less than 0,5)
Nitrate concentration above that of fill water in mg/l	max. 20
Total organic carbon (TOC) in mg/l	max. 4,0
Redox potential against Ag/AgCl 3,5 m KCl in mV	min. 650
pH value	6,8 to 7,6
Free active chlorine (without cyanuric acid) in mg/l	0,3 to 1,5
Free chlorine used in combination with cyanuric acid in mg/l	1,0 to 3,0
Cyanuric acid in mg/l	max. 100
Combined chlorine in mg/l	max. 0,5 (preferably close to 0,0 mg/l)

NOTE: Damage resulting from chemical imbalance is not covered by the warranty. Pool chemicals are potentially toxic and should be handled with care. There are serious health risks from chemical vapors and the incorrect labeling and storage of chemical containers. Please consult your local pool supply retailer for more information about chemical maintenance. Pay close attention to the chemical manufacturer's instructions. Pool damage resulting from misuse of chemicals and mismanagement of pool water is not covered by the warranty.

IMPORTANT: Over usage of chemicals can discolor the printing and all points of the pool material. It can also damage the structure of the pool liner.

To keep your pool clean:

1. Contact your local pool supply shop for advice and purchase of chemicals and pH kits. One of the most important factors to increase the life of the liner is to keep continuously clean and healthy water. Please strictly follow the instructions from professional technicians for the water treatment through the use of chemicals.
2. Locate a bucket of water next to pool to clean users' feet before entering pool.
3. Cover the pool when not in use.
4. Skim pool regularly to avoid settled dirt.

5. Check and wash the filter cartridge regularly.

6. Gently clean any scum from below the top ring with a clean cloth.

7. Please be careful in case of rain water, kindly check that the water level is not higher than the expected. If so, YOU HAVE TO DISCHARGE THE EXCESS WATER.
8. If it rains, check that the water level is not higher than the specified level. If water exceeds the specified levels, drain the pool to the specified level.

Proper maintenance can maximize the life of your pool.

During the season of use of the swimming pool, the filtration system must be necessarily put into service every day, enough time to assure at least a complete renewal of the volume of water.

NOTE: The pump is used to circulate the water and to filter small particles. In order to keep your pool water clean and hygienic, you must also add chemicals.

Repair

In the event of a leak, patch your pool using the underwater adhesive repair patch provided. You can find the instructions in FAQs on the support section of our website, www.bestwaycorp.com.

Dismantling

1. Unscrew the drain valve cap on the outside of the pool counter clockwise and remove.
2. Connect the adaptor to the hose and put the other end of the hose in the area where you are going to drain your pool. (Check local regulations for drainage by-laws).

3. Screw control ring of the hose adaptor onto the drain valve clockwise. The drain valve will be open and water will start to drain automatically. ATTENTION: Water flow can be controlled with the control ring.

4. When draining is finished, unscrew the control ring to close the valve.

5. Disconnect the hose.

6. Screw the cap back onto the drain valve.

7. Air dry pool.

ATTENTION: Do not leave the drained pool outside.

Storage and Winterization

1. Please remove all the accessories and spare parts of the pool and store them clean and dry.
2. Once pool is completely dry, sprinkle with talcum powder to prevent pool from sticking together, fold pool carefully. If pool is not completely dry, mold may result and will damage the pool liner.
3. Store liner and accessories in a dry place with a moderate temperature between 5°C / 41°F and 38°C / 100°F.
4. During the rainy season, pool and accessories should be stored as per above instructions also.
5. Improper draining of the pool might cause serious personal injury and/or damage to personal property.
6. We strongly recommend the pool is disassembled during the off season (winter months). Store in a dry location out of children's reach.

Symbolic icon showing a person diving into water with an arrow, enclosed in a black circle (no text or numbers present)

Prohibition sign with crossed lines and water symbol (no text)

Simple icon of a human figure in a circle (no text or symbols)

Three black circular icons representing pictograms: swimming, no crossing, and walking person.

Symbolic icon showing a person swimming with an arrow, enclosed in a black circle (no text or numbers present)

Prohibition sign with crossed lines and fish, no text or symbols present

Simple icon of a human figure in a circle (no text or symbols)

ALTAAN HUOLTO

Symbolic icon showing a person swimming with an arrow, no text or numbers present

Prohibition sign with crossed-out lines and fish, no text or symbols present

Simple icon of a human figure in a circle, no text or symbols present

Prohibition sign with crossed-out lines and water symbol (no text)

    subgraph Initial Components
        A1["Internal Component 1"]
        A2["Internal Component 2"]
        A3["Internal Component 3"]
    end

    subgraph Assembly Steps
        B1["Assembly Step 1"]
        B2["Assembly Step 2"]
        B3["Assembly Step 3"]
        B4["Assembly Step 4"]
    end

    subgraph Final Packaging
        C1["Final Packaging"]
        C2["Final Packaging"]
    end

    A --> B --> C --> D --> E --> F
    style Initial Components fill:#f9f,stroke:#333
    style Assembly Steps fill:#ccf,stroke:#333

Three black circular icons representing pictograms: swimming, no crossing, and walking person.

Symbolic icon of a person walking with arrows indicating rotation or cycle (no text or symbols)

CONSIGNE POUVANT VARIER LOCALEMENT > WWW.CONSIGNESDETRI.FR

Three black circular icons showing pictograms: a person swimming with a hand, a crossed-out person holding a cross, and a person walking with hands (no text or symbols)

Three black circular icons representing pictograms: swimming, no crossing, and walking person.

Prohibition sign with crossed-out lines and water symbol (no text)

Prohibition sign with crossed lines and fish, no text or symbols present

Simple icon of a human figure in a wide stance, enclosed in a black circle (no text or symbols)

Assembly without tools

To lengthen the life of your pool, it is important to sprinkle the top rail with the Talcum Powder before assembly. Talcum Powder is not included and easily available in the market.

PT

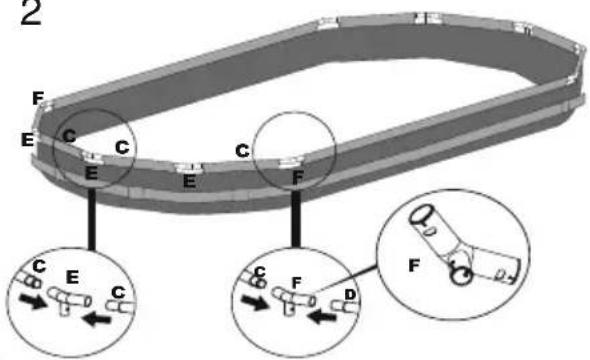

Diagram illustrating a multi-layered structure with labeled components A, C, D and directional arrows indicating flow or movement.

2

2 F E C C E E E F C E C C F D F

3

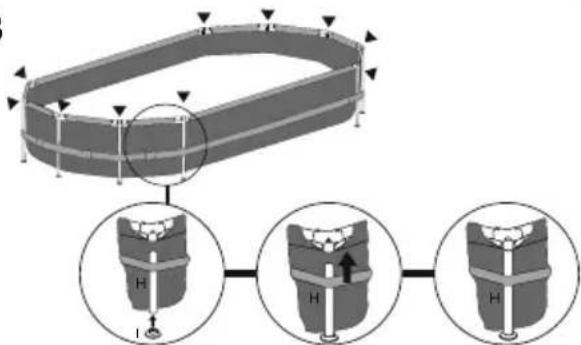

Technical diagram showing a mechanical component with three views of a housing and a close-up of its internal structure, labeled with 'H' and directional arrows.

4

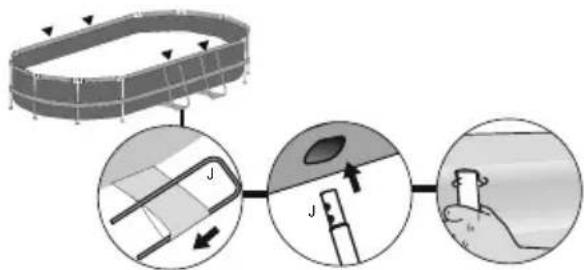

Diagram illustrating a mechanical assembly process with labeled steps and directional arrows indicating motion.

3D diagram of a curved structural component with a magnified inset showing internal structure (no text or symbols)

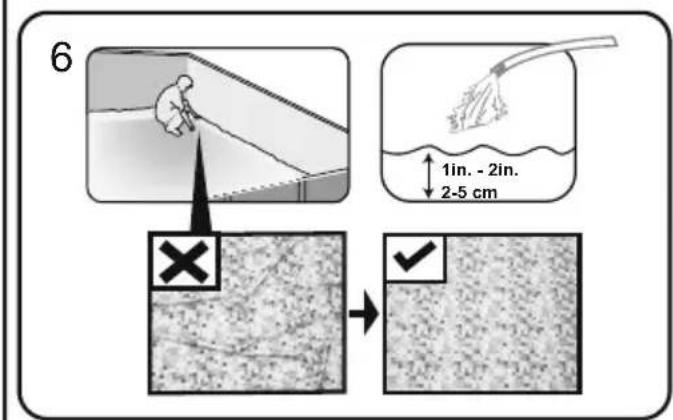

6 1in. - 2in. 2-5 cm × ✓

EN smooth out the bottom Put 1" to 2" water in the pool to cover the floor. Once pool floor is slightly covered, gently smooth out all wrinkles. Start in the center of the pool and work your way clockwise to the outside.
PT suavizar o fundo Encher a piscina com uma quantidade de água suficiente para cobrir a superfície (de 2 a 5 cm). Uma vez que a superfície estiver levemente coberta, eliminar todas as dobras presentes, começando pelo centro da piscina e continuando, no sentido horário, em direcção à parte externa.
ES suavizar la parte inferior Ponga de 1" a 2" de agua en la piscina para cubrir el suelo. Cuando la piscina esté un poco cubierta, alise suavemente las arrugas. Comience desde el centro de la piscina y trabaje en sentido horario hacia el exterior.
DE glätten den Boden Füllen Sie 1" bis 2" Wasser in den Pool, so dass der Boden bedeckt ist. Glätten Sie vorsichtig alle Falten sobald der Poolboden leicht bedeck ist. Beginnen Sie in der Mitte des Pools und arbeiten Sie im Uhrzeigersinn zur Außenseite.
FI tasoittaa pohjaan Laita altaaseen 2,5 - 5cm:n kerros vettä pohjan peittämiseksi. Kun altaan pohja on peittynyt, silitä varovasti kaikki rypyt. Aloita keskeltä ja etene myötäpäivään laidoille.
NL glad uit de bodem Doe 1" tot 2" water in het zwembad, net voldoende om de bodem onder water te zetten. Wanneer dit gebeurd is worden alle rimpels voorzichtig gladgestreken. Begin in het midden van het zwembad en ga zo rechtsom naar de rand toe.
IT appianare il fondo Riempire la piscina con una quantità d'acqua sufficiente a coprire la superficie (da 2,5 a 5cm) Una volta piscina verso l'esterno muovendosi in senso orario. eseguita questa operazione, eliminare tutte le pieghe presenti sulla superficie partendo dal centro della.

FR lisser le fond Mettre quelques centimètres d'eau dans la piscine pour couvrir le sol. Une fois que le sol de la piscine est légèrement recouvert, lissez tous les plis. Commencez par le centre de la piscine et continuez dans le sens des aiguilles d'une montre vers l'extérieur.
EL ΕΞΟΜΑΛΥΝΕΙ ΤΟ ΠΥΘΜΕΝΑ ΒΑΛΤΕ 1" ΕΩΣ 2" ΝΕΡΟ ΣΤΗΝ ΠΙΣΙΝΑ ΓΙΑ ΝΑ ΚΑΛΥΨΕΤΕ ΤΟ ΠΑΤΩΜΑ. ΜΟΛΙΣ ΚΑΛΥΦΘΕΙ ΕΛΑΦΡΑ ΤΟ ΠΑΤΩΜΑ ΤΗΣ ΠΙΣΙΝΑΣ, Ο ΕΓΚΑΤΑΣΤΑΤΗΣ ΠΡΕΠΕΙ ΝΑ ΙΣΙΩΣΕΙ ΟΛΕΣ ΤΙΣ ΠΤΥΧΕΣ. ΞΕΚΙΝΗΣΤΕ ΑΠΟ ΤΟ ΚΕΝΤΡΟ ΤΗΣ ΠΙΣΙΝΑΣ ΚΑΙ ΣΥΝΕΧΙΣΤΕ ΔΕΞΙΟΣΤΡΟΦΑ ΠΡΟΣ ΤΑ ΕΞΩ.
RU Расправьте дно Налейте немного воды в бассейн так, чтобы она покрывала дно на 3-5 сантиметров. Когда вода налита, аккуратно расправьте складки дна. Начинайте с центра бассейна и двигайтесь к краям по часовой стрелке.
PL wygładzić dna Puść wodę do basenu o głębokości 1" - 2", aby jej warstwa zakryła dno basenu. Jeśli dno basenu jest już trochę zakryte wodą, delikatnie wygładź wszystkie jego fałdy. Zacznij od środka basenu i idąc w kierunku zgodnym z ruchem wskazówek zegara, podążaj do brzegu basenu.
HU elsimítására az alsó A medencébe engedjen 1" - 2" mélységű vizet, hogy az a medence fenekét befedje. Ha a medence alján egy kis mennyiségű víz található, a gyűrődéseket finoman egyenesítse ki. A medence közepétől kezdje és az óramutató járásával megegyezően haladjon a medence széle felé.
SV jämna ut botten Häll 1" till 2" vatten i poolen för att täcka golvet. Då poolgolvet är något täckt, ska du släta ut alla veck. Börja i mitten av poolen och arbeta dig medsols utåt.
EN Connection Valve Assembly For pool with connection valve
PT Montagem da Válvula de Ligação Para piscina com válvula de ligação.
ES Montaje de la válvula de conexión Para piscinas equipadas con válvula de conexión.
DE Montage des Anschlussventils Bei Pools mit Anschlussventil.
FI Liitäntäventtiilin kokoonpano Allas, jossa on kytkentäventtiili.
NL Montage van aansluitingsklep Voor zwembaden met aansluitingsklep.
IT Montaggio della valvola di collegamento Per piscine con valvola di collegamento.
FR Montage de la vanne de communication Pour les piscines avec vanne de communication.
EL ΣΥΝΑΡΜΟΛΟΓΗΣΗ ΒΑΛΒΙΔΑΣ ΣΥΝΔΕΣΗΣ ΓΙΑ ΠΙΣΙΝΑ ΜΕ ΒΑΛΒΙΔΑ ΣΥΝΔΕΣΗΣ.
RU Сборка соединительного клапана Для бассейна с соединительным клапаном.

PL

Diagram of mechanical components and fluid flow, showing gears and a curved channel (no text or labels)

Diagram showing mechanical components and motion lines over a curved surface (no text or symbols)

EN

NOTE: If you want to connect other pool cleaning kits to the pool through the connection valve, disassemble the Debris Screen from the Connector.

PT

Technical diagram showing four mechanical components with no visible text or symbols

EN

Assembly of the Frame pool can be completed without tools.

IMPORTANT: Bestway Inflatables will not be responsible for damage caused to the pool due to mishandling or failure to follow these instructions.

1. Lay out all parts and check that you have the correct quantities as listed in the components list. For assistance or FAQs, please visit the support section on our website, www.bestwaycorp.com.
2. Spread out the pool and make sure the pool is right side up; let it sit exposed to direct sunlight for 1 hour or more so that the pool is more flexible during set up.
3. Place the pool near an adequate drainage system to deal with overflow water and ensure the pool's inlet A and outlet B are correctly positioned to allow your filter pump to connect to a power source. Note: Do not use extension power cords to power your pump.
   ATTENTION: Do not drag the pool on the ground, this can damage the pool.

PT

FILLING POOL WITH WATER

ATTENTION: Do not leave pool unattended while filling with water.

1. Fill the pool until the water reaches the welding line located 12cm-20cm (4.7"-7.9") from the top of the pool. DO NOT OVERFILL as this could cause the pool to collapse. In times of heavy rainfall you may need to empty some of the water to ensure the level is correct.
2. When filling the pool is completed, check that the water is not collecting on any side to ensure the pool is level.
   IMPORTANT: If pool is not level, drain water and re-level ground by digging out. Never attempt to move the pool with water in it, serious personal injury or damage to the pool may result.
   WARNING: Your pool may contain a great deal of pressure. If your pool has any bulge or uneven side then the pool is not level, the sides may burst and the water may discharge suddenly causing serious personal injury and/or damage to property.
3. Check pool for any leaks at valves or seams, check any evident water loss. Do not add chemicals until this has been done.

PT

For support please visit us at:

bestwaycorp.com/support

©2021 Bestway Inflatables & Material Corp.

All rights reserved/Tous droits réservés/Todos los derechos reservados/Alle Rechte vorbehalten/Tutti i diritti riservati

Trademarks used in some countries under license from/

Manufactured, distributed and represented in the European Union by/

Distributed in Australia & New Zealand by Bestway Australia Pty Ltd, Unit 2/98-104 Carnarvon St Silverwater, NSW 2128, Australia

Tel: Australia: ([phone]; New Zealand: 0800 142 101

Distributed in United Kingdom by Bestway Corp UK Ltd. 8 Wentworth Road, Heathfield Industrial Estate, Newton Abbot, Devon, TQ12 6TL

Exported by/Exporté par/Exportado por/Exportiert von/Esportato da

Bestway (Hong Kong) International Ltd./Bestway Enterprise Company Limited

Suite 713, 7/Floor, East Wing, Tsim Sha Tsui Centre, 66 Mody Road, Kowloon, Hong Kong

Tel: [phone] (For U.S. and Canada)

www.bestwaycorp.com
