DV18DGL - Drill HiKOKI - Free user manual and instructions

Brand	HiKOKI
Model	DV18DGL
Product type	Cordless impact drill
Power source	18 V lithium-ion battery (BSL18 series)
No-load speed	Low: 0 – 350 rpm High: 0 – 1,400 rpm
Impact rate	Low: 0 – 4,900 bpm High: 0 – 19,600 bpm
Drilling capacity	Brick: 13 mm Wood: 38 mm Metal: 13 mm
Screwing capacity	Small screw: 6 mm Wood screw: 8 mm × 75 mm

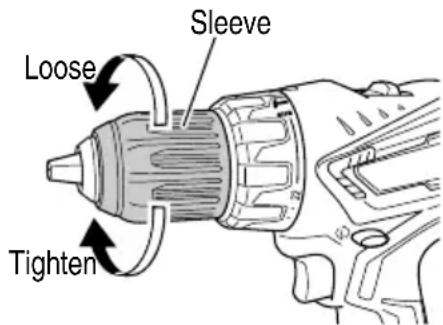

Chuck	Keyless chuck
Weight	1.7 kg (with battery)
Main functions	Drilling, screwdriving, impact
Clutch selector	22 torque positions + drilling and impact modes
Variable speed	Yes, by trigger

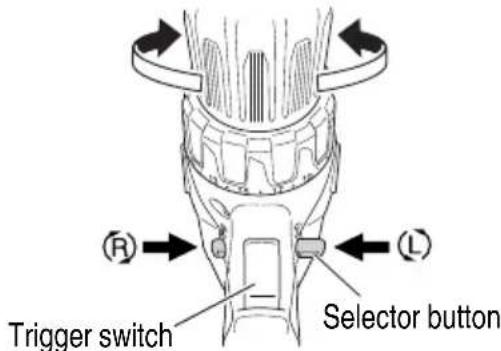

Forward/reverse switch	Yes

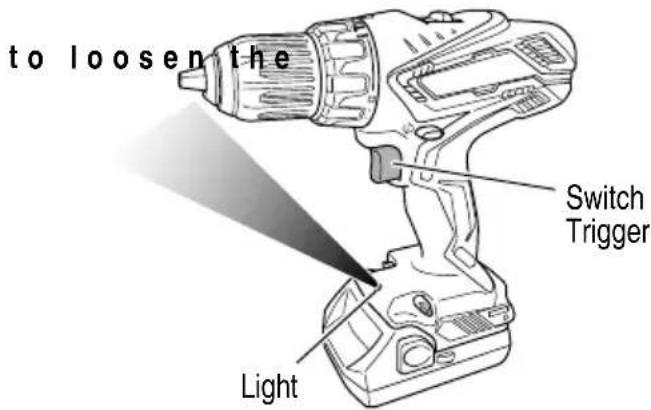

Light	Integrated LED
Safety	Overload, overheat, and deep discharge protection
Maintenance and cleaning	Clean with a soft damp cloth; do not use solvents
Replacement parts and repairability	Contact an authorized HiKOKI service center

Frequently Asked Questions - DV18DGL HiKOKI

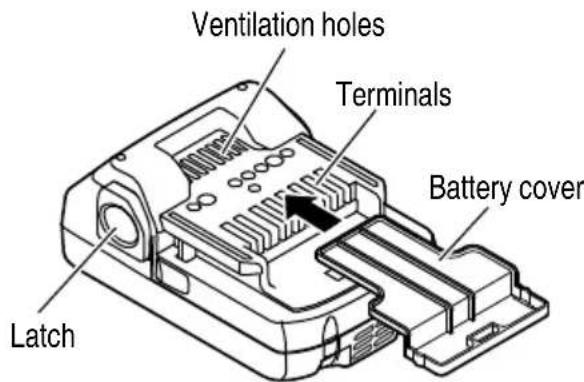

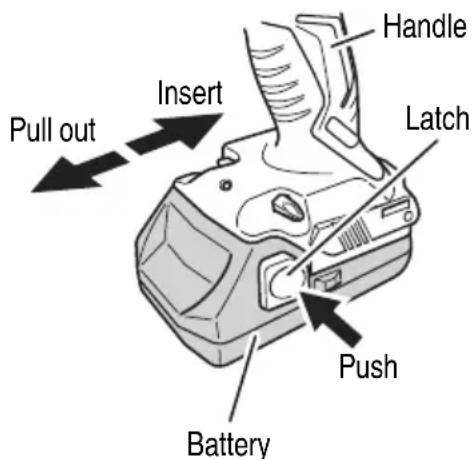

How to install and remove the battery?

To remove the battery, firmly hold the handle and push the battery latch. To install, insert it respecting polarity until it clicks.

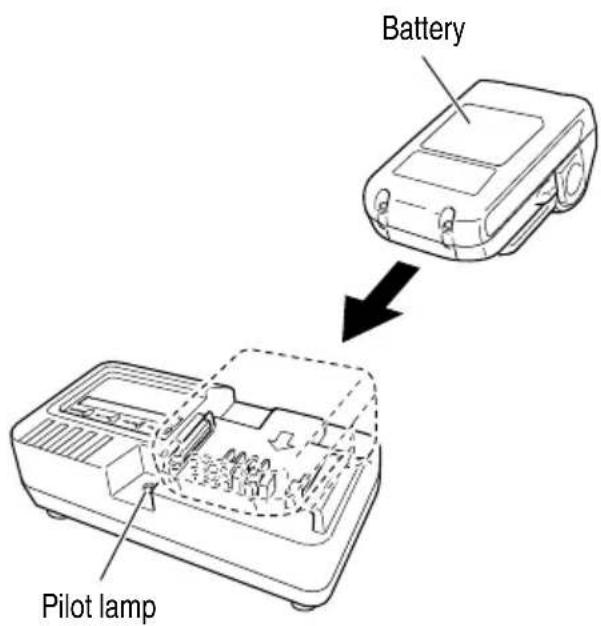

How to charge the battery?

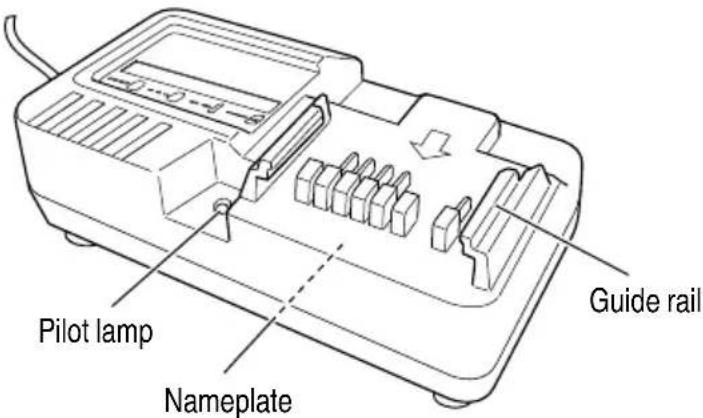

Use the included UC18YKSL charger. Plug the charger into a power outlet, insert the battery. The red light flashes during charging and turns off when charging is complete.

How to adjust the tightening torque?

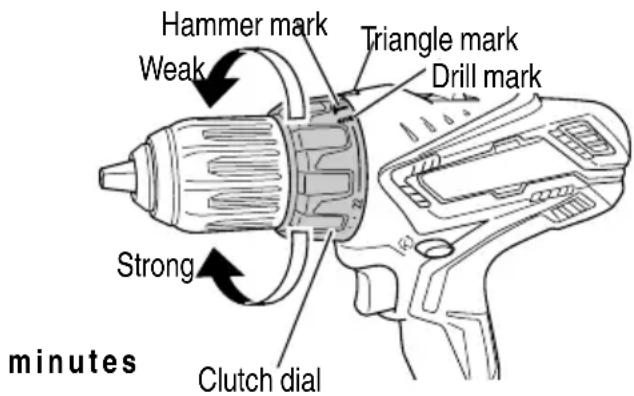

Turn the clutch selector to align a number (1 to 22) or a black dot with the triangular mark. The higher the number, the stronger the torque.

How to switch from drilling mode to impact mode?

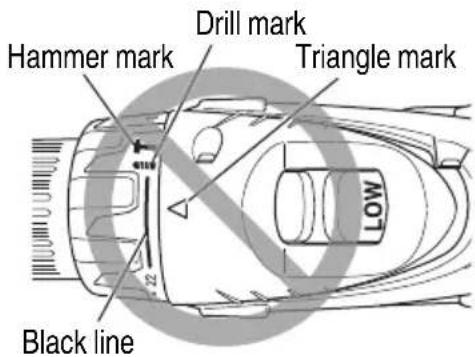

Turn the clutch selector to align the impact mark (hammer) with the triangle on the housing for impact mode. For drilling only, align the drill mark.

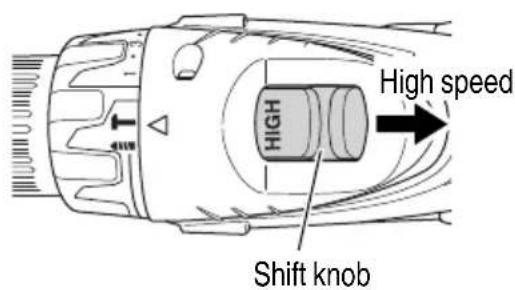

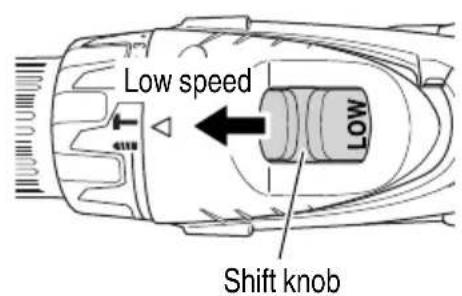

How to change the rotational speed?

Use the shift button: LOW position for low speed (0-350 rpm), HIGH for high speed (0-1,400 rpm). Make sure the switch is off before changing speed.

What accessories are included with the drill?

Standard accessories include: a No. 2 Phillips bit, two BSL1815S batteries, a UC18YKSL charger, a plastic case, and a battery cover.

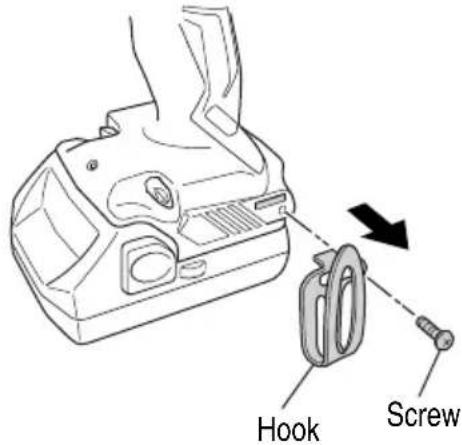

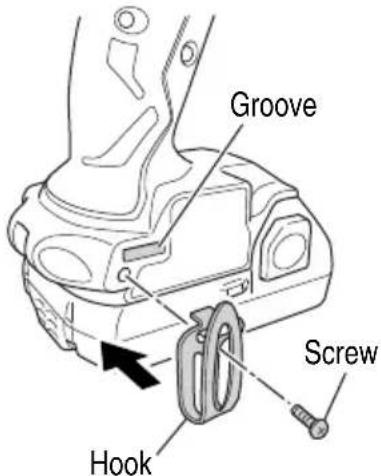

How to install the belt hook?

Place the hook in the groove of the tool and tighten the provided screws. To remove, unscrew the screws with a Phillips screwdriver.

What safety precautions should be observed?

Wear hearing and eye protection. Hold the tool by insulated surfaces. Keep hands away from moving parts. Keep the work area clean and well lit.

How to maintain the drill?

Clean regularly with a soft damp cloth (no solvents). Check the condition of bits and screws. For any repairs, contact an authorized HiKOKI service center.

What to do if the drill does not start?

Check that the battery is correctly installed and charged. If the battery is hot, let it cool down. If the problem persists, contact an authorized service center.

USER MANUAL DV18DGL HiKOKI

Cordless Hammer Drill

Line drawing of a handheld electric drill press (no text or symbols)

SAFETY INSTRUCTIONS AND INSTRUCTION MANUAL

WARNING

IMPROPER OR UNSAFE use of this power tool can result in death or serious bodily injury! This manual contains important information about product safety. Please read and understand this manual BEFORE operating the power tool. Please keep this manual available for other users and owners before they use the power tool. This manual should be stored in safe place.

INSTRUCTIONS DE SECURITE ET MODE D'EMPLOI

⚠ AVERTISSEMENT

IMPORTANT SAFETY INFORMATION

Read and understand all of the safety precautions, warnings and operating instructions in the Instruction Manual before operating or maintaining this power tool.

Most accidents that result from power tool operation and maintenance are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures.

Basic safety precautions are outlined in the “SAFETY” section of this Instruction Manual and in the sections which contain the operation and maintenance instructions.

Hazards that must be avoided to prevent bodily injury or machine damage are identified by WARNINGS on the power tool and in this Instruction Manual.

NEVER use this power tool in a manner that has not been specifically recommended by HITACHI.

MEANINGS OF SIGNAL WORDS

WARNING indicates a potentially hazardous situations which, if ignored, could result in death or serious injury.

CAUTION indicates a potentially hazardous situations which, if not avoided, may result in minor or moderate injury, or may cause machine damage.

NOTE emphasizes essential information.

SAFETY

GENERAL POWER TOOL SAFETY WARNINGS

WARNING

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust.
Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet.

Never modify the plug in any way.

Do not use any adapter plugs with earthed (grounded) power tools.

Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators.

There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.

Keep cord away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.

Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.

A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection.

Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off -position before connecting to power source and/or battery pack, picking up or carrying the tool.

Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on.

A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times.

This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.

Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application.

The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off.

Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.

Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation.

If damaged, have the power tool repaired before use.

Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean.

Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer.

A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs.

Use of any other battery packs may create a risk of injury and fi re.

c) When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another.

Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help.

Liquid ejected from the battery may cause irritation or burns.

6) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the power tool is maintained.

- WARNING -

To reduce the risk of injury, user must read instruction manual.

SPECIFIC SAFETY RULES AND SYMBOLS

1. Wear ear protectors when impact drilling.

Exposure to noise can cause hearing loss.

1. Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
2. Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring.
   Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
3. Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring.
   Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
4. NEVER place hands or other body parts near the drill bit or chuck during operation. Hold the drill by its handle only.
5. Because the cordless hammer drill operates by battery power, be aware of the fact that it can begin to operate at any time.
6. When working at elevated locations, clear the area of all other people and be aware of conditions below you.
7. NEVER touch moving parts. NEVER place your hands, fingers or other body parts near the tool's moving parts.
8. NEVER operate without all guards in place.

NEVER operate this tool without all guards or safety features in place and in proper working order. If maintenance or servicing requires the removal of a guard or safety feature, be sure to replace the guard or safety feature before resuming operation of the tool.

1. Use right tool.

Don't force small tool or attachment to do the job of a heavy-duty tool.

Don't use tool for purpose not intended —for example— don't use circular saw for cutting tree limbs or logs.

1. NEVER use a power tool for applications other than those specified.

NEVER use a power tool for applications other than those specified in the Instruction Manual.

1. Handle tool correctly.
   Operate the tool according to the instructions provided herein. Do not drop or throw the tool. NEVER allow the tool to be operated by children, individuals unfamiliar with its operation or unauthorized personnel.
2. Keep all screws, bolts and covers tightly in place.
   Keep all screws, bolts, and plates tightly mounted. Check their condition periodically.
3. Do not use power tools if the plastic housing or handle is cracked.
   Cracks in the tool's housing or handle can lead to electric shock. Such tools should not be used repaired.
4. Blades and accessories must be securely mounted to the tool.

Prevent potential injuries to yourself or others. Blades, cutting implements and accessories which have been mounted to the tool should be secure and tight.

1. NEVER use a tool which is defective or operating abnormally.
   If the tool appears to be operating unusually, making strange noises, or otherwise appears defective, stop using it immediately and arrange for repairs by a Hitachi authorized service center.
2. Carefully handle power tools.

Should a power tool be dropped or struck against hard materials inadvertently, it may be deformed, cracked, or damaged.

1. Do not wipe plastic parts with solvent.

Solvents such as gasoline, thinner benzine, carbon tetrachloride, and alcohol may damage and crack plastic parts. Do not wipe them with such solvents.

Wipe plastic parts with a soft cloth lightly dampened with soapy water and dry thoroughly.

1. ALWAYS wear eye protection that meets the requirement of the latest revision of ANSI Standard Z87.1.

2. Definitions for symbols used on this tool V ....volts

== ....direct current

no ...... no load speed

---/min .... revolutions or reciprocation per minute

IMPORTANT SAFETY INSTRUCTIONS FOR BATTERY CHARGER

WARNING

Death or serious bodily injury could result from improper or unsafe use of battery chargers. To avoid these risks, follow these basic safety instructions:

READ ALL INSTRUCTIONS

1. This manual contains important safety and operating instructions for battery charger Model UC18YKSL.
2. Before using battery charger, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.
3. To reduce risk of injury, charge HITACHI rechargeable battery type BSL18 series. Other type of batteries may burst causing personal injury and damage.
4. Use of an attachment not recommended or sold by the battery charger manufacturer may result in a risk of fire, electric shock, or injury to persons.

5. To reduce risk of damage to electric plug and cord, pull by plug when disconnecting battery charger.

6. Make sure cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.

7. An extension cord should not be used unless absolutely necessary. Use of improper extension cord could result in a risk of fire and electric shock. If extension cord must be used make sure:
   a. That blades of extension cord are the same number, size, and shape as those of plug on battery charger:
   b. That extension cord is properly wired and in good electrical condition; and
   c_d . That wire size is large enough for r^d , rating of battery charger as specified in Table 1.

Table 1 RECOMMENDED MINIMUM AWG SIZE FOR EXTENSION CORDS FOR BATTERY CHARGERS

AC Input Rating Amperes* AWG Size of Cord
Equal to or greater than	but less than	Length of Cord, Feet (Meter)
		25 (7.5)	50 (15)	100 (30)	150 (45)
0	2	18	18	18	16
2	3	18	18	16	14
3	4	18	18	16	14

$$ \frac {1 , 2 5 0 \text { watts }}{1 2 5 \text { volts }} = 1 0 \text { amperes } $$

* If the input rating of a battery charger is given in watts rather than in amperes, the corresponding ampere rating is to be determined by dividing the wattage rating by the voltage rating—for example:
8. Do not operate battery charger with damaged cord or plug-replace them immediately.
9. Do not operate battery charger if it has received a sharp blow, been dropped, or otherwise damaged in any way; take it to a qualified serviceman.
10. Do not disassemble battery charger; take it to a qualified serviceman when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fire.
11. To reduce risk of electric shock, unplug charger from receptacle before attempting any maintenance or cleaning. Removing the battery will not reduce this risk.

IMPORTANT SAFETY INSTRUCTIONS FOR USE OF THE BATTERY AND BATTERY CHARGER

You must charge the battery before you can use the power tool. Before using the model UC18YKSL battery charger, be sure to read all instructions and cautionary statements on it, the battery and in this manual.

REMEMBER: USE ONLY HITACHI BATTERY TYPES BSL18 SERIES. OTHER TYPES OF BATTERIES MAY BURST AND CAUSE INJURY!

Follow these instructions to avoid the risk of injury:

WARNING: Improper use of the battery or battery charger can lead to serious injury. To avoid these injuries:

1. NEVER disassemble the battery.
2. NEVER incinerate the battery, even if it is damaged or is completely worn out. The battery can explode in a fire.
3. NEVER short-circuit the battery.

4. NEVER insert any objects into the battery charger's air vents. Electric shock or damage to the battery charger may result.

5. NEVER charge outdoors. Keep the battery away from direct sunlight and use only where there is low humidity and good ventilation.

6. NEVER charge when the temperature is below 32^ F ( 0^ C) or above 104^ F ( 40^ C).
7. NEVER connect two battery chargers together.
8. NEVER insert foreign objects into the hole for the battery or the battery charger.
9. NEVER use a booster transformer when charging.
10. NEVER use an engine generator or DC power to charge.
11. NEVER store the battery or battery charger in places where the temperature may reach or exceed 104^ F ( 40^ C) such as inside metal box or car.
12. NEVER expose the battery or battery charger to rain or wet conditions.
13. ALWAYS operate charger on standard household electrical power (120 volts). Using the charger on any other voltage may overheat and damage the charger.
14. ALWAYS wait at least 15 minutes between charges to avoid overheating the charger.
15. ALWAYS disconnect the power cord from its receptacle when the charger is not in use.

CAUTION ON LITHIUM-ION BATTERY

To extend the lifetime, the lithium-ion battery equips with the protection function to stop the output.

In the cases of 1 to 3 described below, when using this product, even if you are pulling the switch, the motor may stop. This is not the trouble but the result of protection function.

1. When the battery power remaining runs out, the motor stops. In such case, charge it up immediately.
2. If the tool is overloaded, the motor may stop. In this case, release the switch of tool and eliminate causes of overloading. After that, you can use it again.
3. If the battery is overheated under overload work, the battery power may stop. In this case, stop using the battery and let the battery cool. After that, you can use it again.

Furthermore, please heed the following warning and caution.

WARNING

In order to prevent any battery leakage, heat generation, smoke emission, explosion and ignition beforehand, please be sure to heed the following precautions.

1. Make sure that swarf and dust do not collect on the battery.
   During work make sure that swarf and dust do not fall on the battery.
   ○ Make sure that any swarf and dust falling on the power tool during work do not collect on the battery.

○ Do not store an unused battery in a location exposed to swarf and dust.
Before storing a battery, remove any swarf and dust that may adhere to it and do not store it together with metal parts (screws, nails, etc.).
2. Do not pierce battery with a sharp object such as a nail, strike with a hammer, step on, throw or subject the battery to severe physical shock.
3. Do not use an apparently damaged or deformed battery.
4. Do not use the battery in reverse polarity.
5. Do not connect directly to an electrical outlets or car cigarette lighter sockets.
6. Do not use the battery for a purpose other than those specified.
7. If the battery charging fails to complete even when a specified recharging time has elapsed, immediately stop further recharging.
8. Do not put or subject the battery to high temperatures or high pressure such as into a microwave oven, dryer, or high pressure container.
9. Keep away from fire immediately when leakage or foul odor are detected.
10. Do not use in a location where strong static electricity generates.
11. If there is battery leakage, foul odor, heat generated, discolored or deformed, or in any way appears abnormal during use, recharging or storage, immediately remove it from the equipment or battery charger, and stop use.
12. Do not immerse the battery or allow any fluids to flow inside. Conductive liquid ingress, such as water, can cause damage resulting in fire or explosion. Store your battery in a cool, dry place, away from combustible and flammable items. Corrosive gas atmospheres must be avoided.

CAUTION

1. If liquid leaking from the battery gets into your eyes, do not rub your eyes and wash them well with fresh clean water such as tap water and contact a doctor immediately. If left untreated, the liquid may cause eye-problems.

2. If liquid leaks onto your skin or clothes, wash well with clean water such as tap water immediately.

There is a possibility that this can cause skin irritation.

1. If you find rust, foul odor, overheating, discolor, deformation, and/or other irregularities when using the battery for the first time, do not use and return it to your supplier or vendor.

WARNING

If an electrically conductive foreign terminals of the lithium ion battery, a short-circuit may occur resulting in the risk of fire. Please observe the following matters when storing the battery.

Do not place electrically conductive cuttings, nails, steel wire, copper wire or other wire in the storage case.
○ Either install the battery in the power tool or store by securely pressing into the battery cover until the ventilation holes are concealed to prevent short-circuits (See Fig. 1).

REGARDING LITHIUM-ION BATTERY TRANSPORTATION In object enters the

When transporting a lithium-ion battery, please observe the following precautions.

WARNING

Notify the transporting company that a package contains a lithium-ion battery, inform the company of its power output and follow the instructions of the transportation company when arranging transport.

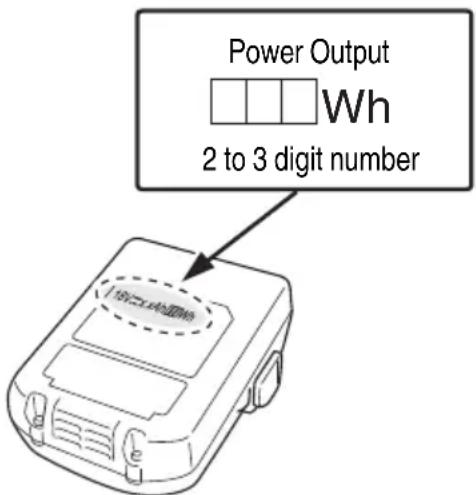

● Lithium-ion batteries that exceed a power output of 100Wh are considered to be in the freight classification of Dangerous Goods and will require special application procedures.
- For transportation abroad, you must comply with international law and the rules and regulations of the destination country.

Power Output Wh 2 to 3 digit number

SAVE THESE INSTRUCTIONS AND

MAKE THEM AVAILABLE TO OTHER USERS

AND

OWNERS OF THIS TOOL!

FUNCTIONAL DESCRIPTION

NOTE

The information contained in this Instruction Manual is designed to assist you in the safe operation and maintenance of the power tool.

NEVER operate, or attempt any maintenance on the tool unless you have first read and understood all safety instructions contained in this manual.

Some illustrations in this Instruction Manual may show details or attachments that differ from those on your own power tool.

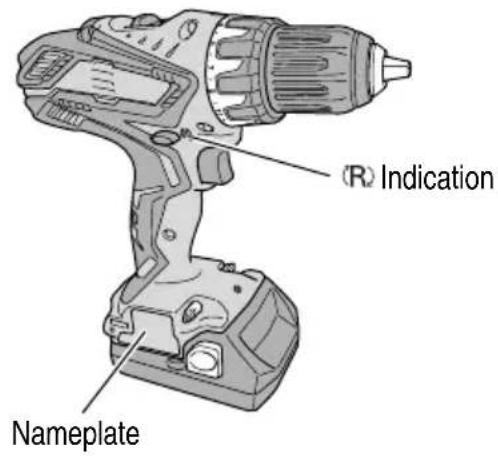

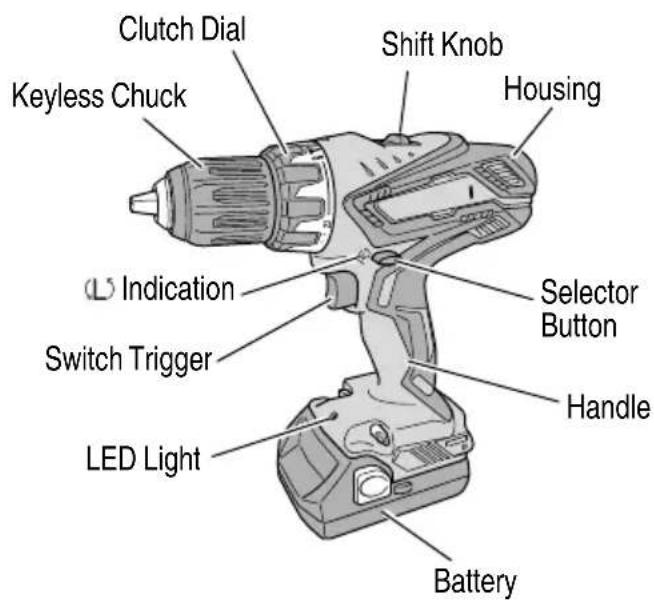

NAME OF PARTS

1. Cordless Hammer Drill (DV18DGL)

Clutch Dial Keyless Chuck Shift Knob Housing Indication Switch Trigger LED Light Battery Selector Button Handle

(R) Indication Nameplate

○ Battery (BSL1815S / BSL1815 / BSL1830C)

Ventilation holes Terminals Battery cover Latch

Fig. 1

2. Battery Charger (UC18YKSL)

Pilot lamp Nameplate Guide rail

Fig. 2

SPECIFICATIONS

1. Cordless Hammer Drill

Model DV18DGL
Motor DC motor
No-load speed		Low 0 – 350/min
		High 0 – 1,400/min
No-load impact rate		Low 0 – 4,900/min
		High 0 – 19,600/min
Capacity	Drilling	Brick(Depth 1-3/16 in. (30 mm))	1/2"(13 mm)
		Wood(Thickness 11/16 in. (18 mm))	1 – 1/2"(38 mm)
		Metal(Thickness 1/16 in. (1.6 mm))	1/2"(13 mm)
	Screw Driver	Small screw 1/4" (6 mm)
		Wood screw	#20 × 3"(8 mm × 75 mm)
Battery	Model BSL1815S / BSL1815 / BSL1830C
	Type Li-ion battery
	Voltage DC 18 V
Weight			3.7 lbs. (1.7 kg)

1. Battery Charger

Model UC18YKSL
Input power source Single phase: AC 120 V 60 Hz
Charging time(At a temperature of 68°F (20°C))	BSL1815S: Approx. 35 minBSL1815: Approx. 40 minBSL1830C: Approx. 90 min
Charging voltage DC 14.4 V – 18 V
Charging current DC 2.0 A
Weight 0.8 lbs. (0.35 kg)

NOTE: The charging time may vary according to temperature and power source voltage.

ASSEMBLY AND OPERATION

APPLICATIONS

○ Drilling of brick and concrete block, etc.
○ Driving and removing of machine screws, wood screws, tapping screws, etc.
○ Drilling of various metals
○ Drilling of various woods

REMOVAL AND INSTALLATION METHOD OF BATTERY

1. Battery removal Hold the handle tightly and push the battery latch to remove the battery (See Fig. 3).

CAUTION

Never short-circuit the battery.

1. Battery installation Insert the battery while observing its polarities (See Fig. 3).

Pull out Insert Handle Latch Push Battery

Fig. 3

CHARGING METHOD

NOTE

Before plugging into the receptacle, make sure the following points.

○ The power source voltage is stated on the nameplate.
○ The cord is not damaged.

WARNING

Do not charge at voltage higher than indicated on the nameplate.

If charged at voltage higher than indicated on the nameplate, the charger will burn up.

1. Connect the charger's power cord to a receptacle. When the power cord is connected, the charger's pilot lamp will blink in red. (At 1-second intervals)

WARNING

Do not use the electrical cord if damaged. Have it repaired immediately.

1. Insert the battery to the battery charger. Firmly insert the battery into the charger as shown in Fig. 4.

Battery Pilot lamp

Fig. 4

3. Charging

When the battery is connected to the battery charger, charging will commence and the pilot lamp will light in red. (See Table 2)

NOTE

If the pilot lamp flikers in red, pull out the plug from the receptacle and check if the battery is properly mounted.

When the battery is fully charged, the pilot lamp will blink in red slowly. (At 1-second intervals) (See Table 2)

(1) Pilot lamp indication

The indications of the pilot lamp will be as shown in Table 2, according to the condition of the charger or the rechargeable battery.

Table 2

Indications of the pilot lamp
Pilot lamp(red)	Beforecharging	Blinks	Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds)
	Whilecharging	Lights	Lights continuously
	Chargingcomplete	Blinks	Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds)
	Overheatstandby	Blinks	Lights for 1 second. Does not light for 0.5 seconds. (off for 0.5 seconds)	Battery overheated. Unable to charge. (Charging will commence when battery cools)
	Chargingimpossible	Flickers	Lights for 0.1 seconds. Does not light for 0.1 seconds. (off for 0.1 seconds)	Malfunction in the battery or the charger

(2) Regarding the temperature of the rechargeable battery.

The temperatures for rechargeable batteries are as shown in the Table 3, and batteries that have become hot should be cooled for a while before being recharged.

Table 3 Recharging ranges of batteries

Rechargeable batteries	Temperatures at which the battery can be recharged
BSL1815S	32°F – 122°F(0°C – 50°C)
BSL1815
BSL1830C

(3) Regarding recharging time (At 68°F (20°C))

Depending on the combination of the charger and batteries, the recharging time will become as shown in Table 4.

Table 4 Charging time (At 68°F (20°C))

Battery\Charger	UC18YKSL
BSL1815S Approx.	35 min.
BSL1815	Approx. 40 min.
BSL1830C	Approx. 90 min.

NOTE

The charging time may vary according to temperature and power source voltage.

1. Disconnect battery charger from the receptacle.

CAUTION

Do not pull the plug out of the receptacle by pulling on the cord.

Make sure to grasp the plug when removing from receptacle to avoid damaging cord.

1. Remove the battery from the battery charger.

Supporting the battery charger with hand, pull out the battery from the battery charger.

NOTE

After operation, pull out batteries from the charger first, and then keep the batteries properly.

How to make the batteries perform longer.

(1) Recharge the batteries before they become completely exhausted.
When you feel that the power of the tool becomes weaker, stop using the tool and recharge its battery. If you continue to use the tool and exhaust the electric current, the battery may be damaged and its life will become shorter.
(2) Avoid recharging at high temperatures.
A rechargeable battery will be hot immediately after use. If such a battery is recharged immediately after use, its internal chemical substance will deteriorate, and the battery life will be shortened. Leave the battery and recharge it after it has cooled for a while.

CAUTION

• When the battery charger has been continuously used, the battery charger will be heated, thus constituting the cause of the failures. Once the charging has been completed, give 15 rest until the next charging.
• If the battery is charged while it is heated because it has been left for a long time in a location subject to direct sunlight or because the battery has just been used, the pilot lamp of the charger lights for 1 second, does not light for 0.5 seconds (off for 0.5 seconds). In such a case, first let the battery cool, then start charging.
• When the pilot lamp fl ickers (at 0.2-second intervals), check for and take out any foreign objects in the charger's battery connector. If there are no foreign objects, it is probable that the battery or charger is malfunctioning. Take it to your authorized Service Center.

- Since the built-in micro computer takes about 3 seconds to confi rm that the battery being charged with UC18YKSL is taken out, wait for a minimum of 3 seconds before reinserting it to continue charging. If the battery is reinserted within 3 seconds, the battery may not be properly charged.

BEFORE USE

Check the work area to make sure that it is clear of debris and clutter.

Clear the area of unnecessary personnel. Ensure that lighting and ventilation is adequate.

OPERATION

1. Confir rm the clutch dial position (see Fig. 5)

The three modes of screwdriver, drill and hammer drill can be switched by the position of the clutch dial in this unit.

(1) When using this unit as a screwdriver, line up the one of the numbers “1, 4, 7 ... 22” on the cap, or the black dots, with the triangle mark on the outer body.
(2) When using this unit as a drill, align the clutch dial drill mark “” with the triangle mark on the outer body.
(3) When using this unit as a hammer drill, align the clutch dial hammer mark "T" with the triangle mark on the outer body.
(1) When using this unit as a screwdriver, line up the one of the numbers "1, 4, 7 ... 22" on the cap, or the black dots, with the triangle mark on the outer body. (2) When using this unit as a drill, align the clutch dial drill mark "###" with the triangle mark on the outer body. (3) When using this unit as a hammer drill, align the clutch dial hammer mark "T" with the triangle mark on the outer body.

Hammer mark Weak Triangle mark Drill mark Strong Clutch dial minutes

Fig. 5

CAUTION

• The clutch dial cannot be set between the numerals "1, 4, 7 ... 22" or the black dots.
• Do not use with the clutch dial numeral between "22" and the black line at the middle of the drill mark. Doing so may cause damage (See Fig. 6).

Hammer mark Drill mark Triangle mark Black line LOW

Fig. 6

2. Tightening torque adjustment

(1) Tightening torque

Tightening torque should correspond in its intensity to the screw diameter. When too strong torque is used, the screw head may be broken or be injured. Be sure to adjust the cap position according to the screw diameter.

(2) Tightening torque indication

The tightening torque differs depending on the type of screw and the material being tightened.

The unit indicates the tightening torque with the numbers "1, 4, 7 ... 22" on the cap, and the black dots. The tightening torque at position "1" is the weakest and the torque is strongest at the highest number.

(3) Adjusting the tightening torque

Rotate the clutch dial and line up the numbers "1, 4, 7 ... 22" on the clutch dial, or the black dots, with the triangle mark on the outer body. Adjust the clutch dial in the weak or the strong torque direction according to the torque you need.

CAUTION

● The motor rotation may be locked to cease while the unit is used as drill. While operating the hammer drill take care not to lock the motor.

● Too long hammering may cause the screw broken due to excessive tightening.

3. Rotation to Impact changeover (See Fig. 5)

The “Rotation (Rotation only)” and “Hammer (Hammer + Rotation)” can be switched by aligning the drill mark “” or the hammer mark “T with the triangle mark on the outer body.

To make holes in the metal, wood or plastic, switch to "Rotation (Rotation only)".

To make holes in bricks or concrete blocks, switch to "Hammer (Hammer + Rotation)".

CAUTION

- If an operation which is normally performed at the "Rotation" setting is performed at "Hammer" setting, the effect of making holes does not only increase but it may also damage the bit or other parts.

- If it is hard to turn the cap to hammer mark "T" position, turn the chuck slightly in either direction and then turn the cap to hammer mark "T" position again.

4. Change rotation speed

Operate the shift knob to change the rotational speed. Move the shift knob in the direction of the arrow (see Figs. 7 and 8).

When the shift knob is set to "LOW", the drill rotates at a low speed. When set to "HIGH", the drill rotates at a high speed.

Low speed Shift knob

Fig. 7

High speed HIGH Shift knob

Fig. 8

CAUTION

- When changing the rotational speed with the shift knob, confirm that the switch is off. Changing the speed while the motor is rotating will damage the gears.

- When setting the shift knob to "HIGH" (high speed) and the position of the clutch dial is between "16" and "22", it may happen that the clutch does not engage and that the motor is locked. In such a case, please set the shift knob to "LOW" (low speed).

- If the motor is locked, immediately turn the power off. If the motor is locked for a while, the motor or battery may be burnt.

● To extend the lifetime, the lithium-ion battery equips with the protection function to stop the output. Therefore, if the tool is overloaded, the motor may stop. However, this is not the trouble but the result of protection function. In this case, release the switch of tool and eliminate the causes of overloading.

5. The scope and suggestions for uses

The usable scope for various types of work based on the mechanical structure of this unit is shown in Table 5.

Table 5

Work Clutch dial Position Suggestions
Drilling	Brick	T	Use for drilling purpose.
	Wood	I
	Steel
	Aluminum
Driving	Machine screw 1 – 22 Use the bit or socket matching the screw diameter.
	Wood screw	1 – I	Use after drilling a pilot hole.

6. How to select tightening torque and rotational speed

Table 6

Use Clutch dial P		Position	Rotating speed selection (Position of the shift knob)
			LOW (Low speed) HIGH (High speed)
Driving	Machine screw 1	-22	For 1/4" (6 mm) or smaller diameter screws.	For 1/4" (6 mm) or smaller diameter screws.
	Wood screw	1 -	For 5/16" (8 mm) or smaller nominal diameter screws.	For 31/64" (4.8 mm) or smaller nominal diameter screws.
Drilling	Brick	T	For 1/2" (13 mm) or smaller diameters.	For 13/32" (10 mm) or smaller diameters.
	Wood	I	For 1-1/2" (38 mm) or smaller diameters.	For 7/8" (22 mm) or smaller diameters.
	Metal	I	——	For drilling with a metal working drill bit.

CAUTION

● The selection examples shown in Table 6 should be considered as general standard. As different types of tightening screws and different materials to be tightened are used in actual works proper adjustments are naturally necessary.

- When using the hammer drill with a machine screw at HIGH (high speed), a screw may damage or a bit may lose due to the tightening torque is too strong. Use the hammer drill at LOW (low speed) when using a machine screw.

NOTE

The use of the battery BSL18 series in a cold condition (below 0 degree Centigrade) can sometimes result in the weakened tightening torque and reduced amount of work. This, however, is a temporary phenomenon, and returns to normal when the battery warms up.

1. Mounting and dismounting of the bit

(1) After inserting a driver bit, etc. into the keyless drill chuck, firmly tighten the sleeve by turning it toward the right (in the clockwise direction as viewed from the front) (See Fig. 9).

If the sleeve becomes loose during operation, tighten it further. The tightening force becomes stronger when the sleeve is tightened additionally.

(2) Dismounting the bit

Loosen the sleeve by turning it toward the left (in the counter-clockwise direction as viewed from the front).

Loose Sleeve Tighten

Fig. 9

CAUTION

When it is no longer possible sleeve, use a vise or similar instrument to secure the bit. Set the clutch mode between 1 and 11 and then turn the sleeve to the loose side (left side) while operating the clutch. It should be easy now to loosen the sleeve.

1. Confirm that the battery is mounted correctly
2. Check the rotational direction

The bit rotates clockwise (viewed from the rear side) by pushing the R-side of the selector button.

The L-side of the selector button is pushed to turn the bit counterclockwise (See Fig. 10). (The L) and R marks are provided on the selector button.)

Trigger switch Selector button

Fig. 10

CAUTION

Always use this unit with clockwise rotation, when using it as an impact drill.

1. Switch operation
   When the trigger switch is depressed, the tool rotates. When the trigger is released, the tool stops.
   ☐ The rotational speed of the drill can be controlled by varying the amount that the trigger switch is pulled. Speed is low when the trigger switch is pulled slightly and increases as the trigger switch is pulled more.

NOTE

A buzzing noise is produced when the motor is about to rotate. This is only a noise, not a machine failure.

1. For drilling into brick

Excessive pressing force never increases drilling speed. It will not only damage the drill tip or reduce working efficiency, but could also shorten the service life of drill bit. Operate the hammer drill within 10-15 kg pressing force while drilling into brick.

1. Using the light

Pull the trigger switch to light up the light. The light keeps on lighting while the trigger switch is being pulled. The light goes out after releasing the trigger switch. (Fig. 11).

to loosen the Switch Trigger Light

Fig. 11

CAUTION

Do not expose directly your eye to the light by looking into the light.

If your eye is continuously exposed to the light, your eye will be hurt.

1. Using the hook (sold separately)

The hook is used to hang up the power tool to your waist belt while working.

CAUTION

- When using the hook, hang up the power tool fi rmly not to drop accidentally.

If the power tool is dropped, it may lead to accident.

• When carrying the power tool with h your waist belt, do not fit any bit to the tip of power tool. If the sharp bit such as drill is fitted to the power tool when carrying it with hooked to your waist belt, you will be injured.
  ● Install securely the hook. Unless the hook is securely installed, it may cause an injury while using.

(1) Placing the hook and tightening the screws.

Install securely the hook in the groove of power tool and tighten the screws to fix the hook firmly. (Fig. 12)

Groove Screw Hook

Fig. 12

(2) Removing the hook.

Remove the screws fixing the hook with Philips screw driver. (Fig. 13)

Hook Screw

Fig. 13

MAINTENANCE AND INSPECTION

⚠️ CAUTION Pull out battery before doing any inspection or maintenance.

1. Checking the condition of the bit

The bits should be checked regularly broken bits can slip or decrease the efficiency of the motor and burn it out. If

Replace worn bits with new ones.

However, significantly reduced battery usage time may be recovered by repeatedly charging and using the batteries two to five times.

If the battery usage time is extremely short despite repeated charging and use, consider the batteries dead and purchase new batteries.

CAUTION

If you use a driver bit of which point is worn or broken, it will be dangerous since it slips. So replace it with a new one.

1. Check the Screws

Loose screws are dangerous. Regularly inspect them and make sure they are tight.

1. Service and repairs

All quality power tools will eventually require servicing or replacement of parts because of wear from normal use. To assure that only authorized replacement parts will be used, all service and repairs must be performed by a HITACHI AUTHORIZED SERVICE CENTER, ONLY.

CAUTION

Using this power tool with loosened, screws is extremely dangerous.

1. Check for Dust

Dust may be removed with a soft cloth or a cloth dampened with soapy water.

Do not use bleach, chlorine, gasoline or thinner, for they may damage the plastics.

1. Disposal of the exhausted battery

CAUTION

In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

WARNING

Do not dispose of the exhausted battery. The battery must explode if it is incinerated. The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of it's useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste officials for details in your area for recycling options or proper disposal.

1. Storage

Storing in a place below 104^ F ( 40^ C) and out of the reach of children.

NOTE

Storing lithium-ion batteries

Make sure the lithium-ion batteries have been fully charged before storing them.

Prolonged storage (3 months or more) of batteries with a low charge may result in performance deterioration, significantly reducing battery usage time or rendering the batteries incapable of holding a charge.

Important notice on the batteries for the Hitachi cordless power tools

Please always use one of our designated genuine batteries. We cannot guarantee the safety and performance of our cordless power tool when used with batteries other than these designated by us, or when the battery is disassembled and modified (such as disassembly and replacement of cells or other internal parts).

TROUBLESHOOTING GUIDE

WARNING

● To avoid injury from an accidental start, turn the switch OFF and remove the plug from the power source or remove the battery from the main body before making any adjustments.
● All electrical or mechanical repairs should be done only by qualified service technicians. Contact Hitachi Authorized Service Center.

Problem Possible	Cause Possible Solution
Tool will not start. Battery not installed properly. Check the battery installation.
Battery overheated. Remove battery from tool and let battery cool for while.
Battery will not charged. Battery pack not installed into Charger properly.		Insert battery into charger until a pilot lamp (red) appears.

ACCESSORIES

WARNING

ALWAYS use Only authorized HITACHI replacement parts and accessories. Never use replacement parts or accessories which are not intended for use with this tool. Contact HITACHI if you are not sure whether it is safe to use a particular replacement part or accessory with your tool.

The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage.

NOTE

Accessories are subject to change without any obligation on the part of the HITACHI.

STANDARD ACCESSORIES

DV18DGL(2LEGX)
	1 Phillips bit (No. 2 × 65L) (Code No. 983006) ........12 Battery (BSL1815S) ........23 Battery Charger (UC18YKSL) ........14 Plastic Case ........15 Battery cover (Code No. 329897) ........1

OPTIONAL ACCESSORIES.....sold separately

1. Battey (BSL1815, BSL1830C)
2. Hook

NOTE

Specifications are subject to change without any obligation on the part of the HITACHI.

INFORMATIONS IMPORTANTES DE SÉCURITÉ

Line drawing of a quill pen in an inkwell (no text or symbols)

Line drawing of a quill pen in an inkwell (no text or symbols)

WARNING:

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints,
• Crystalline silica from bricks and cement and other masonry products, and
• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

AVERTISSEMENT:

Minato-ku, Tokyo 108-6020, Japan

Distributed by

Koki Holdings America Ltd.

1111 Broadway Ave,

Braselton, Georgia, 30517

Koki Holdings America Ltd. Canadian Branch

3405 American Drive, Units 9-10,

Mississauga, ON, L4V 1T6

810

Code No. C99234662 G

Printed in China
