Cat. No. / No de cat.

0885-20

M18™ FUEL™ 3-in-1 BACKPACK VACUUM

ASPIRATEUR DORSAL 3-en-1 M18™ FUEL™

WARNING To reduce the risk of injury, user must read and understand operator's manual.

IMPORTANT SAFETY INSTRUCTIONS

WARNING WHEN USING AN ELECTRICAL VACUUM, TO REDUCE THE RISK OF FIRE OR INJURY, BASIC PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING: READ ALL INSTRUCTIONS BEFORE USING VACUUM. FOR HOUSEHOLD OR COMMERCIAL USE. BEFORE USING THE VACUUM, READ THIS OPERATOR'S MANUAL, BATTERY PACK AND CHARGER OPERATOR'S MANUALS, AND ALL LABELS ON THE VACUUM, BATTERY PACK, AND CHARGER.

WORK AREA SAFETY

- Keep work area clean and well lit. Cluttered or dark areas invite accidents.

- Do not use in the presence of explosive dust, liquids or vapors.

- Do not use where oxygen or anesthetics are used.

- Do not allow to be used as a toy. Close attention is necessary when used by or near children.

- Use extra care when using on stairs.

ELECTRICAL SAFETY

- Do not pick up wet material. Do not use water to settle dust.

- Do not handle battery pack or vacuum with wet hands.

- Store indoors. Do not expose to rain.

PERSONAL SAFETY

- STAY ALERT. Watch what you are doing and use common sense. Do not use vacuum when you are tired, distracted or under the influence of drugs alcohol or medication causing diminished control. - The operation of a vacuum can result in foreign objects being blown into eyes, which can result in eye damage. Always wear safety goggles or glasses with side shields when operating vacuum.

- Wear a dust mask or use an OSHA compliant dust extraction solution when working in dusty situations. Dust particles can harm your lungs.

- Avoid accidental starting. Ensure the switch is in the off-position before inserting battery pack. Inserting battery pack in vacuum that has the switch on invites accidents.

- Do not overreach. Keep proper footing and balance at all times. This enables better control of the vacuum in unexpected situations.

- Never stand on vacuum or use as a step stool. - Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts. - Use only as described in this manual. Use only manufacturer's recommended attachments.

USE AND CARE

- Do not use without tank and/or filter properly installed.

- Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where they may be present.

- Do not pick up anything that is burning or smoking such as cigarettes, matches, or hot ashes.

- Do not pick up soot, cement, plaster or drywall dust without filter in place. These are very fine particles that may affect the performance of the motor or be exhausted back into the air.

• To reduce risk, do not use to vacuum hazardous, toxic or carcinogenic materials, such as asbestos or pesticide.

- Use special care when emptying heavily loaded tanks.

• To avoid spontaneous combustion, empty tank after each use.

- Do not leave vacuum unattended when battery pack is installed. Remove battery pack when not in use and before servicing.

- Do not put any object info openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything else that may reduce air flow. - Static shocks are possible in dry areas or when the relative humidity of the air is low. This is only temporary and does not affect the use of the vacuum. To reduce the frequency of static shocks, add moisture to the air with a console or installed humidifier.

Some wood contains preservatives and can be toxic. Take extra care to prevent Inhalation and skin contact when working with these materials. Request and follow any safety information available from your material supplier.

- Maintain vacuum. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the vacuum's operation. If damaged, have the vacuum repaired before use. Many accidents are caused by poorly maintained tools.

*Always use common sense and be cautious when using tools. It is not possible to anticipate every situation that could result in a dangerous outcome. Do not use this tool if you do not understand these operating instructions or you feel the work is beyond your capability; contact Milwaukee Tool or a trained professional for additional information or training.

- Maintain labels and nameplates. These carry important information. If unreadable or missing, contact a MILWAUKEE service facility for a free replacement.

This product is suitable for collection of silica dust when used in accordance with these instructions. To reduce the risk of health hazards from other vapors or dust, do not vacuum carcinogenic, toxic or hazardous materials such as asbestos, arsenic, barium, beryllium, lead, pesticides or other health endangered materials.

WARNING Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

- lead from lead-based paint

•crystalline silica from bricks and cement and other masonry products, and

• arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. The unit is compliant as an objective data solution of OSHA Standard 29CRF 1926.1153, assuming it is used in accordance with MILWAUKEE instructions. Please reference https://www.osha.gov for further details on compliance methods. Visit https://www.milwaukeetool.com for an objective data sheet.

BATTERY PACK USE AND CARE

- Use vacuum only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

- Turn off all controls before removing battery pack. - Before using the battery pack or charger read the operator's manuals, and any labels on the battery pack, charger and vacuum.

•Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

- When battery pack is not in use, keep it away from other metal objects like paper clips, coins keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause bums or a fire.

- Do not use damaged battery pack or vacuum. If battery pack or vacuum are not working as they should, have been dropped, damaged, left outdoors, or dropped into water, return them to a service center.

SERVICE

•Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

- Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

SPECIFIC SAFETY RULES

•Before using the vacuum, read this operator's manual, your battery pack and charger operator's manuals, and all labels on the vacuum, battery pack, and charger.

- Never use vacuum without tank and filter properly installed. Vacuum will throw dust and debris into the air

- Never use water to clean filter. Tap clean or blow dirt off with compressed air. Water will cause filter to fail.

- Wear ear protectors. Exposure to noise can cause hearing loss.

READ AND SAVE

ALL INSTRUCTIONS FOR FUTURE USE

SYMBOLOGY

Direct Current

operator's manual

eye protection

UL Listing for Canada and U.S.

SPECIFICATIONS

Cat. No.	0885-20
Volts.	18 DC
Battery Type	M18TM
Charger Type	M18TM
Air Volume	55 CFM
Sealed Suction	76inH_0
Air Performance	159 air wafts
Capacity	1 Gal. (3.8 L)
Recommended Ambient
Operating Temperature	0°F to 125°F
Telescoping Extension Wand	14-37-0005
Flexible Hose	31-01-0305
Crevice Tool	31-01-0310
Floor Tool	31-01-0315
Dust Extraction Adapter	31-01-0320
HEPA Filter	49-90-1963
9 Foot Accessory Hose	49-90-1964

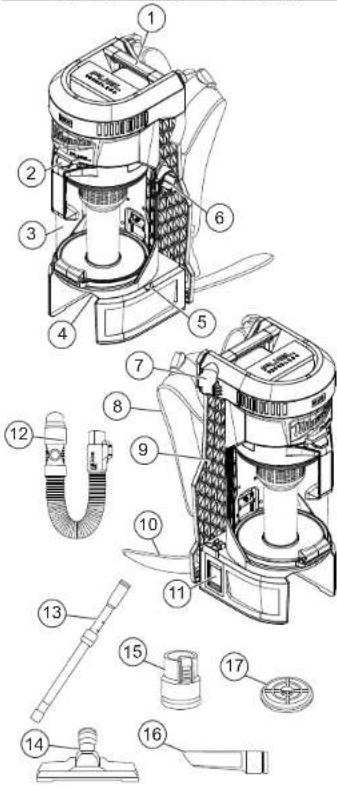

FUNCTIONAL DESCRIPTION

Technical diagram of a hair dryer with numbered parts for identification and assembly reference.

1. Carrying handle
2. Tank handle button
3. Tank
4. Battery bay
5. Hose clin
6. Vacuum inlet
7. Extension wand holder
8. Top backpack straps
9. Backpack plate
10. Lower backpack strap
11. Switch
12. Flexible hose
13. Telescoping
    extension wand
14. Floor tool
15. Dust extraction
    adapter
16. Crevice tool
17. HEPA filter

ASSEMBLY

WARNING To reduce the risk of injury, always remove the battery pack before removing the tank.

CAUTION Keep filter clean. Efficiency of the vacuum is largely dependent on the filter. A dirty filter will reduce the air flow and overall efficiency of the system. Do not clean with water. Remove from tank and tap clean or blow off with compressed air.

Removing/Inserting the Battery

To remove the battery, push in the release buttons and pull the battery pack away from the tool.

WARNING Always remove battery pack before changing or removing accessories.

To insert the battery, slide the pack into the body of the tool. Make sure it latches securely into place.

Removing/Installing the Filter

To remove the filter:

1. Remove the battery pack.

2. Press the tank handle button and remove the tank from the vacuum.

3. Pull out tank cap to expose the filter. Pull the filter out of the tank.

4. Lift the tank release button and empty all the dust and debris from the tank.

5. To clean the filter, tap clean or blow dirt off with compressed air. Replace the filter if damaged or suction decreases (single pack, Cat. No. 49-90-1963).

NOTE: Never use water to

clean filter.

To install the filter:

1. Place the filter into the top of the tank.

2. Line up the tank cap guides and secure it to the tank. Place the tank back into the vacuum.

WARNING Only use accessories specifically recommended for this tool. Others may be hazardous.

Removing/Installing the Accessories

To install the hose, push the accessory onto the vacuum inlet. To install the nozzles and extensions, push the accessory onto the hose end.

To remove, press the accessory clip and pull out.

Storing the Accessories

Each of the accessories can be stored on the

vacuum.

- Telescoping extension wand: Clip the accessory onto the extension wand holder.

• Floor tool: Insert the accessory onto the top of the telescoping extension wand.

- Flexible hose: Insert the accessory onto the vacuum inlet. Clip onto the hose clip to secure.

• Crevice tool: Hook the accessory onto the crevice tool rungs located on the lower backpack strap. Push the nose of the accessory through the lower rung and strap the top to the upper rung.
• Dust extraction adapter: Hook the accessory onto the dust extraction adapter rung located on the lower backpack strap.

Dust extraction adapter Crevice tool

Removing/Installing the Backpack Plate

The backpack plate can be removed when mounting the vacuum on a surface or carrying by hand. To remove the plate, hold down the backpack plate release button. Pull the bottom end of the plate away from the vacuum to remove the lower tabs. Pull down on the plate and away from the vacuum to remove the upper tabs.

Backpack plate release button

To install the plate, line up and insert the upper plate tabs into the vacuum. Lift the plate up to align and insert the lower plate tabs into the vacuum. Push the tabs in to lock.

Mounting the Vacuum

The vacuum can be hung and mounted to a surface for ease of use.

To mount the vacuum, remove the backpack plate according to the "Removing/Installing the Backpack Plate" instructions. This will expose the mounting hanger. Pull hanger away from the vacuum, unclip the hanger straps and hook vacuum onto surface. Secure by clipping the hanger straps and tightening to the surface.

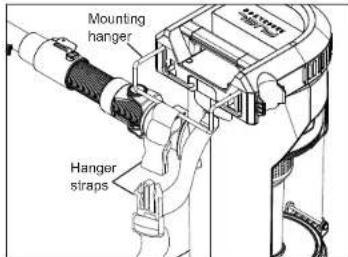

Mounting hanger Hanger straps

To unmount the vacuum, unhook the hanger straps. Pull hanger from the surface and push hanger back into the vacuum. Reinstall the backpack plate according to the "Removing/Installing the Backpack Plate" instructions.

OPERATION

WARNING To reduce the risk of fire and injury, do not use

to pick up flammable or combustible materials. To reduce the risk of injury, wear safety goggles or glasses with side shields. Empty tank before use.

Before use, ensure the filter is installed.

⚠️ CAUTION Do not carry vacuum by the tank handle.

Starting, Stopping, and Controlling Speed Press the Power Switch up to 2 to run the vacuum

on High power. Press the Power ① switch down to 1 to run the vacuum on Low power. To turn the vacuum Off, return the Power ② switch to its home

① position.

Using the Vacuum

There are multiple ways to use the vacuum to best suit your job.

• Wearing the vacuum as a backpack. Place vacuum on body. Secure the tool by strapping in the top and bottom backpack straps.
• Mounting the vacuum on a surface. Remove the backpack plate according to the "Removing/Installing the Backpack Plate" instructions. Then mount the vacuum to the surface according to the "Mounting the Vacuum" instructions.
• Carrying the vacuum in hand. If desired, remove the backpack plate according to the "Removing/Installing the Backpack Plate" instructions.

Operation

1. Remove ALL dirt and debris found in the tank.
2. Insert battery pack and attach accessories.
3. Press the Power ⏻ switch to the desired speed. Begin pick-up.
4. Turn off the vacuum immediately upon completing a job or when tank is full and ready to be emptied. NOTE: If suction shuts off, turn off the vacuum immediately and empty the tank.
5. Remove battery pack.
6. Clean the interior of the tank and accessories periodically.

Storage

Before storing your vacuum, empty and clean the tank, filter, and accessories. Remove the battery pack.

MAINTENANCE

WARNING To reduce the risk of injury, always unplug the charger and remove the battery pack from the charger or tool before performing any maintenance. Never disassemble the tool, battery pack or charger. Contact a MILWAUKEE service facility for ALL repairs.

Maintaining Tool

Keep your tool, battery pack and charger in good repair by adopting a regular maintenance program. Inspect your tool for issues such as undue noise, misalignment or binding of moving parts, breakage of parts, or any other condition that may affect the tool operation. Return the tool, battery pack, and charger to a MILWAUKEE service facility for repair. After six months to one year, depending on use, return the tool, battery pack and charger to a MILWAUKEE service facility for inspection.

If the tool does not start or operate at full power with a fully charged battery pack, clean the contacts on the battery pack. If the tool still does not work properly, return the tool, charger and battery pack, to a MILWAUKEE service facility for repairs.

WARNING To reduce the risk of personal injury and damage, never immerse your tool, battery pack or charger in liquid or allow a liquid to flow inside them.

Cleaning

Clean dust and debris from vents. Keep handles clean, dry and free of oil or grease. Use only mild soap and a damp cloth to clean, since certain cleaning agents and solvents are harmful to plastics and other insulated parts. Some of these include gasoline, turpentine, lacquer thinner, paint thinner, chlorinated cleaning solvents, ammonia and household detergents containing ammonia. Never use flammable or combustible solvents around tools.

Repairs

For repairs, return the tool, battery pack and charger to the nearest service center.

ACCESSORIES

WARNING Use only recommended accessories. Others may be hazardous

For a complete listing of accessories, go online to www.milwaukeetool.com or contact a distributor.

SERVICE - UNITED STATES

1-800-SAWDUST (1.800.729.3878)

Monday-Friday, 7:00 AM - 6:30 PM CST

or visit www.milwaukeeetool.com

Contact Corporate After Sales Service Technical Support with technical, service/repair, or warranty questions.

Email: [e-mail]

Become a Heavy Duty Club Member at www.milwaukeetool.com to receive important notifications regarding your tool purchases.

SERVICE - CANADA

Milwaukee Tool (Canada) Ltd 1.800.268.4015

Monday-Friday, 7:00 AM - 4:30 PM CST

or visit www.milwaukeetool.ca

LIMITED WARRANTY

USA & CANADA

Every MILWAUKEE power tool (see exceptions below) is warranted to the original purchaser only to be free from defects in material and workmanship. Subject to certain exceptions, MILWAUKEE will repair or replace any part on an electric power tool which, after examination, is determined by MILWAUKEE to be defective in material or workmanship. The price of sale is subject to increase from \100 to \250 per share, and the value of the property is otherwise noted. Return of the power tool to a MILWAUKEE factory Service Center location or MILWAUKEE Authorized Service Station, freight prepaid and insured, is required. A copy of the proof of purchase should be included with the return product. This warranty does not apply to damage that MILWAUKEE determines to be from repairs made or allotted by anyone other than MILWAUKEE authorized or sold for any purposes, claims, above, normal wear and tear, lack of maintenance, or accidents.

Normal Wear: Many power tools need periodic parts replacement and service to achieve best performance. This warranty does not cover repair when normal use has exhausted the life of a part including, but not limited to, chucks, brushes, cords, saw shoes, blade clamps, o-rings, seals, bumpers, driver blades, pistons, strikers, lifters, and bumper cover washers.

*This warranty does not cover Air Nailers & Staplers; Airless Paint Sprayer, Cordless Battery Packs; Gasoline Driven Portable Power Generators; Hand Tools; Hoist-Electric, Lever & Hand Chain; M12™ Heated Gear; Reconditioned Product; and Test & Measurement Products. There are separate and distinct warranties available for these products.

**The warranty period for Job Site Radios, M12 ^TM Power Port, M18 ^TM Power Source, Jobsite Fan and Trade Titan ^TM Industrial Work Carts is one (1) year from the date of purchase. The warranty period for the Drain Cleaning Cables is two (2) years from the date of purchase. The warranty period for the M18 ^TM Compact Heat Gun and the 8 Gallon Dust Extractor is three (3) years from the date of purchase. The warranty period for the LED in the LED Work Light and the LED Upgrade Bulb for the Work Light is the lifetime of the product subject to the limitations above. If during normal use the LED or LED Bulb falls, the part will be replaced free of charge.

Warranty Registration is not necessary to obtain the applicable warranty on a MILWAUKEE power tool product. The manufacturing date of the product will be used to determine the warranty period if no proof of purchase is provided at the time warranty service is requested. This warranty will be required to be approved by the RESIDENT REMEDIES DESCRIBED HEREIN IS CONDICTION OF THE CONTRACT OR THE PURCHASE OF EVERY MILWAUKEE PRODUCT. IF YOU DO NOT AGREE TO THIS CONDITION, YOU SHOULD NOT PURCHASE THE PRODUCT IN NO EVENT SHALL MILWAUKEE BE LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES, OR FOR ANY COSTS, ATTORNEY FEES, OTHER THAN ANY WARRANTY OF ANY WARRANTY OF ANY WARRANTY OF ANY WARRANTY OF ANY WARRANTY OF ANY WARRANTY OF ANY WARRANTY OF ANY WARRANTY OF ANY WARRANTY OF ANY WARRANTY OF ANY WARRANTY OF ANY WARRANTY OF ANY WARRANTY OF ANY WARRANTY OF ANY WARRANTY OF ANY WARRANTY OF ANY WARRANTY OF ANY WARRANTY OF ANY WARRANTY OF ANY WARRANTY OF ANY WARRANTY OF ANY WARRANTY OF ANY WARRANTY OF ANY WARRANTY OF ANY WARRANTY OF ANY WARRANTY OF ANY WARRANTY OF ANY WARRANTY OF ANY WARRANTY OF ANY WARRANTY OF ANY WARRANTY OF ANY WARRANTY OF ANY WARRANTY OF ANY WARRANTY OF AN

LOSS OF PROFITS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY IS EXCLUSIVE AND IN LIEU THIS WARRANTY IS AVAILABLE. A SERVICE, AS ILLINO, IS TO THE EXTENT PERMITTED BY LAW, MWLAUKEE DISCLAIMS ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE, TO THE EXTENT SUCH DISCLAIMER IS NOT PERMITTED BY LAW, SUCH IMPLIED WARRANTY IS AVAILABLE. A SERVICE, AS THE EXPRESS WARRANTY AS DESCRIBED ABOVE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AS ILLINO, IS NO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

This warranty applies to product sold in the U.S.A. and Canada only. Please consult the 'Service Center Search' in the Parts & Service section of MILWAUKEE's website www.milwaukeetool.com or call 1.800.SAWDUST (1.800.729.3878) to locate your nearest service facility for warranty and non-warranty service on a Milwaukee electric power tool.

LIMITED WARRANTY - MEXICO

CENTRAL AMERICA & CARIBBEAN

TECHTRONIC INDUSTRIES' warranty is for 5 years since the original purchase date.

This warranty card covers any defect in material and workmanship on this Product.

To make this warranty valid, present this warranty card, sealed stamped by the distributor or store where you purchased the product, to the Authorized Service Center (ASC). Or, if this card has not been sealed/stamped, present the original proof of purchase to the ASC. Call toll-free 1 01 [phone] to find the nearest ASC, for service parts, accessories or components.

Procedure to make this warranty valid

Take the product to the ASC, along with the warranty card sealed, stamped by the distributor or store where you purchased the product, and any faulty piece or component will be replaced without cost for you. We will cover all freight costs relative with this warranty process. Exceptions

This warranty is not valid in the following situations

a) When the product is used in a different manner from the end-user guide or instruction manual.

b) When the conditions of use are not normal.

c) When the product was modified or repaired by people not authorize by TECHTRONIC INDUSTRIES.

Note: If cord set is damaged, it should be replaced by an Authorized Service Center to avoid electric risks.

SERVICE AND ATTENTION CENTER

SERVICE AND ATTENTIN Call In 01 [phone]

IMPORTED AND COMMERCIALIZED BY

TECHTRONIC INDUSTRIES MEXICO, SA DE CV

Av President Masarik #29 piso 7, Col. Polanco V Sección CP 11560, Deleg. Miguel Hidalgo, CDMX

Model:

Date of Purchase:

Distributor or Store Stamp:
