USER MANUAL One+ RY18BVXA RYOBI

Close-up of a black cylindrical object with attached bracket, set against a striped background (no text or symbols visible)

Close-up of a black and white optical instrument with visible branding (no readable text or symbols beyond branding)

Close-up of a RYOB1 industrial power tool with black handle and metal base (no visible text or symbols on body)

EN FR DE ES IT NL PT DA SV FI NO RU PL CS HU RO LV LT ET HR SL SK BG UK TR

RY18BVXA

Important!	It is essential that you read the instructions in this manual before assembling, maintaining and operating the product.
Attention!	Il est essentiel que vous lisiez les instructions contenues dans ce manuel avant d'assembler, d'entretenir et d'utiliser le produit.
Achtung!	Es ist wichtig, dass Sie vor Zusammenbau, Wartung und Benutzung des Produktes die Anweisungen in dieser Anleitung lesen.
¡Atención!	Resulta fundamental que lea este manual de instrucciones antes de realizar el montaje, el mantenimiento y de utilizar este producto
Attenzione!	E’ importante leggere le istruzioni contenute nel presente manuale prima di montare il prodotto, svolgere le operazioni di manutenzione sullo stesso e metterlo in funzione.
Let op!	Het is van essentieel belang dat u de instructies in deze gebruiksaanwijzing leest voor u het product monteert, onderhoudt en gebruikt.
Atenção!	É fundamental que leia as instruções deste manual antes da montagem, manutenção e operação do aparelho.
OBS!	Det er vigtigt, at man læser instrukserne i denne brugsanvisning, inden man samler, vedligeholder og betjener produktet.
Observera!	Det är viktigt att du läser instruktionerna i manualen före montering, användning och underhåll av produkten.
Huomio!	On tärkeää, että luet tämän käsikirjan ohjeet ennen tuotteen kokoamista, huoltoa ja käyttöä.
Advarsel!	Det er viktig at du leser instruksjonene i denne manualen før sammensetning, vedlikehold og bruk av produktet
Внимание!	Необходимо прочитать инструкции в данном руководстве перед сборкой, обслуживанием и эксплуатацией этого изделия.
Uwaga!	Koniecznie należy przeczytać instrukcje zawarte w tym podręczniku przed montażem, obsługą oraz konserwacją produktu.
Dûležité upozornění!	Neinstalujte, neprovádějte údržbu ani nepoužívejte tento výrobek dříve, než si přečtete pokyny uvedené v tomto návodu.
Figyelem!	Fontos, hogy a termék összeszerelése, karbantartása és használata előtt elolvassa a kézikönyvben található utasításokat.
Atenție!	Este esențial să citiți instrucțiunile din acest manual înainte de asamblare, efectuarea întreținerii și operarea produsului.
Uzmanību!	Ir svarīgi izlasīt šīs rokasgrāmatas instrukcijas pirms uzstādīšanas, apkopes un preces darbināšanas.
Dèmesio!	Prieš surenkant, prižiūrint ir naudojant gaminį, būtina perskaityti šiame vadove pateiktus nurodymus.
Tähtis!	Enne masina kokkupanekut, hooldamist ja kasutama hakkamist tuleb käesolevas juhendis esitatud juhised kindlasti läbi lugeda.
Upozorenje!	Vrlo je važno da ste prije sklapanja, održavanja i rada s ovim proizvodom pročitali upute u ovom priručniku.
Pomembno!	Pomembno je da pred montažo vzdrževanjem in uporabo tega izdelka preberete navodila v tem priročniku.
Upzornenie!	Je dôležité, aby ste si pred montážou, údržbou a obsluhou produktu prečitali pokyny v tomto návode.
Важно!	Изключително важно е да прочетете инструкциите в настоящото ръководство, преди да преминете към сглобяване, поддръжка или работа с продукта.
Важливо!	Дуже важливо, щоб ви прочитали інструкції в цьому керівництві перед складанням, обслуговуванням та експлуатацією цієї машини.
Önemli!	Ürünü monte etmeden, kullanmadan ve bakımını yapmadan önce bu kılavuzdaki talimatları okumanız önemlidir.

Subject to technical modification | Sous réserve de modifications techniques | Technische Änderungen vorbehalten | Bajo reserva de modificaciones técnicas | Con riserva di eventuali modifiche tecniche | Technische wijzigingen voorbehouden | Com reserva de modificações técnicas | Med forbehold for tekniske ændringer | Med förbehåll för tekniska ändringar | Tekniset muutokset varataan | Med forbehold om tekniske endringer | могут быть внесены технические изменения | Z zastrzeżeniem modyfikacji technicznych | Změny technických údajů vyhrazeny | A můszaki módosítás jogát fenntartjuk | Sub rezerva modificațiilor tehnice | Paturam tiesības mainīt tehniskos raksturlielumus | Pasiliekant teisę daryti techninius pakeitimus | Tehnilised muudatused võimalikud | Podloæno tehniëkim promjenama | Tehnične spremembe dopuščene | Právo na technické zmeny je vyhradené | Подлежи на технически модификации | Є ob’єктом для технічних змін | Teknik değişikliğe tabidir.

Safety, performance, and dependability have been given top priority in the design of your cordless blower/vacuum.

INTENDED USE

The cordless blower/vacuum is intended for outdoor use only, in dry, and well-illuminated conditions.

The product is not intended to be used by children or persons with reduced physical, mental, or sensory capabilities.

The product is designed for blowing or vacuuming light debris, such as leaves, grass, and other garden refuse. It is intended to vacuum and mulch debris and deposit it into the collection bag.

The product is not designed to suck in water or other liquids.

Do not use the product for any other purpose.

GENERAL SAFETY WARNINGS

⚠ WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fi re, and/or serious injury. Save all warnings and instructions for future reference.

⚠ WARNING! Never allow children or people who are unfamiliar with these instructions to use the product. Local regulations may restrict the age of the operator. Children should be adequately supervised to ensure that they do not play with the product.

TRAINING

• Read the instructions carefully. Be familiar with the controls and the correct use of the product.
• Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.
  ■ Do not use the product while tired, ill, or under the influence of drugs, alcohol, or medication.

PREPARATION

■ Some regions have regulations that restrict the use of the product to some operations. Check with your local authority for advice.

■ Wear hearing protection at all times while operating the product. The product is noisy

and may cause permanent hearing injury if precautions to limit your exposure and to reduce noise are not strictly adhered to.

■ Wear full eye protection at all times while operating the product. The manufacturer strongly suggests a full face mask or fully enclosed goggles. Normal spectacles or sunglasses are not adequate protection. Objects can be thrown at high speed by the powerful air jet at any time and may rebound from hard surfaces toward the operator.
■ While operating the product, always wear substantial footwear and long trousers. Do not operate the product when barefoot or wearing open sandals. Avoid wearing loose-fitting clothing or clothes with hanging cords or ties.
■ Do not wear loose clothing or jewellery that can be drawn into the air inlet. Secure long hair so it is above shoulder level to prevent entanglement in moving parts.
■ Before each use, ensure that all contro and safety devices function correctly. Do not use the product if the off switch does not stop the product.
■ Operate the product in the recommende position and only on a firm and level surface.
- Do not operate the product on a paved gravel surface where ejected material could cause injury.
■ Before each use, always inspect the housing for damage. Ensure that guards and handles are in place and properly secured. Replace worn or damaged components in sets to preserve balance. Replace damaged or unreadable labels.
■ Never operate the product while people especially children, or pets are nearby.
- Keep all cooling air inlets clear of debris.
- Clear the work area before each use. Remove all objects such as rocks, broken glass, nails, wire, or string that can be blown a considerable distance by high velocity air.

BATTERY TOOL USE AND CARE

■ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

■ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
- When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery pack terminals together may cause burns or a fire.
■ Under abusive conditions, liquid may be ejected from the battery pack; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery pack may cause irritation or burns.
- Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion, or risk of injury.
- Do not expose a battery pack or tool to fire or excessive temperatures. Exposure to fire or excessive temperature above 130°C may cause explosion.
■ Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

OPERATION

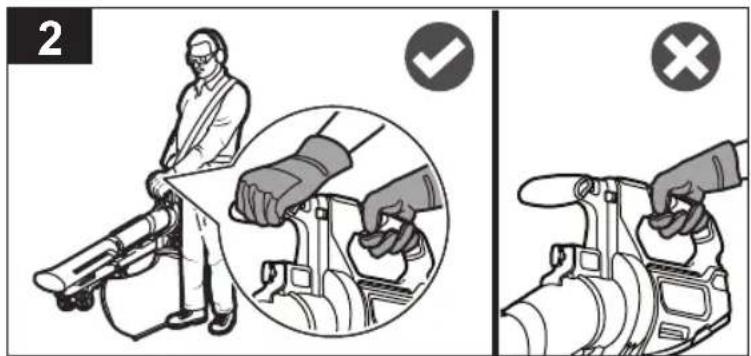

WARNING! Your blower/vacuum may be supplied with a harness. Carefully adjust the harness to comfortably help to support the weight of the product. Identify the quick release mechanism and practice using it before you start using the product. Its correct use may prevent serious injury in the case of an emergency. Never wear additional clothing over the harness or otherwise restrict access to the quick release mechanism.

■ Before starting the product, make sure that the blower and vacuum tubes are empty.
- Keep your face and body away from the feed intake opening.
■ Operate the product only at reasonable hours—not early in the morning or late at night when people might be disturbed.

■ Never operate the product in an explosive atmosphere.
■ Avoid using the product in bad weather conditions, especially when there is a risk of lightning.
- Operating similar tools nearby increases both the risk of hearing injury and the potential for other persons to enter your working area. The use of hearing protection reduces the ability to hear warnings (shouts or alarms). The operator must pay extra attention to what is going on in the working area. Do not get distracted and always concentrate on the task.
■ Always be sure of your footing on slopes. Walk, never run.
- Keep proper footing and balance. Do not overreach. Overreaching can result in loss of balance.
■ Never use the product with defective guards or shields, or without safety devices, such as debris collector, in place.
■ Do not modify the product in any way or use parts and accessories that are not recommended by the manufacturer.
If the product is dropped, suffers heavy impact, or begins to vibrate abnormally, immediately stop the product and inspect for damage or identify the cause of the vibration. Any damage should be properly repaired or replaced by an authorised service centre.
■ To reduce the risk of injury associated with contacting rotating parts, always turn off the product and remove the battery pack. Make sure that all moving parts have come to a complete stop:

• before leaving the product unattended
• before clearing blockages
- before checking, cleaning, or working on the product
- before inspecting the product after striking a foreign object
- whenever the product starts to vibrate abnormally (inspect immediately)

■ Immediately turn off the product and remove the battery pack in the event of accident

or breakdown. Do not operate the product again until it has been fully checked by an authorised service centre.

■ Injuries may be caused or aggravated by prolonged use of a tool. When using any tool for prolonged periods, ensure to take regular breaks.

BLOWER SAFETY WARNINGS

■Wear a face filter mask in dusty conditions to reduce the risk of injury associated with the inhalation of dust.

■ Slightly dampen surfaces in dusty conditions.
■ Do not use the product near open windows.
■ Use the full blower nozzle extension so that the air stream can work close to the ground and perform effectively.
■ Use rakes and brooms to loosen debris before blowing.
■ Do not point the blower nozzle in the direction of people or pets.
■ Never place objects inside the blower tubes.
- Do not place the product on top of or near loose debris. Debris can be sucked into the intake vent, resulting in possible damage to the product.

VACUUM SAFETY WARNINGS

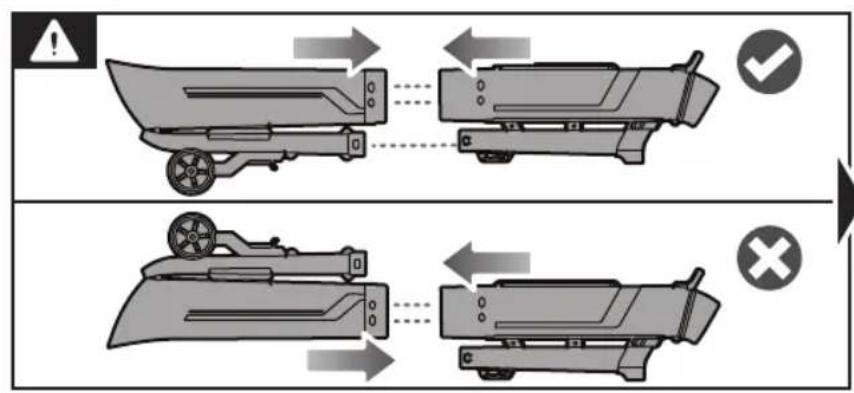

Before using the product in vacuum mode, the upper and lower tubes must be assembled. The assembly is a one-time operation only. Never operate the vacuum with only the upper vacuum tube fitted. Failure to follow this warning increases the risk of personal injury.

Without the lower vacuum tube fitted, it is much easier to reach up inside the tube towards the fan blade.

• Do not operate the vacuum without the debris collector bag assembly installed. Flying debris could cause serious injury. Make sure that the debris collector bag is in good condition and completely closed before operating the product.
  ■ Move the vacuum from side to side along the outer edge of the debris. To avoid clogging,

do not place the vacuum tube directly into the debris pile.

• Hold the motor higher than the inlet end of the vacuum tube.
  ■ To avoid serious injury to the operator or damage to the product, do not try to vacuum up rocks, broken glass, bottles, or similar objects.
  ■ Avoid situations that could cause fire in the debris collector bag. Do not operate the product near an open flame. Do not vacuum up warm ash from fireplaces and barbecue pits. Do not vacuum up discarded cigars or cigarettes unless the cinders are completely cool.
• Keep all parts of your body away from any moving part. Rotating fan blades can cause severe injury. Stop the motor and ensure that fan blades have stopped rotating before opening the vacuum door, installing or changing tubes, or opening or removing the debris bag.
  ■ When feeding material into the product make sure that the pieces of metal, rocks, bottles, cans, or other foreign objects are not included.
  ■ Do not allow processed material to build up in the discharge zone. This may prevent proper discharge and can result in kickback of material through the intake opening.
  ■ If the product becomes clogged, stop the product and remove the battery pack before cleaning the debris.

ADDITIONAL BATTERY SAFETY WARNINGS

To reduce the risk of fire, personal injury, and product damage due to a short circuit, never immerse the tool, battery pack, or charger in fluid or allow fluid to flow inside them. Corrosive or conductive fluids, such as seawater, certain industrial chemicals, and bleach or bleach-containing products, etc., can cause a short circuit.

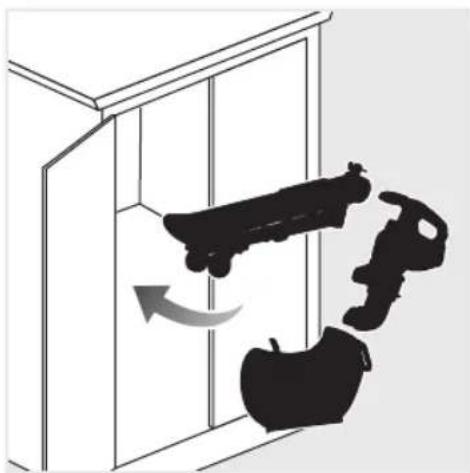

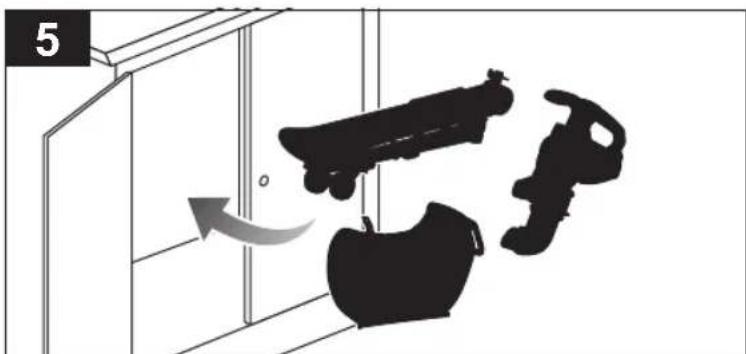

TRANSPORTATION AND STORAGE

■Turn off the product, remove the battery pack, and allow it to cool down before storing or transporting.

■ Remove all foreign materials from the product. Store the product in a cool, dry, and well-ventilated place that is inaccessible to children. Keep the product away from corrosive agents, such as garden chemicals and de-icing salts. Do not store the product outdoors.
■ For transportation in a vehicle, secure the product against movement or falling to prevent injury to persons or damage to the product.

TRANSPORTING LITHIUM BATTERIES

Transport the battery in accordance with local and national provisions and regulations.

Follow all special requirements on packaging and labelling when transporting batteries by a third party. Ensure that no batteries can come in contact with other batteries or conductive materials while in transport by protecting exposed connectors with insulating, non-conductive caps or tape. Do not transport batteries that are cracked or leaking. Check with the forwarding company for further advice.

MAINTENANCE

Use only original manufacturer's replacement parts, accessories, and attachments. Failure to do so can cause possible injury, can contribute to poor performance, and may void your warranty.

■ Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. Have the product serviced by an authorised service centre only.
- Check all nuts, bolts, and screws at frequent intervals for proper tightness to ensure that the product is in safe working condition. Any part that is damaged should be properly repaired or replaced by an authorised service centre.
■ Bring the product to an authorised service centre to replace damaged or unreadable labels.
■ You may make adjustments or repairs that are described in this manual. For other repairs, contact an authorised service centre.

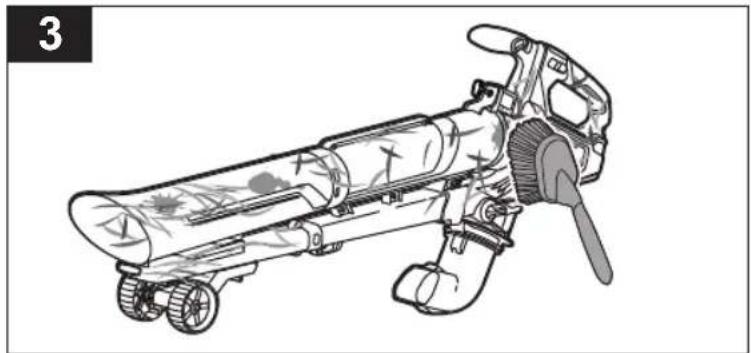

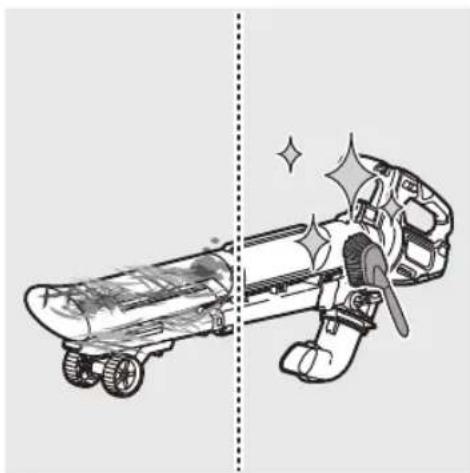

■ After each use, clean the product with a soft, dry cloth.

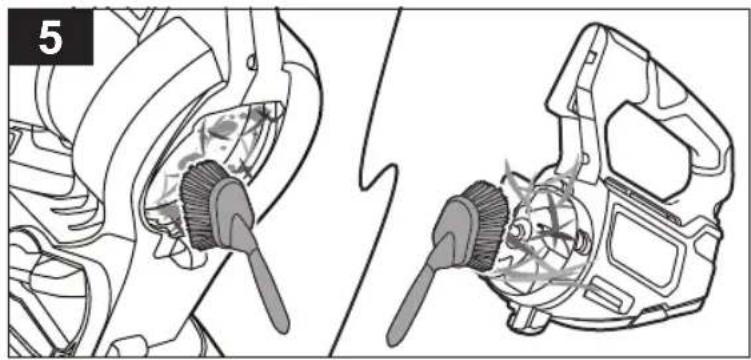

CLEARING A BLOCKAGE

■ To reduce the risk of injury associated with contacting moving parts, always turn off the product, remove the battery pack, and make sure that all moving parts have come to a complete stop.

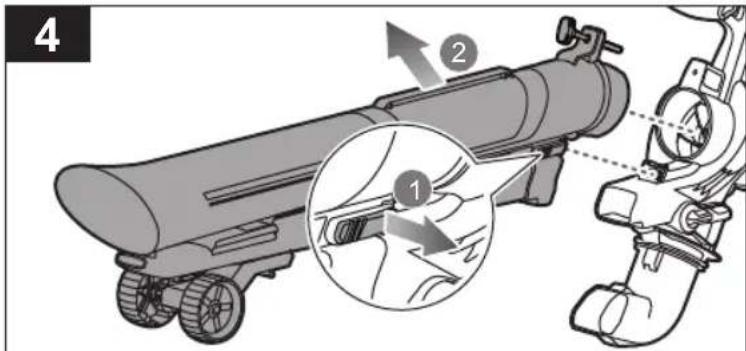

■ Remove the blower/vacuum tubes to inspect for blockage. Clear the tubes if required.

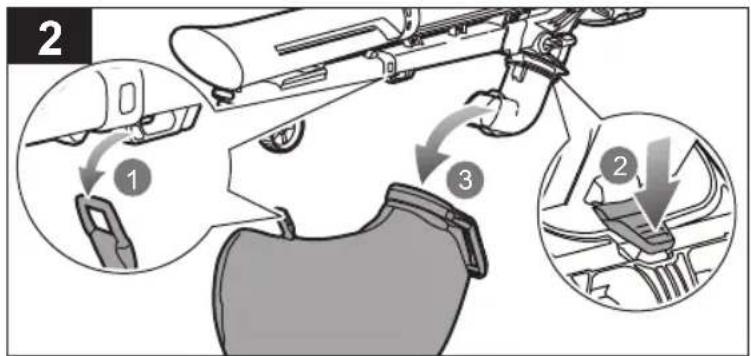

■ Remove the debris collector bag. Check that the bag adaptor is free from obstruction.
- Inspect the opening to the fan enclosure and the tube to the debris bag for evidence of a blockage. Remember, even though the battery pack is removed, the fan or mulching blades may move as you clear any blockage. Keep fingers away from the fan or mulching blades at all times.

⚠ WARNING! Do not attempt to remove the fan or mulching blade. If it is necessary to remove the fan or mulching blades, bring the product to an authorised service centre.

■ Reinstall the tubes and the debris collector bag before installing the battery pack and starting the product.

KNOW YOUR PRODUCT

See page 141.

1. Lower vacuum tube
2. Upper vacuum tube

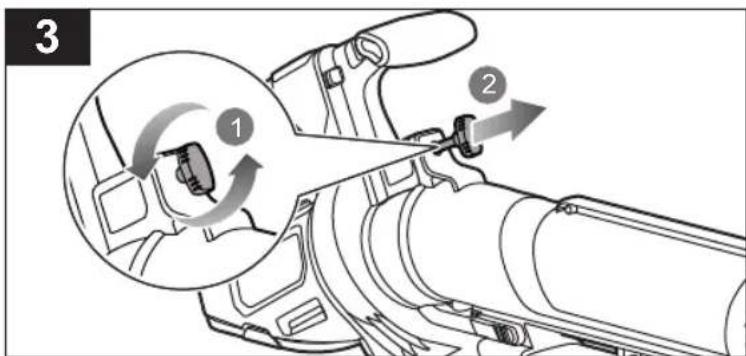

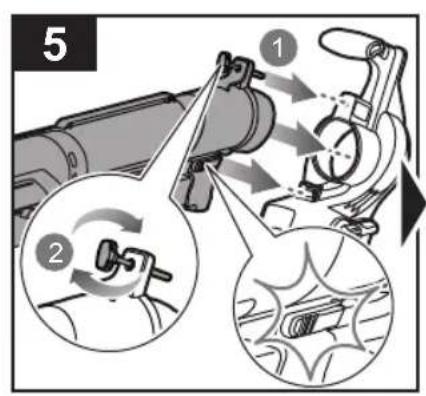

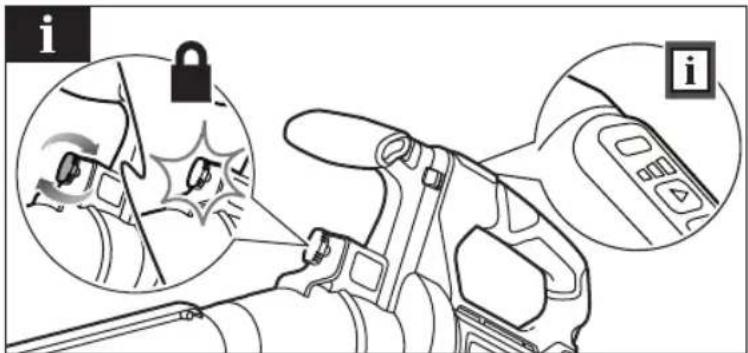

3. Tube locking screw
4. Front handle
5. Rotary locking button

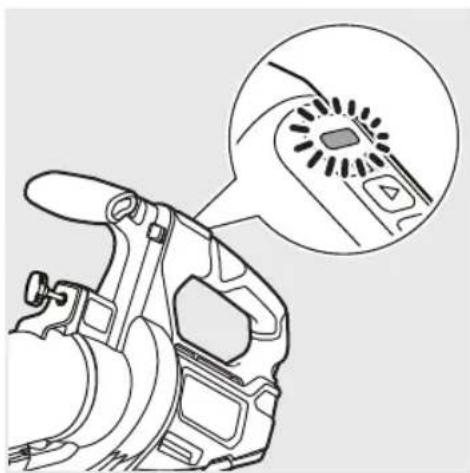

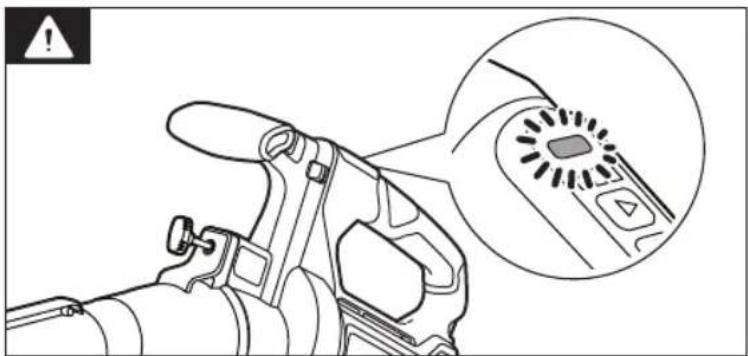

6. Red LED

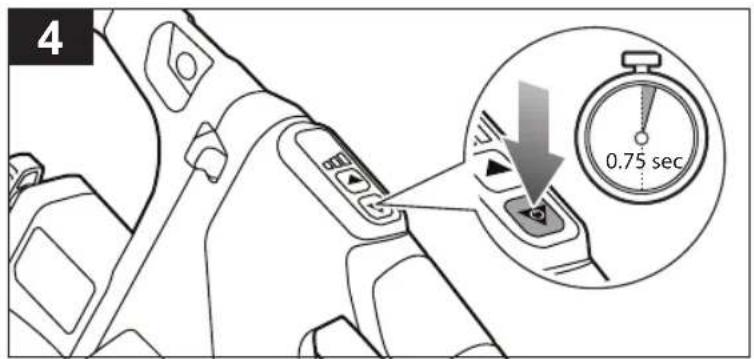

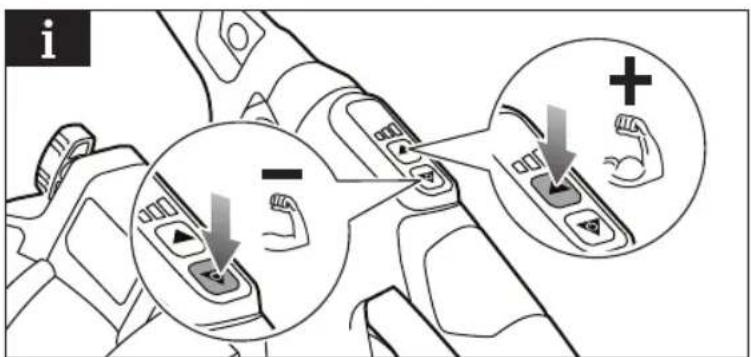

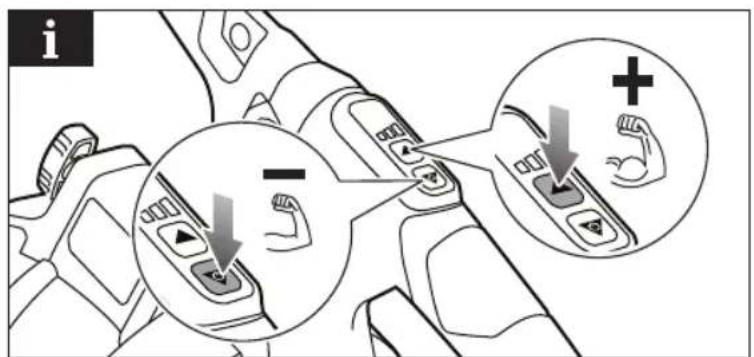

7. Speed up button

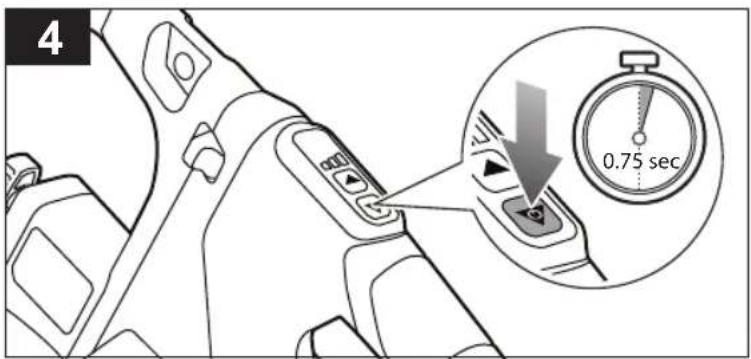

8. Speed down/on/off button
9. Rear handle
10. Tube release button

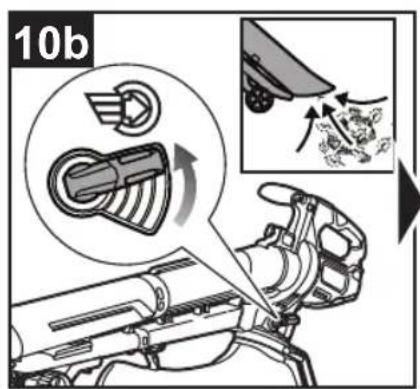

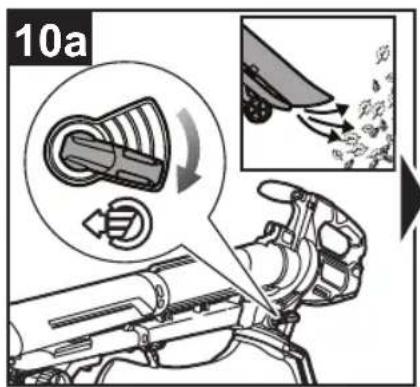

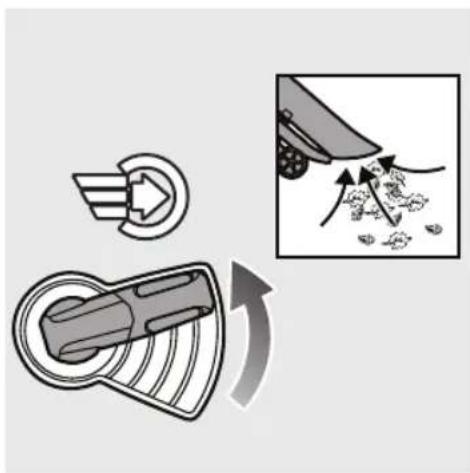

11. Blower/vacuum mode selection lever
12. Bag handle
13. Vacuum bag
14. Upper blower tube
15. Lower blower tube
16. Guide wheels
17. Operator's manual

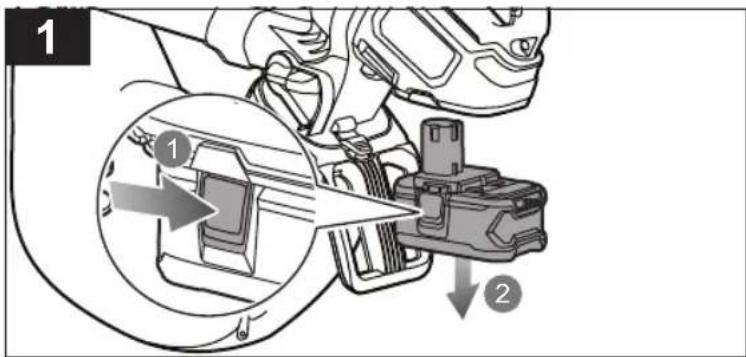

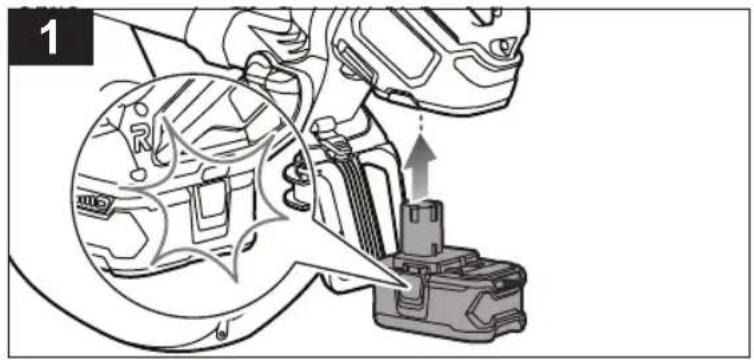

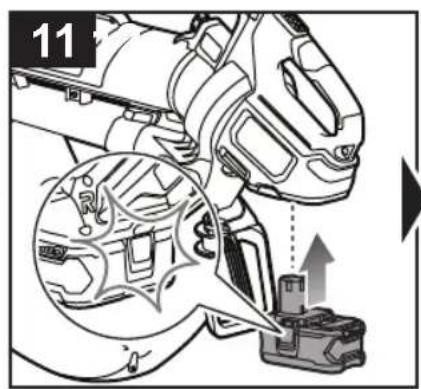

18. Battery pack
19. Charger

SYMBOLS ON THE PRODUCT

Read and understand all instructions before operating the product. Follow all warnings and safety instructions.

Beware of thrown or flying objects. Keep all bystanders, especially children and pets, at least 15 m away from the operating area.

Rotating fans. Keep hands and feet out of openings while the product is running.

European Conformity Mark

EurAsian Conformity Mark

Ukraine Conformity Mark

British Conformity Mark

Wear eye protection.

Wear ear protection.

Guaranteed sound power level

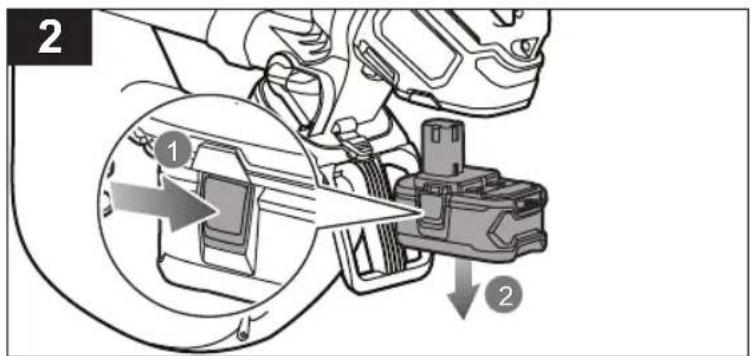

Remove the battery pack before starting any work on the product.

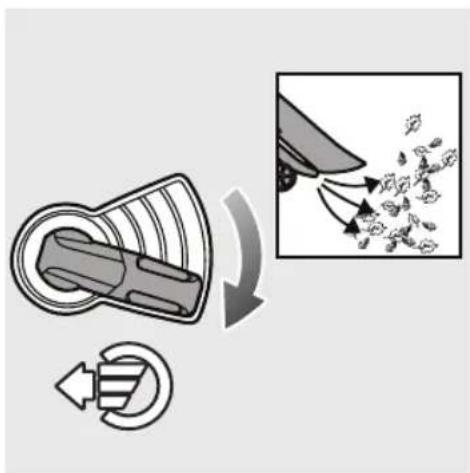

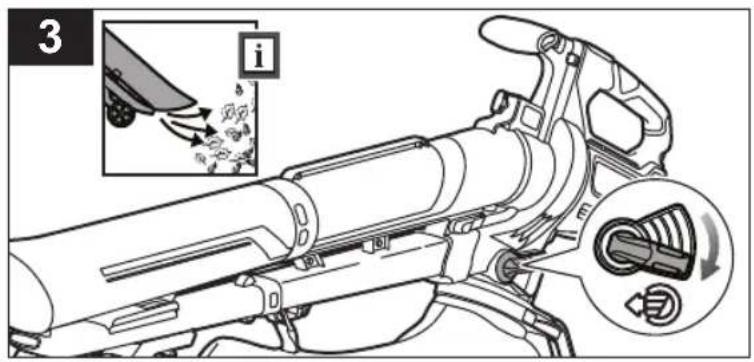

Blower mode

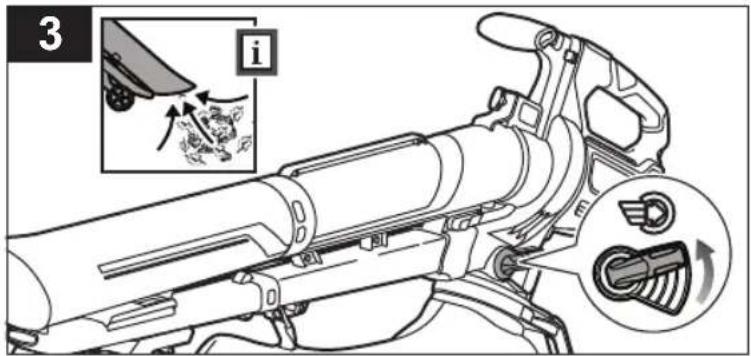

Vacuum mode

Speed up

Speed down, on/off

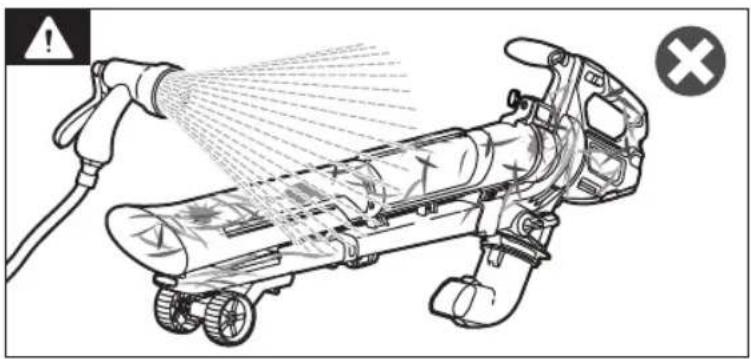

Do not expose the product to rain or damp condition.

Do not dispose of waste batteries, waste electrical and electronic equipment as unsorted municipal waste. Waste batteries and waste electrical and electronic equipment must be collected separately. Waste batteries, waste accumulators, and light sources have to be removed from the equipment. Check with your local authority or retailer for recycling advice and collection point. According to local regulations, retailers may have an obligation to take back waste batteries and waste electrical and electronic equipment free of charge. Your contribution to the reuse and recycling of waste batteries and waste electrical and electronic equipment helps to reduce the demand of raw materials. Waste batteries, in particular containing lithium, and waste electrical and electronic equipment contain valuable and recyclable materials, which can adversely impact the environment and the human health if not disposed of in an environmentally compatible manner. Delete personal data from waste equipment, if any.

SYMBOLS IN THIS MANUAL

Parts or accessories sold separately

Note

Warning

SYMBOLES APPLIQUÉS SUR LE PRODUIT

MACHEN SIE SICH MIT IHREM PRODUKT VERTRAUT

Siehe Seite 141.

SYMBOLE AUF DEM PRODUKT

ALGEMENE VEILIGHEIDSWAARSCHUWINGEN

SYMBOLER PÅ PRODUKTET

TRANSPORT OCH FÖRVARING

SYMBOLER PÅ PRODUKTEN

KJENN PRODUKTET DITT

Se side 141.

SYMBOLER PÅ PRODUKTET

SYMBOLER I DENNE MANUALLEN

ETTEVALMISTUSTOIMINGUD

OBOZNÁMTE SA S VAŠÍM PRODUKTOM

Pozrite stranu 141.

Illustration of a robotic vehicle with motion arrows indicating movement, next to a cylindrical pipe (no text or symbols)

5 1 2

6

Technical line drawing of mechanical components with no visible text or symbols

9 i 1 2

10a

Diagram illustrating a mechanical device operation with labeled states and directional arrows, including warning symbols and checkmark indicators.

4 5

7 1 2

8 9

10b

11

0.75 sec

p.145 p.6 p.147 p.148 p.152p

Diagram showing a device emitting particles from a fan, with an inset image of a knife cutting through falling leaves (no text or symbols present)

1

2 ✓ ×

3 i

4 0.75 sec

i -

Diagram showing a mechanical device with directional arrows and a magnified view of a tool emitting particles (no text or symbols)

1

2 ✓ ×

3 i

4 0.75 sec

i -

Line drawing of a camera module with a magnified inset showing a circular component detail (no text or symbols)

1

Line drawing of a camera with an inset showing a circular component labeled 'S' (no text or symbols on the diagram itself)

Diagram illustrating a security or security update process with labeled icons and magnified views of the device.

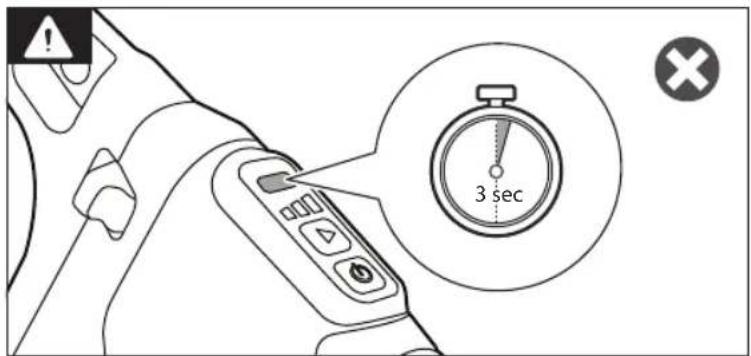

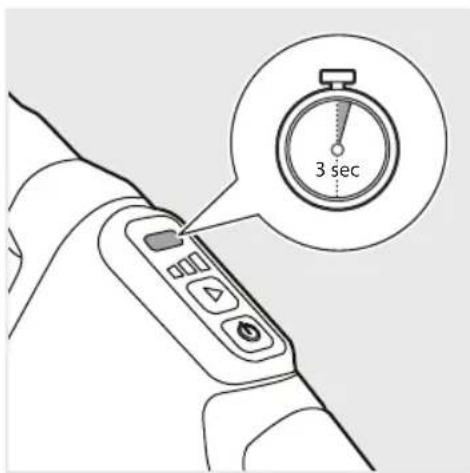

3 sec

1

3 sec

2 1 2

3 1 i 2

4 1 2

Technical illustration of mechanical components with no visible text or symbols

6 i 1 2

7 1 2

i

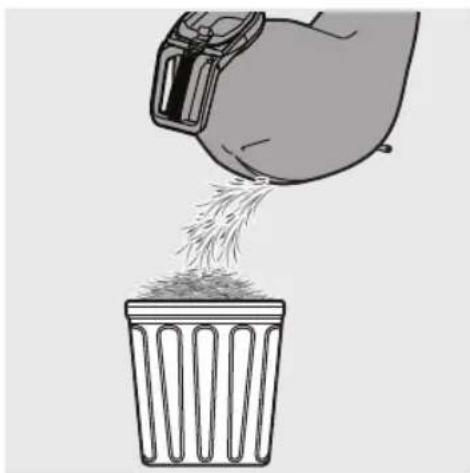

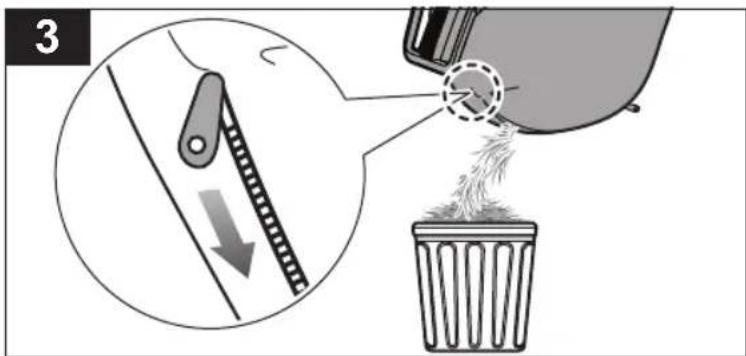

Illustration of a hand pouring waste into a trash bin (no text or symbols)

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating movement or assembly.

2 1 3 2

3

Illustration of a robotic device with motion capture, showing internal components and sparkles (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating movement or force.

2 ① ③ ②

Technical line drawing of a handheld device with internal components and wheels (no text or symbols)

Diagram illustrating a spray gun system with warning symbols and labeled components

Diagram showing a moving object inside a window with three silhouettes of different shapes, no text or symbols present.

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating movement or assembly.

2 ① ③ ②

3 1 2

4 1 2

Diagram showing a moving object with arrows indicating direction, no text or symbols present

English Français Deutsch Español Italiano Nederlands
Product specifications Caractéristiques produit Produkt-Spezifikationen Características del producto				Caratteristiche del prodotto	Productgegevens
Cordless blower/vacuum Souffleur/Aspirateur Sans-fil		Akku-Laubgebläse/-sauger	Soplador/aspirador inalámbrico	Aspiratore/soffiatore senza filo	Snoerloze blazer/zuiger
Model Modèle Modell Modelo Modello		Model
Rated voltage	Tension nominale	Nennspannung	Tensión nominal	Voltaggio nominale	Toegekende spanning
Weight	Poids	Gewicht	Peso	Peso	Gewicht
Air Velocity	Vitesse du flux d'air	Luftgeschwindigkeit	Velocidad del aire	Velocità aria	Luchtsnelheid
Blower	Souffleur	Laubbläser	Sistema de soplado	Aspiratore	Blazer
Vacuum	Aspirateur	Sauger	Aspirador	Soffiatore	Zuiger
Air Volume	Volume d'air	Luftvolumen	Volumen del aire	Volume aria	Luchtvolume
Blower	Souffleur	Laubbläser	Sistema de soplado	Aspiratore	Blazer
Vacuum	Aspirateur	Sauger	Aspirador	Soffiatore	Zuiger
Mulching ratio	Taux de broyage	Mulchverhältnis	Radio de trituración	Rapporto di triturazione	Mulching verhouding
Weight (with battery)	Poids (avec batterie)	Gewicht (mit Akku)	Peso (con batería)	Peso (con il gruppo batterie)	Gewicht (met accupack)
Blower/vacuum mode	Mode souffleur/aspirateur	Bläser/Sauger-Modus	Modo aspirador/soplador	Modalità soffiatore/aspiratore	Blazer-/vacuümmodus
Vibration level (in accordance with EN 50636-2-100 Annex BB)	Niveau de vibration (selon l'Annexe BB de la norme EN 50636-2-100)	Vibrationsgrad (gemäß Anhang BB von EN 50636-2-100)	Nivel de vibración (de acuerdo con el Anexo BB de EN 50636-2-100)	Livello vibrazioni (secondo quanto disposto dall'Allegato BB della Direttiva EN 50636-2-100)	Trillingsniveau (in overeenstemming met bijlage BB van EN 50636-2-100)
Total value ah	Valeur totale ah	Gesamtwert ah	Valor total ah	Valore totale ah	Totaalwaarde ah
Uncertainty of measurement	Incertitude de la mesure	Unsicherheit der Messung	Incertidumbre de medición	Incertezza delle misurazioni	Onzekerheid bij meting
Noise emission level (in accordance with EN 50636-2-100 Annex CC)	Niveau d'émission sonore (selon l'Annexe CC de la norme EN 50636-2-100)	Geräuschemission (gemäß Anhang CC von EN 50636-2-100)	Nivel de emisión de ruido (de acuerdo con el Anexo CC de EN 50636-2-100)	Livello di emissione rumore (secondo quanto disposto dall'Allegato CC della Direttiva EN 50636-2-100)	Geluidsemissieniveau (in overeenstemming met bijlage CC van EN 50636-2-100)
A-weighted sound pressure level at the operator's position (Blower/Vacuum)	Niveau de pression sonore pondéré A au niveau de l'opérateur (Souffleur/vide d'air)	A-bewerteter Schalldruckpegel an der Position des Anwenders (Blasgerät/Sauggerät)	Nivel de presión sonora ponderado A en la posición del operario (Soplador/aspirador)	Livello di pressione sonora pesato A alla posizione dell'operatore (Soffiatore/Aspiratore)	A-gewogen geluidsdrukniveau op de plaats van de bediener (Blazer/zuiger)
Uncertainty of measurement	Incertitude de la mesure	Unsicherheit der Messung	Incertidumbre de medición	Incertezza delle misurazioni	Onzekerheid bij meting
A-weighted sound power	Niveau de puissance sonore pondéré A	A-bewerteter Schalleistungspegel	Nivel de potencia acústica ponderada en A	Livello di potenza sonora pesato A	A-gewogen geluidsniveau
Uncertainty of measurement	Incertitude de la mesure	Unsicherheit der Messung	Incertidumbre de medición	Incertezza delle misurazioni	Onzekerheid bij meting
L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA

English	Français	Deutsch	Español	Italiano	Nederlands	Português
Battery and charger	Batterie et chargeur	Akku und Ladegerät	Bateria y cargador	Batteria e caricatore	Accu en oplader	Bateria e carregador
Model	Modèle	Modell	Modelo	Modello	Model	Modelo
Battery pack	Bloc de batterie	Akkupack	Batería	Batteria	Accu	Bateria
Charger	Chargeur	Ladegerät	Cargador	Caricatore	Lader	Carregador
Compatible battery packs	Blocs des batterie compatibles	Kompatible Akkupacks	Paquetes de batería compatibles	Gruppo batterie compatibili	Compatibele accupacks	Baterias compatíveis
Compatible chargers	Chargeurs compatibles	Kompatible Ladegeräte	Cargador compatible	Caricatore compatibile	Compatibele oplader	Carregador compativel

Português Dansk Svenska Suomi Norsk Русский

Características do aparelho	Produktspecifikationer	Produktspecifikationer	Tuotteen tekniset tiedot	Produktspesifikasjoner	Характеристики изделия
Aspirador/Ventilador sem fios	Ledningsfri blæser/suger	Sladdfri blåsare/sugare	Langaton puhallin/imuri	Trådløs blåser/suger Be	спроводная воздуховука/пылесос
Modelo	Model	Modell	Malli	Modell	Модель	RY18BVXA
Tensão nominal	Mærkespænding	Spänning	Nimellisjännite	Nominell spenning	Номинальное напряжение	18 V d.c.
Peso	Vægt	Vikt	Paino	Vekt	Вес	3,95 kg
Velocidade do Ar	Lufthastighed	Luftflöde	Ilman nopeus	Lufthastighet	Скорость воздушного потока
Soprador	Blæser	Blåsare	Puhallin	Blåser	Воздуховука	252 km/h
Aspirador	Suger	Sugare	Imuri	Suger	Пылесос	126 km/h
Volume de Ar	Luftvolumen	Luftvolym	Ilmamäärä	Luftvolum	Объем воздуха
Soprador	Blæser	Blåsare	Puhallin	Blåser	Воздуховука	1,83 m3/min
Aspirador	Suger	Sugare	Imuri	Suger	Пылесос	7,67 m3/min
Rácio de mistura	Bioklipforhold	Mullningsgrad	Levityssuhde	Finklippingsforhold	Соотношение мульчирования	10:1
Peso (com bateria)	Vægt (inkl. Batteri)	Vikt (med batteripack)	Paino (akun kanssa)	Vekt (med batteripakke)	Вес (с аккумуляторной батареей)
Modo aspirador/soprador	Blæse-/sugemodus	Blås-/sugläge	Puhallin/imuritila	Blåse/sugemodus	Режим воздуховуки/пылесоса	4,7 kg
Nível de vibração (em conformidade com o Anexo BB de EN 50636-2-100)	Vibrationsniveau (iht. bilag BB til EN 50636-2-100)	Vibrationsnivá (enligt Annex BB i EN 50636-2-100)	Tärinälaso (standardin EN 50636-2-100 liitteen BB mukaisesti)	Vibrasjonsnivá (iht. tillegg BB i EN 50636-2-100)	Уровень вибрации (в соответствии с Приложением ВВ стандарта EN 50636-2-100)
Valor total ah	Totalværdi ah	Totalt värde ah	Kokonaisarvo ah	Verdi i alt ah	Суммарное значение ah	1,6 m/s2
Incerteza de medições	Målingsusikkerhed	Osäkerhet för mått	Mittausten epätarkkuus	Usikkerhet ved måling	Погрешность измерения	1,5 m/s2
Nível de emissão de ruído (em conformidade com o Anexo CC de EN 50636-2-100)	Støjemissionsniveau (iht. bilag CC til EN 50636-2-100)	Bullerutsläppsnivá (enligt Annex CC i EN 50636-2-100)	Melutaso (standardin EN 50636-2-100 liitteen CC mukaisesti)	Støyutslipsnivá (iht. tillegg CC i EN 50636-2-100)	Уровень шума (в соответствии с Приложением СС стандарта EN 50636-2-100)
Nível de pressão sonora ponderado A na posição do operador (Soprador/aspirador)	A-vægtet lydtryksniveau ved operatørens position (Blæser/suge)	A-viktad ljudtrycksnivá vid operatörsplats (Utblås/Insug)	A-painotettu käyttäjään kohdistuva äänenpainetaso (Puhallin/imuri)	A-vektet lydtrykk ved operatørposisjon (Blåser/støvsuger)	Амплитудно-взвешенный уровень звукового давления на рабочем месте оператора (Воздуховука / пылесос)	86,7 dB(A)
Incerteza de medições	Målingsusikkerhed	Osäkerhet för mått	Mittausten epätarkkuus	Usikkerhet ved måling	Погрешность измерения	3,0 dB
Nível de potência sonora ponderada A	A-vægtet lydeffektniveau	A-vägd ljudeffektsnivá	A-painotettu äänenteho	A-vektet lydeffektnivá	Уровень А-взвешенной звуковой мощности	106,6 dB(A)
Incerteza de medições	Målingsusikkerhed	Osäkerhet för mått	Mittausten epätarkkuus	Usikkerhet ved måling	Погрешность измерения	1,4 dB
L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	108 dB(A)

Dansk Svenska		Suomi Norsk Русский
Batteri og oplader	Batteri och batteriladdare	Akku ja laturi	Batteri og lader	Аккумуляторная батарея и зарядное устройство
Model	Modell	Malli	Modell	Модель	RY18BVXA-0	RY18BVXA-150
Batteri	Batteri	Akku	Batteri	Аккумулятор	-	5,0 Ah
Oplader	Batteriladdare	Laturi	Lader	Зарядное устройство	-	RC18120
Kompatible batterier Kompatibla batteripaket		Yhteensopivat akut	Kompatible batteripakker	Совместимая аккумуляторная батарея	BPL-18., RB18..
Kompatibel oplader	Kompatibel laddare	Yhteensopiva laturi	Kompatibel lader	Совместимое зарядное устройство	BC-18., BCL-18., BCL1418., RC18..
Polski	Čeština	Magyar	Română	Latviski	Lietuviškai	Eesti
Parametry techniczne	Technické údaje produktu	Termék műszaki adatai	Specificațiile produsului	Produkta specifikácijas	Gaminio techninės savybės	Toote tehnilised andmed
Bezprzewodowa dmuchawa/odkurzacz	Akumulátorový foukač/ vysavač	Akkumulátoros fúvó-/ szívógép	Aparat de suflat/ aspirator fără cablu	Bezvadu pūtējs/ vakuuma súcējs	Belaidis nupūtimo/ siurbimo prietaisas	Akutoitega puhur-imur
Model Model Típus Model	Model Modelis Modelis Mudel
Napięcie znamionowe	Jmenovitė napětí	Névleges feszültség	Tensiunea nominală	Nominālais spriegums	Nominali įtampa	Nimipinge
Masa	Hmotnost	Súly	Greutate	Svars	Svoris	Kaal
Prędkość powietrza	Rychlost vzduchu	Levegő sebessége	Víteză aer	Gaisa pārvietošanās	Oro greitis	Õhu kiirus
Dmuchawa	Foukač	Fúvógép	Aparat de suflat	Pūtējs	Nupūtimo prietaisas	Puhur
Odkurzacz	Vysavač	Szívógép	Aspirator	Vakuuma súcējs	Siurbimo prietaisas	Imur
Objętość powietrza	Objem vzduchu	Levegőtěrfogat	Volum aer	Gaisa apjoms	Oro kiekis	Õhu vooluhulk
Dmuchawa	Foukač	Fúvógép	Aparat de suflat	Pūtējs	Nupūtimo prietaisas	Puhur
Odkurzacz	Vysavač	Szívógép	Aspirator	Vakuuma súcējs	Siurbimo prietaisas	Imur
Współczynnik mulczowania	Mulčování poměr	Tömörítési arány	Rată de tocare a compostului	Mulčešanas rădítājs	Mulčiavimo santykis Multšimise aste
Masa (z akumulatorem)	Hmotnost (včetně akumulátoru)	Súly (akkumulátorral együtt)	Greutate (cu acumulator)	Svars (ar akumulatoru)	Svoris (jskaitant akumuliatorių)	Kaal (koos akuga)
Tryb dmuchawy/ odkurzacza	Režim fukar/vysavač	Fúvás/szívás üzemmód	Mod suflantă/aspirare	Pūšanas/sükšanas režīms	Nupūtimo / siurbimo režimas	Puhuri-/imurirežiim
Poziom wibracji (zgodnie z aneksem BB normy EN 50636-2-100)	Úroveň vibrací (v souladu s přilohou BB normy EN 50636-2-100)	Vibraciós szint (az EN 50636-2-100 BB függeléke szerint)	Nivel de vibrație (în conformitate cu Anexa BB a EN 50636-2-100)	Vibracijas līmenis (saskaņā ar direktīvas EN 50636-2-100 BB pielikumu)	Vibracijos lygis (pagal EN 50636-2-100 standarto BB priedą)	Vibratsioonitase (vastavalt standardi EN 50636-2-100 lisale BB)
Łączna wartość ah	Celková hodnota ah	Teljes érték ah	Valoare totalā ah	Kopõjā vörtība ah	Vertė iš viso ah	Koguväärtus ah
Niepewność pomiaru	Nejistota měření	Mérės bizonytalansága	Nesiguranța măsurătorii	Mērījuma nenoteiklība	Matavimo paklaida	Mõõtmismääramatus
Poziom emisji hałasu (zgodnie z aneksem CC normy EN 50636-2-100)	Hladina emise hluku (v souladu s přilohou CC normy EN 50636-2-100)	Hangkibocsátási szint (az EN 50636-2-100 CC függeléke szerint)	Nivel emisie zgomot (în conformitate cu Anexa CC a EN 50636-2-100)	Trokšnu emisijas līmenis (saskaņā ar direktīvas EN 50636-2-100 CC pielikumu)	Skleidžiamo triukšmo lygis (pagal EN 50636-2-100 standarto CC priedą)	Vibratsioonitase (vastavalt standardi EN 50636-2-100 lisale CC)
Poziom ważonego ciśnienia akustycznego w pozycji operatora (Dmuchawa/ zasysanie)	Hladina akustického tlaku vážená funkcí A v poloze obsluhy	A-súlyozott hangnyomásszint a kezelő helyén (Fúvás/szívás)	Valoare A nivel presiune zgomot la poziția operatorului (Suflantă/aspirator)	A-novērtējuma skañas spiediena līmenis operatora darba vietă (Pūtējs/ súcējs)	A dažninės charakteristikos garso slėgio lygis operatoriaus vietoje (Pūstuvas / siurblys)	A-kaalutud helirōhu tase operaatori töökohal (Puhur/ imur)
Niepewność pomiaru	Nejistola měření	Mérės bizonytalansága	Nesiguranța măsurătorii	Mērījuma nenoteiklība	Matavimo paklaida	Mõõtmismääramatus
A-ważony poziom mocy akustycznej	Hladina akustického výkonu vážená funkcí A	A-súlyozott hangteljesítményszint	Nivel de putere acustică ponderată A	A-līmena skañas jaudas līmenis	A-svertinis akustinis lygis	A-kaalutud helivöimsuse tase
Niepewność pomiaru	Nejistola měření	Mérės bizonytalansága	Nesiguranța măsurătorii	Mērījuma nenoteiklība	Matavimo paklaida	Mõõtmismääramatus
L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA

Polski	Čeština	Magyar	Română	Latviski	Lietuviškai	Eesti	Hrvatski
Akumulator i ładowarka	Nabiječka a baterie	Akkumulátor és töltő	Bateria şi încărcătorul	Akumulators un lădëtăjs	Akumuliatorius ir jkroviklis	Aku ja laadija	Baterija i punjač
Model	Model	Típus	Model	Modelis	Modelis	Mudel	Model
Akumulator	Baterie	Akkumulátor	Acumulator	Akumulators	Baterija	Aku paketiga	Baterija
Ładowarka	Nabiječka	Töltő	Încărcător	Lădëtăjs	Jkroviklis	Laadija	Punjač
Pasujące akumulatory	Kompatibilní akumulátery	Kompatibilis akkumulátorok	Acumulatori compatibili	Savietojami akumulatoru komplekti	Suderinami baterijos paketai	Ühilduvad akupaketid	Kompatibilna pakiranja baterija
Zgodna ładowarka	Kompatibilní nabiječka	Kompatibilis töltő Încărcător compatibil	Saderīgs lădëtăjs	Suderinamas jkroviklis	Ühilduv laadija	Kompatibilni punjači

Hrvatski Slovenščina Slovenčina България Українська Türkçe

Specifikacije proizvoda	Specifikacije izdelka Špecifikácie produktu		Технически характеристики	Технічні характеристики пристрою	Ürün teknik özellikleri
Bežična puhalica/ usisavač	Brezžični puhalnik/ sesalnik	Akumulátorový důchadlový vysávač	Безжична машина за обдухване/ засмукване	Бездротовий воздуховука / пилосос	Kablosuz Üfleme/ Vakum Makinesi
Model	Model	Modelis	Модел	Модель	Model	RY18BVXA
Nazivni napon	Nazivna napetost	Menovité napätie	Номинален волтаж	Номінальна напруга	Nominal voltaj	18 V d.c.
Težina	Teža	Hmotnosť	Тегло	Вага	Ağırlık	3,95 kg
Brzina zraka	Hitrost zraka	Rýchlosť vzduchu	Скорост на въздушната струя	Швидкість повітря	Hava hızı
Puhalica	Puhalnik	Důchadlo	Обдухване	Воздуховука	Üfleme	252 km/h
Usisavač	Sesalnik	Vysávač	Засмукване	Пилосос	Vakum Makinesi	126 km/h
Količina zraka	Prostomina zraka Objem	vzduchu Обем на въздушната струя		Об'єм повітря	Hava hacmi
Puhalica	Puhalnik	Důchadlo	Обдухване	Воздуховука	Üfleme	1,83 m3/min
Usisavač	Sesalnik	Vysávač	Засмукване	Пилосос	Vakum Makinesi	7,67 m3/min
Omjer usisa	Razmerje drobljenja	Pomer mulčovania	Коефициент на мулчиране	Коефіцієнт мульчування	Malçlama orani	10:1
Težina (s baterijom)	Teža (z baterijo)	Hmotnosť (s jednotkou akumulátora)	Тегло (с батерията)	Вага (з акумулятором)	Pil (paketi dahil ağırlık)
Način rada puhalica/ usisavač	Način puhalnika/ sesalnika	Režim dúchadlo/ vysávač	Режим на обдухване/ засмукване	Режим повітродувка / пилосос	Üfleme/toplama modu	4,7 kg
Razina vibracija (u skladu s Dodatkom BB EN 50636-2-100)	Nivo vibracij (v skladu z dodatkom BB standarda EN 50636-2-100)	Úroveň vibrácií (v súlade s Dodatkom BB v EN 50636-2-100)	Ниво на вибрациите (в съответствие с приложение ВВ на EN 50636-2-100)	Рівень вібрації (відповідно до EN 50636-2-100 додаткок ВВ)	Titreşim seviyesi (EN 50636-2-100, Ek BB uyarınca)
Ukupna vrijednost ah	Skupna vrednost ah	Celková hodnota ah	Обща стойност ah	Загальне значення ah	Toplam değer ah	1,6 m/s2
Neodređenost mjerenja	Negotovost meritve	Nespoľahlivosť meraní	Несигурност на измерването	Невизначеність вимірювання	Ölçüm bilinmiyor	1,5 m/s2
Razina emisija buke (u skladu s Dodatkom CC EN 50636-2-100)	Raven emisij hrupa (v skladu z dodatkom CC standarda EN 50636-2-100)	Úroveň emisií hluku (v súlade s Dodatkom CC v EN 50636-2-100)	Ниво на шумовите емисии (в съответствие с приложение СС на EN 50636-2-100)	Рівень шуму (відповідно до EN 50636-2-100 додаткок СС)	Gürültü emisyon seviyesi (EN 50636-2-100, Ek CC uyarınca)
A-ponderirana razina zvučnog tlaka u položaju operatera (Puhalica/usisavač)	A-vrednotena raven zvočnega tlaka na položaju upravljavca (Puhalnik/sesalnik)	Vážená A hladina akustického tlaku na pozícií operátora (Fúkač/vysávač)	Ниво на шумово налягане с равнище А на мястото на оператора (Уред за обдухване/ всмукване)	Рівень звукового тиску за шкалою А для оператора пристрою (Воздуховука / Пилосос)	Kullanıcı pozisyonundaki A ağırlıklı ses basinci seviyesi (Üfleyici/ vakum)	86,7 dB(A)
Neodređenost mjerenja	Negotovost meritve	Nespoľahlivosť meraní	Несигурност на измерването	Невизначеність вимірювання	Ölçüm bilinmiyor	3,0 dB
Ponderirana razina zvučne snage	A-izmerjena raven zvočne moči	Vážená A hladina akustického výkonu	Ниво на сиплата на шума с равнище А	А-зважений рівень звукової потужності	A ağırlıklı ses gücü seviyesi	106,6 dB(A)
Neodređenost mjerenja	Negotovost meritve	Nespoľahlivosť meraní	Несигурност на измерването	Невизначеність вимірювання	Ölçüm bilinmiyor	1,4 dB
L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	108 dB(A)

Slovenščina	Slovenčina	България	Українська	Türkçe
Baterija in polnilnik	Akumulátor a nabíjačka	Батерия и зарядно устройство	Акумулятор і зарядний пристрій	Pil ve şarj cihazı
Model	Modelis	Модел	Модель	Model	RY18BVXA-0	RY18BVXA-150
Akumulator	Batéria	Батерия	Акумуляторна батарея	Pil	-	5,0 Ah
Polnilec	Nabíjačka	Зарядно устройство	Зарядний пристрій	Şarj cihazı	-	RC18120
Združljive baterije	Kompatibilné jednotky akumulátorov	Съвместими батерии	Сумісні акумуляторні блоки	Uyumlu pil takımları	BPL-18.., RB18..
Združljiv polnilec	Kompatibilná nabíjačka	Съвместимо зарядно устройство	Сумісний зарядний пристрій	Uyumlu şarj cihazı	BC-18.., BCL-18.., BCL1418.., RC18..

EN

WARNING

The declared vibration total values and the declared noise emission values given in this instruction manual have been measured in accordance with a standardised test and may be used to compare one tool with another. They may be used for a preliminary assessment of exposure.

The declared vibration and noise emission values represent the main applications of the tool. However, if the tool is used for different applications, used with different accessories, or poorly maintained, the vibration and noise emission may differ. These conditions may significantly increase the exposure levels over the total working period. An estimation of the level of exposure to vibration and noise should take into account the times when the tool is turned off or when it is running idle. These conditions may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration and noise, such as maintaining the tool and the accessories, keeping the hands warm (in case of vibration), and organising work patterns.

FR

⚠ AVERTISSEMENT

EN RYOBI WARRANTY APPLICATION CONDITIONS

In addition to any statutory rights resulting from the purchase, this product is covered by a warranty as stated below.

1. The warranty period is 24 months for consumers and commences on the date when the product was purchased. This date has to be documented by an invoice or other proof of purchase. The product is designed and dedicated to consumer and private use only. So there is no warranty provided in case of professional or commercial use. This warranty applies only on new products.
2. There is a possibility to extend for a part of the range of power tools (AC/DC) the warranty period over the period described above using the registration on the www.ryobitools.eu website. The eligibility of products for extended warranty is clearly displayed in stores and / or on packaging and is contained within the product documentation. The end user is required to register his/her newly-acquired products online within 30 days from the date of purchase. The end user may register for the extended warranty in his/her country of residence if listed on the online registration form where this option is valid. Furthermore, end users must give their consent to the storage of their personal data that is required to be entered online. They must also accept the terms and conditions. The registration confirmation receipt, which is sent out by e-mail, and the original invoice showing the date of purchase will serve as proof of the extended warranty.
3. The warranty covers all defects of the product during the warranty period due to faults in workmanship or material at the purchase date. The warranty is limited to repair and/or replacement and does not include any other obligations including but not limited to incidental or consequential damages. The warranty is not valid if the product has been misused, used contrary to the instruction manual, or has been incorrectly connected to a power supply. This warranty does not apply to:

– any damage to the product that is the result of improper or lack of maintenance – any product that has been altered or modified
– any product where original identification (trade mark, serial number) markings have been defaced, altered or removed
– any damage caused by non-observance of the instruction manual
– any product not displaying the CE approval mark on the rating plate
– any product that has been attempted to be repaired by a non-authorised warranty service centre or without prior authorisation by Techtronic Industries
– any product connected to improper power supply (amps, voltage, frequency)
– any product used with inappropriate fuel mixture (fuel, oil, ratio of oil/ fuel mixture)
– any damage caused by external influences (water, chemical, physical, shocks) or foreign substances
– normal wear and tear spare parts
– inappropriate use, overloading of the tool
– use of non-approved accessories or parts
– Accessories provided with the tool or purchased separately including but not limited to blades, saw chains, cutting lines, etc.
– Any periodic adjustments to or maintenance cleaning of carburettors
- Components (parts and accessories) subject to natural wear and tear, including but not limited to bump knobs, drive belts, clutch, blades of hedge trimmers or lawn mowers, harness, cable throttle, carbon brushes, power cord, tines, felt washers, hitch pins, blower fans, blower and vacuum tubes, vacuum bag and straps, guide bars, saw chains, hoses, connector fittings, spray nozzles, wheels, spray wands, inner reels, outer spools, cutting lines, spark plugs, air filters, gas filters, mulching blades, etc.

1. For servicing, the product must be sent or presented to a RYOBI authorised service station listed for each country in the following list of service station addresses. In some countries your local RYOBI dealer undertakes to send the product to the RYOBI service organisation. When sending a product to a RYOBI service station, the product should be safely packed without any dangerous contents such as petrol, marked with sender's address and accompanied by a short description of the fault.
2. A repair / replacement under this warranty is free of charge. It does not constitute an extension or a new start of the warranty period. Exchanged parts or products become our property. In some countries delivery charges or postage will have to be paid by the sender. Your statutory rights arising from the purchase of the product remain unaffected.
3. This warranty is valid in the European Community, Switzerland, Iceland, Norway, Liechtenstein, Turkey, Russia, and the United Kingdom. Outside these areas, please contact your authorised RYOBI dealer to determine if another warranty applies.

AUTHORISED SERVICE CENTRE

Any request or issue with the product can be addressed to your local authorised service centres (visit www.ryobitools.eu) or directly to: Techtronic Industries GmbH, Max Eyth Straße 10, 71364 Winnenden, Germany. Please state the serial number and product type printed on the label.

FR RYOBI CONDITIONS D'APPLICATION DE LA GARANTIE

EN EC DECLARATION OF CONFORMITY

Cordless blower/vacuum

Brand: RYOBI | Manufacturer ^1 | Model number ^2 | Serial number range ^3

We declare as the manufacturer under our sole responsibility that the product mentioned below fulfills all the relevant provisions of the following European Directives, European Regulations and harmonised standards ^4

Measured sound power level.... 106.6 dB(A)

Guaranteed sound power level

Conformity assessment method to Annex V Directive 2000/14/EC amended by 2005/88/EC.

Authorised to compile the technical file:

FR DÉCLARATION CE DE CONFORMITÉ

Max-Eyth-Straße 10, 71364 Winnenden, Germany

^2 RY18BVXA

3 48607501000001 - 48607501999999

4 2006/42/EC, 2014/30/EU, 2000/14/EC, 2005/88/EC, 2011/65/EU, 2015/863/EU, EN 60335-1:2012+A11:2014 +A13:2017+A1:2019+A14:2019+A2:2019, EN 50636-2-100:2014, EN IEC 55014-1:2021, EN IEC 55014-2:2021, EN IEC 63000:2018, EN ISO 12100:2010

Todd Chipner

Vice President, Quality – Asia

^5 Alexander Krug, Managing Director

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

GB-DECLARATION OF CONFORMITY

Manufacturer: Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

We declare as the manufacturer under our sole responsibility that the product mentioned below

Cordless blower/vacuum

Brand: RYOBI

Model number: RY18BVXA

Serial number range: 48607501000001 - 48607501999999

fulfills all the relevant provisions of the following Regulations: S.I. 2008/1597 (as amended), S.I. 2016/1091 (as amended), S.I. 2012/3032 (as amended), S.I. 2001/1701 (as amended) and that the following designated standards have been used:

BS EN 60335-1:2012+A2:2019, BS EN 50636-2-100:2014,

BS EN IEC 55014-1:2021, BS EN IEC 55014-2:2021,

BS EN IEC 63000:2018, BS EN ISO 12100:2010

Measured sound power level: 106.6 dB(A)

Guaranteed sound power level: 108 dB(A)

Conformity assessment method to S.I. 2001/1701 Schedule 8 (as amended)

Todd Chipner

Vice President, Quality – Asia

Authorised to compile the technical file;

Techtronic Industries (UK) Ltd

Parkway

Marlow Bucks SL7 1YL

UK

EN RYOBI is a trade mark of Ryobi Limited, and is used under license.

Three vertical panels with diagonal striped patterns, no text or symbols present

Techtronic Industries GmbH

Max-Eyth-Straße 10,

71364 Winnenden, Germany

Techtronic Industries (UK) Ltd

Parkway

Marlow Bucks SL7 1YL

UK

961087454-03
