USER MANUAL 25001 KORONA

Black and white photo of whole onions, garlic, and peaches (no text or symbols)

CE

KORONA electric GmbH, Sundern/Germany

www.korona-electric.de

Close-up of a metallic cylindrical container with a central hole and a small rectangular object inside (no visible text or symbols)

Produktbeschreibung

Close-up of a small kitchen utensil with a cylindrical handle and three blades, partially filled in a clear glass bowl (no text or symbols visible)

Close-up of a transparent plastic container with a small black object inside, no visible text or symbols

Close-up of a transparent cylindrical object with a circular inset highlighting a small, reflective feature (no text or symbols visible)

Close-up of a transparent cylindrical object with a circular inset highlighting a small, reflective feature (no text or symbols visible)

Close-up of a mechanical component with two black arrows indicating direction (no text or symbols)

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

This appliance is intended and suitable for processing small amounts of foods. All other use or modification of the appliance is not intended by the manufacturer and might entail a risk of damage or injury. This appliance is not intended for commercial use!

Safety:

This symbol identifies hazards which may cause injuries!

This symbol identifies electric shock hazards!

General Safety Instructions

• Manufacturer takes no responsibility for any damage caused by incorrect use.
• Incorrect or improper use can damage the appliance and cause injuries to the user.
• Before connecting this appliance to the mains, make sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

Caution! Danger of electric shock!

• Never put the appliance, cord or plug into water or any other liquid.
• Do not use the appliance near a sink or wash basin.
• Do not use the appliance with wet hands.
• Do not use the appliance outdoors.

An electric appliance is not a toy!

• Never leave the appliance unattended during use.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

- Keep the appliance and its cord out of reach of children less than 8 years.

- Always unplug your appliance when it is not in use, and before cleaning.

• Always pull the plug – not the cord.

- Keep the appliance and the cord well away from any hot surfaces to avoid any damage to the appliance.

- Make sure the cord may not inadvertently be pulled cause anyone to trip when in use. Do not allow the cord to hang over sharp edges.

- Do not bend the cord or wind it round the appliance.

Do not use the appliance,

• if the cord is damaged.
• in case of malfunction.
- if the appliance was dropped or is damaged otherwise. Have it checked and, if necessary, repaired by a qualified person/Customer Service. Never attempt to make any modifications to or repair the appliance yourself.
- Only use accessories evaluated for use with this appliance.
• Never attempt to drive any objects into the appliance.
• Never attempt to open the housing yourself!

Special Safety Instructions

Warning! To avoid the possibility of injury/damage to the appliance, electric shock, risk of fire and burns!

• Only use the appliance for its intended purpose (processing small amounts of foods) and as described in this manual.
• Place the appliance on an even and heat resistant surface.
• Never touch the rotating parts/blades with your hair and/or other objects when using the appliance. This could lead to serious injuries and/or damage to the appliance.
• Careful, when cleaning the blade, it is very sharp.
• If the cutting knife should experience any problems during operation, switch off the appliance, disconnect it from the mains and remove the blockage.
• Never process any hard foods, e.g. nuts, ice, chocolate, etc.

• Before switching on the appliance, make sure that the appliance lid and the motor unit are firmly secured.
  • Never let the appliance run empty.

• If necessary, only remove the mix with a spatula. Appliance must be switched off.

• Reassemble the appliance after each use and cleaning, to avoid injuries.
• Keep the appliance out of the reach of children.
  • CO-Time: 10 seconds

2 1 3 8 7 4 5 6 KORONA®

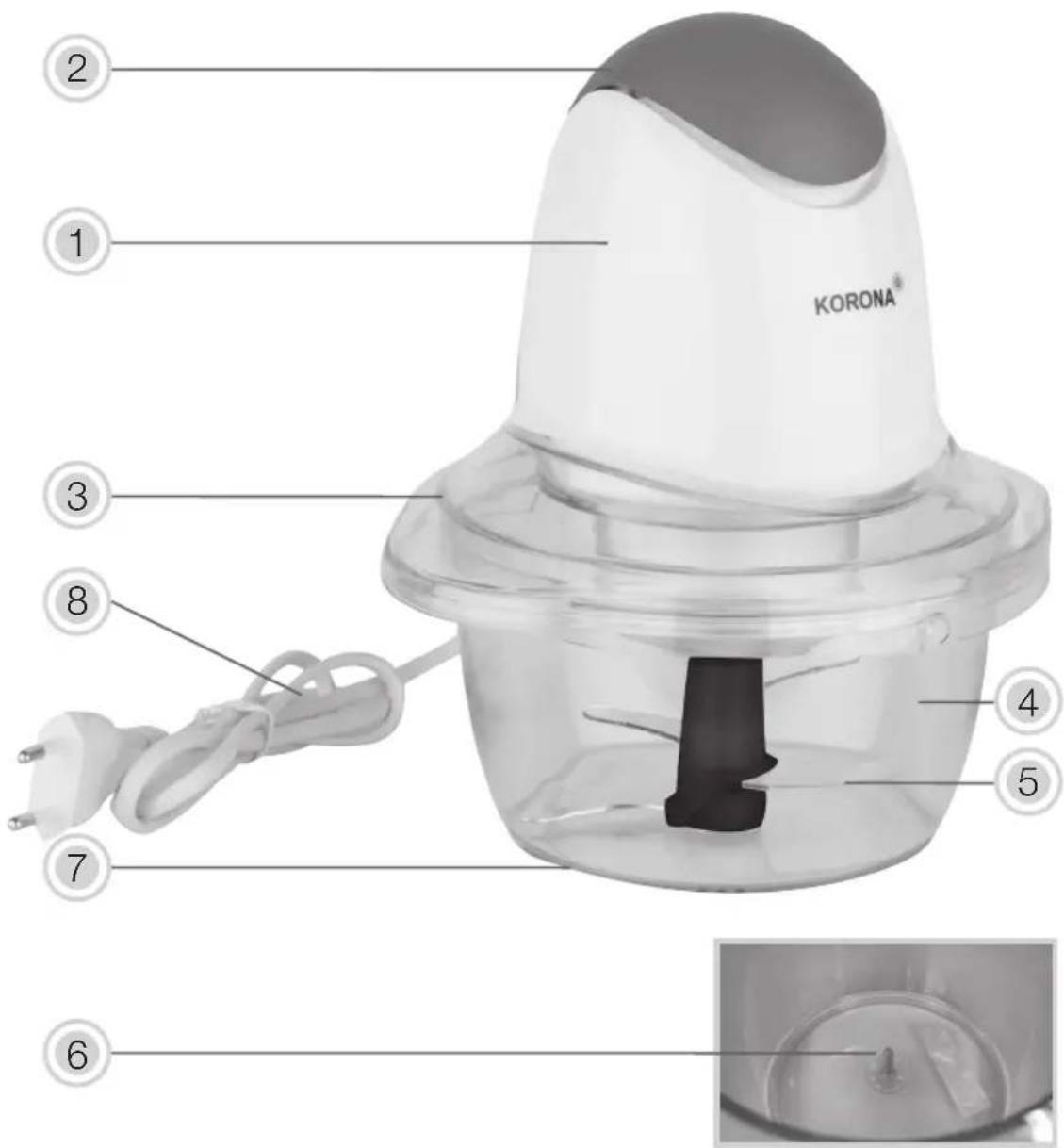

Product Description

1. Motor unit
2. On/Off switch
3. Lid
4. Mixing container
5. Cutting knife
6. Driving shaft
7. Non-slip pad for mixing container
8. Power cord and plug

Before First Use

• Remove all packaging material and check whether the appliance is complete and undamaged.
  • Fully unwind the power cord (8).
• Clean the appliance / detachable parts as specified under "Cleaning and Care".

Warning: Plastic bags are a danger to toddlers and es, therefore keep them away to avoid suffocation.

Operation

Your mini chopper can be used for processing small amounts of foods, e.g. meat, herbs, garlic, hard-boiled eggs, cheese, vegetables, dry bread, etc.

Never touch the rotating parts/blades with your hands for other objects when using the appliance. This could to serious injuries.

Operation

1. Place the mixing container (4) onto the non-slip pad (7).
2. Place the cutting knife (5) onto the driving shaft (6).

Close-up of a small kitchen utensil with a cylindrical tool inserted into a clear glass bowl (no text or symbols visible)

1. Put the resp. ingredients into the mixing container (4). Cut them into pieces (2cm) first.

2. Press and fit the lid (3) on the mixing container (4).

Close-up of a transparent plastic container with a small black object inside, no visible text or symbols

Close-up of a transparent cylindrical object with a circular highlight on its surface (no text or symbols visible)

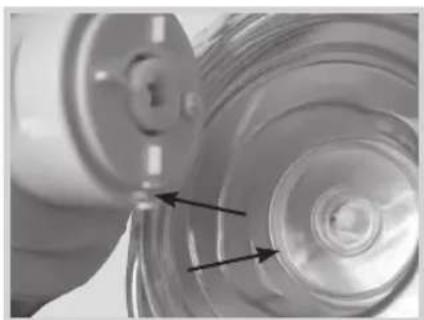

1. Insert the motor unit (1) onto the lid (3) of the container (4). Make sure it is securely engaged. If motor unit (1) is not properly positioned, the appliance cannot be switched on.

Close-up of a mechanical component with concentric rings and arrows indicating features (no visible text or symbols)

Close-up of a transparent plastic or glass container with two black arrows pointing inward (no text or symbols visible)

1. Connect the power plug (8) to a properly installed socket.

2. To start the chopping process, briefly press down the on/off button (2) for several seconds in a row (pulse function), but no longer than 10 seconds at a time.

3. Once the mixing process is complete, release the off button (2) of the appliance and disconnect it from the mains.

Safety Switch: This appliance has an integrated safety switch and can only be switched on when the motor unit is properly positioned onto the mixing container.

Attention: The appliance is equipped with a pulse switch which does not engage. Once the on/off button is released the appliance switches off, automatically.

Warning: DO NOT operate the appliance longer than 10 seconds (CO-time) at a time, to avoid overheating of the appliance.

Maximum Processing Quantity

Ingredients Maximum	quantity
Meat 75g
Herbs 50g
Nuts 200g
Cheese 100g
Bread 75g
Hardboiled Eggs 6
Onions/garlic 250g
Biscuits 150g
Fruits 250g

Cleaning and Care

Before cleaning, always switch off the appliance and disconnect it from the mains. Let it completely cool down. Never immerse the motor unit (1) in water. Danger! Electric Shock!

Clean the appliance as soon as possible after use with a damp cloth and do not use any aggressive cleaning agents.

Clean the mixing container (4), lid (3) as well as the cutting knife (5) in warm water using some dishwashing detergent or in the dishwasher.

Cleaning and user maintenance shall not be made by en without supervision.

The blade is extremely sharp. Therefore, reassemble nit after use. Risk of injury!

After use, store the appliance in a clean and dry place and keep it out of the reach of children.

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but are to be collected separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal or your local dealer.

Your Mini Chopper 25001 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.

Technical Data:

Voltage: 220 - 240 V \~ 50 Hz

Rated Power: 500 W

CO-Time: 10 Seconds

Protection Class: 11

CO-Time: The CO-Time (Continuous Time) describes the time how long an appliances may be used without the motor being damaged or overheating. After the appliance has run for this period of time it must be switched off to allow the motor to cool down.

CE

Subject to change without notice!

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

• if the appliance has not been used in accordance to the instructions
  • for damages due to wear and tear (batteries, etc.)
  • for damages known by customer at time of purchase
  • for damages caused by owner

This guarantee does not affect your statutory right, nor any legal right you may have as a costumer under applicable national legislation governing the purchase of goods.

In order to assert his/her right in a guarantee case during the guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Service Address:

KORONA Service, Am Steinbach 9, 59872 Meschede, Germany

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.

Close-up of a metallic cylindrical container with a central hole and a small rectangular object inside (no visible text or symbols)

Productbeschrijving

Close-up of a kitchen utensil with a cylindrical blade and a small object inside a glass bowl (no text or symbols visible)

Close-up of a transparent plastic container with a small black object inside, no visible text or symbols

Close-up of a transparent cylindrical object with a circular highlight on its surface (no text or symbols visible)

Close-up of a mechanical component with concentric rings and two arrows pointing to features (no visible text or symbols)

Close-up of a metallic mechanical component with two black arrows indicating direction (no text or symbols)

Close-up of a circular container with a central rod and a label '6' pointing to it, no readable text or symbols beyond the number.

Close-up of a kitchen utensil with a cylindrical tool inserted into a clear bowl (no text or symbols visible)

Two grayscale images showing a small object inside a transparent container, with a circled area highlighting a specific region (no text or symbols present)

Close-up of a mechanical component with concentric rings and directional arrows indicating motion (no text or symbols)

Abstract geometric shape with curved and angular lines, no text or symbols present

Ref: 25001/30-2018.11
