USER MANUAL 150993 BARTSCHER

Exterior view of a modern stainless steel coffee maker with control knobs and a side panel (no visible text or symbols)

200061

Bedienungsanleitung

Hot water dispenser 5L

from page 13 to 24

GB/UK

Mode d'emploi

of the original instruction manual

Read these instructions before using and keep them available at all times!

1. General information.... 14

1.1 Information about the instruction manual 14
1.2 Key to symbols.... 14
1.3 Liability and Warrantees.... 15
1.4 Copyright protection 15
1.5 Declaration of conformity.... 15

2.Safety 16

2.1 General information.... 16
2.2 Safety instructions for use of the device 16
2.3 Intended use 17

3. Transport, packaging and storage.... 18

3.1 Delivery check.... 18
3.2 Packaging 18
3.3 Storage.... 18

4. Technical data 19

4.1 Technical specification 19
4.2 Overview of parts 19

5. Installation and operation.... 20

5.1 Safety instructions....20
5.2 Installation and connection.... 20
5.3 Operation 21

6. Cleaning and maintenance.... 23

6.1 Safety advice....23
6.2 Cleaning and descaling 23
6.3 Safety instructions for maintenance 24

7. Waste disposal 24

Bartscher GmbH

1.1 Information about the instruction manual

This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide.

Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device.

In addition to the information given here, you should comply with any local Health and safety Controls and generally applicable safety regulations.

The instruction manual forms part of the product and should be kept near the device and easily accessible for anyone carrying out the installation, servicing, maintenance or cleaning.

1.2 Key to symbols

In this manual, symbols are used to highlight important safety instructions and any advice relating to the device. The instructions should be followed very carefully to avoid any risk of accident, personal injury or material damage.

WARNING!

This symbol highlights hazards, which could lead to injury.

Please follow the instructions very carefully and proceed with particular attention in these cases.

WARNING! Electrical hazard!

This symbol draws attention to potential electrical hazards. If you do not follow the safety instructions, you may risk injury or death.

CAUTION!

This symbol highlights instructions, which should be followed to avoid any risk of damage, malfunctioning and/or breakdown of the device.

NOTE!

This symbol highlights tips and information, which have to be followed for an efficient and trouble-free operation of the device.

WARNING! Hot surface!

This symbol is a warning that the device surface is hot when in use. Ignoring this warning may result in burns!

1.3 Liability and Warrantees

All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years.

The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. The German version of this instruction manual is definitive.

If the delivery consists of a special model, the actual scope of delivery may differ from the descriptions and illustrations in this manual. This is also the case for special orders or when the device has been modified in line with new technology.

NOTE!

Read this manual carefully and thoroughly before any operation of the device, and especially before turning it on!

Manufacturer is not liable for any damages or faults caused by:

• violation of advice concerning operation and cleaning;
• use other than designed;
• alterations made by user;
• use of inadequate spare parts.

We reserve the right to make technical changes for purposes of developing and improving the useful properties.

1.4 Copyright protection

The instruction manual including any texts, drawings, images or other illustrations is copyright. No part of this publication may be reproduced, transmitted or used in any form or by any means without permission in writing from the manufacturer. Any person who commits any unauthorized act in relation to this publication shall be liable to claims for damages. All rights reserved.

NOTE!

The contents, texts, drawings, pictures and any other illustrations are copyright and subject to other protection rights. Any person unlawfully using this publication is liable to criminal prosecution.

1.5 Declaration of conformity

The device complies with the current standards and directives of the EU.

We certify this in the EC declaration of conformity.

If required we will be glad to send you the according declaration of conformity.

2.Safety

This section provides an overview of all important safety aspects.

In addition every chapter provides precise safety advice for the prevention of dangers which are highlighted by the use of the above mentioned symbols.

Furthermore, attention should be paid to all pictograms, markers and labels on the device, which must be kept in a permanent state of legibility.

By following all the important safety advice you gain an optimal protection against all hazards as well as the assurance of a safe and trouble-free operation.

2.1 General information

This device is designed in accordance with the presently applicable technological standards. However, the device can pose a danger if handled improperly and inappropriately.

Knowing the contents of the instruction manual as well as avoiding mistakes and thus operating this device safely and in a fault-free manner is very essential to protect yourselves from the hazards.

To prevent hazards and to ensure optimum efficiency, no modifications or alterations to the device that are not explicitly approved by the manufacturer may be undertaken.

This device may only be operated in technically proper and safe condition.

2.2 Safety instructions for use of the device

The specifications regarding the industrial safety are based on the Regulations of the European Union applicable at the time of manufacturing the device.

If the device is used commercially, the user is obliged to ensure that the said industrial safety measures concur with the state of the rules and regulations applicable at the time in question for the entire period of use of the device and to comply with the new specifications.

Outside the European Union, the industrial safety laws applicable at the place of installation of the device and the regional territorial provisions must be complied with.

Besides the industrial safety instructions in the instruction manual, the general safety and accident prevention regulations as well as environment protection regulations applicable for area of application of the device must be followed and complied with.

! CAUTION!

The device can be used by children 8 years and up, as well as by people with disabilities and those with limited experience/knowledge as long as they are under supervision or have been instructed on proper use of the device and its possible dangers.

○ Children should not play with the device.
○ Cleaning and maintenance cannot be performed by children younger than 8 years old and must be done under supervision.
○ Children under the age of 8 years old must be kept away from the device and its power cord.
- Please keep these instructions and give them to future owners of the device.
- All people using the device should follow the instructions and tips contained in these instructions.
○ Only use the device indoors.

2.3 Intended use

Safe operation is only guaranteed when using the device for its intended purpose.

Any technical interventions, as well as assembly and maintenance are to be made by a qualified customer service only.

The device is intended for home use or in similar places such as:

• in kitchens for store or office employees or in other service locations;
• in suburban properties;
• by guests of hotels, motels and other places of accommodation;
• in Bed & Breakfasts.

The hot water dispenser is intended only for boiling water and keeping it at high temperatures:

Do not use the hot water dispenser for:

• heating or boiling liquids containing sugar, sweeteners, acids, alkalines or alcohol;
• storage and heating of fluids or materials which are flammable, dangerous to health, etc.

CAUTION!

Any use going beyond the intended purpose and/or any different use of the device is forbidden and is not considered as conventional.

Any claims against the manufacturer or his authorized representative as a consequence of experiencing damages resulting from unconventional use are impossible.

The operator is liable for all damages resulting from inappropriate use.

3. Transport, packaging and storage

3.1 Delivery check

Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only.

Note the extent of damage on the carrier's bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints.

3.2 Packaging

Please do not throw away the covering carton of your device as it might be useful for storage purposes, when moving or, in case of damages, when the device must be sent back to a repair center. The outer and inner packing material should be removed completely from the device before installation.

NOTE!

If you liked to dispose the packing, consider the regulations applicable in your country. Supply re-usable packing materials to the recycling.

Please inspect the device upon completeness. In case any part is missing please contact our customer service center immediately.

3.3 Storage

Keep the package closed until installation and under consideration of the outside indicated positioning- and storage markings.

Packages should be stored under consideration of the following:

• Do not store outdoors.
• Keep it dry and dust-free.
• Do not expose it to aggressive media.
• Do not expose it to direct sunlight.
• Avoid mechanical shocks and vibration.
• In case of longer storage (> 3 months) make sure you check the state of the packaging and the parts regularly. If required refresh or renew.

4. Technical data

4.1 Technical specification

Name Hot water dispenser 5L
Code-No.:	200061
Material:	Reservoir and lid: stainless steel;Handle and spigot: artificial materials
Temperature range: 30 °C – 100 °C
Capacity: 5 liters
Power: 1.8 kW / 230 V~ 50 Hz
Dimensions: ∅ 210 mm, H 400 mm
Weight: 1.85 kg

We reserve the right to make technical changes!

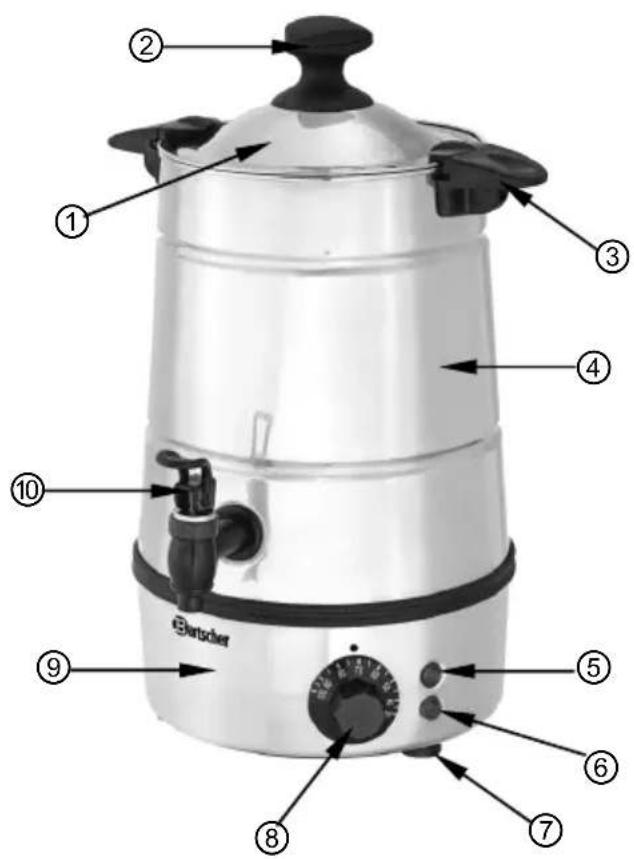

4.2 Overview of parts

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ Blutscher

① Lid
② Lid handle
③ Handle reservoir
④ Reservoir
⑤ Green control light
⑥ Red control light
⑦ Feet
⑧ Temperature dial
⑨ Base
⑩ Spigot

5. Installation and operation

5.1 Safety instructions

WARNING! Risk of electric shock!

The device must only be connected to a properly installed single socket with protective contact.

Never remove the power cable by pulling the cable itself; always grab the plug housing.

• Never allow the power cable to come into contact with heat sources or sharp edges. The power cable should not hang over the side of the working surface. Ensure that no one can step on or trip over the cable.
• The power cable must not be folded, bent or tangled, and must always remain fully unrolled.
• Never place the device or other objects on the power cable.
• Do not lay the cable over carpets or heat insulations. Do not cover the cable. Keep away the cable from operating range and do not dunk it into water.
• Do not use the device in case it does not function properly, has been damaged or dropped.
• Do not use any accessory or spare parts that have not been recommended by the manufacturer. These can be dangerous for the user or lead to damages of the device or personal injury, and further, the warranty expires.
• Do not move or tilt the device when in operation.
• Never use the device with wet or moist hands.
  • Never leave the device unattended when in use.

5.2 Installation and connection

• Unpack the device and remove all packing material.
• Put the device in a safe place that can support its weight and is not heat sensitive.
  • Never place the device at the edge of a table to avoid accidents.
• Never put the device in a moist or wet area.
• Do not place the device near an open flame, electric heater or other heat source.

WARNING! Hazard via electrical current!

The device can cause injuries due to improper installation!

Before installation the local power grid specification should be compared with that of the device (see type label).

Connect the device only in case of compliance! Take note of the security advice!

• The electrical circuit of the socket must be secured to at least 16A. Only connect the device to a wall outlet; do not use any extension cords or power strips.
• Place the device so that the plug is easily accessible so as to quickly disconnect the device if the need arises.

5.3 Operation

- Prior to first use, wash the device with warm water and a mild cleaning agent. Rinse with clean water and dry thoroughly.

- Fill the reservoir with the desired amount of fresh water (up to the marking „MAX“).

CAUTION!

To reduce the time needed for heating, fill the reservoir with warm water. This will save time and energy!

WARNING! Danger of burns!

Fill with only the necessary amount of water! Too much water in the reservoir may result in spilling and burns!

• Place the lid on the reservoir using the lock, and turn the reservoir clockwise to close.
• Connect the device to an appropriate outlet. The green control light will come on.

CAUTION!

It is important that water be in the device prior to turning it on. Do not will the reservoir with other liquids which cannot be consumed, such as acids, alkalines, oils, etc.!

- Set the desired temperature using the temperature dial between 30^ C and 100^ C . When the temperature dial is turned, the red control light will come on and the green light will go off.

• Water will be heated to the temperature set.

- When the temperature set has been reached, the red control light will go off.

The green control light will come on, and the water will remain at a stable temperature.

WARNING! Danger of burns!

Never remove the lid when water is being boiled. Escaping steam can burn hands, arms, and faces!

• Prior to filling the reservoir, turn the device off, then remove the lid and pour the required amount of water.
• To pour water from the device, pull the spigot handle forward and pour until the container is filled. Release the spigot handle, and it will close automatically.
• Check the quantity of water in the reservoir and add more if necessary.

CAUTION!

Check the water level regularly. Never turn on the device without water!

WARNING! Hot surface! Danger of burns!

When the device is in use, its surface gets as hot as the temperature of the water! Do not touch the hot surface of the device!

• If the device is not in use, turn the temperature dial all the way to the left and remove the plug from its socket.
• Leave remaining water to cool and pour out of the reservoir.
• The device is equipped with a safety feature to prevent it being turned on without water. If, by mistake, the device is turned on with little or no water, the safety feature will activate and the device will turn off automatically. Disconnect the device and leave to cool. After cooling, refill the reservoir with fresh water and turn the device on.
  The same safety feature will activate if there are too many calcium deposits in the device. If this occurs, empty the reservoir and allow the device to cool. After it cools, descale the device (see 6.2 „Cleaning and descaling”). After descaling, the device can be turned on again.

6. Cleaning and maintenance

6.1 Safety advice

Before beginning with repair or cleaning works make sure the device has been disconnected from power supply and has cooled down.
- Do not use any acid agents and make sure no water ingresses the device.
To protect yourself from electric shock, never immerse the device, its cables and the plug in water or other liquids.

CAUTION!

The device is not suited for direct washing via water jets. Therefore, you must not use any kind of pressure water jet for cleaning the device!

6.2 Cleaning and descaling

Cleaning

• Clean the device after each use.
• Clean external surfaces with a wet and soft cloth with mild detergent.
• Clean the interior of water tank with a mild detergent and rinse with clean water.
• Next, clean the emptying tap by letting water through.
  Use soft cloth only and make sure you never use any kind of abrasive agents, which could scratch the surface.
  ○ After the cleaning procedure you should use a soft and dry cloth to wipe dry and polish the surface.

Descaling

- Inappropriate water quality may cause building up of scale. Build up of scale extends heating time and can lead to damage of the device. Use filtered water to avoid scale build up!

CAUTION!

No claim shall be approved in case scale has not been regularly removed, in line with the description included in the device manual.

Our guarantee does not cover this type of claim!

Please, do remove scale from the device!

• Fill the water tank with clean water, add vinegar or a suitable agent and boil the solution.

• Open emptying tap to let some of the solution pass through, to remove the scale inside.

• Boil the remaining solution 1 or 2 times more.

• Cool the device down.
• Remove the solution and rinse the tank several times.

6.3 Safety instructions for maintenance

• Inspect the power cable regularly for damage. Never use the device if the cable is damaged. If the power cable is damaged, have an authorised service center or qualified electrician replace it.
• In case of damage or malfunction, please contact your stockist or our customer service centre.
  ○ Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device. Do not attempt to repair the device yourself.

7. Waste disposal

Discarding old devices

At the end of its service life the discarded device has to be disposed in accordance with the national regulations. It is advisable to contact a company which is specialized in waste disposal, or just contact the local disposal service in your community.

WARNING!

To exclude any abuse and the dangers involved make the waste device unfit for use before disposal. For that purpose disconnect device from mains supply and remove mains connection cable from the device.

NOTE!

For the disposal of the device please consider and act according to the national and local rules and regulations.

Bartscher GmbH

4. Specifications 79
