USER MANUAL MA-DA2-01 Gembird

natural_image Mechanical linkage assembly with two articulated arms and a central base component (no text or symbols visible)

MA-DA2-01

ADJUSTABLE DESK 2-DISPLAY MOUNTING ARM (TILTING), 13"-27", UP TO 7 KG LCD/PLASMA-TV TISCHHALTERUNG, 13"-27" (7 KG)

DUBBELE MONITORARM MET GASVEER (ZWENKBAAR), 13"-27", MAX. 7 KG SUPPORT MURAL D'ÉCRAN, 13"-27" (7 KG)

ADJUSTABLE DESK 2-DISPLAY MOUNTING ARM

(TILTING), 13"-27", UP TO 7 KG

Features

• Monitor desk mount with double monitor arms
- Arms rotate, extend and retract, tilt to change reading angles, and allow to rotate displays from landscape-to-portrait mode, etc
- Enables easy ergonomic positioning for reduced strain
- Works with almost any LCD monitor (max. 27")
• Durable adjustable gas-springs suitable for monitors of 2 - 7 kg
• Strong desk clamp for easy and secure fixation on your desk
• VESA compatible (100 x 100 mm and 75 x 75 mm)

Specifications

• Material: steel (1.35 mm)
• Max. load: 7 kg (13"-27")
- Net weight: 4.7 kg

Gembird MA-DA2-01 - Specifications - 1

natural_image Silhouette of a person disposing of trash into a bin (no text or symbols)

Gembird MA-DA2-01 - Specifications - 2

Gembird MA-DA2-01 - Specifications - 3

gembird®

MA-DA2-01

ADJUSTABLE DESK 2-DISPLAY MOUNTING ARM

(TILTING), 13"-27", UP TO 7 KG

1

Gembird MA-DA2-01 - (TILTING), 13"-27", UP TO 7 KG - 1

natural_image Line drawing of a V-shaped robotic arm with articulated joints (no text or symbols)

arm assembly A (x1)

Gembird MA-DA2-01 - (TILTING), 13"-27", UP TO 7 KG - 2
connecting plate B (x1)

Gembird MA-DA2-01 - (TILTING), 13"-27", UP TO 7 KG - 3
desk clamp C (x1)

Gembird MA-DA2-01 - (TILTING), 13"-27", UP TO 7 KG - 4
M6x10 (x2) D

Gembird MA-DA2-01 - (TILTING), 13"-27", UP TO 7 KG - 5
grommet plate F (x1)

Gembird MA-DA2-01 - (TILTING), 13"-27", UP TO 7 KG - 6
bolt H (x1)

Gembird MA-DA2-01 - (TILTING), 13"-27", UP TO 7 KG - 7

fixing plate I (x1)
Gembird MA-DA2-01 - (TILTING), 13"-27", UP TO 7 KG - 8
allen key 5mm (x1) K

Gembird MA-DA2-01 - (TILTING), 13"-27", UP TO 7 KG - 9
M4×12 (x4) M-A

Gembird MA-DA2-01 - (TILTING), 13"-27", UP TO 7 KG - 10
M6×12 (x4) M-B

Gembird MA-DA2-01 - (TILTING), 13"-27", UP TO 7 KG - 11
washer D6 (x4) M-C

Gembird MA-DA2-01 - (TILTING), 13"-27", UP TO 7 KG - 12
M4×12 (×4) M-A

Gembird MA-DA2-01 - (TILTING), 13"-27", UP TO 7 KG - 13
M6×12 (×4) M-B

Gembird MA-DA2-01 - (TILTING), 13"-27", UP TO 7 KG - 14
washer D6 (x4) M-C

Gembird MA-DA2-01 - (TILTING), 13"-27", UP TO 7 KG - 15

gembird®

MA-DA2-01

ADJUSTABLE DESK 2-DISPLAY MOUNTING ARM

(TILTING), 13"-27", UP TO 7 KG

2
Gembird MA-DA2-01 - (TILTING), 13"-27", UP TO 7 KG - 1

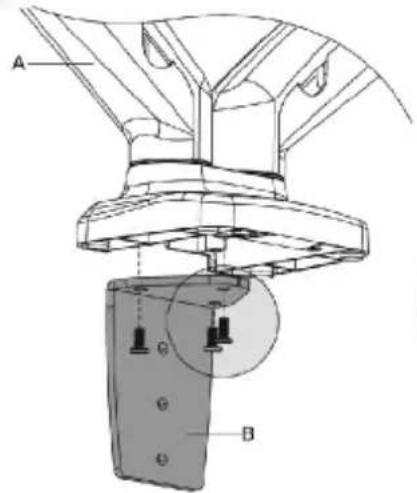

text_image A C B

Gembird MA-DA2-01 - (TILTING), 13"-27", UP TO 7 KG - 2

text_image Technical diagram of a mechanical assembly with labeled parts E and J, showing internal components and alignment lines.

Gembird MA-DA2-01 - (TILTING), 13"-27", UP TO 7 KG - 3

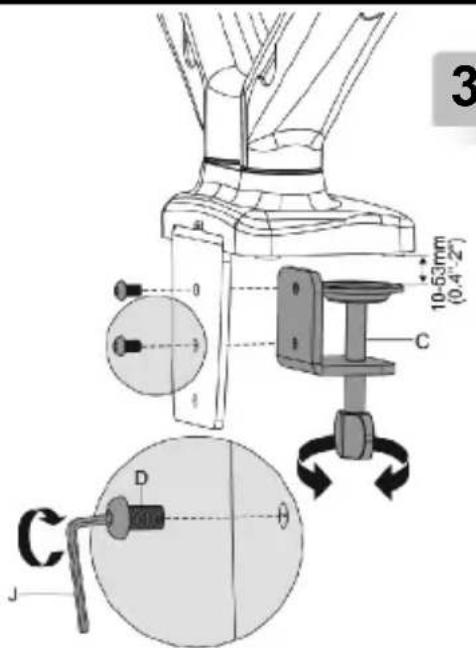

text_image 3 10-53mm (0.4°-2°) C D J

4

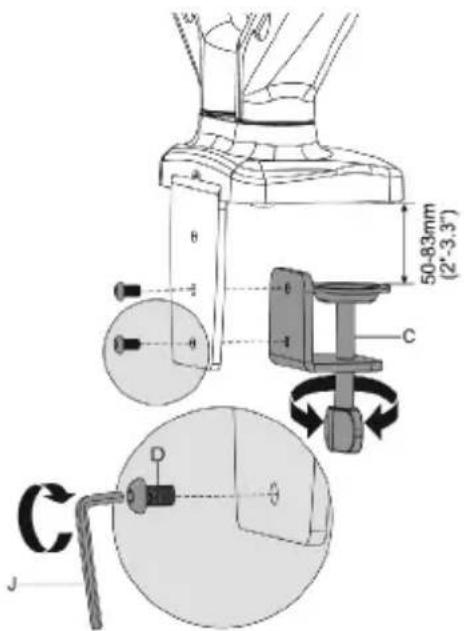

Gembird MA-DA2-01 - (TILTING), 13"-27", UP TO 7 KG - 4

text_image 50-83mm (2"-3.3") C J

5
Gembird MA-DA2-01 - (TILTING), 13"-27", UP TO 7 KG - 5

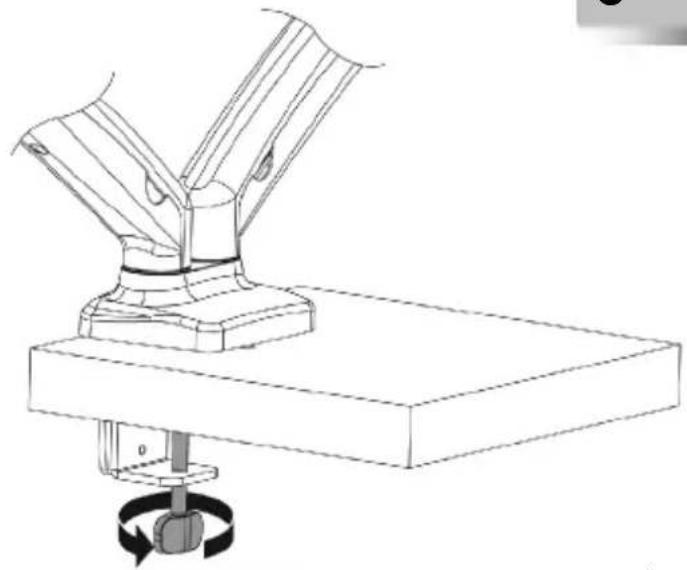

natural_image Technical line drawing of a mechanical assembly with a rotating base and clamping mechanism (no text or symbols)

Gembird MA-DA2-01 - (TILTING), 13"-27", UP TO 7 KG - 6

gembird®

MA-DA2-01

ADJUSTABLE DESK 2-DISPLAY MOUNTING ARM

(TILTING), 13"-27", UP TO 7 KG

6
Gembird MA-DA2-01 - gembird® - 1

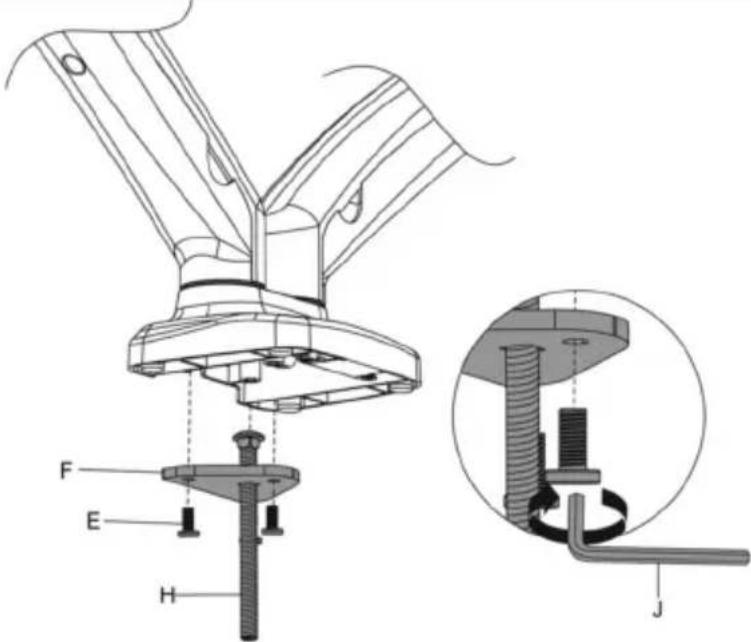

text_image Technical diagram of a mechanical assembly with labeled parts (F, E, H) and an inset showing a threaded component.

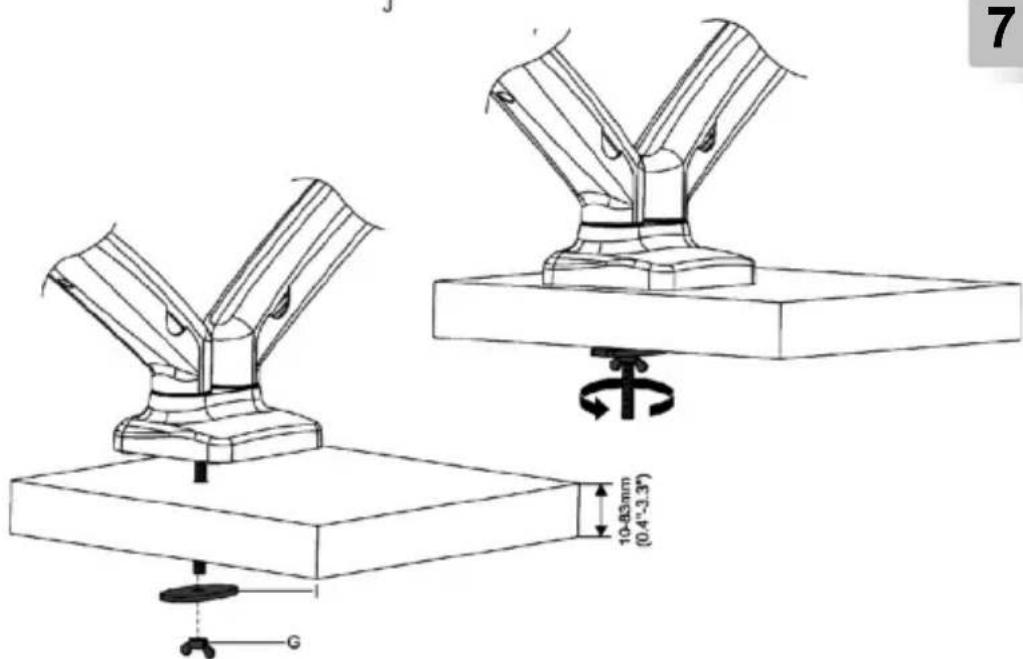

Gembird MA-DA2-01 - gembird® - 2

text_image 7 10-83mm (0.4"-3.3") G

Gembird MA-DA2-01 - gembird® - 3

gembird®

MA-DA2-01

ADJUSTABLE DESK 2-DISPLAY MOUNTING ARM

(TILTING), 13"-27", UP TO 7 KG

8

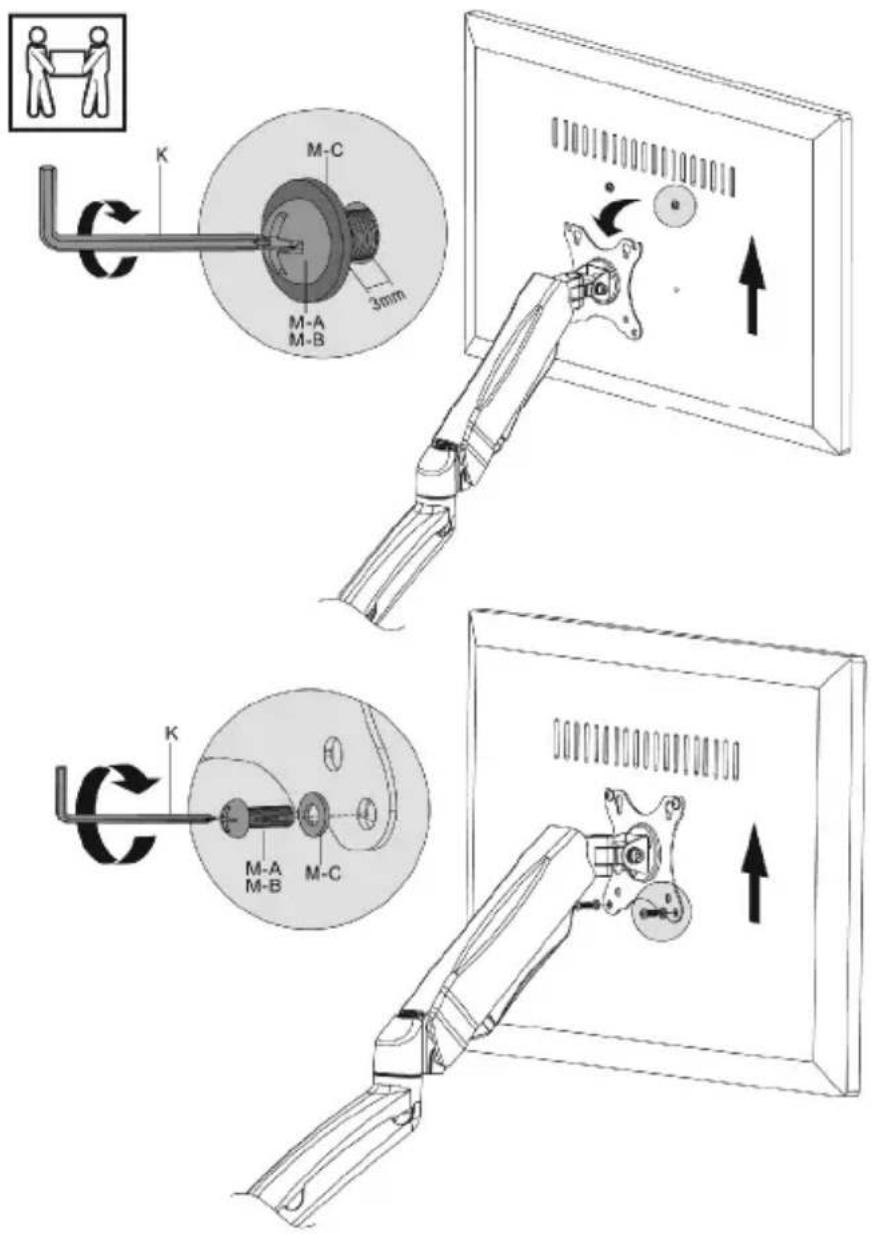

Gembird MA-DA2-01 - (TILTING), 13"-27", UP TO 7 KG - 1

text_image Technical diagram illustrating mechanical assembly steps with labeled components and directional arrows

Gembird MA-DA2-01 - (TILTING), 13"-27", UP TO 7 KG - 2

gembird®

MA-DA2-01

ADJUSTABLE DESK 2-DISPLAY MOUNTING ARM

(TILTING), 13"-27", UP TO 7 KG

9
Gembird MA-DA2-01 - gembird® - 1

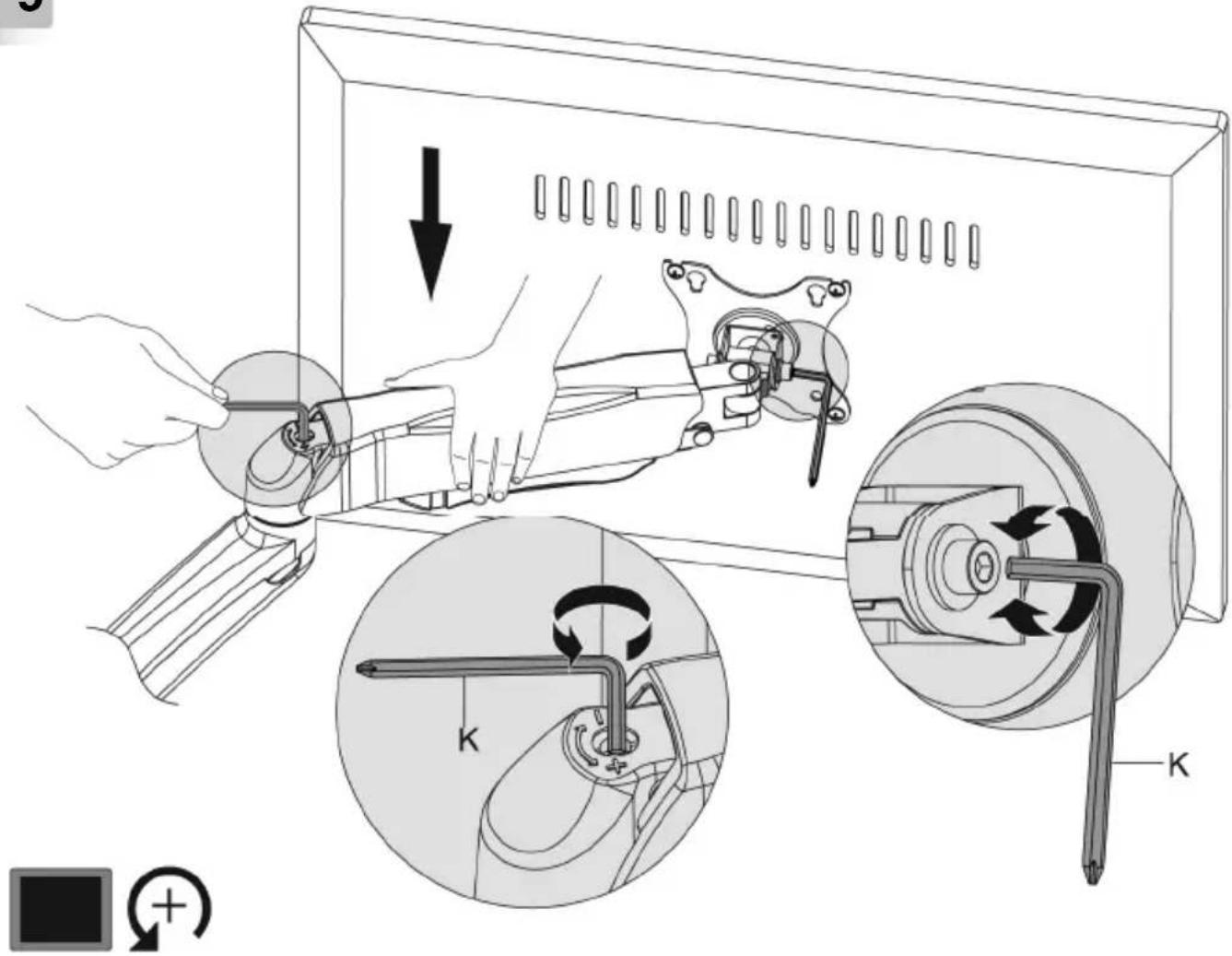

text_image Technical diagram illustrating mechanical assembly with labeled parts and directional arrows, including a magnified inset showing rotational motion.

Gembird MA-DA2-01 - gembird® - 2

Gembird MA-DA2-01 - gembird® - 3

Gembird MA-DA2-01 - gembird® - 4

gembird®

MA-DA2-01

ADJUSTABLE DESK 2-DISPLAY MOUNTING ARM

(TILTING), 13"-27", UP TO 7 KG

10

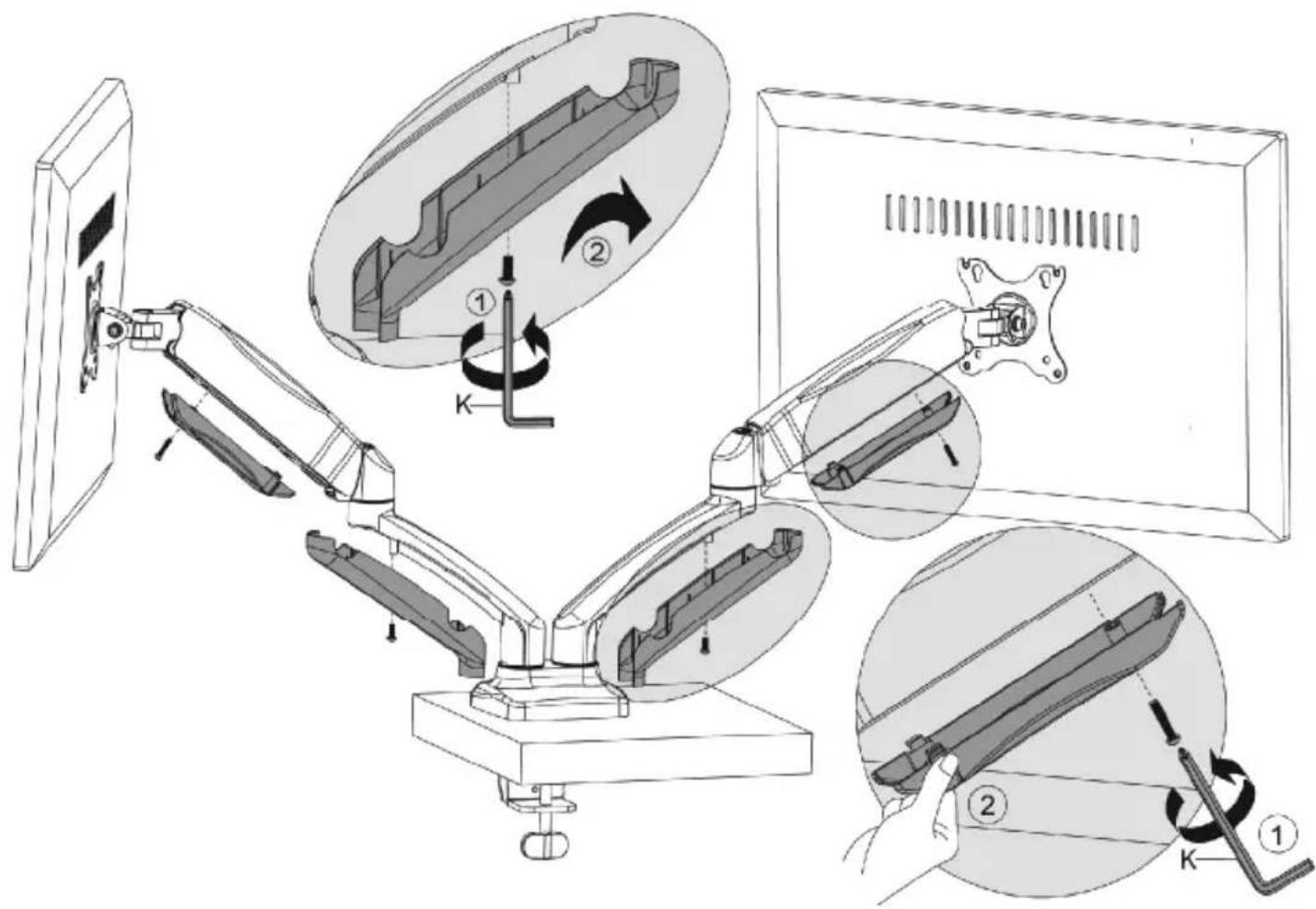

Gembird MA-DA2-01 - gembird® - 5

text_image Technical diagram illustrating mechanical assembly steps with labeled components and directional arrows

Gembird MA-DA2-01 - gembird® - 6

gembird®

MA-DA2-01

ADJUSTABLE DESK 2-DISPLAY MOUNTING ARM

(TILTING), 13"-27", UP TO 7 KG

11

Gembird MA-DA2-01 - gembird® - 7

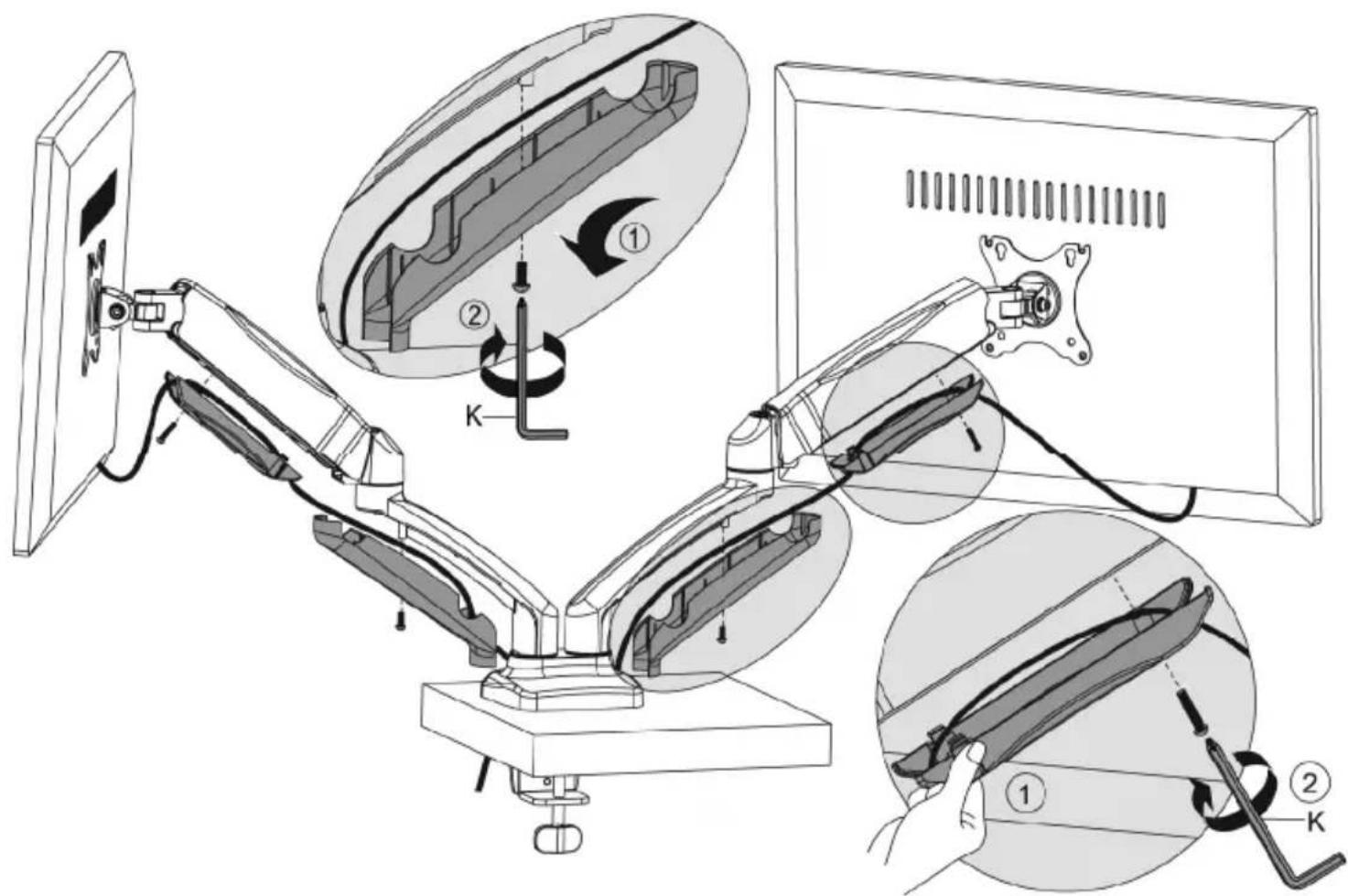

text_image Technical diagram illustrating a mechanical assembly with labeled parts and directional arrows, showing components like a computer monitor and cable being inserted.

Gembird MA-DA2-01 - gembird® - 8

gembird®

MA-DA2-01

ADJUSTABLE DESK 2-DISPLAY MOUNTING ARM

(TILTING), 13"-27", UP TO 7 KG

12
Gembird MA-DA2-01 - (TILTING), 13"-27", UP TO 7 KG - 1

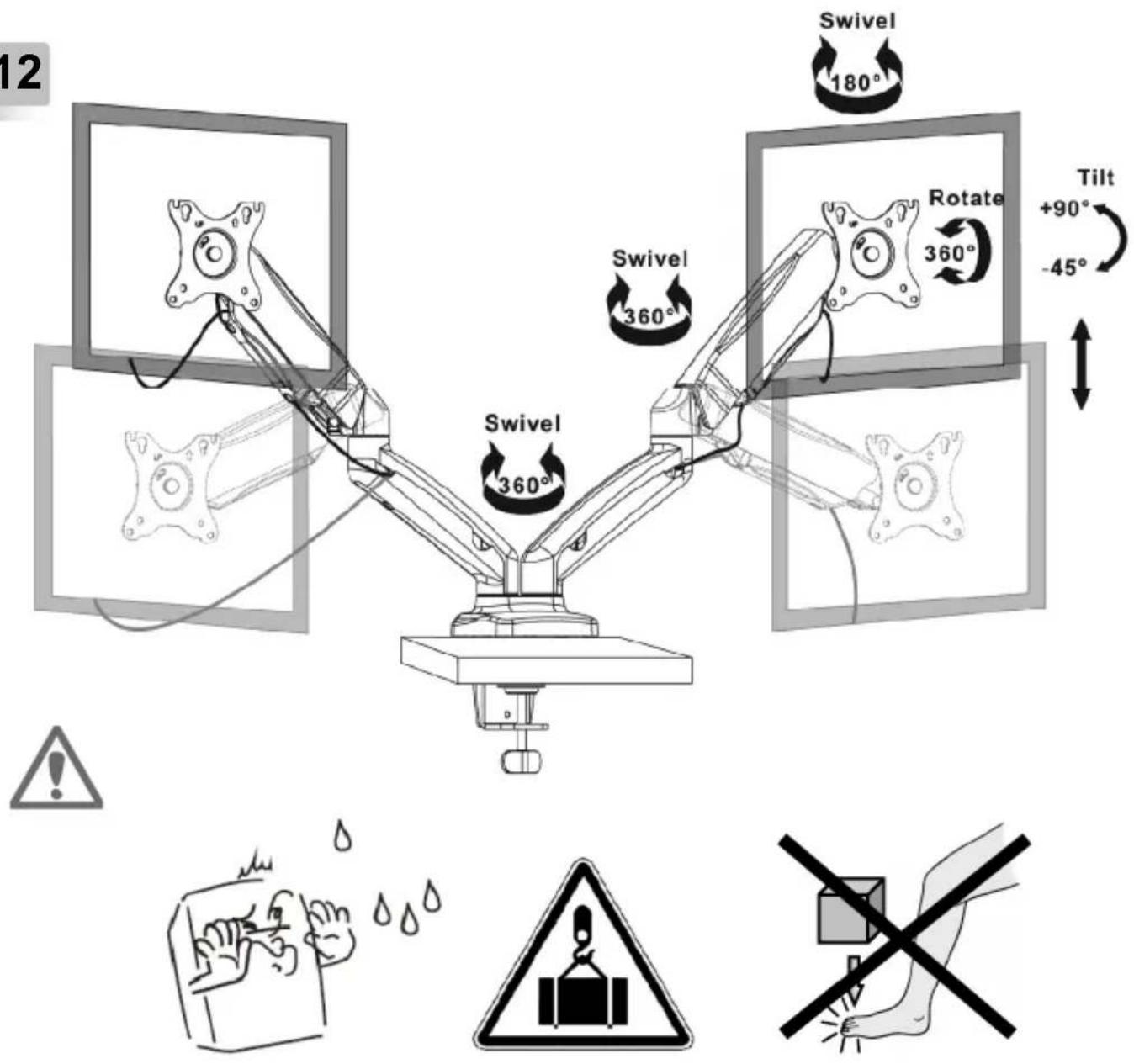

text_image 12 Swivel 180° Rotate 360° Swivel 360° Tilt +90° -45° Swivel 360°

Gembird MA-DA2-01 - (TILTING), 13"-27", UP TO 7 KG - 2

gembird®

MA-DA2-01

ADJUSTABLE DESK 2-DISPLAY MOUNTING ARM

(TILTING), 13"-27", UP TO 7 KG

ADJUSTABLE DESK 2-DISPLAY MOUNTING ARM

(TILTING), 13"-27", UP TO 7 KG

GARANTIE VOORWAARDENCONDITIONS DE GARANTIE
Op de aankoopbon moeten de aankoopdatum en productomschrijving duidelijk vermeld staan. Gelieve de aankoopbon de gehele garantieperiode te bewaren, deze is ten alle tijden benodigd voor alle garantie aanspraken. Tijdens de garantieperiode zullen alle gebreken verholpen of vervangen worden door de fabrikant d.m.v. reparatie, omruiling van het defecte onderdeel of het gehele apparaat. Aanspraken tijdens de garantieperiode leiden niet tot verlenging hiervan. Garantieaanspraak vervalt bij schade of gebreken die ontstaan zijn door oneigenlijk gebruik, misbruik of invloeden van buitenaf (vallen, stoten, water, stof, vuil of breken). Slijtagegevoelige onderdelen (b.v. batterijen) zijn uitgesloten van garantie. Bij ontvangst van de RMA goederen behoudt Gembird zich het recht om te kiezen tussen vervanging van de defecte waren of het uitgeven van een kreditnota. Het bedrag van de kreditnota zal altijd gecalculeerd zijn op basis van de huidige marktprijs voor het defecte produkt.Le talon de garantie doit énumérer clairement la date d'achat et le type d'appareil. Conservez le reçu d'achat pendant toute la durée de la garantie car elle est nécessaire pour toute réclamation. Au cours de la période de garantie tous les défauts doivent être remplacé aux frais du fabricant, soit par la réparation ou la remplacement de la pièce défectueuse ou l'ensemble du produit. Les travaux effectués sous garantie ne prolongent pas la période de garantie ni ne commencent pas une nouvelle période de garantie. Le fabricant se réserve le droit d'annuler toute demande de garantie pour les dommages ou défauts dus à une mauvaise utilisation, abus ou les effets externes (chute, choc, pénétration de l'eau, la poussière, etc..). Les pièces d'usure (par exemple les piles rechargeables) sont exclus de la garantie. Dès réception de la marchandise sous garantie, le SAV de Gembird Europe BV se réserve le droit de choisir entre le remplacement des produits défectueux ou de délivrer un avoir. Le montant d'avoir sera toujours calculée sur la base de la valeur actuelle du marché des produits défectueux.
Gembird Europe B.V. Wittevrouwen 56, 1358CD Almere, The Netherlands www.gembird.nl/service helpdesk@gembird.nl Tel: 0900-GEMBIRD (€ 0,25 p/m binnen Nederland, exclusief mobiele telefoonkosten)Gembird Europe B.V. Wittevrouwen 56 1358CD Almere, The Netherlands www.gembird.nl/support gembird@letmerepair.fr +33(0) 251 404849 Prix d'appel depuis telephone fixe Pays-Bas : 0.15 euro / min Prix d'appel depuis telephone mobile / autre pays - selon operateur

Gembird MA-DA2-01 - (TILTING), 13"-27", UP TO 7 KG - 1

gembird®

MA-DA2-01

ADJUSTABLE DESK 2-DISPLAY MOUNTING ARM

(TILTING), 13"-27", UP TO 7 KG

ГАРАНТИЙНЫЙ ТАЛОН

Gembird MA-DA2-01 - ГАРАНТИЙНЫЙ ТАЛОН - 1
