USER MANUAL SJ-LE300E00X-EU SHARP

SJ-LE300E00X-EU SJ-LE300E01X-EU

Fridge

User Manual
Bedienungsanleitung
Guide d'utilisation
Handleiding
Manual de Uso
Manual de Instruções
Brugsanvisning
Bruksanvisning
Instruktionsbok
Käyttöohje
Kasutusjuhend

Contents

CHAPTER -1: GENERAL WARNINGS ......2

CHAPTER -2: YOUR FRIDGE....6

CHAPTER -3: USING YOUR FRIDGE ....6

CHAPTER -4: FOOD STORAGE GUIDANCE ......9

CHAPTER -5: TROUBLESHOOTING ....9

CHAPTER -6: TIPS FOR SAVING ENERGY ....10

CHAPTER -7: TECHNICAL DATA....10

CHAPTER -8: CUSTOMER CARE AND SERVICE....10

Your fridge conforms to current safety requirements. Inappropriate use can lead to personal injury and damage to property. To avoid the risk of damage read this manual carefully before using your fridge for the first time. It contains important safety information on the installation, safety, use and maintenance of your Fridge. Retain this manual for future use.

FIRE

Warning; Risk of fire / flammable materials

CHAPTER -1: GENERAL WARNINGS

WARNING: Keep the ventilation openings of the Fridge clear from obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process.

WARNING: Do not use other electrical appliances inside the Fridge.

A WARNING: Do not damage the refrigerant circuit.

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

WARNING: To avoid personal injury or damage this appliance must be installed in accordance with the manufacturer instructions.

The small quantity of refrigerant used in this fridge is eco-friendly R600a (an isobutene) and is flammable and explosive if ignited in enclosed conditions.

* While carrying and positioning the fridge, do not damage the cooler gas circuit.

* Do not store any containers with flammable materials, such as spray cans or fire extinguisher refill cartridges in the vicinity of the fridge.

* This appliance is intended to be used in household and similar applications such as;

• staff kitchen areas in shops, offices and other working environments which can be equated with ordinary household
• farm houses and by clients in hotels, motels and other residential type environments which can be equated with ordinary household
• bed and breakfast type environments which can be equated with ordinary household
• catering and similar non-retail applications which can be equated with ordinary household

* Your fridge requires a 220-240V, 50Hz mains supply. Do not use any other supply. Before connecting your fridge, ensure that the information on the data plate (voltage and connected load) matches the mains electricity supply. If in doubt, consult a qualified electrician)
- Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Children are not expected to perform cleaning or user maintenance of the appliance, very young children (0-3 years old) are not expected to use appliances, young children (3-8 years old) are not expected to use appliances safely unless continuous supervision is given, older children (8-14 years old) and vulnerable people can use appliances safely after they have been given appropriate supervision or instruction concerning use of the appliance. Very vulnerable people are not expected to use appliances safely unless continuous supervision is given.

* This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazard involved. Children shall not play with the appliance. Cleaning and user maintenance, shall not be made by children without supervision.

* A damaged power cord /plug can cause fire or give you an electric shock. When damaged it must be replaced, this should only be done by qualified personnel.

* This appliance is not intended for use at altitudes exceeding 2000 m.

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for the freezing of fresh food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

CHAPTER -1: SAFETY INSTRUCTIONS

Disposal

• All packaging and materials used are environmentally friendly and recyclable. Please dispose of any packaging in an environmentally friendly manner. Consult your local council for further details.
• When the appliance is to be scrapped, cut off the electrical supply cable and destroy the plug and cable. Disable the door catch in order to prevent children becoming trapped inside.
• A cut off plug inserted into a 16 amp socket is a serious safety (shock) hazard. Please ensure the cut off plug is disposed of safely.

For Denmark products:

The appliance is equipped with a plug approved in the EU (EU-Schuko Plug) and can be used in Finland, Norway and Sweden. In Denmark, the appliance is only approved for use with a wall outlet type E or type CEE7 // 7-S with a ground leg. If there is only wall outlet type K at the connection point, Replacing EU-Schuko plug with the Danish plug must be performed by only an authorized service personnel. Alternatively, connect a suitable and approved power adapter to transition between Schuko plug and Danish earth system. This adapter (min. 10 amps and up to max. 13 amps) can be ordered via at well assorted whitegoods dealer or authorized electrician. Only with one of these methods it can be ensured that the appliance is the correct safety ground. In the absence of earthing installation, an authorised electrician should carry out an earthing installation. In the case of use without earthing installed, we will not be responsible for any loss of use that may occur.

Disposal of your old appliance

This symbol on the product or package implies that the product should not be treated as domestic waste. Instead, it should be delivered to applicable waste collection places recycling electrical and electronic equipment. Recycling materials will help natural resources be preserved. For more detailed information regarding recycling of this product, please contact local authority, domestic waste disposal service or the shop you have purchased the product from.

Please ask your local authority about the disposal of the WEEE for the reuse, recycle and recovery purposes.

Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for the losses to be occurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for the losses to be occurred in the contrary case.

Safety warnings

• Do not connect your Fridge to the mains electricity supply using an extension lead.

• A damaged power cord / plug can cause fire or give you and electric shock. When damaged it must be replaced, this should only be done by qualified personnel.

• Never bend the power cord excessively.

• Never touch the power cord / plug with wet hands as this could cause a short circuit electric shock.

Installation Information

Before unpacking and manoeuvring your fridge please take some time to familiarise yourself with the following points.

• Position away from direct sunlight and away from any heat source such as a radiator.
• Your appliance should be at least 50 cm away from stoves, Gas ovens and heater cores, and should be at least 5 cm away from electrical ovens.
• Do not expose your fridge to moisture or rain.
• Your fridge should be positioned at least 20mm away from another freezer.
  • Clearance of at least 150 mm is required at the top of your fridge. Do not place anything on top of your fridge.
• For safe operation it is important that your fridge is safe and balanced. The adjustable feet are used to level your fridge. Make sure that your appliance is level before placing any foodstuffs inside it.
• We recommend that you wipe all shelving and trays with a cloth soaked in warm water mixed with a teaspoon of bicarbonate of soda before use. After cleaning rinse with warm water and dry.

Before Using your Fridge

• Before setting up your fridge, check for any visible damage. Do not install or use your fridge if it is damaged.
- When using your fridge for the first time, keep it in an upright position for at least 3 hours before plugging into the mains. This will allow efficient operation and prevents damage to the compressor.
- You may notice a light odor when using your fridge for the first time. This is perfectly normal and will fade away as the fridge starts to cool.

CHAPTER -2: YOUR FRIDGE

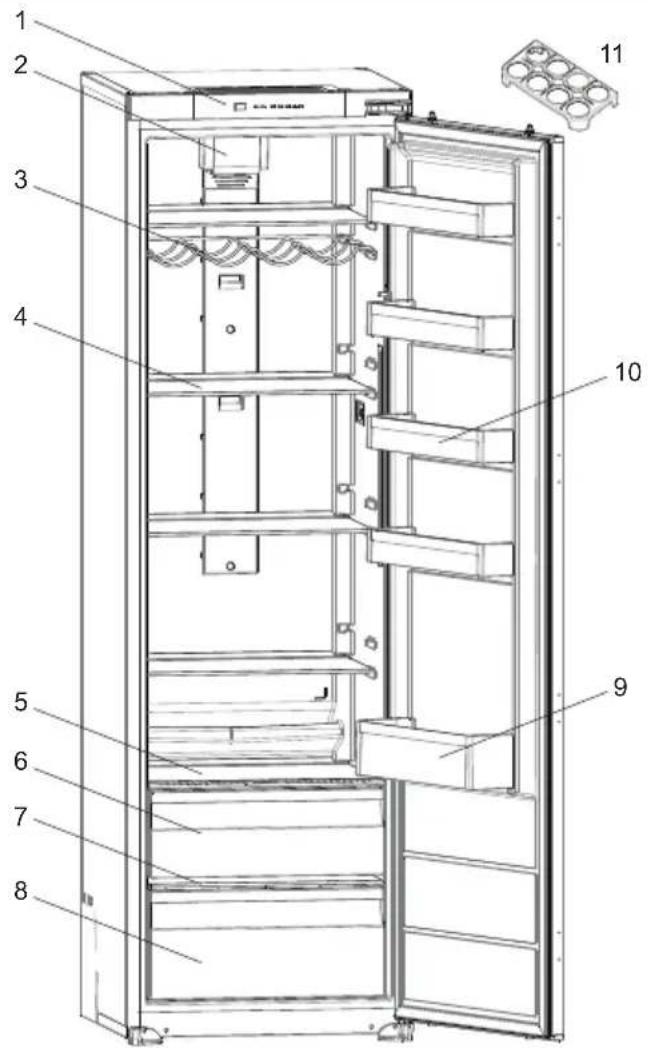

Technical diagram of a refrigerator with numbered parts for identification and assembly reference

Technical line drawing of a refrigerator interior with ventilation grilles and a wavy base (no text or symbols)

Technical line drawing of a refrigerator interior with labeled panel number 13 (no text or symbols beyond label)

1. Control panel
2. Turbo fan
3. Wine rack *
4. Fridge shelves
5. Upper crisper cover *
6. Upper crisper *

7. Bottom crisper cover

8. Bottom crisper

9. Bottle shelf
10. Door shelves
11. Egg holder

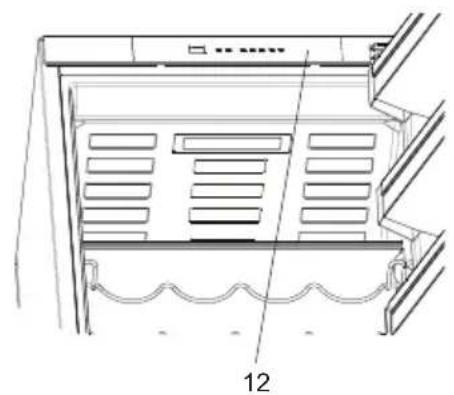

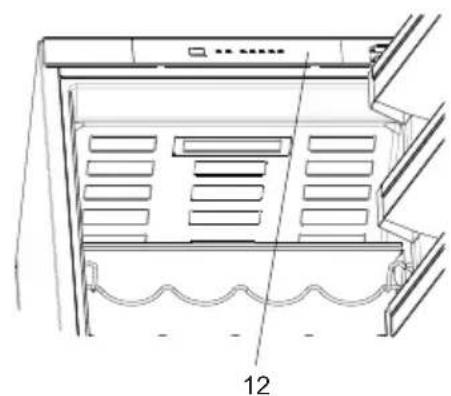

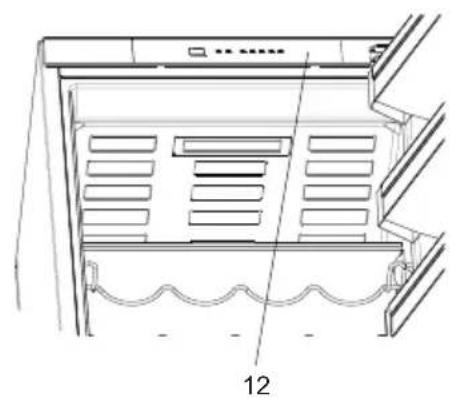

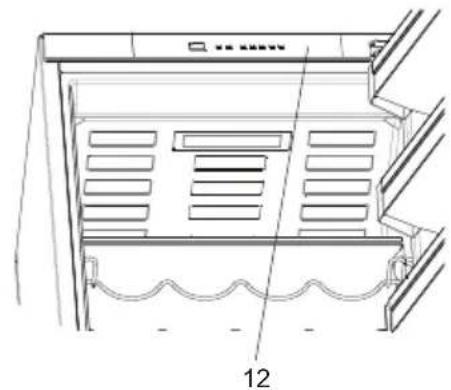

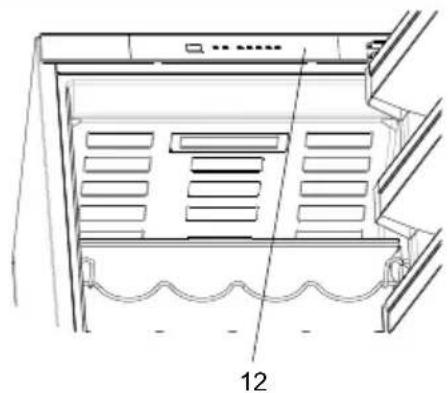

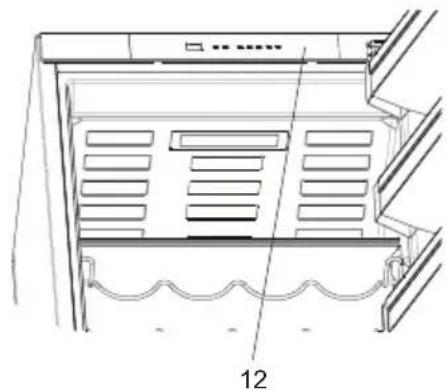

12. Upper side LED strip *

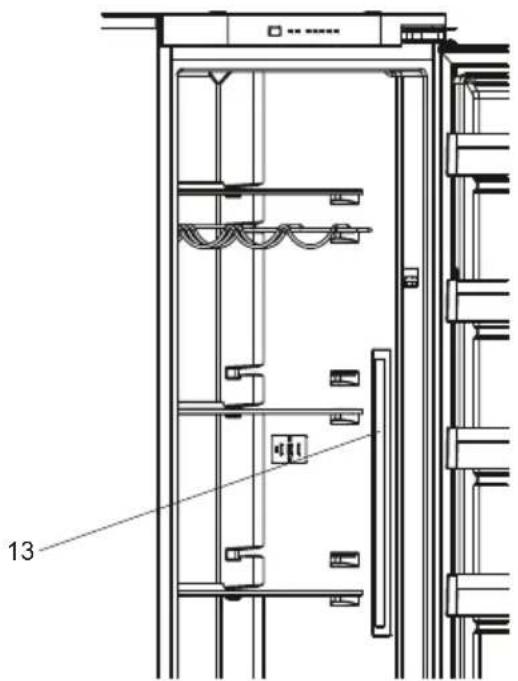

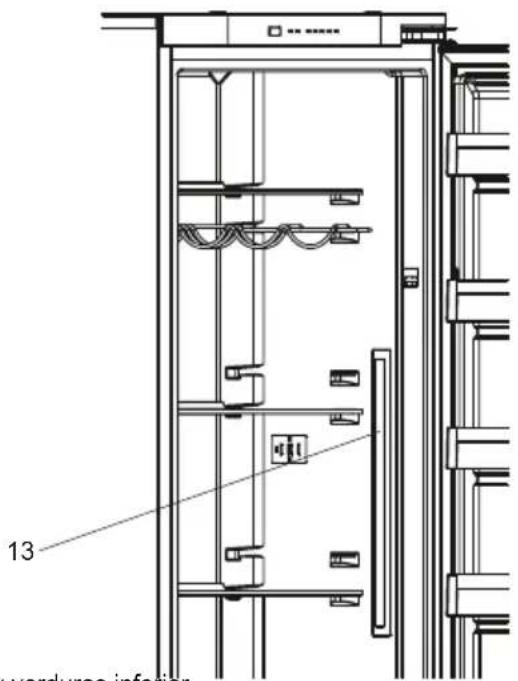

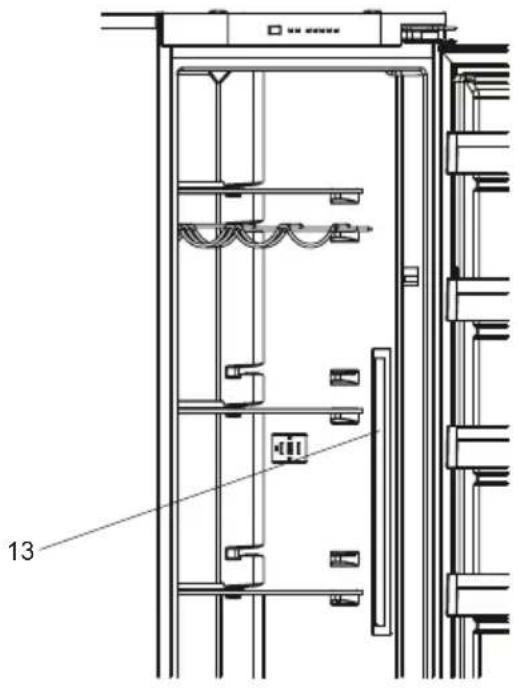

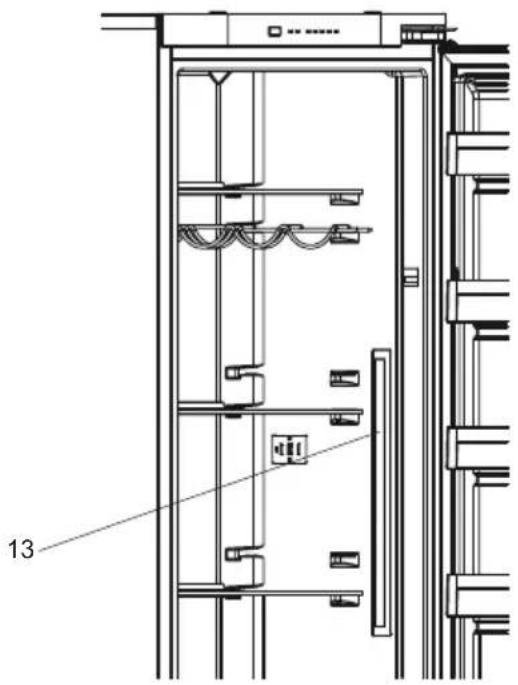

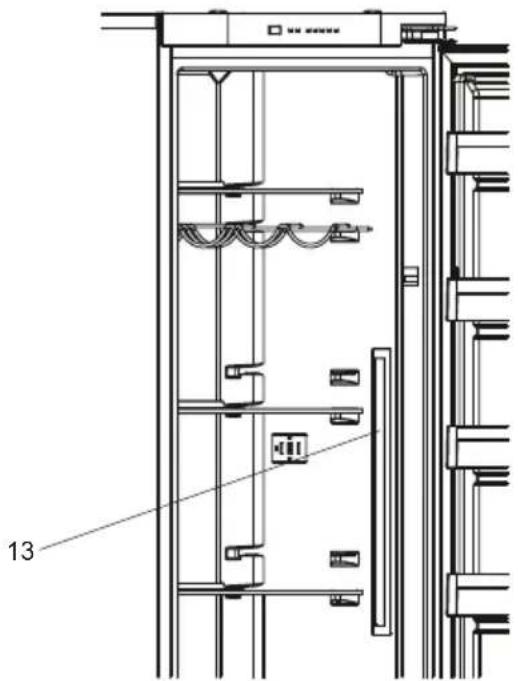

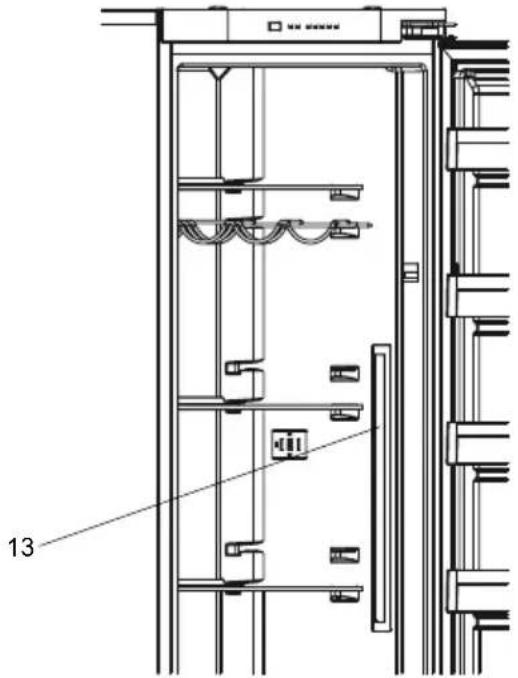

13. Left / Right side LED strip *

* In some models

This figure has been drawn for information purposes to show the various parts and accessories in the appliance. Parts may vary according to the model of the appliance.

General notes:

Fresh Food Compartment (Fridge): Most efficient use of energy is ensured in the configuration with the drawers in the bottom part of the appliance, and shelves evenly distributed, position of door bins does not affect energy consumption.

CHAPTER -3: USING YOUR FRIDGE

Control panel

Fridge temperature set button Symbol of Super Cooling Mode Fridge adjusted temperature indicator 2 4 5 6 8 alarm indicator led

EN -6-

CHAPTER -3: USING YOUR FRIDGE

Operating your Fridge

Lighting (If available)

When the product is plugged in for the first time, the interior lights may turn on 1 minute late due to opening tests.

Fridge partition temperature setting button

This button allows setting temperature of the fridge. In order to set values for fridge partition, press this button. Use this button also to activate Super Cooling mode.

Alarm light

In case of a problem within the fridge, the alarm led will release red light

Super cooling mode

When would it be used?

• To cooling huge quantities of food.
• To cooling fast food.
• To cooling food quickly.
• To store seasonal food for a long time.

How to use?

• Press temperature set button until super cooling light comes on.
• Super cooling led will light during this mode.
• For optimal appliance performance in maximum cooling capacity, set the appliance to active Super Cooling mode 6 hours before you put the fresh food into the fridge.

During this mode:

If you press temperature set button, the mode will be cancelled and the setting will be restored from 2.

Note: "Super cooling" mode will be automatically cancelled after 6 hours or when cooling sensor temperature drops beneath 2^ .

Fridge temperature settings

• The initial temperature of the Setting Display is 5^ .
• Press fridge setting button once.
  • Every time you press the button, the setting temperature will increase. (2°C, 4°C, 5°C, 6°C, 8°C, super cooling)
• If you press fridge setting button until super cooling symbol is displayed on your fridge
• Settings Display and you do not press any button within the following 3 seconds,
• Super cooling will blink.
• If you keep on pressing, it will restart from last value.

Warnings for temperature settings

• The ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the refrigerator compartment. If required, change the temperature setting.
• The temperature setting should be set by taking into consideration how often the fridge door is opened and closed, how much food is stored in the fridge and the environment in which and the positioning of the appliance.
• We recommend that when first using the fridge it should be left running for 24 hours uninterrupted to ensure it is completely cooled. Do not open the fridge door, or put food inside for this period.
• Your fridge has a 5 minute built in delay function, designed to prevent damage to the compressor. When power is applied to your fridge, it will begin to operate normally after 5 minutes.
• Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. It is not recommended that your fridge is operated in the environments which are out of the stated temperature intervals in terms of cooling efficiency.
• This appliance is designed for use at an ambient temperature within the 10^ - 38^ range.

Climate class and meaning:

T (tropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C.

ST (subtropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C.

N (temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C.

SN (extended temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C.

Temperature indicator

In order to help you better set your refrigerator, we have equipped it with a temperature indicator located in the coldest area.

To better store the food in your refrigerator, especially in the coldest area, make sure the message “OK” appears on the temperature indicator. If « OK » does not appear, this means temperature has not been set properly

CHAPTER -3: USING YOUR FRIDGE

It may be difficult to see the indicator, make sure it is properly lit. Each time the temperature setting device is changed, wait for the stabilisation of the temperature inside the appliance before proceeding, if necessary, with a new temperature setting. Please change the position of the temperature setting device progressively and wait at least 12 hours before starting a new check and potential change.

NOTE: Following repeated openings (or prolonged opening) of the door or after putting fresh food into the appliance, it is normal for the indication "OK" not to appear in the temperature setting indicator. If there is an abnormal build up of ice crystals of ice crystals (bottom wall of the appliance) on the refrigerator compartment, evaporator (overloaded appliance, high room temperature, frequent door openings), put the temperature setting device on a lower position until compressor off periods are obtained again.

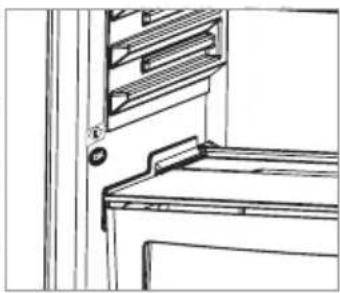

Store food in the coldest area of the refrigerator.

Your foods will be better stored if you put them in the most appropriate cooling area. The coldest area is just above the crisper.

The following symbol indicates the coldest area of your refrigerator.

To be sure to have a low temperature in this area, make sure the shelf is located at the level of this symbol, as shown in the illustration.

The upper limit of the coldest area is indicated by the lower side of the sticker (head of the arrow). The coldest area upper shelf must be at the same level with the arrow head. The coldest area is below this level.

As these shelves are removable, make sure they are always at the same level with these zone limits described on the stickers, in order to guarantee temperatures in this area.

Line drawing of a cabinet or rack with a door and shelf, no text or symbols present

Accessories

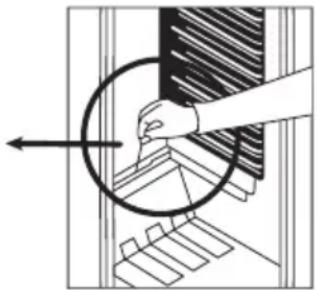

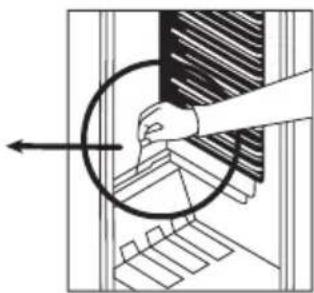

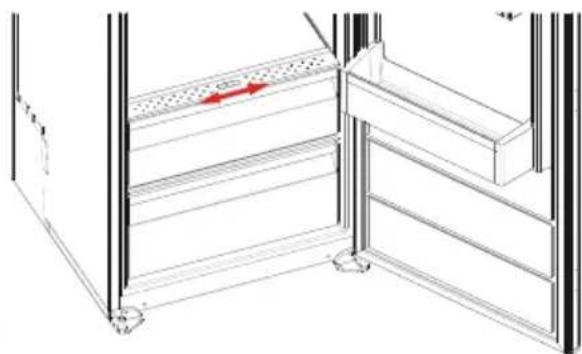

Fresh dial

If you want to keep your vegetables longer in that compartment, you have to change the humidity controller that is located at the front of the crisper, to closed position. With the aid of this function, humidity level in the crisper compartment, will stay constant and vegetables will last longer.

If you want to keep your vegetables colder in that compartment, you have to change the humidity controller to open position. By doing this change, you will allow the cold air to enter the crisper compartment. As a result of this, your vegetables will be colder.

If you see any condensation on the glass shelf that is located at the top of crisper, you can change the humidity controller to open position.

Technical line drawing of a cabinet or shelf with an open door and a red arrow indicating a measurement or force (no text or symbols present)

Visual and text descriptions on the accessories section may vary according to the model.

Cleaning

• Before cleaning your fridge, turn your mains supply off and remove the plug from the socket.
- Do not wash your fridge by pouring water on to it.
- Use a warm, soapy cloth or sponge to wipe the interior and exterior of your fridge.
- Carefully remove all shelves and drawers by sliding upwards or outwards and clean with soapy water. Do not wash in a washing machine or dishwasher.
- Do not use solvents, abrasive cleaners, glass cleaners or all purpose cleaning agents to clean your fridge. This may cause damage to the plastic surfaces and other components with the chemicals they contain.
- Clean the condenser at the back of your fridge at least once a year with a soft brush or vacuum cleaner.

Make sure that your fridge is unplugged while cleaning.

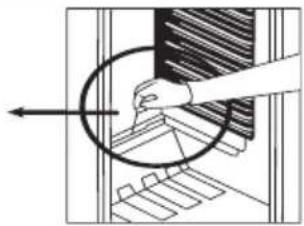

Defrosting

• Defrosting occurs automatically in the refrigerator during operation; water is collected by the evaporating tray and evaporates automatically.

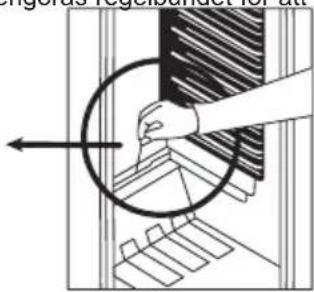

• The evaporating tray and the defrost water drain hole should be cleaned periodically to prevent the water from collecting on the bottom of the refrigerator.

Simple line drawing of a mechanical component or bracket (no text or symbols)

Diagram showing a hand pressing down on a mechanical component with an arrow indicating direction (no text or symbols present)

Replacing LED Lighting

If your fridge has LED lighting contact the Sharp help desk as this should be changed by authorized personnel only.

CHAPTER -4: FOOD STORAGE GUIDANCE

• To reduce frost build up never place liquids with unsealed containers in the fridge compartment.
- Allow warn or hot food to cool down before storing. This helps reduce power consumption.
- To avoid frost buildup ensure that nothing is stored touching the back wall.
- The coldest area of the refrigerator is at the bottom. We recommend to use this area to store food that will perish easily, such as fish, ready meals, baked goods or dairy products. The warmest area is the top shelf of the door. We recommend you store butter or cheese here.
- For normal working conditions, it will be sufficient to adjust the temperature setting of your refrigerator to +4^ .
- The temperature of the fridge compartment should be in the range of 0-8 °C, fresh foods below 0 °C are iced and rotted, bacterial load increases above 8 °C, and spoils.
- Do not put hot food in the refrigerator immediately, wait for the temperature to pass outside. Hot foods increase the degree of your refrigerator and cause food poisoning and unnecessary spoiling of the food.
- Meat, fish, etc. should be store in the chiller compartment of the food, and the vegetable compartment is preferred for vegetables. (if available)
• To prevent cross contamination, meat products and fruit vegetables are not stored together.
- Foods should be placed in the refrigerator in closed containers or covered to prevent moisture and odors.

CHAPTER -5: TROUBLESHOOTING

If your fridge is not working properly, it may be a minor problem, therefore check the following, before calling an electrician to save time and money.

Alarm indicator led is turning on	ERROR TYPE WHY WHAT TO DO
	"Failure Warning"	There is/are some part(s) Out of order or there is a failure in cooling processThe product is plugged for the first time or a long-time power interruption for 1 hour.	Check the door is open or not and check if the product working 1 hour. If the door is not open and the product had worked 1 hour, contact the Sharp helpdesk as soon as possible.

What to do if your appliance does not operate;

Check that;

• There is no power,
• The general switch in your home is disconnected,
• The socket is not sufficient. To check this, plug in another appliance that you know which is working into the same socket.

What to do if your appliance performs poorly;

Check that;

• You have not overloaded the appliance,
  • The fridge temperature set to 2.
  • The door is closed perfectly,
  • There is no dust on the condenser,
• There is enough place at the rear and side walls.

If your fridge is operating too loudly;

Normal Noises

Cracking (Ice cracking) Noise:

• During automatic defrosting.
- When the appliance is cooled or warmed (due to expansion of appliance material).

Short cracking: Heard when the thermostat switches the compressor on/off.

Compressor noise: Normal motor noise. This noise means that the compressor operates normally. Compressor may cause more noise for a short time when it is activated.

Bubbling noise and splash: This noise is caused by the flow of the refrigerant in the tubes of the system.

Water flow noise: Normal flow noise of water flowing to the evaporation container during defrosting. This noise can be heard during defrosting.

Air Blow Noise: Normal fan noise. This noise can be heard in fridges during normal operation of the system due to the circulation of air.

If the edges of fridge cabinet that the door joint contact are warm;

Especially in summer (hot weather), the surfaces that the joint contact may get warmer during the operation of the compressor, this is normal.

CHAPTER -5: TROUBLESHOOTING

If humidity builds up inside the fridge;

• Are all food packed properly? Are the containers dried before placing them in the fridge?
• Is the fridge's door opened frequently? Humidity of the room gets in the fridge when the door is opened. Humidity build up will be faster when you open the door more frequently, especially if the humidity of the room is high.

If the door is not opened and closed properly;

• Do the food packages prevent closing of the door?
• Are the door compartments, shelves and drawers placed properly?
• Are door joints broken or torn?
  • Is your fridge on a level surface?

Recommendations

• To stop the appliance completely, unplug from main socket (for cleaning and when the door is left open)

CHAPTER -6: TIPS FOR SAVING ENERGY

1. Always allow foodstuffs to cool before storing in the appliance.
2. Thaw food in the fridge compartment, this helps save energy.

CHAPTER -7: TECHNICAL DATA

The technical information is situated in the rating plate on the internal side of the appliance and on the energy label. The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database.

Keep the energy label for reference together with the user manual and all other documents provided with this appliance. It is also possible to find the same information in EPREL using the link https://eprel.ec.europa.eu and the model name and product number that you find on the rating plate of the appliance.

See the link www.theenergylabel.eu for detailed information about the energy label.

CHAPTER -8: CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, Serial Number and Service Index.

The information can be found on the rating plate. You can find the rating label inside the fridge zone on the left lower side.

The original spare parts for some specific components are available for a minimum of 7 or 10 years, based on the type of component, from the placing on the market of the last unit of the model.

Visit our website to:

www.sharphomeappliances.com

Inhalt

Technical diagram of a refrigerator with numbered parts for identification

Technical line drawing of a refrigerator interior with ventilation grilles and a numbered label (12), no readable text or symbols beyond the number.

13

Line drawing of a cabinet or rack with a door and shelf, no text or symbols present

Zubehör

Frischewahlscheibe

Technical line drawing of a cabinet or storage unit with a red arrow indicating a specific component (no text or symbols present)

Simple line drawing of a structural beam or support component (no text or symbols)

Diagram showing a hand pressing down on a piano keyboard with a circular arrow indicating motion (no text or symbols)

Technical diagram of a refrigerator with numbered parts for identification

Technical line drawing of a refrigerator interior with ventilation grilles and a labeled component (no text or symbols beyond the number 12)

13

Line drawing of a cabinet or rack with a handle and door, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of a structural beam or support with a small circular hole at one end (no text or symbols)

Illustration of a hand using a circular tool to interact with a mechanical component (no text or symbols visible)

HOOFDSTUK -5: PROBLEEMOPLOSSING....40

HOOFDSTUK -6: TIPS VOOR ENERGIEBESPARING ....41

Technical diagram of a refrigerator with numbered parts for identification and assembly reference

Technical line drawing of a refrigerator interior with ventilation grilles and a labeled component (no text or symbols beyond the number 12)

13

Line drawing of a cabinet or storage unit with metal racks and a door (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Reiniging

HOOFDSTUK -5: PROBLEEMOPLOSSING

HOOFDSTUK -5: PROBLEEMOPLOSSING

www.sharphomeappliances.com

Índice

Technical diagram of a refrigerator with numbered parts for identification

Technical line drawing of a refrigerator interior with ventilation grilles and a labeled component (no text or symbols beyond the number 12)

13 verduras inferior

Line drawing of a cabinet or rack structure with no visible text or symbols

Accesorios

Selector de alimentos frescos

Technical line drawing of a cabinet or storage unit with a red arrow indicating a component, no text or symbols present.

Technical line drawing of a mechanical component with an inset showing a magnified view of a gear or cutting tool (no text or symbols present)

www.sharphomeappliances.com

Conteúdos

CAPÍTULO -1: AVISOS GERAIS....54
CAPÍTULO -2: O SEU FRIGORÍFICO....58
CAPÍTULO -3: UTILIZAÇÃO DO FRIGIRÍFICO....59
CAPÍTULO -4: GUIA DO ARMAZENAMENTO DE ALIMENTOS....61
CAPÍTULO -5: RESOLUÇÃO DE PROBLEMAS....62
CAPÍTULO -6: DICAS PARA POUPAR ENERGIA 63
CAPÍTULO -7: DADOS TÉCNICOS 63
CAPÍTULO -8: SERVIÇO E ASSISTÊNCIA AO CONSUMIDOR....63

Technical diagram of a refrigerator with numbered parts for identification and assembly reference

Technical line drawing of a refrigerator interior with ventilation grilles and a labeled component (no text or symbols beyond the number 12)

13

Line drawing of a cabinet interior with doors and shelves (no text or symbols)

Technical line drawing of a cabinet or shelf with an open door and a red arrow indicating a flow or movement (no text or symbols present)

Simple line drawing of a structural beam or support component (no text or symbols)

Diagram showing a hand pressing down on a mechanical component with a circular arrow indicating direction (no text or symbols present)

Visite o nosso website para: www.sharphomeappliances.com

Indhold

KAPITEL -1: GENERELLE ADVARSLER....65
KAPITEL -2: DIT K∅LESKAB....69
KAPITEL -3: SÅDAN ANVENDES DIT K∅LESKAB 69
KAPITEL -4: GUIDE TIL OPBEVARING AF MADVARER....72
KAPITEL -5: FEJLFINDING 72
KAPITEL -6: TIP TIL ENERGIBESPARELSE....73
KAPITEL -7: TEKNISKE DATA 73
KAPITEL -8: KUNDEPLEJE OG -SERVICE 73

Technical diagram of a refrigerator with numbered parts for identification and assembly reference

Technical line drawing of a refrigerator interior with ventilation grilles and a labeled component (no text or symbols beyond the number 12)

13

Line drawing of a cabinet or storage unit with metal grilles and a door (no text or symbols)

Tilbehør

Frisk-hjulet

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of a structural beam or support bracket (no text or symbols)

Diagram showing a hand holding a rectangular object with a circular arrow pointing to it, no text or symbols present.

www.sharphomeappliances.com

Innhold

KAPITTEL 1: GENERELLE ADVARSLER....75
KAPITTEL 2: KJ∅LESKAPET DITT....79
KAPITTEL 3: HVORDAN BRUKE KJ∅LESKAPET DITT....79
KAPITTEL 4: RETNINGSLINJER FOR OPPBEVARING AV MAT ....82
KAPITTEL 5: FEILS∅KING....82
KAPITTEL 6: TIPS FOR ENERGISPARING ....83
KAPITTEL 7: TEKNISK DATA....83
KAPITTEL 8: KUNDESTÖTTE OG SERVICE ....83

Technical diagram of a refrigerator with numbered parts for identification

Technical line drawing of a refrigerator interior with ventilation grilles and a numbered label (12), no readable text or symbols beyond the number.

13

Line drawing of a cabinet or rack with a door and shelf, no text or symbols present

Tilbehør

Technical line drawing of a cabinet or storage unit with a red arrow indicating a specific component (no text or symbols present)

Simple line drawing of a mechanical component or bracket (no text or symbols)

Diagram showing a hand pressing down on a mechanical component with an arrow indicating direction (no text or symbols present)

Knuselyd (isknusing):

www.sharphomeappliances.com

Installationsinformation

Technical diagram of a refrigerator with numbered parts for identification and assembly reference

Technical line drawing of a refrigerator interior with ventilation grilles and a labeled component (no text or symbols beyond the number 12)

13

Line drawing of a cabinet interior with doors and shelves (no text or symbols)

Tillbehör

Fräschhetsratt

Technical line drawing of a cabinet or shelf with a red arrow indicating a specific component (no text or symbols present)

Simple line drawing of a metal beam or support structure with no text or symbols

Diagram illustrating hand positioning and movement of a mechanical component, with labeled arrows and shaded regions.

www.sharphomeappliances.com

Sisältö

LUKU -1: YLEISIÄ VAROITUKSIA....95
LUKU -2: JÄÄKAAPPISI 99
LUKU -3: JÄÄKAAPIN KÄYTTÖ 99
LUKU -4: RUOAN SÄILYTYSOPAS....102
LUKU -5: VIANMÄÄRITYS....102
LUKU -6: ENERGIANSÄÄSTÖVINKKEJÄ....103
LUKU -7: TEKNISET TIEDOT 103
LUKU -8: ASIAKASPALVELU JA HUOLTO 103

Technical diagram of a refrigerator with numbered parts for identification and assembly reference

Technical line drawing of a refrigerator interior showing ventilation grilles and door frame (no text or symbols)

13

Line drawing of a cabinet or rack with a door and shelf, no text or symbols present

Lisävarusteet

Technical line drawing of a mechanical or architectural component with no visible text, numbers, or symbols.

Simple line drawing of a metal beam or support structure (no text or symbols)

Diagram showing a hand pressing down on a piano keyboard with a circular arrow indicating motion (no text or symbols)

LUKU -5: VIANMÄÄRITYS

LUKU -5: VIANMÄÄRITYS

LUKU -7: TEKNISET TIEDOT

www.sharphomeappliances.com

Sisukord

1. PEATÜKK: ÜLDHOIATUSED....105
2. PEATÜKK: TEIE KÜLMIK 109
3. PEATÜKK: KÜLMIKU KASUTAMINE....109
4. PEATÜKK: TOIDU HOIUSTAMISE JUHIS....112
5. PEATÜKK: TÖRGETE KÖRVALDAMINE....113
6. PEATÜKK: NÕUANDED ENERGIA KOKKUHOIDMISEKS .....114
7. PEATÜKK: TEHNILISED ANDMED ....114
8. PEATÜKK: KLIENDITEENINDUS....114

Technical diagram of a refrigerator with numbered parts for identification and assembly reference

Technical line drawing of a refrigerator interior with ventilation grilles and a labeled component (no text or symbols beyond the number 12)

13

Line drawing of a cabinet or rack with a door and shelf, no text or symbols present

3. PEATÜKK: KÜLMIKU KASUTAMINE

Tarvikud

Värskuse skaala

Technical line drawing of a cabinet or shelf with a red arrow indicating a measurement or feature, no text or symbols present.

Simple line drawing of a metal beam or support structure (no text or symbols)

Diagram showing a hand pressing down on a mechanical component with an arrow indicating direction (no text or symbols present)

LED-valgusti vahetamine

www.sharphomeappliances.com

CE

Service & Support

Visit Our Website

sharphomeappliances.com
