USER MANUAL SJ-SC31CHXWF-EU SHARP

Your fridge freezer conforms to current safety requirements. Inappropriate use can lead to personal injury and damage to property. To avoid the risk of damage read this manual carefully before using your fridge freezer for the first time. It contains important safety information on the installation, safety, use and maintenance of your Fridge Freezer. Retain this manual for future use.

FIRE

Warning; Risk of fire / flammable materials

CHAPTER -1: GENERAL WARNINGS

WARNING: Keep the ventilation openings of the Fridge clear from obstruction.
WARNING: Do not use mechanical devices or other means to accelerate the defrosting process.
WARNING: Do not use other electrical appliances inside the Fridge.
WARNING: Do not damage the refrigerant circuit.
WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
WARNING: To avoid personal injury or damage this appliance must be installed in accordance with the manufacturer instructions.
The small quantity of refrigerant used in this fridge is eco-friendly R600a (an isobutene) and is flammable and explosive if ignited in enclosed conditions.

* While carrying and positioning the fridge, do not damage the cooler gas circuit.
* Do not store any containers with flammable materials, such as spray cans or fire extinguisher refill cartridges in the vicinity of the fridge.
* This appliance is intended to be used in household and similar applications such as;

• staff kitchen areas in shops, offices and other working environments which can be equated with ordinary household
• farm houses and by clients in hotels, motels and other residential type environments which can be equated with ordinary household
• bed and breakfast type environments which can be equated with ordinary household

- catering and similar non-retail applications which can be equated with ordinary household

* Your fridge requires a 220-240V, 50Hz mains supply. Do not use any other supply. Before connecting your fridge, ensure that the information on the data plate (voltage and connected load) matches the mains electricity supply. If in doubt, consult a qualified electrician)

* This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazard involved. Children shall not play with the appliance. Cleaning and user maintenance, shall not be made by children without supervision.

* Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Children are not expected to perform cleaning or user maintenance of the appliance, very young children (0-3 years old) are not expected to use appliances, young children (3-8 years old) are not expected to use appliances safely unless continuous supervision is given, older children (8-14 years old) and vulnerable people can use appliances safely after they have been given appropriate supervision or instruction concerning use of the appliance. Very vulnerable people are not expected to use appliances safely unless continuous supervision is given.

* A damaged power cord /plug can cause fire or give you an electric shock. When damaged it must be replaced, this should only be done by qualified personnel.

* This appliance is not intended for use at altitudes exceeding 2000 m.

To avoid contamination of food, please respect the following instructions:

* Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
* Clean regularly surfaces that can come in contact with food and accessible drainage systems.
* Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
* Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
* One-, two- and three-star compartments are not suitable for the freezing of fresh food.
* If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Disposal

• All packaging and materials used are environmentally friendly and recyclable. Please dispose of any packaging in an environmentally friendly manner. Consult your local council for further details.
• When the appliance is to be scrapped, cut off the electrical supply cable and destroy the plug and cable. Disable the door catch in order to prevent children becoming trapped inside.
• A cut off plug inserted into a 16 amp socket is a serious safety (shock) hazard. Please ensure the cut off plug is disposed of safely.

For Denmark products:

The appliance is equipped with a plug approved in the EU (EU-Schuko Plug) and can be used in Finland, Norway and Sweden. In Denmark, the appliance is only approved for use with a wall outlet type E or type CEE7 // 7-S with a ground leg. If there is only wall outlet type K at the connection point, Replacing EU-Schuko plug with the Danish plug must be performed by only an authorized service personnel. Alternatively, connect a suitable and approved power adapter to transition between Schuko plug and Danish earth system. This adapter (min. 10 amps and up to max. 13 amps) can be ordered via at well assorted whitegoods dealer or authorized electrician. Only with one of these methods it can be ensured that the appliance is the correct safety ground. In the absence of earthing installation, an authorised electrician should carry out an earthing installation. In the case of use without earthing installed, we will not be responsible for any loss of use that may occur.

Disposal of your old appliance

This symbol on the product or package implies that the product should not be treated as domestic waste. Instead, it should be delivered to applicable waste collection places recycling electrical and electronic equipment. Recycling materials will help natural resources be preserved. For more detailed information regarding recycling of this product, please contact local authority, domestic waste disposal service or the shop you have purchased the product from.

Please ask your local authority about the disposal of the WEEE for the reuse, recycle and recovery purposes.

Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for the losses to be occurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for the losses to be occurred in the contrary case.

Safety warnings

• Do not connect your Freezer to the mains electricity supply using an extension lead.
• A damaged power cord / plug can cause fire or give you and electric shock. When damaged it must be replaced, this should only be dine by qualified personnel.

- Never bend the power cord excessively.

• Never touch the power cord / plug with wet hands as this could cause a short circuit electric shock.
• Do not place glass bottles or beverage cans in the freezer. Bottles or cans may explode.
• When taking ice made in the freezer, do not touch it, ice may cause ice burns and/or cuts.
• Do not remove items from the freezer if your hands are damp or wet. Tis could cause skin abrasions or frost / freezer burns.
• Do not refreeze food once it has thawed out.
• Do not use plug adapter.

Installation Information

Before unpacking and manoeuvring your freezer please take some time to familiarise yourself with the following points.

• Position away from direct sunlight and away from any heat source such as a radiator.
• Your appliance should be at least 50 cm away from stoves, Gas ovens and heater cores, and should be at least 5 cm away from electrical ovens.
• Do not expose your freezer to moisture or rain.
• Your freezer should be positioned at least 20mm away from another freezer.
• Clearance of at least 150 mm is required at the top of your appliance. Do not place anything on top of your appliance.
• For safe operation it is important that your freezer is safe and balanced. The adjustable feet are used to level your freezer. Make sure that your appliance is level before placing any foodstuffs inside it.
• We recommend that you wipe all shelving and trays with a cloth soaked in warm water mixed with a teaspoon of bicarbonate of soda before use. After cleaning rinse with warm water and dry.
• Install using the plastic distance guides, which can be found at the rear of the appliance. Turn 90 degrees (as shown in the diagram). This will keep the condenser from touching the wall.
• Freezer should be placed against a wall with a free distance not exceeding 75 mm.

CHAPTER -1: GENERAL WARNINGS

- This appliance is designed to work in difficult climate conditions (up to 43 °C or 110° F) and is powered with 'Freezer Shield' technology which ensures that the frozen food in the freezer will not defrost even if the ambient temperature falls as low as -15 °C. So you may then install your appliance in an unheated room without having to worry about frozen food in the freezer being spoilt. When the ambient temperature returns to normal, you may continue using the appliance as usual.

Before using your freezer

• Before setting up your freezer, check for any visible damage. Do not install or use your freezer if it is damaged.
• When using your freezer for the first time, keep it in an upright position for at least 3 hours before plugging into the mains. This will allow efficient operation and prevents damage to the compressor.
• You may notice a light odour when using your freezer for the first time. This is perfectly normal and will fade away as the freezer starts to cool.

No-Frost technology

No-frost freezers differ from other static freezers in their operating principle.

In normal freezers, the humidity entering the freezer due to opening the door and the humidity inherent in the food causes freezing in the freezer compartment. To defrost the frost and ice in the freezer compartment, you are periodically required to turn off the freezer, place the food that needs to be kept frozen in a separately cooled container and remove the ice gathered in the freezer compartment.

The situation is completely different in no-frost freezers. Dry and cold air is blown into the freezer compartment homogeneously and evenly from several points via a blower fan. Cold air dispersed homogeneously and evenly between the shelves cools all of your food equally and uniformly, thus preventing humidity and freezing.

Therefore your no-frost freezer allows you ease of use, in addition to its huge capacity and stylish appearance.

Diagram of a vertical device with curved arrows indicating rotational or fluid flow, no text or symbols present.

This appliance is not intended to be used as a built-in appliance.

Technical diagram of a refrigerator with numbered parts labeled 1 to 5

General notes:

Freezer Compartment (Freezer): Most Efficient use of energy is ensured in the configuration with the drawers and bins are on stock position.

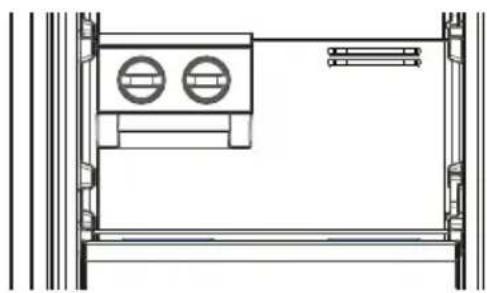

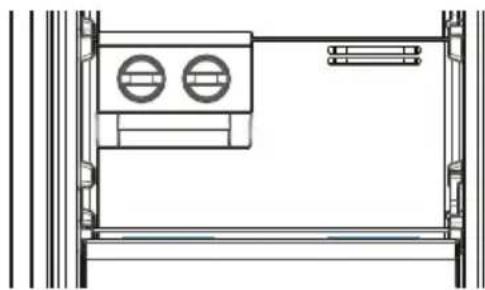

In some models there is a shelf with icematic in the top basket.

Architectural floor plan showing room layout with two circular vent units and a horizontal beam (no text or labels)

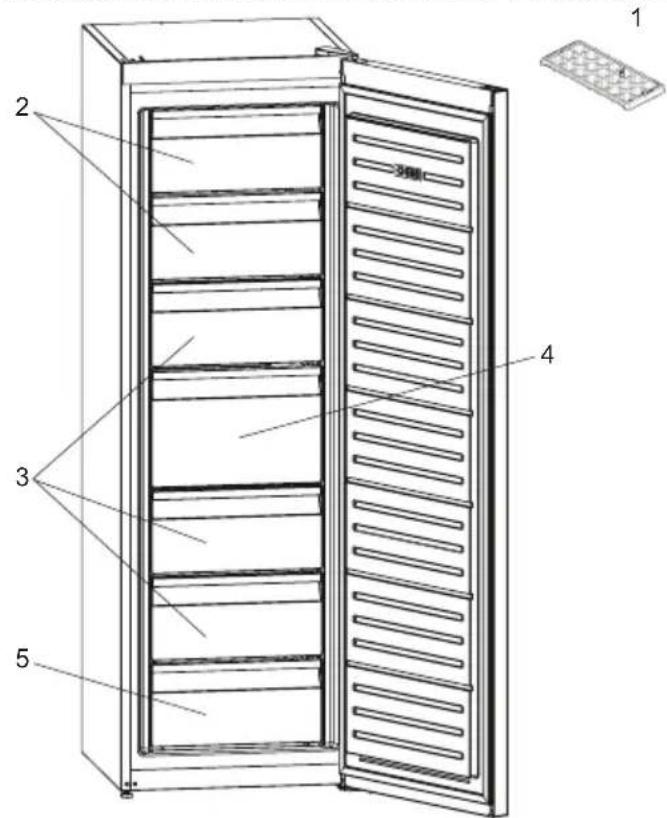

1. Ice tray * / Ice matic *
2. Freezer flap
3. Freezer drawers
4. Freezer big drawer
5. Freezer bottom drawer

* In some models

This figure has been drawn for information purposes to show the various parts and accessories in the appliance. Parts may vary according to the model of the appliance.

CHAPTER -3: USING YOUR FREEZER

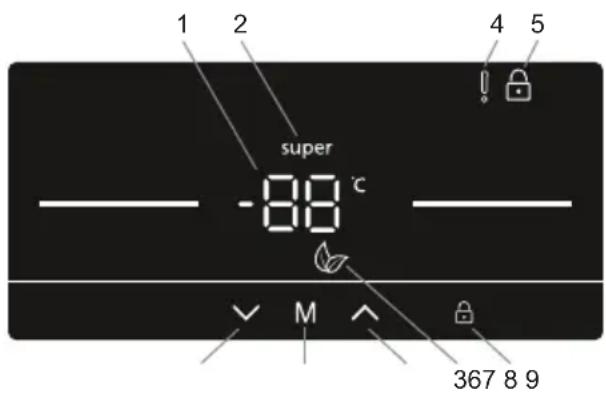

Display and control panel

Using the Control Panel

1. Freezer temperature setting.
2. Super Freeze mode indicator
3. Eco mode indicator
4. Alarm indicator
5. Child Lock mode indicator
6. Mode Selector
7. Decrease value
8. Increase value
9. Child Lock Selector

1 2 super -88 °C 4 5 M 367 8 9

Operating your freezer

Super Freeze Mode

Purpose

• To freeze a large quantity of food that cannot fit on the fast freeze shelf.
  • To freeze prepared foods.
  • To freeze fresh food quickly to retain freshness.

How to use

• Press the decreasing button (#7 on control panel diagram) repeatedly until the 'Super Freeze logo appears' (#2).
• Once the Super Freeze mode has been set, the machine will beep to confirm the mode has been switched on.

• After the beep the original temperature of the freezer will appear on screen.

- Mode can be cancelled by repeating the above instructions from the beginning.

super - 18 °C ✓ M ∧ Ⓒ

During this mode:

- Economy mode cannot be selected whilst Super Freeze is active.

Economy Mode

Purpose

Energy savings. During periods of less frequent use (door opening) or absence from home, such as a holiday, Eco program can provide optimum temperature whilst saving power.

How to Use

• Press mode selector ( ) (6 on control panel diagram)
  until the 'Eco Mode' icon appears (#3).

- Once the ‘Eco mode’ has been set, the machine will beep to confirm the mode has been switched on.

- After the beep the freezer temperature setting (#1) will display an 'E'.

- Eco Mode can be cancelled by pressing the Moton (#6).

E ✓ M ^ ✓

During this mode:

• The freezer temperature may be adjusted however the adjustment will not be made until Eco Mode is cancelled. When economy mode is cancelled, the selected setting value will be activated and the temperature will be adjusted.
  • Super Freeze mode can be selected, however by selecting mode Eco Mode is cancelled immediately.

CHAPTER -3: USING YOUR FREEZER

Screen Saver Mode

Purpose

This mode saves energy by switching off all control panel lighting when the panel is left inactive.

How to Use

• Screen saver mode will be activated automatically after 30 seconds.
• If you press any key while the lighting of the control panel is off, the current machine settings will reappear on the display to let you make any change you wish.

Mobile status bar with navigation icons and a 'OK' button below

- If you do not cancel the screen saving mode or press any key for 30 seconds, control panel will remain off.

To deactivate the screen saving mode,

- To cancel the screen saving mode, first of all, you need to press any key to activate the keys and then press

and hold the Mode button " (16) for 3 seconds.

- To reactivate screen saving mode, press and hold the mode button "M (26) for 3 seconds.

The Child Lock Function

Purpose

Child lock can be activated to prevent any accidental or unintentional changes being made to the appliance settings.

Activating Child Lock

Press and hold child lock button (70) for 5 seconds.

Cancelling Child Lock

Press and child lock button 📄) for 5 seconds.

- 18°C ✓ M ^

Door Open Alarm Function

If freezer door is left open for more than 2 minutes, the appliance will beep.

Freezer Temperature Settings

• Users can use the decreasing or increasing button (#7 / #8) to set the temperature(-16, -17, -18, -19, -20, -21, -22, -23, -24°C and Super Freeze Mode "super").
• If Super Freeze mode or Eco mode is activated, the temperature will not change until the mode is cancelled.

- 18°C ✓ M ∧ ⏱

Recommended Temperature Values for Freezer

When to adjust Inner Temperature ( °C)
For minimum freezing capacity -16°C, -17°C
In normal usage -18°C, -19°C, -20°C, -21°C
For maximum freezing capacity. -22°C, -23°C, -24°C

This option shall be turned on 24 hours before placing the fresh food to the freezer. After 54h, it returns to the normal set value.

Warnings for temperature settings

• The ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the freezer. If required, change the temperature setting.
• It is not recommended that you operate your freezer in environments colder than 10^ .
• The temperature setting should be set by taking into consideration how often the freezer door is opened and closed, how much food is stored in the freezer and the environment in which and the positioning of the appliance.
• We recommend that when first using the freezer it should be left running for 24 hours uninterrupted to ensure it is completely cooled. Do not open the freezer door, or put food inside for this period.
• Your freezer has a 5 minute built in delay function, designed to prevent damage to the compressor. When power is applied to your freezer, it will begin to operate normally after 5 minutes.

CHAPTER -3: USING YOUR FREEZER

• Your freezer is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. It is not recommended that your freezer is operated in the environments which are out of the stated temperature intervals in terms of cooling efficiency.
• This appliance is designed for use at an ambient temperature within the 10^ - 43^ range.

Climate class and meaning:

T (tropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C.

ST (subtropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C.

N (temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C.

SN (extended temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C.

Important installation instructions

This appliance is designed to work in difficult climate conditions (up to 43 degrees C or 110 degrees F) and is powered with 'Freezer Shield' technology which ensures that the frozen food in the freezer will not defrost even if the ambient temperature falls as low as -15 °C. So you may then install your appliance in an unheated room without having to worry about frozen food in the freezer being spoilt. When the ambient temperature returns to normal, you may continue using the appliance as usual.

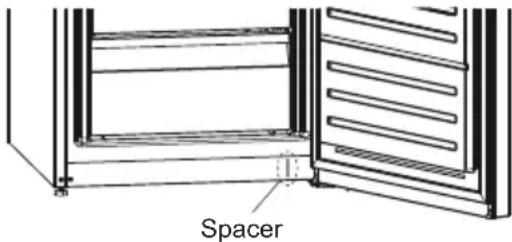

Spacer

• When the door of the freezer is closed, vacuum will occur. Wait for about 1 minute to reopen it.
• This application is optional for easy opening door. With this application, a little condensation may occur around this area and you may take it out.

Spacer

Accessories

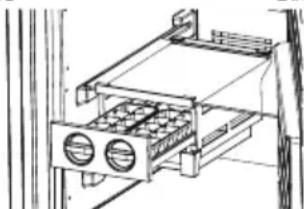

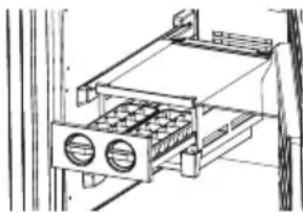

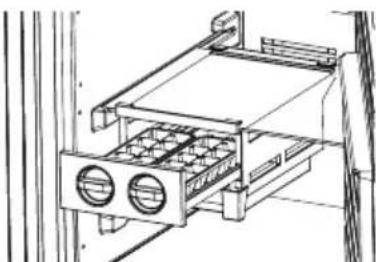

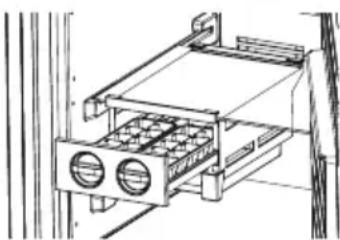

Icematic (In some models)

• Take out the ice making tray
- Fill the water to the line.
- Place the ice making tray in its original position
- When ice cubes are formed, twist the lever to drop ice cubes into the icebox.

Pure architectural floor plan lines without any text, numbers, or symbols

Technical line drawing of a mechanical assembly with two circular components mounted on a tray (no text or symbols)

Note:

• Do not fill the icebox with water in order to make ice. It may be broken.
• The movement of the ice maker may be difficult while the refrigerator is running. In such a case, it should be cleaned after removing the glass shelves.

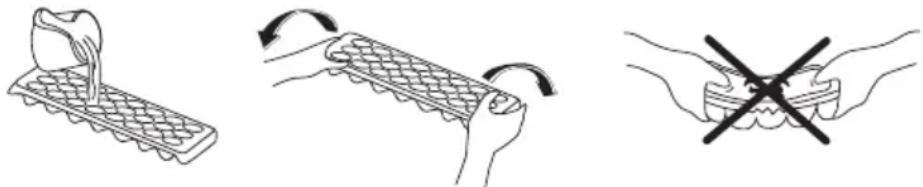

Ice tray (In some models)

• Fill the ice tray with water and place in freezer compartment.
  • After the water completely turned into ice, you can twist the tray as shown below to get the ice cube.

Three-step illustration showing a dental tool being processed, with no text or symbols present.

Cleaning

• Before cleaning your freezer, turn your mains supply off and remove the plug from the socket.
- Do not wash your freezer by pouring water on to it.
- Use a warm, soapy cloth or sponge to wipe the interior and exterior of your freezer.
- Carefully remove all baskets by sliding upwards or outwards and clean with soapy water. Do not wash in a washing machine or dishwasher.
- Do not use solvents, abrasive cleaners, glass cleaners or all purpose cleaning agents to clean your freezer. This may cause damage to the plastic surfaces and other components with the chemicals they contain.
- Clean the condenser at the back of your freezer at least once a year with a soft brush or vacuum cleaner.

Make sure that your freezer is unplugged while cleaning.

CHAPTER -3: USING YOUR FREEZER

Replacing LED Lighting (In some models)

If your fridge freezer has LED lighting contact the Sharp help desk as this should be changed by authorized personnel only.

Defrosting

Your freezer automatically defrosts. The water formed as a result of defrosting passes through the water collection spout, flows into the vaporization container behind your freezer and evaporates by itself in there.

Evaporating tray

CHAPTER -4: FOOD STORAGE GUIDANCE

• The freezer compartment is used for freezing fresh food, for storing frozen foods for the period of time indicated on packaging and for making ice cubes..
• Do not put fresh and warm food next to frozen food as it can thaw the frozen food.
• While freezing fresh foods (i.e. meat, fish and mincemeat) divide them in portions you will use in a single serving.
• For storing frozen foods, the instructions shown on frozen food packages should always be followed carefully. If no information is provided, food should not be stored for more than 3 months from the purchased date.
• Maximum load: if you want to store large quantities of food and use the maximum net capacity of the freezer, you can remove all the sliding drawers but you should keep the upper shelf flaps. Thanks to this, it is possible to store bulky items directly on the shelves.'
• When buying frozen food ensure that these have been frozen at suitable temperatures and that the packing is intact.
• Frozen food should be transported in appropriate containers to maintain the quality of the food and should be returned to the freezing surfaces of the unit in the shortest possible time.
• If a package of frozen food shows signs of humidity and abnormal swelling it is probable that it has been previously stored at an unsuitable temperature and that the contents have deteriorated..
• The storage life of frozen foods depends on the room temperature, thermostat setting, how often the door is opened, the type of food and the length of time required to transport the product from the shop to your home. Always follow the instructions printed on the packaging and never exceed the maximum storage life indicated.

If you would use maximum freezing capacity of your freezer:

• While freezing fresh foods, the maximum amount of fresh food (in kg) that can be frozen in 24 hours is indicated on the appliance label. (your refrigerator has the capacity to freeze 25 kg at 25°C ambient)
• For optimum appliance performance to reach maximum freezing capacity, activate Super Freeze (SF) mode 24 hours before placing fresh food into the freezer.
• After placing fresh food into the freezer, 24 hours is generally sufficient for freezing. "Super Freeze" mode will be deactivated automatically in 2-3 days to save energy.

If you would freeze a small amount (up to 3 kg) in your freezer:

• Place your food without touching already frozen food and activate "Fast Freezing" mode. You can put your food next to other frozen food after it is completely frozen (after minimum 24 hours).
• Do not re-freeze frozen food after it has thawed. This may cause health issues, such as food poisoning.
• Allow hot food to completely cool down before placing it in the freezer.
• When buying frozen food ensure that these have been frozen at suitable temperatures and that the packing is intact.

CHAPTER -5: DOOR REVERSAL

Repositioning the door

• It depends on which freezer you have as to whether it is possible the reverse the door.
• It is not possible where handles are attached at the front of the appliance.
• If your model does not have handles it is possible to reverse the doors, but this needs to be completed by authorised personnel. Please call Sharp service.

CHAPTER -6: TROUBLESHOOTING

Your Freezer is equipped with a built in fault detection system, which is able to give you guidance should your freezer not operate as expected. In the event of an error code will be displayed on the control panel. The most common error codes are shown below. If your freezer displays a code not shown below contact the Sharp help-desk.

ERROR TYPE MEANING WHY WHAT TO DO
E01 Sensor warning			Contact the Sharp help desk as soon as possible.
E02 Sensor warning			Contact the Sharp help desk as soon as possible.
E03 Sensor warning			Contact the Sharp help desk as soon as possible.
E06 Sensor warning			Contact the Sharp help desk as soon as possible.
E07 Sensor warning			Contact the Sharp help desk as soon as possible.
E08 Low Voltage Warning		Power supply to the device has dropped to below 170W.	- This is not a device failure, this error helps to prevent damages to the compressor.- The voltage needs to be increased back to required levelsIf this warning continues, contact the Sharp help desk as soon as possible.
E09	Freezer compartment is not cold enough	Likely to occur after long term power failure.	1. Set the freezer temperature to a colder value or set Super Freeze. This should remove the error code once the required temperature has been reached. Keep doors closed to improve time taken to reach the correct temperature.2. Remove any products which have thawed/defrosted during this error. They can be used within a short period of time.3. Do not add any fresh produce to the freezer compartment until the correct temperature has been reached and the error is no longer.If this warning continues, contact the Sharp help desk as soon as possible.

Check Warnings;

If your freezer is not operating;

• Is there a power failure?
- Is the plug connected to the socket correctly?
- Is the fuse of the socket to which the plug is connected or the main fuse blown?
- Is there any failure at the socket? To check this, plug your refrigerator into a known working socket.

If your freezer is not cooling enough;

• Is the temperature adjustment right?
- Is the door of your freezer opened frequently and left open for a long while?
• Is the door of freezer closed properly?
- Did you put a dish or food on your freezer so that it contacts the rear wall of your freezer so as to prevent the air circulation?
• Is your freezer filled excessively?
- Is there adequate distance between your freezer and the rear and side walls?
- Is the ambient temperature within the range of values specified in the operating manual?

CHAPTER -6: TROUBLESHOOTING

If the food in your freezer is over cooled

• Is the temperature adjustment right?
- Are there many food recently put inside the freezer?

If your freezer is operating too loudly;

To maintain the set cooling level, compressor may be activated from time to time. Noises from your freezer at this time are normal and due to its function. When the required cooling level is reached, noises will be decreased automatically. If the noises persist;

• Is your appliance stable? Are the legs adjusted?
  • Is there anything behind your freezer?
• Are the shelves or dishes on the shelves vibrating? Re-place the shelves and/or dishes if this is the case.
• Are the items placed on your freezer vibrating?

Normal Noises;

Cracking (Ice cracking) Noise:

• During automatic defrosting.
- When the appliance is cooled or warmed (due to expansion of appliance material).

Short cracking: Heard when the thermostat switches the compressor on/off.

Compressor noise (Normal motor noise): This noise means that the compressor operates normally Compressor may cause more noise for a short time when it is activated.

Bubbling noise and splash: This noise is caused by the flow of the refrigerant in the tubes of the system.

Water flow noise: Normal flow noise of water flowing to the evaporation container during defrosting. This noise can be heard during defrosting.

Air Blowing Noise (Normal fan noise): This noise can be heard in No-Frost freezer during normal operation of the system due to the circulation of air.

If humidity builds up inside the freezer;

• Has the food been properly packaged? Have the containers been well dried before they were put into the freezer?
• Is the door of the freezer opened very frequently? When the door is opened, the humidity found in the air in the room enters the freezer. Especially if the humidity rate in the room is too high, the more frequently the door is opened the faster will be the humidification.

If the doors are not opened and closed properly;

• Do the food packages prevent closing of the door?
• Are the door freezer, baskets and Ice box placed properly?
  • Is door gasket broken or torn?
  • Is your freezer on a level surface?

If the edges of freezer cabinet that the door joint contact are warm;

Especially in summer (hot weather), the surfaces that the joint contact may get warmer during the operation of the compressor, this is normal.

IMPORTANT NOTES:

• The compressor protection thermal fuse will cutout after sudden power breakdowns or after unplugging the appliance, because the gas in the cooling system is not stabilised. This is quite normal, and the freezer will restart after 4 or 5 minutes.
• The cooling unit of your freezer is hidden in the rear wall. Therefore, water droplets or ice may occur on the rear surface of your freezer due to the operation of the compressor in specified intervals. This is normal. There is no need to perform a defrosting operation unless the ice is excessive.
• If you will not use your freezer for a long time (e.g. in summer holidays) unplug it. Clean your freezer according to Part 4 and leave the door open to prevent humidity and smell.
• The appliance you have purchased is designed for home type use and can be used only at home and for the stated purposes. It is not suitable for commercial or common use. If the consumer use the appliance in a way that does not comply with these features, we emphasise that the producer and the dealer shall not be responsible for any repair and failure within the guarantee period.
• If the problem persists after you have followed all the instructions above, please consult an authorised service provider.

CHAPTER -7: TIPS FOR SAVING ENERGY

• Do not install the appliance close to heat producing appliances. Such as cooker, oven, dishwaher or radiator, and locate the appliance in the coolest part of the room.
• Locate the appliance in a cool well ventilated room and make sure that the air openings of the appliances are not obstructed.
  • Always leave warm food to cool down to room temperature before placing in the freezer.
• Try to avoid keeping the door open for long periods or opening the door too frequently as warm air will enter the cabinet and cause the compresor to switch on unnecessarily often.
• Ensure there are no obstructions preventing the door from closing properly.
  • Cover foods before placing them in the freezer. This cuts down on moisture build-up inside the unit.
• Refer to the "temperature settings" section for the suggested temperature control settings.
• Do not block cold air vents. Doing so causes the freezer to run longer and use more energy.
• Keep freezer full.
• Level the freezer so that the door closes tightly.
• Occasionally clean the rear of the appliance with a vacuum cleaner or paint brush to prevent an increased power consumption.
• Keep door gaskets clean and pliable. Replace gaskets if worn.

CHAPTER -8: TECHNICAL DATA

The technical information is situated in the rating plate on the internal side of the appliance and on the energy label.

The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database.

Keep the energy label for reference together with the user manual and all other documents provided with this appliance. It is also possible to find the same information in EPREL using the link https://eprel.ec.europa.eu and the model name and product number that you find on the rating plate of the appliance.

See the link www.theenergylabel.eu for detailed information about the energy label.

CHAPTER -9: CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, Serial Number and Service Index.

The information can be found on the rating plate. You can find the rating label inside the fridge zone on the left lower side.

The original spare parts for some specific components are available for a minimum of 7 or 10 years, based on the type of component, from the placing on the market of the last unit of the model.

Visit our website to:

www.sharphomeappliances.com

Inhalt

Diagram of a vertical filtration or separation system with curved arrows indicating flow direction (no text or symbols present)

KAPITEL 2: IHR GEFRIERSCHRANK

Technical line drawing of a mechanical assembly with two circular components and mounting brackets (no text or symbols)

super - 18 °C ✓ M ∧ Ⓘ

E ✓ M ∧ Ⓗ

Mobile status bar with navigation icons and a '✓ M ^' button below

- 18 °C ✓ M ∧ ⏱

- 18°C ✓ M ^ 🔒

Technical line drawing of a door with horizontal slats and a small inset detail (no text or symbols)

Abstandhalter

Pure technical line drawing of a mechanical or electrical component without any text, numbers, or symbols

Technical line drawing of a mechanical device with two circular ports and a tray (no text or symbols)

Hinweis:

Illustration showing three hand gestures: a keyboard, a grid with curved arrows indicating rotation, and a crossed-out hand holding a bowl (no text or symbols)

Reinigung

www.sharphomeappliances.com

Sommaire

PARTIE -1: AVERTISSEMENTS GÉNÉRAUX ......28
PARTIE -2: PARTIES ET PIÈCES DE VOTRE CONGÉLATEUR....33
PARTIE -3: UTILISATION DE L'APPAREIL....33
PARTIE -4: DISPOSITION DES ALIMENTS ......37
PARTIE -5: INVERSION DE LA PORTE ......37
PARTIE -6: AVANT D'APPELER LE SERVICE APRÈS-VENTE ......38
PARTIE -7: ASTUCES D'ÉCONOMIES D'ÉNERGIE....39
PARTIE -8: DONNÉES TECHNIQUES....40
PARTIE -9: SERVICE ET ASSISTANCE À LA CLIENTÈLE....40

Diagram of a vertical storage or ventilation system with curved arrows indicating flow direction (no text or symbols present)

Architectural line drawing of a room layout with two circular fixtures and horizontal beams (no text or symbols)

Mode Super Congélation

Objectif

super - 18 °C ✓ M ∧ Ⓒ

PARTIE -3: UTILISATION DE L'APPAREIL

E ✓ M ^ ✓

Pendant ce mode :

Pure graphical interface element with horizontal lines and control buttons (no text or symbols)

- 18 °C ✓ M ^

- 18°C ✓ M ∧ ⏱

Technical line drawing of a room layout with two circular fixtures and vertical supports (no text or symbols)

Note :

Technical line drawing of a mechanical device with two circular components and a tray (no text or symbols)

Line drawing of a container being placed on a tray of small circular objects (no text or symbols)

Illustration of hands holding a grid-like object with curved arrows indicating rotation (no text or symbols)

Illustration of two hands holding a tooth with a black X symbol indicating a dental or dental procedure (no text or labels)

Nettoyage

Technical line drawing of a mechanical or electrical component with no visible text or symbols

Bac
d'évaporation

PARTIE -4: DISPOSITION DES ALIMENTS

Diagram of a vertical storage or ventilation system with curved arrows indicating circulation or flow direction (no text or symbols present)

HOOFDSTUK -2: UW VRIEZER

Technical line drawing of a mechanical or electrical enclosure with two circular components and a horizontal panel (no text or symbols)

super - 18 °C ✓ M ∧ ⏱

Gebruik

E ✓ M ^ ⏻

Mobile phone status bar with navigation icons and two horizontal lines above a 'OK' button

Screensaverstand deactiveren

- 18 °C ✓ M ^

- 18 °C ✓ M ∧ ⏻

Technical line drawing of a cabinet or storage unit with horizontal shelves and slats (no text or symbols)

Afstandhouder

Accessoires

Architectural floor plan showing room layout with two circular fixtures and structural framing (no text or labels)

Technical line drawing of a mechanical device with two circular components and a tray (no text or symbols)

Opmerking:

Three-step illustration showing a tool interacting with a grid, then to open the case with a crossed-out black bar (no text or symbols)

HOOFDSTUK -3: GEBRUIK VAN UW VRIEZER

Reiniging

www.sharphomeappliances.com

Índice

Diagram of two heat exchanger-like structures with arrows indicating flow direction (no text or labels)

Diagram of a vertical storage unit with curved arrows indicating flow or circulation (no text or symbols)

Architectural floor plan showing room layout with two circular vent units and a horizontal shelf (no text or labels)

super - 18 °C ✓ M ∧ ⏱

E ✓ M ^ ✓

Pure graphical interface element with horizontal lines and control buttons (no text or symbols)

- 18 °C ✓ M ^

- 18°C ✓ M ^ ?

Technical line drawing of a cabinet or storage unit with horizontal shelves and slats (no text or symbols)

Separador

Accesorios

Pure architectural floor plan lines without any text, numbers, or symbols

Technical line drawing of a multi-tiered storage unit with circular vent grilles (no text or symbols)

Nota:

Three-step illustration showing hand positioning: abacus, keyboard, and crumpled cup (no text or symbols)

www.sharphomeappliances.com

Conteúdos

CAPÍTULO -1: AVISOS GERAIS....68
CAPÍTULO -2: O SEU CONGELADOR....72
CAPÍTULO -3: UTILIZAÇÃO DO CONGELADOR....73
CAPÍTULO -4: GUIA DE ARMAZENAMENTO DE ALIMENTOS .....76
CAPÍTULO -5: INVERSÃO DA PORTA....77
CAPÍTULO -6: RESOLUÇÃO DE PROBLEMAS....77
CAPÍTULO -7: DICAS PARA POUPAR ENERGIA 79
CAPÍTULO -8: DADOS TÉCNICOS 79
CAPÍTULO -9: SERVIÇO E ASSISTÊNCIA AO CONSUMIDOR....79

Diagram of a vertical cylindrical device with curved arrows indicating flow or circulation (no text or symbols)

CAPÍTULO -2: O SEU CONGELADOR

Technical diagram of a refrigerator with numbered parts labeled 2, 3, 4, and 5

Gelo automático

(Em alguns modelos)

Architectural floor plan showing room layout with ventilation unit and door (no text or labels)

1. Bandeja de gelo *
2. Tampa para do congelador
3. Gavetas do congelador
4. Gaveta grande do congelador
5. Gaveta de baixo do congelador

* Em alguns modelos

Notas gerais

super - 18 °C ✓ M ∧ Ⓗ

Como utilizar

Mobile status bar with navigation icons and two horizontal lines, one labeled '✓' and one with a lock icon

- 18 °C ✓ M ^

- 18 °C ✓ M ∧ ⏱

Valores da temperatura recomendados para o Congelador

Line drawing of a door frame with horizontal shelves and slats (no text or symbols)

Separador

Acessórios

Pure architectural floor plan lines without any text, numbers, or symbols

Technical line drawing of a mechanical device with two circular components and a tray (no text or symbols)

Nota:

Illustration showing three steps of a robotic manipulation: tool insertion, rotation, and no-hand rule (no text or symbols)

Visite o nosso website para: www.sharphomeappliances.com

Indhold

KAPITEL -1: GENERELLE ADVARSLER....81
KAPITEL -2: DIN FRYSER 85
KAPITEL -3: SÅDAN BRUGER DU DIN FRYSER....86
KAPITEL -4: GUIDE TIL OPBEVARING AF MADVARER....89
KAPITEL -5: VENDING AF D∅R....89
KAPITEL -6: FEJLFINDING 89
KAPITEL -7: TIP TIL ENERGIBESPARELSE 91
KAPITEL -8: TEKNISKE DATA 92
KAPITEL -9: KUNDEPLEJE OG -SERVICE 92

Diagram of two heat exchanger-like structures with internal flow indicators (no text or symbols)

KAPITEL -1: GENERELLE ADVARSLER

Diagram of a vertical device with curved arrows indicating rotational flow or circulation (no text or symbols present)

Technical line drawing of a mechanical assembly with two circular components and a bracket (no text or symbols)

1. Isbakke *
2. Den fryserklap
3. Fryerskuffer
4. Fryserens store skuffe
5. Fryserens nederste skuffe

* På visse modeller

super - 18 °C ✓ M ∧ Ⓒ

I denne tilstand:

Mobile status bar with navigation icons and two horizontal lines, one marked with checkmark and arrow

- 18°C ✓ M ^

Åben dør-alarm

- 18°C ✓ M ∧ ⏱

Technical line drawing of a door frame with horizontal slats and a vertical panel (no text or symbols)

Afstandsstykke

Tilbehør

Icematic (På visse modeller)

Pure architectural line drawing of a room layout with two circular fixtures and vertical supports (no text or symbols)

Technical line drawing of a mechanical device with multiple ports and mounting brackets (no text or symbols)

Bemærk:

Three-step illustration showing hand positioning: abacus, grid-patterned tray, and hand holding a cross (no text or symbols)

Rengøring

www.sharphomeappliances.com

Innhold

KAPITTEL 1: GENERELLE ADVARSLER....94
KAPITTEL 2: FRYSEREN DIN....98
KAPITTEL 3: HVORDAN BRUKE FRYSEREN DIN....99
KAPITTEL 4: RETNINGSLINJER FOR OPPBEVARING AV MAT ....102
KAPITTEL 5: REVERSERING AV D∅REN....102
KAPITTEL 6: FEILS∅KING....102
KAPITTEL 7: TIPS FOR ENERGISPARING ....104
KAPITTEL 8: TEKNISK DATA....105
KAPITTEL 9: KUNDEST∅TTE OG SERVICE ....105

Diagram of a vertical container with curved arrows indicating flow or circulation (no text or symbols)

Technical diagram of a refrigerator with numbered components and labeled parts

Generelle merknader

Architectural floor plan showing room layout with ventilation units and structural framing (no text or labels)

1. Isbitbrett *
2. Klaff
3. Fryseskuffer
4. Stor skuff
5. Nedre skuff

* I noen modeller

super - 18 °C ✓ M ∧ Ⓒ

E ✓ M ^ ✓

Digital display screen with two horizontal lines and control buttons below, including check, M, ∧, and lock icons

KAPITTEL 3: HVORDAN BRUKE FRYSEREN DIN

- Hvis du ikke ønsker å avbryte skjermsparingsmodus eller trykker på en hvilken som helst knapp i 30 sekunder, slukkes kontrollpanelet igjen.

- 18 °C ✓ M ^

- 18°C ✓ M ∧ ⏻

Anbefalte temperaturverdier for fryseren

Når kreves det justering?	Innvendig temperatur (°C)
For minimum frysekapasitet -16, -17
Ved normal bruk -18, -19, -20, -21
For maksimum frysekapasitet -22, -23, -24

Technical line drawing of a door frame structure with no visible text or symbols

Avstandsstykke

Tilbehør

Icematic (I noen modeller)

Pure technical line drawing of a mechanical or electrical component without any text, numbers, or symbols

Technical line drawing of a mechanical assembly with multiple circular components and a central housing (no text or symbols)

Merk:

Illustration showing three different hand positions: abacus, keyboard, and crumpled (no text or symbols)

Rengjøring

Installationsinformation

Diagram of a vertical storage unit with curved arrows indicating flow or circulation (no text or symbols)

KAPITEL -2: DIN FRYS

Technical diagram of a refrigerator with numbered components and a close-up inset showing a labeled component.

Technical line drawing of a mechanical or electrical enclosure with two circular components and mounting brackets (no text or symbols)

super - 18 °C ✓ M ^

Användning

Digital display screen showing two horizontal lines with check and hash buttons below, likely a status bar or navigation indicator.

KAPITEL -3: ANVÄNDA DIN FRYS

- 18 °C ✓ M ^

- 18°C ✓ M ∧ ⏱

Technical line drawing of a cabinet or storage unit with horizontal shelves and slats (no text or symbols)

Distansbricka

Tillbehör

Icematic (I vissa modeller)

Pure architectural line drawing of a room layout with two circular fixtures and vertical supports (no text or symbols)

Technical line drawing of a mechanical device with two circular components and a tray (no text or symbols)

Is-tråg

Illustration of hands holding a woven mat with curved arrows indicating rotation (no text or symbols)

Rengöring

www.sharphomeappliances.com

Sisältö

LUKU -1: YLEISIÄ VAROITUKSIA....120
LUKU -2: PAKASTIMESI....124
LUKU -3: PAKASTIMEN KÄYTTÖ....125
LUKU -4: RUOAN SÄILYTYSOPAS....128
LUKU -5: OVEN AVAUTUMISSUUNNAN VAIHTO....128
LUKU -6: VIANMÄÄRITYS....128
LUKU -7: ENERGIANSÄÄSTÖVINKKEJÄ 130
LUKU -8: TEKNISET TIEDOT 131
LUKU -9: ASIAKASPALVELU JA HUOLTO 131

Diagram of a vertical cylindrical device with curved arrows indicating rotational flow, no text or symbols present.

LUKU -2: PAKASTIMESI

Technical diagram of a refrigerator with numbered components and a close-up inset showing a labeled component.

Architectural line drawing of a room layout with two circular fixtures and structural framing (no text or symbols)

super - 18 °C ✓ M ∧ Ⓗ

Käyttöohje

Pure graphical interface element with horizontal lines and control buttons (no text or symbols)

LUKU -3: PAKASTIMEN KÄYTTÖ

- 18 °C ✓ M ^

- 18 °C ✓ M ^

Pure technical line drawing of a mechanical or electrical component without any text, numbers, or symbols

Huomautus:

Technical line drawing of a mechanical device with two circular components and a tray (no text or symbols)

Jäärasia

Illustration showing three steps of a robotic arm: pressing a button, moving a tray with arrows, and opening a box with a crossed-out handle (no text or symbols)

Puhdistaminen

LUKU -8: TEKNISET TIEDOT

www.sharphomeappliances.com

Sisukord

1. PEATÜKK: ÜLDHOIATUSED....133
2. PEATÜKK: TEIE SÜGAVKÜLMIK....137
3. PEATÜKK: SÜGAVKÜLMIKU KASUTAMINE 138
4. PEATÜKK: TOIDU HOIUSTAMISE JUHIS....141
5. PEATÜKK: UKSE AVAMISSUUNA MUUTMINE....141
6. PEATÜKK: TÖRGETE KÖRVALDAMINE....141
7. PEATÜKK: NÖUANDED ENERGIA KOKKUHOIDMISEKS 143
8. PEATÜKK: TEHNILISED ANDMED 144
9. PEATÜKK: KLIENDITEENINDUS....144

Diagram of two coiled heat exchangers with internal cooling pipes and heat sinks (no text or labels)

1. PEATÜKK: ÜLDHOIATUSED

Diagram of a vertical container with curved arrows indicating flow or circulation (no text or symbols present)

2. PEATÜKK: TEIE SÜGAVKÜLMIK

Technical diagram of a refrigerator with numbered components and a close-up inset showing a labeled component.

Üldised märkused

Technical line drawing of a mechanical assembly with two circular components and a bracket (no text or symbols)

super - 18 °C ✓ M ∧ Ⓒ

Selle režiimi ajal

Mobile status bar with navigation icons and a 'OK' button below

- 18 °C ✓ M ^

- 18°C ✓ M ^ 🔒

Olulised paigaldusjuhised

Line drawing of a cabinet or storage unit with horizontal shelves and slats (no text or symbols)

Vahetükk

Tarvikud

Icematic (Osadel mudelitel)

Pure architectural floor plan lines without any text, numbers, or symbols

Technical line drawing of a mechanical device with two circular components and a tray (no text or symbols)

Märkus.

Illustration showing three different hand positions: a tooth being processed on a keyboard, a hand holding a tray with arrows indicating rotation, and a hand holding a cross-shaped object (no text or symbols)

Puhastamine

www.sharphomeappliances.com

Indice

PARTE -1: AVVERTENZE DI SICUREZZA....146
PARTE -2: IL VOSTRO CONGELATORE 150
PARTE -3: USO DELL'APPARECCHIO....151
PARTE -4: COLLOCAZIONE DEI CIBI 154
PARTE -5: RIPOSIZIONAMENTO DELLA PORTA....154
PARTE -6: PRIMA DI CHIAMARE L'ASSISTENZA....155
PARTE -7: AVVISO PER IL RISPARMIO DI ENERGIA....157
PARTE -8: DATI TECNICI....157
PARTE -9: ASSISTENZA E SERVIZIO CLIENTI....157

Diagram showing two curved structures with arrows indicating motion or force, no text or symbols present

PARTE -3: USO DELL'APPARECCHIO

super - 18 °C ✓ M ∧ ⏱

Modalità d'uso

E ✓ M ^ 🔒

Modalità d'uso

Mobile phone status bar with navigation icons and two horizontal lines above a '✓ M ∧' button

Modalità d'uso

Diagram of a vertical storage or ventilation system with curved arrows indicating flow direction (no text or symbols present)

Technical diagram of a refrigerator with numbered components and a close-up inset showing a labeled component.

Note generali

Technical line drawing of a mechanical assembly with two circular components and mounting brackets (no text or symbols)

- 18°C ✓ M ^

- 18°C ✓ M ∧ ⏱

Technical line drawing of a mechanical assembly with two circular components and vertical supports (no text or symbols)

Nota:

Technical line drawing of a mechanical device with two circular components and a rectangular base (no text or symbols)

Vassoio ghiaccio

Illustration of hands holding a woven mat with curved arrows indicating rotation (no text or symbols)

sharphomeappliances.com
