Product Type	Audio/Video Equipment Rack
Brand	Sanus
Model	CFR2136
Total Load Capacity	385.5 kg (850 lb)
Load Capacity per 2U Shelf	22.6 kg (50 lb)
Load Capacity per 1U Shelf	13.6 kg (30 lb)
Load Capacity per Optional 3U Shelf	36.2 kg (80 lb)
Approximate Height	167 cm (66 in) for 36U
Approximate Width	48.3 cm (19 in) standard
Approximate Depth	76.2 cm (30 in)
Material	Steel
Color	Black
Casters	Yes, 4 swivel casters
Leveling Feet	Yes, adjustable
Front Door	Yes, reversible with handle and optional lock
Rear Panels	Removable, can be reversed
Cable Management	Removable side panels, cable pass-throughs
Ventilation	Optional fan location
Daisy Chaining	Yes, with included ganging clamps
Safety Attachments	Equipment stops and straps
Maximum Operating Temperature	40 °C (104 °F)
Approximate Weight (Empty)	70 kg (154 lb) (estimated)

Frequently Asked Questions - CFR2136 SANUS

What is the total load capacity of the CFR2136 rack?

The total load capacity is 385.5 kg (850 lb). Each 2U shelf can support up to 22.6 kg (50 lb), each 1U shelf up to 13.6 kg (30 lb), and each optional 3U shelf up to 36.2 kg (80 lb).

How do I install equipment in the rack?

Install the heaviest components first at the bottom. Ensure that 50% of the total weight is in the lower third. Secure each piece of equipment with the provided screws and use the stops and straps to prevent movement.

Does the CFR2136 rack come with casters?

Yes, the rack is equipped with 4 swivel casters for easy movement. However, it is recommended not to move the loaded rack alone and to push slowly without jerks.

How do I reverse the door opening direction?

Remove the door by disengaging the top rod, remove the washer, then reverse the handle. Reinstall the door starting with the bottom rod, then the top rod. Adjust the lock cam if necessary.

How do I manage cables in this rack?

Use the removable side panels to access cables. Cable pass-throughs are provided. For optimal organization, bundle cables with ties and use the provided cable management paths.

Can I add a fan to improve ventilation?

Yes, a location is provided for an optional fan. Remove the vented panel, install the fan using the provided screws. Ensure the internal temperature does not exceed 40 °C.

How do I assemble two CFR2136 racks side by side?

Remove the side panels on the sides to be joined. Bring the racks together and ensure they are level. Install four ganging clamps (GC) into the chassis slots and press firmly to fully engage them.

How do I level the rack?

Use the adjustable leveling feet at the bottom. Turn each foot to adjust the height until the rack is stable and level. Tighten the locking nuts once adjustment is complete.

What are the important safety precautions?

Do not exceed weight limits. Do not sit or climb on the rack. Do not move the loaded rack alone. Ensure equipment is properly secured before moving the rack. Avoid sudden starts and stops.

Where can I find spare parts or accessories for this rack?

Contact Sanus customer service. Additional shelves (1U, 2U, 3U), fans, door locks, and ganging clamps are available as options.

USER MANUAL CFR2136 SANUS

CFR2115, CFR2127, CFR2136, CFR2144

Instruction Manual

We'll Make It Stress-Free

If you have any questions along the way, just give us a call.

1-800-359-5520. We're ready to help!

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS

PLEASE READ ENTIRE MANUAL PRIOR TO USE

Thank you for choosing a Sanus Component Series Rack. The CFR2100 series is designed to support audio/video equipment.

The total weight capacity for the CFR2100 series:

CFR2115 226.8 kg (500 lb)

CFR2127 340.2 kg (750 lb)

CFR2136 385.5 kg (850 lb)

CFR2144 453.6 kg (1,000 lb)

Each 2U shelf supports up to 22.6 kg (50 lb), and each 1U shelf supports up to 13.6 kg (30 lb).

Each optional 3U shelf supports up to 36.2 kg (80 lb).

CAUTION: Avoid potential personal injuries and property damage!

- Do not exceed the stated weight capacities.

• Do not shake, tilt, rock, sit, stand, or climb on your Component Series Rack. Tipping may cause injury or death.
• Do not move large racks by yourself; due to weight and height, assistance is required.
• To avoid instability do not pull out more than one optional drawer or slide out equipment at a time.
• Before moving, make sure all optional drawers and slide out equipment are secured and door is closed and secured.
• Use extreme caution when moving a loaded rack! Push, DO NOT pull, loaded rack slowly over a short, smooth, level distance. Avoid sudden starts and stops to minimize the strain placed on casters.
• Do not use this product for any purpose not explicitly specified by manufacturer.
• If you do not understand these instructions, or have doubts about the safety of the installation, assembly or use of this product, contact manufacturer Customer Service or call a qualified contractor.
  • Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.

NOTE: Due to continuous product improvement, images shown in this manual may vary from actual product.

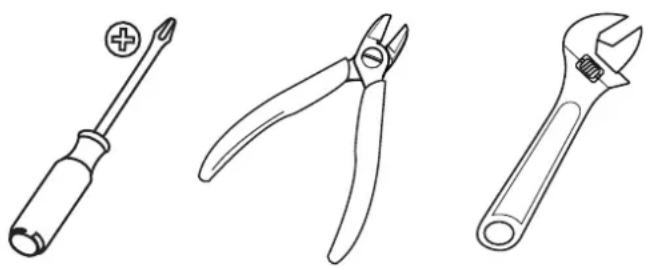

Do you have all of the tools needed?

Line drawings of three different tools: screwdriver, pliers, and adjustable wrench (no text or symbols present)

Unpacking

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!

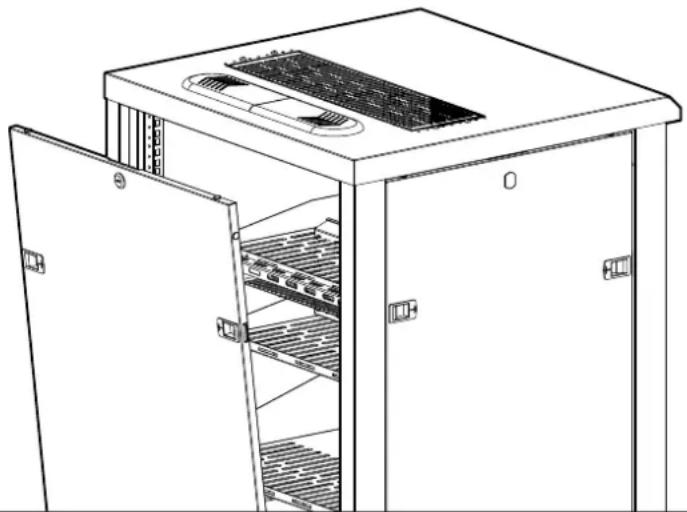

Supplied parts are located inside of the rack. To access the parts, remove the back panel.

Line drawing of a server rack cabinet with open doors and internal shelves (no text or symbols)

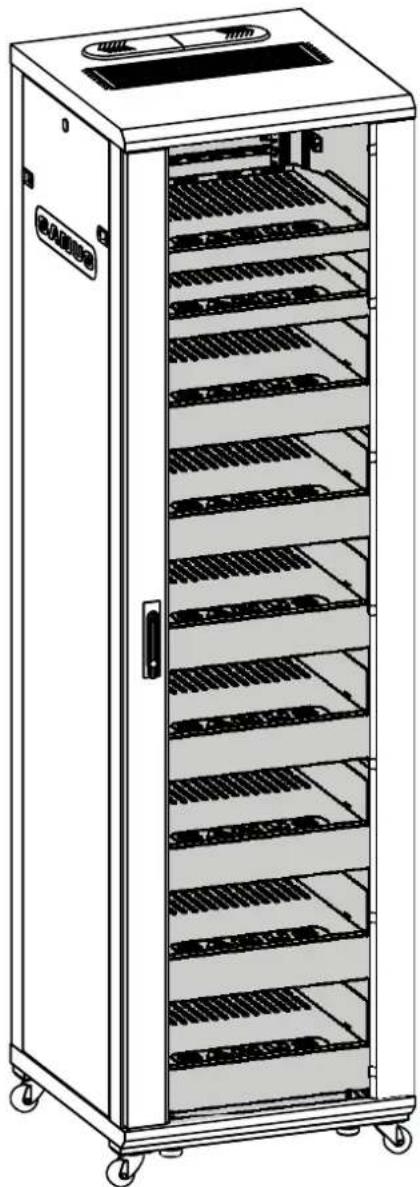

Parts and Hardware

Line drawing of a multi-tiered industrial storage cabinet with shelves and top panel (no text or symbols)

01x1

Technical line drawing of a mechanical bracket with no visible text or symbols

03

CFR2115 8

CFR2127 12

CFR2136 16

CFR2144 18

Line drawing of two rolled-up paper sheets with scroll handles (no text or symbols)

04

CFR2115 4

CFR2127 6

CFR2136 8

CFR2144 9

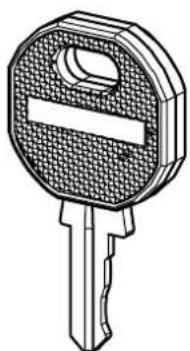

Technical line drawing of a key with a handle and spout (no text or symbols)

02x2

M5 x 10 mm 10-32 x 3/4 in.

05

CFR2115 8

CFR2127 8

CFR2136 8

CFR2144 8

06

CFR2115 4

CFR2127 8

CFR2136 12

CFR2144 16

Load Your Components

▲ CAUTION: Failure to follow loading requirements could lead to instability causing personal injury and/or property damage:

To prevent instability:

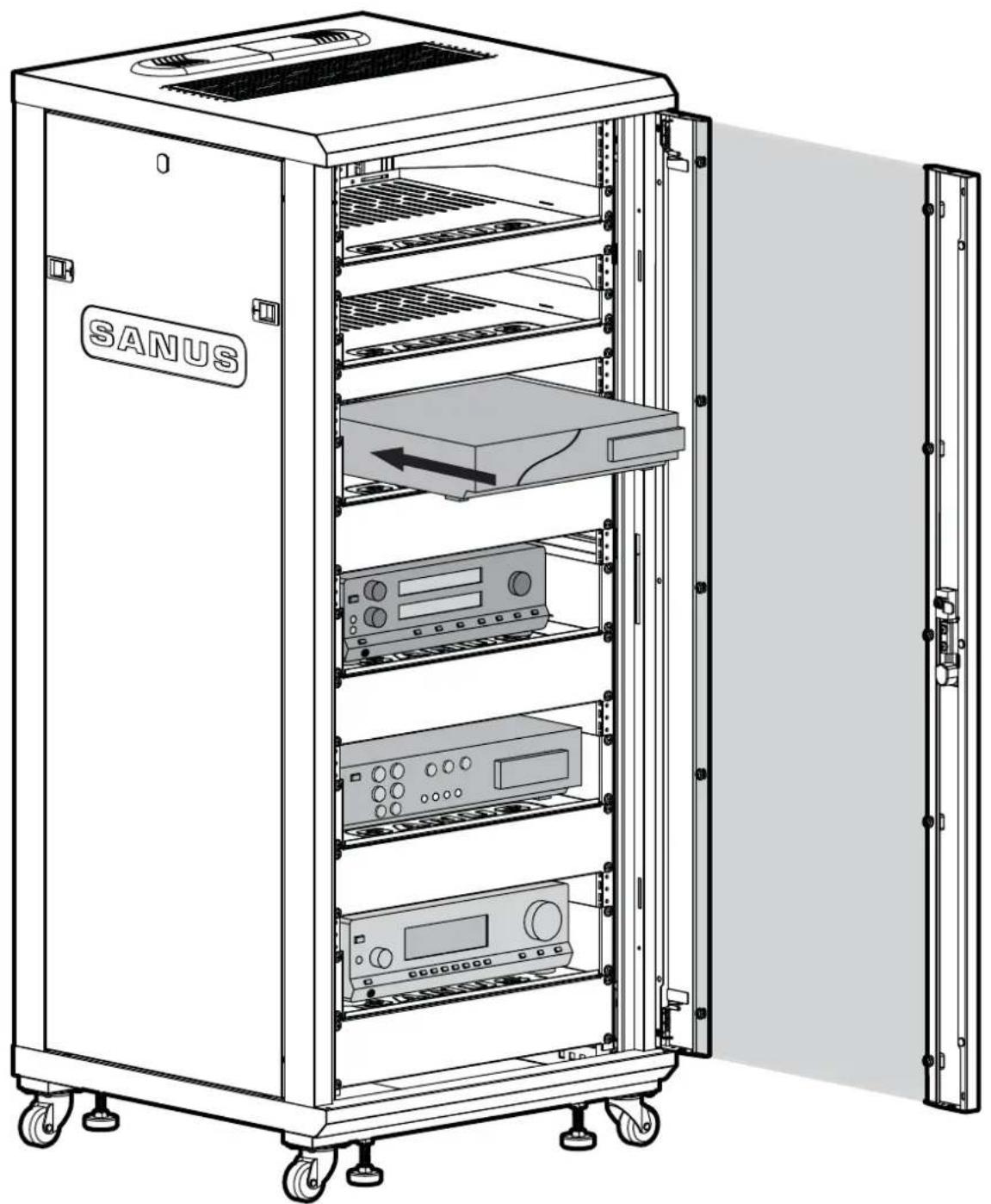

• Always load the rack from the bottom up and load the heaviest item first.
- 50% of the total weight should be mounted in the lower 1/3 of the rack.

Line drawing of a SANUS server rack cabinet with open door, showing internal components and ventilation slots (no text or symbols on main structure)

Load Your Components

▲ CAUTION: Failure to follow loading requirements could lead to instability causing personal injury and/or property damage:

To prevent instability:

• Always load the rack from the bottom up and load the heaviest item first.
- 50% of the total weight should be mounted in the lower 1/3 of the rack.

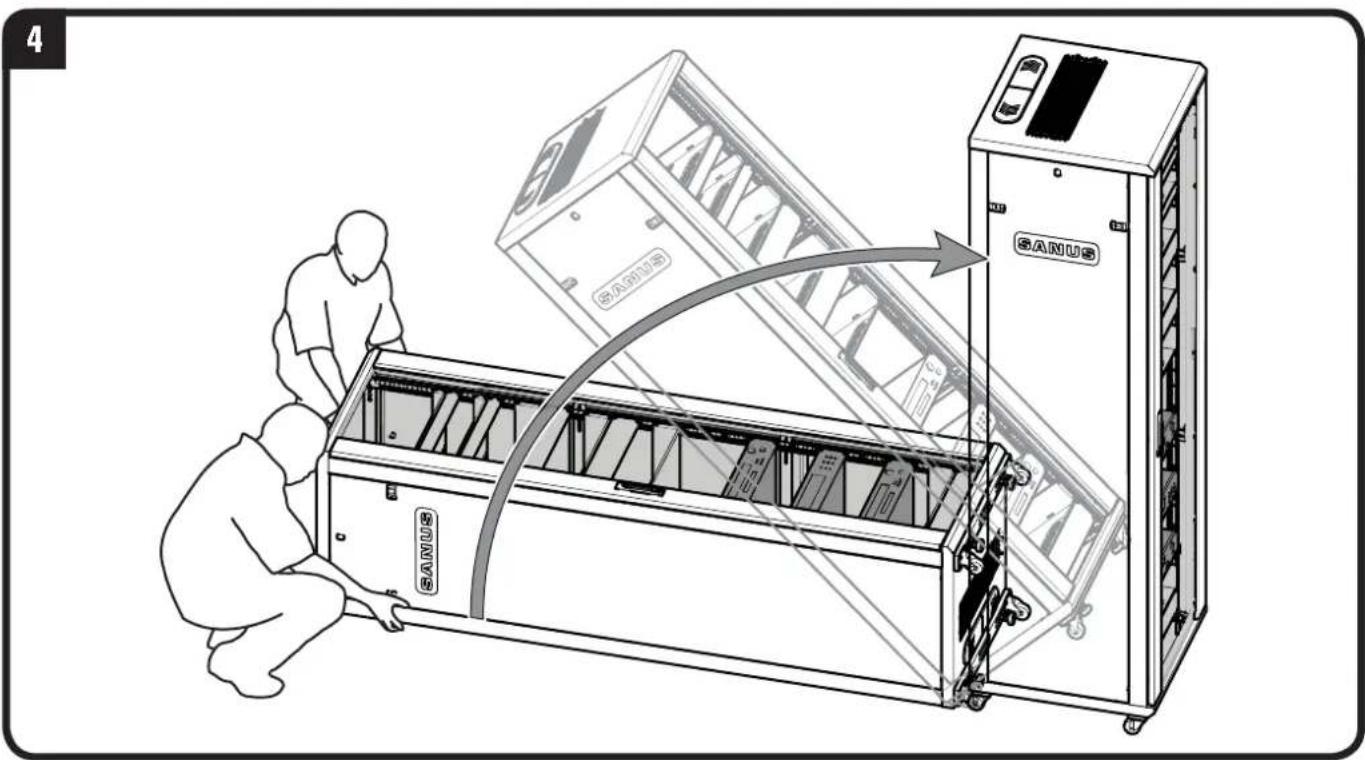

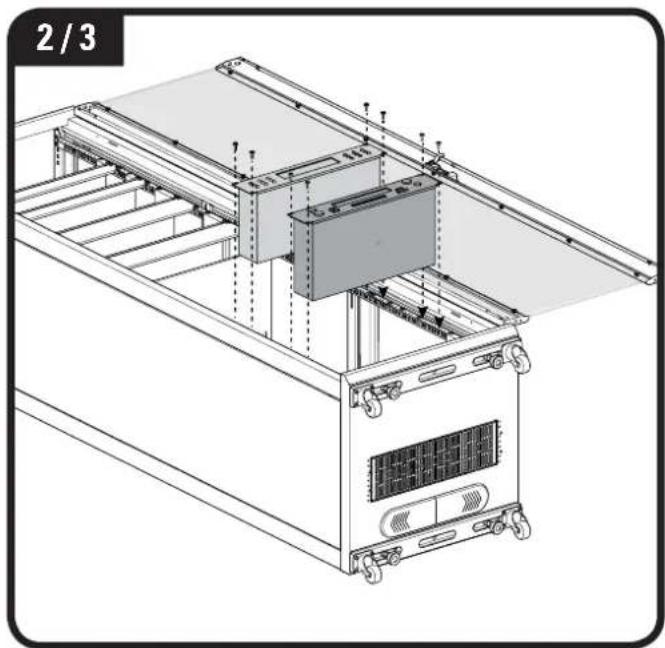

- Follow these additional requirements when loading rack on its back and then lifting rack to an upright position:

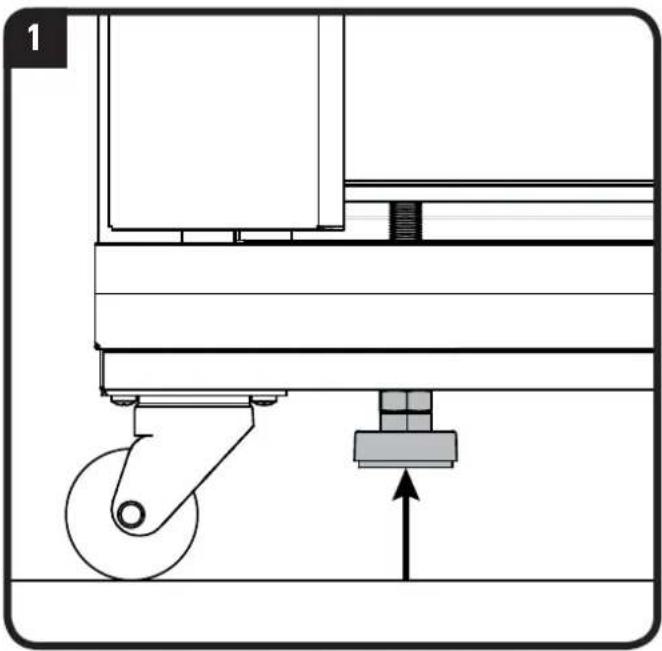

1. Leveling feet, if installed, need to be adjusted all the way in.
2. You must not load more than 20% of the total rated load prior to lifting rack to upright position.
3. All equipment should be securely fastened to the rack.
4. Use caution when lifting rack to upright position as casters may roll. Assistance is required.

Mechanical device diagram showing a wheel and base with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a server rack unit with mounting hardware and ventilation system (no text or symbols)

Using Backstops and Component Straps

Rack Shelf Backstops

NOTE: rear view with back panels removed.

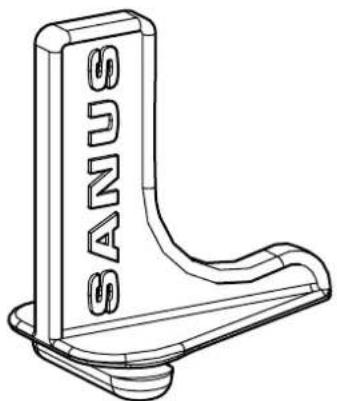

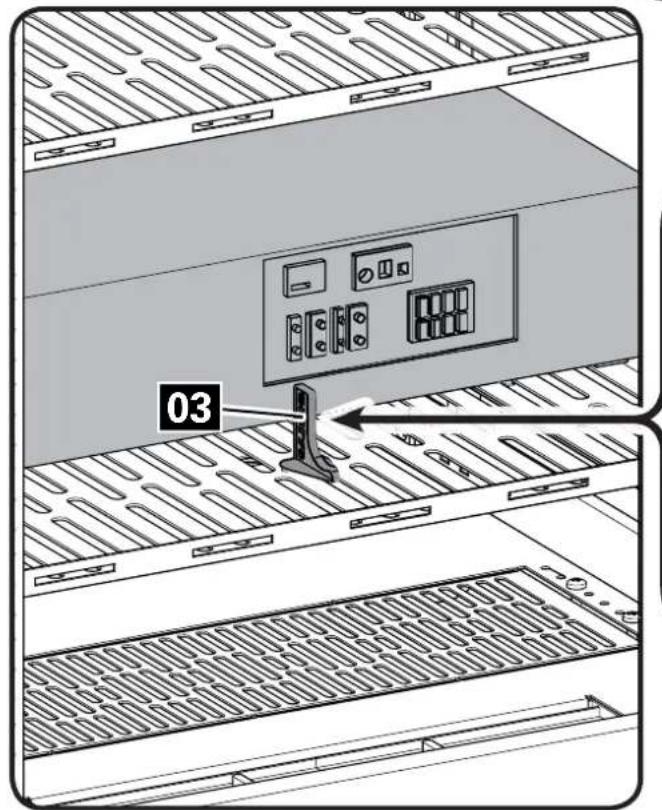

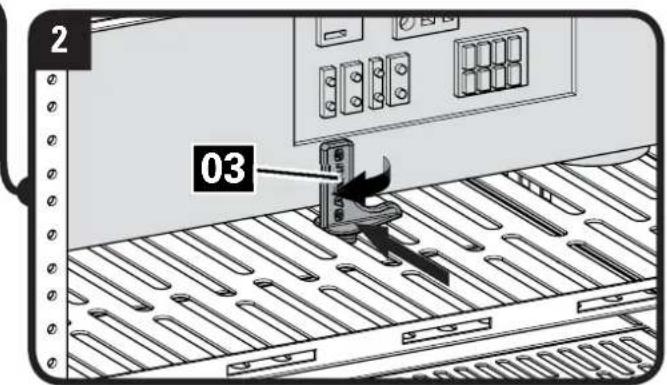

1. Insert backstop 03 into slot behind component.
2. Slide backstop 03 forward until firmly against component and twist 90 degrees.

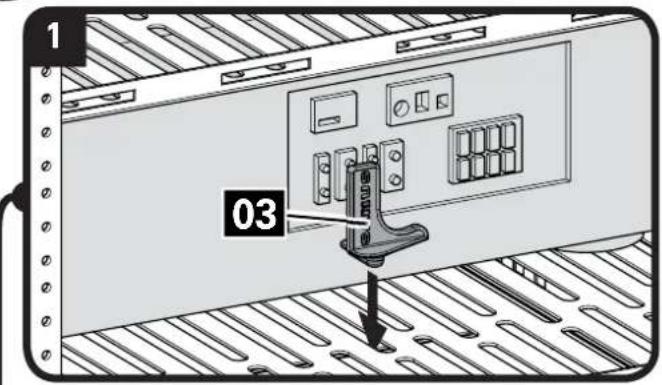

Component Straps

NOTE: side view with panels removed.

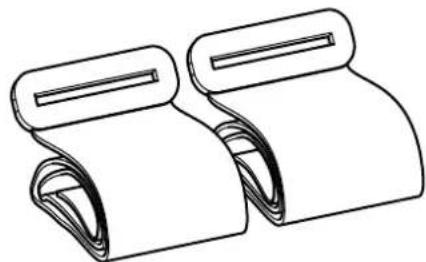

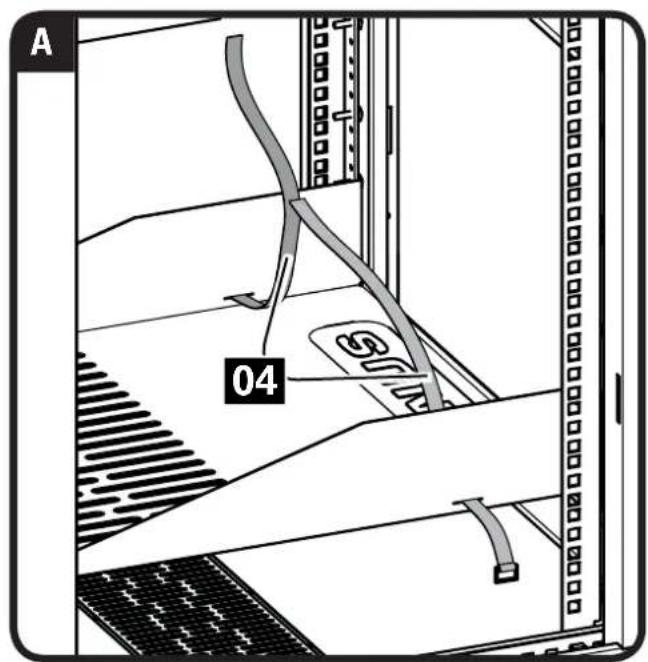

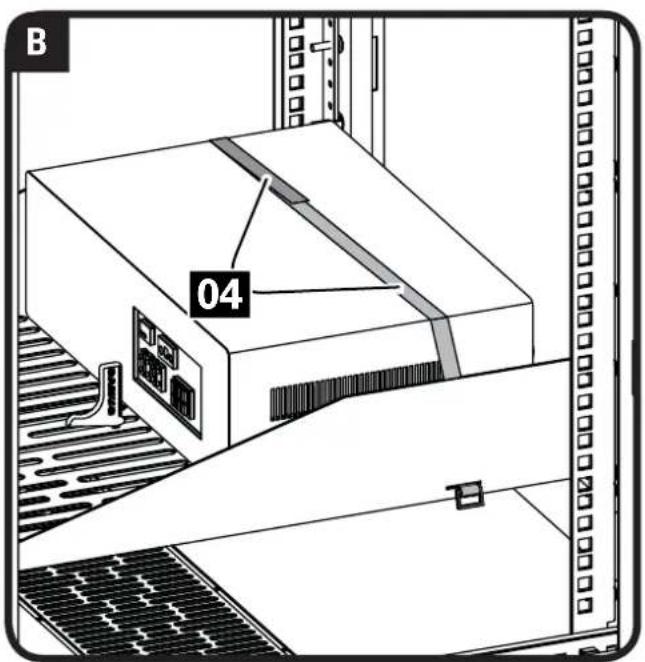

A. Slide straps 04 through slots in sides of shelves.
B. Wrap straps 04 over component to secure.

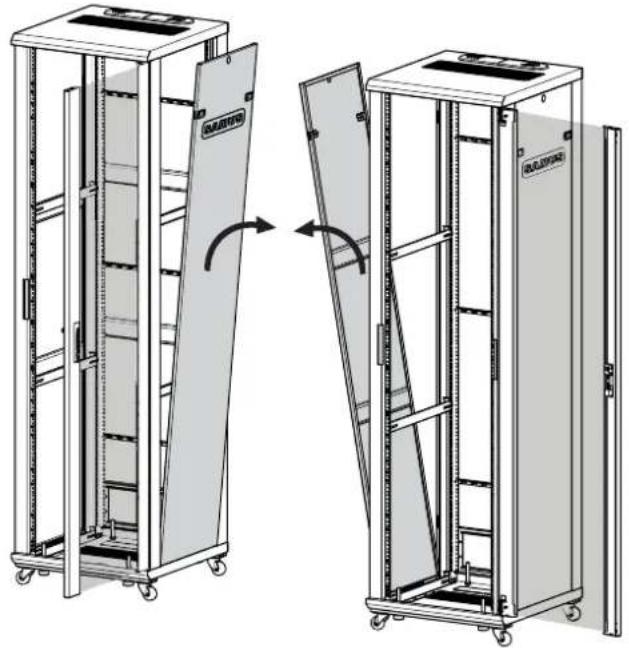

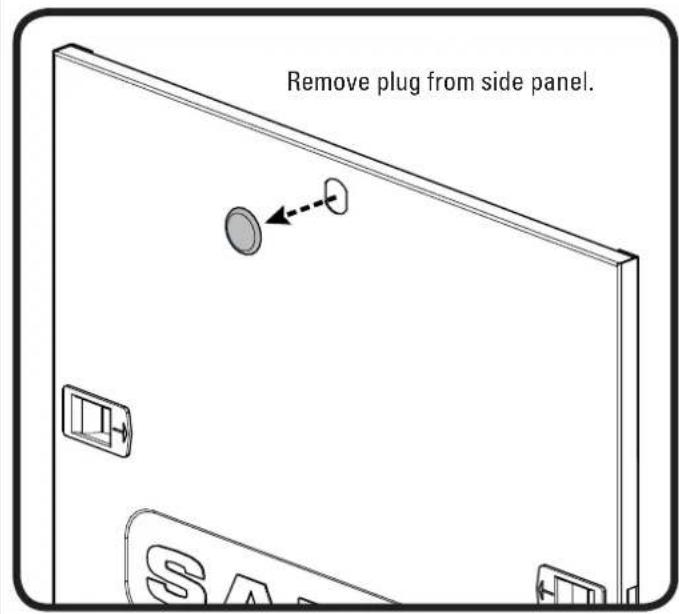

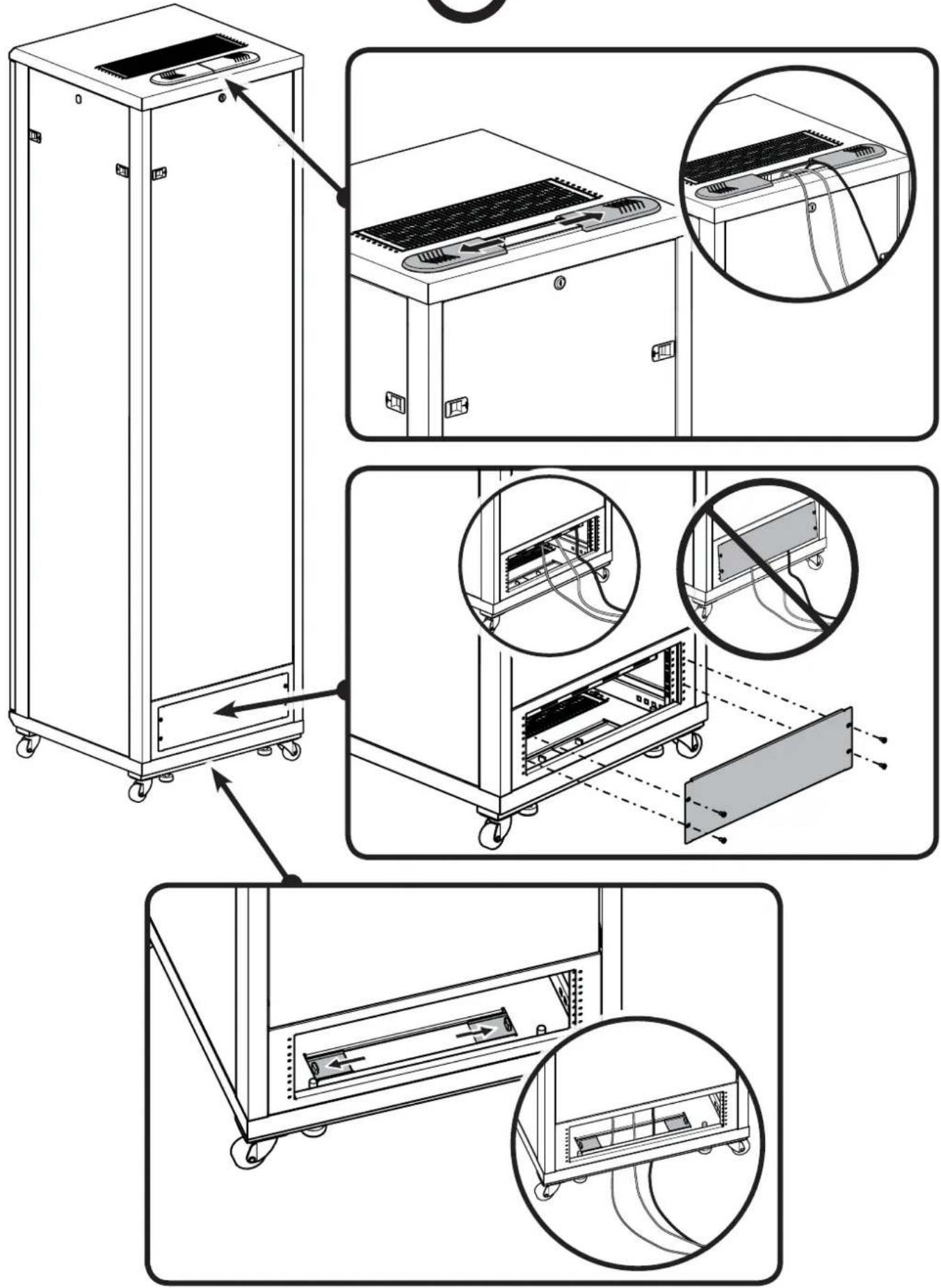

Access Panels for Cable Management

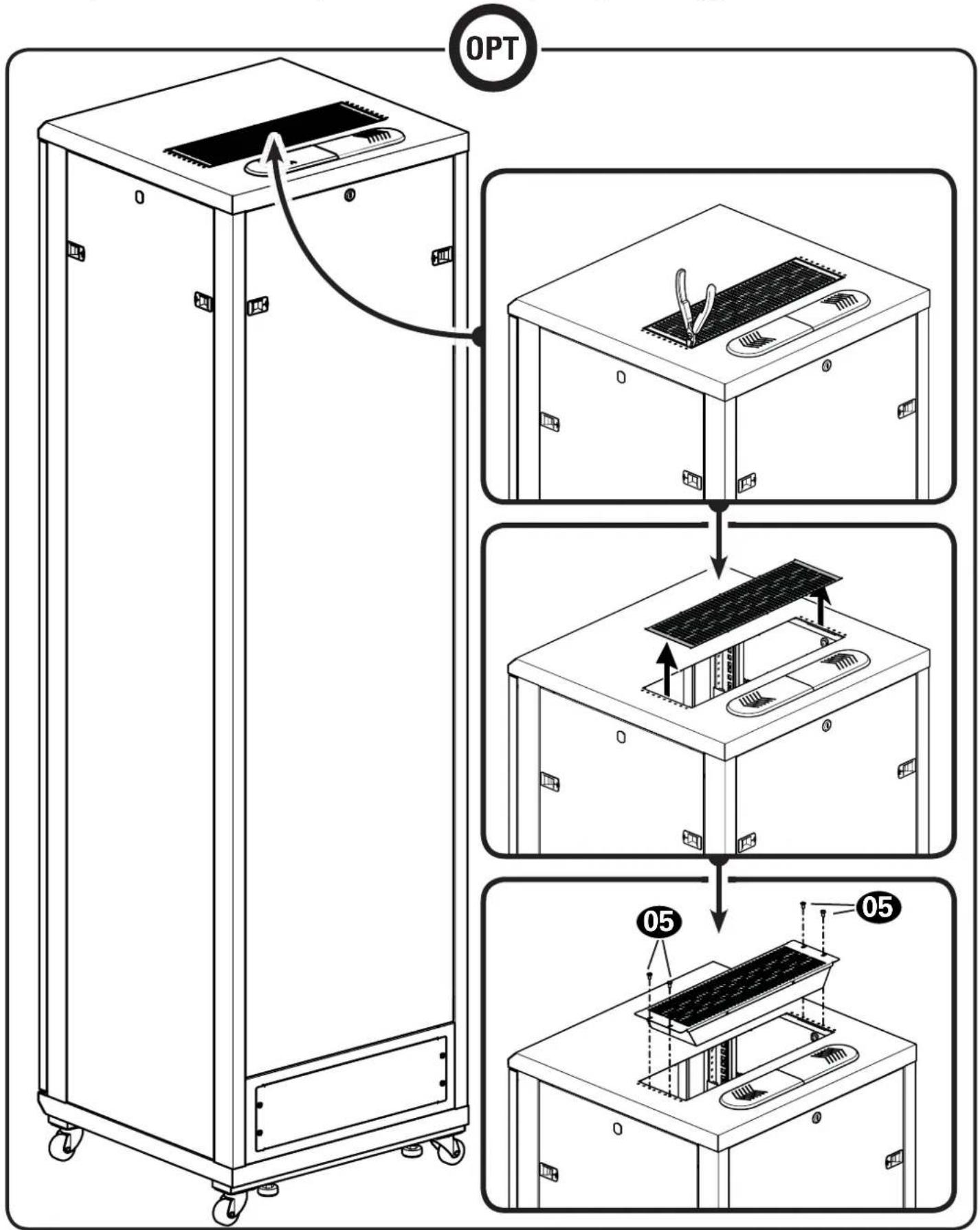

Install Fan for Additional Ventilation (Top or Bottom)

CAUTION: Avoid damage to your components due to overheating. Make sure that there is adequate space between each unit for proper airflow. Operating temperature inside the rack must not exceed 104°F (40°C).

To install fan:

Remove the vented panel. ▲ CAUTION: Cut edges may be sharp.

Remove any metal burrs that remain in the panel frame. Mount the cooling fan using the screws 05 included.

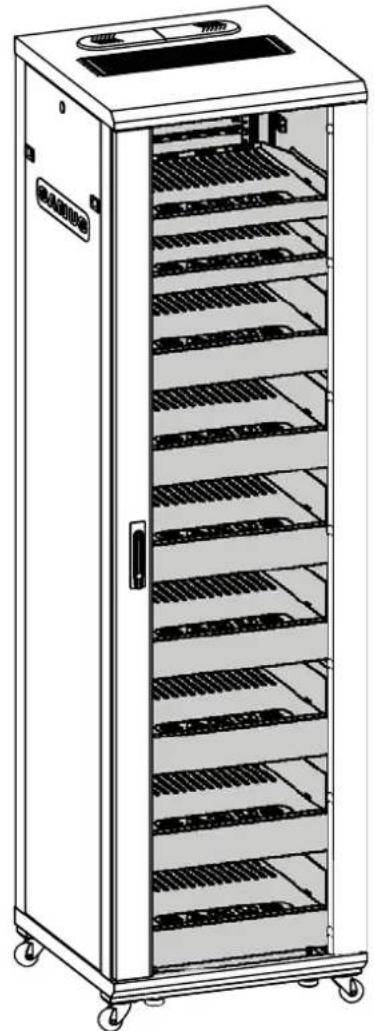

Adjust Shelves and Blanking Panels

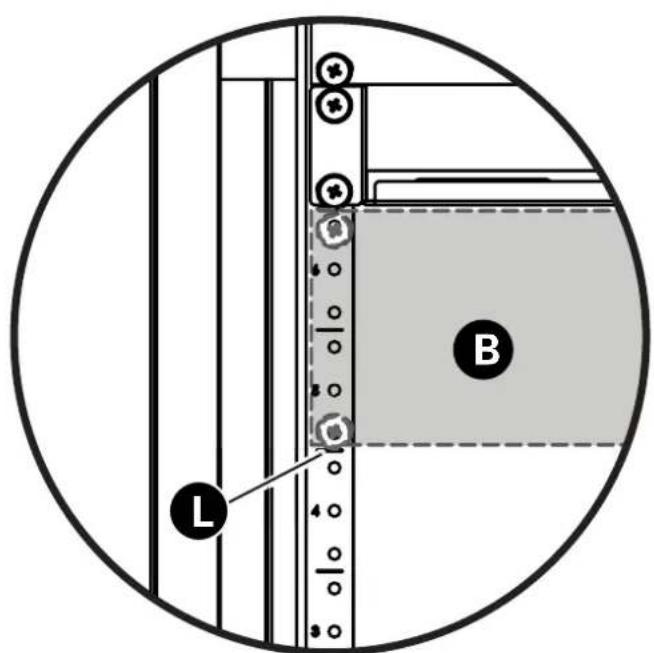

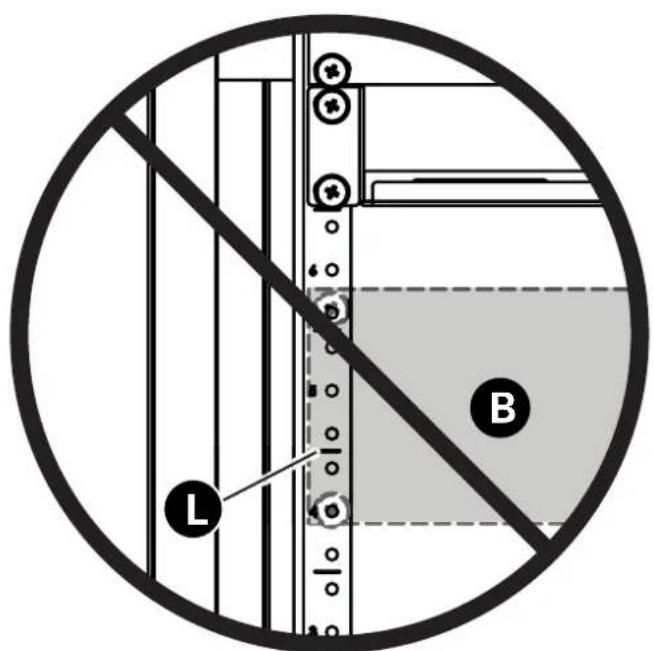

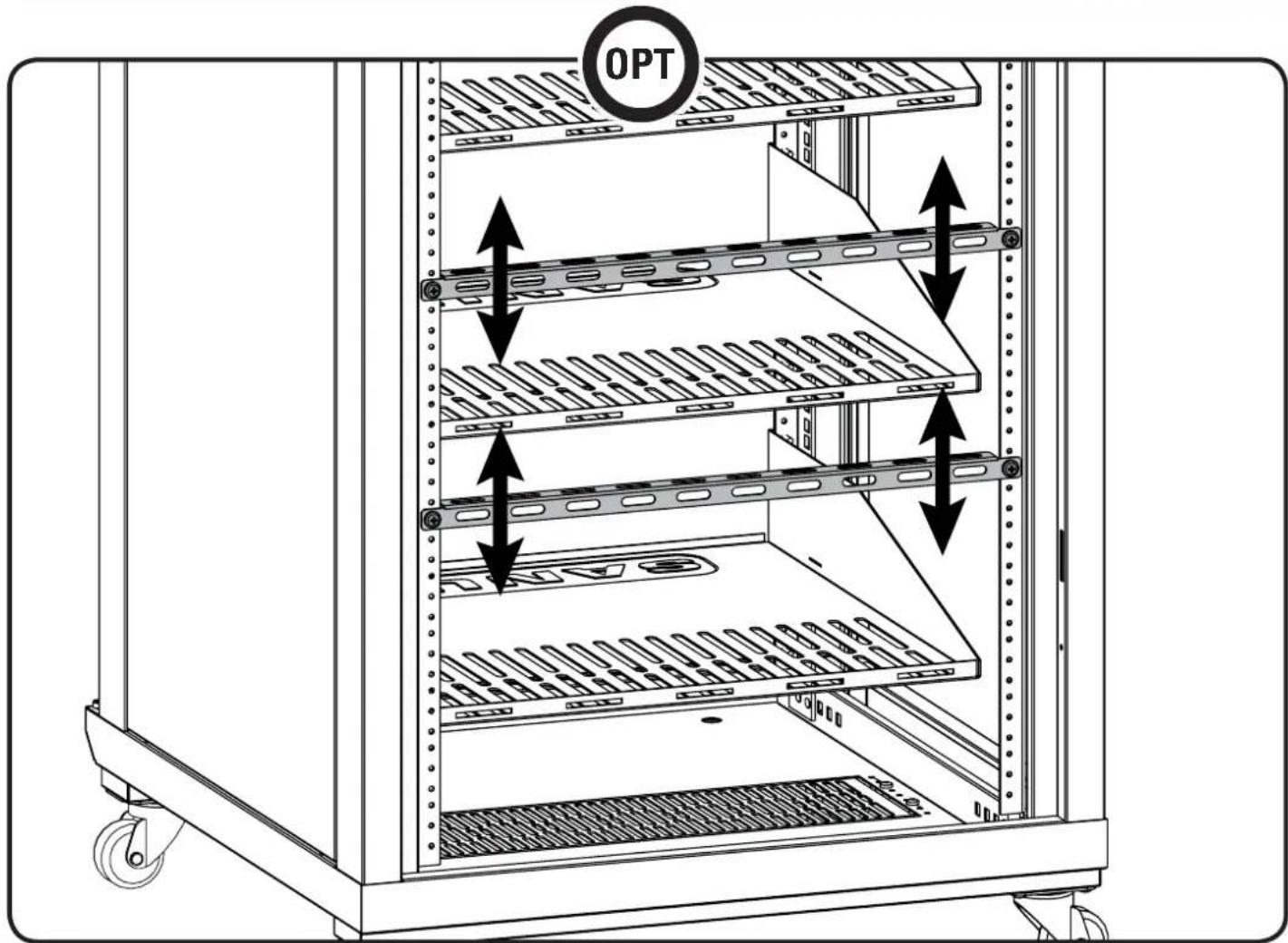

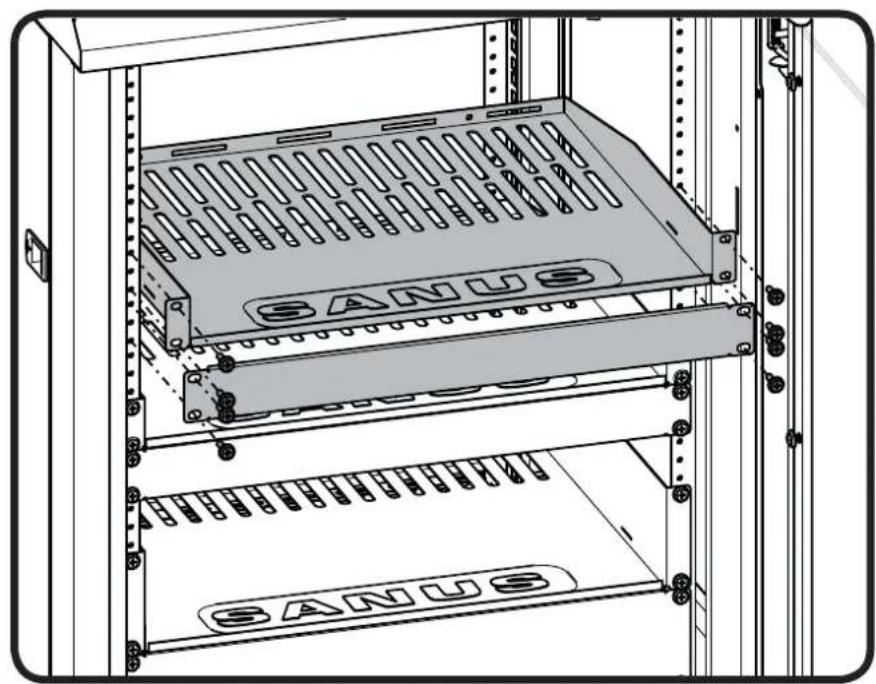

NOTE: Align the bottom of the shelf or blanking panel B with the lines L on the rack rail.

Line drawing of a multi-tiered stainless steel kitchen cabinet with shelves and wheels (no text or symbols)

Technical line drawing of a server rack with labeled 'SANUS' panels and mounting holes (no text or symbols beyond label)

Adjust Rack Rails

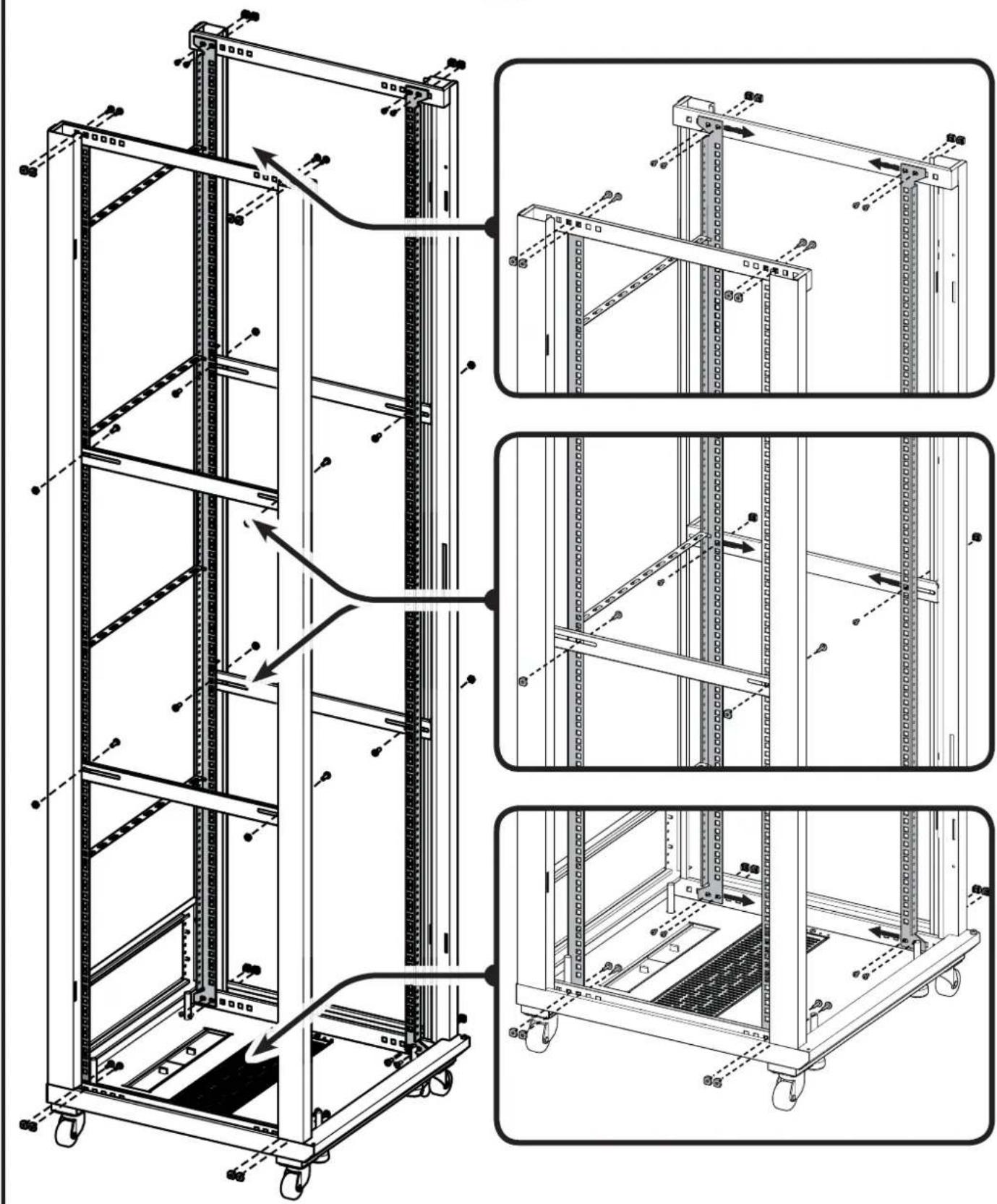

Remove the shelves and blanking panels before adjusting the rails. Adjust the right and left rails evenly.

NOTE: For clarity, the front door, top, and side panels are not shown.

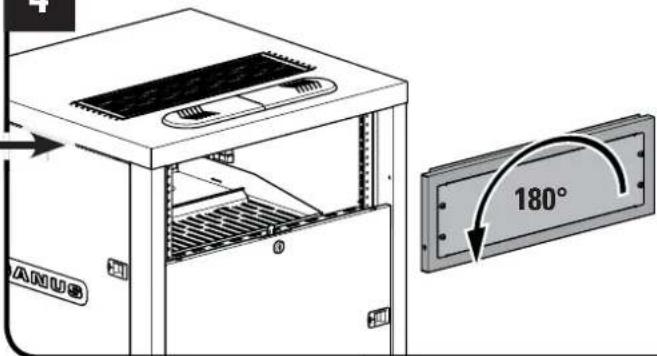

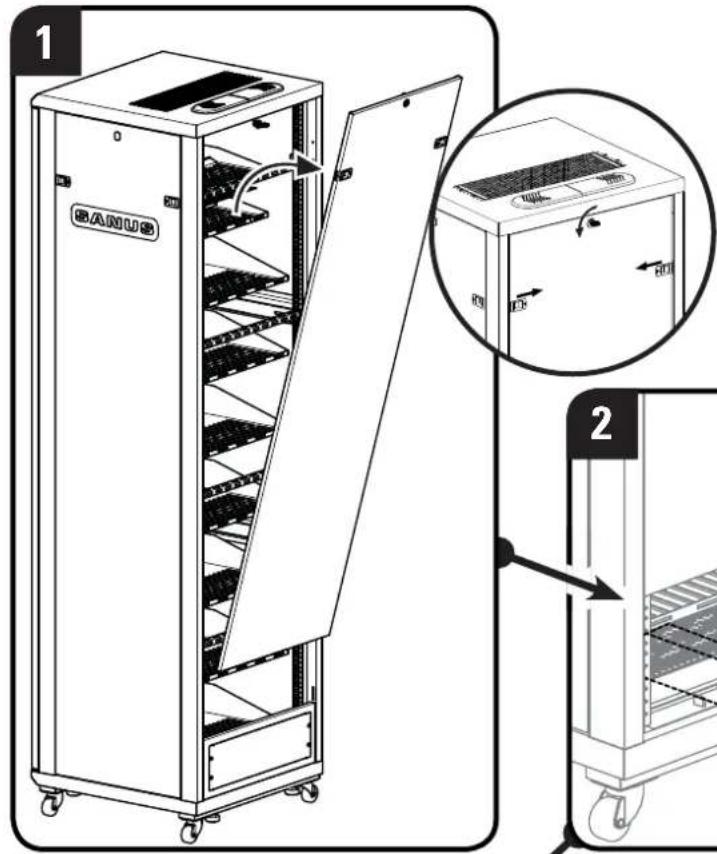

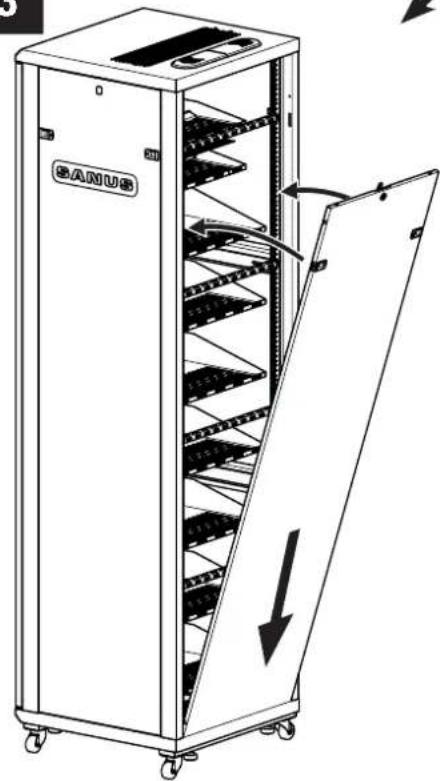

OPT

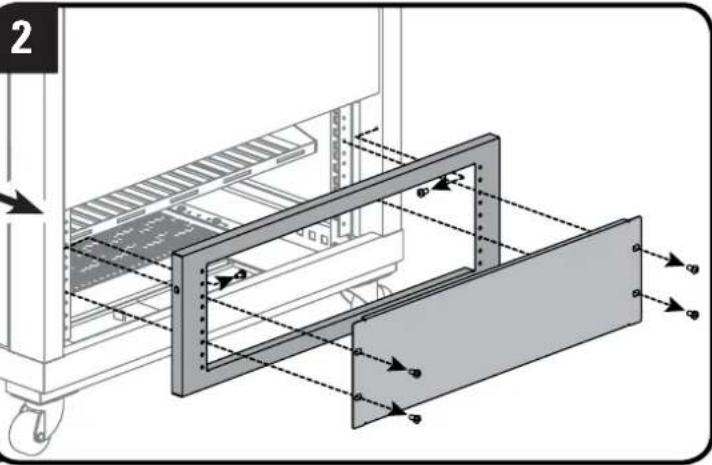

1. Remove large upper panel.
2. Remove small lower panel and frame.

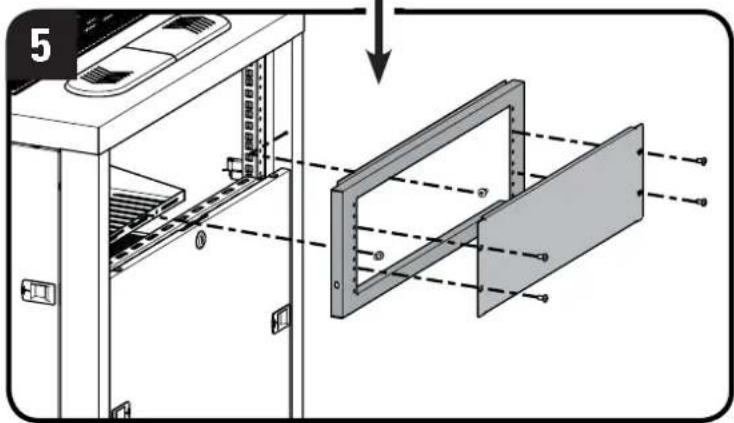

3. Fit bottom of large panel into rack frame and angle the panel up until sliding locks snap in place.
4. Flip small panel 180 degrees.
5. Screw panel frame into rack frame and replace small panel.

Technical diagram of a mechanical assembly with labeled components and directional arrows (no text or symbols present)

3

Line drawing of a BANUS industrial machine with internal rack structure and open door (no text or symbols)

4

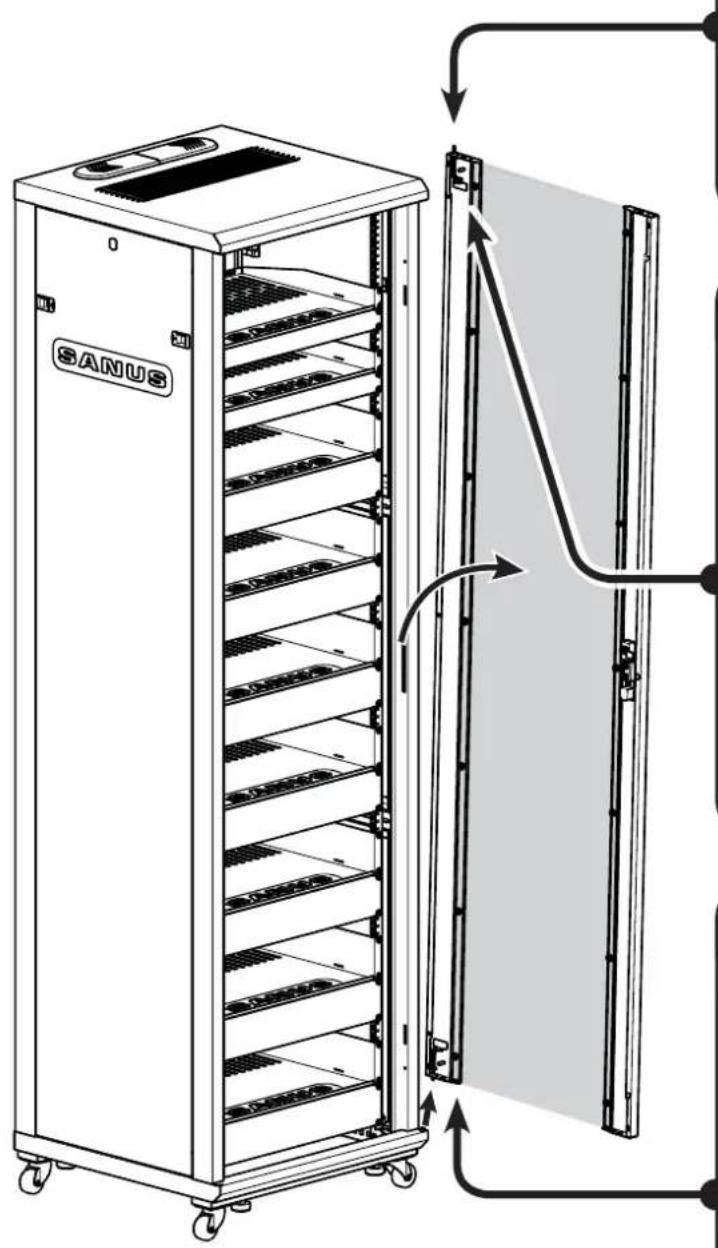

Reverse the Front Door

Remove the door

OPT

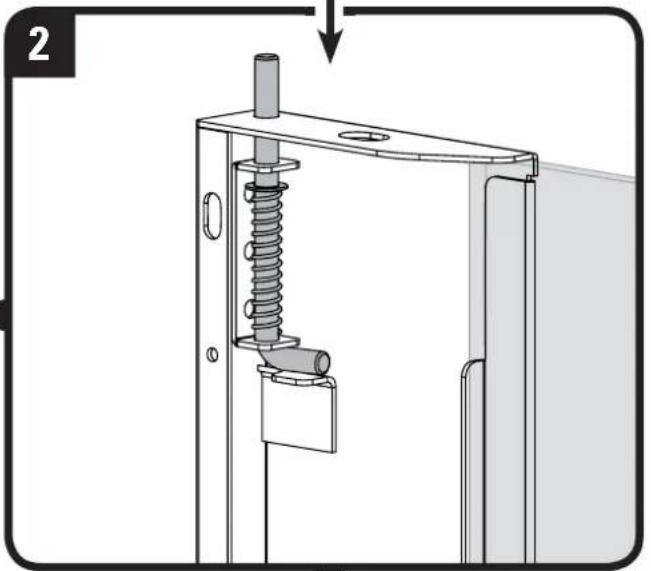

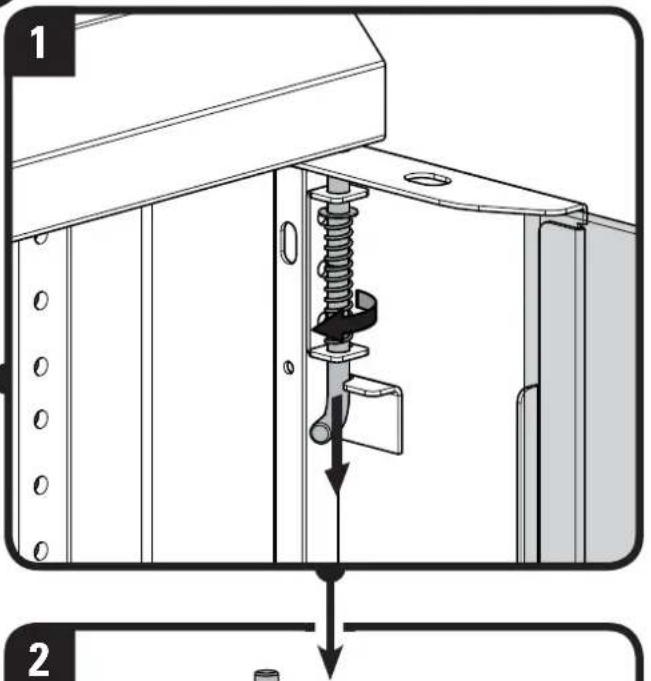

1. Turn upper door pin to release from locking tab and pull down to release door from rack and lift door from rack frame.
2. Release upper pin and turn it back to secure it with the locking tab.

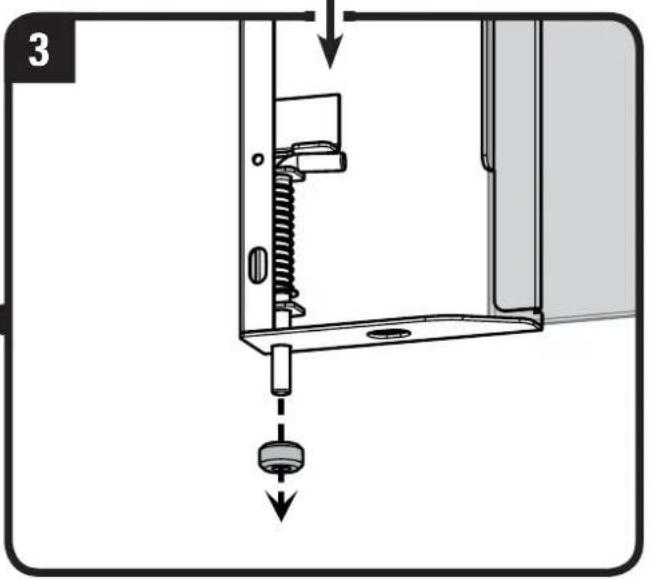

3. Remove spacer from bottom door pin.

NOTE: Spacer must be used with pin on bottom of door.

Mechanical assembly diagram showing a spring-loaded mechanism with a cylindrical component inserted into a frame (no text or symbols)

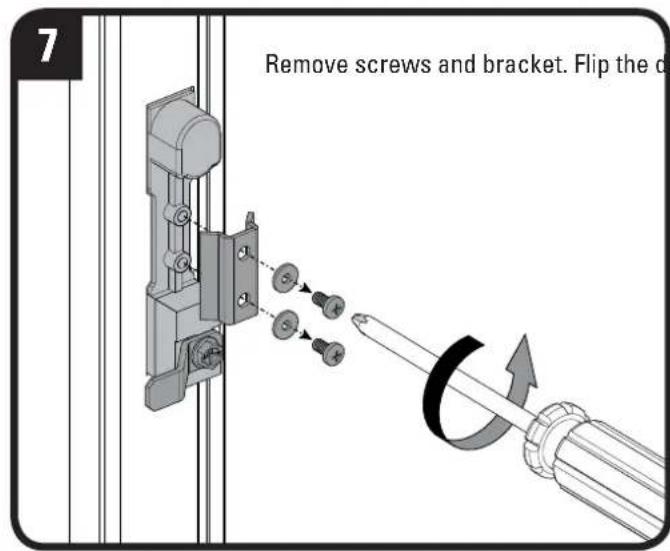

Reverse the Front Door - continued

Flip the door

    subgraph Section 1

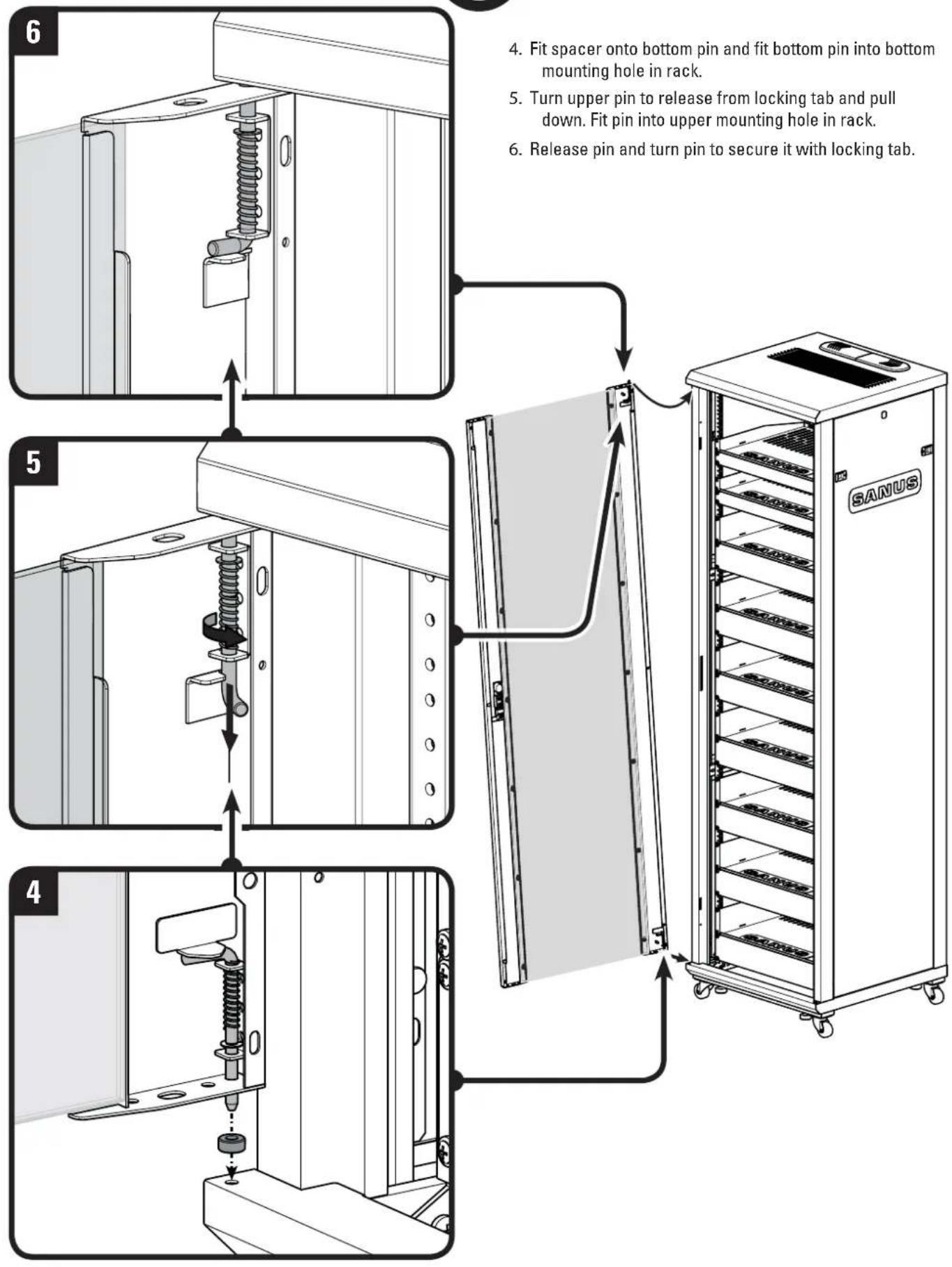

        F["4. Fit spacer onto bottom pin and fit bottom pin into bottom mounting hole in rack"]
        G["5. Turn upper pin to release from locking tab and pull down. Fit pin into upper mounting hole in rack"]
        H["6. Release pin and turn pin to secure it with locking tab"]
    end

    subgraph Section 2
        I["4. Fit spacer onto bottom pin and fit bottom pin into bottom mounting hole in rack"]
        J["5. Turn upper pin to release from locking tab and pull down. Fit pin into upper mounting hole in rack"]
        K["6. Release pin and turn pin to secure it with locking tab"]
    end

1. Fit spacer onto bottom pin and fit bottom pin into bottom mounting hole in rack.
2. Turn upper pin to release from locking tab and pull down. Fit pin into upper mounting hole in rack.
3. Release pin and turn pin to secure it with locking tab.

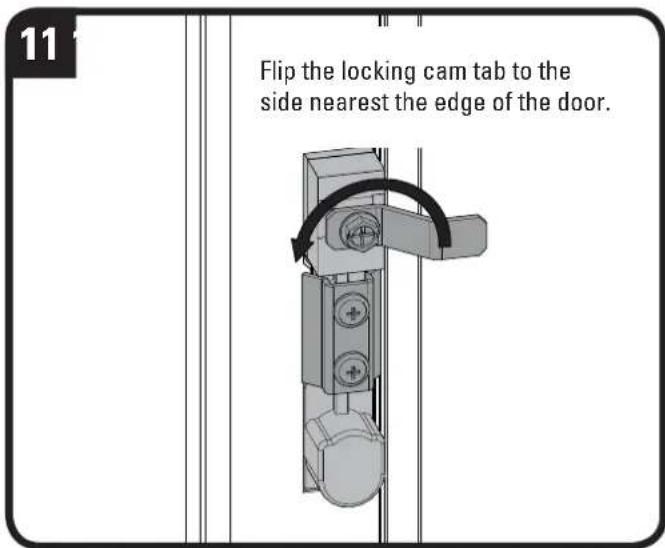

Reverse the Front Door - continued

Flip the door

OPT

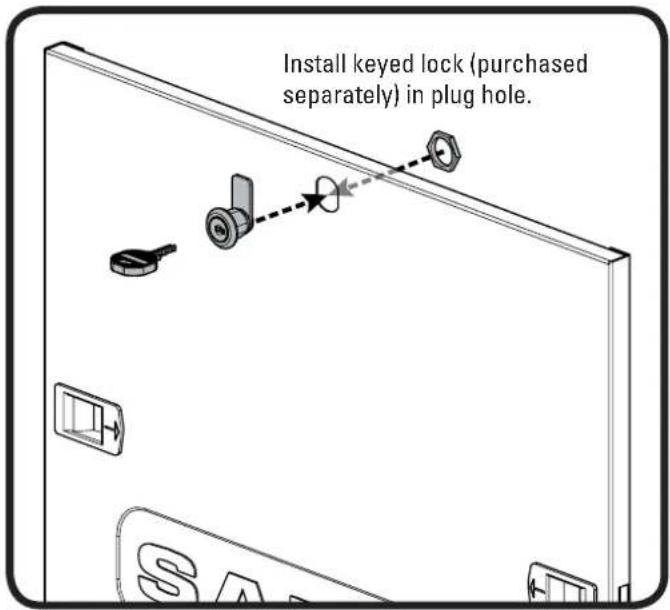

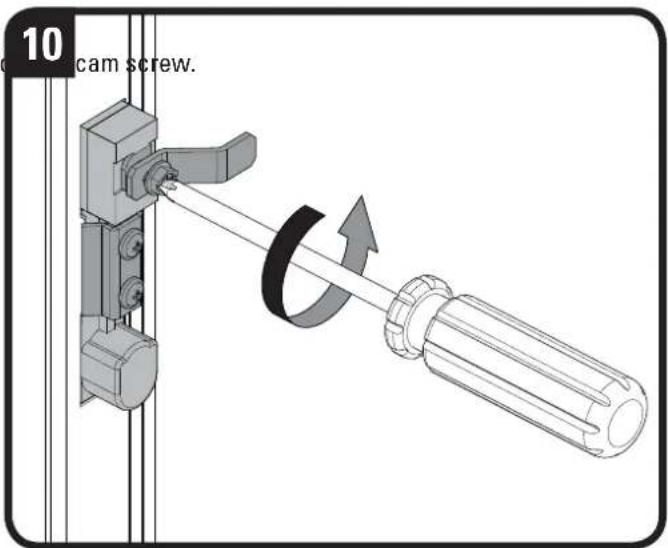

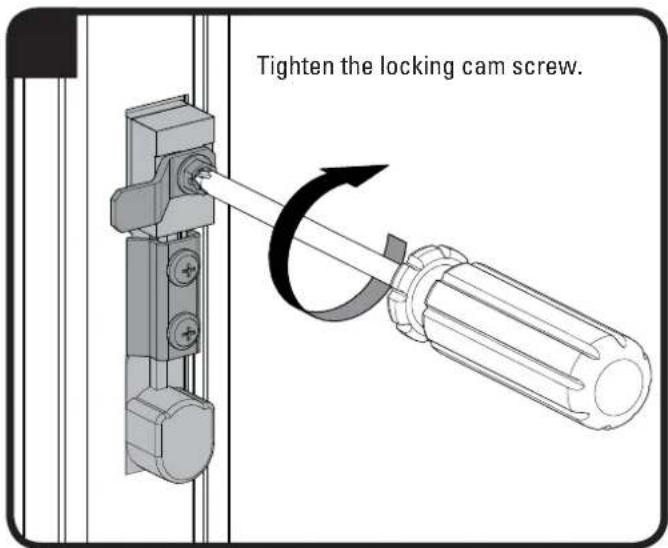

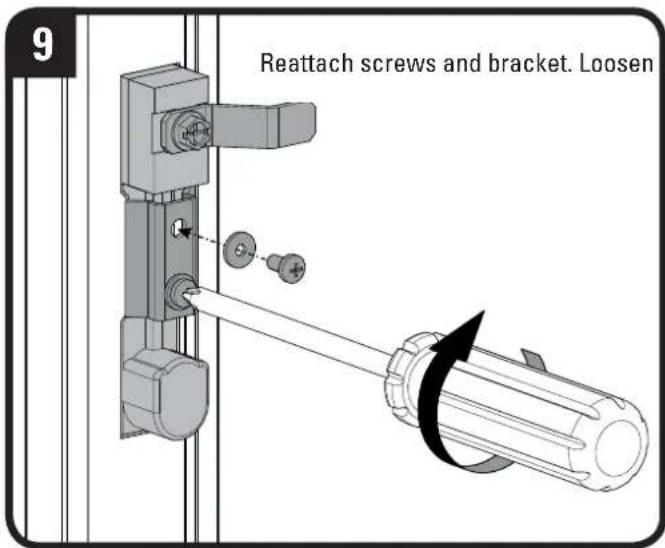

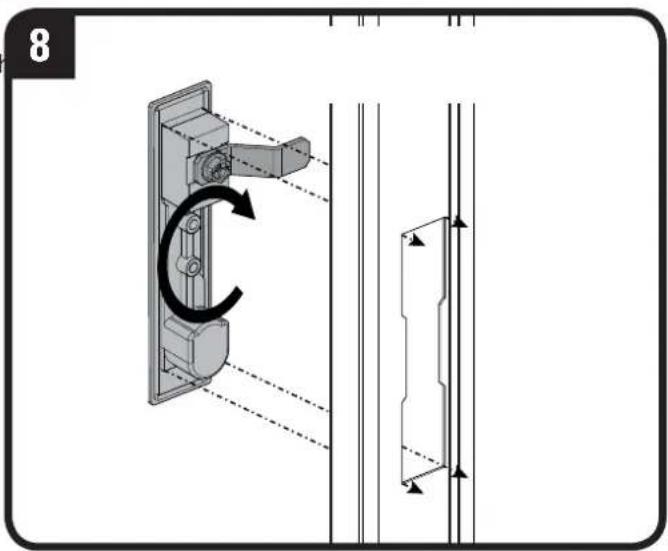

Add Keyed Lock to Door (Sold Separately)

OPT

Manage Cables

OPT

Ganging Racks (Ganging Kit Sold Separately)

OPT

1

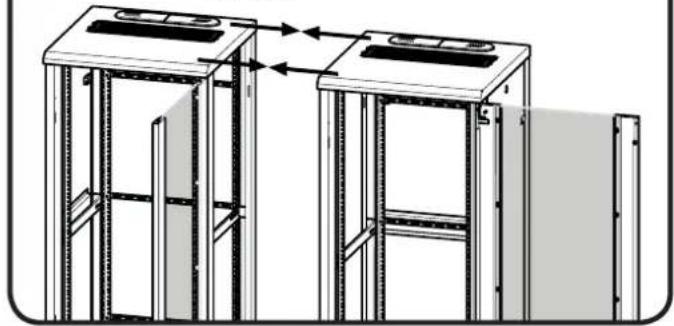

Remove side panels on sides to be connected.

Technical line drawing of two modular server racks with open doors, showing structural changes (no text or symbols)

2

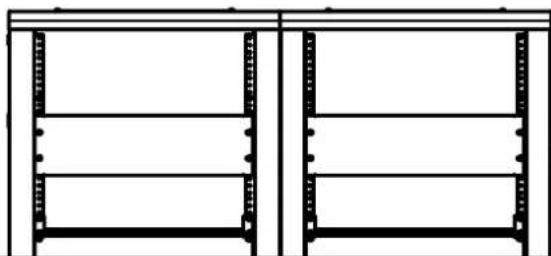

Move racks together until sides are touching.

Technical line drawing of two identical mechanical or architectural frame structures with vertical supports and horizontal beams, no text or symbols present.

3

IMPORTANT

Make sure both racks are level with each other.

Pure architectural line drawing of two identical rectangular metal frame structures without any text, labels, or symbols.

Technical line drawing of a multi-level server rack cabinet with mounting holes and diagonal railings (no text or symbols)

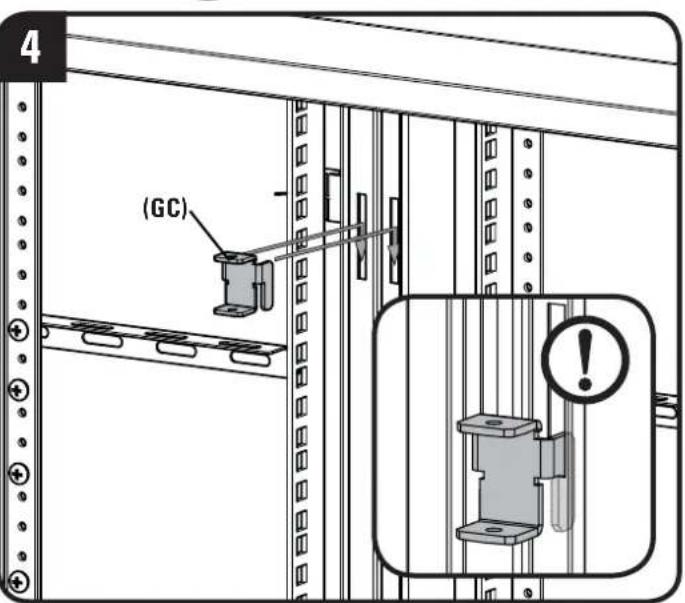

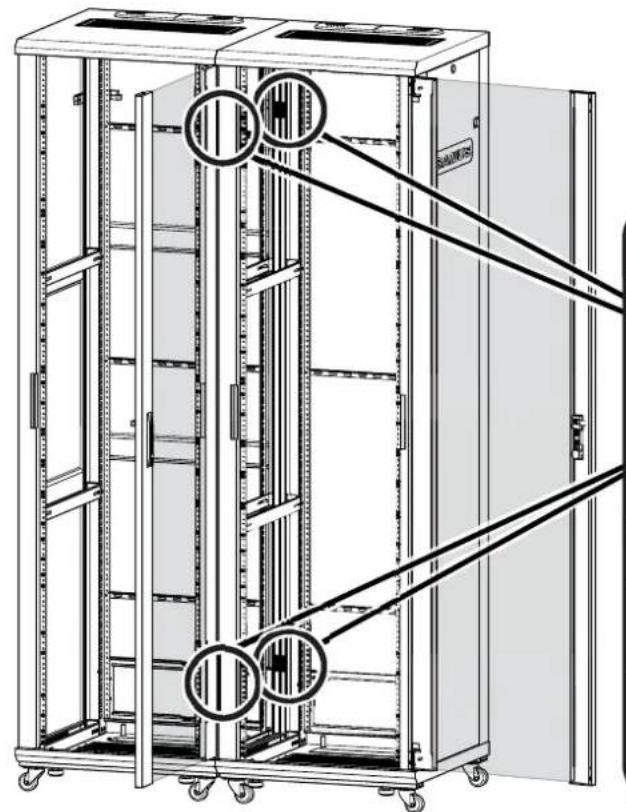

Fit four ganging clips (GC) into frame slots. Press down on clips to secure.
IMPORTANT

Make sure all four ganging clips are fully engaged.

OPT

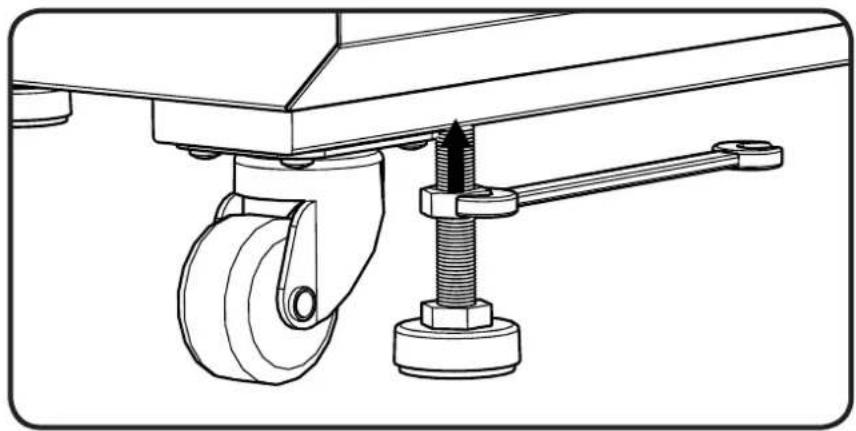

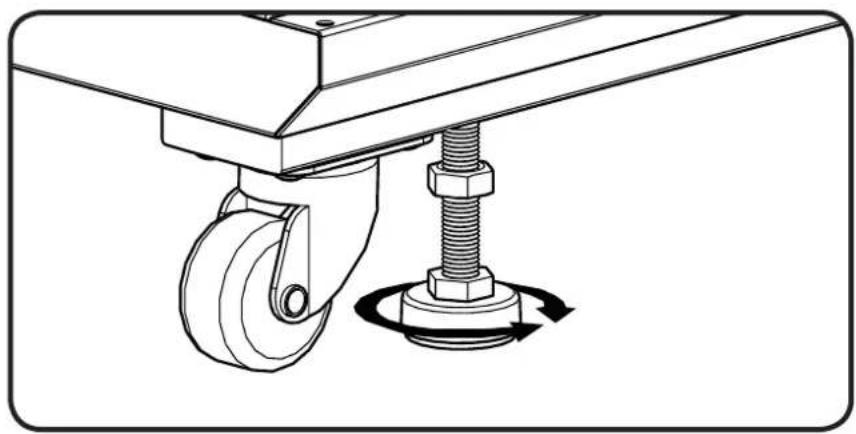

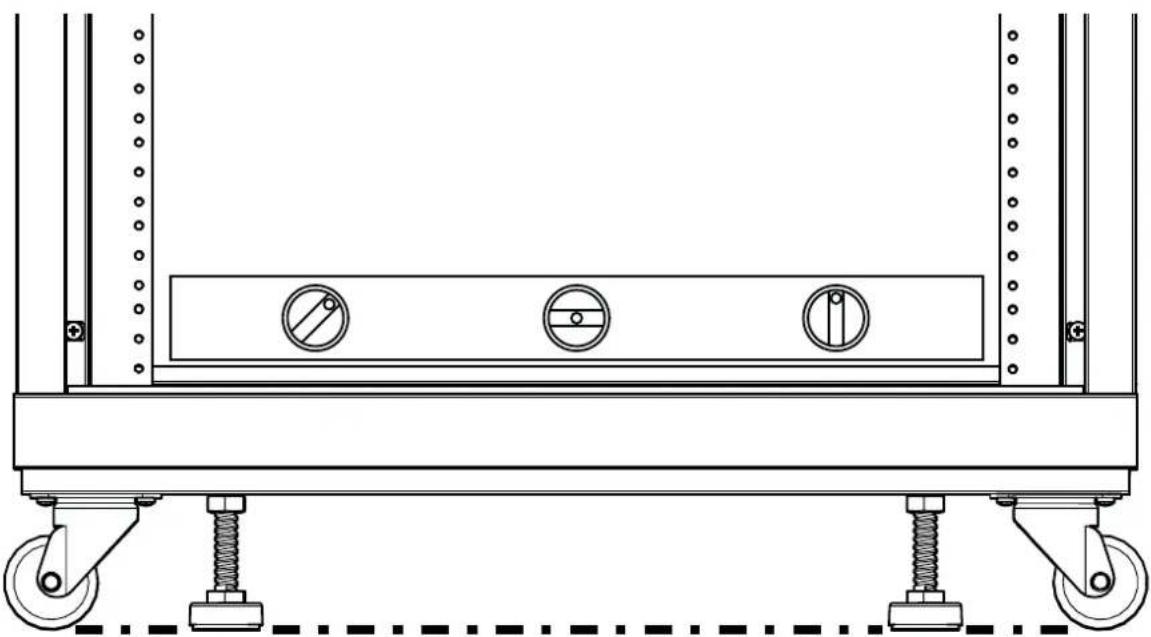

Adjust the feet to level the rack. Tighten nuts until they are flush with the bottom of the rack.

CAUTION: To avoid potential injury or property damage, always ensure that your rack is level.

Technical line drawing of a mechanical lift with a screw and nut assembly, showing rotational motion (no text or symbols)

Technical line drawing of a mechanical assembly with wheels and a bolted joint (no text or symbols)

Technical line drawing of a mechanical support system with wheels, springs, and a central panel (no text or symbols)
