Product Type	Electric Slicer
Brand	CaterChef
Model	688325
Intended Use	Slice food items (except frozen foods, boneless meat, fish, and cheese)
Thickness Adjustment	Graduated knob (position 0 for stop)
Safety Devices	Blade guard, on/off switch, motor thermal protection
Built-in Sharpener	Yes, orientable sharpening unit (models 688.320, 688.325, 688.330)
Thermal Protection	Automatic shutdown in case of overheating; wait a few minutes before reuse
Power Cable	Replaceable only with special cable ref. 9274 (supplier)
Drive Belt	Adjustable tension via tension screw
Daily Cleaning	Soft cloth, alcohol for blade and blade guard; do not immerse in water
Lubrication	Cylindrical sliding bar: Vaseline oil
Sharpening Frequency	About once a year for regular use
Sliding Tray Dimensions	Not specified
Weight	Not specified
Provided Documents	User manual (13 pages, PDF format)
Manual Languages	FR, EN, NL
Services	Manual translation upon request

Frequently Asked Questions - 688325 CaterChef

How to adjust slice thickness on the CaterChef 688325 slicer?

Turn the graduated knob to select the desired thickness. Position 0 corresponds to stop and closing the movable partition.

How to sharpen the slicer blade?

Unplug the appliance, clean the blade, then loosen the locking knob (12) of the sharpening unit. Rotate the unit 180° until it locks, then press the button (13) to bring the grinding wheel into contact. Set the graduated knob to 2, turn on for 1-2 minutes, then use button (14) to remove burrs. Then return the unit to rest position and clean with alcohol.

What to do if the motor stops suddenly?

This is likely a thermal protection activated in case of prolonged use or blockage. Turn off the machine, check that the indicator is off, and wait a few minutes for the motor to cool down before restarting.

Can you slice frozen foods with this slicer?

No, the manual clearly states not to use the slicer for frozen foods, boneless meat, fish, or anything other than food items.

How to properly clean the CaterChef 688325 slicer?

Clean all parts with soft cloths and neutral detergents (pH 7-8, temperature <31°C). For the blade and inside of the blade guard, use alcohol. Never immerse the slicer in water.

Can the slicer cut cheese?

No, the manual specifies that this machine is not suitable for cutting cheese.

What to do if the sliding carriage moves with difficulty?

Lay the slicer on its side, carefully clean the cylindrical sliding bar and lubricate it with Vaseline oil.

How to replace the power cable?

The power cable must be replaced only with a special cable ref. 9274 supplied by the manufacturer. Contact customer service or a qualified professional.

When should I sharpen the blade?

The blade is very durable; sharpening is needed about once a year with regular use. Perform sharpening as soon as cutting becomes less efficient.

How to get the French manual for the CaterChef 688325 slicer?

The manual is available free of charge in PDF format on notice-facile.com. You can also request a translation by selecting your language and providing your email address.

USER MANUAL 688325 CaterChef

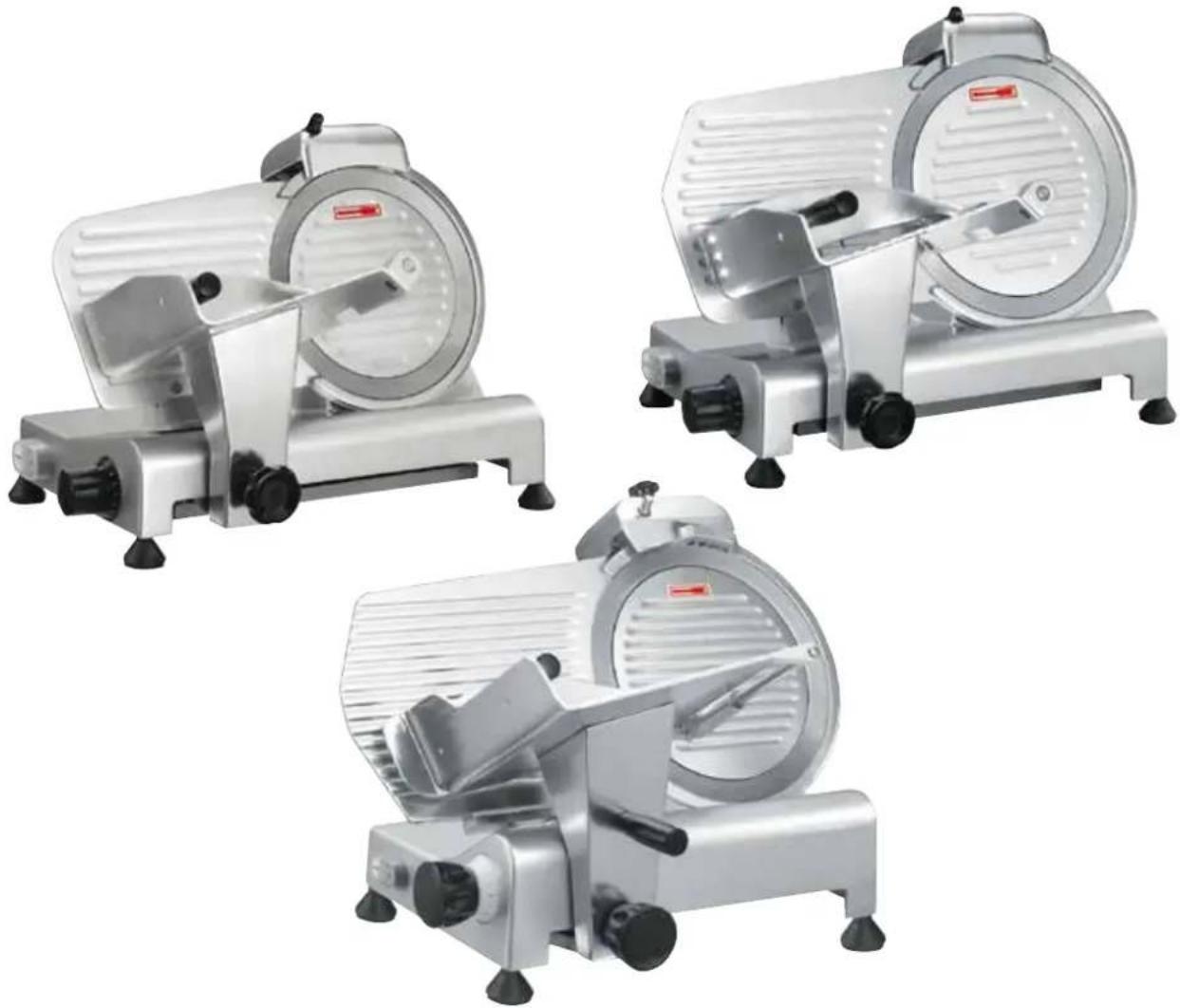

SEMIAUTOMATISCHE SNIJMACHINE SEMI-AUTOMATIC MEAT SLICER TRANCHEUSE À VIANDE

Modelnr.: *688.320 - *688.325 - *688.330

Three stainless steel cleats with metal grilles and control knobs, shown from different angles (no visible text or labels)

GEBRUIKSAANWIJZING
OPERATION MANUAL MANUEL D'UTILISATION

MOD. *688.320/*688.325 & MOD. *688.330

Line drawing of a mechanical device labeled Fig. 3, showing internal components and mounting points (no text or symbols beyond labels)

In order to make full use of its functions and minimize unnecessary loss and damage, please read the manual carefully and keep it for future reference.

PRESENTATION

1 The aim of this handbook is to provide the customer with as much information as possible about our food slicer and with the instructions for its use and maintenance in order to keep it working if working efficiently.
2 This handbook should be kept in good condition and stored in an easily accessible place for the reference.
3 The slicers are subject to revision and may, therefore, bear details differing from those shown; this possible has no effect on the information in this handbook.

INDEX

Presentation of models ...... pag. 7

Instructions for use ...... pag. 7

Warnings and safety rules ...... pag. 8

Blade sharpening ...... pag. 9

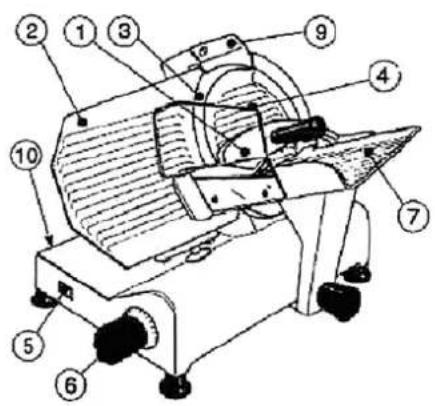

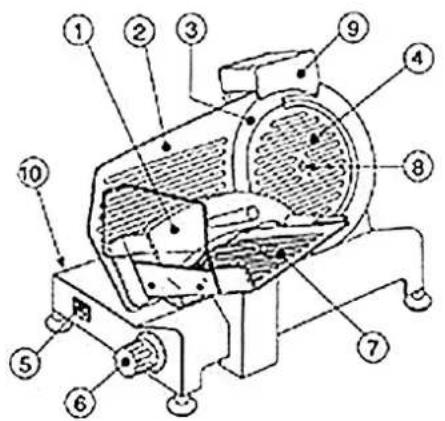

PRESENTATION OF MODELS

MOD. *688.320/*688.325 & MOD. *688.330

1. Food holder arm
2. Movable bulk
3. Blade
4. Knife guard

5. On/off switch

6. Granduated knob

7. Sliding carriage
8. Knife guard screw
9. Sharpener group
10. Date plate

INSTRUCTIONS FOR USE

1 Once unwrapped, place it so that the on/off switch is in front of the operator.
2 Regulate the thickness of the slice desired by turning the graduated knob.
3 Switch on, thus activating the blade.
4 Place the food to be sliced on the sliding carriage (pushing against the food holder arm) facing the blade, making sure that the food is resting against the movable bulkhead.
5 After use, turn the graduated knob back to position "O".
6 The food grid should not be removed unless the shape and size of the food does not allow its use.
7 Only for model *688.320 - *688.325 - *688.330 if the sharpener is not mounted, proceed as follows:

A Place the sharpener in its support.
B Tighten the safety screw (15).
C Block the knob (12).

WARNINGS AND SAFETY RULES

1 The maker declines all responsibility in the case of improper of the machine. Do not use the food slicer for frozen food, boned meat, fish or anything other than foodstuffs.

2 This machine is not suitable for cutting cheese.

3 Periodically check the state of the cable, should it be damaged, it must be replaced with our special cable ref. 9274.

4 Do not submerge the food slicer in water when cleaning.

5 Do not use extension cables.

6 Do not unplug by pulling the cable.

7 Do not use the machine with wet hands or bare feet.

8 Even though the machine is equipped with safety devices, keep your hands away from the blade and moving parts.

9 During maintenance and cleaning operations (therefore, having removed the safeguards), the remaining risks should be considered.

10 Before carrying out any maintenance operation, unplug the machine and make sure that the graduated knob is in "O" position.

11 Remove the knife guard periodically, unscrew (in the centre of the knife guard) then clean both the blade and the inside of the knife guard with alcohol.

WARNING:

This operation must be carried out with the utmost care as if concerns a cutting device. Do not use food slicer when, after has been sharpened numerous times, the diameter of the blade has become 10mm thinner.

WARNING:

In the case of a prolonged use of the food slicer or a motor block, the thermic safeguard in the motor is activated. The motor stops automatically; at this point the machine must be turned off, checking that the warning light is turned off. Wait a few minutes before staring to use the machine again to give the motor time to cool down.

12 The machine and all its parts should be cleaned with soft cloths using ordinary neutral detergents containing soft nonionic anions respecting the following temperature and concentrations.

13 Temperature higher than 31^ C.

14 Solutions with ph=7+8.

15 Use soft cloths for drying.

16 When the sliding food tray moves with difficulty, life the food slicer and place it on this side. Carefully clean the cylindrical sliding bar and lubricate it with Vaseline oil.

17 Should the knife transmission belt slip (this can be seen when the rotation of the blade can be stopped while cutting), the correct tension can be achieved as follows;

A Approach the regulating organs on form the bottom.
B Loosen the bolt on the tension belt screws then turn the screws in a clockwise direction to achieve the correct tension of the belt.
C Tighten he bolt on the screws.

BLADE SHARPENING

Line drawing of a mechanical device labeled Fig. 3, showing internal components and mounting points (no text or symbols beyond labels)

To be effected should the knife become blunt.

N.B.: it should be noted that the blade is highly resistant, thus normally needing to be sharpened about once a year when used regularly.

1 Unplug.
2 Check that the movable bulkhead is closed (graduated knob in position "O").
3 Carefully clean the part of the blade to be sharpened.
4 Reinsert the plug.

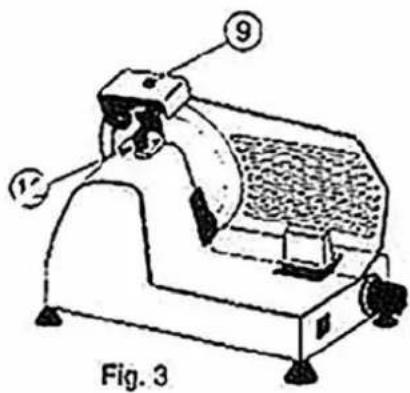

5 Loosen the locking knob (12) on the sharpener group.

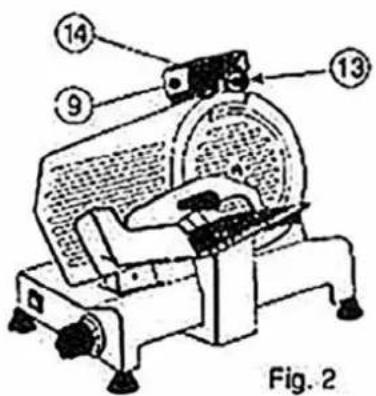

6 Raise the sharpener group, turning it by 180^ so that both grinding wheels are in working position. See Fig.2.
7 Lower the sharpener group until it locks. During this procedure press button (13) to bring the sharpening wheel into contact with the cutting edge of the blade.
8 Secure the group by turning the locking knob (12).
9 Set the bulkhead by turning the graduated knob to no.2.
10 Switch in, letting the blade turn for 1-2 minutes. When the blade is still check to see if any burr has formed on the edge.
11 After having verified the presence of burr, switch on and gently press button (14) for about 3 seconds to remove the burr produced during sharpening in (in this last phase, both grinding wheels will be working).
12 Turn the graduated knob (6) back to position "O".
13 After sharpening, move the sharpener group back to its original position, clean the edge of the blade and the grinding wheels with alcohol.
14 After several sharpening operations, the grinding wheels should be cleaned with a brush to remove any traces of alcohol.

MOD. *688.320/*688.325 & MOD. *688.330

Line drawing of a mechanical device labeled Fig. 3, showing internal components and mounting points (no text or symbols beyond labels)
