EG-PWC1200-01 - Battery EnerGenie - Free user manual and instructions

Product Type	Voltage converter (inverter) 12V-230V
Brand	EnerGenie
Model	EG-PWC1200-01
Continuous Power	1200 W
Peak Power	2400 W
Input Voltage	12 V DC (car battery)
Output Voltage	230 V AC / 50 Hz
Waveform	Modified sine wave
Dimensions (approx.)	250 x 150 x 100 mm
Weight (approx.)	2.5 kg
Key Features	DC-AC conversion, protection against overload, short circuit, overheating, and reverse polarity
Care and Cleaning	Keep dry and dust-free. Clean with a dry cloth.

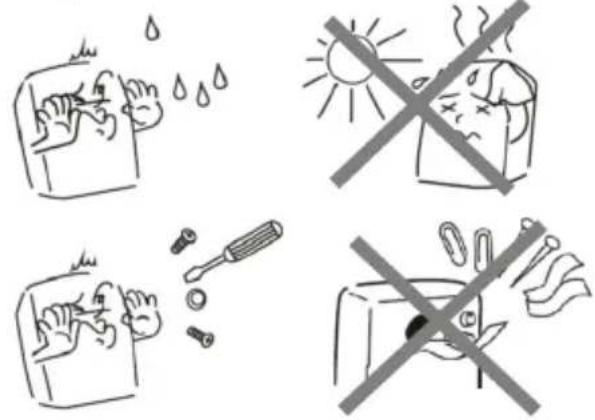

Safety	Do not expose to water or moisture. Use only with 12 V batteries. Adequate ventilation required.
Spare Parts and Repairability	Not available. The device contains no user-serviceable parts.
Warranty	Manufacturer's warranty valid upon presentation of the receipt. Damage due to misuse is excluded.
Package Contents	Converter, battery cables, user manual

Frequently Asked Questions - EG-PWC1200-01 EnerGenie

What is the main function of the EG-PWC1200-01 converter?

This converter transforms direct current (12 V) from a car battery into alternating current (230 V) to power electrical devices up to 1200 W continuously.

Can I plug a 1500 W device into this converter?

No, the maximum continuous power is 1200 W. A 1500 W device would trigger the overload protection. The peak power (2400 W) can only be used for short moments (motor start-up).

What type of battery should I use?

A 12 V lead-acid battery (car, marine, or deep-cycle battery) with a capacity of at least 100 Ah is recommended for prolonged use. Ensure the battery is in good condition and sufficiently charged.

Does the converter produce a pure sine wave?

No, it produces a modified sine wave. This is suitable for most devices (lamps, chargers, power tools), but some sensitive devices (medical equipment, certain chargers) may require a pure sine wave.

How can I avoid overheating the converter?

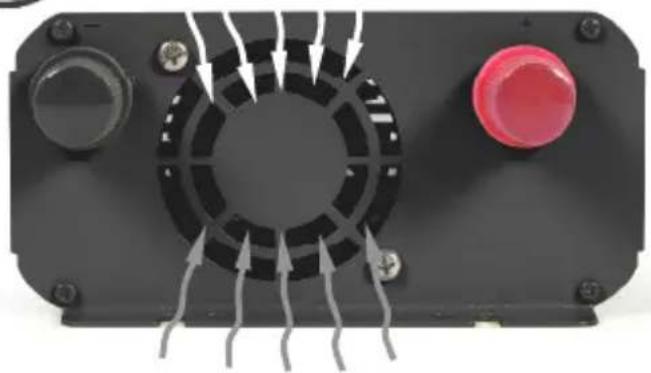

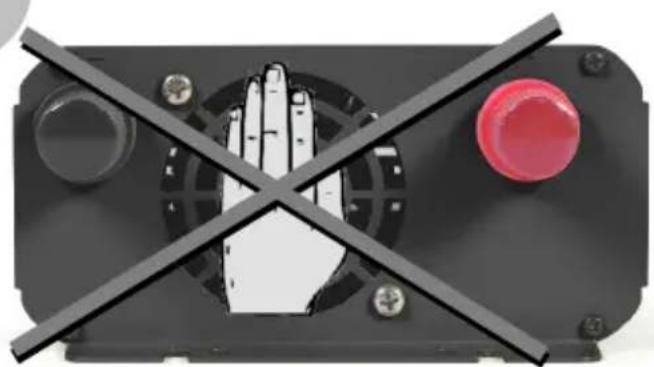

Place the converter in a well-ventilated area, away from direct sunlight. Do not cover the device during operation. The internal fan activates automatically when needed.

What should I do if the converter displays an alarm or shuts off?

This may indicate an overload (unplug the overly powerful device), low battery voltage (recharge the battery), or overheating (let it cool down). Consult the manual for error codes.

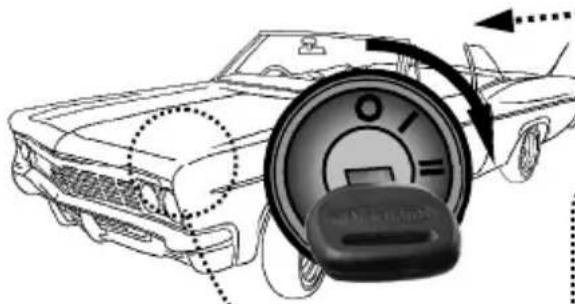

Can I use the converter with the car engine running?

Yes, it is even recommended for high power. The running engine maintains battery voltage and recharges the battery via the alternator. Ensure the wiring is suitable.

How to clean the converter?

Unplug the converter and clean it with a dry, lint-free cloth. Never use water, solvents, or abrasive products.

Is the converter under warranty?

Yes, a manufacturer's warranty applies. Keep your receipt as proof of purchase. The warranty does not cover damage due to misuse, drops, or water ingress.

What devices can I power with this converter?

You can power devices up to 1200 W: TVs, laptops, lamps, small refrigerators, power tools. Avoid very sensitive devices like pacemakers or precision chargers.

USER MANUAL EG-PWC1200-01 EnerGenie

1200W car power inverter

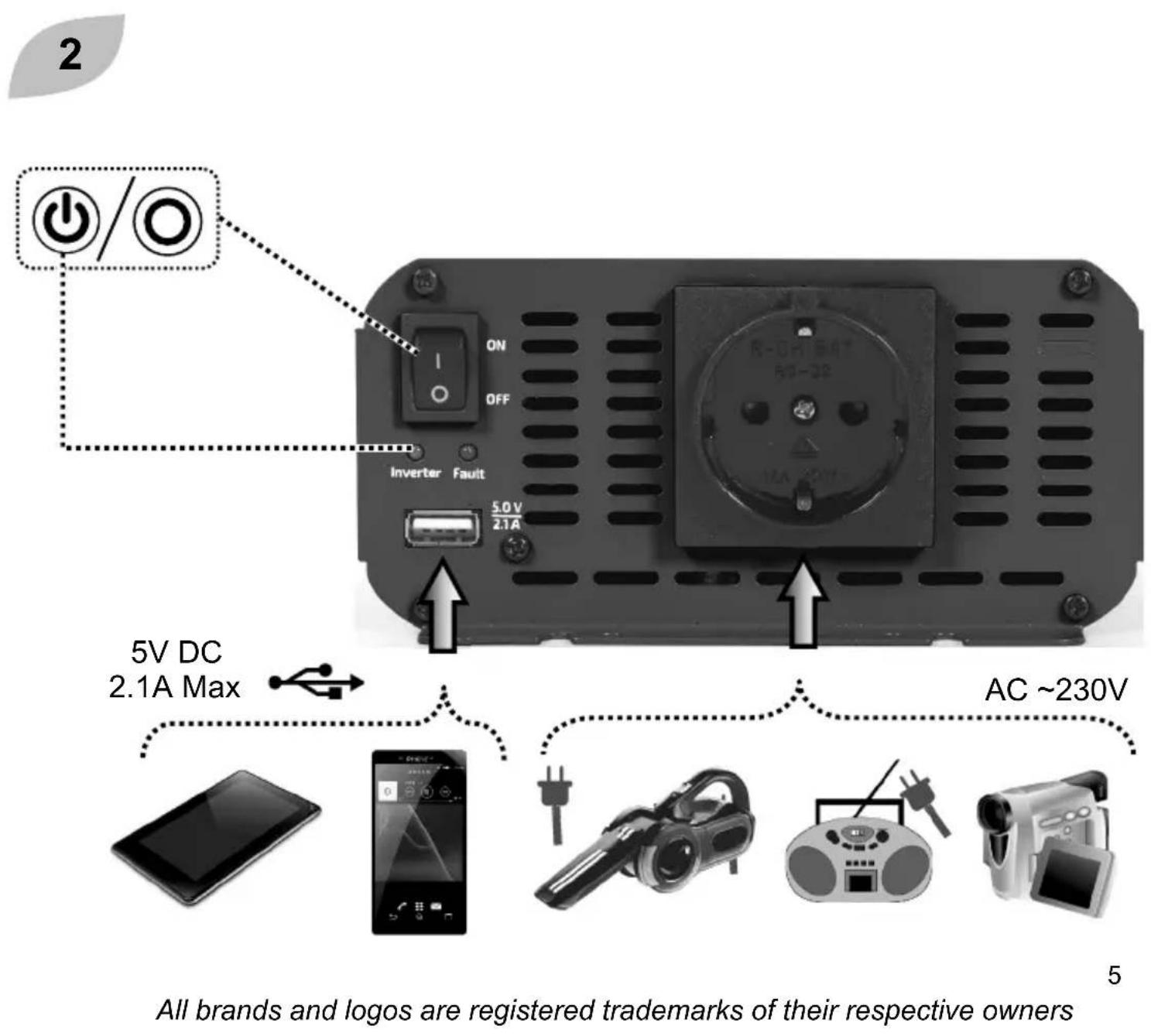

- Allows to connect any AC powered electronics (max. 1200 Watt), like notebooks, HiFi or video equipment, chargers of mobile phones/c Cameras, vacuum cleaners, electrical tools etc.
- Overload- and short-circuit protection, plus a built-in cooling fan provide a stable power supply
LED status indicators and alarm buzzer

Specifications

Input: 11.5-15.5 VDC (accumulator directly)
Output: 230 VAC +/- 10% at 50 Hz (+/-3Hz), modified sine wave
- Power output: 1200 W continuous power (peak power 2400 W)
- Fuse: 45 A x 4pcs (internal)

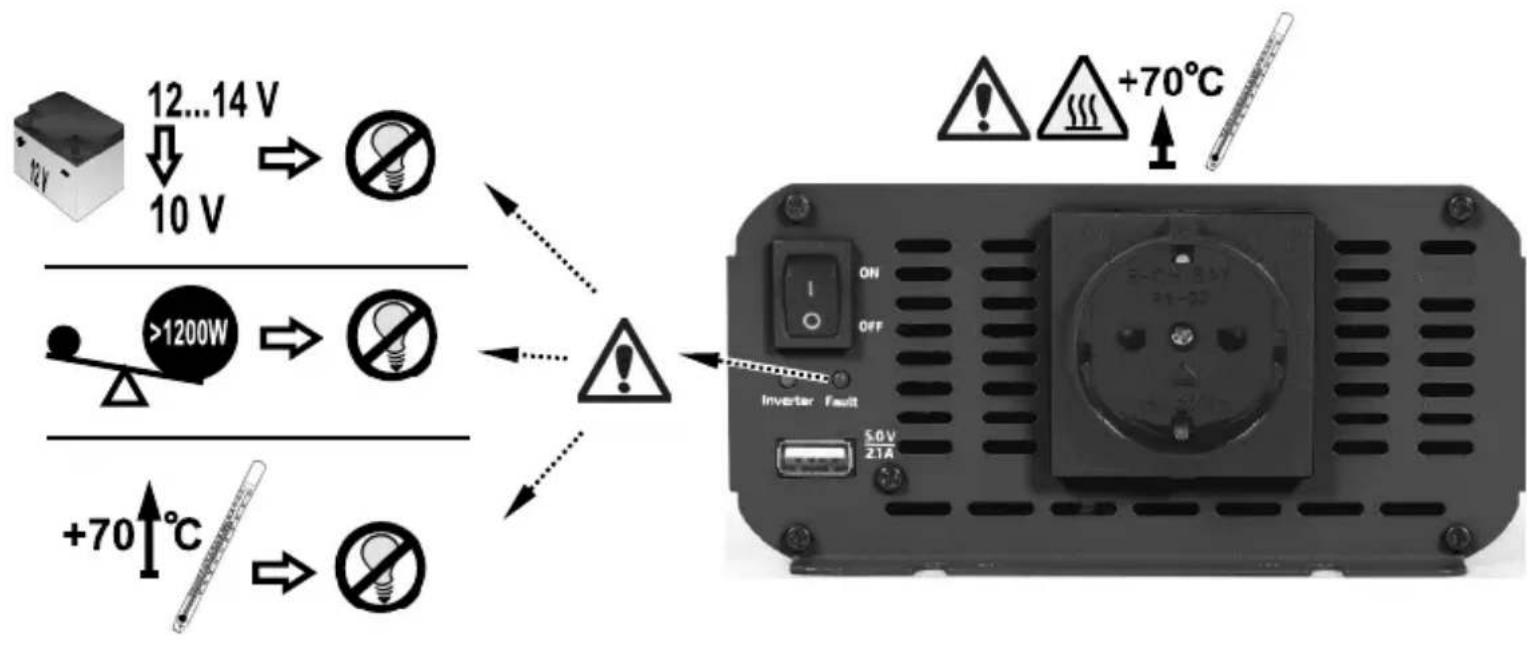

- Auto shutdown: when high voltage is >16V ± 0.5V or when low voltage is < 10V ± 0.5V
USB power output: 5V / 2.1A
Recommended operating temperature: +0 +40^
Material: aluminium and plastic

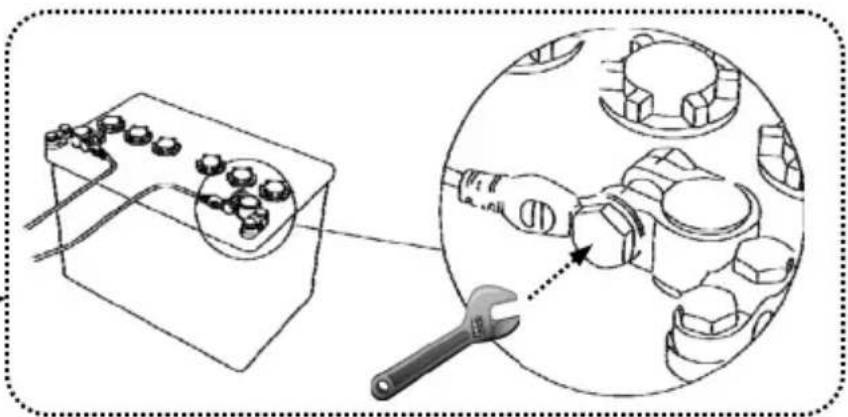

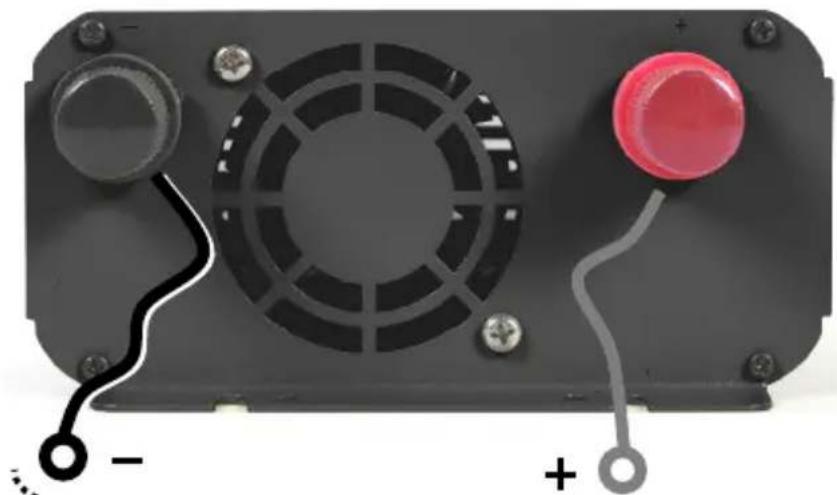

- Cable: 80 cm( 10 sq.mm) ring terminals, 100A terminal
- Dimensions: 210 × 150 × 70 mm
Net weight: 2kg

1

All brands and logos are registered trademarks of their respective owners

3

4

(ENG) Declaration of conformity This product is tested and complies with the essential requirements of the laws of member states concerning LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU). The CE declaration can be found under www.gembird.eu

(DE) Konformitätserkläung Dieses Produkt wurde getestet und stimmt mit den grundlegenden Anforderungen der Richtlinie LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU) überein. Die Konformitätserkläung kann auf unserer Website www.gembird.eu heruntergeladen werden.

(ES) Declaración de conformidad Este produit está probado y cumple con los requisitos esencias de las leyes de los Estados miembrlos con respecto a LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU). Ladeclaración CE suepe encontrar en www.gembird.eu

(CZ) Prohlášeni o shodé Tento produit je testován a splnjuje základní pržadavyk prévnich prěpipú šlenských států týkajících se LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU). Prohlášeni CE naleznete na www.gembird.eu

(FR/BE) Déclaration de conformité Le produit est contrôle et rempli les exigencies des directives nationales et de la directive LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU). La conformité CE a été démontrée et les déclarations correspondantes sont déposées chez le fabricant a: www.gembird.eu

(HR) Izjava o sukladnosti Ovaj je proizvod testiran i udovoljava osnovim začona zakona država Članica u vezi LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU). Izjava CE se moze nači pod www.gembird.eu

(IT) Dichiarazione di conformità Questo prodotto è testato ed è conforme ai requisiti essenziali delle leggi degli stati membrì in materia di LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU). La dichiarazione CE è disponibile all'indirizzo www.gembird.eu

(PT) Declariação de conformidade Este produits fosto testado e está em conformidade com os requisitos essenciais das leis dos estados membros sobre LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU). A DECLáriação CE pode ser encontrar em www.gembird.eu

(PL) Deklaracja zgodnosci Ten produit/zostā przetestowany i jest zgodny z zasadniczymi wymaganiami prawnymi państw członskowych dotyczymi LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU). Deklaracja CE znejduje są na stronie www.gembird.eu

(RO) Declaratie de conformitate Acest produs este testat.si respecţa cerintele esentjiale ale legislatailor statelor membre privind LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU). Declarataja CE se găseste pe www.gembird.eu

(SK) Vyhlasnie o zhode Tento produit je testovaný a splnha základné požiadovy právnych predispov Členských státov týkajúcích sa LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU). Vyhlasnie CE najdete na stranke www.gembird.eu

(SL) Izjava o skladnosti Ta izdelek je preizkušen in ustreza bistvenim zahévam zakonov držav Članic o LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU). Izjava CE je na voljo pod www.gembird.eu

(GR) Δnλωση συμμόρωσης Autó to προίν ἐχει ελεγχθεί και συμμορφύνεται με τις βααίκες απαπήσεις τών νομοθεσιών τών κρατών μελών σόσου αφορά τὴν Ευρωταίκη σδηγίαg LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU). H δnλωση CE μπορεί αβρεθεί στην δείδύνανη www.gembird.eu

(ENG) Waste disposal:Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.

(DE) Entsorgungsseinweise:Werfen Sie ces des Gerät nicht in den Hausmull. Unsachgemäß Entsorgung kann sowohl der Umwelt als auch der menschlichen Gesundheit schaden.Informationen zu Sammelstellen für Altgeräte erhalten Sie bei Ihr Stadtverwaltung oder einer autorisierten Stelle für die Entsorgung von Elektro-und Elektronikgeräten.

(ES) Deposito de basura:No deposite este equipo con la basura domestica. La eliminación inadequada pode dαñar tanto el medio ambiente como la salute humana. Para obtener información sobre las instalaciones de recolección de desechos para dispositivos electricos y electrónicos usados, comúniquese con su ayuntimiento o una Empresa autorizada para la eliminación de equipos electricos y electrónicos.

(CZ) Nakladánis odypad:Toto zañizen nevkládeje do domovniho odpadu. Nesaprávná likvidace muze poskodit zivotní prostředí i lidské zdraví. Informace o zañizen pro sbér odpadu použitych elektrickych a elektronickych zañizen i ziskáte u městské rady nebo autorizované spelečnosti o likvidacić elektrickych a elektronickych zañizen.

(FR/BE) Traitement des déchets:Ne jetez pas cet apparéil dans les déchets domestiques. Untraitement inapproprié peut être dommageable à l'environnement et à la santé humain. Vous trouvez des informations sur les centres de rassemblment des apparéilsieux chez l'administration municipale ou chez un centre autorisé pour letraitement des apparéils électriques ou électroniques.

(HR) Odlaganje smeca:Ovu opremu ne odlažite zajedno s kučnim opdatom. Neapravlno odlaganje要去 nastetiti okolùs i ljudskom zdravlju. Za informacijoe objektima za príkupljanje oppada za rabljene elektricne uredaje obrata se gradskom vijću ilovištenom drustvu za odlaganje elektricne i elektronicke opreme.

(IT) Smaltimento dei rifiuti:Non depositare esta appreciatura con i rifiuti domestici. Lo smaltimento improprio più danneggiare sua l'ambiente che la salute umana. Per informazioni sulle strutture di raccolta dei rifiuti per i dispositivi eletrici elettrici usati, contattare il comune o una società autorizzata per lo smaltimento delle appreciatura eletriche ed elettroniche.

(PT) Deposito de lixo:Não deposite este equipoamento no lixo dométrico. O descarte inadequado pode prejudicar o meio ambiente e a saúde humana. Para obeter informações sobre instalagoes de coleta de lixo para dispositivos electricos e electrónicos usados, entre em contato com o conselho da cidad ou uma Empresa autorizada para o descarte de equipartimentos electricos e electrónicos.

(PL) Utylizacja odpadów:Nie nalezy deponować tego sprętuetrazem z odpadami domowymi. Niewaściwa uty Lizacja要去 zaszkodzić zarowyno sądowisku, jak i zdrowiu ludzkiemu. Aby uzyskać informacja na temat urzadźeh do zbierania zuzytych urzadźeh elektrycznych i elektronicznych, nalezy skontatkować są z radja miasta lub upoważniónaj firma w celu usunicęca sprȩtu elektrycznégo i elektronicznégo.

(RO) Eliminarea deuspadów:Nu depuneni acest echipament cu deseurile menajere. Eliminarea necorespunzātoare poate dàuna atát mediuui, CATSI sänătali umane. Pentru informatii despre instalaţiile de colectare a deseuriler pentru dispositive electrice si electronice folosite, vărugam'à contactați consiliul municipal sau o companie autorizató para Templinarea echipamentelor electrice si electronice.

(SK) Likvidácia odpadu:Toto zariadenie nevkladajte do domového odpadu. Nesaprávná likvidácia要去 poskodit zivotné prostredie a fudské zdravie. Informáce o zariadienich na zber použitého odpadu z elektrickych zariadeni ziskate od mestského zustupitelstva alebo od autorizované spolučnosti o likvidácii elektrickych a elektrickych zariadeni.

(SL) Odlaganje odpadkov:Te opreme ne odlagajte skupaj z gospodinskimi odpadki. Nesaprávná odstranjevanje lahko skoduje okolju in zdravju ljudi. Za informacijoe o napravah za zbiranje odpadnih elektricnih in elektronskihim odpadk.

(GR) Δiaxεπiση ατορριματων:Mýnu kataθétete autóv tov εξοτλισό στα Μικίακα ατορριματα. H akatáλληλη ατορριμη μιθρείν το βλάψει τός το περιβάλου σόσο και την ανθρωτινη uyéá. Γία πληροφορίες σχετικά με τίς εγκατασταείς συλυσης ατορριματων γία ρησιοιτοιημενες ήλεκτρικές και λεκτρονικές συμκεύες, εΤΙΚΟΙΥΜΑΝΤΕ έμθικό Σμβούλου ἡμι Εξουσιδότημενη Εταρείλι Αγή Πδιαθεση ήλεκτρικών και

(ENG) WARRANTY CONDITIONS

The receipt must clearly list the date of purchase and the part number, in addition it should be printed. Keep the receipt for the entire warranty period since it is required for all warranty claims. During the warranty period the defective items will be credited, repaired or replaced at the manufacturer's expense. Work carried out under the warranty neither extends the warranty period nor starts a new warranty period. The manufacturer reserves the right to void any warranty claim for damages or defects due to misuse, abuse or external impact (falling down, impact, ingress of water, dust, contamination or break). Wearing parts (e.g. rechargeable batteries) are excluded from the warranty. Upon receipt of the RMA goods, Gembird Europe B.V. reserves the right to choose between replacement of defective goods or issuing a credit note. The credit note amount will always be calculated on the basis of the current market value of the defective products. Gembird Europe B.V. Wittevrouwen 56, 1358CD Almere, The Netherlands

www.gembird.nl/service [e-mail]
