EG-PWC-PS2000-01 - Battery EnerGenie - Free user manual and instructions

Product Type	Car Power Inverter
Brand	EnerGenie
Model	EG-PWC-PS2000-01
Input Voltage	10 V - 16 V DC
Output Voltage	230 VAC ± 10% at 50 Hz (± 1 Hz)
Output Waveform	Pure Sine Wave, THD < 3%
Continuous Power	2000 W
Peak Power	4000 W
Efficiency	88%
USB Output	5 V / 2.1 A
Protections	Overload, Short-Circuit, Reverse Polarity, Overheat
Cooling	Built-in cooling fan
Indicators	LED status indicator, alarm buzzer
Fuse	Internal output overcurrent protection, 11.3 A
Dimensions	320 mm x 220 mm x 90 mm
Net Weight	4.65 kg
Material	Aluminum and plastic
Cable Length	80 cm with ring terminals, 250 A terminal
Operating Temperature	0 °C to +40 °C (100% load), up to 60 °C (50% load)
Certifications	CE, RoHS
Remote Control	Optional remote ON/OFF switch
Package Contents	Inverter, user manual, battery cables with ring terminals

Frequently Asked Questions - EG-PWC-PS2000-01 EnerGenie

How do I connect the EG-PWC-PS2000-01 inverter to my car battery?

Connect the red ring terminal to the positive (+) battery terminal and the black ring terminal to the negative (-) terminal. Ensure the inverter is turned off (switch OFF) before connecting. The cable is 80 cm long with 250 A terminals.

What devices can I power with this inverter?

You can power any AC device up to 2000 W continuous (4000 W peak) such as laptops, TVs, small appliances, chargers, and power tools. The pure sine wave output is suitable for sensitive electronics.

Can I use the inverter while the car engine is off?

Yes, but only if the battery has sufficient charge. Running high-power devices for long periods with the engine off may drain the battery. It is recommended to run the engine periodically to recharge.

What protections does the inverter have?

The inverter features overload protection, short-circuit protection, reverse polarity protection, and overheat protection. A built-in cooling fan and alarm buzzer alert you to faults.

How do I install the optional remote ON/OFF switch?

The remote switch is not included. You can connect an external remote switch (not supplied) to the REMOTE port on the inverter. Turn the inverter's main switch OFF, then connect the remote switch leads to the REMOTE terminals.

What does the alarm buzzer indicate?

The buzzer sounds when the inverter detects a fault condition: low input voltage (below 10 V), overload, short-circuit, or overheating. Check the LED status indicator for more details.

Can I use extension cords with the inverter?

Yes, but use heavy-duty extension cords rated for at least 2000 W to avoid voltage drop and overheating. Keep cords as short as possible.

How do I clean and maintain the inverter?

Disconnect the inverter from the battery before cleaning. Wipe the exterior with a dry, soft cloth. Do not use water or solvents. Ensure the cooling vents are free from dust.

What is the warranty period and how do I claim?

The warranty conditions are provided in the manual. Typically, defects are repaired or replaced at the manufacturer's expense. Keep the receipt with purchase date. Warranty does not cover misuse, abuse, or wearing parts like batteries.

What should I do if the inverter shuts down unexpectedly?

Check the LED indicator and listen for the alarm. Possible causes: low battery voltage (below 10 V), overload (device exceeding 2000 W), or overheating (above 60 °C). Reduce load, recharge battery, or allow inverter to cool down.

USER MANUAL EG-PWC-PS2000-01 EnerGenie

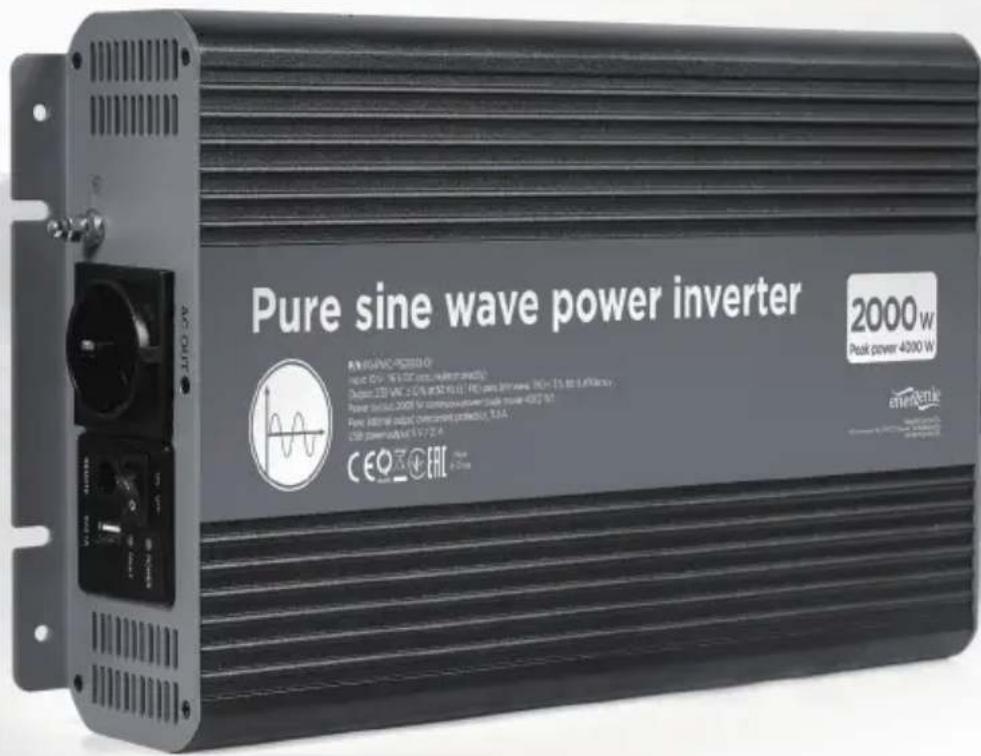

EN Single socket 2000 W car power inverter with pure sine wave output

Single socket 2000 W car power inverter with pure sine wave output

Allows to connect any AC powered electronics (max. 2000 Watt), like notebooks, HiFi or video equipment, chargers of mobile phones / cameras, electrical tools etc.

Integrated overload-, short-circuit and reverse polarity protection, plus a built-in cooling fan provide a stable power supply

LED status indicator and alarm buzzer

Specifications

Input: 10 V - 16 V DC (accumulator directly)

Output: 230 VAC ± 10 % at 50 Hz (± 1 Hz), pure sine wave, THD < 3 %, 88 % efficiency

Power output: 2000 W continuous power (peak power 4000 W)

Fuse: internal output overcurrent protection, 11.3 A

USB power output: 5 V / 2.1 A

Recommended operating temperature: +0 °C \~ +40 °C at 100 % load; up to 60 °C at 50 % load

Material: aluminum and plastic

Cable: 80 cm (25 mm ⁴ ) ring terminals, 250 A terminal

Dimensions: 320 mm x 220 mm x 90 mm

Net weight: 4.65 kg

1

2

3

4

(ENG) Declaration of conformityThis product is tested and complies with the essential requirements of the laws of member states concerning LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU). The CE declaration canbe found under www.gmb.nl/certificates

(DE/A) KonformitätserklärungDieses Produkt wurde getestet und stimmt mit den grundlegenden Anforderungen der Richtlinie LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU)überein. Die Konformitätserklärung kann auf unserer Webseite www.gmb.nl/certificates heruntergeladen werden

(NL) ConformiteitsverklaringDit product is getest en voldoet aan de essentiële vereisten vande wetten van de lidstaten met betrekking tot LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU). De CE-verklaring vindt u op www.gmb.nl/certificates

(ES) Declaración de conformidadEste producto está probado ycumple con los requisitos esenciales de las leyes de los estados miembros con respecto a LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU). La declaración CE se puede encontrar en www.gmb.nl/certificates

(CZ) Prohlášení o shoděTento produkt je testován a splňuje základní požadavky právních předpisů členských států týkajících se LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU). Prohlášení CE naleznete nawwww.gmb.nl/certificates

(FR/BE) Déclaration de conformitéLe produit est contrôlé et rempli les exigences des directives nationales et de la directive LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU). La conformité CEa été démontrée et les déclarations correspondantes sont déposées chez le fabricant a: www.gmb.nl/certificates

(HR) Izjava o sukladnostiOvaj je proizvod testiran i udovoljava osnovnim zahtjevima zakonadržava članica u vezi LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU). Izjava CE se može naci pod www.gmb.nl/certificates

(IT) Dichiarazione di conformitàQuesto prodotto è testato ed è conforme ai requisitiessenziali delle leggi degli stati membri in materia di LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU). La dichiarazione CE è disponibile all'indirizzo www.gmb.nl/certificates

(PT) Declaração de conformidadeEsteproduto foi testado e está em conformidade com os requisitos essenciais das leis dos estados membros sobre LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU). A declaração CE pode ser encontrada emwww.gmb.nl/certificates

(PL) Deklaracja zgodnościTen produkt został przetestowany i jest zgodny z zasadniczymi wymaganiami prawnymi państw członkowskich dotyczącymi LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU). Declarația CE se găsește pe www.gmb.nl/certificates

(RO) Declaratie de conformitateAcest produs este testat și respectă cerintele esentiale ale legislațiilor statelor membre privind LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU). Declarația CE se găsește pe www.gmb.nl/certificates

(SK) Vyhlásenie o zhodeTento produkt je testovaný a spína základné požiadavky právnych predpisov členskýchstátov týkajúcich sa LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU). Vyhlásenie CE nájdete na stránke www.gmb.nl/certificates

(SL) Izjava o skladnostiTa izdelek je preizkušen in ustreza bistvenim zahtevamzakonov držav članic o LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU). Izjava CE je na voljo pod www.gmb.nl/certificates

(HR) Izjava o sukladnostiOvaj proizvod je testiran i u skladu je s bitnim zahtjevima zakonadržava članica koji se odnose na LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU). CE deklaraciju možete pronači na www.gmb.nl/certificates

(HU) Megfelelőségi nyillatkozatEzt a terméket tesztelték, és megfelel atagállamok LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU) vonatkozó alapvető követelményeinek. A CE nyillatkozat megtalálható a www.gmb.nl/certificates

(BL) Декларация за съответствиеТозипродукт е тестван и отговаря на основните изисквания на законите на държавите-членки относно LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU). CE декларацията може да бъде намерена нawwww.gmb.nl/certificates

(ENG) Waste disposal: The crossed out wheelie bin symbol means that this product shall not be disposed of with normal household waste. Electronic and Electrical Equipment not included inthe selective sorting process are potentially dangerous for the environment and human health due to the presence of hazardous substances. Please dispose of responsibly at an approved wasteor recycling facility. (DE) Entsorgungshinweise: Das Symbol der durchgestrichenen Abfalltonne auf Rädern bedeutet, dass dieses Produkt nicht über den normalen Hausmüll entsorgt werdendarf. Elektro- und Elektronikgeräten, die nicht in den selektiven Sortierprozess einbezogen werden, sind aufgrund des Vorhandenseins gefährlicher Stoffe potenziell gefährlich für die Umwelt unddie menschliche Gesundheit. Bitte entsorgen Sie sie verantwortungsbewusst bei einer zugelassenen Abfall- oder Recyclinganlage. (NL) Afvalverwijdering: Het symbool van de doorgekruistevuilniscontainer betekent dat dit product niet met het gewone huisvuil mag worden weggegooid. Elektronische en elektrische apparatuur die niet is opgenomen in het selectieveafvalsorteringsproces is potentieel gevaarlijk voor het milieu en de menselijke gezondheid vanwege de aanwezigheid van gevaarlijke stoffen. Voer deze op verantwoorde wijze af bij een erkendafvalverwerkings- of recyclingbedrijf, de plaatselijke milieustraat, of een inleverpunt in de winkel. (ES) Deposito de basura: El símbolo del contenedor de basura tachado significa que este producto no debeeliminarse con los residuos domésticos normales. Los aparatos electrónicos y eléctricos no incluidos en el proceso de clasificación selectiva son potencialmente peligrosos para el medio ambiente y la saludhumana debido a la presencia de sustancias peligrosas. Por favor, deséchelos de forma responsable en una instalación de residuos o de reciclaje autorizada. (CZ) Nakládání s odpady: Symbol přeškrtnuténádoby na odpad znamená, že tento výrobek nesmí být likvidován společně s běžným domovním odpadem. Elektronická a elektrická zařízení, která nejsou zahrnuta do procesu selektivního třídění, jsou kvůli přítomnosti nebezpečných látek v nich potenciálně nebezpečná pro životní prostředí a lidské zdraví. Odneste je do schváleného zařízení pro nakládání s odpady nebo recyklaci. (FR/BE) Traitement desdéchets: Le symbole de la poubelle barrée signifie que ce produit ne peut pas être éliminé avec les déchets ménagers usuels. Les équipements électroniques et électriques non compris dans le processus detri sélectif sont potentiellement dangereux pour l'environnement et la santé humaine en raison de la présence de substances dangereuses. Veuillez les éliminer de manière responsable dans des centresapprouvés de traitement ou recyclage des déchets. (HR) Odlaganje smeća: Simbol prekrižene kante za smeće na kotačima znači da se ovaj proizvod ne smije odlagati s uobičajením kućnim otpadom. Elektronička i električna oprema koja nije uključena u proces selektivnog sortiranja potencijalno je opasna za okoliš i ljudsko zdravlje zbog prisutnosti opasnih tvari. Molimo odgovorno odložite u odobrenopostrojenje za otpad ili recikliranje. (IT) Smaltimento dei rifiuti: Il simbolo del cassonetto barrato riportato sull'apparecchiatura indica che questo prodotto non deve essere smaltito con i normali rifiuti domestici. I dispositivi elettronici ed elettrici non inclusi in un processo di smistamento sono potenzialmente pericolosi per l'ambiente e la salute umana a causa della presenza di sostanze pericolose. Si prega di smaltire inmodo responsabile presso centri idonei di raccolta differenziata. (PT) Depósito de lixo: O símbolo do caixote do lixo com uma cruz significa que este produto não deve ser eliminado juntamente com o lixodoméstico normal. Equipamentos eletrônicos e elétricos não incluídos no processo de triagem seletiva são potencialmente perigosos para o meio ambiente e a saúde humana devido à presença desubstâncias perigosas. Por favor, elimine de forma responsável em uma instalação de resíduos ou reciclagem aprovada. (PL) Utylizacja odpadów: Symbol przekreślone-go kołowego kontenera na odpadyoznacza, že tego produktu nie można wyrzucać wraz z innymi odpadami gospodarstwa domowego. Ze względu na obecność niebezpiecznych substancji, mieszanin lub części składowych urządzeniaelektryczne i elektroniczne, niepodlegające procesowi selektywnego sortowania są potencjalnie niebezpieczne dla środowiska i zdrowia ludzi. Produkt należy zutylizować w sposób odpowiedzialny wzatwierdzonym zakładzie utylizacji odpadów lub recyklingu. (RO) Eliminarea deşeurilor: Simbolul coşului de gunoi tăiat înseamnă că acest produs nu trebuie aruncat împreună cu deşeurile menajere normale. Echipamentele electronice și electrice care nu sunt incluse în procesul de sortare selectivă sunt potentțial periculoase pentru mediu și sănătatea umană din cauza prezenței substanțelor periculoase. Vă rugămsă aruncați în mod responsabil la o unitate de deseuri sau de reciclare aprobată. (SK) Likvidácia odpadu: Symbol preškrtnutej nádoby na odpad znamenă, že tento výrobok sa nesmie likvodovať s bežnýmkomunálnym odpadom. Elektronické a elektrické zariadenia, ktoré nebudú likvidované procesom selektívneho triedenia, predstavujú z dôvodu prítomnosti nebezpečných látok potenciálne nebezpečenstvopre životné prostredie a ludské zdravie. Zlikvidujte ich zodpovedne cez schválené zariadenia na uloženie alebo recykláciu odpadu. (SL) Odlaganje odpadkov: Simbol prečrtanega smetnjaka na kolesihpomeni, da tega izdelka ne smete odvreči med običajne gospodinjske odpadke. Elektronska in električna oprema, ki ni vključena v postopek selektivnega sortiranja, je zaradi prisotnosti nevarnih snovi potencialno nevarna za okolje in zdravje ljudi. Prosimo, da odgovorno zavržite v pooblaščeni obrat za odpadke ali recikliranje. (GR) Διαχείριση απορριμάτων: Το σύμβολο του διαγραμμένου κάδουαπορριμμάτων, σημαίνει ότι αυτό το προϊόν δεν πρέπει να απορρίπτεται μαζί με τα κανονικά οικιακά απορρίμματα. Нлектроνικός και Ιλεκτρικός εξοπλισμός, που δεν περιλαμβάνεται στη διαδικασία επιλεκτικήςδιαλογής, είναι δυνητικά επικίνδυνος για το περιβάλλον και την ανθρώπινη υγεία λόγω της παρουσίας επικίνδυνων ουσιών. Παρακαλούμε απορρίψτε το με υπευθυνότητα σεγκεκριμένη εγκατάστασηαπορριμμάτων ή ανακύκλωσης.

(ENG) WARRANTY CONDITIONS

The receipt must clearly list the date of purchase and the part number, in addition it should be printed. Keep the receipt for the entire warranty period since it is required for all warranty claims. During the warranty period the defective items will be credited, repaired or replaced at the manufacturer's expense. Work carried out under the warranty neither extends the warranty period nor starts a new warranty period. The manufacturer reserves the right to void any warranty claim for damages or defects due to misuse, abuse or external impact (falling down, impact, ingress of water, dust, contamination or break). Wearing parts (e.g. rechargeable batteries) are excluded from the warranty. Upon receipt of the RMA goods, Gembird Europe B.V. reserves the right to choose between replacement of defective goods or issuing a credit note. The credit note amount will always be calculated on the basis of the current market value of the defective products. Gembird Europe B.V. Wittevrouwen 56, 1358CD Almere, The Netherlands www.gembird.nl/service [e-mail]

(DE) GARANTIE BEDINGUNGEN

(PL) WARUNKI GWARANCJI
