USER MANUAL N° 1 Santos

Close-up of a precision coffee maker with a conical funnel and transparent base (no visible text or symbols)

*408.001
Model Nr 1

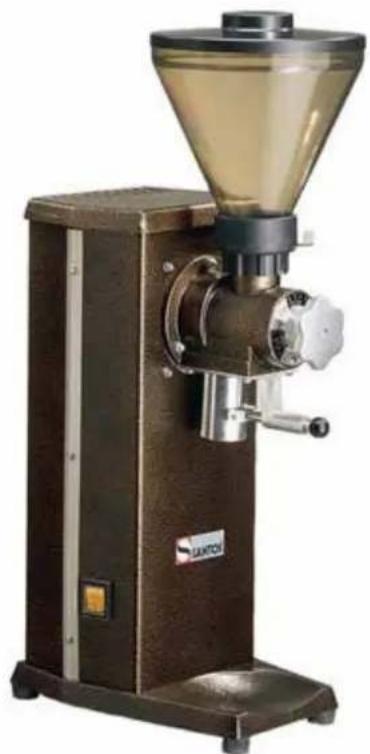

Exterior view of a SANTOS industrial coffee maker with conical funnel and mechanical arms (no visible text or symbols)

*408.012
Model Nr 4

INHOUDSOPGAVE

"CE"-CONFORMITEITSVERKLARING....3

BELANGRIJKE VOORZORGSMAATREGELEN....4

WAARSCHUWINGEN: 4

TYPEPLAATJE VAN HET APPARAAT....19

"CE"-CONFORMITEITSVERKLARING

DE FABRIKANT :

SANTOS SAS - 140-150, Av. Roger SALENGRO 69120 VAULX-EN-VELIN (LYON) FRANKRIJK

Pure electrical circuit lines without any symbols

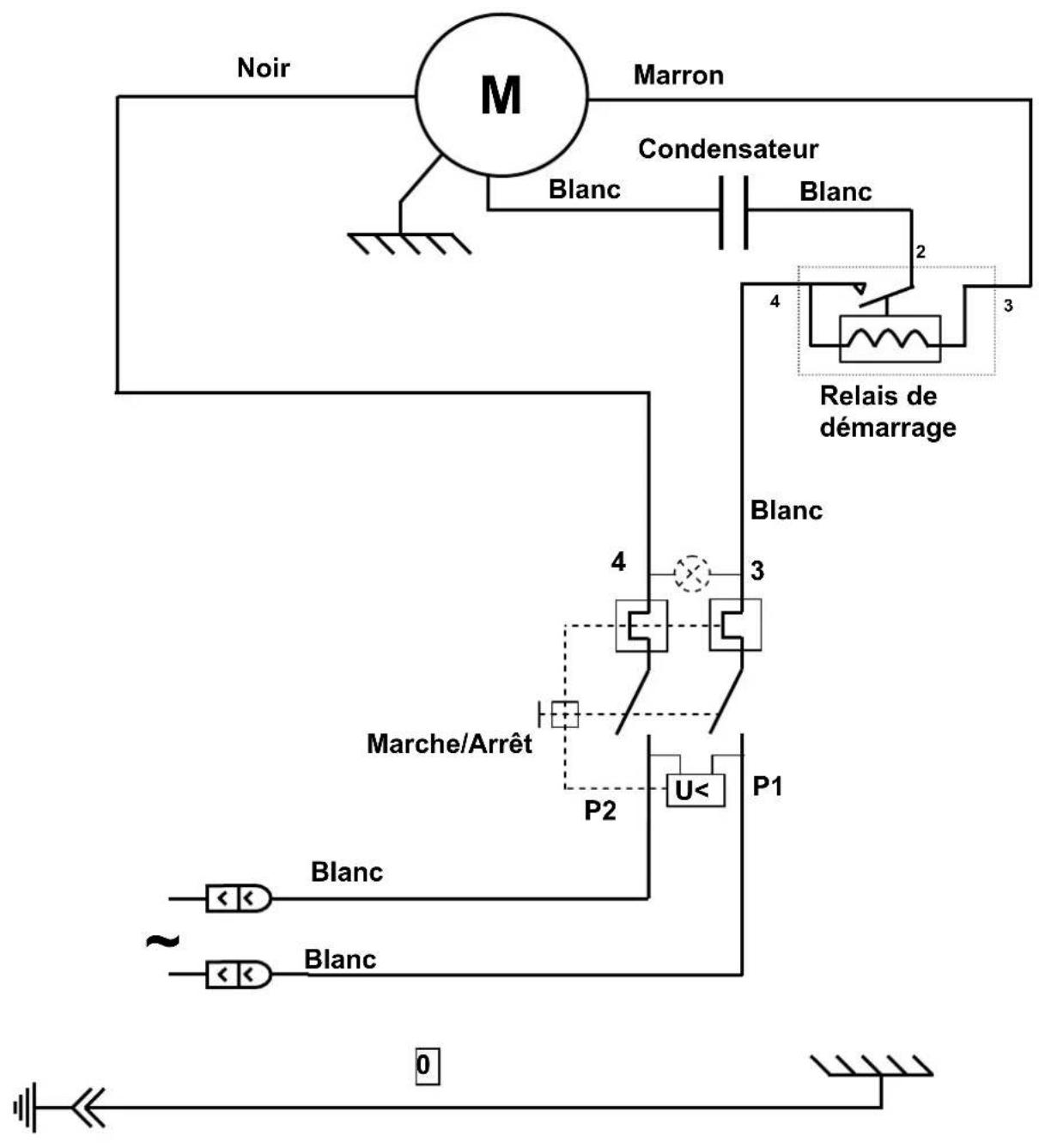

Elektrisch schema 220-240V 50Hz, Modellen N°1 en N°1PS


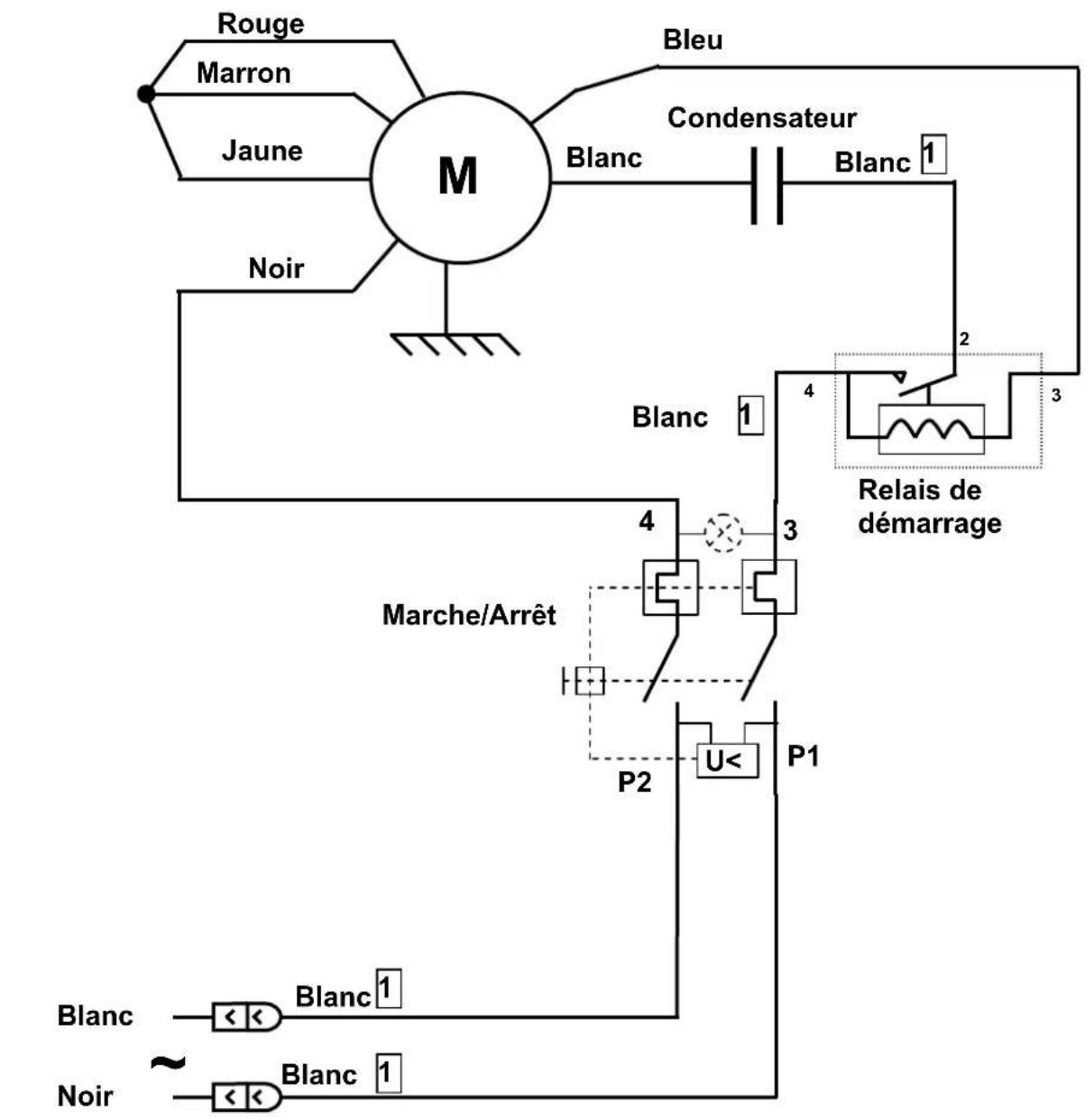

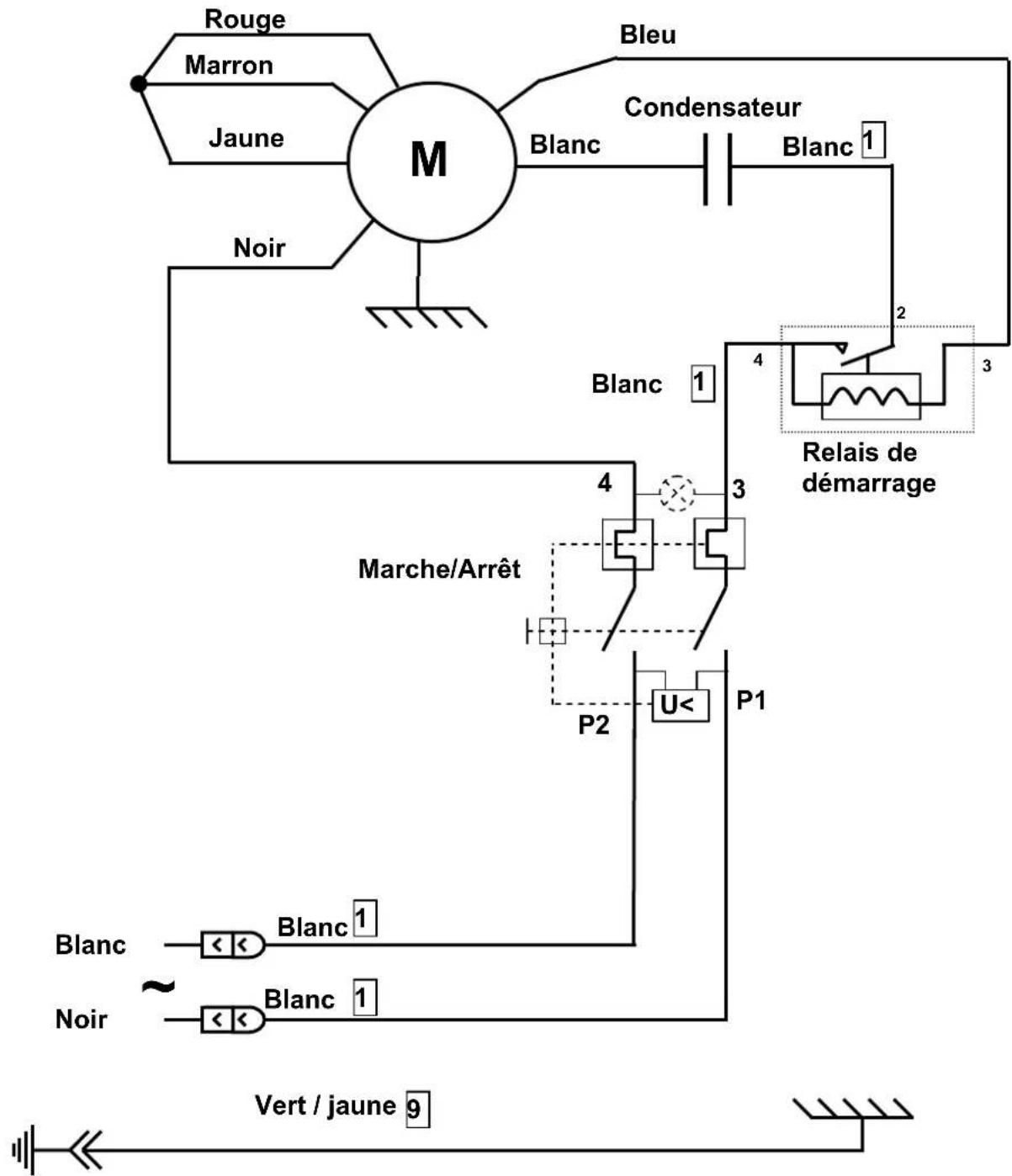

Elektrisch schema 220-240V 60Hz, Modellen N°1 en N°1PS

Since the 01.01.95, all our appliances comply with CE and possess the CE label. Our guarantee is of 12 months from the manufacturing date mentioned on the descriptive plate. Warranty is strictly limited to the free replacement of any part of origin recognized by us as defective due to a defect or building default and identified as belonging to the concerned appliance. Warranty does not apply to damages resulting from installation or use non-complying with our appliance data sheet (user's manual) or in case of an evident lack of maintenance or disrespect of elementary security electric rules. It does not apply in case of regular wear and tear. Any replacement of parts under warranty will be realized after return of the defective part in our workshops, postage paid, supported by a copy of a conformity statement on which appears the serial number of the appliance. Every appliance is equipped with a descriptive plate conforming to the EC recommendations and of which a duplicate exists in the conformity statement (serial number, manufacturing date, electrical characteristics ...). In case of serious damage judged repairable only in our workshops, and after prior consent from our departments, any appliance under guarantee is sent by the Distributor, carriage paid. In case of repairs or reconditioning of appliances not under guarantee, the round trip transport is payable by the distributor. The parts and workforce are invoiced at the current rate. A preliminary estimate can be supplied.

Coffee grinder not using SANTOS original burrs are not taken under guarantee. The warranty conditions, repairs, reconditioning, of the espresso coffee grinder are the object of a specific note. Our guarantee does not extend to the payment of penalties, the repair of direct or indirect damages and notably to any loss of income resulting from the nonconformity or the defectiveness of products, SANTOS's global responsibility being limited to the sale price of the delivered product and to the possible repair of the defective products.

In case of revelation of an imperfection during the warranty period, the Distributor has to, unless a different written agreement of SANTOS, indicate to his customer to stop any use of the defective product. Such a use would release SANTOS of any responsibility.

TYPEPLAATJE VAN HET APPARAAT

SPECIMEN

IMPORTANT: documents included in this manual to be kept:

• “CE” COMPLIANCE DECLARATION
  • WARRANTY CERTIFICATE

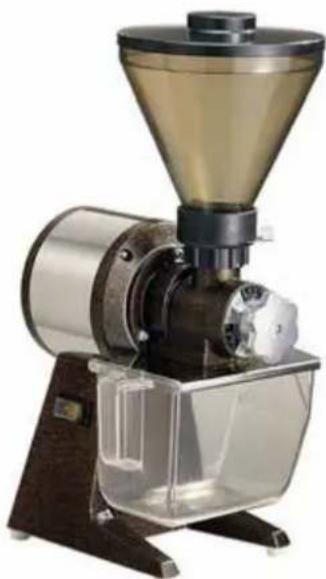

Modern coffee maker with conical funnel and glass control panel (no visible text or symbols)

*408.001
Model n° 1

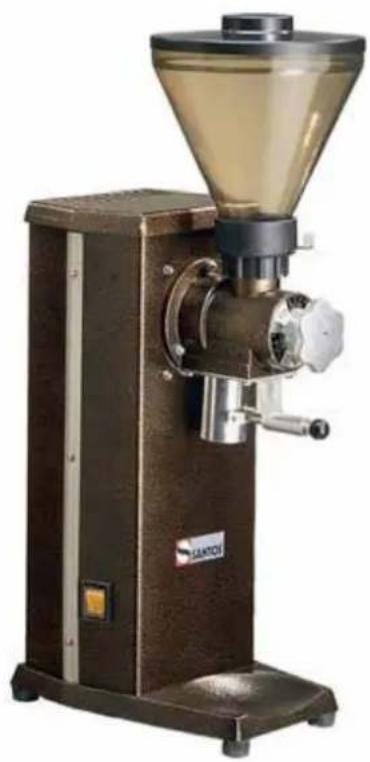

Industrial coffee maker with conical funnel and metal handle (no visible text or symbols)

*408.012
Model n° 4

CONTENTS

"CE" COMPLIANCE DECLARATION....3

IMPORTANT SAFEGUARDS ....4

IMPROPER USE 4

ELECTRICAL CONNECTION 4

RECYCLING THE PRODUCT AT THE END OF ITS SERVICE LIFE....5

YOUR COFFEE GRINDER #1, #1PS and #4 ....5

USING THE APPLIANCE....6

ADJUSTING THE GRIND....6

SERVICING 6

MAINTENANCE....6

Spare parts:....6

Replacing the grindstones: 6

ADJUSTING THE MINIMUM GAP BETWEEN THE GRINDING-WHEELS ....7

FAULT FINDING....8

The machine will not start: 8

The machine stops because the motor has overheated: 8

The machine stops because of an overload:....8

MACHINE TECHNICAL SPECIFICATIONS ....9

Wiring diagram 110-120V 50/60Hz Model #1, 1PS....10

Wiring diagram 220-240V 50Hz Model #1, 1PS....11

Wiring diagram 220-240V 60Hz Model #1, 1PS....12

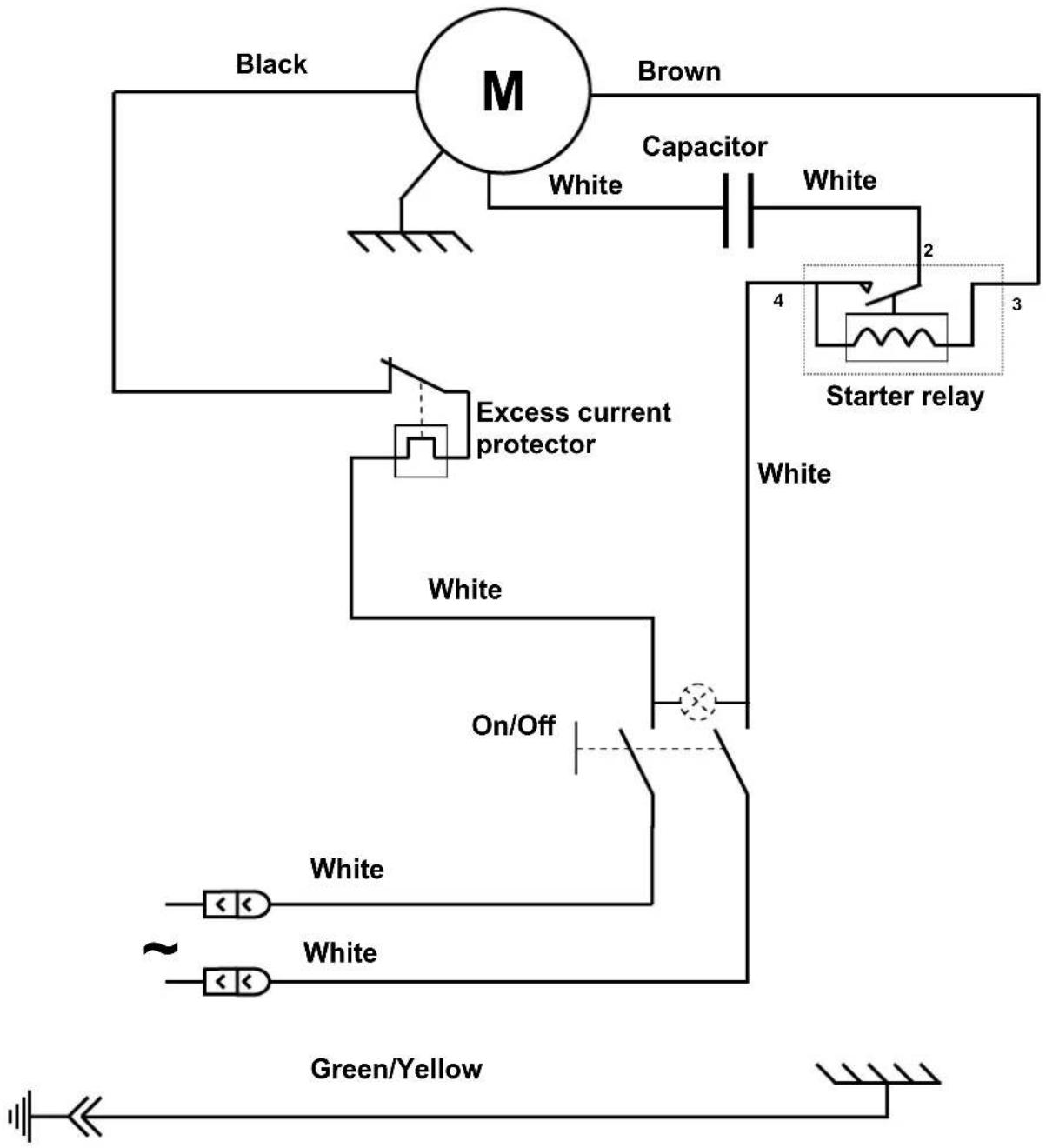

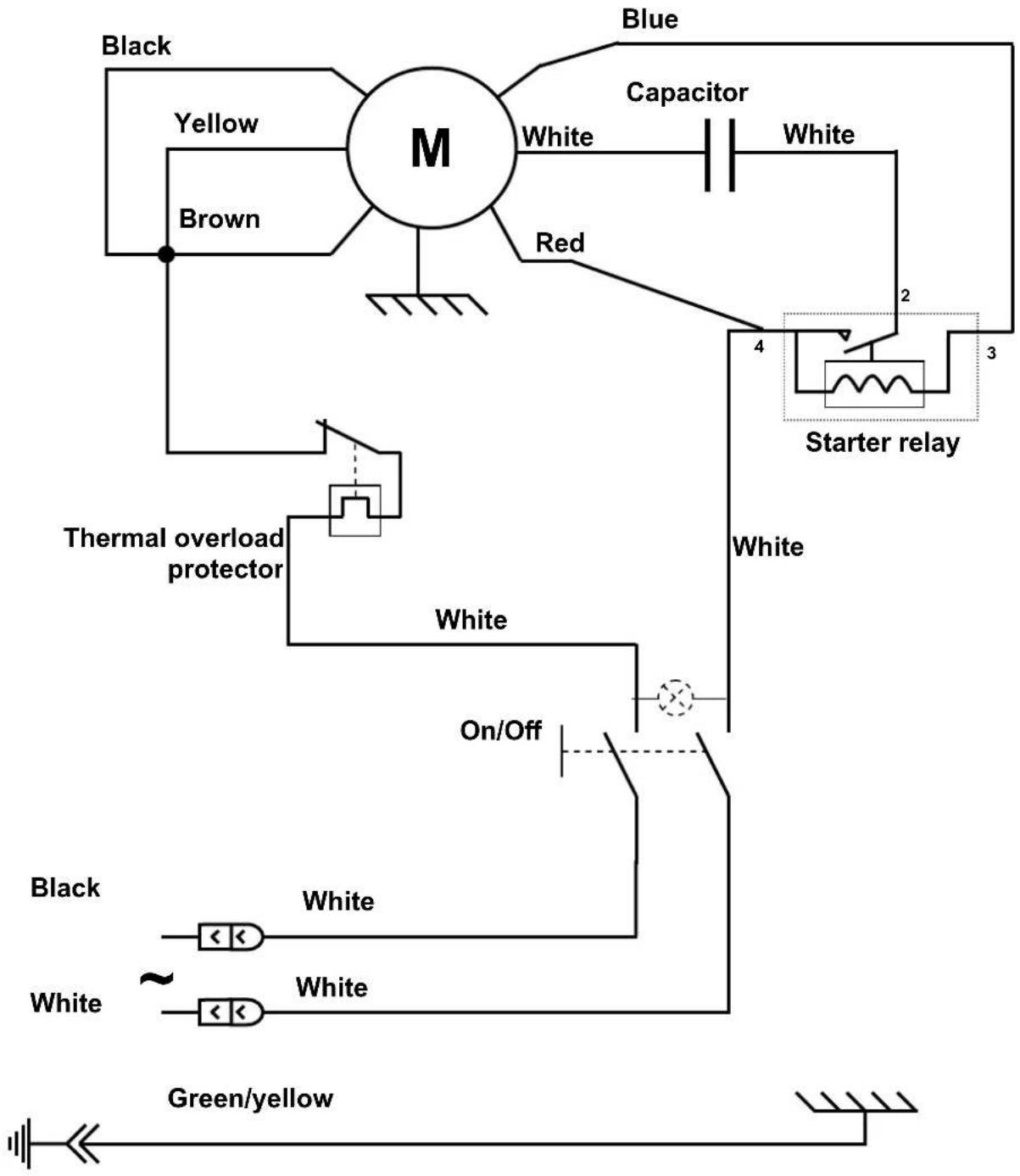

Wiring diagram 100-120V 50/60Hz Model #4....13

Wiring diagram 220-240V 50Hz Model #4....14

Wiring diagram 220-240V 60Hz Model #4....15

Figures....16

WARRANTY CERTIFICATE....19

APPLIANCE IDENTIFICATION PLATE....19

"CE" COMPLIANCE DECLARATION

THE MANUFACTURER:

SANTOS SAS - 140-150, Av. Roger SALENGRO 69120 VAULX-EN-VELIN (LYON) FRANCE

declares that the appliance intended for the professional market described below:

Description: Shop coffee grinder

Type number: 01, 01P, 01PS, 04

complies with:

• the statutory provisions defined in appendix 1 of the European "machines" directive n°2006/42/CE and the national legislation transposing it
  • the statutory provisions of the following European directives and regulations:

○ N° 2006/95/CE (low voltage directive)
○ N° 2004/108/CE (EMC directive)
○ No. 2002/95/CE (RoHS directive)
○ No. 2002/96/CE (WEEE directive)
○ N° 1935/2004/CE (regulation) relating to materials and articles intended to come into contact with foodstuffs

Harmonised European standards used to give presumption of conformity with the essential requirements of the above-mentioned directives:

• NF EN ISO 12100 -1 and 2:2004: Safety of machinery - General principles for design
• NF EN 60204-1: 2006 : Safety of machinery - Electrical equipment of machines-General requirements
• NF EN 1672-2: 2005, Food processing machinery – Basic concepts – Hygiene requirements
  • NF EN 60335-1: 2003 : Household and similar electrical appliances. Safety.
• NF EN 60335-2-64 :2004 : Particular requirements for commercial electric kitchen machines

Drawn up in VAULX-EN-VELIN on: 01/10/2010

Signatory's position: CHIEF EXECUTIVE OFFICER

Signatory's name: Aurélien FOUQUET

Signature:

IMPORTANT SAFEGUARDS

When using, cleaning or maintaining the machine, always follow these instructions:

Read all instructions

Note: You will find it easier to understand the next few paragraphs if you refer to the diagrams at the end of this manual.

IMPROPER USE

1. Never operate the machine without coffee beans in the bean container.
2. Do not use this machine for grinding anything other than roasted coffee beans.
3. Remove from the coffee beans any foreign bodies which may damage the grindstones (metal staples, stones, etc.).
4. Cleaning in a jet of water or a high pressure spray is prohibited.
5. The base (11) must not be immersed in water.

ELECTRICAL CONNECTION

- The electric power supply for the machine is available in 3 single-phase voltages:

• 110-120 V 50/60 Hz:
• 220-240 V 50 Hz:
• 220-240 V 60 Hz:

Line protection: the machine should be connected to a standard 2-pole + earth electric socket. The system should be fitted with an RCD and a fuse rated at 16A. The appliance must be earthed.

CARE:

- Before connecting the machine, check that the mains electrical voltage is the same as the voltage for your appliance. Its value is shown:

• either on the identification plate under the machine.
  or on the identification plate on the last page of this manual.

- If the power cable is damaged, it should be replaced by a special assembly available from approved SANTOS dealers or from SANTOS.

CARE: Check that the On / Off switch (13) is in the 0 position before connecting the power cable plug to your mains electric power socket (fig. A).

RECYCLING THE PRODUCT AT THE END OF ITS SERVICE LIFE

Symbol of a trash bin crossed with no visible text or labels

This equipment is marked with the selective sorting symbol relating to wastes from electrical and electronic equipment. It signifies that this product should be taken over by a selective collection system conforming to the Guideline 2002/96/EC (WEEE) – part Professional Equipment – so that it can be either recycled or dismantled in order to reduce any impact on the environment.

For more information, please contact your Retailer or the SANTOS.

For eliminating or recycling components of equipment, please contact a specialized company or contact SANTOS.

The electronic products not undergoing a selective sorting are potentially dangerous for the environment.

The damaging materials should be eliminated or recycled according to the regulations in force.

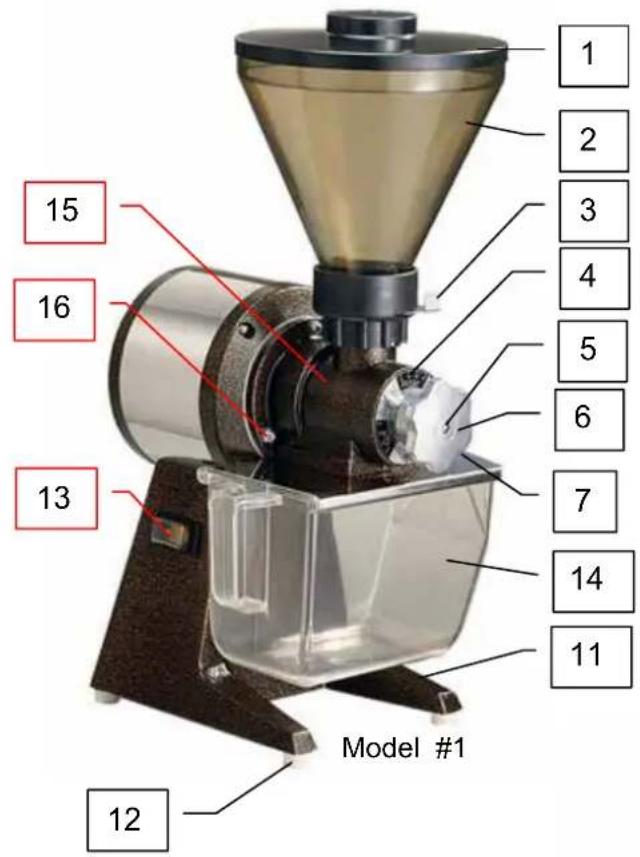

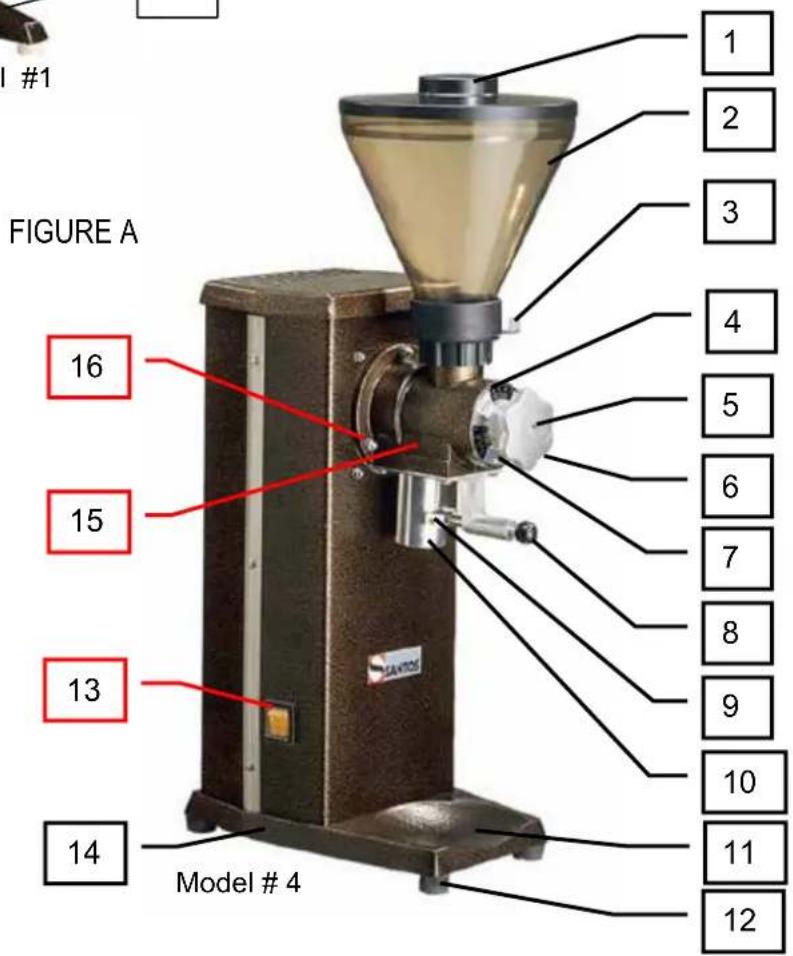

YOUR COFFEE GRINDER # 1, # 1PS and # 4

• The coffee grinder is designed especially for hotels, restaurants, community catering, for the drawer version, and for coffee roasters.
• The robust frame of the appliance is made of cast aluminum and painted metal. The transparent hopper is made of transparent polycarbonate transparent and contains 1 kg beans.

○ Model # 1 and # 1PS: The appliance is usually supplied with a grind-collector drawer (with a capacity of 800 g). But the bag- grip model can also be supplied on request (maximum bag depth of 150 mm)
○ Model # 4: The appliance is delivered with a "bag grip" system as standard (maximum bag height: 280 mm),

• A button for adjusting the fineness of the grind caters for all types of coffee grind (fine grind, espresso, filter coffee, medium or coarse grind).
• The special hardened steel grinding wheels (∅ 63.5 mm) guarantee a fine and even grind.

USING THE APPLIANCE

ADJUSTING THE GRIND

- Turn the grinding-wheel gap adjuster button 6 clockwise for a coarser grind and anticlockwise for a finer grind. The factory setting is for the finest grind, the grinding-wheels nearly touching each other.

SERVICING

- Clean the coffee outlet, the coffee-bean holder and the grinding mechanism from time to time. Always turn the appliance off (switch 13 on position 0) and unplug it.

MAINTENANCE

Before carrying out any work on the appliance, it must in all cases be unplugged from the mains power supply and the motor start capacitor discharged:

Discharging the capacitor:

Use a screwdriver with insulated handle to touch the 2 connectors on the capacitor (13). The appearance of an electric arc shows that the capacitor has discharged.

Spare parts:

This machine requires no specific maintenance. The bearings are lubricated for life. If work is required to replace worn parts such as the grindstones or the electric or other components, refer to the parts list (see exploded view at the end of the manual).

IMPORTANT: It is prohibited to use spare parts other than those certified made by SANTOS

For all spare part orders (see references in the exploded view at the end of the manual), state:

the type,
the machine serial number and
the electrical specifications ()

recorded under the machine.

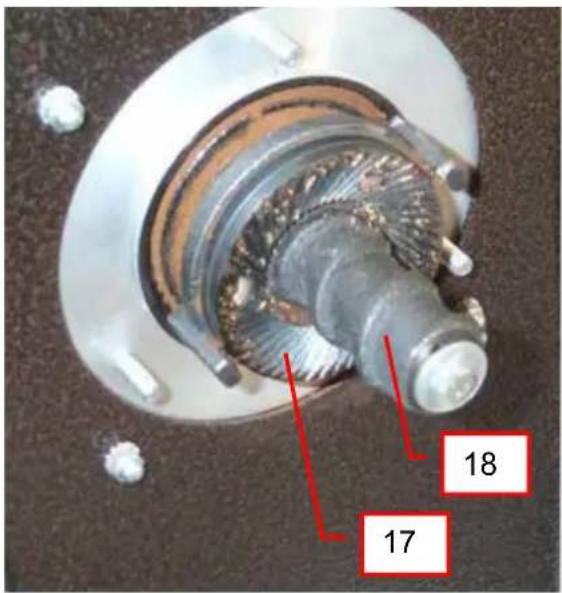

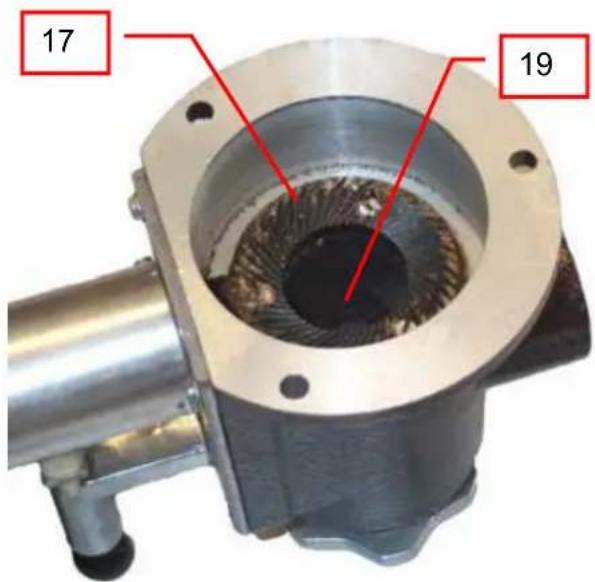

Replacing the grindstones:

IMPORTANT: always change both 2 grindstones (17) at the same time. (use SANTOS reference 00001B)

The 2 grinding wheels are identical and can be fitted equally either on the moving plate (18) (moving grinding wheel) or on the cast metal adjustment block (19) (fixed grinding wheel).

1. Stop the machine by putting the switch (13) to "0" and disconnect the power supply cord.

2. Close the shutter (3) on the bean hopper (2). Take off the bean hopper (2).

3. Turn the grinding wheel gap adjuster button (6) clockwise until it comes to a halt at the "COARSE" setting."

4. Unscrew the nuts (16) and remove the whole grinding unit (15), to gain access to the grinding wheels.

5. Change the grinding wheels (3 fastening screws) after carefully cleaning the supporting surfaces.

TAKE CARE: The slightest small coffee particle under the grinding wheel may prevent the machine from operating correctly. It is recommended that the grinder body is cleaned with a compressed air jet or a dry brush.

1. Reassemble the grinding unit (15) and adjust the grinding gap to its minimum setting.

TAKE CARE

- Before tightening the fastening nuts (16) on the grinding unit (15), check that the dial (4) of the grinding wheel adjuster button (6) is set to "COARSE" This precaution is essential to prevent any risk of the grinding wheels being brought too close to each other, which could cause damage to the grinding unit.

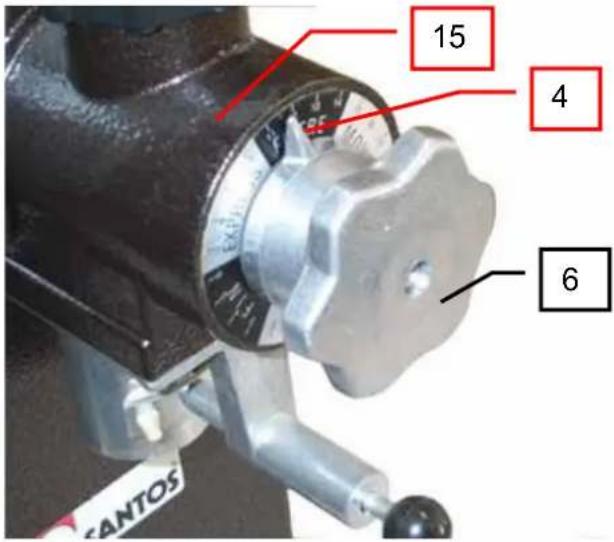

ADJUSTING THE MINIMUM GAP BETWEEN THE GRINDING-WHEELS

This should be done after replacing the grinding wheels.

1. Plug the appliance in and run it empty.

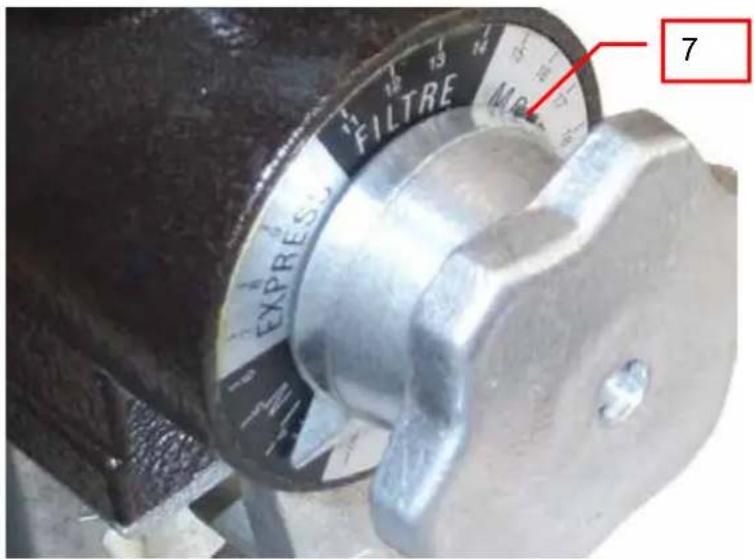

2. Unscrew hexagon socket screw (7) on the dial (4) using a 2-mm Allen wrench. Check that the dial (4) is free to rotate without turning button (6).
3. Turn button (6) anticlockwise until the grinding wheels come into contact (a slight sound of friction will be heard) then back one notch in the reverse direction.

ATTENTION

This is a delicate operation, and prolonged contact between the grinding wheels should be avoided, since this could damage them.

1. Turn the appliance off by placing switch (13) on "0".
2. Without moving the button (6), place the dial (4) on the "FINE" position then tighten the hexagon socket screw (7) fully home.
3. Run the machine empty to check that the grinding wheels rotate without touching each other on the finest setting. If this is not the case, repeat the above procedure.

FAULT FINDING

Identify the exact reason the appliance stopped.

In every case: If the problem persists, switch off the power supply to the machine (unplug the cord from the mains socket) and call in the maintenance service or contact a SANTOS approved dealer.

The machine will not start:

• Check: the mains power supply and the condition of the power supply cord,
• Note: the switch should be lit when on the "1" position.
• Check that there are no foreign bodies stuck between the grinding wheels.

The machine stops because the motor has overheated:

(the metal casing around the motor unit is hot)

Models110-120V 50/60Hz only

In the event of overheating, the motor stops.

The overheating protection system resets automatically; wait for the motor to cool (15 to 30 minutes), before restarting the machine.

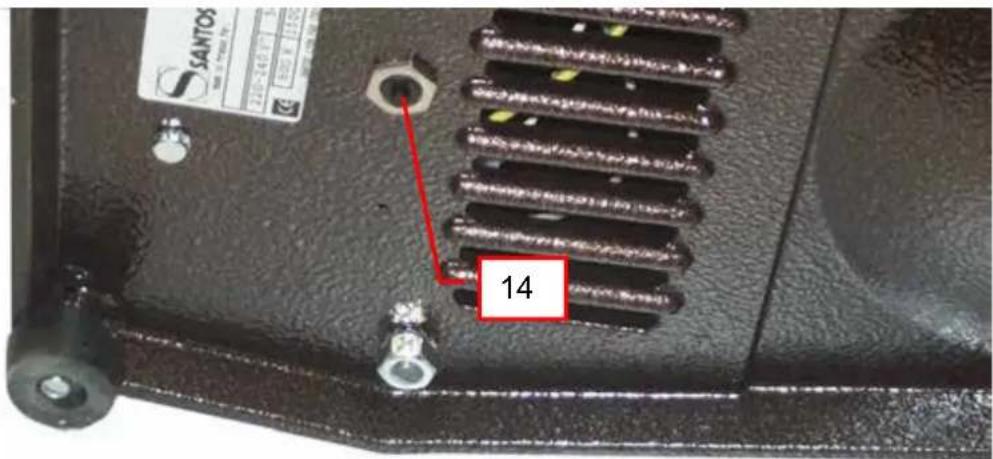

The machine stops because of an overload:

If the motor is blocked (foreign body, something too hard), the excess current protection system (14), located under the appliance will be triggered automatically and cut off the electrical power to the motor.

• Set the On / Off switch (13) to "0" position, disconnect the appliance.
• Correct the fault then press the excess current protection button (14)
• Press the On/Off switch (13) (position I).

If the problem persists, check the following points:

• Check that the grinding wheels do not touch each other.
• Check the state of wear of the grinding wheels (grinding too fine with worn grinding wheels can result in a motor overload like this)
• If there are no foreign bodies preventing the appliance from working, then check and replace the motor starter relay then the capacitor.

MACHINE TECHNICAL SPECIFICATIONS

ELECTRICAL SPECIFICATIONS (1)
Model		# 1, # 1PS # 4
Supply voltage .(V) 220-240 Frequency	100-120(Hz)	220-24050 50/60 60
Motor:Power input (W) 600 650Speed	650(rpm)	1500 1500/1800 1800
Average capacity (kg/h) 14 14Hopper capacity (kg) 1 1Grind drawer capacityMaximum bag heightDimensions: HeightWidthDepthWeight: Net weightPackaged weightNoise : (2) LpAincertitude KpA = 2.5dB	(kg) 0.8(mm)(mm)(mm)(mm)(kg)(kg)(dBA) 74	00150550250320151674	2807002203201920,4

(1) These ratings are provided as a rough guide. The exact electrical specifications can be found on the rating plate.
(2) Noise level measured with sound pressure appliance in operation 1 m from its centerline in accordance with standard EN 31201.

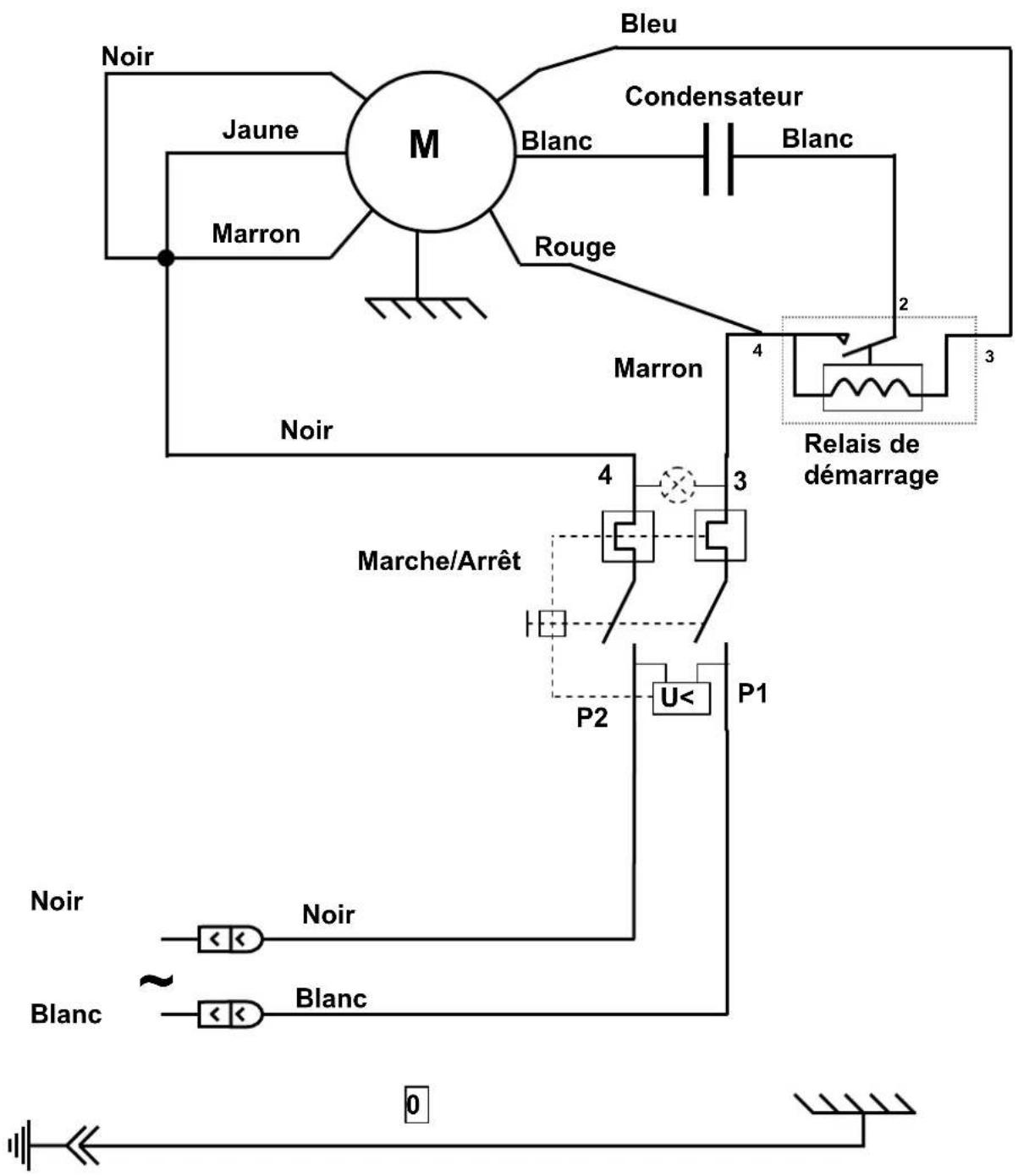

Wiring diagram 110-120V 50/60Hz Model #1, 1PS

Wiring diagram 220-240V 50Hz Model #1, 1PS

Wiring diagram 220-240V 60Hz Model #1, 1PS

Vert / jaune 9

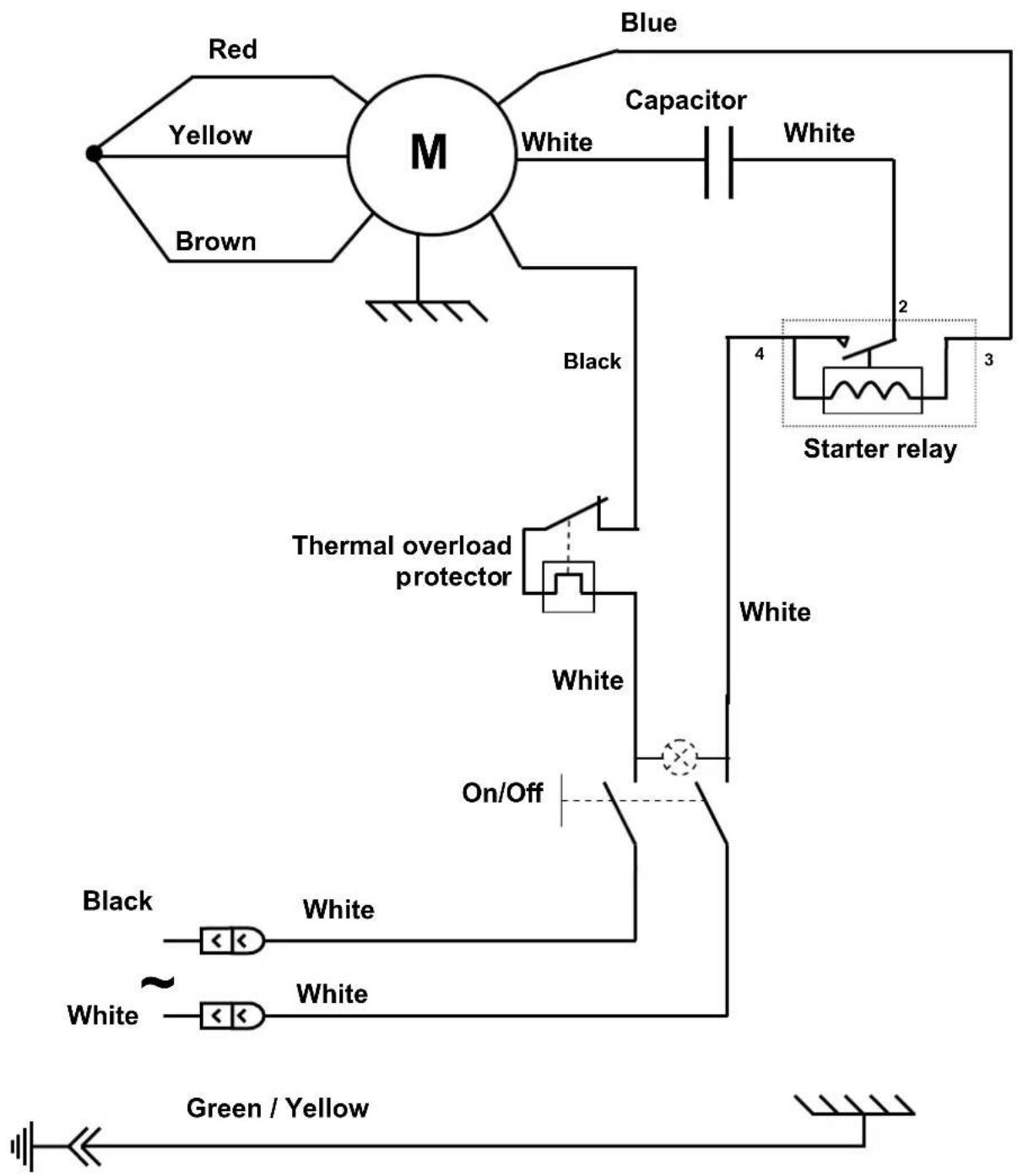

Wiring diagram 100-120V 50/60Hz Model #4

Wiring diagram 220-240V 50Hz Model #4

Wiring diagram 220-240V 60Hz Model #4

Figures

1 2 3 4 5 6 7 14 11 15 16 13 Model #1 12

FIGURE A 16 15 13 14 Model # 4 1 2 3 4 5 6 7 8 9 10 11 12

EMGA
SANTOS

15 4 6

17 19

17 18

EXPRES FILTRE 7

SANTOS SANTOS 14

ITEM Description

1 Bean hopper cover

2 Bean hopper

3 Bean hopper shutter

4 Adjusting dial

5 Adjuster button attachment

6 Grinding wheel gap adjuster button

7 Dial fastening screw

8 Bag grip cord

9 Bag grip strap

10 Grind outlet tube

11 Base

12 Non-slip feet

13 On-off switch

14 Thermal overload switch, with reset

15 Grinding unit

16 Grinding unit clamp nut

17 Grinding wheels

18 Mobile grind wheel carrier plate

19 Fixed grind wheel carrier plate

WARRANTY CERTIFICATE

WARRANTY

Since the 01.01.95, all our appliances comply with CE and possess the CE label. Our guarantee is of 12 months from the manufacturing date mentioned on the descriptive plate. Warranty is strictly limited to the free replacement of any part of origin recognized by us as defective due to a defect or building default and identified as belonging to the concerned appliance. Warranty does not apply to damages resulting from installation or use non-complying with our appliance data sheet (user's manual) or in case of an evident lack of maintenance or disrespect of elementary security electric rules. It does not apply in case of regular wear and tear. Any replacement of parts under warranty will be realized after return of the defective part in our workshops, postage paid, supported by a copy of a conformity statement on which appears the serial number of the appliance. Every appliance is equipped with a descriptive plate conforming to the EC recommendations and of which a duplicate exists in the conformity statement (serial number, manufacturing date, electrical characteristics ...). In case of serious damage judged repairable only in our workshops, and after prior consent from our departments, any appliance under guarantee is sent by the Distributor, carriage paid. In case of repairs or reconditioning of appliances not under guarantee, the round trip transport is payable by the distributor. The parts and workforce are invoiced at the current rate. A preliminary estimate can be supplied.

Coffee grinder not using SANTOS original burrs are not taken under guarantee. The warranty conditions, repairs, reconditioning, of the espresso coffee grinder are the object of a specific note. Our guarantee does not extend to the payment of penalties, the repair of direct or indirect damages and notably to any loss of income resulting from the nonconformity or the defectiveness of products, SANTOS's global responsibility being limited to the sale price of the delivered product and to the possible repair of the defective products.

In case of revelation of an imperfection during the warranty period, the Distributor has to, unless a different written agreement of SANTOS, indicate to his customer to stop any use of the defective product. Such a use would release SANTOS of any responsibility.

APPLIANCE IDENTIFICATION PLATE

SPECIMEN

For all the documents not delivered with the appliance.

Printed, Faxed, Downloaded

MANUEL D'UTILISATION ET D'ENTRETIEN

Modern coffee maker with conical funnel and glass lid, no visible text or symbols

Exterior view of a modern coffee maker with a conical funnel and metal handle (no visible text or symbols)

DECLARATION "CE" DE CONFORMITE....3

REGLES DE SECURITES....4

REPLACEMENT DES MEULES....7

REGLAGE DE L'ECARTEMENT MINIMUM DES MEULES 8

AIDE AU DEPANNAGE....9

REPLACEMENT DES MEULES

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Modern coffee maker with conical funnel and glass chamber (no visible text or symbols)

Exterior view of a coffee maker with a conical funnel and metal handle (no visible text or symbols)

IHRE KAFFEEMÜHLE....6

BETRIEB DES GERÄTS 6

GARANTIESCHEIN....20

RECYCLING DES ALTGERÄTS

Since the 01.01.95, all our appliances comply with CE and possess the CE label. Our guarantee is of 12 months from the manufacturing date mentioned on the descriptive plate. Warranty is strictly limited to the free replacement of any part of origin recognized by us as defective due to a defect or building default and identified as belonging to the concerned appliance. Warranty does not apply to damages resulting from installation or use non-complying with our appliance data sheet (user's manual) or in case of an evident lack of maintenance or disrespect of elementary security electric rules. It does not apply in case of regular wear and tear. Any replacement of parts under warranty will be realized after return of the defective part in our workshops, postage paid, supported by a copy of a conformity statement on which appears the serial number of the appliance. Every appliance is equipped with a descriptive plate conforming to the EC recommendations and of which a duplicate exists in the conformity statement (serial number, manufacturing date, electrical characteristics ...). In case of serious damage judged repairable only in our workshops, and after prior consent from our departments, any appliance under guarantee is sent by the Distributor, carriage paid. In case of repairs or reconditioning of appliances not under guarantee, the round trip transport is payable by the distributor. The parts and workforce are invoiced at the current rate. A preliminary estimate can be supplied.

Coffee grinder not using SANTOS original burrs are not taken under guarantee. The warranty conditions, repairs, reconditioning, of the espresso coffee grinder are the object of a specific note. Our guarantee does not extend to the payment of penalties, the repair of direct or indirect damages and notably to any loss of income resulting from the nonconformity or the defectiveness of products, SANTOS's global responsibility being limited to the sale price of the delivered product and to the possible repair of the defective products.

In case of revelation of an imperfection during the warranty period, the Distributor has to, unless a different written agreement of SANTOS, indicate to his customer to stop any use of the defective product. Such a use would release SANTOS of any responsibility.
