USER MANUAL 19952085 Char-Broil

Line drawing of a portable stove or gas stove with two control switches and a handle (no text or symbols)

FOR OUTDOOR USE ONLY

POUR USAGE EN MILIEU EXTÉRIEUR UNIQUEMENT

ESTE JUEGO SÓLO SE PUEDE USAR EXTERIORS

MODEL

MODÈLE

MODELO

19952085

SERIAL NUMBER

NUMÉRO DE SÉRIE

NÚMERO DE SERIE

• See rating label on grill for serial number.

TOOLS REQUIRED FOR ASSEMBLY:

• NONE

If you have questions or need assistance during assembly, please call 1-800-241-7545

IMPORTANT SAFETY INFORMATION....2

FOR YOUR SAFETY - BEFORE USING YOUR GRIDDLE....3

LP GAS SAFETY AND CYLINDER CARE....4

LEAK CHECKING YOUR GRILL....5

REPLACEMENT PARTS DIAGRAM 24

REPLACEMENT PARTS LIST 25

TROUBLESHOOTING....28

LIMITED WARRANTY 34

PRODUCT REGISTRATION....39

THIS GRIDDLE IS FOR OUTDOOR USE ONLY

Char-Broil.

IMPORTANT SAFETY INFORMATION

SAFETY SYMBOLS

DANGER, WARNING, and CAUTION statements are used throughout this Owner's Manual to emphasize critical and important information. Read and follow these statements to help ensure safety and prevent property damage.

The statements are defined below.

CAUTION

CAUTION: Indicates a potentially hazardous situation or unsafe practice which, if not avoided, may result in minor or moderate injury.

WARNING

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

DANGER

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

DANGER

If you smell gas:

1. Shut off gas to the appliance (Remove LP Canister)
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance and immediately call your gas supplier or your fire department.

WARNING

1. Do not store or use gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance.

2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.

3. This instruction manual contains important information necessary for the proper assembly and safe use of the appliance.

4. Read and follow all warnings and instructions before assembling and using the appliance.
5. Follow all warnings and instructions when using the appliance.
6. Keep this manual for future reference.

FOR YOUR SAFETY - BEFORE USING YOUR GRIDDLE

WARNING CAUTION

Do not attempt to repair or alter the regulator/ valve for any "assumed" defect. Any modification to this assembly will void your warranty and create the risk of a gas leak and fire. Use only authorized replacement parts supplied by manufacturer.

For Safe Use of Your Griddle and to Avoid Serious Injury:

• Do not let children operate or play near griddle.
• Keep griddle area clear and free from materials that burn (i.e. gasoline, propane, or any other flammable liquid or gas).
• Do not block holes in bottom or back of griddle.
• Check burner flames regularly.
• Never use regulator from this griddle with any other LP appliance.
• When cooking, the appliance must be on a level surface in an area clear of combustible material.
• Use griddle only in well-ventilated space. NEVER use in enclosed space such as carport, garage, porch, covered patio, or under an overhead structure of any kind.
• Do not use charcoal or ceramic briquets in a gas griddle.(Unless briquets are supplied with your griddle.)
• This appliance is not intended for and should never be used as a heater.
• Use griddle at least 2 ft. from any wall or surface. Maintain 10 ft. clearance to objects that can catch fire or sources of ignition such as pilot lights on water heaters, live electrical appliances, etc..
• Apartment Dwellers: Check with management to learn the requirements and fire codes for using an LP gas griddle in your apartment complex. If allowed, use outside on the ground floor with a two (2) foot clearance from walls or rails. Do not use on or under balconies.

DANGER

• Never operate this appliance unattended.
• Never operate this appliance within 10ft (3m) of any structure, combustible material or other gas cylinder.
• Never operate this appliance within 25 ft (7.5 m) of any flammable liquid.
• If a fire should occur, keep away from the appliance and immediately call your fire department. Do not attempt to extinguish an oil or grease fire with water.

Failure to follow these instructions could result in fire, explosion or burn hazard, which could cause property damage, personal injury or death.

• For residential use only. Do not use for commercial cooking
• Do not leave appliance unattended. Keep children and pets away from appliance at all times.
• Do not use water on a grease fire. Personal injury may result. If a grease fire develops, turn knobs OFF and remove LP cylinder.
• Do not leave griddle unattended while preheating or burning off food residue on HI. If griddle has not been regularly cleaned, a grease fire can occur that may damage the product.

Installation Safety Precautions

• Use griddle, as purchased, only with LP (propane) gas and the regulator/valve assembly supplied.
• Griddle installation must conform with local codes, or in their absence of local codes, with either the National Fuel Gas Code, ANSI Z223.1/ NFPA 54. Storage and handling of liquefied petroleum gasses must conform to LP Gas Code ANSI / NFPA 58. Griddle is not for use in or on recreational vehicles and/or boats.
• This griddle is safety certified for use in the United States only. Do not modify for use in any other location. Modification will result in a safety hazard.
• Do not leave appliance unattended. Keep children and pets away from appliance at all times.

LP GAS SAFETY AND CYLINDER CARE

LP (Liquefied Petroleum Gas)

• Is nontoxic, odorless and colorless when produced. For Your Safety, LP gas has been given an odor (similar to rotten cabbage) so that it can be smelled.
• Lp gas is highly flammable and may ignite unexpectedly when mixed with air.

Propane Cylinder Use (1 lb. Disposable)

• Use only cylinder marked "Propane Fuel".

• Cylinder must be constructed and marked in accordance with the specifications for LP-gas cylinders of the U.S. Department of Transportation (DOT) or the National Standard of Canada, CAN/CSA-B339, Cylinders, Spheres and Tubes for the Transportation of Dangerous Goods.

• Save cylinder cap and reinstall when not in use.

• Cylinder supply system must be arranged for vapor withdrawal. Gas cylinder must be upright in use.

Propane Gas Cylinders

• Your griddle is designed to operate with one 16.4 oz. disposable cylinder (Dot 39 Cylinder) that is 7 3/8" high (not included). Do not attempt to refill any 16.4 oz. disposable fuel cylinders.
• The cylinder must be installed, transported and stored in an upright position and should not be dropped or handled roughly.
• When the appliance is to be stored indoors, the propane gas cylinder must be disconnected from the appliance.
• When the propane gas cylinder is not disconnected from the appliance, the appliance and cylinder must be stored outdoors in a well-ventilated space.
• The cylinder should never be transported or stored where temperature can reach 125 °F (51 °C).
• Cylinders must be stored outdoors out of the reach of children.
• A disconnected LP cylinder in storage or being transported must have a safety cap installed. Failure to use safety cap as directed may result in serious personal injury and/or property damage.
• Do not store an LP cylinder in enclosed spaces such as a carport, garage, porch, covered patio or other building.

Propane Cylinder Installation/Removal

Propane Cylinder Installation:

1. Remove cap from end of Propane cylinder (sold separately)
2. Cap should be kept on cylinder when not in use to prevent dirt and debris from entering Regulator/Valve.
3. Check end of cylinder attachment for dirt and debris. Clean out if necessary.

Char-Broil.

1. Be sure griddle control valves are in the OFF position.
2. Insert threaded end of Propane Cylinder into Regulator/Valve and hand-tighten turning cylinder clockwise as shown below. DO NOT USE TOOLS! Over tightening can damage threads on Regulator/Valve.
3. Perform a leak test.

Propane Cylinder Removal:

1. Turn control valves OFF.
2. Allow Griddle to cool.
3. Remove the propane cylinder by turning counter-clockwise until disengaged from the Regulator/Valve.
4. Install cap on cylinder. Cap should be kept on cylinder when not in use to prevent dirt and debris from entering Regulator/Valve.

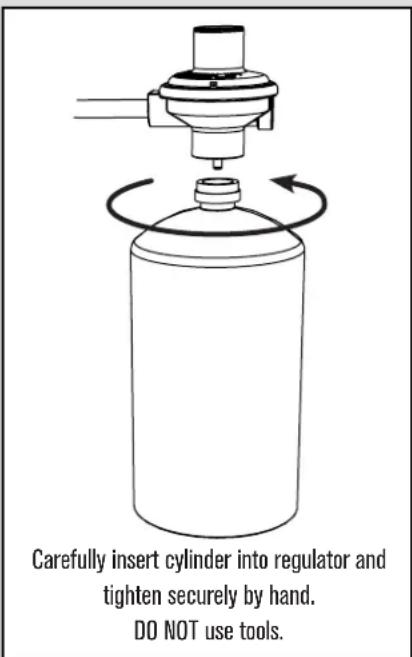

Carefully insert cylinder into regulator and tighten securely by hand. DO NOT use tools.

LEAK CHECKING YOUR GRIDDLE

Leak Testing (1 lb. Disposable)

• During leak test, keep griddle away from open flames or sparks and do not smoke. Griddle must be leak tested outdoors in a well ventilated area.
• Leak test must be repeated each time gas cylinder is replaced or after storage.

Materials needed include clean paint brush and 50/50 soap and water solution. Use mild soap and water. Do not use household cleaning agents. Damage to components can result.

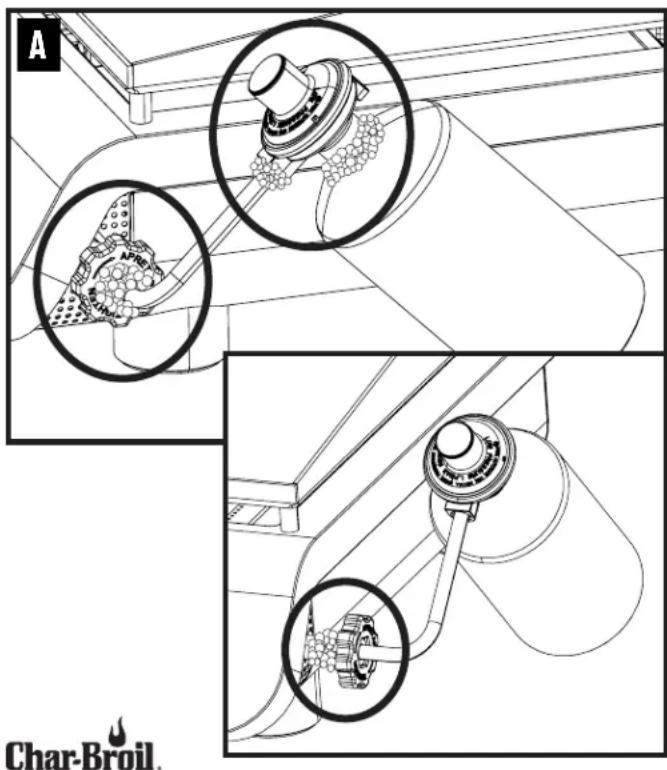

PROCEDURE

1. Be sure control knobs on griddle to the "OFF" position.
2. Brush soapy solution onto connection between gas cylinder and regulator at (A).

If growing bubbles appear, there is a leak. Retighten connections and repeat steps 1 and 2.

If you cannot stop a leak, remove gas cylinder from regulator and check for damaged threads, dirt and debris on regulator and gas cylinder. Also check to see if anything is obstructing flow of gas at regulator and gas cylinder openings. Remove any obstruction that may be found and repeat leak test. If threads are damaged on either regulator or gas cylinder, replace. Order new parts by giving the serial, model number and name of items needed to the Griddle Service Center at 1-800-241-7545.

A Char-Broil.

CAUTION

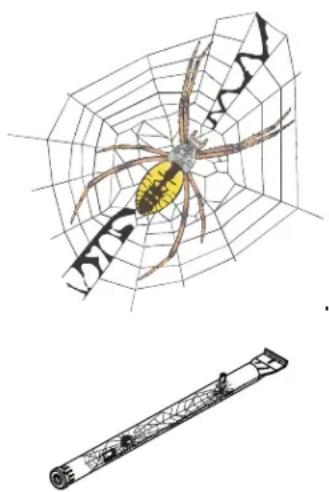

SPIDER ALERT!

Illustration of a spider web with a close-up of its surface and a separate mechanical component (no text or symbols)

If you notice that your griddle is getting hard to light or that the flame isn't as strong as it should be, take the time to check and clean the burner.

In some areas of the country, spiders or small insects have been known to create "flashback" problems. The spiders spin webs, build nests and lay eggs in the griddle's burner tube obstructing the flow of gas to the burner. The backed-up gas can ignite in the burner tube. This is known as a flashback and it can damage your griddle and even cause injury.

To prevent flashbacks and ensure good performance the burner and burner tube should be removed from the griddle and cleaned before use whenever the griddle has been idle for an extended period.

IF YOU EXPERIENCE THE FOLLOWING:

1. Smell gas.
2. Burner will not light.
3. A small yellow flame from burner (should be blue).
4. Fire coming from around or behind control knob.

STOP!

IMMEDIATELY TURN OFF GAS AT LP CONTROL KNOBS!

1. Wait for griddle to cool.
2. Use a 12" pipe cleaner to clean out the burner tube.

Do not lean over griddle while lighting.

1. To ignite, push and turn burner control knob slowly (2-3 seconds) to 🤒 you should hear the ignitor click.
2. If ignition does NOT occur in 5 seconds, turn the burner control knob to OFF, wait 5 minutes and repeat the lighting procedure.
3. If ignitor does not work, follow match lighting instructions.

WARNING

Turn controls OFF and disconnect LP cylinder when not in use.

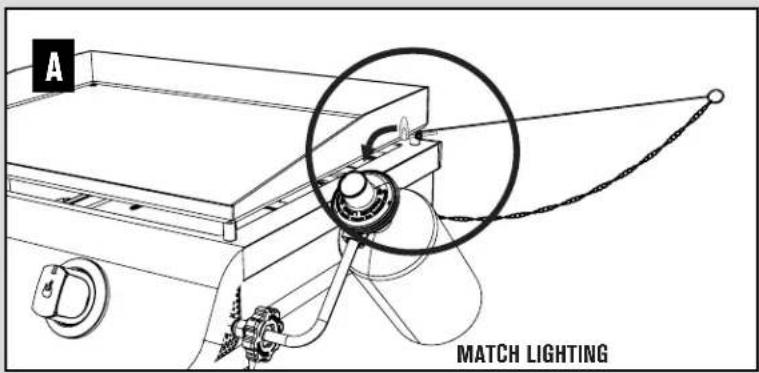

Match Lighting

1. Insert lit match into the gap between the griddle plate and the firebox, see Fig. A below.
2. Turn the burner control knob to shaking.
3. If ignition does NOT occur in 5 seconds, turn the control knob to OK, wait 5 minutes and repeat the lighting procedure.

MATCH LIGHTING

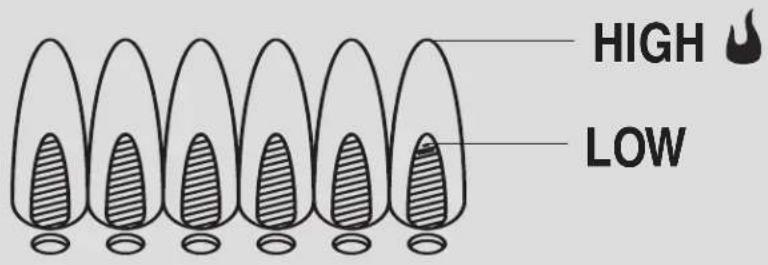

Burner Flame Check

Light burner. Make sure burner stays lit while rotating the burner control knob from 🧑 LOW. Always check flame prior to each use.

HIGH LOW

Before Cooking For The First Time

• Remove Proposition 65 Label from Right side of Griddle.
• Leak test your griddle. Operate griddle for 15 minutes with the griddle controls on HIGH. This will heat-clean internal components and eliminate odor from paint finish of griddle.
• Season your griddle cooking surface.

Turning Griddle Off

• After cooking, turn the griddle off by rotating the control knob to OFF. Control knob should pop up in the O3 position. If control knob does not pop up, disconnect cylinder to turn griddle off and replace the Valve/Manifold assembly.
• Allow griddle to cool completely before storing.

Storing Your Griddle

• Allow griddle to cool completely.
• Remove LP Cylinder and install protective cap over outlet threads.
• Remove Regulator/Valve from griddle to help keep dirt out of the propane cylinder probe.
• Store Regulator/Valve in a heavy plastic bag and place inside.
• Be sure the griddle cooking surface is coated with vegetable oil.

CARE AND MAINTENANCE OF YOUR GRIDDLE

Cleaning the Burner Assembly

Follow these instructions to clean and/or replace parts of burner assembly or if you have trouble igniting griddle.

1. Turn gas off at control knobs and remove LP cylinder.
2. Remove griddle plate.
3. Remove hardware securing burners.
4. Detach electrode from burner.

5. Carefully lift each burner up and away from valve openings.
   We suggest three ways to clean the burner tubes. Use the one easiest for you.

6. Bend a stiff wire (a light weight coat hanger works well) into a small hook. Run the hook through each burner tube several times.

7. Use a narrow bottle brush with a flexible handle (do not use a brass wire brush). Run the brush through each burner tube several times.

8. Wear eye protection: Use an air hose to force air into the burner tube and out the burner ports. Check each port to make sure air comes out each hole.

9. Wire brush entire outer surface of burner to remove food residue and dirt.

10. Clean any blocked ports with a stiff wire such as an open paper clip.

11. Check burner for damage due to normal wear and corrosion, some holes may become enlarged. If any large cracks or holes are found, replace burner.

VERY IMPORTANT: Burner tubes must re-engage valve openings. See illustration below.

1. Attach electrode to burner.

2. Carefully replace burners.

3. Attach burners to brackets on firebox.

4. Reposition griddle plate.

5. Before cooking again on griddle, perform a "Leak Test" and "Burner Flame Check".

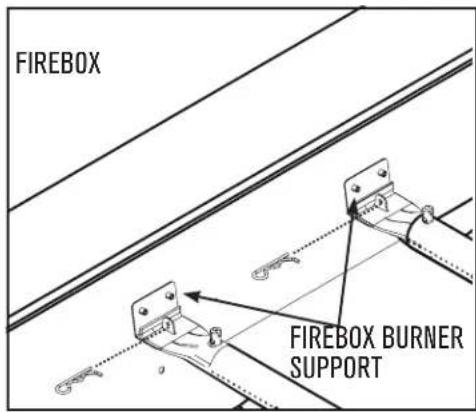

FIREBOX FIREBOX BURNER SUPPORT

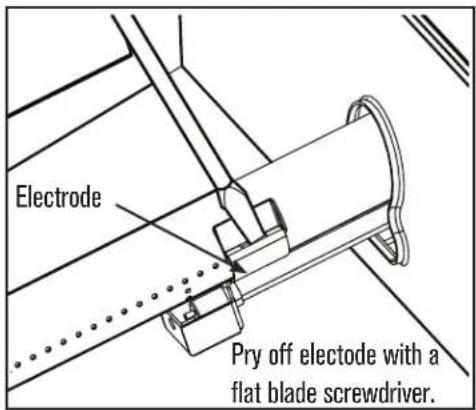

Electrode Pry off electrode with a flat blade screwdriver.

STEP 5: Example of a bent, stiff wire for cleaning your burner.

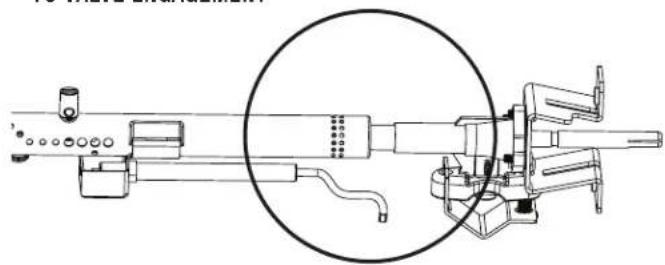

STEP 10: CORRECT BURNER TO VALVE ENGAGEMENT

Technical line drawing of a mechanical assembly with no visible text or symbols

CARE AND MAINTENANCE OF YOUR GRIDDLE

SEASONING

WHAT IS SEASONING?

Seasoning is a process by which oil is baked onto metal to create a stick resistant surface and protect against oxidization. Your Char-Broil® Griddle comes with a thin layer of vegetable oil to protect against rust during shipping. This may leave some blemishes and discoloration on your griddle top. This is normal and will all even out during your seasoning process.

WHAT OIL SHOULD I USE?

Some oils are better than others for seasoning. Flax seed oil is a good oil for your initial seasoning since it creates a very durable bond. Flax oil has the highest level of Omega-3 fatty acids and has a very low smoke point. It is also a naturally hardening oil. This type of oil is good for your initial seasoning but it is more expensive than other options. Since it can also get brittle and flake over time, it is good for the initial seasoning but not for many cooking sessions. Just like cast iron, the more you cook on your Char-Broil® Griddle the better your seasoning layer will be. Any of the following oils can be used for your initial seasoning.

• Canola Oil (Rapeseed Oil)
- Coconut Oil
- Flax Seed Oil
- Olive Oil
• Vegetable Shortening (Crisco)
- Vegetable Oil

The idea behind your initial seasoning is to coat your griddle top with oil and heat the oil above its smoke point to polymerize the oil and create a bond with the griddle top. The result is a darkened, stick resistant surface.

1. Apply small amount of oil (about 2-3 Tablespoons) to the surface of the griddle top and spread it around with a paper towel or a lint-free cloth
2. Turn all burners of your griddle on to medium-high heat.
3. Heat the oil until it starts smoking and let it continue to heat on the griddle top until it stops smoking. Your griddle top will start to become darker in color. This is good.
4. When the oil stops smoking (this should take approximately 25-30 minutes), turn your griddle off and let it cool down.
5. Repeat steps 1 through 4 a few times until you have a nice dark surface on your griddle.
6. After you have completed your initial seasoning, wipe down your griddle top with cooking oil for storing.

MAINTENANCE

There are some simple cleaning and seasoning steps for optimal performance of your Char-Broil® 2 Burner Griddle. We recommend covering your griddle after use if it will be left outside to protect it from the elements, especially in the winter months. The Char-Broil® 2 Burner Griddle Cover is available on Charbroil.com.

GRIDDLE SURFACE-CLEANING

FIRST TIME :

After assembling your griddle, you want to clean the griddle surface off with soap and hot water. Be sure you have the time to season your griddle before you start the cleaning process as they need to be completed at the same time. This will be the ONLY TIME you use soap and water to clean your griddle surface. Rinse and dry completely with paper towels. After this initial cleaning, proceed to the steps for Initial Griddle Seasoning.

AFTER EACH USE:

Clean the griddle surface after each use by scraping with a metal spatula or scraper and wiping down the griddle surface with a cloth or paper towel. For tough food residue, pour water onto the hot griddle surface and let the residue boil off. DO NOT USE SOAP to clean the griddle surface, as that will break down the seasoning you have created on the surface. Treat your griddle top much like you would cast iron skillets and Dutch ovens. Store your griddle in a cool, dry place, preferably with a cover

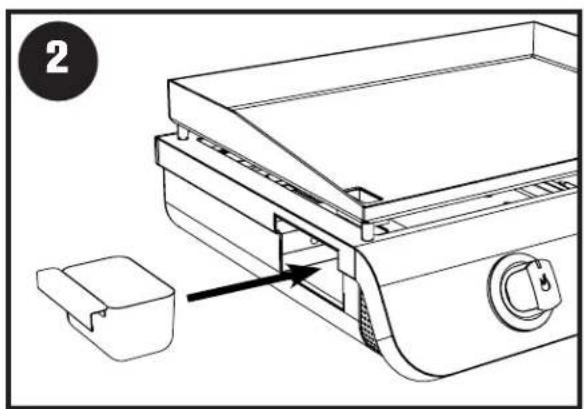

GREASE CUP

The Grease Cup has a capacity of 16 ounces (2 cups) and should be emptied after each cook session. Depending on the foods you are cooking, this grease cup can fill up quickly. Care should be taken when emptying the cup, it is preferred to empty the grease once it is cooled down, as both the grease cup and the grease will be very hot during and immediately following your cook session. If you find that the grease cup is getting full mid-cooking, you should use a heat proof glove to carefully remove and empty the cup. The grease cup can be washed with warm, soapy water but should not go into the dishwasher.

CONTENIDO

A Char-Broil

PRECAUCIÓN

¡ALERTA DE ARAÑAS!

Illustration of a spider with labeled parts, shown in 3D wireframe and a schematic diagram below (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a spray bottle being handled with a tool, showing motion arrows indicating rotation (no text or symbols)

A Char-Broil.

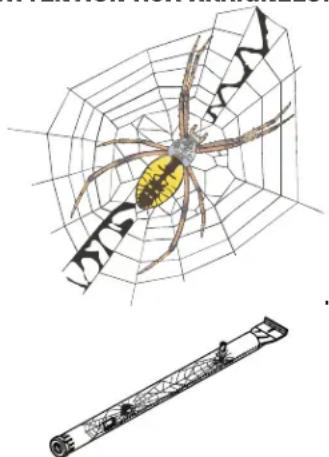

ATTENTION

ATTENTION AUX ARAIGNÉES!

Illustration of a spider web with a 3D wireframe model and a schematic diagram below (no text or symbols)

A ALLUMAGE AVEC UNE ALLUMETTE

ÉLEVÉ FAIBLE

Technical line drawing of a portable stove with two doors and a handle, showing internal components and wiring (no text or symbols)

Line drawing of a refrigerator with an open door and a small inset box, no text or symbols present

Char-Broil.

REPLACEMENT PARTS DIAGRAM / DIAGRAMME DE PIÈCES DE RECHANGE DIAGRAMA DE PIEZAS DE REPUESTO

Exploded view diagram of a refrigerator with numbered parts for identification and assembly reference.

REPLACEMENT PARTS LIST

Key Qty Description
1 1 FIREBOX
2 4 LEG ASSEMBLY
3 4 LEVELER
4 1 HEAT SHIELD, F/ GREASE CUP
5 1 CONTROL CONSOLE
6 1 VALVE MANIFOLD ASSEMBLY
7 1 REGULATOR
8 2 BEZEL, F/ CONTROL KNOB
9 2 CONTROL KNOB
10 1 MATCH HOLDER
11 1 LEFT BURNER ASSEMBLY
12 1 RIGHT BURNER ASSEMBLY
13 2 ELECTRODE, F/ BURNER
14 1 REFLECTOR, F/ FIREBOX
15 1 GREASE CUP ASSEMBLY
16 1 GRIDDLE
NOT Pictured
... 1 PRODUCT GUIDE. ENGLISH, FRENCH, SPANISH

NOTE: Some grill parts shown in the assembly steps may differ slightly in appearance from those on your particular grill model. However, the method of assembly remains the same.

EMERGENCIES: If a gas leak cannot be stopped, or a fire occurs due to gas leakage, call the fire department.

EMERGENCIES POSSIBLE CAUSE PREVENTION / SOLUTION
Gas leaking from LP cylinder.	Mechanical failure due to rusting or mishandling.	Replace LP cylinder.
Gas leaking from LP cylinder valve regulator control valve connection.	Improper installation, connection not tight, failure of rubber seal.	Remove regulator control valve from cylinder and visually inspect for damage. See LP Cylinder Leak Test and Connecting Regulator control valve to the LP Cylinder.
Fire coming through at burner control valve connection	Fire in burner tube section of burner due to blockage.	Turn off control knob. After fire is out and grill is cold, remove burner and inspect for spider nests or rust. See Natural Hazard and Cleaning the Burner Assembly pages.
Fire coming below control panel.	Fire in burner tube section of burner due to blockage.	Turn off control knobs and LP cylinder valve. After fire is out and grill is cold, remove burner and inspect for spider nests or rust. See Natural Hazard and Cleaning the Burner Assembly pages.
Grease fire or continuous excessive flames above cooking surface.	Too much grease buildup in cooking area.	Turn off control knobs and LP cylinder valve. After cooling, clean food particles and excess grease from griddle surface, grease cup, and other surfaces.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE PREVENTION / SOLUTION
Burner(s) will not light using ignitor.	GAS ISSUES:Burner not engaged with control valve.Obstruction in burner.No gas flow.Regulator and LP cylinder valve not fully connected.Control Valve knob does NOT pop up in the OFF position.	Make sure control valve is positioned inside of burner tube.Ensure burner tube is not obstructed with spider webs or other matter. See cleaning section of Use and Care.Make sure LP cylinder is not empty.Remove LP cylinder. Clean threads on LP cylinder and regulator control valve.Replace regulator.Replace valve/manifold assembly.
	ELECTRICAL ISSUES:Electrode cracked or broken; “sparks at crack”Electrode and burner are wetWire and/or electrode covered with cooking residue.Wires are loose or disconnected.Wires are shorting (sparking) between ignitor and electrode.	Replace electrode(s).Wipe dry with a cloth.Clean wire and/or electrode with rubbing alcohol and clean swab.Reconnect wires or replace electrode/wire assembly.Replace ignitor wire/electrode assembly

TROUBLESHOOTING

PROBLEM	POSSIBLE CAUSE	PREVENTION / SOLUTION
Burner(s) will not match light.	See “GAS ISSUES:”Match will not reach.Improper method of match-lighting.	Use long-stem match (fireplace match).See “Match-Lighting” section of Lighting Your Griddle.
Sudden drop in gas flow or low flame.	Out of gas. Check for gas in LP cylinder.
Flames blow out.	High or gusting winds.Low on LP gas.	Turn front of griddle to face wind or increase flame height by turning gas valve to a higher position.Replace LP cylinder.
Flare-up.	Grease buildup.Excessive fat in meat.Excessive cooking temperature.	Clean burners and griddle cooking surface.Trim fat from meat before ooking.Adjust (lower) temperature accordingly.
Persistent grease fire.	Grease trapped by food buildup.	Turn knobs to OFF. Let fire burn out. After griddle cools, remove and clean all parts.
Flashback (fire in burner tube(s)).	Burner and/or burner tubes are blocked.	Turn knobs to OFF. Clean burner and/or burner tubes. See burner cleaning Care and Maintenance Section of this guide

This warranty only applies to units purchased from an authorized retailer. Manufacturer warrants to the original consumer-purchaser only that this product shall be free from defects in workmanship and materials after correct assembly and under normal and reasonable home use for the periods indicated below beginning on the date of purchase*. The manufacturer reserves the right to require that defective parts be returned, postage and or freight pre-paid by the consumer for review and examination.

SCOPE OF COVERAGE PERIOD OF COVERAGE TYPE OF FAILURE COVERAGE
BURNERS 2 YEARS PERFORATION, MANUFACTURING, AND		MATERIAL DEFECTS ONLY
ALL OTHER PARTS 1 YEAR

*Note: A dated sales receipt WILL be required for warranty service.

The original consumer-purchaser will be responsible for all shipping charges for parts replaced under the terms of this limited warranty.

This limited warranty is applicable in the United States and Canada only, is only available to the original owner of the product and is not transferable. Manufacturer requires proof of your date of purchase. Therefore, you should retain your sales slip or invoice. Registering your product is not a substitute for proof of purchase and the manufacturer is not responsible for or required to retain proof of purchase records. This limited warranty applies to the functionality of the product ONLY and does not cover cosmetic issues such as scratches, dents, corrosions or discoloring by heat, abrasive and chemical cleaners or any tools used in the assembly or installation of the appliance, surface rust, or the discoloration of stainless steel surfaces. Paint is not warranted and will require touch up. RUST is not considered a manufacturing or materials defect.

This limited warranty will not reimburse you for the cost of any inconvenience, food, personal injury or property damage.

ITEMS MANUFACTURER WILL NOT PAY FOR:

1. Shipping cost, standard or expedited, for warranty and replacement parts.
2. Service calls to your home.
3. Repairs when your product is used for other than normal, single-family household or residential use.
4. Damage, failures, or operating difficulties resulting from accident, alteration, careless handling, misuse, abuse, fire, flood, acts of God, improper installation or maintenance, installation not in accordance with electrical or plumbing codes, or use of products not approved by the manufacturer.
5. Any food loss due to product failures or operating difficulties.
6. Replacement parts or repair labor costs for units operated outside the United States or Canada.
7. Pickup and delivery of your product.
8. Repairs to parts or systems resulting from unauthorized modifications made to the product.
9. The removal and/or reinstallation of your product.

DISCLAIMER OF IMPLIED WARRANTIES and LIMITATION OF REMEDIES

Repair or replacement of defective parts is your exclusive remedy under the terms of this limited warranty. In the event of parts availability issues, the manufacturer reserves the right to substitute like or similar parts that are equally functional. Manufacturer will not be responsible for any consequential or incidental damages arising from the breach of either this limited warranty or any applicable implied warranty, or for failure or damage resulting from acts of God, improper care and maintenance, grease fire, accident, alteration, replacement of parts by anyone other than Manufacturer, misuse, transportation, commercial use, abuse, hostile environments (inclement weather, acts of nature, animal tampering), improper installation or installation not in accordance with local codes or printed manufacturer instructions.

THIS LIMITED WARRANTY IS THE SOLE EXPRESS WARRANTY GIVEN BY THE MANUFACTURER. NO PRODUCT PERFORMANCE SPECIFICATION OR DESCRIPTION WHEREVER APPEARING IS WARRANTED BY MANUFACTURER EXCEPT TO THE EXTENT SET FORTH IN THIS LIMITED WARRANTY. ANY IMPLIED WARRANTY PROTECTION ARISING UNDER THE LAWS OF ANY STATE, INCLUDING IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR USE, IS HEREBY LIMITED IN DURATION TO THE DURATION OF THIS LIMITED WARRANTY.

Neither dealers nor the retail establishment selling this product has any authority to make any additional warranties or to promise remedies in addition to or inconsistent with those stated above. Manufacturer's maximum liability, in any event, shall not exceed the purchase price of the product paid by the original consumer. NOTE: Some states do not allow an exclusion or limitation of incidental or consequential damages, so some of the above limitations or exclusions may not apply to you. This limited warranty gives you specific legal rights as set forth herein. You may also have other rights which vary from state to state. In the state of California only, if refinishing or replacement of the product is not commercially practicable, the retailer selling this product or the Manufacturer will refund the purchase price paid for the product, less the amount directly attributable to use by the original consumer-purchaser prior to discovery of the nonconformity. In addition, in the state of California only, you may take the product to the retail establishment selling this product in order to obtain performance under this limited warranty. If you wish to obtain performance of any obligation under this limited warranty, you should write to:

Consumer Relations

P. O. Box 1240

Columbus, GA 31902-1240

Consumer returns will not be accepted unless a valid Return Authorization is first acquired. Authorized returns are clearly marked on the outside of the package with an RA number and the package is shipped freight/postage pre-paid. Consumer returns that do not meet these standards will be refused.

GARANTIE LIMITÉE

Two convenient ways to register your product:

Please fill out this card and attached a copy of your sales receipt. Return it within 10 days of purchase for warranty service. Proof of purchase will be required. The warranty is not transferable.

If you prefer not to receive special offers and promotions from Char-Broil, please check here: □

Mail to: | Envoyer à: | Correo a:

Char-Broil Warranty Registration

P.O. Box 1240

Columbus, Ga 31902-1240

Thank you for completing this questionnaire | Merci d'avoir rempli ce questionnaire. | Gracias por completar este cuestionario

WARNING:

1. Combustion byproducts produced when using this product contain chemicals known to the State of California to cause cancer, and birth defects, or other reproductive harm.
2. This product contains chemicals, including lead and lead compounds, known to the State of California to cause cancer, birth defects or other reproductive harm.

Wash your hands after handling this product.

AVERTISSEMENT:

The product associated with this guide was manufactured in China. Tel producto asociado con esta guía ha sido fabricado en China.
