Contents

CHAPTER -1: GENERAL WARNINGS ....2

CHAPTER -2: YOUR FRIDGE FREEZER....5

CHAPTER -3: USING YOUR FRIDGE FREEZER....6

CHAPTER -4: FOOD STORAGE GUIDANCE ......9

CHAPTER -5: DOOR REVERSAL 9

CHAPTER -6: TROUBLESHOOTING ....10

CHAPTER -7: TIPS FOR SAVING ENERGY ......11

Your fridge freezer conforms to current safety requirements. Inappropriate use can lead to personal injury and damage to property. To avoid the risk of damage read this manual carefully before using your fridge freezer for the first time. It contains important safety information on the installation, safety, use and maintenance of your Fridge Freezer. Retain this manual for future use.

CHAPTER -1: GENERAL WARNINGS

WARNING: Keep the ventilation openings of the Fridge clear from obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process.

WARNING: Do not use other electrical appliances inside the Fridge.

WARNING: Do not damage the refrigerant circuit.

WARNING: To avoid personal injury or damage this appliance must be installed in accordance with the manufacturer instructions.

The small quantity of refrigerant used in this fridge is eco-friendly R600a (an isobutene) and is flammable and explosive if ignited in enclosed conditions.

* While carrying and positioning the fridge, do not damage the cooler gas circuit.
* Do not store any containers with flammable materials, such as spray cans or fire extinguisher refill cartridges in the vicinity of the fridge.
* This appliance is intended to be used in household and similar applications such as;
- staff kitchen areas in shops, offices and other working environments which can be equated with ordinary household
- farm houses and by clients in hotels, motels and other residential type environments which can be equated with ordinary household
- bed and breakfast type environments which can be equated with ordinary household
- catering and similar non-retail applications which can be equated with ordinary household

* Your fridge requires a 220-240V, 50Hz mains supply. Do not use any other supply. Before connecting your fridge, ensure that the information on the data plate (voltage and connected load) matches the mains electricity supply. If in doubt, consult a qualified electrician)

* This appliance can be used by children aged from 8 years

CHAPTER -1: GENERAL WARNINGS

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazard involved. Children shall not play with the appliance. Cleaning and user maintenance, shall not be made by children without supervision.

* A damaged power cord /plug can cause fire or give you an electric shock. When damaged it must be replaced, this should only be done by qualified personnel.
* This appliance is not intended for use at altitudes exceeding 2000 m.

CHAPTER -1: GENERAL WARNINGS

Disposal

• All packaging and materials used are environmentally friendly and recyclable. Please dispose of any packaging in an environmentally friendly manner. Consult your local council for further details.
• When the appliance is to be scrapped, cut off the electrical supply cable and destroy the plug and cable. Disable the door catch in order to prevent children becoming trapped inside.
• A cut off plug inserted into a 16 amp socket is a serious safety (shock) hazard. Please ensure the cut off plug is disposed of safely.

For Denmark products:

The appliance is equipped with a plug approved in the EU (EU-Schuko Plug) and can be used in Finland, Norway and Sweden. In Denmark, the appliance is only approved for use with a wall outlet type E or type CEE7 // 7-S with a ground leg. If there is only wall outlet type K at the connection point, Replacing EU-Schuko plug with the Danish plug must be performed by only an authorized service personnel. Alternatively, connect a suitable and approved power adapter to transition between Schuko plug and Danish earth system. This adapter (min. 10 amps and up to max. 13 amps) can be ordered via at well assorted whitegoods dealer or authorized electrician. Only with one of these methods it can be ensured that the appliance is the correct safety ground. In the absence of earthing installation, an authorised electrician should carry out an earthing installation. In the case of use without earthing installed, we will not be responsible for any loss of use that may occur.

Disposal of your old appliance

This symbol on the product or package implies that the product should not be treated as domestic waste. Instead, it should be delivered to applicable waste collection places recycling electrical and electronic equipment. Recycling materials will help natural resources be preserved. For more detailed information regarding recycling of this product, please contact local authority, domestic waste disposal service or the shop you have purchased the product from.

Please ask your local authority about the disposal of the WEEE for the reuse, recycle and recovery purposes.

Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for the losses to be occurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for the losses to be occurred in the contrary case.

Safety warnings

• Do not connect your Fridge Freezer to the mains electricity supply using an extension lead.
• A damaged power cord / plug can cause fire or give you and electric shock. When damaged it must be replaced, this should only be done by qualified personnel.

- Never bend the power cord excessively.

- Never touch the power cord / plug with wet hands as this could cause a short circuit electric shock.

- Do not place glass bottles or beverage cans in the freezer department. Bottles or cans may explode.

- When taking ice made in the freezer department, do not touch it, ice may cause ice burns and/or cuts.

- Do not remove items from the freezer if your hands are damp or wet. Tis could cause skin abrasions or frost / freezer burns.

- Do not refreeze food once it has thawed out.

Installation Information

Before unpacking and manoeuvring your fridge freezer please take some time to familiarise yourself with the following points.

• Position away from direct sunlight and away from any heat source such as a radiator.
• Your appliance should be at least 50 cm away from stoves, Gas ovens and heater cores, and should be at least 5 cm away from electrical ovens.
• Do not expose your fridge freezer to moisture or rain.
• Your fridge freezer should be positioned at least 20mm away from another freezer.
• Clearance of at least 150 mm is required at the top of your fridge freezer. Do not place anything on top of your fridge freezer.

- For safe operation it is important that your fridge freezer is safe and balanced. The adjustable feet are used to level your fridge freezer. Make sure that your appliance is level before placing any foodstuffs inside it.

- We recommend that you wipe all shelving and trays with a cloth soaked in warm water mixed with a teaspoon of bicarbonate of soda before use. After cleaning rinse with warm water and dry.

• Install using the plastic distance guides, which can be found at the rear of the appliance. Turn 90 degrees (as shown in the diagram). This will keep the condenser from touching the wall.

- Refrigerator should be placed against a wall with a free distance not exceeding 75 mm.

Diagram of two coiled heat exchangers with directional arrows indicating flow (no text or labels)

CHAPTER -1: GENERAL WARNINGS

Before Using your Fridge

• Before setting up your fridge freezer, check for any visible damage. Do not install or use your fridge freezer if it is damaged
• When using your fridge freezer for the first time, keep it in an upright position for at least 3 hours before plugging into the mains. This will allow efficient operation and prevents damage to the compressor.
• You may notice a light odour when using your fridge freezer for the first time. This is perfectly normal and will fade away as the fridge starts to cool.

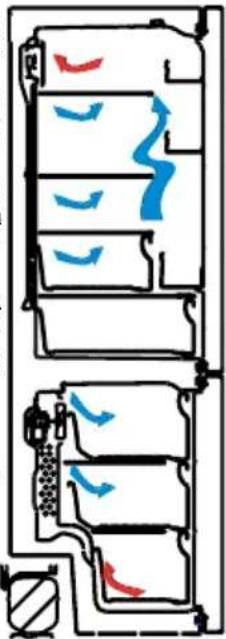

Information about new-generation cooling technology

Fridge freezers with new-generation cooling technology have a different working system than static fridge freezers. In normal fridge freezers, humid air entering the freezer and the water vapour emanating from the foods, turns into frost in the freezer compartment. In order to melt this frost, in other words defrost, the fridge has to be unplugged. In order to keep foods cold during the defrosting period, the user must store the food elsewhere and the user must clear the remaining ice and accumulated frost.

The situation is completely different in freezer compartments equipped with new-generation cooling technology. With the aid of fan, cold and dry air is blown throughout the freezer compartment. As a result of the cold air that is blown easily throughout the compartment – even in the spaces between shelves – foods are frozen equally and properly. And there will be no frost.

The configuration in the refrigerator compartment will be nearly same as the freezer compartment. Air emitted by the fan located at the top of refrigerator compartment is cooled while passing through the gap behind the air duct. At the same time, air is blown out through the holes on the air duct so that cooling process is successfully completed in the refrigerator compartment. Holes on the air duct are designed for even air distribution throughout the compartment.

Since no air passes between the freezer and refrigerator compartment, odours will not mix.

As a result, your fridge with new-generation cooling technology is easy to use and it offers you an access to a huge volume and aesthetic appearance.

Diagram showing airflow patterns in a vehicle or industrial space with labeled components and directional arrows

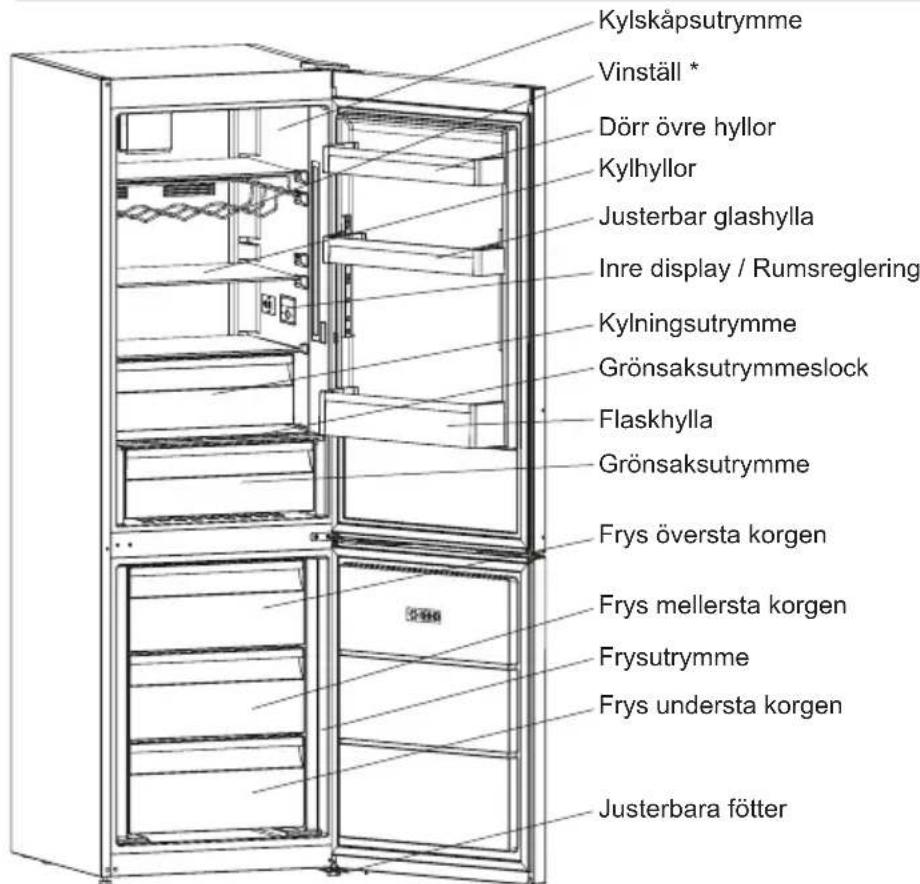

CHAPTER -2: YOUR FRIDGE FREEZER

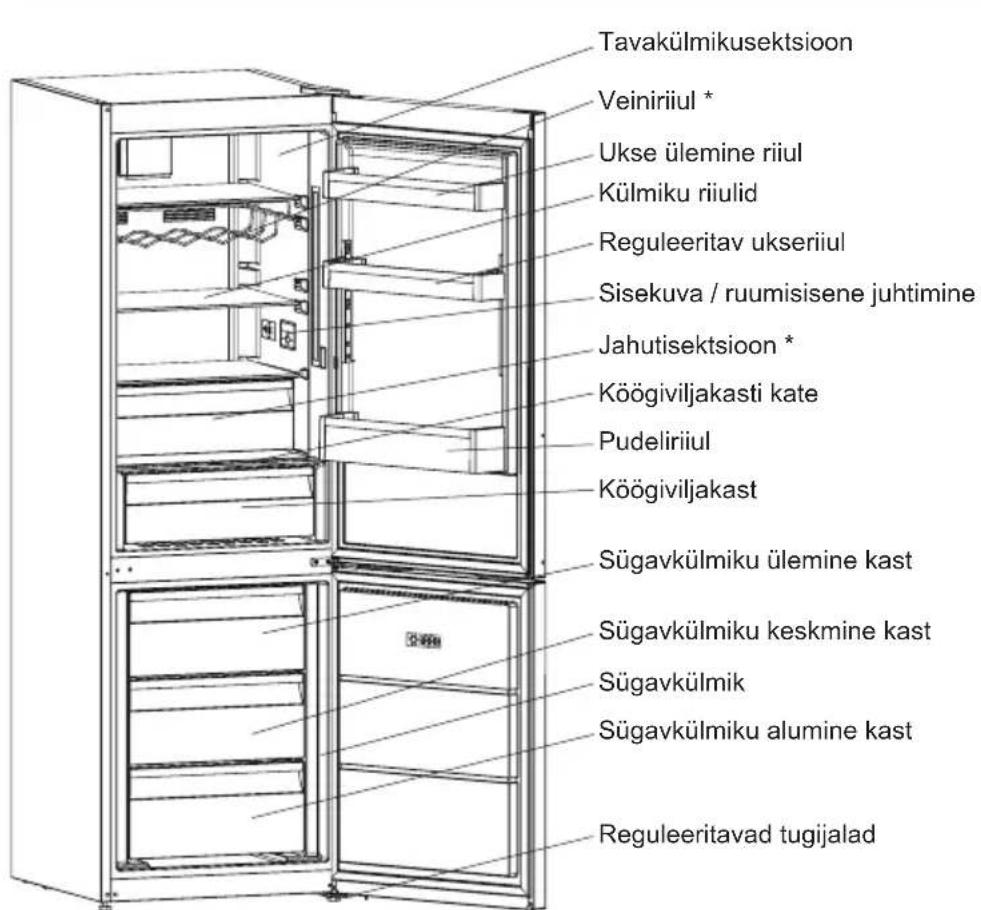

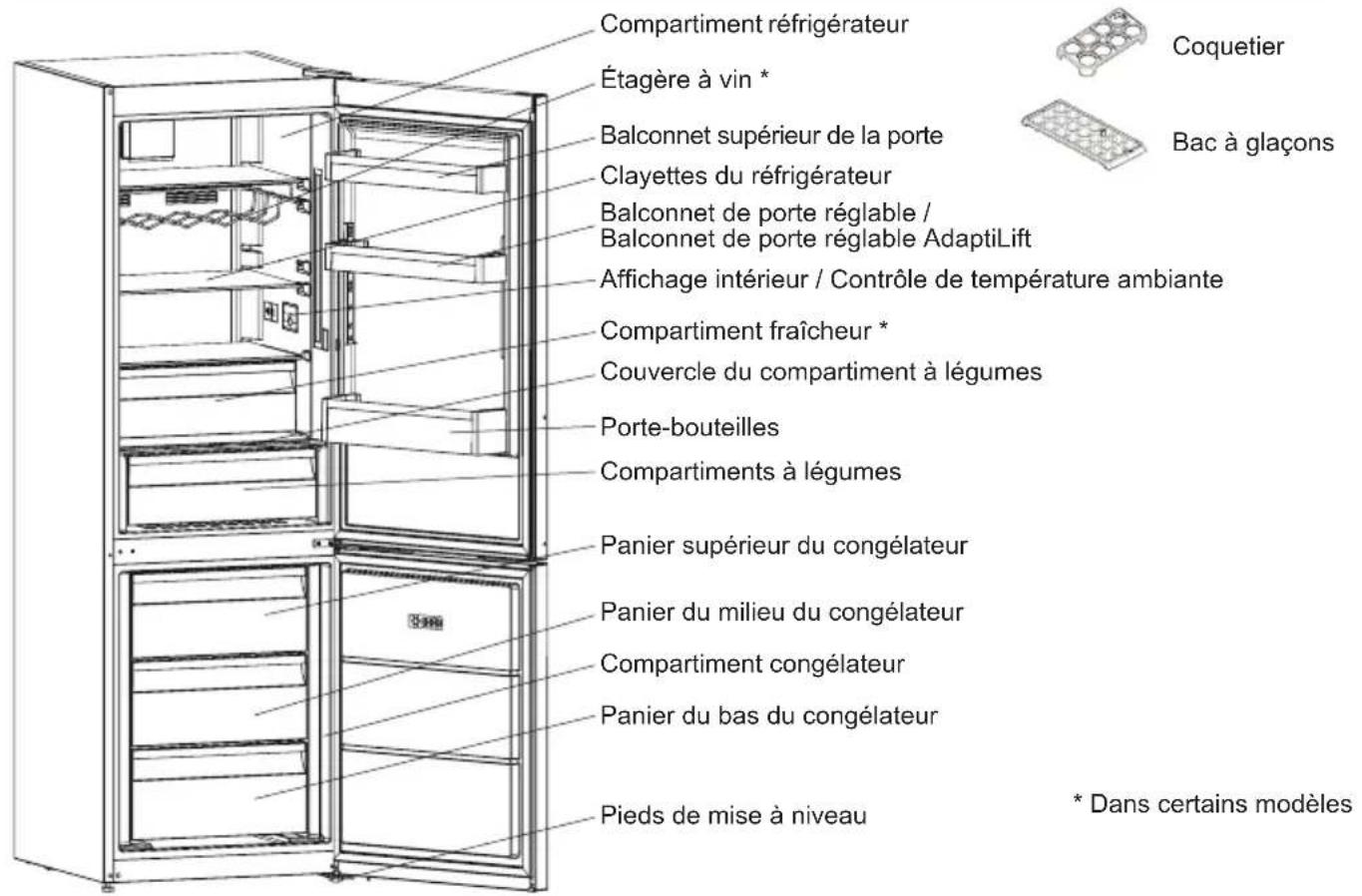

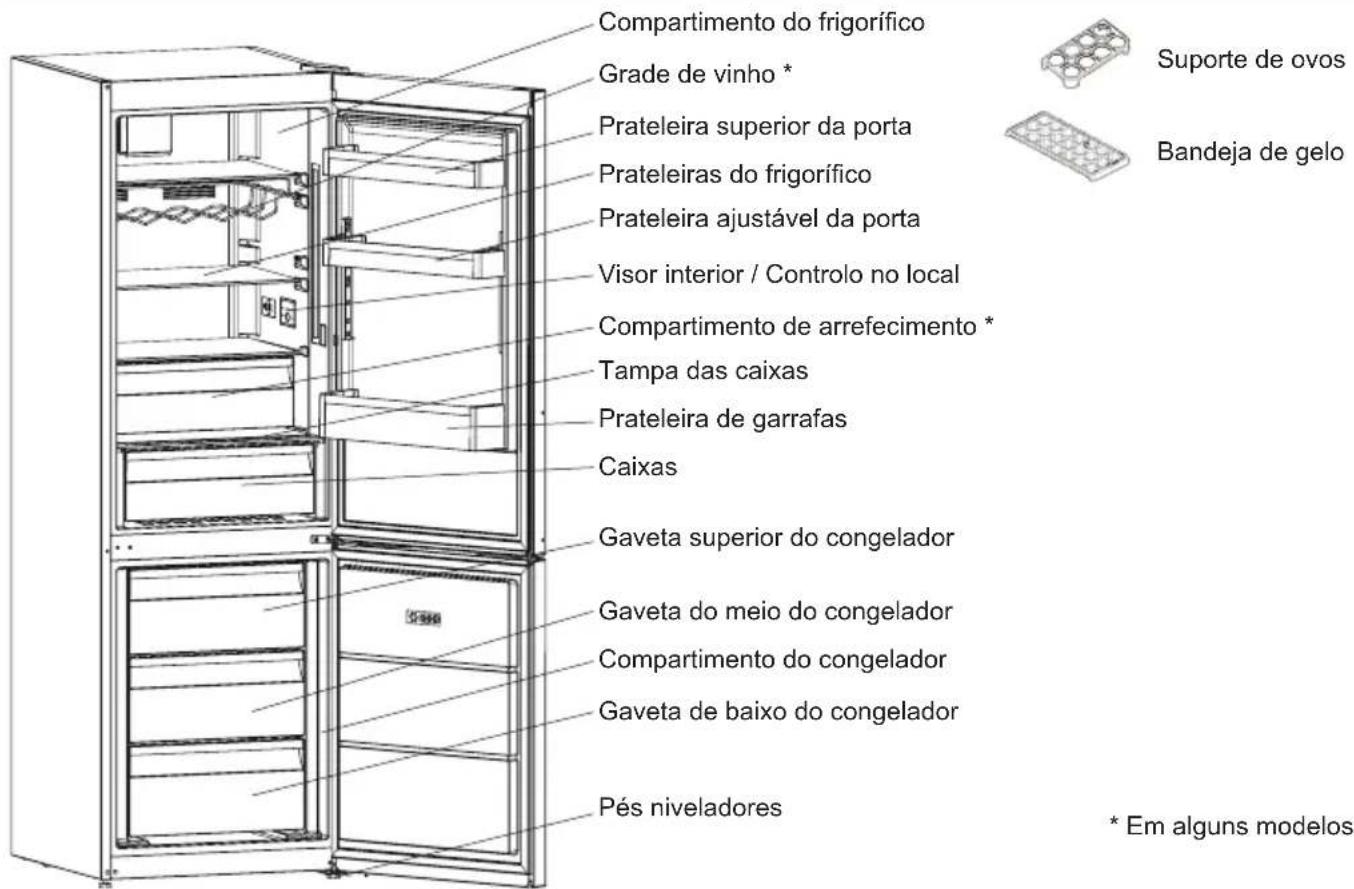

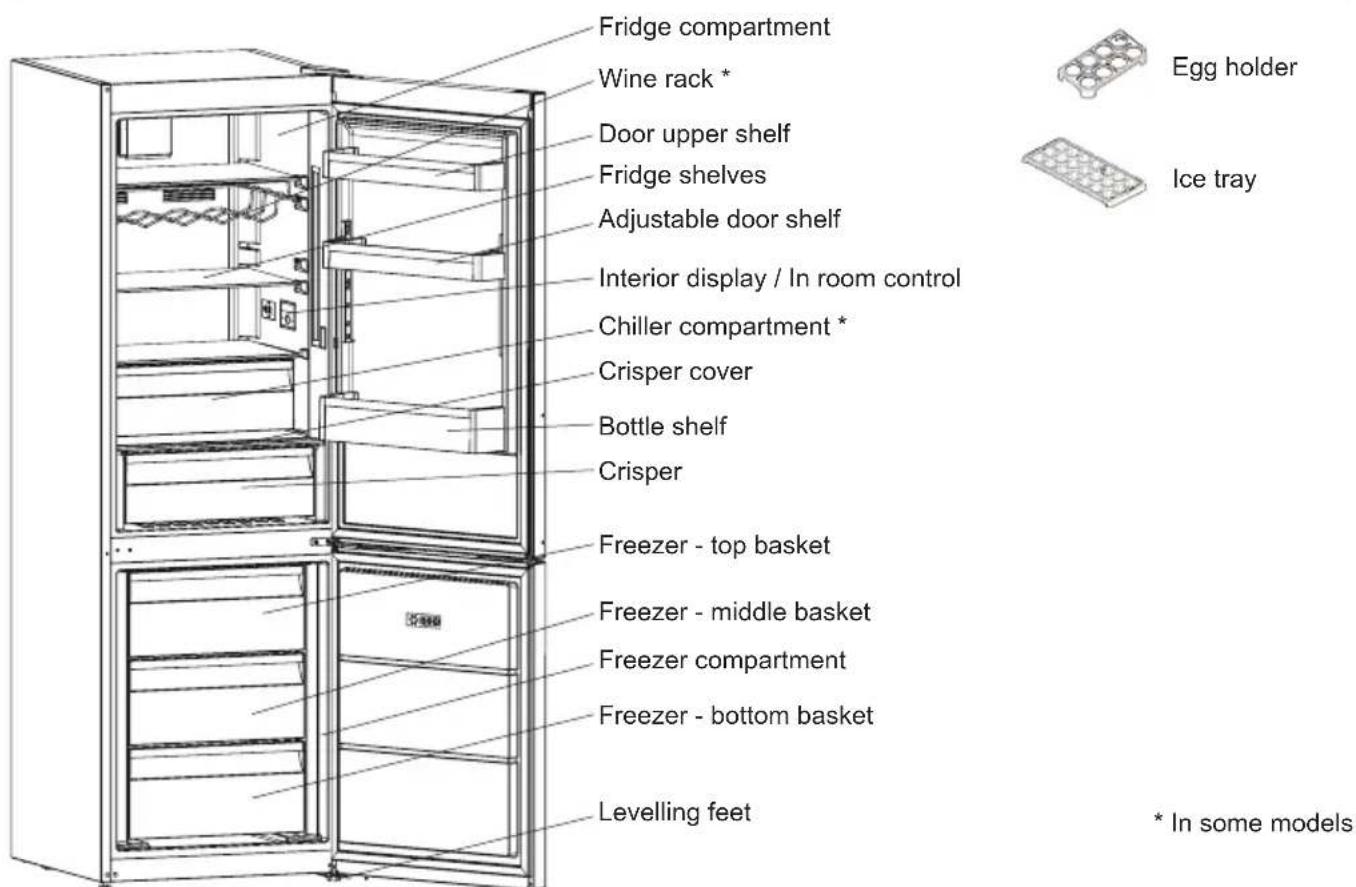

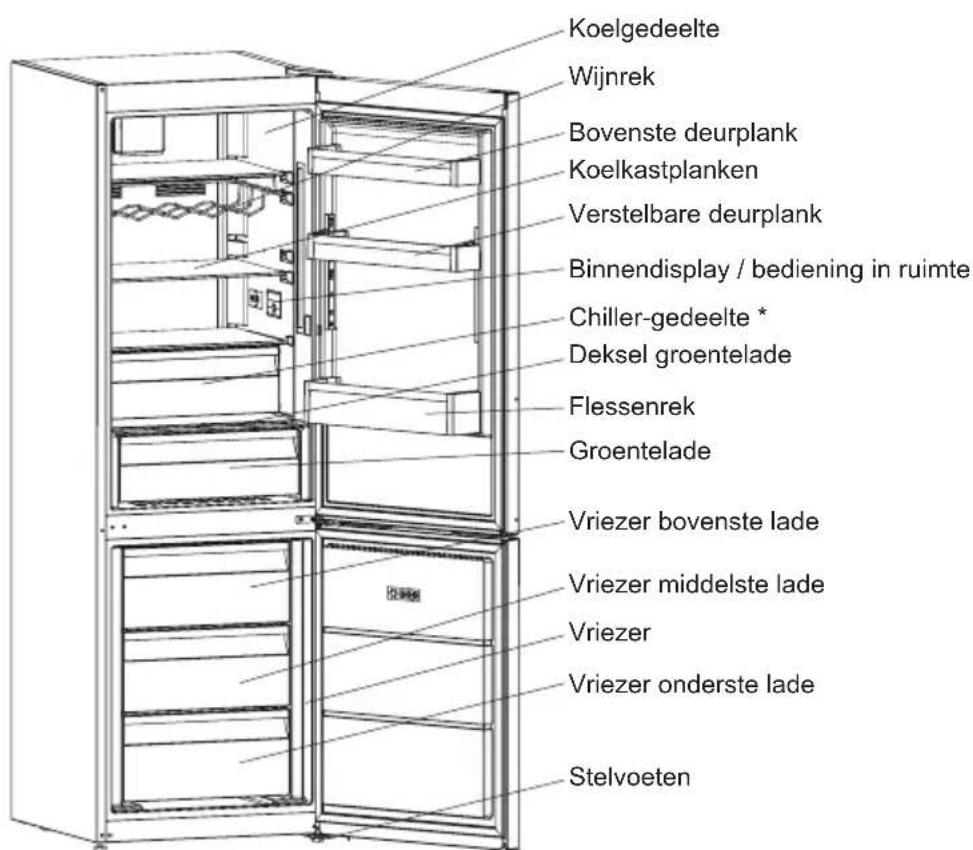

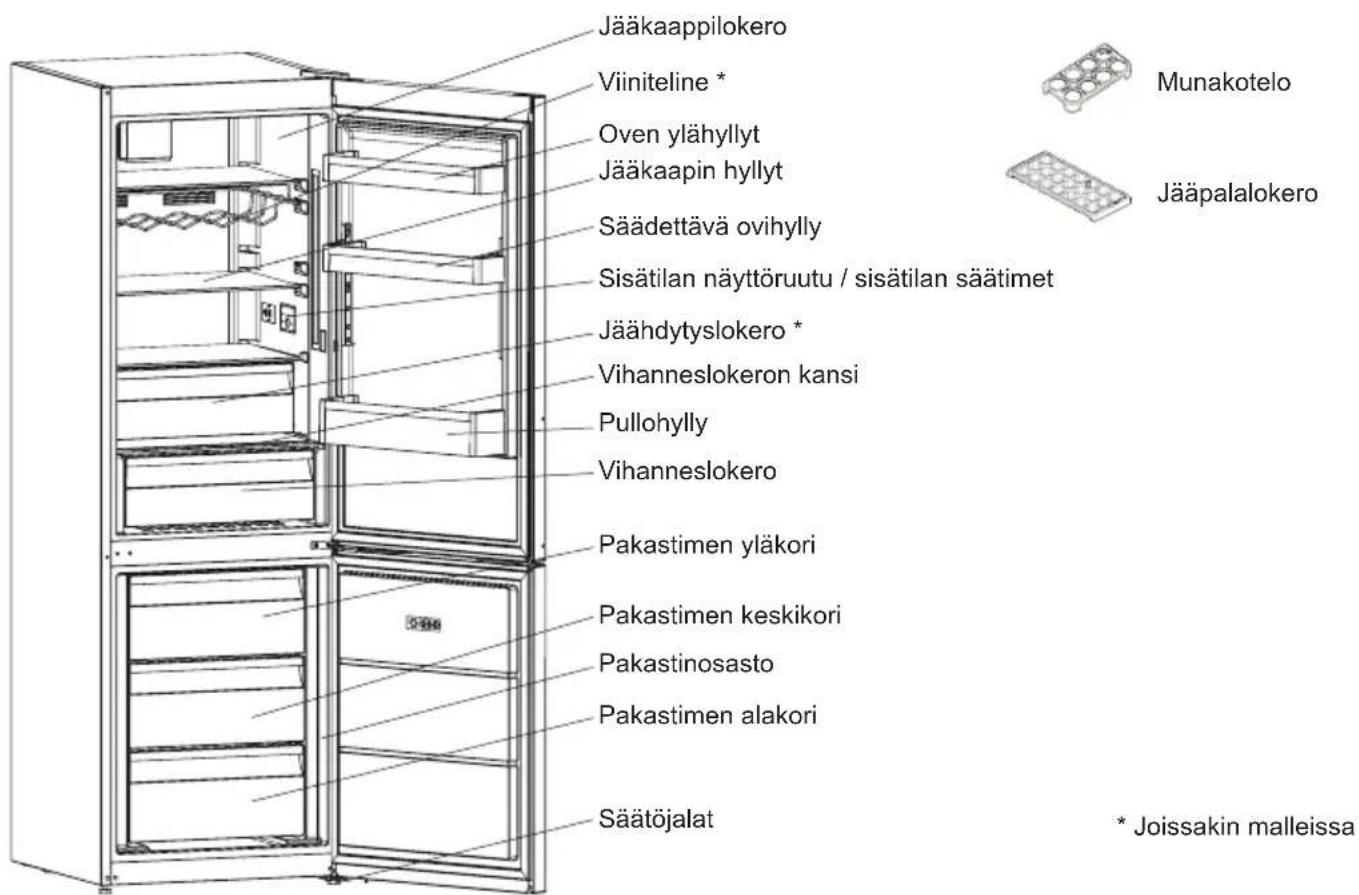

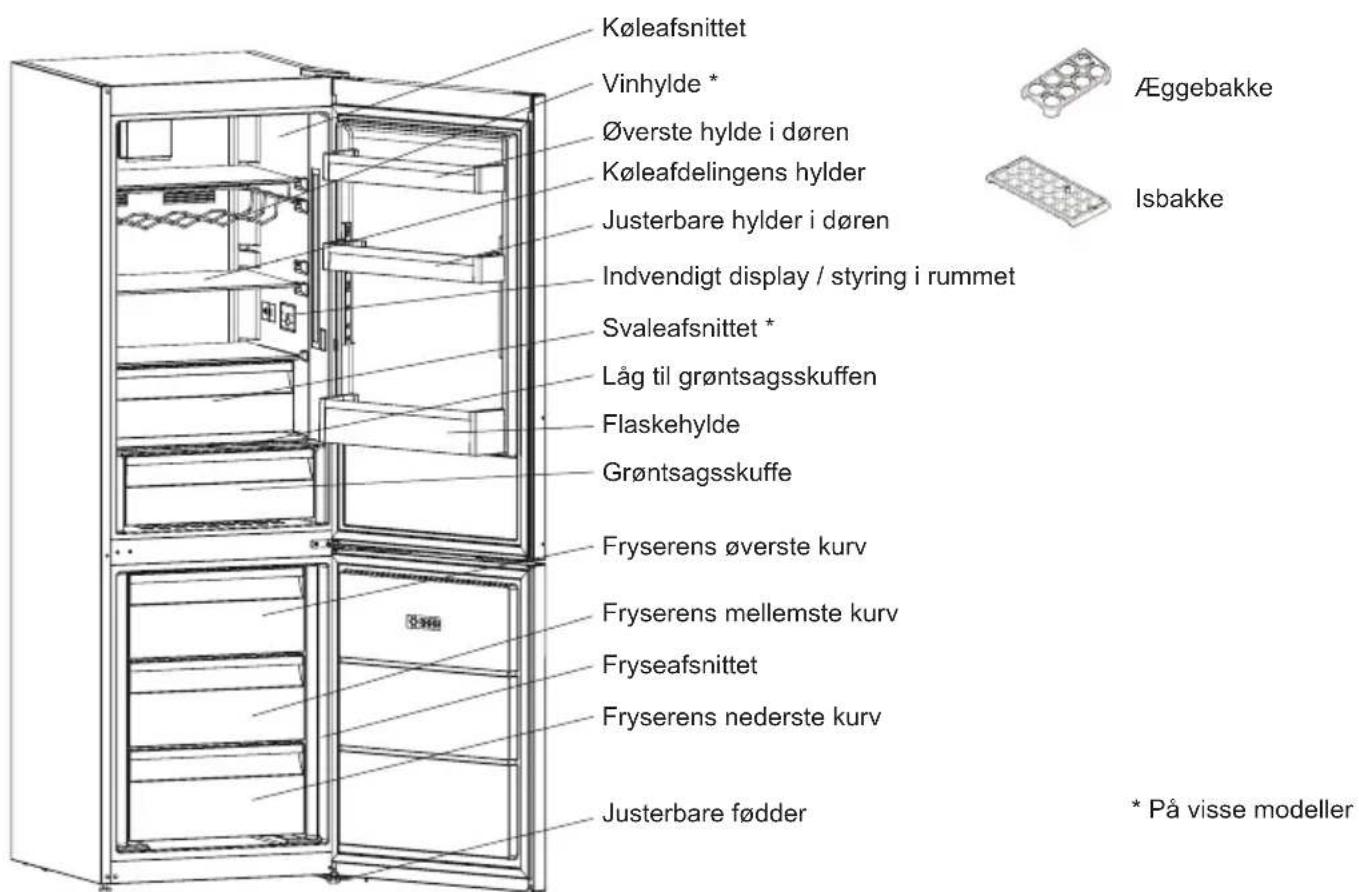

Fridge compartment Wine rack * Door upper shelf Fridge shelves Adjustable door shelf Interior display / In room control Chiller compartment * Crisper cover Bottle shelf Crisper Freezer - top basket Freezer - middle basket Freezer compartment Freezer - bottom basket Levelling feet * In some models Egg holder Ice tray

This figure has been drawn for informational purposes to show the various parts and accessories in the appliance.

Parts may vary according to the appliance model.

CHAPTER -3: USING YOUR FRIDGE FREEZER

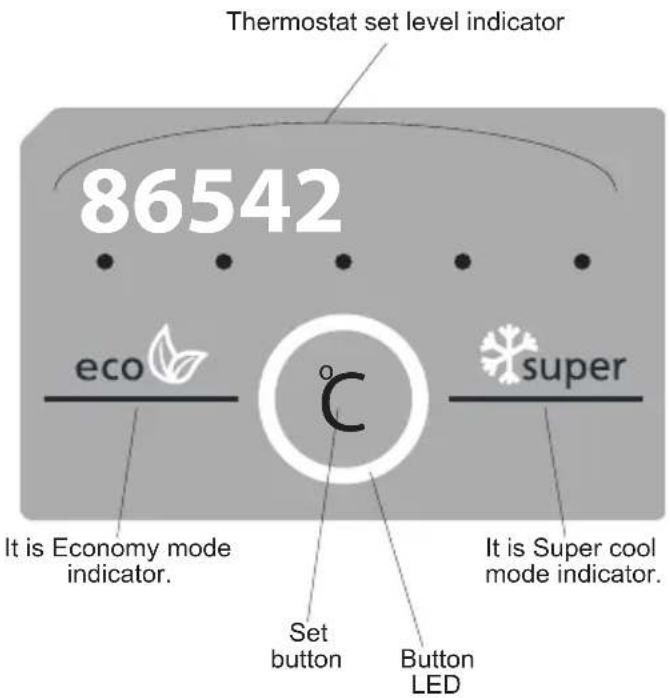

Display and control panel

Thermostat set level indicator 86542 eco super It is Economy mode indicator. Set button Button LED It is Super cool mode indicator.

Operating your fridge

Cooler temperature settings

• Initial temperature value for Cooler Setting Indicator is 6 °C.
• Press set button once, the set value will start to blink.
• If you keep pressing set button, lower temperatures will be selected. (8, 6, 5, 4, 2, super and eco)
• If no button is pressed for 1 second, your choice will be set, it will blink 3 times. Buzzer will sound beep beep.
• The temperature value selected before Super Cool Mode or Economy Mode is activated will remain the same when the mode is over or cancelled. The appliance continues to operate with this temperature value.

Super cool mode

How would it be used?

Press set button until super cool symbol will be seen on the screen. Buzzer will sound beep beep. Mode will be set.

During this mode:

• Economy mode can not be selected.
- Super cool mode can be cancelled by the same operation of selecting.

Economy mode

How would it be used?

Press set button until eco symbol will be seen on the screen. Buzzer will sound beep beep. Mode will be set.

During this mode:

• Super cool can be selected. Economy mode is automatically cancelled and the selected mode is activated.
• Eco mode can be cancelled by the same operation of selecting.

Door open alarm function

If cooler or freezer door is opened more than 2 minutes, appliance sounds 'beep beep'.

Warnings About Temperature Adjustments

• It is not recommended that you operate your fridge in environments colder than 10^ .
• Temperature adjustments should be made according to the frequency of door openings, the quantity of food kept inside the fridge and ambient temperature of the placement of your fridge.
• Your fridge should be operated up to 24 hours according to the ambient temperature without interruption after being plugged in, this is so it is completely cooled. Do not open the doors of your fridge and do not place food inside it during this period.
• A 5 minute delay function is applied to prevent damage to the compressor of your fridge, when you take the plug out and then plug it back in again after an energy breakdown has occurred. Your fridge will start to operate normally after 5 minutes.
• Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of the stated temperatures value limits in terms of cooling effectiveness.

CHAPTER -3: USING YOUR FRIDGE FREEZER

- This appliance is designed for use at an ambient temperature within the 10^ - 43^ range.

Climate Class Ambient Temperature °C
T Between	16 and 43 (°C)
ST Between	16 and 38 (°C)
N Between	16 and 32 (°C)
SN Between	10 and 32 (°C)

Temperature indicator

In order to help you better set your refrigerator, we have equipped it with a temperature indicator located in the coldest area.

To better store the food in your refrigerator, especially in the coldest area, make sure the message "OK" appears on the temperature indicator. If « OK » does not appear, this means temperature has not been set properly

It may be difficult to see the indicator, make sure it is properly lit. Each time the temperature setting device is changed, wait for the stabilisation of the temperature inside the appliance before proceeding, if necessary, with a new temperature setting. Please change the position of the temperature setting device progressively a least 12 hours before starting a new check and potential change.

NOTE: Following repeated openings (or prolonged opening) of the door or after putting fresh food into the appliance, it is normal for the indication "OK" not to appear in the temperature setting indicator. If there is an abnormal build up of ice crystals of ice crystals (bottom wall of the appliance) on the refrigerator compartment, evaporator (overloaded appliance, high room temperature, frequent door openings), put the temperature setting device on a lower position until compressor off periods are obtained again.

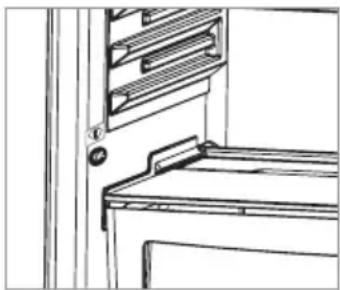

Store food in the coldest area of the refrigerator.

Your foods will be better stored if you put them in the most appropriate cooling area. The coldest area is just above the crisper.

The following symbol indicates the coldest area of your refrigerator. To be sure to have a low temperature in this area, make sure the shelf is located at the level of this symbol, as shown in the illustration.

The upper limit of the coldest area is indicated by the lower side of the sticker (head of the arrow). The coldest area upper shelf must be at the same level with the arrow head. The coldest area is below this level.

As these shelves are removable, make sure they are always at the same level with these zone limits described on the stickers, in order to guarantee temperatures in this area.

Line drawing of a cabinet or rack with a door and shelf, no text or symbols present

Accessories

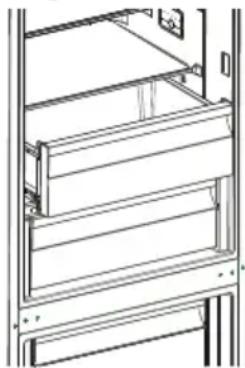

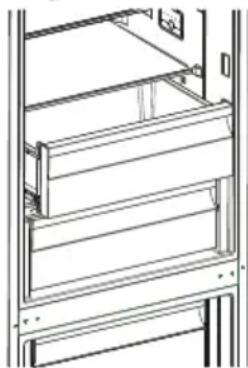

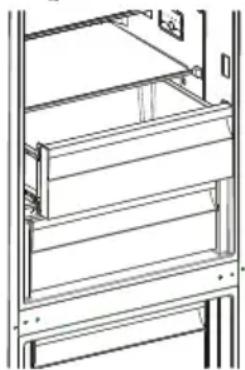

Freezer box

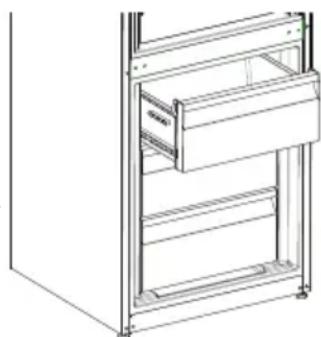

• The freezer box is for foods that need to be accessed more easily.

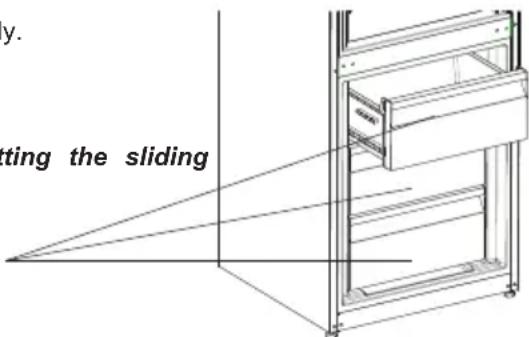

• Removing The freezer box;
• Pull the box out as far as possible
• Pull the front of box up and out.
  ! Make the inverse of the same operation for the resetting the sliding compartment.

Note: Always hold the handle of box while moving in or out.

Freezer boxes

y. stting the sliding

Chiller shelf (In some models)

Keeping food in the chiller compartment instead of the freezer or refrigerator compartment allows food retain freshness and flavour longer while preserving its fresh appearance. If the chiller tray becomes dirty, remove it and wash with water.

(Water freezes at 0 °C, but foods containing salt or sugar require lowered temperatures to freeze)

Normally people use the chiller compartment for raw fish, rice, etc...

Do not put foods you want to freeze or ice trays in order to make ice.

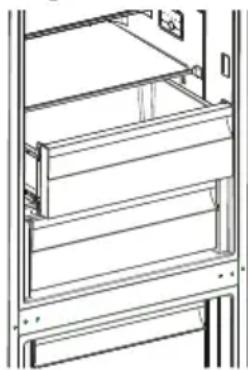

Removing the chiller shelf

• Pull the chiller shelf out toward you by sliding it on rails.
• Pull the chiller shelf up from the rail to remove.

After the chiller shelf has been removed, it can support a maximum 20 kg load.

Technical line drawing of a cabinet or rack structure with no visible text or symbols

CHAPTER -3: USING YOUR FRIDGE FREEZER

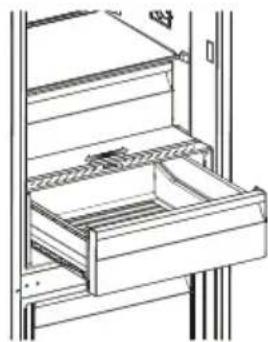

Humidity Controller

When the humidity controller is in the closed position, it allows fresh fruit and vegetables to be stored for a longer time.

In the event the crisper is full, the fresh dial that is located in front of the crisper, should be opened. By means of this, the air in the crisper and humidity rate will be controlled and the shelf life will be extended.

If you see any condensation on the glass shelf, the humidity control should be placed into the open positions.

Line drawing of a refrigerator drawer with drawers and shelves (no text or symbols)

Adapti-Lift Door Shelf (In some models)

Technical line drawing of a structural joint or bracket (no text or symbols)

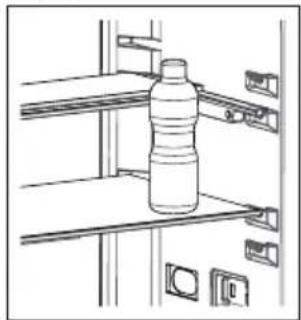

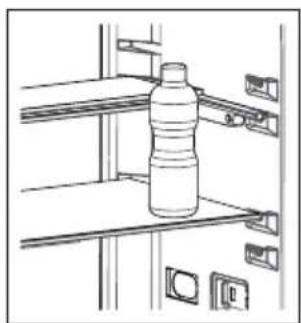

Six different height adjustments can be made to provide storage areas that you need by Adapti-Lift.

To change the position of Adapti-Lift ;

Hold the bottom of the shelf and pull the buttons on the side of the door shelf direction of arrow (Fig.1)

Position door shelf the height you need by moving up and down. After you get the position that you want the door shelf, release the buttons on the side of the door shelf (Fig.2) Before releasing the door shelf, move up down and make sure the door shelf is fixed

Technical line drawing of a mechanical assembly with two parallel plates and a vertical dimension arrow (no text or symbols)

Fig.2
Fig.1

Note: Before moving door shelf is loaded, you must hold the shelf by supporting the bottom. Otherwise, door shelf could fall off the rails due to the weight. So damage may occur on the door shelf or rails.

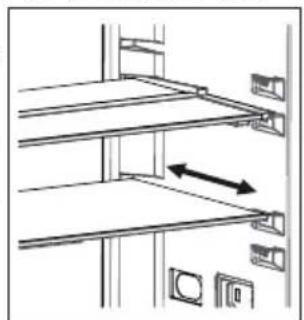

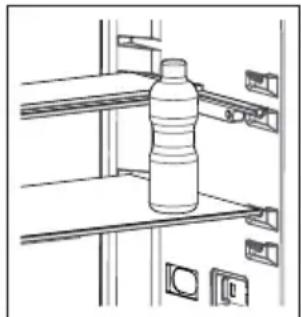

Adapti-Shelf (In some models)

Adapti-shelf mechanism provides higher storage spaces with a simple movement.

• To cover the glass shelf, push it. (Fig. 1)
- You can place your food as you want in the resulting extra space. (Fig. 2)
- To bring the shelf to its original position, pull it toward you. (Fig. 1)

Diagram of a shelving unit with shelves and doors, showing directional arrows (no text or symbols)

Line drawing of a bottled water bottle mounted on a shelf with metal racks (no text or symbols)

Fig. 1 Fig. 2

Visual and text descriptions on the accessories section may vary according which model you have...

• Make sure to unplug the fridge before starting to clean it.
- Do not wash your fridge by pouring water.
- You can wipe the inner and outer sides with a soft cloth or a sponge using warm and soapy water.
- Remove the parts individually and clean with soapy water. Do not wash in washing machine.
- Never use flammable, explosive or corrosive material like thinner, gas, acid for cleaning.
- You should clean the condenser with broom at least once a year in order to provide energy saving and increase the productivity.

Make sure that your fridge is unplugged while cleaning.

Defrosting

Your refrigerator automatically defrosts. The water formed as a result of defrosting passes through the water collection spout, flows into the vaporization container behind your refrigerator and evaporates by itself in there.

Evaporating tray

Replacing LED Lighting

If your fridge freezer has LED lighting contact the Sharp help desk as this should be changed by authorized personnel only.

CHAPTER -4: FOOD STORAGE GUIDANCE

Refrigerator compartment

• To reduce the humidity and consequently increase frost, never place liquids in unsealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporator and, in time, will require more frequent defrosting.
• Never place warm food in the refrigerator. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the refrigerator compartment.
• Nothing should touch the back wall as this will cause frost and the packages may stick to the back wall. Do not open the refrigerator door too frequently.
• Arrange the meat and cleaned fish(wrapped in packages or sheets of plastic) which you will use in 1-2 days, in the bottom section of the refrigerator compartment (that is above the crisper) as this is the coldest section and will ensure the best storing conditions.
• You can put fruits and vegetables into the crisper without packing.

Freezer compartment

• Please use the deep freeze compartment of your refrigerator for storing frozen food for a long time and for producing ice.
• To get maximum capacity for the freezer compartment, please just use glass shelves for upper and middle section. For the bottom section, please use lower basket.
• For optimum appliance performance to reach maximum freezing capacity, Set the refrigerator at 4 °C for 24 hours before placing fresh food into the freezer.
• After placing fresh food into the freezer, change the setting to 2 °C for 24 hours is generally sufficient. After 24 hours, you can reduce the setting if required.
• Please do not place the food you that needs to be frozen next to the already frozen food.
• You should freeze the food to be frozen (meat, minced meat, fish, etc.) by dividing it into portions in such a way that they can be consumed once.
• Please do not refreeze the frozen food once it has already thawed. It may pose a danger to your health as it may cause food poisoning.
• Do not place the hot meals in your deep freeze before they become cold. You would cause the other food frozen beforehand in the deep freeze to become putrefied.
• When you buy frozen food, makes sure that they were frozen under appropriate conditions and that the package is not torn.
• While storing frozen food, the storage conditions on the package should certainly be observed. If there is no additional information, the food must be consumed within the shortest time possible.
• If the frozen food package was subject to humidity and has a foul smell, it might have been previously stored under unsuitable conditions and gone rotten. Do not purchase this type of food!
• The storage durations of frozen food change depending on the ambient temperature, the frequency of the opening and closing of the doors, thermostat settings, food type and the time elapsed from the purchase time of the food to the time it is placed into the freezer. Always follow the instructions on the package and never exceed the indicated storage duration.
• During long lasting power failures, do not open the door of the deep freeze compartment. During longer power failures, do not refreeze your food and consume it as soon as possible.
• Please note: if you want to open the freezer door immediately after closing it, it will not open easily. This is a normal occurrence. After reaching equilibrium condition, the door will open easily.

Important note:

• Frozen foods, when thawed, should be cooked just as fresh foods. If they are not cooked after being thawed they must NEVER be re-frozen.
• The taste of some spices found in cooked dishes (anise, basil, watercress, vinegar, assorted spices, ginger, garlic, onion, mustard, thyme, marjoram, black pepper, etc.) changes and they assume a stronger taste when they are stored for a long period. Therefore, just a small amount of the spice should be added or the desired spice should be added after the food has been thawed.
• The food storage period is dependent on the oil used. Suitable oils include: margarine, half fat, olive oil and butter and the unsuitable oils include: peanut oil and lard.
• The food in liquid form should be frozen in plastic cups and other food should be frozen in plastic folios or bags.

CHAPTER -5: DOOR REVERSAL

Repositioning the door

• It depends on which fridge freezer you have as to whether it is possible the reverse the doors.
• It is not possible where handles are attached at the front of the appliance.
• If your model does not have handles it is possible to reverse the doors, but this needs to be completed by authorised personnel. Please call Sharp service.

CHAPTER -6: TROUBLESHOOTING

Check Warnings;

Your fridge warns you if there is/are some part(s) out of order. In this case, LED around the button will blink and buzzer will sound beep.

ERROR TYPE MEANING WHY WHAT TO DO

SR

"Failure Warning"

There is/are some part(s) Out of order

Call Service for assistance as soon as possible.

If your fridge is not operating;

• Is there a power failure?
- Is the plug connected to the socket correctly?
- Is the fuse of the socket to which the plug is connected or the main fuse blown?
• Is there any failure at the socket? To check this, plug your refrigerator into a known working socket.

If your fridge is not cooling enough;

• Is the temperature adjustment right?
- Is the door of your fridge opened frequently and left open for a long while?
• Is the door of fridge closed properly?
- Did you put a dish or food on your fridge so that it contacts the rear wall of your fridge so as to prevent the air circulation?
• Is your fridge filled excessively?
- Is there adequate distance between your fridge and the rear and side walls?
- Is the ambient temperature within the range of values specified in the operating manual?

If the food in your refrigerator compartment is over cooled

• Is the temperature adjustment right?
- Are there many food recently put inside the freezer compartment? If so, your fridge may over cool the food inside the refrigerator compartment as it will operate longer to cool these food.

If your fridge is operating too loudly;

To maintain the set cooling level, compressor may be activated from time to time. Noises from your fridge at this time are normal and due to its function. When the required cooling level is reached, noises will be decreased automatically. If the noises persist;

• Is your appliance stable? Are the legs adjusted?
  • Is there anything behind your fridge?
• Are the shelves or dishes on the shelves vibrating? Re-place the shelves and/or dishes if this is the case.
• Are the items placed on your fridge vibrating?

Normal Noises;

Cracking (Ice cracking) Noise:

• During automatic defrosting.
• When the appliance is cooled or warmed (due to expansion of appliance material).

Short cracking: Heard when the thermostat switches the compressor on/off.

Compressor noise (Normal motor noise): This noise means that the compressor operates normally Compressor may cause more noise for a short time when it is activated.

Bubbling noise and splash: This noise is caused by the flow of the refrigerant in the tubes of the system.

Water flow noise: Normal flow noise of water flowing to the evaporation container during defrosting. This noise can be heard during defrosting.

Air Blowing Noise (Normal fan noise): This noise can be heard in No-Frost fridge during normal operation of the system due to the circulation of air.

If humidity builds up inside the fridge;

• Has the food been properly packaged? Have the containers been well dried before they were put into the refrigerator?
• Are the doors of the refrigerator opened very frequently? When the door is opened, the humidity found in the air in the room enters the refrigerator. Especially if the humidity rate in the room is too high, the more frequently the door is opened the faster will be the humidification.

If the doors are not opened and closed properly;

• Do the food packages prevent closing of the door?
• Are the door compartments, shelves and drawers placed properly?
• Are door gaskets broken or torn?
  • Is your fridge on a level surface?

If the edges of fridge cabinet that the door joint contact are warm;

Especially in summer (hot weather), the surfaces that the joint contact may get warmer during the operation of the compressor, this is normal.

CHAPTER -6: TROUBLESHOOTING

IMPORTANT NOTES:

• The compressor protection thermal fuse will cutout after sudden power breakdowns or after unplugging the appliance, because the gas in the cooling system is not stabilised. This is quite normal, and the fridge will restart after 4 or 5 minutes.
• The cooling unit of your refrigerator is hidden in the rear wall. Therefore, water droplets or ice may occur on the rear surface of your fridge due to the operation of the compressor in specified intervals. This is normal. There is no need to perform a defrosting operation unless the ice is excessive.
• If you will not use your fridge for a long time (e.g. in summer holidays) unplug it. Clean your fridge according to Part 4 and leave the door open to prevent humidity and smell.
• The appliance you have purchased is designed for home type use and can be used only at home and for the stated purposes. It is not suitable for commercial or common use. If the consumer use the appliance in a way that does not comply with these features, we emphasise that the producer and the dealer shall not be responsible for any repair and failure within the guarantee period.
• If the problem persists after you have followed all the instructions above, please consult an authorised service provider.

CHAPTER -7: TIPS FOR SAVING ENERGY

1. Always allow foodstuffs to cool before storing in the appliance.
2. Thaw food in the fridge compartment, this helps save energy.

Inhalt

KAPITEL 1: ALLGEMEINE WARNHINWEISE....13

KAPITEL 2: IHR KÜHL-/GEFRIERSCHRANK....16

Line drawing of a cabinet or rack structure with no visible text or symbols

Technical line drawing of a cabinet or rack structure with no visible text or symbols

Technical line drawing of a multi-level cabinet or rack unit with no visible text or symbols

Technical line drawing of a structural joint or bracket (no text or symbols)

Technical line drawing of a structural frame with vertical and horizontal beams (no text or symbols)

Abb.2

Abb.1

Diagram of a multi-level storage or rack system with directional arrows indicating movement (no text or symbols)

Line drawing of a bottled water bottle mounted on a shelf with metal clamps (no text or symbols)

Abb. 1 Abb. 2

Technical line drawing of a mechanical assembly with grid and bracket components (no text or symbols)

Kondensatschale

Diagram of a vehicle air intake system with airflow patterns (no text or labels)

PARTIE -2: PARTIES ET PIÈCES DE VOTRE CONGÉLATEUR

Line drawing of a refrigerator interior with door, seat, and shelf (no text or symbols)

Technical line drawing of a cabinet or rack structure with no visible text or symbols

Technical line drawing of a multi-level cabinet or rack structure (no text or symbols)

Line drawing of a refrigerator drawer with shelves and drawers (no text or symbols)

PARTIE -3: LES DIFFERENTES FONCTION ET POSSIBILITES

Technical line drawing of a structural joint or bracket (no text or symbols)

Fig.1

Technical line drawing of a structural frame with vertical dimension lines (no text or symbols)

Fig.2

Diagram of a shelving unit with two shelves and directional arrows indicating movement (no text or symbols)

Fig. 1 Fig. 2

Line drawing of a bottle placed on a shelf with attached compartments (no text or symbols)

Technical line drawing of a mechanical assembly with grid pattern and labeled 'poration' (no readable text or symbols beyond label)

Bac d'évaporation

HOOFDSTUK -6: PROBLEEMOPLOSSING....44

HOOFDSTUK -7: TIPS VOOR ENERGIEBESPARING ....45

Diagram showing airflow or heat transfer paths in a vehicle or tank system with labeled components and directional arrows

HOOFDSTUK -2: UW VRIEZER

Koelgedeelte Wijnrek Bovenste deurplank Koelkastplanken Verstelbare deurplank Binnendisplay / bediening in ruimte Chiller-gedeelte * Deksel groentelade Flessenrek Groentelade Vriezer bovenste lade Vriezer middelste lade Vriezer Vriezer onderste lade Stelvoeten

Eihouder

Ijslade
* In sommige modellen

Line drawing of a refrigerator interior with no text or symbols

Accessoires

Vriesvak

Technical line drawing of a mechanical cabinet or rack unit with no visible text or symbols

Technical line drawing of a cabinet or rack structure with no visible text or symbols

HOOFDSTUK -3: GEBRUIK VAN UW VRIEZER

Line drawing of a refrigerator drawer with shelves and drawers (no text or symbols)

Adapti-Lift deurschap

Technical line drawing of a structural bracket or frame (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a multi-level storage or rack system with directional arrows indicating movement (no text or symbols)

Line drawing of a bottled water bottle mounted on a shelf with metal clamps (no text or symbols)

Fig. 1 Fig. 2

Technical line drawing of a mechanical assembly with grid pattern and labeled component 'mpingslade' (no readable text or symbols beyond label)

Verdampingslade

HOOFDSTUK -3: GEBRUIK VAN UW VRIEZER

De lamp-led vervangen

Diagram showing two curved heat exchanger-like structures with internal flow arrows (no text or labels)

Line drawing of a refrigerator interior with no text or symbols

Accesorios

Technical line drawing of a cabinet or rack structure with shelves and drawers (no text or symbols)

Technical line drawing of a multi-level cabinet or rack unit with no visible text or symbols

CAPÍTULO 3: USO DEL FRIGORÍFICO

Line drawing of a refrigerator drawer with drawers and shelves (no text or symbols)

Technical line drawing of a structural joint or bracket (no text or symbols)

Technical line drawing of a structural frame with horizontal beams and a vertical load arrow (no text or symbols)

Fig.2
Fig.1

Diagram of a shelving unit with shelves and doors, showing directional arrows (no text or symbols)

Line drawing of a bottled water bottle mounted on a shelf with attached compartments (no text or symbols)

Fig. 1 Fig. 2

Diagram of a coiled heat exchanger with cooling fins and a valve, showing fluid flow direction (no text or labels)

CAPÍTULO -1: AVISOS GERAIS

Diagram showing airflow patterns in a vehicle or engine compartment with red and blue directional arrows indicating movement.

CAPÍTULO -2: O SEU FRIGORÍFICO

Line drawing of a cabinet or rack with a door and shelf, no text or symbols present

Acessórios

Arca congeladora

Technical line drawing of a cabinet or rack structure with no visible text or symbols

Technical line drawing of a cabinet or rack structure with no visible text or symbols

Line drawing of a refrigerator drawer with shelves and drawers (no text or symbols)

Prateleira de porta Adapti-Lift

Pure technical line drawing of a mechanical bracket or bracket (no text or symbols)

Technical line drawing of a structural frame with vertical dimension arrows (no text or symbols)

Fig.1 Fig.2

Diagram of a shelving unit with two shelves and a door, showing an upward arrow indicating motion (no text or symbols present)

Line drawing of a bottled water bottle placed on a shelf with metal racks (no text or symbols)

Fig. 1 Fig. 2

Technical line drawing of a mechanical assembly with grid and bracket components (no text or symbols)

Diagram of two heat exchangers with cooling pipes and a valve, no text or symbols present

Diagram showing airflow or fluid flow paths in a container with labeled sections and directional arrows

KAPITEL -2: DIT K∅LEFRYSESKAB

Line drawing of a cabinet or rack with a door and shelf, no text or symbols present

Tilbehør

Fryseboksen

Technical line drawing of a cabinet or rack structure with no visible text or symbols

Technical line drawing of a cabinet or rack structure with no visible text or symbols

KAPITEL -3: SÅDAN ANVENDES DIT K∅LEFRYSESKAB

Line drawing of a refrigerator drawer with shelves and drawers (no text or symbols)

Technical line drawing of a structural joint or bracket (no text or symbols)

Technical line drawing of a structural frame with vertical dimension arrows (no text or symbols)

Diagram of a storage rack with directional arrows indicating movement or flow (no text or symbols)

Line drawing of a bottled water bottle mounted on a shelf with metal racks (no text or symbols)

Fig. 1 Fig. 2

Technical line drawing of a mechanical assembly with meshed components and a tool inserted (no text or symbols)

Fordampningsbakke

Diagram of two coiled heat exchangers with directional arrows indicating flow (no text or labels)

KAPITTEL 1: GENERELLE ADVARSLER

Line drawing of a refrigerator interior with no text or symbols

Tilbehør

Fryseboks

Technical line drawing of a mechanical cabinet or enclosure frame with no visible text or symbols

Technical line drawing of a cabinet or rack structure with no visible text or symbols

KAPITTEL 3: HVORDAN BRUKE KOMBISKAPET DITT

Fuktighetsregulator

Line drawing of a refrigerator drawer with shelves and drawers (no text or symbols)

Dørhyllen Adapti-Lift

Technical line drawing of a structural joint or bracket (no text or symbols)

Technical line drawing of a structural frame with vertical and horizontal components (no text or symbols)

Diagram of a mechanical assembly with two parallel plates and directional arrows indicating movement (no text or symbols)

Line drawing of a bottled water bottle mounted on a shelf with metal clamps (no text or symbols)

Fig. 1 Fig. 2

Installationsinformation

Diagram of two coiled heat exchangers with cooling arrows indicating airflow direction (no text or labels)

Diagram of a vehicle air intake system with airflow indicators and component labels

KAPITEL -2: DIN KYL OCH FRYS

KAPITEL -3: ANVÄNDA DIN KYL OCH FRYS

KAPITEL -3: ANVÄNDA DIN KYL OCH FRYS

Line drawing of a refrigerator interior with no text or symbols

Tillbehör

Fryslåda

Technical line drawing of a cabinet or rack structure with no visible text or symbols

Line drawing of a cabinet or rack structure with no visible text, numbers, or symbols

KAPITEL -3: ANVÄNDA DIN KYL OCH FRYS

Fuktregulatorn

Line drawing of a refrigerator drawer with drawers and shelves (no text or symbols)

Adapti-Lift dörrhylla

Technical line drawing of a structural joint or bracket (no text or symbols)

fig. 1

Technical line drawing of a structural frame with vertical dimension lines (no text or symbols)

fig. 2

Diagram of a multi-level storage or rack system with directional arrows indicating movement (no text or symbols)

Line drawing of a bottled water bottle mounted on a shelf with metal racks (no text or symbols)

Bild 1 Bild 2

LUKU 6: VIANMÄÄRITYS....110

LUKU 7: ENERGIANSÄÄSTÖVINKKEJÄ....111

Diagram of a vehicle's internal components with colored arrows indicating flow or movement (no text or labels)

LUKU-2: JÄÄKAAPPIPAKASTIN

Line drawing of a refrigerator interior showing door, seat, and shelf (no text or symbols)

Lisävarusteet

Pakastinlaatikko

Technical line drawing of a multi-level refrigerator unit with front and side views (no text or symbols)

Line drawing of a refrigerator drawer with drawers and shelves (no text or symbols)

Adapti-Lift ovihylly

Technical line drawing of a structural joint or bracket (no text or symbols)

Kuva 1

Technical line drawing of a mechanical assembly with two parallel plates and a vertical dimension arrow (no text or symbols)

Kuva 2

Diagram of a shelving unit with shelves and doors, showing an upward arrow indicating motion (no text or symbols present)

Kuva 1 Kuva 2

Line drawing of a bottled water bottle mounted on a shelf with metal racks (no text or symbols)

LUKU 6: VIANMÄÄRITYS

TÄRKEÄÄ HUOMIOITAVAA:

Diagram showing airflow or traffic patterns in a vehicle's internal compartments with red and blue directional arrows indicating movement.

2. PEATÜKK: TEIE SÜGAVKÜLMIKUGA KÜLMIK

Technical line drawing of a cabinet or rack structure with no visible text or symbols

Technical line drawing of a cabinet or rack structure with no visible text or symbols

Technical line drawing of a cabinet or rack structure with no visible text or symbols

3. PEATÜKK: SÜGAVKÜLMIKUGA KÜLMIKU KASUTAMINE

Niiskuskontroller

Line drawing of a refrigerator drawer with drawers and shelves (no text or symbols)

Adapti-Lift ukseriiul

Technical line drawing of a structural joint or bracket (no text or symbols)

joonis 1

Technical line drawing of a mechanical assembly with two parallel plates and a vertical dimension arrow (no text or symbols)

joonis 2

Diagram of a shelving unit with shelves and doors, showing an upward arrow indicating motion (no text or symbols present)

Line drawing of a bottled water bottle mounted on a shelf with metal racks (no text or symbols)

Joon. 1 Joon. 2

Technical line drawing of a mechanical assembly with no visible text or symbols

Aurustusalus

LED-valgusti vahetamine

www.sharphomeappliances.com

Or contact us:

YouTube
