BLP5210 - Smartwatch BLAUPUNKT - Free user manual and instructions

Brand	Blaupunkt
Model	BLP5210
Product type	Connected watch (smartwatch)
Power supply	Li-Po battery 90 mAh, charging via dedicated port (5V DC, 1A)
Battery life	3 to 5 days depending on use
Charging time	Approximately 2 hours
Connectivity	Bluetooth 4.0, range up to 10 meters
Radio frequency	2.405 - 2.485 GHz
Smartphone compatibility	Android 5.0+ or iOS 8.0+
Required app	Yoho Sports
Main functions	Time display, step counter, distance traveled, calories burned, heart rate, sleep tracking, call and message notifications, smart alarm, sedentary reminder, selfie control
Sensors	Accelerometer, heart rate sensor
Water resistance	Not specified (avoid water)
Care and cleaning	Wipe with a soft, dry cloth. Do not use abrasive products.
Safety	Do not expose to water or excessive heat. Use only compatible accessories. Turn off in regulated areas.
Batteries and recycling	Built-in battery not replaceable by user. Do not dispose with household waste.
Repairability	Repair by qualified personnel only. No spare parts provided.
General information	Compliant with EU directives 2014/53/EU and 2012/19/EU. Imported by Dag Technologie, France.

Frequently Asked Questions - BLP5210 BLAUPUNKT

How to install the Yoho Sports app?

Scan the QR code in the manual or search for "Yoho Sports" on the App Store (iOS) or Google Play (Android). Download and install the app, then create an account.

How to connect the watch to the phone?

Open the Yoho Sports app, go to Settings > My device, then swipe down to search for Bluetooth devices. Click on your watch to connect.

Is the watch waterproof?

The manual does not specify water resistance. Avoid any contact with water, rain, or excessive sweat to prevent damage to the device.

How to charge the battery?

Firmly pull the strap to access the charging port. Plug the provided cable into a USB 5V/1A charger. A full charge takes about 2 hours.

Why are the steps not counted correctly?

Make sure you have calibrated the watch during first use by connecting the app. Wear the watch on your wrist and check that the app has the necessary background permissions.

How to receive call and message notifications?

In the Yoho Sports app, enable notifications in the settings. For Android, grant the app permission to run in the background. The watch will vibrate and display the caller's name or number.

How to measure heart rate?

Navigate to the heart rate screen on the watch. The sensor activates automatically and displays your pulse in real time. Keep the watch fitted snugly on your wrist.

Can the watch be used without a phone?

Yes, the watch can operate independently to display the time, count steps, and measure heart rate. However, notifications and data synchronization require a Bluetooth connection to the phone.

How to set the alarm?

In the Yoho Sports app, go to the alarm settings. You can set up to three alarms with vibration. The alarm works even when the watch is turned off.

What to do if the watch stops responding?

Try charging the watch. If it does not turn on, press and hold the power button for 10 seconds to force restart. If the problem persists, contact after-sales service.

USER MANUAL BLP5210 BLAUPUNKT

Connection

Calorie interface

Read these safety instructions before using your device and store them for possible future reference.

• If the cord is damaged, have it repaired by the manufacturer, its service or a similarly qualified person in order to avoid any hazard.
• The cord should always be readily accessible.

- The device is not intended for use by persons (including children) with reduced physical, sensory or mental capacity. Persons who have not read the manual, unless they have received explanations by a person responsible for their safety and supervision should not use this unit.

- Children should be monitored to ensure that they do not play with the device.

- The device should always be readily accessible.

- The device should not be exposed to dripping or splashing water.

- No objects filled with liquids such as vases shall be placed on the device.

- Always leave a minimum distance of 10 cm around the unit to ensure sufficient ventilation.

- Open flame sources, such as candles, should not be placed on top of the device.

- The device is intended for use only in a temperate climate.

- At full volume, prolonged listening to the portable audio device may damage the user's hearing and cause hearing troubles (temporary or permanent deafness, hearing drone, tinnitus, hyperacusis).

So we recommend not to listen to the portable audio device at high audio volume and no more than one hour per day at medium audio volume.

- CAUTION: Danger of explosion if battery is incorrectly replaced or not replaced by the same type or equivalent.

- The battery should not be exposed to excessive heat such as sunshine, fire or similar.

- Different types of batteries, new and used batteries should not be mixed.

- The battery must be installed according to the polarity.

- If the battery is worn, it must be removed from the product.

- The battery must be disposed of safely. Always use the collection bins provided (check with your dealer) to protect the environment.

- The battery can't be replaced by the user, but only by the maker of this product, the after sales department or a qualified person.

SWITCH OFF IN RESTRICTED AREAS

Switch the mobile device off where the use of mobile devices is not allowed or where there is a risk of causing interference or danger, for example on board an aircraft, near medical equipment, fuel, chemicals or blasting sites.

ROAD SAFETY COMES FIRST

Check the current laws and regulations regarding the use of mobile devices in the areas where you drive.

- Do not handle the mobile device when driving.

• Concentrate fully on the driving

- Use a hands-free kit whenever possible

- Leave the road and park up before making or receiving a call, if the driving conditions allow.

- Radio signals could affect some of the car's electronic systems such as the audio stereo and alarm systems.

- If the car is equipped with an airbag, do not hinder its deployment with fixed or wireless equipment. This could result in serious injury due to inadequate performance.

INTERFERENCE

All wireless devices are susceptible to interference which may affect their performance.

AUTHORIZED PERSONNEL

Only qualified people are authorized to install or repair this product

ACCESSORIES

Only use batteries, chargers and other accessories which are compatible with this equipment. Do not connect incompatible products.

KEEP THE EQUIPMENT DRY

This equipment is not water proof. Keep it dry.

CHILDREN

Keep your mobile device in a safe place, out of the reach of young children. The mobile device contains small parts that may present a choking hazard

Specifications

Rated voltage : DC 5V =1A

Max consumption : 5W

Li-Po battery 90mAh

Radio frequency: 2.405-2.485 GHz

Bluetooth compatible version: 4.0

Bluetooth connection distance: 10m

Usage time: 3-5 days depending on use

Charging time: 2 hours

Android compatible version: 5.0 and above

iOS compatible version: 8.0 and above

NOTE: For safety reasons, the bracelet is well consolidated with the watch. To charge it, you need to pull the bracelet strongly.

Install app

Scan the following QR code or go to the app store to download and install "Yoho Sports"

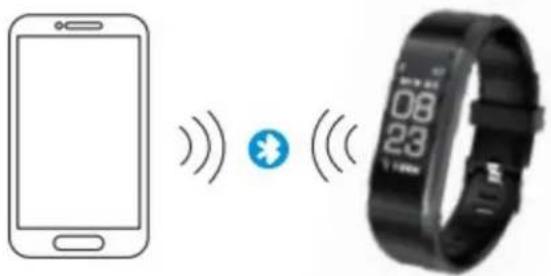

How to connect

Connect the APP at first use to calibrate the band, and it will automatically sync time; otherwise, steps and sleep data will be incorrect.

Open APP

Click Settings Icon

My Device

Pull-down to Scan Device

Click to Connect

① After pairing is finished, the APP will remember the Bluetooth address automatically. Once opened or running in the background, the APP will search for and connect to the band automatically. ② Please make sure the APP is permitted to run in the background.

Main APP Features and Settings

Personal Information

Please set your personal information first after entering the APP: Settings > Personal Settings. Edit your gender, age, height, and weight. Set the activity goal and sleeping goal so you can monitor your progress.

You can set the period for inactivity reminders, or you can turn them off in the notification menu.

Notifications

Incoming Call:

Vibrate and display name or number (display name only if it's in your contacts, otherwise display number).

Message:

Vibrate reminder with name from contacts or number if unknown.

Other Notifications:

Vibrate when there are WeChat, QQ, or other notifications.

Sedentary:

Vibrate and display an icon when lack of activity per period set in personal info.

Warning tips for Android users: Allow Yoho Sports to run in the background when using notifications and add it to trusted apps in your privilege management.

Smart Alarm

Up to 3 alarms with user-friendly vibration. Supports offline clock alarming.

Band Display Setting

Choose display interfaces when button is pushed.

Find Band

Click "Find band", the band will vibrate when connected with phone.

Shake to Take Selfie

Enter the interface and shake the band, the camera on the phone will take the picture after a 3-second countdown.

Function Description

Clock Interface

Bluetooth icon lights always, indicating connected with phone successfully. Icon disappears otherwise. Time calibrated automatically after syncing to phone.

Steps Interface

Wear band to record steps every day.

Check out real-time steps constantly.

Distance Interface

Show total distance via calculating steps.

Calories interface

Record burned calories within exercise

Heart Rate Interface

Band will start measuring heart rate as soon as it is switched to heart rate interface. Heart rate interface need the band to have heart rate sensor.

Sleep Mode

When sleep, Rand will automatically Monitor how long and how well you sleep: check data only on APP terminal.

Warm tips: please wear the band when sleep so as to record your sleep data.

Declaration of conformity UE

Dag Technologie®, herby declares that this equipment, conforms to the essential requirements and other relevant provisions of Directive 2014/53/UE. The declaration of Conformity can be viewed at the following address:

http://www.mms-support.net/OTA/ECD_DAG_BLP5210-001.pdf

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Imported by Dag Technologie®

79/81 Ancienne route Nationale 7

69570 Dardilly

FRANCE

BLAUPUNKT

Enjoy it.

Dag Technologie®

79/81 Ancienne Route Nationale 7

69570 Dardilly – France

All rights reserved. All brand names are registered trademarks of their respective owners. Specifications are subject to change without prior notice.
