USER MANUAL Progloss Steamcare ST-1600 Revamp

Black REVAMP brand hair iron with visible branding and smoke trail (no text or symbols on body)

USER GUIDE

PROGLOSS STEAMCARE

CERAMIC STRAIGHTENER

ST-1600

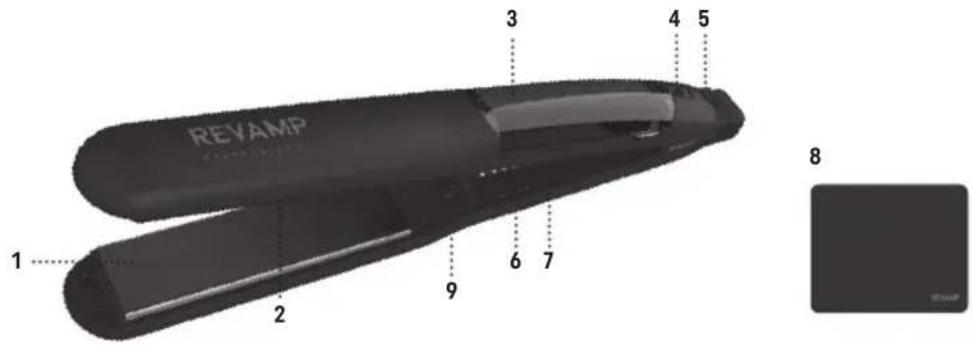

FEATURES

REVAMP 1 2 3 4 5 6 7 8

1. Floating ceramic plates
2. Steam apertures
3. Water tank
4. Water tank lock/unlock lever

5. Plates lock/unlock lever

6. Temperature control button

7. Power button
8. Non-slip heat proof silicone mat
9. Lock in moisture

STEAMCARE

The Professional Steam Ionic Technology of your new SteamCare straightener will give you faster and smoother results while reducing colour fade. The clever "Lock In moisture" system comes with 3 settings – no steam/ low steam/ high steam for versatility in styling whatever your hair type or length.

The advanced intelligent heat control - ranging from 150°C to 230°C - that continuously regulates the temperature of the ceramic plates will leave your hair with minimum damage and give you maximum control while styling.

Close-up of a mechanical component with visible flame or smoke, no text or symbols present

PROGLOSS™ SUPER SMOOTH OILS

Every product in the Revamp haircare range is infused with PROGLOSS™ SUPER SMOOTH OILS - enriched with Argan, Keratin and Coconut for ultimate smoothness and shine.

INSTRUCTIONS FOR USE

• Before use, ensure the hair is clean, dry and tangle-free.
• For extra protection, apply a heat protection spray.
  • Section the hair prior to styling. Style the lower layers first.
• Plug the product into a 220-240V mains power supply.
• Fill the water tank of your straightener. Unlock the water tank using the lock/unlock mechanism on the top of the straightener (A). After removing the tank (B), lift the black silicon tab and fill the tank with water. Replace the tab after filling the tank and re-attach the tank onto the unit.
• IMPORTANT: Filtered water should be used to fill the water tank within your SteamCare straightener.
• Select your chosen settings by turning the dial (C) on the bottom of the straightener: no steam/ low steam/ high steam according to your hair type or length.
• For thinner, shorter hair we recommend the "low steam" setting
• For thicker, longer hair we recommend the "high steam" setting

- Press the on/off button to switch on ⚫The default temperature when the product switches on is 210°C.

Close-up of a black electronic device labeled 'TANK' with visible ports and buttons (no readable text beyond label)

Close-up of a black mechanical component with an arrow indicating a feature, labeled 'B' in the top-left corner (no text or symbols on the object itself)

Abstract dark shape with a central circular element and faint white symbols (no text or numbers)

• IMPORTANT: A small amount of water may spray through the five small apertures on the top ceramic plate when the straightener has just been turned on, if the steam settings have been selected
• On average, for a typical user, styling their hair for 30 minutes, the WATER TANK needs to be refilled:

- On a High steam setting: every 6 uses

- On a Low steam setting: every 12 uses

• Use the touch temperature control + and - buttons to select your desired temperature manually. We recommend using a lower temperature to start.
• The temperature lights flash until the select temperature LED light become static on the temperature setting selected.
• Working on one section at a time run the straightener through the entire length of the hair from roots to ends, without stopping. Use a comb while straightening for even straighter results.
• Repeat this process all over the head, allowing hair to cool before combing through.
• This is a very efficient product that doesn't require a lot of steam to be effective. Please do not expect steam to be visible at all time.
• After using the straighteners, switch off, unplug, place on your REVAMP heat resistant mat and allow to cool before storing away.
• For ease of storing, the straightener plates can be shut down together by using the lock/unlock lever as show in the Features section.

Follow us on www.revamphair.com for the latest hair tips and advice.

Please note:

• This is a very efficient product that doesn't require a lot of steam to be effective. Please do not expect steam to be visible at all time.
• This is a high-performance product, avoid frequent use to prevent hair damage.
• Regular use of styling products may deteriorate the surface coating over time.
• Do not scratch the surface of the product as this will deteriorate the effectiveness of the coating.
• While heating, during use and cooling, place on the REVAMP heat resistant mat. Only hold unit at the end of the handle.
• The product reaches a very high temperature during operation, please style with caution when using. Make sure to keep away from the scalp and skin to avoid burns.

AUTO SHUT-OFF

This appliance has an automatic shut off feature for added safety. If the appliance is switched on for more than 60 minutes continuously, then it will automatically switch off. If you wish to continue using the appliance after this time, press the power button to switch on. Use the temperature control to select your desired temperature.

This feature should not be considered as a substitute for 'OFF'. ALWAYS REMEMBER TO SWITCH THE APPLIANCE OFF AND UNPLUG FROM THE MAINS WHEN NOT IN USE.

PLUG (ST-1600-GB ONLY)

This unit comes with a removable UK 3-pin plug. The 3-pin plug can be removed to reveal a European 2-pin plug by unscrewing the centre screw, lifting the rear cover and unclipping the European 2-pin plug. It can be replaced if necessary, by reversing this procedure. If required replace plug fuse with one the same value

Three black electrical plug plugs with visible internal components and connectors (no text or symbols)

If the plug on this appliance is damaged, it can be replaced with a BS 1363 plug, fitted with a BS 1362 fuse. Please use the same value of fuse supplied. Care must be taken when changing the plug. If in doubt, contact a qualified electrician.

CLEANING & MAINTENANCE

• IMPORTANT: Filtered water should be used to fill the water tank of your SteamCare straightener.
• Switch the appliance off, unplug from the mains and allow to cool fully before cleaning.
• Wipe over all surfaces using a soft damp cloth. Do not use harsh abrasives or cleaners.
• Do not immerse the appliance in water or and other liquid.
• Ensure all parts are dried thoroughly with a soft towel before reusing.
• To prevent cord damage, do not wrap the cord around the appliance, always store the cord loosely next to the appliance.
• Store in a cool dry place.

IMPORTANT SAFEGUARDS

• This appliance can be used by children aged from 16 years and above. Persons with reduced physical, sensory or mental capabilities should not use this product. Persons with lack of experience and knowledge can use the product if they have been supervised/instructed and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children unless they are older than 16 and supervised. Keep the appliance and cable out of reach of children under 16 years.
• WARNING: for additional protection the installation of a residual current device (RCD) with a rated residual operating current not exceeding 30mA is advisable. Ask an electrician for advice.
• Always ensure the voltage to be used corresponds to the voltage stated on the unit before plugging the appliance into the mains socket.
• THIS APPLIANCE SHOULD BE UNPLUGGED FROM THE MAIN SUPPLY WHEN NOT IN USE.
• WARNING: This appliance must not be taken into a bathroom. It should not be used near bathtubs, basins or any other vessels containing water.
  • This appliance must not be used outdoors.
• Avoid allowing any part of the appliance to come into contact with the face, neck or scalp.
• Do not use the appliance while drowsy or sleeping.
• Do not leave the appliance unattended while plugged in.
• Do not set the appliance down while still on.
• Do not operate with wet hands.
• Do not place the appliance on any soft furnishings or materials e.g. carpet, bedding, towels, rugs etc.
• Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
• Do not let the cord hang over the edge of a table or counter or let it come into contact with any hot surfaces.
• Do not carry the appliance by the power cord.
• Do not wrap the cord around the unit. Check the cord regularly for any sign of damage.
• If the power cord becomes damaged, discontinue use immediately and return the appliance to your nearest authorised service dealer for repair or replacement in order to avoid a hazard.
• Do not use the appliance if it is damaged or malfunctions.
• Do not use attachments other than those supplied with this product.
• Do not take the appliance apart. There are no serviceable parts inside.
• Let the appliance cool down before cleaning and storing away.

TWO YEAR GUARANTEE

FKA Brands Ltd guarantees this product from defect in material and workmanship for a period of 2 years from the date of purchase, except as noted below. This FKA Brands Ltd product guarantee does not cover damage caused by misuse or abuse; accident; the attachment of any unauthorised accessory; alteration to the product; or any other conditions whatsoever that are beyond the control of FKA Brands Ltd. This guarantee is effective only if the product is purchased and operated in the UK / EU. A product that requires modification or adaptation to enable it to operate in any country other than the country for which it was designed, manufactured, approved and / or authorised, or repair of products damaged by these modifications is not covered under this guarantee. FKA Brands Ltd shall not be responsible for any type of incidental, consequential or special damages. To obtain guarantee service on your product, return the product post-paid to your local service centre along with your dated sales receipt (as proof of purchase). Upon receipt, FKA Brands Ltd will repair or replace, as appropriate, your product and return it to you, post-paid. Guarantee is solely through service centre. Service of this product by anyone other than the service centre voids the guarantee. This guarantee does not affect your statutory rights. For your local service centre, go to

www.revamphair.com/servicecentres

WEEE explanation

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device,

please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

FONCTIONNALITÉS

REVAMP 1 2 3 4 5 6 7 8

Close-up of a black object with a label 'REVAMP' and smoke, no readable text or symbols beyond the label.

Close-up of a black electronic device with a labeled 'TANK' and control buttons (no readable text beyond label)

Close-up of a black mechanical component with an arrow indicating a feature, labeled 'B' in the top-left corner (no other text or symbols)

Abstract dark shape with a circular cutout and scattered white symbols (no text or numbers)

Close-up of a black electronic device with labeled ports and buttons (no readable text or symbols)

Close-up of a black plastic component with an arrow pointing to it, labeled 'B' in the top-left corner (no other text or symbols)

Medical illustration showing a circular anatomical structure with internal features and arrows, no text or symbols present.

Close-up of a dark mechanical component labeled 'REVAMP' with visible smoke or vapor (no other text or symbols)

Close-up of a black electronic device labeled 'TANX' with no visible text or symbols beyond the label

Close-up of a black mechanical component with an arrow pointing to it, labeled 'B' in the top-left corner (no other text or symbols)

Abstract dark shape with a central circular element and faint cloud-like shapes below (no text or symbols)

Close-up of a black electronic device labeled 'TANK' with no visible text or symbols beyond the label

3D rendered image of a black mechanical component with an arrow pointing to a specific part (no text or symbols visible)

Abstract dark shape with a circular hole and faint cloud-like symbols below (no text or symbols)

Revamp is a trademark of Salon British Brands. Distributed by FKA Brands Limited.

Somerhill Business Park, Tonbridge, Kent TN11 0GP, UK / Tel: [phone]

Via Giosuè Carducci 125, 20099 Sesto S. Giovanni, Milan, Italy / Tel: [phone]

[e-mail]

IB-ST1600-0620-01
