USER MANUAL MK352S INVENTUM

Exterior view of a modern stainless steel water heater with a handle and control panel (no visible text or symbols)

1. safety instructions page 9
2. product description page 11
3. prior to first use page 11
4. use page 11
5. cleaning & maintenance page 12

general service and warranty conditions page 24

Deutsch

safety instructions1

• Carefully and fully read the instruction manual prior to using the appliance and carefully store the manual for future reference.
• Only use this appliance for the purposes described in the instruction manual.
  • The exterior becomes hot!
• Never fill the appliance above the maximum indication. The appliance could overflow.
• Only connect the appliance to alternate current, to an earthed wall socket, with a mains voltage that corresponds with the information provided on the information plate of the appliance.
• Never bend the power cord sharply or allow it to run across hot parts.
• Fully unwind the cord to prevent it from overheating.
• Never place the appliance near appliances that give off heat, such as ovens, gas cookers, hotplates, etc. Keep the appliance away from walls or other objects that could catch flame, such as curtains, towels (cotton or paper, etc.).
• Always make sure the appliance is placed on an even, flat surface and is only used indoors.
• Do not leave the appliance unsupervised if the appliance is operational.
• If you want to move the appliance, make sure it has cooled down and that the plug has been removed from the socket.
• Do not use the appliance when the plug, cord or appliance have been damaged, when the appliance is no longer functioning satisfactorily, or has been dropped or damaged in any other way. If this is the case, consult the shop or our technical service. Never replace the plug or cord yourself. Repairs to electrical appliances should only be performed by skilled persons. Incorrect repairs could cause considerable hazards for the user. Never use the appliance with parts that are not recommended or supplied by the manufacturer.
• Do not pull the cord and/or appliance to remove the plug from the wall socket. Never touch the appliance with wet or moist hands.

- Keep the appliance out of reach of children. Children do not see the dangers when handling electrical appliances. Therefore, never allow children to work with electrical appliances without supervision. Keep the appliance and cord out of reach of children younger than 8 years of age.

- The appliance can be used by children of 8 years and older and by persons with limited physical, sensory or mental capacities or lack of experience or knowledge, provided they use the appliance under supervision or have been instructed about its save use and understand the hazards it may involve.

• Children are not allowed to play with the appliance.

- The appliance may not be cleaned or maintained by children, unless this is done under supervision.

- If the appliance is not being used or is being cleaned, remove the plug from the socket.

- If you decide not to use the appliance any more due to a defect, we recommend cutting off the cord after removing the plug from the wall socket.

- If the appliance does not function after it has been switched on, it is possible that the fuse or earth leakage circuit breaker has been activated in the electrical distribution box. The group can be overloaded or an earth leakage current may have occurred.

- In case of a breakdown, never make repairs yourself; a blown safety device in the appliance could indicate a defect that cannot be remedied by removing or replacing this safety device. Only original parts should ever be used.

- Never rinse the appliance under the tap.

- Never submerge the power base, appliance, cord or plug in water.

- This appliance is intended for household and similar use, such as:

• in staff kitchens, shops, offices and other work environments;
• by guests of hotels, motels and other residential environments;
• in Bed&Breakfast type environments;
• farms.

If you decide not to use the appliance any more due to a defect, we recommend cutting off the cord after removing the plug from the wall socket. Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

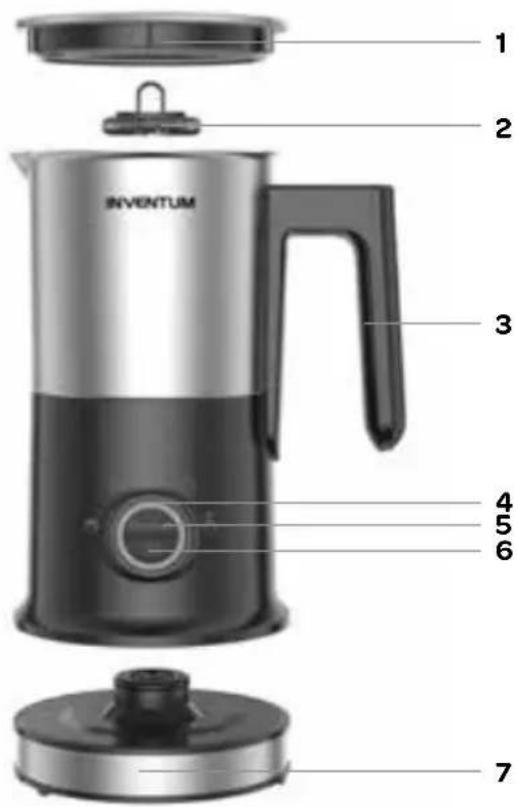

2 product description

1. Cover with silicone ring
2. Frothing paddle
3. Handle
4. Function indicator
5. Function button
6. On/Off button
7. Power base
8. Maximum indication for heating MAX (240 ml.)
9. Maximum indication for frothing MAX (115 ml.)

MAO 8 MAO 9

INVENTUM 1 2 3 4 5 6 7

3 prior to first use

Before using the appliance for the first time, please proceed as follows: carefully remove the milk frother from its packaging and remove all the packaging material. Keep the packaging (plastic bags and cardboard) out of reach of children. After unpacking the appliance, carefully check it for external damage that may have occurred during transport. Place the milk frother on a flat, heat-resistant surface.

Clean the cover and frothing paddle with warm water and a mild washing-up liquid. Dry these components thoroughly. Only clean the base unit and interior with a moist cloth and dry thoroughly. The milk frother is only suitable for frothing and warming milk. Never fill the milk frother with other liquids.

4 use

1. Check that the voltage corresponds with what is stated on the information plate.
2. Insert the plug into the socket.
3. Place the frothing paddle on the bottom of the milk frother.
4. Fill the milk frother with the required amount of milk (5-10°C).
5. Place the cover and place the milk frother on the power base.
6. Press 1, 2, 3 or 4 times on the function button to select the desired function (see table on the next page).
7. Briefly press the On/Off button to activate the milk frother.
8. Once the set temperature has been achieved, the milk frother stops automatically. The milk frother can be stopped by pressing the On/Off button once.
9. When the milk frother is ready, remove the cover and pour the milk froth in a mug or cup.

Result Frothing	paddle	Function Indica-	tion	Amount of milk
Warm and thick froth		1 press of the function button (5)		min. 75 - max. 115 ml
Warm and thin froth		2 presses of the function button (5)		min. 75 - max. 115 ml
Heating only		3 presses of the function button (5)		min. 75 - max. 240 ml
Cold frothing		4 presses of the function button (5)		min. 75 - max. 115 ml

• Only hold the milk frother by its handle. The rest of the appliance will be hot.
• Do not use a spoon or other metal object to scoop out the milk froth. This will damage the coating.
• Observe the maximum indication for frothing milk - MAX - 115 ml. Frothing milk expands and the milk frother could overflow when using too much milk. The minimum capacity of the milk frother is 75 ml.
• Remove the plug from the socket after each use and clean the milk frother as described in chapter CLEANING & MAINTENANCE.

5 cleaning and maintenance

Remove the plug from the wall socket and allow the milk frother to cool prior to cleaning. Clean the milk frother after every use.

Never submerge the milk frother and power base in water and/or any other liquid. Also do not rinse it under the tap. Regularly wipe the outside with a damp cloth.

Remove the frothing paddle from the milk frother by lifting it straight upwards. Pour some hot water in the milk frother to remove all milk residues. If necessary, use a drop of washing-up liquid to remove the fatty film left by the milk. Then wipe clean the inside of the milk frother with a soft cloth or some kitchen paper to prevent the coating from getting damaged.

Make sure there are no more milk residues in the milk frother. This is unhygienic and may be harmful to your health. Clean the cover, its silicon ring and the frothing paddle with warm water and a mild washing-up liquid. Dry these components thoroughly.

Never use detergents and/or abrasives or sharp objects that could damage the coating! The components of this appliance are not suitable for the dishwasher.

MAYO 8 MAYO 9

INVENTUM 1 2 3 4 5 6 7

General terms and conditions of service and warranty

5-year Inventum warranty!

1. Customers enjoy a 5-year full manufacturer's warranty on all Inventum products.
2. Within this period, a defective product or part, which makes normal functioning of the product or part impossible, will always be repaired free of charge or, if repair is not possible and/or does not provide a solution, replaced (by the same or equivalent product). The assessment of this lies with Inventum.
3. In order to make a claim under the 5-year Inventum warranty you must, within two months after discovering the fault or defect, either return the product to the shop where you bought it, or contact the Inventum customer service department by using the form at www.inventum.eu/service.
4. The warranty period starts from the date stated on the product's original sales receipt.
5. To invoke the warranty, you must always send a copy of the original proof of purchase with the service request and present the original proof of purchase to the service technician.
6. The 5-year warranty applies only to normal domestic use of Inventum products within the Netherlands.

Warranty exclusions

1. The 5-year Inventum guarantee does not apply in case of: normal wear and tear, consumables, improper use, insufficient or incorrect maintenance, incorrect and/or inexpert assembly and installation of the appliance, repairs by unauthorised third parties, business or commercial use, missing serial number, damage caused by an external cause. This enumeration is not exhaustive.
2. B-choice products and products that have been built-in in a showroom are not covered by the 5-year Inventum warranty. All optical damage such as dents, scratches and slight traces of use are excluded from any warranty.

Reporting malfunctions on Inventum products

1. Faults or defects on Inventum products can be reported by using the service request form on the website www.inventum.eu/service or through the seller of the product.
2. A copy of the original proof of purchase must be included with the request.
3. Inventum's service department determines whether the product will be repaired or replaced, based on the request and the sales receipt.

Important to know

• Products sent without prior notification will not be accepted. Further to the notification you will be informed by Inventum whether a warranty applies and whether you must return the product.
• The replacement or repair of a defective product, or a part thereof, does not lead to an extension of the original warranty period.
• Products eligible for replacement or repair must be emptied and clean.

For a detailed explanation of the warranty conditions and items excluded from them, please visit Inventum's website www.inventum.eu/algemene-voorwaarden

These general warranty and service conditions apply to Inventum brand products purchased after 27 April 2022 and intended for use within the Netherlands.

For Inventum products used outside the Netherlands, but within a EU Member State, the warranty rules of that country apply. Inventum provides warranty and service by a white goods technician only in the Netherlands.

As a consumer, you are entitled by law to a properly working product. Does the product break down sooner than you might expect? This means that the product is not in conformity. In that case, the law offers you, the buyer, with a number of legal remedies for your protection. This legal protection is not affected by the above commercial warranty given by Inventum on Inventum products used within the Netherlands.

Modifications and errors reserved
