TABLE OF CONTENTS

SECTION

PAGE

Important Safety Instructions....3

Warranty....6

Technical Data....6

Getting To Know Your Spot Cleaner....7

General Assembly Instructions....9

Operating Instructions....12

Maintaining Your Spot Cleaner....18

Troubleshooting....21

Thank you for purchasing this Vacmaster ^® spot cleaner. With it you are obtaining a high-quality product that is engineered for optimal performance.

FOR YOUR SAFETY

Read and understand this manual before use.

Keep this manual and your sales check (receipt) in a safe place for future reference.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS SPOT CLEANER

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING - To reduce the risk of fire, electric shock, or injury:

• Use your spot cleaner only as described in this Use & Care Guide. Use only manufacturer's recommended attachments.
• Fully assemble before operating.
• Operate spot cleaner only at voltage specified on data plate.
• Do not leave spot cleaner when plugged in. Unplug from outlet when not in use and before performing maintenance.
• Do not expose to rain. Store indoors.
• Do not immerse. Use only on carpet moistened by cleaning process.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Do not use with a damaged cord or plug. If spot cleaner is not working as it should, has been dropped, damaged, left outdoors, or dropped in water, immediately discontinue use and call Customer Service at 1-866-384-8432 for assistance.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run spot cleaner over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or spot cleaner with wet hands.
• Do not put any objects into openings.
• Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs. To avoid personal injury or damage, and to prevent the spot cleaner from falling, always place spot cleaner at bottom of stairs or on floor. Do not place spot cleaner on stairs or furniture, as it may result in injury or damage.
• Do not put on chairs, tables, etc. Keep on floor.

IMPORTANT SAFETY INSTRUCTIONS

• Do not use spot cleaner to pick up flammable or combustible liquids (gasoline, cleaning fluid, perfumes, etc.), or use in areas where they may be present. The fumes from these substances can create a fire hazard or explosion.
• To reduce the risk of health hazards from vapors or dusts, do not vacuum toxic materials.
• Do not use or store near hazardous materials.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use spot cleaner without tanks in place.
• Do not clean over floor electrical outlets.
• Do not use the spot cleaner to pick up sharp hard objects, small toys, pins, paper clips, etc. They may damage the spot cleaner or dust cup.
• Do not use sharp objects to clean out hose as they can cause damage.
• To help prevent matting and resoiling, avoid contact with carpets until they are dry. Keep children and pets away from carpets until they are completely dry.
• Do not store the spot cleaner with solution in tanks.
• This spot cleaner is provided with double insulation. Use only identical replacement parts. See DOUBLE INSULATION INSTRUCTIONS.
• You are responsible for making sure that your spot cleaner is not used by anyone unable to operate it properly.

CAUTION: To reduce the risk of injury from moving parts - Unplug before servicing.

WARNING: To reduce the risk of electric shock - Unplug before cleaning or servicing.

SAVE THESE INSTRUCTIONS

Household use only

IMPORTANT SAFETY INSTRUCTIONS

DOUBLE INSULATION INSTRUCTIONS

This Spot Cleaner is double insulated, eliminating the need for a separate grounding system. Use only identical replacements parts. Read the instructions for Servicing Double-Insulated Spot Cleaner before servicing. Use this spot cleaner as described in this manual.

Observe the following warnings that appear on the motor housing of your spot cleaner.

DOUBLE INSULATED - GROUNDING NOT REQUIRED - WHEN SERVICING USE ONLY IDENTICAL REPLACEMENT PARTS.

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK - DO NOT EXPOSE TO RAIN. STORE INDOORS.

WARNING: FOR YOUR OWN SAFETY, READ AND UNDERSTAND THE OPERATOR'S MANUAL. DO NOT RUN UNATTENDED. DO NOT PICK UP HOT ASHES, COALS, TOXIC, FLAMMABLE OR OTHER HAZARDOUS MATERIALS. DO NOT USE AROUND EXPLOSIVE LIQUIDS OR VAPORS.

WARNING: SERVICING OF DOUBLE-INSULATED SPOT CLEANER WITH A DOUBLE-INSULATED SPOT CLEANER, TWO SYSTEMS OF INSULATION ARE PROVIDED INSTEAD OF GROUNDING. NO GROUNDING MEANS IS PROVIDED ON A DOUBLE-INSULATED APPLIANCE, NOR SHOULD A MEANS FOR GROUNDING BE ADDED. SERVICING A DOUBLE-INSULATED SPOT CLEANER REQUIRES EXTREME CARE AND KNOWLEDGE OF THE SYSTEM, AND SHOULD BE DONE ONLY BY QUALIFIED SERVICE PERSONNEL. REPLACEMENT PARTS FOR A DOUBLE-INSULATED SPOT CLEANER MUST BE IDENTICAL TO THE PARTS THEY REPLACE. YOUR DOUBLE-INSULATED SPOT CLEANER IS MARKED WITH THE WORDS 'DOUBLE INSULATED' AND THE SYMBOL (SQUARE WITHIN A SQUARE) MAY ALSO BE MARKED ON THE APPLIANCE.

WARRANTY

FOR ONE YEAR from the date of sale (or, for deliveries in the State of California, one year from the date of delivery), this product is warranted against defects in material or workmanship when it is assembled, operated and maintained according to all supplied instructions.

WITH PROOF OF SALE, a defective appliance will be replaced free of charge. For warranty coverage details to obtain free replacement, visit the web page: www.vacmaster.com or call 1-866-384-8432.

• This warranty does not cover filters or belt, which are expendable parts that can wear out from normal use within the warranty period.
• This warranty is void if this product is ever used for other than private household purposes.
• This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

TECHNICAL DATA

Spot Cleaner

Model: SCB301

Rated Voltage: 120V AC

Rated Frequency: 60Hz

Nominal Current: 3.5A

GETTING TO KNOW YOUR SPOT CLEANER

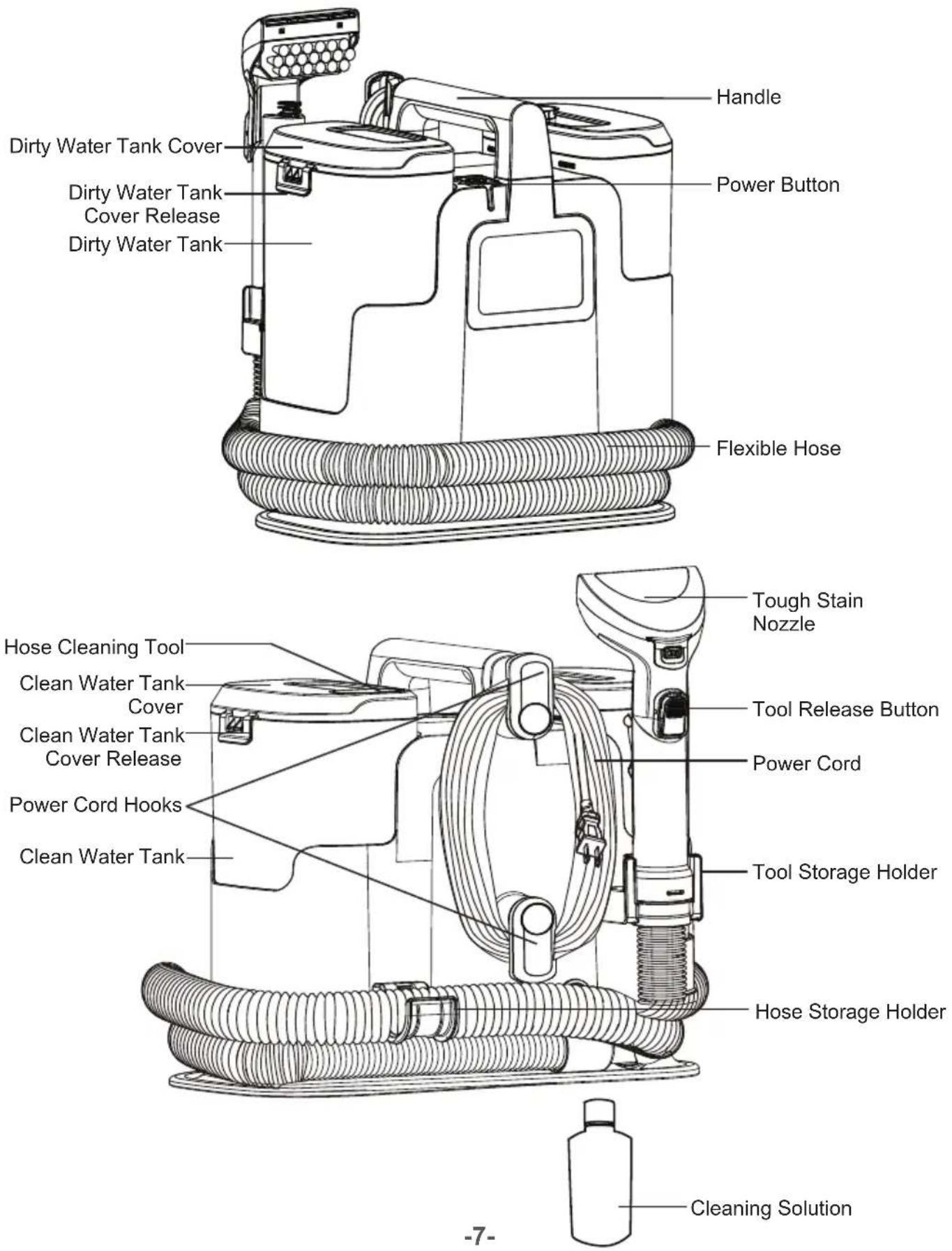

Handle Power Button Dirty Water Tank Cover Dirty Water Tank Cover Release Dirty Water Tank Flexible Hose Hose Cleaning Tool Clean Water Tank Cover Clean Water Tank Cover Release Power Cord Hooks Clean Water Tank Tough Stain Nozzle Tool Release Button Power Cord Tool Storage Holder Hose Storage Holder Cleaning Solution -7-

Replacement Parts

Item Part No.
Tool Storage Holder	671008101
Dirty Water Tank	671008102
Clean Water Tank	671008103
Tough Stain Nozzle	671001107
Hose Storage Holder	671008104

Available online at www.vacmaster.com or call 1-866-384-8432.

GENERAL ASSEMBLY INSTRUCTIONS

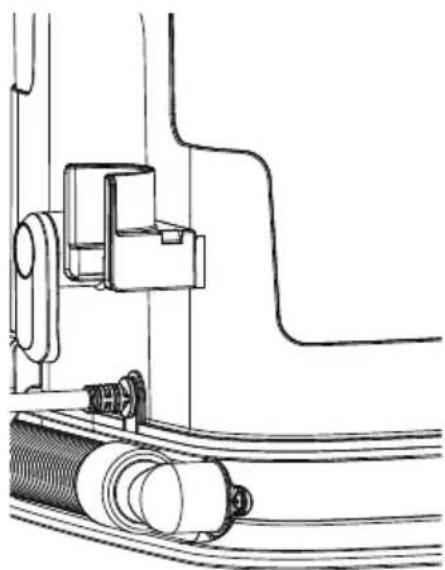

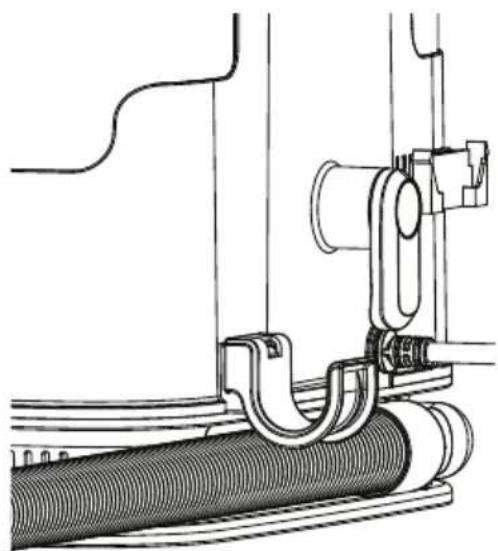

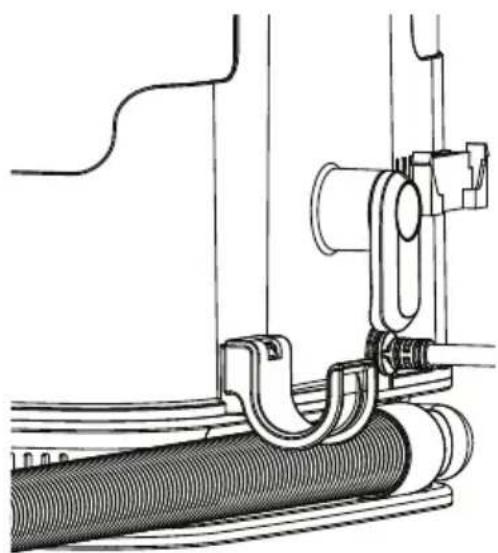

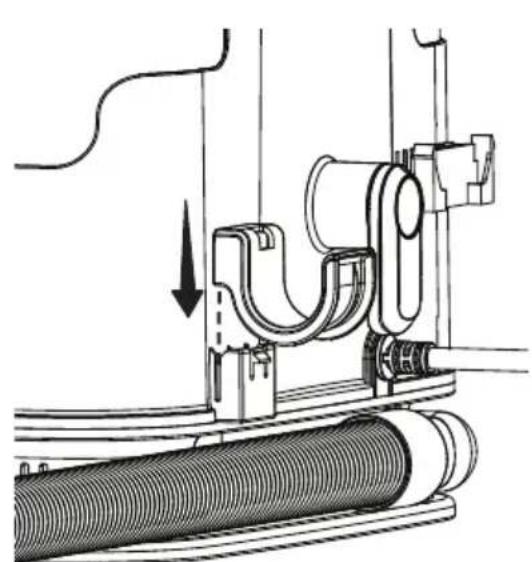

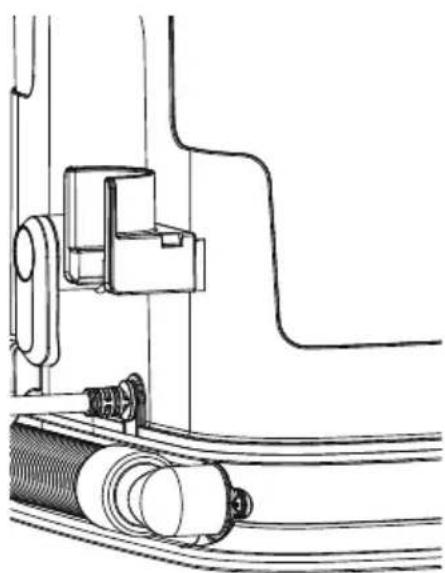

1. Align the hose storage holder with the slot as shown. Slide down the hose storage holder until it is secured into place.

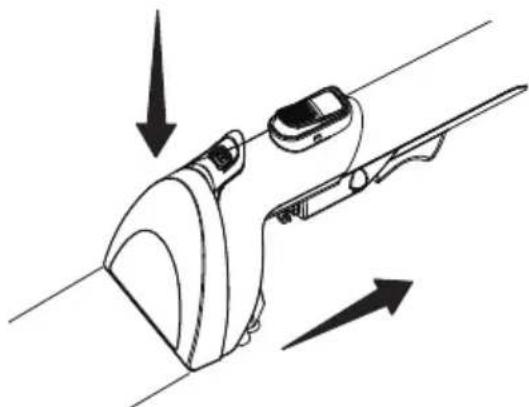

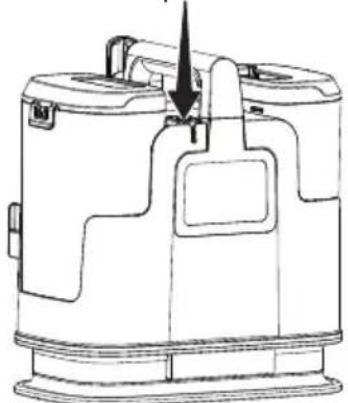

Technical line drawing of a mechanical assembly with a curved component and threaded rod (no text or symbols)

Technical line drawing of a mechanical assembly with hoses and tubing (no text or symbols)

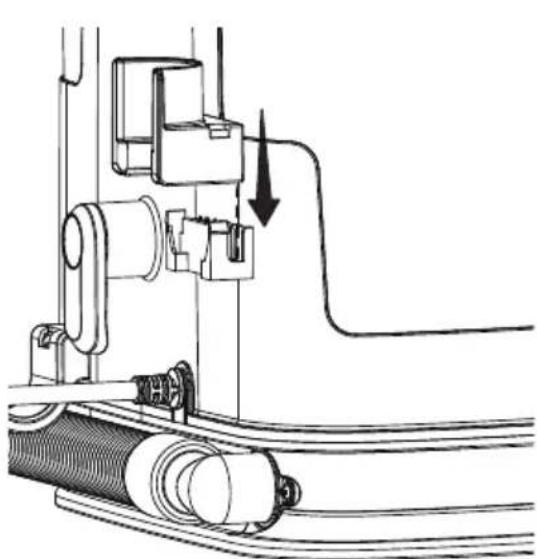

1. Align the tool storage holder with the slot as shown. Slide down the tool storage holder until it is secured into place.

Technical line drawing of a mechanical assembly with hoses and a valve (no text or symbols)

Technical line drawing of a mechanical assembly with hoses and components (no text or symbols)

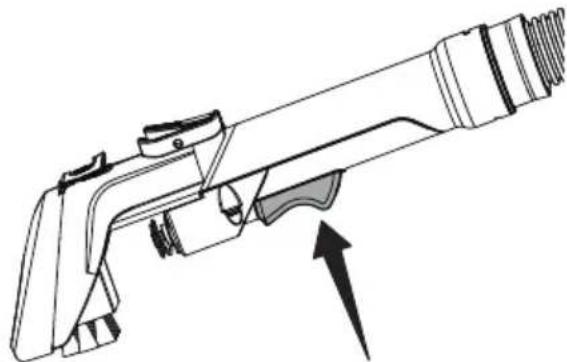

1. Slide the tough stain tool onto the end of the suction hose until it clicks into place.

To remove: Press the tool release button and pull away the tough stain tool.

NOTE: Put the flexible hose onto the hose storage holder. Snap the end of the hose with the tool installed into the tool storage holder when not in use.

Technical line drawing of a handheld device with attached hoses and a camera, showing mechanical assembly (no text or symbols)

1. Make sure both power cord hooks are in the proper position as shown. Wrap the power cord loosely around the cord hooks.

NOTE: Make sure to wrap the power cord around the lower cord hook first, and then around the upper cord hook to avoid damaging the power cord.

Technical line drawing of a mechanical device with hoses and connectors (no text or symbols)

1. Lock power cord plug onto the power cord.

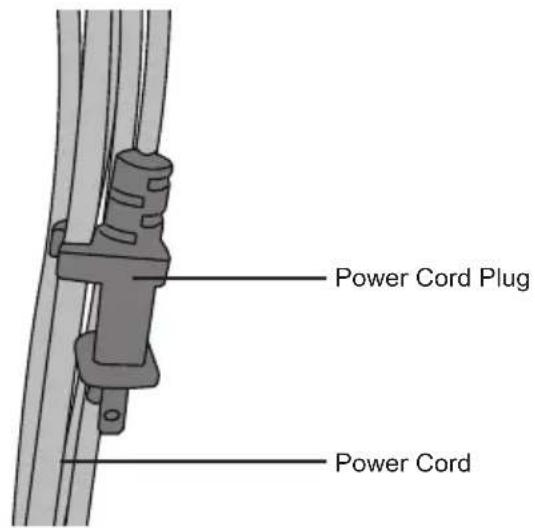

Power Cord Plug Power Cord

WARNING

Wrapping the cord too tightly with excessive stress on the cord may cause cord damage. A damaged cord is an electrical shock hazard and could cause personal injury or damage.

OPERATING INSTRUCTIONS

Filling the Clean Water Tank

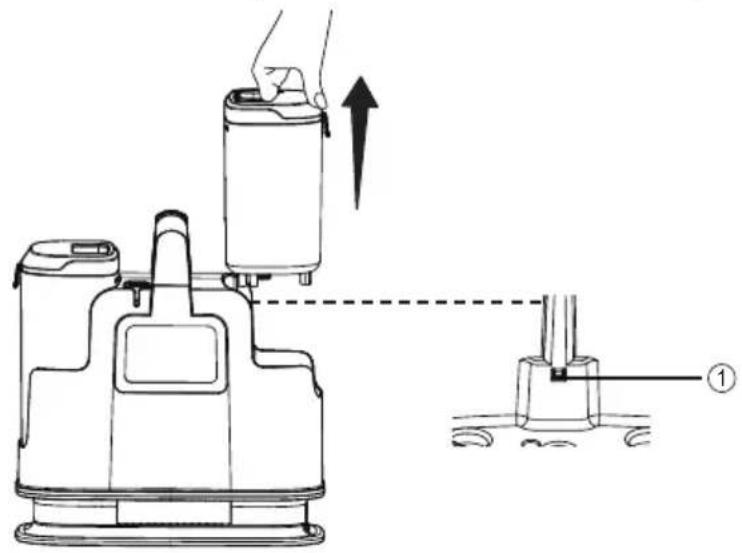

1. Lift up the clean water tank from the side of the unit. A security latch (①) is positioned to keep the clean water tank in position to avoid unintentional release. The latch will automatically release when the tank is pulled upwards.

Diagram showing a hand operating a cleaning machine with an arrow indicating motion, and a close-up of the device's base with labeled component ①.

1. Remove the clean water tank cover by undoing the clean water tank cover release.

Line drawing of a four-legged washing machine with a lid and arrow indicating rotation (no text or symbols)

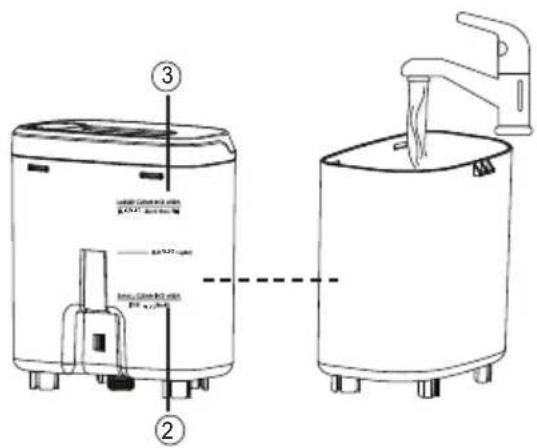

1. Fill the tank with warm water (Max 104^ F (40°C)) and solution. Ensure the correct proportion of water and cleaning solution is used by referring to the solution label.

SMALL CLEANING AREA - 0.8L/0.2G Liquid (②)

LARGE CLEANING AREA - 1.6L/0.4G Liquid (③)

Do not exceed filling the clean water tank over the maximum fill line indicated on the clean water tank.

CAUTION

Do not fill with water above 104^ F ( 40^ C).

Technical diagram of a water heater with labeled components and parts, showing internal structure and piping connections.

NOTE: A 8oz bottle of solution is provided with this spot cleaner. Ensure the solution and water are mixed correctly. Once the sample is depleted, use only Vacmaster® cleaning solutions (Available online at www.amazon.com) intended for use with this appliance to prevent internal component damage.

CAUTION

The cleaning solution can cause skin and eye irritation. Wash affected area cautiously with water for several minutes. If irritation persists, seek medical attention immediately. Individuals with sensitive skin should wear rubber gloves. Wash hands thoroughly after use. Do not ingest. Keep out of reach of children.

1. Insert the locking tabs into the slots of the clean water tank first and then secure the clean water tank cover back into place until a click is heard.

Three line drawings of industrial waste bins with a dashed line indicating transformation (no text or symbols)

1. Slide the clean water tank back onto the unit. The security latch will automatically secure once the clean water tank is in position. A click will be heard when correctly installed.

Using the Spot Cleaner

IMPORTANT! Before using the spot cleaner, thoroughly vacuum the area to be cleaned. Always test a small hidden area for colorfastness and pile distortion.

Test Colorfastness - Gently rub surface with a dampened white cloth containing cleaning solution. Wait 10 minutes and check for color removal with a white paper towel. If color changes, do not use.

NOTE: To prevent staining, please use plastic, wax paper or aluminum foil to protect wood or metal surfaces from possible water spray.

To protect the wooden floors underneath rugs, place protective material (e.g. plastic) underneath them before cleaning.

NOTE: Always refer to and follow the manufactures care guidelines before using spot cleaning solution and spot cleaner.

1. Unwrap the hose from the unit. Make sure the tough stain nozzle is attached securely.

NOTE: The tough stain nozzle can be used for cleaning carpet stains, furniture and other hard-to-reach surfaces.

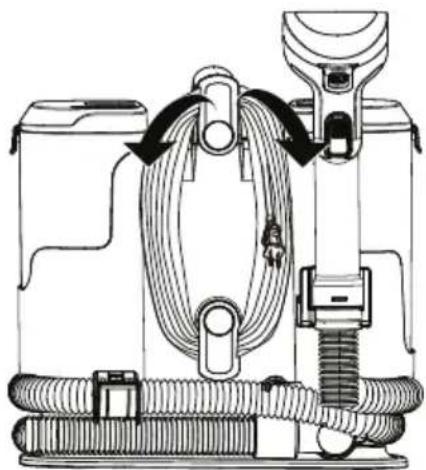

1. Turn the power cord hooks inward from either side to release the power cord.

Technical line drawing of a mechanical device with hoses and connectors (no text or symbols)

1. Detach the power cord plug from the power cord.

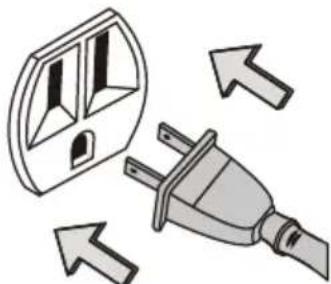

2. Plug the power cord plug into an outlet located near the floor.

Illustration of a plug with two slots and arrows indicating direction (no text or symbols)

WARNING

To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.

1. Press the power button to turn the spot cleaner on.

Technical line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

1. Hold the tool about 1 inch over the stain to be cleaned. Squeeze the spray trigger to spray a generous amount of cleaning solution over the soiled area. Use the brush on the tool to agitate stains by scrubbing in a back and forth motion.

Line drawing of a firearm with an arrow pointing to the handle (no text or symbols present)

1. To lift away the stain, apply downward pressure on the front of the cleaning tool and pull the tool backward slowly to vacuum up excess dirty liquids. Repeat as necessary.

Technical line drawing of a handheld device with directional arrows indicating movement or force (no text or symbols)

1. Empty the dirty water tank when the dirty liquid reaches the "Max Fill" line and there is a loss in suction. See instructions in the Emptying the Dirty Water Tank (page 16-17).
2. Once you have completed cleaning, press the power button; unplug the power cord plug from the outlet.

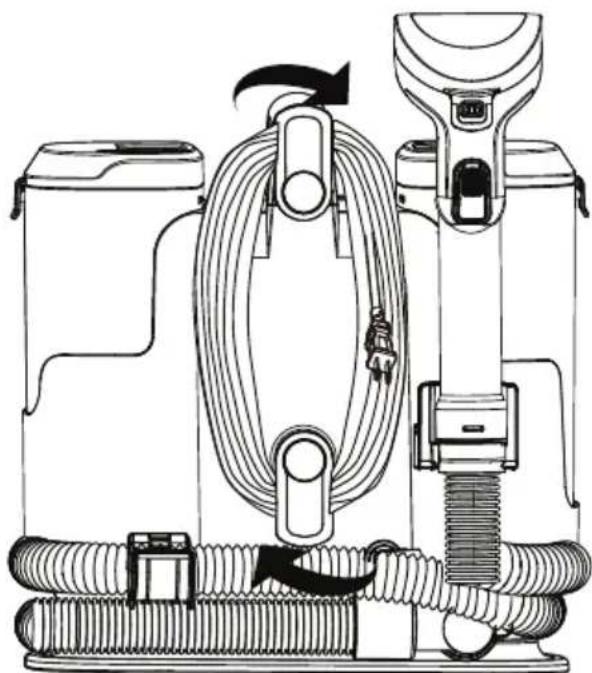

3. Turn the power cord hooks to the proper position and wrap the cord loosely around the power cord hooks.

Emptying the Dirty Water Tank

Empty the dirty water tank when the dirty liquid reaches the "Max Fill" line and there is a loss in suction. During normal use, debris may accumulate in the dirty water tank. In order to keep the spot cleaner functioning properly, rinse out the dirty water tank with clean water after each use.

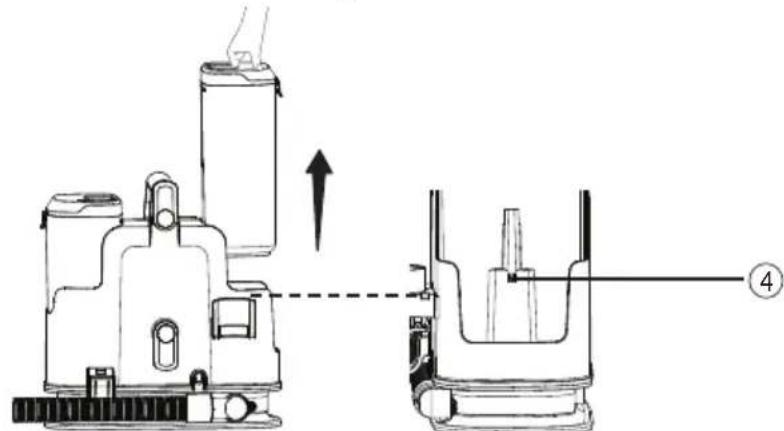

1. Lift up the dirty water tank from the side of the unit. A security latch (④) is positioned to keep the dirty water tank in position to avoid unintentional release. The latch will automatically release when the tank is pulled upwards.

Technical diagram showing mechanical assembly with labeled component 4 and directional arrow indicating motion

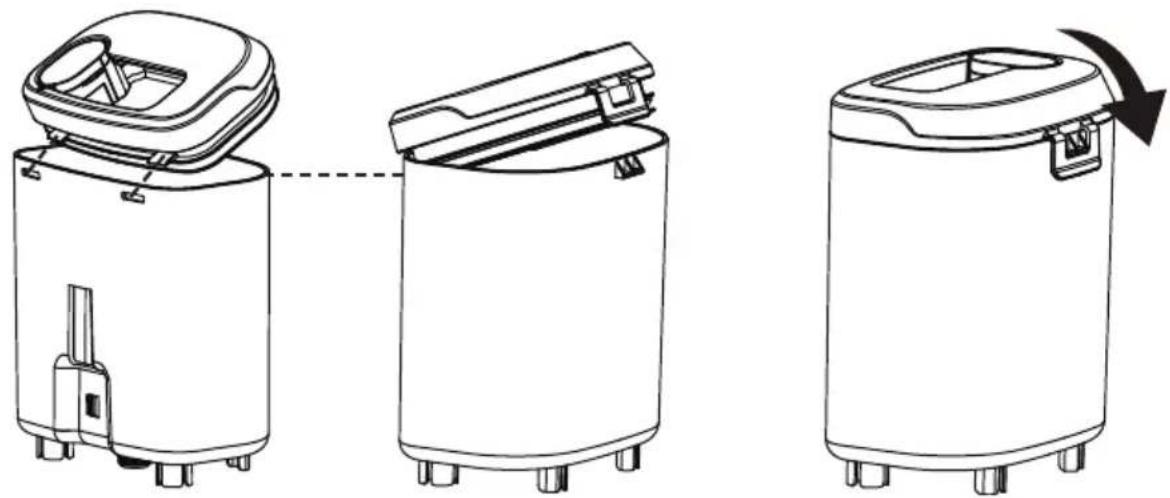

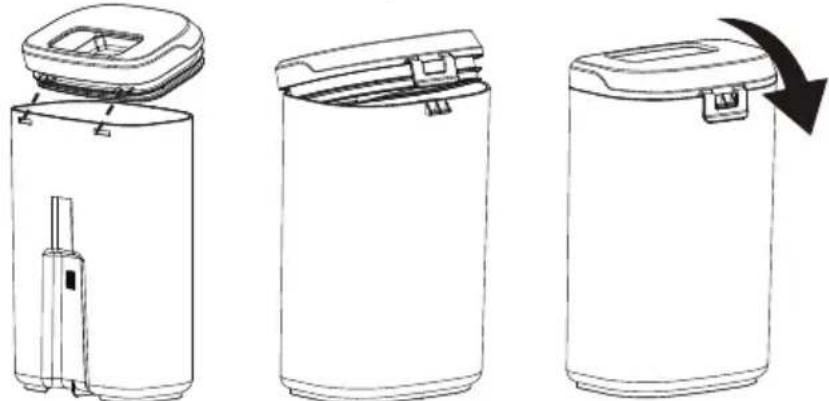

1. Remove the dirty water tank cover by undoing the dirty water tank cover release.

Line drawing of a cylindrical trash bin with a lid and arrow indicating rotation (no text or symbols)

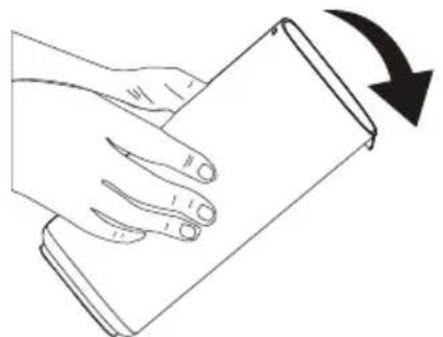

1. Empty the tank into a sink or toilet. Rinse the tank thoroughly with clean water. If continuing to use after emptying the dirty water tank, be sure to dry the outside of the tank before reinstalling.

Line drawing of a hand holding a smartphone with a curved arrow indicating rotation (no text or symbols)

1. Insert the locking tabs into the slots of the dirty water tank first and then secure the dirty water tank cover back into place until a click is heard.

Three line drawings of a portable water heater with a lid, showing internal components and a black arrow indicating rotation (no text or symbols)

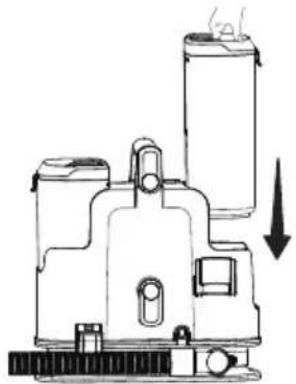

1. Reinstall the dirty water tank back onto the unit. The security latch will automatically secure the dirty water tank in position. A click will be heard when correctly installed.

Technical line drawing of a mechanical device with no visible text or symbols

WARNING

The motor noise changes to a higher pitch when the dirty water tank is full or blocked. Stop the spot cleaner immediately and empty the dirty water tank.

MAINTAINING YOUR SPOT CLEANER

CAUTION

To reduce the risk of shock, turn off and disconnect the power cord before performing any service or maintenance.

Cleaning Exterior and Attachments

1. Turn off and unplug spot cleaner. DO NOT drip water on spot cleaner.
2. To clean exterior, or to reduce static electricity and dust build-up, wipe outer surface with a clean, damp and soft cloth. Wipe dry after cleaning.

Cleaning the Tough Stain Nozzle

It is recommended to clean the tough stain nozzle with water after each use.

1. Press the tool release button to remove the attachment from the hose.

Line drawing of a firearm with arrows indicating motion direction (no text or symbols)

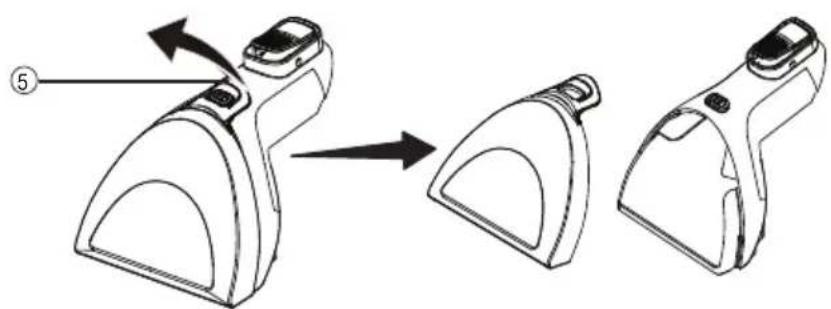

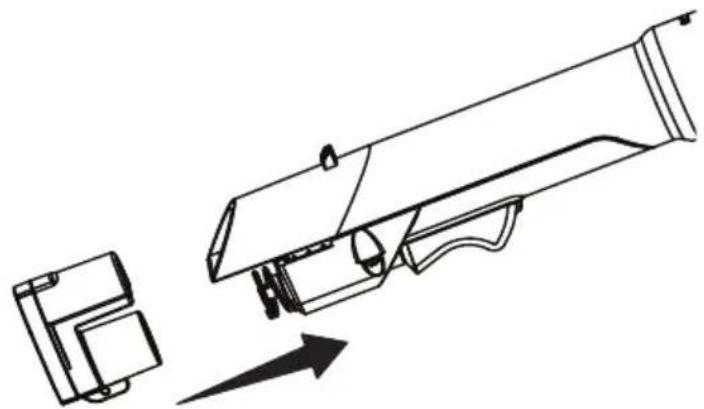

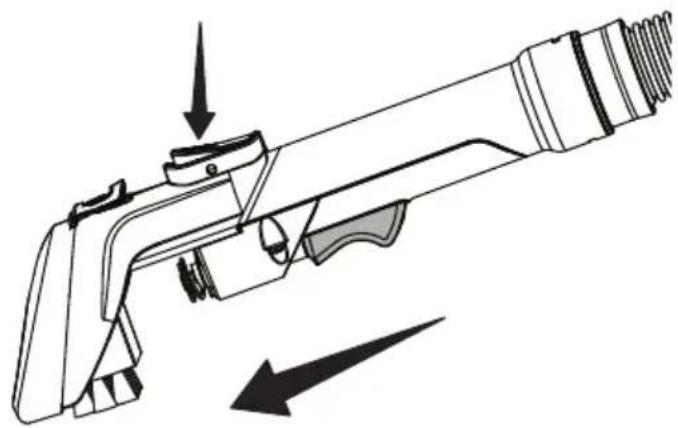

1. Pull up the cover release tab (⑤) on the nozzle to remove the cover.

Diagram showing a device with labeled parts and directional arrows indicating motion or assembly.

1. Rinse thoroughly with clean water. Allow the parts to dry before reinstalling.
2. Reinstall the nozzle cover and then insert back into place until a click is heard.

Hose Cleaning Tool

1. Remove the clean water tank and fill with warm water (Max 40°C).
2. Attach the hose cleaning tool to the suction hose. Ensure the tough stain nozzle is removed.

Technical line drawing of a firearm with an inset showing internal components and an arrow indicating motion (no text or symbols)

1. Make sure both the clean water and dirty water tanks are secured on the unit.

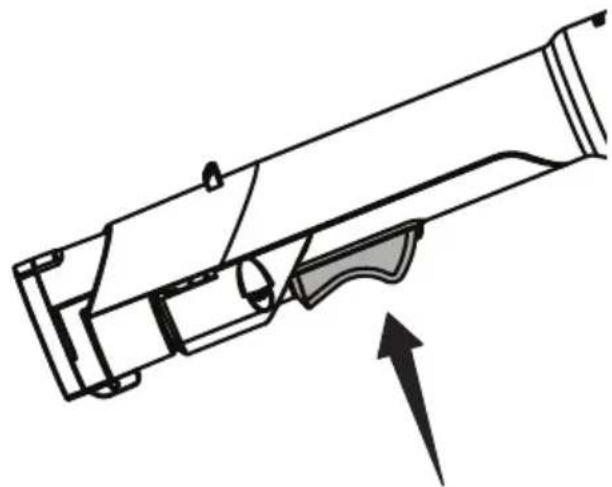

2. Press the power button to turn the spot cleaner on and hold the spray trigger for 30 seconds. The clean water will rush through the suction hose, effectively cleaning and removing any trapped dirt and debris in the hose which may build up over time. Repeat as needed. Let the machine run for 5-10 seconds before turning off.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

1. Turn off and unplug spot cleaner.

Cleaning the Filter Grill

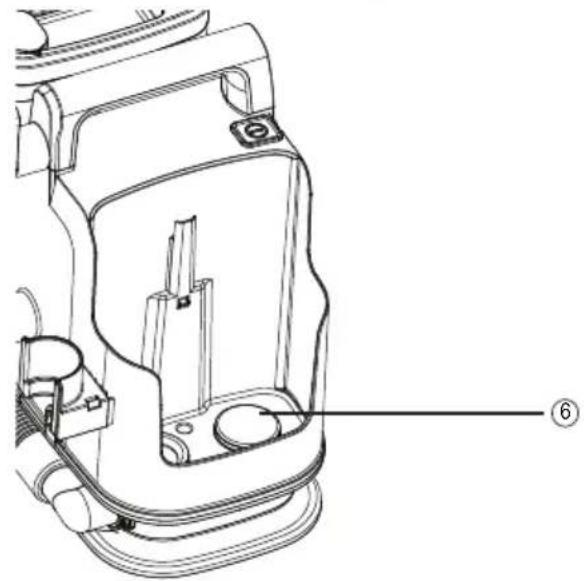

1. Remove the dirty water tank from the side of the unit.
2. Remove any dirt and debris from the filter grill (6) as shown.

Technical line drawing of a mechanical component with labeled parts (no text or symbols present)

Storage

WARNING

Wrapping the power cord too tightly puts stress on the cord and could cause damage. A damaged cord is an electrical shock hazard and could cause personal injury or damage.

1. Replace suction hose and attachments in storage position.
2. Wrap the power cord loosely around the cord hooks. Attach plug retainer clip onto the power cord.
3. Empty the clean water tank (if necessary). Rinse it out before replacing on the unit. Open the clean water tank cap to allow it to air dry.
4. Empty the dirty water tank then rinse, clean and dry before placing back on the unit.
5. Store the spot cleaner in a dry and cool indoor area.

TROUBLESHOOTING

Should you have any problem(s) with your vacuum cleaner, review the table below for solutions to minor performance issues.

WARNING

Disconnect electrical supply before performing maintenance to the spot cleaner. Failure to do so could result in electrical shock or personal injury.

PROBLEM	POSSIBLE CAUSE	SOLUTION
The spot cleaner is not operational.	Unplugged at power outlet. Plug	n firmly to suitable power outlet.
	Defective power outlet.	Check with a good appliance. Be sure the power cord plug is fully plugged into an electrical outlet.
	The motor is damaged.	Have the damaged part checked by qualified personnel or contact the after sales helpline 1-866-384-8432.
Poor pick-up performance.	Dirty water tank is not installed correctly.	Check the dirty water tank for correct installation. Ensure it is installed in place.
	Dirty water tank is full. Empty the	dirty water tank.
	The suction hose is clogged. Clean the hose.
	Float valve is activated. Empty the	dirty water tank.
Water escapes from the spot cleaner.	Dirty water tank is full. Empty the	dirty water tank.
	Dirty water tank is not installed correctly.	Check the dirty water tank for correct installation. Ensure it is installed in place.
	Clean water tank is not installed correctly.	Check the clean water tank for correct installation. Ensure it is installed in place.
No solution spraying out.	Clean water tank is empty. Fill the clean water tank.
	Clean water tank is not installed correctly.	Check the clean water tank for correct installation. Ensure it is installed in place.
Hose nozzle will not spray after filling the clean water tank.	Air is trapped in the pump and hose.	Turn on the spot cleaner. If hose does not spray, prime the pump by lowering the hose down to the floor and hold the trigger for up to 1 minute.
Motor noise becomes high-pitched.	Dirty water tank is full. Empty the	dirty water tank.
	The suction hose is clogged. Clean the hose.
	The float in the dirty water tank has been activated.	Empty and clean the dirty water tank.

TABLA DE CONTENIDO

SECCIÓN

PÁGINA

Technical diagram of a mechanical assembly with hoses and tubing, showing a downward force arrow (no text or symbols present)

Technical line drawing of a mechanical assembly with hoses and connectors (no text or symbols)

Technical line drawing of a mechanical assembly with hoses and components (no text or symbols)

Technical line drawing of a mechanical assembly with hoses and components (no text or symbols)

Technical line drawing of a handheld device with attached hoses and a cylindrical component (no text or symbols)

Technical line drawing of a mechanical device with hoses and connectors (no text or symbols)

Diagram showing a hand operating a device with an arrow indicating upward motion, and a separate view of the device's base with a numbered label.

Line drawing of a four-legged washing machine with a handle and arrow indicating rotation (no text or symbols)

Technical diagram of a water heater system with labeled components and parts

Line drawings of three different kitchen waste bins with a dashed line indicating a transition from the top to the bottom (no text or symbols present)

Illustration of a plug with two doors and arrows indicating direction (no text or symbols)

ADVERTENCIA

Technical line drawing of a mechanical component with a downward arrow indicating a feature (no text or symbols present)

Line drawing of a firearm with an arrow pointing to the handle (no text or symbols present)

Line drawing of a handheld device with directional arrows indicating movement or force (no text or symbols)

Technical diagram showing a mechanical device with labeled components and directional arrow indicating movement or assembly.

Line drawing of a cylindrical container with a lid and arrow indicating rotation (no text or symbols)

Line drawing of a hand holding a smartphone with a curved arrow indicating rotation (no text or symbols)

Line drawing of three different cylindrical containers with internal components, showing a step-by-step assembly and rotation arrow (no text or symbols)

Line drawing of a mechanical device with a downward arrow indicating motion or force (no text or symbols)

ADVERTENCIA

Line drawing of a firearm with arrows indicating movement or force direction (no text or symbols)

Diagram showing a device with labeled parts and directional arrows indicating motion or assembly steps.

Technical line drawing of a firearm with internal components and an arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device interior with labeled component (6), no readable text or symbols beyond the number and label.

Almacenamiento

ADVERTENCIA

Technical diagram of a mechanical assembly with hoses and tubing, showing a downward force arrow (no text or symbols present)

Technical line drawing of a mechanical assembly with hoses and tubing (no text or symbols)

Technical line drawing of a mechanical assembly with hoses and components, no visible text or symbols

Technical line drawing of a mechanical assembly with hoses and components (no text or symbols)

Technical line drawing showing a device being processed into a cylindrical component, with no visible text or symbols.

Technical line drawing of a mechanical device with hoses and connectors (no text or symbols)

Diagram showing a hand operating a device with an arrow indicating upward motion, alongside a close-up of the device's base structure.

Line drawing of a portable washing machine with a scroll wheel and mounting feet (no text or symbols)

Technical diagram of a water heater system with labeled components and parts

Three line drawings of industrial waste bins with a dashed line indicating a transition from a plastic lid to a closed lid, showing no text or symbols.

Technical line drawing of a mechanical device with hoses and connectors (no text or symbols)

Illustration of a plug plugged into a socket with arrows indicating direction (no text or symbols)

AVERTISSEMENT

Technical line drawing of a mechanical component with a downward arrow indicating a feature (no text or symbols present)

Line drawing of a firearm with an arrow pointing to the handle (no text or symbols present)

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

Technical diagram showing a mechanical device with an arrow indicating direction and labeled component 4

Line drawing of a cylindrical container with a lid and arrow indicating rotation (no text or symbols)

Line drawing of a hand holding a rectangular object with a curved arrow indicating rotation (no text or symbols)

Three-step diagram showing a device with a lid, open lid, and a closed lid, all without any text or symbols.

Technical line drawing of a mechanical device with no visible text or symbols

AVERTISSEMENT

Line drawing of a firearm with arrows indicating movement or force direction (no text or symbols)

Diagram showing a device being processed from a component, with numbered annotation indicating step 5.

Technical line drawing of a firearm with internal components and an arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device interior with labeled component (6), no readable text or symbols beyond the number and label.

Entreposage

AVERTISSEMENT
