BLANDEMASKINE DW134

Tillykke!

You have chosen a DEWALT Power Tool. Years of experience, thorough product development and innovation make DEWALT one of the most reliable partners for professional Power Tool users.

Table of contents

Technical data en - 1

EC-Declaration of conformity en - 1

Safety instructions en - 2

Package contents en - 3

Description en - 3

Electrical safety en - 3

Mains plug replacement (U.K. & Ireland only) en - 3

Using an extension cable en - 3

Assembly and adjustment en - 4

Instructions for use en - 4

Maintenance en - 4

Guarantee en - 5

Technical data

	DW134
Voltage V 230
(U.K. & Ireland only) V 230/115
Power input	W 710
No-load speed	min ^-1	450
Maximum tool capacity		M14(female thread)
For mixing applications
max. torque	Nm 50
max. basket diameter	mm 140
Recommended mixing capacities	kg	40
	l	50
Weight	kg 3.4
Fuses:
Europe	230 V tools	10 Amperes, mains
U.K. & Ireland	230 V tools	13 Amperes, in plugs

The following symbols are used throughout this manual:

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Denotes risk of electric shock.

Fire hazard.

EC-Declaration of conformity

DW134

DEWALT declares that these Power Tools have been designed in compliance with: 98/37/EEC, 89/336/EEC, 73/23/EEC, EN 50144, EN 55014-2, EN 55014, EN 61000-3-2 & EN 61000-3-3.

For more information, please contact DeWALT at the address below, or refer to the back of the manual.

Level of sound pressure according to 86/188/EEC & 98/37/EEC, measured according to EN 50144:

			DW134
L_pA	(sound pressure)	dB(A)*	87
L_WA	(acoustic power)	dB(A)	100

* at the operator's ear

Take appropriate measures for the protection of hearing if the sound pressure of 85 dB(A) is exceeded.

Weighted root mean square acceleration value according to EN 50144:

	DW134
	< 2.5 m/s ^2

Director Engineering and Product Development Horst Großmann

X. Jopman

When using Power Tools, always observe the safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury. Read the following safety instructions before attempting to operate this product. Keep these instructions in a safe place!

General

1 Keep work area clean

Cluttered areas and benches can cause accidents.

2 Consider work area environment

Do not expose Power Tools to humidity. Keep work area well lit. Do not use Power Tools in the presence of flammable liquids or gases.

3 Guard against electric shock

Prevent body contact with earthed surfaces (e.g. pipes, radiators, cookers and refrigerators). For use under extreme conditions (e.g. high humidity, when metal swarf is being produced, etc.) electric safety can be improved by inserting an isolating transformer or a (FI) earth-leakage circuit-breaker.

4 Keep children away

Do not let children come into contact with the tool or extension cord. Supervision is required for those under 16 years of age.

5 Extension cords for outdoor use

When the tool is used outdoors, always use extension cords intended for outdoor use and marked accordingly.

6 Store idle tools

When not in use, Power Tools must be stored in a dry place and locked up securely, out of reach of children.

7 Dress properly

Do not wear loose clothing or jewellery. They can be caught in moving parts. Preferably wear rubber gloves and non-slip footwear when working outdoors. Wear protective hair covering to keep long hair out of the way.

8 Wear safety goggles

Also use a face or dust mask in case the operations produce dust or flying particles.

9 Beware of maximum sound pressure

Take appropriate measures for the protection of hearing if the sound pressure of 85 dB(A) is exceeded.

10 Secure workpiece

Use clamps or a vice to hold the workpiece. It is safer and it frees both hands to operate the tool.

11 Do not overreach

Keep proper footing and balance at all times.

12 Avoid unintentional starting

Do not carry the plugged-in tool with a finger on the switch. Be sure that the switch is released when plugging in.

13 Stay alert

Watch what you are doing. Use common sense. Do not operate the tool when you are tired.

14 Disconnect tool

Shut off power and wait for the tool to come to a complete standstill before leaving it unattended. Unplug the tool when not in use, before servicing or changing accessories.

15 Remove adjusting keys and wrenches

Always check that adjusting keys and wrenches are removed from the tool before operating the tool.

16 Use appropriate tool

The intended use is described in this instruction manual. Do not force small tools or attachments to do the job of a heavy-duty tool. The tool will do the job better and safer at the rate for which it was intended.

Warning! The use of any accessory or attachment or performance of any operation with this tool, other than those recommended in this instruction manual may present a risk of personal injury.

17 Do not abuse cord

Never carry the tool by its cord or pull it to disconnect from the socket. Keep the cord away from heat, oil and sharp edges.

18 Maintain tools with care

Keep the tools in good condition and clean for better and safer performance. Follow the instructions for maintenance and changing accessories. Inspect the tool cords at regular intervals and, if damaged, have them repaired by an authorized DEWALT repair agent. Inspect the extension cords periodically and replace them if damaged. Keep all controls dry, clean and free from oil and grease.

19 Check for damaged parts

Before using the tool, carefully check it for damage to ensure that it will operate properly and perform its intended function.

Check for misalignment and seizure of moving parts, breakage of parts and any other conditions that may affect its operation. Have damaged guards or other defective parts repaired or replaced as instructed. Do not use the tool if the switch is defective. Have the switch replaced by an authorized DEWALT repair agent.

20 Have your tool repaired by an authorized DEWALT repair agent

This Power Tool is in accordance with the relevant safety regulations. To avoid danger, electric appliances must only be repaired by qualified technicians.

Package contents

The package contains:

1 Mixer
1 Side handle
1 Spade handle
1 Tool holder 5/8" x M14, female thread
1 Instruction manual
1 Exploded drawing

- Check for damage to the tool, parts or accessories which may have occurred during transport.

- Take the time to thoroughly read and understand this manual prior to operation.

Description (fig. A)

Your professional DEWALT mixer DW134 has been designed for heavy duty mixing of low-viscous media, including paints, varnish; gypsiferous materials; adhesive and high-viscous materials, including glue, mortar, etc.

1 On/off switch
2 Tool holder
3 Side handle
4 Spade handle
5 Mixer basket (not included)

Electrical safety

The electric motor has been designed for one voltage only. Always check that the power supply corresponds to the voltage on the rating plate.

Your DEWALT tool is double insulated in accordance with EN 50144; therefore no earth wire is required.

Mains plug replacement (U.K. & Ireland only)

• Should your mains plug need replacing and you are competent to do this, proceed as instructed below. If you are in doubt, contact an authorized DeWALT repair agent or a qualified electrician.
• Disconnect the plug from the supply.
• Cut off the plug and dispose of it safely; a plug with bared copper conductors is dangerous if engaged in a live socket outlet.
• Only fit 13 Amperes BS1363A approved plugs fitted with the correctly rated fuse (1).

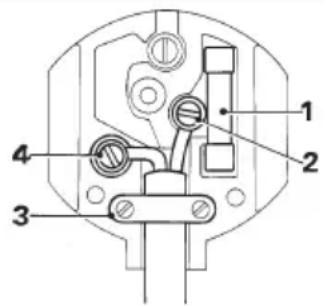

• The cable wire colours, or a letter, will be marked at the connection points of most good quality plugs. Attach the wires to their respective points in the plug (see below). Brown is for Live (L) (2) and Blue is for Neutral (N) (4).
• Before replacing the top cover of the mains plug ensure that the cable restraint (3) is holding the outer sheath of the cable firmly and that the two leads are correctly fixed at the terminal screws.

Technical diagram of a mechanical switch or socket with numbered parts labeled 1, 2, 3, and 4.

Never use a light socket.

Never connect the live (L) or neutral (N) wires to the earth pin marked E or 12

For 115 V units with a power rating exceeding 1500 W, we recommend to fit a plug to BS4343 standard.

Using an extension cable

If an extension cable is required, use an approved extension cable suitable for the power input of this tool (see technical data). The minimum conductor size is 1.5 mm^2 . When using a cable reel, always unwind the cable completely. Also refer to the table below.

Conductor size (mm ^2 ) Cable rating (Amperes)

0.75 6

1.00 10

1.50 15

2.50 20

4.00 25

Cable length (m)
				7.5 15 25 30 45 60
Voltage Amperes Cable rating (Amperes)
1	1	5	0	-	2	.	0	6	6	6
		2.1	-	3.4	6	6	6	6	15	15
		3.5	-	5.0	6	6	10	15	20	20
		5.1	-	7.0	10	10	15	20	20	25
		7.1	-	12.0	15	15	20	25	25	-
		12.1	-	20.0	20	20	25	-	-	-
230		0	-	2.0	6	6	6	6	6	6
		2.1	-	3.4	6	6	6	6	6	6
		3.5	-	5.0	6	6	6	6	10	15
		5.1	-	7.0	10	10	10	10	15	15
		7.1	-	12.0	15	15	15	15	20	20
		12.1	-	20.0	20	20	20	20	20	25

Assembly and adjustment

Prior to assembly and adjustment always unplug the tool.

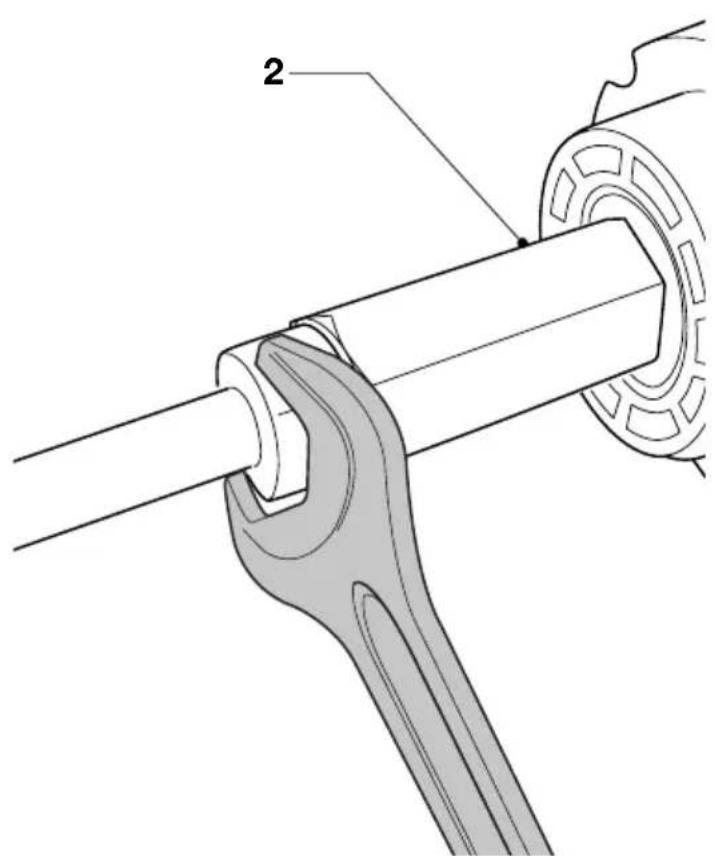

Fitting a mixer basket (fig. A & B)

• Turn the mixer basket (5) into the tool holder (2) (fig. A).
• Once the basket has been fully turned into the holder, tighten securely using an open-end spanner (not included) (fig. B).

Fitting the side handle (fig. A)

- Screw the side handle (3) into one of the corresponding holes in the tool.

Use the side handle whenever possible.

Fitting the spade handle (fig. A)

- Screw the spade handle (4) into the corresponding hole on the back of the tool. Note that the spade handle can be mounted in two different positions.

Use the spade handle whenever possible.

Instructions for use

Always observe the safety instructions and applicable regulations.

Switching on and off (A)

• To run the tool, press the on/off-switch (1).
• To stop the tool, release the switch.

• Do not use this tool to mix or pump easily combustible or explosive fluids (benzine, alcohol, etc.).
• Do not mix or stir inflammable liquids labelled accordingly.

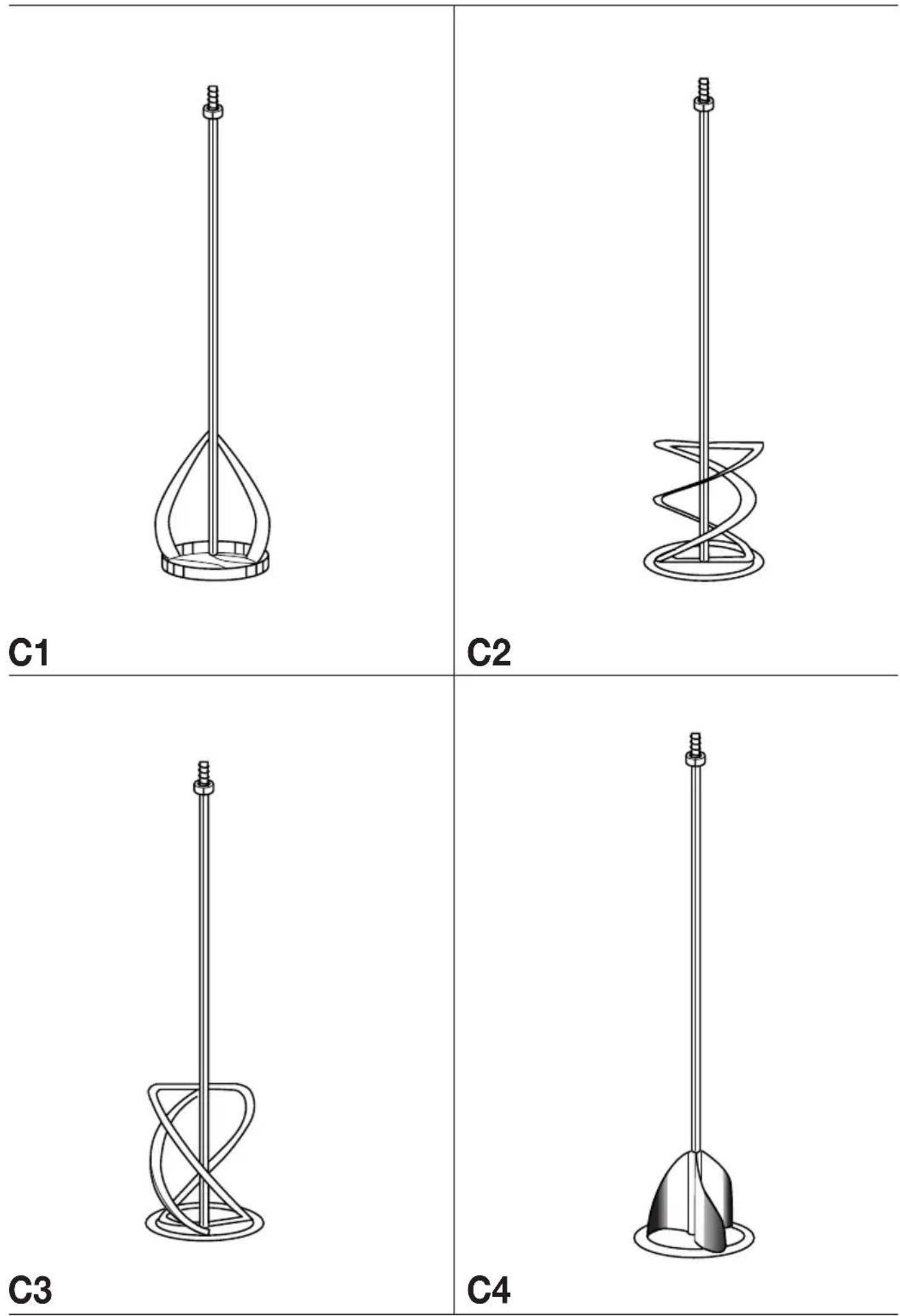

Selecting the appropriate mixer basket (fig. C1 - C4)

Refer to the table below for the appropriate mixer basket to be used.

Round basket (fig. C1)

For low-viscous media, incl. inside and outside wallpaints, lacquers, zinkdust paints, dispersion paints, mineral paints, silicate paints, cement paints, rust-proof paints, chemicals, concrete sludge.

Spiral basket (fig. C2)

For high-viscous materials, incl. ready-mix mortar and plaster, gypsum, plaster of Paris, chalk, concrete, adhesives for ceramic and plastic tile, plastic fillers, paste, granulates, quartz-epoxy resins.

Mortar basket (fig. C3)

For high-viscous materials, incl. ready-mix plaster, chalk, lime, cement, mortar, joint fillers, insulation plasters, quartz-epoxy resins.

Mixer baskets of plastic material (fig. C4)

For low-viscous media, incl. paints of all kinds, wallpaper adhesives, chemicals, acids, dissolving liquids, liquid fertilizer, pest sprays, animal feeds.

Consult your dealer for further information on the appropriate accessories.

Maintenance

Your DEWALT Power Tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

Lubrication

Your power tool requires no additional lubrication.

Cleaning

Keep the ventilation slots clear and regularly clean the housing with a soft cloth.

Unwanted tools and the environment

Take your tool to an authorized DEWALT repair agent where it will be disposed of in an environmentally safe way.

GUARANTEE

- 30 DAY NO RISK SATISFACTION GUARANTEE If you are not completely satisfied with the performance of your DEWALT tool, simply return it within 30 days, complete as purchased, to the point of purchase, for a full refund or exchange. Proof of purchase must be produced.

• ONE YEAR FREE SERVICE CONTRACT •

If you need maintenance or service for your DEWALT tool, in the 12 months following purchase, it will be undertaken free of charge at an authorized DEWALT repair agent. Proof of purchase must be produced. Includes labour and spare parts for Power Tools. Excludes accessories.

• ONE YEAR FULL WARRANTY •

If your DEWALT product becomes defective due to faulty materials or workmanship within 12 months from the date of purchase, we guarantee to replace all defective parts free of charge or, at our discretion, replace the unit free of charge provided that:

• The product has not been misused.
• Repairs have not been attempted by unauthorized persons.
• Proof of purchase date is produced. This guarantee is offered as an extra benefit and is additional to consumers statutory rights.

For the location of your nearest authorized DEWALT repair agent, please use the appropriate telephone number on the back of this manual. Alternatively, a list of authorized DEWALT repair agents and full details on our after-sales service are available on the Internet at www.2helpU.com.
