Technical data

	DE6255
Joint size mm 8
Max. workpiece thickness mm 19
Guide bush size mm 11
Weight kg 1.3

The following symbols are used throughout this manual:

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Manufacturer's declaration

DE6255

DEWALT declares that this unit has been designed in compliance with 89/392/EEC.

This unit must not be put into service until it was established that the Power Tool to be connected to this unit is in compliance with 89/392/EEC (identified by the CE-marking on the Power Tool).

Director Engineering and Product Development Horst Großmann

X. fopman

Observe the safety regulations in the instruction manual of the Power Tool to be connected to this attachment. Also observe any applicable additional safety rules. Read the following safety instructions before attempting to operate this product. Keep these instructions in a safe place!

General

1 Keep work area clean

Cluttered areas and benches can cause accidents.

2 Keep children away

Do not let children come into contact with the tool or its attachments. Keep all people away from the work area.

3 Dress properly

Do not wear loose clothing or jewellery. They can be caught in moving parts. Preferably wear rubber gloves and non-slip footwear when working outdoors. Wear protective hair covering to keep long hair out of the way.

4 Wear safety goggles

Also use a face or dust mask in case the operations produce dust or flying particles.

5 Beware of maximum sound pressure

Take appropriate measures for the protection of hearing if the sound pressure of 85 dB(A) is exceeded.

6 Stay alert

Watch what you are doing. Use common sense. Do not operate the tool when you are tired.

7 Use appropriate tool

The intended use is laid down in this instruction manual. Do not force small tools or attachments to do the job of a heavy-duty tool. The tool will do the job better and safer at the rate for which it was intended.

Warning! The use of any accessory or attachment or performance of any operation with this tool, other than those recommended in this instruction manual may present a risk of personal injury.

8 Have your Power Tool Attachment repaired by an authorized DEWALT repair agent

Repair of your Power Tool Attachment being a matter of precision and skill, always take it to your DEWALT Authorized Repair Agent.

Package contents

The package contains:

1 Finger jointing template

1 Guide bush 11 mm for DW613, Elu MOF96(E)

1 Guide bush 11 mm for DW620, DW621, DW625, DW626, Elu MOF177(E)

2 M5 screws

2 M6 screws

2 Stop pins

1 Instruction manual

1 Exploded drawing

- Check for damage to the tool, parts or accessories which may have occurred during transport.

• Take the time to thoroughly read and understand this manual prior to operation.

Description

The finger jointing template DE6255 allows you to make professional finger joints using your DE6252 dovetailing attachment and DW613, DW620, DW621, Elu MOF96(E) or Elu MOF177(E) router.

Assembly and adjustment

Also refer to your router manual.

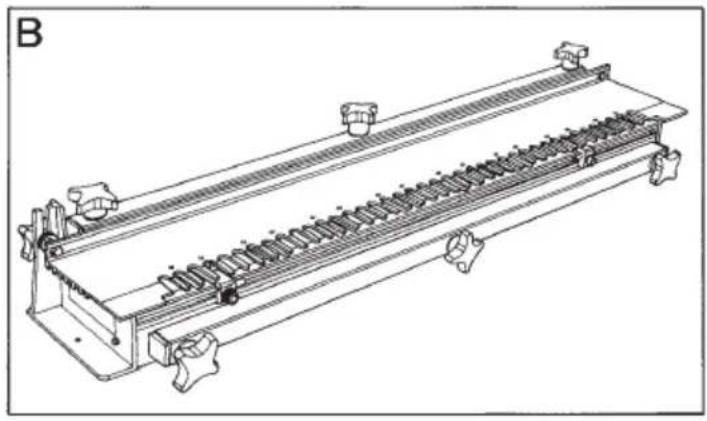

Preparing the dovetailing attachment (fig. A & B)

- Prepare the dovetailing attachment as described in the DE6252 manual.

- Adjust the template as described in the DE6252 manual.

Preparing the router (fig. C1 & C2)

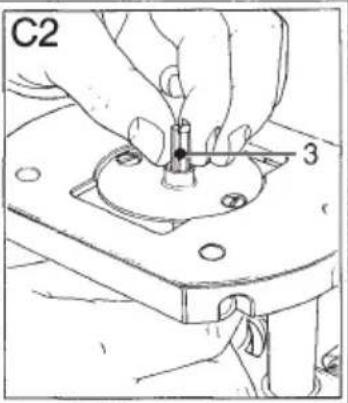

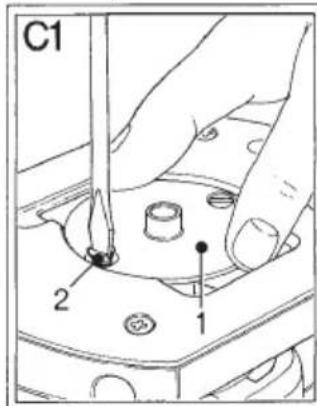

- Fit the guide bush (1) to the router base using the screws (2) as shown.

- Remove the depth stop and replace it with the fine adjuster (DE6956) available as an option.

- Connect the threaded rod of the fine adjuster to the revolver depth stop.

Using the displacement stops (fig. D1 & D2)

When making finger joints, the different parts are routed one at a time in the vertical position.

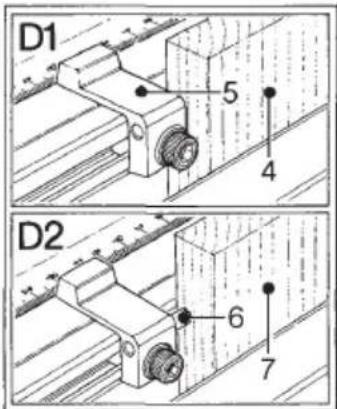

- One part (4) is located directly against the displacement stop (5) (fig. D1).

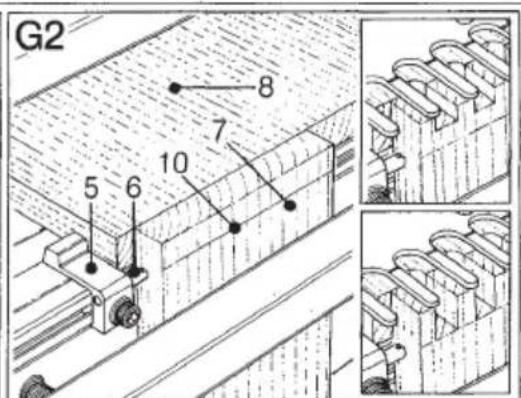

- For the mating part, the 8 mm stop pin (6) is installed onto the stop. Locate the mating part (7) against this pin (fig. D2).

Marking and clamping the workpiece (fig. E1 - E6)

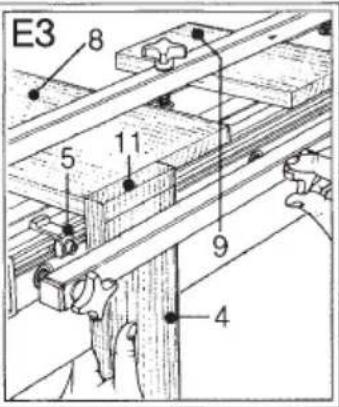

• Slide the displacement stop (5) to a suitable position to obtain the desired slot and finger positions.

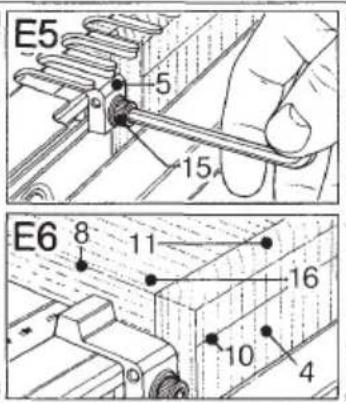

• Tighten the screw (15) (fig. E5).

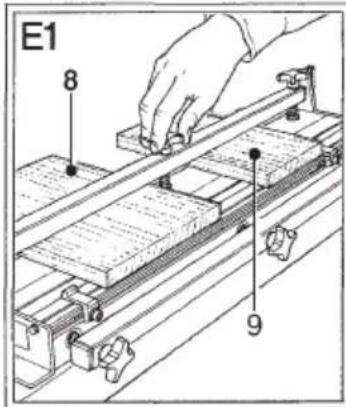

• To avoid chipping, clamp a piece of scrap wood (8) in horizontal position behind the workpiece. The wood should be at least 22 mm thick and 25 mm wider than the workpiece.
• If the workpiece is mounted only on one side of the attachment, use another piece of scrap wood (9) with the same thickness to support the template on the other side.

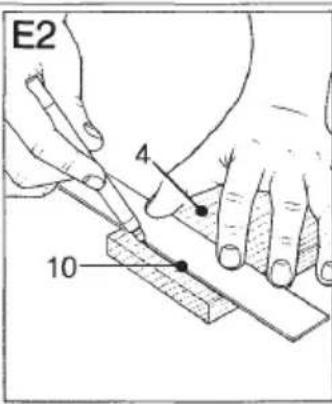

• Draw a marking line on the workpiece at a distance from the top equal to the thickness of the wood (fig. E2).
• Position the workpiece (4) in vertical position against the stop (5) as specified above. The marking line should face to the front. Use a set square to check that the wood in horizontal position is flush with the top of the workpiece.
• Tighten the locking knobs on the dovetailing attachment.
• Place the template on the dovetailing attachment.
• Place the template onto the attachment. Make sure that the adjustment bushes are in front of the lugs and the star knobs behind the lugs (also refer to the dovetailing attachment manual).

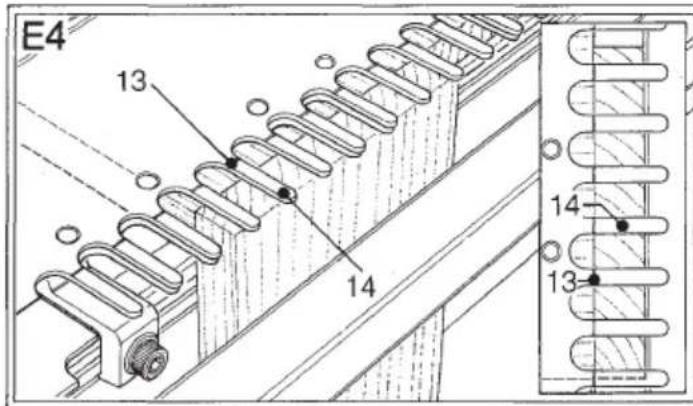

• The border between the vertical and horizontal parts should coincide with the marking line (13) on the template fingers.

To adjust, proceed as follows:

• Slacken the Allen screws in the adjustment bushes using the 2 mm Allen key.
• Slacken the locknut.
• Move the adjustment bushes as required to obtain the correct setting for the template.
• Tighten the locknut.
• Tighten the Allen screws using the 2 mm Allen key.
• Tighten the star knobs.
• For the mating part, do not move the displacement stop. Install the 8 mm stop pin (6) (fig. D2) and proceed as described above.

Mounting and adjusting the cutter (fig. F)

• Completely lower the router carriage and lock it in this position.
• Mount the cutter in the collet as described in the router manual.

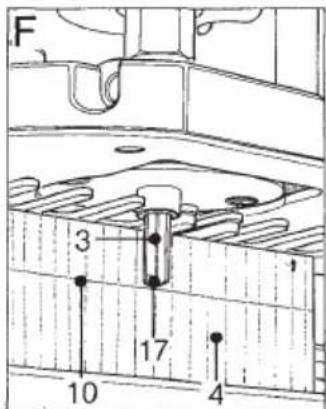

• Use the fine adjuster of the router to set the cutter so that the tip of the cutter just reaches the marking line on the workpiece.

Instructions for use

• Always observe the safety instructions and applicable regulations.
- Also refer to your router manual.

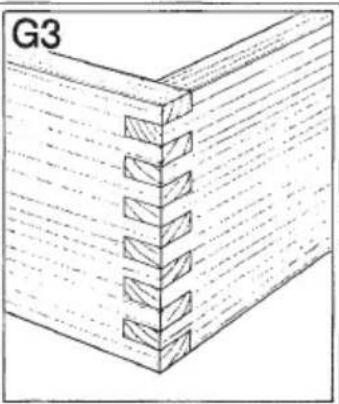

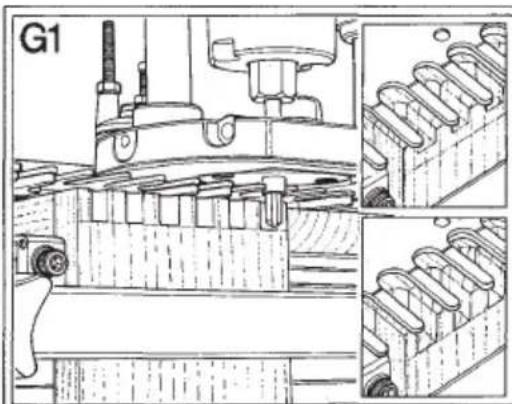

Routing the fingers and slots (fig. G1 - G3)

• Place the router on the fingers of the template.
• Switch the router on.
• Carefully guide the router from right to left along the tops of the fingers.
• Move the router from left to right, inserting it carefully into the fingers until the copying bush is in contact with the edge of the template.

• Never lift the router out of the template; this could result in damage to the template and the cutter.
• When moving the router onto and from the template, make sure that the router is switched off.

Consult your dealer for further information on the appropriate accessories.

Maintenance

Your DEWALT attachment has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

Lubrication

Your attachment requires no additional lubrication.

Unwanted products and the environment

Take your attachment to an authorized DEWALT repair agent where it will be disposed of in an environmentally safe way.

GUARANTEE

• 30 DAY NO RISK SATISFACTION GUARANTEE •

If you are not completely satisfied with the performance of your DEWALT tool, simply return it within 30 days, complete as purchased, to a participating Dealer, or an authorized DEWALT repair agent, for a full refund or exchange. Proof of purchase must be produced.

• ONE YEAR FREE SERVICE CONTRACT •

If you need maintenance or service for your DeWALT tool, in the 12 months following purchase, it will be undertaken free of charge at an authorized DeWALT repair agent. Proof of purchase must be produced. Includes labour and spare parts for the attachments. Excludes accessories.

• ONE YEAR FULL WARRANTY •

If your DEWALT product becomes defective due to faulty materials or workmanship within 12 months from the date of purchase, we guarantee to replace all defective parts free of charge or, at our discretion, replace the unit free of charge provided that:

- The product has not been misused.

• Repairs have not been attempted by unauthorized persons.

- Proof of purchase date is produced. This guarantee is offered as an extra benefit and is additional to consumers statutory rights.

For the location of your nearest authorized DEWALT repair agent, please use the appropriate telephone number on the back of this manual.
