USER MANUAL AMW 6440 FB WHIRLPOOL

THANK YOU FOR BUYING A WHIRLPOOL PRODUCT

In order to receive a more complete assistance, please register your product on www.whirlpool.eu/register

Before using the appliance carefully read the Safety Instruction.

PLEASE SCAN THE QR CODE ON YOUR APPLIANCE IN ORDER TO REACH MORE INFORMATION

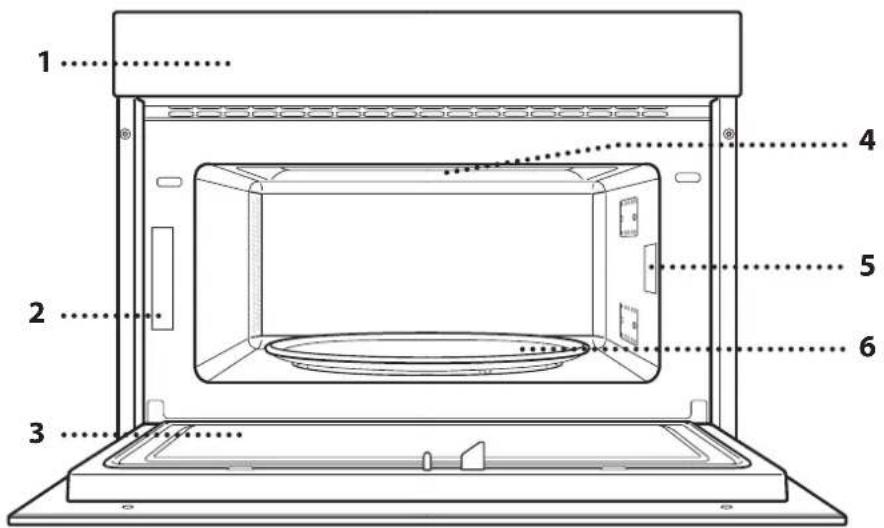

PRODUCT DESCRIPTION

1 2 3 4 5 6

1. Control panel
2. Identification plate (do not remove)
3. Door
4. Upper heating element/grill
5. Light
6. Turntable

CONTROL PANEL DESCRIPTION

1. ON / OFF

For switching the oven on and off and for stopping an active function.

2. MENU / FUNCTIONS DIRECT ACCESS

For quick access to the functions and menu.

3. NAVIGATION BUTTON MINUS

For scrolling through a menu and decreasing the settings or values of a function.

4. BACK

For returning to the previous screen. During cooking, allows settings to be changed.

5. DISPLAY

6. CONFIRM

For confirming a selected function or a set value.

7. NAVIGATION BUTTON PLUS

For scrolling through a menu and increasing the settings or values of a function.

8. OPTIONS / FUNCTIONS DIRECT ACCESS

For quick access to the functions, settings and favorites.

9. START

For starting a function using the specified or basic settings.

ACCESSORIES

TURNTABLE

Placed on its support, the glass turntable can be used with all cooking methods. The turntable must always be used as a base for other containers or accessories.

TURNTABLE SUPPORT

Only use the support for the glass turntable.

Do not rest other accessories on the support.

CRISP PLATE

Only for use with the designated functions. The Crisp plate must always be placed in the centre of the glass turntable and can be preheated when empty, using the

special function for this purpose only. Place the food directly on the Crisp plate.

HANDLE FOR CRISP PLATE

Useful for removing the hot Crisp plate from the oven.

WIRE RACK

This allows you to place food closer to the grill, for perfectly browning your dish.

Place the wire rack on the turntable, making sure that it does not come

into contact with other surfaces.

The number and the type of accessories may vary depending on which model is purchased.

There are a number of accessories available on the market. Before you buy, ensure they are suitable for microwave use and resistant to oven temperatures.

Metallic containers for food or drink should never be used during microwave cooking.

STEAMER

Stacked diagram of a multi-tiered plastic container with lid, showing internal mesh structure (no text or symbols)

To steam foods such as fish or vegetables, place these in the basket (2) and pour drinking

.....2 water (100 ml) into the bottom of the steamer (3) to achieve the right amount of steam.

....3 To boil foods such as potatoes, pasta, rice or cereals, place these directly on the bottom of the steamer (the basket is not

required) and add an appropriate amount of drinking water for the amount you are cooking.

For best results, cover the steamer with the lid (1) provided.

Always place the steamer on the glass turntable and only use it with the appropriate cooking functions, or with microwave function.

The steamer bottom has been designed also to be used in combination with the special Smart clean function.

Other accessories that are not supplied can be purchased separately from the After-sales Service.

Always ensure that foods and accessories do not come into contact with the inside walls of the oven.

Always ensure that the turntable is able to turn freely before starting the oven. Take care not to unseat the turntable whilst inserting or removing other accessories.

FUNCTIONS

6^th SENSE

These functions automatically select the best temperature and cooking method for all types of food.

- 6^th SENSE REHEAT

For reheating ready-made food that is either frozen or at room temperature. The oven automatically calculates the settings required to achieve the best results in the shortest amount of time. Place food on a microwave-safe and heatproof dinner plate or dish. At the end of reheating process, leaving to stand for 1-2 minutes will always improve the result, especially for frozen food.

Do not open the door during this function.

FOOD WEIGHT (g)

DINNER PLATE 250 - 500

Take out from packaging being careful to remove any aluminium foil

SOUP 200 - 800

Heat uncovered in separate bowls

DINNER PLATE-FROZEN 250 - 500

Take out from packaging being careful to remove any aluminium foil

BEVERAGE 100 - 500

Place a heat resistant plastic spoon into a mug or cup to prevent overboiling

LASAGNE FROZEN 250 - 500

Take out from packaging being careful to remove any aluminium foil

- 6^th SENSE COOK

For cooking several kind of dishes and foods and achieving optimal results quickly and easily.

FOOD WEIGHT (g)

BAKED POTATOES 200 - 1000

Brush with oil or melted butter. Cut a cross on top of the potato and pour with source cream and your favourite topping

VEGETABLES 200 - 800

Cut in pieces. Distribute evenly into a microwave safe container

VEGETABLES-FROZEN 200 - 800

Distribute evenly into a microwave safe container

VEGETABLES-CANNED 200 - 600

Distribute evenly into a microwave safe container

POPCORN 100

Always place the bag directly on the glass turntable. Pop only one bag a time

- 6^th SENSE CRISP

For perfectly browning a dish, both on the top and bottom of the food. This function must only be used with the special Crisp plate.

FOOD WEIGHT (g)

THIN PIZZA FROZEN 200 - 600

Take out from packaging being careful to remove any aluminium foil

THICK PIZZA FROZEN 300 - 800

Take out from packaging being careful to remove any aluminium foil

HAMBURGERS 200 - 600

Brush with oil and sprinkle with salt before cooking

CHICKEN WINGS-FROZEN 200 - 500

Distribute evenly in the crisp plate

BREADED STICK-FROZEN 100 - 500

Distribute evenly in the crisp plate

Required accessories: Crisp plate, handle for the Crisp plate

- 6^TH SENSE STEAM

For steam-cooking foods such as vegetables or fish, using the steamer provided. Distribute evenly the food into the steamer basket and and pour drinking water (100 ml) into the bottom of the steamer. The oven automatically calculates the settings required to achieve perfect results. During the initial part of the cooking, microwaves generate steam, bringing the water add into the bottom of the steamer to boil.

FOOD	WEIGHT (g)
ROOTS & TUBERS
VEGETABLES
VEGETABLES-FROZEN	150 - 500
FISH FILLETS
CHICKEN FILLETS
FRUIT

Required accessories: Steamer

6 ^th SENSE RICE & PASTA

To quickly cook rice or pasta. This function must only be used in combination with the steamer.

FOOD PORTIONS	WEIGHT (g)
RICE		↑	100
		↑↑	200
		↑↑↑	300
		↑↑↑↑	400
PASTA		↑	70
		↑↑	140
		↑↑↑	210

Required accessories: Steamer bottom and lid

CRISP

For perfectly browning a dish, both on the top and bottom of the food. This function must only be used with the special Crisp plate.

FOOD DURATION (min.)

Leavened cake 7 - 10

Hamburger 8 - 10 *

* Turn food halfway through cooking.

Required accessories: Crisp plate, handle for the Crisp plate

MICROWAVE

For quickly cooking and reheating food or drinks.

1000	Quickly reheating drinks or other foods with a high water content.
800 Cooking vegetables.
650 Cooking meat and fish.
500	Cooking meaty sauces, or sauces containing cheese or egg. Finishing off meat pies or pasta bakes.
350	Slow, gently cooking. Perfect for melting butter or chocolate.
160	Defrosting frozen foods or softening butter and cheese.

90 Softening ice cream.

ACTION FOOD POWER (W) DURATION (min.)

Reheat 2 cups 1000 1 - 2
Reheat	Mashed potatoes(1 kg)	1000 9 - 11
Defrost	Minced Meat (500 g)	160	13 - 14
Cook	Sponge cake	800	6 - 7
Cook	Egg custard	650	11 - 12
Cook	Meat loaf	800	18 - 20

GRILL

For browning, grilling and gratins. We recommend turning the food during cooking.

FOOD	DURATION (min.)
Toast	5 - 6
Prawns	18 - 22

Recommended accessories: Wire rack

GRILL+MW

For quickly cooking and gratinating dishes, combining the microwave and grill functions.

FOOD	POWER (W) DURATION (min.)
Potatoes gratin	650	20 - 22
Roast chicken	650	40 - 45

Recommended accessories: Wire rack

JET DEFROST

For quickly defrosting various different types of food simply by specifying their weight. Always place the food directly on the glass turntable for best results.

CRISP BREAD DEFROST

This exclusive Whirlpool function allows you to defrost frozen bread. Combining both Defrost and Crisp technologies, your bread will taste and feel as if it were freshly baked. Use this function to quickly defrost and heat frozen rolls, baguettes & croissants. The Crisp Plate must be used in combination with this function.

FOOD	WEIGHT
CRISP BREAD	50 - 800 g
MEAT	100 g - 2.0 kg
POULTRY	100 g - 2.5 kg
FISH	100 g - 1.5 kg
VEGETABLE	100 g - 2.0 kg
BREAD	100 g - 1.0 kg

TIMERS

For editing function time values.

MINUTEMINDER

For keeping time without activating a function.

SMART CLEAN

The action of the steam released during this special cleaning cycle allows dirt and food residues to be removed with ease. Pour a cup of drinking water into the supplied steamer bottom (3) only or on a microwave proof container and activate the function.

Required accessories: Steamer

FAVORITES

For retrieving the list of 10 favorite functions.

SETTINGS

For adjusting the oven settings.

When "ECO" mode is active the brightness of the display will be reduced to save energy and lamp switches off after 1 minute.

When "DEMO" is "On" all commands are active and menus available but the oven doesn't heat up. To deactivate this mode, access "DEMO" from "SETTINGS" menu and select "Off". By selecting "FACTORY RESET", the product switches off and then it returns to first switch on. All settings will be deleted.

FIRST TIME USE

1. SELECT THE LANGUAGE

You will need to set the language and the time when you switch on the appliance for the first time: "English" will show on the display.

English

Press or to scroll through the list of available languages and select the one you require.

Press √ to confirm your selection.

Please note: The language can subsequently be changed by selecting "LANGUAGE" in "SETTINGS" menu, available by pressing 🔒.

2. SET THE TIME

After selecting the language, you will need to set the current time: The two digits for the hour will flash on the display.

12:00 CLOCK

Press or to set the current hour and press: The √ two digits for the minutes will flash on the display.

DAILY USE

1. SELECT A FUNCTION

Press to switch on the oven: the display will show the last running main function or the main menu.

The functions can be selected by pressing the icon for one of the main functions or by scrolling through a menu.

To select a function contained in a menu, press + or — to select the desired one, then press to confirm.

Please note: Once a function has been selected, the display will recommend the most suitable level for each function.

2. SET THE FUNCTION

After having selected the function you require, you can change its settings. The display will show the settings that can be changed in sequence. Pressing ◀ allows you to change the previous setting again.

POWER

[ ] 8:00 MW POWER

When the value flashes on the display, press or to — change it, then press √ to confirm and continue with the settings that follow (if possible).

Press or to set the minutes and press to confirm.

Please note: You may need to set the time again following lengthy power outages. Select "CLOCK" in "SETTINGS" menu, available by pressing 🔒.

3. CLEAN THE OVEN

A new oven may release odours that have been left behind during manufacturing: this is completely normal. Before starting to cook food, we therefore recommend cleaning the oven with it empty in order to remove any possible odours.

Remove any protective cardboard or transparent film from the oven and remove any accessories from inside it.

Activate the "Smart Clean" function. Follow the instructions for setting the function correctly.

Please note: It is advisable to air the room after using the appliance for the first time.

DURATION

[ ] - - : - - 5 DURATION

When the icon flashes on the display, press or + — to set the cooking time you require and then press to confirm.

Please note: You can adjust the cooking time that has been set during cooking by pressing ⚙ : press or to amend it and then press √ to confirm.

In non-microwave functions you do not have to set the cooking time if you want to manage cooking manually (untimed): Press √ or to confirm and start the function.

By selecting this mode, you cannot program a delayed start.

END TIME (START DELAY)

In functions which do not activate the microwave such as "Grill", once you have set a cooking time you can delay starting the function by programming its end time. In microwave functions the end time is equal to the duration. The display shows the end time while the icon flashes.

[ ] 12:50 180°C END TIME

Press √ to set the time you want cooking to end, then press √ to confirm and activate the function. Place the food in the oven and close the door: The function will start automatically after the period of time that has been calculated in order for cooking to finish at the time you have set.

Please note: Programming a delayed cooking start time will disable the oven preheating phase: The oven will reach the temperature you require gradually, meaning that cooking times will be slightly longer than expected. During the waiting time, you can press + or to amend the programmed end time or press ← to change other settings. By pressing ☺ , in order to visualize information, it is possible to switch between end time and duration.

. 6 ^th SENSE

These functions automatically select the best cooking mode, power and duration for all the dishes available. When required, simply indicate the characteristic of food to obtain an optimal result.

WEIGHT / PORTIONS

6 KILOGRAMS Kg L2

To set the function correctly, follow the indications on the display, When prompted, press + or to set the required value then press √ to confirm.

DONENESS

In 6^th Sense functions it is possible to adjust the doneness level.

[ ] 6 DONENESS

When prompted, press or to select the desired level between Light/Low (-1) and Extra/High (+1). Press √ or to confirm and start the function.

3. ACTIVATE THE FUNCTION

At any time, if the default values are those desired or once you have applied the settings you require, press ▶ to activate the function.

Every time the ▶ is pressed again, the cooking time will be increased by a further 30 seconds.

During the delay phase, by pressing ▶ the oven will ask if you want to skip this phase, starting immediately the function.

Please note: At any time you can stop the function that has been activated by pressing Ⓓ.

If the oven is hot and the function requires a specific maximum temperature, a message will be shown on the display. Press ◀ to return to previous screen and select a different function or wait for a complete cooling.

JET START

When the oven is switched off, press ▶ to activate cooking with the microwave function set at full power (1000 W) for 30 seconds.

4. PAUSE COOKING / TURN OR STIR FOOD PAUSE

By opening the door, the cooking will be temporarily paused through deactivating heating elements.

To resume the cooking, close the door and press ▶.

Please note: During "6th Sense" functions open the door only when prompted.

TURN OR STIR FOOD

Some 6 ^th Sense Cook recipes will require the food to turn or stir the food during cooking.

[ ] 100 180°C TURN FOOD

An audible signal will sound and the display shows the action to be done.

Open the door, do the action prompted by the display and close the door, then press ▶ to continue cooking. Please note: When turning or stirring is needed, after 2 minutes, even if no action is performed, the oven will resume the cooking.

5. END OF COOKING

An audible signal will sound and the display will indicate that cooking is complete.

[ ] - -: - ^ END

Press to continue cooking in manual mode adding time in steps of 30 seconds (in microwave functions) or 5 minutes (without microwave) or press + to extend the cooking time by setting a new duration. In both cases, the cooking parameters will be retained.

By pressing √ or the cooking starts again.

.FAVORITES

To make the oven easier to use, it can save up to 10 of your favorite functions.

Once cooking is complete the display will prompt you to save the function in a number between 1 and 10 on your list of favorites.

[ ] - - - - 5 ADD FAVORITE?

If you would like to save a function as a favorite and store the current settings for future use, press √ otherwise, to ignore the request press ↗

Once √ has been pressed, press or to select the number position, then press √ to confirm.

Please note: If the memory is full or the number chosen has already been taken, the oven will ask you to confirm overwriting the previous function.

To call up the functions you have saved at a later time, press ♥: The display will show your list of favorite functions.

6 2. Vegetables

Press or to select the function, confirm by pressing √, and then press to activate.

. SMART CLEAN

Remove all accessories (with the exception of the glass turntable) from the microwave oven before activating the function.

Press ☐ to access the "Smart Clean" function.

0:35\( ^{s} \) Smart clean

Press to activate the cleaning function: the display will prompt in sequence actions to be performed before starting the cleaning. Press √ anytime when done.

When required, pour a cup of drinking water into the supplied steamer bottom or in a microwave resistant container, then close the door.

After the last confirmation, press ▶ to start the cleaning cycle.

Once finished, remove the container, finish the cleaning with the help of a smooth cloth and then dry the oven cavity using a damp microfibre cloth.

. MINUTEMINDER

When the oven is switched off, the display can be used as a timer. To activate this function, make sure that the oven is switched off and press + or :The icon will flash on the display.

Press + or to set the length of time you require and then press √ to activate the timer.

An audible signal will sound and the display will indicate once the minuteminder has finished counting down the selected time.

100 MINUTE-MINDER

Once the minuteminder has been activated, you can also select and activate a function. Press Ⓐ to switch on the oven and then select the function you require.

Once the function has started, the timer will continue to count down independently without interfering with the function itself.

During this phase, it isn't possible to see the minuteminder (only the ⏻ icon will be displayed), that will continue counting down in background. To retrieve the minuteminder screen press Ⓐ to stop the function that is currently active.

. KEYLOCK

To lock the keypad, press and hold for at least five seconds. Do this again to unlock the keypad.

[●] 0:30 180°C KEYLOCK

Please note: This function can also be activated during cooking. For safety reasons, the oven can be switched off at any time by pressing ☐.

CLEANING

Make sure that the appliance has cooled down before carrying out any maintenance or cleaning.

Never use steam cleaning equipment.

Do not use wire wool, abrasive scourers or abrasive/corrosive cleaning agents, as these could damage the surfaces of the appliance.

INTERIOR AND EXTERIOR SURFACES

• Clean the surfaces with a damp microfibre cloth. If they are very dirty, add a few drops of pH-neutral detergent. Finish off with a dry cloth.
• Clean the glass in the door with a suitable liquid detergent.
• At regular intervals, or in case of spills, remove the turntable and its support to clean the bottom of the oven, removing all food residue.
• Activate the "Smart clean" function for an optimum cleaning of the internal surfaces.
• The grill does not need to be cleaned as the intense heat burns away any dirt. Use this function on a regular basis.

ACCESSORIES

All accessories are dishwasher safe with the exception of the Crisp plate.

The Crisp plate should be cleaned using water and a mild detergent. For stubborn dirt, rub gently with a cloth. Always leave the Crisp plate to cool down before cleaning.

TROUBLESHOOTING

Problem Possible cause Solution
The oven is not working.	Power cut.Disconnection from the mains.	Check for the presence of mains electrical power and whether the oven is connected to the electricity supply.Turn off the oven and restart it to see if the fault persists.
The oven makes noises, even when it is switched off.	Cooling fan active.	Open the door or hold or wait until the cooling process has finished.
The display shows the letter “F” followed by a number.	Software fault.	Contact you nearest Client After-sales Service Centre and state the number following the letter “F”.

Policies, standard documentation and additional product information can be found by:

• Using the QR code in your appliance
• Visiting our website docs.whirlpool.eu
• Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate.

MERCI D'AVOIR ACHETÉ UN PRODUIT WHIRLPOOL

Stacked plastic food containers with lids, one partially open showing a mesh grille (no text or symbols visible)

English .1

[ ] 6 OUSSON DESIPE

Stacked plastic food containers with lids, showing interior compartments and storage areas (no text or symbols)

[ ] 800 w POTENZA MW

Illustration of three stacked plastic food containers with lids, no text or symbols present

[ ] 800 W POTENCIA MW

Stacked plastic food containers with lid, showing interior compartments and storage (no text or symbols)

[ ] 8:00 w POTÊNCIA MO

[ ] 6 NIVEL COZEDURA

[\n\n] - -: - -^s\nFIM

Stacked 3D illustrations of a multi-compartment food container with lid and side compartments (no text or symbols)

0:35 s SMART CLEAN

Stacked diagram of a multi-compartment food container with lid, showing interior compartments and storage (no text or symbols)

English .1

[ ] 8:00 MIKROVLNNY VYKON

6 KILOGRAMY Kg Li²⁺

[■■■] - - : - -^s KONEC

3D illustration of a multi-tiered plastic food container with lid, showing interior compartments and storage (no text or symbols)

[ ] 8:00 MW POWER

[ ] 6" DONENESS

[ ] 100 180°C TURN FOOD

SISE- JA VÄLISPINNAD

Stacked diagram of a multi-tiered plastic waste container with lid and mesh inside (no text or symbols)

ÓRA 12:00

Stacked 3D illustrations of a food storage container with open lid and mesh inside (no text or symbols)

LK TENI 12:00

[ ] 6 GATAVĪBA

Stacked 3D illustrations of a food storage container with lid, showing internal compartments and mesh patterns (no text or symbols)

12:00 clock

[ ] 800_w MW POWER

3. IŠVALYKITE KROSNELE

[ ] 6 DONENESS

[ ] 100 180°C TURN FOOD

3D illustration of a multi-tiered plastic food container with lid, showing interior compartments and storage (no text or symbols)

English .1

[MOC M] 800 w

KONIEC (OPÓŻNIONY START)

[KONIEC] 12:50 180°C

[ ] 6 Y IECZENIE

[■■■] - - : - -^s KONIEC

VĂ MULȚUMIM CĂ AȚI ACHIZIȚIONAT UN PRODUS WHIRLPOOL

3D illustration of a multi-tiered plastic food container with lid, showing interior compartments and storage (no text or symbols)

CEA 12:00

6 2. Leg e

a lean 0:35^s

3D illustration of a multi-tiered plastic food container with lid, showing interior compartments and storage (no text or symbols)

Stacked diagram of a multi-tiered plastic container with lid, showing internal compartments and mesh structure (no text or symbols)

English .1

[ ] 8:00 MIKROVLNNY VYKON

[■■■] - - : - - s KONIEC

[ ] - - - - s PRIDAT K OBL'UB?

3D diagram of a multi-tiered food storage unit with open lid and internal compartments (no text or symbols)

[ ] 800 w MW POWER

[ ] HOO 180°C TURN FOOD

[ ] 6 DONENESS
