USER MANUAL JEHSCU0951CL3 EVI DAIKIN

J&E Hall International for DAIKIN

Installation Manual

Operation Manual

(Original Instruction)

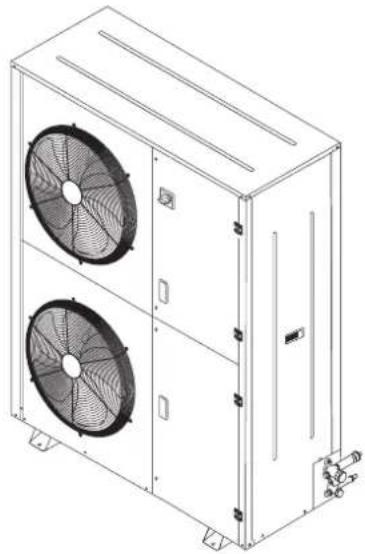

Reciprocating condensing unit for medium temperature application

Series 1

JEHCCU0040CM1

JEHCCU0050CM1

JEHCCU0051CM1

JEHCCU0063CM1

JEHCCU0067CM1

JEHCCU0077CM1

JEHCCU0095CM1

JEHCCU0100CM1

JEHCCU0113CM1

Series 2

JEHCCU0140CM1

JEHCCU0140CM3

JEHCCU0150CM1

JEHCCU0150CM3

JEHCCU0225CM1

JEHCCU0225CM3

JEHCCU0300CM1

JEHCCU0300CM3

Reciprocating condensing unit for low temperature application

Series 1 JEHCCU0115CL1

Scroll condensing unit for medium temperature application

Series 2

JEHSCU0200CM1

JEHSCU0200CM3

JEHSCU0250CM1

JEHSCU0250CM3

JEHSCU0300CM1

JEHSCU0300CM3

JEHSCU0350CM3

Series 3

JEHSCU0400CM3

JEHSCU0500CM3

JEHSCU0600CM3

JEHSCU0680CM3

Series 4

JEHSCU0800CM3

JEHSCU1000CM3

Scroll condensing unit for low temperature application

Series 2 JEHSCU0200CL3 JEHSCU0300CL3

Series 3 JEHSCU0400CL3 JEHSCU0500CL3 JEHSCU0600CL3

Series 4 JEHSCU0750CL3 JEHSCU0950CL3 EVI

Contents

1. Nomenclature 2
2. Safety and Health 2
3. Installation & commissioning 2
4. Decommissioning & Disposal 9
5. Checklist 9
6. Service and Maintenance 9
7. F gas Regulations 10
8. Trouble Shooting 10
9. Specifications 11

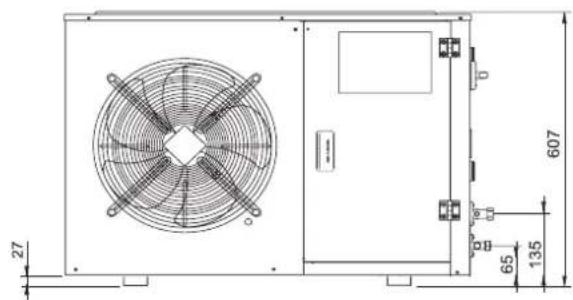

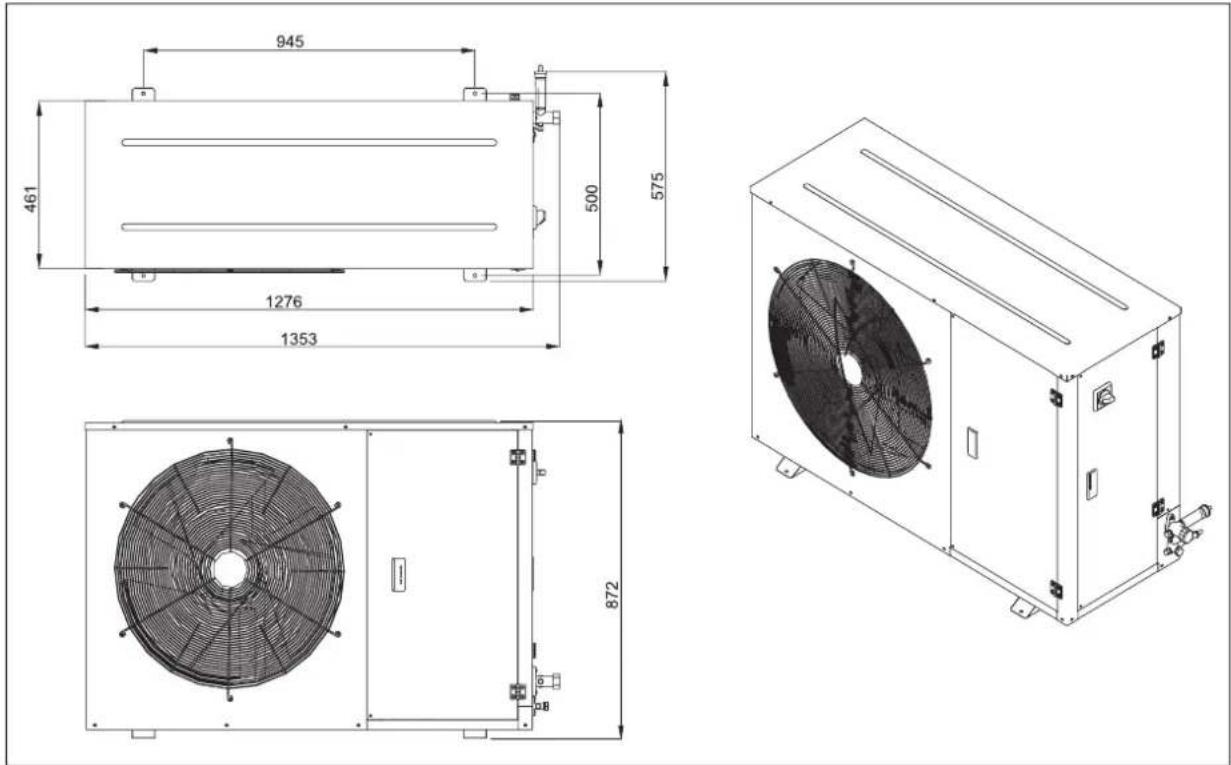

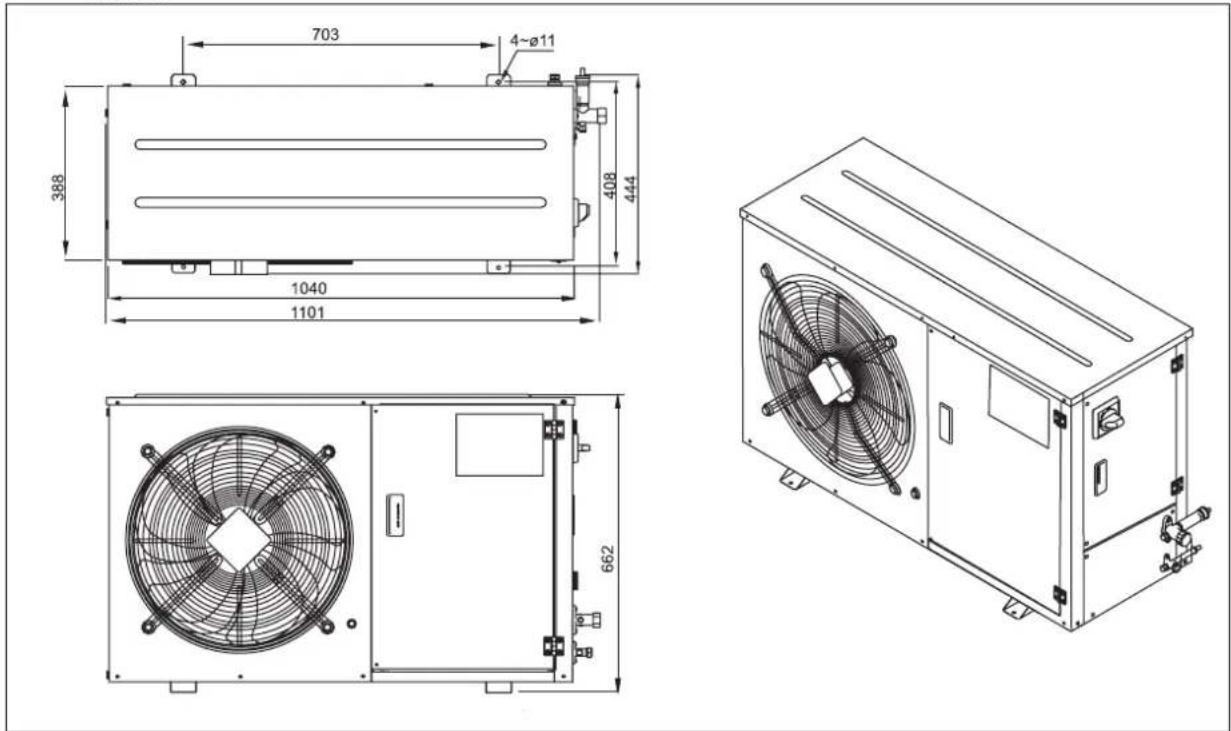

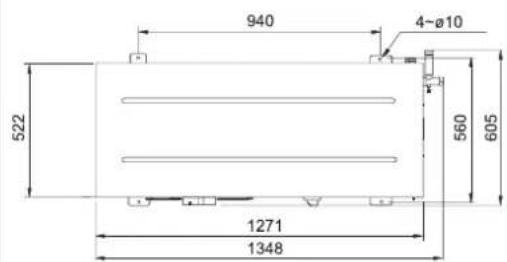

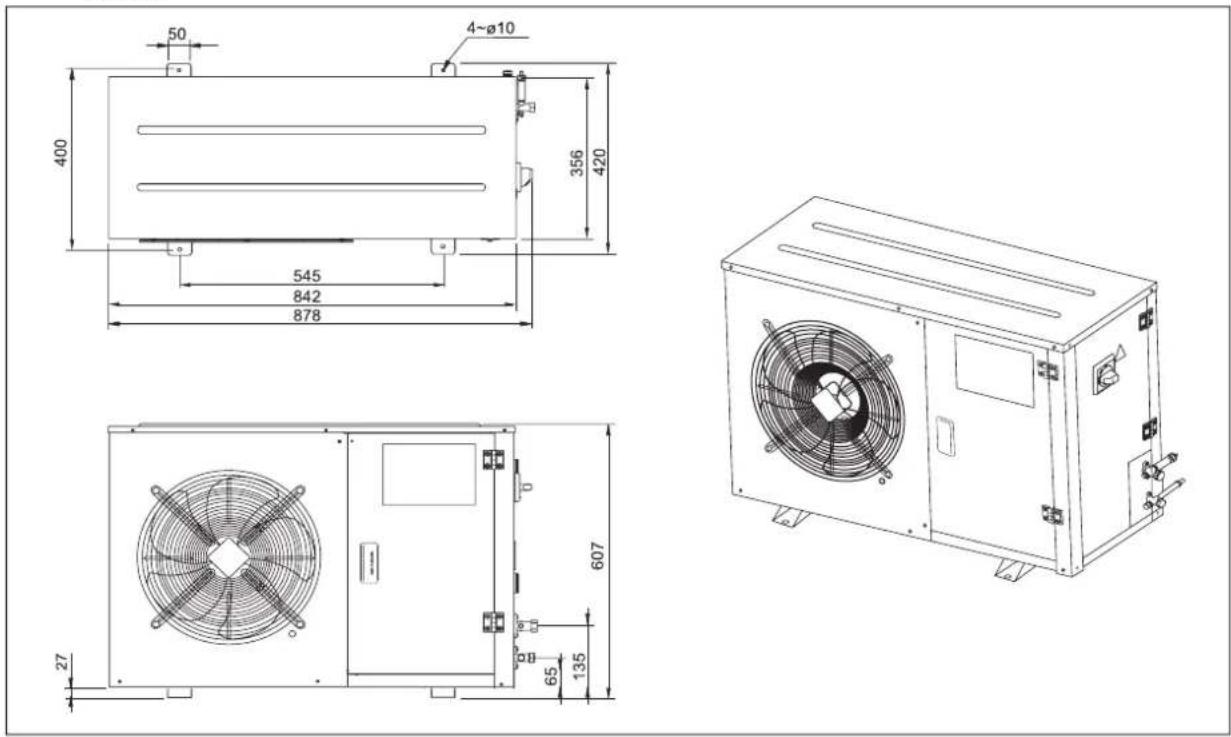

10. Outline Drawings 13

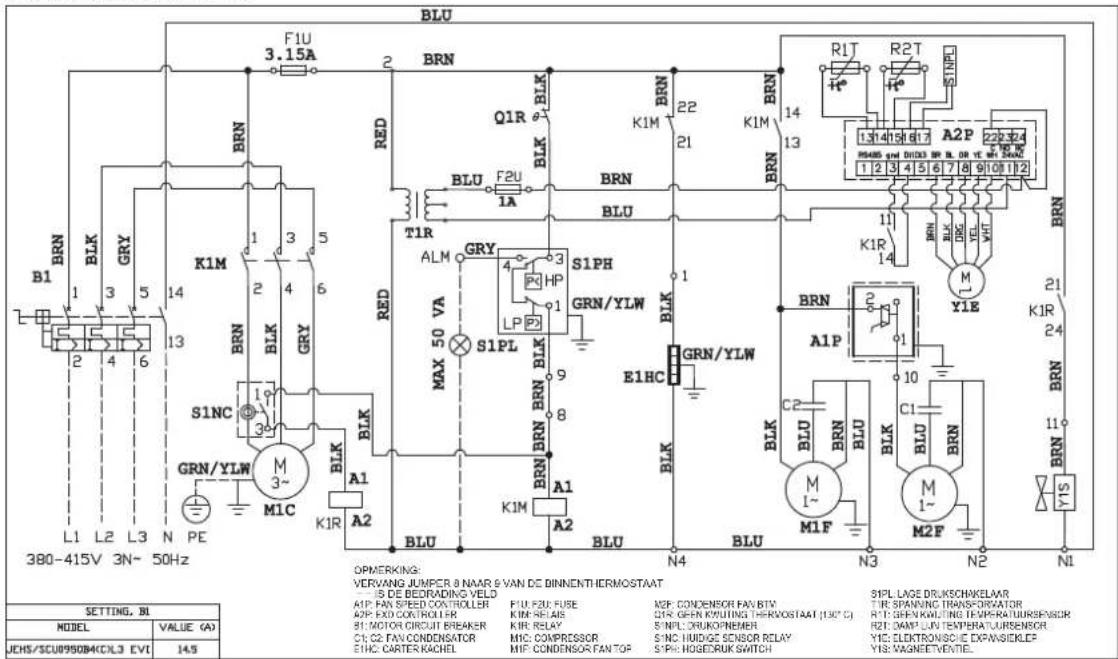

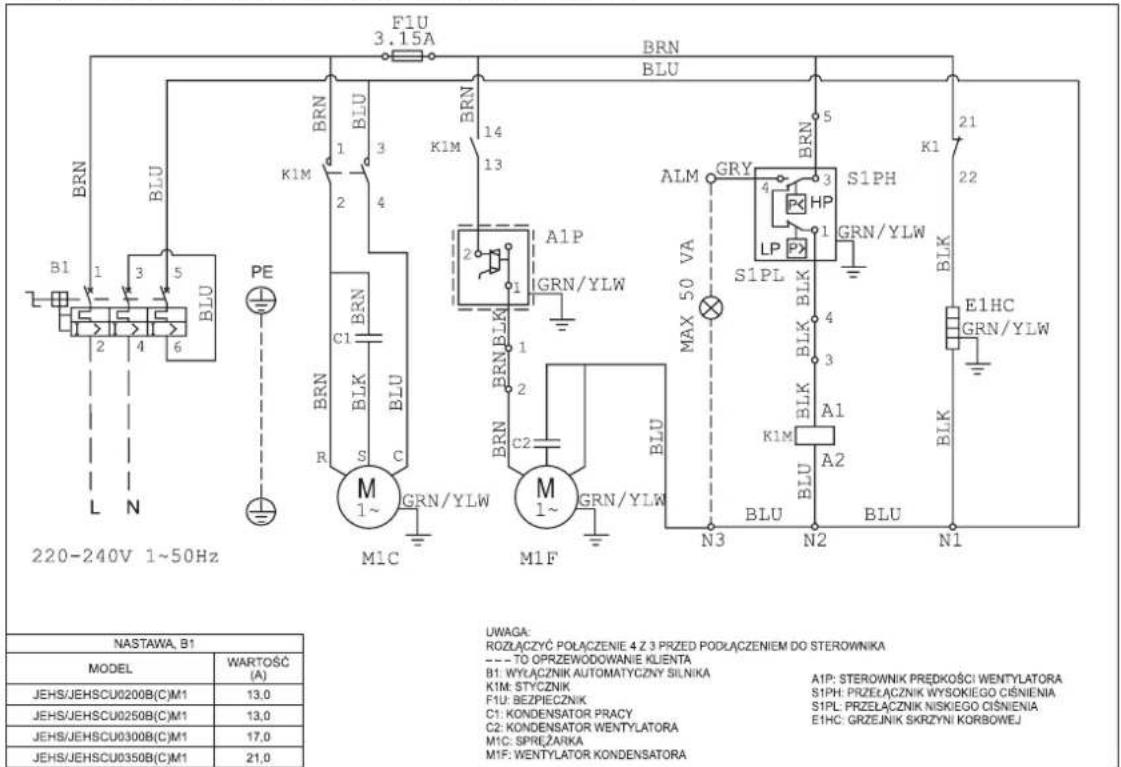

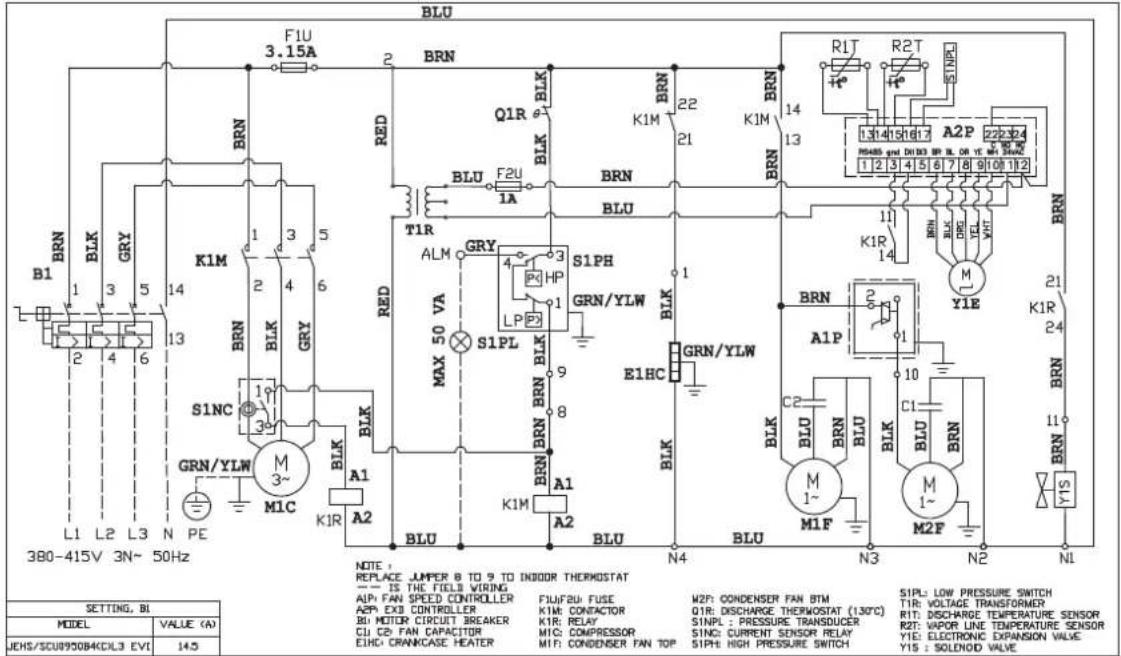

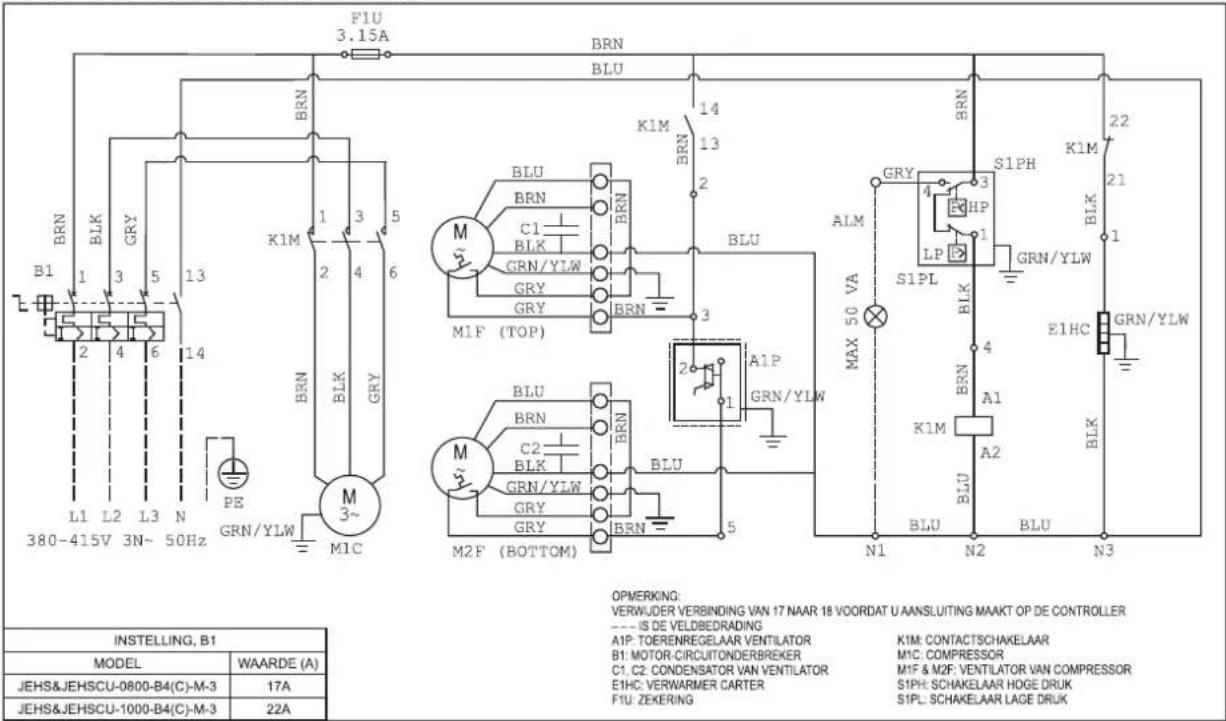

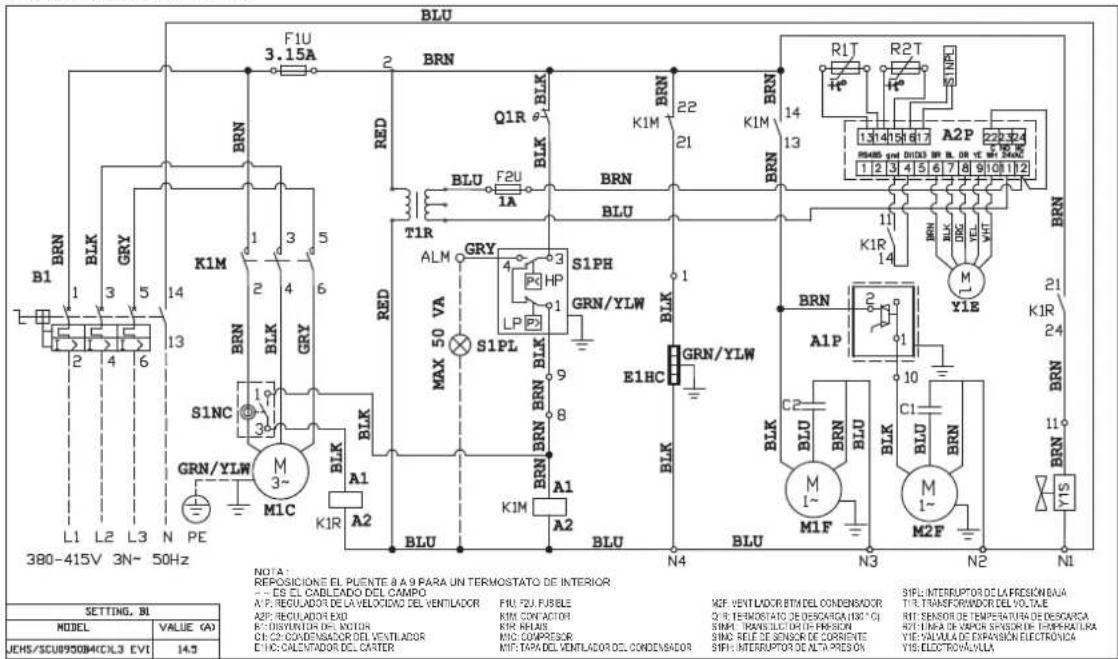

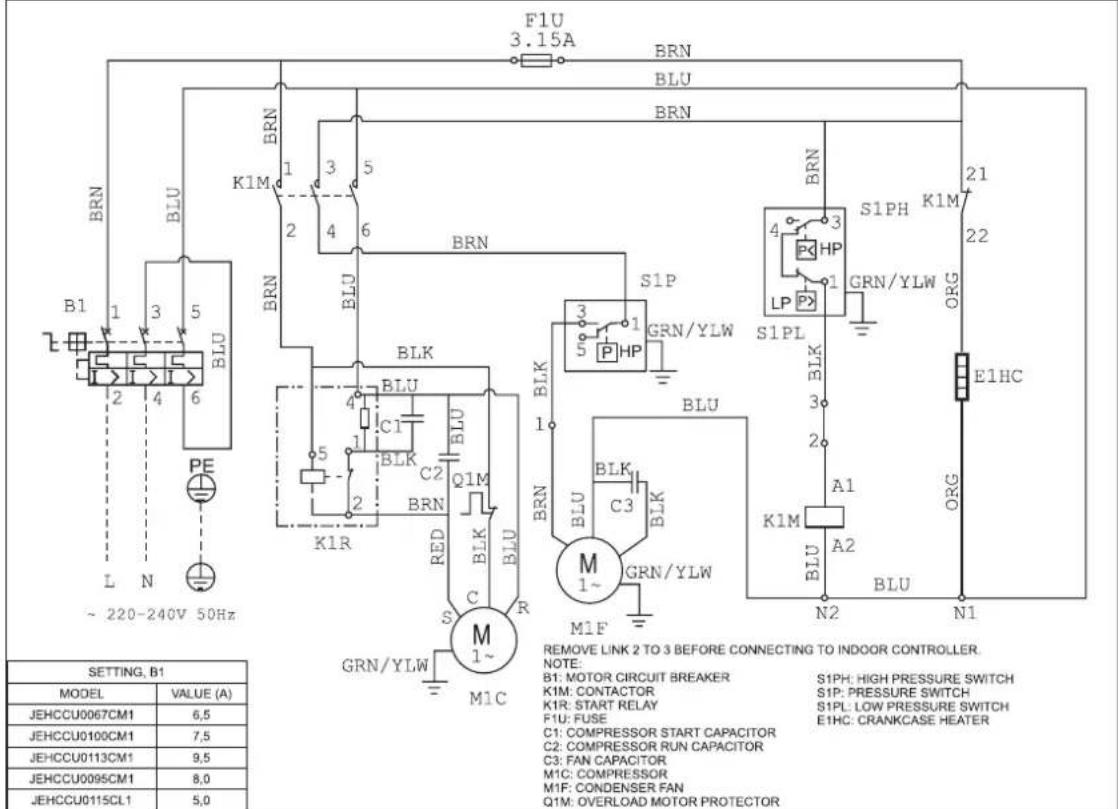

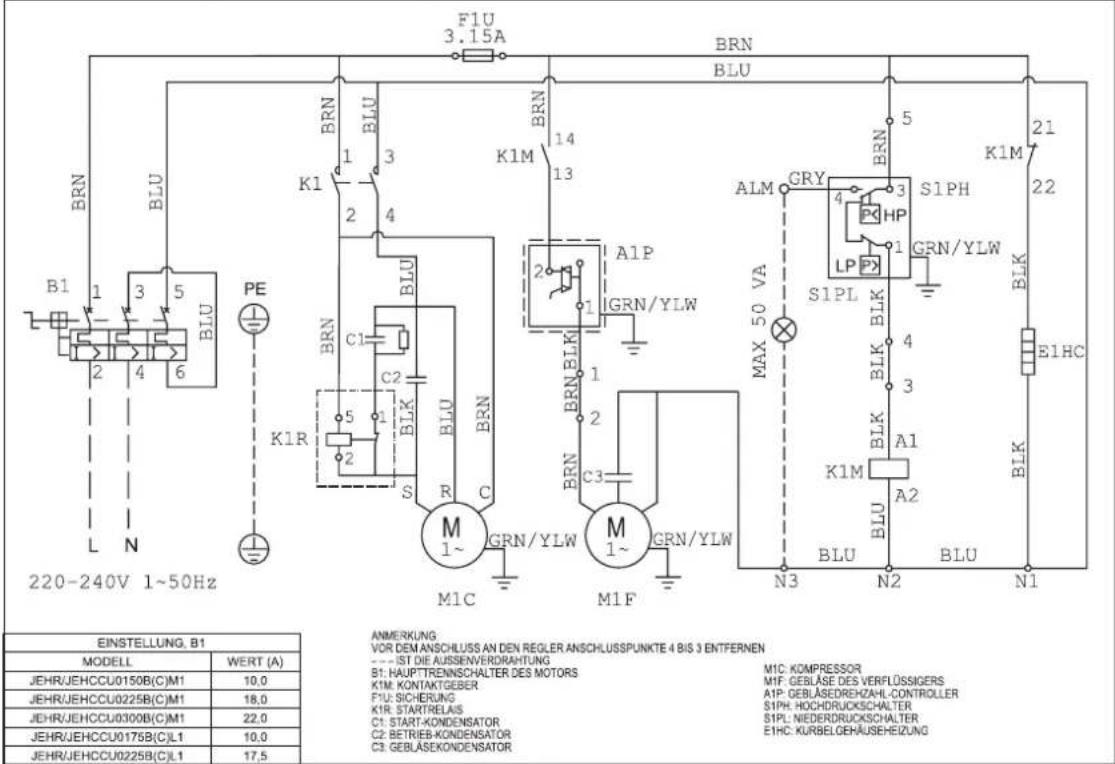

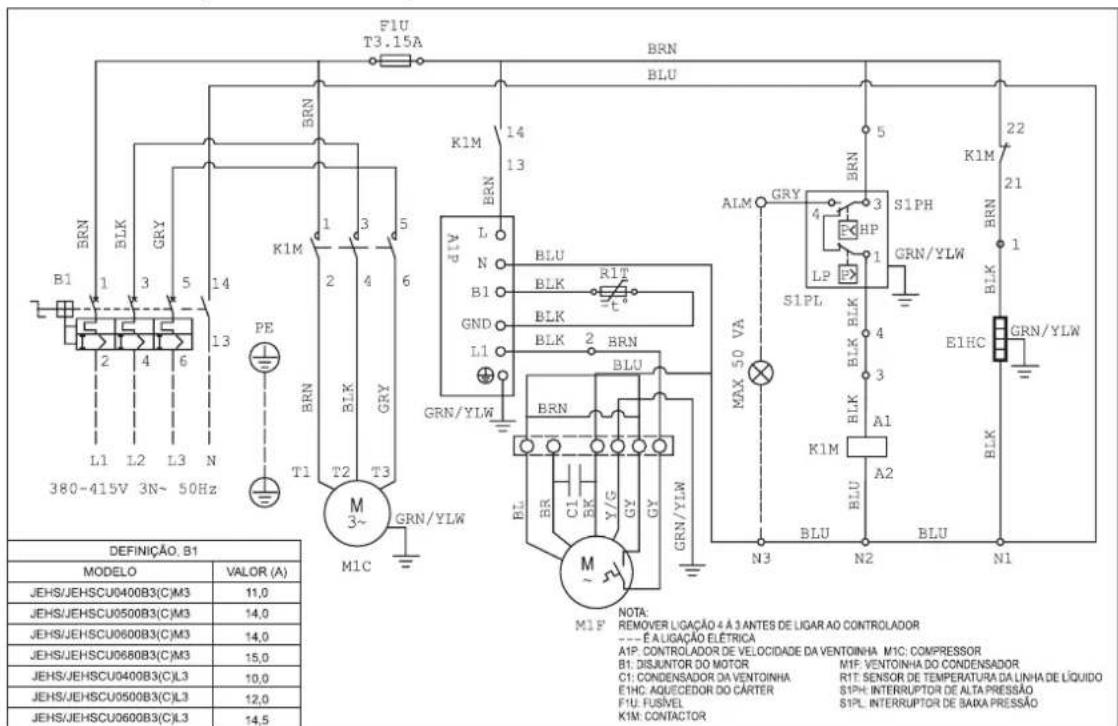

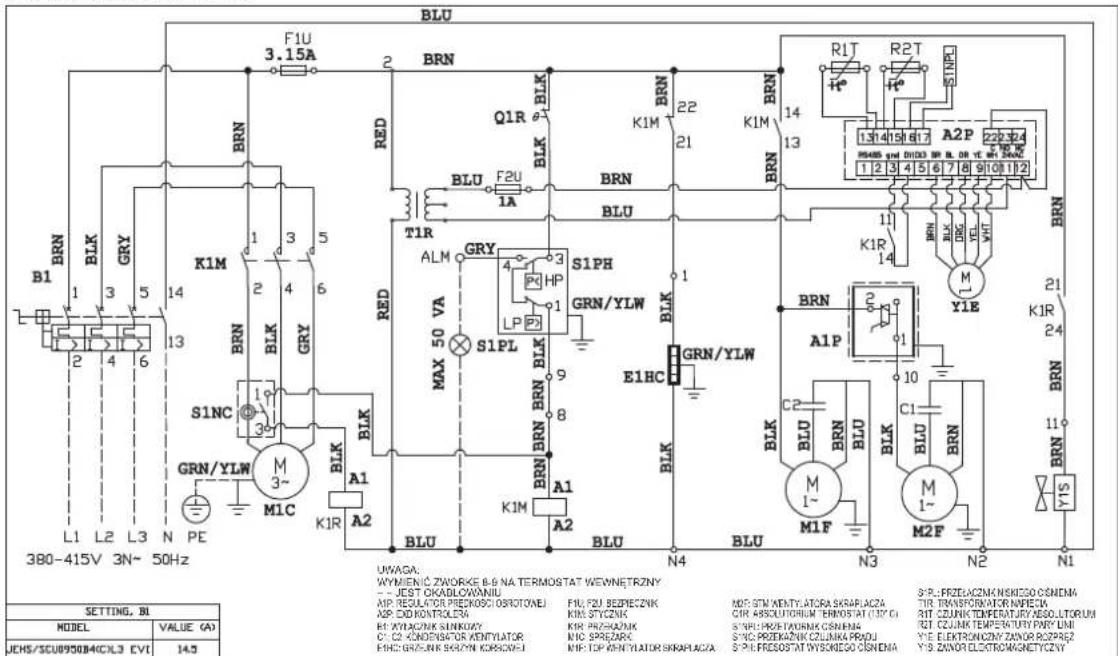

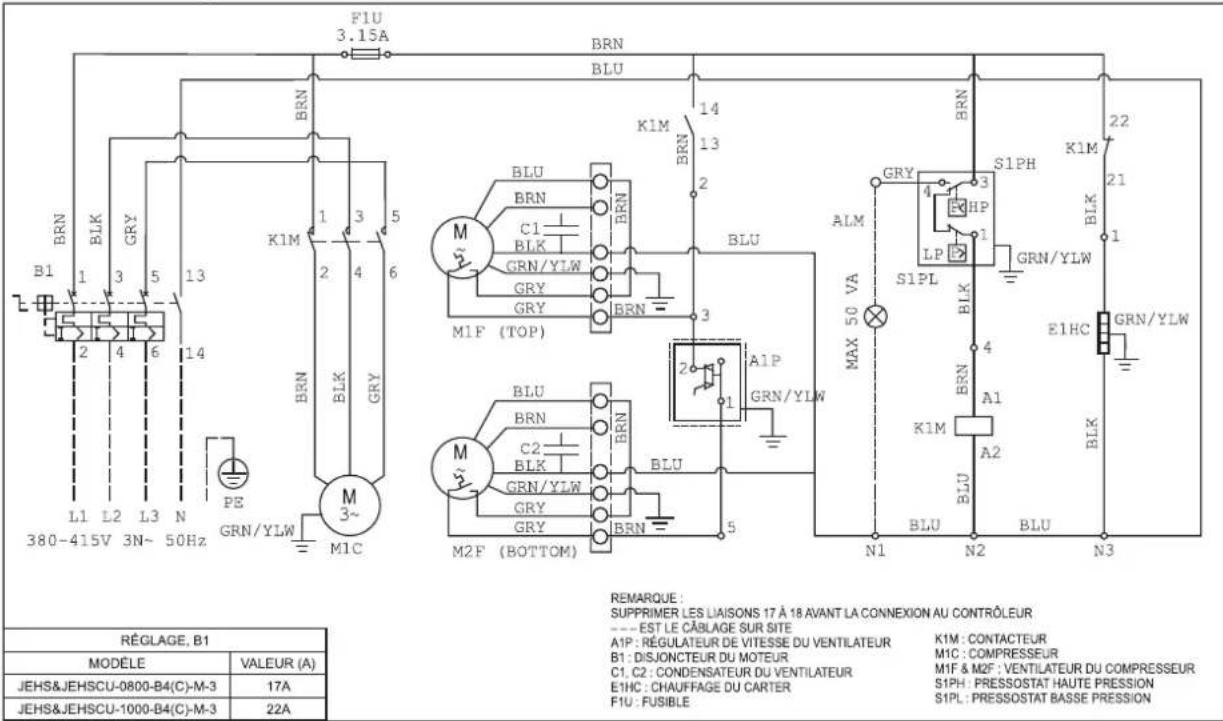

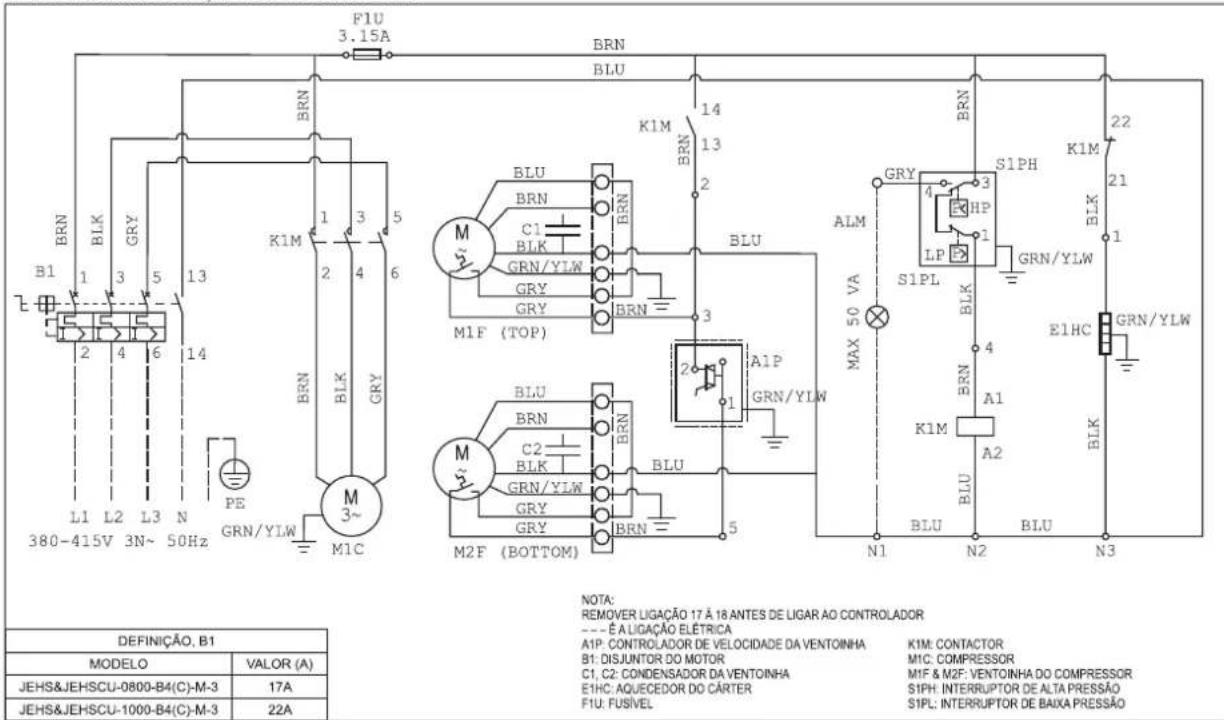

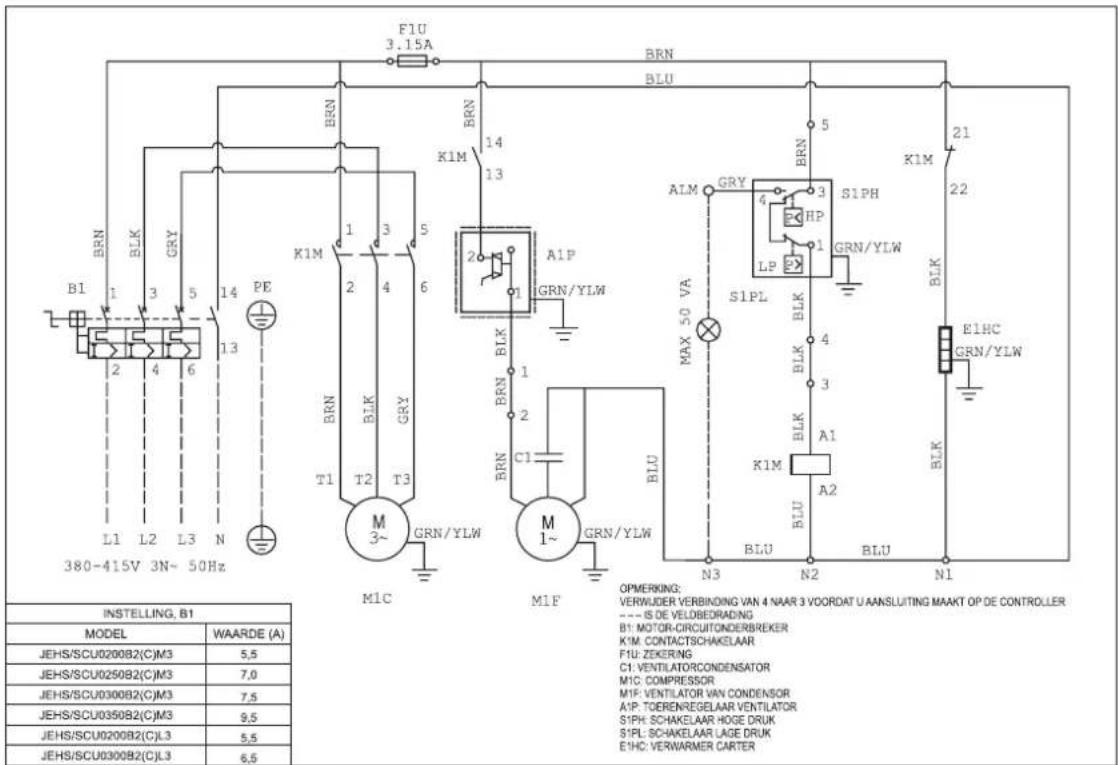

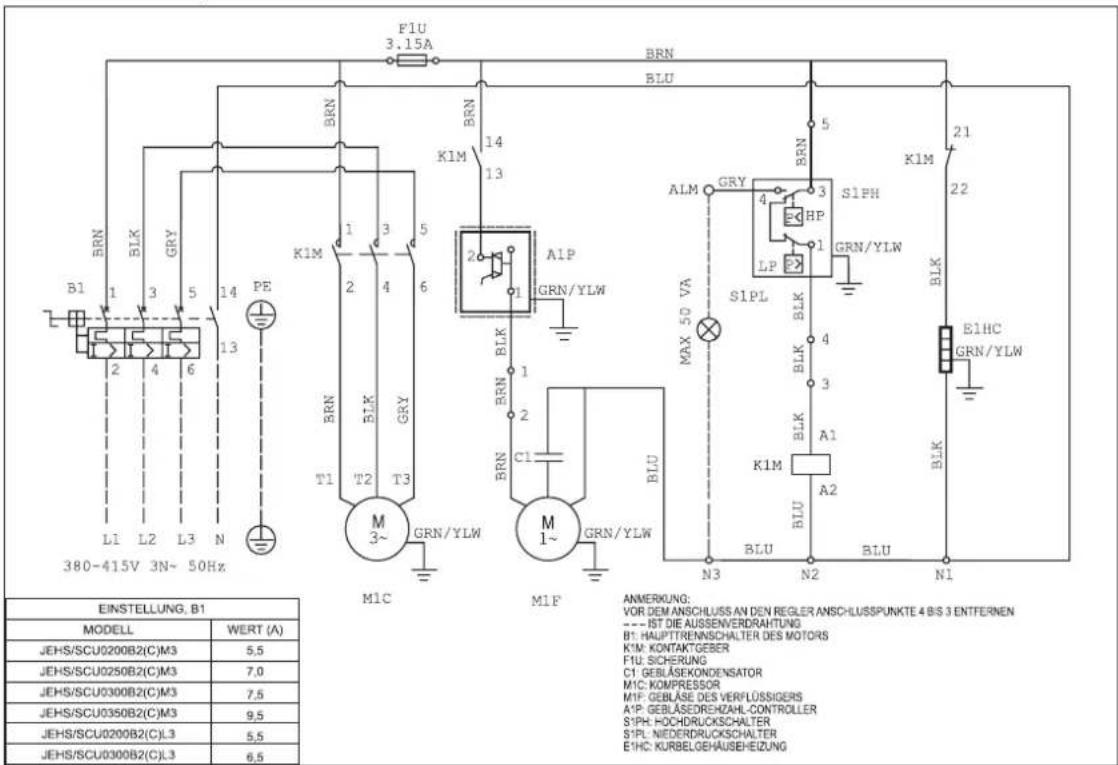

11. Electrical Data 16

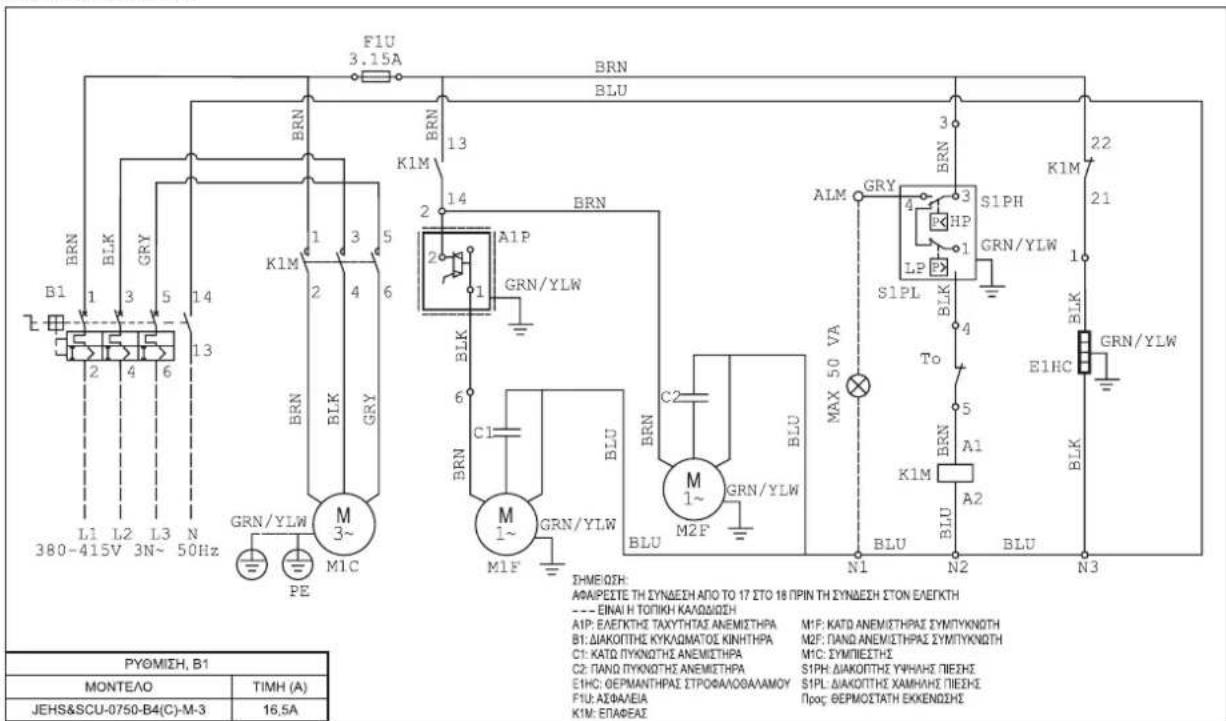

12. Appendix 23

1. Nomenclature

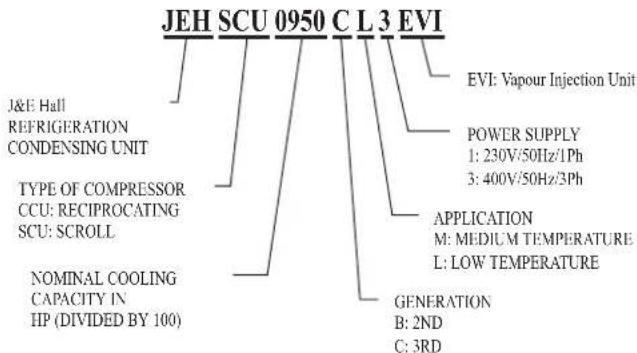

JEH SCU 0950 CL3 EVI J&E Hall REFRIGERATION CONDENSING UNIT TYPE OF COMPRESSOR CCU: RECIPROCATING SCU: SCROLL NOMINAL COOLING CAPACITY IN HP (DIVIDED BY 100) EVI: Vapour Injection Unit POWER SUPPLY 1: 230V/50Hz/1Ph 3: 400V/50Hz/3Ph APPLICATION M: MEDIUM TEMPERATURE L: LOW TEMPERATURE GENERATION B: 2ND C: 3RD

2. Safety and Health

General Information

Important Note

Only a qualified refrigeration engineer who is familiar with refrigeration systems and components, including all controls should perform the installation and start-up of the system. To avoid potential injury, use care when working around coil surfaces or sharp edges of metal cabinets. All piping and electrical wiring should be installed in accordance with all applicable codes, ordinances and local by-laws.

This appliances is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• Ensure the unit received is the correct model for the intended application.
• Ensure refrigerant, voltage, are suitable for the proposed application and environment.

• Installation and maintenance are to be performed only by qualified personnel who are familiar with local codes and regulations, and experienced with this type of equipment.
  • The condensing unit is delivered with a nitrogen holding charge.

• The condensing unit contains moving machinery and electrical power hazards. May cause severe injury or death. Disconnect and shut off power before installation or service of the equipment.

• Refrigerant release into the atmosphere is illegal. Proper evacuation, handling and leak testing procedures must be observed at all times.
• Condensing unit must be earthed Improper earthing may result in electric or fire.
• Be sure to switch off the unit before touching any electrical parts. Touching a live part may result in electric shocks or fire.
• The electrical covers and condenser fan guard must remain fitted at all times.
• Use of the condensing unit outside of design conditions and application for which units were intended may be unsafe and be detrimental to the unit, regardless short or long term operation.
• The condensing units are not designed to withstand loads or stresses from other equipment or personnel. Such extraneous loads or stress may cause failure / leak / injury. In some circumstances, a suction accumulator (not supplied) component may be required, it offers protection against refrigerant flood back during operation. It helps protect against off-cycle migration by adding internal free volume to the low side of the system.
• Test must be conducted to ensure the amount of off-cycle migration to the compressor does not exceed the compressor's charge limit.
• Wherever possible the system should be installed to utilize a pump down configuration. For unit Series 1 JEHCCU040CM1 and JEHCCU0050CM1, it is advisable to connect with thermostat cut off configuration using the reserved terminal in control box.
• After installation, the system should be allowed to run for 3 – 4 hours. The oil level should be checked after 3 – 4 hours run time and topped up as necessary. The oil level should not be lower than quarter of the compressor oil sight glass.

3. Installation & Commissioning

3.1 Unit site location

• In order to achieve maximum cooling capacity, the installation location for condensing unit should be carefully selected.

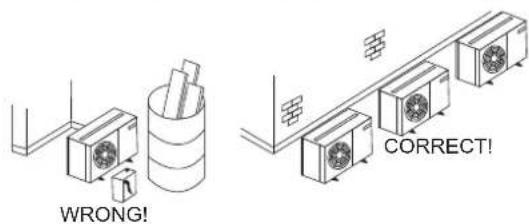

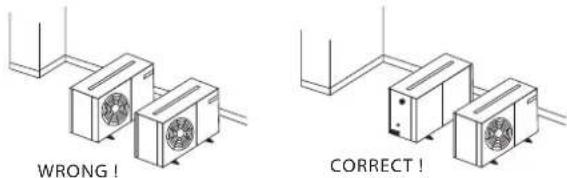

• Install the condensing unit in such a way so that hot air distributed by the condensing unit cannot be drawn in again (as in the case of short circuit of hot discharge air). Allow sufficient space for maintenance around the unit.

WRONG! CORRECT!

- Ensure that there is no obstruction of air flow into or out of the unit. Remove obstacles which block air intake or discharge.

WRONG! CORRECT!

- The location must be well ventilated, so the unit can draw in and distribute plenty of air thus lowering the condensing temperature.

- To optimize the unit running conditions, the condenser coil must be cleaned at regular intervals.

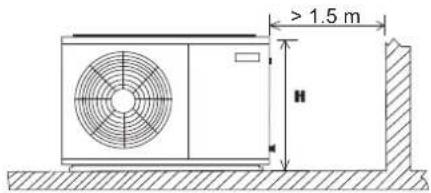

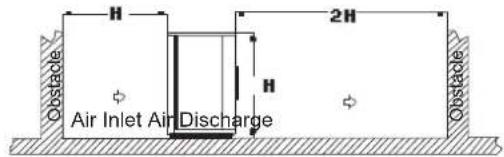

3.2 Installation Clearance

- The installation location should allow sufficient space for air flow and maintenance around the unit.

H 2H Air Inlet Air Discharge Obstacle H Obstacle

- To allow sufficient space for doing service or installation.

> 1.5 m H

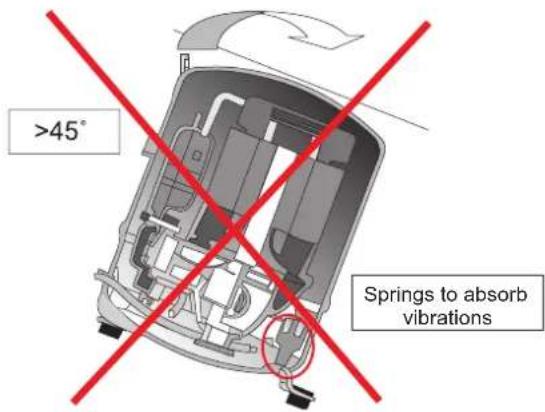

3.3 Compressor handling

To ensure compressor reliability, the condensing unit and the compressor must not be tilt greater than an angle of 45^ . Otherwise, the compressor can fall from its 3 compressor housing spring, which results in noisyvibrations during operation and possible to breakdown.

>45° Springs to absorb vibrations

3.4 Field Piping

To

ensure

Important Note Line sizing should only be determined by qualified personnel. All local codes of practice must be observed in the installation of refrigerant piping.

satisfactory operation and performance, the following points should be noted for field piping arrangements,

- Couples one indoor unit with one outdoor condensing unit only.

- Release all the pre-charged nitrogenbefore pipework connection.

- Connecting pipe size for suction and liquid line must same as attaches to the condensing unit. Correct line sizing will minimize the pressure drop and maintain sufficient gas velocity for proper oil return.

- Pipework routes must be as simple and as short as possible. Avoid low points on pipework where oil can accumulate.

- Use only clean, dehydrated refrigeration grade copper tube with large radius elbows. The piping shall be kept with enough bending radius.

• Braze without over filling to ensure there is no excess solder into the tube.
• To prevent oxidation, blow nitrogen through pipework when brazing.
  • Install insulation on all suction lines after pressure test.
• Adequately support all pipe work at a maximum of 2 meter intervals.
• For the condition where the outdoor condensing unit is above the indoor unit, the height difference between units shall be less than 25 m and install oil trap on suction pipe every 4 m height. The suction pipe must always be fitted with U-trap at the bottom.
• For the condition where the outdoor condensing unit is below the indoor unit, the height difference between units shall be less than 4 m. Pipe trap shall be installed upward on outlet of indoor unit (suction pipe).
  • The recommended piping length is 25 m or less.
• Additional oil might be required in case field piping is long or with many oil traps. Check the oil level of the compressor to decide to add the oil after minimum 2 hours operation.
• It is recommended as well to install the MOP (Maximum Operation Pressure), expansion valve for medium evaporating temperature units, if the working suction pressure during start procedure especially after defrost cycle, is out of the limit, as refer to the table provided.

Recommend compressor working pressure range:

Medium Temperature

Compressor Model	AE/AJ ZBMTZ
Refrigerant	R404A	R134a	R404A	R134a	R407C	R404A	R134a
Working Pressure Range High Side, (barg)	13.2-27.7	6.7-15.8	13.2-27.7	7.9-15.8	12.5-29.4	7.14-27.6	6.6-15.8
Working Pressure Range Low Side, (barg)	1.5-8.3	0.1-3.9	1.0-7.2	0.6-4.7	1.4-6.6	1.98-7.14	0.6-3.8

Low Temperature

Compressor Model	AJ	NTZ	ZF
Refrigerant	R404A	R404A	R404A
Working Pressure Range High Side, (barg)	13.2-27.7	13.2-27.7	13.2-27.7
Working Pressure Range Low Side, (barg)	0.1-3.3	0.1-3.3	0.1-3.3

3.5 Pressure testing

• Make sure unit are isolated when pressure test on field piping, always use an inert, dry gas such as Nitrogen. Check for leak if there is reduction in holding pressure.
• The pressure differential between the high and low side of system shall not exceed below value.

Compressor	Pressure differential
AE/AJ	19 barg(275 psig)
MTZ/ZB/ZF	30 barg(435 psig)

- Test pressures used in factory as shown follows.

Test pressure
High side	Low side
28 barg(405 psig)	19 barg(275 psig)

3.6 Leak detection

• Make sure that all isolation valves are open.
- Perform a leak test of the system using nitrogen mixed with the approved refrigerant for the unit.
- Do not use CFC for leak testing the condensing unit which intended for used with HFC refrigerants.
- The use of leak testing fluids is not recommended as this may interact with the lubricants own additives.

3.7 Vacuum - moisture removal

Important Note

Moisture prevents proper functioning of the compressor and the refrigeration system.

Air and moisture reduce service life and increase condensing pressure causing abnormally high discharge temperatures likely to destroy the oil's lubricating properties. The risk of acid formation is also increased by air and moisture and copper plating can be generated in this way. All these phenomena can cause mechanical and electrical failure.

Important Note

Ensure that a good quality vacuum pump is used to pull a minimum vacuum of -0.1 barg (250 microns) or less. Ensure that no pressure increase during 1 hour or more after stop vacuuming. If pressure increase, there is moisture or leakage along the pipeline.

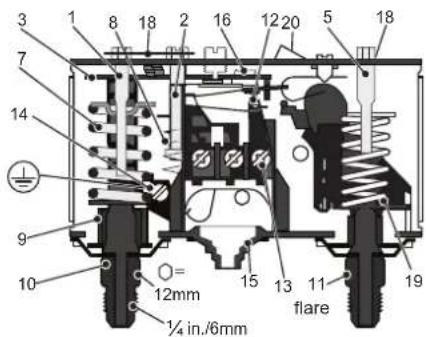

3.8 Safety pressure switch settings

The pressure switch fitted to condensing units with auto reset for low pressure and manual reset for high pressure are NOT factory preset.

3 1 8 18 2 16 12 20 5 18 7 14 9 10 = 12mm 15 13 11 flare 19 ¼ in./6mm

1. Low pressure (LP) setting spindle
2. Differential setting spindle, LP
3. Main arm
4. High pressure (HP) setting spindle
5. Main spring
6. Differential spring
7. Bellows
8. LP connection

9. HP connection

10. Switch

11. Terminals
12. Earth terminal
13. Cable entry
14. Tumbler
15. Locking plate
16. Arm
17. Manual reset button

High pressure safety (Manual reset)

The high pressure safety switch is required to protect the compressor from working out of its envelope. The high pressure switch shall set equal or lower than below values depending on the type of refrigerant, application and the ambient condition.

Model	AE/CAJ/TAJ MTZ/ZB/ZF
Refrigerant	R404A	R134a	R404A	R134a
Cut Out (barg)	27.7	18	27.7	18
Cut Out (psig)	402	261	402	261

Low pressure safety (Auto reset)

The low pressure safety switch is used to avoid compressor operate at too low suction pressure or a vacuum condition. The low pressure safety cut out should never be set lower than value shown in following table. If pump down is used, the electrical circuitry should be arranged so that compressor restart is triggered by demand from thermostat rather than a reset low pressure switch.

* M: Medium temperature; L: Low temperature

Model	AE/CAJ/TAJ MTZ		ZB/ZF
Refrigerant			R134a	R404AR	404A R	34a R40	7C R404A R134a
Application	M*	L*	M*	M*	M*	M*	M*	L*	M*
Cut out (barg)	1.5	0.1	0.5	1.0	0.6	1.4	2.0	0.1	0.6
Cut out (psig)	21.8	1.5	7.3	14.5	8.7	20.3	29.0	1.5	8.7

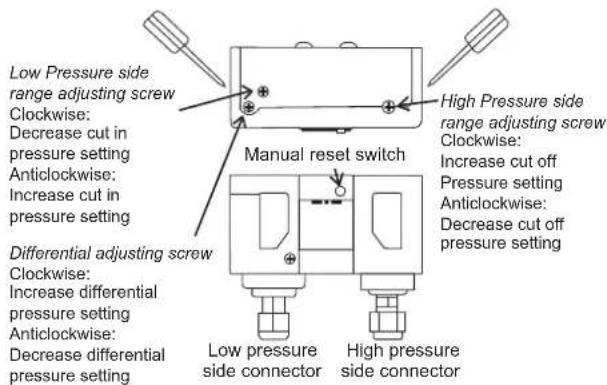

Low Pressure side range adjusting screw Clockwise: Decrease cut in pressure setting Anticlockwise: Increase cut in pressure setting Differential adjusting screw Clockwise: Increase differential pressure setting Anticlockwise: Decrease differential pressure setting Manual reset switch High Pressure side range adjusting screw Clockwise: Increase cut off Pressure setting Anticlockwise: Decrease cut off pressure setting Low pressure side connector High pressure side connector

The low pressure cut off pressure is the setting of cut in minus the differential.

Important Note

There must be no more than 10 compressor starts per hour. A higher number reduces the service life of the compressor. If necessary, use an anti-short-cycle timer in the control circuit. Minimum a 2 minutes runtime after each start of compressor and a 3 minute idle time after each stop & start are recommended. Only during the pump down cycle may the compressor run for much shorter intervals.

3.9 Fan speed controller setting

The fan speed controller control the condensing head pressure via speed regulating according to the ambient temperature. The setting for fan cut off should be set higher than the recommended value in table below, to maintain enough liquid sub cooling ahead of TXV for low ambient application.

The fan speed controller is factory set to 19 bar for operation with R4*** series refrigerant to ensure compressor always operates within envelope at all declared working condition.

Higher energy efficiency as shown in eco design sheet can be obtained with the setting shown in below table:

For model in Series 1:

Refrigerant	R404A	R134a
Setting (bar) Cut in	16*	10
Setting (bar) Differential	7*	7

*Factory default setting

For model in Series 2, 3 and 4:

Application	Medium Temp Low Temp
Refrigerant	R404A/R407F/R407A/R448A/R449A	R134a	R404A/R407F/R407A/R448A/R449A
Setting (barg)	19*(Series 2)	13(Series 2 &3)	13(except EVI unit)
	10(Series 3 & 4)	10(Series 4)	17(JEHSCU0950CL3 EVI)

*Factory default setting

Cut off: Fan motor stops when the pressure decreases below the value Pmin.

Note:

F.V.S. = Full Voltage Set Point (pressure setting for maximum speed)

E.P.B. = Effective Proportional Band (6 bar)

Pmin = (F.V.S. - 6)

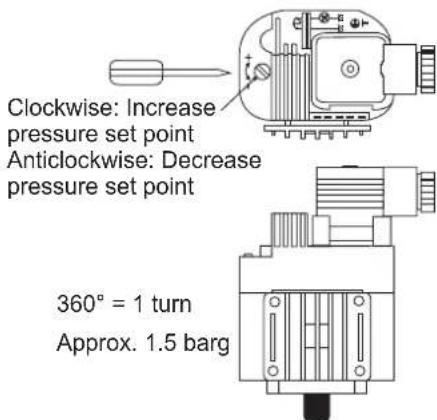

Clockwise: Increase pressure set point Anticlockwise: Decrease pressure set point 360° = 1 turn Approx. 1.5 barg

3.10 Commissioning of the Condensing Unit

Please make sure that all manual service valves are fully opened before starting the system for the first time. This includes external and internal shut off valves as well as liquid receiver valve in the unit. The ball valve open position is shown as below:

Open position Max 150°C

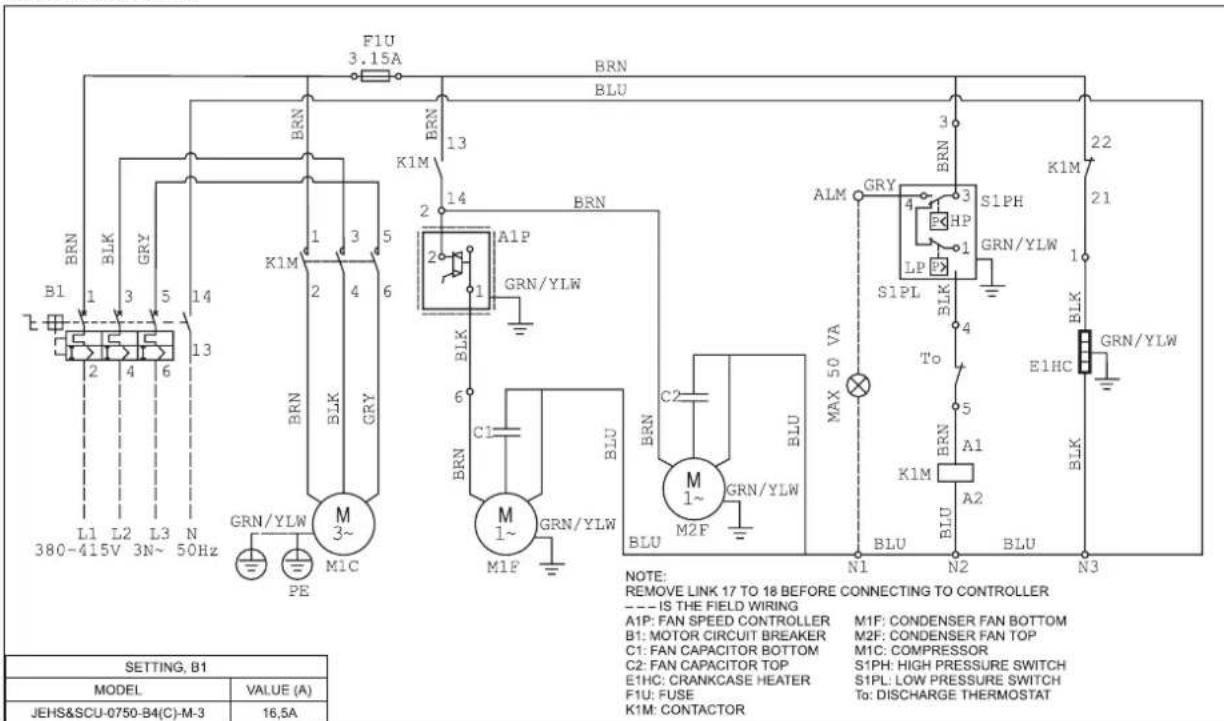

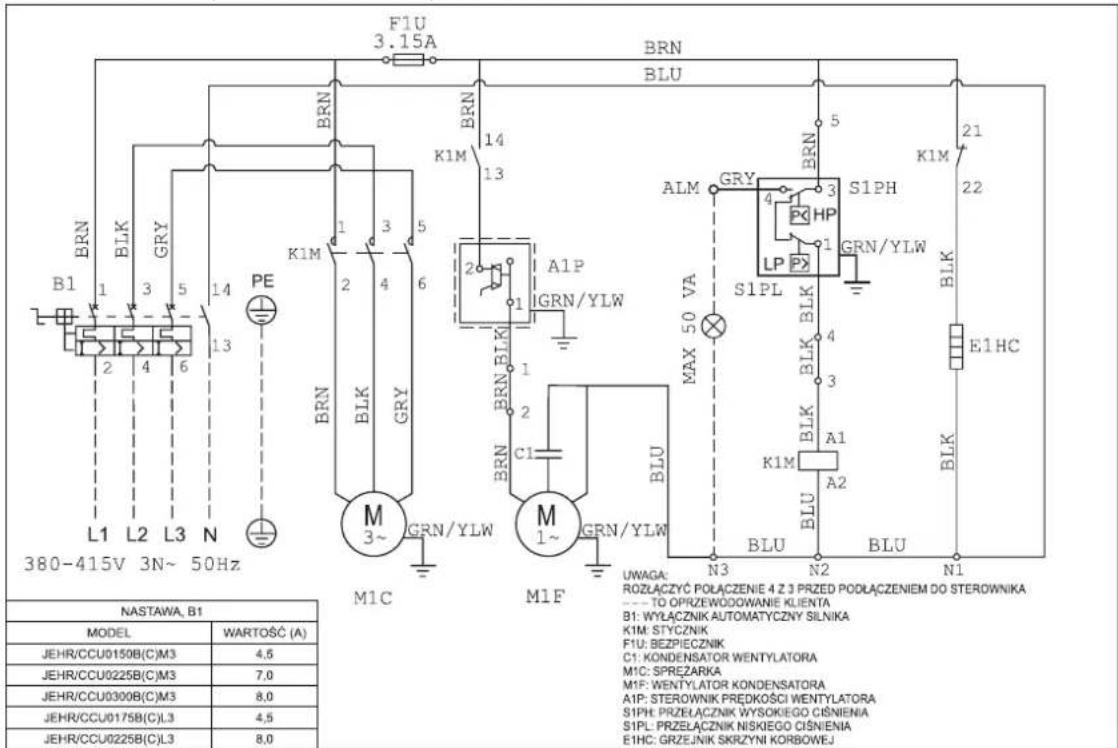

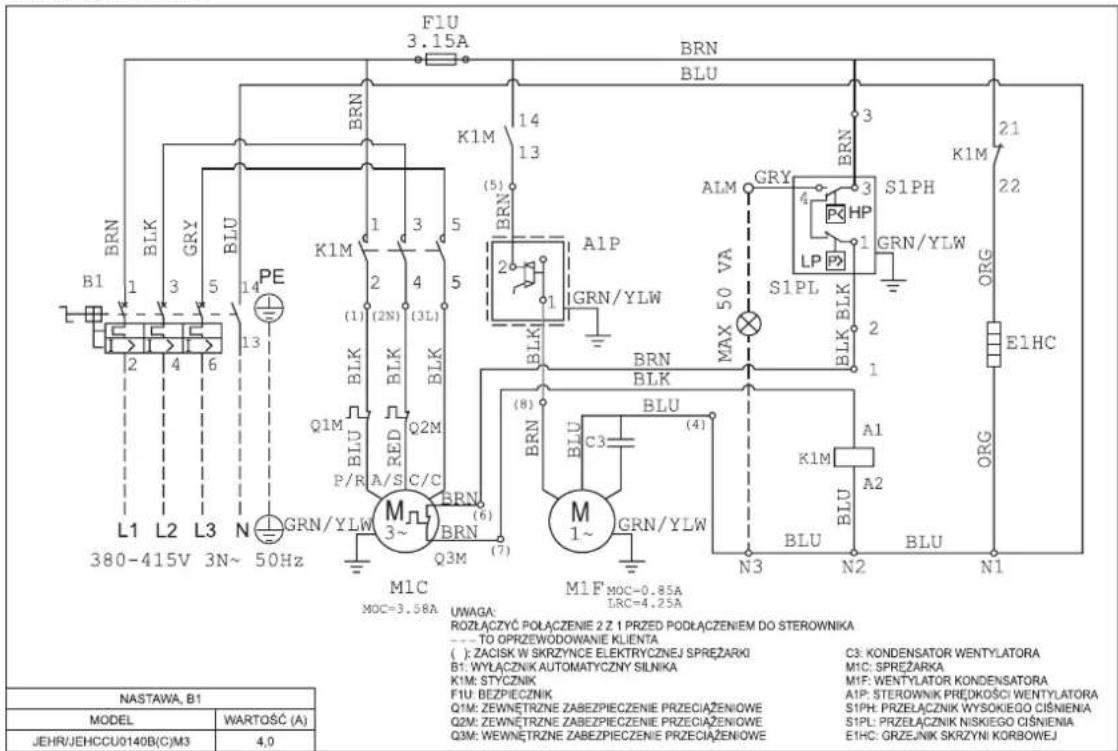

3.11 Compressor electrical wiring

Verification of proper rotation direction is made by observing that suction pressure drops and discharge pressure rises when the compressor is energized. Reverse rotation of a scroll compressor also results in substantially reduced current draw. Suction temperature will be high, discharge temperature will be low and the compressor may generate abnormal noise.

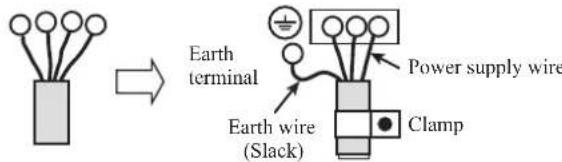

3.12 Earthing of Condensing Unit

Installation of earth wire must be made to grounding screw (labelled with earth label) before connecting the live wires. The earth wire shall be slack as shown in below diagram.

Earth terminal Power supply wire Earth wire (Slack) Clamp

3.13 Tightening torque - rotolock connection

Unit Model		Series	Compressor Model	Rotolock (Suction) Thread: Tightening Torque (N.m)	Rotolock (Discharge) Thread: Tightening Torque (N.m)
Medium TemperatureLow Temperature	JEHCCU0050CM1	1	AE4460Z-FZ1C	NOT APPLICABLE(BRAZED - CONNECTION)
	JEHCCU0067CM1		CAJ9480Z
	JEHCCU0100CM1		CAJ9510Z
	JEHCCU0113CM1		CAJ9513Z
	JEHCCU0040CM1		AE4440Y-FZ1A
	JEHCCU0051CM1		CAJ4461Y
	JEHCCU0063CM1		CAJ4476Y
	JEHCCU0077CM1		CAJ4492Y
	JEHCCU0095CM1		CAJ4511Y
	JEHCCU0140CM1	2	CAJ4517Z
	JEHCCU0140CM3		TAJ4517Z
	JEHCCU0150CM1		MTZ18-5VM	NOT APPLICABLE(BRAZED - CONNECTION)	1"-14 UNS(70-80N.m)
	JEHCCU0150CM3		MTZ18-4VM
	JEHCCU0225CM1		MTZ28-5VM
	JEHCCU0225CM3		MTZ28-4VM
	JEHCCU0300CM1		MTZ36-5VM
	JEHCCU0300CM3		MTZ36-4VM
	JEHSCU0200CM1		ZB15KQE-PFJ	NOT APPLICABLE(BRAZED - CONNECTION)
	JEHSCU0200CM3		ZB15KQE-TFD
	JEHSCU0250CM1		ZB19KQE-PFJ
	JEHSCU0250CM3		ZB19KQE-TFD
	JEHSCU0300CM1		ZB21KQE-PFJ
	JEHSCU0300CM3		ZB21KQE-TFD
	JEHSCU0350CM3		ZB26KQE-TFD
	JEHSCU0400CM3	3	ZB29KQE-TFD
	JEHSCU0500CM3		ZB38KQE-TFD
	JEHSCU0600CM3		ZB45KQE-TFD
	JEHSCU0680CM3		ZB48KQE-TFD
	JEHSCU0800CM3	4	ZB58KCE-TFD	1-3/4"-12UNF(135-160 N.m)	1-1/4"-12UNF(110-135 N.m)
	JEHSCU1000CM3		ZB76KCE-TFD
	JEHCCU0115CL1	1	CAJ2446Z	NOT APPLICABLE(BRAZED - CONNECTION)
	JEHSCU0200CL3	2	ZF06K4E-TFD	1-1/4"-12UNF(110-135 N.m)	1"-14 UNS(70-80N.m)
	JEHSCU0300CL3		ZF09K4E-TFD
	JEHSCU0400CL3	3	ZF13K4E-TFD
	JEHSCU0500CL3		ZF15K4E-TFD
	JEHSCU0600CL3		ZF18K4E-TFD
	JEHSCU0750CL3	4	ZF25K5E-TFD		1-1/4"-12UNF(110-135 N.m)
	JEHSCU0950CL3 EVI		ZF18KVE-TFD-EVI		1"-14 UNS(70-80N.m)

3.14 Series 4 EVI Unit

3.14.1 Piping Size Selection

Sizing of liquid and suction lines for EVI model will be different from standard scroll models. Piping sizes of this model need to follow the recommended correction coefficient of cooling capacity. This is vital as if the pipework selected is oversized, especially for the suction pipe, the gas velocity will be decreased at low mass flow rate / low evaporating temperature, causing oil return problems. Undersized suction lines will also cause decreased capacity due to increased pressure drop.

The correction factor of refrigerant R404A is shown as below table:

Ta\Te	(Watts)	-40	-35	-30	-25	-20
27	CF	0.64	0.66	0.68	0.70	0.72
32	CF	0.61	0.63	0.65	0.67	0.69
35	CF	0.59	0.61	0.63	0.65	0.67
38	CF	0.57	0.59	0.61	0.63	0.65
43	CF	0.54	0.55	0.57	0.58	0.60

For instance,

At condition of Te -35°C, Ta +32°C

Refrigerant R404A

Published cooling capacity = 5.9kW.

Cooling capacity = Correction factor x Published cooling capacity

$$ = 0. 6 3 \times 5. 9 \mathrm{kW} $$

$$ = 3. 7 0 7 \mathrm{kW} $$

Therefore, the pipe sizes should be selected against the corrected capacity of 3.71kW.

The correction factor of refrigerant R407A is shown as below table:

Ta\Te	(Watts)	-40	-35	-30	-25	-20
27	CF	0.73	0.73	0.73	0.73	0.73
32	CF	0.68	0.69	0.69	0.70	0.70
35	CF	0.65	0.66	0.67	0.67	0.68
38	CF	0.62	0.63	0.64	0.65	0.66
43	CF	0.57	0.58	0.60	0.61	0.63

The correction factor of refrigerant R407F is shown as below table:

Ta\Te	(Watts)	-40	-35	-30	-25	-20
27	CF	0.72	0.73	0.73	0.73	0.72
32	CF	0.68	0.68	0.69	0.69	0.69
35	CF	0.65	0.66	0.66	0.67	0.67
38	CF	0.62	0.63	0.64	0.65	0.65
43	CF	0.57	0.58	0.60	0.61	0.62

The correction factor of refrigerant R448A/R449A is shown as below table:

Ta\Te	(Watts)	-40	-35	-30	-25	-20
27	CF	0.71	0.72	0.71	0.72	0.72
32	CF	0.67	0.68	0.68	0.68	0.69
35	CF	0.65	0.65	0.65	0.66	0.67
38	CF	0.62	0.63	0.63	0.64	0.65
43	CF	0.58	0.59	0.59	0.60	0.61

3.14.2 Insulation Selection

The liquid pipe connecting CCU service valve to the evaporator must be well insulated with recommended wall thickness of minimum 34 .

3.14.2 Expansion Valve Selection

The lower liquid temperature of the EVI unit can increase evaporator expansion valve capacities. Selection of the expansion valve needs to be done based on the expected amount of sub-cooling shown in below tables:

(A.) R404A

Amount of Sub-cooling (K)
Ta\Te	-40	-35	-30	-25	-20
27	39.9	36.9	33.9	30.9	27.9
32	40.9	37.9	34.9	31.9	28.9
35	41.5	38.5	35.5	32.5	29.5
38	42.1	39.1	36.1	33.1	30.1
43	43.1	40.1	37.1	34.1	31.1

(B.) R407A

Amount of Sub-cooling (K)
Ta\Te	-40	-35	-30	-25	-20
27	33.1	32.8	32.4	32.1	31.8
32	38.0	37.0	35.9	34.9	33.8
35	41.0	39.5	38.0	36.5	35.0
38	43.9	42.0	40.1	38.1	36.2
43	48.9	46.2	43.5	40.9	38.2

(C.) R407F

Amount of Sub-cooling (K)
Ta\Te	-40	-35	-30	-25	-20
27	33.8	33.5	33.1	32.8	32.5
32	38.8	37.8	36.7	35.7	34.6
35	41.9	40.4	38.8	37.3	35.8
38	44.9	42.9	41.0	38.9	37.0
43	50.0	47.2	44.5	41.8	39.0

(D.) R448A/R449A

Amount of Sub-cooling (K)
Ta\Te	-40	-35	-30	-25	-20
27	33.1	32.8	32.4	32.1	31.8
32	37.9	36.9	35.8	34.8	33.8
35	40.9	39.4	37.9	36.4	34.9
38	43.8	41.9	40.0	38.0	36.1
43	48.8	46.1	43.4	40.8	38.1

3.14.3 Controller EXD-HP1

The controller EXD-HP1 used in the Series 4 EVI unit operates as an economizer control. The setting of controller is preset by the factory and is password protected. Users are not allowed to change any settings in the controller.

Safety Instructions:

1. Read installation instruction carefully. Failure to comply can result in device failure, system damage or personal injury.

2. Only person having appropriate knowledge and skill are allowed to manipulate the controller.

3. Disconnect all voltages from system before installation.

3.14.2 Electrical Installation

• Do not operate system before all cable connections are completed.

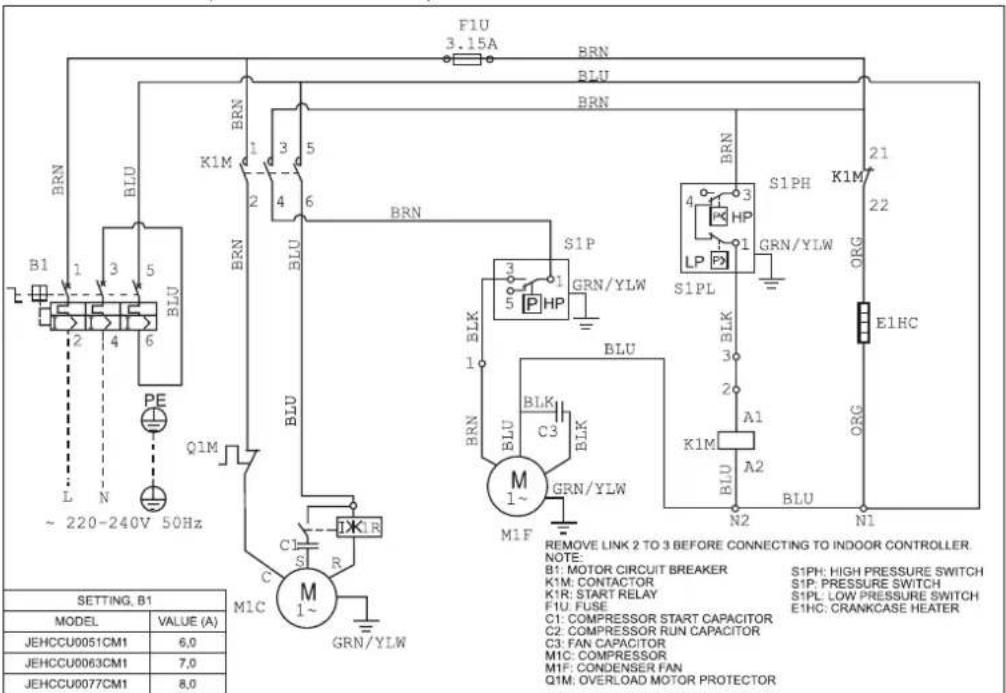

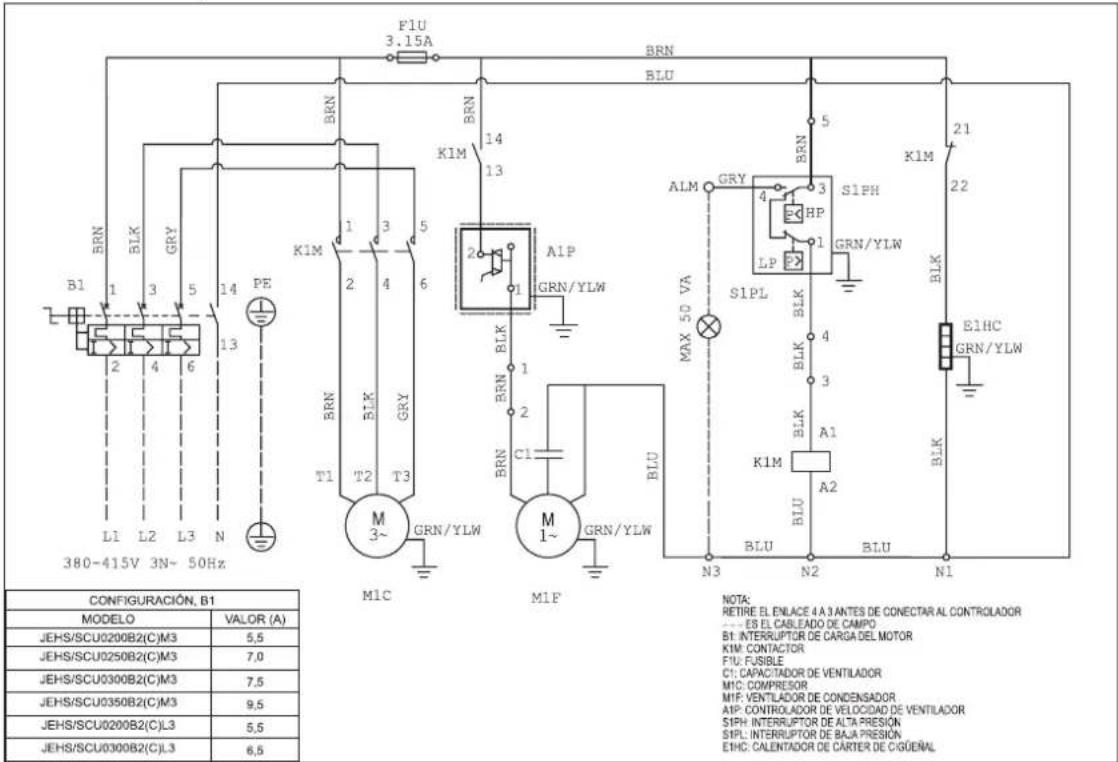

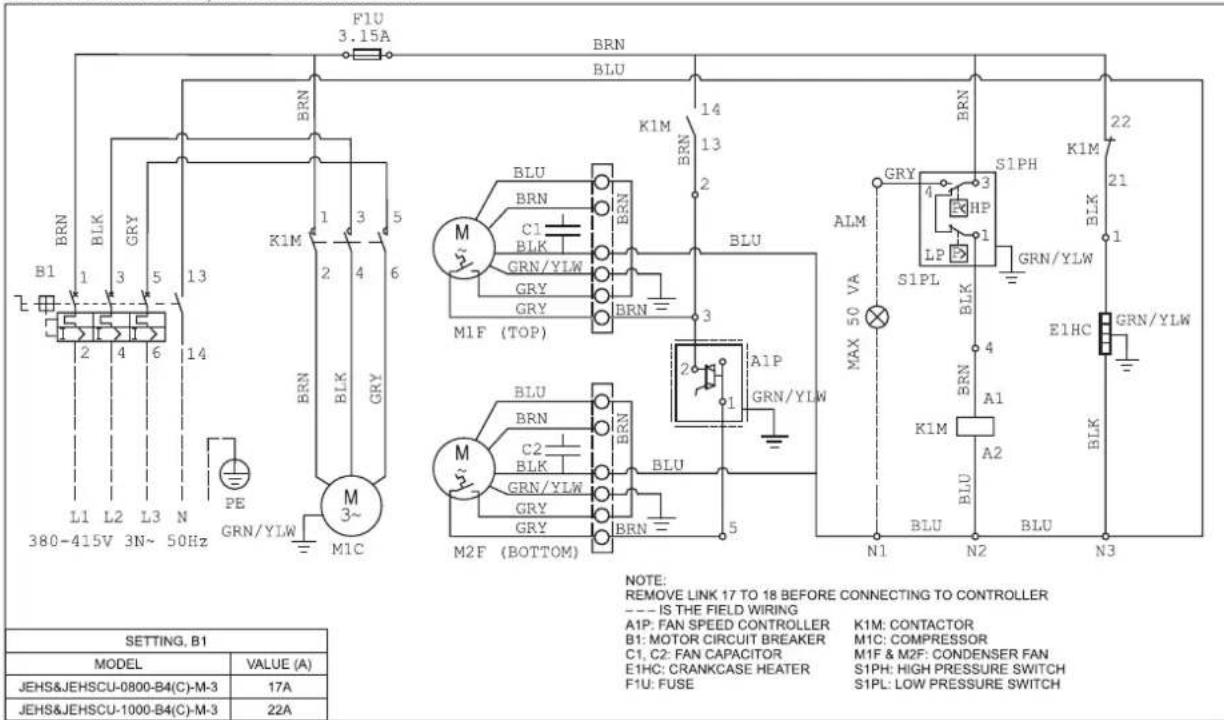

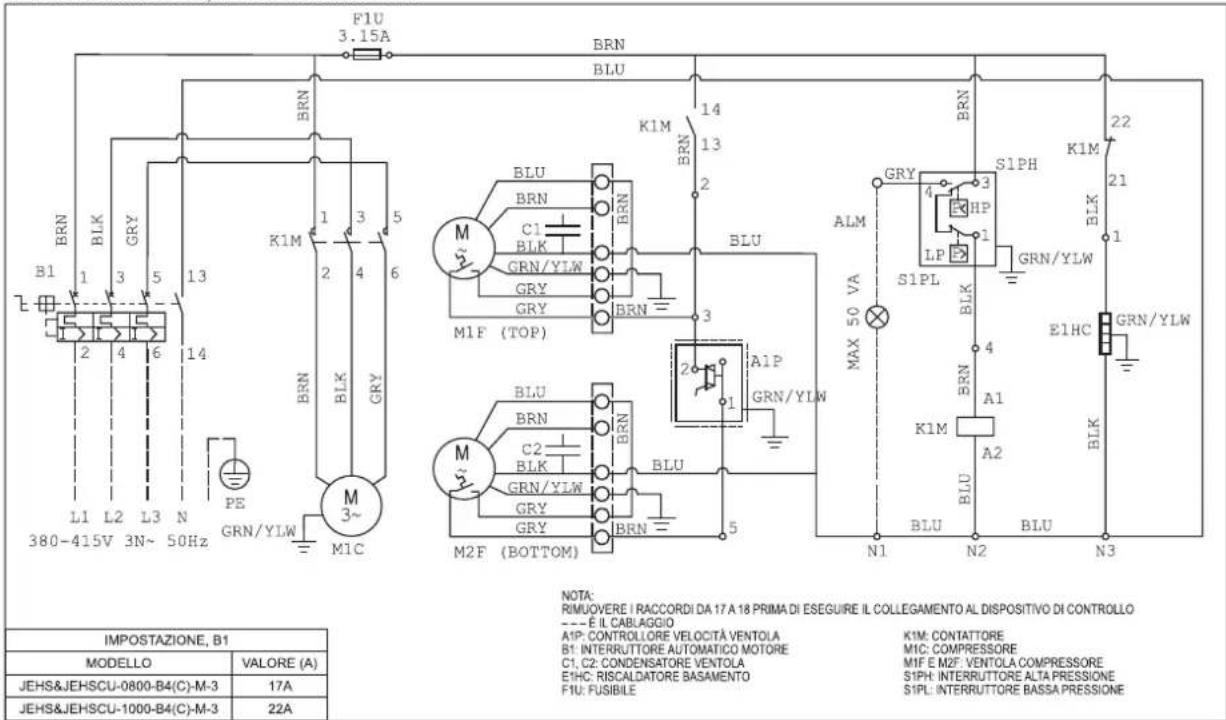

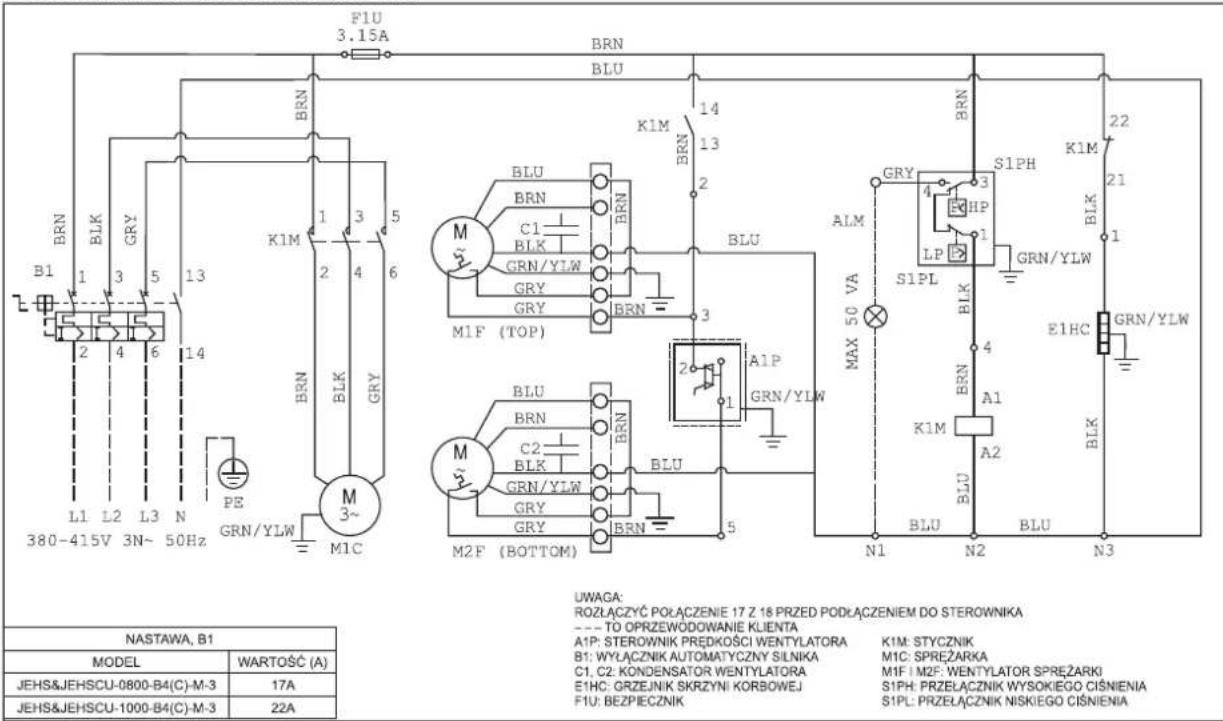

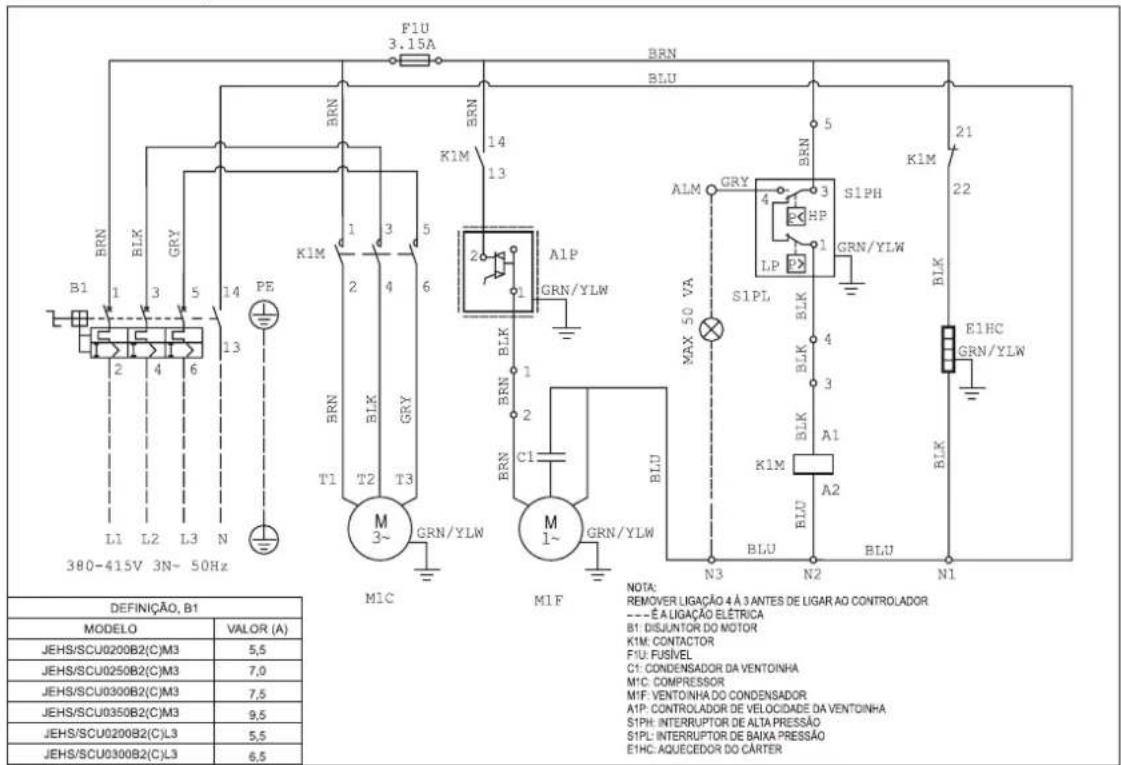

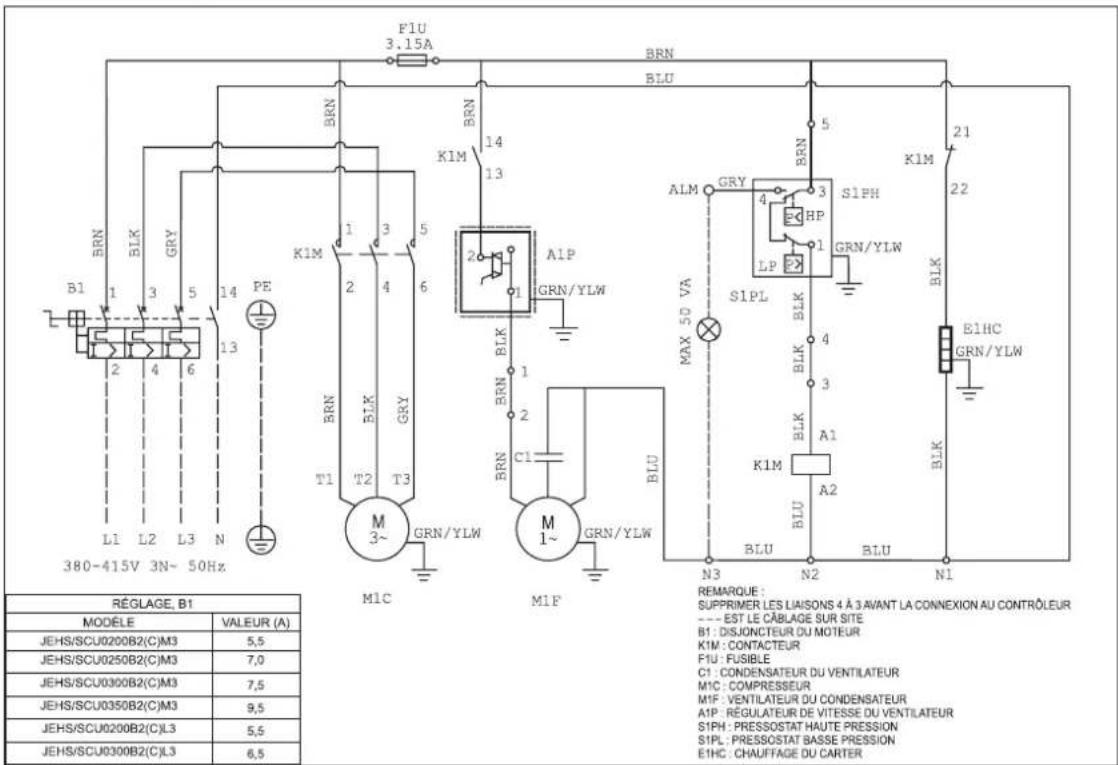

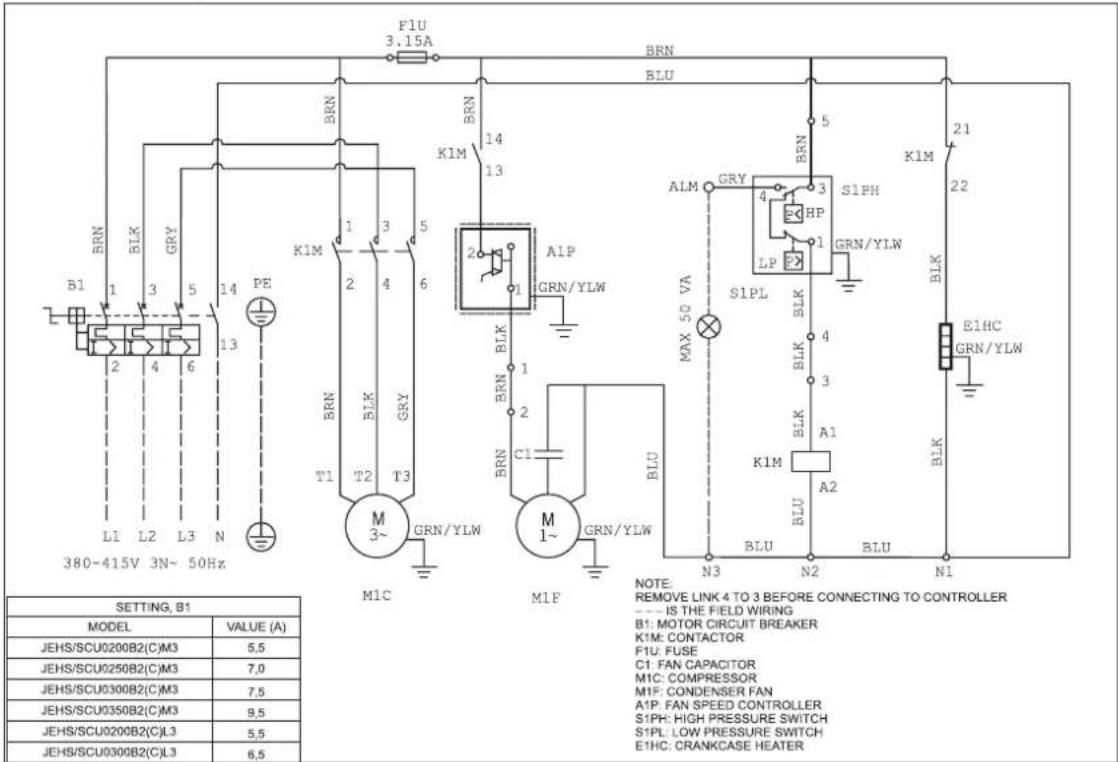

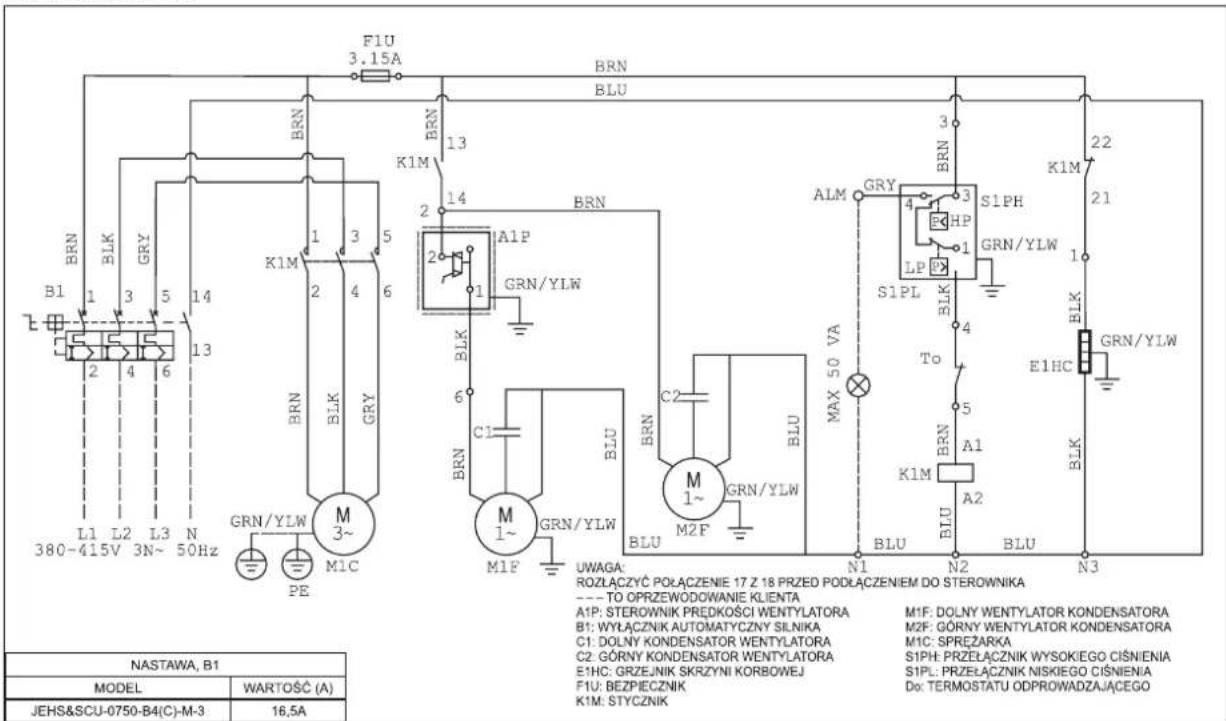

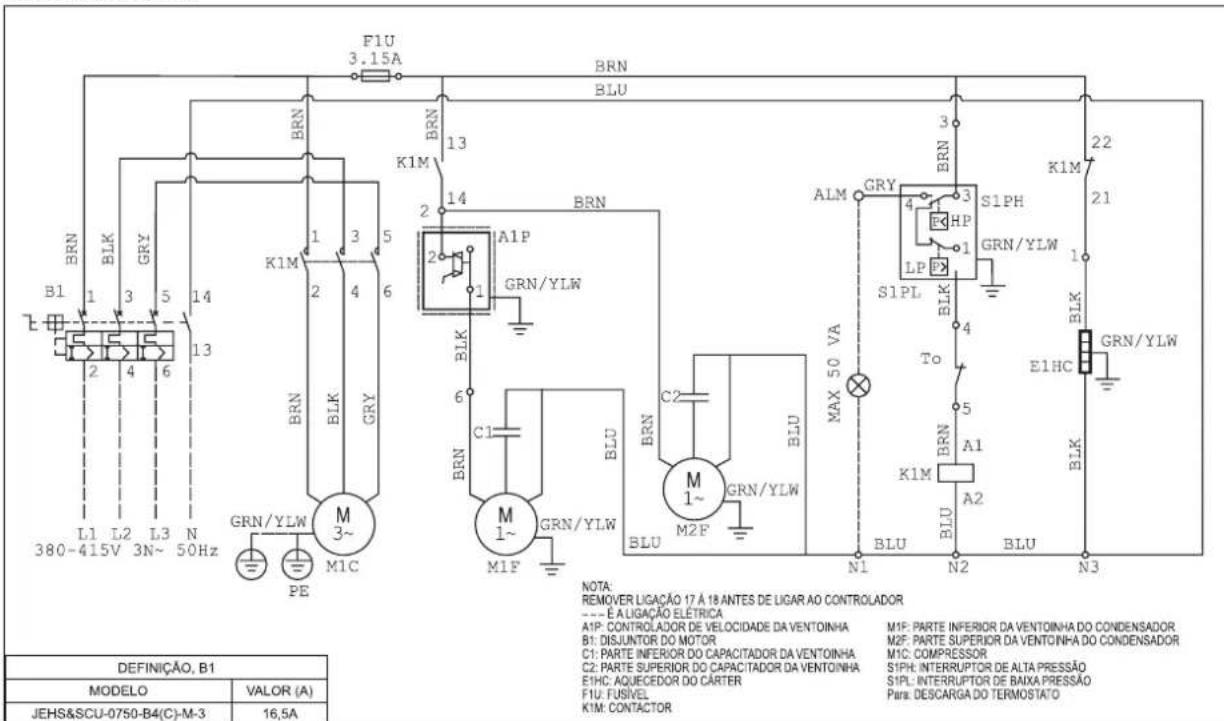

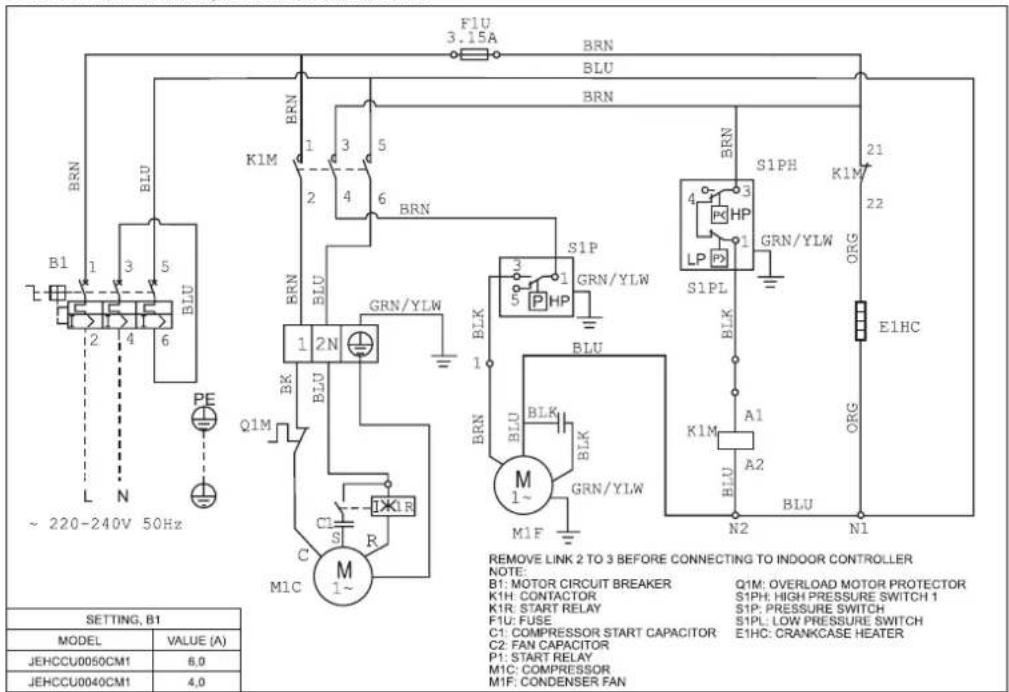

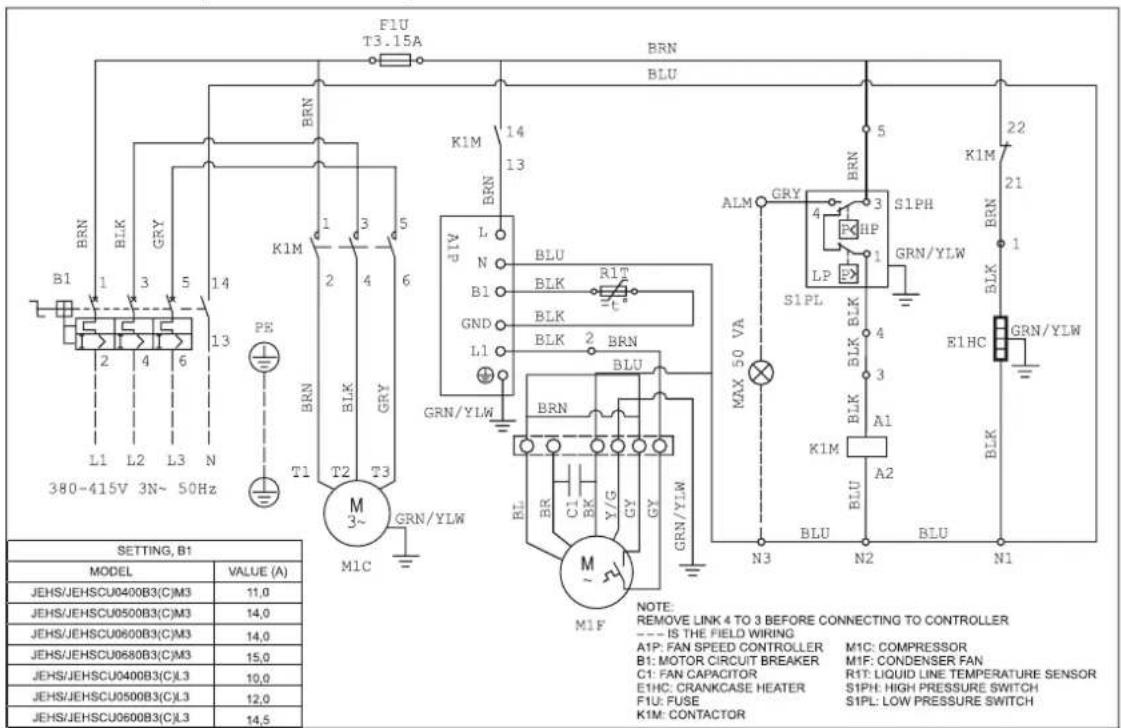

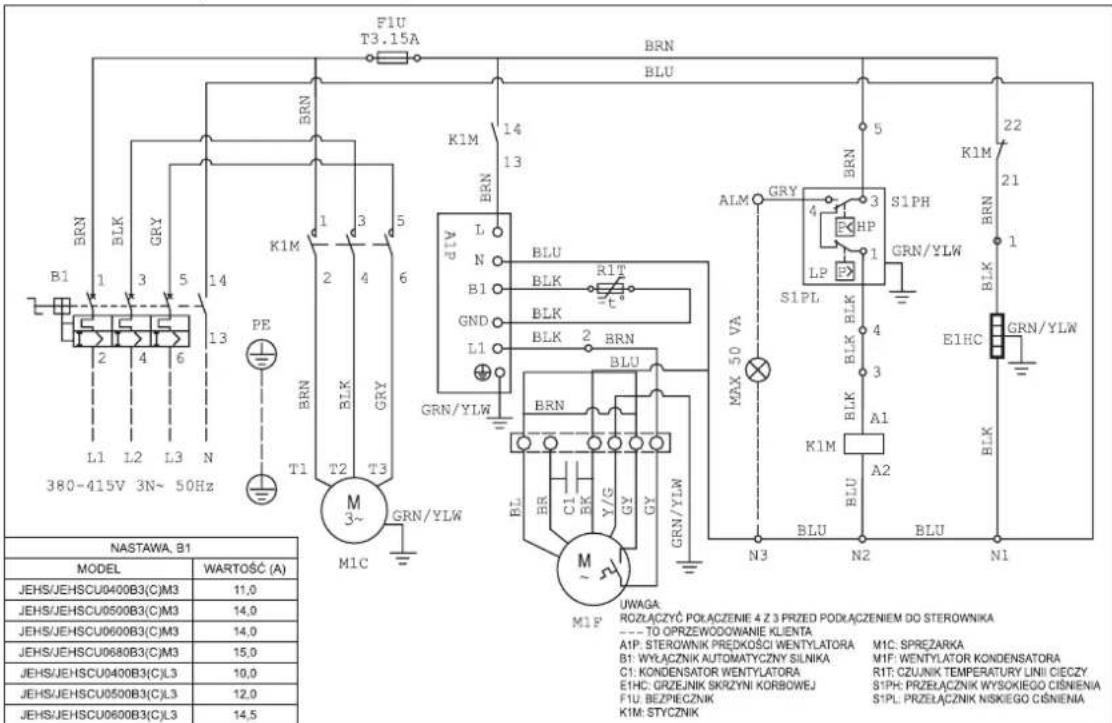

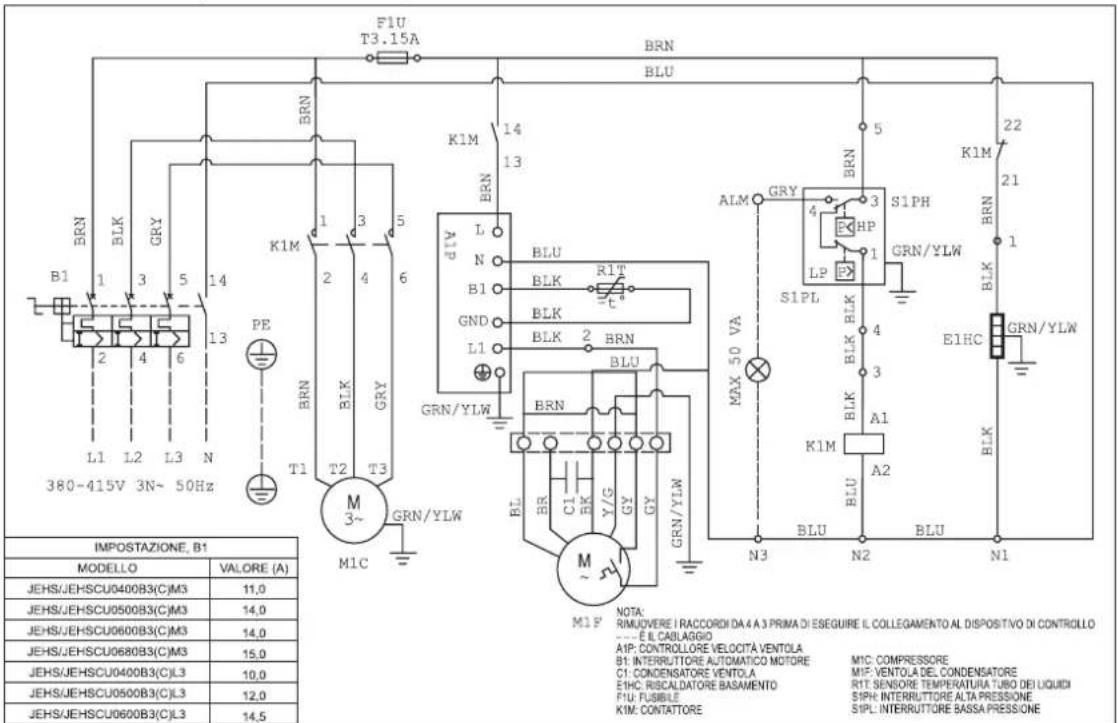

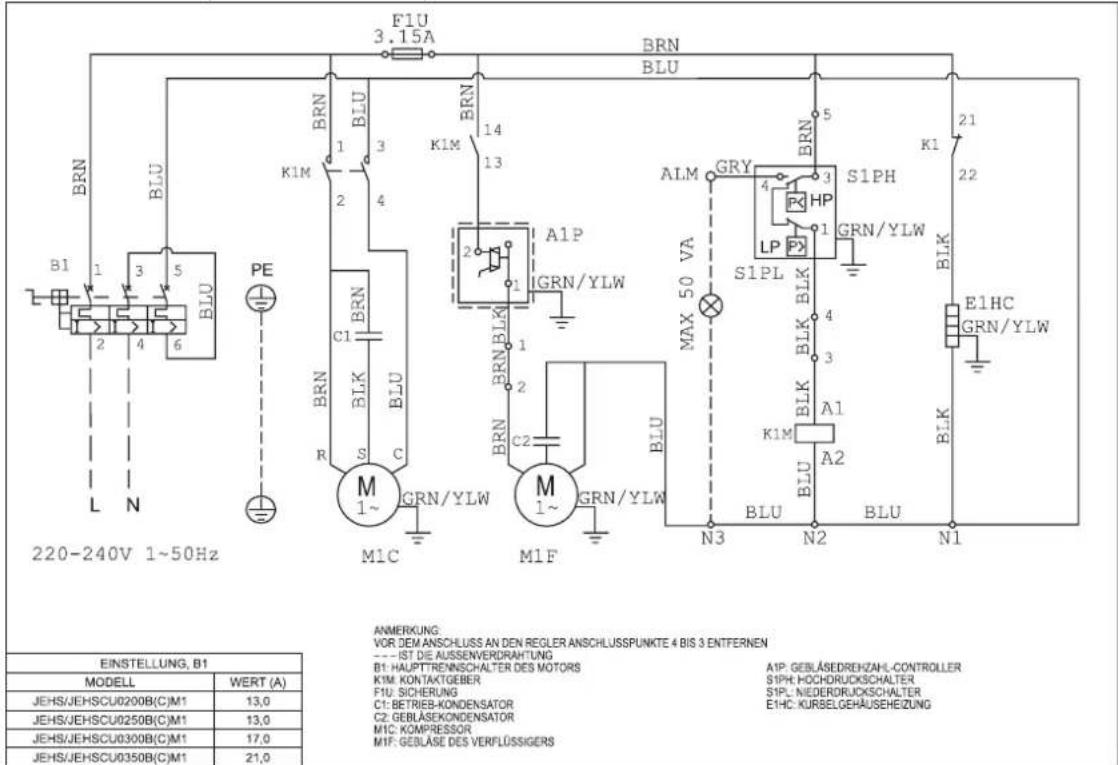

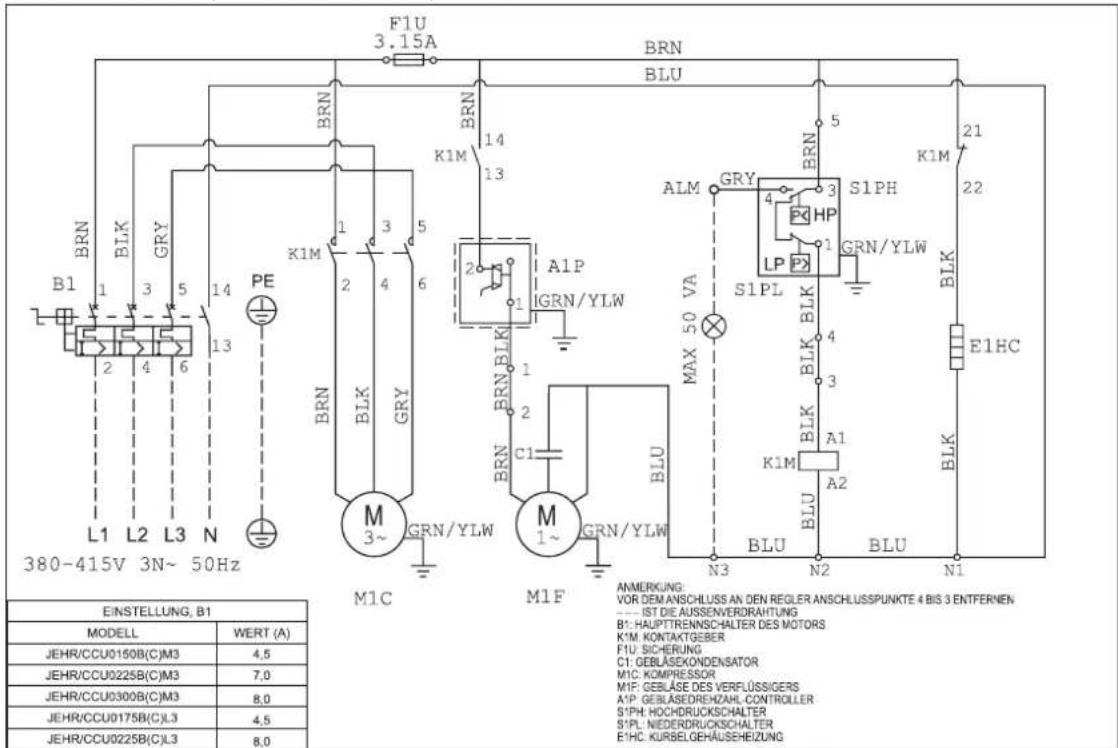

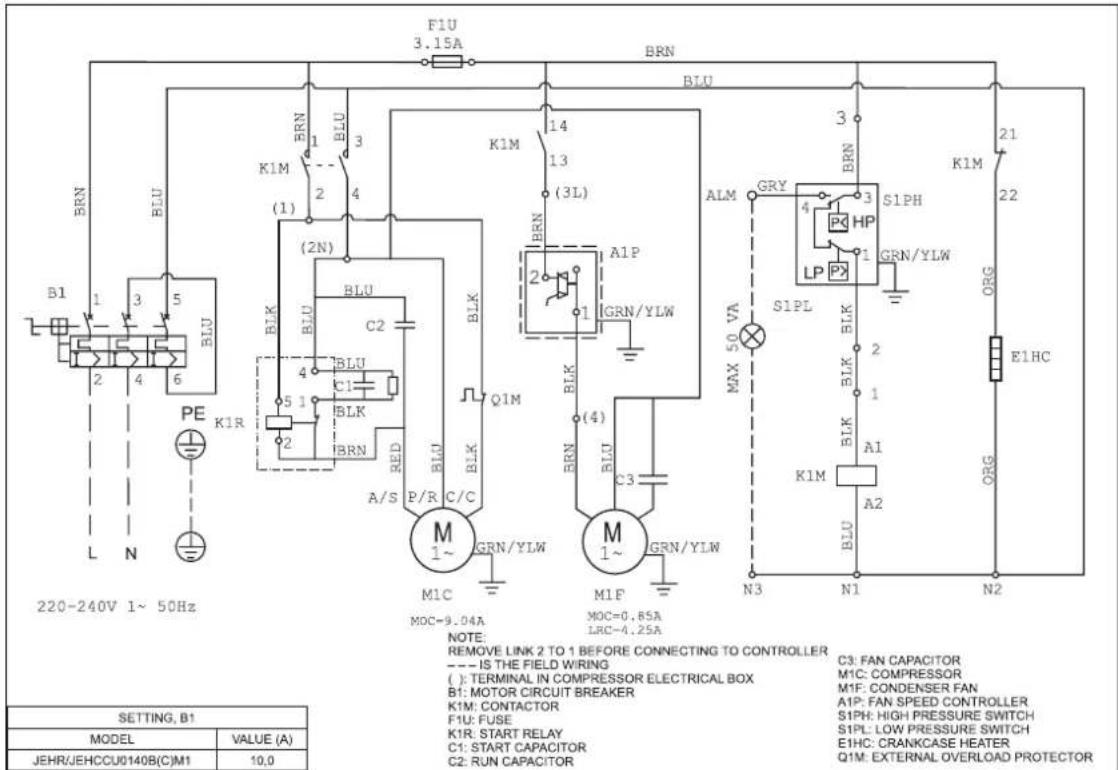

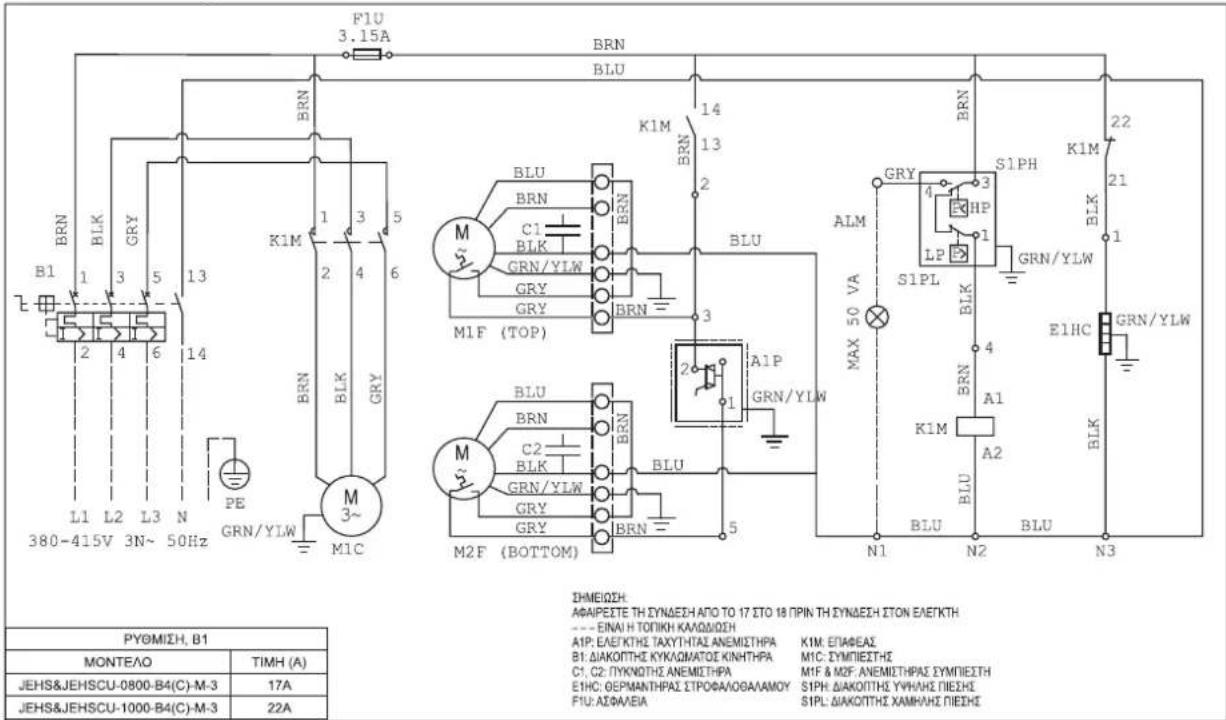

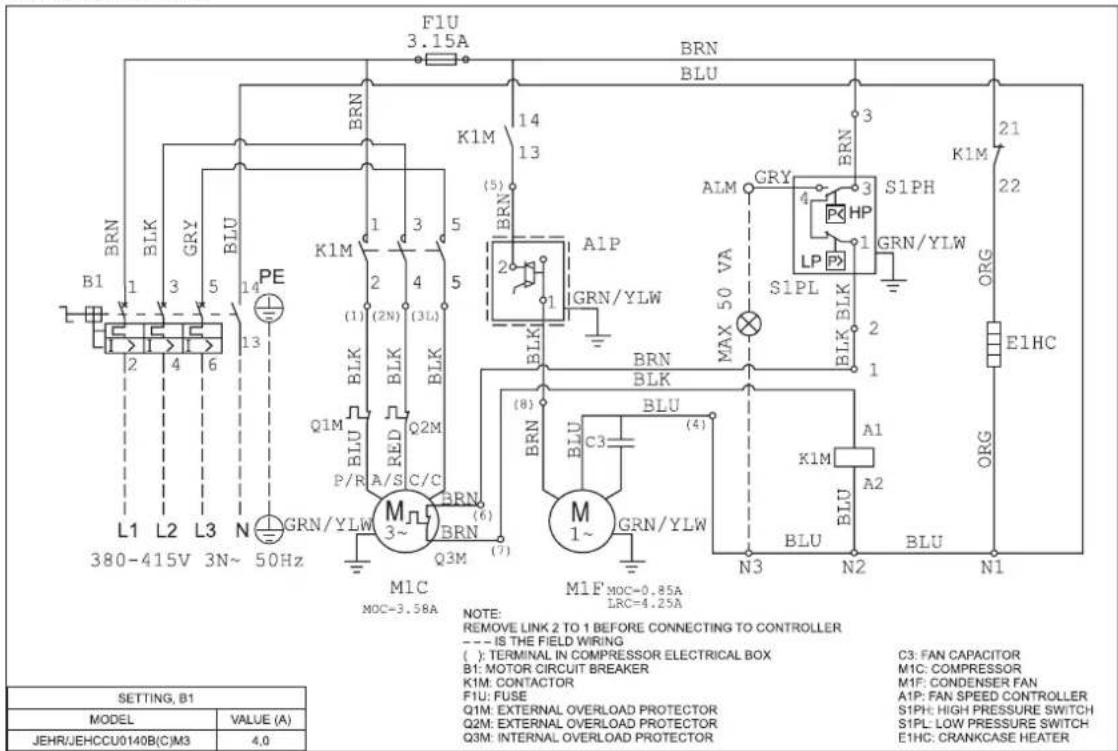

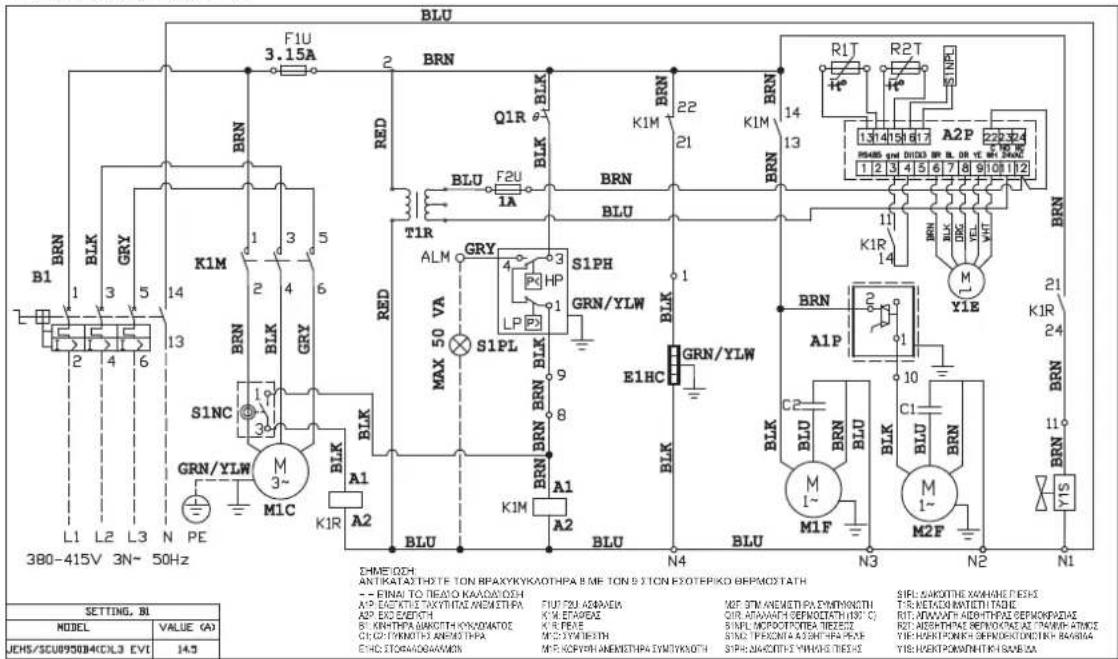

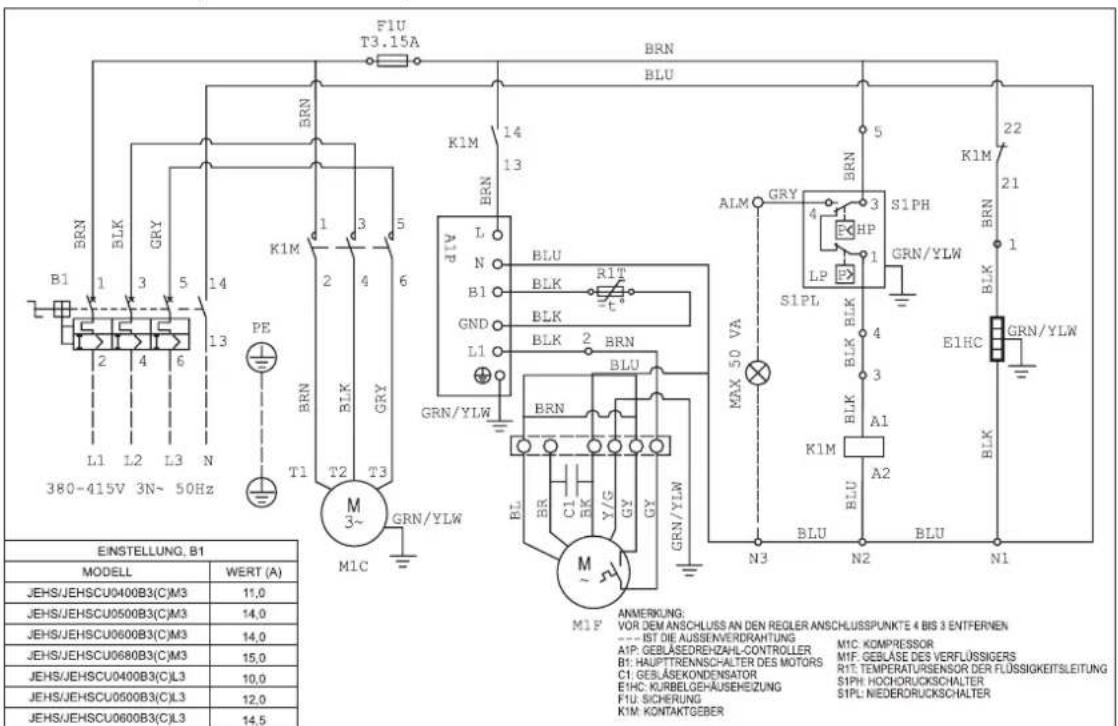

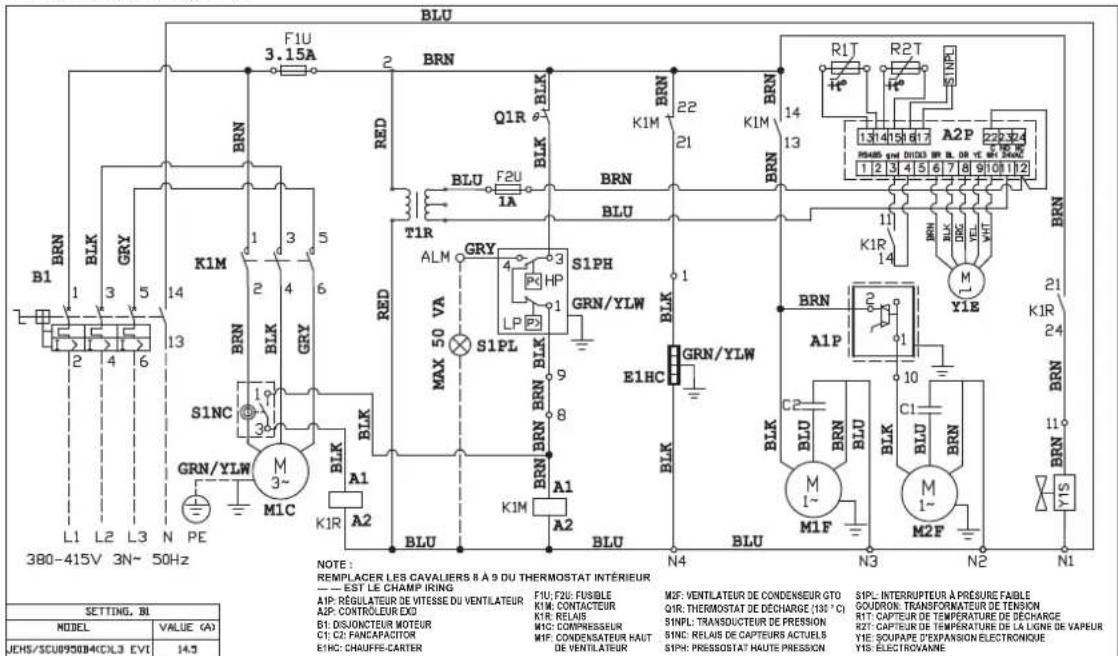

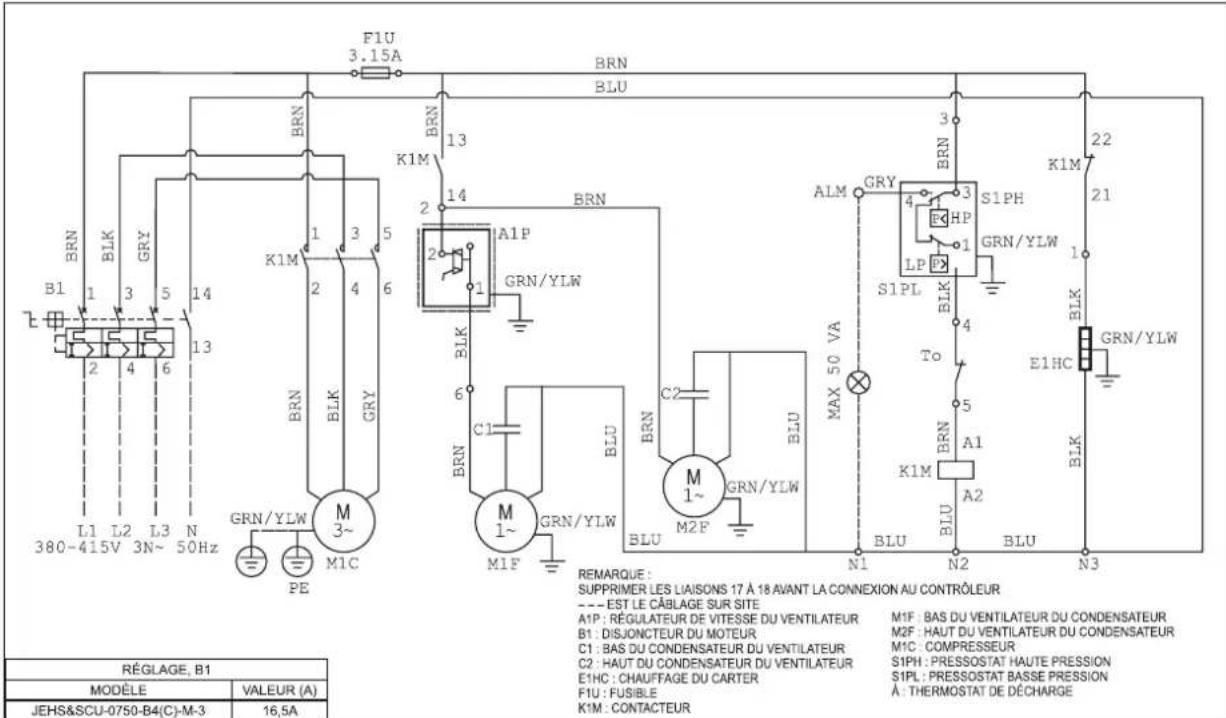

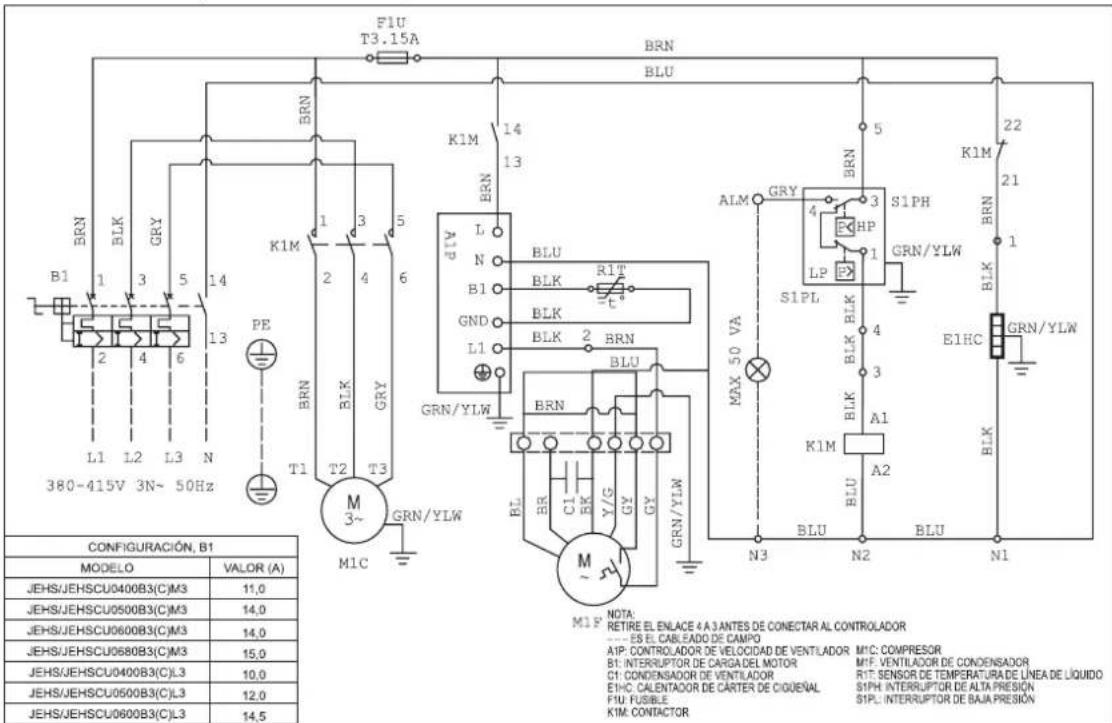

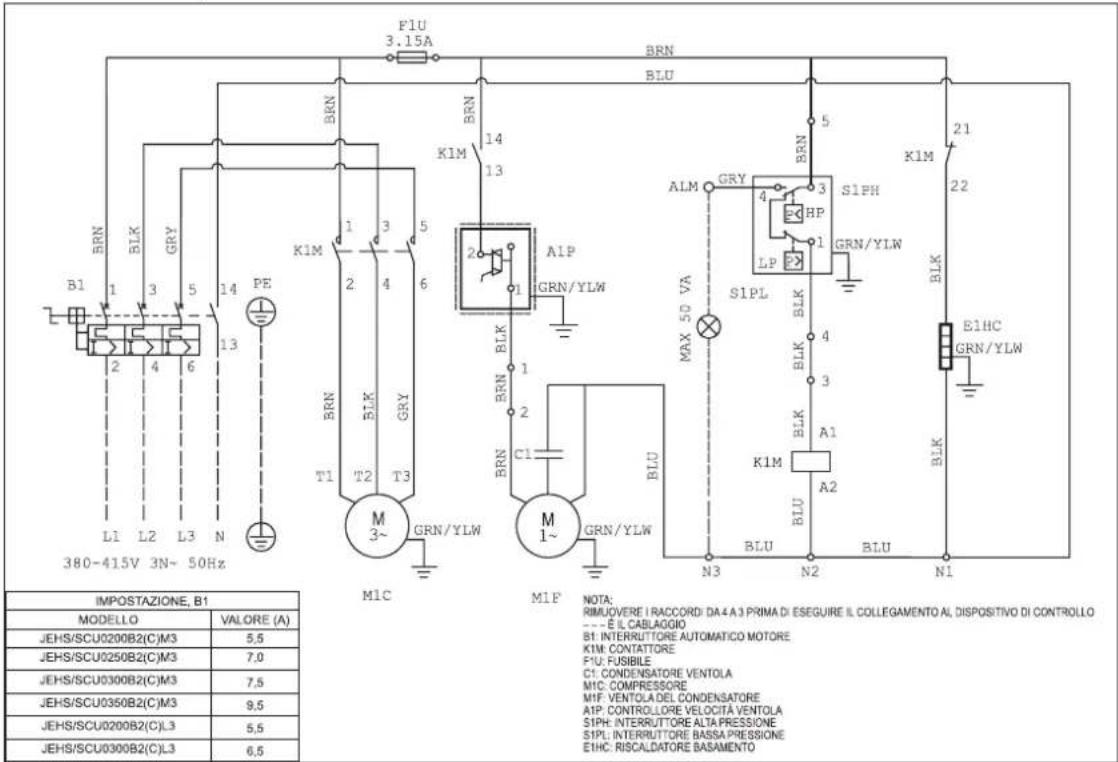

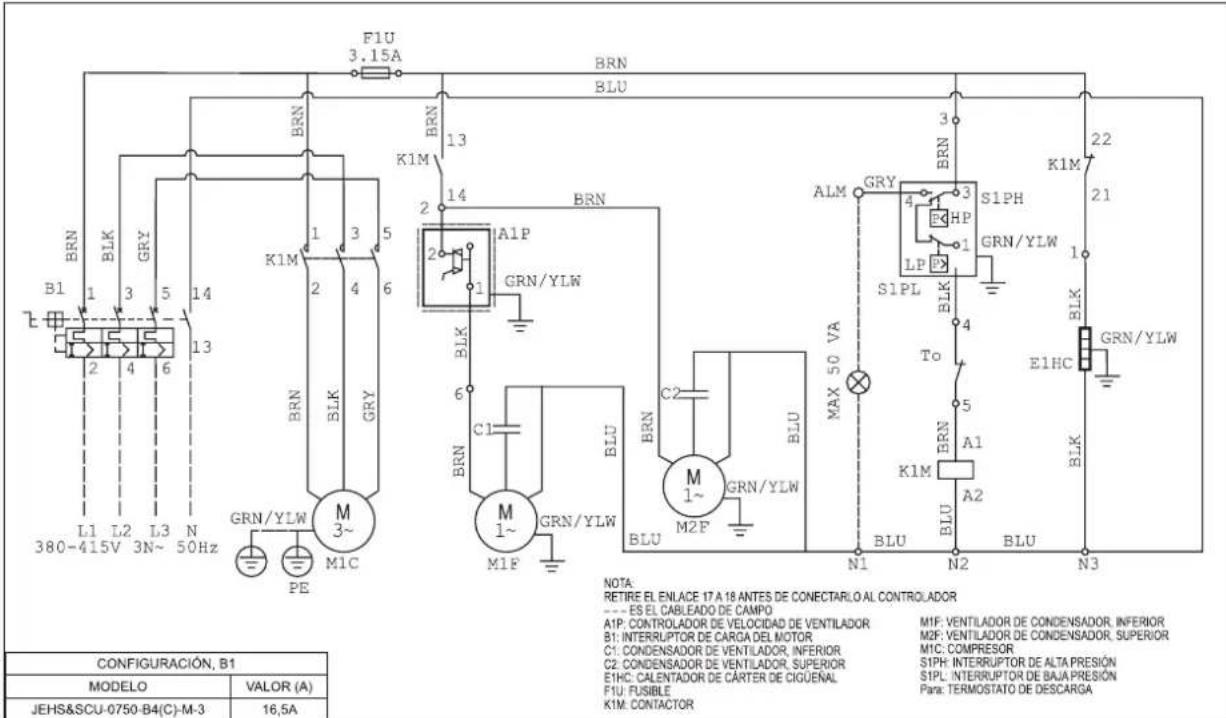

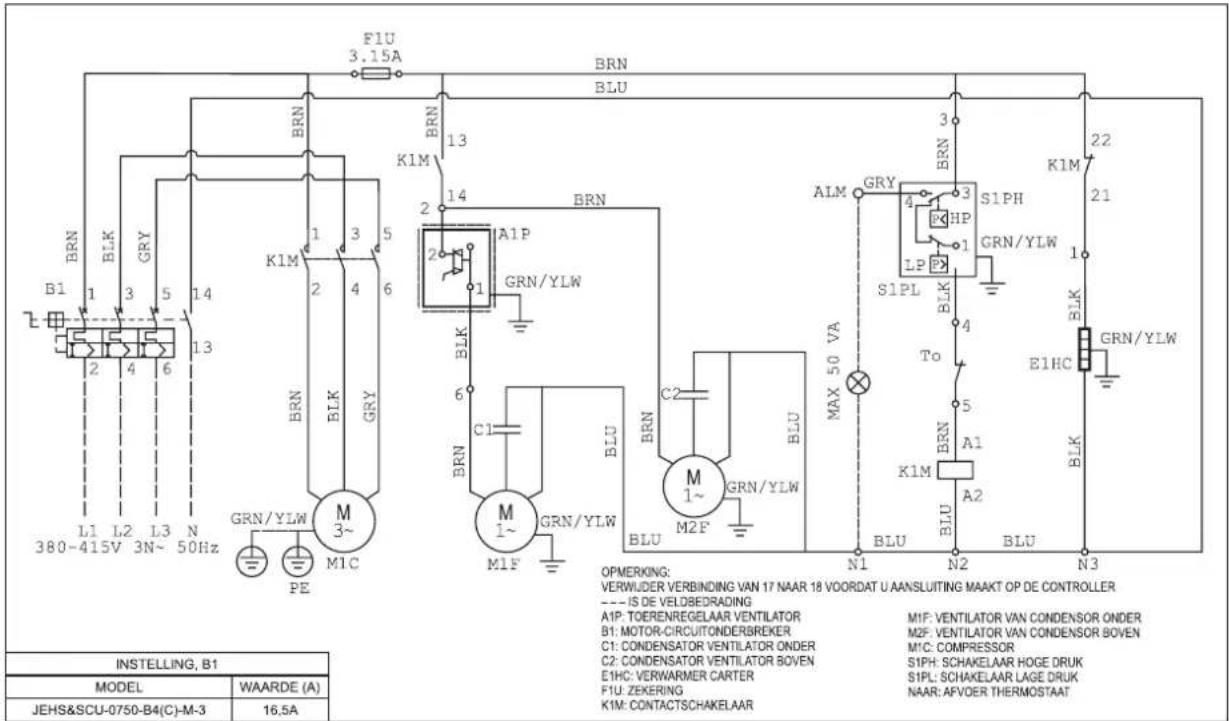

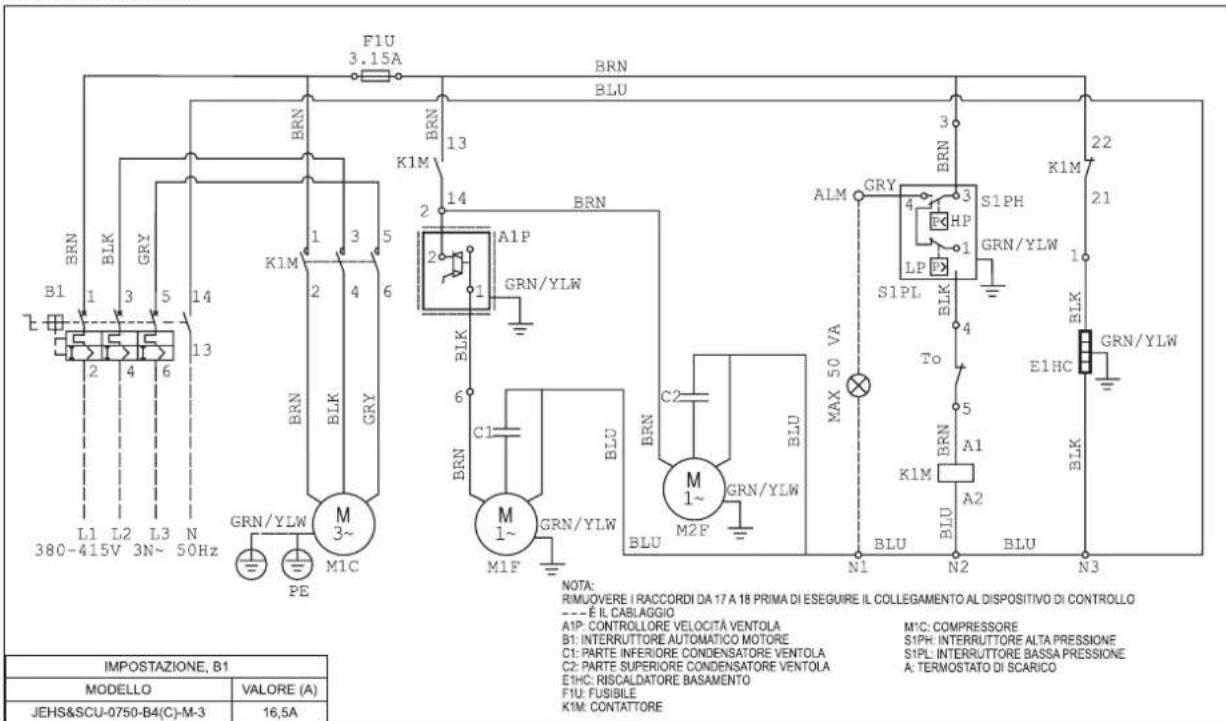

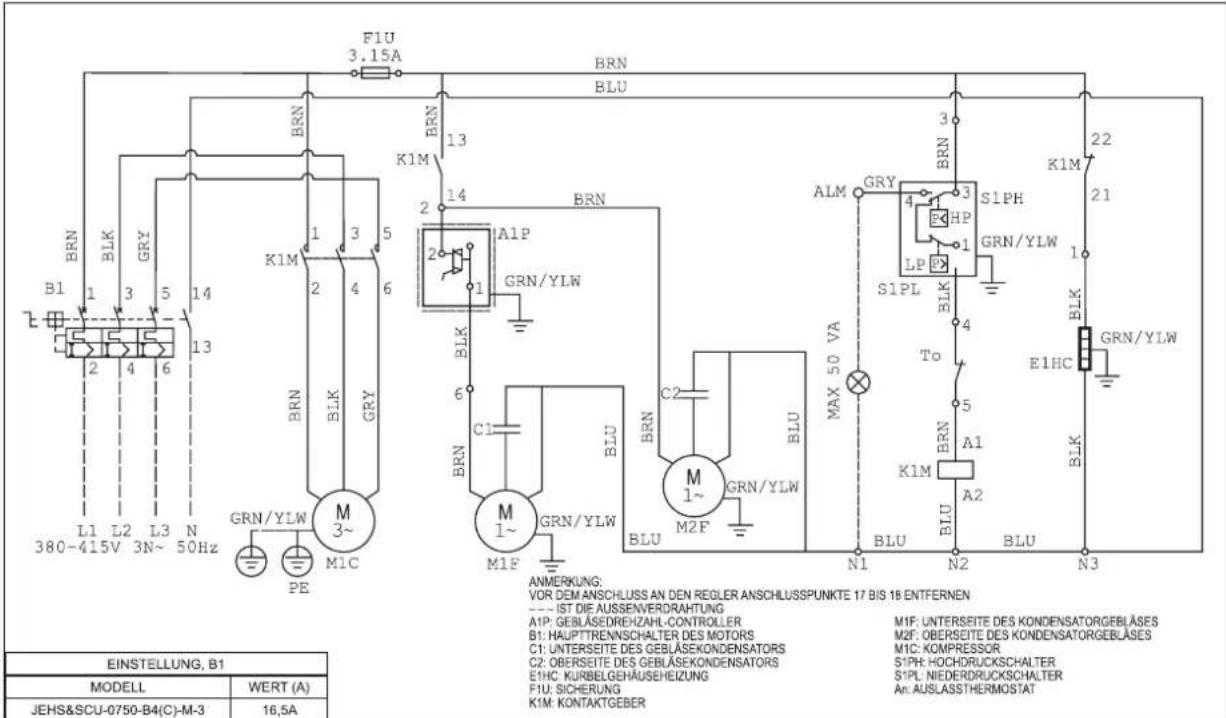

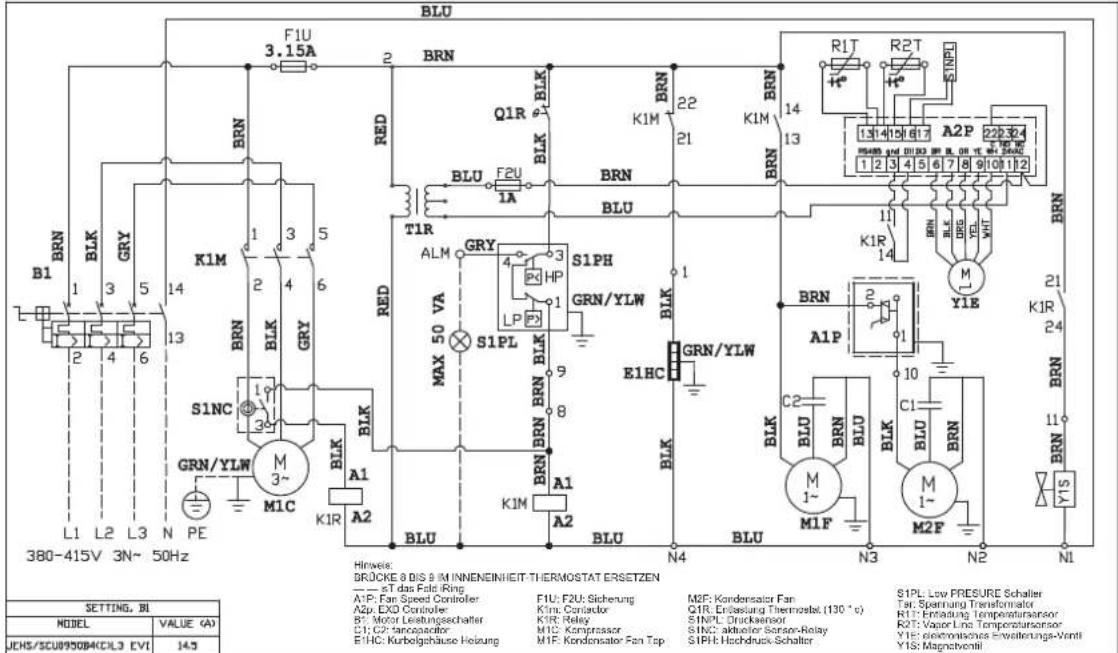

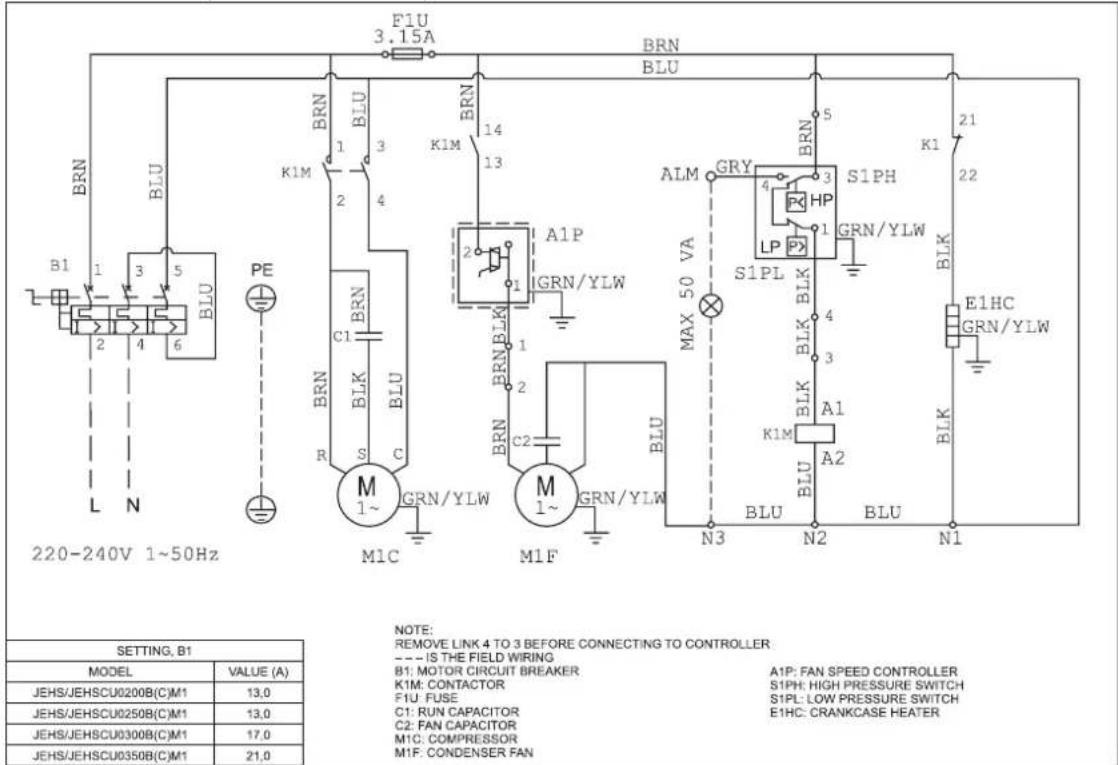

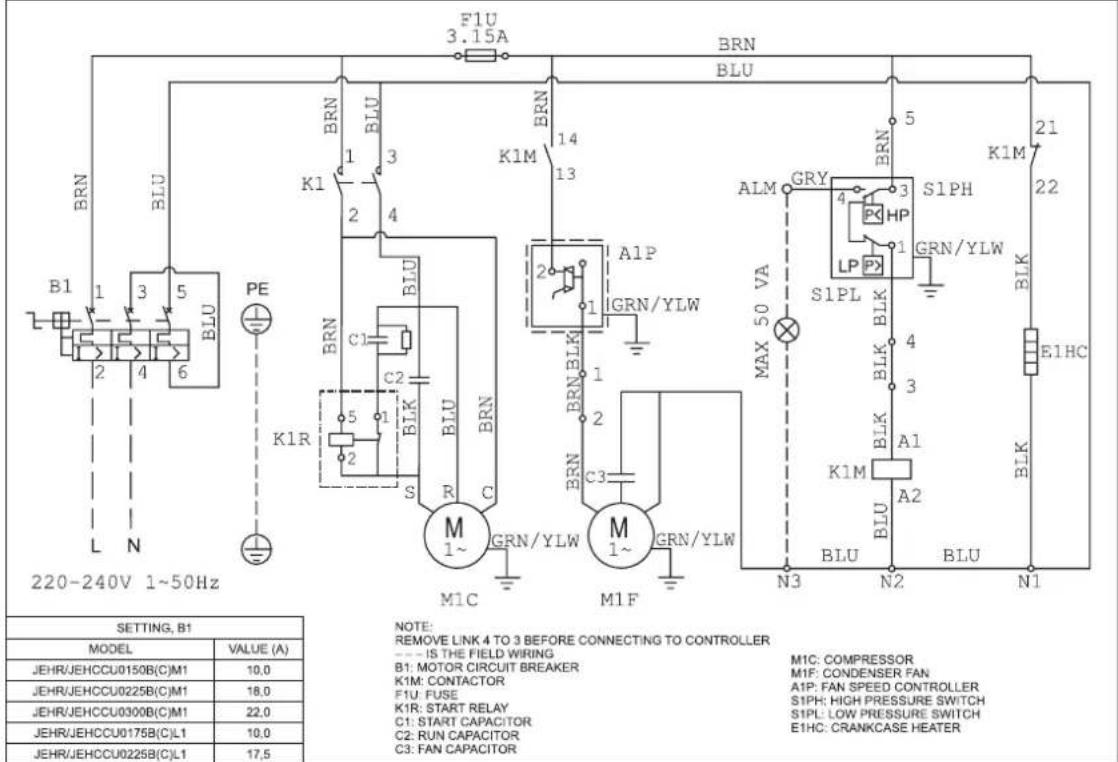

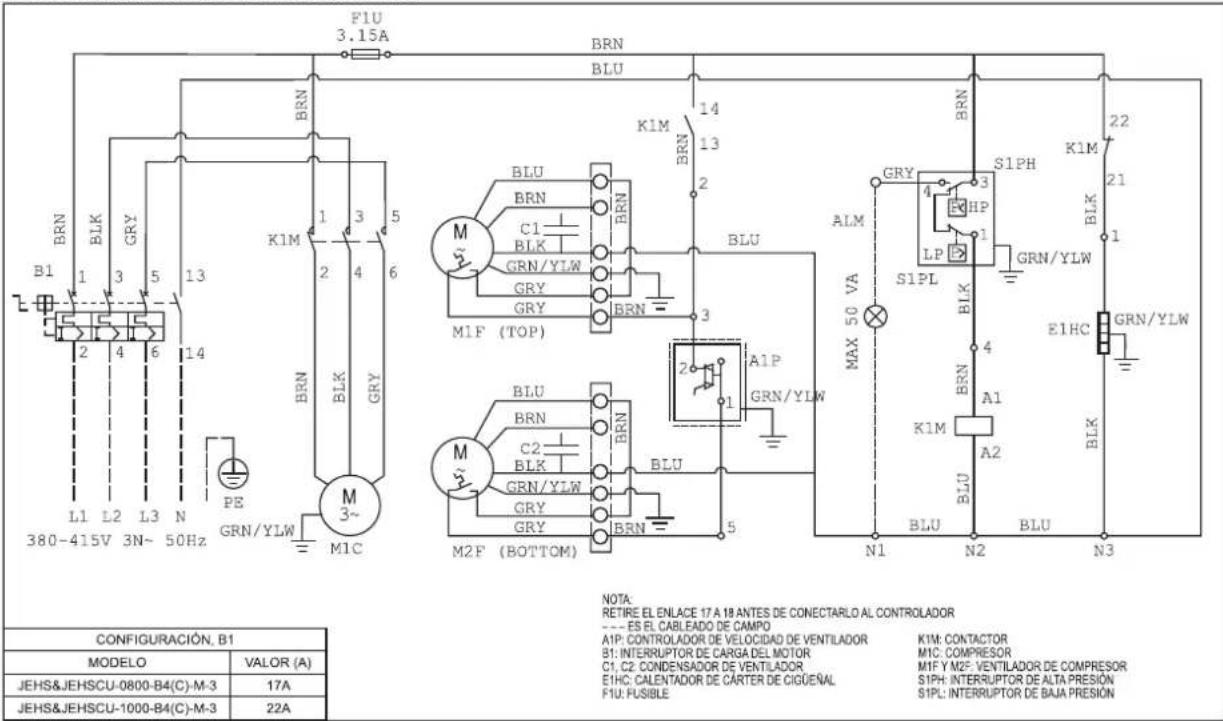

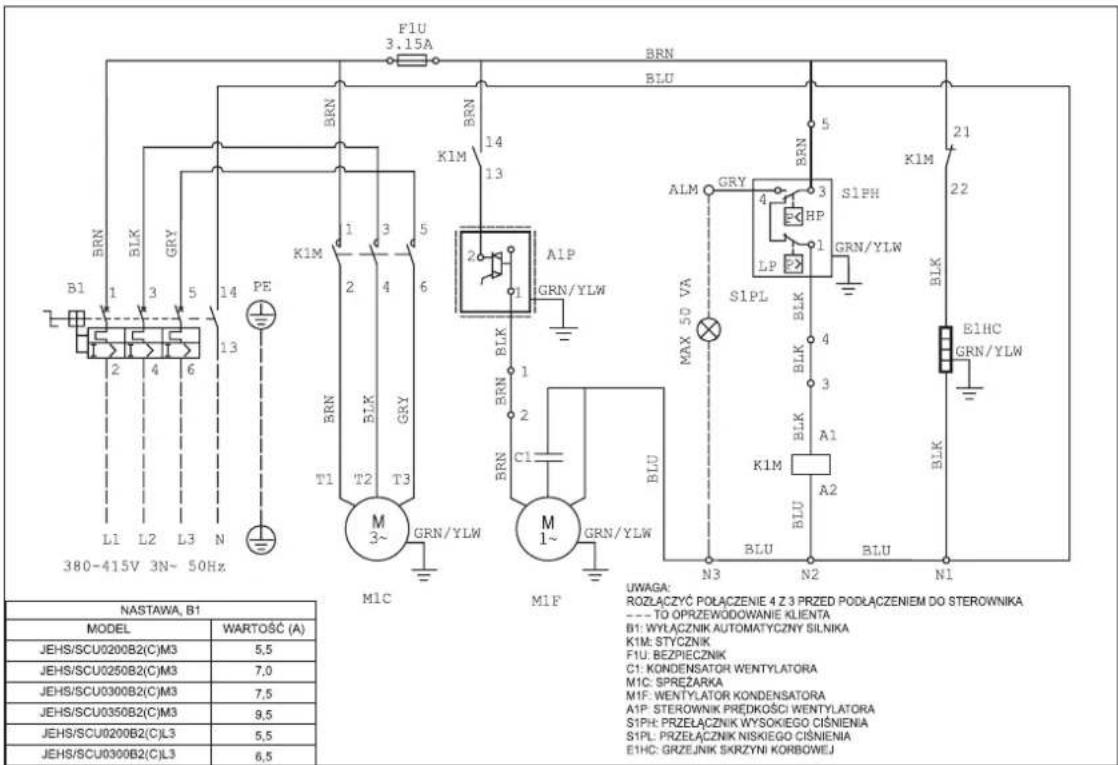

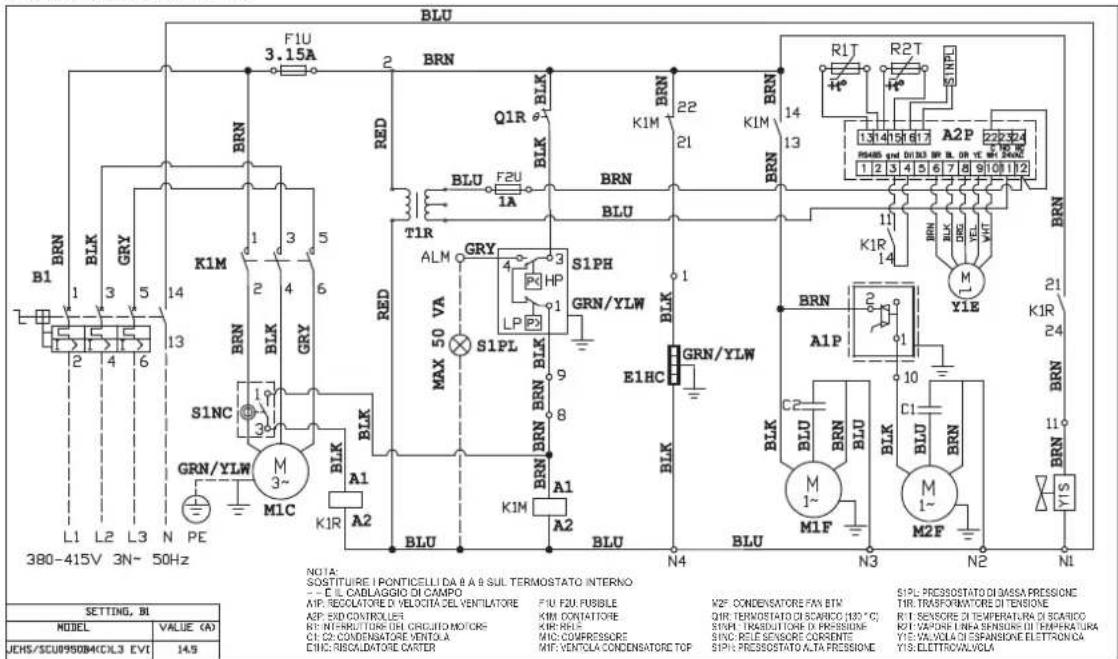

  • Refer to wiring diagram for electrical connections.
• Class II category transformer is required for 24VAC power supply
• Do not connect any EXD-HP1 input to main voltage as it will permanently damage the controller.

• When connecting wires of expansion valve and pressure sensor, consider color coding as follow:

• EXM : BR: BROWN; BL: BLUE, OR: ORANGE; YE: YELLOW; WH: WHITE

• PT5 : BN: BROWN; WH: WHITE

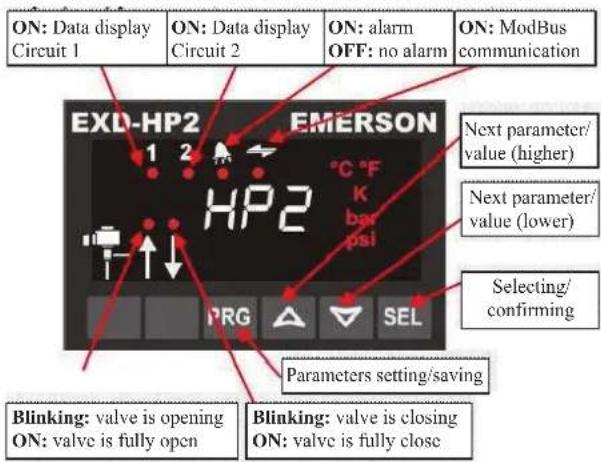

3.14.3 Display / keypad unit (LEDs and button functions)

ON: Data display Circuit 1 ON: Data display Circuit 2 ON: alarm OFF: no alarm ON: ModBus communication EXD-HP2 EMERSON 1 2 °C °F HP2 K bar psi PRG SEL Next parameter/ value (higher) Next parameter/ value (lower) Selecting/ confirming Parameters setting/saving Blinking: valve is opening ON: valve is fully open Blinking: valve is closing ON: valve is fully close

• In standard mode the superheat is shown at the display. In case of liquid injection and economizer function this changes to discharge temperature.
• To display other data of EXD-HP1 press "SEL" button for 1 second until index number according to below table appears. Release "SEL" button and the next variable data will appear. By repeating the procedure variable data can be displayed in sequence as measured superheat (K) → Measured suction pressure (bar) → valve position (%) → Measured suction gas temperature (°C) → Calculated saturated temperature (°C) → Measured discharge temperature (°C) (if economizer function is selected) → REPEATING

Variable data	Controller EXD-HP1
Default Superheat, K	1 1
Suction pressure, bar	1 0
Valve position, %	1 0
Suction gas temperature, °C	1 0
Saturation temperature, °C	1 0
Discharge temperature, °C	1 0

3.14.4 Digital Input Di1/Di2

• The digital input Di1 is the interface between controller EXD-HP1 and system controller if Modbus communication has not been used.
• The digital status is dependent to operation of system's compressor or demand.

Operating Condition	Digital input status
Compressor starts	Closed (Start)
Compressor stops	Open (Stop)

3.14.5 Manual mode operation

Warning: All alarms are disabled during manual control. We do not recommend unattended operation of system during manual control.

• Press PRG and ▼ together for 5 seconds to access to manual mode operation.
• List of parameters in scrolling sequence by pressing button

Code	Parameter description and choices	Min	Max	Factory setting	Field setting
1Ho	Manual mode operation; circuit 1 00 = disabled; 1 = Enabled		1	0
1HP	Valve opening (%)	0	100	0
2Ho	Manual mode operation; circuit 20 = disabled; 1 = Enabled	0	1	0
2HP	Valve opening (%)	0	100	0

Manual alarm reset clearing functional alarms (except hardware error)

- Press PRG and together for 5 seconds. When the clearing is done, "CL" message appears for 2 seconds.

3.14.6 EXD-HP1 Error/Alarm handling

Alarm code	Description	Related parameter	Valve W	What to do?	Requires manual reset after resolving alarm
1E0/2E0	Pressure sensor 1/2 error	-	Fully close	Check wiring connection and measure the signal 4 to 20 mA No
1E1/2E0	Temperature sensor 1/2 error	-	Fully close	Check wiring connection and measure the resistance of sensor	No
1Ed	Discharge hot gas temperature sensor 3 error	-	Operating	Check wiring connection and measure the resistance of sensor	No
1AII/2AII	EXM/EXL electrical connection error	-	-	Check wiring connection and measure the resistance of winding	No
1Ad	Discharge hot gas temperature above limit		Operating	Check valve opening/ check liquid flow for flash gas free/check discharge hot gas temperature sensor	No
AF	Freeze protection	1P4/2P4: 1	Fully close	Check the system for cause of low pressure such as insufficient load on evaporator	No
AF blinking		1P4/2P4: 2	Fully close		Yes
AL	Low superheat (<0.5K)	1uL/2uL: 1	Fully close	Check wiring connection and operation of valve	No
AL blinking		1uL/2uL: 2	Fully close		Yes
AH	High superheat	1uII/2uII: 1	Operating	Check the system	No
AP	Low pressure	1P9/2P9: 1	Operating	Check the system for cause of low pressure such as refrigerant loss	No
AP blinking		1P9/2P9: 2	Operating		Yes

Note: When multiple alarms occur, the highest priority alarm is displayed until being cleared.
Then the next highest alarm is displayed until all alarms are cleared.
Only then will parameters will be shown again

O-CU06-AUG17-3

All specifications are subjected to change by the manufacturer without prior notice. The English text is the original instruction. Other languages are the translations of the original instructions.

ENGLISH

4 Decommissioning & Disposal

At the end of the unit's useful life, a suitably qualified engineer should decommission it. The refrigerant and compressor oil are classed as hazardous waste and as such must be reclaimed and disposed of in the correct manner, including completion of waste transfer paperwork. The unit components must be disposed of or recycled as appropriate in the correct manner.

5. Checklist

• Ensure the high low pressure controls are configured properly.
• Ensure crankcase heater is energized minimum 12 hours prior to start up and permanently energized.
• Check the refrigerant is correct for intended use.
• Check all electrical connections.
• Check all electrical termination and circuits are correct.
• Check compressor oil level via compressor sight glass, the oil level should not be lower than quarter of sight glass.
• Check the TXV capacity sizing based on indoor unit capacity. Check TXV applicable refrigerant. Check position and condition of the sensing bulb fixing
• Observed the system pressures during the charging and initial operation process.
• Ensure that suction pressure will decrease, discharge pressure will increase. No abnormal noise from the compressor.
• Continue to charge the system until sight glass is clear. Make sure that high pressure is > 14 barg for R404A and > 8 barg for R134a when doing this charge adjustment operation. Continuous flow of clear refrigerant through the sight glass, with perhaps an occasional bubble at very high temperature indicates the refrigerant is at optimum.
• Check the compressor's discharge and suction pressure, to ensure it is within operating range. Discharge temperature should be within 50 to 90 °C and pressure should be around 15 to 26 barg (for system charged with R404A) and 8 to 16 barg (for system charged with R134a).
• Check the current of condensing unit and ensure it is below the motor circuit breaker setting value.
• Check condenser fan, ensure warm air blowing off the condenser coil.
• Check evaporator blower, ensure it's discharging cool air.
• Check suction superheat and adjust expansion valve to prevent liquid flood back to the compressor. Recommended 5 to 20 K of suction superheat.
• Do not leave the system unattended until the system has reached its normal operating condition and the oil charge has properly adjusted itself to maintain the proper level in the sight glass.
• Check periodically the compressor performance and all the moving components during the first day of operation.
• Check the liquid line sight glass and expansion valve operation. If there is an indication that the system is low on refrigerant, thoroughly check the system for leaks before adding refrigerant.

6. Service and Maintenance

Important Note

Warning! – Disconnect the mains electrical supply before servicing or opening the unit

Warning! – Ensure there is no refrigerant in refrigerant circuit before dismantle it

Warning! - If the supply cord is damaged, it must be replaced by the qualified service agent in order to avoid a hazard.

The condensing units are designed to give long life operation with minimum maintenance. However, they should be routinely checked and the following service schedule is recommended under normal circumstances:

Important Note

For scroll compressor: wiring for 3 phases must be controlled. Supply phase sequence L1, L2 and L3 will affect the rotating direction of scroll compressor and damage the compressor.

Service technician should be present at initial start-up to verify that the supply power is properly phased and that compressor is rotating in the correct direction.

The removal of the top, side and front panels ensures that all parts are accessible.

1. Compressor – Inspect at regular intervals

- Check for refrigerant leaks on all joints and fittings.

- Ensure that no abnormal noise or vibration is detected during test run.

- Check the compressor oil levels and top up if required. The oil level should not be lower than quarter of the compressor oil sight glass. Not applicable to AE/AJ compressor.

1. Condenser Coil – Clean and inspect at regular intervals

- Remove surface dirt, leaves, fibers, etc. with a vacuum cleaner (preferably with a brush or other soft attachment rather than a metal tube), compressed air blown from the inside out, and/or a soft bristle (not wire!) brush. Do not impact or scrape the coil with the vacuum tube, air nozzle, etc. It may be beneficial to blow or vacuum out the rinse water from MCHE to speed drying and prevent pooling.

1. Power Supply – Inspect at regular intervals

- Check the running current and voltage for the condensing unit.

- Check the electrical wiring and tighten the wires onto the terminal blocks if necessary.

Under normal circumstances:

- Clean condenser coil every three months

• To assure no leakage

- Check and verify operation of all safety devices every three months, ensure crankcase heater is operational

- Check sight glass and operating conditions

- Check security of compressor mountings and the bolts that hold down the unit each year

1. Compact Brazed Heat Exchanger (BPHE)

** For JEHSCU0950CL3 EVI Unit ONLY

- Any soldering process done on the heat exchanger needs to be brazed with minimum 45% silver solder at maximum 450°C (840°F) when soft soldering and 450-800°C (840-1470°F) when hard soldering.

- Do not direct flame at BPHE and use wet rag to avoid overheating of BPHE.

7. F-Gas Information

• From 1/1/2015, a new F-Gas Regulation (EU) No 517/2014 comes into force repealing Regulation (EC) No 842/2006. This will affect system labelling, information supplied within documentation and also the way in which thresholds for frequency of leak testing.
• For systems with a charge below 3kg, the changes to the leak checking regime will not apply until 2017. Currently, there is no requirement for regular leak testing of systems with a total charge below 3kg.
  • Changes to leak testing requirements are as follows:

OLD LEGISLATION	NEW LEGISLATION	LEAK CHECKING FREQUENCY
	5-50 TCO_2Eq 3-30Every 12 months but can be increased to 24 months if fitted with a fixed leak detection system.
30-300 kgs	50-500 TCO_2Eq	Every 6 months but can be increased to 12 months if fitted with a fixed leak detection system.
	500+ TCO_2Eq 300Every 6 months - however automatic leak detection system is mandatory which requires servicing every 12 months.

Important information regarding the refrigerant used

Its functioning relies on fluorinated greenhouse gases

• This product is factory charged with N2.
- The refrigerant system will be charged with fluorinated greenhouse gases. Do not vent gases into the atmosphere.

The GWP (Global Warming Potential) values of refrigerants which are specified for use in this equipment along with the three new thresholds for leak testing requirements based on TCO_2Eq (Tonnes CO_2 Equivalent) are as follows:

Refrigerant	GWP (1)	Refrigerant Charge - kg
		5T	50T	500T
		CO_2Eq	CO_2Eq	CO_2Eq
R404A	3921.6	1.3	12.7	127
R407A	2107	2.4	23.7	237
R407F	1824.5	2.7	27.4	274
R134a	1430	3.5	35.0	350
R448A	1387	3.6	36.0	360
R449A	1397	3.6	35.8	358

Please fill in with indelible ink, on the refrigerant charge label supplied with the product.

total refrigerant charge & the TCO charged refrigerant.

2 equivalent for

The filled out label must be adhered in the proximity of the product charging port.

Contains Fluorinated Greenhouse Gases

Ref.	GWP	Charge (kg)	CO2Eq.
R404A	3922
R407A	2107
R407F	1825
R448A	1387
R449A	1397
R134a	1430

8. Trouble Shooting

This troubleshooting guide describes some common condensing unit failure. Consult qualified personnel before any corrective actions are taken.

Failure Possible Causes
Fan does not work	Improper wiring
Compressor does not start	Improper wiringSystem stopped because of tripped of safety device.
Insufficient cooling	Incorrect TXV size and SH settingMiss matching of indoLow refrigerant chargeCondenser coil dirtyObstacle blocking air inlet/outletImproper thermostat settingCompressor rotating direction is incorrect

Important Note Warning! – Immediately shut off power of the unit if there is any event of accident or breakdown.

9. Specifications

Medium Temperature

Model		Series	COP/SEPR						Compressor			Oil type	Electrical Data							Airflow (m3/h)	Receptor	Connection Dimensions					Weight (kg)	Sound pressure dB( A) ^2 at 10 meter
			R404A	R407A	R407F	R448A	R449A	RL346	Type	Displacement (m3/h)	Oil Charge (Liber)		Power Input	Nominal Current* (A) R404A	Nominal Current* (A) R407A	Nominal Current* (A) R407F	Nominal Current* (A) RL34a	Lock Rotor current (A) RL34a	MFA ^3 (A)			Volume (Liter)	Suction (Inch)	Liquid (Inch)	Width (mm)	Depth (mm)	Height (mm)
Median temperature	JEHCCU0050CM1	1	1,45	1,33	1,47	N/A	1,44	N/A	AE4460Z-FZ1C	1,80	0,28	230W/- Oil A'	230V/1~50Hz	3,79	3,74	3,78	N/A	19,4	10	1300	2,4	3/8"	1/4"	876	420	807	47	29
	JEHCCU0087CM1	1	1,51	1,37	1,49	N/A	1,45	N/A	CAJ8460Z	2,64	0,475		230V/1~50Hz	3,53	3,32	3,53	N/A	24,1	10	1300	2,4	1/2"	3/8"	876	420	807	54	28
	JEHCCU0100CM1	1	1,51	1,43	1,51	N/A	1,45	N/A	CAJ8510Z	3,18	0,475		230V/1~50Hz	4,26	4,60	4,21	N/A	29,5	10	1300	2,4	1/2"	3/8"	876	420	607	55	28
	JEHCCU0113CM1	1	1,60	1,52	1,58	N/A	1,53	N/A	CAJ8513Z	4,21	0,475		230V/1~50Hz	5,27	4,88	5,11	N/A	33,5	12	1300	2,4	1/2"	3/8"	876	420	607	56	28
	JEHCCU0400CM1	1	N/A	N/A	N/A	N/A	N/A	1,28	AE4440Y-FZ1A	1,8	0,26		230V/1~50Hz	N/A	N/A	N/A	2,55	13,2	10	1300	2,4	3/8"	1/4"	876	420	607	47	29
	JEHCCU0051CM1	1	N/A	N/A	N/A	N/A	N/A	1,53	CAJ961Y	3,18	0,475		230V/1~50Hz	N/A	N/A	N/A	3,65	19	10	1300	2,4	3/8"	1/4"	876	420	807	55	29
	JEHCCU0083CM1	1	N/A	N/A	N/A	N/A	N/A	1,55	CAJ1470Y	3,79	0,475		230V/1~50Hz	N/A	N/A	N/A	4,65	24	10	1300	2,4	3/8"	1/4"	876	420	607	54	29
	JEHCCU0077CM1	1	N/A	N/A	N/A	N/A	N/A	1,63	CAJ1492Y	4,51	0,475		230V/1~50Hz	N/A	N/A	N/A	5,25	28	10	1300	2,4	1/2"	3/8"	876	420	807	56	29
	JEHCCU0095CM1	1	N/A	N/A	N/A	N/A	N/A	1,65	CAJ4511Y	5,69	0,475		230V/1~50Hz	N/A	N/A	N/A	4,17	29,5	10	1300	2,4	1/2"	3/8"	876	420	807	55	29
	JEHCCU0140CM1	2	1,68	1,57	1,75	N/A	1,96	N/A	CAJ4517Z	4,52	0,475		230V/1~50Hz	5,90	5,19	6,97	N/A	38,5	16	2700	4,5	5/8"	3/8"	1101	444	662	67	34
	JEHCCU0140CM3	2	1,80	1,50	1,67	N/A	1,88	N/A	TAJ4517Z	4,52	0,475		400V/3~50Hz	2,94	2,37	2,96	N/A	18	10	2700	4,5	5/8"	3/8"	1101	444	662	67	34
	JEHCCU0150CM1	2	1,78	1,77	1,78	N/A	N/A	1,57	MTZ18-5VM	5,26	0,95	Oil B'	230V/1~50Hz	7,08	6,89	7,03	5,23	40	12	2700	4,5	5/8"	3/8"	1101	444	662	68	37
	JEHCCU0150CM3	2	1,81	1,83	1,85	N/A	N/A	1,71	MTZ18-4VM	5,26	0,95		400V/3~50Hz	3,23	2,99	3,06	2,47	20	10	2700	4,5	5/8"	3/8"	1101	444	662	68	37
	JEHCCU0225CM1	2	1,86	1,85	1,86	N/A	N/A	1,81	MTZ28-5VM	8,36	0,95		230V/1~50Hz	11,40	9,94	10,45	8,28	51	20	2700	4,5	5/8"	3/8"	1101	444	662	70	38
	JEHCCU0225CM3	2	1,90	1,92	1,93	N/A	N/A	1,82	MTZ28-4VM	8,36	0,95		400V/3~50Hz	4,52	4,15	4,28	3,35	23	10	2700	4,5	5/8"	3/8"	1101	444	662	70	38
	JEHCCU0300CM1	2	1,80	1,80	1,80	N/A	N/A	1,91	MTZ36-5VM	10,52	0,95		230V/1~50Hz	15,66	12,14	12,60	10,68	60	25	2700	4,5	3/4"	3/8"	1101	444	662	72	39
	JEHCCU0300CM3	2	1,84	1,87	1,87	N/A	N/A	1,95	MTZ36-4VM	10,52	0,95		400V/3~50Hz	5,46	4,99	5,17	3,64	30	10	2700	4,5	3/4"	3/8"	1101	444	662	72	39
	JEHSCU0200CM1	2	2,25	2,13	1,88	1,96	1,96	1,85	ZB15KQE-PFD	5,90	1,24	400V/3~50Hz	230V/1~50Hz	7,68	8,10	8,98	5,45	58	16	2700	4,5	3/4"	3/8"	1101	444	662	70	33
	JEHSCU0200CM3	2	2,06	2,07	1,81	1,96	1,96	2,12	ZB15KQE-TFD	5,90	1,24		230V/1~50Hz	3,51	3,43	3,65	2,94	26	10	2700	4,5	3/4"	3/8"	1101	444	662	70	33
	JEHSCU0250CM1	2	2,00	2,01	1,79	1,87	1,87	2,14	ZB19KQE-PFD	6,80	1,30		230V/1~50Hz	9,87	9,70	10,35	6,24	61	16	2700	4,5	3/4"	3/8"	1101	444	662	72	34
	JEHSCU0250CM3	2	2,07	1,95	1,79	1,87	1,87	2,13	ZB19KQE-TFD	6,80	1,34		230V/1~50Hz	4,75	4,41	4,71	3,36	32	10	2700	4,5	3/4"	3/8"	1101	444	662	72	34
	JEHSCU0300CM1	2	1,88	1,89	1,69	1,79	1,79	2,13	ZB21KQE-PFD	8,60	1,45		230V/1~50Hz	12,83	12,32	13,13	7,44	82	20	2700	4,5	3/4"	3/8"	1101	444	662	74	36
	JEHSCU0300CM3	2	1,94	1,86	1,65	1,79	1,79	2,10	ZB21KQE-TFD	8,60	1,45		230V/1~50Hz	4,97	4,80	5,06	3,75	40	10	2700	4,5	3/4"	3/8"	1101	444	662	74	36
	JEHSCU0350CM3	2	2,61	N/A	N/A	2,28	2,28	2,08	ZB26KQE-TFD	9,90	1,5		400V/3~50Hz	6,43	N/A	N/A	4,28	46	10	2700	4,5	3/4"	3/8"	1101	444	662	74	38
	JEHSCU0400CM3	3	1,36	3,73	3,48	3,08	3,08	2,29	ZB29KQE-TFD	11,30	1,36		400V/3~50Hz	8,20	8,20	6,31	5,20	50	16	4250	7,6	7/8"	1/2"	1353	575	872	79	37
	JEHSCU0500CM3	3	3,08	3,16	3,05	2,92	2,92	2,69	ZB38KQE-TFD	14,40	2,07		400V/3~50Hz	9,11	8,30	8,40	6,57	65,5	16	4250	7,6	7/8"	1/2"	1353	575	872	123	38
	JEHSCU0600CM3	3	3,08	3,15	3,09	2,90	2,90	2,63	ZB45KQE-TFD	17,10	1,89		400V/3~50Hz	9,56	8,62	9,21	6,87	74	16	4100	7,6	1-1/8"	1/2"	1353	575	872	125	40
	JEHSCU0660CM3	3	3,04	2,90	2,87	2,62	2,62	2,57	ZB48KQE-TFD	18,80	1,8		400V/3~50Hz	12,33	11,50	11,80	8,67	101	20	4100	7,6	1-1/8"	1/2"	1353	575	872	126	40
	JEHSCU0660CM3	4	3,35	3,08	2,93	2,83	2,83	3,04	ZB58KQE-TFD	22,10	2,5		400V/3~50Hz	13,00	12,57	12,33	12,41	95	20	8500	13,6	1-1/8"	3/4"	1348	641	1727	222	43
	JEHSCU1000CM3	4	3,15	2,71	2,73	2,77	2,77	3,29	ZB76KQE-TFD	29,10	3,2		400V/3~50Hz	16,20	15,67	15,76	12,90	118	25	8500	13,6	1-3/8"	3/4"	1348	641	1727	226	43

* Refer to condition: Outside ambient temperature= 32°C. Evaporation temperature = -10°C (medium temperature application).
" MFA = Maximum Fuse Amps
Sound pressure level measured in anechoic room
^1 OLA = Uniqoma Emkarate BL 32CF
Oil B = Polyester oil 150PZ
^1 Oil C = Polyester oil (Copeland Ultra 22 CC, Copeland Ultra 32 CC, Copeland Ultra 32-3MAF, Mobil EAL ^TM Arctic 22 CC, Uniqema Emkarate RL32CF)
Note: condensing units are pre-charged with oil as stated in table

O-CU06-AUG17-3

All specifications are subjected to change by the manufacturer without prior notice. The English text is the original instruction. Other languages are the translations of the original instructions.

ENGLISH

Low Temperature

Model		Series	COP/SEPR					Compressor			Oil type	Electrical Data					Airflow (m^3/h)	Receiver	Connection		Dimensions		Weight(kg)	Sound pressure dB(A^2) at 10 motor
			R404A	R407A	R407F	R448A	R448A		Type	Displacement (m^3/h)	Oil Charge(Liter)								Volume(Liter)	Suction(Inch)	Liquid(Inch)	Width(mm)	Depth(mm)	Height(mm)
Low temperature	JEHCCU0115CL1 1 0,96		N/A	N/A	N/A	N/A CA12446Z 4,55 0,887 Oil A						"	230W/1~/50Hz	4,00	N/A	30	10	1300	2,4	3/8"	1/4"	876	420	607	57	31
	JEHSCU0200CL3	2	0,97	0,89	0,93	0,86	0,86	ZF06K4E-TFD	5,9	1,3	Oil C	400V/3~/50Hz	3,30	3,22	26	10	2700	4,5	3/4"	3/8"	1101	444	662	76	32
	JEHSCU0300CL3	2	1,09	0,85	0,91	0,92	0,92	ZF09K4E-TFD	8,0	1,5		400V/3~/50Hz	4,40	4,39	40	10	2700	4,5	3/4"	3/8"	1101	444	662	78	33
	JEHSCU0400CL3	3	1,88	1,67	1,65	1,67	1,67	ZF13K4E-TFD	11,8	1,9		400V/3~/50Hz	5,79	5,39	51,5	10	4250	7,6	7/8"	1/2"	1353	575	872	132	37
	JEHSCU0500CL3	3	1,79	1,67	1,64	1,53	1,53	ZF15K4E-TFD	14,5	1,9		400V/3~/50Hz	7,59	6,58	64	16	4250	7,6	7/8"	1/2"	1353	575	872	132	39
	JEHSCU0600CL3	3	1,80	1,52	N/A	1,53	1,53	ZF18K4E-TFD	17,1	1,9		400V/3~/50Hz	8,51	7,00	74	16	4250	7,6	7/8"	1/2"	1353	575	872	133	41
	JEHSCU0750CL3	4	1,82	1,51	N/A	1,64	1,64	ZF25K5E-TFD	21,4	1,9		400V/3~/50Hz	9,15	8,75	102	16	5750	13,6	1-1/6"	1/2"	1348	605	1727	203	41
	JEHSCU0950CL3 EVI	4	1,79	1,76	1,63	1,76	1,76	ZF18KVE-TFD-EVI	17,1	1,9		400V/3~/50Hz	8,50	8,10	74	16	5870	13,6	7/8"	1/2"	1348	605	1727	200	37

^a Refer to condition: Outside ambient temperature=32°C, Evaporation temperature = -35°C (low temperature application)
b MFA = Maximum Fuse Amps
^c Sound pressure level measured in anechoic room
^1 Oil A = Unigenna Emkarale RL32CF
Oil C = Polyester oil (Copeland Ultra 22 CC. Copeland Ultra 32 CC. Copeland Ultra 32-3MAF. Mobil EAL™ Arctic 22 CC. Uniqema Emkarate RLS2CF)
Note: condensing units are pre-charged with oil as stated in table

O-CU06-AUG17-3

12

All specifications are subjected to change by the manufacturer without prior notice. The English text is the original instruction. Other languages are the translations of the original instructions.

ENGLISH

10. Outline drawings

Series 1

Series 2

Series 3

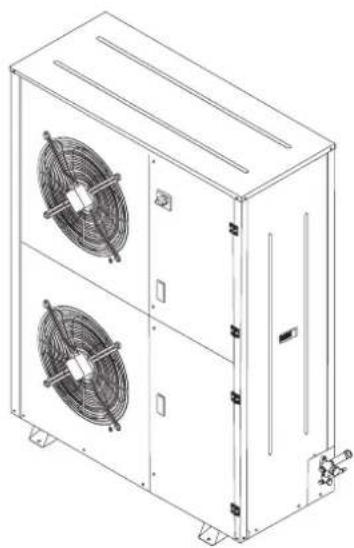

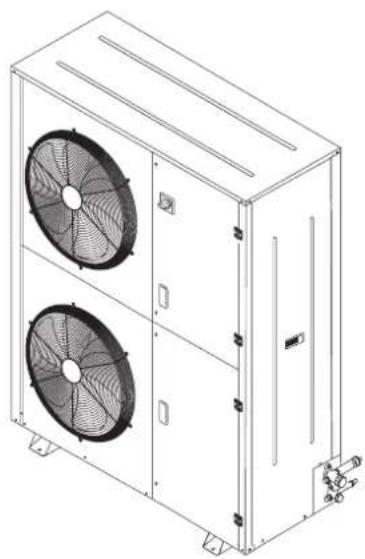

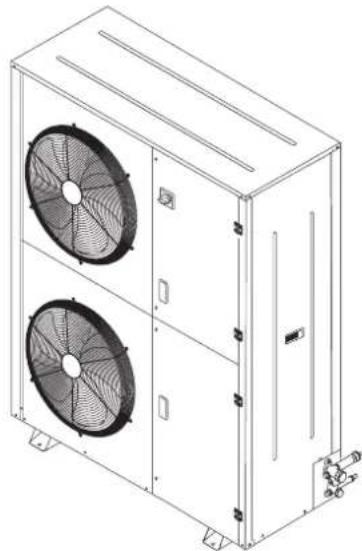

Series 4

Medium Temperature

940 522 1271 1348 560 641

Technical drawing of a dual fan assembly with mounting holes and dimension label (no text or symbols)

Technical line drawing of a dual-panel air conditioning unit with fans and cooling fins (no text or symbols)

Low Temperature

940 4-ø10 522 560 605 1271 1348

Technical drawing of a dual-panel air fan assembly with dimension annotations (no text or symbols on the fan itself)

Technical line drawing of a dual-panel industrial cooling unit with two fans (no text or symbols)

11. Electrical Data

Important Note: All wiring and connections to the condensing unit must be made in accordance to the local codes.

Single Phase

JEHCCU0040CM1; JEHCCU0050CM1

F1U 3.15A BRN BLU BRN BRN S1PH K1M 21 22 ORG E1HC S1PL 4 HP GRN/YLW GRN/YLW S1P 1 GRN/YLW S1P 3 BLK BLU BRN BRN Q1M: OVERLOAD MOTOR PROTECTOR S1PH: HIGH PRESSURE SWITCH 1 S1P: PRESSURE SWITCH S1PL: LOW PRESSURE SWITCH E1HC: CRANKCASE HEATER B1: MOTOR CIRCUIT BREAKER Q1M: OVERLOAD MOTOR PROTECTOR K1H: CONTACTOR S1PH: HIGH PRESSURE SWITCH 1 K1R: START RELAY S1P: PRESSURE SWITCH F1U: FUSE C1: COMPRESSOR START CAPACITOR E1HC: CRANKCASE HEATER C2: FAN CAPACITOR P1: START RELAY M1C: COMPRESSOR M1F: CONDENSER FAN BEICCU0050CM1 6.0 JEHCCU0040CM1 4.0 M1C M1~ Q1M: START RELAY M1C: COMPRESSOR M1F: CONDENSER FAN BEICCU0050CM1 6.0

JEHCCU0051CM1; JEHCCU0063CM1; JEHCCU0077CM1

F1U 3.15A BRN BLU BRN BRN K1M 1 3 5 2 4 6 BRN BLU BRN S1P GRN/YLW S1PL 4 HP 1 GRN/YLW ORG E1HC B1 1 3 5 BLU Q1M L N ~ 220-240V 50Hz C1 S R M1 C M1~ GRN/YLW BLU BRN BLU BLK C3 BLK BRN/YLW M1~ M1F BRN/YPW BLU BLK C3 BRN/YLW S1PH 21 22 B1: MOTOR CIRCUIT BREAKER S1PH: HIGH PRESSURE SWITCH K1M: CONTACTOR S1P: PRESSURE SWITCH K1R: START RELAY S1PL: LOW PRESSURE SWITCH F1U: FUSE E1HC: CRANKCASE HEATER C1: COMPRESSOR START CAPACITOR C2: COMPRESSOR RUN CAPACITOR C3: FAN CAPACITOR M1C: COMPRESSOR M1F: CONDENSER FAN Q1M: OVERLOAD MOTOR PROTECTOR

JEHCCU0067CM1; JEHCCU0095CM1; JEHCCU0100CM1; JEHCCU0113CM1, JEHCCU0115CL1

F1U 3.15A BRN BLU BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN (220-240V 50Hz) L N ~ 220-240V 50Hz B1 1 3 5 2 4 6 PE K1M 1 3 5 2 4 6 BLU BRN BLU BRN BLU BLK C1 BLK C2 Q1M BRN Q1M BLK BLU S S C R GRN/YLW M1~ M1C GRN/YLW M1~ M1F BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN

JEHCCU0140CM1

F1U 3.15A BRN BLU BRN K1M (1) BLU 3 (2N) BLU C2 BLU C1 BLK BRN RED A/S P/R C/C M 1~ M1C M1~ M1F GRN/YLW M1~ GRN/YLW Q1M BRN ALM GRY S1PH HP GRN/YLW S1PL ORG MAX 50 VA BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK B1 1 3 5 BUJ 2 4 6 PE K1R L N 220-240V 1~ 50Hz NOTE: REMOVE LINK 2 TO 1 BEFORE CONNECTING TO CONTROLLER --- IS THE FIELD WIRING (:) TERMINAL IN COMPRESSOR ELECTRICAL BOX B1: MOTOR CIRCUIT BREAKER K1M: CONTACTOR F1U: FUSE K1R: START RELAY C1: START CAPACITOR C2: RUN CAPACITOR C3: FAN CAPACITOR M1C: COMPRESSOR M1F: CONDENSER FAN A1P: FAN SPEED CONTROLLER S1PH: HIGH PRESSURE SWITCH S1PL: LOW PRESSURE SWITCH E1HC: CRANKCASE HEATER Q1M: EXTERNAL OVERLOAD PROTECTOR

JEHCCU0150CM1, JEHCCU0225CM1, JEHCCU0300CM1

F1U 3.15A BRN BLU BRN 1 3 K1 2 4 BRN K1M 14 13 BRN 1 3 K1R C1 C2 BLU S BLU BRN BRN/YLW BRN/YLW M1~ M1C M1F ALM GRY BRN 5 S1PH K1M 21 MAX 50 VA LP GP GRN/YLW BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLk B1 3 5 2 4 6 L N 220-240V 1~50Hz MODEL VALUE (A) JEHR/JEHCCU0150B(C)M1 10.0 JEHR/JEHCCU0225B(C)M1 18.0 JEHR/JEHCCU0300B(C)M1 22.0 JEHR/JEHCCU0175B(C)L1 10.0 JEHR/JEHCCU0225B(C)L1 17.5 NOTE: REMOVE LINK 4 TO 3 BEFORE CONNECTING TO CONTROLLER M1C: COMPRESSOR M1F: CONDENSER FAN A1P: FAN SPEED CONTROLLER S1PH: HIGH PRESSURE SWITCH S1PL: LOW PRESSURE SWITCH E1HC: CRANKCASE HEATER B1: MOTOR CIRCUIT BREAKER K1M: CONTACTOR F1U: FUSE K1R: START RELAY C1: START CAPACITOR C2: RUN CAPACITOR C3: FAN CAPACITOR

JEHSCU0200CM1, JEHSCU0250CM1, JEHSCU0300CM1

F1U 3.15A BRN BLU BRN 1 3 K1M 14 BRN 13 1 BRN 1 A1P GRN/YLW ALM GRY BRN S1PH K1 21 22 S1PL LP HP GRN/YLW BLK E1HC GRN/YLW BLK MAX 50 VA MAX 50 VA BLU N3 N2 N1 B1 1 3 5 B2 2 4 6 PE BRN BLU BRN BLK BLU C1 BRN BLU R S C M 1~ GRN/YLW M 1~ GRN/YLW M1F M1C NOTE: REMOVE LINK 4 TO 3 BEFORE CONNECTING TO CONTROLLER. --- IS THE FIELD WIRING B1: MOTOR CIRCUIT BREAKER A1P: FAN SPEED CONTROLLER K1M: CONTACTOR S1PH: HIGH PRESSURE SWITCH F1U: FUSE C1: RUN CAPACITOR S1PL: LOW PRESSURE SWITCH C2: FAN CAPACITOR E1HC: CRANKCASE HEATER M1C: COMPRESSOR M1F: CONDENSER FAN

Three Phase

JEHCCU0140CM3

F1U 3.15A BRN BLU BRN K1M 14 13 (5) BRN ALM GRY 3 S1PH 21 22 P HP LP GRN/YLW ORG E1HC L1 L2 L3 N 380-415V 3N~ 50Hz Q1M BLK Q2M BRN/YLW A/S C/C BRN Q3M M1C MOC=3.58A M1F MOC=0.85A LRC=4.25A NOTE: REMOVE LINK 2 TO 1 BEFORE CONNECTING TO CONTROLLER --- IS THE FIELD WIRING ( ): TERMINAL IN COMPRESSOR ELECTRICAL BOX B1: MOTOR CIRCUIT BREAKER K1M: CONTACTOR F1U: FUSE Q1M: EXTERNAL OVERLOAD PROTECTOR Q2M: EXTERNAL OVERLOAD PROTECTOR Q3M: INTERNAL OVERLOAD PROTECTOR C3: FAN CAPACITOR M1C: COMPRESSOR M1F: CONDENSER FAN A1P: FAN SPEED CONTROLLER S1PH: HIGH PRESSURE SWITCH S1PL: LOW PRESSURE SWITCH E1HC: CRANKCASE HEATER MODEL VALUE (A) JEHR/JEHCCU0140B(C)M3 4.0

JEHCCU0150CM3, JEHCCU0225CM3, JEHCCU0300CM3

F1U 3.15A BRN BLU BRN K1M 14 13 BRN 1 3 5 14 PE 2 4 6 13 BRN BLK GRY 2 4 6 M 3~ GRN/YLW M1C M1F ALM GRY S1PH BRN/ YLW LP BLK KL MAX 50 VA S1PL 4 3 A1 K1M A2 BLU BLU N3 N2 BLU N1 E1HC B1 L1 L2 L3 N 380-415V 3N~ 50Hz NOTE: REMOVE LINK 4 TO 3 BEFORE CONNECTING TO CONTROLLER --- IS THE FIELD WIRING B1: MOTOR CIRCUIT BREAKER K1M: CONTACTOR F1U: FUSE C1: FAN CAPACITOR M1C: COMPRESSOR M1F: CONDENSER FAN A1P: FAN SPEED CONTROLLER S1PH: HIGH PRESSURE SWITCH S1PL: LOW PRESSURE SWITCH E1HC: CRANKCASE HEATER MODEL VALUE (A) JEHR/CCU0150B(C)M3 4,5 JEHR/CCU0225B(C)M3 7,0 JEHR/CCU0300B(C)M3 8,0 JEHR/CCU0175B(C)L3 4,5 JEHR/CCU0225B(C)L3 8,0

JEHSCU0200CM3, JEHSCU0250CM3, JEHSCU0300CM3, JEHSCU0350CM3, JEHSCU0200CL3, JEHSCU0300CL3

F1U 3.15A BRN BLU BRN K1M 14 13 BRN 1 3 5 14 PE BRN K1M 2 4 6 T1 T2 T3 M 3~ GRN/YLW M1C M1F ALM GRY 3 S1PH HP GRN/YLW LP BLK BLK A1 K1M A2 BLU BLU N3 N2 N1 MAX 50 VA S1PL BLK BLK A1P: FAN SPEED CONTROLLER S1PH: HIGH PRESSURE SWITCH S1PL: LOW PRESSURE SWITCH E1HC: CRANKCASE HEATER B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 B49 B50 NOTE: REMOVE LINK 4 TO 3 BEFORE CONNECTING TO CONTROLLER --- IS THE FIELD WIRING BI: MOTOR CIRCUIT BREAKER K1M: CONTACTOR F1U: FUSE C1: FAN CAPACITOR M1C: COMPRESSOR M1F: CONDENSER FAN A1P: FAN SPEED CONTROLLER S1PH: HIGH PRESSURE SWITCH S1PL: LOW PRESSURE SWITCH E1HC: CRANKCASE HEATER

JEHSCU0400CM3, JEHSCU0500CM3, JEHSCU0600CM3, JEHSCU0680CM3, JEHSCU0400CL3, JEHSCU0500CL3, JEHSCU0600CL3

F1U T3.15A BRN BLU BRN B1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 K1M BRN BRN/ YLW BRN/ YLW M1C M1F M3~ T1 T2 T3 PE BRN BLK GRY BRN/ YLW ALM GRY BRN S1PH HP GRN/YLW LP S1PL BLK BLK BLK 4 3 A1 K1M BLU A2 BLU BLK BLK MAX 50 VA MAX 50 VA NOTE: REMOVE LINK 4 TO 3 BEFORE CONNECTING TO CONTROLLER --- IS THE FIELD WIRING A1P: FAN SPEED CONTROLLER M1C: COMPRESSOR B1: MOTOR CIRCUIT BREAKER M1F: CONDENSER FAN C1: FAN CAPACITOR R1T: LIQUID LINE TEMPERATURE SENSOR E1HC: CRANKCASE HEATER S1PH: HIGH PRESSURE SWITCH F1U: FUSE S1PL: LOW PRESSURE SWITCH K1M: CONTACTOR

JEHSCU0800CM3, JEHSCU1000CM3

F1U 3.15A BRN BLU BRN K1M 14 13 2 BRN C1 BLK GRN/YLW GRY GRY BRN M1F (TOP) M1C M2F (BOTTOM) ALM GRY S1PH K1M 22 21 BLK LP HRP GRN/YLW MAX 50 VA S1PL BLK E1HC GRN/YLW A1P BRN A1 K1M A2 BLU BLU N1 N2 BLU N3 NOTE: REMOVE LINK 17 TO 18 BEFORE CONNECTING TO CONTROLLER --- IS THE FIELD WIRING A1P: FAN SPEED CONTROLLER K1M: CONTACTOR B1: MOTOR CIRCUIT BREAKER M1C: COMPRESSOR C1, C2: FAN CAPACITOR M1F & M2F: CONDENSER FAN E1HC: CRANKCASE HEATER S1PH: HIGH PRESSURE SWITCH F1U: FUSE S1PL: LOW PRESSURE SWITCH BEHSCU-0800-B4(C)-M-3 17A JEHS&JEHSCU-1000-B4(C)-M-3 22A

JEHSCU0750CL3

F1U 3.15A BRN BLU BRN K1M 13 BRN 14 BRN 13 K1M 1 2 13 BRN/YLW GRN/YLW BRN 6 BRN C1 BRN M1~ M1F GRN/YLW BLU M1~ M2F BLU ALM GRY 3 BRN S1PH HP GRN/YLW LP BLK To E1HC GRN/YLW MAX 50 VA A1P: FAN SPEED CONTROLLER B1: MOTOR CIRCUIT BREAKER C1: FAN CAPACITOR BOTTOM C2: FAN CAPACITOR TOP E1HC: CRANKCASE HEATER F1U: FUSE K1M: CONTACTOR NOTE: REMOVE LINK 17 TO 18 BEFORE CONNECTING TO CONTROLLER --- IS THE FIELD WIRING M1F: CONDENSER FAN BOTTOM M2F: CONDENSER FAN TOP M1C: COMPRESSOR S1PH: HIGH PRESSURE SWITCH S1PL: LOW PRESSURE SWITCH To: DISCHARGE THERMOSTAT BEHSC-415V 3N~ 50Hz PE GRN/YLW M3~ 380-415V 3N~ 50Hz

JEHSCU0950CL3 EVI

BLU F1U 3.15A BRN Q1R BLK BRN BRN 14 13 R1T R2T STINP 1 3 4 5 6 7 8 9 10 11 12 A2P 22 32 4 FR485 grnd D103 SP IL OR VT WNT 1 2 3 4 5 6 7 8 9 10 11 12 BRN 11 K1R 14 BRN M Y1E 21 K1R 24 BRN BRN BRN/YLW M 3~ M1C S1PC ALM MAX 50 VA BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRB A1P C2 BLO BRN BLO BLK BLK BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU

12. Appendix

CHECKLIST BEFORE START-UP

No.	Description	Record
1	Is the unit in good condition and without any visible damage?	☐ Yes
2	Has the unit been transported in upward position?	☐ Yes
3	Is the crankcase oil level between 1/4 and 3/4 of the compressor sight glass?	☐ Yes
4	Is the power supply on site in line with the unit specification?	☐ Yes
5	Is air short circuit and/or air blockage avoided?	☐ Yes
6	Is the location well ventilated?	☐ Yes
7	Is there sufficient space for air flow and maintenance?	☐ Yes
8	Is all the pre-charged nitrogen released before the field pipe connection started?	☐ Yes
9	Has nitrogen been blown through the pipes during brazing?	☐ Yes
10	Is there only 1 indoor unit connected to the CDU?	☐ Yes
11	Does the field piping has the same diameter as the pipes coming from the CDU?	☐ Yes
12	Is the suction pipe insulated?	☐ Yes
13	Does the bends have enough bending radius?	☐ Yes
14	Is the total pipe length less than 25 m?	☐ Yes
15	Is the height difference within the specifications? [Refer page 7]	☐ Yes
16	Are the oil traps in the vertical suction line correctly positioned? [Refer page 3]	☐ Yes
17	Does the CDU capacity matches the indoor unit capacity?	☐ Yes
18	Does the TXV capacity matches the indoor unit capacity?	☐ Yes
19	Is the TXV sensing bulb fixing in good position/condition?	☐ Yes
20	Is there a MOP expansion valve installed? [Refer page 3]	☐ Yes
21	Was inert, dry gas (e.g. Nitrogen) used when pressure testing?	☐ Yes
22	Could the leak test pressures be reached?	☐ Yes
23	Did the test pressure stayed stable after at least 24 hours?	☐ Yes
24	Could the vacuum condition (< -0.1 barg for 2 hours) be reached?	☐ Yes
25	Did the pressure stayed stable for at least 1 hour, when turning off the vacuum pump?	☐ Yes
26	Is the high/low pressure safety on the pressure switch set correctly? [Refer page 4]	☐ Yes
27	Is the fan speed controller set correctly? [Refer page 4]	☐ Yes
28	Is the correct circuit breaker been used?	☐ Yes
29	Is there an earth connection foreseen?	☐ Yes
30	Are all terminal connections good/tight connected?	☐ Yes
31	Is the crankcase heater been energized for minimum 12 hours before start up?	☐ Yes
32	Is the refrigerant correct for intended use?	☐ Yes
33	Is the high pressure above the minimum limit when charging the system? [Refer page 5]	☐ Yes
34	Is the refrigerant charge amount correct (clear sight glass)?	☐ Yes

Remarks: The system may only be started up if all questions can be answered with "Yes".

CHECKLIST BEFORE COMMISSIONING

No.	Description	Record
1	Is the suction pressure decreasing and the discharge pressure increasing?	☐ Yes
2	Is the compressor rotation (only for scroll type) correct (no abnormal noise)?	☐ Yes
3	Is the crankcase oil level between 1/4 and 3/4 of the compressor sight glass? (after 3 or 4 hours of operation)	☐ Yes
4	Is the discharge temperature within the limits (between 50 °C and 90 °C)?	☐ Yes
5	Is the suction superheat within the limits (between 5K and 20K) during normal operation?	☐ Yes
6	Is the suction superheat within the limits (between 5K and 20K) after defrost operation?	☐ Yes
7	Is the running current below isolator setting value?	☐ Yes
8	Is warm air blowing out from the condenser fan?	☐ Yes
9	Is the compressor On/Off cycle within the specification? [Refer page 4]	☐ Yes

Remarks: The system may only be handed over to user/owner if all questions can be answered with "Yes".

Additional advice:

1. Do not leave the system unattended until the system has reached its normal operating condition and the oil charge has properly adjusted itself to maintain the proper level in the sight glass.
2. Check periodically the compressor performance and all the moving components during the first day of operation.
3. Check the liquid line sight glass and expansion valve operation. If there is an indication that the system is low on refrigerant, thoroughly check the system for leaks before adding refrigerant.

SITE RECORDINGS

Customer name	:	Field Settings
Installer name	:	Pressure switch settings	:
Installation date	:	Cut Out (High Side)	:
		Cut In (Low Side)	:
Unit model name	:	Differential (Low Side)	:
Unit serial number	:
		Fan speed controller setting	:
Indoor unit	:
Expansion valve	:	Running conditions
		Discharge temperature	:
Refrigerant type	:	Suction superheat normal operation	:
Ambient temp.	:	Minimum suction superheat after defrost operation	:
Thermostat setting	:
		Running current before defrost	:
Unit location/Field piping		Running current after defrost	:
Piping length	:	Suction pressure (Pe)	:
Position of CDU	:Above/below indoor unit	Liquid line pressure (Pc)	:
Height difference	:

J&E Hall International for DAIKIN

Installationshandbuch

Bedienungsanleitung

Diagram of two air conditioning units with fan blades, connected by lines (no text or symbols)

FALSCH!

Technical line drawing of two air conditioning units connected by lines, labeled 'RICHITIGI' below (no other text or symbols)

RICHTIG!

At condition of Te -35°C, Ta +32°C

Refrigerant R404A

$$ = 3. 7 0 7 \mathrm{kW} $$

Technical drawing of a dual fan assembly with mounting holes and dimension label (no text or symbols)

Technical line drawing of a dual-panel air conditioning unit with two fans (no text or symbols)

Niedrige Temperatur

940 4-ø10 522 560 605 1271 1348

Technical drawing of a dual-panel air fan assembly with dimension lines (no text or symbols)

Technical line drawing of a dual-panel industrial air conditioning unit with two fans (no text or symbols)

11. Elektro-Daten

F1U 3.15A BRN BLU BRN K1M 1 BLU 3 (1) (2N) BLU C2 BLU C1 BLK BLR Q1M BLK BLU BLR BLK A/S RED P/R C/C M 1~ M1C M1F GRN/YLW M1~ GRN/YLW MOC=9.04A MOC=0.85A LRC=4.25A ALM GRY 3 BRN S1PH HP GRN/YLW LP S1PL 2 MAX 50 VA S1C BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK

JEHCCU0150CM1, JEHCCU0225CM1, JEHCCU0300CM1

F1U 3.15A BRN BLU BRN K1 1 3 BRN 14 13 K1M BRN BRN K1R C1 2 4 BLU BRN C2 5 1 S BLU BRN BRN/YLW BRN/YLW M1~ M1C M1F ALM GRY 4 3 S1PH HP LP GRN/YLW BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK

JEHSCU0200CM1, JEHSCU0250CM1, JEHSCU0300CM1

F1U 3.15A BRN BLU BRN K1M 1 3 4 BRN 14 13 BRN 1 2 3 4 BRN C1 BRN BLK BLU R S C M 1~ GRN/YLW M1C BRN/BLK BRN/BLK BRN/BLK BRN/BLK BRN/BLK BRN/BLK BRN/BLK BRN/BLK BRN/BLK BRN/BLK BRN/BLK BRN/BLK BRN/BLK BRN/BLK BRN/BLK BRN/BLK BRN/BLK BRN/ ALM GRY BRN S1PH K1 MAX 50 VA LP GP HP GRN/YLW BLK E1HC GRN/YLW BLK MAX 50 VA LP GP HP GRN/YLW BLK E1HC GRN/YLW BLK ANMERKUNG. VOR DEM ANSCHLUSS AN DEN REOLER ANSCHLUSSPUNKTE 4 BIS 3 ENTFERENEN --- IST DE AUSSENVERDRAHTUNG B1: HAUPTTRENNSCHALTER DES MOTORS A1P: GEBLÄSEDREHZAHL-CONTROLLER K1M: KONTAKTGEBER S1PH: HOCHDRUCKSCHALTER F1U: SICHERUNG S1PL: NIEDERDRUCKSCHALTER C1: BETRIEB-KONDENSATOR C2: GEBLÄSEKONDENSATOR E1HC: KURBELGEHÄUSEHEIZUNG M1C: KOMPRESSOR M1F: GEBLÄSE DES VERFLÜSSIGERS

Dreiphasig

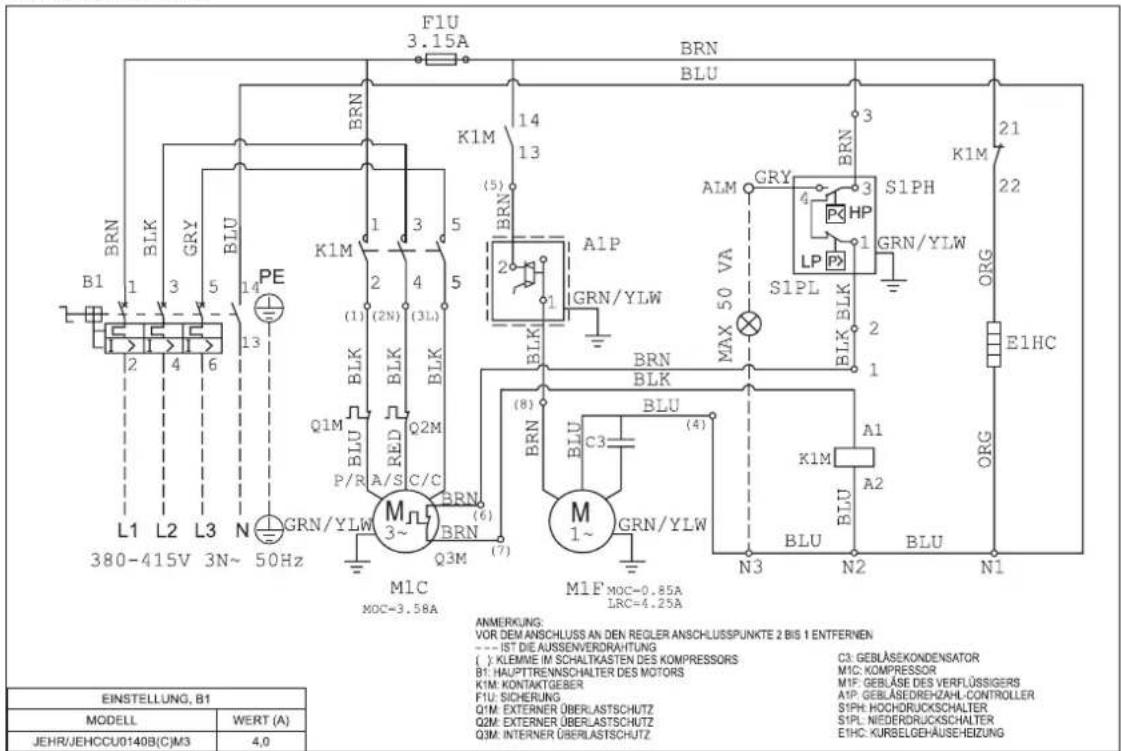

JEHCCU0140CM3

F1U 3.15A BRN BLU BRN K1M 14 13 (5) BRN ALM GRY 3 S1PH 21 22 Pd HP 1 GRN/YLW LP Px ORG E1HC Q1M BRN/YLW BRN/YLW BRN BLK MAX 50 VA S1PL BLK ORG Q1M BRN/YLW BRN/YLW Q3M (6) (7) BRN BLK (8) BLU C3 (4) M1F MOC=0.85A LRC=4.25A M1C MOC=3.58A M1F MOC=0.85A LRC=4.25A ANMERKUNG: VOR DEM ANSCHLUSS AN DEN REGLER ANSCHLUSSPUNKTE 2 BIS 1 ENTFERNIEN --- IS TIE AUSSENVERDRAHTUNG ( ) KLEMME IM SCHALTKASTEN DES KOMPRESSORS C3 GEBLÄSEKONDENSATOR B1: HAPPTTRENNSCHALTER DES MOTORS M1C KOMPRESSOR K1M: KONTAKTGEBER M1F GEBLÄSE DES VERFLÜSSIGERS FU: SICHERUNG A1P GEBLÄSEDREHZAHL-CONTROLLER Q1M: EXTERNER ÜBERLASTSCHUTZ S1PH: HOCHDRUCKSCHALTER Q2M: EXTERNER ÜBERLASTSCHUTZ S1PL: NIEDERDRUCKSCHALTER Q3M: INTERNER ÜBERLASTSCHUTZ E1HC: KURBELGEHÄUSEHEIZUNG EINSTELLUNG, B1 MODELL WERT (A) JEHR/JEHCCU0140B(C)M3 4,0

JEHCCU0150CM3, JEHCCU0225CM3, JEHCCU0300CM3

F1U 3.15A BRN BLU BRN K1M 14 13 BRN 1 3 5 2 4 6 PE BRN BLK GRY M 3~ GRN/YLW M1C M1F ALM GRY S1PH HRP GRN/YLW S1PL BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK

JEHSCU0200CM3, JEHSCU0250CM3, JEHSCU0300CM3, JEHSCU0350CM3, JEHSCU0200CL3, JEHSCU0300CL3

F1U 3.15A BRN BLU BRN K1M 14 13 BRN 1 3 5 6 2 4 KIM BRN BRN ALM GRY 4 HP S1PH GP GRN/YLW LP BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK 3.15A BRN BRN BRN BRN/YLW A1P GRN/YLW BRN/YLW BRN/YLW M1C M1F M10-30-10-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-05Hz B1 1 3 5 14 PE 13 B1 L2 L3 N 380~415V 3N~ 50Hz L1 L2 L3 N M1C MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VA MAX 50 VENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZENZEN ZENZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN ZEN B1 MODELL WERT (A) JEHS/SCU020B2(C)M3 5.5 JEHS/SCU025B2(C)M3 7.0 JEHS/SCU030B2(C)M3 7.5 JEHS/SCU035B2(C)M3 9.5 JEHS/SCU020B2(C)L3 5.5 JEHS/SCU030B2(C)L3 6.5 ANMERUNG: VOR DEM ANSCHLUSS AN DEN REGLER ANSCHLUSSPUNKTE 4 B/S 3 ENTERNEN --- IST DIE AUSSENVERDRAHTUNG B1 HAUPTTRENNSCHALTER DES MOTORS KIM KONTAKTGEBER F1U SICHERUNG C1 GEBLÄSEKONDENSATOR MIC KOMPRESSOR M1F GEBLÄSE DES VERFLÜSSIGERS A1P GEBLÄSEDREDAHL-CONTROLLER S1PH HOCHDRUCKSCHALTER S1PL NIEDERDRUCKSCHALTER E1HC KURBELGEHÄUSEHEIZUNG

JEHSCU0400CM3, JEHSCU0500CM3, JEHSCU0600CM3, JEHSCU0680CM3, JEHSCU0400CL3, JEHSCU0500CL3, JEHSCU0600CL3

F1U T3.15A BRN BLU BRN K1M 14 13 L N B1 1 3 5 14 2 4 6 PE BRN BLK GRY 13 T1 T2 T3 M 3~ GRN/YLW M1C EINSTELLUNG, B1 MODELL WERT (A) JEHS/JEHSCU0400B3(C)M3 11,0 JEHS/JEHSCU0500B3(C)M3 14,0 JEHS/JEHSCU0600B3(C)M3 14,0 JEHS/JEHSCU0680B3(C)M3 15,0 JEHS/JEHSCU0400B3(C)L3 10,0 JEHS/JEHSCU0600B3(C)L3 12,0 JEHS/JEHSCU0600B3(C)L3 14,5 FRS L1 L2 L3 N 380-415V 3N~ 50Hz BRN BLK GRY K1M R1" GND BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLk ALM GRY BRN S1PH GRN/YLW ALM GLP LP S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL S1PL s1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls1pls ANMERUNG: VOR DEM ANSCHLUSS AN DEN REGLER ANSCHLUSSPUNKTE 4 BIS 3 ENTFERNEN MIF: KOMPRESSOR AIP: GEBLASEDREHZHAHL-CONTROLLER MIF: GEBLASE DES VERFLÜSSIGERS B1: HAUPTTRENNSCHALTER DES MOTORS RIT: TEMPERATURSENSOR DER FLÜSSIGKEITSLEITUNG C1: GEBLASEKONDENSATOR EHC: KURBELGEHÄUSEHEZUNG S1PH: HOCHORUCKSCHALTER F1U: SICHERUNG S1PL: NIEDERORUCKSCHALTER KIM: KONTAKTGEBER

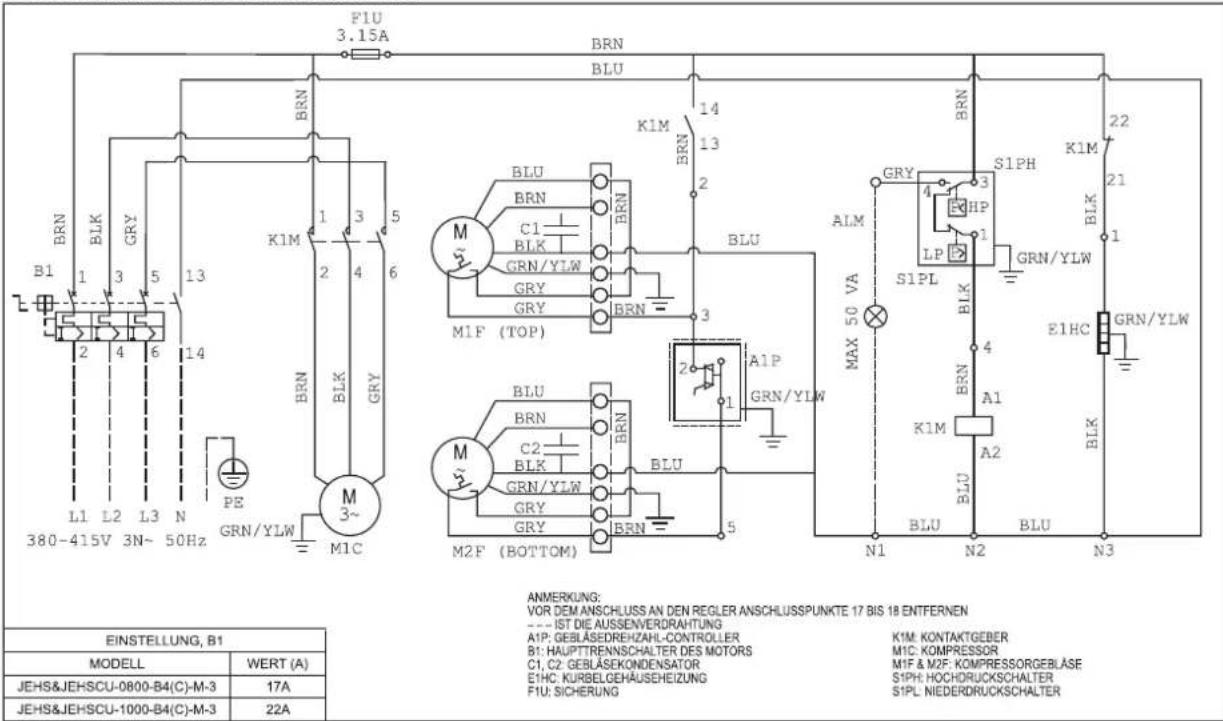

JEHSCU0800CM3, JEHSCU1000CM3

F1U 3.15A BRN BLU BRN K1M 14 13 2 BRN C1 BLK GRN/YLW GRY BRN M1F (TOP) M1M BRN C2 BLK GRN/YLW GRY BRN M2F (BOTTOM) ALM S1PL BRN A1P GRN/YLW MAX 50 VA S1PH 4 HP LP GRN/YLW E1HC GRN/YLW BLK N1 N2 BLU N3 ANMERKUNG: VOR DEM ANSCHLUSS AN DEN REGLER ANSCHLUSSPUNKTE 17 BIS 18 ENTFERNEN --- IST DIE AUSSENVERDRAFTUNG A1P: GEBLÄSEDREHZAHL-CONTROLLER B1: HAUPTTRENNSCHALTER DES MOTORS C1, C2: GEBLÄSEKONDENSATOR E1HC: KURBELGEHÄUSEHEIZUNG F1U: SICHERUNG K1M: KONTAKTGEBER M1C: KOMPRESSOR M1F & M2F: KOMPRESSORGEBLÄSE S1PH: HOCHDRUCKSCHALTER S1PL: NIEDERDRUCKSCHALTER E1HC: GRN/YLW BLK BLU BLU BLU BLU BLU BLU BLU BLU BLU M1C 3.15A BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN

JEHSCU0750CL3

F1U 3.15A BRN BLU BRN K1M 13 BRN 14 BRN 13 K1M 1 2 14 A1P GRN/YLW BRN 6 BRN C1 BRN M 1~ M1F GRN/YLW BLU ANMERKUNG: VOR DEM ANSCHLUSS AN DEN REGLER ANSCHLUSSPUNKTE 17 BIS 18 ENTFERNEN ---- IST DIE AUSSENVERDRAFTUNG A1P: GEBLÄSEDREHZahl-CONTROLLER B1: HAUPTTRENNSCHALTER DES MOTORS C1: UNTERSEITE DES GEBLÄSEKONDENSATORS C2: OBERSEITE DES GEBLÄSEKONDENSATORS E1HC: KURBELGEHÄUSEHEIZUNG F1U: SICHERUNG K1M: KONTAKTGEBER AN: AUSLASSTHERMOSTAT E1HC: HOCHDRUCKSCHALTER S1PL: NIEDERDRUCKSCHALTER M1F: UNTERSEITE DES KONDENSATORGEBLÄSES M2F: OBERSEITE DES KONDENSATORGEBLÄSES M1C: KOMPRESSOR S1PH: HOCHDRUCKSCHALTER S1PL: NIEDERDRUCKSCHALTER An: AUSLASSTHERMOSTAT AN: 380-415V L2 L3 N 380-415Hz 3N~ 50Hz PE

JEHSCU0950CL3 EVI

BLU F1U 3.15A BRN RED Q1R BLK BRN BRN T1R ALM GRY S1PH GRN/YLW BRN/YLW BRN BRN BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/T1R ALM GRY S1PH BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/BLU BRN/BLU BRN/BLU BRN/BLU BRN/BLU BRN/BLU BRN/BLU BRN/BLU BRN/BLU BRN/BLU BRN/BLU BRN/BLU BRN/BLU BRN/BLU BRN/BLU BRN/BLU BRN/BLU BRN/ BLU 3.15A 2 BRN 14 R1T R2T A2P 22B32 1344567 1234567 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 JEH5/SCU0950B4CCL3 EVI T: 380-415V 3N~50Hz Hinweis: DRÜCKE B DIS B IM INNENEINHEIT THERMOSTAT ERSETZEN sT das Folc Ring A2P: Fan Speed Controller A2p: EXO Controller B7: Motor Leistungsschalter C1: C2: tanopacitor E:HC: Kurbolgehäuse Heizung FU: F2U: Sicherung Kim: Contactor KIR: Relay MJC: Kompressor MIF: Kondensator Fan Top MSF: Kondensator Fan QIR: Erdasung Thermostat (130 °C) SINPL: Druckensor SINC: akteler Sensor-Relay SIPH: Hochdruck Schaller SPL: Low PRESSURE Schaller Tar: Spannung Transistorator RT: Entasung Transistorator R2T: Vapor Line Temperature Sensor- YIE: electronices Erweiterungs-Venti- YIS: Magnetventil

12. Anhang

CHECKLISTE VOR DEM START

J&E Hall International for DAIKIN

Diagram of two air conditioning units with fan blades, connected by lines (no text or symbols)

Diagram of two air conditioning units connected by lines, with 'CORRECT!' text below (no other symbols or labels)

Technical line drawing of a mechanical air conditioning unit with fan and control panel (no text or symbols)

27 607 65 135

Série 2

703 4~Ø11 388 408 444 1040 1101

Technical line drawing of a multi-compartment air conditioning unit with fan and cooling unit (no text or symbols)

Technical line drawing of an air conditioning fan assembly with mounting bracket (no text or symbols)

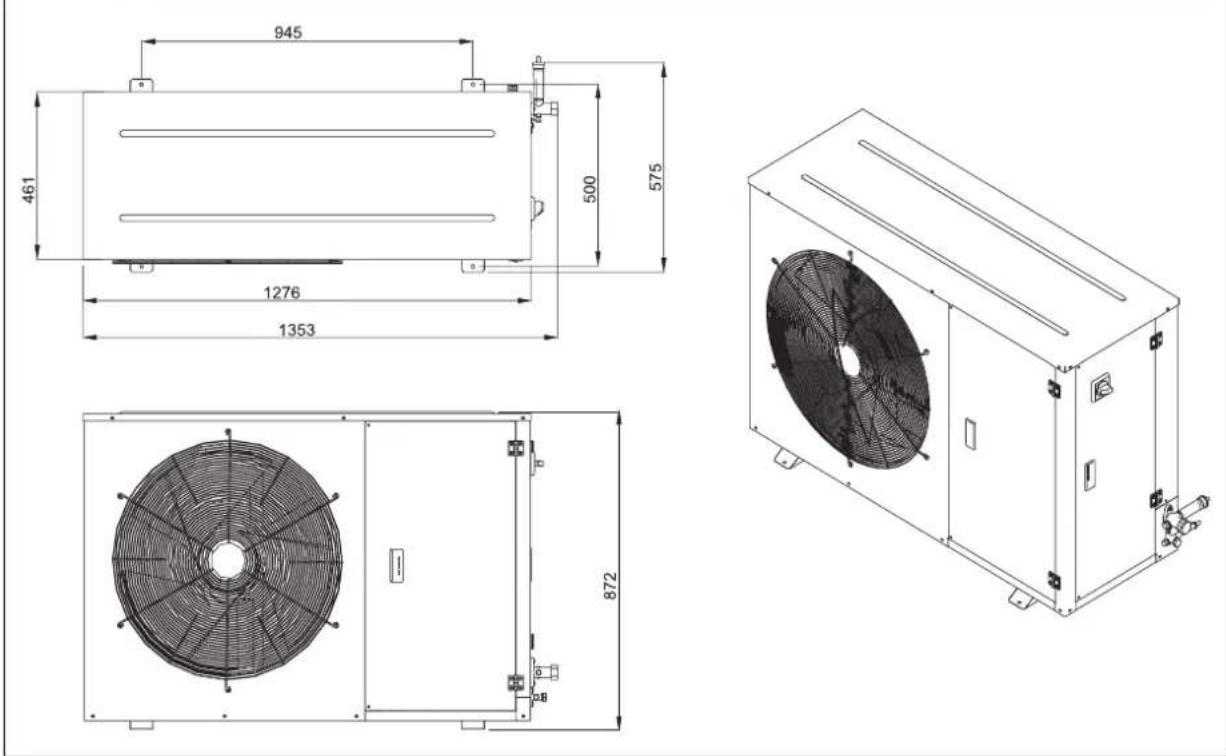

Série 3

945 461 500 575 1276 1353 872

Technical drawing of a dual fan installation with mounting holes and dimension label (no text or symbols beyond measurement markers)

Technical line drawing of a dual-panel air conditioning unit with fans and cooling panels (no text or symbols)

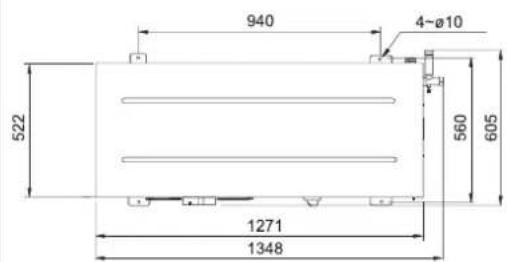

Basse Température

940 4-ø10 522 560 605 1271 1348

Technical drawing of a dual-panel air fan assembly with dimension annotations (no text or symbols on the fan itself)

Technical line drawing of a dual-panel air conditioning unit with two fans (no text or symbols)

JEHSCU0200CM3, JEHSCU0250CM3, JEHSCU0300CM3, JEHSCU0350CM3, JEHSCU0200CL3, JEHSCU0300CL3

F1U 3.15A BRN BLU BRN K1M 14 13 BRN 1 3 5 K1M 1 2 4 6 PE BRN T1 T2 T3 M 3~ GRN/YLW M1C BRN BLK BRN C1 BRN A1P GRN/YLW M1F GRN/YLW ALM GRY 4 HP LP S1PL BLK BLK S1PH GRN/YLW KL BLK K1M A1 A2 BLU BLU N3 N2 N1 B1HC GRN/YLW LEH0-415V 3N~ 50Hz REGLAGE, B1 MODELE VALEUR (A) JEHS/SCU0200B2(C)M3 5,5 JEHS/SCU0250B2(C)M3 7,0 JEHS/SCU0300B2(C)M3 7,5 JEHS/SCU0350B2(C)M3 9,5 JEHS/SCU0200B2(C)L3 5,5 JEHS/SCU0300B2(C)L3 6,5 REMARQUE: SUPPRIMER LES LIAISONS 4 À 3 AVANT LA CONNEXION AU CONTRÔLEUR ---- EST LE CÂBLAGE SUR SITE B1 : DISJONCTEUR DU MOTEUR K1M : CONTACTEUR F1U : FUSIBLE C1 : CONDENSATEUR DU VENTILATEUR M1C : COMPRESSEUR M1F : VENTILATEUR DU CONDENSATEUR A1P : RÉGULATEUR DE VITESSE DU VENTILATEUR S1PH : PRESSOSTAT HAUTE PRESSION S1PL : PRESSOSTAT BASSE PRESSION E1HC : CHAUFFAGE DU CARTER

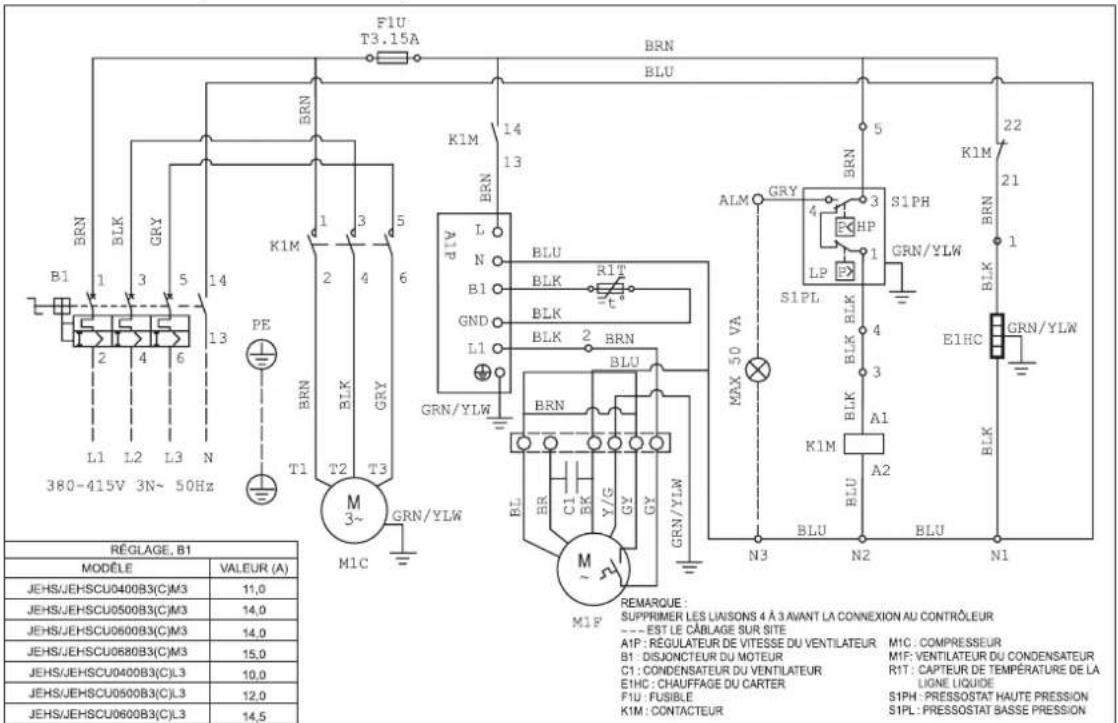

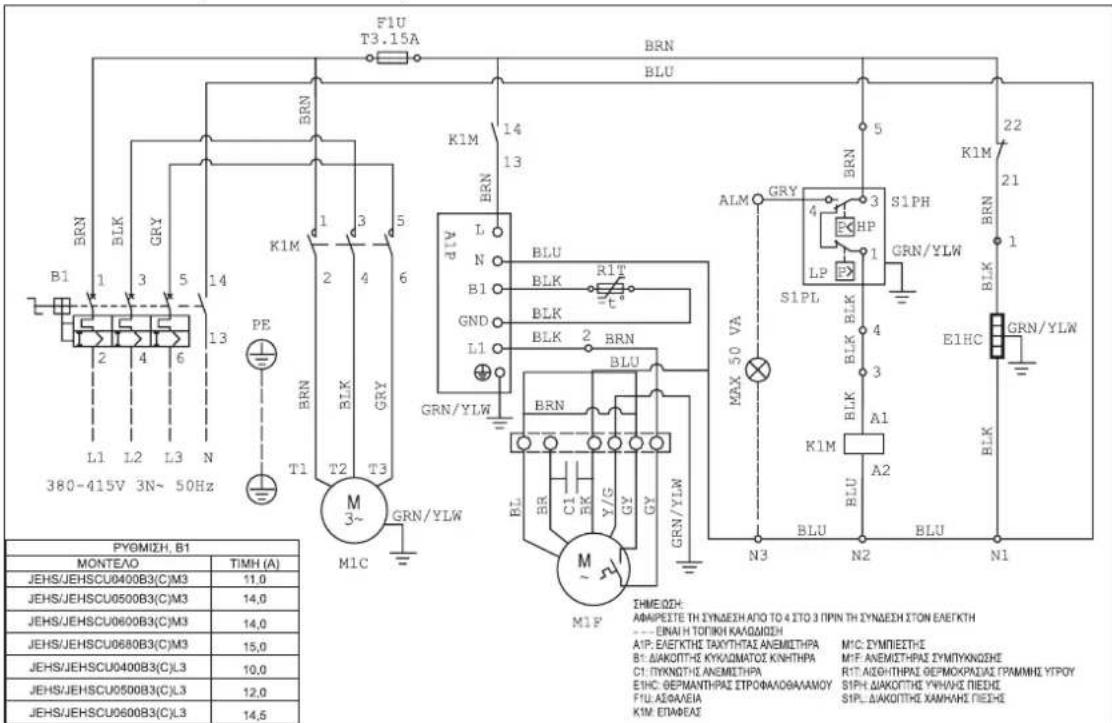

JEHSCU0400CM3, JEHSCU0500CM3, JEHSCU0600CM3, JEHSCU0680CM3, JEHSCU0400CL3, JEHSCU0500CL3, JEHSCU0600CL3

F1U T3.15A BRN BLU BRN K1M 14 13 BRN L N BLU BLK R1# t BLK BLK BRN BRN/YLW BRN/YLW M1C M1F REMARQUE: SUPPRIMER LES LINSONS 4 À 3 AVANT LA CONNXION AU CONTRÔLEUR --- EST LE CÂBLAGE SUR SITE A1P : RÉGULATEUR DE VITESSE DU VENTILATEUR B1 : DISJONCTEUR DU MOTEUR C1 : CONDENSATEUR DU VENTILATEUR E1HC : CHAUFFAGE DU CARTER F1U : FUSIBLE K1M : CONTACTEUR ALM GRY BRN S1PH GRN/YLW LP LP BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLk BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN /YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW FRS0-415V 3N~ 50Hz PE T1 T2 T3 380-415V 3N~ 50Hz

JEHSCU0800CM3, JEHSCU1000CM3

F1U 3.15A BRN BLU BRN K1M 14 13 2 BRN C1 BLK GRN/YLW GRY GRY M1F (TOP) BRN BRN M1F (TOP) BRN BRN M1F (TOP) BRN BRN M2F (BOTTOM) BRN BRN M2F (BOTTOM) BRN BRN ALM MAX 50 VA S1PL BLK GRN/YLW E1HC BLK BRN A1P GRN/YLW A1P: RÉGULATEUR DE VITESSE DU VENTILATEUR B1: DISJONCTEUR DU MOTEUR C1, C2: CONDENSATEUR DU VENTILATEUR E1HC: CHAUFFAGE DU CARTER F1U: FUSIBLE S1PH 4 HP 1 GRN/YLW GLR BLK BRN BRN S1PH 22 K1M 21 BLK 22 LE L2 L3 N 380-415V 3N~ 50Hz PE GRN/YLW M1C REGLAGE, B1 MODELE VALEUR (A) JEHS&JEHSCU-0800-B4(C)-M-3 17A JEHS&JEHSCU-1000-B4(C)-M-3 22A REMARQUE: SUPPRIMER LES LIAISONS 17 À 18 AVANT LA CONNEXION AU CONTRÔLEUR ---- EST LE CÂBLAGE SUR SITE A1P: RÉGULATEUR DE VITESSE DU VENTILATEUR B1: DISJONCTEUR DU MOTEUR C1, C2: CONDENSATEUR DU VENTILATEUR E1HC: CHAUFFAGE DU CARTER F1U: FUSIBLE K1M: CONTACTEUR M1C: COMPRESSEUR M1F & M2F: VENTILATEUR DU COMPRESSEUR S1PH: PRESSOSTAT HAUTE PRESSION S1PL: PRESSOSTAT BASSE PRESSION

JEHSCU0750CL3

F1U 3.15A BRN BLU BRN K1M 13 BRN 14 BRN 13 K1M 14 BRN 14 A1P GRN/YLW BRN 1 2 6 BRN 1 3 5 6 BRN 1 2 6 BRN 1 3 5 6 BRN 1 3 5 6 BRN 1 3 5 6 BRN 1 3 5 6 BRN 1 3 5 6 BRN 1 3 5 6 BRN 1 3 5 6 BRN 1 3 5 6 BRN 1 3 5 6 BRN 1 3 5

JEHSCU0950CL3 EVI

BLU F1U 3.15A BRN Q1R BLK BRN BRN 14 13 R1T R2T STINP3 131415617 A2P 222324 FRS485 gnd DHD0 BR BL 08 1E 1E 1E 1E 1E 1234156789108112 BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN

12. Annexe

LISTE DE VÉRIFICATION AVANT DÉMARRAGE

J&E Hall International for DAIKIN

Diagram of two air conditioning units with fan blades, connected by lines (no text or symbols)

Diagram of two industrial air conditioning units connected by lines, with no visible text or symbols.

$$ = 3. 7 0 7 \mathrm{kW} $$

Technical line drawing of a mechanical air conditioning unit with fan and control panel (no text or symbols)

27 607 65 135

Serie 2

703 4~Ø11 388 408 444 1040 1101

Technical line drawing of a mechanical air conditioning unit with fan and cooling unit (no text or symbols)

Technical line drawing of an air conditioning fan assembly with mounting bracket (no text or symbols)

Serie 3

945 461 500 575 1276 1353 872

Technical drawing of a dual fan assembly with mounting holes and dimension label (no text or symbols)

Technical line drawing of a dual-panel air conditioning unit with two fans (no text or symbols)

Lage Temperatuur

940 4-ø10 522 560 605 1271 1348

Technical drawing of a dual-panel air fan assembly with dimension lines (no text or symbols)

Technical line drawing of a multi-level industrial cooling unit with two fans (no text or symbols)

F1U 3.15A BRN BLU BRN K1M 14 13 BRN 1 3 5 14 PE 2 4 6 13 BRN BLK GRY M 3~ GRN/YLW M1C BRN BRN ALM GRY S1PH HRP LP GRN/YLW MAX 50 VA S1PL BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK

JEHSCU0200CM3, JEHSCU0250CM3, JEHSCU0300CM3, JEHSCU0350CM3, JEHSCU0200CL3, JEHSCU0300CL3

F1U 3.15A BRN BLU BRN K1M 14 13 BRN K1M 21 22 ALM GRY 3 S1PH HP GRN/YLW LP E1HC GRN/YLW S1PL BLK 4 3 A1 K1M BLK A2 BLU N3 N2 BLU N1 BRN/YLW M1C M1F BRN/YLW T1 T2 T3 BRN/YLW M3~ GLR/NYLW OPMERKING: VERWUDER VERBINDING VAN 4 NAAR 3 VOORDAT U AANSLUITING MAAKT OP DE CONTROLLER: --- IS DE VELDBEDRADING B1: MOTOR-CIRCUITONDERBREKER K1M: CONTACTSCHAKELAAR F1U: ZEKERING C1: VENTILATORCONDENSATOR M1C: COMPRESSOR M1F: VENTILATOR VAN CONDENSOR A1P: TOERENREGELAAR VENTILATOR S1PH: SCHAKELAAR HOGE DRUK S1PL: SCHAKELAAR LAGE DRUK E1HC: VERWARMER CARTER JEHS/SCU0200B2(C)M3 7,0 JEHS/SCU0300B2(C)M3 7,5 JEHS/SCU0350B2(C)M3 9,5 JEHS/SCU0200B2(C)L3 5,5 JEHS/SCU0300B2(C)L3 6,5

JEHSCU0400CM3, JEHSCU0500CM3, JEHSCU0600CM3, JEHSCU0680CM3, JEHSCU0400CL3, JEHSCU0500CL3, JEHSCU0600CL3

F1U T3.15A BRN BLU BRN BRN K1M 14 13 L N B1 1 3 5 14 2 4 6 PE BRN BLK GRIY 13 T1 T2 T3 GRN/YLW M 3~ M1C INSTEILLING, B1 MODEL WAARDE (A) JEHS/JEHSCU0400B3(C)M3 11,0 JEHS/JEHSCU0500B3(C)M3 14,0 JEHS/JEHSCU0600B3(C)M3 14,0 JEHS/JEHSCU0680B3(C)M3 15,0 JEHS/JEHSCU0400B3(C)L3 10,0 JEHS/JEHSCU0500B3(C)L3 12,0 JEHS/JEHSCU0600B3(C)L3 14,5 OPMERKING: VERMUDER VERBINDING VAN 4 NAAR 3 VOORDAT U AANSLUITING MAAKT OP DE CONTROLLER --- IS DE VELDBEDRADING A1P: TOERENREGELAAR VENTILATOR B1: MOTOR-CIRCUITONDERBREKER C1: CONDENSATOR VAN VENTILATOR E1HC: VERWARMER CARTER F1U: ZEKERING K1M: CONTACTSCHAKELAAR M1C: COMPRESSOR M1F: VENTILATOR VAN CONDENSOR R1T: TEMPERATURSENSOR VLOEISTOFLEIDING S1PH: SCHAKELAAR HOGE DRUK S1PL: SCHAKELAAR LAGE DRUK

JEHSCU0800CM3, JEHSCU1000CM3

F1U 3.15A BRN BLU BRN KIM 14 13 2 BRN C1 BLK GRN/YLW M1F (TOP) M1M BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN (TOP) M1F (TOP) M1M BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN (TOP) M1F (TOP) B1 L2 L3 N 380-415V 3N~ 50Hz PE GRN/YLW M1C M2F (BOTTOM) OPMERKING: VERWUDER VERBINDING VAN 17 NAAR 18 VOORDAT U AANSLUITING MAAKT OP DE CONTROLLER --- IS DE VELDBEDRADING A1P: TOERENREGELAAR VENTILATOR B1: MOTOR-CIRCUITONDERBREKER C1, C2: CONDENSATOR VAN VENTILATOR E1HC: VERWARMER CARTER F1U: ZEKERING KIM: CONTACTSCHAKELAAR M1C: COMPRESSOR M1F & M2F: VENTILATOR VAN COMPRESSOR S1PH: SCHAKELAAR HOGE DRUK S1PL: SCHAKELAAR LAGE DRUK

JEHSCU0750CL3

F1U 3.15A BRN BLU BRN K1M 13 BRN 14 BRN 1 2 3 4 5 6 13 BRN 1 2 3 4 5 6 14 BRN/YLW GRN/YLW MLC PE GRN/YLW M1~ M1F BLU C1 BRN BRN M1~ M2F BLU BRN C2 BRN/YLW GLU MAX 50 VA S1PL BLK ALM GRY 4 HP S1PH GRN/YLW To A1 BRN A2 K1M BLU BLU N1 N2 N3 OPMERKING: VERWIDER VERBINDING VAN 17 NAAR 18 VOORDAT U AANSLUITING MAAKT OP DE CONTROLLER --- IS DE VELDBEDRADING A1P: TOERENREGELAAR VENTILATOR B1: MOTOR-CIRCUITONDERBREKER C1: CONDENSATOR VENTILATOR ONDER C2: CONDENSATOR VENTILATOR BOVEN E1HC: VERWARMER CARTER F1U: ZEKERING K1M: CONTACTSCHAKELAAR M1F: VENTILATOR VAN CONDENSOR ONDER M2F: VENTILATOR VAN CONDENSOR BOVEN M1C: COMPRESSOR S1PH: SCHAKELAAR HOGE DRUK S1PL: SCHAKELAAR LAGE DRUK NAAR: AFVOER THERMOSTAAT INSTEILLING, B1 MODEL WAARDE (A) JEHS&SCU-0750-B4(C)-M-3 16.5A

JEHSCU0950CL3 EVI

BLU F1U 3.15A BRN Q1R BLK BRN 22 BRN 14 BRN R1T R2T S1NP 1:3 4 5 6 7 A2P 2:2 3:2 4 HAB80 and DIXO BR N DR YE W1 6 7 8 9 10 11 12 B1 BLK GRY K1M 1 3 5 BRN BLK GRY BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BL l OPMERKING: VERWANG JUMPER 8 NAAR 9 VAN DE DINNENTHERMOSTAAT 35 DE BEDRADING VELD A1P PAN SPEED CONTROLLER FUL-FZIF FUSE M2F CONDENSOR FAW BTW SIPL LAGE DRIUKSONKELAAR A2P EXO CONTROLLER KIN-RELAS QTR GEEN KVUTING THERVOSTAAT (J30) CIR SPANNING TRANSFORDATOR B1 MOTOR CIRCUIT BREAKER KIR RELAY SINPL DRIUKOPNEBER R1: GEEN KVUTING TEMPERATURSENSOR C1 C2 PAN CONDENSATOR M1C COMPRESSOR SINCH HUIDGE SENSOR RELAY R2: DAM PLOW TEMPERATUREURSENSOR E1HC CARTER RACHEL MIF CONDENSOR FANTOR SINCH HOGEDRUK SWITCH Y1E ELEKTRONSCHE EXPANSICKLES Y1S WAGNEETVENTIL. 380-415V 3N- 50Hz

12. Bijlage

CONTROLELIJST VOORAFGAAND AAN OPSTARTEN

J&E Hall International for DAIKIN

Technical line drawing of two air conditioning units with fan-like blades, connected by lines (no text or symbols)

¡INCORRECTO!

Diagram of two air conditioning units with a labeled correct model (no text or symbols on the devices themselves)

¡CORRECTO!

$$ = 3. 7 0 7 \mathrm{kW} $$

Technical line drawing of a mechanical air conditioning unit with fan and control panel (no text or symbols)

27 607 65 135

Serie 2

703 4~Ø11 388 408 444 1040 1101

Technical line drawing of a multi-compartment air conditioning unit with fan and cooling unit (no text or symbols)

Technical line drawing of an air conditioning fan assembly with mounting bracket (no text or symbols)

Serie 3

945 461 500 575 1276 1353 872

Serie 4
Temperatura Media

940 522 1271 1348 560 641

Technical drawing of a dual fan assembly with mounting holes and dimension label (no text or symbols on the diagram itself)

Technical line drawing of a dual-panel air conditioning unit with two fans (no text or symbols)

Temperatura Baja

940 4-ø10 522 560 605 1271 1348

Technical drawing of a dual-panel air fan assembly with dimension lines (no text or symbols)

Technical line drawing of a multi-level industrial cooling unit with two fans (no text or symbols)

F1U 3.15A BRN BLU BRN K1M 14 13 BRN 1 3 5 14 PE 2 4 6 13 BRN BLK GRY M1C GRN/YLW M1F A1P IGRN/YLW BRN BLK BRN BLK BRN BLK M1~ GRN/YLW M1F ALM GRY S1PH S1PL LP GRN/YLW MAX 50 VA S1PL BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLk E1HC NOTA: RETIRE EL ENLACE 4A3 ANTES DE CONECTAR AL CONTROLADOR --- ES EL CABLEADO DE CAMPO B1: INTERRUPTOR DE CARGA DEL MOTOR K1M: CONTACTOR F1U: FUSIBLE C1: CAPACITADOR DE VENTILADOR M1C: COMPRESOR M1F: VENTILADOR DE CONDENSADOR A1P: CONTROLADOR DE VELOCIDAD DE VENTILADOR S1PK: INTERRUPTOR DE ALTA PRESION S1PL: INTERRUPTOR DE BAJA PRESION E1HC: CALENTADOR DE CARTER DE CIGUEÑAL CONFIGURACIÓN, B1 MODELO VALOR (A) JEHR/CCU0150B(C)M3 4,5 JEHR/CCU0225B(C)M3 7,0 JEHR/CCU0300B(C)M3 8,0 JEHR/CCU0175B(C)L3 4,5 JEHR/CCU0225B(C)L3 8,0

JEHSCU0200CM3, JEHSCU0250CM3, JEHSCU0300CM3, JEHSCU0350CM3, JEHSCU0200CL3, JEHSCU0300CL3

F1U 3.15A BRN BLU BRN K1M 14 13 BRN 1 3 5 14 PE BRN K1M 1 3 5 2 4 6 T1 T2 T3 M 3~ GRN/YLW M1C M1F ALM GRY BRN S1PH HP GRN/YLW LP BLK BLK BLK BLK BLK BLK BLK BLU MAX 50 VA S1PL 4 3 2 BRN C1 BRN/YLW M1~

JEHSCU0400CM3, JEHSCU0500CM3, JEHSCU0600CM3, JEHSCU0680CM3, JEHSCU0400CL3, JEHSCU0500CL3, JEHSCU0600CL3

F1U T3.15A BRN BLU BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN

JEHSCU0800CM3, JEHSCU1000CM3

F1U 3.15A BRN BLU BRN K1M 14 13 2 BRN C1 BLK GRN/YLW GRY GRY BRN M1F (TOP) M1 M2F (BOTTOM) M1F (TOP) M1 M2F (BOTTOM) ALM S1PL GLP GRN/YLW ALM MAX 50 VA BRN A1P GRN/YLW A1P BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN

JEHSCU0750CL3

F1U 3.15A BRN BLU BRN K1M 13 BRN 14 BRN 13 K1M 14 BRN 13 A1P GRN/YLW 2 1 6 2 1 6 6 BRN C1 BRN M 1~ M1F GRN/YLW BLU BRN C2 BRN M 1~ M2F GRN/YLW BLU ALM GRY 3 S1PH HRP 1 GRN/YLW LP BLK To 4 E1HC GRN/YLW BLK MAX 50 VA N1 N2 BLU N3 NOTA: RETIRE EL ENLACE 17 A 18 ANTES DE CONECTARLO AL CONTROLADOR --- ES EL CABLEADO DE CAMPO A1P: CONTROLADOR DE VELOCIDAD DE VENTILADOR B1: INTERRUPTOR DE CARGA DEL MOTOR C1: CONDENSADOR DE VENTILADOR, INFERIOR C2: CONDENSADOR DE VENTILADOR, SUPERIOR E1HC: CALENTADOR DE CARTER DE CIGUENAL F1U: FUSIBLE K1M: CONTACTOR M1F: VENTILADOR DE CONDENSADOR, INFERIOR M2F: VENTILADOR DE CONDENSADOR, SUPERIOR M1C: COMPRESOR S1PH: INTERRUPTOR DE ALTA PRESIÓN S1PL: INTERRUPTOR DE BAJA PRESIÓN Para: TERMOSTATO DE DESCARGA CONFIGURACIÓN, B1 MODELO VALOR (A) JEHS&SCU-0750-B4(C)-M-3 16,5A

JEHSCU0950CL3 EVI

BLU F1U 3.15A BRN Q1R BLK BRN 22 BRN 14 BRN R1T R2T S1NP3 131 415 617 A2P 220 324 FRMMS and DIOX 88 B, DR 16 W 19 S1N 1 2 3 4 5 6 7 8 9 10 11 12 BRN BLU F2U 1A BRN BLU BRN/YLW GRY ALM GP HP S1PH GRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLWL BRN/YLWL BRN/YLWL BRN/YLWL BRN/YLWL BRN/YLWL BRN/YLWL BRN/YLWL BRN/YLWL BRN/YLWL BRN/YLWL BRN/YLWL BRN/YLWL BRN/YLWL BRN/YLWL BRN/YLWL BRN/YLWL BRN/TERRIPTOR DE LA PEGION BAUA TRI TRANSPORANDOR DEL VOLTUE RIT SENSOR DE TEMPERATURA DE DESCAVA RIT LUNDA DE CAPAC SPONSOR DE EPPORATURA RIT VALULA DE EXPAVATION ELECTRONICA RIT VELLECTRONANILLA

12. Apéndice

J&E Hall International for DAIKIN

3.4 Tubature in loco

Nota importante

$$ = 3. 7 0 7 \mathrm{kW} $$

1. PT5 : BR: MARRONE; WH: BIANCO

Technical drawing of a dual fan assembly with mounting holes and dimension label (no text or symbols)

Technical line drawing of a multi-compartment air conditioning unit with two fans (no text or symbols)

Temperatura Bassa

940 4-ø10 522 560 605 1271 1348

Technical drawing of a dual-panel air fan assembly with dimension annotations (1727 and 8), no readable text or symbols beyond measurement markers.

Technical line drawing of a dual-panel industrial cooling unit with two fans (no text or symbols)

11. Dati elettrici

JEHSCU0200CM3, JEHSCU0250CM3, JEHSCU0300CM3, JEHSCU0350CM3, JEHSCU0200CL3, JEHSCU0300CL3

F1U 3.15A BRN BLU BRN K1M 14 13 BRN 1 3 5 14 PE B1 1 2 3 4 5 6 T1 T2 T3 M 3~ GRN/YLW M1C BRN BRN A1P GRN/YLW BRN BLK BRN C1 M1F ALM GRY 4 HP S1PH GRN/YLW LP BLK BLK 4 3 A1 K1M BLU A2 BLU N3 N2 BLU N1 B1HC GRN/YLW BLK MAX 50 VA S1PL BLK BLK BLK BLK BLK BLK B1HCC GRN/YLW IMPOSTAZIONE, B1 MODELLO VALORE (A) JEHS/SCU0200B2(C)M3 5,5 JEHS/SCU0250B2(C)M3 7,0 JEHS/SCU0300B2(C)M3 7,5 JEHS/SCU0350B2(C)M3 9,5 JEHS/SCU0200B2(C)L3 5,5 JEHS/SCU0300B2(C)L3 6,5 NOTA: RIMUOVERE I RACCORDI DA 4 A 3 PRIMA DI ESEGUIRE IL COLLEGAMENTO AL DISPOSITIVO DI CONTROLLO -- - E IL CABLAGGIO B1: INTERRUPTORE AUTOMATICO MOTORE K1M CONTATTORE F'U: FUSIBILE C1: CONDENSATORE VENTOLA M1C: COMPRESSORE M1F: VENTOLA DEL CONDENSATORE A1P: CONTROLLORE VELOCITA VENTOLA S1PH: INTERRUPTTORE ALTA PRESSIONE S1PL: INTERRUPTTORE BASSA PRESSIONE ETHC: RISCALDATORE BASAMENTO

JEHSCU0400CM3, JEHSCU0500CM3, JEHSCU0600CM3, JEHSCU0680CM3, JEHSCU0400CL3, JEHSCU0500CL3, JEHSCU0600CL3

F1U T3.15A BRN BLU BRN K1M 14 13 L N B1 BLK GRY 1 3 5 14 PE 2 4 6 13 L1 L2 L3 N 380-415V 3N~ 50Hz BRN BLK GND L1 BRN/ YLW T1 T2 T3 M 3~ M1C GRN/YLW IMPOSTAZIONE, B1 MODELLO VALORE (A) JEHS/JEHSCU0400B3(C)M3 11,0 JEHS/JEHSCU0500B3(C)M3 14,0 JEHS/JEHSCU0600B3(C)M3 14,0 JEHS/JEHSCU0680B3(C)M3 15,0 JEHS/JEHSCU0400B3(C)L3 10,0 JEHS/JEHSCU0500B3(C)L3 12,0 JEHS/JEHSCU0600B3(C)L3 14,5 K1M BRN BLU R1" Tc BLK BLK BRN BLU BRN C1 BK Y/G GY GY M1F NOTA: RIMUOVERE I RACCORDI DA 4 A 3 PRIMA DI ESEGUIRE IL COLLEGAMENTO AL DISPOSITIVO DI CONTROLLO --- EL CABLAGGIO A1P: CONTROLLORE VELOCITÀ VENTOLA B1: INTERRUTTORE AUTOMATICO MOTORE C1: CONDENSATORE VENTOLA, EHC: RISCALDATORE BASAMENTO F1U: FUSIBLE K1M: CONTATTORE M1C: COMPRESSORE M1P: VENTOLA DEL CONDENSATORE RIT: SENSORSE TEMPERATURA TUBO DEI LIQUIDI S1PH: INTERRUTTORE ALTA PRESSIONE SIPL: INTERRUTTORE BASSA PRESSONE

JEHSCU0800CM3, JEHSCU1000CM3

F1U 3.15A BRN BLU BRN K1M 14 13 2 BRN C1 BLK GRN/YLW GRY GRY BRN M1F (TOP) M1M BRN C2 BLK GRN/YLW GRY GRY BRN M2F (BOTTOM) ALM S1PL BRN/YLW ALM MAX 50 VA BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN-380-415V L2 L3 N PE GRN/YLW M3~ 380-415V 3N~ 50Hz M1C IMPOSTAZIONE, B1 MODELLO VALORE (A) JEHS&JEHSCU-0800-B4(C)-M-3 17A JEHS&JEHSCU-1000-B4(C)-M-3 22A NOTA: RIMUOVERE I RACCORDI DA 17 A 18 PRIMA DI ESEGUIRE IL COLLEGAMENTO AL DISPOSITIVO DI CONTROLLO --- É IL CABLAGGIO A1P: CONTROLLORE VELOCITÀ VENTOLA B1: INTERRUTTORE AUTOMATICO MOTORE C1, C2: CONDENSATORE VENTOLA E1HC: RISCALDATORE BASAMENTO F1U: FUSIBILE K1M: CONTATTORE M1C: COMPRESSORE M1F E M2F: VENTOLA COMPRESSORE S1PH: INTERRUTTORE ALTA PRESSIONE S1PL: INTERRUTTORE BASSA PRESSIONE

JEHSCU0750CL3

F1U 3.15A BRN BLU BRN 13 K1M 14 BRN 1 2 3 4 5 6 13 BRN 1 2 3 4 5 6 14 BRN/YLW GRN/YLW M 3~ M1C PE L1 L2 L3 N 380-415V 3N~ 50Hz NOTA: RIMUOVERE I RACCORDI DA 17 A 18 PRIMA DI ESEGUIRE IL COLLEGAMENTO AL DISPOSITIVO DI CONTROLLO --- É IL CABLAGGIO A1P: CONTROLLORE VELOCITÀ VENTOLA B1: INTERRUPTTORE AUTOMATICO MOTORE C1: PARTE INFERIORE CONDENSATORE VENTOLA C2: PARTE SUPERIORE CONDENSATORE VENTOLA E1HC: RISCALDATORE BASAMENTO F1U: FUSIBLE K1M: CONTATTORE S1PH: INTERRUTTORE ALTA PRESSIONE S1PL: INTERRUPTTORE BASSA PRESSIONE A: TERMOSTATO DI SCARICO

JEHSCU0950CL3 EVI

BLU F1U 3.15A BRN Q1R BLK BRN 22 BRN 14 BRN R1T R2T S1PR 131 141 15 16 17 A2P 222 324 FR480 am DTR3 BR N DR YI 91 01 02 03 04 1 2 3 4 5 6 7 8 9 10 11 12 BRN 13 BRN 1 B1 BLK GRY K1M BRN BLK GRY S1NC GRN/YLW M 3~ M1C BLK A1 A2 BLU RED T1R ALM GRY MAX 50 VA S1PL GP HP S1PH GRN/YLW E1HC BRN/YLW BRN A1P BRN C2 BLU BRN BLK BLK M1~ M1F M2F BRN BRN/MLM M1~VETOLACO DELENSATORE TOP N4 BLU N3 N2 N1 BRN BRN/MLM M1~VETOLACO DELENSATORE TOP NOTA: SOSTITURE I PONTICELLI DA B A B SUL TERMOSTATO INTERNO- E IL CADLAGGIO DI CAMPO. AP: REGOLATORE DI VELOCITA DEL VENTILATORE AP: EXD CONTROLLER BI: TRANSITION DEL CIRCUO MOTOR- CI: CE CONDENSATORE VENTOLA EWC RESCALATORE CARTER F/U F2L FUSIBLE KIM CONTATORE KIR REE# MIC COMPRESSORE# MIF: VENTOLA CONDENSATORE TOP N2P: CONDENSATORE FAN BTM QIR: TERMOSTATO DI SCARICO (130 °C) SIMP: TRANSITION DI PRESSIONE SIND: REE SENSIORE CORRENE# SPIN: PRESSOSTATO ALTA PRESSIONE SIPL: PRESSOSTATO DI GASSA PRESSIONE TIR: TRANSFORMATORE DI TENSIONE. RTI: SENSIORE DI TEMPERATURE DI SCARICO KITI: VAPORSE LINHA SENSIURE DI TEMPERATURE YISI: VALVILA DI ESFANSIONE ELETTRONICA YISI: ELETTRONVALVA NOTA: SOSTITURE I PONTICELLI DA B A B SUL TERMOSTATO INTERNO- E IL CADLAGGIO DI CAMPO. AP: REGOLATORE DI VELOCITA DEL VENTILATORE AP: EXD CONTROLLER BI: TRANSITION DEL CIRCUO MOTOR- CI: CE CONDENSATORE VENTOLA EWC RESCALATORE CARTER

12. Appendice

J&E Hall International for DAIKIN

$$ = 3. 7 0 7 \mathrm{kW} $$

Technical line drawing of a mechanical air conditioning unit with fan and control panel (no text or symbols)

27 607 65 135

Série 2

703 4~Ø11 388 408 444 1040 1101

Technical line drawing of a mechanical air conditioning unit with fan and cooling unit (no text or symbols)

Technical line drawing of an air conditioning fan assembly with mounting bracket (no text or symbols)

Série 3

945 461 500 575 1276 1353 872

Série 4
Temperatura Média

940 522 1271 1348 560 641

Technical drawing of a dual fan assembly with mounting holes and dimension label (no text or symbols)

Technical line drawing of a dual-panel air conditioning unit with two fans (no text or symbols)

Temperatura Baixa

940 4-ø10 522 560 605 1271 1348

Technical drawing of a dual-panel air fan assembly with dimension lines (no text or symbols)

Technical line drawing of a dual-panel industrial cooling unit with two fans (no text or symbols)

11. Dados Elétricos

JEHSCU0200CM3, JEHSCU0250CM3, JEHSCU0300CM3, JEHSCU0350CM3, JEHSCU0200CL3, JEHSCU0300CL3

F1U 3.15A BRN BLU BRN K1M 14 13 BRN K1M 1 3 5 14 PE 2 4 6 13 BRN T1 T2 T3 M 3~ GRN/YLW M1C M1F ALM GRY BRN S1PH GP LP GRN/YLW S1PL BLK 4 3 A1 K1M A2 BLU BLU N3 N2 BLU N1 E1HC GRN/YLW B1 L1 L2 L3 N 380-415V 3N~ 50Hz NOTA: REMOVER LIGAÇÃO 4 À 3 ANTES DE LIGAR AO CONTROLADOR --- E A LIGAÇÃO ELÉTRICA B1: DISJUNTOR DO MOTOR KIM: CONTACTOR F1U: FUSÍVEL C1: CONDENSADOR DA VENTONHA MIC: COMPRESSOR MIF: VENTONHADO CONDENSADOR A1P: CONTROULADOR DE VELOCIDADE DA VENTONHA S1PH: INTERRUPTOR DE ALTA PRESSÃO S1PL: INTERRUPTOR DE BAIXA PRESSÃO E1HC: AQUECEDOR DO CÁRTER MODELO VALOR (A) JEHS/SCU0200B2(C)M3 5,5 JEHS/SCU0250B2(C)M3 7,0 JEHS/SCU0300B2(C)M3 7,5 JEHS/SCU0350B2(C)M3 9,5 JEHS/SCU0200B2(C)L3 5,5 JEHS/SCU0300B2(C)L3 6,5

JEHSCU0400CM3, JEHSCU0500CM3, JEHSCU0600CM3, JEHSCU0680CM3, JEHSCU0400CL3, JEHSCU0500CL3, JEHSCU0600CL3

F1U T3.15A BRN BLU BRN K1M 14 13 BRN L N BLU BLK R1T L1 GND BLK 2 BRN GRN/YLM BRN BLU MAX 50 VA ALM GRY BRN S1PL HP LP BLK BLK 4 3 A1 K1M BLU A2 BLU BLU N3 N2 N1 B1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 BRN/YLW E1HC BRN/YLW DEFINIÇÃO, B1 MODELO VALOR (A) JEHS/JEHSCU0400B3(C)M3 11,0 JEHS/JEHSCU0500B3(C)M3 14,0 JEHS/JEHSCU0600B3(C)M3 14,0 JEHS/JEHSCU0680B3(C)M3 15,0 JEHS/JEHSCU0400B3(C)L3 10,0 JEHS/JEHSCU0500B3(C)L3 12,0 JEHS/JEHSCU0600B3(C)L3 14,5 M1C M1F NOTA: REMOVER LIGAÇÃO 4 A 3 ANTES DE LIGAR AO CONTROLADOR --- É ALIGAÇÃO ELÉTRICA A1P. CONTROLADOR DE VELOCIDADE DA VENTOINHA M1C: COMPRESSOR B1: DISJUNTOR DO MOTOR M1F: VENTOINHA DO CONDENSADOR C1: CONDENSADOR DA VENTOINHA R1T: SENSOR DE TEMPERATURA DA LINHA DE LÍQUIDO E1HC: AQUECEDOR DO CARTER S1PH: INTERRUPTOR DE ALTA PRESSÃO F1U: FUSÍVEL S1PL: INTERRUPTOR DE BAIXA PRESSÃO K1M: CONTACTOR

JEHSCU0800CM3, JEHSCU1000CM3

F1U 3.15A BRN BLU BRN K1M 14 13 2 BRN C1 BLK GRN/YLW GRY GRY BRN M1F (TOP) M1C BRN C2 BLK GRN/YLW GRY GRY BRN M2F (BOTTOM) ALM GRY S1PH 4 HP LP GRN/YLW S1PL BLK E1HC GRN/YLW 4 BRN A1 K1M A2 BLU BLU N1 N2 BLU N3 B1 1 3 5 13 6 14 50Hz L1 L2 L3 N PE GRN/YLW M3~ 380-415V 3N~ 50Hz DEFINIÇÃO, B1 MODELO VALOR (A) JEHS&JEHSCU-0800-B4(C)-M-3 17A JEHS&JEHSCU-1000-B4(C)-M-3 22A NOTA: REMOVER LIGAÇÃO 17 À 18 ANTES DE LIGAR AO CONTROLADOR --- É A LIGAÇÃO ELÉTRICA A1P: CONTROADOR DE VELOCIDADE DA VENTOINHA K1M: CONTACTOR B1: DISJUNTOR DO MOTOR M1C: COMPRESSOR C1, C2: CONDENSADOR DA VENTOINHA M1F & M2F: VENTOINHA DO COMPRESSOR E1HC: AQUECEDOR DO CÁRTER S1PH: INTERRUPTOR DE ALTA PRESSÃO F1U: FUSÍVEL S1PL: INTERRUPTOR DE BAIXA PRESSÃO

JEHSCU0750CL3

F1U 3.15A BRN BLU BRN 13 K1M 14 BRN 1 2 3 4 5 6 BRN 1 2 3 4 5 6 BRN 13 A1P GRN/YLW BRN 1 2 3 4 5 6 BRN 13 ALM GRY 3 BRN S1PH HRN/YLW LP S1PL BLK 4 To 5 A1C BRN A2C BLK E1HC GRN/YLW M1~ M2F GRN/YLW M1~1~ M1F BLU MAX 50 VA BLU N1 N2 BLU N3 B1 L1 L2 L3 N 380-415V 3N~ 50Hz PE REFINÇÃO, B1 MODELO VALOR (A) JEHS&SCU-0750-B4(C)-M-3 16,5A

JEHSCU0950CL3 EVI

BLU F1U 3.15A BRN Q1R BLK BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN (1) 380-415V 3N~ 50Hz L1 L2 L3 N PE VER B1 BLK GRY K1M BRN BLK GRY S1NC GRN/YLW M 3~ M1C BLK A1 BLK A2 BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BLU BL UBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBLLBML BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL B RL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL BRL B RSL TIR TRANSFORMOR DE TENSO MIP CONTINULADOR DE VELOCIONE DO VENTILADOR F/U FLI PUSHEL MIF CONDENSADOR BRN FLY Q/R TERMINOSATO DA DESCARGA (MIN °C) SING TRANSDUCTO DE PRESSAO SIN C RELE ATUA DO SENSOR SING RELA ATUA DO SENSOR SING SUPERIOR DO VENTILADOR DO CONDENSADOR SING INTERRUPTOR DE ALTA PRESSAO SING INTERRUPTOR DE GALVA PRESSAO TIR TRANSFORMOR DE TENSO RIT SENSOR DA TEMPERATURA DA DESCARGA KIT SENSOR DE INFRASTRURA DA NUMA DE VAPOR YIE VALULA DE EXAMASÃO ELECTRONICA YIE VALULA DE SOLONDE JCHS/SCU99084CCL3 EVT 14.5

12. Apêndice

J&E Hall International for DAIKIN

$$ = 3. 7 0 7 \mathrm{kW} $$

Technical line drawing of a mechanical air conditioning unit with fan and control panel (no text or symbols)

27 607 65 135

Σειρά 2

703 4~Ø11 388 408 444 1040 1101

Technical line drawing of a multi-compartment air conditioning unit with fan and cooling unit (no text or symbols)

Technical line drawing of an air conditioning fan assembly with mounting bracket (no text or symbols)

Σειρά 3

Technical drawing of a dual fan assembly with mounting holes and dimension label (no text or symbols)

Technical line drawing of a dual-panel air conditioning unit with fans and cooling fins (no text or symbols)

Χαμηλή θερμοκρασία

940 4-ø10 522 560 605 1271 1348

Technical drawing of a dual-panel air fan assembly with dimension lines (no text or symbols)

Technical line drawing of a multi-level industrial cooling unit with two fans (no text or symbols)

F1U 3.15A BRN BLU BRN K1M 14 13 BRN 1 3 5 14 PE BRN BLK GRY 13 2 4 6 13 BRN GLR GRY 1 2 4 6 2 1 1 A1P IGRN/YLW BRN BLK BRN BLK M 3~ GRN/YLW M1C M1F BRN BLK BRN BLK ALM GRY S1PH HR GP LP GRN/YLW MAX 50 VA S1PL BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK

JEHSCU0200CM3, JEHSCU0250CM3, JEHSCU0300CM3, JEHSCU0350CM3, JEHSCU0200CL3, JEHSCU0300CL3

F1U 3.15A BRN BLU BRN K1M 14 13 BRN 1 3 5 6 2 4 KIM BRN ALM GRY S1PH GP LP GRN/YLW S1PL BLK 4 3 A1 K1M BLK A2 BLU N3 N2 BLU N1 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 B49 B50 B51 B52 B53 B54 B55 B56 B57 B58 B59 B60 B61 B62 B63 B64 B65 B66 B67 B68 B69 B70 B71 B72 B73 B74 B75 B76 B77 B78 B79 B80 B81 BHMEΩDH: ΑΦΑΡΕΣΤΕ ΤΗ ΣΥΝΔΕΣΗ ΑΠΟ ΤΟ 4 ΙΤΟ 3 ΠΡΙΝ ΤΗ ΣΥΝΔΕΣΗ ΙΤΟ ΕΛΕΓΚΤΗ :--- ΕΝΑΙ Η ΤΟΠΙΚΗ ΚΑΛΩΔΩΣΗ B1: ΔΑΚΟΤΗΣ ΚΥΚΛΩΜΑΤΟΣ ΚΙΝΗΤΗΡΑ KIM: ΕΤΑΜΕΑΣ F1U: ΑΦΑΛΕΙΑ C1: ΠΥΚΝΩΤΗΣ ΑΝΕΜΙΤΗΡΑ M1C: ΣΥΜΠΙΕΤΗΣ M1F: ΑΝΕΜΙΤΗΡΑΣ ΣΥΜΨΥΚΝΩΤΗΣ A1P: ΔΕΓΚΤΗΣ ΤΑΧΧΥΤΗΣ ΑΝΕΜΙΤΗΡΑ S1PRL: ΔΑΚΟΤΗΣ ΥΨΗΛΗΣ ΠΕΞΗΣ S1PRL: ΔΑΚΟΤΗΣ ΧΑΜΗΛΗΣ ΠΕΞΗΣ E1HC: ΘΕΡΜΑΝΤΗΡΑΣ ΙΤΡΟΦΑΟΘΑΛΑΜΟΥPYGMIZH, B1MONTEAOTIMH (A)JEHS/SCU0200B2(C)M35.5JEHS/SCU0250B2(C)M37.0JEHS/SCU0300B2(C)M37.5JEHS/SCU0350B2(C)M39.5JEHS/SCU0200B2(C)L35.5JEHS/SCU0300B2(C)L36.5

JEHSCU0400CM3, JEHSCU0500CM3, JEHSCU0600CM3, JEHSCU0680CM3, JEHSCU0400CL3, JEHSCU0500CL3, JEHSCU0600CL3

F1U T3.15A BRN BLU BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN

JEHSCU0800CM3, JEHSCU1000CM3

F1U 3.15A BRN BLU BRN K1M 14 13 2 BRN C1 BLK GRN/YLW GRY GRY BRN M1F (TOP) M1M BRN C2 BLK GRN/YLW GRY GRY BRN M2F (BOTTOM) ALM S1PL BRN/YLW ALP GRN/YLW MAX 50 VA S1PH 4 HP LP BRN/YLW E1HC BRN/YLW N1 N2 N3 PYΘΜΙΣΗ, B1 MONTEΛΟ TIMH (A) JEHS&JEHSCU-0800-B4(C)-M-3 17A JEHS&JEHSCU-1000-B4(C)-M-3 22A B1 L1 L2 L3 N 380-415V 3N~ 50Hz PE GRN/YLW BRN BLK GRY M3~ M1C IHMEΩΣΗ: ΑΦΑΡΕΣΤΕ ΤΗ ΣΥΝΔΕΣΗ ΑΠΟ ΤΟ 17 ΣΤΟ 18 ΠΡΙΝ ΤΗ ΣΥΝΔΕΣΗ ΣΤΟΝ ΕΛΕΓΚΤΗ --- EΙΝΑΙ ΤΟΠΙΚΗ ΚΑΩΜΩΣΗ A1P: ΕΛΕΓΚΤΗΣ ΤΑΧΥΓΗΤΑΣ ΑΝΕΜΙΣΤΗΡΑ B1: ΔΙΑΚΟΠΤΗΣ ΚΥΚΑΩΜΑΤΟΣ ΚΙΝΗΤΗΡΑ C1: ΠΥΚΝΟΤΗΣ ΑΝΕΜΙΣΤΗΡΑ E1HC: ΘΕΡΜΑΝΤΗΡΑΣ ΣΤΡΟΦΑΛΟΘΑΛΑΜΟΥ F1U: ΑΣΦΑΛΕΙΑ K1M: ΕΠΑΦΕΑΣ M1C: ΣΥΜΠΙΕΣΤΗΣ M1F & M2F: ΑΝΕΜΙΣΤΗΡΑΣ ΣΥΜΠΙΕΣΤΗ S1PH: ΔΙΑΚΟΠΤΗΣ ΥΥΨΗΛΗΣ ΠΕΞΣΗΣ S1PL: ΔΙΑΚΟΠΤΗΣ ΧΑΜΗΛΗΣ ΠΕΞΣΗΣ

JEHSCU0750CL3

F1U 3.15A BRN BLU BRN K1M 13 BRN 14 BRN 1 2 3 4 5 6 13 BRN BLK GRY K1M 1 2 3 4 5 6 14 BRN/YLW M 3~ M1C PE L1 L2 L3 N 380-415V 3N~ 50Hz BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRB ALM GRY BRN S1PH GRN/YLW K1M 22 S1PL BLK To 4 S1HC GRN/YLW BLK E1HC GRN/YLW BLK N3 BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/THEΩΣH: ΑΦΑΡΕΣΤΕ ΤΗ ΣΥΝΔΕΣΗ ΑΠΟ ΤΟ 17 ΣΤΟ 18 ΠΡΙΝ ΤΗ ΣΥΝΔΕΣΗ ΣΤΟΝ ΕΛΕΓΚΤΗ :--- ΕΝΑΙ Η ΤΟΠΙΚΗ ΚΑΛΩΔΙΩΣΗ A1P: ΕΛΕΓΚΤΗΣ ΤΑΧΥΤΗΤΑΣ ΑΝΕΜΙΣΤΗΡΑ M1F: ΚΑΤΩ ΑΝΕΜΙΣΤΗΡΑΣ ΣΥΜΠΥΚΝΟΤΗ B1: ΔΙΑΚΟΠΤΗΣ ΚΥΚΑΩΜΑΤΟΣ ΚΙΝΗΤΗΡΑ M2F: ΠΑΝΩ ΑΝΕΜΙΣΤΗΡΑΣ ΣΥΜΠΥΚΝΟΤΗ C1: ΚΑΤΩ ΠΥΚΝΟΤΗΣ ΑΝΕΜΙΣΤΗΡΑ M1C: ΣΥΜΠΙΕΣΤΗΣ C2: ΠΑΝΩ ΠΥΚΝΟΤΗΣ ΑΝΕΜΙΣΤΗΡΑ S1PH: ΔΙΑΚΟΠΤΗΣ ΥΨΗΛΗΣ ΠΙΕΣΗΣ E1HC: ΘΕΡΜΑΝΤΗΡΑΣ ΣΤΡΟΦΑΛΟΘΑΛΑΜΟΥ F1U: ΑΣΦΑΛΕΙΑ Προς: ΘΕΡΜΟΣΤΑΤΗ ΕΧΚΕΝΩΣΗΣ K1M: ΕΠΑΦΕΑΣ

JEHSCU0950CL3 EVI

BLU F1U 3.15A BRN Q1R BLK BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN

12. Παράρτημα

J&E Hall International for DAIKIN

NIEPRAWIDŁOWO! PRAWIDŁOWO!

O-CU06-AUG17-3

2

NIEPRAWIDŁOWO! PRAWIDŁOWO!

$$ = 3. 7 0 7 \mathrm{kW} $$

All specifications are subjected to change by the manufacturer without prior notice. The English text is the original instruction. Other languages are the translations of the original instructions.

POLSKI

Technical line drawing of a mechanical air conditioning unit with fan and control panel (no text or symbols)

27 607 65 135

Seria 2

703 4~Ø11 388 408 444 1040 1101

Technical line drawing of a multi-compartment air conditioning unit with fan and cooling unit (no text or symbols)

Technical line drawing of an air conditioning fan assembly with mounting bracket (no text or symbols)

Seria 3

945 461 500 575 1276 1353 872

Technical drawing of a dual fan installation with mounting holes and dimension label (no text or symbols beyond measurement markers)

Technical line drawing of a multi-level industrial air conditioning unit with two fans (no text or symbols)

Niskotemperaturowe

940 4-ø10 522 560 605 1271 1348

Technical drawing of a dual-panel HVAC fan assembly with dimension lines (no text or symbols)

Technical line drawing of a multi-level industrial air conditioning unit with two fans (no text or symbols)

F1U 3.15A BRN BLU BRN 1 3 K1 2 4 BRN K1M 14 13 BRN K1R C1 C2 BLU S BRN BRN/ YLW BRN BRN/ YLW BRN/ YLW M1~ M1C GRN/YLW M1~ GRN/YLW ALM GRY BRN 5 S1PH HP GRN/YLW S1PL BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK BLK

JEHSCU0200CM1, JEHSCU0250CM1, JEHSCU0300CM1

F1U 3.15A BRN BLU BRN K1M 1 3 4 BRN 14 13 BRN 1 BRN C1 BRN BLK BLU R S C PE BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN

Trójfazowy

JEHCCU0140CM3

F1U 3.15A BRN BLU BRN K1M 14 13 BRN ALM GRY S1PH 21 22 P0 HP GRN/YLW ORG E1HC L1 L2 L3 N 380-415V 3N~ 50Hz Q1M BLK BLK Q2M BRN/YLW A/S C/C BRN Q3M M1C M1F MOC=0.85A MOC=3.58A UWAGA: ROZŁACZYĆ POŁĄCZENIE 2 Z 1 PRZED PODŁĄCZENIEM DO STEROWNIKA --- TO OPRZEWODOWANIE KIENTA ( ): ZACISK W SKRZYNCE ELEKTRYCZNEJ SPREŻARKI B1: WYLĄCZNIK AUTOMATYCZNY SILNIKA K1M: STYCZNIK F1U: BEZPIECZNIK Q1M: ZEWNETRZNE ZABEZPIECZENIE PRZECIAŻENIOWE Q2M: ZEWNETRZNE ZABEZPIECZENIE PRZECIAŻENIOWE Q3M: WEWNĘTRZNE ZABEZPIECZENIE PRZECIAŻENIOWE C3: KONDENSATOR WENTYLATORA M1C: SPREŻARKA M1F: WENTYLATOR KONDENSATORA A1P: STEROWNIK PŘEDKOŚCI WENTYLATORA S1PH: PRZEŁĄCZNIK WYSOKIEGO CIŚNIENIA S1PL: PRZEŁĄCZNIK NISKIEGO CIŚNIENIA E1HC: GRZEJNIK SKRZYNI KORBOWEJ NASTAWA, B1 MODEL WARTOŚĆ (A) JEHR/JEHCCU0140B(C)M3 4.0

JEHCCU0150CM3, JEHCCU0225CM3, JEHCCU0300CM3

F1U 3.15A BRN BLU BRN K1M 14 13 BRN 1 3 5 2 4 6 PE BRN BLK GRY M 3~ GRN/YLW M1C M1F ALM GRY S1PH BRN/YLW S1PL LP BLK BLK BLK BLK BLU MAX 50 VA 4 3 2 1 BRN BLK BRN BLK C1 BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLK BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLk BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BLl BRN BL l B1: WYLACZNIK AUTOMATYCZNY SILNIKA B1M: STYCZNIK F1U: BEZPIECZNIK C1: KONDENSATOR WENTYLATORA M1C: SPREZARKA M1F: WENTYLATOR KONDENSATORA A1P: STEROWNIK PREDKOŚCI WENTYLATORA S1PH: PRZEŁACZNIK WYSOKIEGO CIŚNIENIA S1PL: PRZEŁACZNIK NISKIEGO CIŚNIENIA E1HC: GRZEJNIK SKRZYNI KORBOWEJ

JEHSCU0200CM3, JEHSCU0250CM3, JEHSCU0300CM3, JEHSCU0350CM3, JEHSCU0200CL3, JEHSCU0300CL3

F1U 3.15A BRN BLU BRN K1M 14 13 BRN 1 3 5 6 2 4 KIM BRN ALM GRY 3 S1PH GP LP GRN/YLW S1PL BLK BLK 4 3 A1 K1M BLK A2 BLU N3 N2 BLU N1 B1HC GRN/YLW B1 L1 L2 L3 N 380-415V 3N~ 50Hz M1C M1F M3~ GRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRN/YLW BRIN/YLW BRIN/YLW BRIN/YLW BRIN/YLW BRIN/YLW BRIN/YLW BRIN/YLW BRIN/YLW BRIN/YLW BRIN/YLW BRIN/YLW BRIN/YLW BRIN/YLW BRIN/YLW BRIN/YLW BRIN/YLW BRIN/YLW

JEHSCU0400CM3, JEHSCU0500CM3, JEHSCU0600CM3, JEHSCU0680CM3, JEHSCU0400CL3, JEHSCU0500CL3, JEHSCU0600CL3

F1U T3.15A BRN BLU BRN K1M 14 13 BRN L N B1 1 3 5 14 2 4 6 PE L1 L2 L3 N 380-415V 3N~ 50Hz BRN BLK GRY GND L1 BRN T1 T2 T3 M 3~ M1C GRN/YLW dTV L N BLU BLK RIT E BRN/ YLW BRN BLK BRN BLU BRN MAX 50 VA S1PL ALM GRY BRN S1PH 4 HP LP 4 GRN/YLW 4 BLK 3 A1 K1M BLU A2 BLU BLU N1 BLK E1HC GRN/YLW N3 N2 N1 UWAGA ROZŁACZYĆ POLACZENIE 4 Z 3 PRZED PODLACZENIEM DO STEROWNIKA --- TO OPRZEWODOWANIE KLENTA A1P: STEROWNIK PREDKOŚCI WENTYLATORA M1C: SPREZARKA B1: WYRŁACZNIK AUTOMATYCZNY SILNIKA M1F: WENTYLATOR KONDENSATORA C1: KONDENSATOR WENTYLATORA RIT: CZUJNIK TEMPERATURY LINII CIECZY E1HC: GRZEJNIK SKRZYNI KORBOWEJ S1PH: PRZEŁACZNIK WYSOKIEGO CŚNIENIA F1U: BEZPIECZNIK S1PL: PRZEŁACZNIK NISKIEGO CŚNIENIA K1M: STYCZNIK

JEHSCU0800CM3, JEHSCU1000CM3

F1U 3.15A BRN BLU BRN K1M 14 13 2 BRN C1 BLK GRN/YLW GRY GRY M1F (TOP) M1M BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN

JEHSCU0750CL3

F1U 3.15A BRN BLU BRN K1M 13 BRN 14 BRN 13 K1M 1 2 13 K1M 1 2 14 A1P GRN/YLW BRN 6 BRN C1 BRN M 1~ M1F GRN/YLW BLU BLU BRN C2 BRN M 1~ M2F GRN/YLW BLU BLU ALM GRY 3 BRN S1PH HP GRN/YLW LP BLK 4 To E1HC GRN/YLW BLK N1 N2 N3 UWAGA: ROZŁACZYĆ POŁĄCZENIE 17 Z 18 PRZED PODŁĄCZENIEM DO STEROWNIKA --- TO OPRZEWODOWANIE KIENTA A1P: STEROWNIK PREDKOŚCI WENTYLATORA B1: WYŁĄCZNIK AUTOMATYCZNY SILNIKA C1: DOLNY KONDENSATOR WENTYLATORA C2: GÓRNY KONDENSATOR WENTYLATORA E1HC: GRZEJNIK SKRZYNI KORBOWEJ F1U: BEZPIECZNIK M1F: DOLNY WENTYLATOR KONDENSATORA M2F: GÓRNY WENTYLATOR KONDENSATORA M1C: SPREŻARKA S1PH: PRZEŁĄCZNIK WYSOKIEGO CIŚNIENIA S1PL: PRZEŁĄCZNIK NISKIEGO CIŚNIENIA Do: TERMOSTATU ODPROWADZAJĄCEGO NEHS&SCU-0750-B4(C)-M-3 16,5A

JEHSCU0950CL3 EVI

BLU F1U 3.15A BRN Q1R BLK BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN BRN

12. Załącznik

LISTA KONTROLNA CZYNNOŚCI DO WYKONANIA PRZED ROZRUCHEM
