USER MANUAL H38MWID4ID27N HAIER

Illustration of a microwave oven with control panel and door (no text or symbols)

H38MWID4ID27N

Haier

User Instructions

MICROWAVE OVENS

02	Important safety indications
09	Product description
10	Use of the appliance
16	Cleaning & maintenance
17	Trouble shooting

Dear Customer,

We would like to thank you and congratulate you on your choice. This new product has been carefully designed and built using high-quality materials, and meticulously tested to ensure that it meets all your culinary requirements.

Please read and observe these simple instructions, which will enable you to achieve excellent results from the very first use. This state-of-the-art appliance comes to you with our very best wishes.

SAFETY INSTRUCTIONS

Microwave Oven

INSTRUCTION MANUAL

MODEL: H38MWID4ID27N

Read these instructions carefully before using your microwave oven, and keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model:	H38MWID4ID27N
Rated Voltage:	230 V ~ 50 Hz
Rated Input Power (Microwave):	1450 W
Rated Output Power (Microwave):	900 W
Rated Input Power (Grill):	1100 W
Oven Capacity:	28 L
Turntable Diameter:	∅ 315 mm
External Dimensions:	595x401x388 mm
Net Weight:	Approx. 19 kg

Low power consumption data according to Commission Regulation (EU) 2023/826.

Condition	Power consumption	Period after which the equipment reaches automatically the condition
Standby mode with information or status display	0.8W	20 Min

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
3. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. Only use utensils suitable for use in microwave ovens.
6. The oven should be cleaned regularly and any food deposits should be removed.
7. Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
9. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
10. Do not overcook food.

11. Do not use the oven cavity for storage purposes.
    Do not store items, such as bread, cookies, etc. inside the oven.

12. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.

13. Install or locate this oven only in accordance with the installation instructions provided.

14. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

15. This appliance is intended to be used in household and similar applications such as:

16. staff kitchen areas in shops, offices and other working environments;

17. by clients in hotels, motels and other residential type environments;
18. farm houses;

19. bed and breakfast type environments.

20. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

21. Do not store or use this appliance outdoors.

22. Do not use this oven near water, in a wet basement or near a swimming pool.

23. The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated surface, and do not cover any vents on the oven.

24. Do not let cord hang over edge of table or counter.

25. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

26. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

27. Microwave heating of beverages can result in delayed eruptive boiling,

therefore care must be taken when handling the container.

1. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. The appliances are not intended to be operated by means of an external timer or separate remote-control system.
4. Accessible parts may become hot during use. Young children should be kept away.
5. Steam cleaner is not to be used.
   29 During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
6. Only use the temperature probe recommended for this oven. (For ovens provided with a facility to use a temperature-sensing probe).
7. WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
8. The microwave oven must be operated with the decorative door open. (For ovens with a decorative door).
9. Surface of a storage cabinet can get hot.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To Reduce the Risk of Injury to Persons

Grounding Installation

DANGER

Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded.

If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.

2. If a long cord set or extension cord is used:

1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.

2) The extension cord must be a grounding-type 3-wire cord.

3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

MATERIALS YOU CAN USE IN MICROWAVE OVEN

Utensils	Remarks
Browning dish	Follow manufacturers instructions. The bottom of browning dish must be at least 3/16 inch (5 mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled “Microwave Safe”. Some plastic containers soften, as the food inside gets hot. “Boiling bags” and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Wax paper	Use as a cover to prevent splattering and retain moisture.

MATERIALS TO BE AVOIDED IN MICROWAVE OVEN

Utensils	Remarks
Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

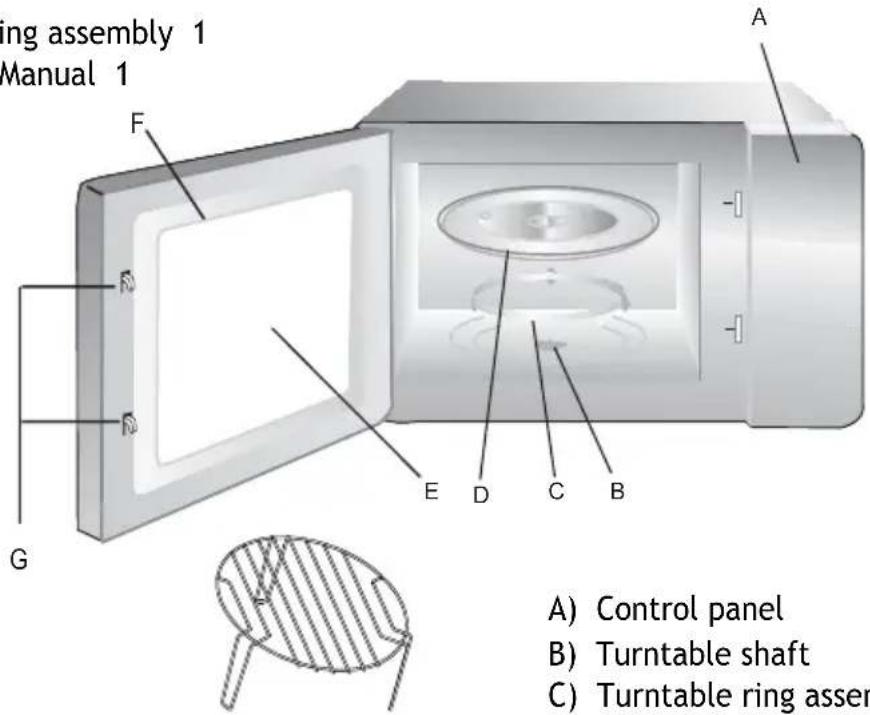

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories:

Glass tray 1

Turntable ring assembly 1

Instruction Manual 1

ring assembly 1 Manual 1 A F B D G E D C B A) Control panel B) Turntable shaft C) Turntable ring asser

Grill Rack (Only for Grill series)

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

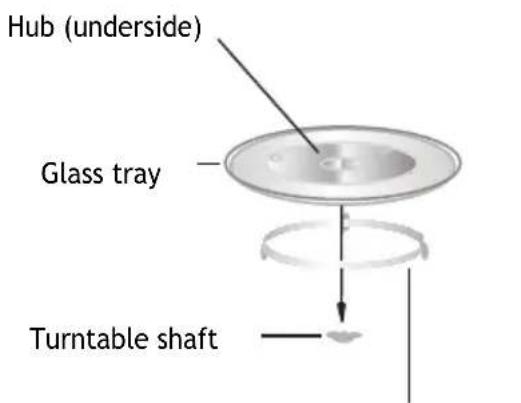

TURNTABLE INSTALLATION

Hub (underside) Glass tray Turntable shaft

Turntable ring assembly

a. Never place the glass tray upside down. The glass tray should never be restricted
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

CLOCK SETTING	When the microwave oven is electrified, the LED will display “00:00”, buzzer will ring once.1) Press “” twice, the hour figures will flash2) Press “-” or “+” to adjust the hour figures, the input time should be within 0--23.3) Press “” the minute figures will flash.4) Press “-” or “+” to adjust the minute figures, the input time should be within 0–59.5) Press “” to finish clock setting.“:” will flash, and the time will light.Note: 1) If the clock is not set, the clock would not function when powered.2) During the process of clock setting, if you press “ ”, the oven will go back to the previous status automatically.
MICROWAVE COOKING	Press “” the LCD will display “P100”. Press “” for times or press “-” or “+” to choose the power you want, and “P100”, “P80”, “P50”, “P30”, “P10”, “G”, “C-1” or “C-2” will display for each added press.Then press “” to confirm, and press “-” or “+” to set cooking time from 0:05 to 95:00. Press “” again to start cooking.Example: If you want to use 80% microwave power to cook for 20 minutes, you can operate the oven as the following steps.1) Press “” once, the screen displays “P100”.2) Press “” once again or press “-” or “+” to choose 80% microwave power.3) Press “” to confirm, and the screen displays “P 80”.4) Press “-” or “+” to adjust the cooking time until the oven displays “20:00”.
	5) Press “” to start cooking. Note: The step quantities for the adjustment time of the coding switch are as follow: 0-1 min : 5 seconds 1-5 min : 10 seconds 5-10 min : 30 seconds 10-30 min : 1 minute 30-95 min : 5 minutes
	Order	Pad instructions Display	Microwave Power
	1	P100	100%
	2	P80	80%
	3	P50	50%
	4	P30	30%
	5	P10	10%
	6	G	0% 100%
	7	C-1	55% 45%
	8	C-2	36% 64%
GRILL OR COMBI. COOKING	Press “” once. “P100” displays and then press “” for times or press the “-” or “+” to choose the power you want, and “P100”, “P80”, “P50”, “P30”, “P10”, “G”, “C-1” or “C-2” will display for each added press. Then press “” to confirm, and press “-” or “+” to set cooking time from 0:05 to 95:00. Press “” again to start cooking. Example: If you want to use 55% microwave power and 45% grill power (C-1) to cook for 10 minutes, you can operate the oven as the following steps.
	1) Press “” once, the screen displays “P100”.
	2) Press “” for rimes of press “-” or “+” to chose combi. 1 mode.
	3) Press “+30” to confirm, and the screen displays “C-1”.
	4) Press “-” or “+” to adjust the cooking time until the oven displays “10:00”.
	5) Press “ ” to start cooking.
	Note: If half the grill time passes, the oven sounds twice, and this is normal. In order to have a better effect of grilling food, you should turn the food over, close the door, and then press “ ” to continue cooking.If no operation, the oven will continue working.
QUICK START	1) In waiting state, press “ ” to start cooking with 100% power, each added press will increase 30 seconds cooking time up to 95 minutes.2) In microwave, grill, combi., cooking, each press of “ +30” " can increase 30 seconds of cooking time.
DEFROST BY WEIGHT	1) Press “ * once, and the oven will display “ dEF1”.2) Press “-” or “+” to select the weight of food from 100 to 2000 g.3) Press “ ” to start defrosting.
DEFROST BY TIME	1) Press “ * twice, and the oven will display “ dEF2”.2) Press “-” or “+” to select the defrost time.3) Press “ ” to start defrosting.
KITCHEN TIMER	1) Press “ ” once, LED will display “00:00”.2) Turn “-” or “+” to enter the correct timer.(The maximum cooking time is 95 minutes)3) Press “ ” to confirm setting.4) When the kitchen time is reached, the buzzer will ring 5 times.If the clock has been set (24-hour system), LED will display the current time.Note: The kitchen Time is different from 24-hour system.Kitchen Timer is a timer.
MULTI-SECTION COOKING	At most 2 sections can be set for cooking. In multi-section cooking, if one section is defrosting, then defrosting shall be placed in the first section.Example: If you want to defrost food for 5 minutes and then cook with 80% microwave power for 7 minutes, operate it as the following:1) Press “+” twice, and the oven will display “dEF2”.2) Turn “-” or “+” to select the defrost time till “5:00” displays.3) Press “-” once, the screen displays “P100”.4) Press “-” once again or turn “-” or “+” to choose 80% microwave power.5) Press “-” to confirm, and the screen displays “P 80”.6) Turn “-” or “+” to adjust the cooking time till the oven displays “7:00”.7) Press “-” to start cooking, and buzzer will sound once for the first section, defrosting time counts down: buzzer will sound once again entering the second cooking. When cooking finishes, buzzer sounds five times.
INQUIRING FUNCTION	1) In states of microwave, grill and combination cooking, press “-”, the current power will be displayed for 3 seconds. After 3 seconds, the oven will turn back to the former state.2) In cooking state, press “-” to inquire the time and the time will display for 3 seconds.
LOCK FUNCTION FOR CHILDREN	Lock: In waiting state, press “” for 3 seconds, there will be a beep denoting entering the children-lock state and the current time will display if the time has been set. otherwise, the LED will display “0:00”. The lock indicator will light.Lock quitting: In locked state, press “-” for 3 seconds, there will be a “beep” denoting that the lock is released. The lock indicator will go out.
SPECIFICATION	1) “must be Passed to continue cooking if the door is opened during cooking.2) Once the cooking programme has been set, “is not pressed in 5 minute. The current time will be displayed. The setting will be cancelled.3) The buzzer sounds once by efficient press, inefficient press will be no response.4) The buzzer will sound five times to remind you when cooking is finished.
OPEN THE OVEN DOOR	Press “button, the oven door will open.
AUTO MENU	1) Press “+” to choose the menu, and “A1” to “A8” will display, which means pizza, meat, vegetable, pasta, potato, fish, beverage and popcorn.2) Press “+to confirm.3) Press “-” or “+” to choose the default weight as the menu chart.4) Press “+to start cooking.Example: If you want to use “Auto Menu” to cook fish for 350g.1) Press “+” till “A6” displays.2) Press “+to confirm.3) Press “-” or “+” to select the weight of fish till “350” displays.4) Press “+start cooking.

Menu	Weight	Power
A1 Pizza	200 g	200
	400 g	400
A2 Meat	250 g	250
	350 g	350
	450 g	450
A3 Vegetable	200 g	200
	300 g	300
	400 g	400
A4 Pasta	50 g (with 450g cold water)	50
	100 g (with 800g cold water)	100
A5 Potato	200 g	200
	400 g	400
	600 g	600
A6 Fish	250 g	250
	350 g	350
	450 g	450
A7 Beverage	1 cup (120 ml)	1
	2 cups (240 ml)	2
	3 cups (360 ml)	3
A8 Popcorn	50 g	50
	100 g	100

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighboring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300 ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

UTENSILS

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. See the instructions on “Materials you can use in microwave oven or to be avoided in microwave oven”. There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below. Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250 ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

If something does trouble shooting; before seeking assistance carry out the following checks first.

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside. It is very dangerous.

Trouble	Possible Cause	Remedy
Oven cannot be started.	(1) Power cord is not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company).
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door is not closed well.	Close door well.

Symbol of a trash bin crossed with a diagonal line, no text or labels present

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

FR RECO

Sommario

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

MANUEL D'INSTRUCTIONS

MODÈLE : H38MWID4ID27N

Symbol of a trash bin crossed with a diagonal line and a blank rectangular block below (no text or labels)

Symbol of a waste bin crossed with a diagonal line, representing no waste or disposal (no text or labels present)

MANUAL DE INSTRUÇÕES

MODELO: H38MWID4ID27N

Symbol of a trash bin crossed with a diagonal line and a solid rectangle below (no text or labels)

FR Open Book

Sisukord

OLULISED OHUTUSJUHISED

HOIATUS!

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

DODATKOWE INFORMACJE

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

FR Open Book

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or numbers present)

Symbol of a trash bin crossed with a diagonal line, no text or labels present

FR Open Book

Symbol of a trash bin crossed with a diagonal line, no text or numbers present
