VINDSTYRKA 304.982.39 - Air purifier IKEA - Free user manual and instructions

Product type	Indoor air quality sensor
Model	E2112
Connectivity	Pairing with STARKVIND purifier and DIRIGERA hub via 2.4 GHz radio
Measured particles	PM2.5 (0-1000 µg/m³)
Other measurements	Temperature (°C/°F), relative humidity (%), TVOC (total volatile organic compounds)
Display	Color display with quality indicator (green/yellow/red) and connection icons
Power supply	5.0 V DC, 1.0 A via USB-C (cable max. 3 m)
Power consumption	0.5 W
Radio range	10 m in open field
Operating frequency	2400-2483.5 MHz
Radio output power	8 dBm
Operating temperature	0 °C to 40 °C
Operating humidity	0 to 95% RH
Usage	Indoor only
Maintenance	Wipe with a soft cloth and mild detergent, do not use abrasive products
Factory reset	Press the pairing button quickly 4 times
Safety	Do not expose to direct sunlight, do not obstruct vents, disconnect before cleaning
Warranty	Available at IKEA store or on IKEA website
Repairability	Do not open or repair yourself; contact customer service
Recycling	Sort according to local regulations (crossed-out wheelie bin symbol)

Frequently Asked Questions - VINDSTYRKA 304.982.39 IKEA

How to connect VINDSTYRKA to the STARKVIND purifier?

Press and hold the pairing buttons on VINDSTYRKA and STARKVIND simultaneously until the pairing icon stops flashing. See pages 6-7 of the manual.

How to connect VINDSTYRKA to the DIRIGERA hub?

Download the IKEA Home smart app, then follow the instructions to pair VINDSTYRKA with the DIRIGERA hub. The pairing icon flashes during connection.

What do the VINDSTYRKA sensors measure?

VINDSTYRKA measures fine particulate matter PM2.5 (0-1000 µg/m³), temperature, relative humidity, and TVOC (total volatile organic compounds) level.

How to interpret the screen colors?

Green: 0-35 µg/m³ (good), Yellow: 35-120 µg/m³ (moderate), Red: above 120 µg/m³ (poor).

How to perform a factory reset?

Press the pairing button quickly 4 times. The sensor returns to its factory settings.

How to clean the sensor?

Wipe the device with a soft cloth dampened with a little mild detergent, then dry with a dry cloth. Never use abrasive products or solvents.

Can VINDSTYRKA be used without connection?

Yes, VINDSTYRKA can operate independently. It then displays measurements directly on its screen.

What is the power consumption of the sensor?

The consumption is 0.5 W at 5 V DC, 1.0 A. It connects via a USB-C cable (max. length 3 m).

Does the sensor measure carbon monoxide or radon?

No, it does not measure CO or radon. It should not be used as a safety device to detect dangerous gases.

What to do if the screen is too bright at night?

Press and hold the mode button to access brightness settings. You can choose between levels 1, 2, and 3.

USER MANUAL VINDSTYRKA 304.982.39 IKEA

Design and Quality IKEA of Sweden

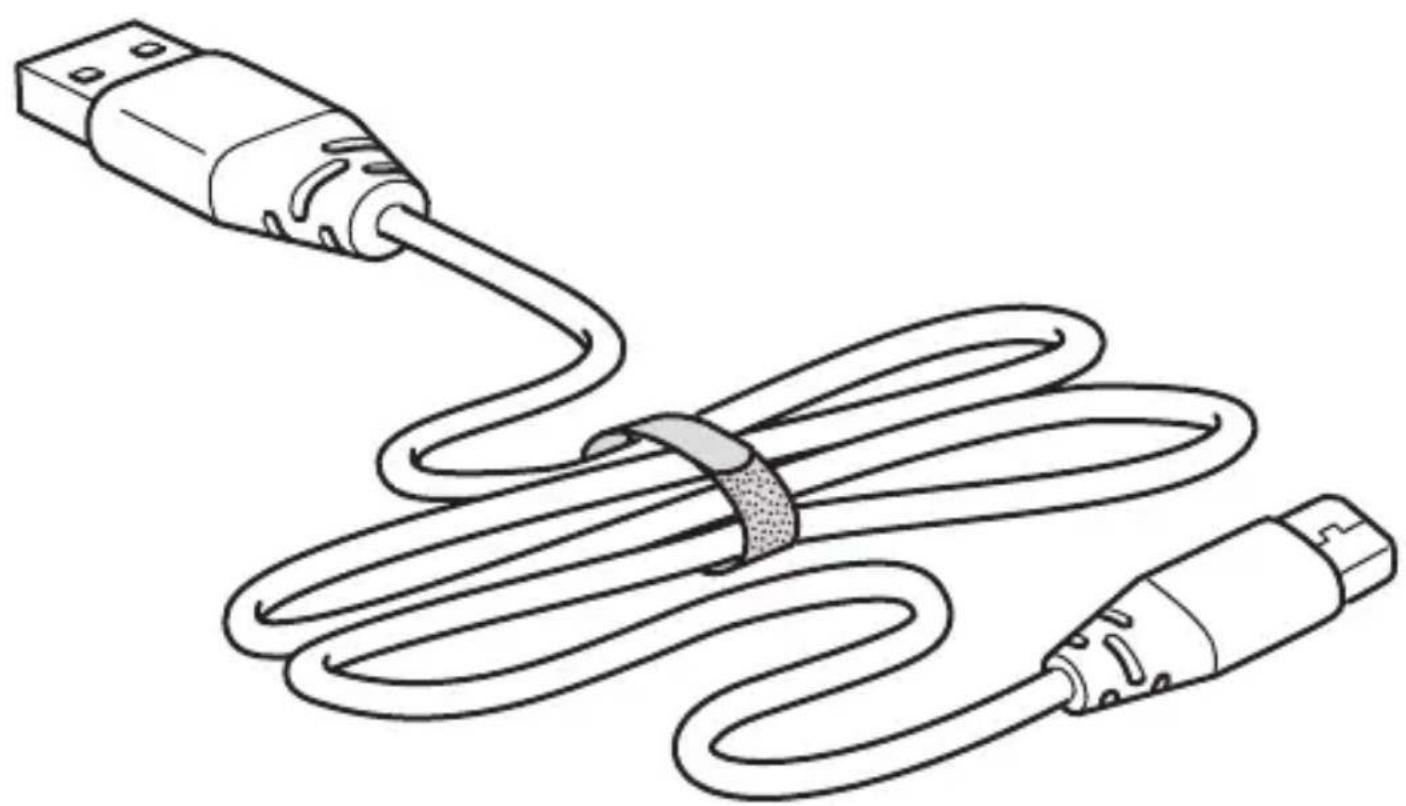

Line drawing of a USB cable with two connectors (no text or symbols)

1x

Simple line drawing of a rectangular box with a circular top and a small hole on top (no text or symbols)

Line drawing of a simple round table with four legs and a small sun on the front (no text or symbols)

Works with

IKEA Home smart

DIRIGERAVINDSTYRKA

English 10

Français 26

Español 42

Instructions for use

Freestanding or paired

VINDSTYRKA air quality sensor can be used freestanding, but also be connected to STARKVIND air purifiers and/or DIRIGERA hub for smart products.

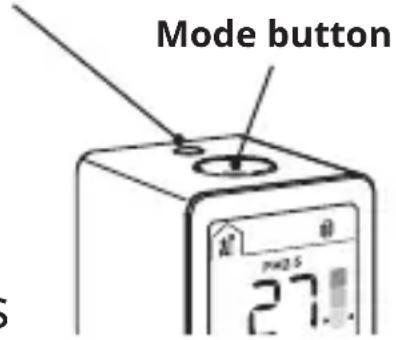

Pairing button

Connect VINDSTYRKA to STARKVIND air purifier

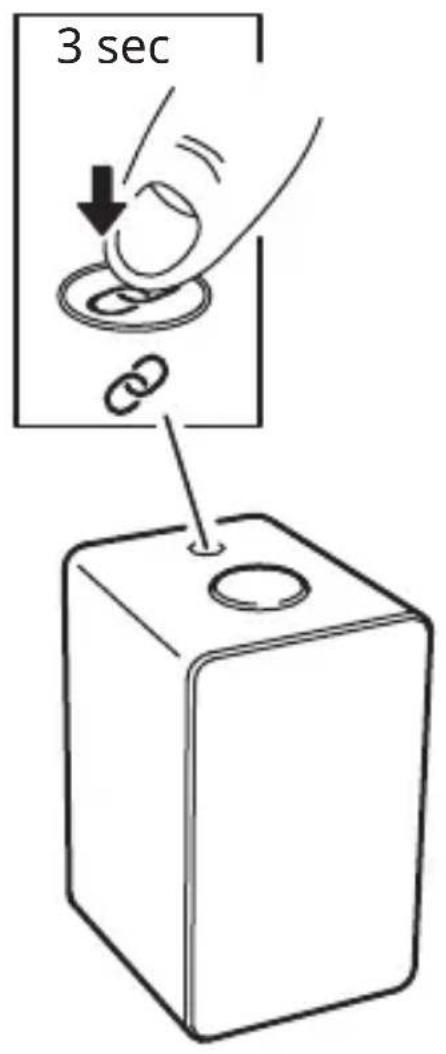

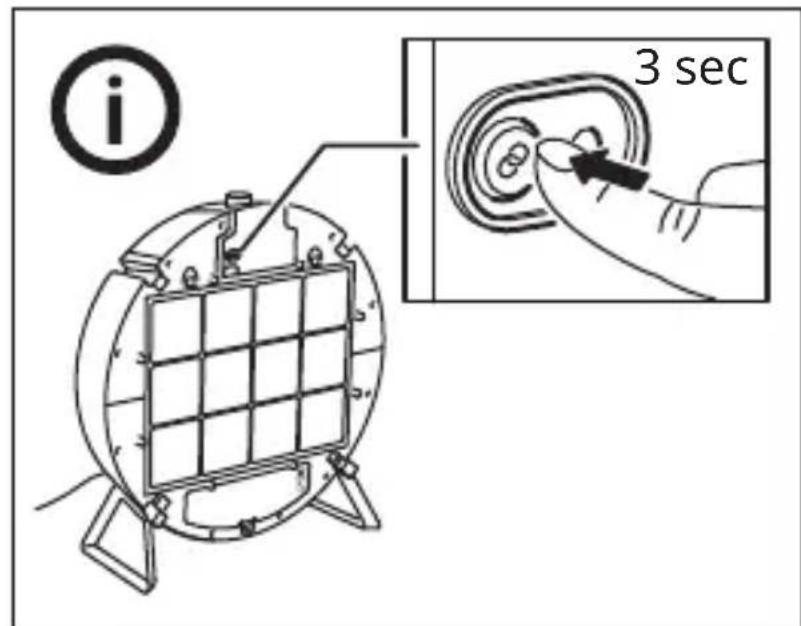

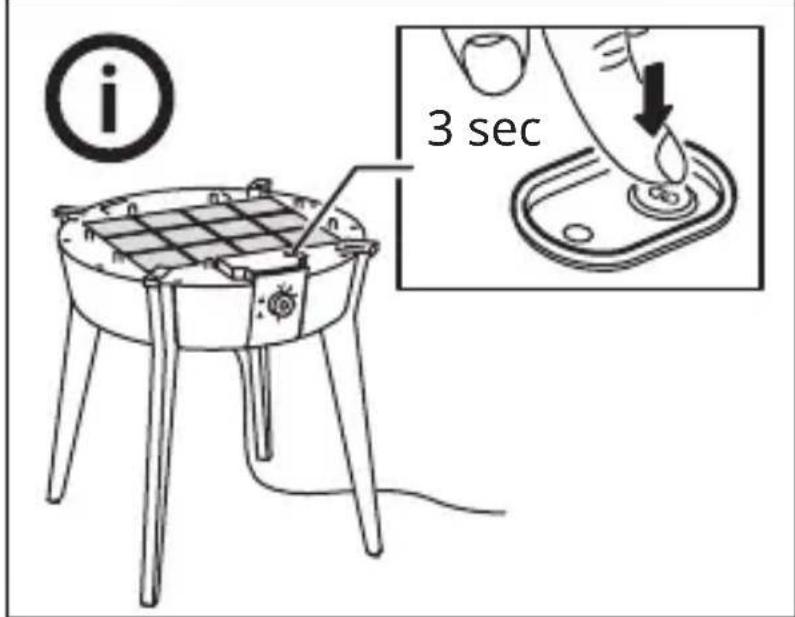

Long press the pairing buttons on VINDSTYRKA and STARKVIND at the same time to connect them. See pages 6-7.

When the connection is successful, the pairing icon should stop blinking on the display.

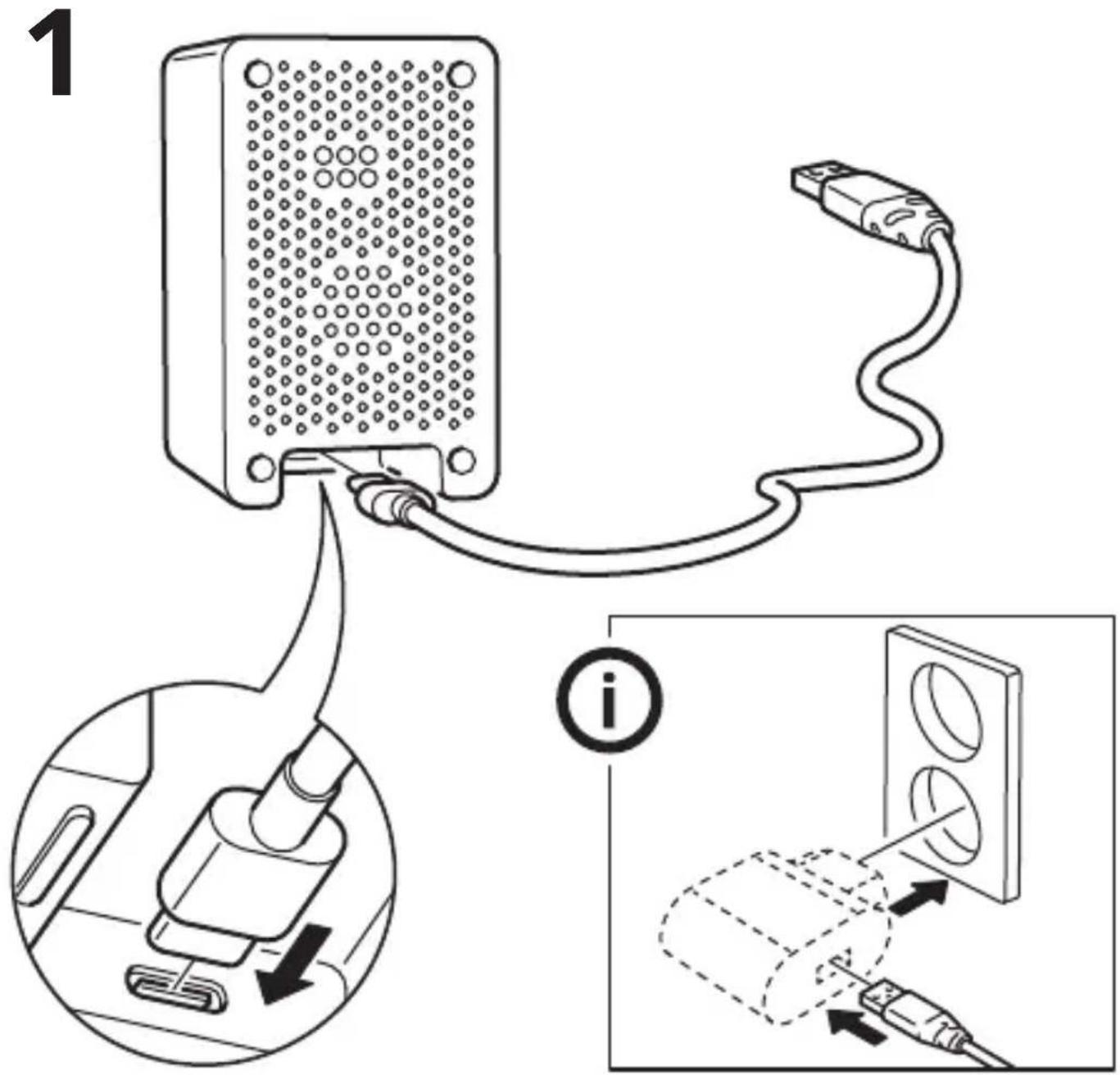

Recommended power supply:

5.0 VDC, 1.0 A (Not included)

Connect VINDSTYRKA to DIRIGERA hub

connecting VINDSTYRKA to DIRIGERA hub, you'll be able to see the room's air quality in the IKEA Home smart app.

If you have an iOS device:

Go to the App Store and download the IKEA Home smart app. The app will show you how to connect VINDSTYRKA to DIRIGERA hub.

If you have an Android device:

Go to Google Play and download the IKEA Home smart app. The app will show you how to connect VINDSTYRKA to DIRIGERA hub.

Pairing: Connecting VINDSTYRKA air quality sensor to DIRIGERA hub and STARKVIND air purifier.

• When the pairing mode is activated, the pairing icon on the display should blink until VINDSTYRKA is connected to the air purifier or the hub.
• When VINDSTYRKA is connected to 1 air purifier, the following icon should be active on the display.
• When VINDSTYRKA is connected to more than 1 air purifier, the following icon should be active on the display.
• When VINDSTYRKA is connected to DIRIGERA hub, only the pairing icon should be visible on the screen.

Display on VINDSTYRKA

Shows connected air purifiers.

Displays level of PM2.5 particles.

PM2.5 are small inhalable particles, particles with a max. size of 2.5 micrometres.

Green: 0-35 g/m ^3 , Yellow: 35-120 g/m ^3 , Red: >120 g/m ^3 .

Room temperature

Room relative humidity

Temperature and humidity can affect the indoor comfort and wellbeing.

Indicates increasing, stable or decreasing level of TVOC.

TVOC stands for "Total Volatile Organic Compounds" (VOC).

Settings mode

A long press on the mode button will enter the Settings mode.

Brightness

A flashing symbol means that it is possible to adjust the brightness level. Press the mode button to select between level 1, 2, and 3.

A long press on the mode button confirms

the setting and takes you to the settings for temperature.

Auto off: After 1 minute, the display brightness will return to its default setting (level 2).

Temperature unit

A flashing symbol means that it is possible to adjust the temperature.

Press the mode button to switch between Celsius and Fahrenheit.

A long press on the mode button confirms the setting and takes you back to the Settings mode.

Important!

• The product is only intended for household use under normal operating conditions.

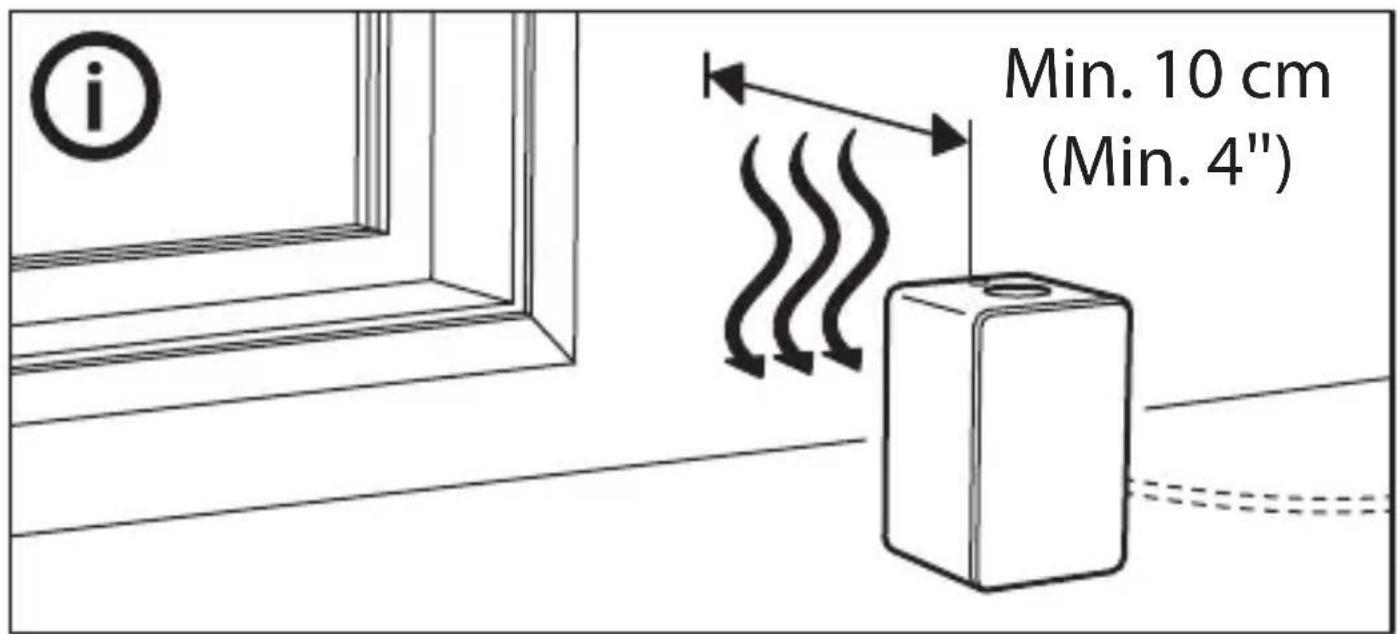

• Do not block the air intakes and outlet in the rear.

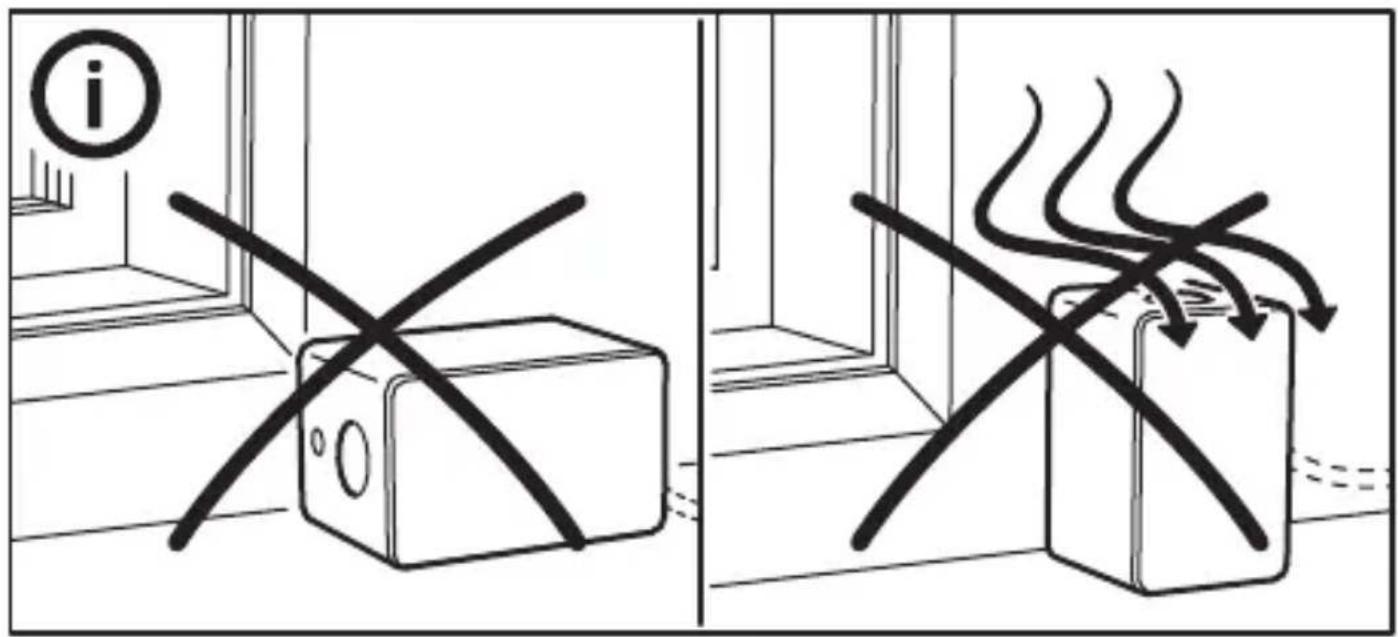

• Do not leave the product in direct sunlight or near any heat source, as it may overheat.
• The wall socket must be located near the equipment and must be easily accessible.
• Do not subject the product to wet, moist or excessively dusty environments since this can cause damage to the unit.
• Children should be supervised to ensure they do not play with the product.
• The product does not measure carbon monoxide (CO) or radon (Rn). It cannot be used as a safety

device upon accidents involving combustion processes and hazardous chemicals.

• Be sure to not exceed the maximum USB cable length recommended for the device.
• Never use a damage or faulty USB cable, since this can damage or harm the power adapter or your product.
• Unplug the product from the power source before cleaning and when it is not in use.

Save these instructions for future use.

Factory reset

Quick-press the pairing button 4 times to perform a factory reset.

Care instructions

Wipe with a soft cloth moistened with a little mild detergent.

Use another soft, dry cloth to wipe dry.

Note!

Never use abrasive cleaners or chemical solvents as this can damage the product.

Product servicing

Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.

Technical data

Model: VINDSTYRKA air quality sensor

Type: E2112

Input: 5.0 VDC, 1.0 A, 0.5 W, USB-C

Particle detection range: 0\~1000 g/m ^3

Radio range: 10 m in open air

Operating frequency: 2400\~2483.5 MHz

Output power: 8 dBm

Operation temperature: 0°C to 40°C

Operating humidity: 0 to 95% RH

Max USB cable length: 3.0 m/9'8"

Indoor use only

Manufacturer: IKEA of Sweden AB

Adress: Box 702, SE-343 81 Älmhult, SWEDEN

This device complies with Part 15 of the FCC Rules. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation Science and Economic Development Canada's licence-exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference

received, including interference that may cause undesired operation of the device.

WARNING:

Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

License rights and limitations

NO RIGHTS OR LICENSES, EXPRESS NO RIGHTS OR LICENSES, EXPRESS OR IMPLIED, ARE GRANTED TO USE THIRD-PARTY DEVICES IN COMBINATION WITH THESE PRODUCTS IN A WIRELESS MESH NETWORK, OR TO USE THIRD-PARTY SERVICES TO ACCESS, MONITOR OR CONTROL THESE PRODUCTS IN A WIRELESS MESH NETWORK VIA THE INTERNET OR ANOTHER EXTERNAL WIDE AREA NETWORK.

For use pursuant to U.S. Patent Nos.:

US 6,914,893

US 7,697,492

US 8,964,708

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.
